Selling off a couple of my Falcons

Blog by Steve Laug

I have been slowly (and I mean really slowly) going through some of the pipes in my own collection and selling them. I have quite a few Falcons and to be honest I just do not smoke them enough to warrant keeping so many. The next pipes on my work table to clean up are two of these Falcons. Both of them are American made Falcons rather than British made ones. They have a smooth bowls. The bases have the number 1 in the indentation on the heel of the base. Both are stamped FALCON. The aluminum is in need of a good polish as are the bowls. The stems have some light tooth chatter. But overall they are in excellent condition.Before I started refreshing each of the pipes I decided to have a look at Pipephil to remind myself about he history of the brand (http://www.pipephil.eu/logos/en/logo-f1.html). I have included a screen capture of the information on the site below.I also include the brief sidebar history from the site below:

The Falcon Pipe is an American invention, patented by Kenley Bugg of Fort Wayne, Indiana in 1936.

1948: George L. Hunt of Diversey Machine Works (D.M.W) signed a contract with Falcon Industries as exclusive Falcon pipe distributor for U.S. and Canada.

1956: D.M.W purchased the patents and trademarks from Falcon Industries Inc. and took over the Falcon pipes manufacture.

1968: Falcon pipe production moved from the U.S to the U.K in its entirety. Falcon Pipes Ltd. (also known as Falcon House Group) was owned by David E. Morris.

Falcon Pipes Ltd later became Merton and Falcon Co.

1974: Falcon London had sold about 14 million pipes around the world outside the U.S.A.

The Falcon logo on the mouthpiece was discontinued in 1994.

There was also interesting information the particular stamping on the base of this pipe. It has the stamping that identifies it as an American made Falcon. Now I had the basic background information on the two pipes. I knew that the pipes were made after 1948 and prior to the move of production to the UK in 1968. So needless to say both are older American made pipes.

Now to work on the pipes. I decided to work on them one at a time and complete one before working on another. The first one I chose is the rounded top Dublin bowled one below. It was in good condition. The bowl and base were very clean. The rim top had a little darkening. The stem had some tooth chatter on both sides near the button. I took some photos of the pipe before I started. I took some photos of the rim top and the stem to show the condition of them both. You can see that the bowl is very clean. The darkening will polish off. The stem chatter will polish out as well.Here is a photo of the stamping on the heel of the base. It reads as noted above.I removed the bowl from the base to show the inside of the base. It is quite clean. I polished the bowl and rim top with micromesh sanding pads – dry sanding with 1500-12000 grit pads and wiping the bowl with a damp cloth down after each pad. It really began to shine. I rubbed down the bowl with Before & After Restoration Balm working it into the briar with my fingertips. The product works to clean, enliven and protect the briar. After 10 minutes I buffed it off with a soft cloth. The bowl looks quite beautiful with the grain shining through. I polished out the tooth marks on the stem with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the stem down after each pad with Obsidian Oil. I further polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to dry. The first of them is finished. It turned out to be a real beauty. The dimension of the pipe are – Length: 6 inches, Height: 1 ½ inches, Outer diameter of the bowl: 1 ¾ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 33 grams/1.16 ounces. It is a beautiful pipe and one that will be on the Pipes from Various Makers – Czech, Belgian, German, Israeli, Spanish Pipemakers along with Metal Pipes section of the rebornpipes store soon. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog. The second one I chose is the flat top Dublin bowled one below. It was in good condition. The bowl and base were very clean. The rim top had a little darkening. The stem had some tooth chatter on both sides near the button. I took some photos of the pipe before I started. I took some photos of the rim top and the stem to show the condition of them both. You can see that the bowl is very clean. There were some nicks around the inner edge that would need to be dealt with as well as some on the rim top. The darkening will polish off. The stem chatter will polish out as well.Here is a photo of the stamping on the heel of the base. It reads as noted above.I removed the bowl from the base to show the inside of the base. It is quite clean.  I cleaned up the inner edge of the rim and the rim top with a folded piece of 220 grit sandpaper. I gave the edge a slight bevel to minimize the damage on the right side. It looked a lot better.I polished the bowl and rim top with micromesh sanding pads – dry sanding with 1500-12000 grit pads and wiping the bowl with a damp cloth down after each pad. It really began to shine. I rubbed down the bowl with Before & After Restoration Balm working it into the briar with my fingertips. The product works to clean, enliven and protect the briar. After 10 minutes I buffed it off with a soft cloth. The bowl looks quite beautiful with the grain shining through. I polished out the tooth marks on the stem with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the stem down after each pad with Obsidian Oil. I further polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to dry. The second Falcon is finished. It also turned out to be a real beauty. The dimension of the pipe are – Length: 6 inches, Height: 1 ½ inches, Outer diameter of the bowl: 1 ½ inches, Chamber diameter: 7/8 of an inch. The weight of the pipe is 26 grams/.88 ounces. It is a beautiful pipe and one that will be on the Pipes from Various Makers – Czech, Belgian, German, Israeli, Spanish Pipemakers along with Metal Pipes section of the rebornpipes store soon. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog.

Restoring a Heavily Smoked Falcon with a Dublin Bowl

Blog by Steve Laug

The next pipe I have chosen from Bob Kerr’s collection is the first of four metal pipes in the estate. Bob was an artist from the Vancouver area and a real character (Bob’s photo is to the left). If you have not “met” the man and would like to read a bit of the history of the pipeman, his daughter has written a great tribute that is worth a read. Because I have included it in most of the restorations of the estate to date I thought that I would leave it out this time. To read it you can check out some of the recent Dunhill restoration blogs such as the one linked below (https://rebornpipes.com/2020/01/01/restoring-the-last-of-bob-kerrs-dunhills-a-1962-dunhill-bruyere-656-f-t-bent-billiard/).

This first metal pipe from Bob’s Collection – a Falcon and this one is worn and dirty. It has a Dublin bowl and a medium brown finish. The metal and the briar bowl are very dirty with dust and debris ground into the finish. There was a thick cake in the bowl with tobacco debris. There was a heavy lava overflow on 2/3rds of the rim making it impossible to know if there is any damage on the inner edge of the bowl. It is stamped FALCON on the metal base of the pipe. There was also a number 1 in the hollow on the bowl bottom. The vulcanite stem is tapered and is oxidized, calcified and has light tooth marks and chatter on both sides near the button. Jeff took photos of the pipe to show its general condition before he did his cleanup. Jeff captured the filthy bowl and rim top in the next photos. You can see the thick the coat of lava on the edges and top. The thick cake in the bowl is also visible in the photos. The pipe was obviously one of Bob’s favourites and must have been an amazing smoker even this clogged with debris.   The next two photos show the grime ground into the smooth finish around the sides of the briar bowl. This old pipe was truly a mess. The aluminum base and shank are oxidized and dirty.    The brand is stamped on the underside of the shank and in the indentation there is a number 1 stamped.Jeff unscrewed the bowl from the base to show the tars and oils in the base. It hardens to a lacquer.The stem is calcified and oxidized with light tooth marks and chatter on both sides.       I turned to Pipephil (http://www.pipephil.eu/logos/en/logo-f1.html) to see what I could learn about the brand. I have included a screen capture of the information on the site below.I also include the brief sidebar history from the site below:

The Falcon Pipe is an American invention, patented by Kenley Bugg of Fort Wayne, Indiana in 1936.

1948: George L. Hunt of Diversey Machine Works (D.M.W) signed a contract with Falcon Industries as exclusive Falcon pipe distributor for U.S. and Canada.

1956: D.M.W purchased the patents and trademarks from Falcon Industries Inc. and took over the Falcon pipes manufacture.

1968: Falcon pipe production moved from the U.S to the U.K in its entirety. Falcon Pipes Ltd. (also known as Falcon House Group) was owned by David E. Morris.

Falcon Pipes Ltd later became Merton and Falcon Co.

1974: Falcon London had sold about 14 million pipes around the world outside the U.S.A.

The Falcon logo on the mouthpiece was discontinued in 1994.

There was also interesting information the particular stamping on the base of this pipe. It has the stamping that identifies it as an American made Falcon. Now I had the basic background information on the pipe. I also knew that the pipe was made after 1948 and prior to the move of production to the UK in 1968.

With over 125 pipes to clean from Bob’s estate I took a batch of them to the states with me when I visited and left them with Jeff so he could help me out. Jeff cleaned the pipes with his usual penchant for thoroughness that I really appreciate. Once he finished he shipped them back to me. This one was a real mess and I did not know what to expect when I unwrapped it from his box. He reamed the bowl with a PipNet pipe reamer and cleaned up the reaming with a Savinelli Fitsall Pipe Knife. He scrubbed out the internals with alcohol, pipe cleaners and cotton swabs until the pipe was clean. He scrubbed the exterior of the bowl with Murphy’s Oil Soap and a tooth brush to remove the grime and grit on the briar and the lava on the rim top. The finish looks very good with good looking grain around the bowl and shank. Jeff scrubbed it with Soft Scrub and soaked it in Before & After Deoxidizer to remove the oxidation on the rubber. When the pipe arrived here in Vancouver for the second stop of its restoration tour it looked a lot better. I took photos before I started my part of the work.  I took a close up photo of the rim top and bowl to show how clean both were. The rim top showed some wear on the front edge and top. I also took photos of the stem top and underside. You can see the remaining oxidation and the light tooth marks. I took photos of the stamping on the heel of the base and the shank. You can see the FALCON stamp and the number 1.I took the bowl off the base and took photos of the pipe. It is a very clean looking pipe. The base is sparkling now rather than darkened with tobacco lacquer. With a little work the stem oxidation will be gone and it will look very good. I decided to start working on the pipe by dealing with damaged inner edge of the bowl. I sanded it with a folded piece of 220 grit sandpaper. I then repaired the filled areas with clear super glue. Once the repairs had cured I sanded them smooth to blend them into the surrounding briar. I polished the briar with micromesh sanding pads – sanding and polishing the briar with 1500-12000 grit pads. Each sanding pad brought more shine to the bowl. I worked Before & After Restoration Balm into the rusticated surface of the briar with my fingertips to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth and shoe brush to raise the shine. The pipe looks very good after the Balm has done its magic.   I set the bowl aside and turned my attention to the stem. The stem was in great condition with light tooth marks and some remaining oxidation. I sanded the stem with a folded piece of 220 grit sandpaper to remove the oxidation, tooth marks and chatter. I started polishing the vulcanite with 400 grit wet dry sandpaper.   I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.       This American made Falcon with a Dublin bowl from Bob Kerr’s estate turned out to be a great looking pipe. The grain on the bowl is quite beautiful and really came alive with the cleaning and buffing. The finish on the pipe is in excellent condition and works well with the polished base and vulcanite saddle stem. I put the bowl back on the base and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the metal. I gave the bowl and stem multiple coats of carnauba wax and buffed it on the buffing wheel. I buffed entire pipe with a clean buffing pad to raise the shine on the bowl and stem. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Falcon with a Dublin bowl fits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ¾ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: 7/8 of an inch. If you are interested in carrying on Bob’s legacy with this Falcon metal pipe send me a message or an email. I have more to work on of various brands. Perhaps one of those will catch your attention. Thanks for reading this blog and my reflections on the pipe while I worked on it. This is an interesting estate to bring back to life.

The Decline of Restoring Old Pipes, Part 1/4

Blog by Robert M. Boughton
Copyright © Reborn Pipes and the Author except as cited

“I bet ya three-to-one I beat this.”
— John Joseph “The Teflon Don” Gotti, Jr. (1940-2002), Mafia boss, to law enforcement officers the night he was arrested for five murders, racketeering, loan sharking, tax evasion and related charges leading to his conviction

“The Teflon is gone. The don is covered with Velcro….”
— James Fox, FBI Assistant Director in Charge of the New York field office, upon Gotti’s conviction on all counts and sentence to life without parole

While the denouement of the golden age of pipe restoration I anticipate here is only of importance to those who undertake the artful practice and the collectors they serve, and represents nothing as dramatic as the life of John Gotti or his vicious crimes from the age of 12 until he was convicted at 51, the problems I will describe are real and present  The dangers relate to pipes made of wood, meerschaum, synthetic plastic and even metal, in particular antiques and many that are pushing the limits of vintage.  The simple facts are that certain parts used in the construction of some old pipes are no longer manufactured nor can they be, and still more materials needed to restore them and others to original condition are not being pre-fashioned.

This dearth of components that once were ready-made or easier to come by restricts their availability to a rarefied number of true artists in the repair business possessing the essential skills to create vital pieces to the specifications of given projects.  Such craftsmen, already very difficult to track down, are in fact dying out.  The ability of most common and even some great restorers to complete their work as most would prefer – to the pipe’s authentic state – is therefore in grave peril.  This is the sad reality

The supplies I have identified so far with careful thought, but by no means having reached a comprehensive list, are Bakelite, including Redmanol;:amber and amberoid; ivory, notwithstanding its illegality in the U.S. and most other countries, or in the alternative imitation ivory; bone and horn tenon screws; replacement bowls and other components of metal and other pipes;  real corncob Aristocob inserts, made just for that infamous aluminum pipe, and the most surprising member on the endangered species list, the push-pull Teflon stem fittings used with most meerschaum pipes, especially newer ones.

I spoke on the telephone to Floyd Norwood, the patriarch of a two-generation family pipe repair business.  He is retired but continues taking a hand in the operation as his son now runs the shop.  Prepared for the immediate negative response, I wanted to know if I could buy an assortment of bone screw tenons from them, but his next words shook me and started the cogitation that led to this blog.  I had left his name out of this because the conversation wasn’t a formal interview, but it will become obvious later in the series.

“Nobody makes these things anymore,” the old gentleman began.  “These things” encompassed the various parts we had discussed, not only bone tenons but real amber and the Bakelite family of stem materials.  Mr. Norwood’s voice was tired, sad and a bit disgusted.

“Tell me about it!” I replied in the heat of commiseration I immediately understood could not begin to match his own sorrow after a lifetime career seeing the dissipation of the tools he employed in his labor of love.  “It took me two years to track you down, and then only in a recent, second, desperate plea for help did one friend on the Smokers Forums UK think to recommend you.”  I dropped the name of the friend, who will remain anonymous.

A few others on SF responded with vague attempts to help that I appreciated, but none could recall the name of the person who did such specialty work for them in the distant past.  Only when I posted in the thread that the problem was solved by the link provided in the first response did several other members chime in that they had also used Norwoods Pipe Repair at times and gave the man with whom I had the honor of chatting, or in more recent experiences his son, Kenneth, their highest recommendation for quality of service, speed and price.  I amended my previous comment to include the total of four glowing referrals, but it did little to cheer up the aging expert whose specialized skills I have now enjoyed for three pipes.

“The kids these days doing the repairs, and even the older restorers, just aren’t interested or able to do the work involved,” the worn out and still somewhat irked master continued, “and I mean for a single job much less volume production for sale to people like you.”

I took no offense from the last phrase.  He was correct, after all.

Leo H. Baekeland (1863-1944), a Belgian-American chemist, invented Bakelite, the first synthetic plastic, in 1907.  He named it after himself.  I will save most of the ruthless and covetous tactics Baekeland undertook, in order to seize control of many much smaller companies that made similar but superior synthetic plastics, for another blog that is in the works.  Here’s all you need to know for now.

Bakelite was patented for its revolutionary innovation that employed thermosetting, a process of controlling intense heating and pressure, of phenol and formaldehyde resins sometimes combined with lesser amounts of wood or asbestos fibers that resulted in soft or liquid material. In that form, Bakelite could be molded into any shape before final curing rendered it irreversible.  Baekeland called his machine that performed the entire operation – what else? – the “Bakelizer.”  Bakelite was particularly useful because of its electrical nonconductivity and heat resistant qualities that made it ideal for diverse products including electrical casings, firearms and tobacco pipes and stems, to name only a few.

The two particular small, independent chemical research and production laboratories to which I alluded a moment ago – the Redmanol Chemical Products Co. of America in Chicago formed in 1913 by Lawrence V. Redman, after whom his creation was self-styled; and the Condensite Co., started in 1910 and headed by A.J. Aylsworth, over which Redmanol had acquired a controlling interest – developed synthetic plastics that were stronger and capable of being colored in more varieties than Bakelite.  Original Bakelite, whatever the color, still looked like plastic, while deep red, translucent Redmanol was so close to amber of the same color that it often requires an expert to differentiate the two.

Bakelite cigar holder, left; real amber compared to Redmanol, right

The greater strength and coloring qualities of Redmanol and Condensite were the results of different chemical catalysts used employing the same basic heat and pressure process innovated by Baekeland.  But Redmanol employed the action of formin on carbolic acid, while Condensite utilized the effect of chlorine on naphthalene.  Furthermore, Baekeland’s machine, the Bakelizer, was only one means of achieving the intense heat and pressure necessary for the reactions of the two ingredients he chose.  Aylsworth devised a means of heating the chlorine and naphthalene without pressure, a process Redman adopted.  The three processes, therefore, rendered each substantially different.  In 1922, however, a U.S. Federal Court judge in New York interpreted the tortuous patent laws in favor of Bakelite – which, by the way, not wanting to force its two greatest competitors to defend themselves sued not the manufacturers but their distributors – destroyed and  merged the prized competitors into its growing family in the newly and litigiously formed Bakelite Corporation.  Since then, Redmanol and Condensite products have been lumped together under the single name Bakelite.

The Bakelite patent can be read below.

The Problems
The most obvious difficulty is that Bakelite, at least for tobacco pipe products, has not been manufactured since 1939, when Bakelite Corp. was acquired by Union Carbide and Carbon Corp. (Union Carbide Corp. since 1957).  As was already noted, the curing process for Bakelite rendered it “irreversible.”  Bakelite products were custom made for whatever use was needed.  In other words, for purposes of restoring old stems made of Bakelite, which, again, includes Redmanol, any necessary replacement can be reworked in only one way: fitting an over-sized stem of an otherwise suitable candidate to a shank by serious sanding or other such methods.  Any other alteration, such as bending or threading, is strictly impossible compared to Vulcanite, acrylic and even amber.  By way of illustrations, imagine trying to find substitute parts for these beauties.

Socket pipe with meerschaum bowl, Redmanol shank and stem and bone tenon screw

KB&B gold band socket pipe with irreplaceable threaded Redmanol stem and bottom and custom-made screw-in briar bowl

Amber is an organic material (neither gem nor stone despite common descriptions) formed by the polymerization of prehistoric pine tree resin into hard, fossilized pieces that often have inclusions, meaning trapped insects or plants.  More than half of the known inclusions found have been flies.  Its colors include yellow and orange, the most common, as well as red, green, blue and brown, and these colors range in translucence to almost opaque.  Found in the greatest quantities throughout Europe, amber is more common in the northern Baltic countries and Russia, but is also present in other places all over the planet.  Amberoid refers to pieces of amber and sometimes other resins compressed by intense heat and pressure. Most of it is used for jewelry, primarily in small bits and pieces.

Polished Baltic amber courtesy Minerals.net

The Problems
Amber is on the soft and fragile side (2-3 on the Mohs scale of 1-10, with talc being 1 and diamond 10), and it begins to decay the instant it is exposed to sunlight.  By human reckoning the process is very slow, but amber’s natural brittleness increases considerably within a human lifetime.  That means that its use as a material for pipe stems in the late 19th and early 20th centuries leaves examples that are now more prone to chipping and breaking, neither of which damage can be repaired with a purist method if at all.

Also, even for anyone alive today who is capable of fashioning an amber stem, the cost is prohibitive, and the process very difficult   Because amber does not actually melt, as in the sense of turning to liquid, but rather reaches the temperature where it would at about 570° F. and beyond that decomposes, there may be nobody around now inclined to try anyway, as Floyd Norwood suggested..

As a result, we are left with a more and more limited supply of random styles and lengths that can be found only at places such as eBay, where the sellers don’t know or care enough about pipe restoration to publish the measurements and, in my experience, are clueless when asked to provide such information.  In other words, they can be found in random lots the measurements of which can only be guessed.  The increasingly absurd prices of these lots make buying them a serious gamble with poor odds of winning.

Amberoid is a still bigger problem.  For those willing to destroy various jewelry and other ornaments made of amberoid, the bits and pieces acquired would be useless.  The only amberoid stems I can find available to buy are already on pipes, such as this Andreas Bauer meerschaum billiard courtesy of SmokingPipes.com.IVORY, REAL AND IMITATION
Ivory in its purest form is the dense material forming the teeth and tusks of large mammals including elephants that are still present in our world, their distant relatives mastodons that have been extinct since the end of the Pleistocene epoch 10,000-11,000 years ago and woolly mammoths (another ancestor of elephants that were alive during the earliest time of humans but died off completely 4,000 years ago).

Other, less valued forms of ivory are found in walruses, narwhals, hippopotami, rhinoceroses, warthogs and sperm whales, but also in a variety of smaller species such as elks.  For most of human history, ivory has been prized for its artistic uses, from classical statues to piano keys.  The fact that ivory, in particular its oldest and finest variety, can be carved into any form made it valuable for beautiful works of art, including ornate tobacco pipes.

Japanese carved ivory tusk courtesy invaluable.com

1890 Tiffany ivory-silver pipe courtesy tobaccopipehistory.blogspot.com

Tsuge ivory billiard courtesy Brothers of Briar

There are several alternatives to ivory.  Celluloid; believe it or not; invented in France in 1865, is the oldest.  Best known for its later use as an early, highly flammable film for motion pictures; celluloid – not Bakelite – is touted on some sites as the first “successful” synthetic plastic and was used for products that were not limited to the following.

Celluloid chip and dice courtesy antiquegamblingchips.com

Billiard balls courtesy sciencehistory.org

Celluloid ivory sample sheets courtesy Rothko & Price

A second, more workable imitation ivory is vegetable ivory, found in the nuts of varieties of tropical South American palms.  The white cores of these nuts are fashionable into all kinds of shapes that harden and can be polished like real ivory, and best of all, they can be drilled for stem making purposes.  The nut below looks tiny but is in fact about the size of a large honeydew melon.  It even has a fine grain pattern that can be differentiated from that of real ivory.

Vegetable ivory nut from Micronesia courtesy palomar.edu

There is a third, still better, resin-based variety of imitation ivory for pipe makers and restorers capable of tooling a stem from scratch.  Although hesitant to promote a single business when there may be others using the same brand, I can’t find any, and the brand factor is vital because of the similarity of others that nevertheless possess serious basic differences.  These characteristics include the use of polyester in those that are inferior for pipe use, leaving them weaker, less glossy when buffed and all-in-all not so close to the real thing that there might be a problem trying to transport an object made of this stuff through airport customs.  To get around to the reluctant business plug, whatever the brand name is, it’s available at Vermont Freehand

The rods sold at that online business are offered in different diameters, the same as those used for traditional materials such as Ebonite.  Vermont Freehand describes it as the finest available.  It varies in price according to two grades, 1 and 2 where 1 is the better, and the diameter desired, from $3.60-$100.  For example, the minimum 12mm diameter rod of Grade 2 is $3.60 compared to a 14mm rod of Grade 1, which is $7.20.  The largest diameter of Grade 2 is 1.4” square at $28.80, and a 1.6” x 2.6” rectangle of Grade 1 is $100.  Again, note the grains.

Imitation ivory stem rods courtesy Vermont Freehand

The Problems
In this case, the “problems” for the most part are really solutions to a greater crisis.  Evolving international laws aimed at saving African and Asian elephant populations, devastated to the verge of extinction by poaching and unregulated exportation of tusks that are harvested for their great value, at the expense of elephant lives, have had unexpected and negative effects on the animals they are intended to protect.  Uncooperative countries that I will not name here in the interest of avoiding geo-political argument and controversy have allowed poachers to capitalize on the increased value of ivory that resulted from the various embargo attempts.

Tougher and more restrictive bans are already being enforced to degrees that seem to have stabilized at least some elephant herds in Africa and Asia, and still more effective laws are being considered, notably in the United States and the European Union.  The present laws, targeting buyers and sellers of ivory as well as art dealers and collectors, are expected to curb poaching still more.

Certain aspects of the laws have been met with resistance from art and personal rights advocates.  The issues have to do with the age of the artworks, the years they were acquired and the sources, all of which create complexities for enforcement, to put it in the simplest terms that are anything but simple.

In 2016, the Obama Administration initiated a blanket ban on the importation of elephant ivory and almost all sales of ivory throughout the country.  The very few exceptions include antiques that can be proven through a professional appraisal or a bill of sale to be at least 100 years old.  Many ivory pipes fit that category.  However, President Trump, undermining the Obama ban, directed the Fish and Wildlife Service to consider importation permits for sport-hunted elephant trophies from select African countries “on a case by case basis.”  In other words, Trump has cleared the way for his rich cronies to bring elephant heads with their tusks intact home from safaris.  This kind of favoritism, which was never announced publicly by the Trump Administration but rather via a Fish and Wildlife Service memo issued March 1, 2018, can’t possibly surprise anyone given Trump’s record since he assumed office.

Concerning imitation ivory of any kind, it is of more use to master artisans who can create a stem by hand or machine, again, rather than average or even skilled restorers.  However, this resin-based imitation ivory sold by Vermont Freehand might be fashionable into small pieces suitable for filling chips and other damages to real ivory pipes – but only with serious practice based on what I’ve learned of its physical makeup.

The good news is that bone and horn screw tenons, which can be made from the calcified skeletal remains of animals such as cows and deer, are not in short supply.  To be sure, there are other sources, but J.H. Lowe, for example, offers “a multitude of styles and sizes” in assorted 12-packs for $28.90 – and you know what you’re getting compared to online auction sites that tend to be clueless as to the importance of the various elements of importance in measuring the correct size.  Another plus when ordering screw tenons from an actual pipe supply store is that they are new.  Here is a motley collection of bone screw tenons said to be antiques courtesy of Worthpoint.
Without impugning the integrity of the seller of those screw tenons, if they are antiques, they represent a pristine collection of unused specimens.  I’ll take this opportunity to emphasize that, although I am committed to using only the original materials for antique and extreme vintage pipe restorations, that devotion does not require any replacement parts to be as old as the pipe I’m refurbishing.  A brand new screw tenon or anything else, so long as it’s the same substance as the one with which the pipe came, is fine with me, and I’m planning on stocking up on assorted sizes, styles and shapes of everything I can find in new condition.  Still, I have a small collection of antique and vintage tenons, stems, bands, an endcap and one shank extension, upon which I look forward to expanding.  No doubt the day will come for each to find its wizened old pipe mate, and I anticipate the matches, at the risk of sounding daft, with somewhat of a sense of excitement.  Call me old-fashioned or sentimental or a codger or what you will, but there it is.

The two on the left are Redmanol.

The Problems
I realize I’ve overstepped the subject of bone tenon screws a bit in this section, for reasons of expansion on the greater subject, but now to address the problems with those parts.  Again, I stated that the bone tenons are in no immediate danger of extinction.  I should have qualified that assertion by noting in most cases.  Consider the photo of my antique bone screws above.  I have no doubt that various suppliers of newly made old-style supplies such as these screws indeed have considerable varieties on hand, but the fact remains, many were custom made as long as a century or more in the past.  As the venerable Mr. Norwood pointed out, nobody is stepping up to produce such oddities as bone screws to order.  Of course, artisans able to do so can and will be found – but the task won’t be easy, as Part 2 of my series will show.

Then there are several other problems, I’ll call them: one, fitting a bone screw requires matching it to the stem and shank.  In most cases, the measurements for each are different, not to mention the style of the tenon screw.  Just whipping out the calipers and determining the approximate diameters of the two ends and the optimum length of the whole may not be enough.  Two, bone is inherently soft and brittle, and therefore breaks with the least provocation.  If you’re lucky, the original broken tenon will be available, but if so, it’s likely to be in bits and pieces, some powdered.  It follows that matching can be problematic.  Three – and this isn’t being persnickety – adding to all of the above obstacles is the likelihood, not possibility, that re-threading the stem and/or shank into which each end of the bone tenon screws will be necessary.  To be blunt, not everyone is up to any or all of these tasks.

To sum up, the more than potential need for someone specializing in bone tenon repair will become mandatory.

Arguably the most fascinating coincidence in the history of pipe making was the introduction in a single year of two brands of an altogether new kind of system pipe.  The year was 1936, and the inventors were Frederick K. Kirsten, a German-born emigrant to the U.S., and Kenly C. Bugg, a native of Indiana.  Both of them were engineers and prolific inventors with great numbers of diverse patents, and each chose aluminum for the frame, because of its light weight and rapid heat dispersion, as well as screw-on briar bowls.  Otherwise, their designs were quite different   Kirsten’s pipes are more box-like while Bugg’s are sleeker and more cylindrical.

1930s Kirsten courtesy Pinterest and “very old” Falcon courtesy Smoking Metal

The basic systems – the details of which I will omit – differ, also, but suffice it to say, Kirsten’s was more complex while Bugg’s was simpler, using a moisture trap beneath the bowl.

Which man committed his plans to paper and created a prototype is moot.  Kirsten had the presence of mind to begin manufacture and sale of his pipes the same year, applied for the patent in 1937 and received his grant with US Patent No. D112, 701 on December 27, 1938.  Bugg, on the other hand, sat on his invention, not selling his first pipes until 1940 and receiving US Patent No. 142,280 on August 21, 1945.  Kirsten, therefore, is generally credited with the invention of the metal system pipe despite the uncertainty of the exact date of the metal system pipe’s conception and in whose mind it occurred,

I have included the Patents for both for your enjoyment should you wish to read them (the Kirsten first followed by the Bugg).
The transition of production of the great American original Falcon pipes to Great Britain began in 1961, when production started there.  In 1968, U.S. production of Falcon pipes was transferred altogether to Falcon Pipes Ltd. (also known as Falcon House Group) in Great Britain, which still later became the Merton and Falcon Co.  The Falcon Pipe Group now runs the operation, as far as I can tell.  Despite the convoluted name changes, Falcon pipes have maintained their quality since Kenly Bugg made the first one.  By the way, to clarify a variation that began to annoy me, there is no second e in Kenly, despite frequent errors.  See patent signature of inventor.

Everything so far in the category of metal pipes has been to explain the genesis of an explosion in brands and systems of metal pipes with bowls made of wood, meerschaum and the sundry Bakelite materials, to name some.  The exact number of Falcon pipes sold worldwide to date is difficult to pin down, but two numbers stand out: by 1954, six million of them had been sold in the U.S. alone, and starting seven years later, from between 1961 and 1974, 16 million more were sold by the oft-switching producers in England to pipers around the world, excluding the U.S.   This leads us on a nice, ordered path to…

The Problems
Rest easily, Kirstens and Falcons are in no danger of running out of replacement bowls and even other parts as both companies remain in business and don’t appear to have plans to stop.  Replacements or new screw-in bowls are available directly from Kirsten Pipes or the Falcon Pipe Group’s distributors, such as the Arango Cigar Co. in the U.S.  This is not to mention the numerous artisans who make bowls that fit either or both, including Don Warren Pipes for Kirsten bowls and DGE Handmade Pipes and Manly Things (I didn’t make up the name, so don’t shoot the messenger) for Falcon and/or Dr. Grabow Viking bowls, which are interchangeable.

That reassurance made, the rest will be brief and simple in its awfulness.  I’m not about to go through the entire A-Z Index at Smoking Metal’s UK website to locate, count and determine all of the brands – known and unidentified – of metal system pipes identified and catalogued so far by Tony Pringle.  Like a French gentleman whose first name is Richard but is known to countless pipe smokers as Pipephil (who retired a few years ago), Tony works alone and in his spare time, making his accomplishment a monumental feat even with the sparse contributions of readers.

All I need to point out is that many – no, more likely the vast majority – of the metal pipes listed and shown at Smoking Metal were manufactured without even a moment’s thought about compatibility with others of their kind.  In blatant terms, this means they can’t be replaced without making one from scratch.  And who is going to do that?

I’d say that works as the one and only necessary dilemma with this category of scarcity.

The Aristocob was invented by Joseph W. Zarikta and assigned to the Al-Cobb Corporation (later Aristocob, Inc.) of Grand Haven, Michigan with U.S. Patent No. 3,292,639, granted just in time for Christmas 1966. Here is what the new-in-plastic case product looked like, complete with the aluminum frame, plastic stem and two cob inserts, courtesy Smoking Metal.  (Filter possibly not included.)

The Problems
Missouri Meerschaum took over manufacturing the Aristocob and its inserts in the mid-1970s.  The best known maker of cob pipes discontinued the Aristocob at some point but continued manufacturing the inserts until 1983, when the endeavor became unprofitable.

While it is true that original Aristocob corncob inserts can still be found online, at one of the last sources in the astounding list at the end, for example, when they’re all gone, that will be the end of the real thing.  The substitution of a custom-carved briar insert at the expense of the original cob is perhaps better for its durability in the lone case of the Aristocob.  As far as I know, they are fashioned only by Steven LaVoice Jr. of Owl Pipes.  I happen to know Steven’s work to be excellent after being compelled to use one of his traditional wood substitutes when I restored an Aristocob three years ago, about a year after Steven started business in Western Massachusetts.

Briar insert from Owl Pipes, with a nice keychain included

Some cold-hearted pipers, hearing of the rising shortage of original corncob inserts for the Aristocob, may bid them good riddance or scoff, “So what!”  I’ll answer that hypothetical question   Those who continue to enjoy durable cob pipes know and appreciate the difference in taste afforded by the intended Aristocob insert.  Any purists are left with one of these singular “art deco” smoking metal creations that’s rendered useless for them.  Others can still buy a briar insert directly from Steven if the owner wishes to be rid of the short-lasting cob originals that I’m told become quite nasty the closer to their expiration they get, and thus avoid the intermediary restorer altogether.  Steven makes different styles of inserts, one of which has the rough exterior reminiscent of real cob.  (Being a bit obsessive-compulsive, I polished the one shown above, which sold to a happy old-timer.)  And the cost of a briar insert, which is five times greater than the $5 I paid at a garage sale for the worn old Aristocob I restored, can be a one-time expense.

The critical fact remains, though, that nobody seems to be stepping up to make quality (non-flammable) cob inserts with a coating to harden them, and therefore, when Steven is no longer around “to do the work” with briar, remaining Aristocobs will be tossed in the trash or placed with nostalgia as heartless shells on shelves.

Now, here’s the most bizarre item on the list, and I hope it sparks English Parliamentary style chaos of furious, frenzied, fibrillating debate – but no fighting, please.  I know that may be shameful of me, and I don’t care, because of the single and singular fact I will assert when I get to the proper Problems section.  For now, a push-pull fitting is formed of two small pieces of polytetrafluoroethylene (Teflon) or a generic variation.  Teflon is a polymer, or chemical compound of high molecular weight, discovered in 1938 by a new-hire at DuPont with a chemistry doctorate.  Teflon, the specific combination of gases and other substances that formed by chance when the lucky chemist heated a canister a certain way by mishap, happens to be extremely resistant to solvents, acids, bases and heat, and hence corrosion and melting, and is therefore perfect for the most part to join a meerschaum pipe shank to its stem.  Of course, it has other uses and fascinating properties anyone so inclined can read about near the end of my sources.  At its simplest, Teflon is a very fancy synthetic plastic.

The two parts are paired with one piece that screws into the shank opening and another into the stem.  A push-pull fitting, in other words, acts as a special tenon on one side that screws or pushes into the other.  Most of the time by far, the tenon part is installed in the opening of the stem and fits the shank part, but I’ve seen the process done in reverse, probably because that’s the way some restorer could make the two match up without drilling either the stem or shank opening.  The use of push-pull fittings was a great innovation to protect the fragile meerschaum and also do away with bone and horn tenons that are just as easy to break

Here are two shots, one of a trio of “standard” push-pull fittings of slight difference in size, courtesy Royal Meerschaum, that costs $3.99 for the three-pack.  The other is a screw-in stem for one of my pipes.  Standard just means they can be pushed or twisted together rather than screwed and are also the general sizes for newer meerschaum pipes.Note my Paktas billiard above with only the stem fitting that screws into the bare meerschaum shank.  I’m always very careful unscrewing it!

The Problems
The single problem with these push-pull fittings is that they’re not hard to find in all of the typical sizes that are pretty much standardized today, but that means bupkis.  The artisans who crafted meerschaum pipes in the old days – before push-pull fittings became popular in the 1970s – did everything themselves, including drilling the shank and stem however they pleased at the moment and depending on the size of the pipe.  Ay, there’s the rub.

In this day and age where everything from furniture to motor vehicles is composed entirely or at the least more than half with cheap and readily available plastic, “real” or synthetic (think imitation Naugahyde), there’s no excuse for a lack of push-pull sets designed in enough sizes to accommodate older pipes.  But there it is.  Oh, they’re no doubt out there some place, but where?  Norwoods Pipes and Walker Pipe Repair, again by way of examples, offer push-pull fittings, but (and no offense is intended to either of these fine pipe repair providers) if they have different sizes, they’re limited.

I sent the following very large lattice meerschaum stummel with no stem and a hole in the shank to Norwoods, which can provide almost any original replacement part, only to learn that the new Lucite stem was no problem, but a push-pull set that big was unavailable.  A bone tenon screw was used instead for the same price, and that pipe with its new tenon and stem arrived in the mail soon after.  In this case, I am quite pleased with the result, since I kept it for my own use and didn’t have to worry about any prospective buyer breaking the bone tenon and blaming me.  That restoration will be the subject of the final part of this series.

For now, I can continue to cobble together limited replacements of the various parts integral to the proper restoration of old pipes, and for those tasks requiring the dwindling repair services that exist, I can turn to them.  I also know of a few artisans with the know-how to tool these small yet vital implements of restoration.  Still, I have no doubt that within my lifetime the need “to do the work” myself will come.  I can only hope practice will be enough…and I had better get to it.


https://books.google.com/books?id=oYZGAQAAQBAJ&pg=PA6&lpg=PA6&dq=redmanol+chemical+products+founder&source=bl&ots=juthNFh-rW&sig=b9qO8plogjv6fj_u2TBjkdpIfCM&hl=en&sa=X&ved=0ahUKEwj-gNj4h9nNAhUM9YMKHXKjBwMQ6AEINDAE#v=onepage&q=redmanol%20chemical%20products%20founder&f=false, Phenolic Resins Technology Handbook, by NPCS Board of Consultants and Engineers, 2017, excerpted by permission
https://books.google.com/books?id=nTs8AQAAMAAJ&pg=PA144&lpg=PA144&dq=redmanol+bakelite+infringement+judgment&source=bl&ots=TCel6fmccJ&sig=ehZijKCRrQSs- RnL6xiDbVA5aKM&hl=en&sa=X&ved=0ahUKEwi39veundvNAhUT32MKHbeiCJwQ6AEIHDAA#v=onepage&q=redmanol%20bakelite%20infringement%20judgment&f=false Factory and Industrial Management, Vol. LXIV, No. 3, August 1922, excerpted by permission (p.144)
https://books.google.com/books?id=11FHAQAAMAAJ&pg=PA816&dq=in+search+of+the+man+made+amber+redmanol&hl=en&sa=X&ved=0ahUKEwis5OvgmNvNAhVk0oMKHYveA6sQ6AEIIzAB#v=onepage&q=in%20search%20of%20the%20man%20made%20amber%20redmanol&f=false Compton’s Pictured Encyclopedia, Vol. 2, excerpted by permission (p. 818)
https://www2.palomar.edu/users/warmstrong/pljan99.htm https://www.ebay.com/itm/Antique-BONE-tenons-88-PIECES-Lot-of-Assorted-Sizes-Victorian-Vintage-pipe-/202297224337
http://www.jhlowe.com/misc-items.htm https://pipedia.org/wiki/Kirsten_Pipe_Company

An Ornery Falcon International Bulldog

Blog by Robert M. Boughton
Copyright © Reborn Pipes and the Author except as cited

If you get to thinking you’re a person of some importance, try ordering someone else’s dog around.

— William Penn Adair “Will” Rogers (1879-1935), U.S. stage and motion picture actor, vaudeville performer, cowboy, newspaper columnist and social humorist


I came to understand the humorous comment above before push even came to shove with this Falcon International bent bulldog.  When I stumbled upon it on eBay, the metal system pipe’s most endearing aspect – that’s sarcasm, by the way – was its color, or rather, apparent lack of any.  Although I’m sure they exist, I had never seen one dressed all in black, or so I thought.  If for no other reason, as if I needed one, I had to have this thing, maybe to see if I could restore the rather ugly example of a type of pipe known for the more common sleek, shiny aluminum stems (which include the bit, shank and system filter dish) to the original condition.  But, of course, the threaded bowl coated with a thick black varnish did create a temptation, whether subconscious or not, to discover what lay beneath, and perhaps improve upon the condition, to my own way of thinking.

Understand, I have nothing against dress pipes, also called dinner or ebony, and have owned some remarkable representatives, from a Nat Sherman #862 billiard to a Peterson Kilarney #150 bulldog.  The International I purchased just seemed a bit wrong in that company.  I suppose my growing codger inclinations might be making me a tad old-fashioned, but in my humble opinion, the only proper place for a dress pipe is among fashionable all wood varieties.  I’ve always been against discrimination, but if that’s what this is, so be it!

Created in 1936 by an American engineer named Kenley Bugg, the Falcon idea was to use a novel system design that provided for the tobacco smoke and resulting moisture to pass from an interchangeable wooden bowl that screwed onto the dish.  The Humidome., as the small aluminum area was known, trapped the dottle that would have ended up in the unfortunate smoker’s mouth, or worse yet, all the way to his stomach.  The revolutionary arrangement of the parts presented other benefits such as ease of cleaning and maintaining, not to mention that if an owner were so crass as to burn out, crack or otherwise lay waste to the bowl, instead of tossing the entire pipe, all that was needed was a less expensive replacement bowl.  Truly this must have been the dawn of the disposable age!  However, the greatest achievement of the Falcon is the potential lack of any need to give the pipes a resting period – again because of the interchangeability of the bowls.  One frame had the potential to facilitate countless pipes.

At first an oddity that some pipers embraced as such or owing to P.A.D., which must have afflicted some though likely fewer connoisseurs then as now, after World War II the situation that could have been called a fad began to turn into serious business.  More than six million of the increasing Falcon models sold during the brief nine years from 1958 to 1963 in the U.S. alone.  Current worldwide sales figures are hard to come by, but from 1958-1974, Falcon sold more than 14 million pipes outside the U.S.

In a blog I wrote in January 2016 about the restorations of two different brands of similar pipes, one a Kaywoodie and the other a Delta, I concluded that Frederick Kirsten was the original inventor of the metal system pipe.  This may be true, but the fact remains that both Kirsten and Bugg came up with independent designs the same year: 1936.  Kirsten, however, filed for his U.S. Patent № 112,701 in 1937, while Bugg’s U.S. Patent № 2,561,169 wasn’t filed until 1947.  And so, who is the father of the metal system pipe?  We may never know. Here are the problems I saw to some extent in the eBay photos, but (surprise, surprise) with much more clarity using my own eyes and, better yet, taking pics, which always seems to reveal more.

  1. The briar bowl was coarse from whatever inappropriate black substance was used to “stain” it – much like the type of result one sees when the covered surface is not smooth enough.
  2. The right side of the base where the bowl screws in appeared to have a wicked scrape at best or a crack at worst.
  3. The rim was charred and dinged, and the coating was gone.
  4. The indented circular groove of the bulldog shape had a reddish tinge I suspected was the result of wear.
  5. The chamber had been cleaned but was crude, as if it had never been smoothed and sanded.
  6. The inside of the Humidome was dirty, but not very.
  7. The round, hard rubbery seal on the bottom of the bowl was grimy, and its hole was caked with sticky old tobacco by-products.
  8. The shape I saw on the lower top side of the bit looked more like a gash than a deliberate mark, and the tenon had an unnatural, uniform rawness.
  9. The overall appearance of the pipe was that it was all metal.

A good friend once told me I’m attracted to wounded people and things, and the International had all the earmarks of a nice challenge.


Now, I really do try not to resort to alcohol stripping and/or sanding when less invasive measures will do.  Nevertheless, this called for more than the ideal.  Also, I had decided I needed to uncover the briar beneath the unholy glaze covering if only to see how bad it could be.  I soaked the bowl except for the rubbery seal in isopropyl alcohol for 10 hours, but confidence was high there would be minimal if any effect.  The last pic shows some of the crud I scraped out from around the hole.  Next, I used the 150-grit side of a sanding pad followed by 220-grit paper with somewhat better results.  The near absence of any grain at all explained why the folks at Falcon chose to obliterate it, although the use of varnish or some other glaze is never justified. Note the sparkling bits within the toxic coal black substance, which prevented the wood from expanding, or breathing to use the more apt word, when tobacco was lit.   The coal black almost debris covered the pad that has a normal maroon color.  The bowl needed another couple of hours in alcohol.  I have to say I was surprised by the improvement in the general look and color a full micro mesh progression made. Sanding the chamber with 150-, 320- and 600-grit paper worked well to render it smooth.Cleaning the Humidome with a cotton pad soaked with alcohol and a small piece of superfine 0000 steel wool was simple.I think this was the first time I worked on a pipe when the bit was dirtier than the shank.At last, my favorite part arrived – staining and flaming the wood.  Only the 8000 and 12000 micro mesh was needed to clear away the soot and improve the color.The last part was micro meshing the stem to remove scratches.  In the process, the apparent gash or crack turned out to be just a bigger scratch that almost disappeared. I gave the whole thing three coats of carnauba only. CONCLUSION

I chose to leave good enough alone concerning the remaining minor scratches on the stem.  I’ve tried to stain metal before, and it’s a nightmare if you don’t know what you’re doing.  My friend Don Gilmore, who makes beautiful pipes and accessories, is knowledgeable about Falcons in general.  He had never seen one with the rounded shank and told me at last months pipe club meting he thought it might be a Chinese knock-off.  He suggested I check Smoking Metal, and when I showed him the following pic from that site he was relieved.  So was I.

Falcon Internationals courtesy Smoking Metal

This is one unusual example of the company’s products I wanted to add to my own collection.  But I decided to offer it for sale at my online store, https://www.facebook.com/rebornpipes/ (click on Store in the left column).  I hope it finds a good home.



First in Flight: Refurbishing and Restemming a Falcon #4

Blog by Anthony Cook

I had never smoked a metal pipe before, but I was curious. I liked the idea of interchangeable bowls, especially when dealing with stronger and “ghostlier” blends (I’m looking at you, Lakelands). So, when this Falcon #4 showed up on eBay I put in a low bid that luckily turned out to be the winning one. I knew from the seller’s photos that the pipe was going to need a bit of work to get it into shape, but I was still in for a few surprises.

When it arrived, I could see that the aluminum frame was in good shape. There were several small dents and scratches, but nothing that would affect the smoking qualities of the pipe. The nylon stem (or, “bit” in Falconese), however, must have really suited someone’s taste because had been chewed so badly that it was crushed and the airway was almost completely closed. The larger, pot-shaped bowl was in fair condition with some tar build-up and a few scratches on the rim, but the smaller Dublin/apple-shaped bowl was charred and almost beaten to death around the rim. Luckily, the threads on both bowls were still in good shape and they would screw tightly to the frame.

Here are a few photos of the pipe as it was when it arrived:Falcon1


Falcon3 The first order of business was to remove the stem, since there was no way that it would work in its condition. Thankfully, Al (upshallfan) offered to send me another one that was in better shape. Removing a Falcon stem is easier said than done though. They’re intended to be a permanent part of the pipe.

I turned to the forums in the hope of finding someone who had done it before and had developed a reliable removal method. I received several suggestions and tried them all with no luck. In desperation, I decided to try to heat the stem in boiling water. I knew from past experience that nylon would blister and burn all too easily when exposed to high heat, but I thought that this method might heat the stem slowly and gently enough to avoid that risk. Surprisingly, it worked like a charm! After about 20 minutes of submerging the stem in boiling water, not only was I able to remove the stem, but the aluminum smoke tube came out as well. That would make cleaning and polishing the frame much easier.Falcon4 After soaking the frame in alcohol for about 30 minutes, I cleaned out the interior. Without a doubt, this was the easiest cleanup job that I have ever done on a pipe. That’s not to say that it wasn’t dirty. This was obviously a well smoked pipe, but the grime came away easily from the nonporous aluminum. It took only three pipe cleaners (two for the airway and another folded one to scrub the cup) and an old toothbrush (for the threads) to completely clean the frame.Falcon5 The bowls were next on my to-do list. I reamed them both back to bare wood so that I could see what I was dealing with, and then I placed them in a jar of isopropyl alcohol to soften the build up on the rim and strip the finish. An hour or so later, I removed them and used a soft cloth to scrub away the remaining finish and grime.

I set up my topping surface to sand out the scratches on the rim of the larger bowl and level the uneven rim of the smaller one. I lightly topped the larger bowl first with 220-grit paper, and then with 320-grit until the scratches were gone. I started to top the smaller on the smaller one, but the condition of the rim was so bad that chunks of it began to fall out as I worked. I could see that was going to be a losing battle and decided that if I couldn’t beat ‘em, I’d join ‘em.

I used a Dremel with a sanding drum to bevel the inner rim of the smaller bowl back as far as the deepest gouge. I was only doing some rough shaping at that point to create the general depth and angle of the bevel. Then, I used 220-grit and 320-grit paper to clean things up and further refine the shape. After that, I lightly sanded the surface of both bowls with 220-grit and 320-grit paper to remove most of the scratches and dings.Falcon6 Once the heavy lifting was complete on the bowl cosmetics, I turned my attention back to the stem. The stem that Al had sent me was in much better shape than the original, but it was still badly chewed. It also wouldn’t pass a cleaner, which seems to be an issue with Falcon pipes in general. They make thinner cleaners specifically for Falcons, but I don’t like the idea of having to buy something else just to overcome a design flaw. So, I decided to try an experiment to see if I couldn’t open up the airway and remove much of the chatter all in one shot.

I had noticed earlier that the boiling water had not only loosened the original stem, but it also appeared to raise the dents to some degree. It wasn’t enough to save it, but I found it surprising all the same since I’d had no luck lifting dents in nylon with heat previously. I thought I’d try it again with the replacement stem. I rigged up a simple suspension mechanism with some string, a hex nut, and a wooden spoon, and then put the stem into a pot of boiling water. After nearly about 40 minutes of being submerged, there was some slight improvement but not enough to make much difference. So, I called an end to the experiment and decided that the method wasn’t worth the effort. I have a suspicion that there was some harm done to the stem with this method however, and I’ll talk more on that later.Falcon7 The constriction in the airway extended about ¼” behind the button. So, I decided to drill the airway out from the slot end. The airway was so tight that I had to start cutting through with a 3/64” bit and work my way up to a 3/32” bit. I tested the draw and it was good, and then I tested with a cleaner and it would pass, but it still needed a bit of force to get through the tight area. The stem wouldn’t take a larger bit, however, and I had to be satisfied with what I had. I finished up the work on the airway by cleaning up the slot and giving it a slight funnel with some sandpaper, needle files, and sanding needles.

In the photo below, you can see one of the drill bits chucked into a Dremel, but I never actually used the motor. That would likely have been a disaster. Instead, I used the Dremel to stabilize the bit while I turned the stem over it.Falcon8 The mechanics of the stem had been addressed and it was time to start working on the cosmetics. I used a course, flat needle file to score the surface of the stem, applied black CA glue to the indentations, and sanded it back with 220-grit paper once it was dry. Then, I began to rebuild the button. I wrapped clear tape around the area behind the button to create a sharp edge and applied more CA to the button to build up the surface. I used 220-grit paper to sand the CA back and start shaping the button after it had completely dried. When the shape was vaguely buttonish, I began to clean the edges and remove more chatter from the stem, first with 320-grit, and then with 400-grit paper.Falcon9 I lightly sanded the entire surface of the stem with 600-grit and 1200-grit paper to smooth it out and remove the seams and molding artifacts from the sides. Then, I polished the stem with Micro-Mesh pads 1500-grit through 12000-grit and used a drop of mineral oil to lubricate the stem between every three grits.

Remember when I mentioned something about the heat of the boiling water doing harm to the stem? This is where that comes into play. I had noticed that the stem felt different under the paper as I was sanding it. The higher the grit, the more noticeable it became. The surface felt normal to the touch, but it kind of grabbed at the sandpaper and pads and gave some resistance as they slid across, almost like it was gummy. It was unlike any nylon stem that I had ever worked with before and I believe that submerging it in boiling water changed the surface in some way. I’m just making a guess, of course, but in the end I wasn’t able to achieve the level of glossy shine that I had with previous nylon stems and I doubt that I’ll be trying the boiling method again. You can see the finished stem in the photo below.Falcon10 The stem was out of the way. So, it was time to get back to the bowls and start wrapping this pipe up. I wanted each bowl to have a slightly different color. So, I used a heat gun to heat the briar and open the grain, and then applied a 3:1 mix of isopropyl alcohol and Fiebing’s dark brown dye to the larger bowl and the same ratio with mahogany dye to the smaller bowl. After hand buffing with a soft cloth and sanding the surface of both bowls with 400-grit and 600-grit paper to remove most of the dye except for what was in the grain, I gave the larger bowl a medium brown stain and the smaller one an oxblood stain using the same ratio of stain to thinner as before. Then, I hand buffed again and sanded each bowl with 1200-grit and gave them both a light Tripoli buff. Both bowls received one final stain; buckskin for the larger one and British tan for the smaller. They were hand buffed again to remove the excess stain, and then polished with Micro-Mesh pads 3200-grit to 12000-grit.

Before reassembling the pipe, I polished the frame with Semichrome polish and buffed the stem and bowls with White Diamond compound on the buffer. I put everything back together (it went easily) and applied several coats of carnauba wax with the buffer. Finally, I applied a bowl coating to both bowls to give them some protection until they could build a little cake. You can see the completed pipe in the photos below.Falcon11



Falcon14 And here are a couple of shots of the other bowl…Falcon15 I’m still not happy with the stem on this one and I’m sure that I’ll be replacing it sometime in the future when there aren’t other pipes that need attention. For now, though, it serves its purpose well. I’ll admit that I was a little skeptical of the metal pipe concept, but this pipe smokes wonderfully and I can see many more Falcon bowls and a few more metal pipes in my future. Thanks for checking it out!

A Book Review – Back From the Ashes: Uncovering the Lost History of G.L. Hunt and the Falcon Pipe by K.A. Worth

Blog by Steve Laug
51Ja9LXHtyL I first picked this book up at a Chicago Pipe Show at a table where G.L. Hunt’s daughter, K.A. Worth was selling her new book on her father and the Falcon Pipe. I remember sitting and talking with her about the book and the pipe and being fascinated with both the history of the pipe and the man. It is a memory that runs through my mind each time I pick up this book or one of the Falcons that I have in my pipe cupboard. She autographed my copy which only enhances the memory of that day in Chicago.

Her book is divided into two parts. The first section she calls The Pipe People and it covers a little over 100 pages. The second section she calls The Pipes and it covers about 60 pages. I have included a screen shot of the Table of Contents to show how the book is laid out. Prior to the first part she has an Introduction and following the second part is an Epilogue.

The Introduction sets the stage for the book. It starts with the following quote: “It all began in the imagination of an American engineer. Prolific inventor Kenly Bugg of Ft. Wayne, Indiana, put pencil to paper and soon a revolutionary new smoker’s pipe emerged… Bugg patented his Falcon design on August 21, 1945… Enter the genius of G.L. Hunt and his company, Diversey Machine Works – an oft quoted statistic has George Hunt selling some six million Falcons by 1954 in the United States alone.”

The author goes on with a brief survey and concludes the Intro with this quote: “In this volume we will chronicle the development of the Falcon pipe and the Falcon companies, along the way paying tribute to those who ushered the pipe to worldwide renown. Here we will provide what will surely prove the most comprehensive Falcon history to date… Come now… let’s step inside…”

The quote gives the reader the author’s purpose for the book and invites them into the pages of her book. Let’s look at the parts and evaluate whether she fulfilled her purpose.

PART ONE: The Pipe People

“…The Falcon Pipe is the most unique in all the pipe world. I know you are familiar with the tremendous success of the Falcon Pipe here in the States and the success it has enjoyed throughout the Sterling Countries – those people and companies that are associated with Falcon Pipe do become known as “The Pipe People”… George L. Hunt – May 1963.”

This quote is on the header page of the first part of the book. With it the author introduces the man and the process of development of the Falcon. She tells it through her interactions with her grandfather and the archives of material that she read through in preparation for this book. It is a fascinating way to tell the story and is immensely readable and it the method that she uses throughout the book. It is the largest part of the book, Chapters 1-10, and really gives the most clear, readable and concise history of the brand that is available.

In this review, rather than go chapter by chapter and summarize the contents, I will summarize each part of the book and give a more global picture of the book. I am not as concerned to give a view per page as to give the potential purchaser a feel for what is included in the book itself. They can read the details themselves.

PART ONE is the overall history of the brand from when author’s grandfather bought the patents to when the pipe came to be one of the most well-known brands of throughout history. She looks at the pipe from its inception and the connection between the inventor and her grandfather through to its expansion into the British market with a view of the struggles and strains that went with that expansion. Thus she takes the reader on the journey from patent of the Falcon to its manufacture and marketing. She does not skip over all of the glitches and struggles along the way but describes them in a humorous style that makes the reader a part of the discovery process she is on in writing the book. There is also background information given on each of the key individuals in the mix – Kenly Bugg, G.L. Hunt, David E. Morris, Howard Hodgkins and Michael Jim Dixon. Many others are listed and covered as well but these seem to be key players who interact with and cause change in the life and direction of the Falcon brand. The first part ends with a picture of an advertisement for a Falcon Universal Pipe Companion and a brief paragraph bringing the history of the brand to an end.

PART TWO: The Pipe

This part of the book gives the reader an in-depth look at the pipe itself. The author includes quite a few photos of different bowls and stems as well as a variety of advertizing brochures and pamphlets issued by Falcon. Even flipping through the photos gives the reader a good idea of the variety and scope of the Falcon pipe and its enthusiasts. It is an amazing collection of photos and pamphlets/brochures.
The Part begins with a brief description of the harvesting and curing of briar for the Falcon bowls. There are also production drawings and outcomes of the number of bowls that were turned in a given year. There is even a photo of a meerschaum lined briar bowl (that is one that I have never seen anywhere). The next section covers the manufacture of the base and stem for the pipe. It is a fascinating read and the pictures of the bases and the stamping is helpful in making sense of the various bases that I have. There are many different examples of Falcon bowls and bases throughout the section.

There is a section on the variations on the British scene in terms of Falcon shapes and sizes. Again the author includes many advertisements and photos. Also there is information on the Alco line and the Brentford line. I had heard about Falcon making the Alco pipes but I was unfamiliar with the Brentfords. There is information on the development of the coloured bowls and bases and the Shillelagh line coming out of Ireland. Several other Falcon lines that I was unfamiliar with end Part Two. Falcon produced a pipe with a pyrolitic graphite lined bowl, a filter version of the pipe and finally a line of pipe related products for the pipe smoker. These included finger pipe tampers (look like thimbles), dry rings for wet smokers, Falcon pipe spray pipe cleaner, matches, mix and match bowls, tobacco blends and much more.

Part Two is by far my favourite part of the book because it takes a lot of the various Falcon pipes that I have had in the shop and gives the background and rationale of the variations. The pictures and drawings as well as flyers etc. give a clear picture of the brand at its height.

The book ends with an Epilogue that pulls together all of the final pieces of the history of the company and the pipe.

It is a well written easy to read book. I would unhesitatingly recommend it to anyone wanting to know about the history and the variety of Falcon pipes and also those who may want a quick introduction before purchasing and enjoying a pipe. Well worth a read and many rereads. I refer to my copy whenever I am working on a Falcon to get a better idea of where it fits into the chronology of the brand. Buy it! You will not regret this great addition to pipe history.

Falcon Restored

Blog by Al Jones (aka “upshallfan”)

We had some glorious weather in the Maryland/Virgina area in September and one beautiful Sunday, the wife and I drove down to Winchester, VA in the MGB. We toured Patsy Cline’s home (that has been on our list). Winchester is also home to JB Hayes Tobacconist, a fine pipe shop. I didn’t find anything there, but we also made several antique/junk shop stops as I was on the hunt for an old cabinet to re-purpose for my pipe collection. I didn’t have any luck with a cabinet, but did spy this old Falcon in a case. For a few bucks, it was mine ($3 from memory).

The bowl top was pretty beat up and scorched, but the rest of the pipe and stem looked in decent shape. I had never seen a metal pipe in person to this point and was curious as to how it was assembled or if it held any restoration challenges. Here are some pictures of the pipe as I found it.

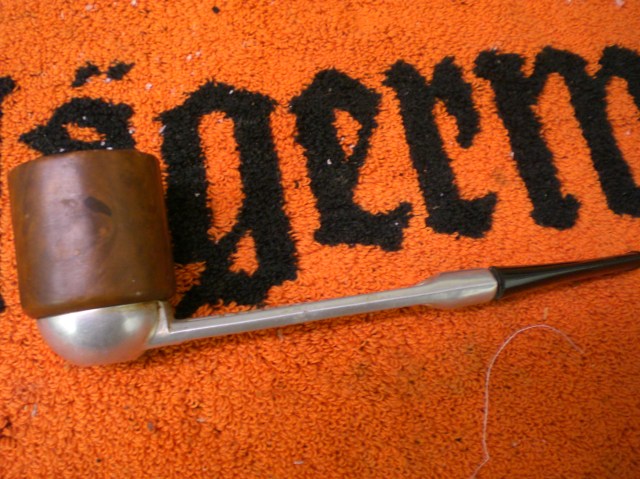

Falcon_Before (1)

Falcon_Before (2)

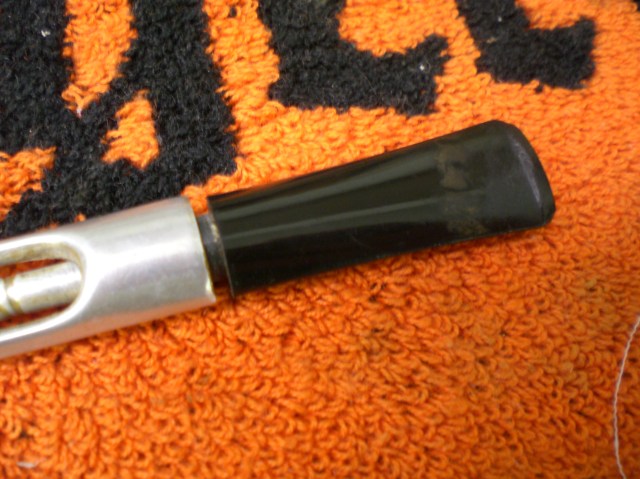

Falcon_Before (3)

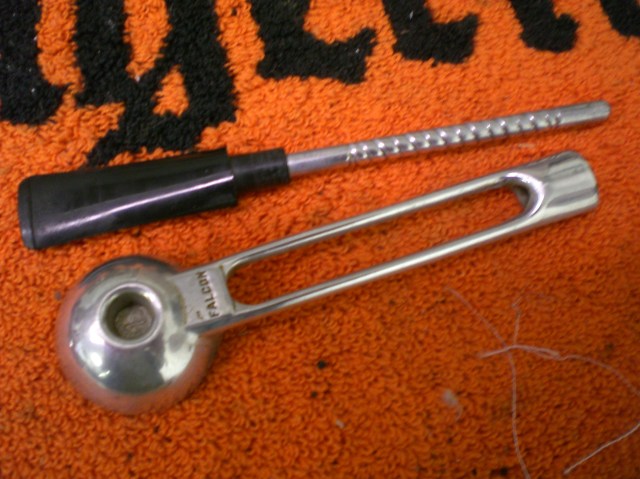

The pipe broke down without drama and the bowl top screwed off nicely, but the threads were just about perfect. I reamed the bowl, which has a fairly thick cake. The bowl was quite tall and I thought it would look best topped and refinished. I sanded the bowl top smooth with some 320 grit paper flat on my workbench, followed by 800 grit wet paper, using water. I immersed the bowl in a shot glass full of isopropyl alcohol, you can’t do that with a briar pipe!

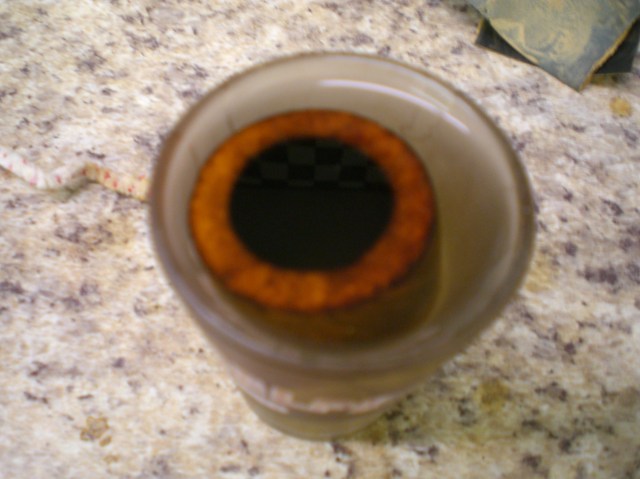

Falcon_Progress (2)

While the pipe bowl was soaking, I turned my attention to the metal bowl and stem. The stem had some teeth abrasions but no real dents. To me, the stem was somewhat “plasticky” but the fellow who ended up purchasing this one said they are quite durable and clenching doesn’t seem to harm them. The bottom of the metal bowl had some mild build-up, which I removed with some fine steel wool. I buffed the metal parts with white diamond and then red rouge. The metal shined up nicely, but I suspect will dull quickly over time.

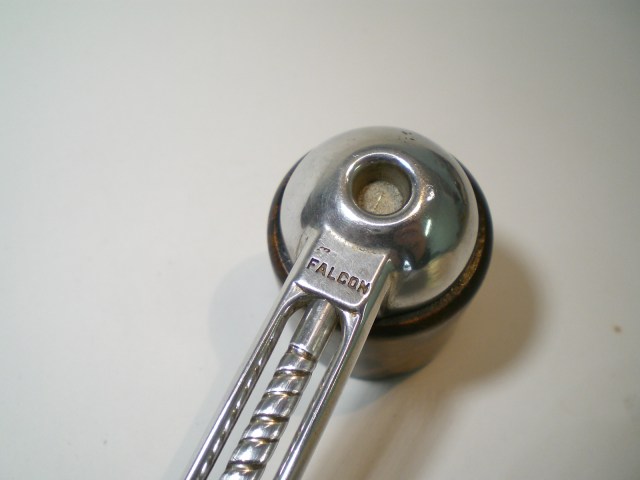

Falcon_Finished (6)

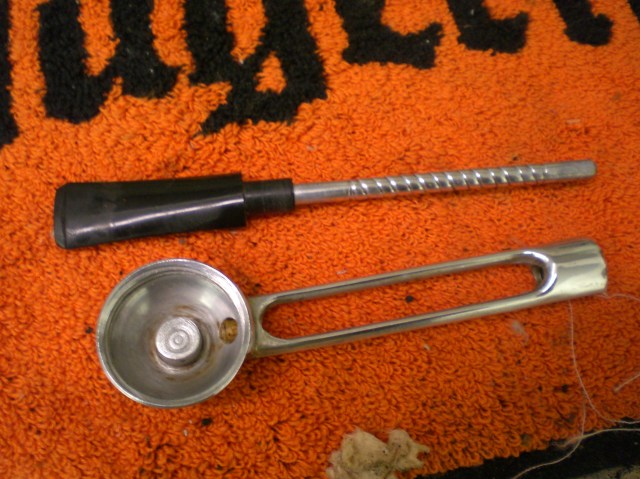

Falcon_Progress (1)

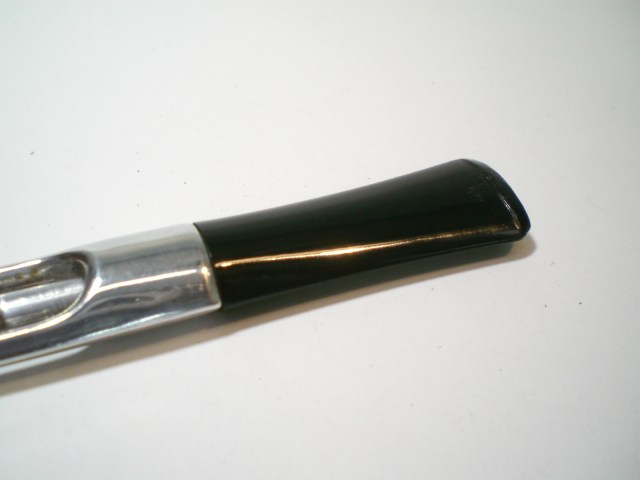

I used 1500 and then 2000 grit wet sandpaper on the stem and was able to remove most of the abrasions. I then polished it with 8000 and 12000 grit micromesh cloth. It was also buffed with white diamond.

Falcon_Finished (1)

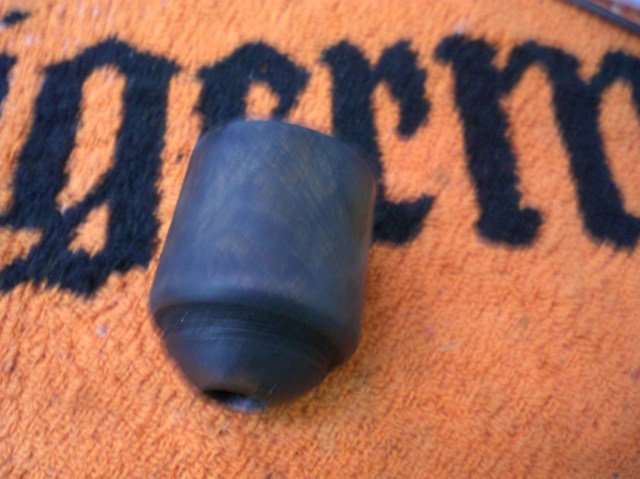

Once the bowl was soaked, the stain sanded off nicely with 800 grit paper. This revealed a number of fills. I decided a two-stage stain would cover up those fills nicely. I warmed the bowl with a hair dryer, then applied a full coat of black stain. I lit the stain with flame to “set” it into the grain. After it dried, I sanded the stain off with alcohol and 800 grit paper. I then removed more of the black stain with tripoli on the buffer. A very light, almost transparent coat of brown stain was applied over the black.

Falcon_Progress (3)

Falcon_Progress (5)

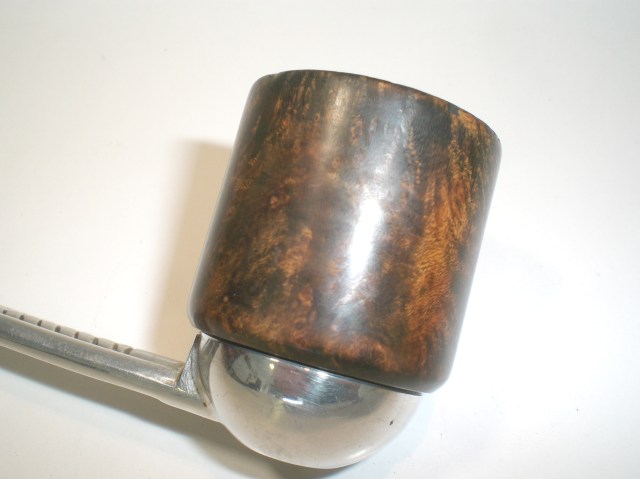

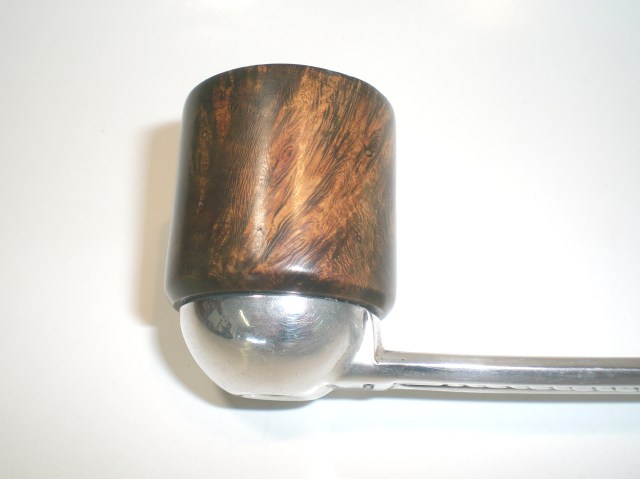

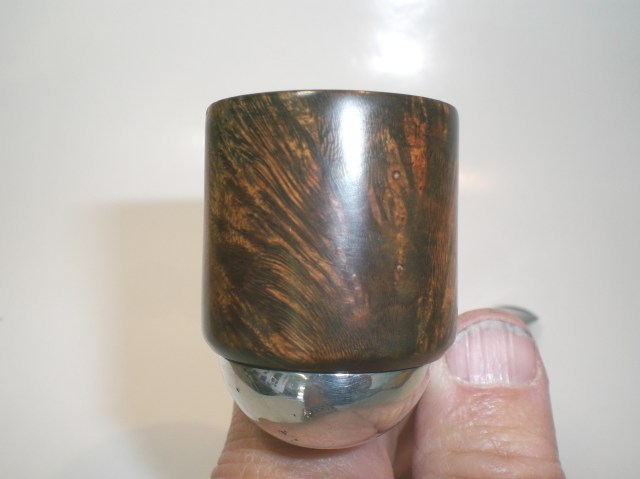

Once dry, the bowl was buffed with white diamond and then several coats of carnuba wax. I’m very pleased with the finish and the two stage stain hid the fills nicely.

Falcon_Bowl_Pix (2)

Falcon_Bowl_Pix (1)


Falcon_Finished (2)

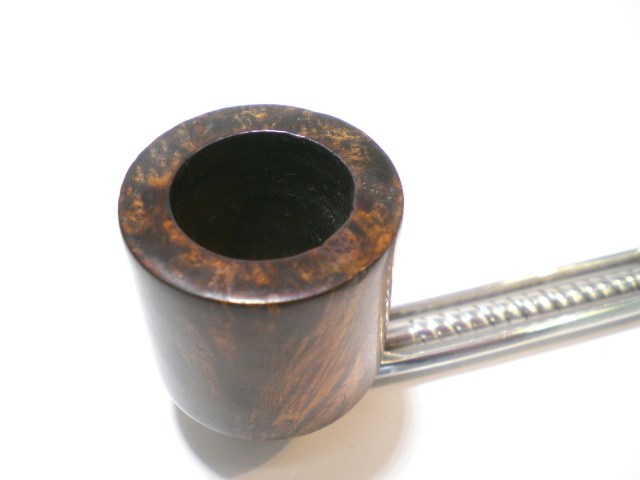

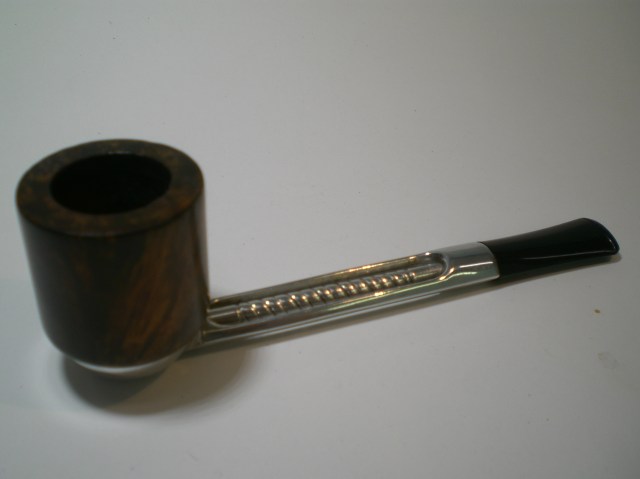

And finally the finished pipe.
