Reflecting on a Few CPF pipes in my collection – Pipes from the Colossus Pipe Factory


Blog by Steve Laug

I don’t remember much about the first CPF pipe I picked up or even where I found it, but I do remember loving the shape, size and feel of it in my hand. It seems to me that it was a diamond shank straight bulldog pipe and I remember it being very old – over 100 years of age. I remember turning it over and looking at the Old World style craftsmanship, the fine briar and the metal work that was on the shank end and rim top. I remember the gold stamping on the side of the shank – CPF in an oval over Genuine Briar. That first pipe I came across was the beginning of a side collection of CPF, American made pipes coming out of the Colossus Pipe Factory in New York. Over the past 7-8 years I have been picking up CPF pipes on Ebay and in shops around the country to add to my personal collection. My brother Jeff also continues to pick them up for me.

It is a brand that has been shrouded in some mystery through the years even in terms of what the CPF initials mean. Some have interpreted it to me Consolidated Pipe Factory while others have taken it to mean Colossus Pipe Factory. Because of that it has been virtually impossible to trace the brand. I have written about the history of the brand in previous blogs but here is the link should you want to go and check it out. In the link that follows I give the rationale and proof for the brand being Colossus Pipe Factory. Give the blog a read if you are interested in the background (https://rebornpipes.com/2013/04/14/some-reflection-on-the-historical-background-on-cpf-pipes/). I quote the concluding paragraph of that blog in the following as it gives a quick overview of the history of the brand with the mergers and finally the demise of the brand as a whole.

From my research I believe that we can definitively assert that the CPF logo stands for Colossus Pipe Factory. The brand was purchased by KB & B sometime between 1884 and 1898 and that it continued until 1915. That time frame gives help in dating some of the older CPF pipes you or I might find. It can be said that prior to the dual stamping it is fairly certain that the pipe is pre-1884 to 1898. After the dual stamping it can be placed post 1898 until the closure of the brand line in 1915. CPF made beautiful pipes. I believe Sam Goldberger was correct in his assertion of the potential carvers that made the pipes being of European training and the classic shapes and well aged briar. That coincides with all the CPF pipes that I have come across.

I collected the links and various blogs I have done on CPF pipes in my collection and chosen some representative photos of each of the pipes. I think as you flip through the photos you will see the beauty I see in them and hopefully it will kindle a love for the preservation of these old timers for generations ahead of us.

The first pair of pipes that I have pictured below is stamped CPF Cromwell on the left side of the shank. They both are vertical twin stemmed – twin shank pipes. Both came to me in very rough condition. The stems were damaged and repaired with a white putty material and the bowls were very worn. The first one is in the best condition. The second I worked a bit of Frankensteining on to resurrect it to be smokeable again. https://rebornpipes.com/2017/07/01/out-damn-spots-a-c-p-f-cromwell-double-vertical-stem-bent-billiard/https://rebornpipes.com/2017/08/27/frankensteining-a-badly-damaged-c-p-f-cromwell-double-stem-pipe/The third pipe came to me from the same lot as the two above. Where there both had vertical twin shanks and stems this one has a horizontal twin shank and stem. Like the others above it has the same damage and repair to the stem – white putty to make it smokeable again. https://rebornpipes.com/2017/09/28/bringing-new-life-to-a-c-p-f-siamese-parallel-twin-stem-billiard/. The fourth pipe in my collection is an alternative wood in both the bowl and the base. The bowl is detachable – unscrewing from the base. The polished band and the horn stem are beautiful touches to this unique pipe. If you would like more information be sure to follow the link below and read about the restoration of this beauty. It is one of the more unique pieces from CPF that I have. https://rebornpipes.com/2017/07/03/restoring-a-unique-alternative-wood-c-p-f-tulip/.The next pipe is a small pocket sized horn shape with a horn stem. It is stamped like the others with the CPF oval on the shank and on the band. The horn stem has a captivating pattern of swirls and striations that make it a pleasure to hold and look at while smoking. https://rebornpipes.com/2017/07/22/a-small-c-p-f-french-briar-horn-captured-my-attention/.The next pipe is another detachable bowl pipe. This one is a CPF Pullman. The bowl is separated from the base by a brass ring that adds a touch of class. The briar base has a brass band with CPF logo and stamp on the left side. The bent horn stem gives a touch of colour to the look of the beautiful old pipe. Give the blog a read if you are interested, but clicking on the link that follows: https://rebornpipes.com/2017/08/06/repairing-renewing-and-rejuvenating-a-removable-bowl-c-p-f-pullman-bent-billiard/.The next one is another pocket pipe. It has a Bakelite stem and a rectangular vertical shank that sets of a nicely shaped apple pipe. The yellow of the stem works well with the rich red of the briar. https://rebornpipes.com/2017/10/01/restoring-a-wreck-of-a-c-p-f-rectangular-shank-bent-egg/.The next pipe came to me as a damaged bowl. It is a nicely shaped bent bulldog with a diamond shank. The bowl originally had an ornate metal rim cap that had disappeared long before it came to me. I am keeping an eye open for a replace rim cap to see if I can bring it back to its original shape. https://rebornpipes.com/2013/03/31/cpf-french-briar-bulldog-restemmed-and-refurbished/.The next pipe is also one that came to me without a stem. The shank cap or ferrule was oxidized and green in colour when I started the restoration on it. I also worked an old vulcanite stem to fit the shank that has the same orific button as the original. The fit and size of the stem makes this another pocket pipe. It is distinguished looking and I only wish it could tell its story for us. Here is the link to the restoration: https://rebornpipes.com/2013/04/01/restored-cpf-bent-billiard-a-reclamation-project/.The next straight shank billiard also came to with the two above bowls. This one was by far in the worst condition. It had nail holes around the rim top and the rim cover was oxidized to a dark green and was crumbling. Originally this pipe would have had a built in wind cap with a hinged top but that had long since disappeared by the time I worked on it. I crafted a new stem for it and banded the shank to clean up the disintegrating briar on the shank end. It is an interesting piece https://rebornpipes.com/2013/04/07/reworking-and-reshaping-an-old-french-briar-cpf-billiard/.This next little pocket pipe has a horn stem and a great looking briar bowl. The shape is a small bent billiard. The band is original and bears the CPF logo and stamping. The shank has the CPF logo the look of the bowl and shank is quite stunning. I was able to work on it and bring it back to life. https://rebornpipes.com/2015/06/08/bringing-a-pre-1884-era-cpf-bent-billiard-back-to-life/After I first wrote about CPF pipes I received email from a fellow who had a trio of CPF pipes that he had picked up.   There were two unsmoked bulldogs – a bent and straight with amber stems that he wanted me to clean up. In exchange he would give me the CPF bent meerschaum bulldog in the photo. I took him up on the trade and soon had the threesome in hand to work on. I finished his two pipes and sent them back to him and turned my attention to an almost worn out looking meerschaum bulldog.I cleaned up the bowl inside and out and worked over the brass shank end and bowl cap. I rebuilt the amber stem that had bit throughs on the end at the button and some crystalizing and crumbling on the stem as a whole. I was able to stabilize it and make it useable once again. It is a light weight durable little meerschaum that is a sweet smoke. Read bout the restoration on the blog by clicking on the following link: https://rebornpipes.com/2015/12/25/taking-a-swing-at-reconstructing-and-refurbishing-an-old-cpf-meerschaum-bulldog/.The next pipe is a CPF Best Make Straight Bulldog. This one is a beauty with its silver filigree rim cape and shank end. It is stunning with the brown briar and the orange amber stem. This one just came to life as I cleaned and polished all the parts and did the repairs on the amber stem and silver bowl cap. Give it a read by clicking on the following link: https://rebornpipes.com/2016/12/02/cpf-best-make-bulldog-with-a-silver-rim-cap-and-ferrule/.Over the years of collecting and working on CPF pipes I have seen quite a few classic shaped meerschaums but had not seen very many carved figurals. My brother Jeff came across this interesting figural featuring a horse and knowing my love for CPF pipes picked this one up for me. It is a true beauty. There are some small cracks around the bowl but nothing that is an open fissure. I was glad to add it to the collection. Even so you can feel the energy of the racing horse as it turns around the tree stump on its right side. Give the blog a read if you want to see more photos and read about the restoration. https://rebornpipes.com/2016/12/05/against-a-stump-a-carved-cpf-best-make-horse-meerschaum/.My brother wrote to tell me that this old CPF Giant was found in an antique store in Idaho Falls, Idaho. The owner had told him that the pipe was owned by an artist who strictly used it as an art prop… never smoked it. It is about 130 years old and is a large bent billiard. It is a large pipe – over 11 inches long and similar to the older Wellingtons that I have worked on of similar size. It was a great addition to my collection. If you want to get a feel for the history of the pipe and restoration it went through click on the link that follows: https://rebornpipes.com/2016/12/25/refreshing-an-old-giant-cpf-french-briar-bent-billiard/. The next pipe was a unique one that Jeff picked up. It is a CPF that was different from any others that I had ever seen or worked on before. It was a briar calabash with a black Bakelite screw bowl/cup. The shank was darkened and appeared to have originally had a band that had been lost somewhere along the way. That is pretty common on these old CPF pipes. The stem was amber and needed some work to bring it back to usefulness. The pipe is stamped on the left side of the shank with the words COLON in an arch over the CPF logo in an oval. Underneath that, is stamped French Briar in a reverse arch thus encircling the CPF logo. I replaced the missing band with a polished nickel one to give it a more complete look. I am always on the lookout for old bands and rim caps so I may find one that fits this old pipe. Give the blog a read to see detailed pictures of the pipe. https://rebornpipes.com/2017/06/27/new-life-for-an-unusual-cpf-colon-calabash-pipe/.When I received the next pipe I was excited to look it over and add it to the collection. The beautiful briar with swirls of birdseye and cross grain flowing around the long shank bulldog was stunning. The horn stem fit well in the shank and it would clean up nicely. Have a look at the blog for details but this is one of the better pieces I have added. https://rebornpipes.com/2017/07/19/breathing-life-into-an-1890s-era-cpf-french-briar-horn-stem-bulldog/.The next little bent billiard is another beauty – it is a chubby bent pocket billiard. The grain on the bowl is quite stunning and the restored horn stem and brass band give the pipe a touch of old country charm and class. Give the blog a read to see what the pipe looked like when we found it and the steps in its restoration. https://rebornpipes.com/2017/07/20/another-piece-pipe-history-a-lovely-cpf-french-briar-bent-billiard/.The next beauty is a silver military mount billiard. The ferrule and stem cap are both silver. The pipe is a CPF Remington and the grain and finishing touches on the old pipe give it a sense of timeless class. The pipe is in rough condition when it came to me and with some careful restoration it is back to looking lovely. Give the blog a read to see what it looked like when I receive it. It is a beauty.  https://rebornpipes.com/2017/07/21/restoring-another-cpf-french-briar-this-one-a-remington-silver-mount-billiard-blog-by-steve-laug-the-next-pipe-i-chose-to-work-on-from-the-lot-of-the-lot-of-pipes-my-brother-and-i-picked-up-on-our-vi/.This Rhodesian was in very rough shape when I received it. It took a lot of work to bring it back to this point. The bowl had a lot of damage and the horn stem was very worn and tired. I did a lot of reconstruction on the rim top and edges of the bowl and tried to bring life back to the damaged bowl without loosing the shape. https://rebornpipes.com/2017/07/21/this-old-cpf-french-briar-rhodesian-was-in-rough-shape/.The square shank straight bulldog with the double ring around the bowl cap is a beauty. Instead of the usual diamond shank and stem this one has a square shank and stem. The horn stem is very stunning with the colours of the horn and the briar. Have a look at the blog to read about the restoration process on this one. https://rebornpipes.com/2017/09/29/cleaning-up-another-cpf-this-time-it-is-a-square-shank-bulldog-setter/.The last pipe I am including in this blog is my latest addition. It is an unsmoked CPF Chesterfield that is in excellent condition. It came to me from a good friend in NY who picked it up in a recent purchase. The grain and the shape are quite nice. It is a stubby billiard with a P lip style stem. The stem is hard rubber and it is old. Give the blog a read to get the back story on this pipe. https://rebornpipes.com/2019/01/29/refreshing-an-unsmoked-1910-1915-cpf-chesterfield-billiard/.With the above pipe I will close my reflections on some of the CPF brand pipes in my collection. Hopefully you can understand what I love about them as you scroll through unique pipes in the above collection. I am always on the lookout for more CPF pipes and excited to find and work on them. If you come across one and want to “help” me out let me know. Thanks for reading this blog.



Advertisements

The Decline of Restoring Old Pipes, Part 1/4


Blog by Robert M. Boughton
Copyright © Reborn Pipes and the Author except as cited
https://www.roadrunnerpipes2k.com/
https://www.facebook.com/roadrunnerpipes/

“I bet ya three-to-one I beat this.”
— John Joseph “The Teflon Don” Gotti, Jr. (1940-2002), Mafia boss, to law enforcement officers the night he was arrested for five murders, racketeering, loan sharking, tax evasion and related charges leading to his conviction

“The Teflon is gone. The don is covered with Velcro….”
— James Fox, FBI Assistant Director in Charge of the New York field office, upon Gotti’s conviction on all counts and sentence to life without parole

INTRODUCTION
While the denouement of the golden age of pipe restoration I anticipate here is only of importance to those who undertake the artful practice and the collectors they serve, and represents nothing as dramatic as the life of John Gotti or his vicious crimes from the age of 12 until he was convicted at 51, the problems I will describe are real and present  The dangers relate to pipes made of wood, meerschaum, synthetic plastic and even metal, in particular antiques and many that are pushing the limits of vintage.  The simple facts are that certain parts used in the construction of some old pipes are no longer manufactured nor can they be, and still more materials needed to restore them and others to original condition are not being pre-fashioned.

This dearth of components that once were ready-made or easier to come by restricts their availability to a rarefied number of true artists in the repair business possessing the essential skills to create vital pieces to the specifications of given projects.  Such craftsmen, already very difficult to track down, are in fact dying out.  The ability of most common and even some great restorers to complete their work as most would prefer – to the pipe’s authentic state – is therefore in grave peril.  This is the sad reality

The supplies I have identified so far with careful thought, but by no means having reached a comprehensive list, are Bakelite, including Redmanol;:amber and amberoid; ivory, notwithstanding its illegality in the U.S. and most other countries, or in the alternative imitation ivory; bone and horn tenon screws; replacement bowls and other components of metal and other pipes;  real corncob Aristocob inserts, made just for that infamous aluminum pipe, and the most surprising member on the endangered species list, the push-pull Teflon stem fittings used with most meerschaum pipes, especially newer ones.

AN ILLUMINATING CONVERSATION
I spoke on the telephone to Floyd Norwood, the patriarch of a two-generation family pipe repair business.  He is retired but continues taking a hand in the operation as his son now runs the shop.  Prepared for the immediate negative response, I wanted to know if I could buy an assortment of bone screw tenons from them, but his next words shook me and started the cogitation that led to this blog.  I had left his name out of this because the conversation wasn’t a formal interview, but it will become obvious later in the series.

“Nobody makes these things anymore,” the old gentleman began.  “These things” encompassed the various parts we had discussed, not only bone tenons but real amber and the Bakelite family of stem materials.  Mr. Norwood’s voice was tired, sad and a bit disgusted.

“Tell me about it!” I replied in the heat of commiseration I immediately understood could not begin to match his own sorrow after a lifetime career seeing the dissipation of the tools he employed in his labor of love.  “It took me two years to track you down, and then only in a recent, second, desperate plea for help did one friend on the Smokers Forums UK think to recommend you.”  I dropped the name of the friend, who will remain anonymous.

A few others on SF responded with vague attempts to help that I appreciated, but none could recall the name of the person who did such specialty work for them in the distant past.  Only when I posted in the thread that the problem was solved by the link provided in the first response did several other members chime in that they had also used Norwoods Pipe Repair at times and gave the man with whom I had the honor of chatting, or in more recent experiences his son, Kenneth, their highest recommendation for quality of service, speed and price.  I amended my previous comment to include the total of four glowing referrals, but it did little to cheer up the aging expert whose specialized skills I have now enjoyed for three pipes.

“The kids these days doing the repairs, and even the older restorers, just aren’t interested or able to do the work involved,” the worn out and still somewhat irked master continued, “and I mean for a single job much less volume production for sale to people like you.”

I took no offense from the last phrase.  He was correct, after all.

BAKELITE, REDMANOL AND CONDENSITE
Leo H. Baekeland (1863-1944), a Belgian-American chemist, invented Bakelite, the first synthetic plastic, in 1907.  He named it after himself.  I will save most of the ruthless and covetous tactics Baekeland undertook, in order to seize control of many much smaller companies that made similar but superior synthetic plastics, for another blog that is in the works.  Here’s all you need to know for now.

Bakelite was patented for its revolutionary innovation that employed thermosetting, a process of controlling intense heating and pressure, of phenol and formaldehyde resins sometimes combined with lesser amounts of wood or asbestos fibers that resulted in soft or liquid material. In that form, Bakelite could be molded into any shape before final curing rendered it irreversible.  Baekeland called his machine that performed the entire operation – what else? – the “Bakelizer.”  Bakelite was particularly useful because of its electrical nonconductivity and heat resistant qualities that made it ideal for diverse products including electrical casings, firearms and tobacco pipes and stems, to name only a few.

The two particular small, independent chemical research and production laboratories to which I alluded a moment ago – the Redmanol Chemical Products Co. of America in Chicago formed in 1913 by Lawrence V. Redman, after whom his creation was self-styled; and the Condensite Co., started in 1910 and headed by A.J. Aylsworth, over which Redmanol had acquired a controlling interest – developed synthetic plastics that were stronger and capable of being colored in more varieties than Bakelite.  Original Bakelite, whatever the color, still looked like plastic, while deep red, translucent Redmanol was so close to amber of the same color that it often requires an expert to differentiate the two.

Bakelite cigar holder, left; real amber compared to Redmanol, right

The greater strength and coloring qualities of Redmanol and Condensite were the results of different chemical catalysts used employing the same basic heat and pressure process innovated by Baekeland.  But Redmanol employed the action of formin on carbolic acid, while Condensite utilized the effect of chlorine on naphthalene.  Furthermore, Baekeland’s machine, the Bakelizer, was only one means of achieving the intense heat and pressure necessary for the reactions of the two ingredients he chose.  Aylsworth devised a means of heating the chlorine and naphthalene without pressure, a process Redman adopted.  The three processes, therefore, rendered each substantially different.  In 1922, however, a U.S. Federal Court judge in New York interpreted the tortuous patent laws in favor of Bakelite – which, by the way, not wanting to force its two greatest competitors to defend themselves sued not the manufacturers but their distributors – destroyed and  merged the prized competitors into its growing family in the newly and litigiously formed Bakelite Corporation.  Since then, Redmanol and Condensite products have been lumped together under the single name Bakelite.

The Bakelite patent can be read below.

The Problems
The most obvious difficulty is that Bakelite, at least for tobacco pipe products, has not been manufactured since 1939, when Bakelite Corp. was acquired by Union Carbide and Carbon Corp. (Union Carbide Corp. since 1957).  As was already noted, the curing process for Bakelite rendered it “irreversible.”  Bakelite products were custom made for whatever use was needed.  In other words, for purposes of restoring old stems made of Bakelite, which, again, includes Redmanol, any necessary replacement can be reworked in only one way: fitting an over-sized stem of an otherwise suitable candidate to a shank by serious sanding or other such methods.  Any other alteration, such as bending or threading, is strictly impossible compared to Vulcanite, acrylic and even amber.  By way of illustrations, imagine trying to find substitute parts for these beauties.

Socket pipe with meerschaum bowl, Redmanol shank and stem and bone tenon screw

KB&B gold band socket pipe with irreplaceable threaded Redmanol stem and bottom and custom-made screw-in briar bowl

AMBER AND AMBEROID

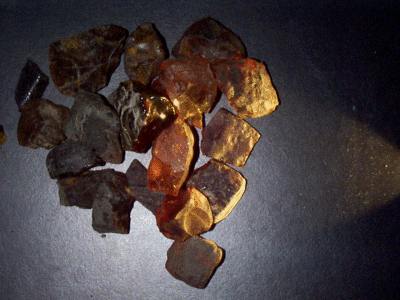

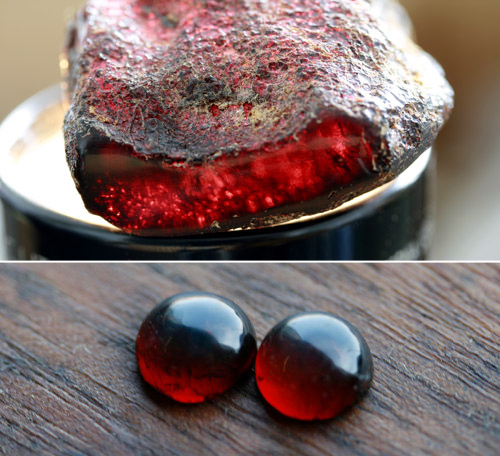

Amber is an organic material (neither gem nor stone despite common descriptions) formed by the polymerization of prehistoric pine tree resin into hard, fossilized pieces that often have inclusions, meaning trapped insects or plants.  More than half of the known inclusions found have been flies.  Its colors include yellow and orange, the most common, as well as red, green, blue and brown, and these colors range in translucence to almost opaque.  Found in the greatest quantities throughout Europe, amber is more common in the northern Baltic countries and Russia, but is also present in other places all over the planet.  Amberoid refers to pieces of amber and sometimes other resins compressed by intense heat and pressure. Most of it is used for jewelry, primarily in small bits and pieces.

Polished Baltic amber courtesy Minerals.net

The Problems
Amber is on the soft and fragile side (2-3 on the Mohs scale of 1-10, with talc being 1 and diamond 10), and it begins to decay the instant it is exposed to sunlight.  By human reckoning the process is very slow, but amber’s natural brittleness increases considerably within a human lifetime.  That means that its use as a material for pipe stems in the late 19th and early 20th centuries leaves examples that are now more prone to chipping and breaking, neither of which damage can be repaired with a purist method if at all.

Also, even for anyone alive today who is capable of fashioning an amber stem, the cost is prohibitive, and the process very difficult   Because amber does not actually melt, as in the sense of turning to liquid, but rather reaches the temperature where it would at about 570° F. and beyond that decomposes, there may be nobody around now inclined to try anyway, as Floyd Norwood suggested..

As a result, we are left with a more and more limited supply of random styles and lengths that can be found only at places such as eBay, where the sellers don’t know or care enough about pipe restoration to publish the measurements and, in my experience, are clueless when asked to provide such information.  In other words, they can be found in random lots the measurements of which can only be guessed.  The increasingly absurd prices of these lots make buying them a serious gamble with poor odds of winning.

Amberoid is a still bigger problem.  For those willing to destroy various jewelry and other ornaments made of amberoid, the bits and pieces acquired would be useless.  The only amberoid stems I can find available to buy are already on pipes, such as this Andreas Bauer meerschaum billiard courtesy of SmokingPipes.com.IVORY, REAL AND IMITATION
Ivory in its purest form is the dense material forming the teeth and tusks of large mammals including elephants that are still present in our world, their distant relatives mastodons that have been extinct since the end of the Pleistocene epoch 10,000-11,000 years ago and woolly mammoths (another ancestor of elephants that were alive during the earliest time of humans but died off completely 4,000 years ago).

Other, less valued forms of ivory are found in walruses, narwhals, hippopotami, rhinoceroses, warthogs and sperm whales, but also in a variety of smaller species such as elks.  For most of human history, ivory has been prized for its artistic uses, from classical statues to piano keys.  The fact that ivory, in particular its oldest and finest variety, can be carved into any form made it valuable for beautiful works of art, including ornate tobacco pipes.

Japanese carved ivory tusk courtesy invaluable.com

1890 Tiffany ivory-silver pipe courtesy tobaccopipehistory.blogspot.com

Tsuge ivory billiard courtesy Brothers of Briar

There are several alternatives to ivory.  Celluloid; believe it or not; invented in France in 1865, is the oldest.  Best known for its later use as an early, highly flammable film for motion pictures; celluloid – not Bakelite – is touted on some sites as the first “successful” synthetic plastic and was used for products that were not limited to the following.

Celluloid chip and dice courtesy antiquegamblingchips.com

Billiard balls courtesy sciencehistory.org

Celluloid ivory sample sheets courtesy Rothko & Price

A second, more workable imitation ivory is vegetable ivory, found in the nuts of varieties of tropical South American palms.  The white cores of these nuts are fashionable into all kinds of shapes that harden and can be polished like real ivory, and best of all, they can be drilled for stem making purposes.  The nut below looks tiny but is in fact about the size of a large honeydew melon.  It even has a fine grain pattern that can be differentiated from that of real ivory.

Vegetable ivory nut from Micronesia courtesy palomar.edu

There is a third, still better, resin-based variety of imitation ivory for pipe makers and restorers capable of tooling a stem from scratch.  Although hesitant to promote a single business when there may be others using the same brand, I can’t find any, and the brand factor is vital because of the similarity of others that nevertheless possess serious basic differences.  These characteristics include the use of polyester in those that are inferior for pipe use, leaving them weaker, less glossy when buffed and all-in-all not so close to the real thing that there might be a problem trying to transport an object made of this stuff through airport customs.  To get around to the reluctant business plug, whatever the brand name is, it’s available at Vermont Freehand

The rods sold at that online business are offered in different diameters, the same as those used for traditional materials such as Ebonite.  Vermont Freehand describes it as the finest available.  It varies in price according to two grades, 1 and 2 where 1 is the better, and the diameter desired, from $3.60-$100.  For example, the minimum 12mm diameter rod of Grade 2 is $3.60 compared to a 14mm rod of Grade 1, which is $7.20.  The largest diameter of Grade 2 is 1.4” square at $28.80, and a 1.6” x 2.6” rectangle of Grade 1 is $100.  Again, note the grains.

Imitation ivory stem rods courtesy Vermont Freehand

The Problems
In this case, the “problems” for the most part are really solutions to a greater crisis.  Evolving international laws aimed at saving African and Asian elephant populations, devastated to the verge of extinction by poaching and unregulated exportation of tusks that are harvested for their great value, at the expense of elephant lives, have had unexpected and negative effects on the animals they are intended to protect.  Uncooperative countries that I will not name here in the interest of avoiding geo-political argument and controversy have allowed poachers to capitalize on the increased value of ivory that resulted from the various embargo attempts.

Tougher and more restrictive bans are already being enforced to degrees that seem to have stabilized at least some elephant herds in Africa and Asia, and still more effective laws are being considered, notably in the United States and the European Union.  The present laws, targeting buyers and sellers of ivory as well as art dealers and collectors, are expected to curb poaching still more.

Certain aspects of the laws have been met with resistance from art and personal rights advocates.  The issues have to do with the age of the artworks, the years they were acquired and the sources, all of which create complexities for enforcement, to put it in the simplest terms that are anything but simple.

In 2016, the Obama Administration initiated a blanket ban on the importation of elephant ivory and almost all sales of ivory throughout the country.  The very few exceptions include antiques that can be proven through a professional appraisal or a bill of sale to be at least 100 years old.  Many ivory pipes fit that category.  However, President Trump, undermining the Obama ban, directed the Fish and Wildlife Service to consider importation permits for sport-hunted elephant trophies from select African countries “on a case by case basis.”  In other words, Trump has cleared the way for his rich cronies to bring elephant heads with their tusks intact home from safaris.  This kind of favoritism, which was never announced publicly by the Trump Administration but rather via a Fish and Wildlife Service memo issued March 1, 2018, can’t possibly surprise anyone given Trump’s record since he assumed office.

Concerning imitation ivory of any kind, it is of more use to master artisans who can create a stem by hand or machine, again, rather than average or even skilled restorers.  However, this resin-based imitation ivory sold by Vermont Freehand might be fashionable into small pieces suitable for filling chips and other damages to real ivory pipes – but only with serious practice based on what I’ve learned of its physical makeup.

BONE AND HORN SCREW TENONS
The good news is that bone and horn screw tenons, which can be made from the calcified skeletal remains of animals such as cows and deer, are not in short supply.  To be sure, there are other sources, but J.H. Lowe, for example, offers “a multitude of styles and sizes” in assorted 12-packs for $28.90 – and you know what you’re getting compared to online auction sites that tend to be clueless as to the importance of the various elements of importance in measuring the correct size.  Another plus when ordering screw tenons from an actual pipe supply store is that they are new.  Here is a motley collection of bone screw tenons said to be antiques courtesy of Worthpoint.
Without impugning the integrity of the seller of those screw tenons, if they are antiques, they represent a pristine collection of unused specimens.  I’ll take this opportunity to emphasize that, although I am committed to using only the original materials for antique and extreme vintage pipe restorations, that devotion does not require any replacement parts to be as old as the pipe I’m refurbishing.  A brand new screw tenon or anything else, so long as it’s the same substance as the one with which the pipe came, is fine with me, and I’m planning on stocking up on assorted sizes, styles and shapes of everything I can find in new condition.  Still, I have a small collection of antique and vintage tenons, stems, bands, an endcap and one shank extension, upon which I look forward to expanding.  No doubt the day will come for each to find its wizened old pipe mate, and I anticipate the matches, at the risk of sounding daft, with somewhat of a sense of excitement.  Call me old-fashioned or sentimental or a codger or what you will, but there it is.

The two on the left are Redmanol.

The Problems
I realize I’ve overstepped the subject of bone tenon screws a bit in this section, for reasons of expansion on the greater subject, but now to address the problems with those parts.  Again, I stated that the bone tenons are in no immediate danger of extinction.  I should have qualified that assertion by noting in most cases.  Consider the photo of my antique bone screws above.  I have no doubt that various suppliers of newly made old-style supplies such as these screws indeed have considerable varieties on hand, but the fact remains, many were custom made as long as a century or more in the past.  As the venerable Mr. Norwood pointed out, nobody is stepping up to produce such oddities as bone screws to order.  Of course, artisans able to do so can and will be found – but the task won’t be easy, as Part 2 of my series will show.

Then there are several other problems, I’ll call them: one, fitting a bone screw requires matching it to the stem and shank.  In most cases, the measurements for each are different, not to mention the style of the tenon screw.  Just whipping out the calipers and determining the approximate diameters of the two ends and the optimum length of the whole may not be enough.  Two, bone is inherently soft and brittle, and therefore breaks with the least provocation.  If you’re lucky, the original broken tenon will be available, but if so, it’s likely to be in bits and pieces, some powdered.  It follows that matching can be problematic.  Three – and this isn’t being persnickety – adding to all of the above obstacles is the likelihood, not possibility, that re-threading the stem and/or shank into which each end of the bone tenon screws will be necessary.  To be blunt, not everyone is up to any or all of these tasks.

To sum up, the more than potential need for someone specializing in bone tenon repair will become mandatory.

METAL SYSTEM PIPES
Arguably the most fascinating coincidence in the history of pipe making was the introduction in a single year of two brands of an altogether new kind of system pipe.  The year was 1936, and the inventors were Frederick K. Kirsten, a German-born emigrant to the U.S., and Kenly C. Bugg, a native of Indiana.  Both of them were engineers and prolific inventors with great numbers of diverse patents, and each chose aluminum for the frame, because of its light weight and rapid heat dispersion, as well as screw-on briar bowls.  Otherwise, their designs were quite different   Kirsten’s pipes are more box-like while Bugg’s are sleeker and more cylindrical.

1930s Kirsten courtesy Pinterest and “very old” Falcon courtesy Smoking Metal

The basic systems – the details of which I will omit – differ, also, but suffice it to say, Kirsten’s was more complex while Bugg’s was simpler, using a moisture trap beneath the bowl.

Which man committed his plans to paper and created a prototype is moot.  Kirsten had the presence of mind to begin manufacture and sale of his pipes the same year, applied for the patent in 1937 and received his grant with US Patent No. D112, 701 on December 27, 1938.  Bugg, on the other hand, sat on his invention, not selling his first pipes until 1940 and receiving US Patent No. 142,280 on August 21, 1945.  Kirsten, therefore, is generally credited with the invention of the metal system pipe despite the uncertainty of the exact date of the metal system pipe’s conception and in whose mind it occurred,

I have included the Patents for both for your enjoyment should you wish to read them (the Kirsten first followed by the Bugg).
The transition of production of the great American original Falcon pipes to Great Britain began in 1961, when production started there.  In 1968, U.S. production of Falcon pipes was transferred altogether to Falcon Pipes Ltd. (also known as Falcon House Group) in Great Britain, which still later became the Merton and Falcon Co.  The Falcon Pipe Group now runs the operation, as far as I can tell.  Despite the convoluted name changes, Falcon pipes have maintained their quality since Kenly Bugg made the first one.  By the way, to clarify a variation that began to annoy me, there is no second e in Kenly, despite frequent errors.  See patent signature of inventor.

Everything so far in the category of metal pipes has been to explain the genesis of an explosion in brands and systems of metal pipes with bowls made of wood, meerschaum and the sundry Bakelite materials, to name some.  The exact number of Falcon pipes sold worldwide to date is difficult to pin down, but two numbers stand out: by 1954, six million of them had been sold in the U.S. alone, and starting seven years later, from between 1961 and 1974, 16 million more were sold by the oft-switching producers in England to pipers around the world, excluding the U.S.   This leads us on a nice, ordered path to…

The Problems
Rest easily, Kirstens and Falcons are in no danger of running out of replacement bowls and even other parts as both companies remain in business and don’t appear to have plans to stop.  Replacements or new screw-in bowls are available directly from Kirsten Pipes or the Falcon Pipe Group’s distributors, such as the Arango Cigar Co. in the U.S.  This is not to mention the numerous artisans who make bowls that fit either or both, including Don Warren Pipes for Kirsten bowls and DGE Handmade Pipes and Manly Things (I didn’t make up the name, so don’t shoot the messenger) for Falcon and/or Dr. Grabow Viking bowls, which are interchangeable.

That reassurance made, the rest will be brief and simple in its awfulness.  I’m not about to go through the entire A-Z Index at Smoking Metal’s UK website to locate, count and determine all of the brands – known and unidentified – of metal system pipes identified and catalogued so far by Tony Pringle.  Like a French gentleman whose first name is Richard but is known to countless pipe smokers as Pipephil (who retired a few years ago), Tony works alone and in his spare time, making his accomplishment a monumental feat even with the sparse contributions of readers.

All I need to point out is that many – no, more likely the vast majority – of the metal pipes listed and shown at Smoking Metal were manufactured without even a moment’s thought about compatibility with others of their kind.  In blatant terms, this means they can’t be replaced without making one from scratch.  And who is going to do that?

I’d say that works as the one and only necessary dilemma with this category of scarcity.

CORNCOB INSERTS FOR BELOVED OLD ARISTOCOBS
The Aristocob was invented by Joseph W. Zarikta and assigned to the Al-Cobb Corporation (later Aristocob, Inc.) of Grand Haven, Michigan with U.S. Patent No. 3,292,639, granted just in time for Christmas 1966. Here is what the new-in-plastic case product looked like, complete with the aluminum frame, plastic stem and two cob inserts, courtesy Smoking Metal.  (Filter possibly not included.)

The Problems
Missouri Meerschaum took over manufacturing the Aristocob and its inserts in the mid-1970s.  The best known maker of cob pipes discontinued the Aristocob at some point but continued manufacturing the inserts until 1983, when the endeavor became unprofitable.

While it is true that original Aristocob corncob inserts can still be found online, at one of the last sources in the astounding list at the end, for example, when they’re all gone, that will be the end of the real thing.  The substitution of a custom-carved briar insert at the expense of the original cob is perhaps better for its durability in the lone case of the Aristocob.  As far as I know, they are fashioned only by Steven LaVoice Jr. of Owl Pipes.  I happen to know Steven’s work to be excellent after being compelled to use one of his traditional wood substitutes when I restored an Aristocob three years ago, about a year after Steven started business in Western Massachusetts.

Briar insert from Owl Pipes, with a nice keychain included

Some cold-hearted pipers, hearing of the rising shortage of original corncob inserts for the Aristocob, may bid them good riddance or scoff, “So what!”  I’ll answer that hypothetical question   Those who continue to enjoy durable cob pipes know and appreciate the difference in taste afforded by the intended Aristocob insert.  Any purists are left with one of these singular “art deco” smoking metal creations that’s rendered useless for them.  Others can still buy a briar insert directly from Steven if the owner wishes to be rid of the short-lasting cob originals that I’m told become quite nasty the closer to their expiration they get, and thus avoid the intermediary restorer altogether.  Steven makes different styles of inserts, one of which has the rough exterior reminiscent of real cob.  (Being a bit obsessive-compulsive, I polished the one shown above, which sold to a happy old-timer.)  And the cost of a briar insert, which is five times greater than the $5 I paid at a garage sale for the worn old Aristocob I restored, can be a one-time expense.

The critical fact remains, though, that nobody seems to be stepping up to make quality (non-flammable) cob inserts with a coating to harden them, and therefore, when Steven is no longer around “to do the work” with briar, remaining Aristocobs will be tossed in the trash or placed with nostalgia as heartless shells on shelves.

MEERSCHAUM PUSH-PULL FITTINGS
Now, here’s the most bizarre item on the list, and I hope it sparks English Parliamentary style chaos of furious, frenzied, fibrillating debate – but no fighting, please.  I know that may be shameful of me, and I don’t care, because of the single and singular fact I will assert when I get to the proper Problems section.  For now, a push-pull fitting is formed of two small pieces of polytetrafluoroethylene (Teflon) or a generic variation.  Teflon is a polymer, or chemical compound of high molecular weight, discovered in 1938 by a new-hire at DuPont with a chemistry doctorate.  Teflon, the specific combination of gases and other substances that formed by chance when the lucky chemist heated a canister a certain way by mishap, happens to be extremely resistant to solvents, acids, bases and heat, and hence corrosion and melting, and is therefore perfect for the most part to join a meerschaum pipe shank to its stem.  Of course, it has other uses and fascinating properties anyone so inclined can read about near the end of my sources.  At its simplest, Teflon is a very fancy synthetic plastic.

The two parts are paired with one piece that screws into the shank opening and another into the stem.  A push-pull fitting, in other words, acts as a special tenon on one side that screws or pushes into the other.  Most of the time by far, the tenon part is installed in the opening of the stem and fits the shank part, but I’ve seen the process done in reverse, probably because that’s the way some restorer could make the two match up without drilling either the stem or shank opening.  The use of push-pull fittings was a great innovation to protect the fragile meerschaum and also do away with bone and horn tenons that are just as easy to break

Here are two shots, one of a trio of “standard” push-pull fittings of slight difference in size, courtesy Royal Meerschaum, that costs $3.99 for the three-pack.  The other is a screw-in stem for one of my pipes.  Standard just means they can be pushed or twisted together rather than screwed and are also the general sizes for newer meerschaum pipes.Note my Paktas billiard above with only the stem fitting that screws into the bare meerschaum shank.  I’m always very careful unscrewing it!

The Problems
The single problem with these push-pull fittings is that they’re not hard to find in all of the typical sizes that are pretty much standardized today, but that means bupkis.  The artisans who crafted meerschaum pipes in the old days – before push-pull fittings became popular in the 1970s – did everything themselves, including drilling the shank and stem however they pleased at the moment and depending on the size of the pipe.  Ay, there’s the rub.

In this day and age where everything from furniture to motor vehicles is composed entirely or at the least more than half with cheap and readily available plastic, “real” or synthetic (think imitation Naugahyde), there’s no excuse for a lack of push-pull sets designed in enough sizes to accommodate older pipes.  But there it is.  Oh, they’re no doubt out there some place, but where?  Norwoods Pipes and Walker Pipe Repair, again by way of examples, offer push-pull fittings, but (and no offense is intended to either of these fine pipe repair providers) if they have different sizes, they’re limited.

I sent the following very large lattice meerschaum stummel with no stem and a hole in the shank to Norwoods, which can provide almost any original replacement part, only to learn that the new Lucite stem was no problem, but a push-pull set that big was unavailable.  A bone tenon screw was used instead for the same price, and that pipe with its new tenon and stem arrived in the mail soon after.  In this case, I am quite pleased with the result, since I kept it for my own use and didn’t have to worry about any prospective buyer breaking the bone tenon and blaming me.  That restoration will be the subject of the final part of this series.

CONCLUSION
For now, I can continue to cobble together limited replacements of the various parts integral to the proper restoration of old pipes, and for those tasks requiring the dwindling repair services that exist, I can turn to them.  I also know of a few artisans with the know-how to tool these small yet vital implements of restoration.  Still, I have no doubt that within my lifetime the need “to do the work” myself will come.  I can only hope practice will be enough…and I had better get to it.

SOURCES

http://norwoodspiperepair.com/index.html
https://patents.google.com/patent/US942699A/en?oq=942699
https://books.google.com/books?id=oYZGAQAAQBAJ&pg=PA6&lpg=PA6&dq=redmanol+chemical+products+founder&source=bl&ots=juthNFh-rW&sig=b9qO8plogjv6fj_u2TBjkdpIfCM&hl=en&sa=X&ved=0ahUKEwj-gNj4h9nNAhUM9YMKHXKjBwMQ6AEINDAE#v=onepage&q=redmanol%20chemical%20products%20founder&f=false, Phenolic Resins Technology Handbook, by NPCS Board of Consultants and Engineers, 2017, excerpted by permission
https://books.google.com/books?id=nTs8AQAAMAAJ&pg=PA144&lpg=PA144&dq=redmanol+bakelite+infringement+judgment&source=bl&ots=TCel6fmccJ&sig=ehZijKCRrQSs- RnL6xiDbVA5aKM&hl=en&sa=X&ved=0ahUKEwi39veundvNAhUT32MKHbeiCJwQ6AEIHDAA#v=onepage&q=redmanol%20bakelite%20infringement%20judgment&f=false Factory and Industrial Management, Vol. LXIV, No. 3, August 1922, excerpted by permission (p.144)
https://books.google.com/books?id=11FHAQAAMAAJ&pg=PA816&dq=in+search+of+the+man+made+amber+redmanol&hl=en&sa=X&ved=0ahUKEwis5OvgmNvNAhVk0oMKHYveA6sQ6AEIIzAB#v=onepage&q=in%20search%20of%20the%20man%20made%20amber%20redmanol&f=false Compton’s Pictured Encyclopedia, Vol. 2, excerpted by permission (p. 818)
https://en.wikipedia.org/wiki/Bakelite
https://rebornpipes.com/2016/07/05/the-scintillating-antique-kbb-redmanol-pipe/
http://www.jhlowe.com/bits-bakelite.htm
https://rebornpipes.com/2013/10/14/louis-blumfeld-1901-bbb-bent-billiard-by-james-gilliam-of-jsecpipes-com/comment-page-1/#comment-23486
https://www.minerals.net/gemstone/amber_gemstone.aspx
http://mentalfloss.com/article/73608/15-clear-facts-about-amber
https://www.amazon.com/REPLACEMENT-TOBACCO-STEMS-AMBER-STRAIGHT/dp/B01HZU8NBU
https://www.amazon.com/REPLACEMENT-TOBACCO-STEMS-STRAIGHT-AMBER/dp/B01HZU7M94
https://leta.st/blog/2016/07/history-of-russian-amber-1/
https://en.wikipedia.org/wiki/Baltic_amber
https://www.thefreedictionary.com/amberoid
https://www.shutterstock.com/search/amberoid
http://www.uniclectica.com/conserva/ivory1.html
https://www.washingtonpost.com/news/energy-environment/wp/2016/06/02/its-final-selling-just-about-any-item-containing-elephant-ivory-is-a-crime-in-the-u-s/?utm_term=.fe4c2ac312fb
https://www.npr.org/sections/thetwo-way/2018/03/06/591209422/trump-administration-quietly-decides-again-to-allow-elephant-trophy-imports
https://www.sciencehistory.org/distillations/magazine/celluloid-the-eternal-substitute
http://vermontfreehand.com/product/imitation-ivory/
https://www.amazon.com/ARVORIN-PLUS-Imitation-Substitute-Material/dp/B0755RG32T
https://www.chicagotribune.com/news/ct-xpm-2002-09-22-0209220243-story.html
https://www.dictionary.com/browse/casein
https://www2.palomar.edu/users/warmstrong/pljan99.htm https://www.ebay.com/itm/Antique-BONE-tenons-88-PIECES-Lot-of-Assorted-Sizes-Victorian-Vintage-pipe-/202297224337
http://www.jhlowe.com/misc-items.htm
http://www.smokingmetal.co.uk/pipe.php?page=56
http://www.kirstenpipe.com/pipes.html
https://www.etsy.com/shop/DonWarrenPipes?section_id=22062561
http://www.musiccitymarketing.com/cart_catalog_search.cfm
https://www.dgehandmadepipes.com/catalog/replacement-falconviking-bowls
https://www.ebay.com/itm/VINTAGE-NOS-ARISTOCOB-REFILL-COB-BOWLS-3-PER-BOX-ESTATE-PIPE-ALUMINUM-METAL-NOS/323553620046?hash=item4b554c704e:g:HGYAAOSwlHJbOmP0:rk:2:pf:0
https://www.owlpipes.com/product-page/briar-aristocob-inserts
http://www.jhlowe.com/misc-items.htm https://pipedia.org/wiki/Kirsten_Pipe_Company
https://pipedia.org/wiki/Falcon
http://www.smokingmetal.co.uk/pipe.php?page=366
https://www.markwaterpumps.limited/falcon-pipes-aluminium-die-casting-specialist-keeps-traditional-product-alive/
https://www.paykocimports.com/plastic-tenon-screw-set-3-pack/
https://en.wikipedia.org/wiki/Polymer
https://en.wikipedia.org/wiki/Fluoropolymer
http://www.royalmeerschaumpipes.com/Regular-Stem-Push-Pull-Fittings-p/sft-3.htm
http://www.walkerpiperepair.com/html/pipe_repairs.html

On Bending and Straightening Amber Stone Stems


Blog by Robert M. Boughton

Copyright © Reborn Pipes and the Author except as cited

No amount of experimentation can ever prove me right.  A single experiment can prove me wrong.

— Albert Einstein (1879-1955), German-born theoretical physicist and winner of the 1921 Nobel Prize for his discovery of the law of the photoelectric effect, received in 1922 (don’t ask why – the answer in some ways is more complex than Relativity)

THE POWER OF PERSUASION

This is the most difficult pipe restoration blog I’ve ever written, for the things about which it is not.  It is not about an antique gold-banded KB&B Blue Line Bakelite, c. 1910-1914.  A friend of mine won that distinguished, classic shaped pipe from the pre-Kaywoodie era for a very low price on eBay, and I offered, for a small fee, to restore it.  It is not about the still older gold band CPF Best Make turned lion’s head meerschaum, c. 1898, that only lacked a bone tenon to be complete.  As much as I dislike the cliché, I poured my heart and soul into that pipe since 2013 in a true labor of love to return the 19th century treasure to its original structural form.  The simple act of restoration was – and remains – intended as a tribute to the man most of the readers here know as my good friend and mentor, Chuck Richards, who gave it to me.

It is not about either of these things, or the writing between the lines as it were, but some choice details are relevant.  For example, the connection between the two pipes named above is their stems.  The Blue Line’s is Bakelite, the world’s first synthetic plastic, which could be colored dark brownish red.  The Best Make’s genuine dark red amber stem comes from wholly organic-based resins from exotic, extinct trees that were washed away by large bodies of water and fossilized into mineral form 10-100 million years ago.

The focal point of this blog is the immediate but temporary solution to a series of events that still has not been resolved.  Never in my wildest apprehensions, during the last several years of taking some truly ruined pipes and making them whole again, did I conceive that something seeming to be simple could become so bloody banjacked , as the Irish might put it with good cause.  At first, I intended to include the details as usual, in a single account of the finished project.  And so, with a little help from a friend, I adapted my thinking, draft after draft, to write this aspect of the overall restoration into a single blog.  To be brief, here is what happened.

My friend (the one who owns the Blueline, Daryl Loomis), holds the status of co-top buyer of my pipes, numbering five so far, with someone else who came and went in short order.  Daryl also let me restore one of his own pipes before, a gorgeous Redmanol Socket system pipe related to this one by its maker, KB&B, and the Redmanol of its construction that was consumed by the General Bakelite Co. in 1922.  Thereafter, Redmanol was classed as Bakelite despite certain superior qualities.  For extensive details on Bakelite’s origins and development, see the fourth link in my Sources.

At any rate, without going into details that will be covered in my eventual blog on the full restoration of the Blueline, there was a mishap – oh, the understatement! – wherein the bone tenon was crushed.  The photo below was taken after I Super Glued the bits and pieces of the shank end of the tenon, minus the powdered remains, as best I could.This catastrophe was followed close on its heels by a second calamity that left the Bakelite stem ruined, as far as I am concerned., other than for use with some unforeseeable shop pipe.  There is no way I will place a stem I broke, or anyone else did for that matter, on a paid restoration, even though, for obvious reasons, I’m refunding the small fee.  And so, with the immediate goal being to return the Blueline in a condition that it can be smoked as soon as possible, I am left with no alternative than using the genuine cherry red amber stem from my Best Make pending the acquisition of a Bakelite replacement.  Here is the Bakelite stem after I was done with it, in the negative sense of the expression.

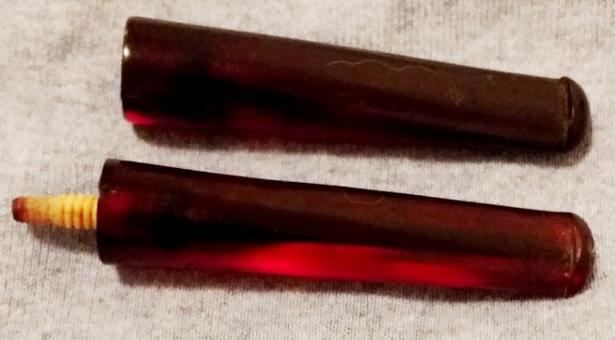

Top view Bakelite stem

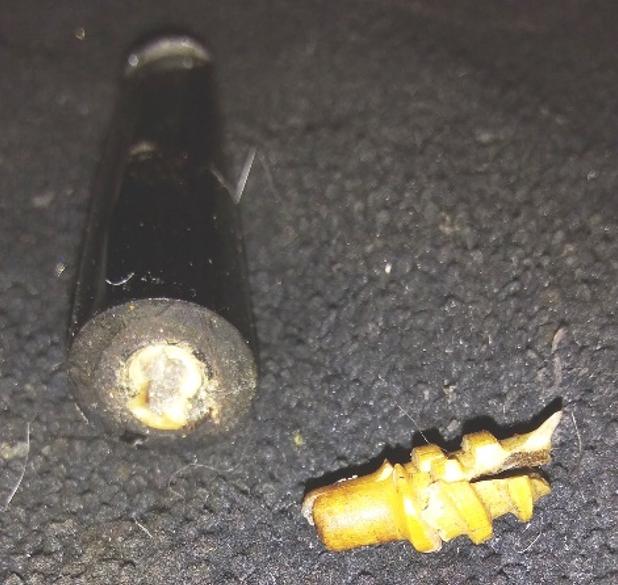

Bottom of Bakelite stem, broken

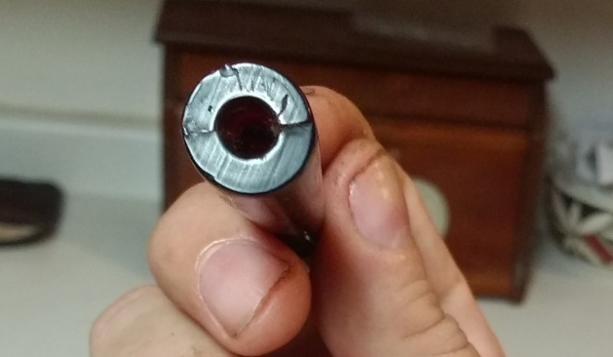

Open end with both sides of the break shown on either side

Steve wrote an excellent blog called “What Is the Amber Used in Pipe Stems and How Do You Bend It?” in 2013, but had never tried the theoretical guidelines proposed.  He still has not had occasion to attempt the unusual process.  In other words, it occurred to me, I would be the guinea pig to test the theories.  The prospect was not appealing given the potential for destroying my 119-year-old amber stem for the sake of “progress” in this obscure field of pipe restoration.  Steve’s blog is a trove of information about amber in general and the article from Scientific American on how amber stems were once custom-crafted and bent per the specifications needed for a specific pipe.  Steve raised some good questions in his fine blog that can be read at the third link below.

ABOUT BENDING AMBER

Having spent a great deal of time pouring over every word of Steve’s piece as it related to bending amber, from the viewpoint of having an immediate job to do so, I was left with still more troubling questions.  The key concerns were:

  1. Since amber stems were made and shaped for specific pipes, could they be re-bent later for replacements on other pipes? After all, bending a stem once is one thing, while bending it back is another.
  2. If so, what might be the effect of age, which tends to make amber more brittle, on a stem?
  3. Was my hope that the answers to the first two questions just that, wishful thinking, or put more plainly, a crock?

WARNING AND DISCLAIMER: The method I am about to describe, although it worked beyond my wildest dream, does not follow the better, safer steps set forth in the article upon which Steve’s blog is based.  Read his blog and, if you already possess or have the means to acquire the equipment described, or the wherewithal to fashion your own versions, please do so.  Also follow the other procedures described.  I am taking responsibility for my own mistake(s) that made this drastic measure necessary but will not be responsible for anyone else’s misfortunes!

Having abandoned myself to the certainty that my efforts would either turn out well or the whole thing would go awry in the most hideous way, I didn’t bother re-visiting Steve’s blog when I reached the desperate state of mind necessary to go through with the “experiment.”  Instead, I winged it.  The following pic shows my beloved 1898 amber stem not only in the bent form in which it was hand-fashioned by some unknown but master CPF meerschaum crafter late in the century before the one preceding the current, but as I still feared would be the last time I saw it in any recognizable form.OK, here’s what I did.  Pre-heating the oven, instead of the 210° or 220° F. temperature I’ve always used for regular stems, on a whim, if you will (since I was throwing everything else to the wind), I cranked it up to 335°.  Steve’s blog states that the process does not even involve an oven and the softening temperature of amber is about 150° C. ((302° F.). I just now confirmed that he was, no surprise, correct.

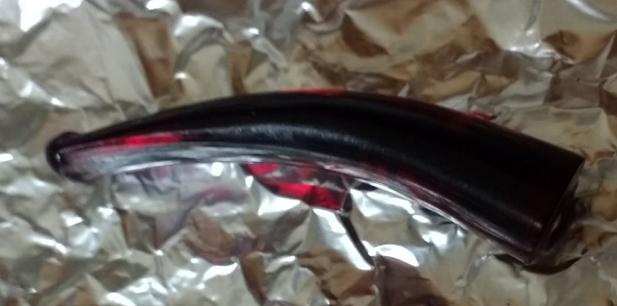

Therefore, 335° F., or 168° C., was a little high.  Placing the stem on a piece of aluminum foil, I forgot to put anything through the airway to prevent more than likely collapse until about a minute after I closed the oven door on it.

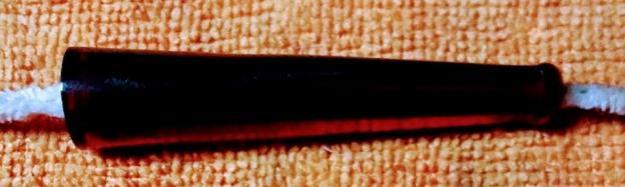

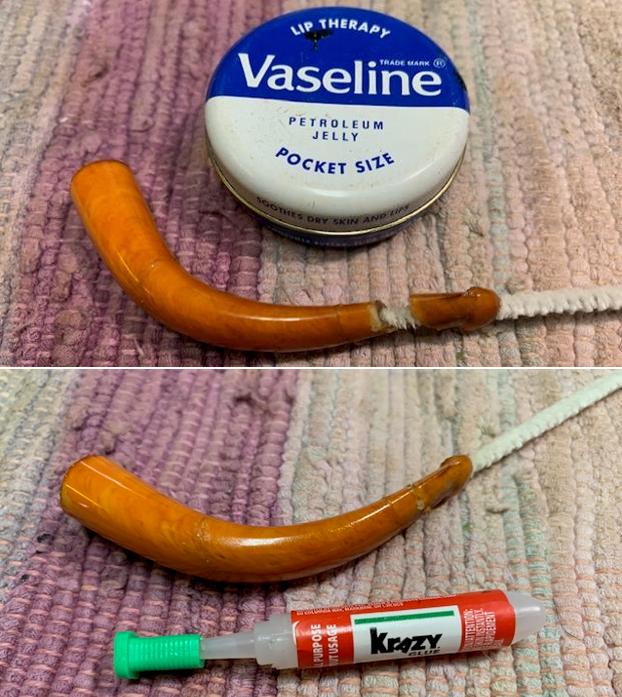

Snapping to my terrible lapse of memory, I grabbed a regular pipe cleaner and bolted to the oven, where I found the stem very hot already but the airway still intact, and inserted the cleaner through it.

I also checked after only 10 minutes more (thank God), and found the amber stem had straightened itself!  Not only that, but when I touched the stem on the piece of aluminum, it had a bizarre limpness to it.  My heart was racing as I removed the aluminum foil with the stem from the oven and placed it on the counter.  Picking up the stem with care using both hands on either end of the cleaner, I saw the middle sag downward with gravity.

Sure for a few seconds that I would become ill and have to rush to the sink to vomit, I got a hold of myself and moved my hands to both ends of the stem, at which time I found it was so soft it reminded me of the hilarious old cartoons with Bugs Bunny or whatever Toon character flopping a broken arm about like a cooked noodle.  Of course, I didn’t play with the stem, but rushed it to the aforementioned sink and ran cold water over the whole thing until it was firm again and cool.The cleaner came out with no resistance.  Needless to say, I sighed in relief and wiped the sweat from my brow.  The experiment was a success!

Bakelite above, amber below. I know the bone tenon is backward!

And the amber stem with the KB&B Blueline stummel that’s ready for the temporary amber substitute as soon as I have a suitable new tenon.

CONCLUSION

In my most recent, exultant email to Steve, I wrote: “As the attached pics show, I finally got the gumption to go for it, and believe it or not it was the easiest bending material I’ve ever worked with.  Lucite was a dog when I re-stemmed the BW Preben Holm, but 10 minutes in the oven and the amber not only straightened itself but was like Gumby to the touch — no, like a children’s cartoon of someone with a broken arm!”  I attached a couple of photos.

His immediate, doubtful reply told me I was correct in my assumption that Steve didn’t really know what would happen, either.  He wrote, with apparent doubt, “Was the stem a true amber stem or is it the Bakelite one that you sent pictures of?”

I responded that the stem I baked was without doubt amber, then sent this added comment: “PS: I decided to crank the temp up to 335, also, on a hunch.  It may

have been reckless, but it worked perfectly.  I’m planning on writing the process up in my blog on the Blueline.”

Steve wrote back the following words a short time later, and I appreciate them very much, although I don’t know for sure that I “discovered” the process, other than my own oven method.  “Thanks for experimenting, Robert.  That is an incredible discovery.  Do a separate write up on just the bending of amber.  I think that alone will be a must read for those of us who love to restore old pipes.  Thank you for being reckless.”

Until then, I didn’t understand just how risky this little exercise in stem repair was.  But Steve’s power of persuasion being formidable, I took his advice for the blog.

I found the following quote, from a September 1924 Time magazine write-up on Bakelite, amusing in its revelation of the fantastic and egotistic personality of Bakelite’s founder, Leo H. Baekeland, not to mention the influence his company’s PR department must have had in its writing.

“From the time that a man brushes his teeth in the morning with a Bakelite-handled brush, until the moment when he removes his last cigarette from a Bakelite holder, extinguishes it in a Bakelite ashtray, and falls back upon a Bakelite bed, all that he touches, sees, uses, will be made of this material of a thousand purposes.  Books and papers will be set up in Bakelite type.  People will read Bakeliterature, Bakelitigate their cases, offer Bakeliturgies for their dead, bring young into the world in Bakelitters.”

Hubris? Indeed!  But still, it’s amazing stuff.  By the way, the lawyers at Bakelite know something about Bakelitigating from their 1922 Patent infringement suit against the Redmanol Chemical Products Co. and the Condensite Co.

Last, but not least, I wish to thank Steve for his blog and invaluable help throughout the ordeal of my collapsing Blueline restoration, and Troy Wilburn for his wonderful blog on another Blueline and its dating.

SOURCES

http://www.elvenkrafte.com/bakelite%20presentation.htm

https://rebornpipes.com/2015/06/06/spiffing-up-a-kbb-blue-line-bakelite-poker-1908-1914/

https://rebornpipes.com/2013/02/23/what-is-the-amber-used-in-pipe-stems-and-how-are-they-bent/

https://rebornpipes.com/2016/07/05/the-scintillating-antique-kbb-redmanol-pipe/
