Restoring a Wally Frank Pipe of the Month Drunken Poker


Blog by Steve Laug

Jeff and I cannot remember where we picked up the next pipe and have no idea where we found it or what the condition was when we found it. I know that Jeff cleaned it before it ended up here but we cannot put a finger on the pre-cleanup photos or even where we got it. So I decided to just write about it as it looks today before I start the cleanup work and describe the work that I did on the pipe. It is stamped on the left side of the shank and reads Pipe of the Month in script. On the underside of the shank it reads Imported Briar while on the right it reads Wally Frank LTD. The pipe is uniquely shaped and I was tempted to call it a drunken poker (in fact I did in the title of the blog). It must have been a good smoking pipe from the condition of the cleaned bowl. The rim top and edges of the bowl are all damaged. It looked like the pipe had been knocked out on hard surfaces and reamed with a knife. The stem was in good condition once I received it with light tooth marks and chatter on both sides. The majority of my work would be done in reshaping and reworking the rim top.

Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet Pipe Reamer and cleaned up the remnants with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. I took photos of the pipe before I started my work.  The rim top and edges of the rim looked rough with damage all around. The outer edge was rough and the inner edge was notched with what looked like knife marks. The rim top was also nicked and dented. The stem surface looked very good with some remaining oxidation and tooth marks and chatter on both sides near the button.  I took photos of the stamping on the sides of the shank. It is clear and readable as noted above. I removed the stem and took a photo of the pipe to give a sense of the whole. The bowl has a definitely tilt to it and the heel is rounded. The saddle stem is tapered with a slight bend that follows the flow of the pipe. I turned to Pipephil’s site (http://www.pipephil.eu/logos/en/logo-w1.html) and looked up the section on Wally Frank Pipes. I have included a screen capture of the section on The Pipe of the Month.Each member of Wally Frank’s “The Pipe of the Month Club” received a brand new pipe in the mail once a month.

There was also a link to the Pipe of the Month Order form that was on the site. I have included that below for your viewing.Now it was time to work on the pipe. To take care of the significant damage to the rim top and edges I started my work by gently topping the bowl to minimize the damaged areas. I gave the inner edge of the bowl a bevel to reduce the burned areas. I also sanded the outer edge and smoothed out the damage. I wiped the bowl down with acetone to remove the spotty varnish coat and to get the bowl free of the shininess so I could blend in the rim top more carefully. There was some nice looking grain under the varnish. Removing varnish always gives me pause because it can often reveal things I would have rather left hidden. However in this case it was not true. I polished the briar with micromesh sanding pads – wet sanding with 1500-12000 grit pads. I wiped the bowl down after each pad with a damp cloth to remove the sanding dust. The bowl really began to take on a shine. The rim top was slightly lighter than the rest of the bowl so I touched it up with an Oak stain pen to match the rest of the pipe.With the rim cleaned up the bowl was in good condition. I rubbed it down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips. The product works to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine.  I set the bowl aside and turned to work on the stem. I “painted” the stem with the flame of a lighter to lift the tooth marks. The majority of them disappeared with the heat of the flame. Those that remained I filled in with clear super glue. Once the repairs had cured I sanded them smooth with 220 grit sandpaper. I started polishing the stem with 400 grit wet dry sandpaper.  I polished the vulcanite stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.  Before I put the stem back on the shank I checked out the shank end and the edges. I was surprised when I saw a small crack on the top of the shank toward the right that was obviously there before but only now after polishing could I see it. I circled the cracked area in red in the two photos below. I glued the crack with a dribble of super glue and then pressed a thin brass band on the shank end. I really like these thin bands as they do not cover the stamping on the shank – which in this case was on three sides. I like the finished look of the pipe with the band.This Wally Frank Pipe of the Month Drunken Poker with a vulcanite saddle stem is a great looking pipe now that it has been restored. The smooth finish and unique grain look and feel great in the hand and should only feel better as the pipe is smoked. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel to give a shine. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Drunken Poker fits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ¼ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 25gr/.88oz. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!

Restoring a Late Republic Era Peterson’s Sherlock Holmes Rathbone Bent Tall Billiard


Blog by Steve Laug

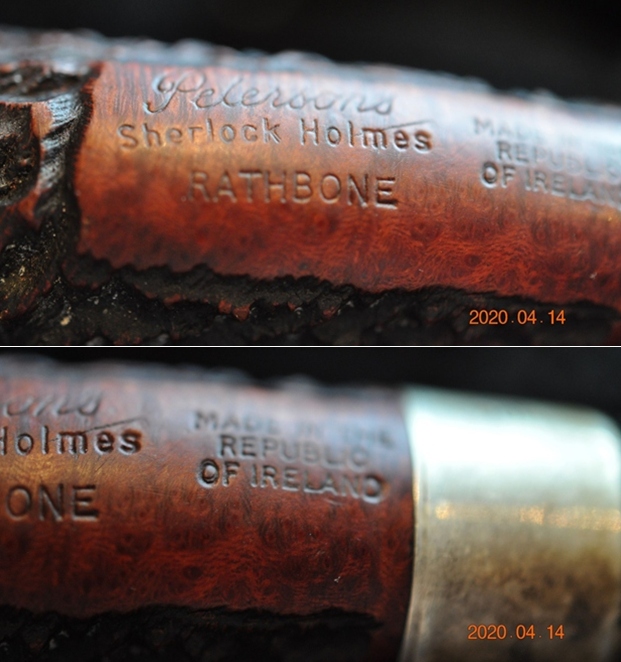

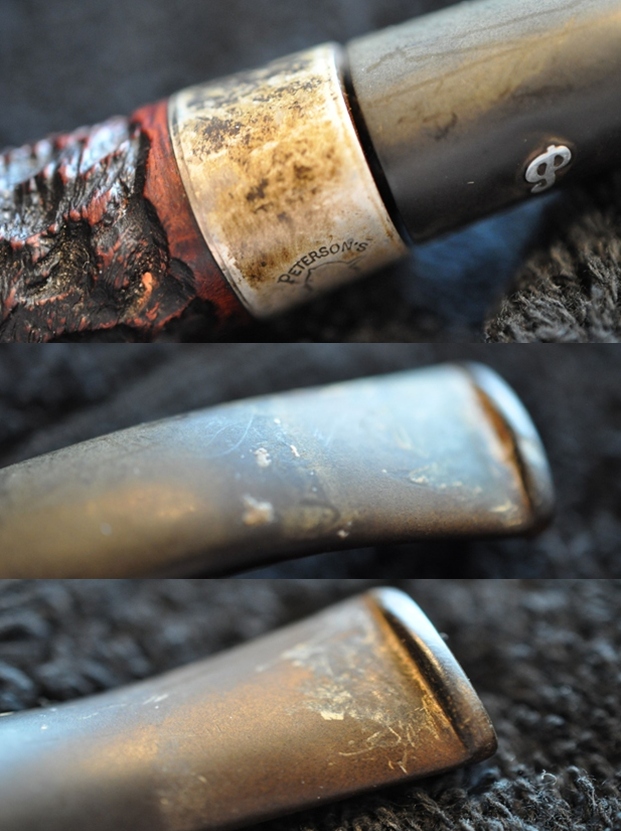

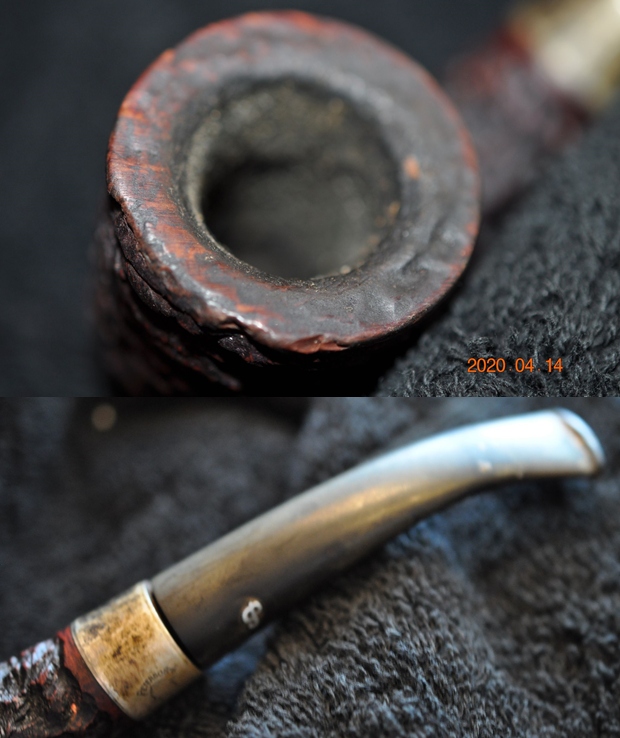

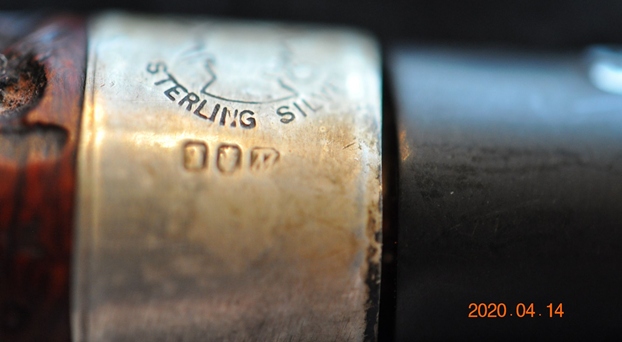

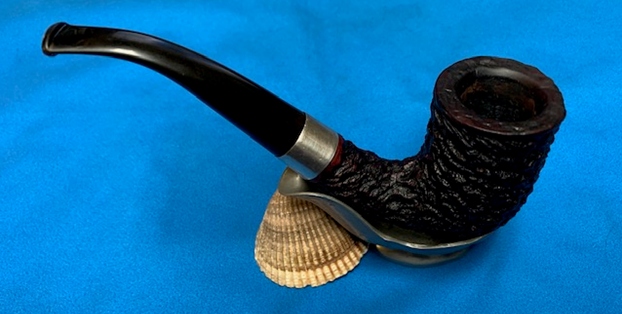

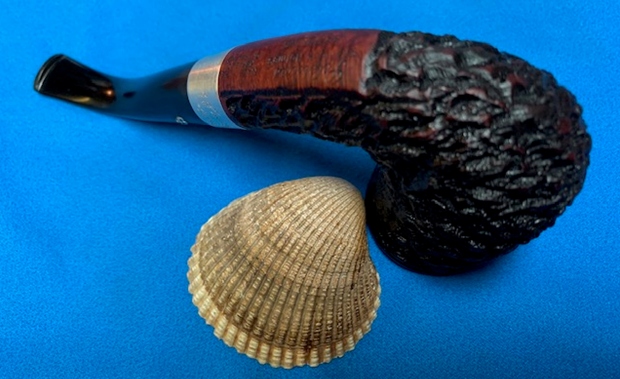

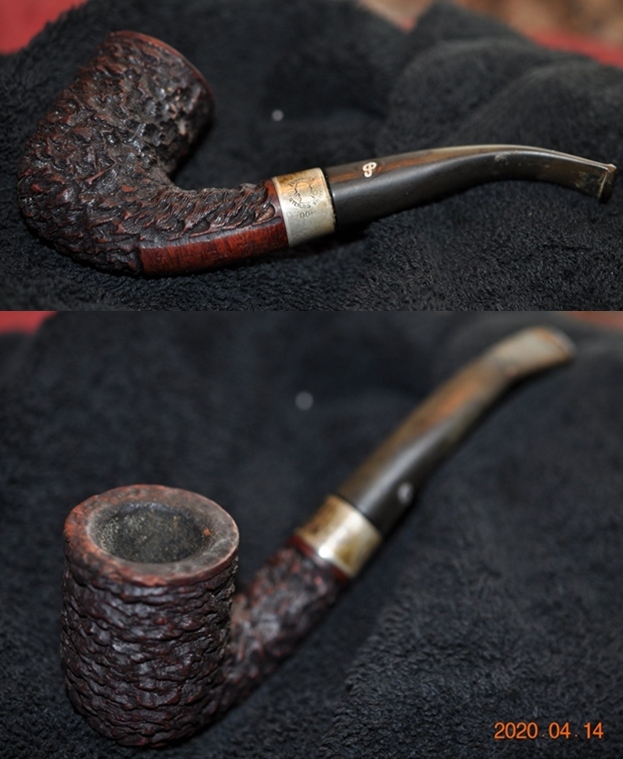

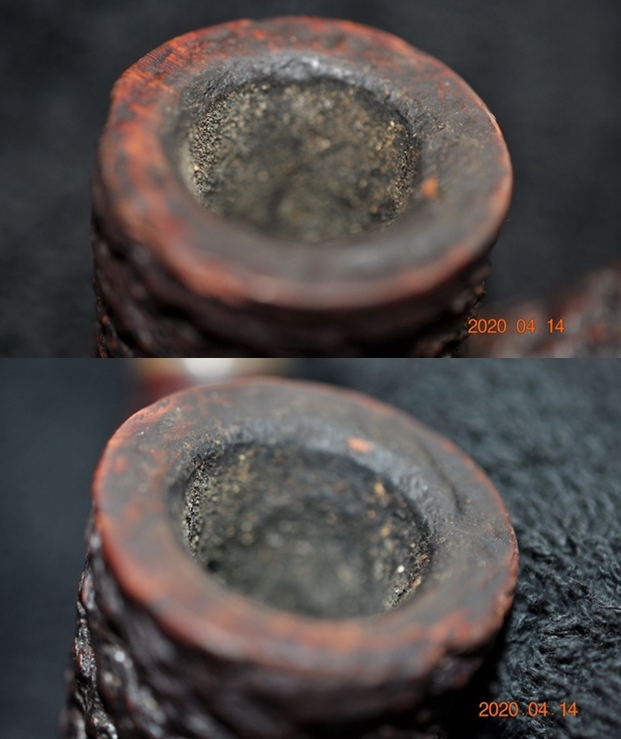

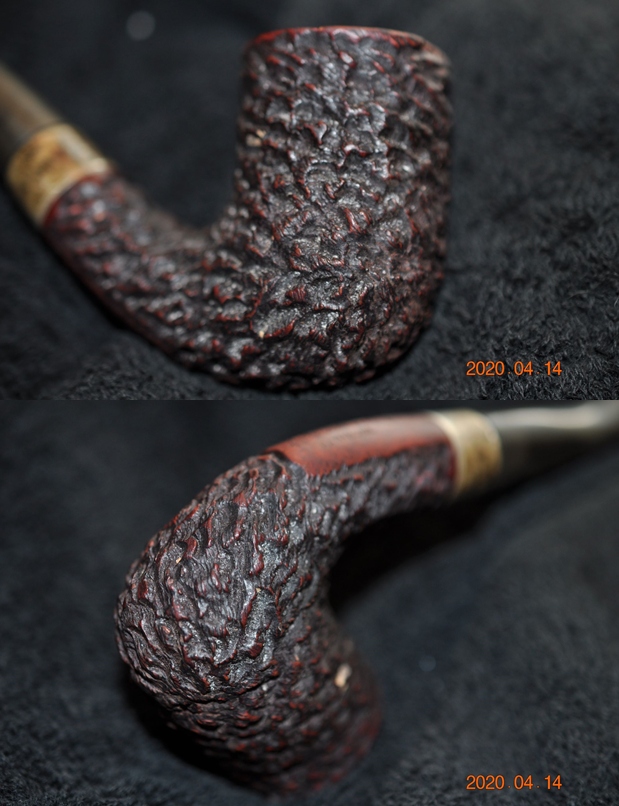

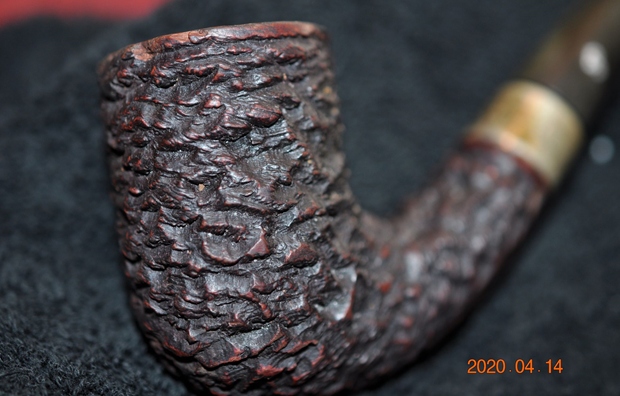

The next pipe on the work table came to us from an online auction from Hermann, Missouri, USA. It is a rusticated Peterson’s Sherlock Holmes line pipe with a tapered vulcanite stem. The pipe is stamped on the underside of the shank and reads Peterson’s [over] Sherlock Holmes [over] Rathbone. That is followed by the stamping Made in the Republic of Ireland. This is a nicer piece of briar than I have seen on some of the firsts I have worked on. The finish had a lot of grime ground into the rusticated finish on the bowl. The bowl was heavily caked and there was a lava coat and the inner edge of the rim. The edges looked okay but we would know more after the cleanup. The stem was oxidized, calcified and had tooth chatter and marks on the top and underside near the button. There a silver P glued onto the left side of the taper stem. The Sterling Silver Band is stamped with the profile of Sherlock Holmes with Sterling Silver above and below the profile. Under that it has three hallmarks that will identify the year the pipe was made. The pipe showed promise but it was very dirty. Jeff took photos of the pipe before he started his cleanup work.   He took photos of the rim top and bowl to give a clear picture of the thickness of the cake and the condition of the rim top and edges. He also took photos of the top and underside of the stem to show the oxidation, calcification and chatter and tooth marks.    Jeff took photos of the sides and heel of the bowl to give a picture of what the briar around the pipe looked like. It is a craggy and rugged rustication.    He took photos of the stamping on the shank and the Sterling Silver band. It reads as noted above and is clear and readable. You can also see the Silver P on the side of the stem. It appears to be loose and lifted from the stem surface. The Sterling Silver band on the shank had the classic Peterson’s Hallmarks. The first mark was the seated Hibernia with her arm on a harp representing Ireland as the country of manufacture. The second mark was a crowned harp used to identify the quality of the silver. The third mark was a slanted capital M that gave the date the pipe was made. I turned to a Peterson’s Hallmark chart that I had on rebornpipes to see if I could identify the date the pipe was made (https://rebornpipes.com/tag/peterson-hallmark-chart/). The slanted letter “M” is the stamp for 1998. That tells me the pipe was made in 1998.I am including the information from Pipedia’s article on Peterson pipes. It is a great read in terms of the history of the brand (https://pipedia.org/wiki/Peterson). I have included a bit of the pertinent history here.

1950 – 1989 The Republic Era – From 1950 to the present time, the stamp for this era is “Made in the Republic of Ireland” in a block format generally in three lines but two lines have been used with or without Republic being abbreviated.

I turned to Pipedia to see if I could find some specific information on the Sherlock Holmes Series (https://pipedia.org/wiki/Peterson#Peterson_Pipe_Collections). The site gave this following information on the series

The Sherlock Holmes Series: Probably the most popular and successful series of pipes ever produced by Peterson. Including the Meerschaum version of the seven day sets. Both briar and Meers can be purchased either as individual pipes or complete seven day sets and stands. Expect to pay around $250 for briars and $300 for individual Meerschaums. The Adventures of Sherlock Holmes runs around $1000 for a 4 pipe boxed set. Complete 7 day sets and stands can be up to $1500 – $2000.

That was followed by the second series the Return of Sherlock Holmes.

I turned to the article on dating Peterson pipes on Pipedia to see if I define the time frame of the Return of Sherlock Holmes Series and it dated it at approximately 1991 (https://pipedia.org/wiki/A_Peterson_Dating_Guide;_A_Rule_of_Thumb#Silver_Band_Dating). That fit this pipe well as it is dated 1998. It clearly links it to the Second or Return of Sherlock Holmes series,

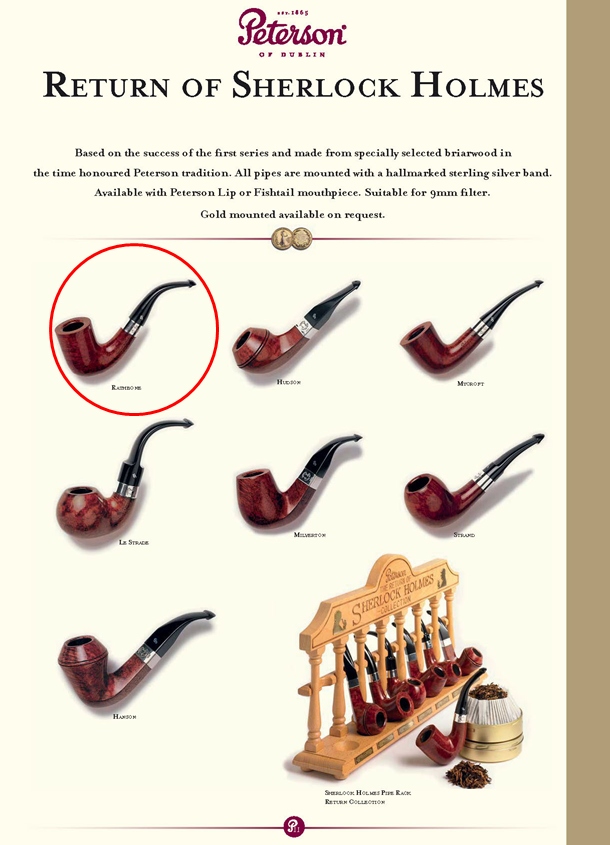

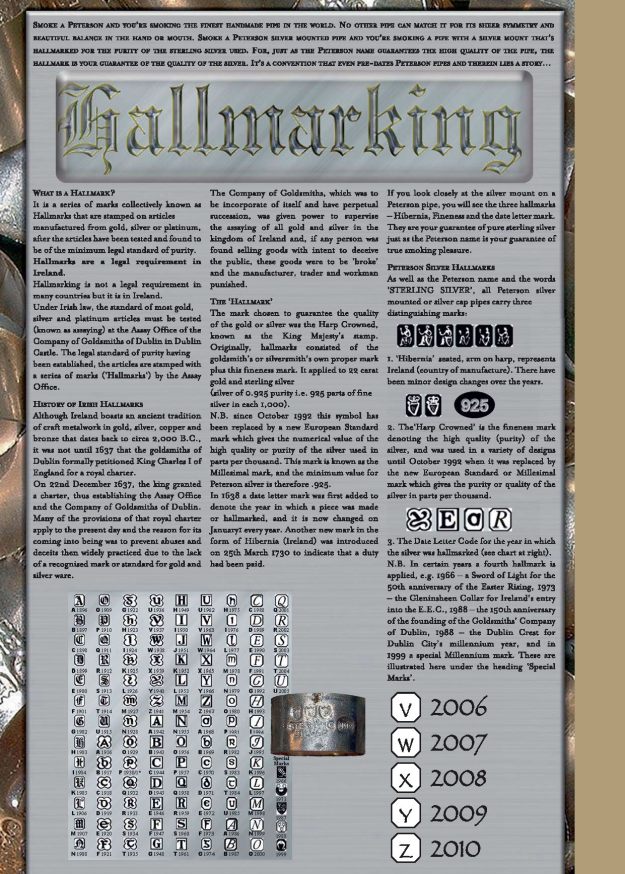

I turned to the catalogue I had on a blog on rebornpipes (https://rebornpipes.com/tag/peterson-hallmark-chart/). I have copied the page from the catalogue on the Sherlock Holmes Original Collection. From that page it appears that the Rathbone was part of the second series of Sherlock Holmes pipes – The Return of Sherlock Holmes.I knew that I was dealing with a Republic Era pipe made between 1950-and the present – a Late Republic pipe. It was a rusticated bent billiard that came out as part of the Return of the Sherlock Holmes Series in 1998. The finish was stained with a combination of brown and black stains. Now it was time to work on the pipe.

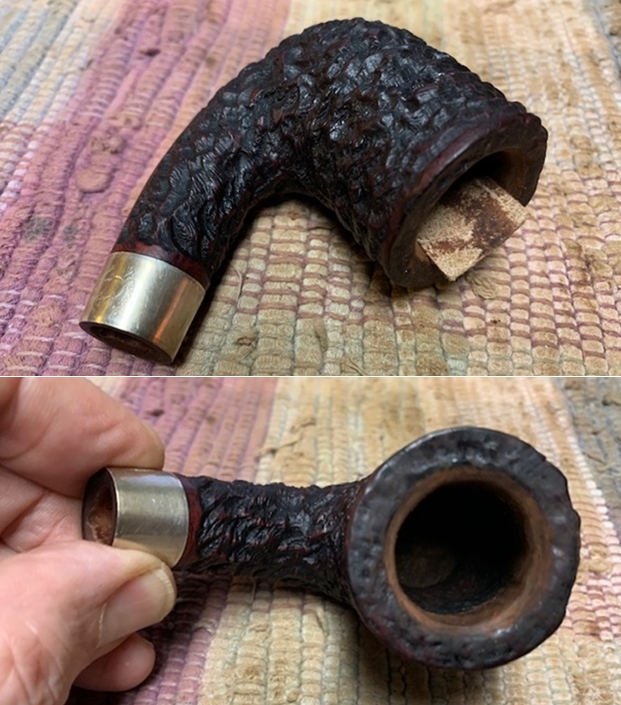

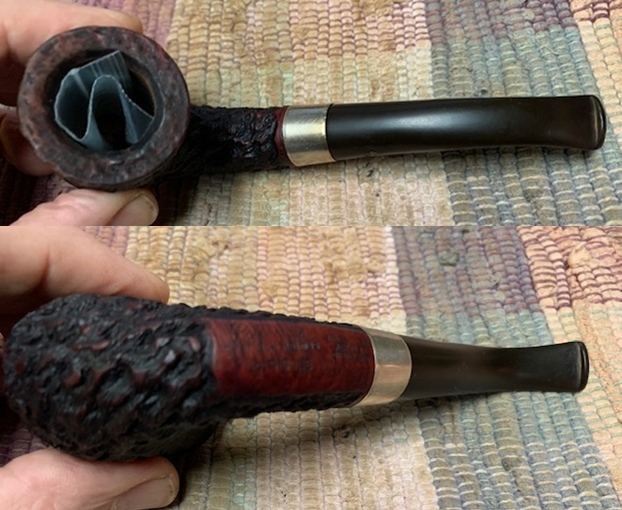

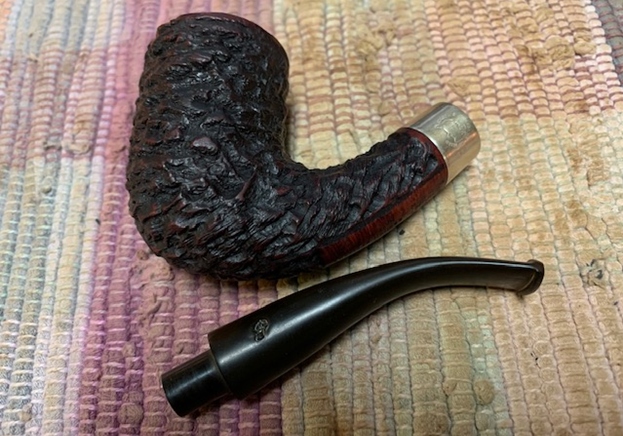

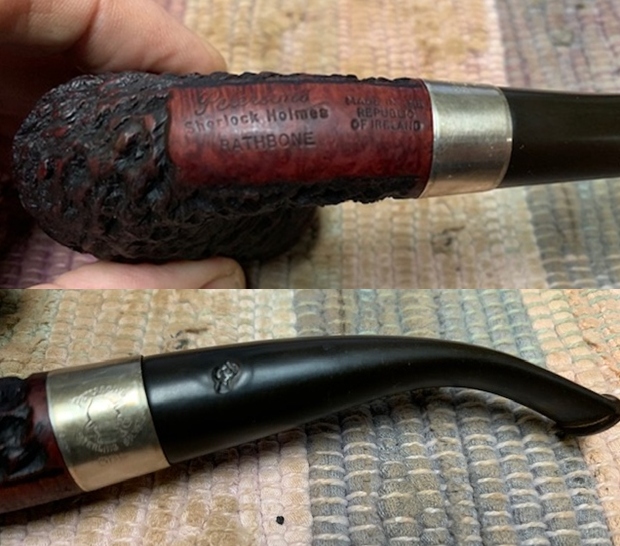

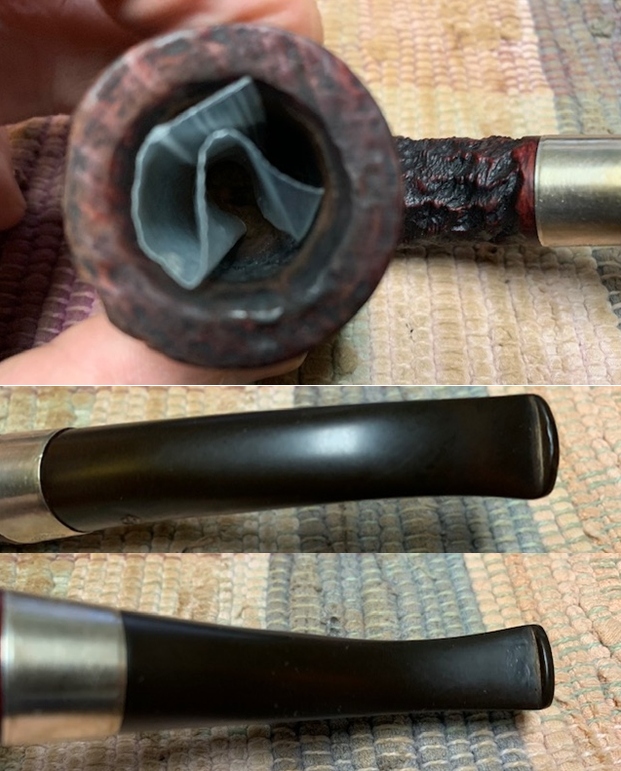

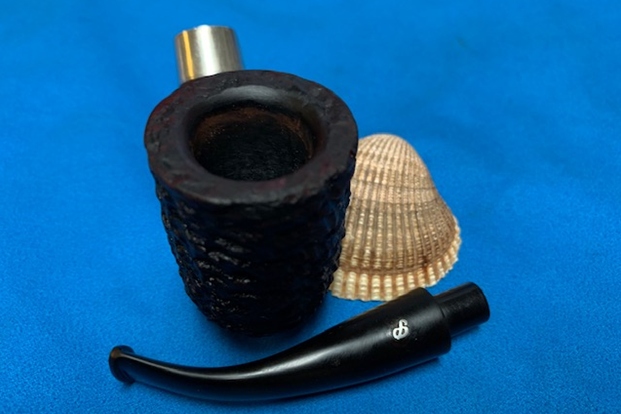

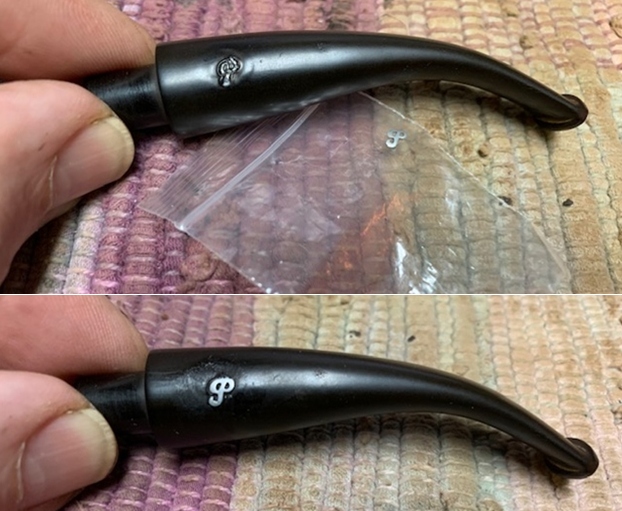

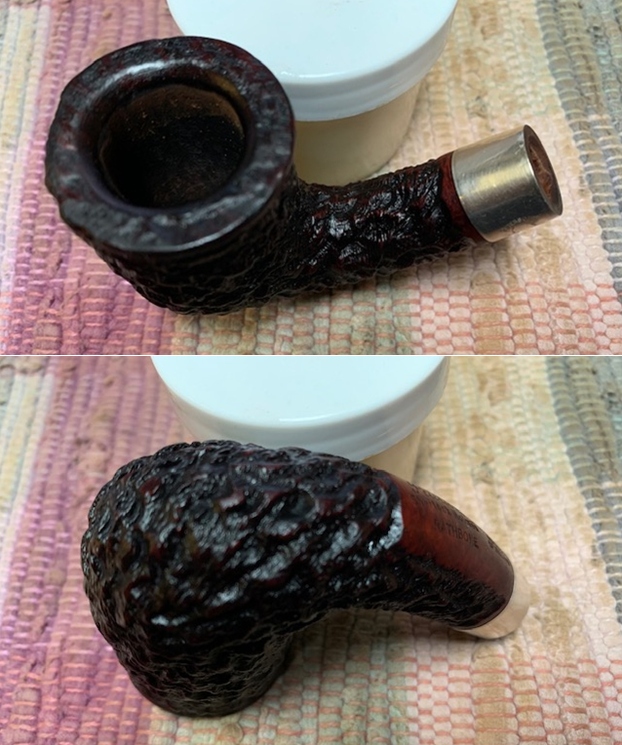

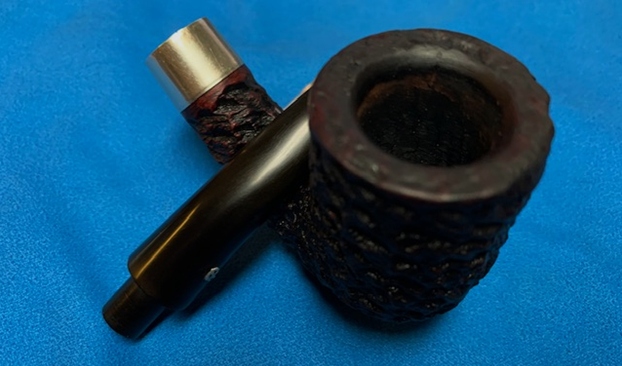

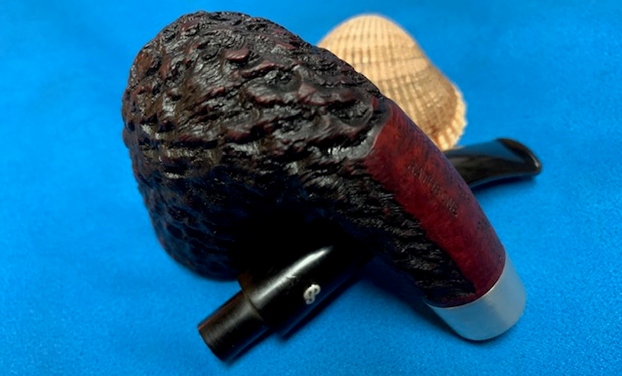

Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet Pipe Reamer and cleaned up the remnants with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. I took photos of the pipe once I received it.  (The plastic bag in the bowl contains the silver P which fell off in the clean up.) The rim top and inner edge of the rim looked very good with a bit of damage on the inner bevel of the rim surface. The stem surface looked very good with some remaining oxidation and tooth marks and chatter on both sides near the button.     I took a photo of the stamping on the shank. It is clear and readable as noted above. The second photo shows the spot were the silver P was inset into the vulcanite. I would need to reset the P.I removed the stem and took a photo of the pipe to give a sense of the whole. The stem is tapered. I started my work on the pipe by addressing the loose P logo that needed to be reset in the stem surface. You can see where someone tried to reset it with heat and damaged the vulcanite around the P. I daubed the surface of the P stamp with all clear CA glue and pressed the P into the shape on the stem surface. I set the stem aside while I worked on the bowl. I cleaned up the darkened and damaged beveled inner edge of the bowl with a folded piece of 220 grit sandpaper. Once I had the bevel finished I polished it with 1500-2400 grit micromesh pads and wiped off the dust. I restained it with a Walnut Stain pen to match the rest of the bowl finish.  With the rim cleaned up the bowl was in good condition. I rubbed it down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips and worked it into the nooks and crannies of the rustication with a horsehair shoebrush. The product works to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. I set the bowl aside and turned to work on the stem. I smoothed out the damage to the vulcanite around the P with a new 1500 grit micromesh pad. I was able to remove the damage and the stem looked good.  I polished the vulcanite stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.  This Return of Sherlock Holmes Series Rathbone Bent Tall Billiard with a vulcanite taper stem is a great looking pipe now that it has been restored. The rugged rustication feels great in the hand and should only feel better as the pipe is smoked. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch being careful around the silver P and gentle on the rusticated briar. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Sherlock Holmes Rathbone fits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ¾ inches, Height: 2 ¼ inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 53gr/1.87oz. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!
