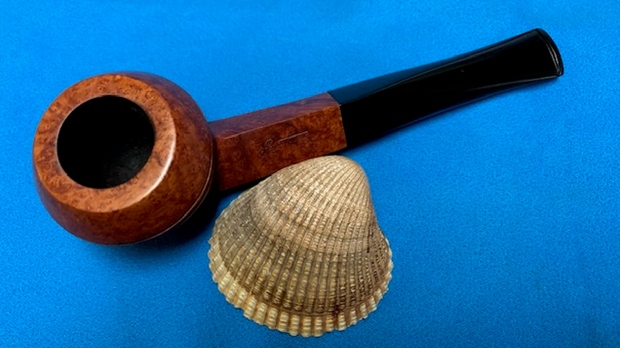

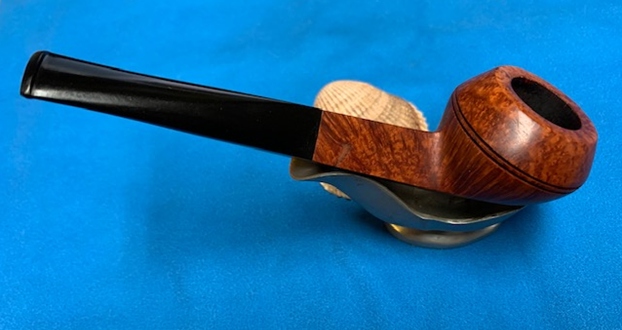

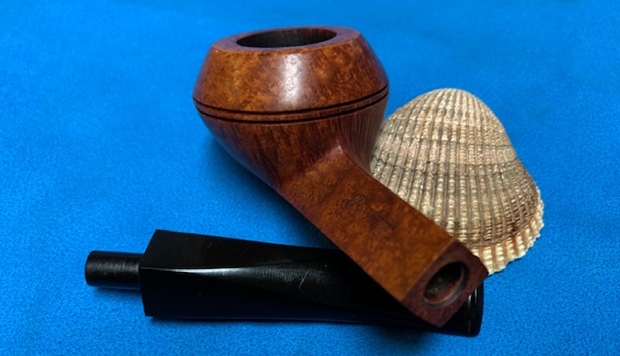

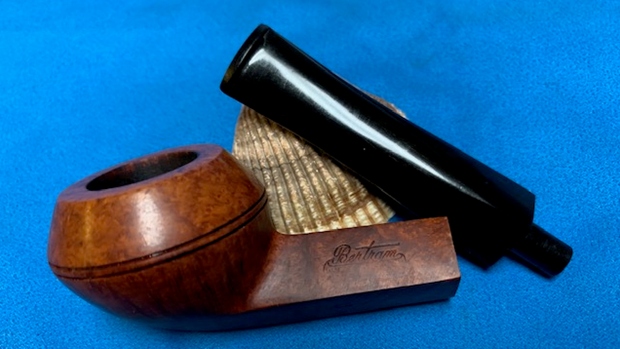

Beautification of another American Made Bertram Washington DC Grade 60 Squat Bulldog


Blog by Steve Laug

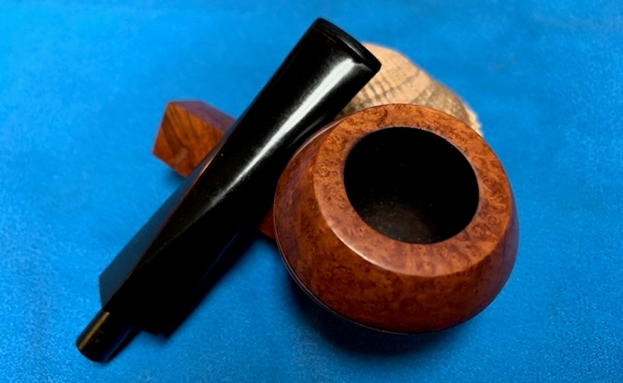

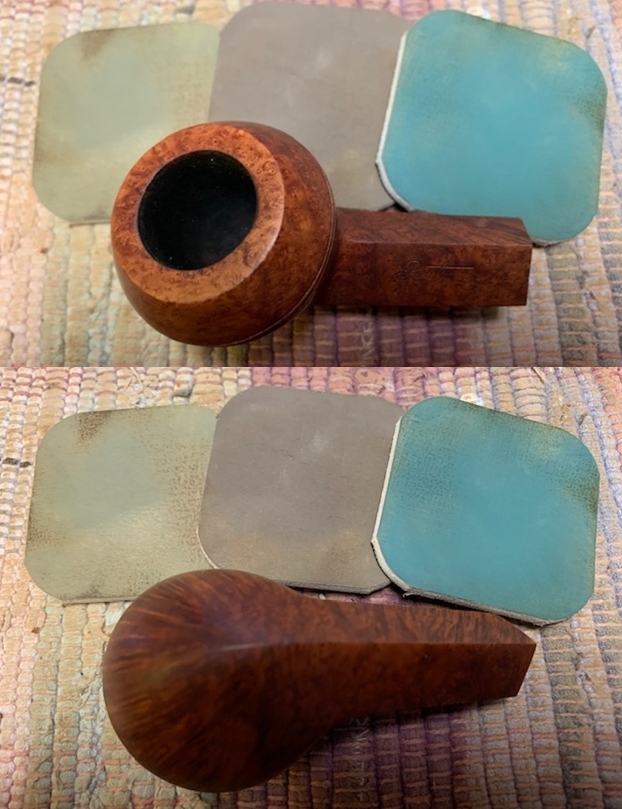

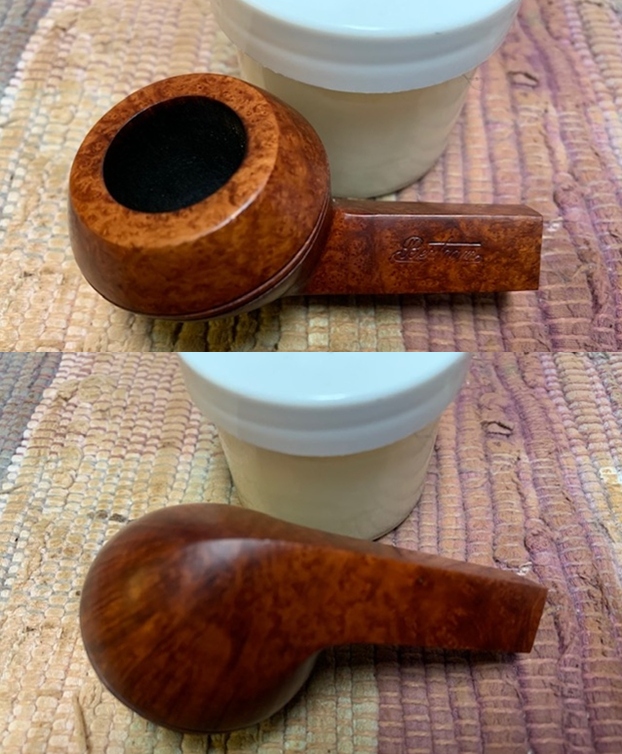

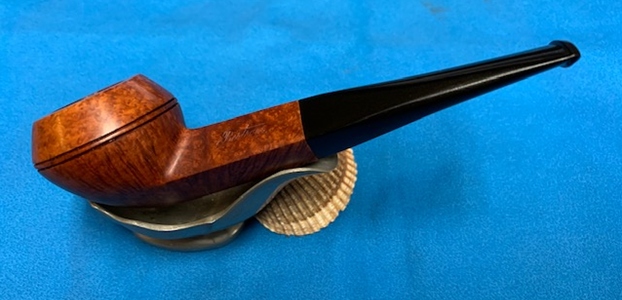

The next pipe on the work table came to me from one of our estate purchases. Between us we pick up quite a few pipes for restoration. I try to work them into the restoration queue so that I can keep them moving. We picked up over 120+ Bertram pipes from an estate that a fellow on the east coast of the US was selling. This next one is from that estate – a beautifully grained Bertram Squat Bulldog Grade 60 with a tapered vulcanite stem. The pipe is stamped on the lower left side of the diamond shank and reads 60. On the top of the left side of the diamond shank it is stamped Bertrams [over] a faintly stamped Washington D.C. centered on the shank. The finish had a lot of grime ground into the smooth finish on the bowl and some darkening around the sides of the bowl. There are also some nicks on the backside of the bowl toward the back top. The bowl was caked with an overflowing lava coat on the top of the rim, heavier toward the back of the bowl. The edges looked okay other than some potential burn damage on the back inner edge. The stem was lightly oxidized, dirty and had light tooth chatter and marks on the top and underside near the button. There were not markings or a logo on the taper stem. Like the rest of the Bertrams in this lot the pipe had promise but it was very dirty. Jeff took photos of the pipe before he started his cleanup work.          He took photos of the rim top and bowl to give a clear picture of the thickness of the cake and the lava on the rim top. The lava was thicker toward the back of the rim and there were remnants of tobacco on the walls of the thickly caked bowl. He also took photos of the top and underside of the stem to show the chatter and tooth marks. Otherwise the stem is quite clean. Jeff took photos of the sides and heel of the bowl to give a picture of what the briar around the pipe looked like. There is some stunning grain under the grime. There were also two notable fills – one on the shank end right side top and bottom.He took photos of the stamping on the shank. It reads as noted above and is clear and readable. The grade note is on the underside of the left and read 60. As I have worked on Bertrams I have written on the brand and have included the following information. If you have read it in past blogs, you can skip over it. If you have not, I have included the link to Bertram history and information. I would recommend that if you don’t know much about them take some time to read the background. I include a link to the write up on Pipedia (http://pipedia.org/wiki/Bertram). Bertram pipes were based out of Washington DC. They were popular among famous politicians and celebrities of the time. They made many products for them from FDR’s cigarette holders to Joseph Stalin’s favorite pipe. They were considered some of the best America had to offer till they finally closed their doors in the 70s. Bertram graded their pipes by 10s and sometimes with a 5 added (15, 25, 55 etc.), the higher the grade the better. Above 60s are uncommon and 80-90s are quite rare. I have worked on one 120 Grade billiard. I have several blogs that I have written on rebornpipes that give some history and background to Bertram pipes. (https://rebornpipes.com/2015/06/16/an-easy-restoration-of-a-bertram-grade-60-217-poker/). I have included the following link to give a bit of historical information on the pipe company. It is a well written article that gives a glimpse of the heart of the company. http://www.streetsofwashington.com/2012/01/bertrams-pipe-shop-on-14th-street.html#

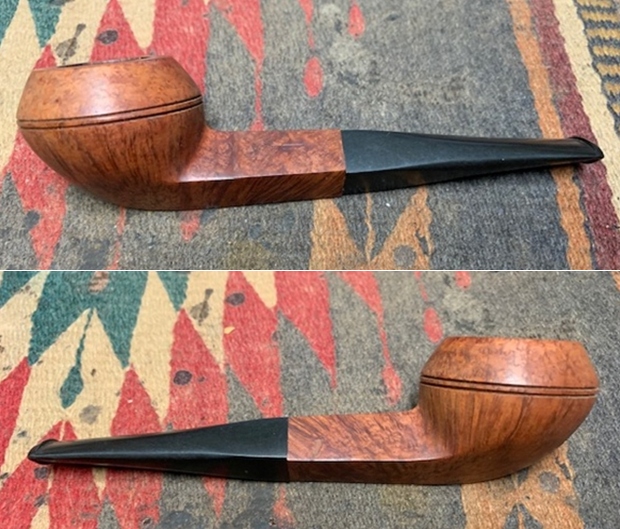

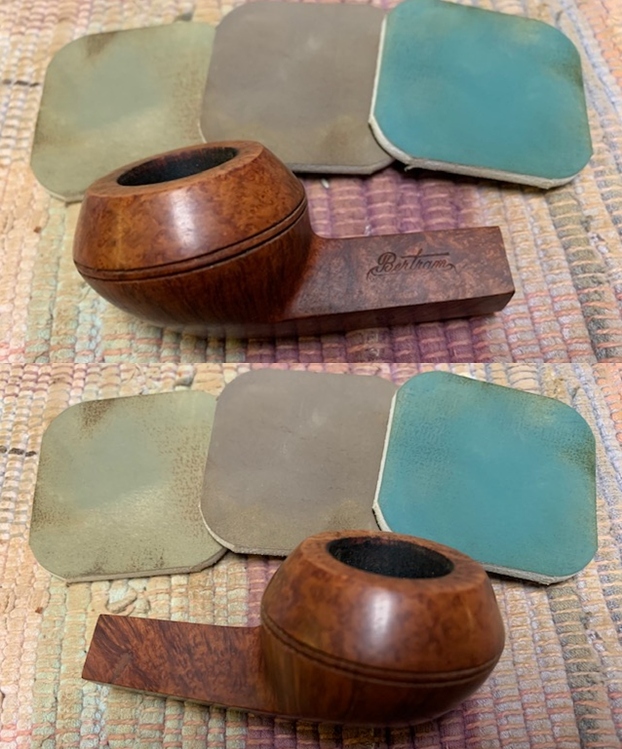

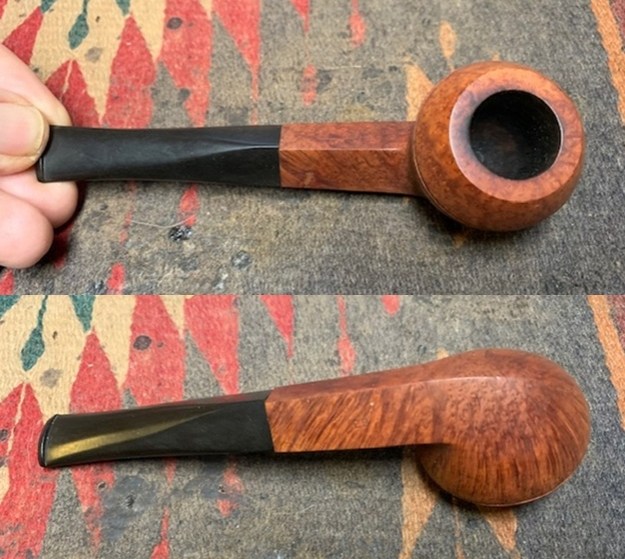

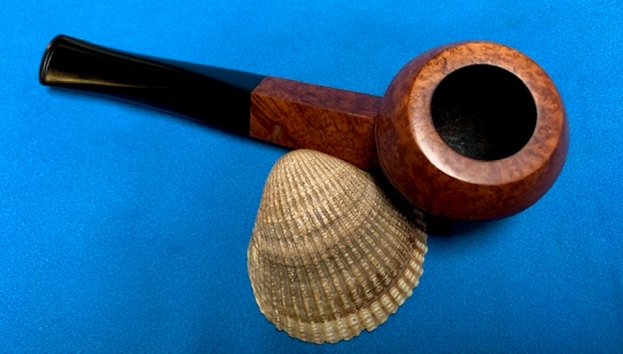

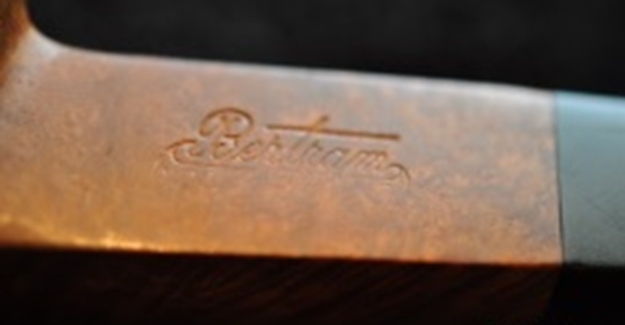

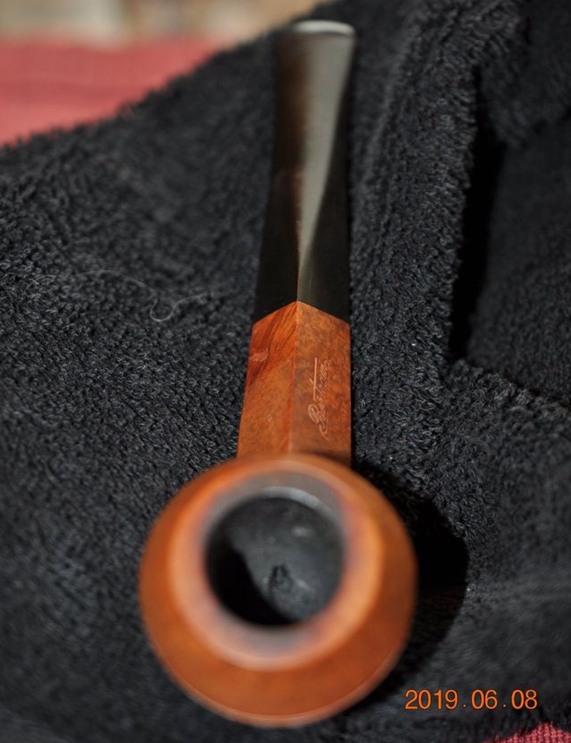

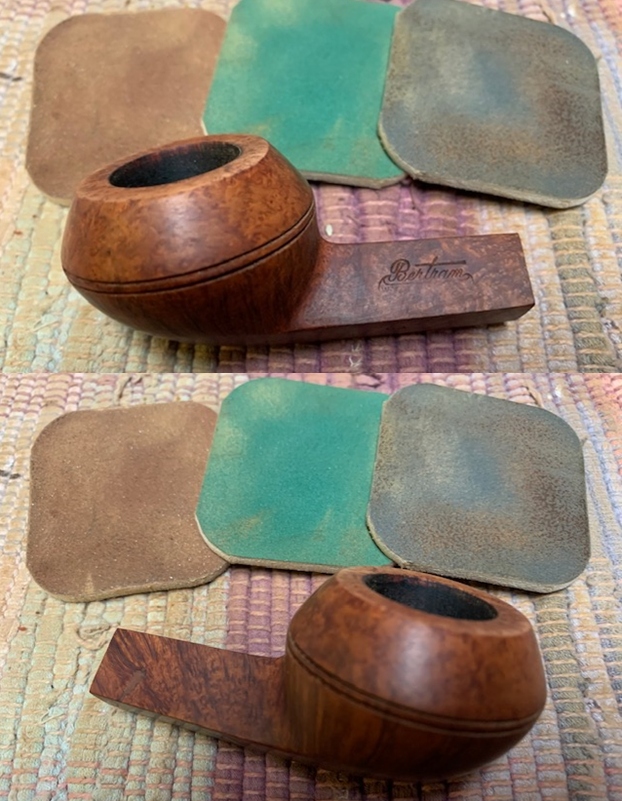

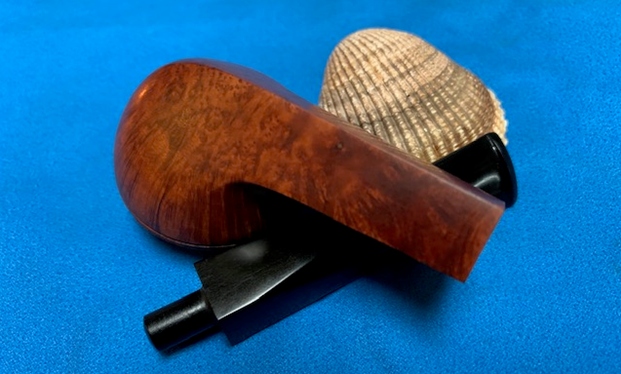

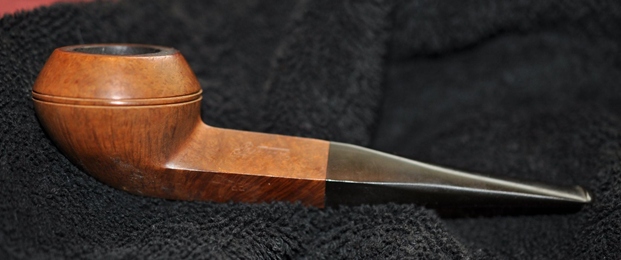

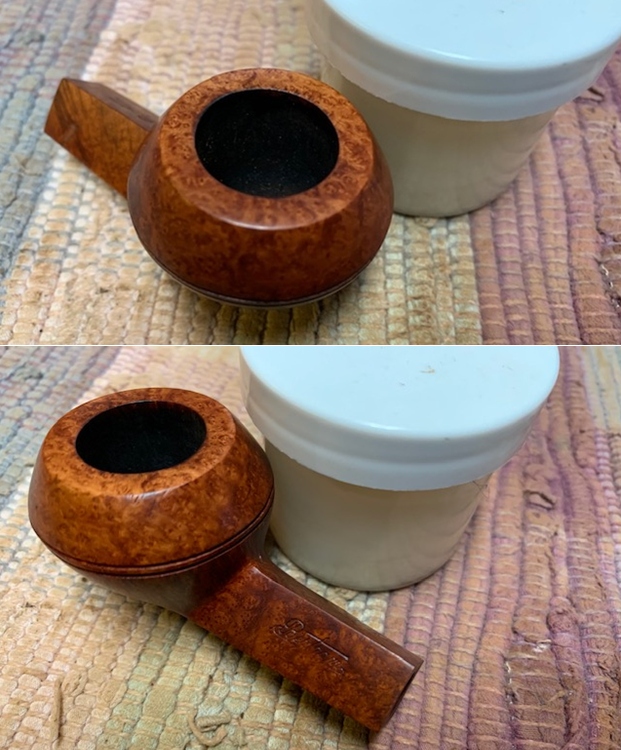

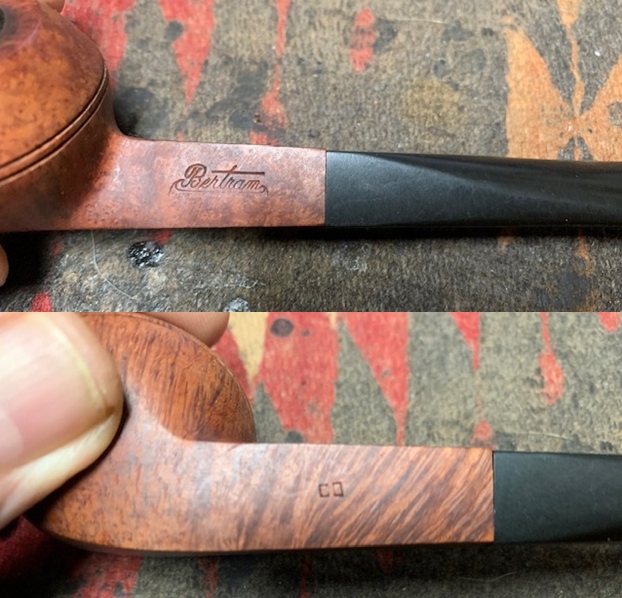

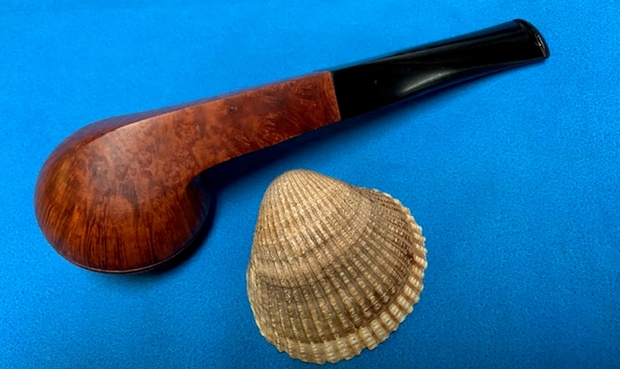

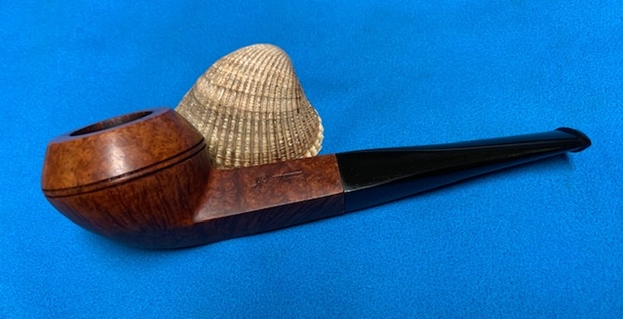

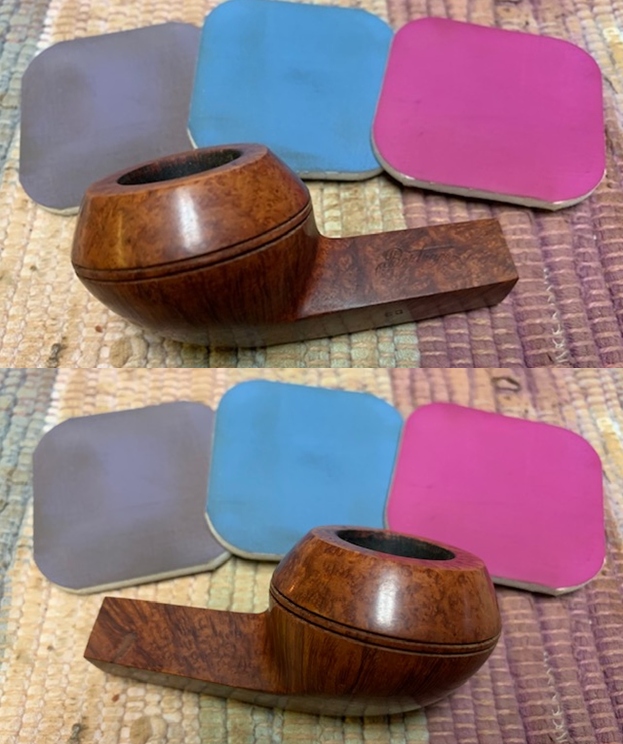

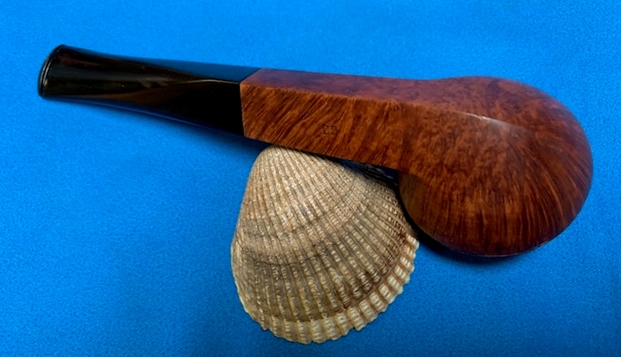

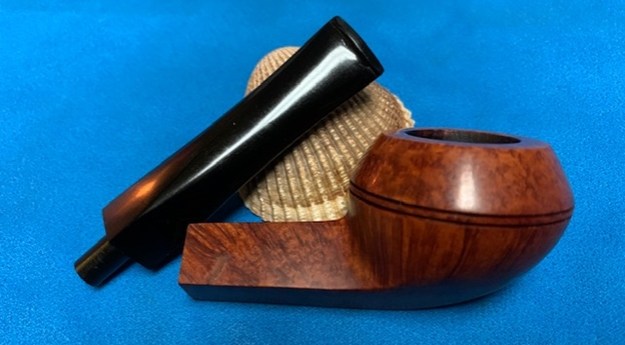

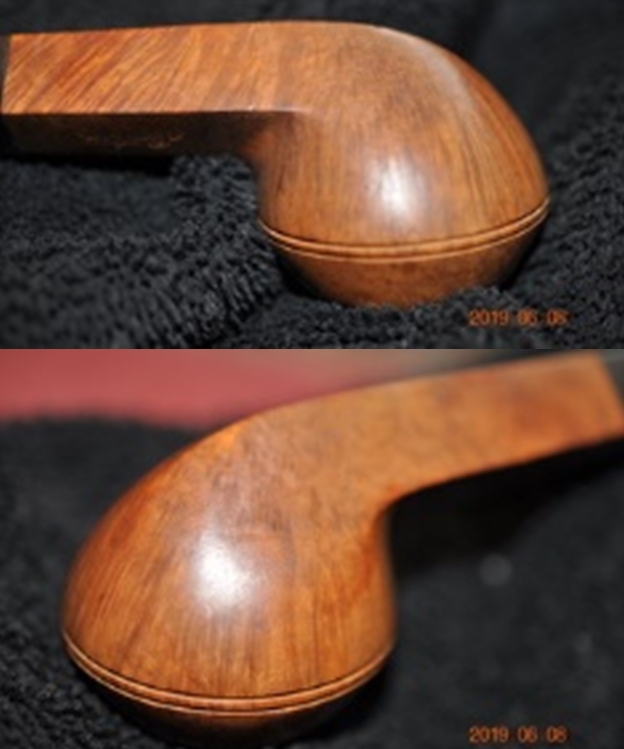

From this information I learned that all of these Bertrams were made before the closure of the shop in the 1970s. This Bertram Squat Bulldog has a stunning a mix of grain around the bowl. This pipe has a 60 Grade stamp on it which I am sure explains the quality of the briar. But like many of these Bertrams the Grading system is a mystery to me.

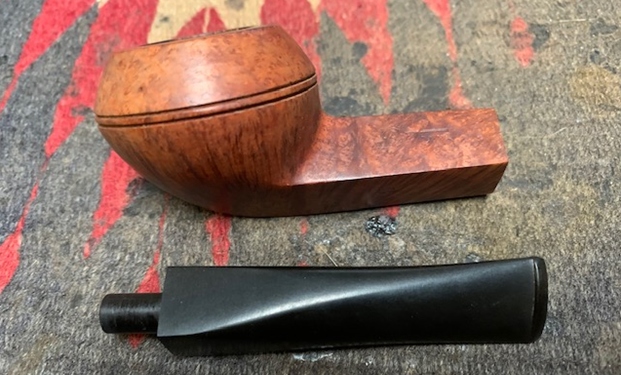

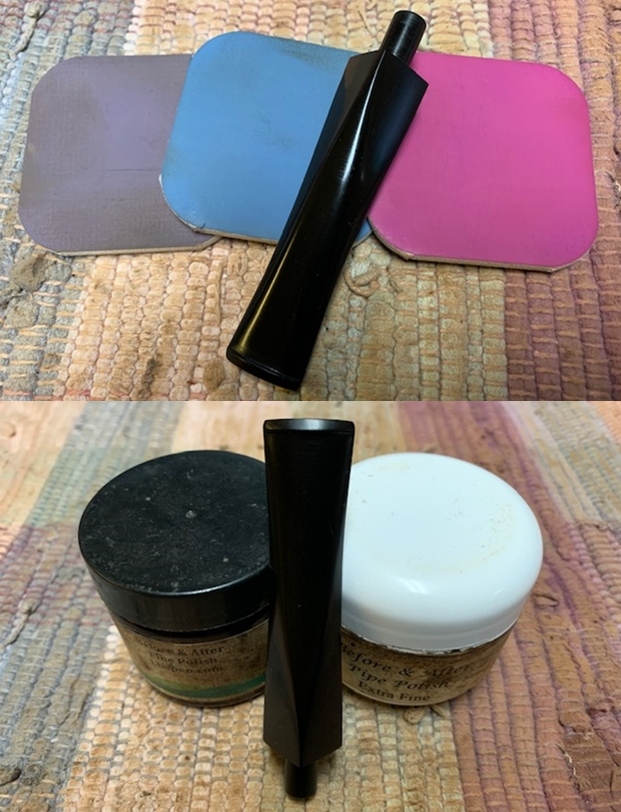

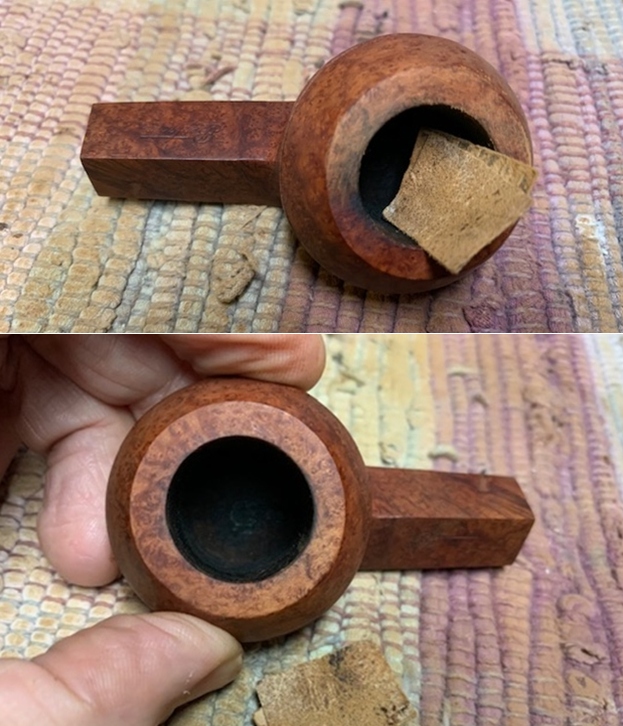

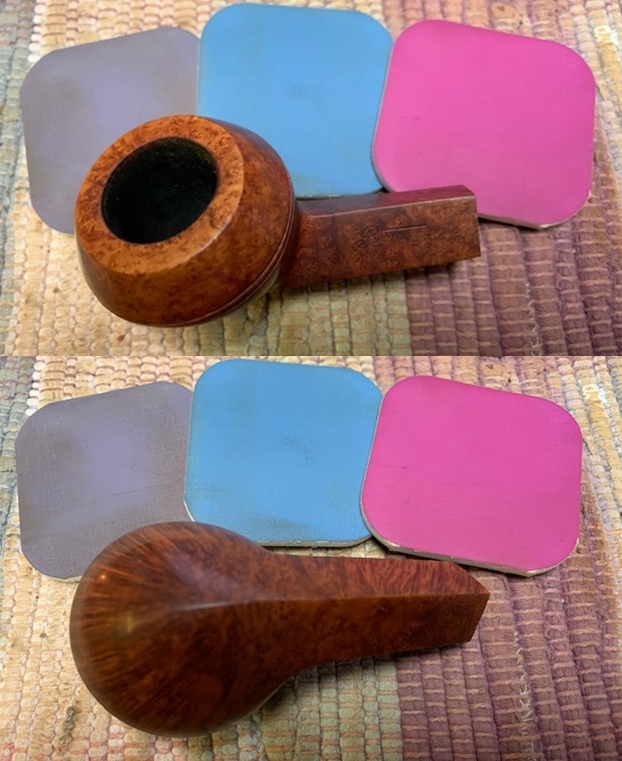

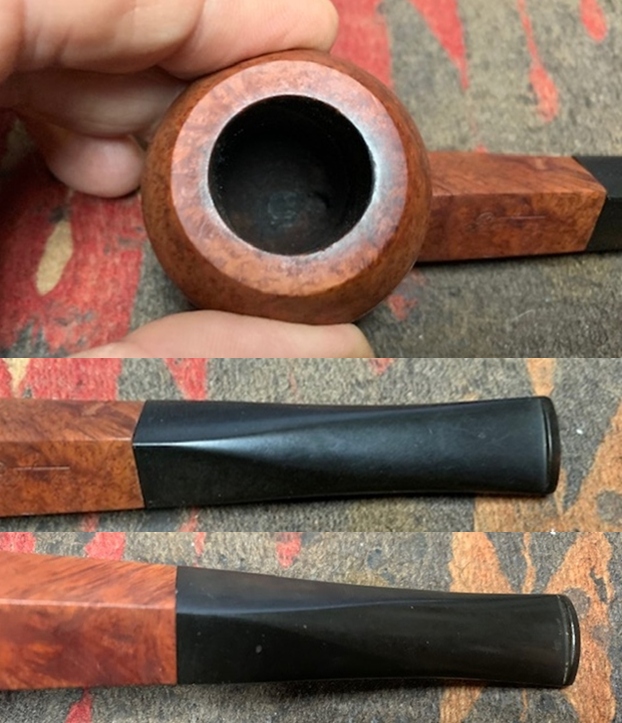

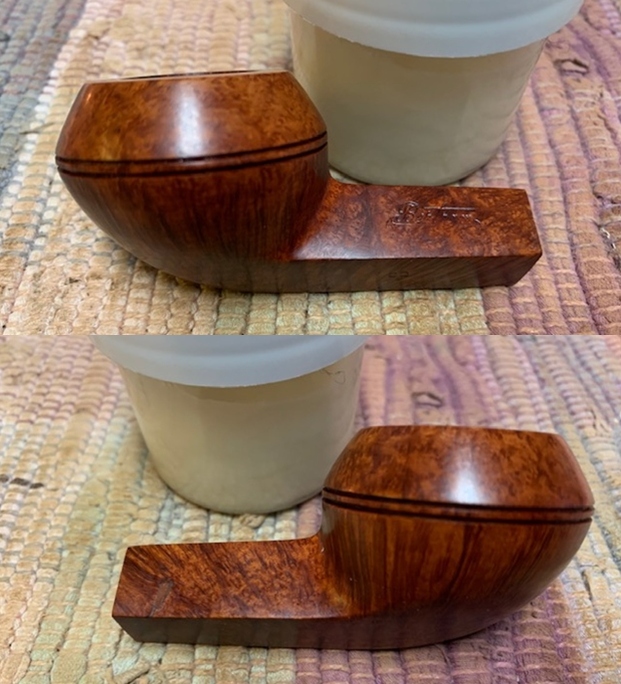

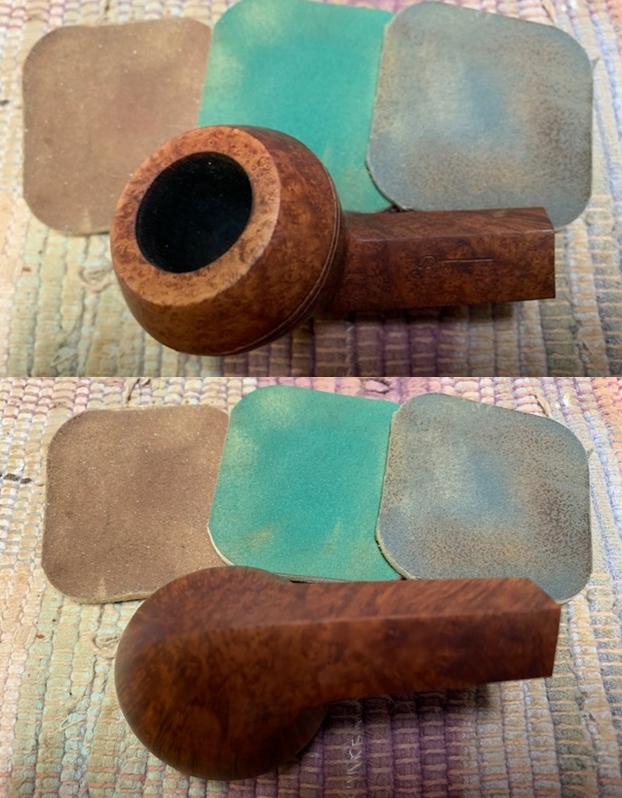

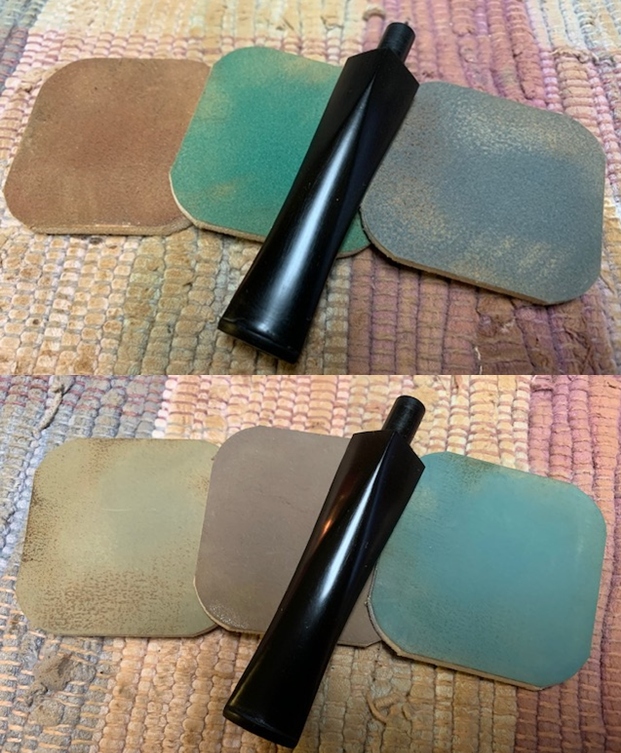

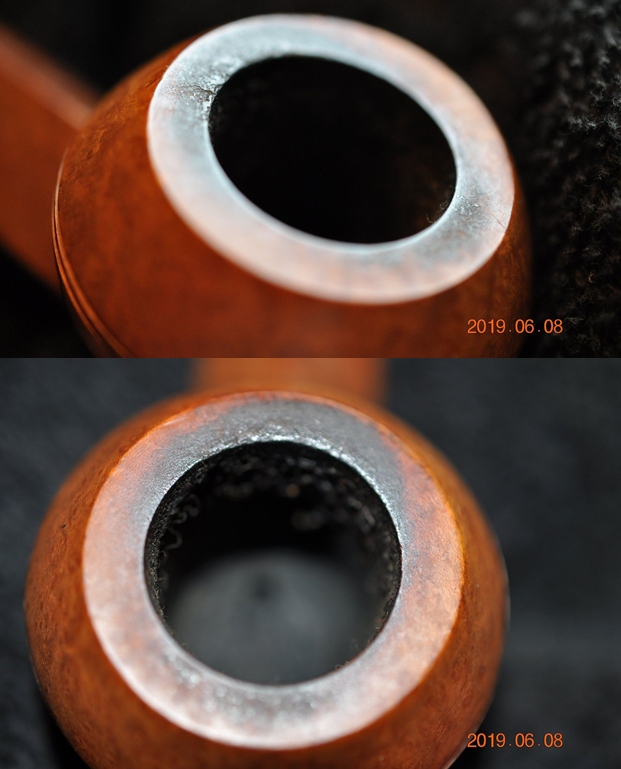

Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet Pipe Reamer and cleaned up the remnants with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. I took photos of the pipe once I received it.   The rim top had some slight darkening on the back of the bowl but otherwise looked very good. The inner edge of the rim looked very good with no damage. The stem surface looked very good with a few small tooth marks and chatter on both sides near the button.   I took a photo of the stamping on the shank. Bertram (Washington DC is stamped faintly) is toward the top of the left side mid shank. On the underside of the shank is stamped the Grade 60 number.     I removed the stem and took a photo of the pipe to give a sense of the whole. The stem is tapered. I started my work on the pipe by cleaning up the inner edge and the rim top with 220 grit sandpaper. I was able to remove the damage.   I polished the bowl and the rim top, sides and shank with micromesh sanding pads – wet sanding with 1500-12000 grit pads and wiping it down after each pad with a cloth.  I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine.   I set the bowl aside and turned to work on the stem. It was in very good condition so I polished the vulcanite stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.  This Bertram Washington DC Grade 60 Squat Bulldog with a vulcanite taper stem is a great looking pipe now that it has been restored. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Bertram 60 Bulldog fits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ¾ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. The weight of this pipe is 40g/1.41oz. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!

Refurbishing A C1977 Barling # 5264, T.V.F Square Shanked Pot


Blog by Paresh

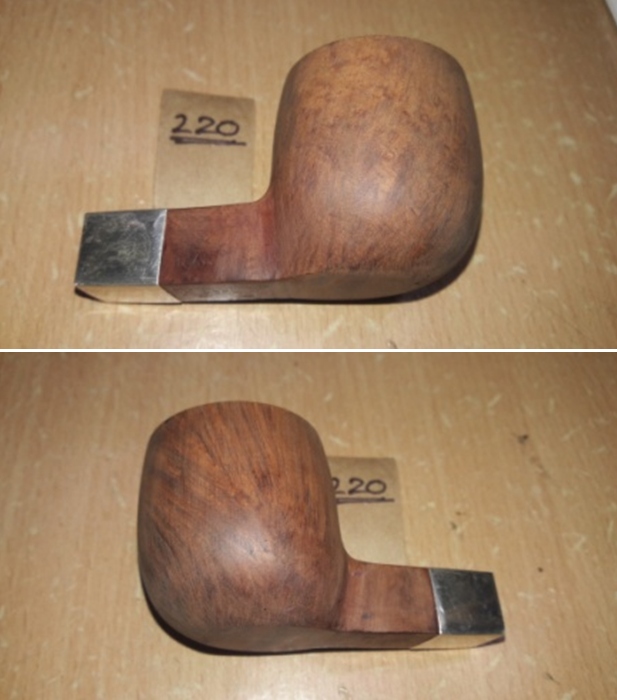

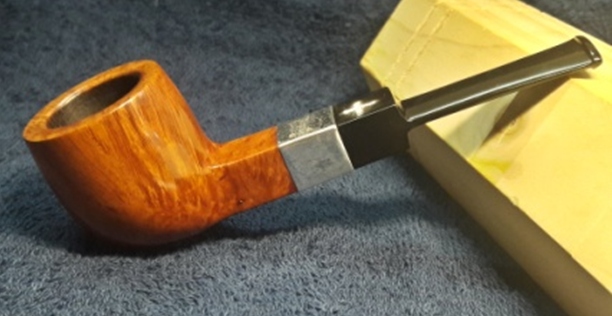

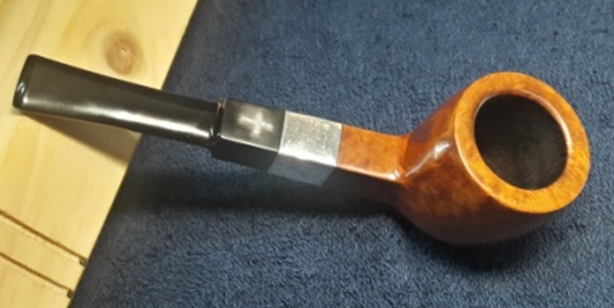

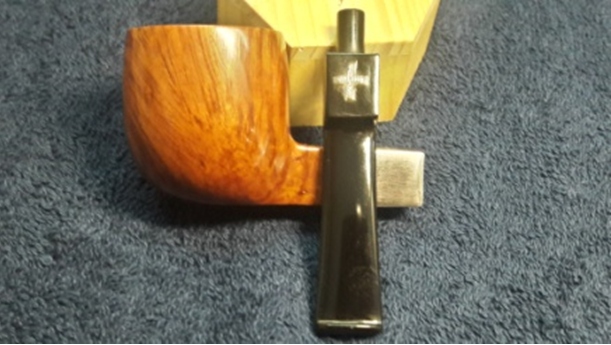

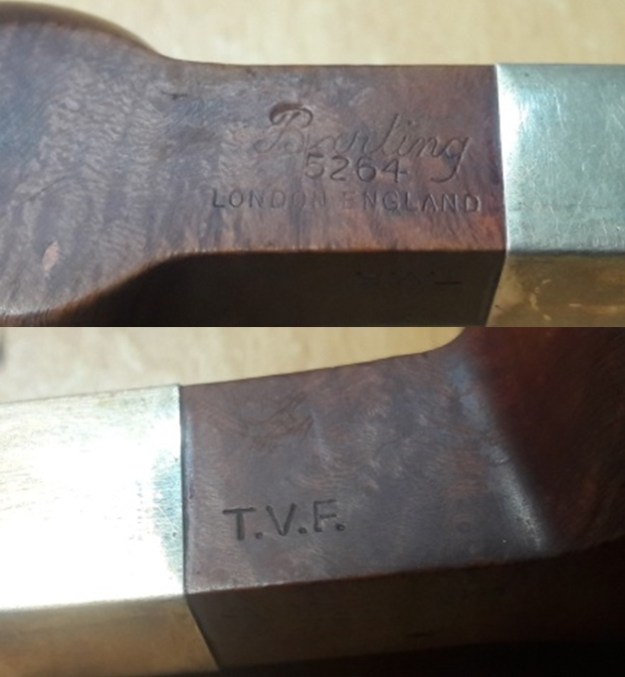

The next pipe that I decided to work on is a classic Pot shaped pipe with a square shank that boasts of beautiful mix of straight and smattering of Bird’s eye grain all around the stummel surface. The flat bottom of the stummel, which also bears the stampings, makes it a perfect sitter. This pipe is stamped on the flat bottomed shank surface as “Barling” in script over “5264” over “LONDON ENGLAND” in block capital letters. The flat right side of the square shank is stamped “T.V.F”. The stampings are all crisp and deep. A sterling silver ferrule at the shank end breaks the monotony of the darkened stummel and the black of the vulcanite stem. The ferrule is stamped as “STERLING” over “SILVER” over “E.B” over “W.B” over the three hallmarks in a cartouche. There is a lion, a leopard head, and the lower case letter “c”. The leopard head identifies the city of the Assaying to be London, England. The lion is the mark for 0.925 Sterling Silver and the letter “c” is the date stamp. The trademark Barling cross adorns the top surface of the saddle of the vulcanite stem. The size, shape and feel of the pipe are solid to the touch. Barling’s pipe brand has been well researched and chronicled on pipedia.org and by Steve when he worked on many of Barling’s pipes over decades and thus, shall not waste time in repeating the information that is available. I too have carefully read and researched this brand as I do have many pipes that I have inherited and date this pipe as being a Corporate Era pipe. I have based my conclusions based on the following facts that I have read on pipedia.org (https://pipedia.org/wiki/Barling)

Early Corporate Era Nomenclature

A script Barling logo replaces the block “Barling’s Make” logo. Makes sense, no Barlings are making pipes.

The pipes retain the 4 digit model number introduced in mid 1962, but they also introduce a size 1, which means that there are 4 digit numbers beginning with a 1. The model number is placed right below the Barling logo.

The words LONDON ENGLAND are stamped below the model number. The “MADE IN ENGLAND.” Stamp is discontinued.
Ye Olde Wood and TVF have both been discontinued. They will return in the mid 1960’s.

The Corporate Era pipes all bear a script “Barling” logo with no apostrophe and no “s”. Since these pipes share the same markings as others manufactured as late as 1970 and beyond, it is difficult to distinguish which are made from Family Era materials and which are not. One clue is the absence of a TVF stamp. Initially, the TVF stamp was dropped, but it was back in use as early as 1965, if not earlier.

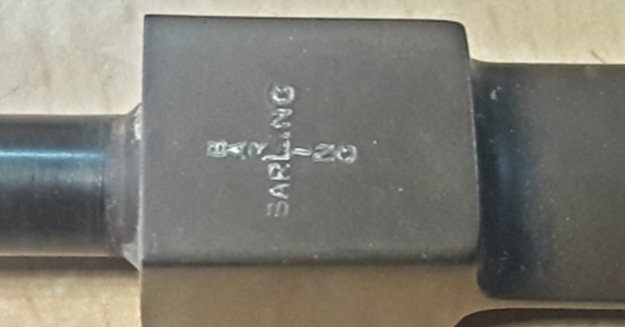

The hallmarked sterling silver band and cap helps in the dating with great accuracy and the first site that I visit is www.silvercollection.it

I browsed through the alphabetical listing of maker’s mark for E.B over W.B without frame and narrowed it down to as being Edwin Barling and William Barling. Here is the link to the information http://www.silvercollection.it/englishsilvermarksXE2.html

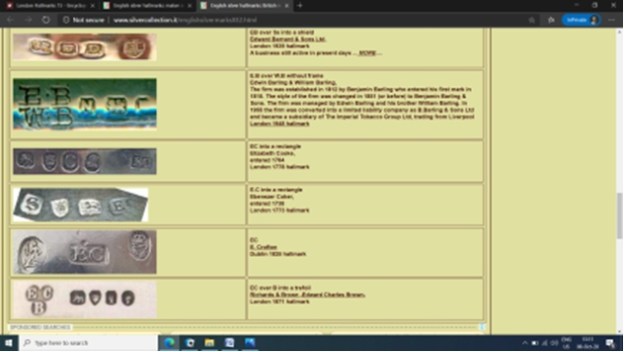

I captured a screen shot of the information that was available and have reproduced it below. Next I followed the link to the dating guide of the London Assay Office to date this pipe. I have included a hallmark chart for dating the pipe. I put a red rectangle around the letter for 1977. It is the same style of “c” and the cartouche that holds the letter stamp, matches the photo as well.http://www.silvercollection.it/englishsilverhallmarks.html

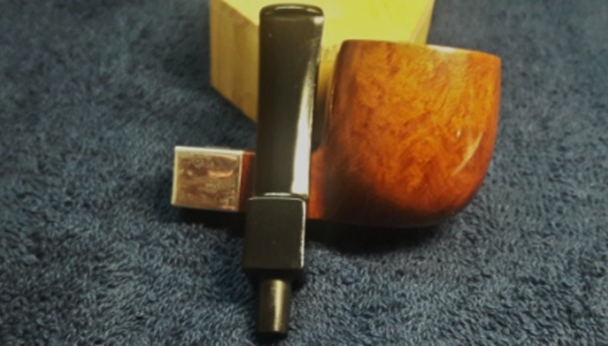

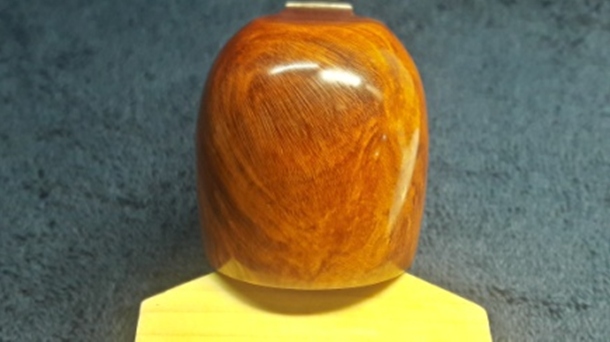

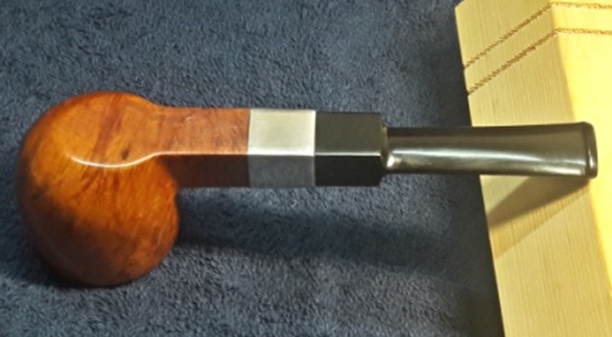

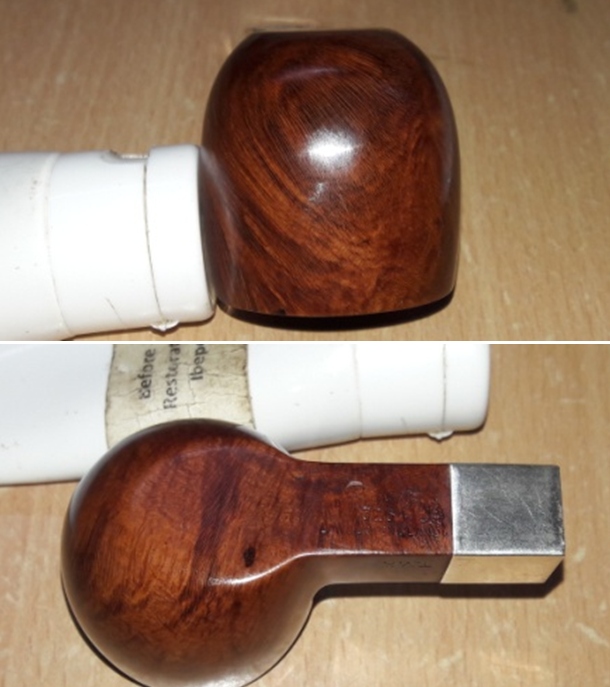

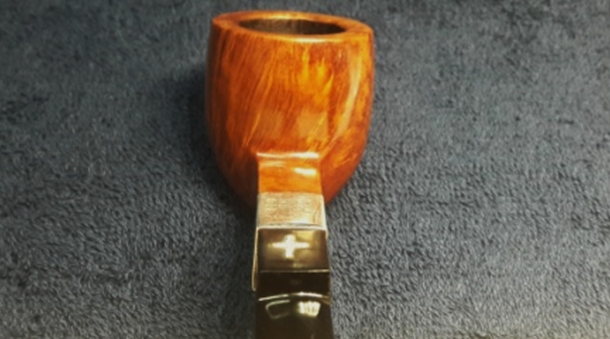

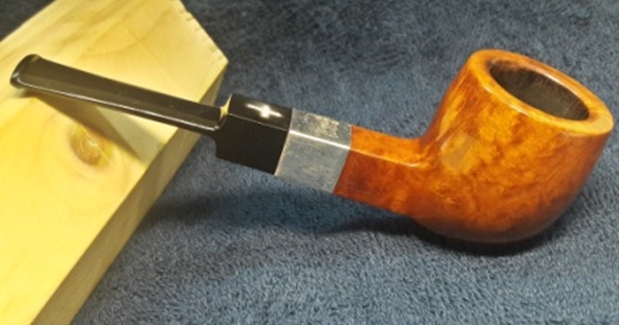

Thus, it is with certainty that I can now say that this pipe is from the Corporate Era with 1977 hallmarked year. Though not from the family era, the pipe still has the classic shape, draw and feels nice in the hand that Barling’s pipes are so famous for.

Initial Visual Inspection

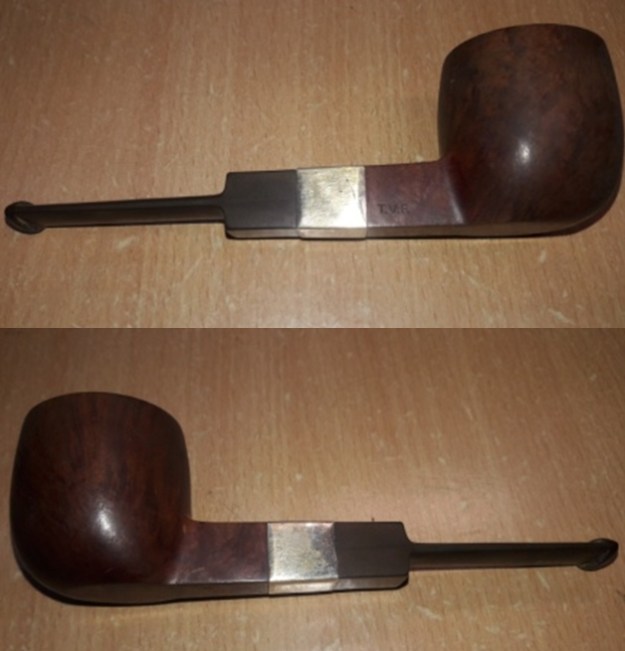

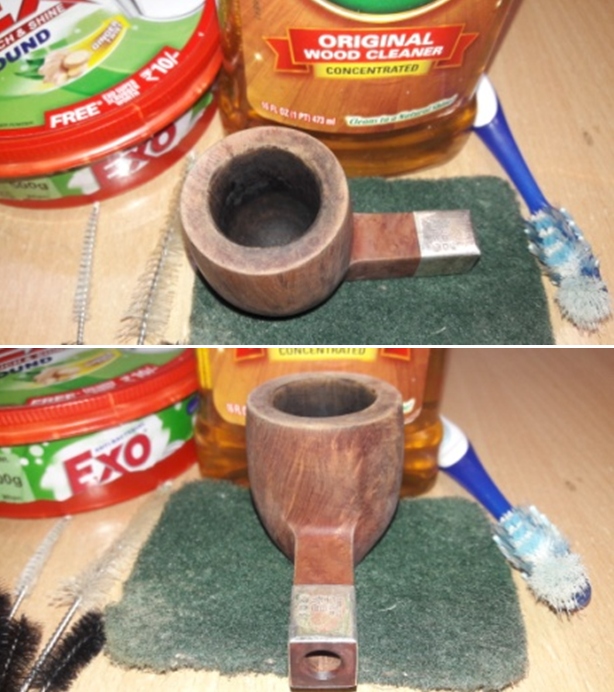

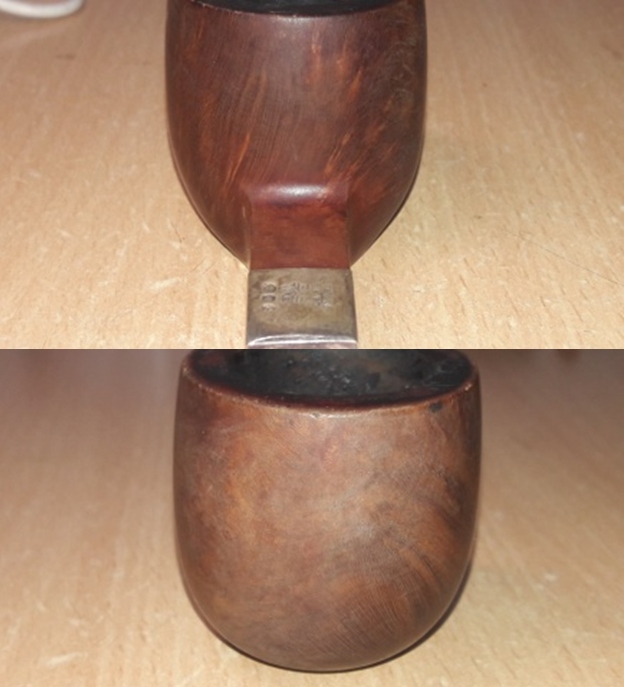

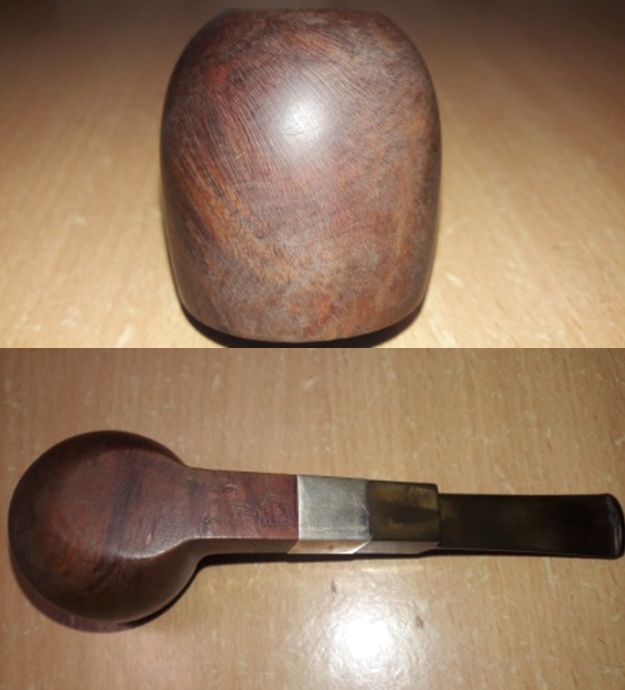

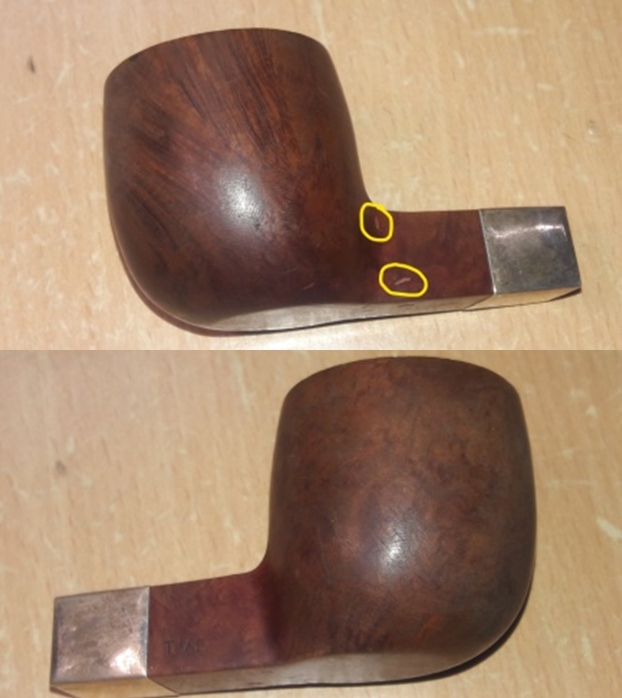

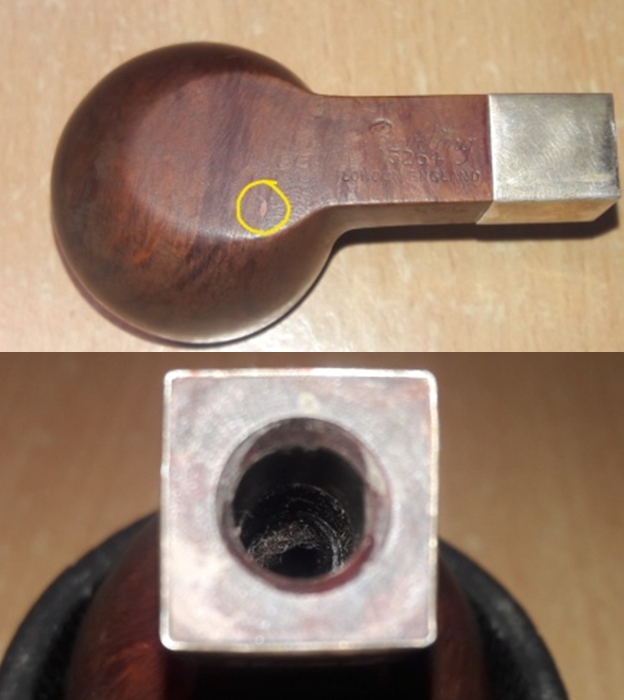

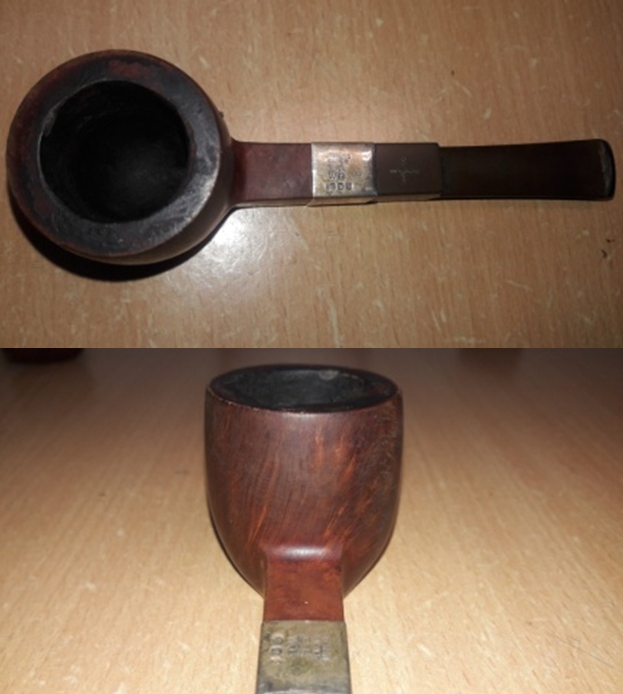

This pipe has a decent medium bowl size with chamber depth of about 1 7/8 inches and thick walls. The stummel boasts of some beautiful straight and mixed grains all around. The stummel is covered in dirt and grime of the overflowed lava and dirt accumulated over the years of heavy smoking and uncared for attention to cleaning and maintenance. There is a decent layer of cake in the chamber with lava overflow over rim top and a chip and charring to the inner rim edges. The stem is heavily oxidized with very minor tooth chatter in the bite zone on either surface. The pipe’s appearance, as it sits on my work table, does present an encouraging picture. Detailed Inspection Of The Pipe And Observations

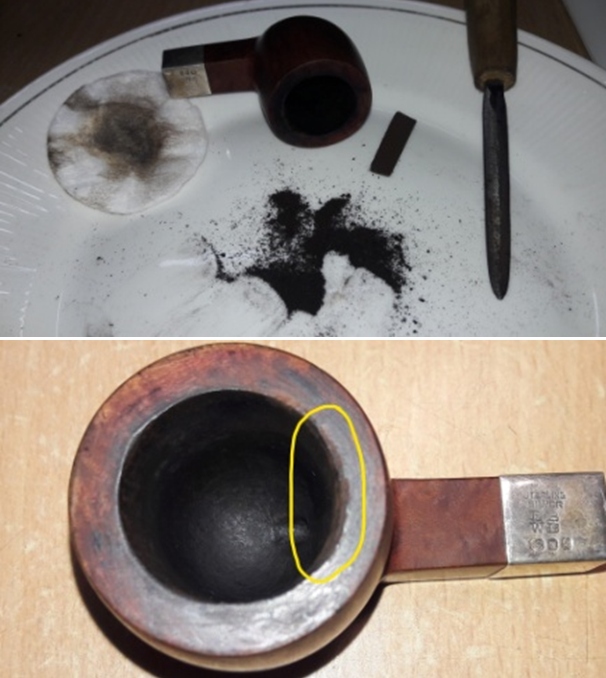

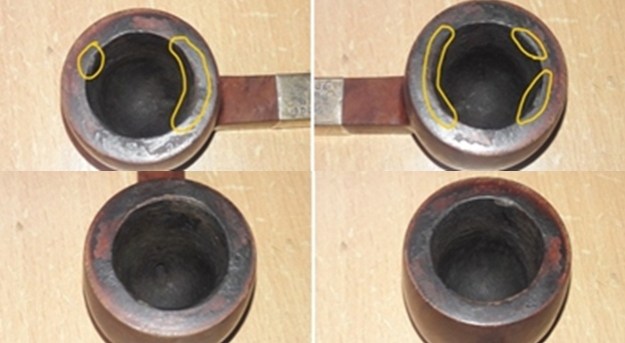

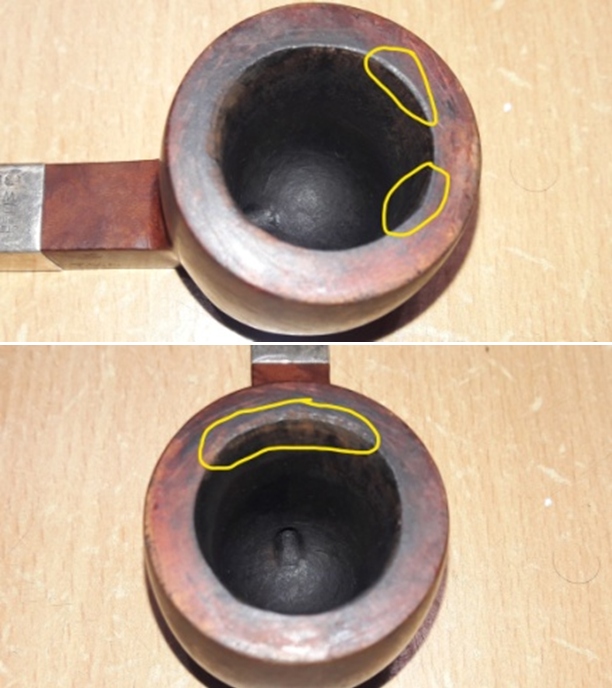

The bowl has a wide rim with thick chamber walls and has a chamber depth of about 1 7/8 inches. The draught hole is at the bottom and center of the chamber and this construction should make this pipe a great smoke. The chamber has an even layer of hard cake. The rim top surface is covered with thick lava overflow and through this layer of lava a few dings can be seen over the rim top surface. The inner rim edge appears dark and I suspect charred inner rim edge in 12 o’clock, 10 o’clock and 6 o’clock directions (encircled in yellow). The outer edge too has a few minor dings, but is otherwise in pristine condition. The condition of the inner walls of the chamber can be commented upon after the cake has been taken down to the bare briar. The stummel appears solid to the touch all around and hence I do not foresee any serious damage to the walls in the form of burnout/ deep heat fissures/ lines or pits. The dark inner rim edges, in 12, 10 and 3 o’ clock directions, may be charred further than anticipated and the same will be confirmed after the surface has been thoroughly cleaned. I need to resort to topping the rim top in order to address the damage to the rim top surface. The faint ghost smells should reduce once the cake from the chamber is removed and the shank has been cleaned.The smooth stummel has a classic Pot shape with a chamber that is evenly broad right down to the bottom/ foot of the stummel. The square shank has a sterling silver ferrule at the end. The surface is covered in dust, lava overflow and grime through which one can make out the beautiful (predominantly) thin straight grains. There are a few minor fills in the briar surface; one at the heel and couple others in the left panel of the square shank (all encircled in yellow). The briar is looking lifeless and bone dry. For a pipe that has been so heavily smoked, there are surprisingly no dents and ding over the stummel surface. The mortise shows accumulation of dried oils, tars and gunk. Once the stummel has been thoroughly cleaned, any other damage or flaws (which I think there will be none) will come to the fore. I shall check the fills for softness once the stummel surface has been cleaned and refresh these fills if required. Thorough cleaning and rising of the stummel under warm water will highlight the grain patterns. Micromesh polishing will help in imparting a nice shine to the briar. The high quality vulcanite square saddle stem is so heavily oxidized that it appears brownish green in color! Minor tooth chatter can be seen in the bite zone with calcification at base of the buttons. The horizontal slot end is clogged with dried gunk. The trademark crossed Barling stem logo is sufficiently deep and needs to be highlighted. Overall, given the vintage of the pipe and the fact that it has been well smoked, the stem is in a pretty decent shape and with a little elbow grease, it should polish up pretty well. The Process

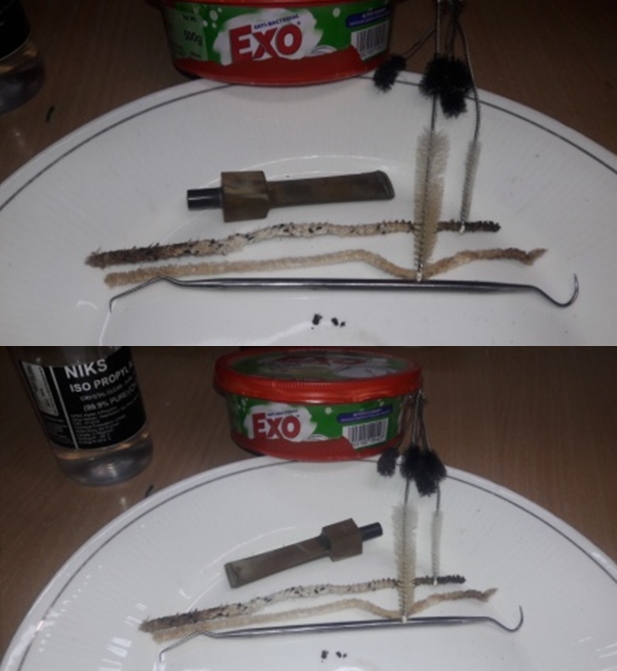

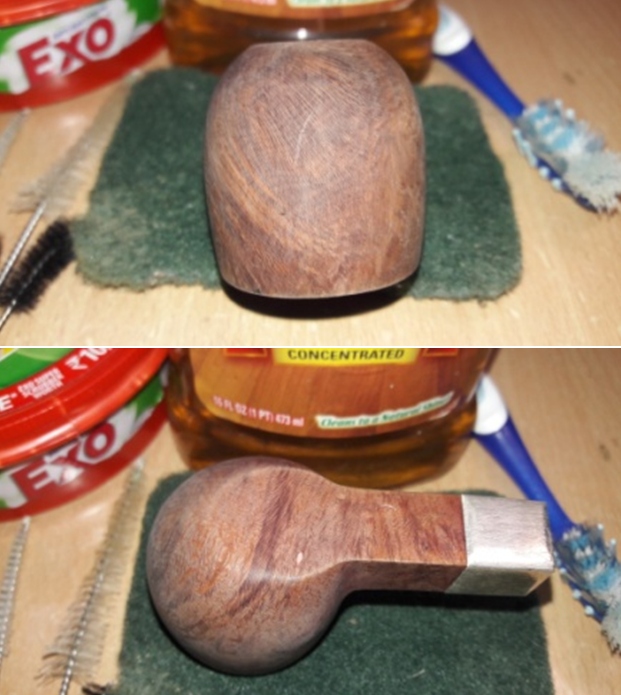

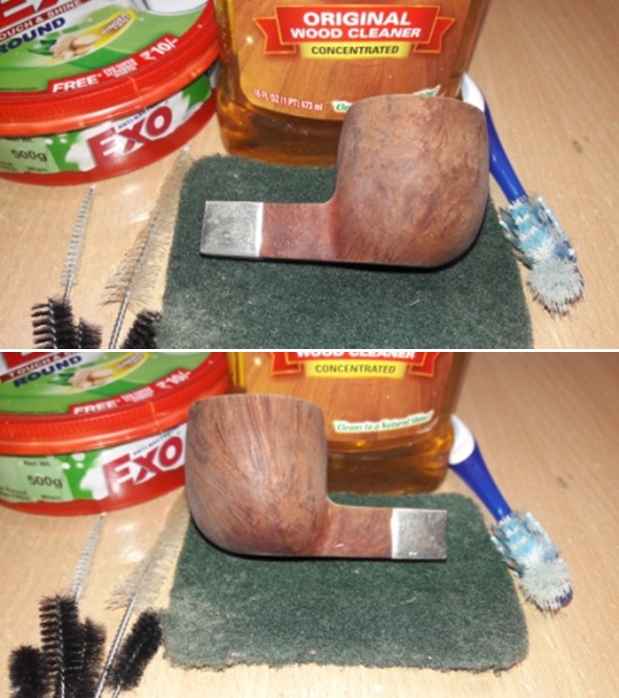

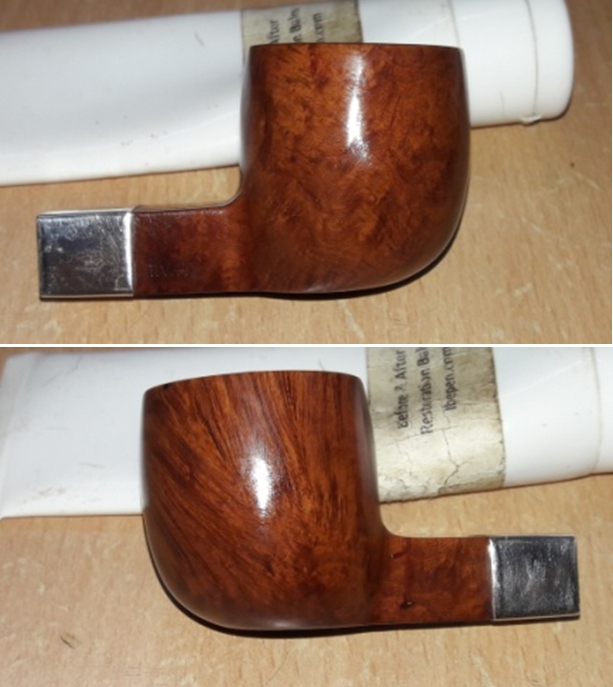

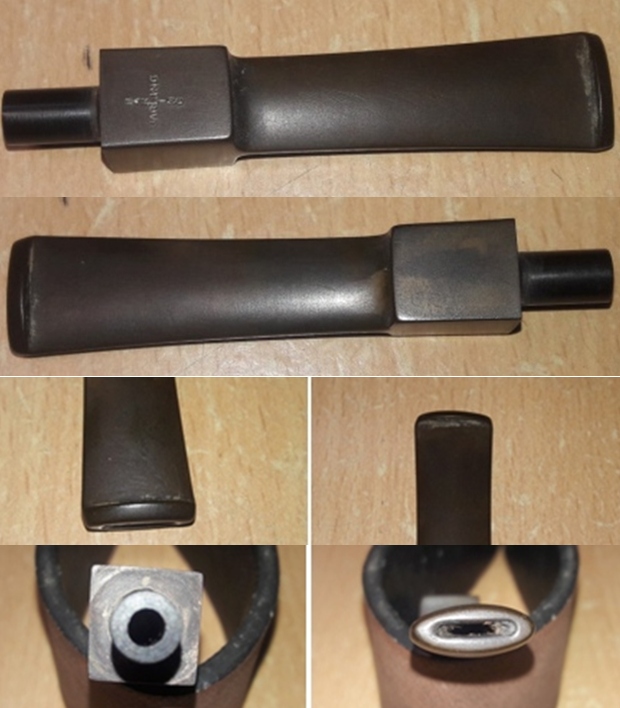

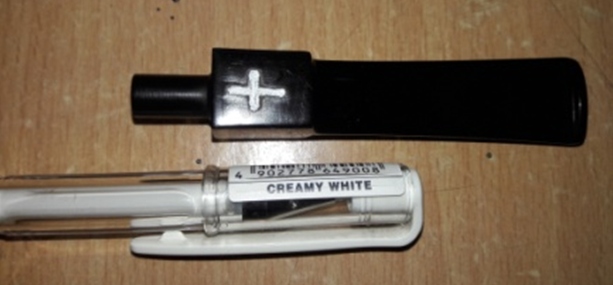

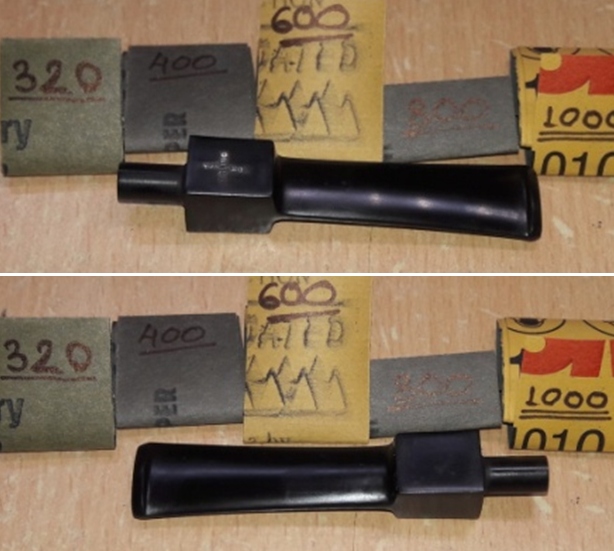

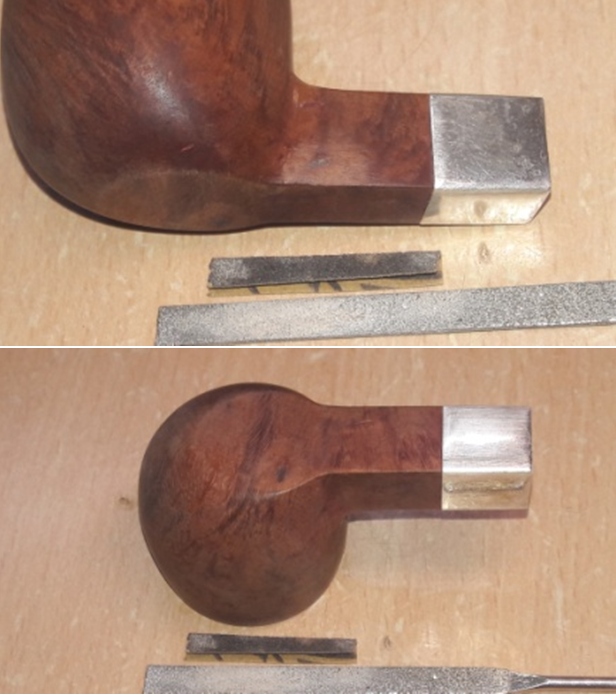

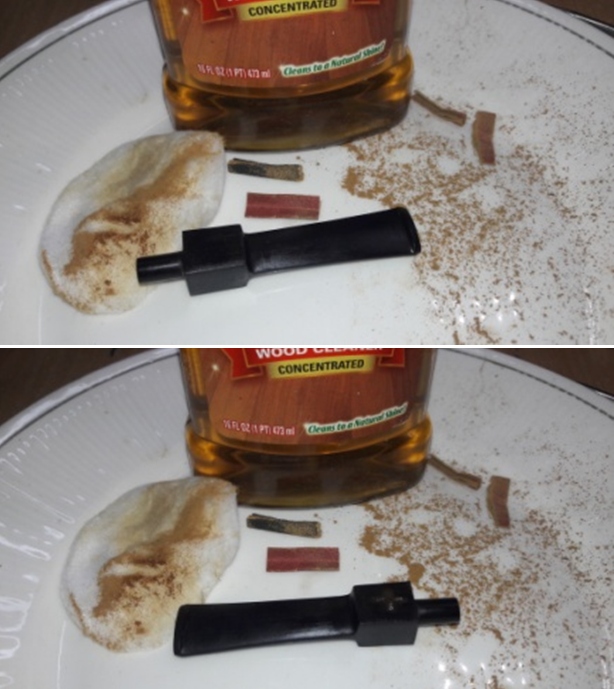

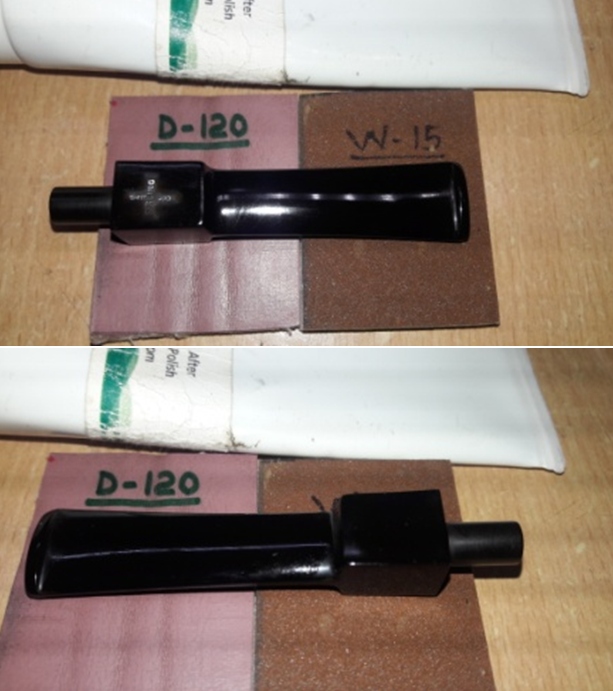

I started the restoration of this pipe by first addressing the stem issues. It has been my experiences that stem repairs and polishing almost always takes the maximum time in the complete restoration. I first clean out the stem internals using hard bristled and regular pipe cleaners dipped in isopropyl alcohol. With a sharp dental tool, I pry out the entire gunk from the horizontal slot. To save on the pipe cleaners, I clean the stem internals with a thin shank brush and dish washing soap and finally rinsing it with warm water. Next, I addressed the deeper oxidation by sanding the entire stem with a folded piece of 180 followed by 220 grit sand papers. Once the oxidation was completely removed, I wiped the surface clean with Murphy’s oil soap on a cotton swab. I rubbed a little Extra Virgin Olive oil to hydrate the stem and kept it aside. I used a tightly folded piece of 180 grit sand paper to shape and re-define the button edge on either surface. The stem at this point in restoration is shown below. Thereafter began the arduous and time consuming process of sanding the stem with 320, 400, 600 and finally 800 grit sandpapers. I wet sand the entire stem with a piece of 1000 grit sand paper. I rubbed a generous quantity of EVO deep in to the vulcanite and set the stem aside for the oil to be absorbed in to the surface. All through the stem refurbishing process, I was particularly careful about preserving the stem logo of crossed Barling. This made the entire process a bit too tedious but it is always worth the effort as the vintage value and originality of the pipe is preserved. To bring a deep shine to the vulcanite stem, I polished the stem by wet sanding with 1500 to 12000 grit micromesh pads. I wiped the stem with moist cloth after each pad. I rubbed a little quantity of “Before and After Fine/ Extra Fine” stem polish. This product developed by Mark Hoover helps to remove minor scratches from the stem surface while further eliminating what little oxidation that remained on the stem surface. I rubbed it down with Extra Virgin Olive oil to rejuvenate the vulcanite. The finished stem is shown below. I am pretty pleased with this appearance of the stem.With the stem refurbishing completed, I worked on the stummel by scraping the chamber with my fabricated knife to remove the carbon deposits from the walls. I also scraped out the lava overflow from the rim top surface. Once the cake was reamed back to the bare briar, I used a 150 grit sand paper followed by 220 grit sand paper to remove all the traces of remaining cake and also to smooth out the inner walls of the chamber surface. Finally, to remove the residual carbon dust, I wiped the chamber with a cotton pad wetted with 99.9% pure isopropyl alcohol. The inner rim edge was charred in 6 o’clock, 10 o’clock and 12 o’clock direction which have been encircled in yellow. I scrapped off the charred briar from these areas and now the chamber is out of round. The chamber walls are solid and in pristine condition with no heat lines/ fissures. I shall give the inner rim edge a slight bevel to get the bowl back to a perfect round and mask the damage. The ghost smells are considerably reduced and should be eliminated once the shank and mortise internals are cleaned. The rim top surface is still considerably darkened and would need to be thoroughly cleaned to know the exact damage to the surface. I followed up the reaming of the chamber with cleaning the mortise using cue tips, pipe cleaners and shank brush dipped in isopropyl alcohol. I scraped the walls of the mortise with dental tool to remove the dried oils and tars. The ghost smells are now greatly reduced and should be eliminated completely when the shank internals are cleaned with shank brush and dish washing soap. With the bowl internals clean, I move to clean the exterior of the stummel. I used a hard bristled tooth brush and Murphy’s Oil soap to scrub the stummel and rim top. I washed the stummel under running warm water with anti oil dish washing detergent till the stummel surface was clean. I simultaneously cleaned the shank internals with the detergent and hard bristled shank brush and dried it using paper towels and soft cotton cloth. I set the stummel aside to dry out naturally. As anticipated, this thorough cleaning of the shank eliminated the strong ghost smells from the chamber and now the pipe smells clean and fresh. The stummel surface has cleaned up nicely and the beautiful grain patterns are now on full display. The rim top surface has darkened and is uneven. I shall have to resort to topping to address these damages. There are two fills which appear to have softened and would need to be refreshed. I continued with the stummel repairs and addressed the issue of refreshing the two fills; one at the heel another on the left side panel of the square shank. With a sharp dental tool, I gouged out the fill in the left side panel of the shank and one at the heel of the stummel. Using the layering method, I filled these gouges with a mix of briar dust and CA superglue till the mound of the mix was slightly above the rest of the stummel surface. This helps in a better blending of the fill with the rest of the stummel surface while sanding and reduces the scratches caused by the use of a needle file as you have a correct perspective of the sanding that is required. I set the stummel aside for the fills to cure. Once the fills had hardened (which was almost immediately), using a flat head needle file I sand the fill till I had achieved a rough match with the surrounding stummel surface. I sand the fills with a piece of 220 grit sand paper to further blend the fills with the rest of the stummel surface.Next, I addressed the darkened and uneven rim top surface.I topped the rim top over a piece of 220 grit sand paper till I had a smooth even surface and the darkened surface was greatly reduced. The damage to the inner rim edge in 6 o’clock, 10 o’clock and  3 o’clock direction were also addressed to a great extent. I am very happy with the appearance of the rim top and rim edges at this stage of restoration. The charred surfaces will be addressed by creating a nice bevel over the inner rim edge. With a folded piece of 220 grit sand paper pinched between my thumb and forefinger, I carefully gave a bevel to the inner rim edge and addressed the issue of charred inner rim edge. The rim top surface and the edges look very neat at this stage with the bowl in a nice round shape. Next, I sand the entire stummel with a piece of 220 grit sand paper to address the minor scratches and dings that would otherwise show after micromesh polishing cycle. This also helped in fine blending of the fills with the rest of the stummel surface. I am very pleased with the progress made thus far.  I followed it by wet sanding the stummel with 1500 to 12000 grit micromesh pads, wiping frequently with a moist cloth to check the progress. I also polished the sterling silver ferrule at the shank end with the micromesh pads to a nice shine. Next, I rubbed a small quantity of “Before and After Restoration Balm” deep in to the briar with my finger tips and let it rest for a few minutes. The balm almost immediately works its magic and the briar now has a nice vibrant appearance with the beautiful grain patterns displayed in their complete splendor. I further buffed it with a horse hair brush and gave a vigorous buff with a microfiber cloth to deepen the shine. The dark browns of the fine straight grains spread across the stummel makes for a visual treat. It really is a nice piece of briar.   The only cosmetic, yet important aspect that remained was to refresh the stem logo. I applied a coat of white correction ink over the logo and once dried, I gently wiped it with a cloth. The logo is now clearly visible.I mount a cotton cloth buffing wheel on to my hand held rotary tool and polished the stummel and stem with Blue Diamond compound. This compound helps to remove the minor scratch marks that remain from the sanding and polishing. Next, I mount another cotton buffing wheel that I have earmarked for carnauba wax and applied several coats of the wax. I finished the restoration by giving the entire pipe a rigorous hand buffing using a microfiber cloth to raise the shine further. The finished pipe looks amazingly beautiful and coupled with the size, heft and the hand feel, makes it quite a desirable pipe. P.S. This was a project that I was looking forward to work on and research since the stampings on the stummel and that on the sterling silver ferrule, prima facie, appeared to be at a variance with each other. The stampings on the stummel pointed to corporate era made pipe whereas the E.B over W.B stamping on the sterling silver ferrule made me believe (incorrectly though) this pipe to be a Family era made. However, at the end of my research, all the stampings matched up perfectly. This pipe should make an interesting addition to collection of Barling’s pipe.

I wish to thank each one for sparing their valuable time to read through this write up and each one is my prayers. Stay home…stay safe!!

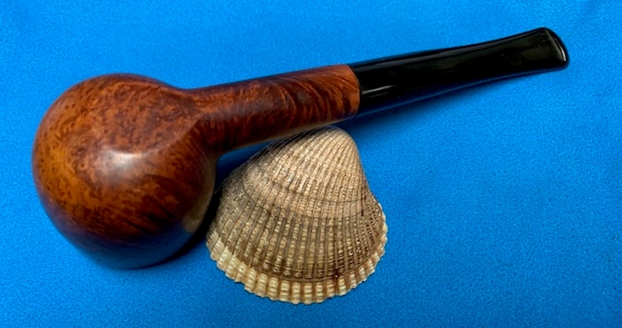

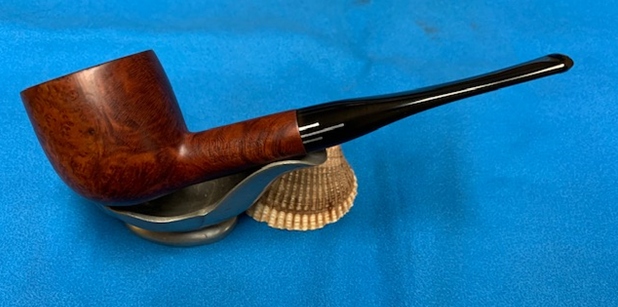

Fresh Life for a Comoy’s The Everyman London Pipe 126 Smooth Pot


Blog by Steve Laug

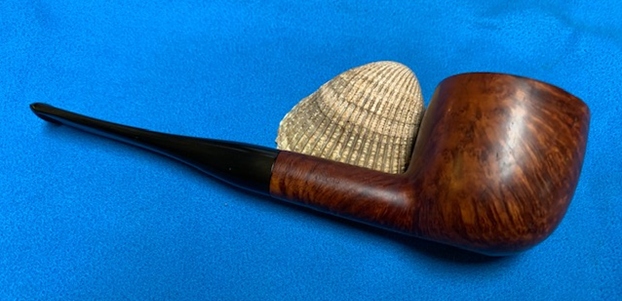

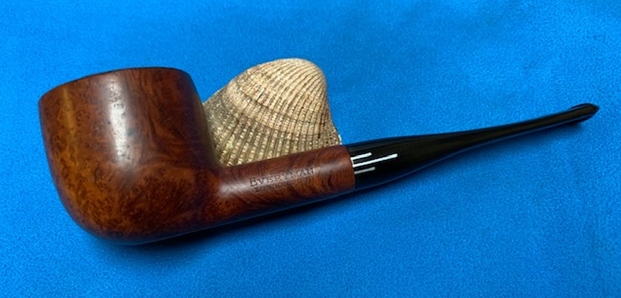

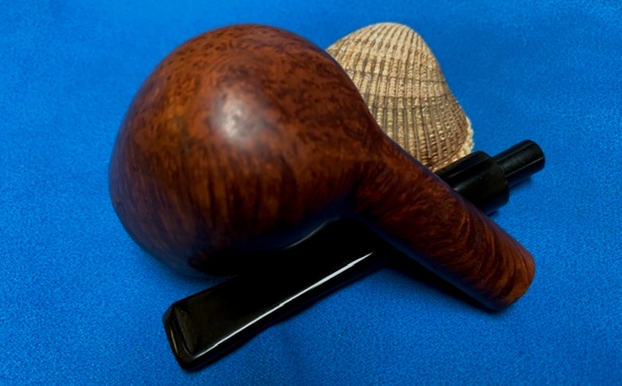

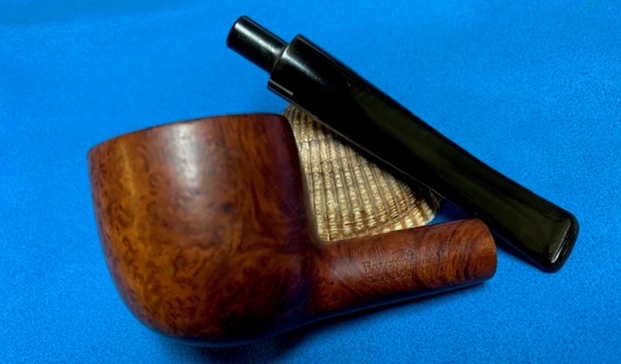

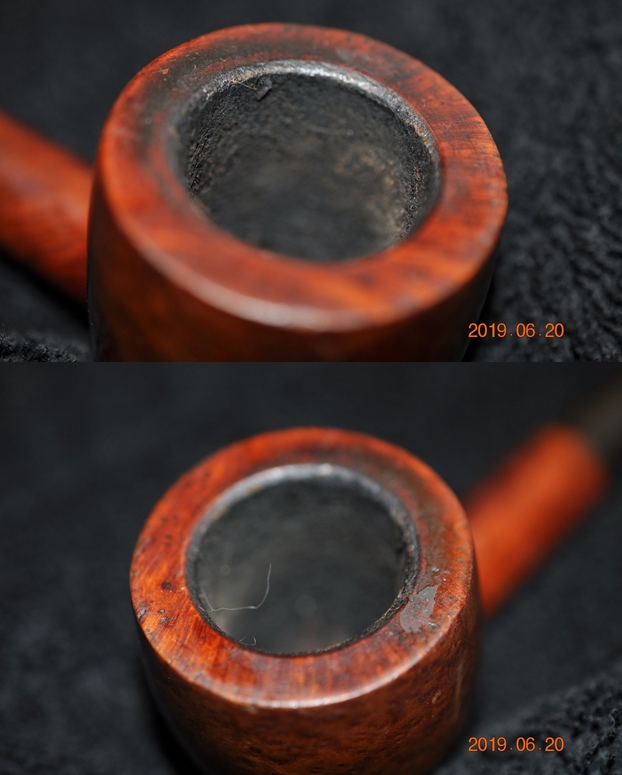

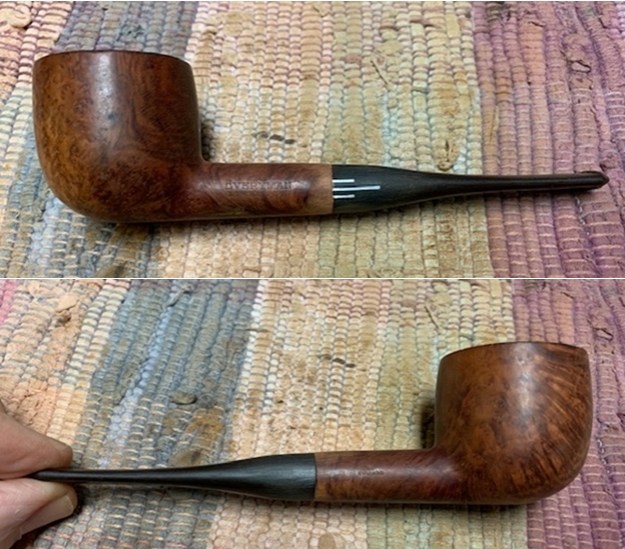

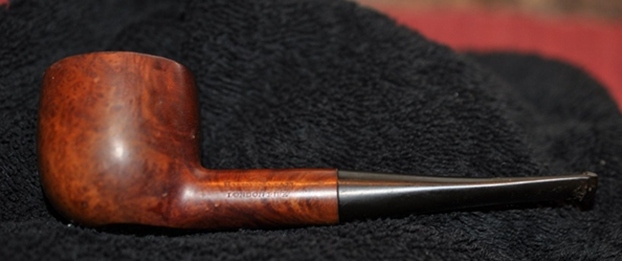

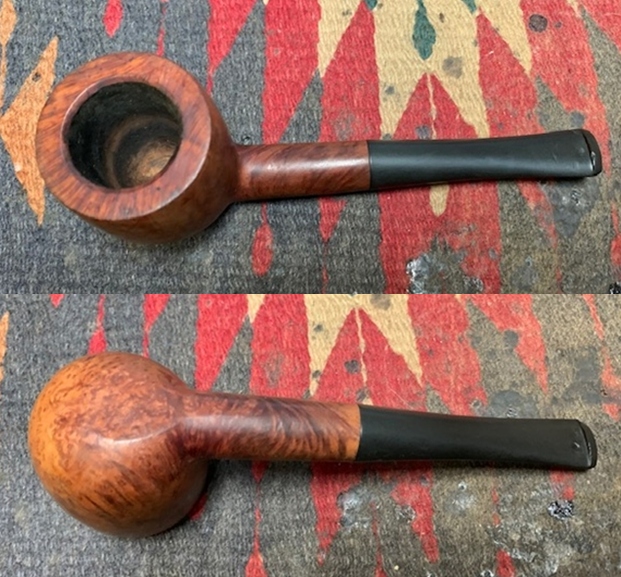

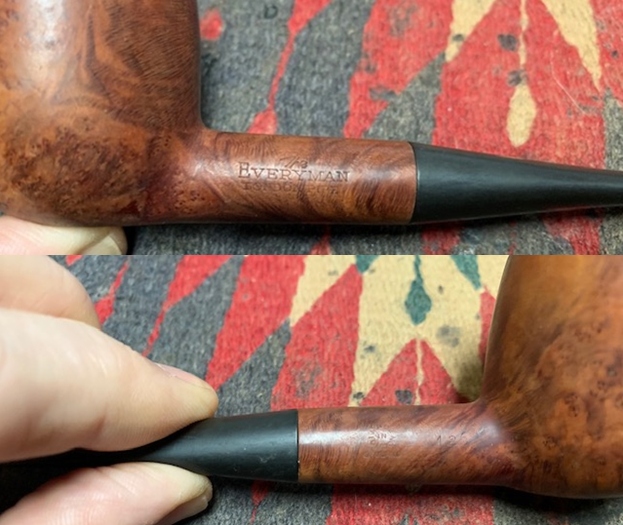

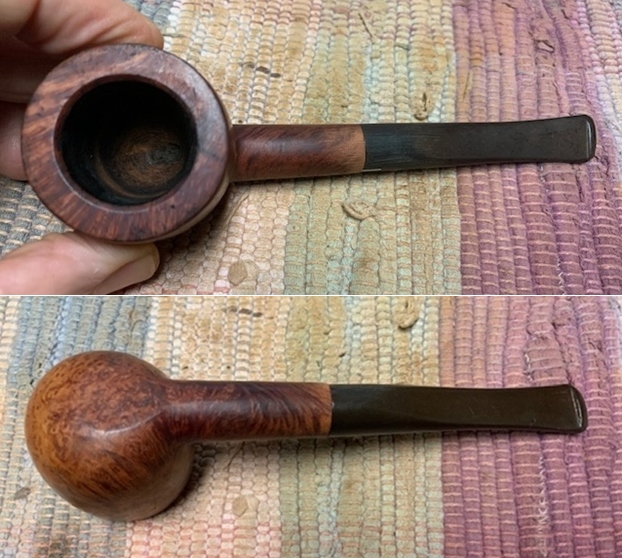

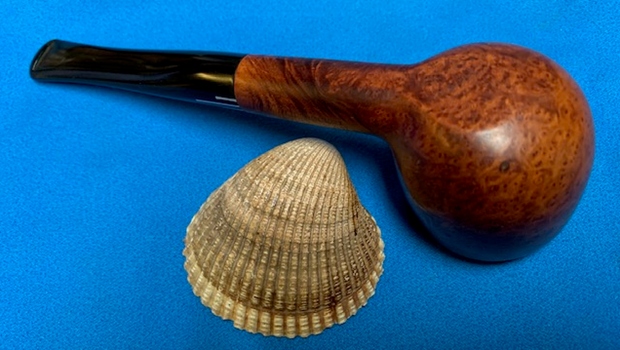

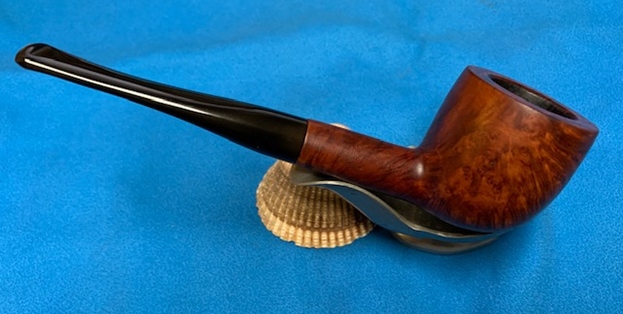

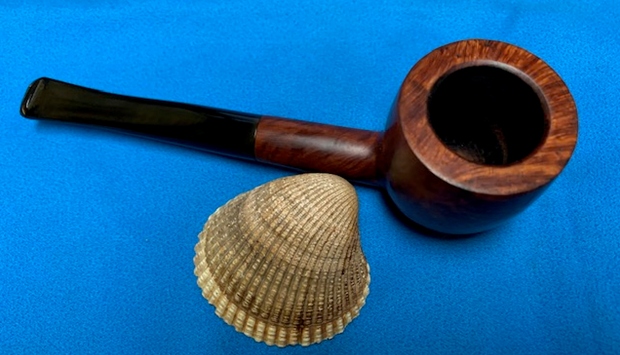

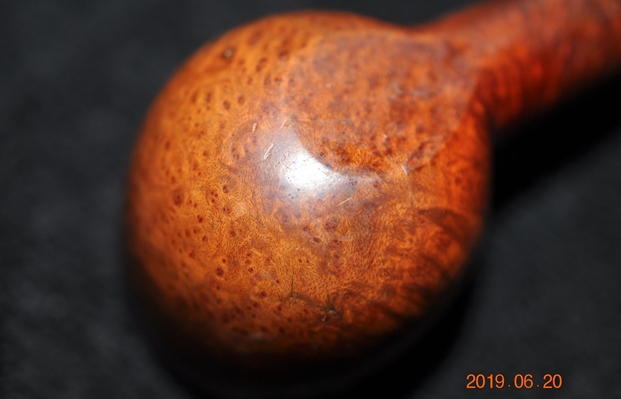

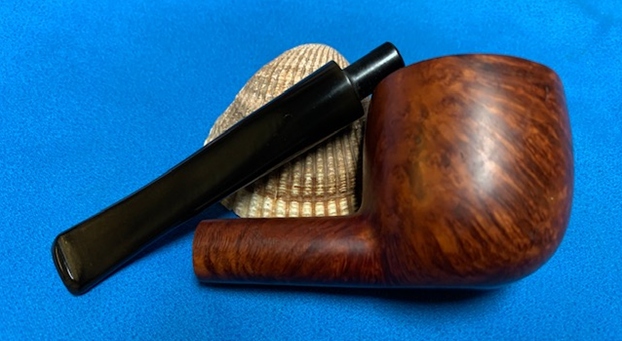

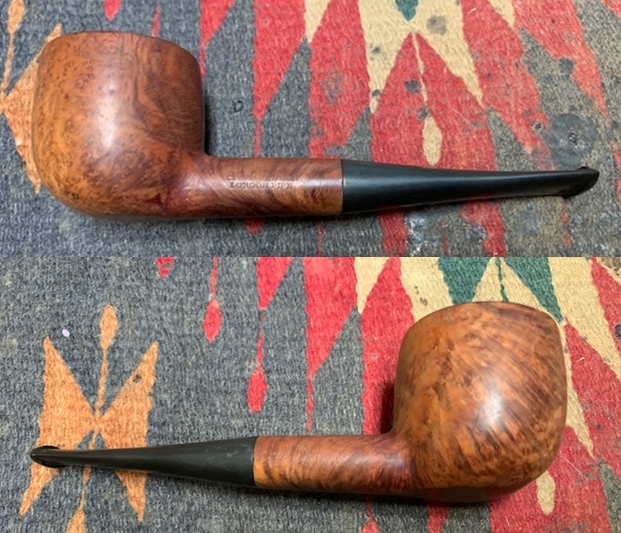

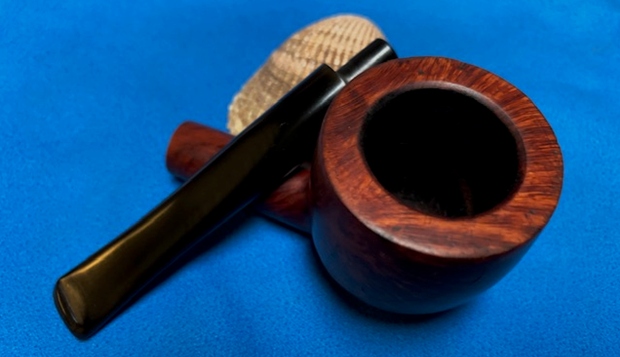

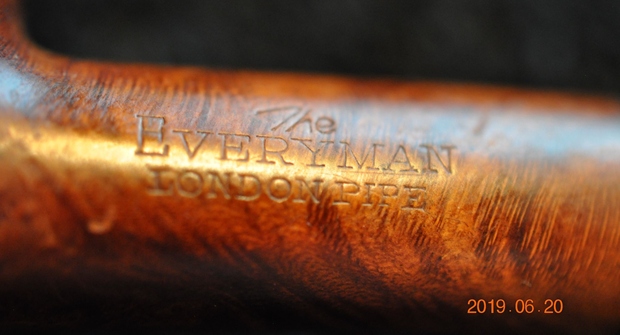

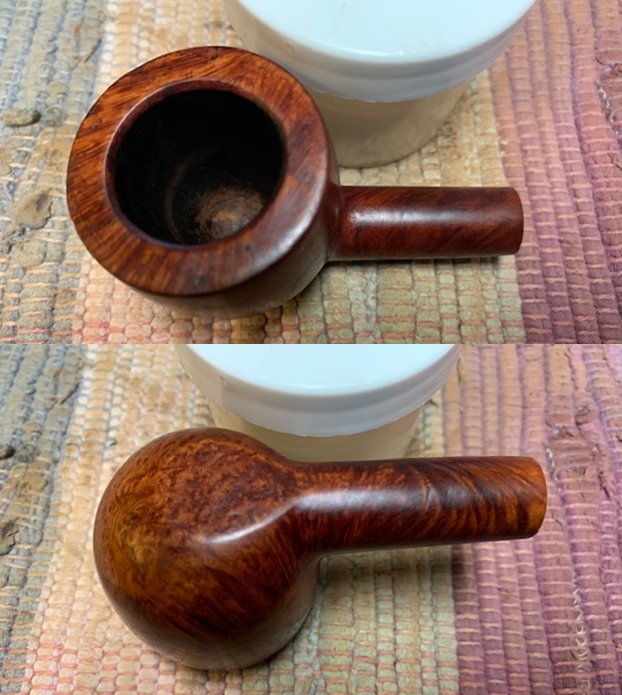

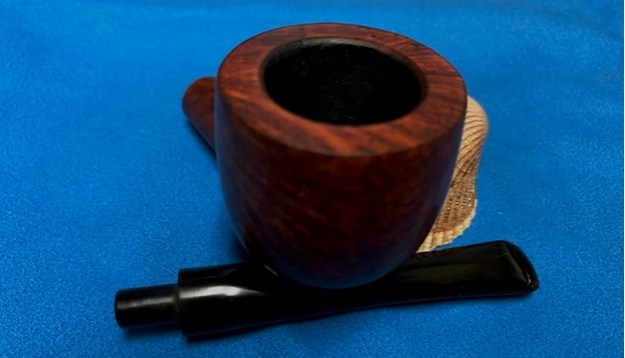

The next pipe on the work table came to us from an online auction from Wilkes Barre, Pennsylvania, USA. It is a Comoy’s made The Everyman pipe. It is a nice piece of briar under all of the grime ground into the finish. The pipe is stamped on the left side and reads The [over] Everyman [over] London Pipe. On the right side it reads 126 (shape number) next to the shank. There is also the circular Comoy’s COM stamp Made in London in a circle [over] England. The bowl was moderately caked with a light lava coat on the top of the rim heavier toward the back of the bowl. It was hard to tell how the inner and outer edge of the rim actually looked until the bowl was reamed. The stem was obviously a replacement as it did not have the characteristic 3-bar logo that is usually on the Everyman pipes. The stem had the same deep tooth marks and chatter on the top and underside near the button as the rest of the pipes in this estate. Jeff took photos of it before cleaning to show that even though it was dirty the pipe showed promise.   I took photos of the rim top and the stem to show their condition. Jeff was able to clean out the bowl completely and the rim top. He removed the tars and lava and left behind a clean top that would need some stain touch ups. The stem was oxidized with scratches, tooth chatter and marks on both sides near the button and on the surface edges of the button itself.   Jeff took photos of the sides and heel of the bowl to give a picture of what the briar around the pipe looked like. There is some stunning grain under the grime.   He took photos of the stamping on the shank. It reads as noted above and is clear and readable. He did not include the stamping on the right side in his photos.Before starting my cleanup work on the pipe I turned my favourite go to sites on background of brands. The first is Pipephil’s site (http://www.pipephil.eu/logos/en/logo-e4.html). There I looked up the Everyman brand and confirmed what I remembered about it being made by Comoy’s. From there I turned to Pipedia (https://pipedia.org/wiki/Comoy%27s). I went directly to the section on Comoys pipes. I found this shape chart. The shape number 296 is shown as a Large Canadian. I have drawn a red rectangle around it in the photo below.

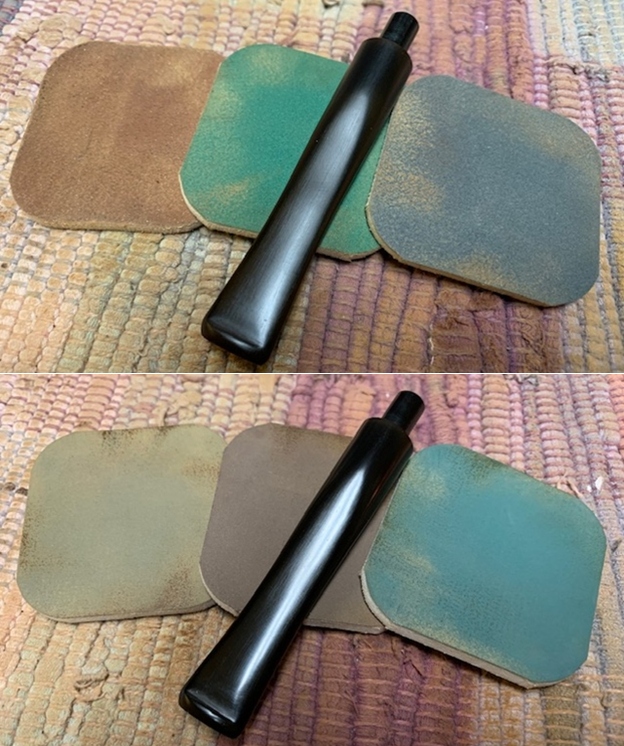

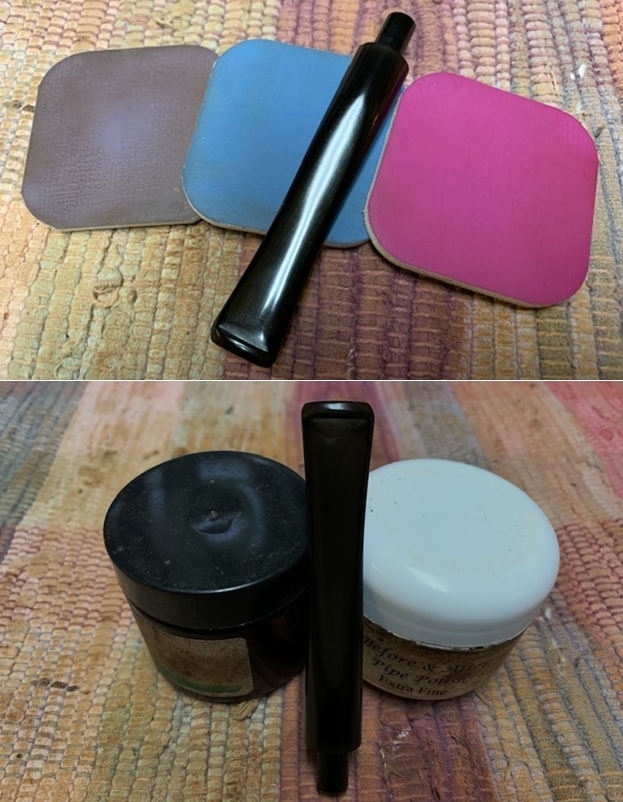

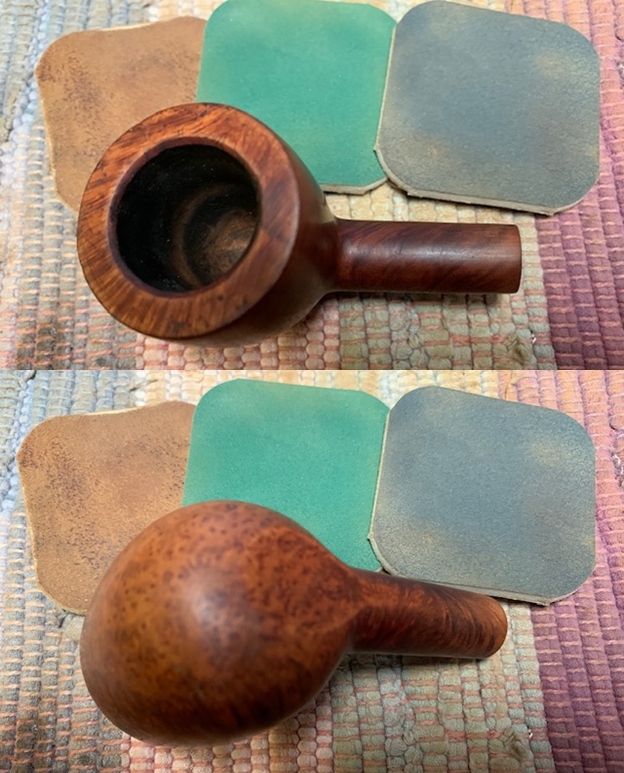

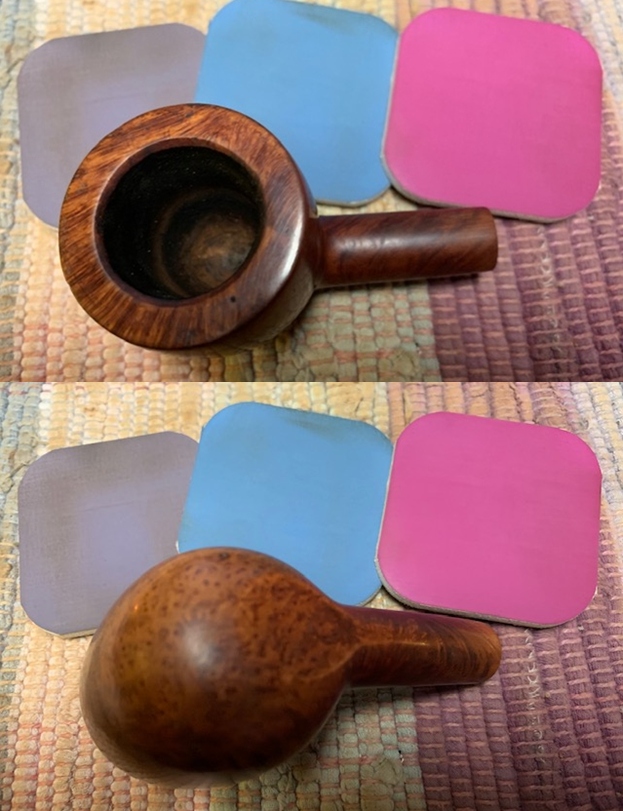

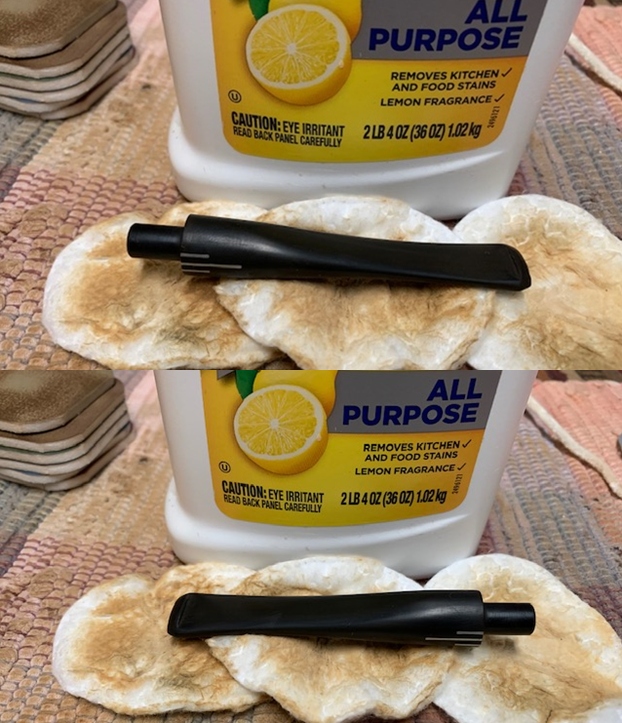

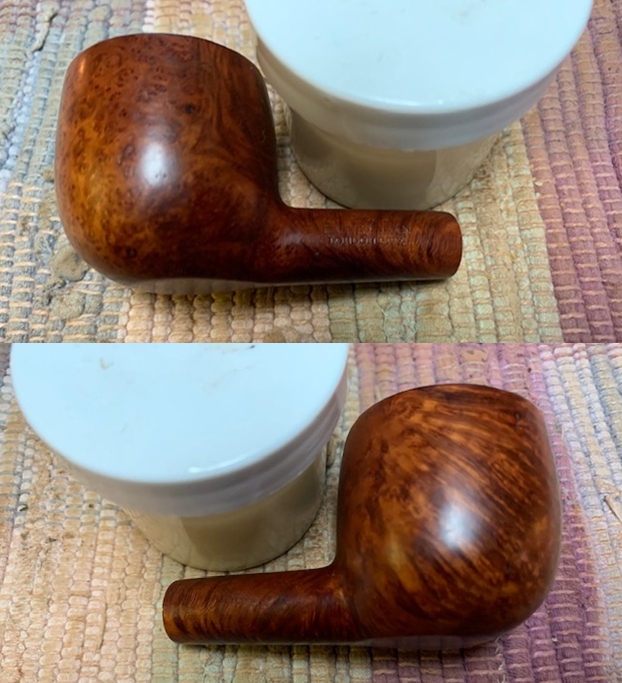

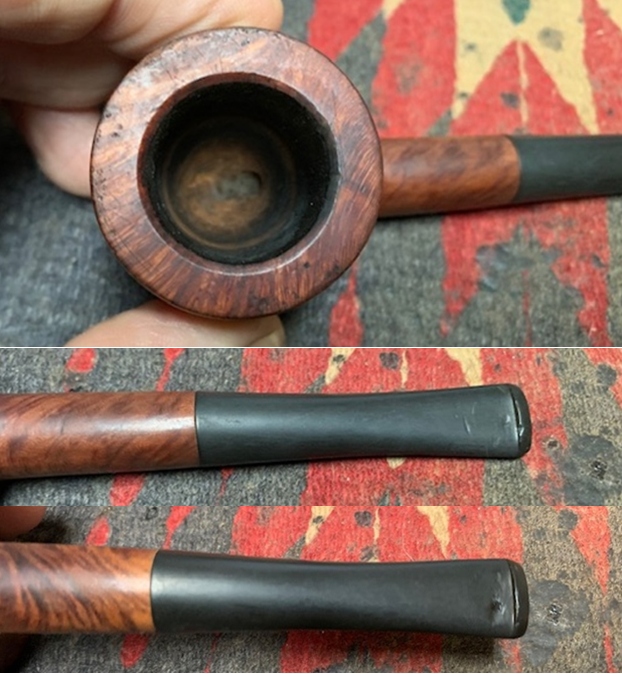

Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet Pipe Reamer and cleaned up the remnants with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. I took photos of the pipe once I received it.   The rim top had some scratches and nicks in the briar. The inner edge of the rim looked very good with no damage. The outer edge has some small nicks but also looked good. The stem surface looked very good with a few small tooth marks and chatter on both sides near the button. The stem was a replacement and I think I have an original stem in my collection of stems that will fit the pipe.   I took a photo of the stamping on the sides of the shank. The left side was stamped The [over] Everyman [over] London Pipe. On the right side was the shape number 126 next to the shank and the Comoy’s COM Stamp Made in London in a circle [over] England. The stamping is clear and readable.   I removed the stem and took a photo of the pipe to give a sense of the whole. The stem is tapered. I knew I had an original stem for The Everyman London Pipe in my cans of stems so I went through them until I found it. The fit to the shank is almost perfect. There needed to be a little adjustment made for a perfect fit but it was going to work well. I took a couple of photos of it before I tried it on the shank.Here is what the pipe looked like with the “new” original stem.I used a folded piece of 220 grit sandpaper to smooth out the transition between the shank and the stem. It did not take too much to make it smooth and once I was finished it looked original. With the new stem fit on the shank I turned back to cleaning up and polishing the bowl. I polished it with 1500-12000 grit micromesh sanding pads. I wiped it down after each sanding pad with a damp cloth. I rubbed down the briar with Before & After Restoration Balm. I worked it into the finish to clean, enliven and protect the new finish. I let the balm sit for 10-15 minutes and then buffed it with a cotton cloth to raise the shine.   I scrubbed the stem with Soft Scrub All Purpose Cleanser to remove the remaining oxidation on the vulcanite.I turned my attention to the “new” stem. I sanded it with 1500-12000 grit micromesh sanding pads. I wiped the stem down after each pad with Obsidian Oil. I polished the stem with Before & After Pipe Stem Polish – both Fine and Extra Fine. This Comoy’s Made The Everyman London Pipe 126 Pot came out looking very good. I am glad I remembered that I had an original stem in my can of stems and that it FIT. I put the pipe back together and buffed the bowl and the stem with Blue Diamond polish. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The finished pipe is shown in the photos below. The smooth finish looks really good in person with great grain around the bowl. It should be a great smoking pipe with a good hand feel. The dimensions are Length: 5 1/2 inches, Height: 1 1/2 inches, Outside diameter of the bowl: 1 1/2 inches, Chamber diameter: 7/8 inches. I will be posting it on the rebornpipes store very soon. It should make a nice addition to your pipe rack if you have been looking for a reasonably priced Comoy’s The Everyman London Pipe. Thanks for walking through the restoration with me as I worked over this estate Comoy’s Made pipe.

Restoring A New-To-Me Brand – an LHS “Sternies”


Blog by Paresh

The next pipe that I picked up for restoration is a small sized classic straight Dublin shaped pipe that feels ultra light in the hand with a nice and comfortable feel in the mouth when clenched. This pipe came in one of couple of pipe lots that I had purchased on Etsy a few years ago and had been languishing in the lot of about 40- 50 pipes that Abha had done the initial cleaning for me. It languished at the bottom of the pile for no other reason than the fact that it was so nondescript that it did not attract my attention. However, with the continuing lockdown and partial suspension of work by Postal and Customs departments, my tobacco stock is fast depleting and this forced me to search for small bowled pipes. Thus, this pipe has now moved up in the line for restoration.

This pipe has a quaint little bowl size with some nice mixed grains. It is stamped on the left side of the shank as “STERNIES” over “LHS” in a diamond over “IMPORTED BRIAR”. The set of stampings on this pipe are all crisp and in block capital letters. The vulcanite stem is devoid of any stampings.While researching any pipe, the first site that I visit is rebornpipes.com since this is one site where I usually find well researched information on any brand that has anything, even remotely related, to pipes!! Now, till the time I got this pipe on my work table, I had not heard or read anything on this pipe brand and now that I have decided to work on it, rebornpipes does have a write up by Steve on this brand. He had thoroughly researched this brand and makes for an interesting read. Here is the link to the write up:-

https://rebornpipes.com/2020/09/01/new-life-for-an-american-made-lhs-certified-purex-pencil-shank-prince/

To avoid the proverbial ‘reinventing the wheel’, I urge readers to go through the above write up to get a better feel of the brand. However, only a few relevant excerpts of the information that would help me in establishing the provenance of the pipe are reproduced below.

The L&H Stern Inc. was established by Ludwig Stern (1877-1942) in 1911. His brother Hugo (1872-?) acted as vice-president & secretary. The firm moved to 56 Pearl St. Brooklyn in 1920. It closed down in the 1960s. LHS was one of the main pipe suppliers for US soldiers during WWII.

The brand had 8 pipe grades listed in the 1944 issue of Outdoor Magazine.

Sterncrest Ultrafine $ 10

Sterncrest 14K $ 7.50

Sterncrest Sterling $ 5

Certified Purex $3.50

Select Grain $2.50

Sivercrest $ 2

Superfine Purex $1.50

Sculpted Purex $1.50

 In addition to the above grades, a 1944 catalog also listed the following lines and models:

Barrister

Marwyn

Park Lane

Radmanol

Warwick

Additional notes: Some models were made before, during, and after WWII. LHS was one of the main pipe supplier for US soldiers during WWII.

Pre-war pipes were stamped Real Briar Root, or Briar Root. Some war time pipes were made from domestic briar or “American” briar and were void of any briar stampings. Many American pipe makers lost their overseas supply of Mediterranean briar shortly before and during the war. Post war pipes were stamped Imported Briar to assure customers that they were buying premium briar once again.

The grade “STERNIES”, as seen on the pipe on my work table, finds no mention in the 8 grades of pipe that have been listed in the 1944 catalogue. Also the fact that the stem bears no logo of two dots is a mystery (or has it been completely buffed off?). That fact apart, the stamping “IMPORTED BRIAR” points to post WW II production.

Thus, the LHS pipe currently on my work table is from the period 1945 to 1960s when LHS closed shop!!

Initial Visual Inspection
As I have mentioned above, this pipe was initially handled by Abha and she is not in a habit of taking many pictures as she works on each piece of briar. There are not many pictures to give the readers an idea about the condition of the pipe before she had worked her magic and presented me with a nice clean canvas to carry forward my repair and refurbishing tasks. I have included a description of the initial condition of the pipe as documented by her. This pipe has a rather small bowl in a classic Dublin shape and has a chamber depth of about 1.1 inches. The chamber had an even layer of dry flaky cake which is not very thick. The condition of the inner walls of the chamber can be commented upon after the cake has been taken down to the bare briar. The rim top surface was covered in overflowing lava. The inner rim edge has minor charring in 6 o’clock and 11 o’clock directions (encircled in pastel blue) with some minor dings all along the edge. The outer rim edge is mysteriously darkened in the 12 o’clock direction. The draught hole is clogged and restricts the free flow of air through it. The ghost smells in the chamber are very mild. The smooth stummel surface has some very beautiful grain patterns and has a coat of lacquer that has worn off at a number of places giving the surface a blotched appearance. The stummel shows signs of vintage in the form of many scratches, dents and dings that it has acquired over a period of time. There a couple of fills over the stummel surface and are easily noticeable (encircled in yellow). The briar has accumulated a lot of grime and dust imparting the stummel a lifeless and bone dry appearance. The shank end has an aluminum spacer ring separating the shank end from the stem end when threaded in. On closer observation, it can be seen that a portion of this spacer extends into the mortise and is threaded which matches with the stinger threads.    The vulcanite stem was lightly oxidized. Some minor tooth chatter and tooth indentations are seen on both the upper and lower stem surfaces in the bite zone and at the bottom of the button edge. The threaded aluminum stinger tenon end had accumulated ash and oils/ tars that had dried out on the inside as well as on the outside. The horizontal slot has dried gunk embedded in to it which will have to be addressed.Initial Cleaning By Abha…
Abha, my wife, reamed out the complete cake and further smoothed out the chamber walls with a folded piece of 220 grit sand paper and scrapped out the entire lava overflow from over the rim top surface. She further cleaned out the internals of the shank with pipe cleaners and alcohol and cotton buds. She followed the internal cleaning of the shank with external cleaning of the stummel using Murphy’s Oil soap and hard bristled tooth brush and dried it with paper napkins and cotton cloth. Next she cleaned out the internals of the stem air way using hard and regular pipe cleaners dipped in isopropyl alcohol. She cleaned the stem surface under running warm water and scrubbed the surface oxidation from the stem using Scotch Brite pad and dish washing soap. The aluminum stinger was also similarly cleaned. She further removed the oxidation by scrubbing the stem with 0000 grade steel wool and applied a little olive oil to rehydrate the stem.    Once The Pipe Is On My Work Table…
The cleaned up pipes presents a very clear picture of what needs to be done to restore this pipe to a decent and smokable condition. I really cannot thank Abha, my wife, enough for all the help and support that she extends me in my pursuance of this hobby. I proceed to carry out my appreciation of the work that needs to be done on this pipe to restore it.

As with all the cleaned pipes that Abha packs, there was a note in the zip lock pouch with issues that she had observed in the pipe. The first point was that she had not dunked the stem in to “Before and After Deoxidizer” solution because of the metal stinger. The next issue that she pointed out was of the rim top surface not being even and the darkening of the inner rim edge. The third issue she pointed out was that the stummel surface had not cleaned up the way it usually does. Here are the pictures of the pipe as I had received. To be honest, the pipe had cleaned up nicely. What she thought was unclean stummel was in fact the old lacquer coat that had come off in patches. The two fills, encircled in yellow, are now plainly visible. The right side of the stummel shows a few dents/ dings. The aluminum spacer ring at the shank end is greatly oxidized and would need to be polished to a nice shine. The mortise is nice and clean. Sanding the stummel surface with a piece of 220 grit sand paper should address the issue of dings to a great extent. Once the stummel has been completely scrubbed and free of the old lacquer, I shall refresh the fills with a mix of briar dust and superglue. A vigorous scrub with Scotch Brit pad and Murphy’s Oil soap should suffice to remove the old peeling lacquer coat. In case this does not work, a wipe with pure Acetone on a cotton swab will definitely address this issue. After the aluminum spacer ring has been polished, it will provide a nice bling to the overall appearance of the pipe.   The chamber walls are sans any damage. The inner rim edge is in good condition save for light charring (encircled in green) and a chip (encircled in blue). The outer rim edge shows just a hint of darkening in 1 o’clock direction, but otherwise in excellent condition. The rim top surface is uneven to the touch. The draught hole is dead center and at the bottom of the heel and this construction geometry should make this pipe a fantastic smoker. Topping the rim surface should address the issues of uneven rim top, the charred outer rim edge while greatly reducing the inner rim edge damage. I shall, if need be, create a bevel to the inner edge to completely address the rim damage. The moment I saw and held the stem in my hands, I was not sure if the stem was vulcanite or made of some plastic derivative. It was very light weight and considerably harder than vulcanite. It was lightly oxidized and had minor tooth chatter on either surface in the bite zone. The button edges on either surface are slightly deformed with tooth indentations. I shall not risk heating the bite zone with the flame of a lighter to raise the tooth chatter but would rather try and sand it out. In case required, I shall further use charcoal and superglue mix to address this issue. I need to sharpen the button edges and shall do so with a flat needle file. The Process
I embarked on the journey of restoring this pipe by addressing the stem first since it would take considerable time to repair and polish. Abha had done a fantastic job of cleaning the stem both internally and externally and this facilitated me to straight away sand the stem surface with a 220 grit sand paper to even out the raised tooth indentation and remove the oxidation from the surface. I follow it up by cleaning the surface with a cotton swab and alcohol. I wipe the stem with a cotton swab and Murphy’s oil soap to deep clean the surface. The tooth chatter has been addressed to a very great extent. The minor tooth marks that remain will further reduce after I had sanded the stem surface with 320 to 1000 grit sand papers followed by the micromesh pads. The button edges are a lot straighter and crispier than before.I further sand the stem surface with 320 followed by 400, 600 and 800 grit sandpapers. I finished the sandpaper cycle by wet sanding the entire stem surface with a piece of 1000 grit sandpaper. I wiped the stem with a moist cloth to remove the sanding dust and applied a small quantity of EVO to hydrate the stem.I completed the polishing cycle of the stem by wet sanding the surface with 1500 to 12000 girt pads. The stem looks great with the tooth chatter nicely matched with the rest of the surface. I also polished the aluminum stinger and the spacer ring with micromesh pads. I gave a final rub with “Before and After Extra Fine” stem polish compound to remove fine scratches from the stem surface. I rub a little quantity of Extra Virgin Olive oil in to the stem surface and set it aside to be absorbed by the vulcanite. The stem polished up nicely and I am happy with the appearance of the stem at this point in restoration.  With the stem refurbishing nearly completed, save for final polish using Blue Diamond and wax, I move to clean the exterior of the stummel. I used a hard bristled tooth brush, Scotch Brit pad and Murphy’s Oil soap to scrub the stummel and rim top. I shall be candid in confessing that I was extra aggressive using the Scotch Brit pad as I was keen to completely remove the peeling lacquer coating over the stummel surface. After the scrub with oil soap, I washed the stummel under running warm water with anti oil dish washing detergent till the stummel surface was clean and dried it using paper towels and soft cotton cloth. I once again cleaned the shank internals with the detergent and hard bristled shank brush and set the stummel aside to dry out naturally. The two fills have gone soft and would need to be refreshed. The stummel has cleaned up nicely with the old lacquer coat completely removed from the surface. The ghost smells are completely eliminated and the pipe now smells fresh, odorless and clean. The shank air way is nice and open. I shall refresh the fills over the stummel surface with a mix of briar dust and superglue. Next I addressed the issues of the two fills in the stummel surface. With a sharp dental tool, I gouged out the fill on the right side of the stummel and one on the left side of the shank. Using the layering method, I filled these gouges with a mix of briar dust and CA superglue till the mound of the mix was slightly above the rest of the stummel surface. This helps in a better blending of the fill with the rest of the stummel surface while sanding and reduces the scratches caused by the use of a needle file since you have a correct perspective of the sanding that is required. I set the stummel aside for the fills to cure. Using a flat needle file, I sand the fill till I had achieved a rough match with the surrounding stummel surface. I sand the entire stummel with a piece of 220 grit sand paper to further blend in the fills with the stummel surface.   I topped the rim top surface on a piece of 220 grit sand paper, checking frequently for the progress being made as I hate to loose briar estate any more than absolutely necessary. The issue of uneven rim top surface has now been completely addressed. At this stage, the slight darkening to the outer edge too has been completely addressed while the charring to the inner edge, though eliminated to a great extent, is still discernible. I shall create a bevel to the inner edge to blend and mask the damaged edge with the rest of the inner edge.  The inner rim edge appeared to be slightly uneven at the front and at the back end of the rim top due to charring and I decided to mask it by creating a bevel. With a folded piece of a 220 grit sand paper pinched between my thumb and forefinger, I create a nice and even bevel on the inner edge. I was careful so as not to alter the profile of the stummel by excessive topping or creation of the bevel. I am pretty pleased with the appearance of the rim top and edges at this stage. The following pictures show the progress being made and improvements to the inner and outer rim edges. I wet sand the entire stummel with 1500 to 12000 grit micromesh pads, wiping frequently with a moist cloth to check the progress.I also polished the shank end aluminum spacer ring with the micromesh pads to a nice shine. I really like the looks of the stummel at this point in restoration. The grains and the clean lines of this piece of briar is really appreciable. The few scratches and dings that were noticed over the stummel surface too have been addressed by this stage due to the sanding and micromesh pad polishing. The fills are quite evident and whether to mask it using a dark brown stain or let it be, is a decision that I shall take subsequently.    Next, I rub a small quantity of “Before and After Restoration Balm” in to the stummel surface with my finger tips and let it rest for a few minutes. I worked the restoration balm deep in to the briar wood. The balm almost immediately works its magic and the briar now has a nice vibrant appearance. The stummel looks very handsome with the contrasting dark and light brown hues. The fills have blended in quite nicely with the surrounding dark brown hues taken on by the stummel surface after the application of the balm. To complete the restoration, I mount a cotton cloth buffing wheel on to my hand held rotary tool and applied a coat of Blue Diamond to the stummel and the stem to polish out the minor scratches.    With a cotton buffing wheel that I use for carnauba wax, I apply a coat of carnauba wax and continue to work on it till the complete coat of wax had been polished out. I finished the restoration by giving the entire pipe a rigorous hand buffing using a microfiber cloth to raise the shine further. The completed pipe looks fresh, vibrant and ready for its next innings with a piper interested in adding it to his/ her collection. This piece of briar feels fantastic in hands with its ultra lightweight, classic shape and a size that is just right for a quick smoke in between breaks. Thank you to all esteemed readers for joining me and walking with me through this restoration. Cheers!! P.S. I had consulted with my wife, Abha, whether or not to stain this pipe with a dark brown stain to mask the fills since she has a better understanding and appreciation of colors than me (isn’t that true for all the men?). She suggested that the natural color of the briar looks smashing while any staining will hide the grain patterns and that the fills actually blend in nicely when seen in person. It’s actually a fact that pictures highlights flaws more than they actually appear in person.

Praying for the safety and well being of all readers and their loved ones…
