Tag Archives: Malaga Canadian shaped Pipes

Restoring and Restemming a MALAGA Canadian


Blog by Steve Laug

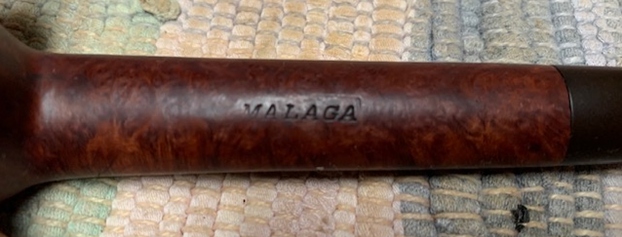

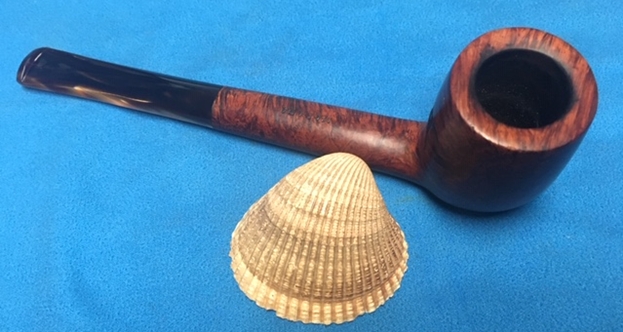

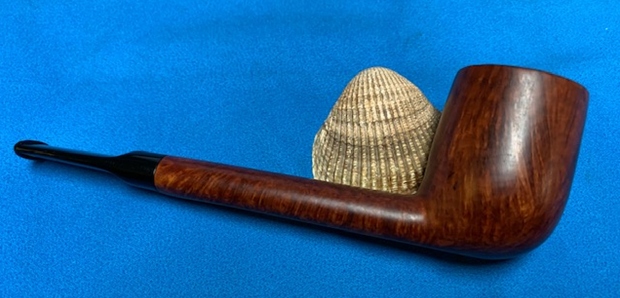

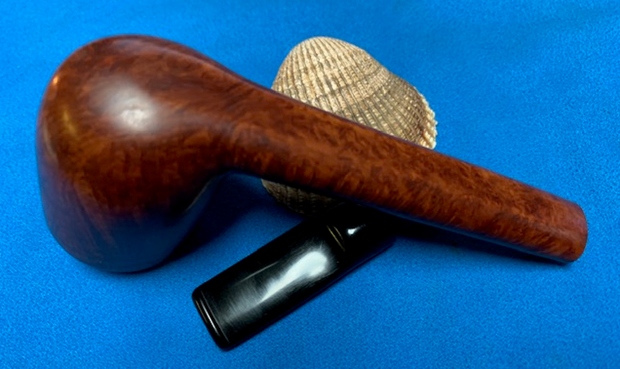

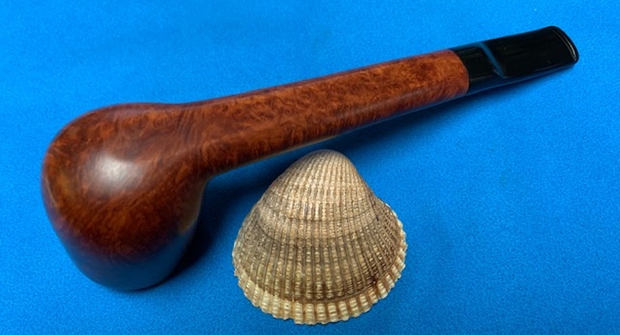

The next pipe on the table is a “Malaga” pipe that Jeff picked up from an online auction from Alden, Michigan, USA. It is a nice looking Canadian with an oil cured finish and some great looking grain around the bowl and shank. The pipe is stamped on top of the shank and reads MALAGA. The carver did a great job of carving the pipe to capture the grain around the bowl and shank. The bowl had a heavy cake with an overflow of lava on the rim top with heavier overflow on the back side of the rim top. The sides of the bowl and shank are very dirty with grime and oils ground into the finish from prolonged use. The vulcanite stem was heavily oxidized and had tooth dents and chatter on the top and the underside of the stem. Jeff took photos of the pipe before he started the cleanup work. Jeff showed me the pipe on Facetime and it was quite a beauty. With some work it will be a real beauty. I looked forward to seeing it in person.    Jeff took a close up photo of the bowl and rim to capture the condition of the pipe before he started the cleanup work. The bowl has a thick cake and the uneven overflow of lava on the rim top is quite thick toward the front. The inside edge of the rim could be damaged but it quite hidden under the lava coat. The stem is deeply oxidized, calcified and dirty and there is tooth chatter and marks on both sides of the stem ahead of the button.  He took a photo of the stamping on the topside of the shank. It read as noted above.Jeff took photos of the sides and heel of the bowl to give a picture of what the briar looked like. There is some nice grain around the sides. You can also see the damage to the rim edges and the heel of the bowl in the photos below. I am including the link to a blog that I wrote that gives some of the history of the Malaga brand and the Malaga Pipe Shop in Royal Oak, Michigan in the USA. I have written an earlier blog to give a little history of the Malaga Brand and the pipemaker, George Khoubesser. Here is the link – https://rebornpipes.com/tag/malaga-pipes/.That blog also includes links to a catalogue and the history of the pipemaker George Khoubesser. Follow the link to get a feel for the brand and the pipemaker.

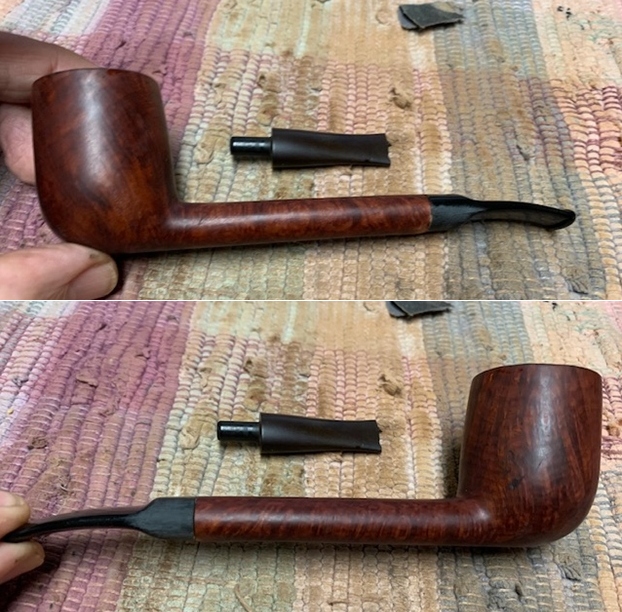

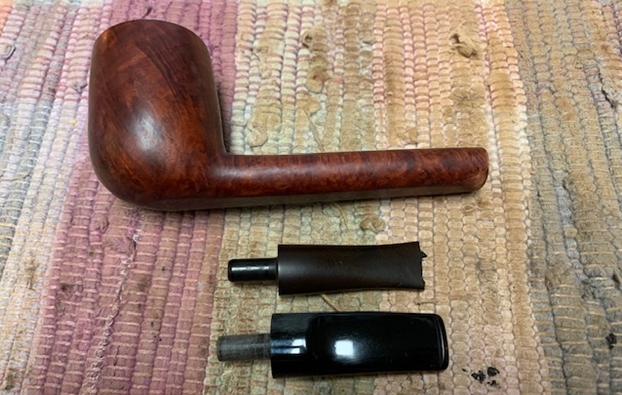

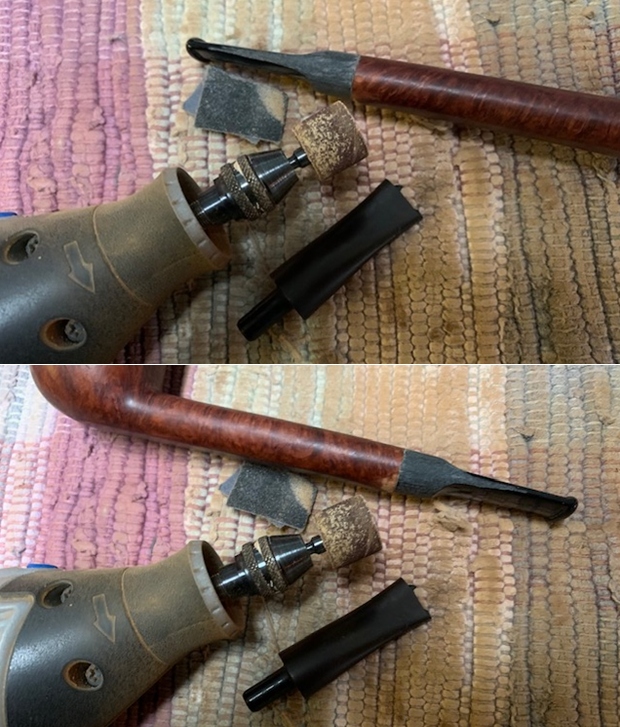

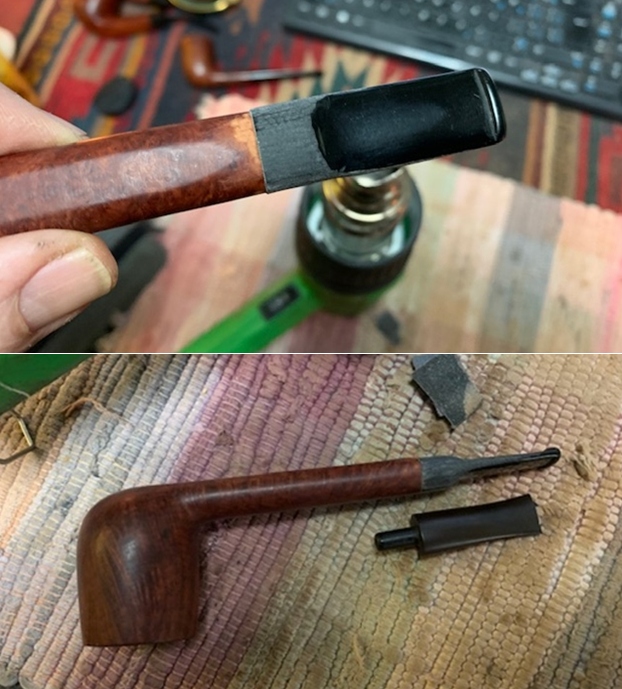

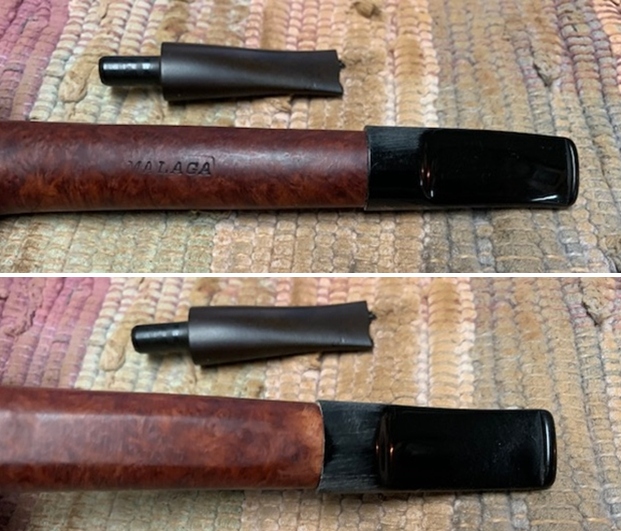

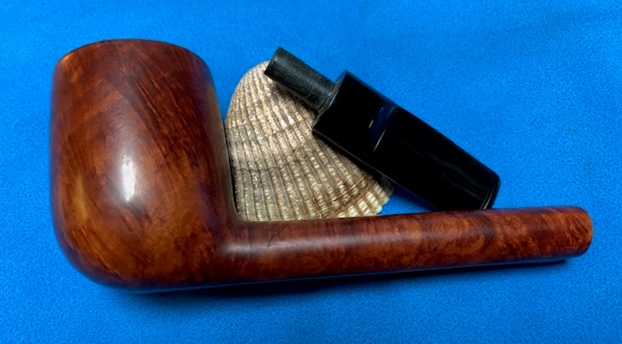

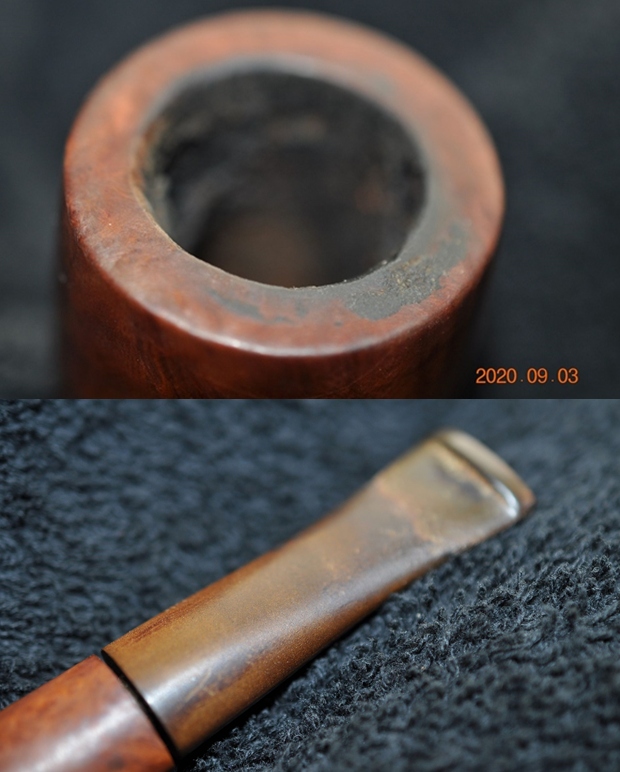

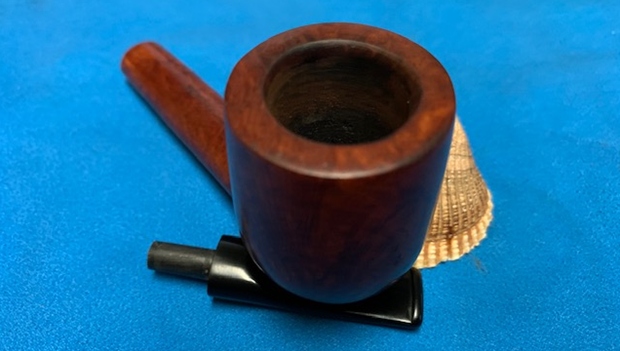

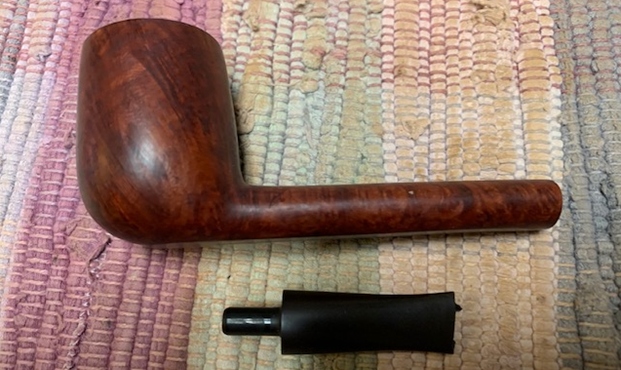

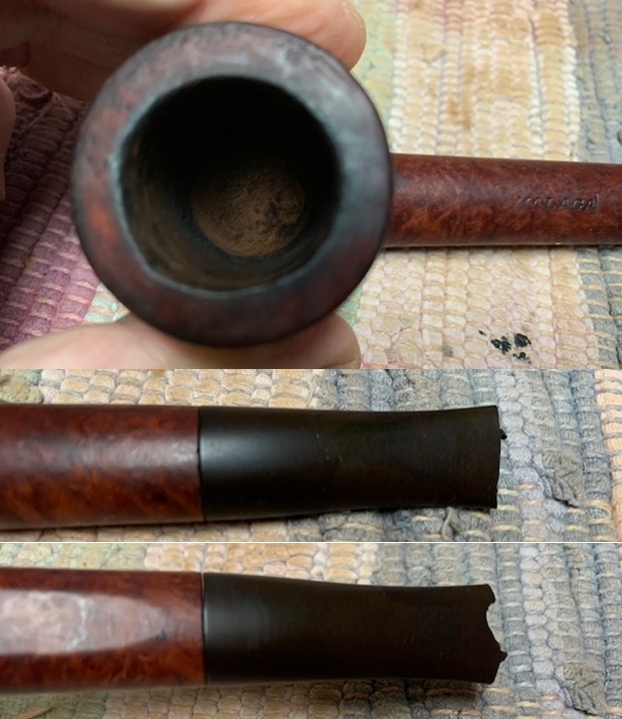

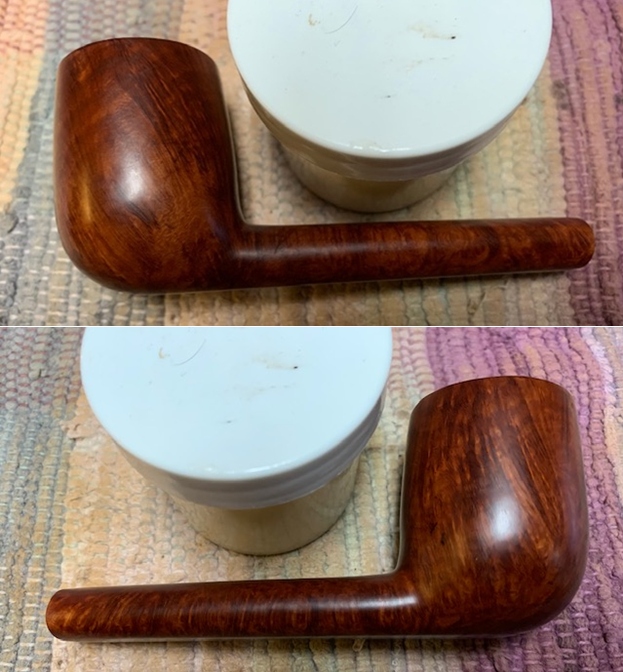

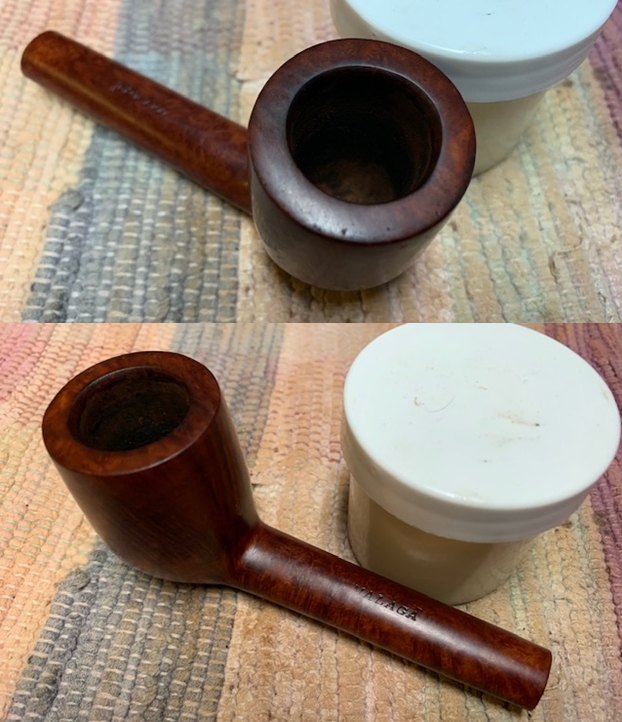

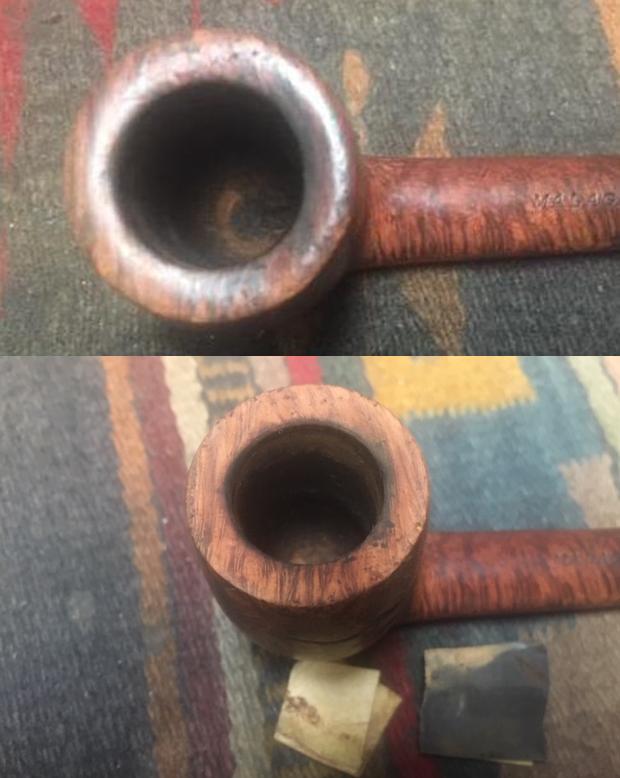

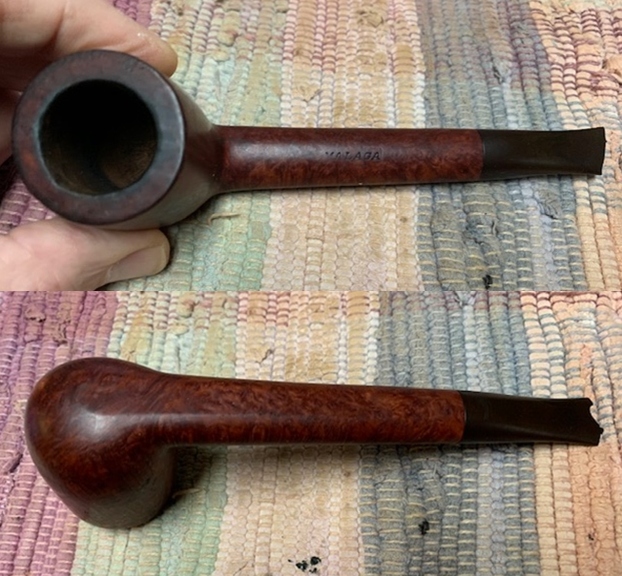

Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet pipe reamer and removed the rest of it with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. When the pipe arrived and I unpacked it the stem was broken off at the end. There was about a ¼ inch of the stem and the entire button was in the bottom of the bag that the pipe was packed in. I took photos of the pipe once I received it.  The rim top cleaned up really well. The rim top and outer edge of the bowl show some darkening over most of the surface. There is damage to the inner edge of the bowl and bowl is out of round.  The stem surface looked very good with tooth marks and chatter on the top side and the underside near the button.   The stamping on the topside of the shank is clear and readable. It reads as noted above.  I removed the taper stem and took a photo of the pipe to give a sense of the whole.  Now it was time to work on the pipe. I decided to work on it by fitting a new stem on the shank. I went through my can of stems and found an acrylic slight saddle stem that was the perfect length and the tenon fit well. The width of the stem was slightly bigger than the shank. The fit on the upper and lower side was perfect.I sanded the tenon slightly so that fit would be snug in the shank. Once I had removed a little bit of the diameter with 220 grit sandpaper I put it on the shank and took a photo. I started sanding it with 220 grit sandpaper to start reshaping the stem to fit the shank. I took photos of fit of the stem  at this point.I heated the stem with a heat gun to remove the bend in the stem. I heated it until it had softened and then carefully straightened it out.    I continued to sand the excess diameter of the stem to fit it to the shank. I took photos of the stem once I had finished with the Dremel and sanding drum. It is very close to fitting and sanding it with 220 grit sandpaper will clean up the fit. I sanded it with a folded piece of 220 grit sandpaper to fit it to the shank.  I sanded the briar and the stem to get a smooth transition between the stem and the shank. I took some closeup photos of the fit of the stem to the shank after I sanded it with some more 220 grit sandpaper and started the polishing with 400 grit wet dry sandpaper.   I removed stem from the shank and turned my attention to the inner edge of the bowl. I worked on cleaning up the darkening and the damage on the edge and the rim top with a folded piece of 220 grit sandpaper.  There were two large nicks/chips in the right side of the bowl toward the lower backside of the bowl. I filled them in with clear super glue. Once the glue cured I sanded it smooth with 220 grit sandpaper and blended it into the surrounding briar. I used an Oak Stain Pen to touch up the sanded area of the bowl repair and the work fitting the stem to the shank.    I polished the briar with micromesh sanding pads – wet sanding with 1500-12000 grit pads and wiping it down after each pad with a damp cloth.   I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The grain came alive and the finish looked rich.   I polished the acrylic stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad (Obsidian Oil does not usually work with acrylic but I used it anyway as it gives traction to sanding with the next pad). I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.   This restemmed Malaga Canadian with a acrylic saddle stem turned out to be a real beauty. The carver really maximized the grain with the shape of the pipe. I polished stem and the bowl with Blue Diamond polish on the buffing wheel and the finish just popped and came alive. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The pipe took on life with the buffing. The rich oil cured colour works well with the polished acrylic stem. The finished pipe has a rich look that is quite catching. Have a look at it with the photos below. The shape, finish and flow of the pipe and stem are very well done. The dimensions are Length: 6 inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: 7/8 of an inch. The weight of the pipe was 47g/1.66oz. I will be putting it on the rebornpipes store shortly. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!

Redeeming a Malaga Canadian – the 1st of 2 pipes that are going home


Blog by Steve Laug

Yesterday afternoon I received and email from a reader of the rebornpipes blog who was on the hunt for a Malaga pipe or two for a colleague of hers. What made it interesting was that the colleague’s grandfather and family were the original owners of Malaga Pipes. Here is her message to me:

Hi There

I work with Lisa Holloway formerly Saraynian and her grandfather and consecutive family were the original owner of Malaga Pipes

Id love to be able to purchase one for her for Christmas this year but since they went out of business in 1999 I have no idea where to get one or how much they are

Would you be able to help me find one and purchase it for her.

Please let me know thanks so much

Diane

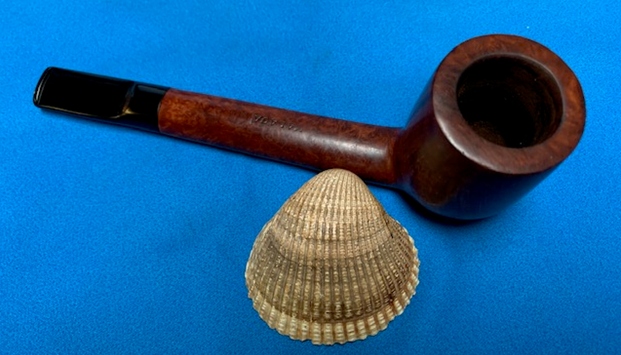

I read her email at work and when I got home I went through the Malaga pipes from George Koch’s estate. I picked two of them that I thought might interest her and sent her the pictures of the pipes that I had available. The two I chose needed to be restored before I could send them to her but they showed some promise. The first of them was a long shank Canadian that had some mixed grain and a vulcanite stem. The mix of grain styles around the bowl and shank combined with the stem make it a stunning pipe. It is one of the many Malaga pipes that came to my brother and me in several shipments of pipes from George’s daughter Kathy. When Jeff got each box the pipes were well wrapped and packed. Jeff unwrapped them and took the following photo to give an idea of the volume of the pipes that we purchased. This Malaga came in mixed in a box of pipes much like the one below. In each of the previous blogs that I have written on the restoration of George’s pipes I have told his story. If you have followed the restorations you will have read the information and the background piece that Kathy did on her father. Here is a link to one of the previous blogs on his Malaga pipes where I included her tribute in full (https://rebornpipes.com/2019/01/26/back-to-kathys-dads-pipes-restoring-a-%c2%bc-bent-malaga-author/). You can also read the bio on her Dad, George Koch. It is an interesting read and one that shows just how far our pipe collecting passion can go when we find a brand of pipes that we enjoy. I am going to only include the portion on the Malagas at this point. If you wish to read the rest follow the link above.

Kathy writes…We lived in Livonia, and that’s where his love for Malaga pipes began. After a few years he returned to Allis Chalmers and we moved back to Springfield. I remember that when we went back to Michigan to visit friends, Dad had to go to the Malaga store and acquire a few new pipes. Many a year I wrote to Malaga and they picked out a pipe for me to purchase that I could give Dad for a Christmas or birthday present. He was always pleased. His favorites were the straight stemmed medium sized bowl pipes, but he liked them all.

He had some other pipes, but the Malagas were his favorites. I remember him smoking them sitting in his easy chair after work, with feet up on the ledge by the fire burning in the fireplace.  Growing up it was my job to clean them and he liked the inner bowl and stem coated with Watkins vanilla, leaving a little of that liquid in the bowl to soak in when I put them back on the rack…I’m very happy they are being restored by you and your brother and hope they find homes who enjoy them as much as Dad did. Thank-you for your care and interest. — Kathy, the oldest daughter

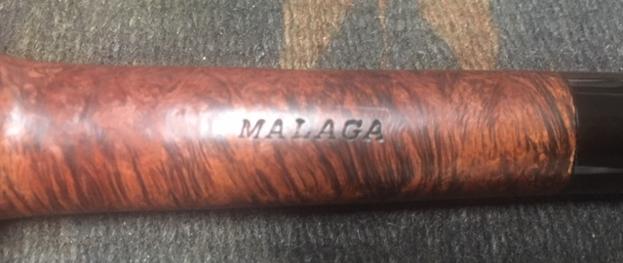

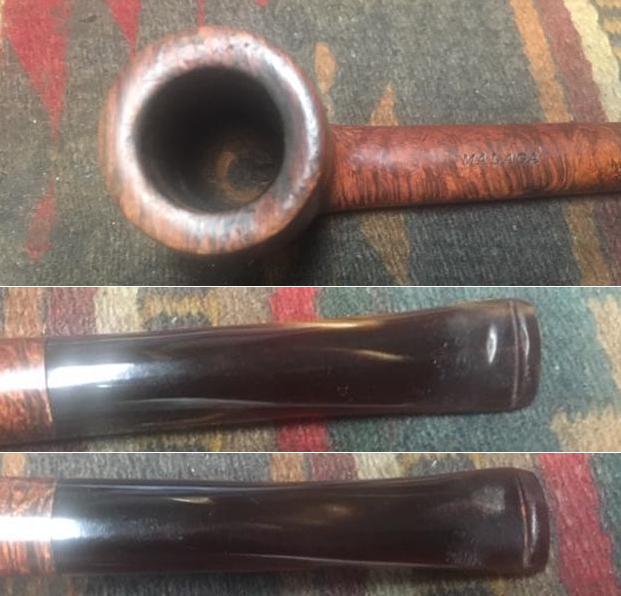

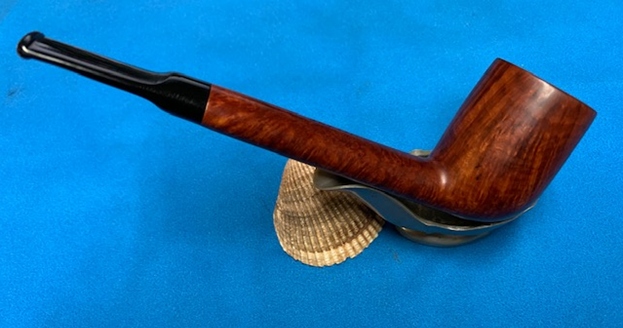

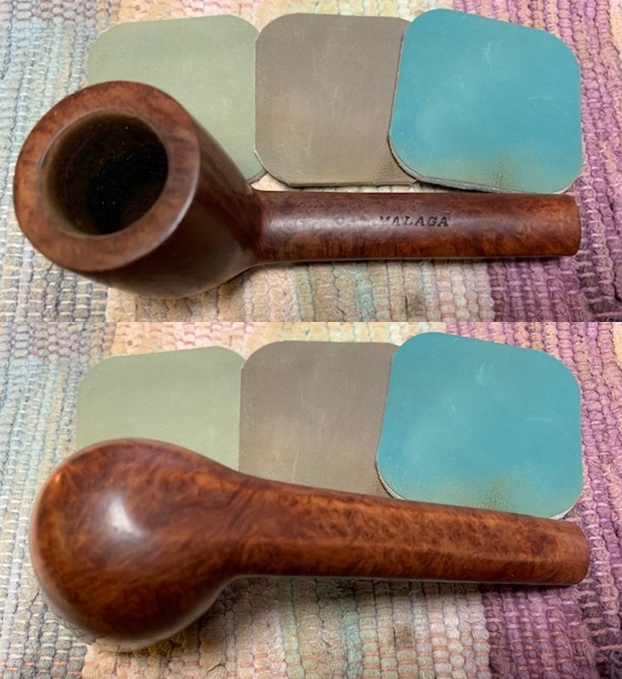

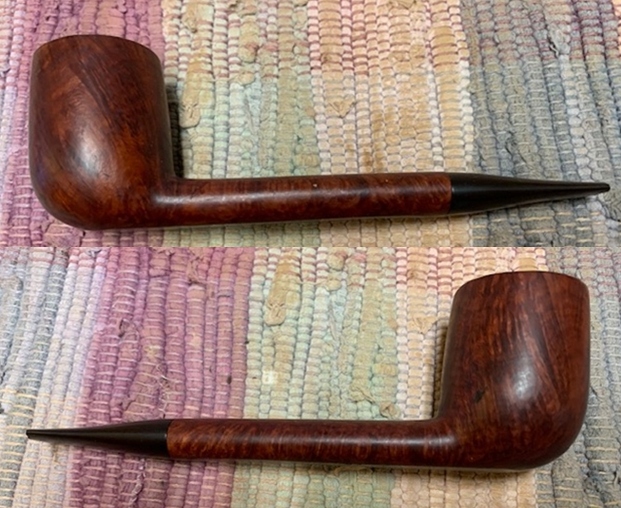

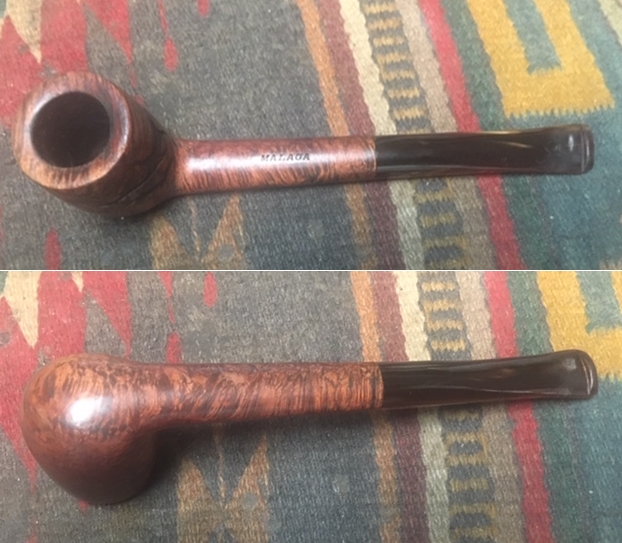

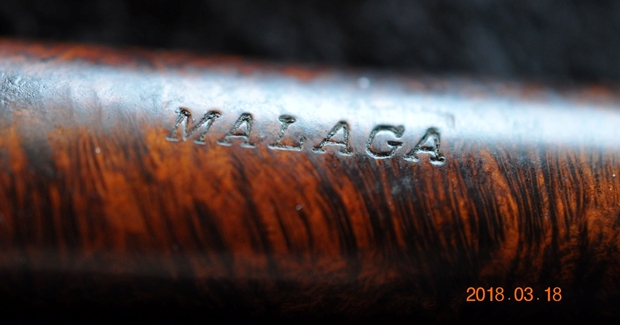

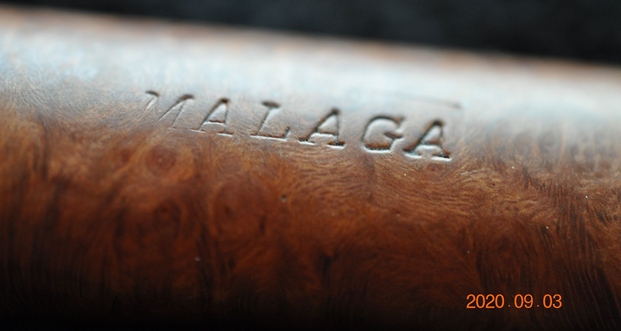

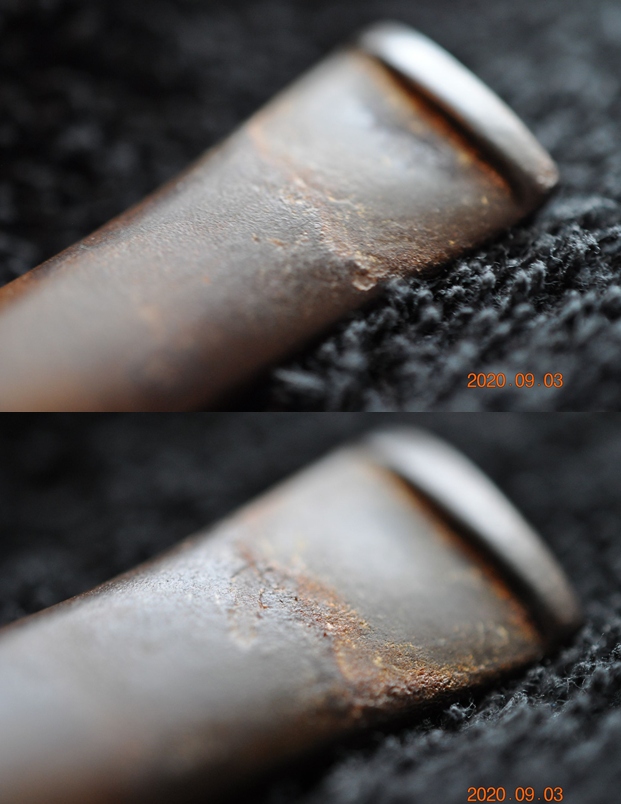

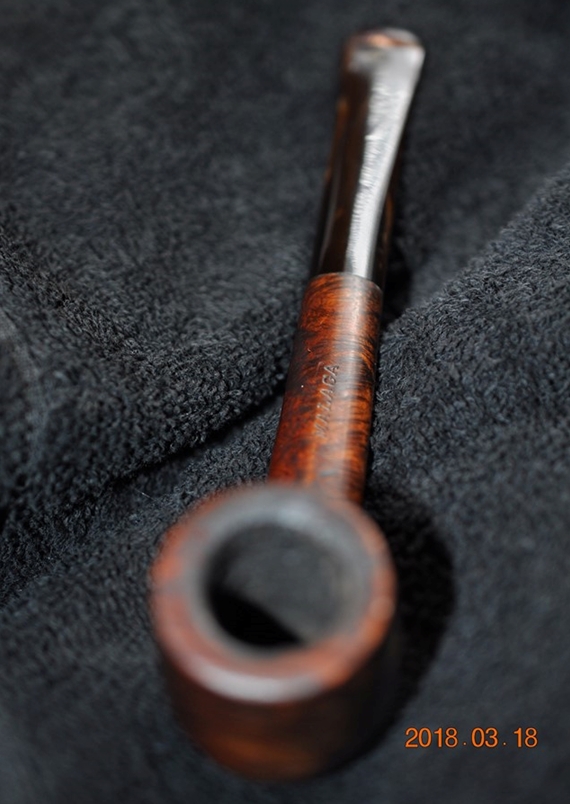

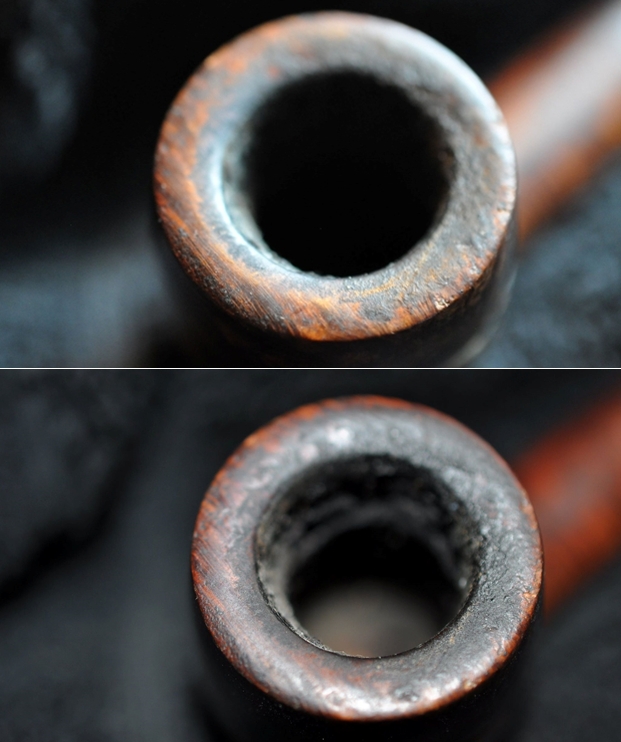

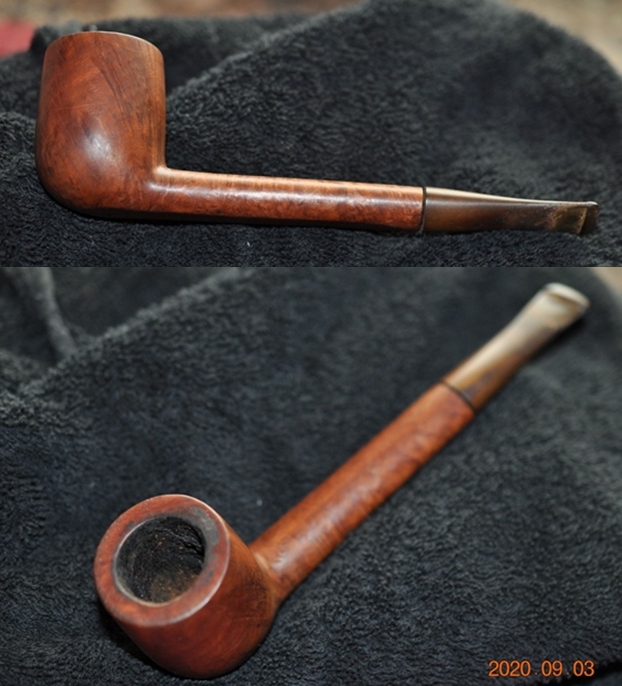

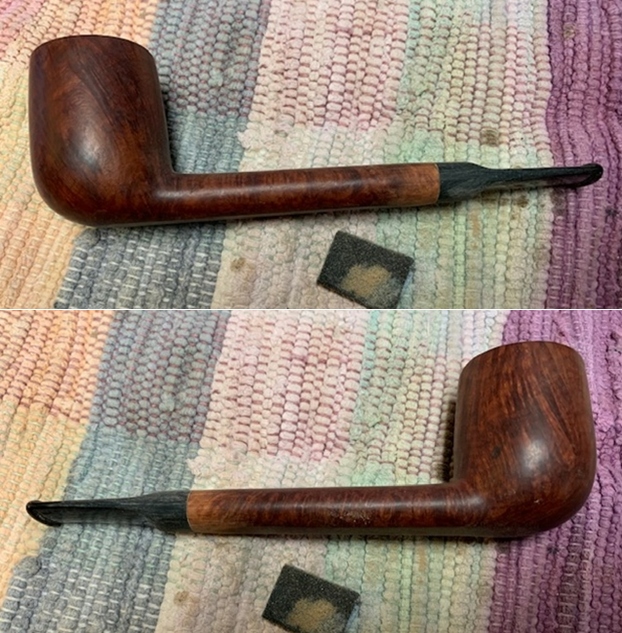

The “Malaga” Long Shank Canadian is next pipe on the table. The carver did a great job of shaping the pipe to follow the grain on the briar. The bowl, oval shank and straight tapered stem look very good. The bowl had a thick cake that overflowed with lava onto the rim so that it was impossible to see if there was damage on the inner edges. The sides of the bowl and shank are very dirty with grime and oils from prolonged use. The stamping on the top of the shank read “MALAGA”. On the underside it is stamped IMPORTED BRIAR. The stem had tooth dents and chatter on the top and the underside of the stem. There was some thick calcification and also some oxidation deep in the vulcanite of the stem surface. Jeff took these photos before he started the cleanup work on the pipe. Jeff took close up photos of the bowl and rim to capture the condition of the pipe before he started his cleanup work. The rim top had some lava overflow and darkening on the back of the bowl. There appeared to be deep gouges in the inner edge of the grimy pipe. The outer edge looked to be in decent condition with perhaps some burn marks on the front.He also took a photo of the side and bottom of the bowl and shank to show the beautiful grain around the bowl. The photos show the general condition of the bowl and dirt and wear on the rich oil finish. It is very dirty but this is another beautiful pipe.Jeff took a photo to capture the stamping on the top side of the shank. The photos show the stamping “MALAGA” on the topside of the shank and IMPORTED BRIAR on the underside. The stamping is very readable. The next photos show the stem surface. There are tooth marks and chatter on both sides near the button and wear on the button surface and edges. You can also see the calcification and the oxidation on the stem.I am also including the link to a blog that I wrote that gives some of the history of the Malaga brand and the Malaga Pipe Shop in Royal Oak, Michigan in the USA. I have written an earlier blog to give a little history of the Malaga Brand and the pipemaker, George Khoubesser. Here is the link – https://rebornpipes.com/tag/malaga-pipes/.That blog also includes links to a catalogue and the history of the pipemaker George Khoubesser. Follow the link to get a feel for the brand and the pipemaker.

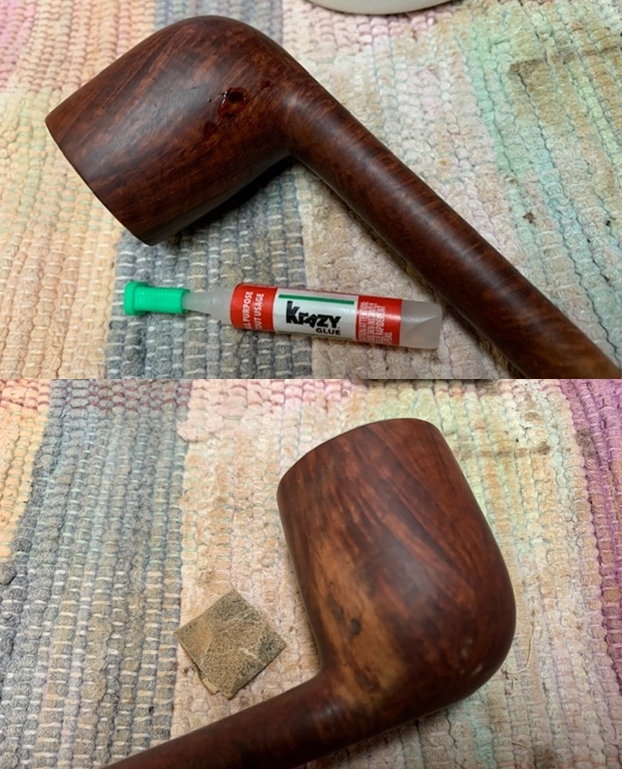

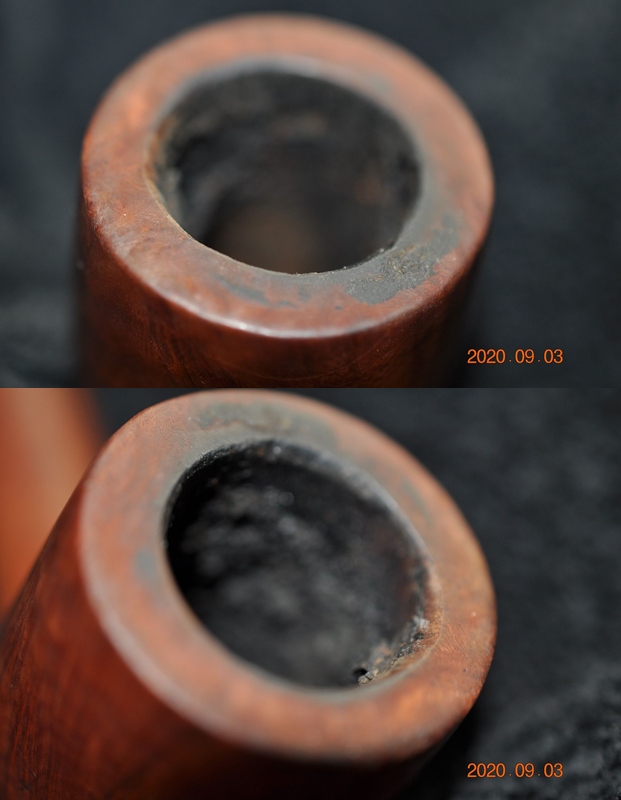

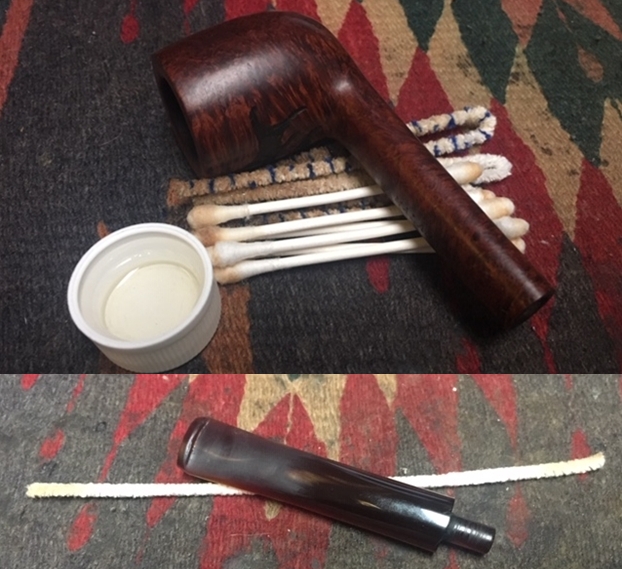

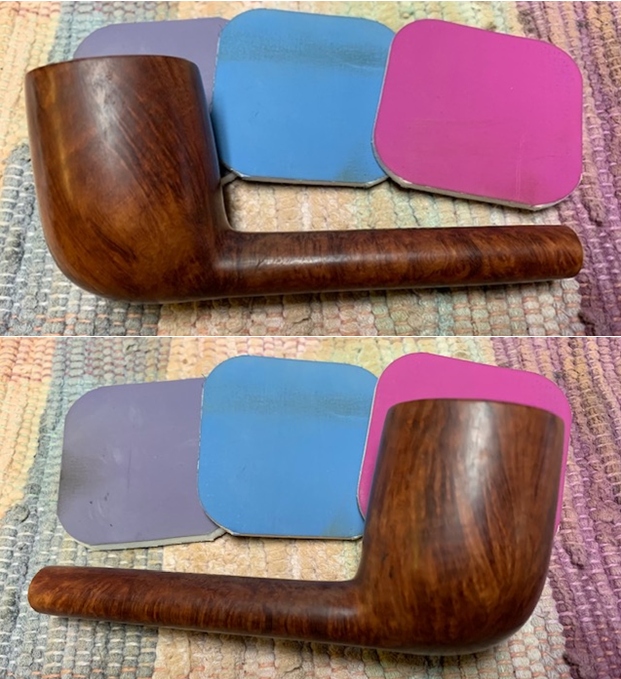

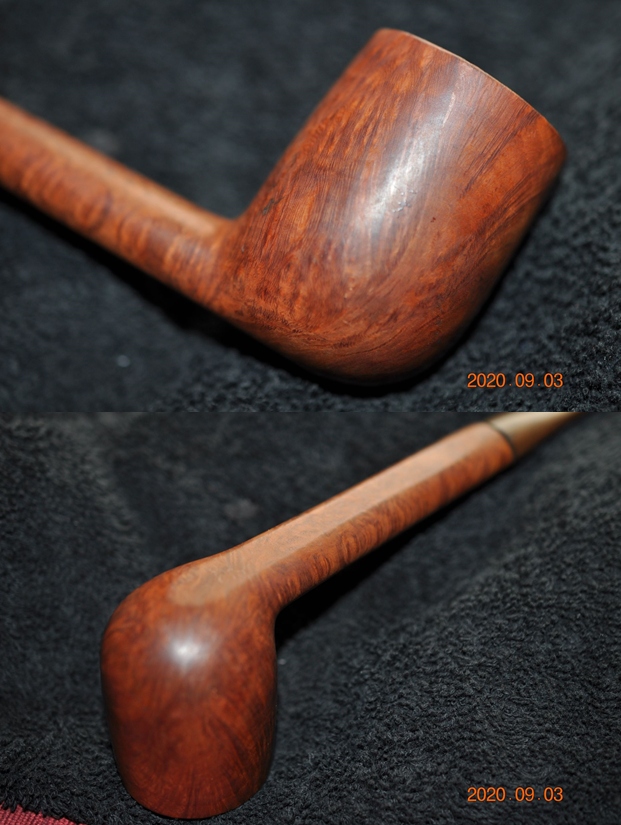

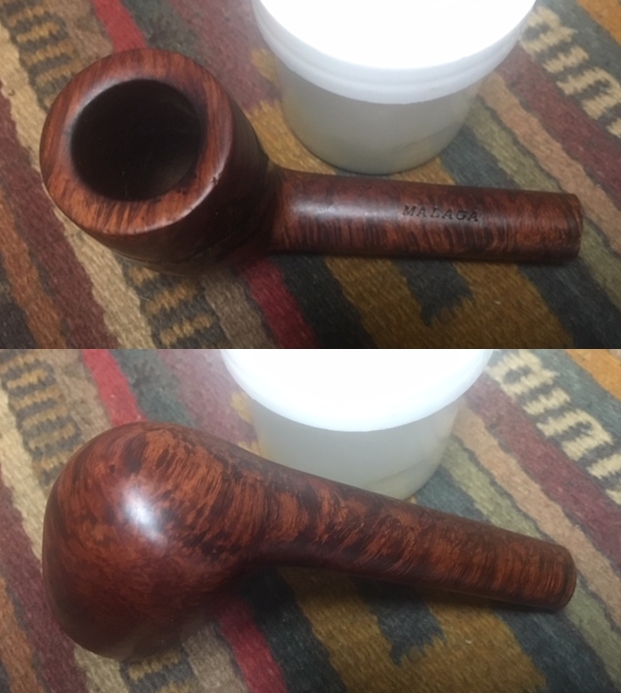

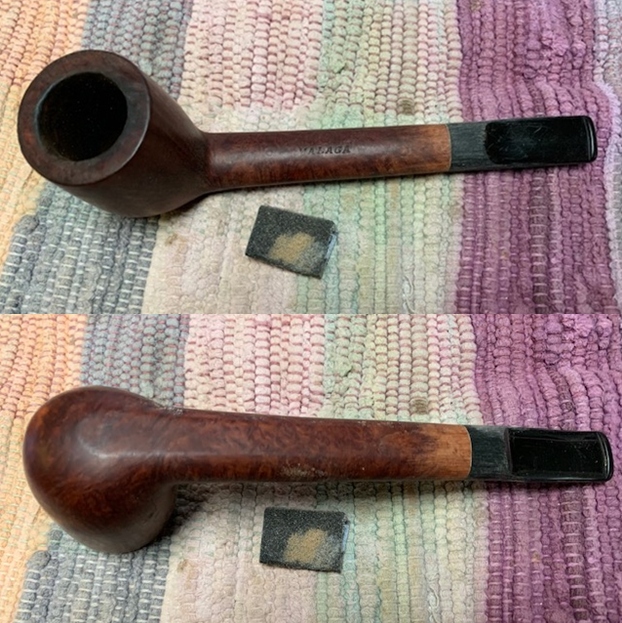

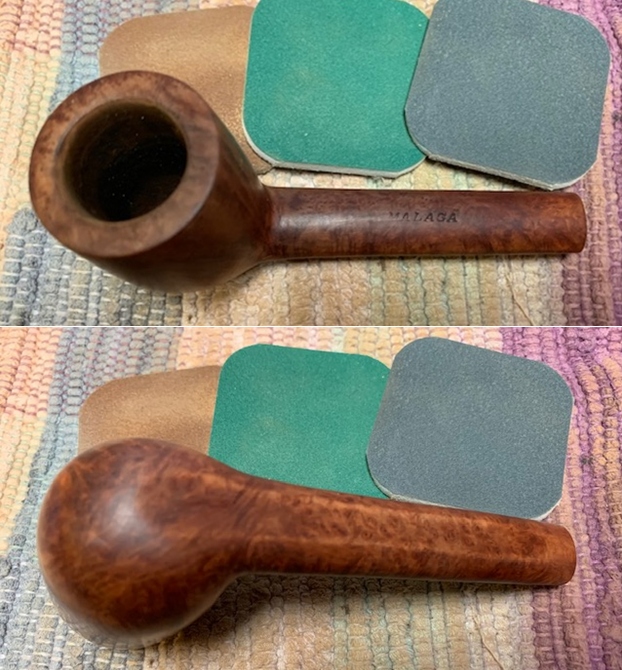

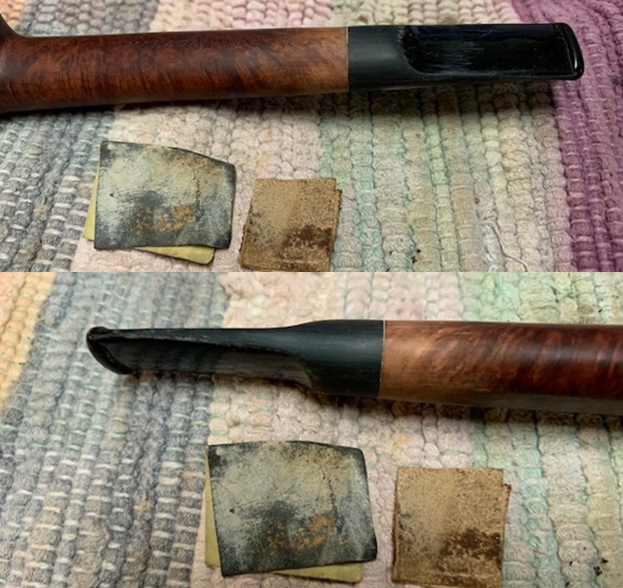

Jeff reamed the bowl with a PipNet pipe reamer and followed up with a Savinelli Fitsall pipe knife to remove the cake. He scrubbed out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the exterior of the bowl, rim, shank and stem with a tooth brush and Murphy’s Oil Soap to remove the oils and tars on the rim and the grime on the finish of the bowl. He rinsed it under running water. He dried it off with a soft cloth. He was able to remove the lava build up on the rim top and the flat surface of the rim top and the inner edge ha some serious burn damage on the front and back side. The outer edge looked very good. I took photos of the pipe to show its condition before I started my work on it. The stem also looked better. I took close up photos of the bowl and rim top as well as the stem. You can see the condition of the rim top and bowl in the first photo. Jeff was able to remove all of the tar and oils but you can now see the damage on the top and inside rim edge. The edge is out of round. There is a burn mark that extends across back and front edge of the rim top at that point. The stem had tooth marks and chatter on both sides near and on the button surface on both sides.I took a photo of the stamping on the shank to show how good the condition is. It shows the “MALAGA”and the IMPORTED BRIAR stamp and they are very legible.I decided to address the rim top first. I topped the bowl on a topping board with 220 grit sandpaper. I wanted to minimize the damage on the top, remove the darkening and clean up the damage on the inner edges of the bowl. I used a folded piece of 220 grit sandpaper to clean up the damage on the right rear inner edge of the bowl. I gave the inner edge a slight bevel to repair the damage. I polished the edge with 400 grit wet dry sandpaper. The rim top and edges really looked better.I polished the bowl and rim with a medium and a fine sanding sponge to begin the process of removing the scratches and blending the restored rim top into the rest of the bowl. The photos tell the story. I polished the rim top and the briar with micromesh sanding pads. I wet sanded the bowl with 1500-12000 grit sanding pads. I wiped the bowl down after each pad with a damp cloth to remove the sanding dust. I scrubbed the briar with Before & After Briar Cleaner and a tooth brush. I rubbed it into the surface of the briar with my finger tips and let it sit for about 10 minutes then rinsed it off with running water. I dried it off with a soft cloth. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The following photos show the bowl at this point in the restoration process. I am very happy with the results. I turned to the stem to address the issues on the surface of both sides at the button. I painted the surface of the stem with the flame of a lighter to lift the indentations. Since vulcanite has “memory” it often will return to its original condition when heated. It worked pretty well leaving behind light chatter and one small tooth mark that will need to be repaired.I used a needle file to redefine the sharp edge and the surface of the button. It had been worn down and lost its definition.I filled in the one remaining tooth dent with a drop of clear super glue and set it aside for a few moments to cure.I sanded both sides smooth with 220 grit sandpaper and 400 grit sandpaper to blend the tooth chatter and the repair into the surface of the stem. As I sanded and reshaped the button and stem surface the repaired areas and the tooth chatter disappeared.I used some Denicare Mouthpiece Polish that I have in my kit to start polishing out some of the scratches and remaining oxidation on the stem. I rubbed it in with a cotton pad and my finger tip and buffed it off with a cotton pad.I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad Obsidian Oil. I finished by polishing it with Before & After Pipe Stem Polish both fine and extra Fine and then wiped it down with a final coat of Obsidian Oil. This is a Malaga Long Shank Canadian with a vulcanite tapered stem. It has a great look and feel. The shape of the bowl, the beveled rim top and the cut of the briar work well to highlight the grain around the bowl sides. I polished stem and the bowl with Blue Diamond polish on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The grain took on life with the buffing. The rich oil cured colour works well with the polished vulcanite stem. The finished pipe has a rich look that is quite catching. Have a look at it with the photos below. The shape, finish and flow of the pipe and stem are very well done. The dimensions are Length: 6 ½ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 1/8 inches, Chamber diameter: ¾ of an inch. When the second Malaga is finished I will mail it off to Diane. I can’t wait to hear what her colleague thinks when she opens her Christmas present! I am glad that she is carrying on both the trust for George Koch and her family. Thanks for walking through the restoration with me as I worked over another one of Kathy’s Dad’s Pipes.

A Long Stem Malaga Canadian from Kathy’s Dad’s Pipes


Blog by Steve Laug

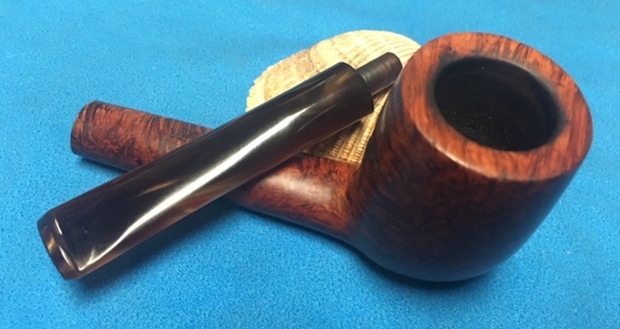

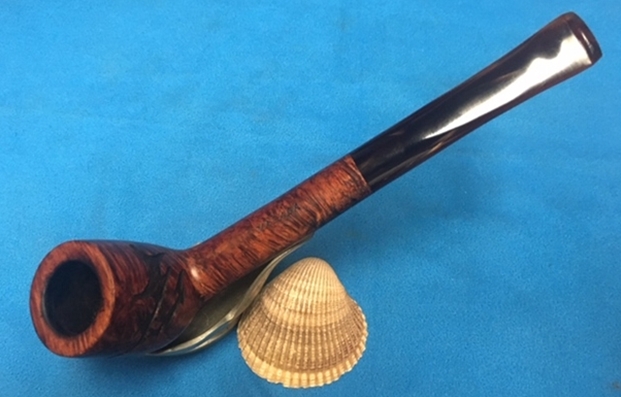

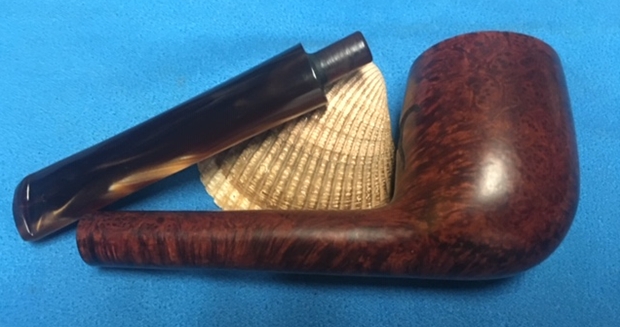

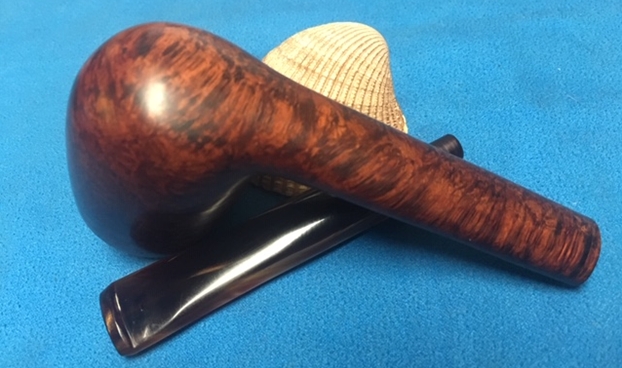

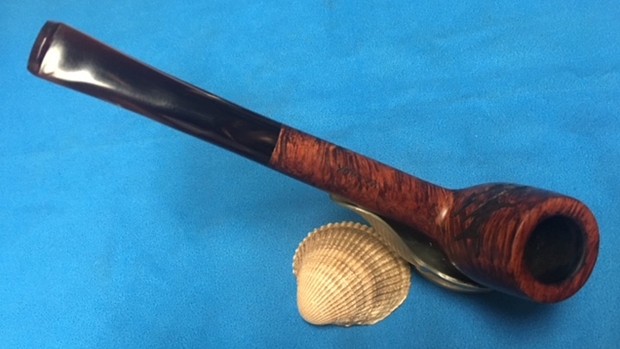

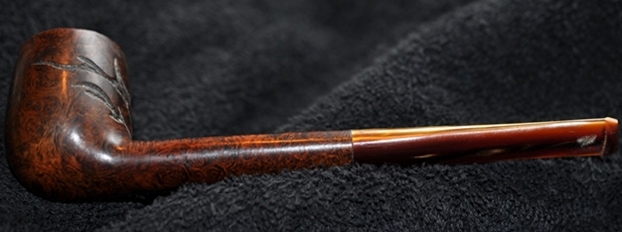

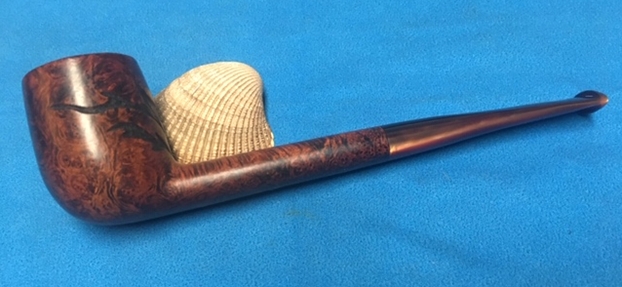

I have been working on a lot of different estate pipes and selling them for different families. Once in a while it is good to change things up a bit. Last week Alex came by and went through the Malaga pipes from George Koch’s estate. I have a box of pipes from Alex that I am always working away at he added a few more Malaga pipes to his box. There are quite a few of them to work on so I decided work on a few of them. The second of these Malaga pipes is a beautiful long stemmed, nicely grained Canadian with a variegated brown, gold and copper Lucite stem. It has a slightly beveled rim top tipping inward toward the bowl and the grain combined with the stem make it a stunning pipe. The carver had carved a flourish on the back side of the bowl wrapping around part of the left side. Otherwise it has some great cross grain on the front and back and birdseye on the sides of the bowl. The Canadian shaped pipe was just one of the many Malaga pipes that came to my brother and me in several shipments of pipes from George’s daughter Kathy. When Jeff got each box the pipes were well wrapped and packed. Jeff unwrapped them and took the following photo to give an idea of the volume of the pipes that we purchased. This Malaga came in mixed in a box of pipes much like the one below.In each of the previous blogs that I have written on the restoration of George’s pipes I have told his story. If you have followed the restorations you will have read the information and the background piece that Kathy did on her father. Here is a link to one of the previous blogs on his Malaga pipes where I included her tribute in full (https://rebornpipes.com/2019/01/26/back-to-kathys-dads-pipes-restoring-a-%c2%bc-bent-malaga-author/). You can also read the bio on her Dad, George Koch. It is an interesting read and one that shows just how far our pipe collecting passion can go when we find a brand of pipes that we enjoy. I am going to only include the portion on the Malagas at this point. If you wish to read the rest follow the link above.

Kathy writes…We lived in Livonia, and that’s where his love for Malaga pipes began. After a few years he returned to Allis Chalmers and we moved back to Springfield. I remember that when we went back to Michigan to visit friends, Dad had to go to the Malaga store and acquire a few new pipes. Many a year I wrote to Malaga and they picked out a pipe for me to purchase that I could give Dad for a Christmas or birthday present. He was always pleased. His favorites were the straight stemmed medium sized bowl pipes, but he liked them all.

He had some other pipes, but the Malagas were his favorites. I remember him smoking them sitting in his easy chair after work, with feet up on the ledge by the fire burning in the fireplace.  Growing up it was my job to clean them and he liked the inner bowl and stem coated with Watkins vanilla, leaving a little of that liquid in the bowl to soak in when I put them back on the rack…I’m very happy they are being restored by you and your brother and hope they find homes who enjoy them as much as Dad did. Thank-you for your care and interest. — Kathy, the oldest daughter

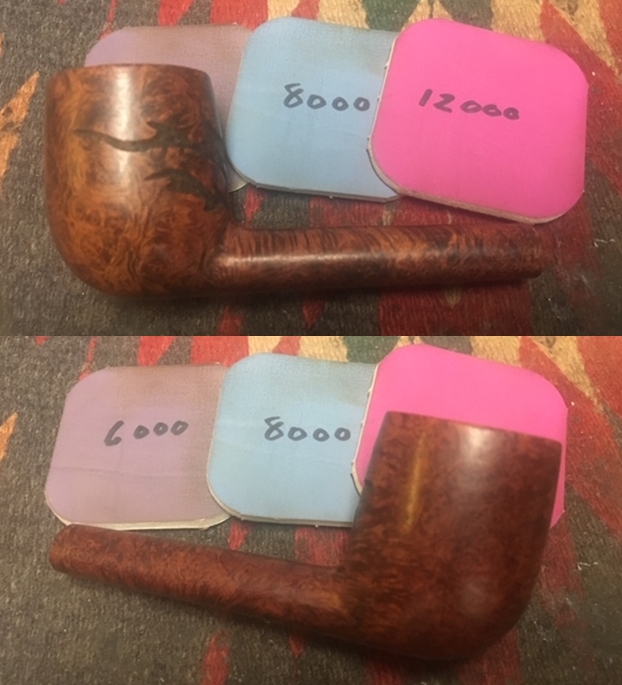

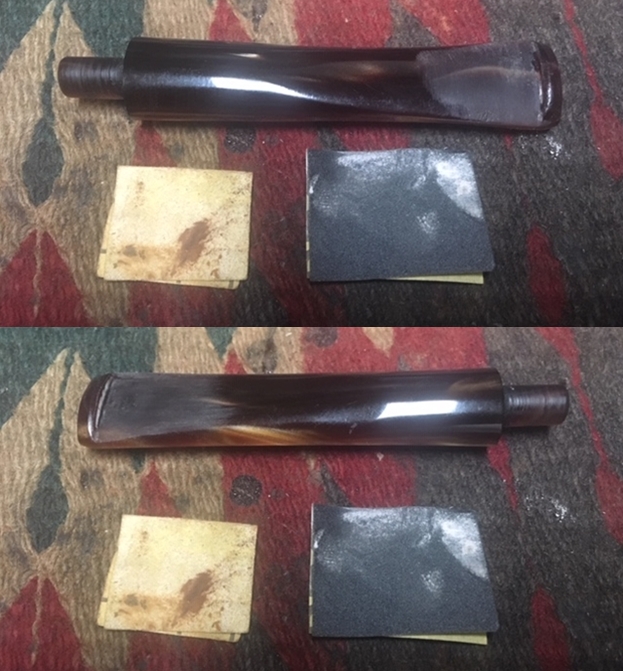

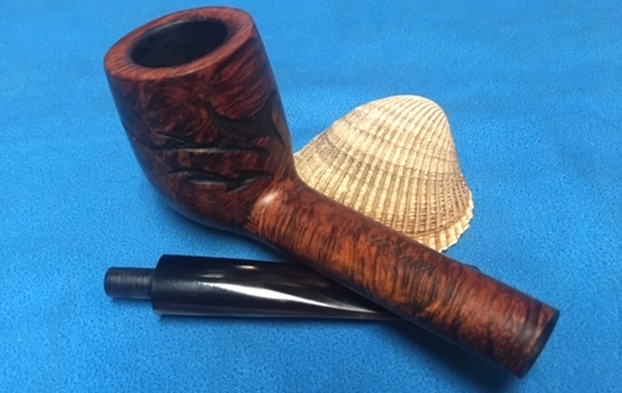

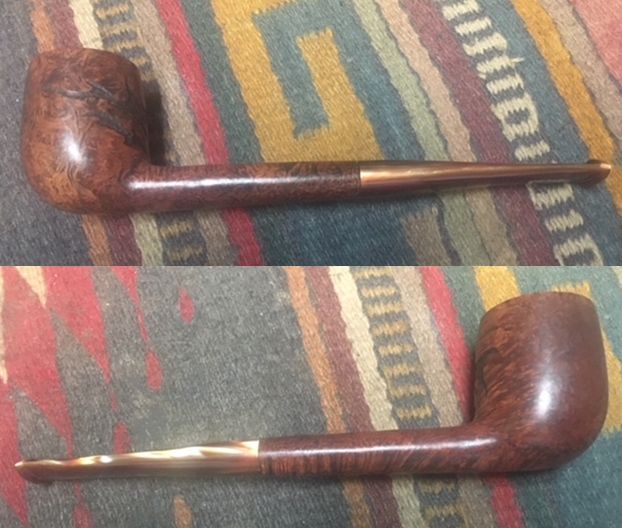

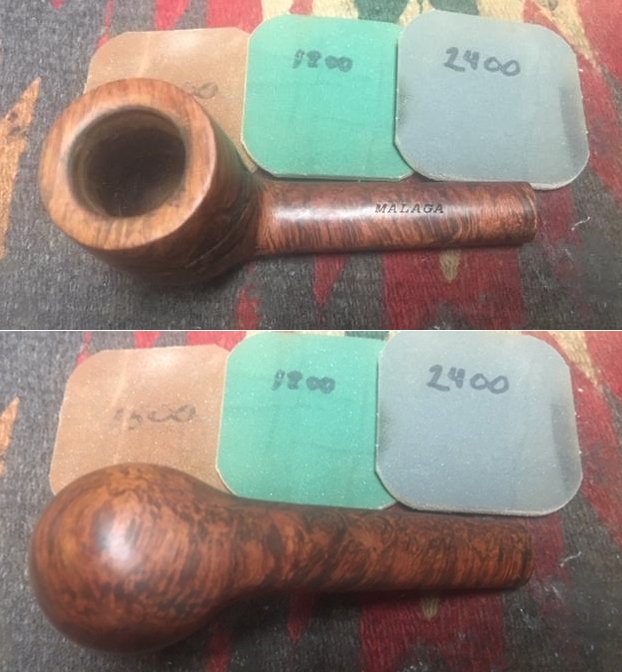

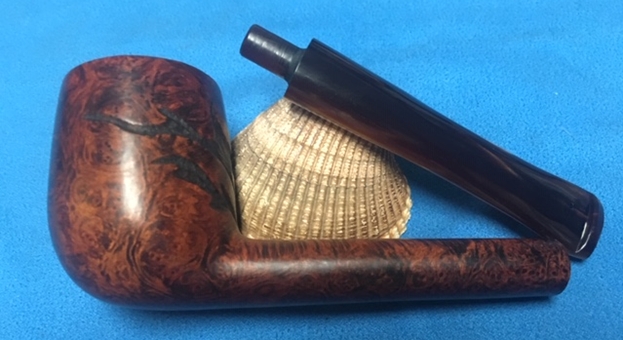

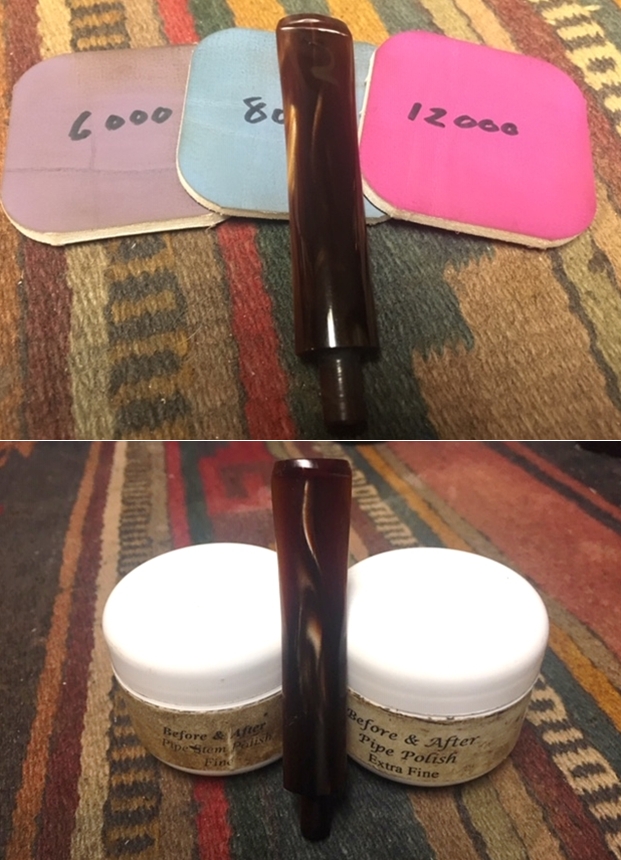

The Malaga Canadian with the variegated brown/gold/copper acrylic stem is next on the table. The carver did a great job of shaping the pipe to follow the grain on the briar. The added flourish to the back of the bowl curling onto the left side looks really good. The rim top is smooth and slightly beveled inward. The bowl had a thick cake that overflowed with lava onto the rim so that it was impossible to see if there was damage on the edges. The sides of the bowl and shank are very dirty with grime and oils from prolonged use. The stamping on the topside of the shank read MALAGA without the quotation marks. On the right side it was stamped Imported Briar. The swirled acrylic stem had tooth dents and chatter on the top and the underside of the stem. Jeff took these photos before he started the cleanup work on the pipe. Jeff took close up photos of the bowl and rim to capture the condition of the pipe before he started his cleanup work. The rim top had some lava overflow and some darkening. It was so dirty that it was hard to know if there was rim damage on the inner edge of the bowl. The pipe is incredibly dirty, even the externals of the bowl were covered with grime. He also took photos of the sides and bottom of the bowl and shank to show the beautiful straight and cross grain around the bowl. The photos show the general condition of the bowl and wear on the finish. It is very dirty but this is another beautiful pipe.Jeff took a photo to capture the stamping on the top side of the shank. The photos show the stamping MALAGA on the topside of the shank. The stamping is very readable.The next two photos show the stem surface. There are tooth marks and chatter on both sides near the button. There is also some wear on the sharp edge of the button.I am also including the link to a blog that I wrote that gives some of the history of the Malaga brand and the Malaga Pipe Shop in Royal Oak, Michigan in the USA. I have written an earlier blog to give a little history of the Malaga Brand and the pipemaker, George Khoubesser. Here is the link – https://rebornpipes.com/tag/malaga-pipes/.That blog also includes links to a catalogue and the history of the pipemaker George Khoubesser. Follow the link to get a feel for the brand and the pipemaker.

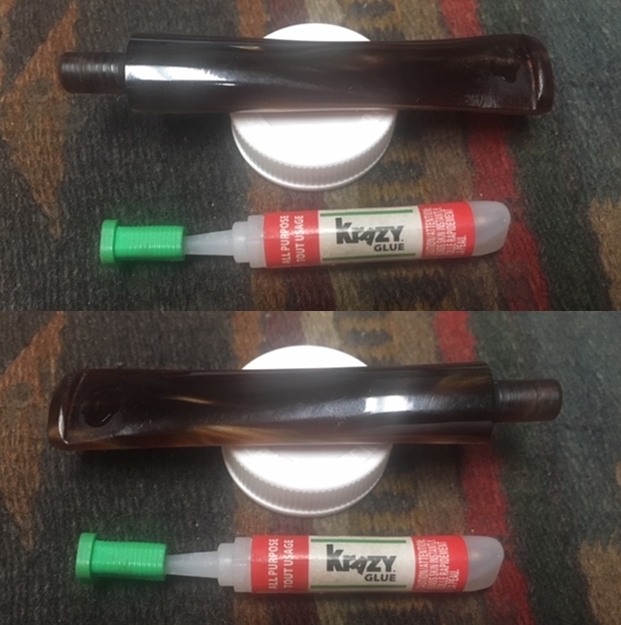

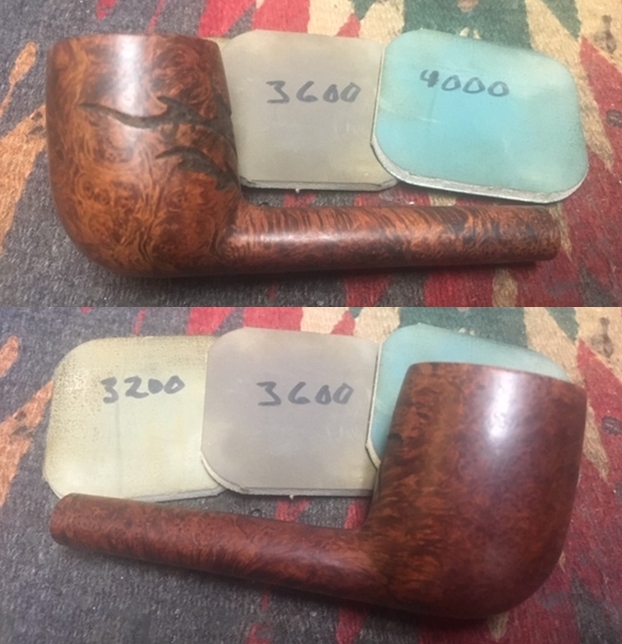

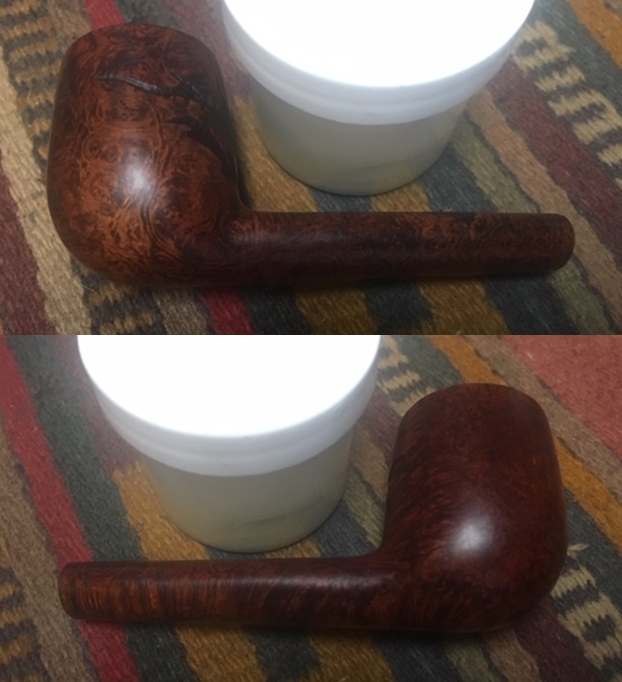

Jeff reamed the bowl with a PipNet pipe reamer and followed up with a Savinelli Fitsall pipe knife to remove the cake. He scrubbed out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the exterior of the bowl, rim, shank and stem with a tooth brush and Murphy’s Oil Soap to remove the oils and tars on the rim and the grime on the finish of the bowl. He rinsed it under running water. He dried it off with a soft cloth. He was able to remove the lava build up on the rim top and you could see the damage to the flat surface of the rim and the inner edge on the back side and on the outer edge toward the front of the bowl. I took photos of the pipe to show its condition before I started my work on it. I took close up photos of the bowl and rim top as well as the stem. You can see the condition of the rim top and bowl in the first photo. Jeff was able to remove all of the tar and oils but you can now see the damaged areas on the surface clearly. There are damaged spots all around the top surface and on the front and the backside of the inner edge of the bowl. The acrylic/Lucite stem had tooth chatter and some tooth marks on the top and underside of the stem near and on the button surface.I took a photo of the stamping on the shank to show how good the condition is. The MALAGA stamp is very legible on the topside.I decided to address the damage to the rim top first. I sanded the rim top with a piece of 220 grit sandpaper minimize the damage on surface of the rim top. I worked over the inner and outer edge of the rim with a folded piece of 220 grit sandpaper to smooth out the damage. The photos tell the story. The damage to the rim top is minimized to some degree and the inner edge looks far better. The damage to the outer edge looks much better than when I began.With sanding on the rim top and edges I did a thorough clean the insides once again. I did not want any of the sanding dust or debris to remain in the bowl or shank or the airway in the stem. I used alcohol, cotton swabs and pipe cleaners to clean up the mess I had made. I used an awl to make sure the airway into the bowl was wide open for maximum draw. I polished the rim top and the exterior of the bowl with micromesh sanding pads – wet sanding with 1500-12000 grit pads. I wiped the bowl down after each sanding pad to remove the dust. The damage on the rim is pretty much invisible after polishing and the rim top really looked good. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips to clean, enliven and protect it. It took some time to really get it into the grooves and valleys of the rustication but I was able to work it in. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The following photos show the bowl at this point in the restoration process. The reworked rim top looks really good and matches the colour of the rest of the pipe. I am very happy with the results. I set the bowl aside and worked on the stem. There were some tooth marks on the top and underside at the button that needed to be addressed. I also needed to do some work on the surface of the button on both sides. I cleaned the surface of the stem with alcohol on a cotton pad and filled in the damaged areas and built up the surface of the button with clear super glue. I set the stem aside until the repairs cured.I sanded both sides smooth with 220 grit sandpaper and 400 grit sandpaper to blend the tooth chatter and the repair into the surface of the stem. As I sanded and reshaped the button and stem surface the repaired areas and the tooth chatter disappeared.I polished the acrylic stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with a damp cloth. This is a beautiful Malaga long stem Canadian and the brown/gold/copper stem gives it a nice touch of class. The rim top and the cut of the briar work well to highlight the birdseye and cross grain around the bowl sides. I polished Lucite stem and the bowl with Blue Diamond polish on the buffing wheel. I gave the bowl multiple and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The grain took on life with the buffing. The rich oil cured colour works well with the polished variegated Lucite stem. The finished pipe has a rich look that is quite catching. Have a look at it with the photos below. The shape, finish and flow of the pipe and stem are very well done. The dimensions are Length: 7 inches, Height: 2 inches, Outside diameter of the bowl: 1 3/8 inches, Chamber diameter: 3/4 of an inch. I will be adding the pipe to the finished Malaga pipes that I have finished for Alex. I am glad that he is carrying on the trust for George Koch. Thanks for walking through the restoration with me as I worked over another one of Kathy’s Dad’s Pipes.
