GBD 9456 New Era Restoration


By Al Jones

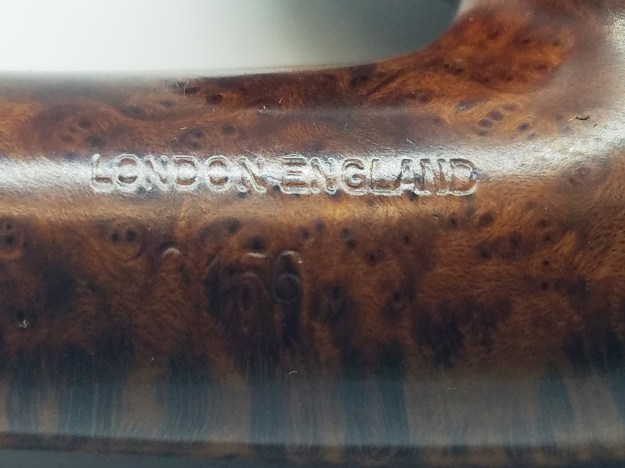

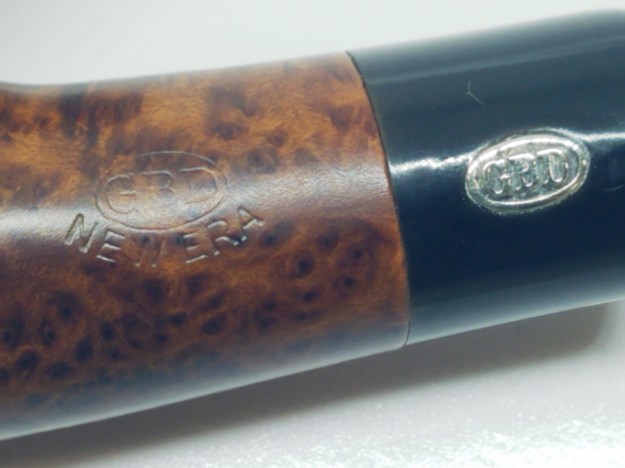

I’ve restored a number of GBD shape 9456 bent billiards before, but this is the first “New Era” finish that I’ve had in that shape. I’ve learned that New Era pipes are definitely a step up the GBD quality scale, regarding the briar. This one is no exception and has a nice mix of grain and birdseye. The brass rondell and “London, England” stamp show the pipe was made before the merger with Cadogan in 1981.

New Era finish was describe in a catalog from the 1970’s as:

New Era: “The beauty of this pipe’s perfect briar is accentuated by the richness of the ‘take-off’ dual finish.”

Some New Era pipes had the “Hand Cut” stamp on the stem, but according to Pipedia, not all Hand Cut stems were stamped as such. This stem does have the bullet-style tenon that I always see on stems withe the Hand Cut stamp.

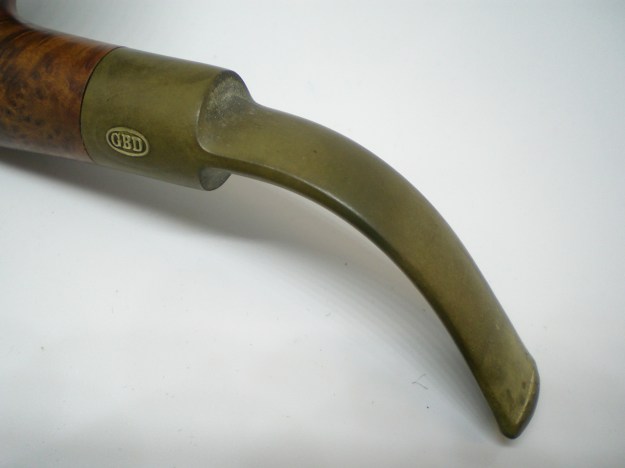

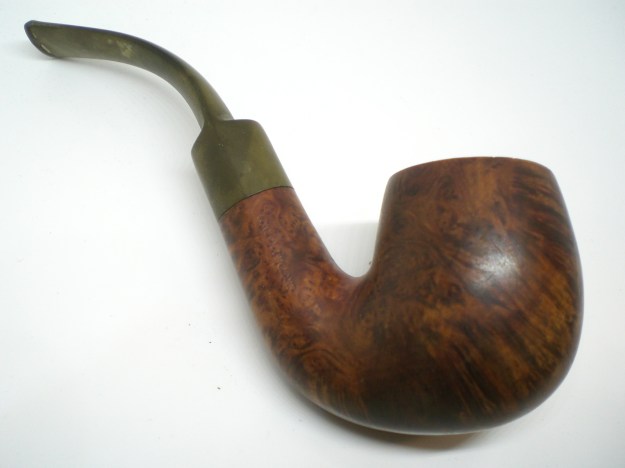

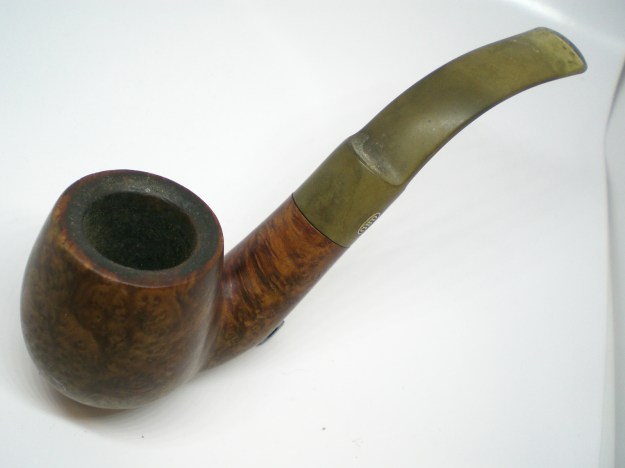

The pipe had some build-upon the bowl top, the finish was faded and the stem heavily oxidized. The bowl had some small handling marks and a mild cake. The stem, while in great condition, was quite loose. Below are pictures of the pipe as it was received.

I use a piece of worn scotchbrite to remove the bowl top build-up, which revealed a nicely beveled bowl top. The cake was reamed with my Pipenet set and finished with a piece of 320 grit paper wrapped around one of the reamer bits. The bowl was soaked with alcohol and sea salt. Following the soak, the stem was fitted to the pipe. I use a heat gun to warm and expand the tenon and was fortunate that it expanded back to it’s original size, with a proper fit, but not too snug.

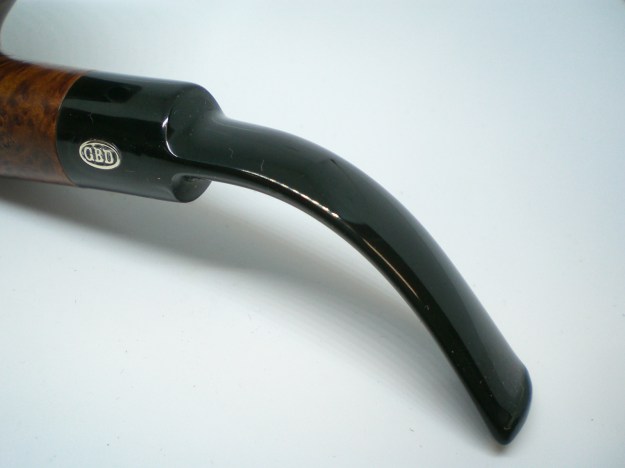

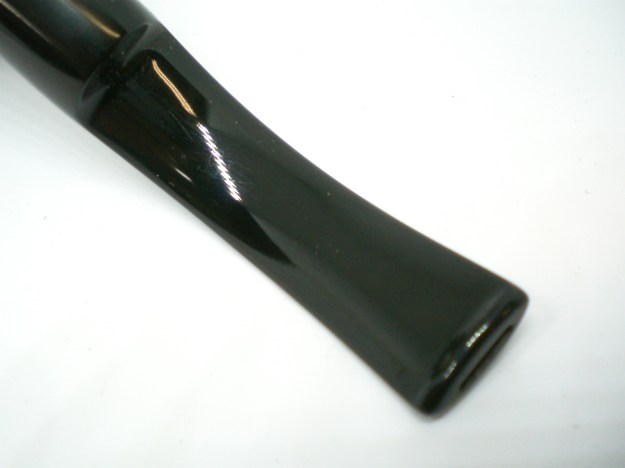

I removed the oxidation with 400, 800, 1,500 and 2,000 grit wet paper, followed with 8,000 and 12,000 micromesh sheets. The stem was then buffed with White Diamond rouge and Meguiars Plastic Polish.

The handling marks on the bowl steamed out nicely with a wet cloth and an electric iron. The bowl was then buffed with White Diamond rouge, followed with several coats of Carnuba wax. This revived the faded finish nicely and no re-stain was required.

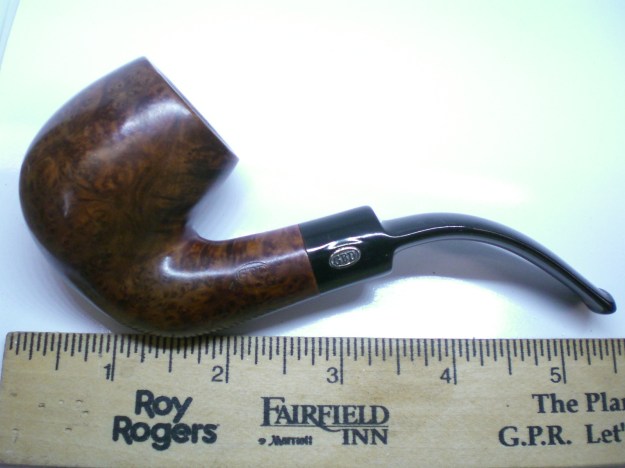

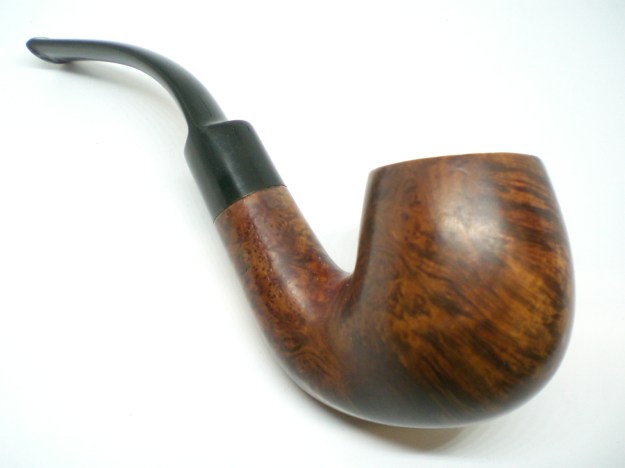

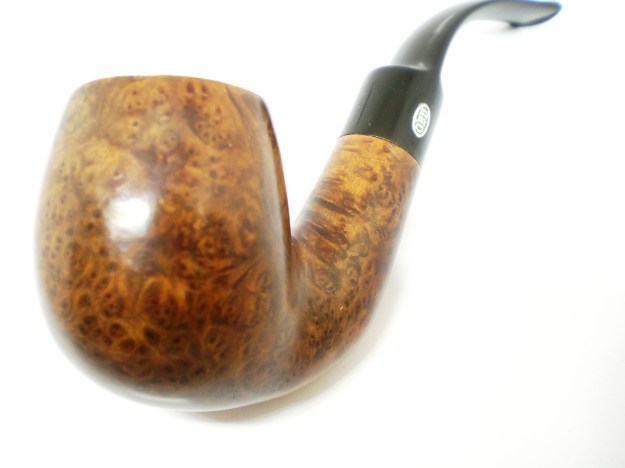

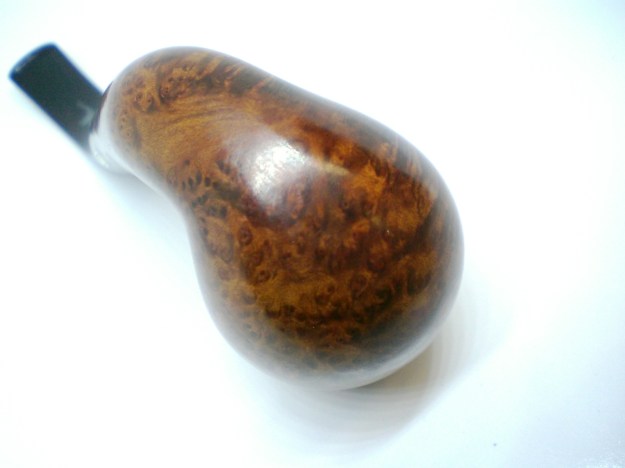

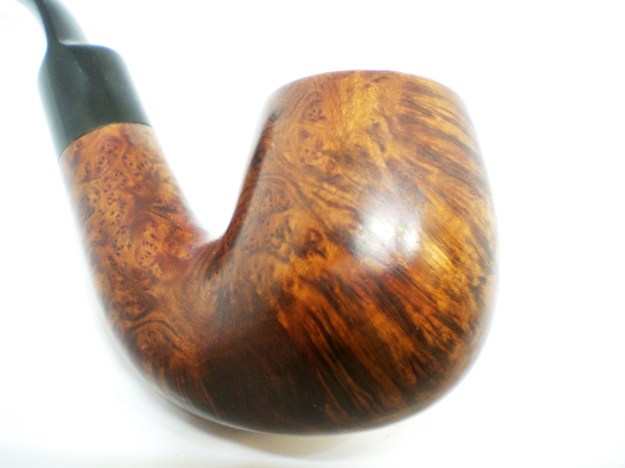

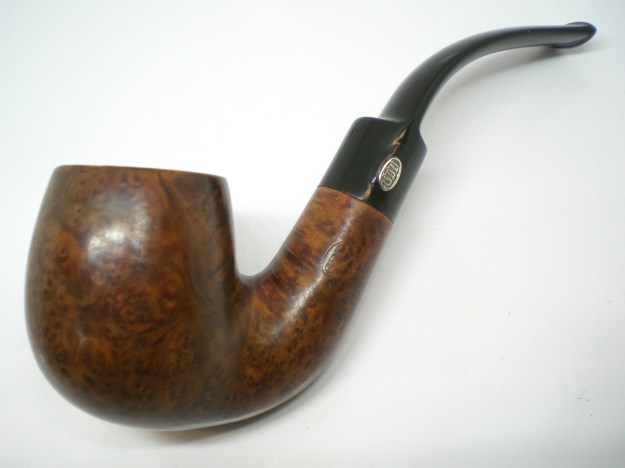

Below is the finished pipe.

?

Advertisements

A Malaga Octagonal Panel Billiard from Kathy’s Dad’s Pipes


Blog by Steve Laug

I have been working on a lot of different estate pipes and selling them for different families. Once in a while it is good to change things up a bit. Last week Alex came by and went through the Malaga pipes from George Koch’s estate. I have a box of pipes from Alex that I am always working away at he added a few more Malaga pipes to his box. There are quite a few of them to work on so I decided to work on a few of them. The fifth of these Malaga pipes is a beautiful Octagonal Panel Billiard with carving around the sides of the bowl and on one side of the square shank. It has a variegated blue acrylic ¼ bent square saddle stem. The mix of grain styles around the bowl and shank combined with the stem make it a stunning pipe. It has some great cross and flame grain on the sides of the bowl. The Octagonal Panel Billiard shaped pipe was just one of the many Malaga pipes that came to my brother and me in several shipments of pipes from George’s daughter Kathy. When Jeff got each box the pipes were well wrapped and packed. Jeff unwrapped them and took the following photo to give an idea of the volume of the pipes that we purchased. This Malaga came in mixed in a box of pipes.In each of the previous blogs that I have written on the restoration of George’s pipes I have told his story. If you have followed the restorations you will have read the information and the background piece that Kathy did on her father. Here is a link to one of the previous blogs on his Malaga pipes where I included her tribute in full (https://rebornpipes.com/2019/01/26/back-to-kathys-dads-pipes-restoring-a-%c2%bc-bent-malaga-author/). You can also read the bio on her Dad, George Koch. It is an interesting read and one that shows just how far our pipe collecting passion can go when we find a brand of pipes that we enjoy. I am going to only include the portion on the Malagas at this point. If you wish to read the rest follow the link above.

Kathy writes…We lived in Livonia, and that’s where his love for Malaga pipes began. After a few years he returned to Allis Chalmers and we moved back to Springfield. I remember that when we went back to Michigan to visit friends, Dad had to go to the Malaga store and acquire a few new pipes. Many a year I wrote to Malaga and they picked out a pipe for me to purchase that I could give Dad for a Christmas or birthday present. He was always pleased. His favorites were the straight stemmed medium sized bowl pipes, but he liked them all.

He had some other pipes, but the Malagas were his favorites. I remember him smoking them sitting in his easy chair after work, with feet up on the ledge by the fire burning in the fireplace.  Growing up it was my job to clean them and he liked the inner bowl and stem coated with Watkins vanilla, leaving a little of that liquid in the bowl to soak in when I put them back on the rack…I’m very happy they are being restored by you and your brother and hope they find homes who enjoy them as much as Dad did. Thank-you for your care and interest. — Kathy, the oldest daughter

The Malaga Octagonal Panel Billiard with a square shank and a variegated blue Lucite saddle stem is next on the table. The carver did a great job of shaping the pipe to follow the grain on the briar. The panel and octagonal panel bowl looks really good. The bowl had a thick cake that overflowed with lava onto the rim so that it was impossible to see if there was damage on the inner edges. The outside of the rim top had some heavy damage on the front side of the bowl top. The sides of the bowl and shank are very dirty with grime and oils from prolonged use. The stamping on the left side of the shank read MALAGA. The blue saddle acrylic stem had tooth dents and chatter on the top and the underside of the stem. Jeff took these photos before he started the cleanup work on the pipe. Jeff took close up photos of the bowl and rim to capture the condition of the pipe before he started his cleanup work. The rim top had some lava overflow and some darkening on the back of the bowl. There is also some deep “road rash” on the front of the bowl that looks like the pipe had been dropped or knocked against concrete. It was so dirty that it was hard to know if there was rim damage on the inner edge of the bowl. The pipe is incredibly dirty, even the externals of the bowl were covered with grime and the carved surfaces around the bowl are dirty as well. He also took photos of the sides and bottom of the bowl and shank to show the beautiful grain around the bowl. The photos show the general condition of the bowl and wear on the finish. It is very dirty but this is another beautiful pipe. Jeff took a photo to capture the stamping on the top side of the shank. The photos show the stamping MALAGA on the left side of the shank. The stamping is very readable. The next photos show the stem surface. There are tooth marks and chatter on both sides near the button. The first photo shows the shape of the stem and the blue colouring. The second and third photos show the chatter and wear on the button on both sides and the deep tooth marks on the underside near the button.I am also including the link to a blog that I wrote that gives some of the history of the Malaga brand and the Malaga Pipe Shop in Royal Oak, Michigan in the USA. I have written an earlier blog to give a little history of the Malaga Brand and the pipemaker, George Khoubesser. Here is the link – https://rebornpipes.com/tag/malaga-pipes/.That blog also includes links to a catalogue and the history of the pipemaker George Khoubesser. Follow the link to get a feel for the brand and the pipemaker.

Jeff reamed the bowl with a PipNet pipe reamer and followed up with a Savinelli Fitsall pipe knife to remove the cake. He scrubbed out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the exterior of the bowl, rim, shank and stem with a tooth brush and Murphy’s Oil Soap to remove the oils and tars on the rim and the grime on the finish of the bowl. He rinsed it under running water. He dried it off with a soft cloth. He was able to remove the lava build up on the rim top and you could see the damage to the flat surface of the rim and the inner edge on the back side and on the outer edge toward the front of the bowl. I took photos of the pipe to show its condition before I started my work on it. I took close up photos of the bowl and rim top as well as the stem. You can see the condition of the rim top and bowl in the first photo. Jeff was able to remove all of the tar and oils but you can now see the damaged areas on the front of the bowl and inner edges. The acrylic/Lucite stem had tooth chatter on both sides and a large tooth mark on the underside near and on the button surface.I took a photo of the stamping on the shank to show how good the condition is. It shows the MALAGA stamp and it is very legible.I decided to address the rim top first. I lightly topped the bowl on a topping board with 220 grit sandpaper. I wanted to minimize the damage on the top, remove the darkening and clean up the damage on the front outer edge of the bowl. I used a folded piece of 220 grit sandpaper to clean up the damage on the inner edge of the bowl. I also sanded out the “road rash” on the front of the rim top. I polished the rim top and the exterior of the bowl with micromesh sanding pads – wet sanding with 1500-12000 grit pads. I wiped the bowl down after each sanding pad to remove the dust. Each grit of micromesh gave it more of a shine. I scrubbed the briar with Before & After Briar Cleaner and a tooth brush. I rubbed it into the surface of the briar with my finger tips and let it sit for about 10 minutes then rinsed it off with running water. I dried it off with a soft cloth. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips to clean, enliven and protect it. It took some time to really get it into the grooves and valleys of the carved pattern on the bowl sides and shank. I worked in deeper with a horsehair shoebrush. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The following photos show the bowl at this point in the restoration process. The reworked bowl looks really good and matches the colour of the rest of the pipe. I am very happy with the results. I set the bowl aside and worked on the stem. There was tooth chatter on the top and underside of the stem. There was one large deep tooth mark on the underside at the button that needed to be addressed. I also needed to do some work on the surface of the button on both sides. I cleaned the surface of the stem with alcohol on a cotton pad and filled in the damaged area with clear super glue. I set the stem aside until the repairs cured.Once the glue had cured I used a needle file to reshape the button and flatten out the repairs. The stem looked much better.I sanded both sides smooth with 220 grit sandpaper and 400 grit sandpaper to blend the tooth chatter and the repair into the surface of the stem. As I sanded and reshaped the button and stem surface the repaired areas and the tooth chatter disappeared.I polished the acrylic stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with a damp cloth. This is a beautiful Malaga Octagonal Panel Billiard with a square shank and a variegated blue acrylic stem. It has a great look and feel. The crowned panelled rim top, the octagonal panels and the cut of the briar work well to highlight the grain around the bowl sides. I polished Lucite stem and the bowl with Blue Diamond polish on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The grain took on life with the buffing. The rich oil cured colour works well with the polished blue Lucite stem. The finished pipe has a rich look that is quite catching. Have a look at it with the photos below. The shape, finish and flow of the pipe and stem are very well done. The dimensions are Length: 5 ½ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. I will be adding the pipe to the finished Malaga pipes that I have set aside for Alex. I am glad that he is carrying on the trust for George Koch. Thanks for walking through the restoration with me as I worked over another one of Kathy’s Dad’s Pipes.
