Author Challenge – Bruyere “Extra” Restoration

2 Replies

By Al Jones

This Author was posted on Ebay at a reasonable price and I found the shape very alluring. The pipe was definitely going to require a good deal more work than projects that I typically undertake, but it looked solid enough to take the risk.

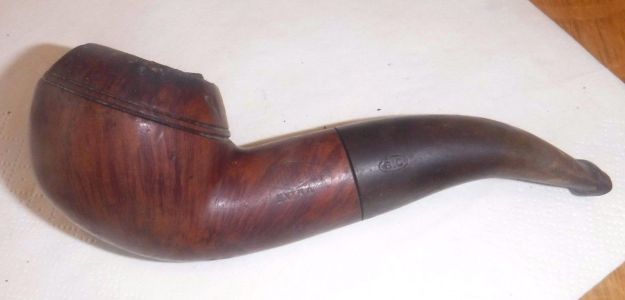

I found plenty of Bruyere labeled pipes, but most were of the Tyrolean or Hunter style sold in Europe. “Who Made That Pipe” only shows “many” as to those using that name. Curiously, I found this pipe, which sold recently on Ebay that has the Bruyere Extra stamp but a stem with the BC stamp.(Butz-Choquin)

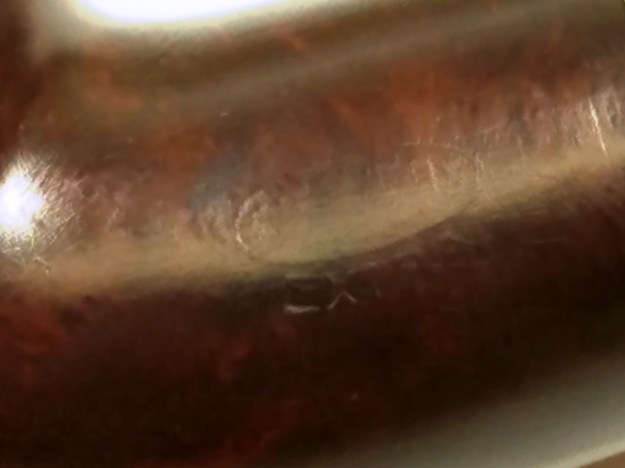

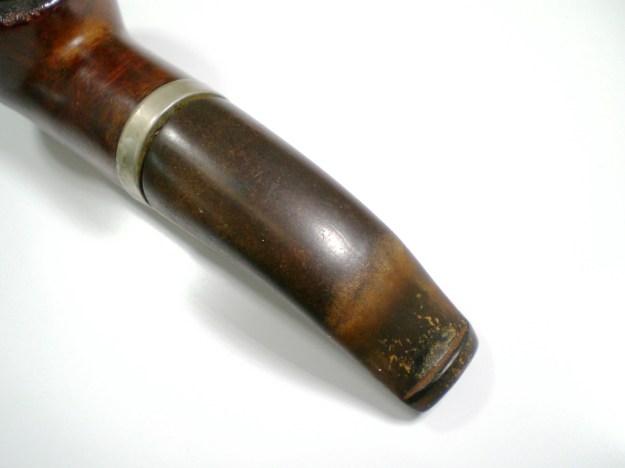

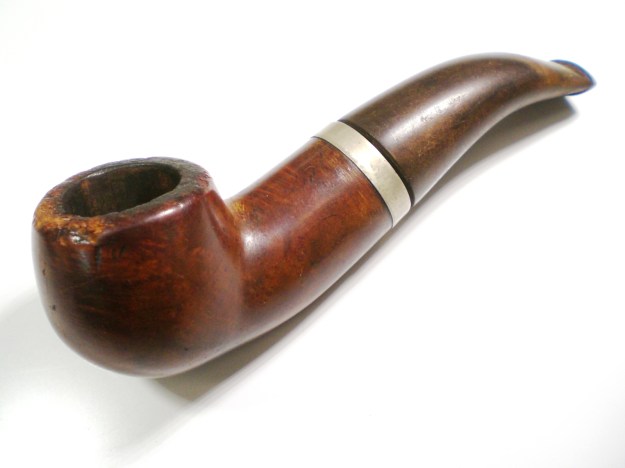

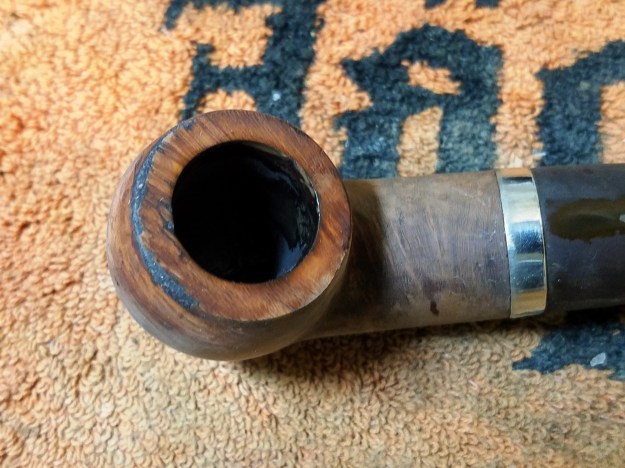

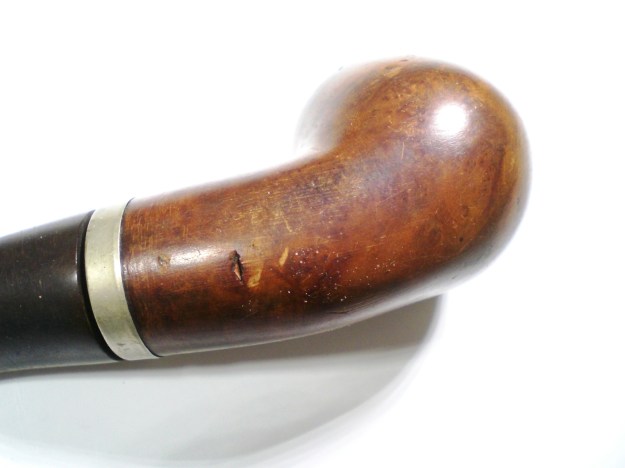

As can see, the strummel was well abused, and apparently the previous owner had wanted to make sure that he knocked out all of the tobacco remains. The bowl top would require either a rebuild using briar dust and CA glue or topped. Gratefully, the stem was only oxidized with minimal teeth marks. The band, which appears to be nickel was tarnished and loose. The stem did not fit all the way into the shank. There were numerous gouges in the briar and several spots where fills had fallen out.

The first step was to ream the bowl which revealed it to be in very good condition, with no hidden issues. I removed the loose band and soaked the strummel in a alcohol bath for several hours. Following the soak, the strummel was scrubbed with a mild Oxy-Clean solution and a worn piece of Scotch-Brite. During this time, the stem was also soaked in the Oxy-Clean solution.

I decided to use briar dust and CA glue to rebuild the bowl edge and fill the gouges and fills. I smooth the repairs first with 320 grit paper and then 1500 and 2000 grade paper. The bowl still needed to be topped slightly to sharpen the edge. Below, those repairs are nearly complete, with final sanding to come, using 800 and 1500 grit papers.

?

?

I restained the bowl with Fieblings Medium Brown stain. That color blended in the repairs nicely, without making the pipe too dark. The bowl was then buffed with White Diamond and several coats of carnuba wax. I re-glued the band with some wood glue. I lightly buffed the band with White Diamond rouge. Cleaning the shank with a series of bristle brushes allowed the stem to be fully inserted into the shank.

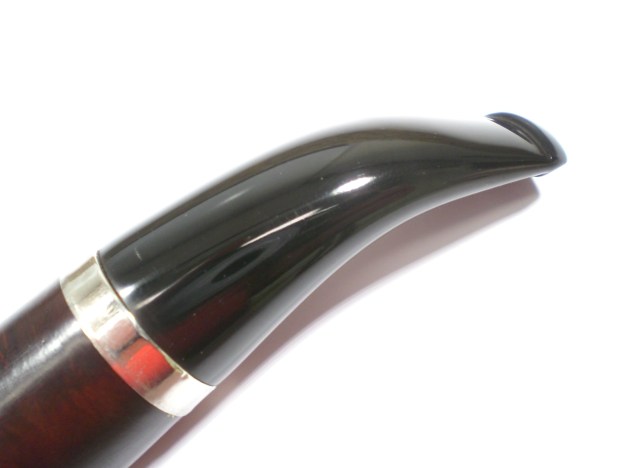

With the stem mounted, I removed the heavy layer of oxidation with 400 grit paper, than moving through 800, 1500 and 2000 grades. This was followed by 8000 and 12000 grade micromesh. The stem was then buffed with White Diamond and Meguiars Plastic polish.

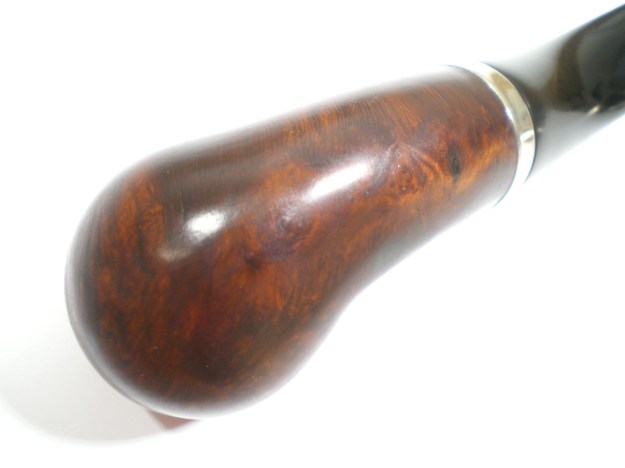

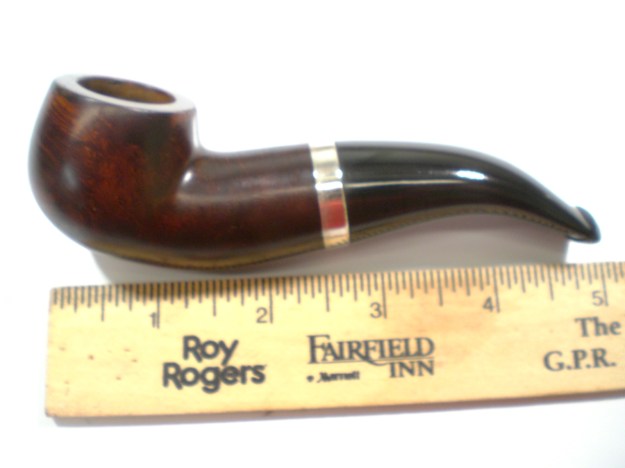

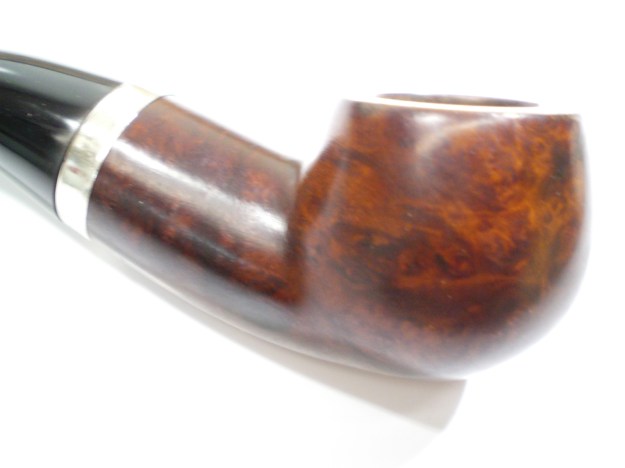

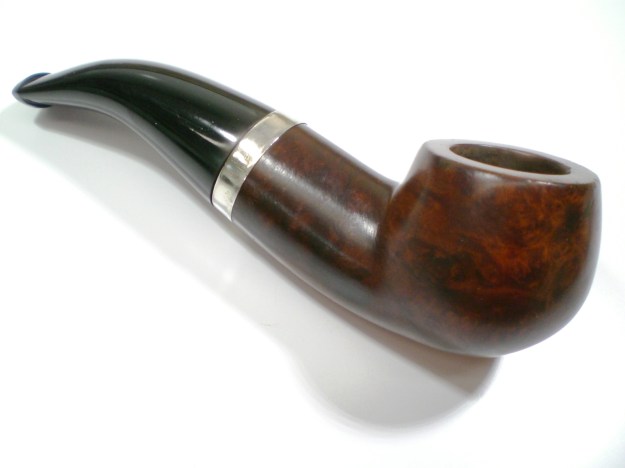

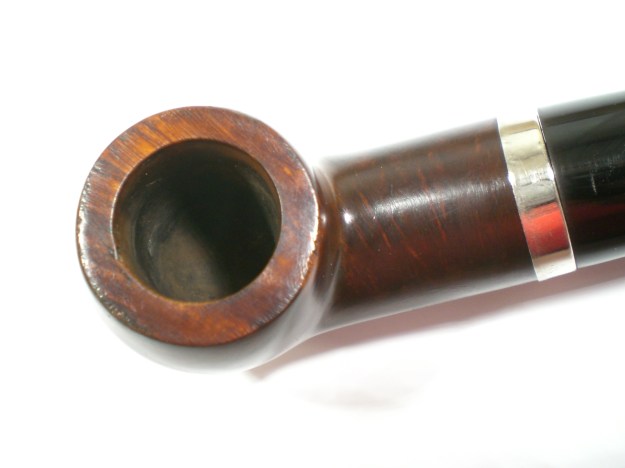

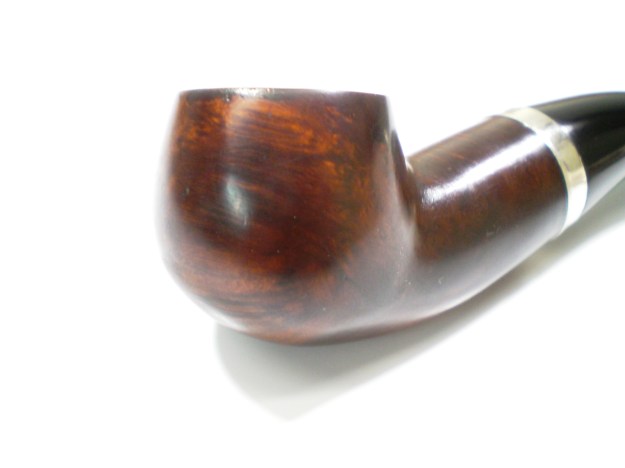

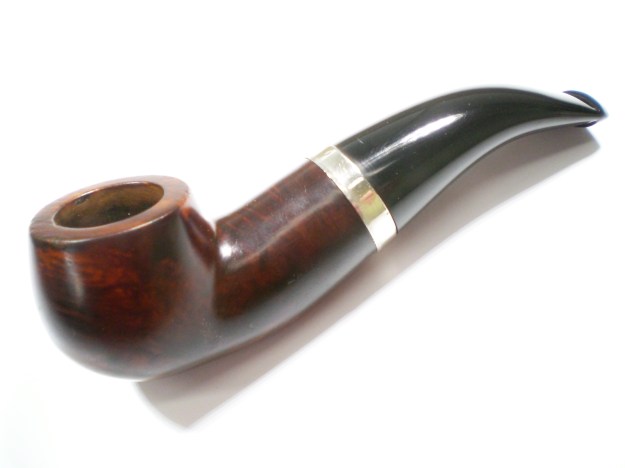

I bought this pipe for the challenge and to ultimately resell it. However at this time, I’m too enamored with the shape and for now, it will remain on my rack. Below is the finished pipe.

?

A difficult trust: Gift of a Grandfather – A BBB Double Star Made in England

11 Replies

Blog by Dal Stanton

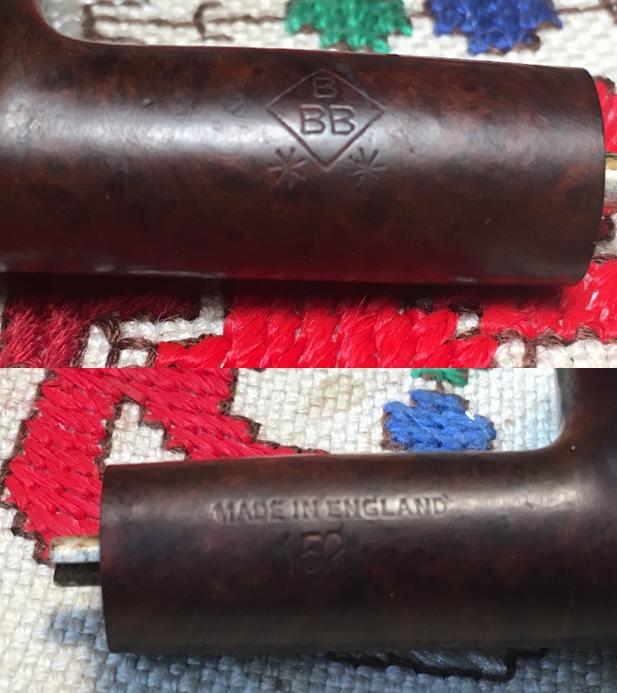

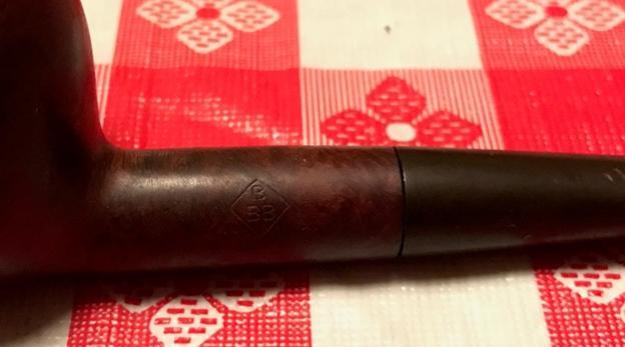

When I study the venerable pipe on my work table, it is not a glamorous display of briar and silver bands.  Some might call it a basket pipe.  The two stars imprinted on the shank were an indication of a working man’s pipe – not high quality, but among those pipes accessible to normal, if not common, people who work, live, love and as is the case with us all, die.  This unremarkable Apple shaped, BBB [diamond over] Double Star, MADE IN ENGLAND [over] 152, is remarkable because of the story it represents.   I enjoy restoring ‘estate’ pipes because they were left to others and these pipes carry with them stories and memories of loved ones who once befriended and valued them.  Greg heard from my son, Josiah, who are college buddies, that Josiah’s old man (my words not theirs!) restored ‘old’ pipes.   This ‘old’ pipe came to Greg from his grandfather through his mother.  Josiah’s email came to me asking what I could do with these pictures from Greg. My understanding is that Greg was a bit reluctant at first to send his pipe off to Bulgaria to be restored, but after Josiah directed him to some of the restorations I’ve done, he felt he could trust me with the heirloom that had come to him.  Knowing that this pipe was from his grandfather I asked that Greg send me information about his grandfather so that I not only could place the pipe better in history, but Greg’s grandfather as well.  This is the letter he sent me:

Hi Mr. Stanton,

Thank you so much for agreeing to restore my grandfather’s pipe. I am sorry for the delay in getting you the below information, but it’s been a crazy couple of weeks.

My mother inherited the pipe from my grandfather when he passed away in 1998. I saw it in the china cabinet one day and asked her if I could have it, since I had taken up pipe smoking. She kindly agreed. She doesn’t really know when my grandfather got the pipe, but she said he must have bought it in Hong Kong.

My grandfather was from Hong Kong, and only emigrated to the United States in the 1980s. He was a malaria inspector for the Hong Kong government for his entire working career. He must have gotten the pipe at the latest in the late 1940s or early 1950s, as my mother remembers him having it when she was a child. He never smoked the pipe when I knew him, but from its condition, I assume it was well used at an earlier period in his life.

Having graduated from the University of Georgia Law School in Athens, Georgia, passed his bars and currently serves as a law clerk to a federal magistrate judge in Augusta, Georgia, AND as a young married man, I can understand why Greg “took up” smoking pipes!  Pipes are wonderful companions for blooming attorneys!  His letter concluded with an agreement to the cost of the restoration would benefit our work with the Daughters of Bulgaria!  Thank you, Greg!

The information Greg received from his mother was invaluable for placing this BBB in time and space.  Pipedia’s article about BBB is helpful.  BBB in the mid-1800s originally stood for “Blumfeld’s Best Briars”, but after the death of Blumfeld, the Adolph Frankau Company took over the company and BBB gradually became “Britain’s Best Briars”.

The “BBB Two Star” rating also is referenced in the same article in a discussion of quality descriptors for BBB pipes:

In the Thirties, the top-of-the-range one becomes “BBB Best Make” with alternatives like “Super Stopping” and “Ultonia Thule”. The BBB Carlton, sold with the detail with 8/6 in 1938, is equipped with a system complicated out of metal, system which equipped the BBB London Dry too. Blue Peter was not estampillées BBB but BBB Ultonia, and the BBB Two Star (* *) become the bottom-of-the-range one.

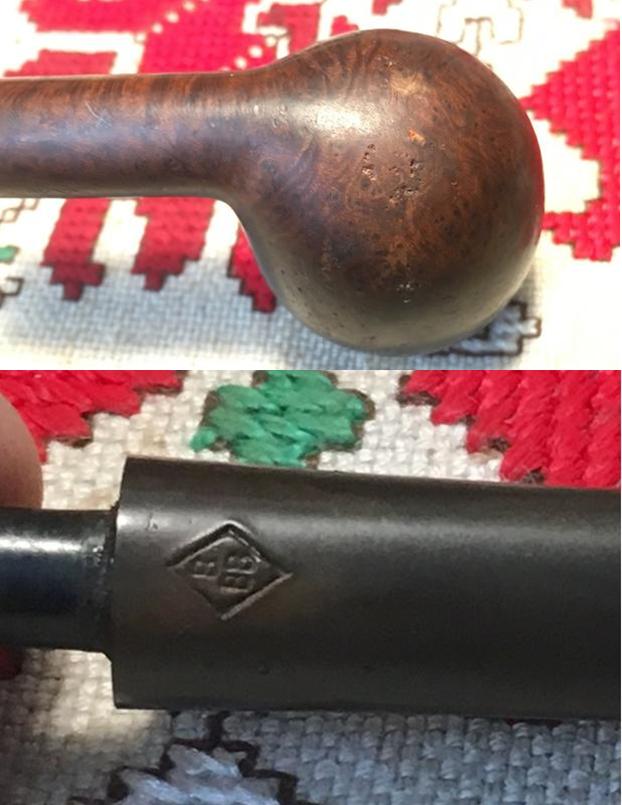

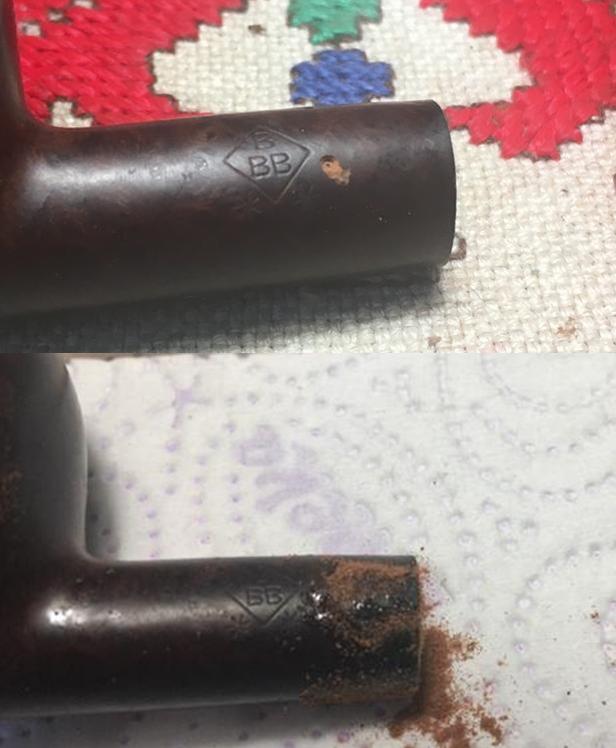

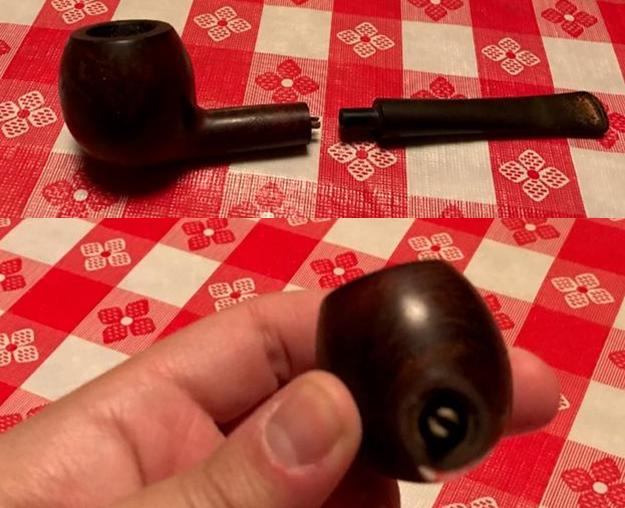

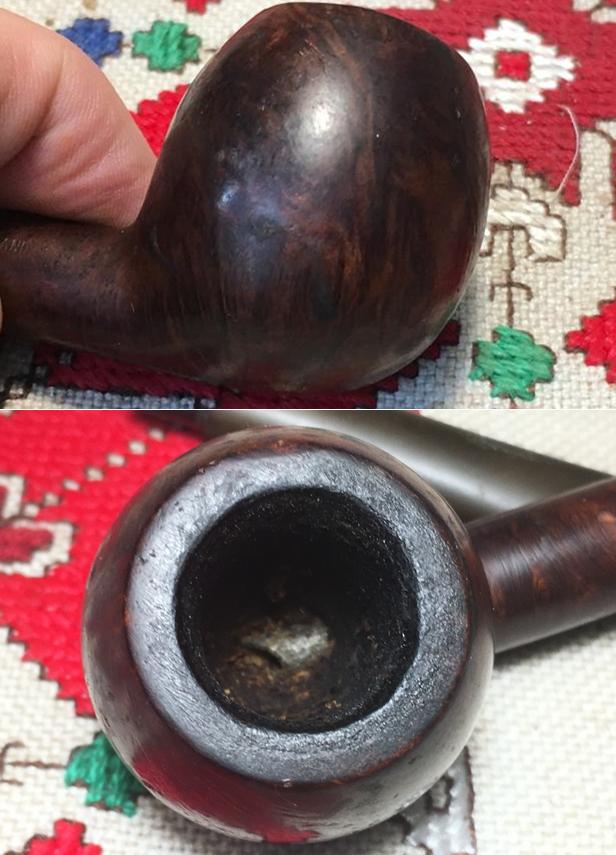

When Greg’s pipe arrived in Bulgaria, thanks to a visitor’s willingness to carry it across the Atlantic and European continent, I unwrapped it and put it on my work desk and took these pictures to fill in the gaps. At PipePhil.eu an example of the BBB Two Star marking is pictured along with the stinger/tube style extending into the chamber as Greg’s grandfather’s BBB does ( as seen above).In Pipes Magazine, I found a thread discussing the dating of the BBB Two Star.  One threader’s opinion, ‘jguss’ corroborates Greg’s mother’s recollections:

My guess is that the Two Star line started at the end of WWII; the first mention I’ve found so far is dated 1945, which at least gives a tpq (that is, an approximate dating). I know the line lasted at least into the early sixties.

It is not too difficult to speculate about the provenance of Greg’s pipe.  During WW2, briar became a scarce commodity throughout Europe and pipe manufacturing companies made do with what they could acquire.  Two Star BBBs would be lower end but more than likely during this time, a very close second when rations were short.  Added to this backdrop is the origin of our story in Hong Kong.  Hong Kong, a British holding since 1841 (see LINK), lost control of Hong Kong during WW2 to Japan in 1941 during the Battle of Hong Kong.  Undoubtedly, Greg’s grandfather would have experienced this first hand.  When Japan unconditionally surrendered in 1945, the British regained control of Hong Kong, but to counter Chinese pressures to control Hong Kong, reforms were introduced that broadened and increased the stake of local inhabitants of Hong Kong:

Sir Mark Young, upon his return as Governor in early May 1946, pursued political reform known as the “Young Plan“, believing that, to counter the Chinese government’s determination to recover Hong Kong, it was necessary to give local inhabitants a greater stake in the territory by widening the political franchise to include them.[19] (Link)

During the years following the Second World War, the same article describes unprecedented economic development which resulted in the economic powerhouse that Hong Kong became.  This period would have been while Greg’s grandfather was working as a malaria inspector for the government of Hong Kong and during which he acquired this BBB Two Star.  The smaller Apple shape would have served him well as he performed his inspection duties but given the ‘stem forensics’ pictured above, he probably chewed on it a bit as well while he worked!

With a greater sense of the story that this BBB Two Star tells, from England, to Hong Kong, to America, and now to Bulgaria, I’m anxious to restore this precious family gift from Greg’s grandfather.  At Greg’s request, he’s hoping for a pipe that is as good as new and ready for a new lifetime of service.  Yet, with all restorations, undoubtedly there will be some marks and blemishes remaining – these an ongoing testament to the memory of those who those who went before.

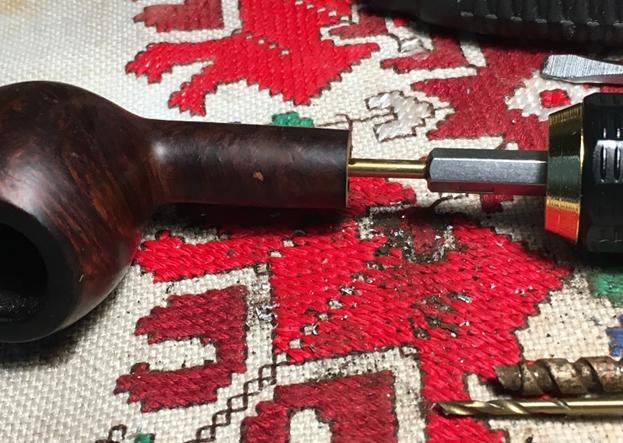

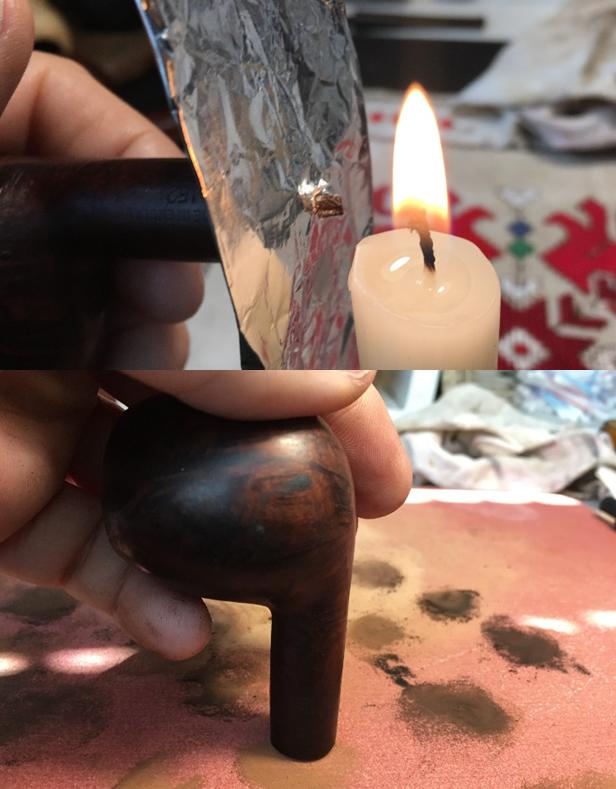

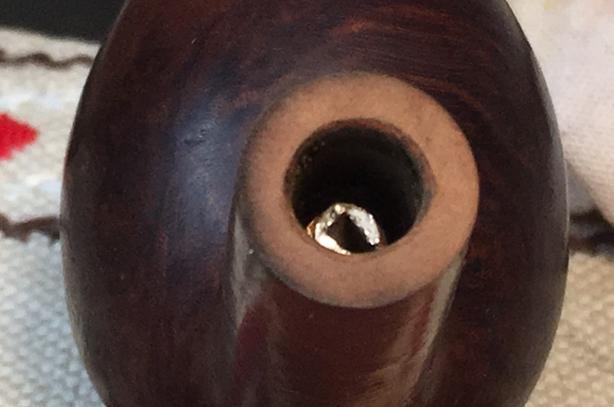

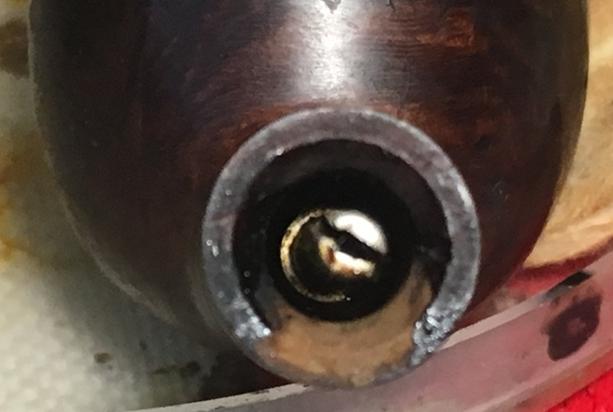

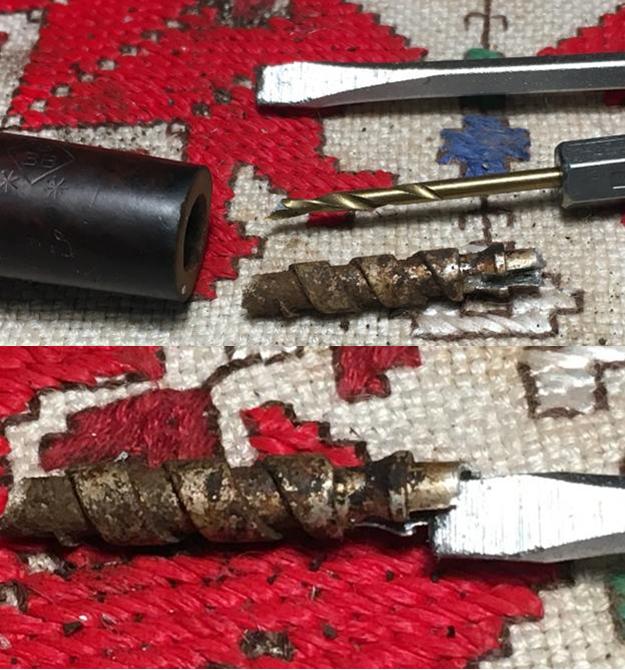

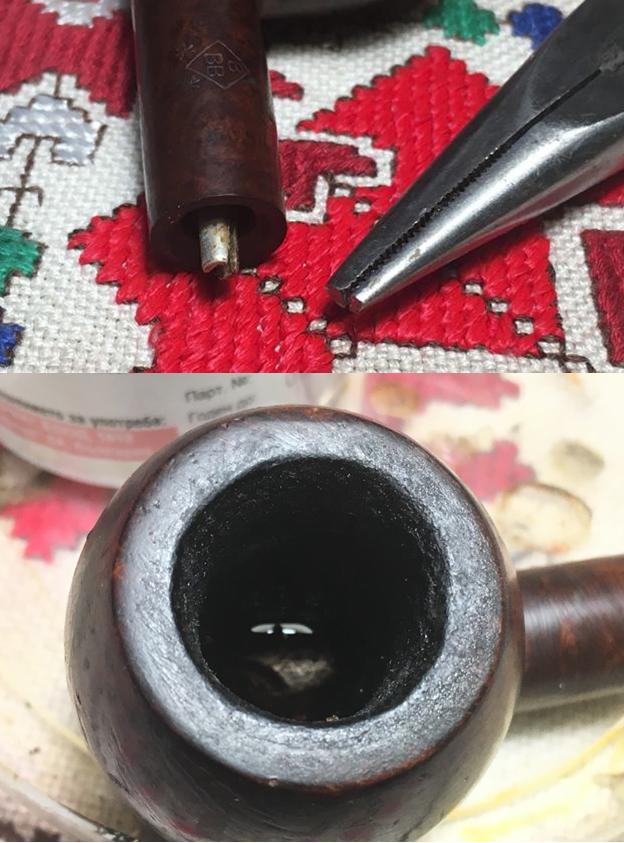

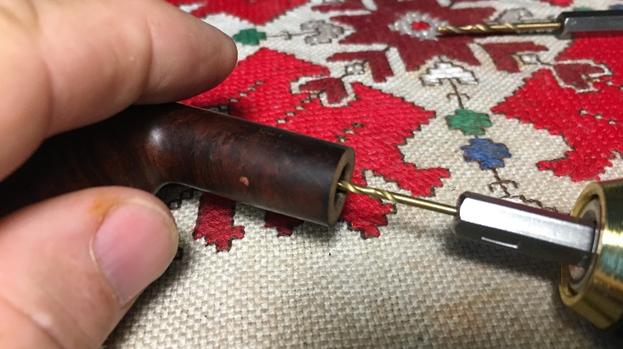

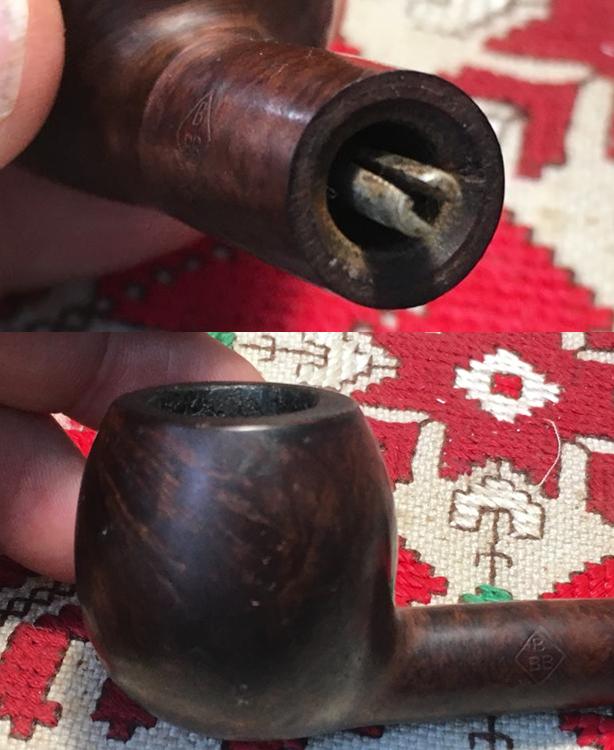

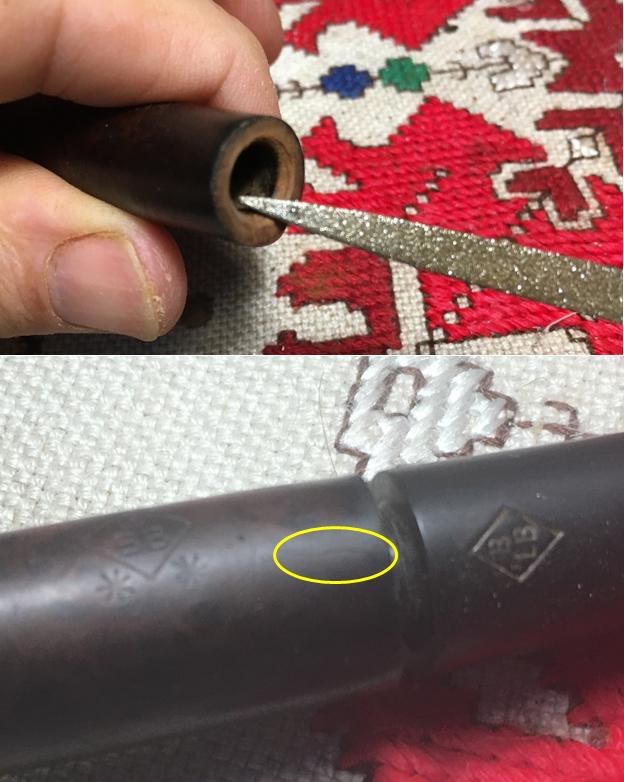

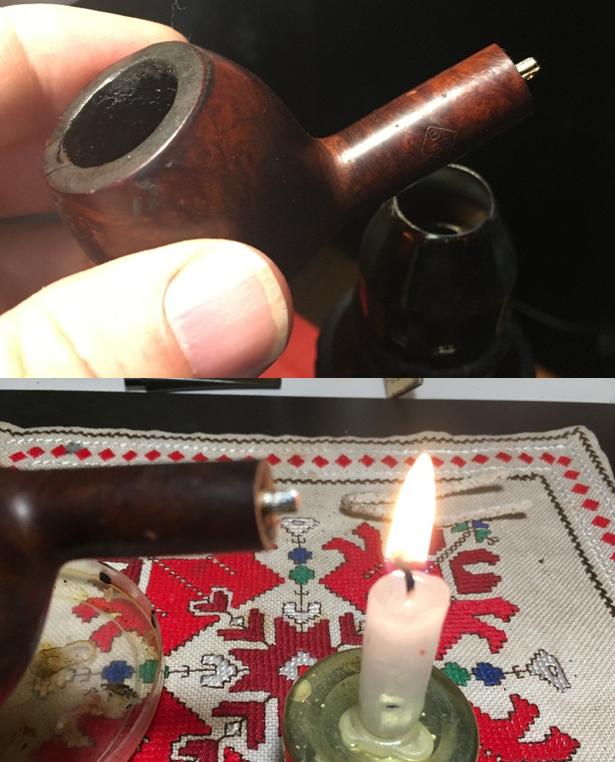

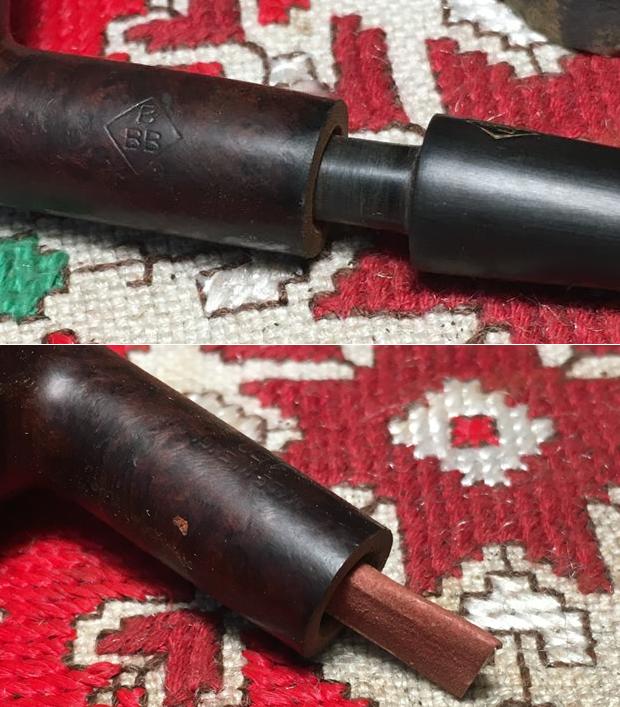

The first order of approach is with the stinger.  When the pipe arrived, the stinger was already separated from the stem.  The stinger extends from the stem through the mortise into the chamber itself through a metal tube air draft hole.  Using a pair of plyers, I wrap a piece of cloth around the end to pull gently to dislodge the stinger from the mortise.  I can see in the mortise that there appears to be a metal sheath that the stinger is lodged in – at least, that is what it appears to be.  The stinger is not budging and I do not want to break the stinger off.  To try to loosen things up, I pour some isopropyl 95% in the chamber to allow it to soak into the draft hole.  Hopefully, in time, this will loosen the stinger. The alcohol soak did not work.  In fact, a few weeks have transpired since writing the words above.  This stinger has given me quite the challenge.  In the back of my mind constantly, is the concern that I not leverage too much pressure pulling on the stinger.  I’m concerned about damaging the shank.  After soaking the internals for some time with alcohol, I pulled with plyers hoping to break the grip.  I also attempt heating the stummel with a heat gun in hope of dislodging the stinger.  I also heat the protruding part of the stinger with a candle, hoping that this would break the bond.  It did not.   I also was concerned about the candle flame close to the briar while trying to heat the stinger.  I craft a tinfoil shield, but this was not successful.  Unfortunately, I singed the end of the shank and had to remove the damage by ‘topping’ the shank end, which leads to a bit of work lining up the stem and shank later.  As you might expect, the protruding end of the stinger did not hold up under the pressure and eventually broke off. After the stinger protrusion broke off, and after a second email to Steve for input, I’m at the point of using a drill bit in another attempt to remove the bonded stinger.  Starting with a very small bit, I hand turn the bit to allow the drill to find the center of the stinger and gradually, remove the stinger introducing the next larger drill bit.  The end of the broken stinger begins at about 1/4-inch-deep into the mortise.  Unfortunately, this method is not working either because the drill bit will not bite into the metal and remain straight.  At the end of the stinger slot that I’m boring into with the drill bit, my efforts are flummoxed by the stinger’s design.  It has a slanted metal airflow deflector that causes the drill bit to veer off mark.  After breaking the end of the drill bit in the slot (ugh!), and digging it out with needle nose pliers, I sit and begin to think I was facing failure.  Nothing was working.  I’m introducing more problems to the restoration as I try unsuccessfully to solve the stuck stinger problem.  I can’t move forward and I’m stuck and begin to compose an apology letter to Greg in my mind.  UNTIL, on a fancy, I insert a small flat head screw driver into the slot at the end of the broken stinger 1/4-inch-deep in the mortise and I twist it gently counter-clockwise, and it snaps.  Suddenly, it was loose and I easily extract the ‘middle’ of Grandpa’s old stinger – I’m sure he was the last one to see this artifact!  I see daylight through the mortise and I’m hoping that it might also be a metaphoric ‘light at the end of the tunnel’!  I’ve not forgotten that the other end of the stinger remains lodged in the draft hole tube at the foot of the chamber.  Thankfully, a larger drill bit was the perfect size and it reaches into the mortise and hand turning the bit, it clears the rest of the stinger shrapnel.  Finally!  Oh my….  I’ll be saving the stinger debris for Greg.  This BBB will continue without difficulty stingerless.  The pictures show the results. In the interest of full disclosure, these words are coming weeks after.  Why the hiatus?  Life’s normal twists and turns, work, some wonderful travel to Crete for an organizational conference, to Athens (not in Georgia) for a consultation on the Eastern Orthodox Church, AND my growing frustration with Greg’s grandfather’s pipe’s restoration as more complications arrived!  I’ll try to catch you up to the present:

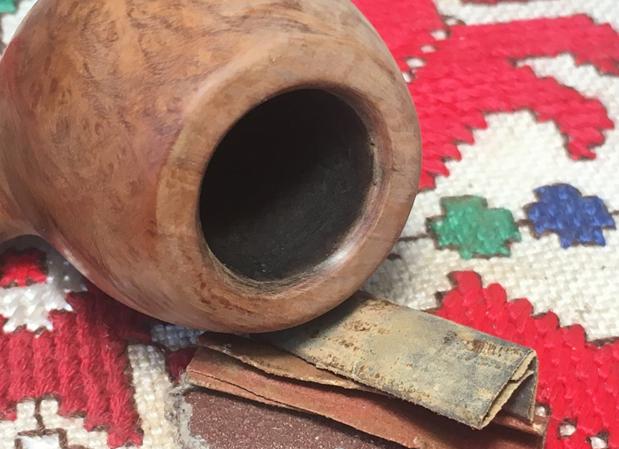

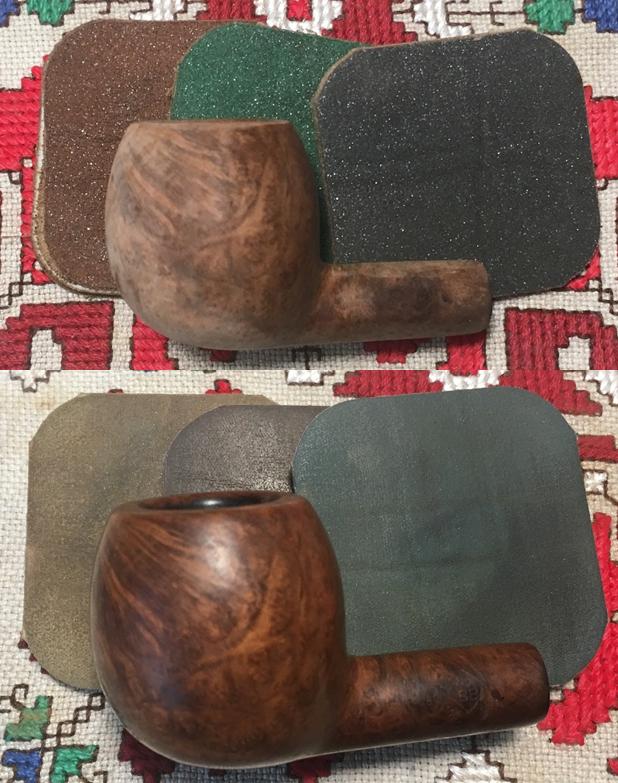

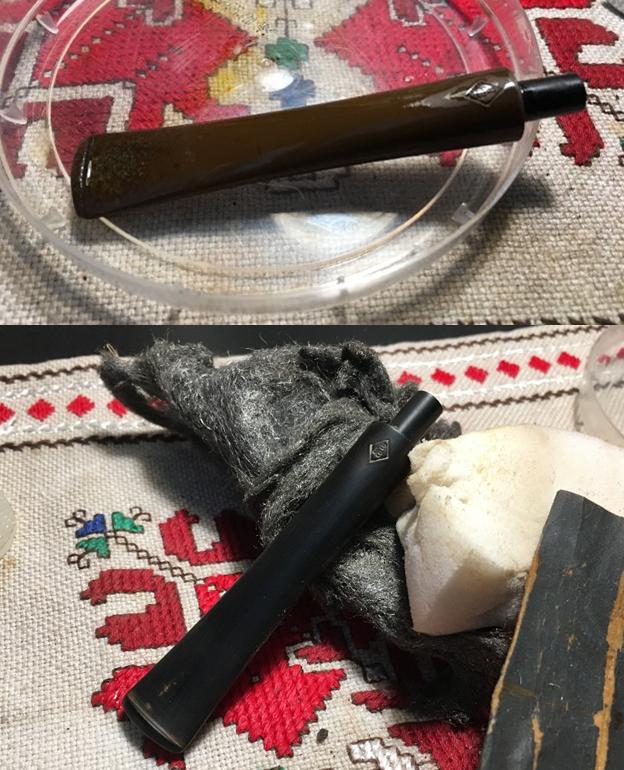

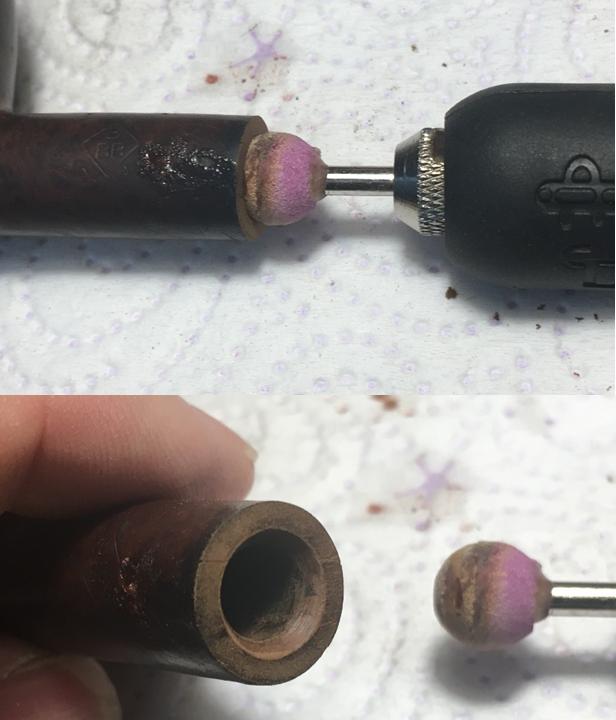

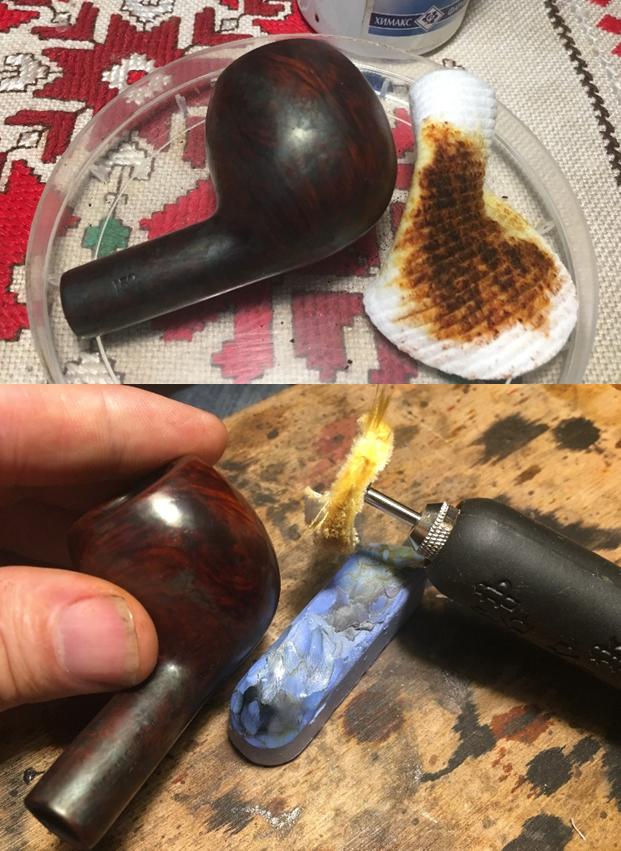

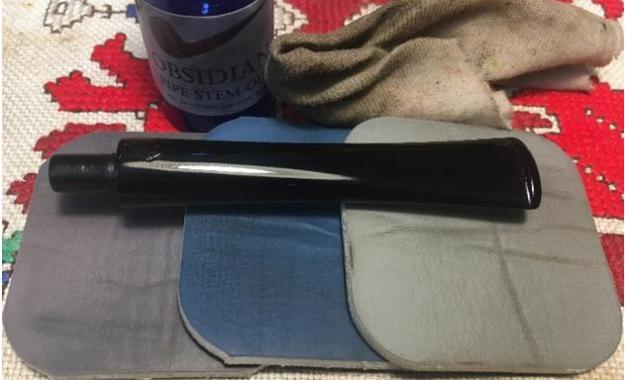

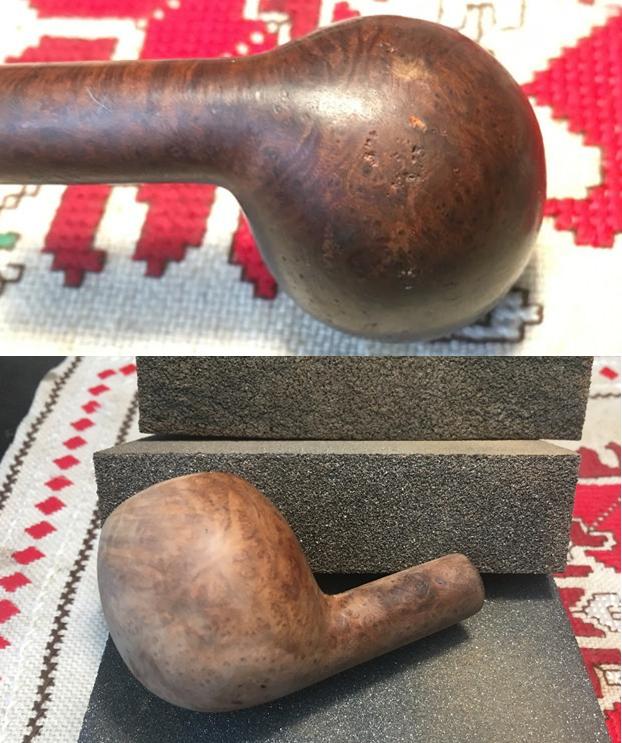

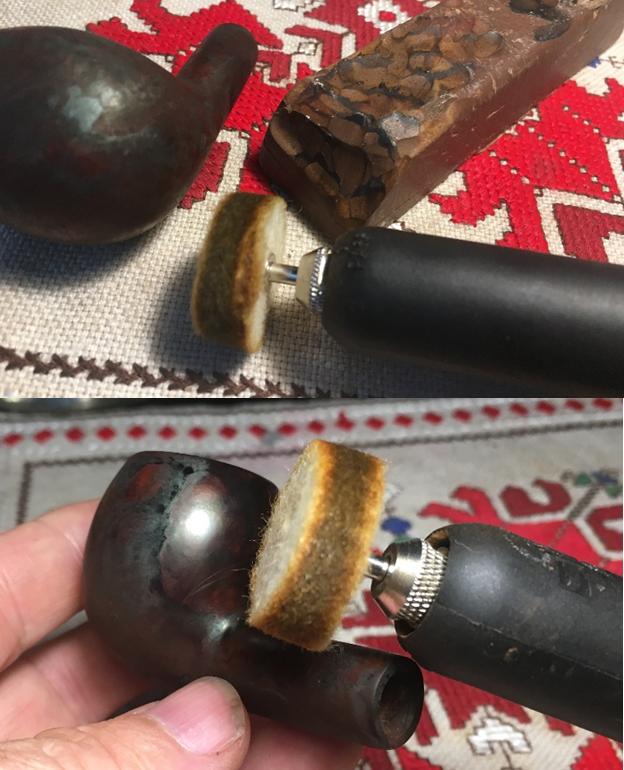

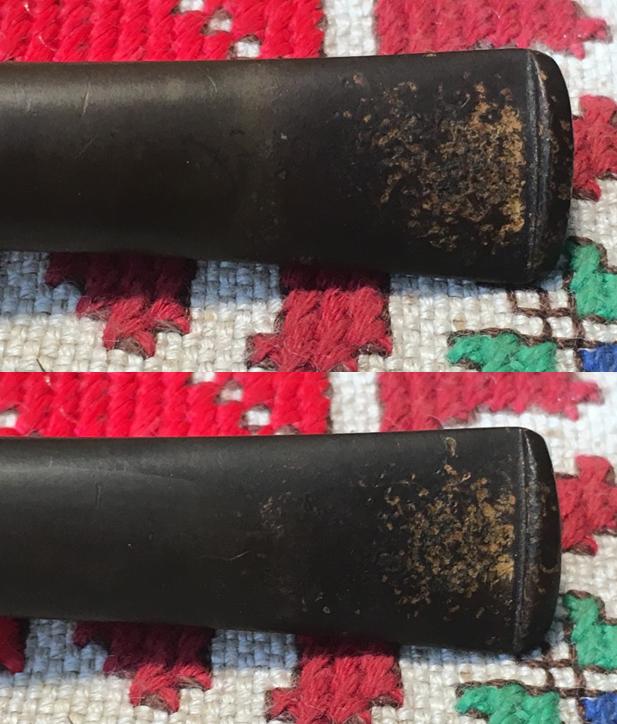

With the stinger removed, I was anxious to continue the restoration with a ‘normal’ pattern – the stem goes into the Oxi-Clean bath to deal with the oxidation in the stem.  After some hours, the stem is removed from the bath and I wet sand with 600 grade sanding paper removing the raised oxidation followed by 0000 steel wool. To clean and protect the BBB stamping on the stem, I use a non-abrasive Mr. Clean ‘Magic Eraser’ sponge.  The pictures show the progress.The next step is to re-seat the tenon into the mortise.  After the arduous process of removing the stinger, and after singing the shank end with a candle flame, and after ‘topping’ the shank to remove the damaged briar, the tenon and mortise needed to be re-wedded with the new realities.  The tenon was too large for full insertion into the shank.  Using a combination of reducing the tenon size with sanding paper and steel wool, sanding and filing the throat of the mortise, and using a rounded needle file to cut a new internal mortise openning bevel to accommodate the broader tenon base, I patiently, slowly, methodically worked to re-seat the tenon in the mortise which included working and then testing the new fit – GENTLY!  I suppose the fact that I said to myself, ‘Dal, careful, don’t crack the shank’, at least a 1000 times only made the sinking feeling more intense when I heard the sickening sound during what proved to be my last, ‘gentle testing’ of the tenon inserted into the mortise.  The hairline crack is pictured below that I took only a day ago – I couldn’t bear to take it then, when it happened.  I was sickened and put Greg’s pipe aside.  I needed some time to work through my own sense of failure of the trust given me to restore this family heirloom.  Now, after several weeks, I’ve regrouped and have taken up Greg’s pipe again.  The travels that I described above during this time in some ways felt more like Jonah running from Nineveh not wanting to face the scene of his calling and his sense of failure!  Though, my trip did prove beneficial – I sold some of my finished pipes to colleagues to benefit and raise the awareness of the Daughters of Bulgaria that The Pipe Steward supports.  I’ve included my Nineveh travels below for you who may not be familiar with ‘my world’, the Balkans – Sofia to Crete to Athens and back. Before moving forward, I needed to repair the cracked shank.  With the help of a magnifying glass, I locate the terminus of the crack and mark it by creating an indentation with a sharp dental probe.  The arrow to the left below marks this.  Using the Dremel tool, I mount a 1mm sized bit and drill a hole at that point – but not going through!  This hole acts like a controlled back-fire to stop the progress of a forest fire.  This will not allow the crack to continue creeping.  With the use of a toothpick, I spot-drop Hot Stuff CA Instant Glue in the hole and along the line of the crack which I expanded microscopically by partially inserting the tenon into the mortise.  This allows the CA glue better penetration to seal the crack.  I remove the stem immediately after the application of CA.  With the CA glue still wet, I apply briar dust to/in the hole and along the crack to encourage better blending.  The pictures show the progress. After some hours allowing the CA glue to cure on the shank repair, using a round grinding stone bit mounted on the Dremel, I reestablish an adequate and uniform internal bevel on the end of the shank to accommodate the base of the tenon when it is fully inserted into the mortise.  My theory is this is what caused the crack – lack of a sufficient internal bevel giving room for the slightly enlarged tenon as it merges with the stem proper.  With the Dremel engaged at the slowest setting, I’m careful to apply minimal pressure as I rotate the ball a bit to make sure it’s centered.  It looks good – the pictures show the progress.Due to a lapse of sorts and the intensity of my focus on re-seating the stem again without re-cracking the shank, I failed (or perhaps, had little desire) to take any pictures.  The short of it is, the stem and stummel have been reunited after some difficult times.  Also, not pictured are some of the basic steps: reaming the fire chamber of carbon cake buildup, cleaning the internals of the stummel and stem with cotton swabs and pipe cleaners wetted with isopropyl 95%, and cleaning the externals of the stummel with Murphy’s Soap.  Again, picking up the trail, pictured below is the micromesh pad process with the stem.  Using pads 1500 to 2400, I wet sand the stem, followed by dry sanding with pads 3200 to 4000 and then 6000 to 12000.  I follow each cycle with an application of Obsidian Oil to revitalize the vulcanite.  The stummel surface shows quite a bit of pitting in the first picture shown again below.  The rim also shows nicks. On the larger pits shown below on the heel of the stummel, I spot-fill with a toothpick using CA glue and shorten the curing time by using an accelerator spray on the fills.  After filing and sanding the fills to the briar surface, using a progression of 3 sanding sponges from coarse, medium to light, I work out most the remaining pitting over the stummel surface.  Using 600 grit paper on the chopping block, I also give a light topping to the rim to remove nicks and create fresh lines for the rim.  Following the topping, I introduce an internal bevel to the rim, first using a coarse 120 paper rolled tightly, then with 240 and 600.  The internal rim bevel to me, always adds a touch of class but also helps create softer lines which enhances this Apples shape.  The pictures show the unhindered progress! I now take micromesh pads 1500 to 2400 and wet sand the stummel followed by dry sanding with micromesh pads 3200 to 4000 and then 6000 to 12000 taking a picture after each set to mark the progress.  I am careful to guard the BBB nomenclature on the shank sides.  As I move through these cycles, I realize that I have been so wrapped up in the technical aspects of this restoration for Greg, that I failed to see the beauty of this diminutive Apple shape.  The grain that emerges from Grandpa’s old timer is truly beautiful. Flame grain and swirls, with a few bird’s eyes accenting the whole – totally eye-catching for a Two Star sub-mark BBB I would say! To see the big picture to help determine the next steps, I reunite stem and stummel and stand back and take a good look.  This BBB Made in England is looking real good – in spite of everything!  I can see by the way the BBB Apple naturally sits on the surface, leaning slightly like a listing ship, but remaining upright, provides some clues regarding the significant pitting on the heel of the stummel – just off center. Greg’s grandfather undoubtedly and conveniently placed his pipe on a table or counter surface, or perhaps on a nearby crate, as he made his rounds as a malaria inspector for the province of Hong Kong.  The original BBB coloring leaned toward the favored darker hues of English pipe makers and client proclivities. I decide not to go that dark, but to stain the stummel using a light brown base with a touch of dark brown to tint it down that track a bit.  This will make for better blending, especially for the darker briar around the nomenclature on the shank.  Using Fiebing’s Light Brown Leather Dye as the base, I add a touch of Fiebing’s Dark Brown.  Using a folded pipe cleaner in the shank as a handle, I begin by warming the stummel with a hot air gun to expand the briar making it more receptive to the dye.  After heated, I apply the dye mixture to the stummel generously aiming for total coverage.  I then fire the wet stummel with a lit candle igniting the aniline dye, burning off the alcohol and setting the pigment in the grain.  After a few minutes, I repeat the process concluding with firing the stummel.  I put the stummel aside to rest for several hours.  The pictures show the staining process – yes, you can see my blue fingers – I’ve started wearing latex gloves when I’m staining. After some hours, I’m looking forward to ‘unwrapping’ the fired stummel to reveal the stained briar beneath.  Using a felt buffing wheel mounted on the Dremel, set at the slowest speed, I use Tripoli compound to remove the initial layer.  Moving in a methodical, rotating pattern, I work my way around the stummel not apply a great deal of down-pressure on the wheel, but allowing the RPMs of the felt wheel and the compound to do the work. After removing the crusted layer with Tripoli, I wipe the surface with a cotton pad wetted with isopropyl 95%.  I do this not so much to lighten the finish, but to blend and even out the stain over the surface.  Following this, I mount a cotton cloth wheel on the Dremel, increase the speed slightly, and apply Blue Diamond – a slightly less abrasive compound.  After both compounds, I use a clean towel to hand buff the stummel to remove excess compound dust before applying the wax.  Pictures show the progress. Reattaching the stem and stummel, I apply several coats of carnauba wax to both.  Using a cotton cloth wheel, I set the speed of the Dremel to 2 with 5 being the fastest, I apply the carnauba and I like what I see.  With the carnauba wax applied, I mount a clean cotton cloth buffing wheel on the Dremel and again buff the stummel and stem.  Finally, I apply a rigorous hand buff using a micromesh cloth to raise the shine more.

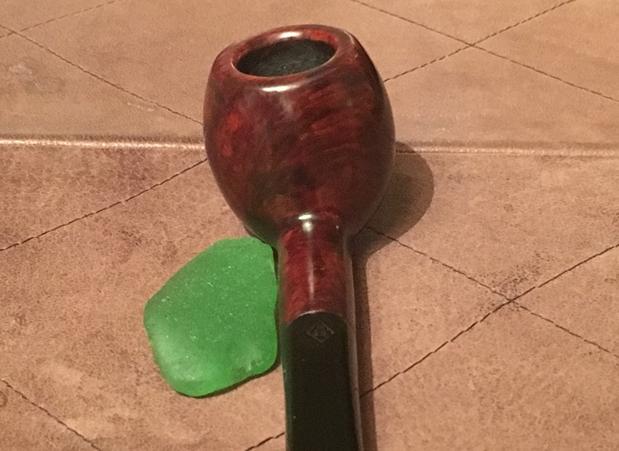

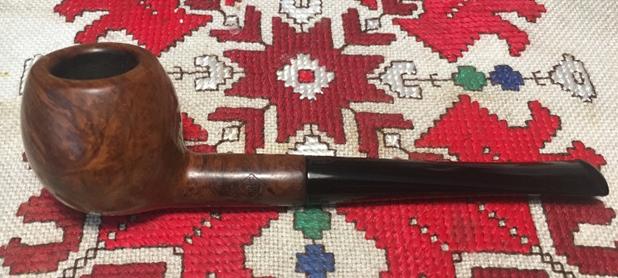

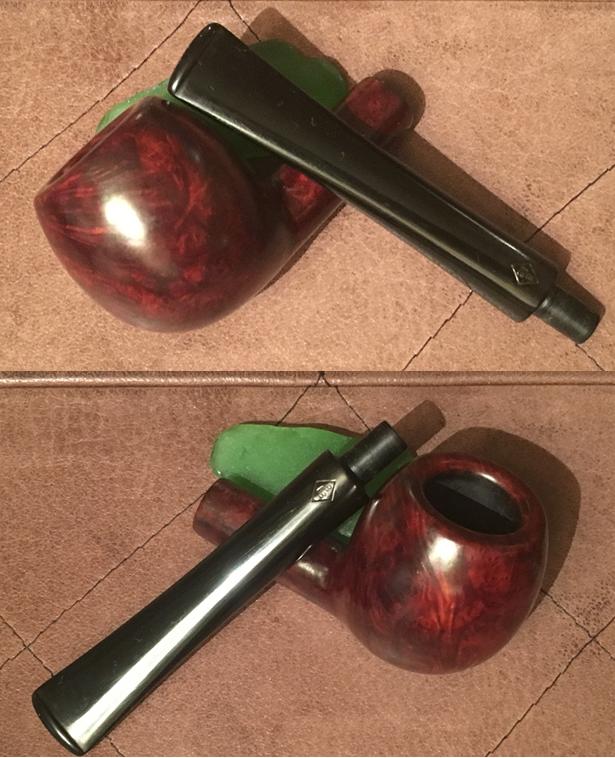

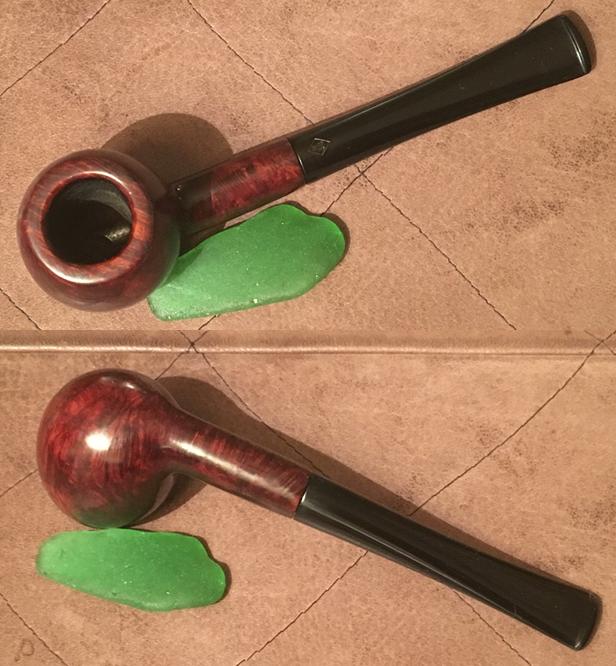

This BBB Double Star Apple has come a long way from England to Hong Kong to the US to Bulgaria, and now it’s ready to return to its new steward.  This restoration was a bit bumpy, but then, so is life.  I’m glad to help give this pipe a new lifetime and I hope Greg not only enjoys it, but that it provides a special connection with his past.  I’m sure Grandpa would be proud.  Thanks for joining me!

Bringing a Stanwell Jubilee Sixten Ivarsson Design 10M back to life

2 Replies

Blog by Steve Laug

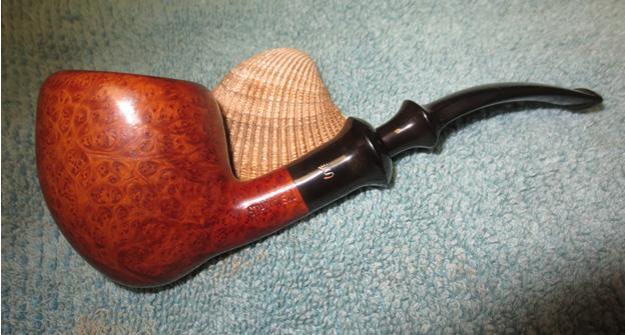

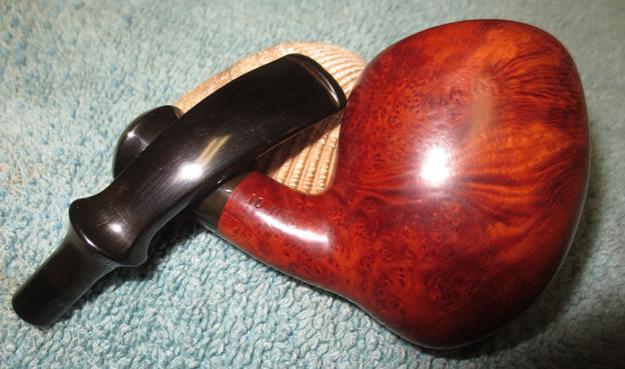

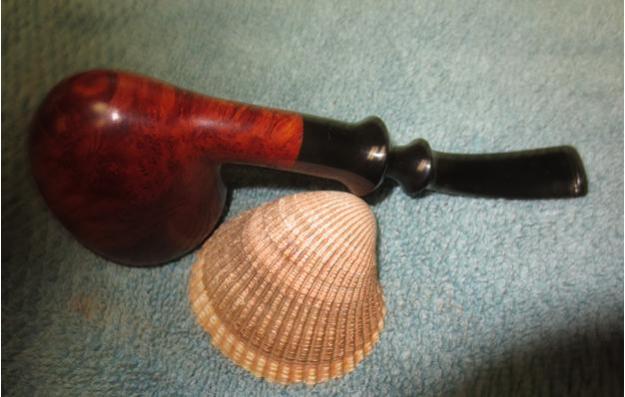

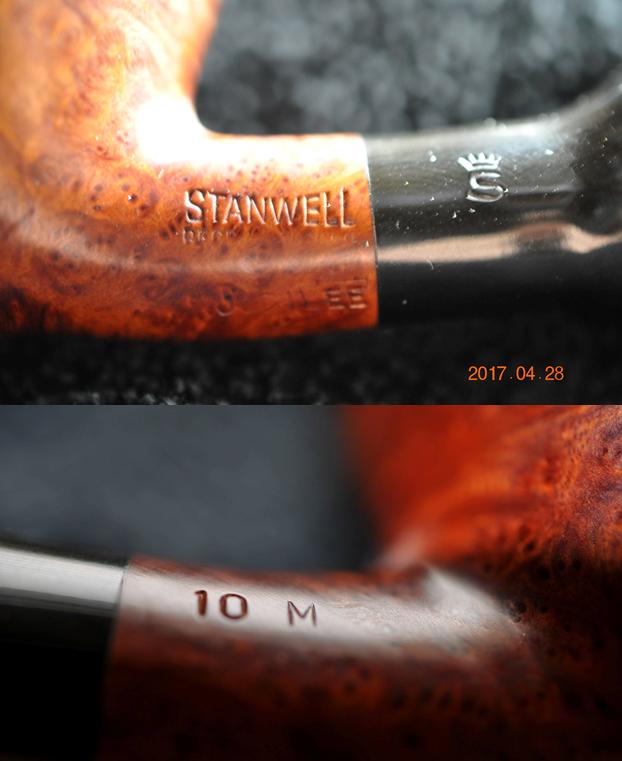

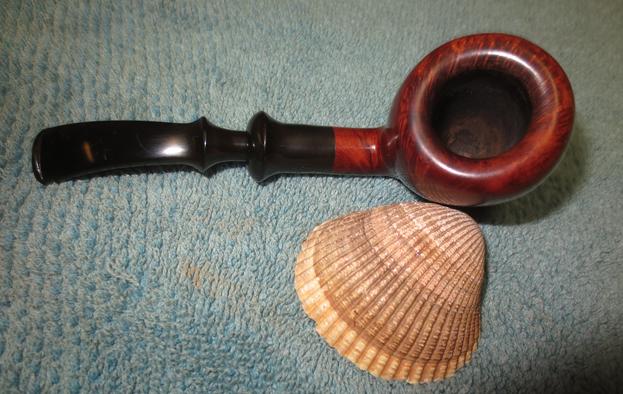

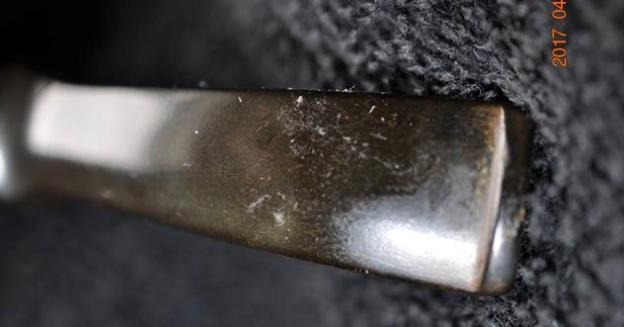

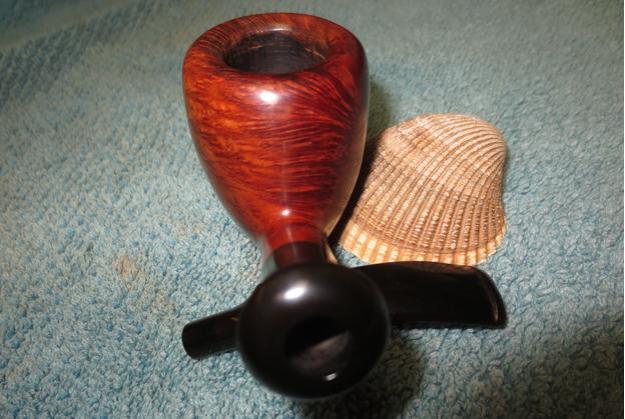

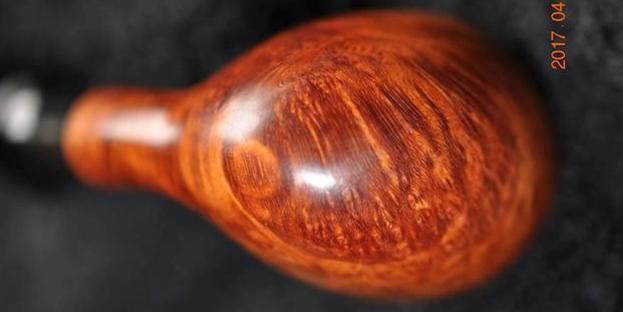

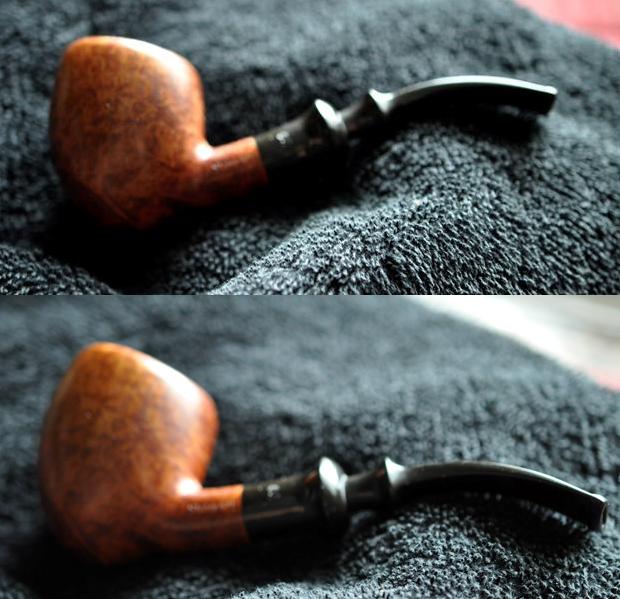

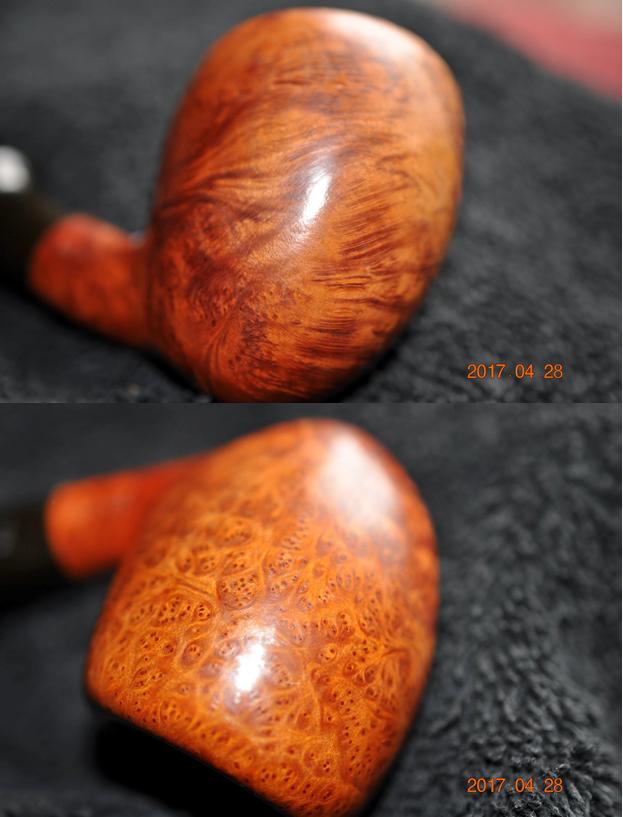

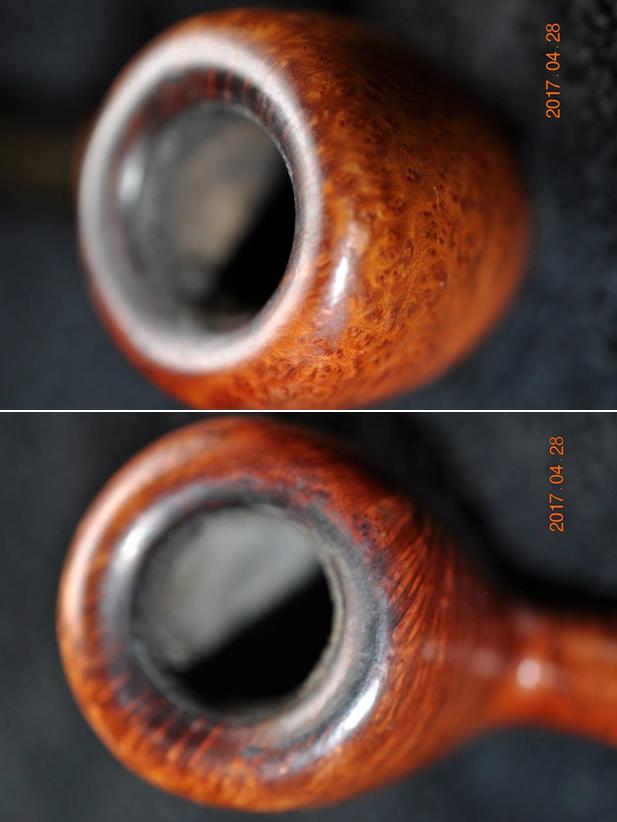

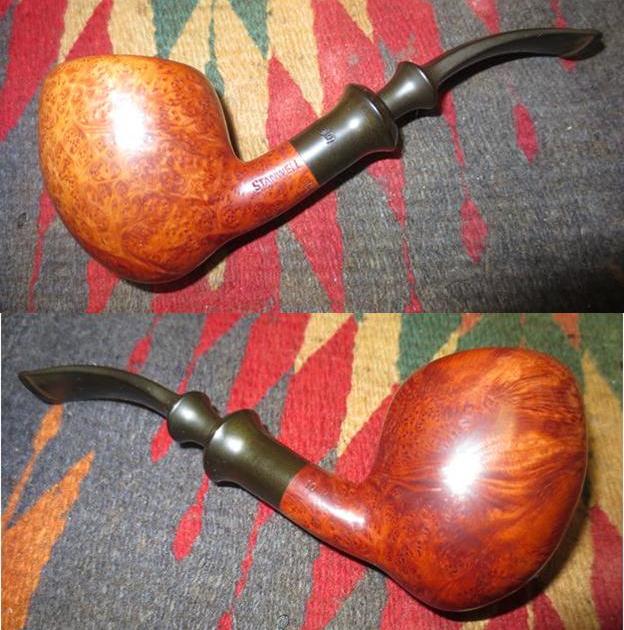

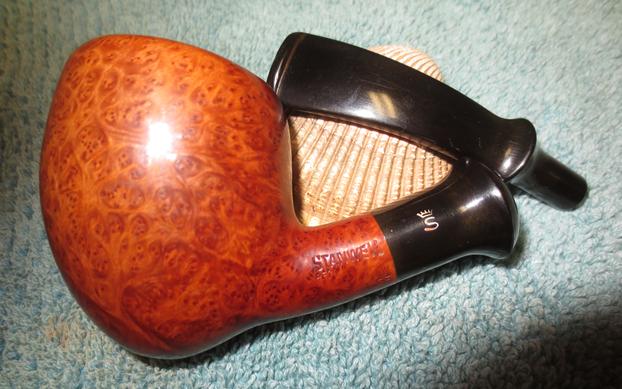

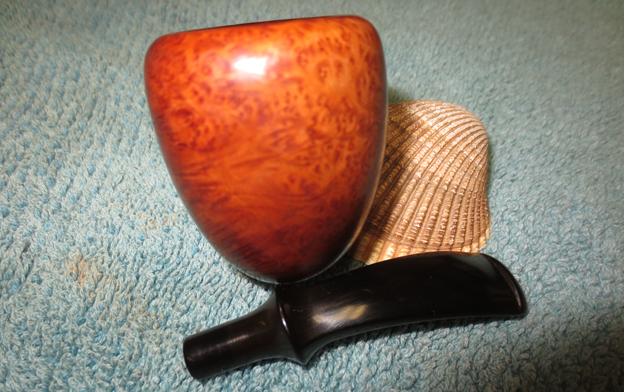

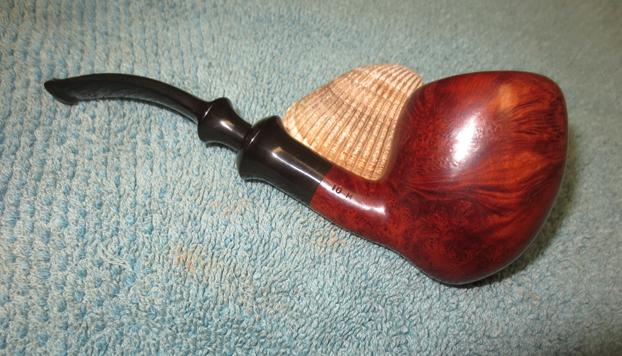

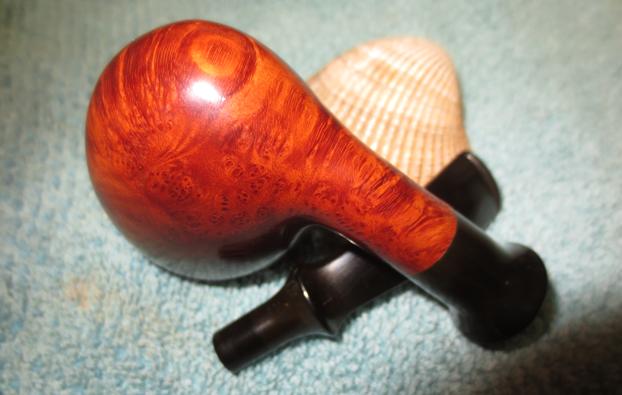

The next pipe in the lot that my brother brought back from the recent estate sale was a beautiful little Stanwell Acorn with a vulcanite shank extension. The pipe had some nice birdseye on the left side of the bowl and shank and a mix of grain around the rest of the bowl. The point at the bottom of the bowl has a ring of grain with a centre at the bottom and turning around the bowl up the front and back of the underside of the shank. The pipe is stamped on the left side of the shank Stanwell over Regd. No. (an illegible number) over Jubilee. On the right side it is stamped 10M which is the shape number. The shape is a design by Sixten Ivarsson that was done for Stanwell. It has a military mount stem. The Stanwell Crown S in on the shank extension rather than on the stem. The photos that follow are one that Jeff took of the pipe before he cleaned up to send to me.Jeff took close up photos of the rim and the bowl to show the condition. There was a light cake in the bowl with an overflow of lava on the crowned rim top. The next two photos show the grain on the sides of the bowl. The third photo shows the ring at the bottom of the bowl radiating up the bowl sides. It is a beautifully grain piece of briar that the shape fits very well. The next two photos show the stamping on the sides of the shank. The left side shows the Stanwell stamp clearly as well as the Jubilee stamp. It also shows the Crown S on the shank extension. There is a Regd. No. that is very faint and unreadable.The stem had the now familiar tooth chatter and marks the top and underside near the stem. The dents/marks on the underside were worse than those on the top side.My brother cleaned up the pipe as he usually does before he sends it to me. He did an amazing job cleaning up the interior and the exterior. When the pipe arrived in Vancouver it was absolutely clean on the inside. He had cleaned out the mortise and the airway in the shank and the stem with alcohol, pipe cleaners and cotton swabs until it was spotless. He had scrubbed exterior with Murphy’s Oil Soap and removed all of the grime on the bowl sides and the lava build up on the rim. I took the next four photos to show what the pipe looked like when it arrived here. The finish looked really good. The shank extension and stem were lightly oxidized. I took a close up photo of the rim to show how well it cleaned up. There was some darkening on the rim top. The grain really stood out well on the crowned rim. The inner edge of the rim was in excellent condition.I took some photos of the stem top and underside to show the oxidation and the tooth chatter and marks on the surface near the button.I sanded the shank extension with micromesh sanding pads to remove the oxidation. I wet sanded it with 1500-2400 grit pads and dry sanded with 3200-12000 grit pads. I buffed the shank extension and the bowl with Blue Diamond on the buffing wheel to polish the vulcanite. I use an acrylic paint to fill in the Crown S on the left side of the shank extension. Once the paint dried I buffed it off with Blue Diamond to remove the excess paint and leave some in the stamped impression in the vulcanite. There is still some oxidation in the vulcanite of the extension that needed to be polished out but the buffing would take care of that. The photos tell the story.I sanded the stem with 220 grit sandpaper to remove the oxidation on the surface. I followed that by sanding with 320 grit sandpaper to remove the scratches. I polished the stem with 1500-2400 grit micromesh sanding pads. I rubbed the stem down with Obsidian Oil. I dry sanded it with 3200-12000 grit pads and gave it a rub down with Obsidian Oil after each pad. I buffed it with Blue Diamond between the 2400 and 3200 grit pads and between the 4000 and the 6000 grit pads. I gave it a final buff after the 12000 grit pad and gave it a final coat of Obsidian Oil and set the stem aside to dry. I put the stem back in the shank extension and buffed the pipe with Blue Diamond polish on the buffing wheel. I buffed it until the remaining scratches and oxidation were gone. The grain really began to stand out as I buffed the pipe. I gave it multiple coats of carnauba wax to protect the briar and the vulcanite. I buffed it with a clean buffing pad to raise the shine. I hand buffed it with a microfibre cloth to deepen the shine. The finished pipe is shown in the photos below. It is a beautifully grained pipe that is laid out well with the piece of briar. The dimensions are Length: 5 ¼ inches, Height: 2 inches, Outside bowl diameter: 1 ½ inches, Chamber diameter: ¾ inches. It is a pipe that I would normally hang on to for my own collection but I have a similar one already so I am going to put it on the rebornpipes store. It is available to anyone who wants to add it to their collection, their pipe rack. Just let me know if you are interested. Email me at slaug@uniserve.com or send me a private message on Facebook. Thanks for looking.

Refreshing a Blatter 1989 Rustic Bent Egg

Leave a reply

I am a big fan of Blatter & Blatter pipes. They do a great job making a classic pipe that is a great smoking pipe. Charles did a great job on this one and gives a bit of history along with the restore. Thanks Charles.

Charles Lemon's avatar

Here is the next pipe from the box of Blatter pipes sent to me from a piper in Iqaluit, Nunavut for refurbishment. This one is a nicely shaped rusticated Bent Egg, stamped “Quebec 1989” over “Blatter” on the smooth underside of the shank. The stem is original and carries the Blatter Red Dot.

20170330_133934

The pipe was in overall good condition, though it was time for a solid clean-up. There was a fair amount of carbon cake in the tobacco chamber, and a crust of tarry lava stuck in the rustication on the rim. The finish was worn, especially on the sides of the bowl where the piper’s hands had rubbed the stain off the high points of the rusticated briar.

20170330_133840
20170330_13385020170330_133857
20170330_13390220170330_133909

The stem was lightly oxidized, though several deep tooth dents in the bottom of the bit would need attention. I’d also have to address the stem fit as the tenon…

View original post 726 more words

It captured my attention: a beautiful Rinaldo Titania Lithos YY Author

1 Reply

Blog by Steve Laug

I don’t know if you have had this happen to you. But you probably have if you have been a pipe man for long. Today on my lunch hour I was browsing the Gentlemen’s Pipe Smoking Society (GPSS) on Facebook. I was honestly just taking a break from a morning of phone calls and meetings. I just wanted to have a quiet time. I shut the door of my office and quietly ate lunch and browsed through the feeds on GPSS. Then it happened. I saw a pipe that Neal Yarm was selling. Now Neal is selling a bunch of unsmoked pipes – Castellos, Ardors, Rinaldos and others. But this one – a Rinaldo Tatiana Lithos YY Author grabbed my attention. I have never had a Rinaldo on my work table or in my collection. But I liked the way this one looked. I clicked on the photos and enlarged them so I could look the pipe over. I went through every photo he included – they weren’t enough for me, I wanted more. But ultimately I had to admit no amount of photos would change the reality. I wanted this pipe; it ticked off all the boxes for me. It was unsmoked and came with the original pipe sock and box. What more could I ask for. I sent Neal a private message, he sent me the invoice, I paid the bill and the deal was done. Now I await it arrival.I know next to nothing about Rinaldo Pipes so I took some time to remedy that during the rest of my lunch hour. I googled the brand to see what I could find. The first thing I read was a quote from one of my favourite author’s on pipes and pipe brands – José Manuel Lopes. In his book, Pipes, Artisans and Trademarks, he writes that Rinaldo is the Italian brand of the Sicillian artisan brothers Elio & Guido Rinaldo, who left for the continent at an early age and settled in Pesaro. At 15, Elio started working for Mastro de Paja, with Guido joining him shortly after, in 1974. Now I had some basic information. It was Italian (which I already knew) and it was made by two brothers in Pesaro.

I continued through the google listings and found a link to Smokingpipes.com. They sell new Rinaldo pipes and often in their introductory remarks to a pipe or a brand there is a lot of helpful information. In this case there is some repetition to the information from Lopes but also some expansion. I quote their entry from their online store in full.

Rinaldo pipes are made by two brothers, Elio and Guido Rinaldo in Pesaro, Italy. Elio began making pipes when he was only fifteen, and his younger brother, who worked with precious metals for jewelry, began making pipes when he was sixteen. There are few families of pipes being made these days, and these two gentlemen work in perfect harmony in their shop. They initially worked for a large pipemaking company, but branched off to work for themselves in 1987 when they started Rinaldo pipes. Because of his jewelry background, Guido is responsible for making all of their silver bands and accents on-site. They use acrylic stems and finish their pipes either smooth, sandblasted, or rusticated. Working together, the brothers produce around 1,500 pipes annually. https://www.smokingpipes.com/pipes/new/rinaldo/I read the next google entry which was Pipedia https://pipedia.org/wiki/Rinaldo. I read briefly there and saw that it cited Steve Monjure’s website – Monjure International. I followed the link to that site and read further http://www.monjureinternational.com/rinphist.htm. I looked through his interesting information on the Rinaldo brand and its history. He gave more detailed information on the brand that added to my knowledge base. I quote his introductory comments first and then the section on history.

The Rinaldo brand began in 1987. It produces 1500 pipes a year — mainly classic shapes, but with a more rustic design than the majority of similar Italian brands — and has its main markets in Italy, Germany, and the US. It uses briar from Liguria, and Lucite stems. The pipes are stamped: RINALDO. Grading: from one to four Y and Fiammata. Symbol: stylized Greek letters ρ and ι

From the history of the brand section I quote: http://www.monjureinternational.com/rinaldo.

Elio and Guido Rinaldo began their work with briar in 1974 at the very young ages of 16 and 14 respectively. At this time they were employed by a well known pipe factory. In the beginning they were involved with the design, modeling and finishing. After years of study, hard work, and hands on experience, Elio and Guido mastered their art. This knowledge combined with their sensitivity allowed them to answer the burning desire they had to express themselves in their own way. Their dream to create a pipe with their own mark became a reality.

In 1987, the two brothers founded “Rinaldo Pipes” with the intention of creating fine handmade (fatta a mano) pipes with highly personalized lines fitted with silver and gold treatments that distinguish their exquisite pipes from the vast panorama of pipes. Their production is very limited since Elio and Guido are the sole ones to make the Rinaldo pipe. This has been their wish from the very first day the factory was started. Because of this loyalty to solely crafting their pipes, the smoker is guaranteed that each phase of the work is being maintained by skilled and expert hands. Each Rinaldo pipe is made from the very best Mediterranean briar and Elio and Guido select each briar block for its compact texture and regular veining. The acrylic mouthpieces are perfectly balanced and studied for optimal dental grip. This attention to detail results in a mouthpiece that has a pleasant and “easy hold” and is truly a “work of art”.

The Rinaldo pipe is currently offered in the following finishes: Lithos(Rustic) – Sahara(Sandblast) – Triade(Smooth). The Rinaldo pipes are divided into three lines: Briar Line(All Briar) – Silver Line(Silver Ornaments) – Gold Line(Gold Ornaments). There are five grade levels: Y, YY, YYY, YYYY, and Fiammata(Straight Grain). All Shapes are available in the regular size bowl and the “Titania” which is a bowl of greater dimensions.

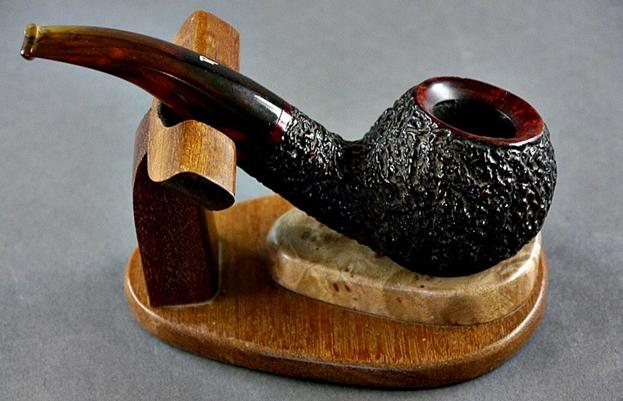

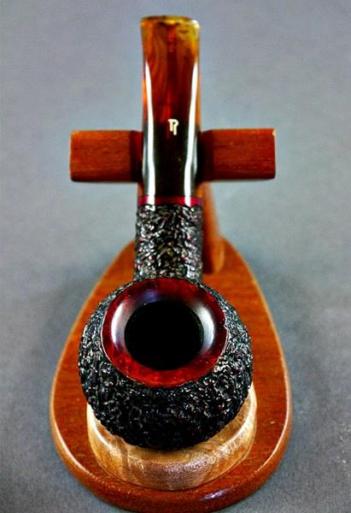

The pipe I had purchased is stamped on the underside of the shank Titania over Lithos YY, Hand Made in Italy, Rinaldo. From the above information I learned that the pipe was Rusticated (which I could see from the photos), it was graded YY (which is the second grade), and it was a Titania (which is a larger bowl). I also learned that the LITHOS hand made pipes came in three inishes – Rustic Tan, Brown or Black.The article went on to describe the detail and care that goes into each pipe that the brothers craft. Here is how the website describes it:

Each Rinaldo pipe is offered for the pleasure of beholding its classical and liberal forms. Elio and Guido Rinaldo’s passion for crafting the finest pipes available is evident in each piece. Elio and Guido Rinaldo are currently producing approximately 1,500 pipes per year. When it comes to hand-made (fatta a mano) Italian pipes, two brothers in Italy, Elio and Guido Rinaldo are raising eyebrows around the world and are proving that high quality doesn’t always come at a high cost. In 1987 they started the business that bears their name although they actually started making pipes back in 1974 when they were only in their teens. They use the finest Mediterranean briar and their pieces not only are expertly designed and easy to hold, but they use fine balanced acrylic mouthpieces to insure a pleasant grip and ease on the teeth. Although some pipe manufacturers employ a body of carvers to create their designs, the two Rinaldo brothers are the sole carvers of their company. They create pipes in three different finishes (smooth, sandblast, and rusticated), several different sizes, and line their pipes with briar, silver, and gold ornaments.

The Monjure International Website includes an article on Rinaldo pipes in Pipes & Tobacco Magazine. Here is a link to that article; it is well worth a read if you are interested in reading about the brothers and their pipes. http://www.monjureinternational.com/rinaldo_articleP1.htm

Now that I had educated myself regarding the brand I was even more excited for the arrival of my new pipe. I could not wait to have it in hand and examine it up close. I wanted to look over all the hand made details and care that had gone into its design. I don’t often buy a new pipe; my tendency is to buy estates (as those of you who read rebornpipes have already figured out). They are already broken in and after a bit of cleaning can pick up where the last pipe man laid them down. But in this case I have to tell you, I am looking forward to giving this one a go and breaking it in myself. Once more thanks for sharing my excitement on this one. It is good to know that others are inflicted with the same “disease” and enjoy pipes along with me… I know that my wife and daughters only word for this is, “Another pipe? Do you really need that?” And to those comments I nod a yes, make no excuses and share my excitement with each of you. Cheers!

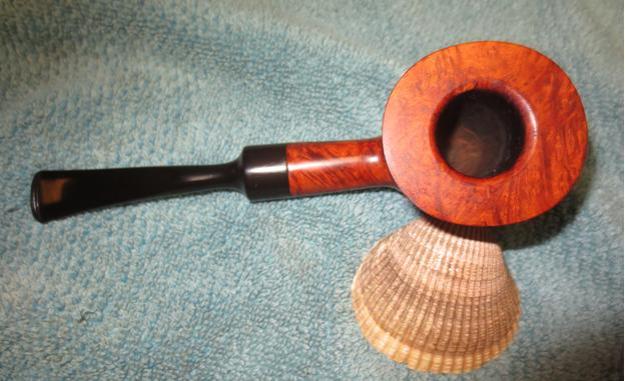

New Life for a Lorenzo Lara Smooth (For Tinderbox) Unique 113

Leave a reply

Blog by Steve Laug

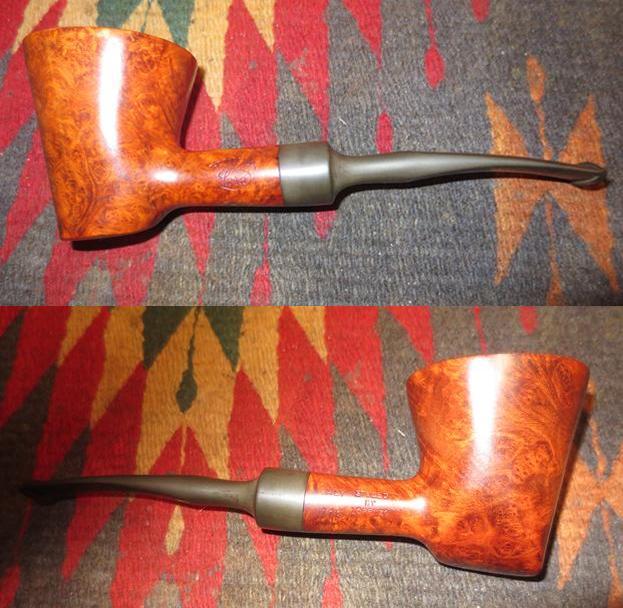

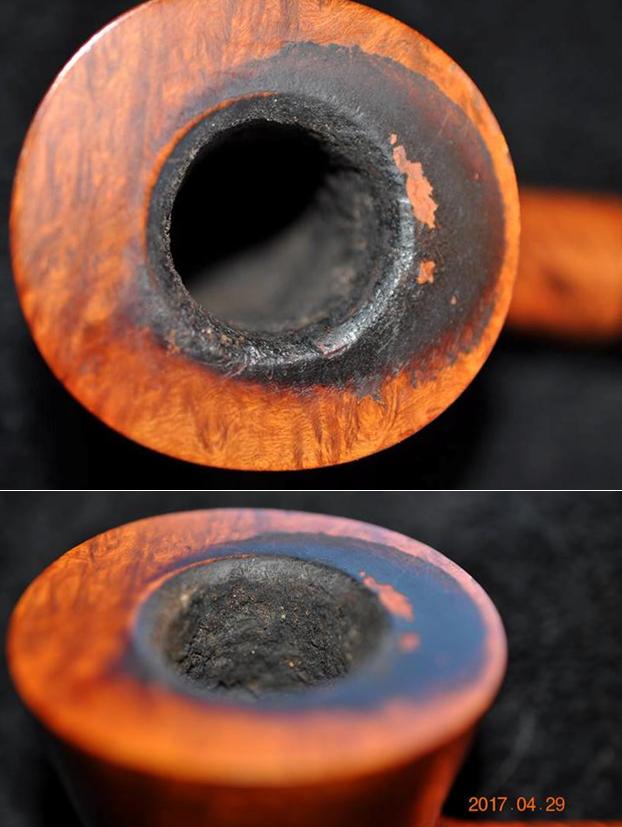

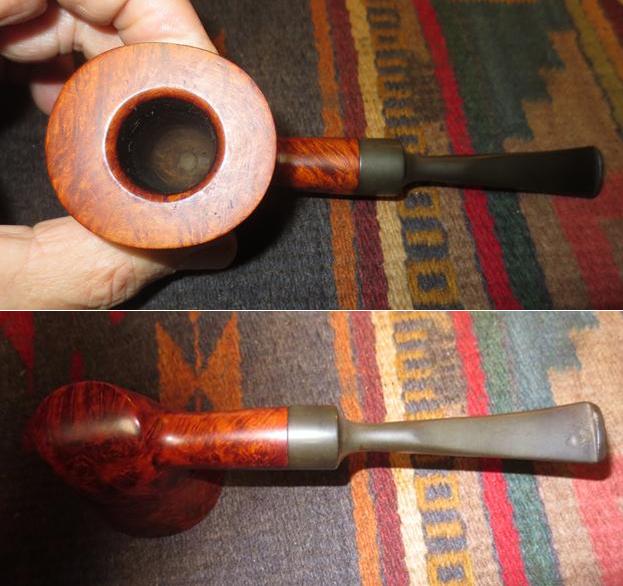

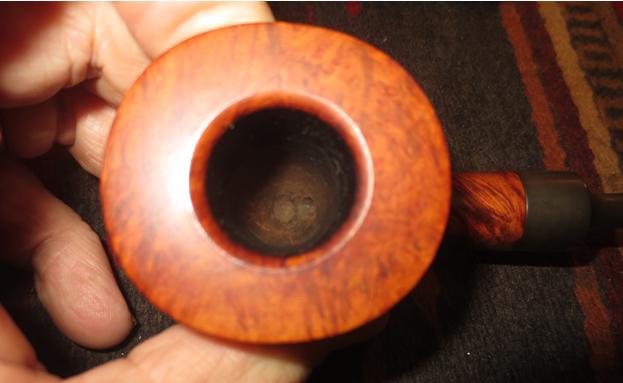

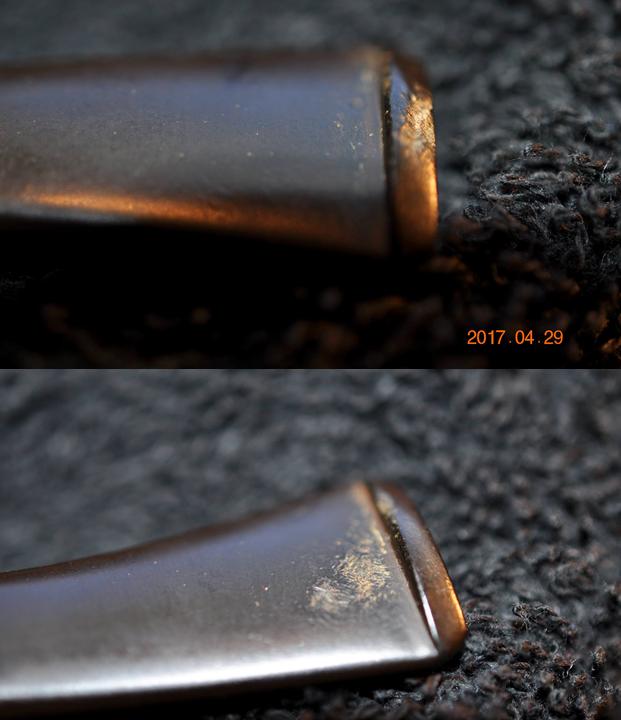

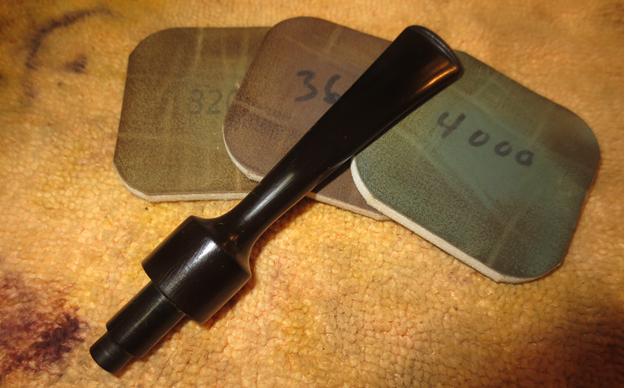

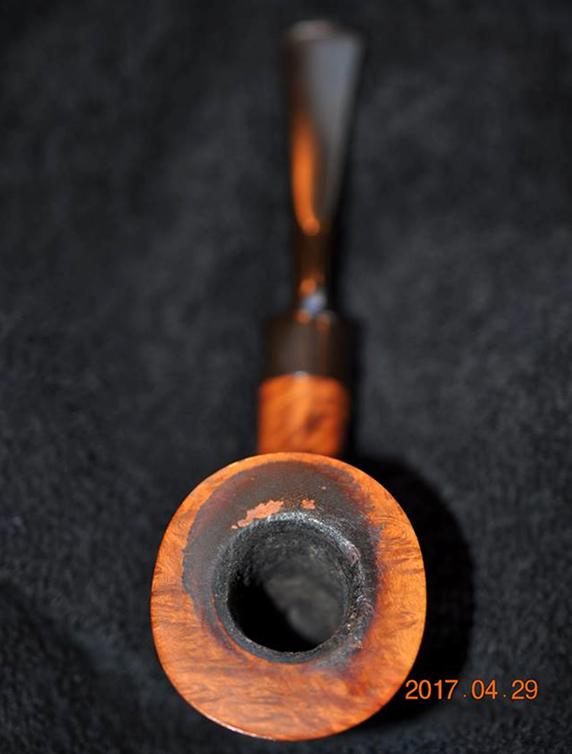

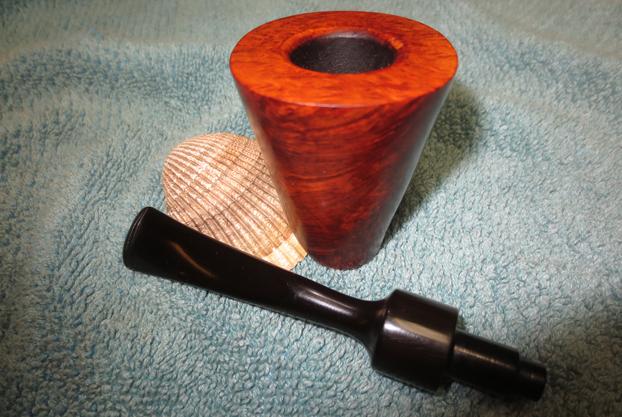

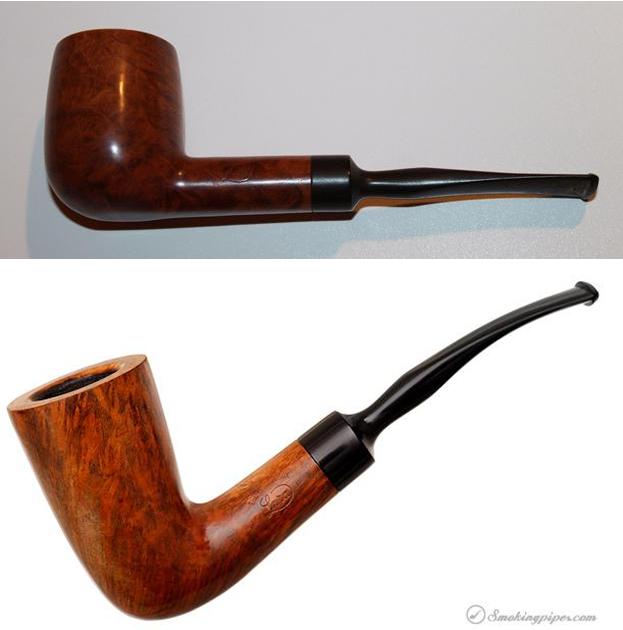

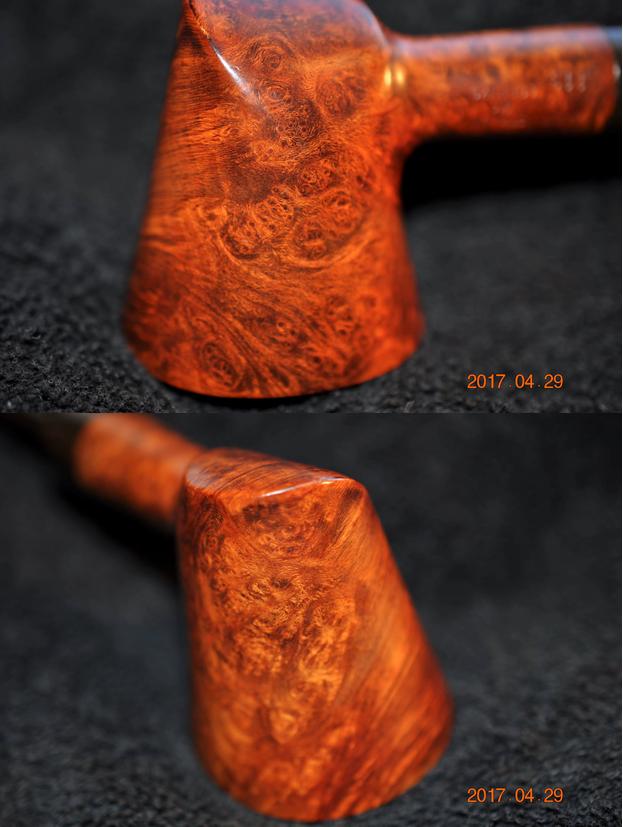

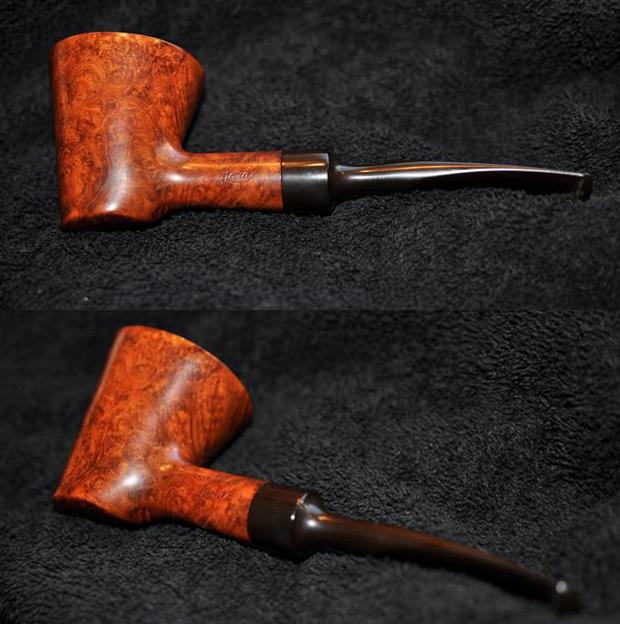

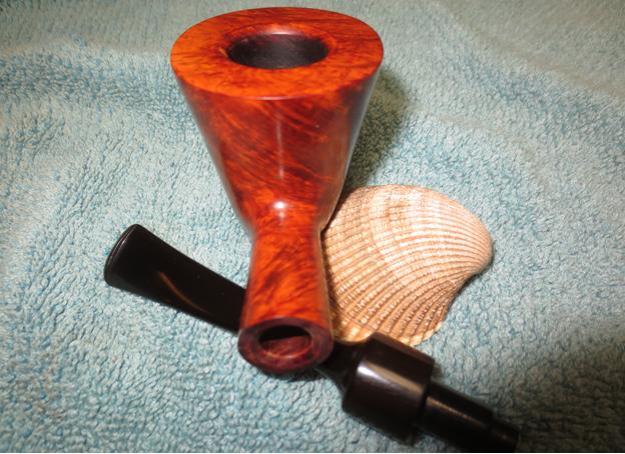

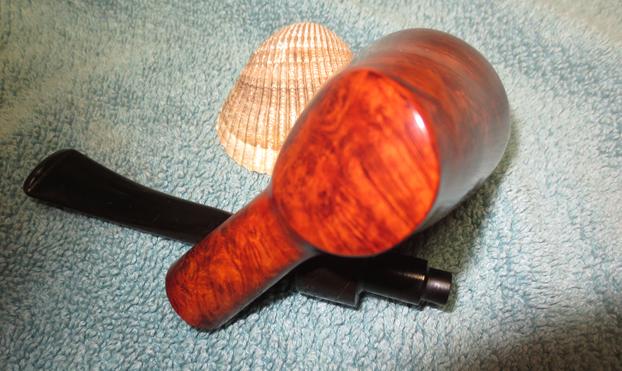

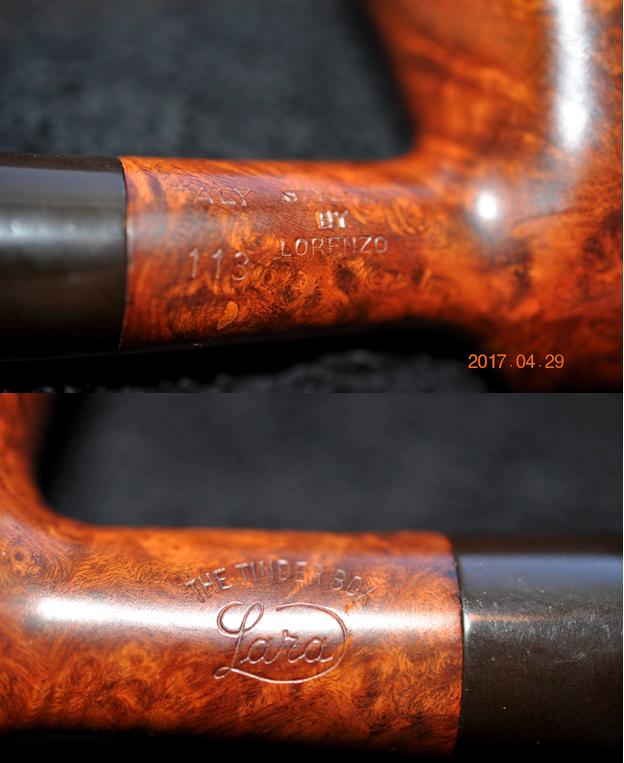

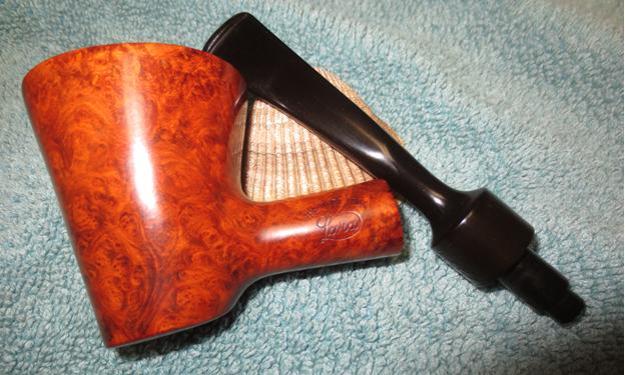

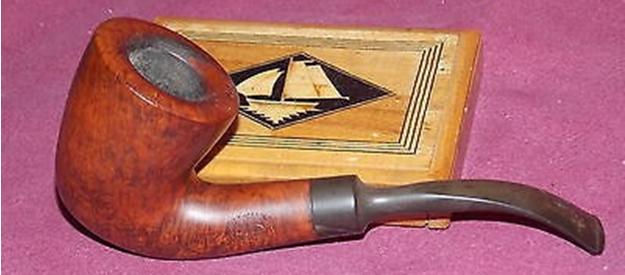

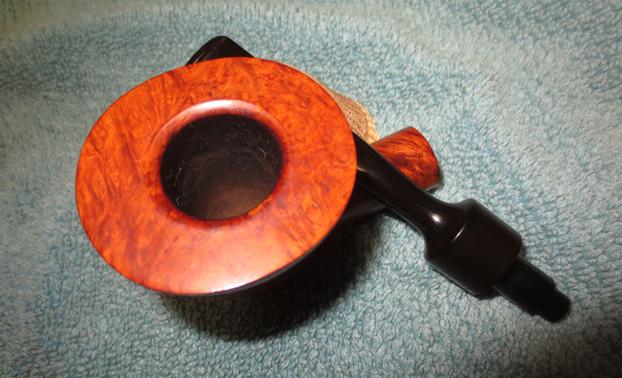

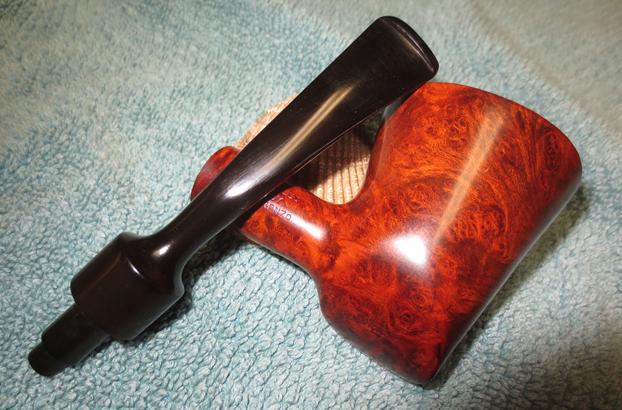

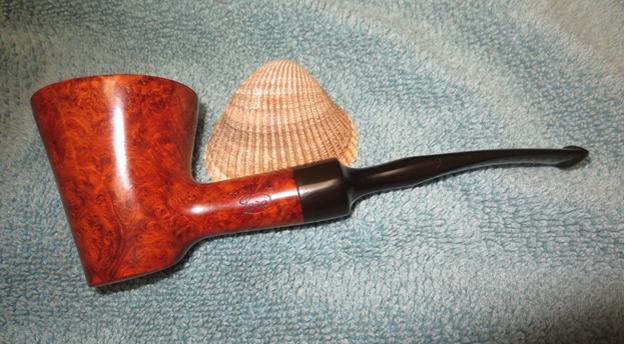

As I looked through the box of pipes that my brother had picked up from the estate sale he went to recently I was looking for the next pipe to bring to my work table. I picked through a variety of apple shapes, bent billiards, Lovats and authors but none of them grabbed my attention. I wanted to work on something a little different. I picked up this interesting take on a poker – with a little bit of a Dublin look to it. I wrote my brother a message and asked about the before pictures. He sent them and wrote back that this pipe his favourite from the lot. The pipe is stamped on the left side of the shank The Tinder Box in an arc over a script text Lara with the curl of the L underlining the entire word and swirling up along the letter a. The right side of the stem is stamped Italy over 113 (shape number) and next to that it reads Styled By Lorenzo. My brother took the following photos to show the condition of the pipe when he brought it home from the estate sale. I have worked on a lot of Lorenzo pipes over the years and have always found them to be large and bulky. None of them did anything for me so I generally passed them on as either gifts or sold them on the store. This one however looked different from the others I have seen. Tinder Box seems to have ordered a line of pipes from Lorenzo to bear their store stamp. As I looked through photos on the web I found that the Lorenzo Lara pipes made for Tinder Box all had the same unique stem shape. I saved some of the photos below to show the variety of shapes that bear this unique stem shape. Jeff also took some close up photos to show the condition of the bowl and the rim top before he cleaned them up. There was a thick cake in the bowl that had overflowed on to the top of the rim and around the beveled inner edge of the bowl.The grain on the bowl sides was beautiful – a combination of swirls and birdseye that was captivating to look at. The finish was very clean on the rest of the bowl in comparison to the rim top.The stamping on the shank side was very readable and sharp on the left side and less so on the right. The next two photos show the stamping.The stem was in decent shape but had the by now familiar tooth chatter and marks on both sides near the button and on the button edge itself. They were a little deeper on the underside than the top but still very repairable. There was also some light oxidation on the vulcanite.My brother did a thorough cleaning of the pipe inside and out. He reamed the bowl and scrubbed out the mortise and airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the rim top with Murphy’s Oil Soap and rinsed it with water. The finish really was in great shape and the soap took the rim build up off and left the pipe remarkably clean. When I received it and brought it to the worktable I took the next four photos to show what it looked like after cleaning. I took a close up photo of the rim top to show the amazing job that Jeff did in cleaning off the lava. The rim looked pristine and the inner edge bevel of the bowl was flawless. The rim top was beautiful and it had the same glossy look as the rest of the bowl.I took some photos of the stem to show the tooth marks. They came out more clearly after cleaning. The oxidation came to the surface and the tooth marks on the top and underside near the button are very visible in the photos.I sanded the stem with 220 grit sandpaper to remove the tooth marks and chatter and also to break up the oxidation on the stem surface.I sanded the stem with 320 grit sandpaper to minimize the scratches left behind by the 220 grit sandpaper. I polished the stem with micromesh sanding pads – wet sanding with 1500-2400 grit sanding pads and rubbing it down with Obsidian Oil. I dry sanded the stem with 3200-12000 grit sanding pads and giving a coat of Obsidian Oil between each pad. I gave it a final coat of oil after the 12000 grit pad. The following photos tell the story. The bowl was in such great shape that I only needed to polish it and wax it. I put the stem back in place on the pipe and buffed it with Blue Diamond on the buffing wheel. I find that Blue Diamond does a great job in polishing out the minute scratches in vulcanite and briar. I gave the pipe multiple coats of carnauba wax to protect it and buffed it with a clean buffing pad to raise the shine. A lot of people leave out this buff. To me it is critical to get a good shine on the pipe to use a clean pad. I hand buffed it with a microfibre cloth to deepen the shine. The finished pipe is shown in the photos that follow. The shape and the grain on the bowl make it a unique and attractive pipe. The dimensions of the pipe are Length: 6 inches, Height: 2 inches, Outer bowl diameter: 1 ¾ inches, Chamber diameter: ¾ inches. This pipe is available if you hear it calling your name. I will be posting it on the rebornpipes store shortly. You can email me at slaug@uniserve.com or send me a private message on Facebook if you want to add it to your rack. Thanks for looking.

Breathing New Life into an Iwan Ries Jacques 169 Apple

Leave a reply

Blog by Steve Laug

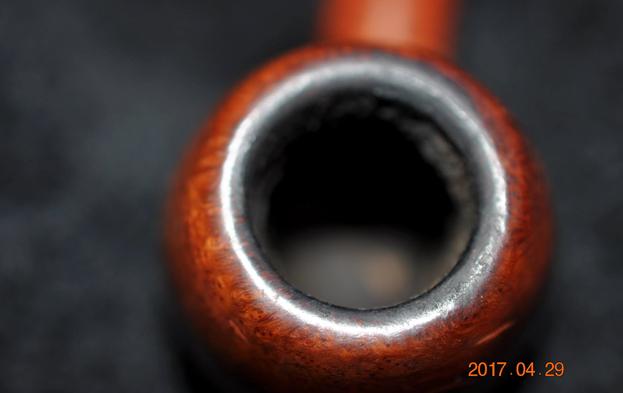

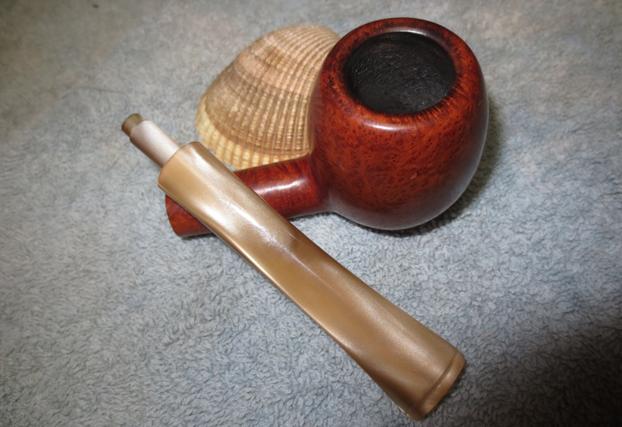

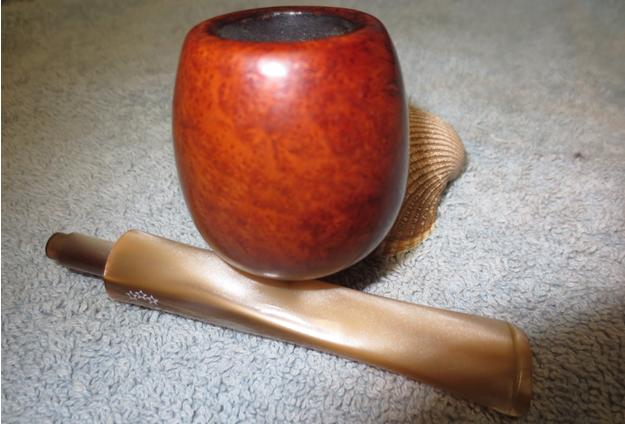

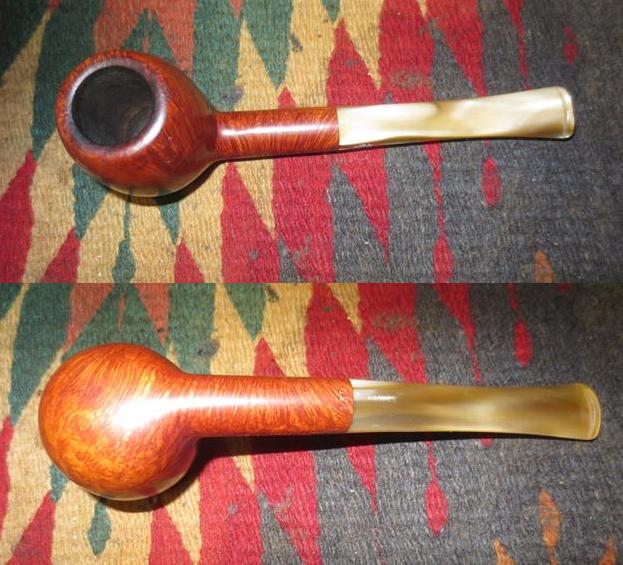

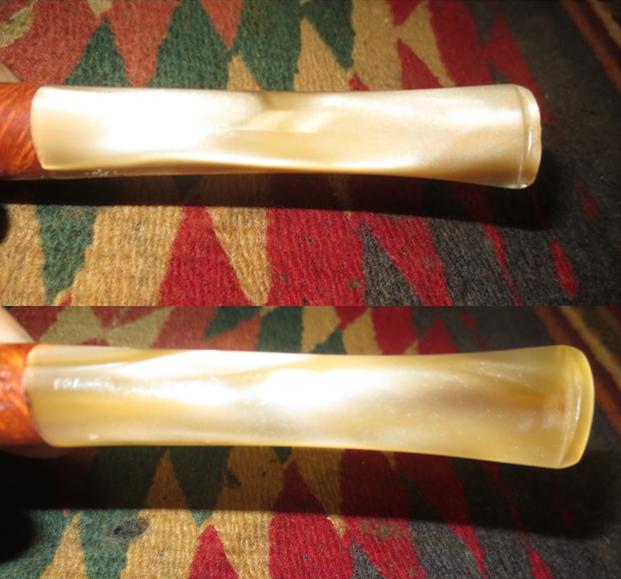

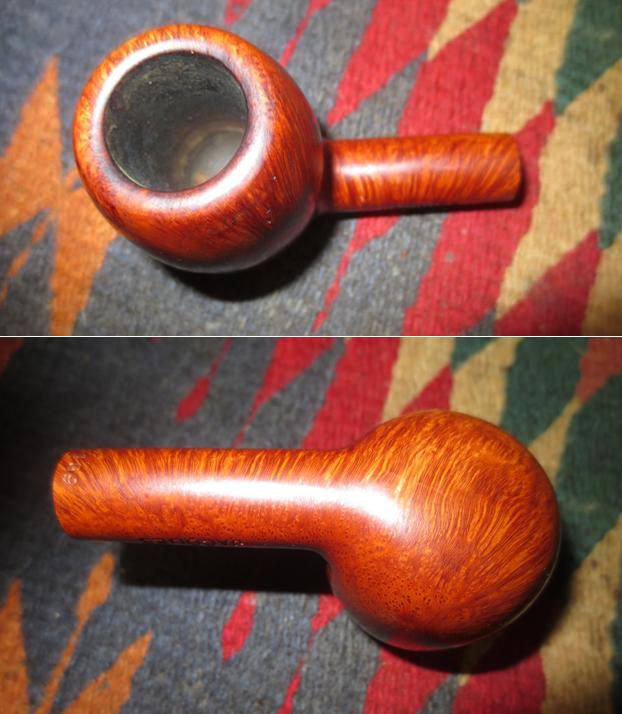

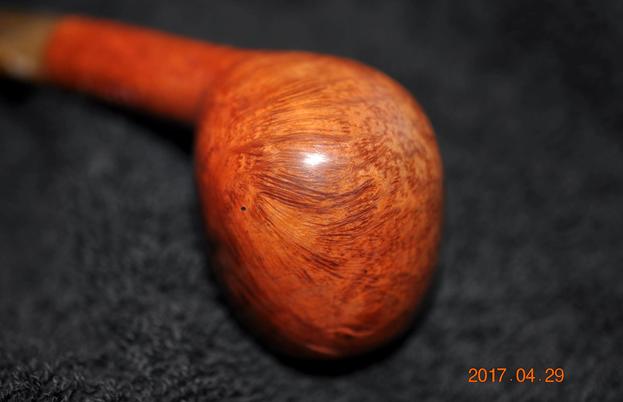

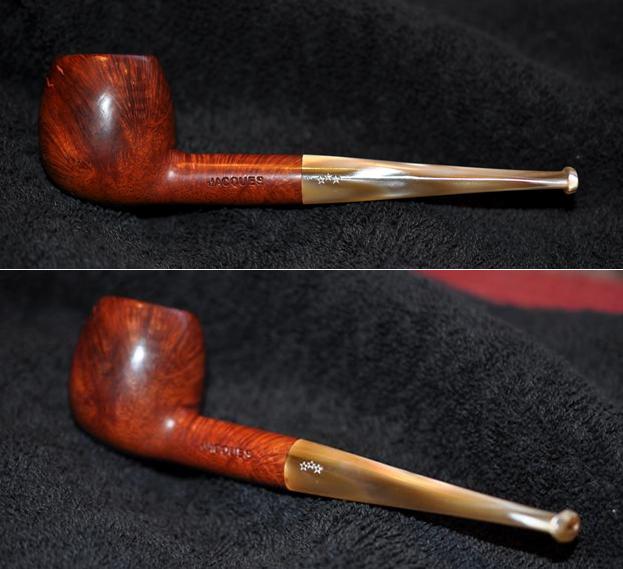

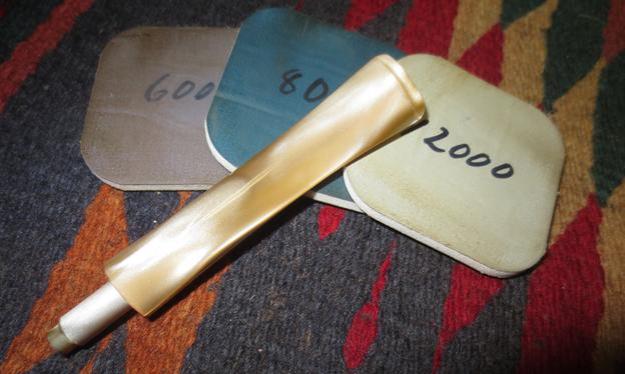

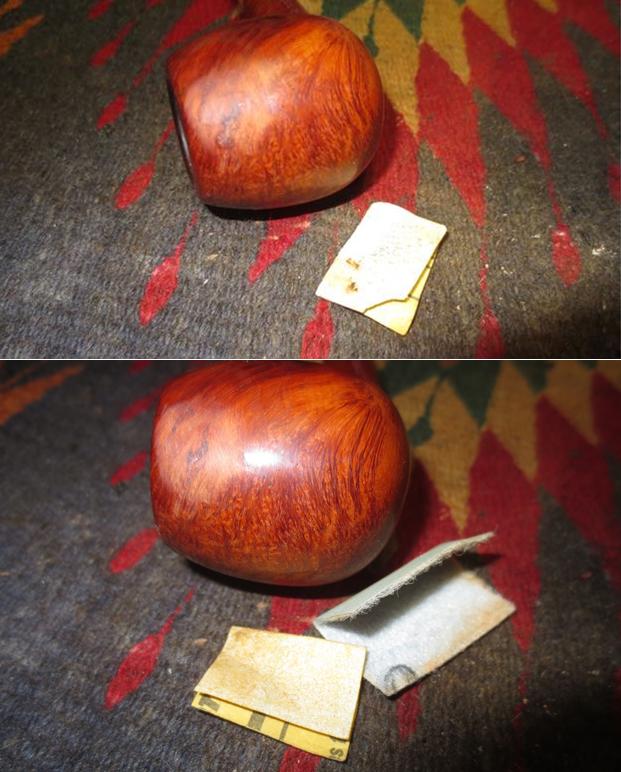

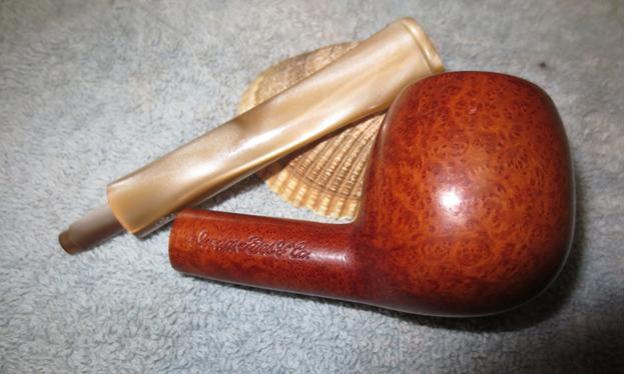

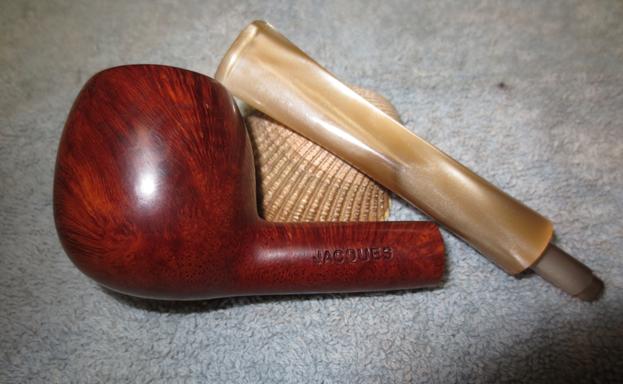

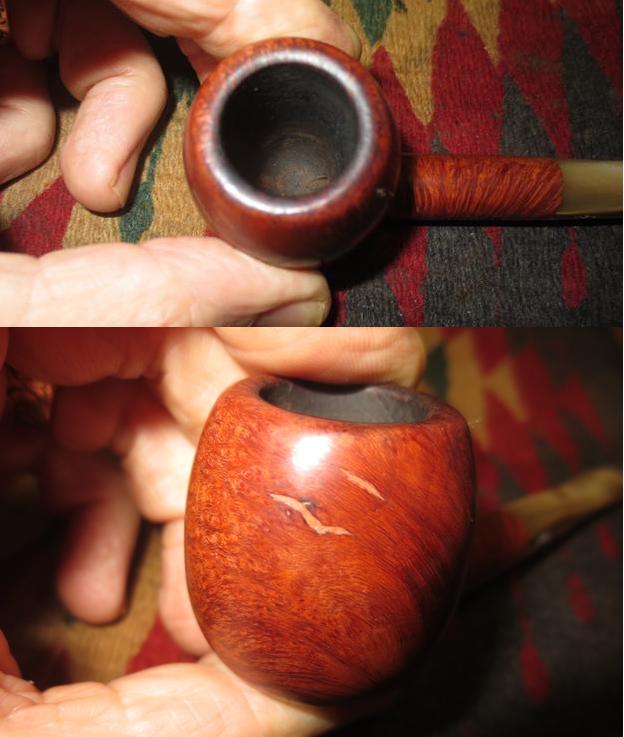

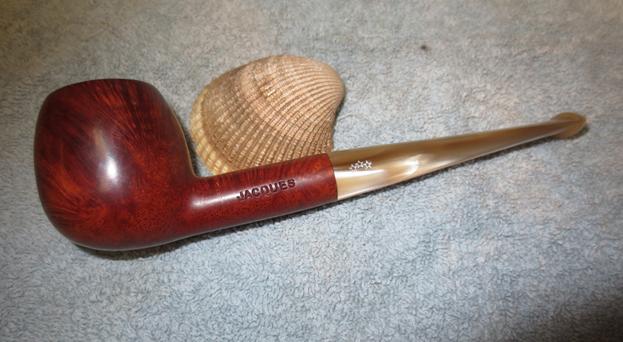

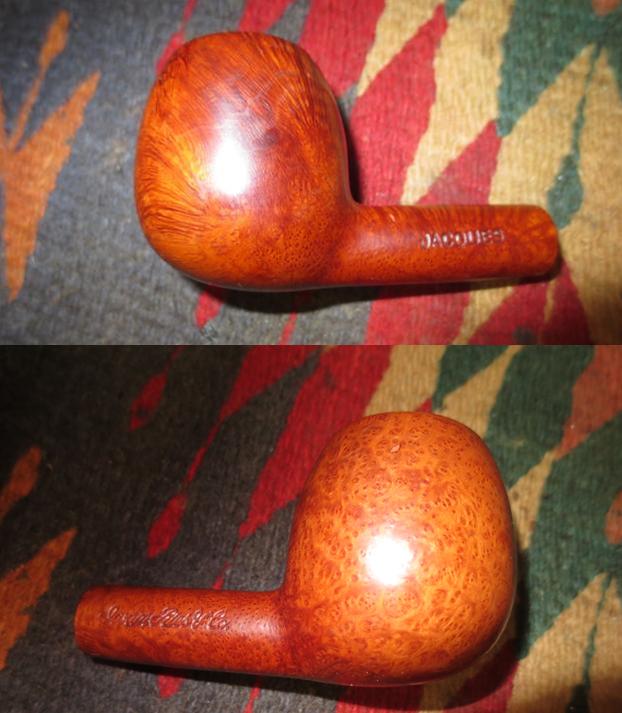

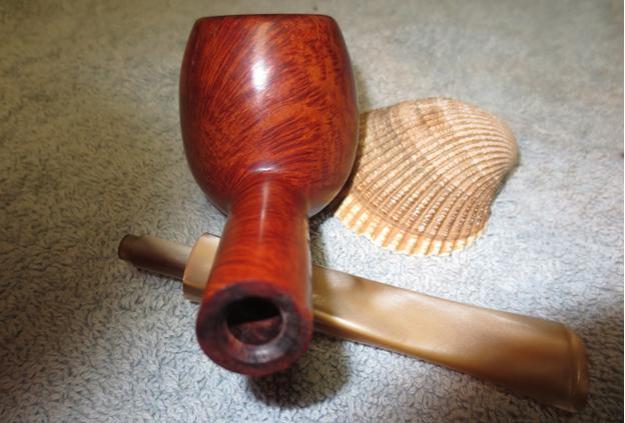

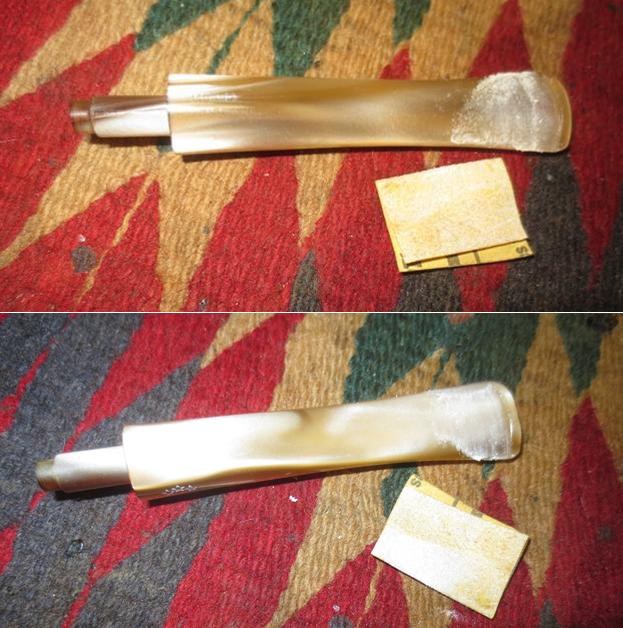

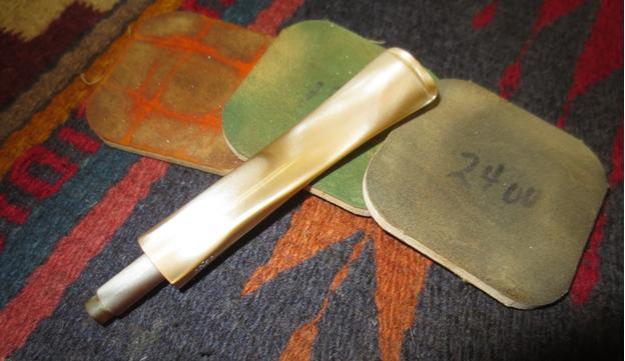

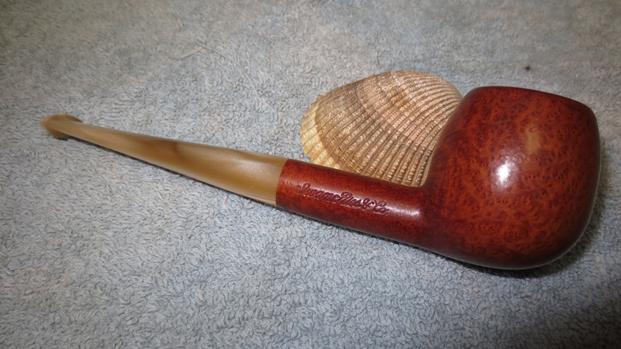

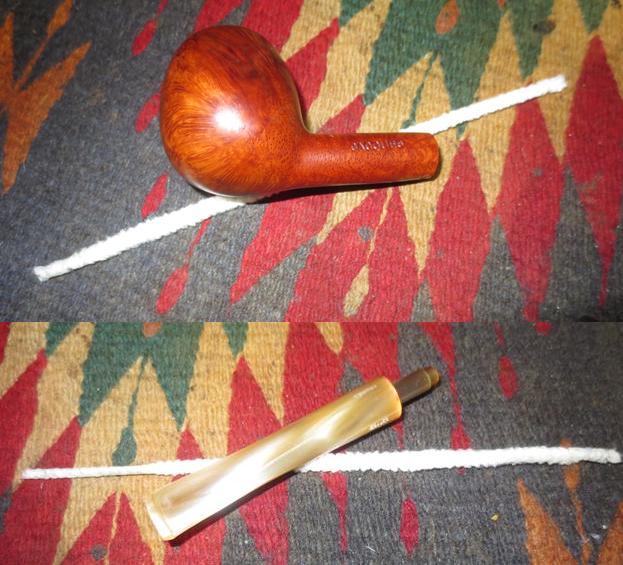

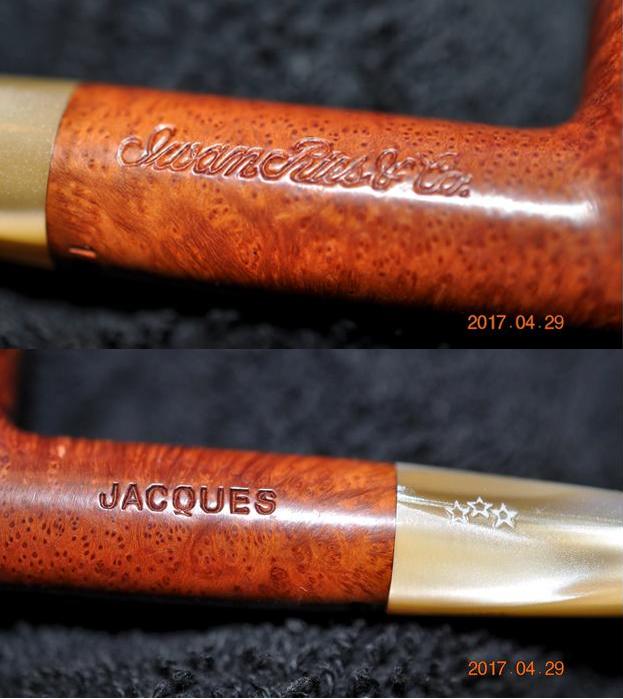

The next pipe on the table from the estate sale to be refurbished is a small apple that is stamped JACQUES on the left side of the shank and Iwan Ries & Co on the right side. It is also stamped 169 (Shape Number) on the underside of the shank at the stem/shank junction. The piece of briar is really a beauty with a mix of grains. The right side of the bowl has some beautiful birdseye grain that just pops. The combination of the yellow, cream coloured Lucite stem with the medium brown stain on the bowl works well and brings out the reds in the briar. Jeff took some photos of the pipe when he brought it home and before he worked his magic cleaning it up. He took some photos of the pipe to show the condition. The first of these shows the cake in the bowl and the lava overflow on the rim top. The rounded rim top looked like it was also darkened but I would know for sure once he had cleaned the top of the bowl.The next three photos show the stamping on the bowl. It is sharp and readable. There are also three stars on the left side of the taper stem as well. On the underside of the stem it is also stamped France. I am not sure if that is in reference to the entire pipe or just the stem being made in France. The next series of close up photos of the bowl show the overall condition of the pipe. The first photo shows the damaged fills on the left front of the bowl. These will need to be picked out and repaired to take care of the crumbling putty. The following photos show the now familiar tooth marks on the top and underside of the stem near the button. Unfortunately they are a bit hard to see as the colour of the Lucite obscures them. The top has tooth chatter and the underside has both chatter and a few deeper tooth marks.My brother worked his cleanup magic on the pipe and when it came to me the bowl had been reamed and cleaned. The airway in the shank and stem had been scrubbed with alcohol and pipe cleaners and the mortise cleaned with cotton swabs and alcohol. The pipe was in pristine condition internally. All I had to do was rework the fills and sand out the tooth marks on the stem. The next four photos show the pipe upon arrival in Vancouver. Jeff had been able to remove the cake in the bowl and all of the lava from the rim top. There was indeed some rim darkening that would need to be taken care of but it was very clean.  The second photo shows the ugly, damaged fills on the left front of the bowl.The stem looked really good and the tooth marks and chatter are even harder to see than in the previous photos but they are there.I picked out the damaged putty fills with a dental pick until they were clean. I wiped down the area with an alcohol dampened cloth to remove any remaining debris. I filled the areas with briar dust and clear super glue. It dries dark but that will work in these fills that follow the grain pattern of the bowl.Once the patch had dried I sanded it with 220 grit sandpaper to remove the excess fill and then with 320 sandpaper to smooth that out a bit. I polished the repair with micromesh sanding pads – 1500-12000 grit sanding pads to smooth out all the scratches. I touched up the repaired area with a dark brown stain pen. The colour of the stain matched the bowl perfectly and the fills blended in better than they were before.I hand buffed the bowl with a microfibre cloth to have a look at the rest of it and get a feel for the finished look. I ran a pipe cleaner through the mortise and the airway in the shank and the stem to check for any debris that might have collected from my sanding. They were still very clean.Now it was time to take care of the tooth marks on the stem. I sanded them out with 220 grit sandpaper and smooth that out with 320 grit paper. I polished the stem with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped the stem down between each pad with a water dampened cotton pad to remove the sanding debris. I put the stem back on the pipe and buffed it with Blue Diamond on the buffing wheel. I am skittish about buffing Lucite as it can heat up quickly and then make a mess of the work that has been done. I used a gentle touch to buff the stem and powered through buffing the bowl and shank. I took care not to damage the stamping on the shank. I gave the bowl and stem multiple coats of carnauba wax and buffed it with a clean buffing pad to raise a shine. I hand buffed it with a microfibre cloth to deepen the shine. The dimensions are Length: 5 ¾ inches, Height: 1 5/8 inches, Outer diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ inches. The finished pipe is shown in the photos below. It turned out to be a beautiful pipe and the repaired fills look better than when it left the factory. This one is available if you want to add it to your rack. Email me at slaug@uniserve.com or send a private message via Facebook if you are interested. Thanks for looking.

Seven “Collectible Tobacco Tins” from the Recent Estate Sale

2 Replies

Blog by Steve Laug

At the recent estate sale that my brother visited, along with the batch of pipes that he purchased he also picked up 7 unopened 100 gram tins of tobacco with some age on them. They are all English/Oriental blends. Six of them are McClellands Tobacco Company blends that I have found are always better with a bit of age on them. On eBay and other venues these unopened tins are marked as collectible tins. The age on these tins lend them to being quite “collectible” to any pipeman.

My brother and I are willing to sell one or all of them to anyone who resides in the US. I apologize that they are not available outside of the US at this point. My brother has them and lives in the US so he will mail them.

The first of these is a 100 gram unopened tin of Frog Morton on the Town, blended by McClellands Tobacco Co. It is marketed as an elegant Oriental blend, fragrant with Basma and smooth and rich with Latakia. The stamping on the bottom of the tin dates to 2008. I am asking $20 for this tin. The second unopened tin is from Iwan Ries. It is their 140th Anniversary Gourmet English Blend. I am not sure who tinned it. This blend commemorates the anniversary of the Iwan Ries Tobaaconist shop in Chicago. The shop opened in 1857 and 140 years later would have been 1997. This is a well-balanced blend of naturally aromatic Turkish tobaccos, smoked Latakia and mellow aged Virginia rich in flavor, rich and cool-burning. The date stamp on the tin appears to be from 2000. I am asking $20 for this tin. The third unopened tin is McClelland’s Personal Reserve Blend, British Woods. It is billed as a Medium-Full Mixture. It is a distinguished Oriental mixture, slow burning and cool smoking. Heavy with fragrant Latakia, spiced with Macedonian leaf, lightly softened with Matured Virginia. The stamping on the bottom of the tin dates it to 2014. I am asking $20 for this tin. The fourth unopened tin is another McClelland’s Personal Reserve Blend, British Woods. It is billed as a Medium-Full Mixture. It is a distinguished Oriental mixture, slow burning and cool smoking. Heavy with fragrant Latakia, spiced with Macedonian leaf, lightly softened with Matured Virginia. The stamping on the bottom of the tin dates it to 2014. I am asking $20 for this tin. The fifth is another unopened tin of McClelland’s Personal Reserve Blend, British Woods. It is billed as a Medium-Full Mixture. It is a distinguished Oriental mixture, slow burning and cool smoking. Heavy with fragrant Latakia, spiced with Macedonian leaf, lightly softened with Matured Virginia. The stamping on the bottom of the tin dates it to 2014. I am asking $20 for this tin. The sixth unopened tin is a fourth tin of McClelland’s Personal Reserve Blend, British Woods. It is billed as a Medium-Full Mixture. It is a distinguished Oriental mixture, slow burning and cool smoking. Heavy with fragrant Latakia, spiced with Macedonian leaf, lightly softened with Matured Virginia. The stamping on the bottom of the tin dates it to 2011. I am asking $20 for this tin. The seventh unopened tin is McClelland’s Personal Reserve Blend, Bombay Extra. It is a full mixture – a rich, full Oriental Mixture, perfect after dinner. We begin with Bombay Court and enrich it with mellow, Red Virginias, a touch of Perique and Latakia. A satisfying, naturally fragrant evening smoke. The stamping on the bottom of the tin dates it from 2009. I am asking $20 for this tin.

Contact me through my email slaug@uniserve.com or through a private message on Facebook. Thanks for looking.
