Cleaning up a Beautiful Il Ceppo Lumberman


Blog by Steve Laug

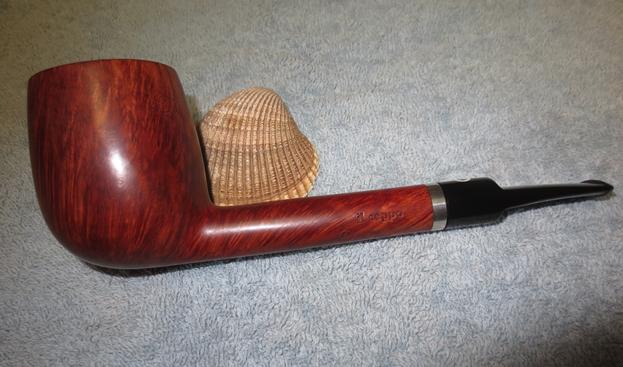

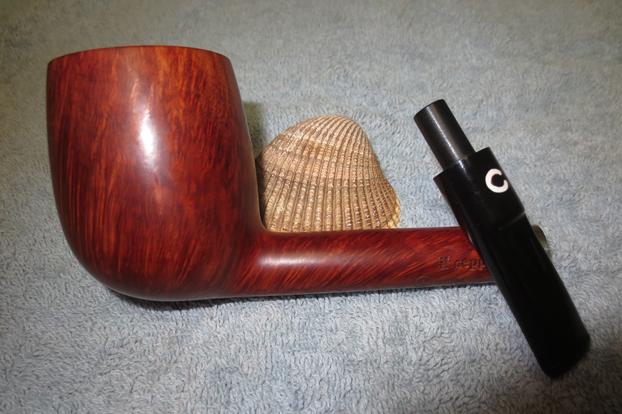

The next pipe on the worktable from the lot that my brother picked up at an estate sale recently is a beautifully grained Il Ceppo Lumberman. It is a large pipe, which is well laid out with the grain of the briar. The look of the briar and the stem contrast beautifully and accent the beauty of the pipe. The shape is part of the Canadian shape family. It is similar to the smaller Lovat (saddle stem) and Liverpool (taper stem) in that it has a round shank unlike the oval shank of a Canadian.I am pretty much a novice when it comes to the world of mid to high end Italian pipes. I have a few a couple of nice Castellos and a Le Nuvole but other than that, I know next to nothing about Italian pipes. It is fascinating that in this batch of estates most of them are Italian made and toward the mid to high end range. Over the past years of pipe repair and restoration I have read of the Il Ceppo brand but this is the first one that I have seen up close. I did some research on the brand on the internet so that I could learn a bit of the history and possibly identify the maker of this particular pipe. I found quite a bit of information. I have digested it below for quick reference.

I found that RD Field give a great summary of the history of the brand. You can read it at the following link: http://www.rdfield.com/Il%20Ceppo/il_ceppo.htm or you can read the part that I have included here. The IL CEPPO brand has been in production since the late 1970’s but, in spite of its overall good value, is not well known in all parts of the United States. Partly this is because of a limited supply of pipes and partly because the brand has not been put in front of the pipe smoking public through a national venue.

The Il Ceppo brand is made in Pesaro, Italy and is part of the famous Pesaro school of design that has also produced Mastro de Paja and Ser Jacopo. That all three brands have similar characteristics can be seen at a glance, but they all have significant differences as well.

Giorgio Imperatori, an architect, had a passion for pipes and in 1978 begun to design and make IL CEPPO. Always considered a good value and very good for smoking the brand did not make folks stop and take notice until 1995 when Franco Rossi joined the firm. He brought with him a true elegance of design and a unique flair that now helps IL CEPPO stand apart. Giorgio has retired to his farmhouse and the pipes are now all made by Franco and his sister Nadia.

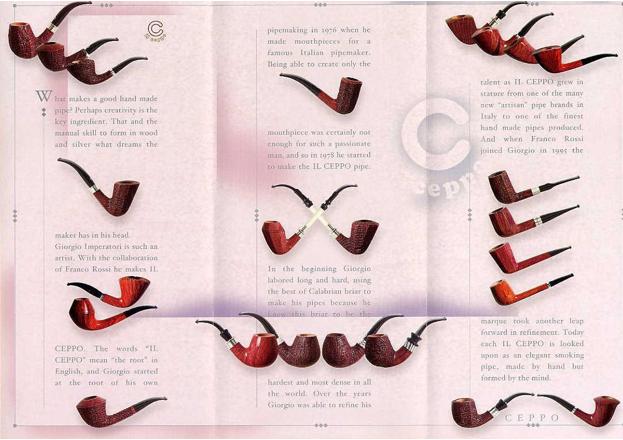

I found this Il Ceppo Leaflet online as well and have included it here for reference. Be sure to click on it and read it. There is some great information included.I looked on Marty Pulvers site http://sherlocks-haven.com/italian.html and found some more brief and interesting information. I quote here: They consistently have some of the finest grained sandblasts in the field. They use top notch, well aged briar and are made and overseen by just one artisan, Franco Rossi. The problem? Possibly the name, which may suggest “cheap” to some (it simply refers to the briar burl from which pipes are made) or the unfortunately large, and to some reversed “C” logo on the stem. (Marty has a sandblast pipe on his site for sale for $275.)

I read in Jose Manuel Lopes, “Pipes, Artisans and Trademarks” brief article on the brand that Mario Lubinski formed the company in 1978. Franco Rossi arrived in 1995 and the name was changed to Il Ceppo (the root). Grading: “9” (rustic), “1” (sandblast), “2” (semi rustic) “3” (semi sandblast) “4” to “7” (smooth), with Fiammata being the top of the range. There I learned a couple of interesting facts that help me place this pipe. It came after the name change in 1995 and that the pipe was made by Franco Rossi. I also learned a bit about the grading system of the pipes.

Further searching found a great digest of the Grading System. I found it on the PipePhil website: http://www.pipephil.eu/logos/en/logo-i.html. I have included the summary of the grading of the pipes during the two periods of Il Ceppo pipe history. I also found a retail price list from March 2008 that I have included to give an idea of the range of prices for the various grades of pipes in the Il Ceppo line.

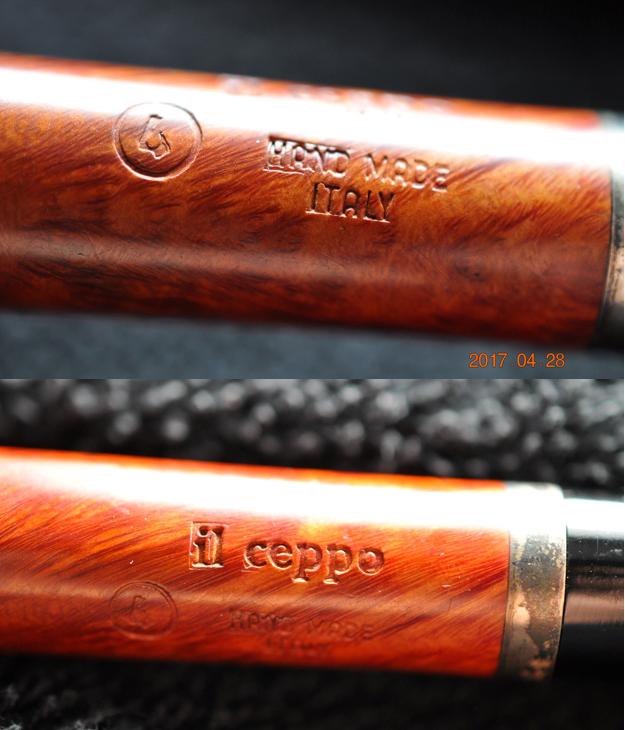

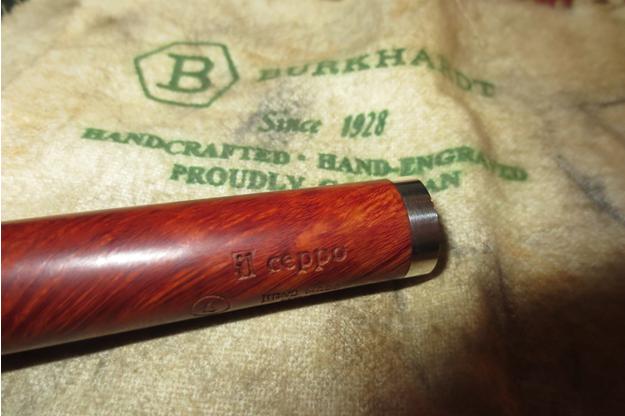

The pipe is excellent condition with a very well done finish on the bowl. The Lucite stem has a lot of tooth chatter and tooth marks on both sides of the stem near the button. The stamping on the left side of the shank reads Il Ceppo with the number 4 in a circle. Next to that, it reads Hand Made over Italy.

From the first chart to the left, I could determine both the period and the Grade of the pipe I had. It was from the second period (1995-Present) and it was a Grade 4 smooth. From the second chart I had a pretty good idea that the pipe sold for $430 US in 2008.

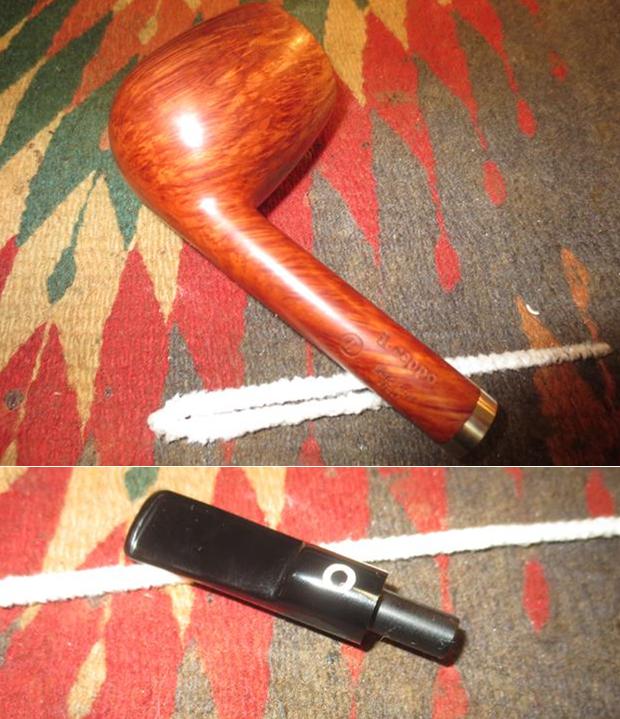

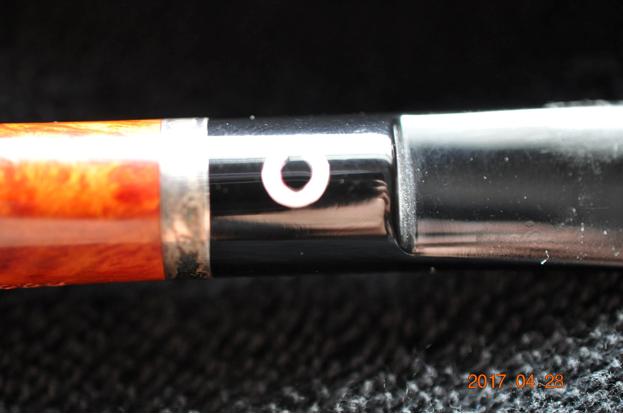

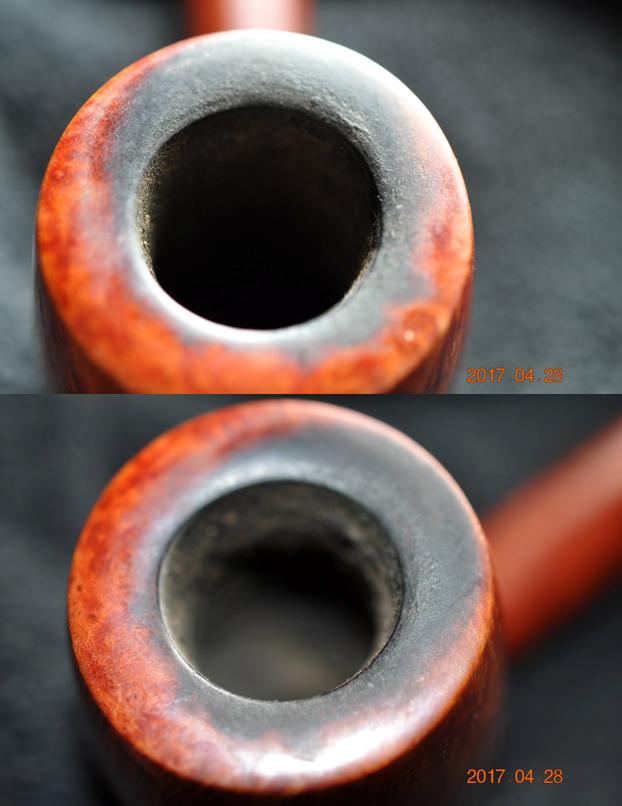

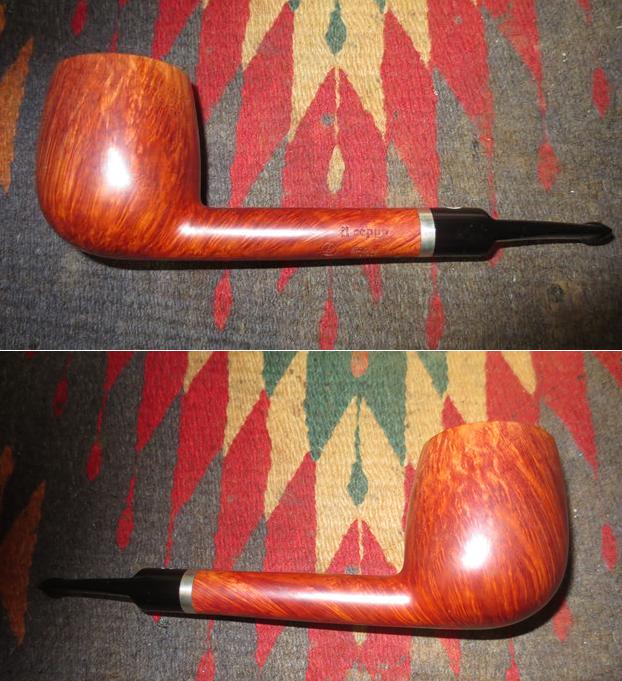

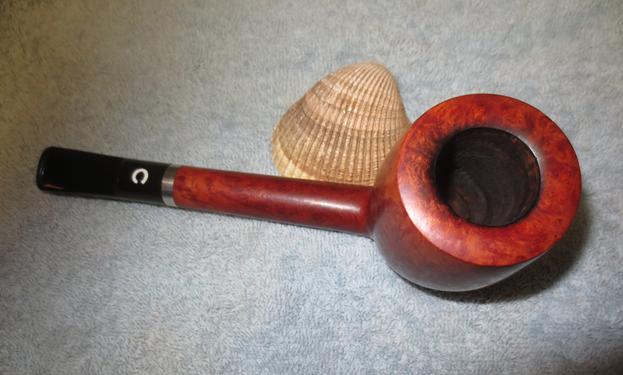

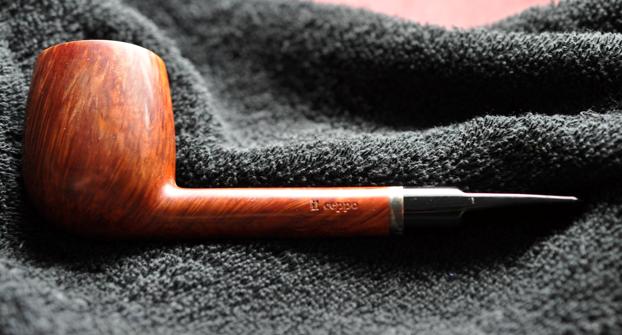

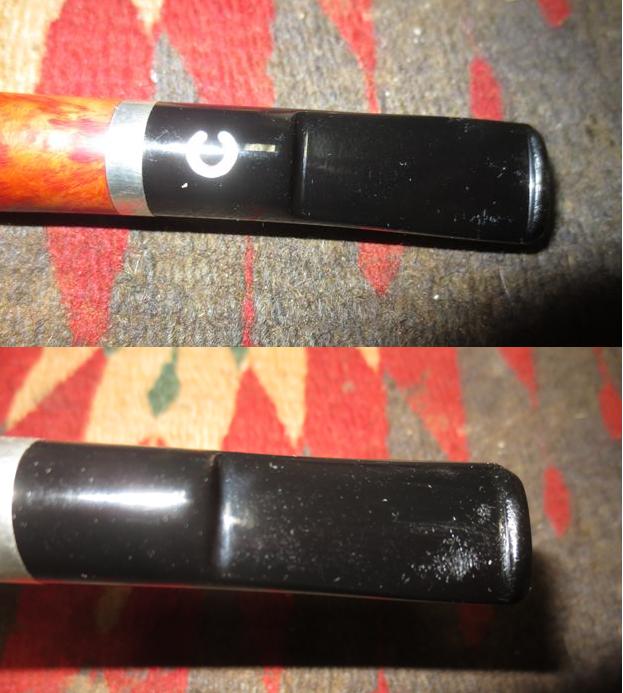

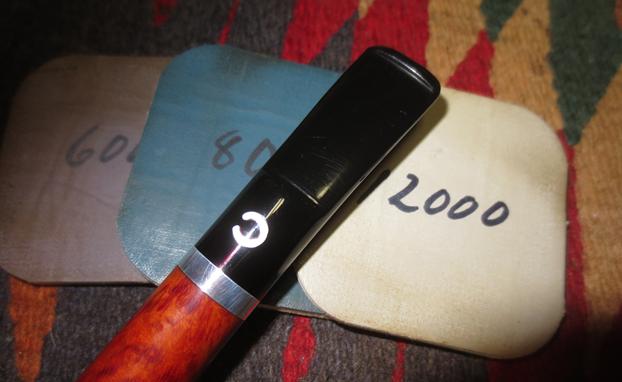

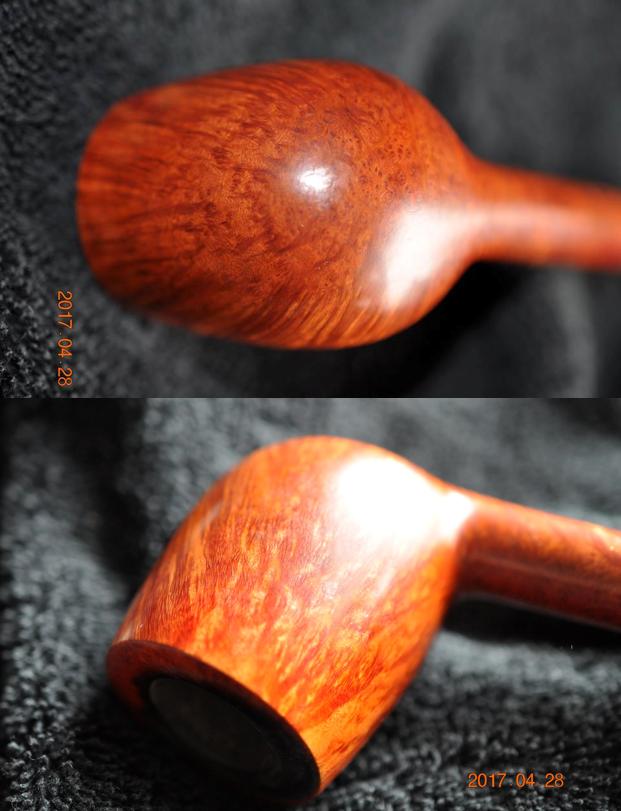

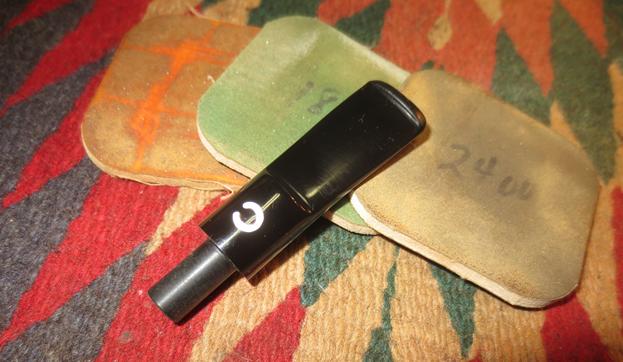

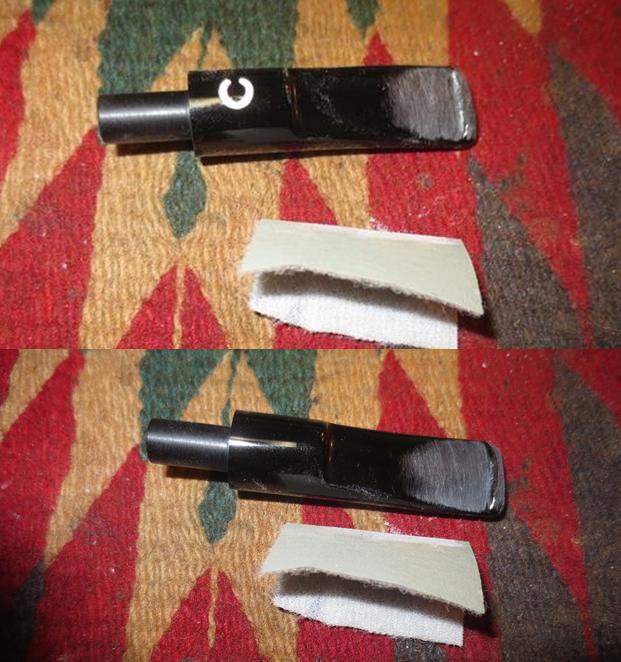

My brother took the first photo above and the following photos to show the condition of the pipe before he cleaned it up to send to me. It really is a beautiful pipe underneath the grime and dirt. The next two photos show the rim top and the cake in the bowl from two different angles. There was a fairly thick cake in the bowl and the lava flowed over the rim top. It was thicker toward the back of the bowl but did go all the way around the bowl. It would need to be cleaned up before I would know if there was any damage to the inner edge of the rim.The next two photos show the grain on the bowl sides and bottom. It is a very pretty piece of briar and the pipe is laid out to maximize the grain.The shank is stamped on the left side with il ceppo and underneath that it read Hand Made over Italy. There was a stylized 4 in a circle to the left of the stamping. The thin silver band is oxidized.The saddle portion of the Lucite stem had a large white C on the top side. It was in really good shape and showed no wear or tear.The next two photos show the tooth marks and chatter on the topside and underside of the stem. The first photo shows the top. Notice the chatter on the top of the button as well as the stem just in front of the button. The second photo shows the underside and the chatter and tooth marks at that point.I took the next four photos of the pipe when I brought it to my worktable. My brother had done a great job reaming and cleaning the interior and the exterior of the pipe. It was pretty spotless by the time I worked on it. The photo below of the rim top shows the cleaned top with a bit of darkening toward the back of the bowl.My brother’s cleaning job highlighted the tooth chatter and marks on both sides of the stem.I sanded out the tooth chatter and marks with 320 grit sandpaper to remove all of the marks. It did not take too much to remove the marks because they were not very deep in the surface of the Lucite.I polished the stem with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped down the stem with a damp cotton pad after sanding with each grit of micromesh. The process is shown in the photos below. I gently cleaned up the remaining cake in the bowl with a Savinelli Fitsall Pipe Knife. I wanted to clean up the little bits of remaining cake on the bowl walls.I polished the silver band with a jeweler’s cloth to polish off the tarnish.I ran a pipe cleaner through the mortise in the bowl and the airway in both the stem and shank. It was very clean so it did not take too much.I buffed the stem and bowl with Blue Diamond on the buffing wheel to remove the last of the light scratches that were still in the briar and the Lucite. I gave them both several coats of carnauba wax and buffed it with a clean buffing pad to raise a shine. I hand buffed it with a microfiber cloth to deepen the shine. The finished pipe is shown in the photos below. It is a beautiful piece of briar with a bowl that flows with the grain. The dimensions of the pipe are Length: 6 inches, Height: 2 inches, Outer diameter of the bowl: 1 ½ inches, Inner chamber diameter: ¾ inches. This pipe will make a great addition to someone’s pipe rack. It is available on the rebornpipes store. Email me at slaug@uniserve.com or send me a private message on FaceBook. Thanks for looking.









Repairing a Cracked Horn Shank Extension on a Stanwell Buffalo


Good tutorial on repairing a split horn stem and a good recovery after the unexpected issue. Thanks Charles

DadsPipes

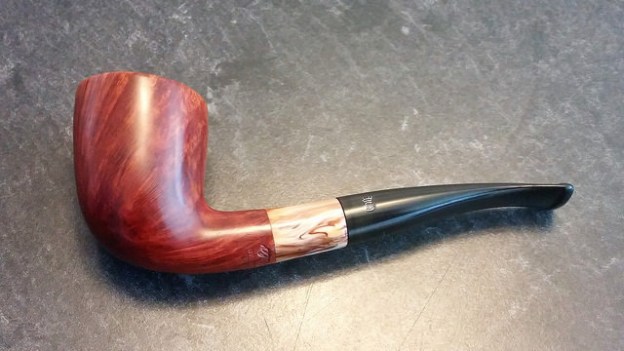

Needing a break from all the Brigham and Blatter pipes I’ve worked on lately, I dug down through my box of estate pipes and came up with this Stanwell Buffalo. It is a Shape # 140, which Bas Steven’s list of Stanwell shapes identifies as a “Small freehand, slightly bent, full mouthpiece by Jess Chonowitsch”. I’m not very familiar with Chonowitsch’s designs, but I quite like this Dublin-esque freehand.

Out of the refurb box, the pipe looked to be in very good condition. It had obviously been smoked, as the rim was partially obscured by a thin crust of lava, and the mouthpiece showed some light tooth chatter. There was a decent amount of cake in the bowl, and a few dents and dings around the outside edge of the crowned rim.

20170414_11274620170414_112750
20170414_11275520170414_112802
20170414_11280920170414_112943
20170414_112947

The pipe is stamped “Stanwell” over “Made in Denmark” over “Buffalo” on the underside of the shank near…

View original post 828 more words

Breathing Life into an Antique Imported Briar Bull Moose


Blog by Steve Laug

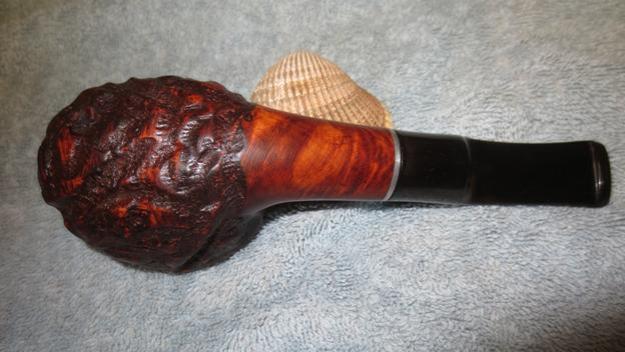

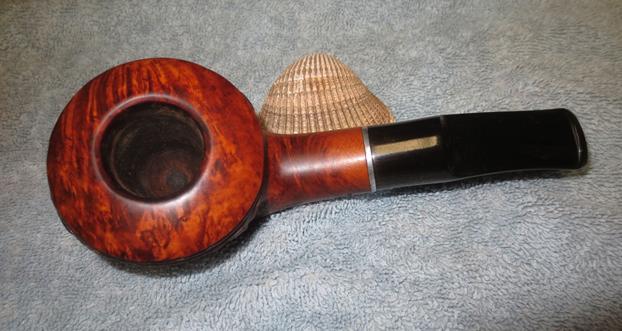

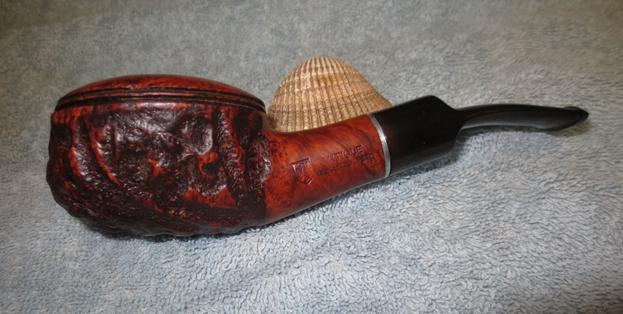

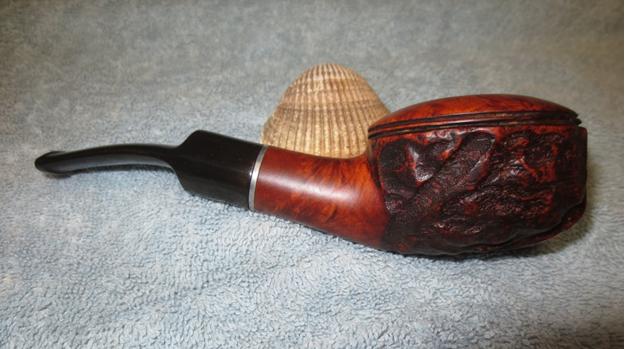

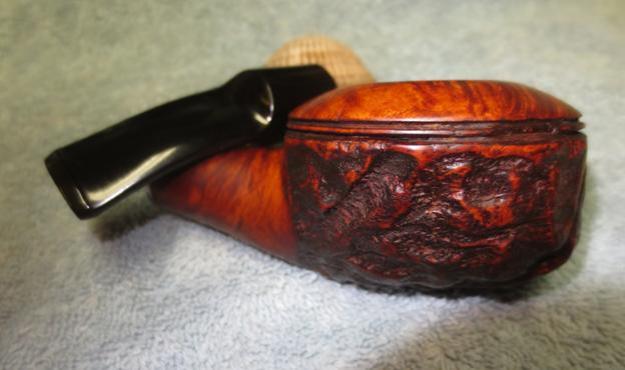

There is something about these older Mincer style pipes that grabs my attention. I am drawn to their rustic appearance and feel in the hand. This one was a Bullmoose shape – though the “nose” on it is much more conservative than many of these that I have seen. The stamping on the left side of the shank is a standing lion inside of a shield and next to that ANTIQUE over Imported Briar. I have searched on the web and in my books for this logo and cannot find it but I did find a listing for the ANTIQUE in Who Made That Pipe for a company called Heritage Pipes Inc. NYC. The company is to be distinguished from the Heritage line made by Kaywoodie as a high end alternative to Dunhill pipes. I have looked for information on the company online but so far have not found any. Anyone have any information on the brand?

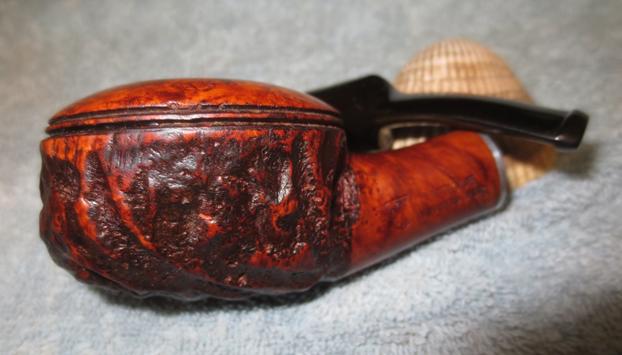

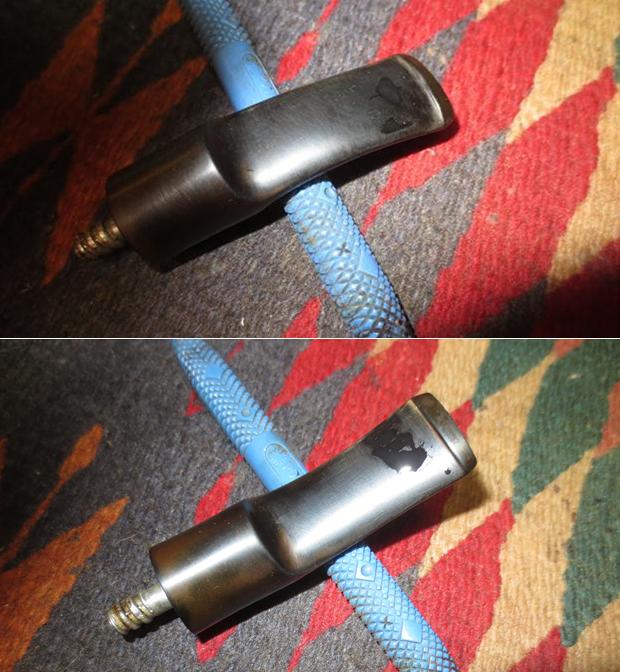

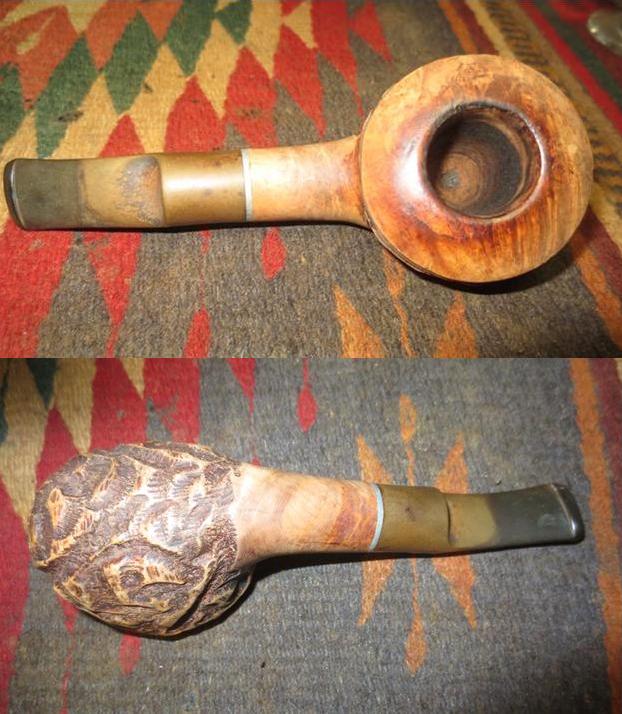

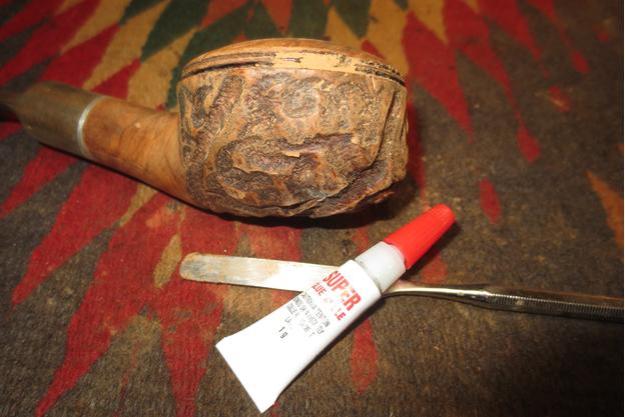

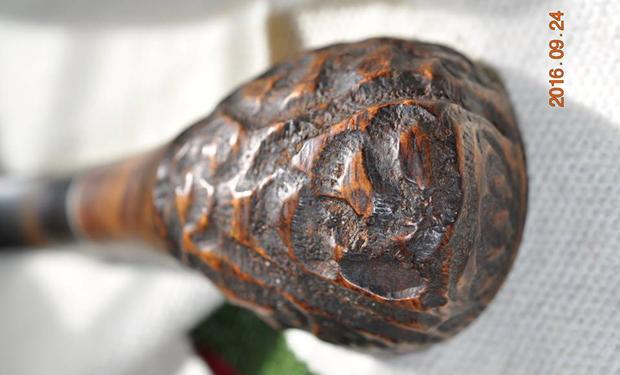

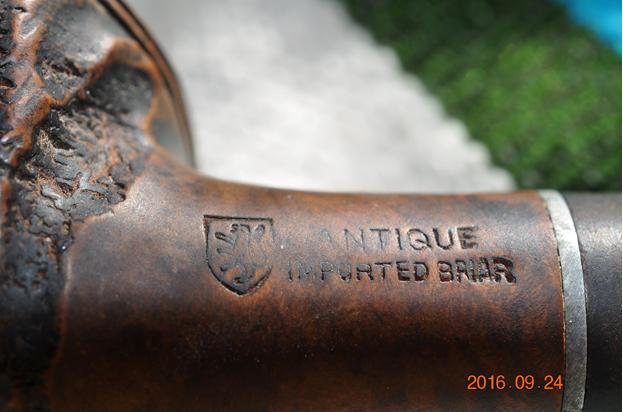

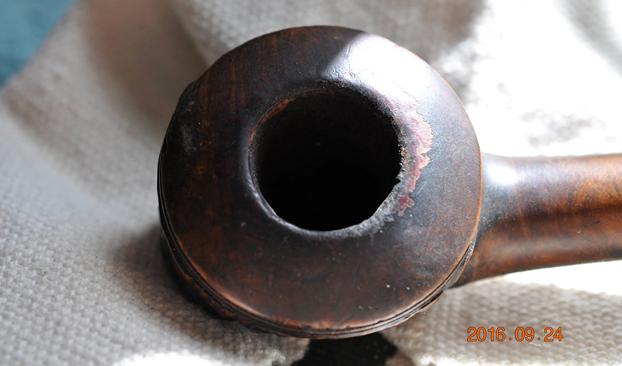

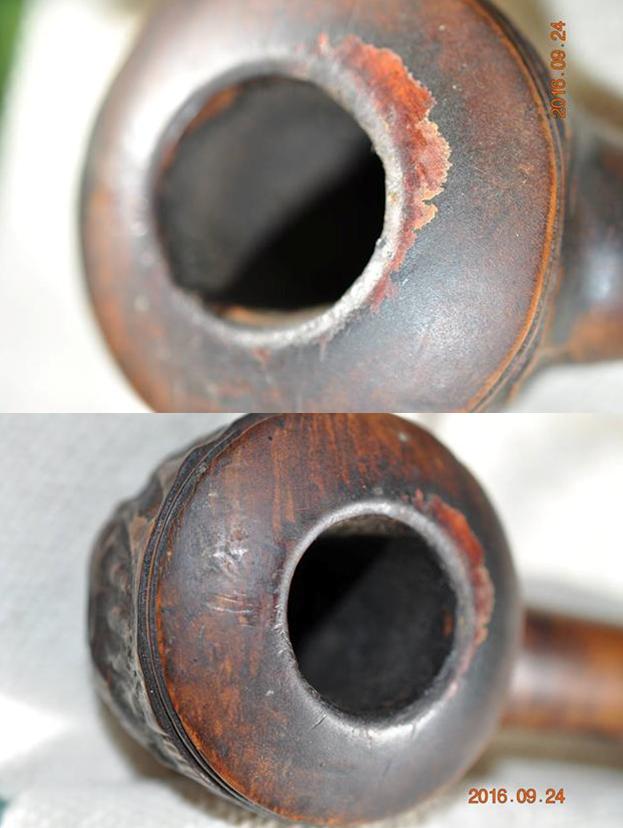

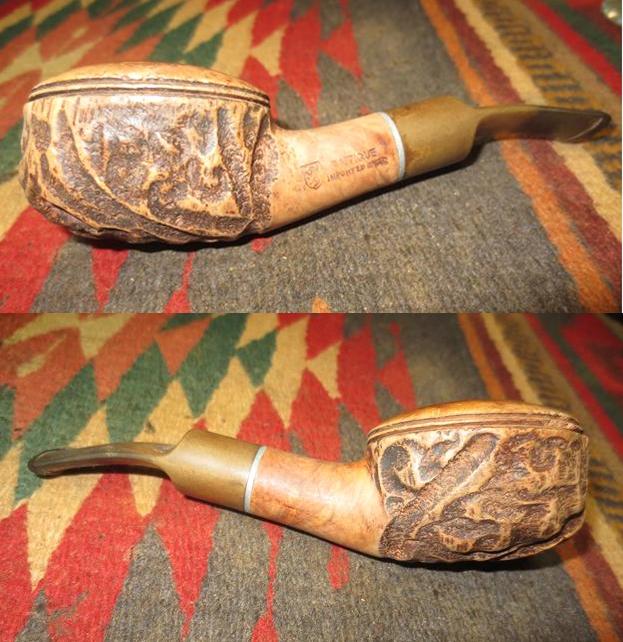

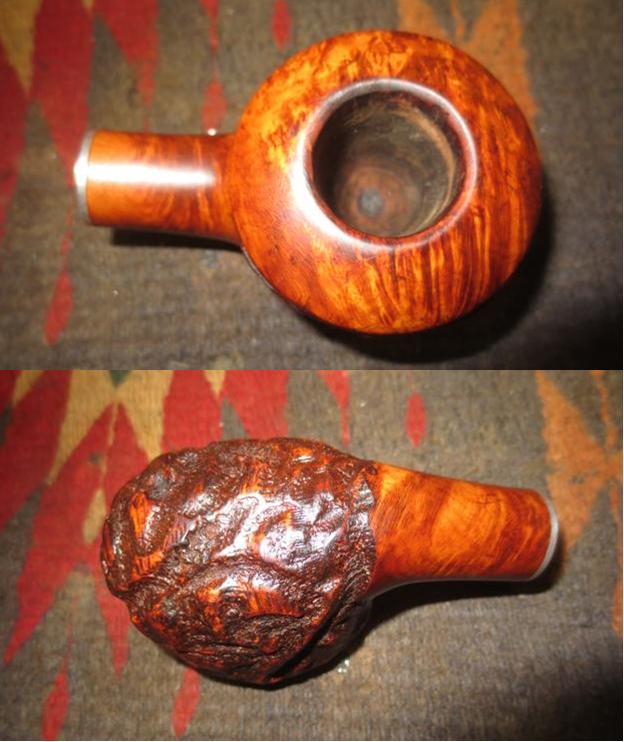

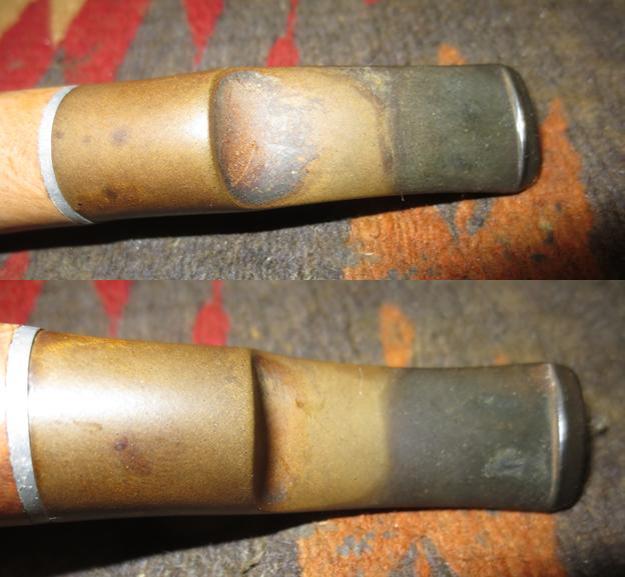

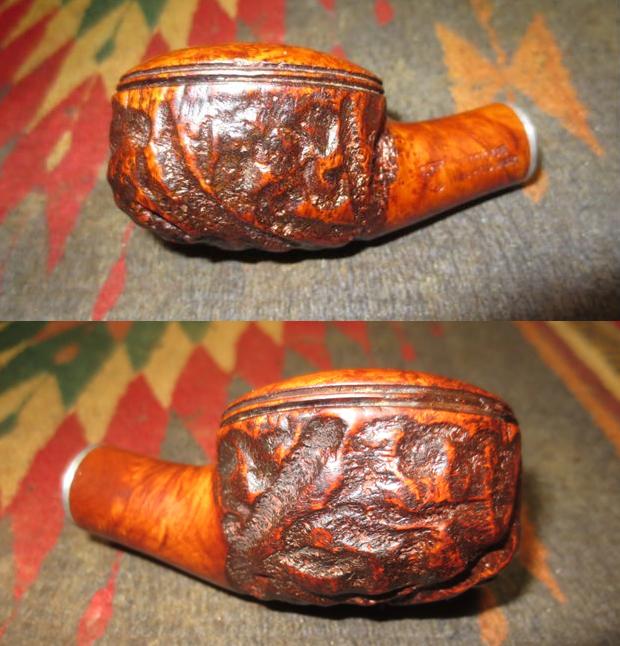

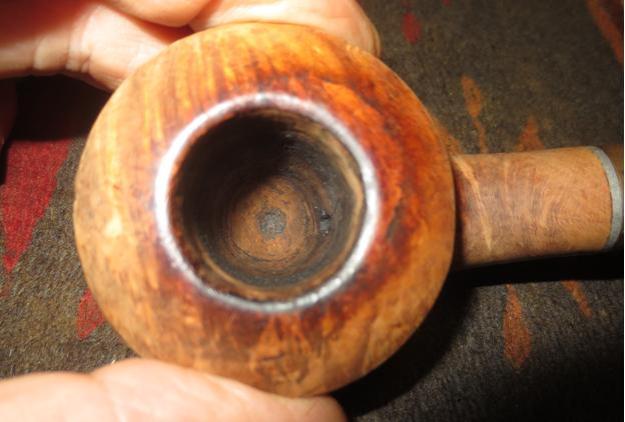

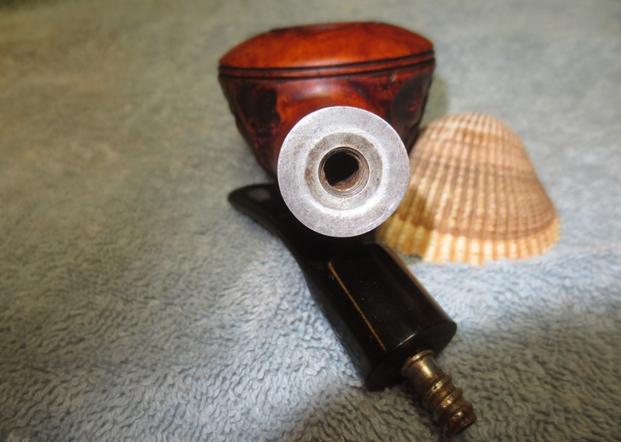

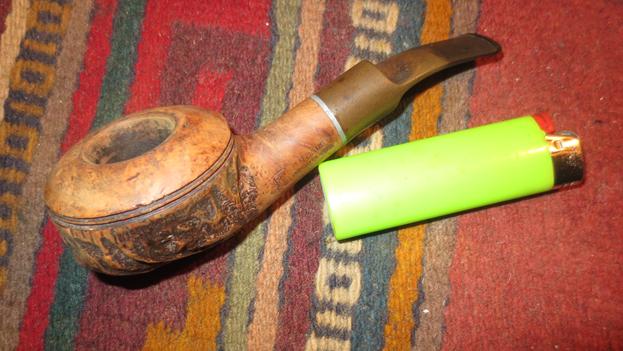

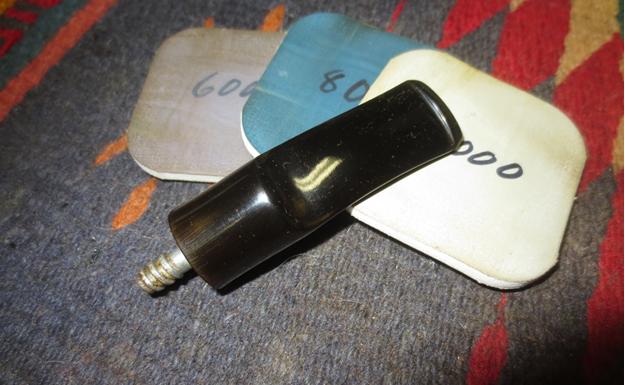

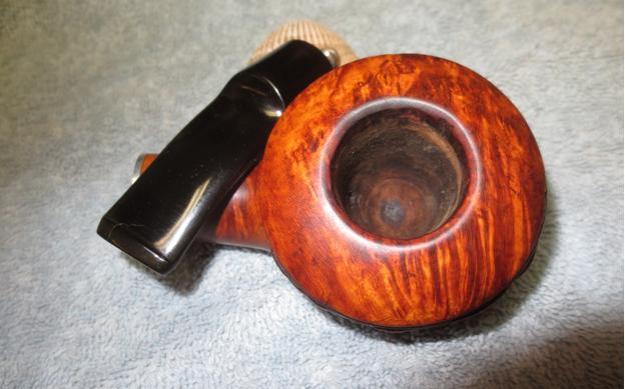

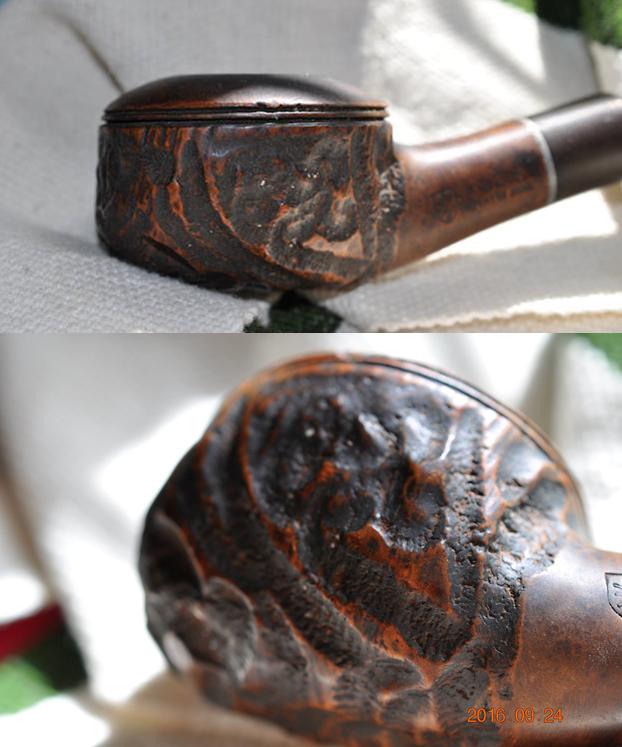

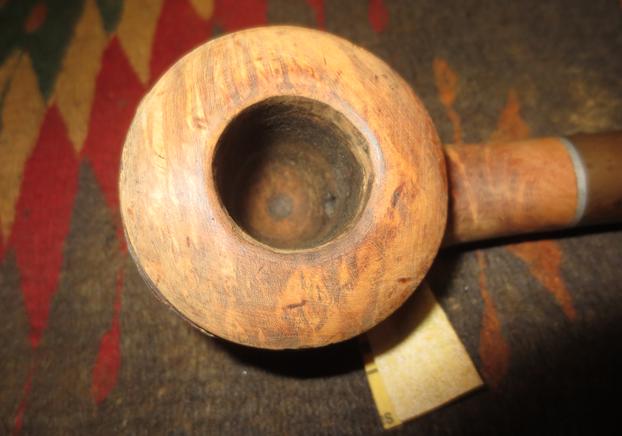

My brother took photos of the pipe before he cleaned it up. I have included those photos below. It is an interesting pipe.The next photos of the pipe show the damage on the rim top. The three different photos show the damaged areas from different angles. The rim top looked like it was damaged on the inner and outer edges of the bowl. The top looked like the finish was peeling but I would know more about it once I had it in hand. He took photos of the rusticated bowl sides. The smooth portions show grain. The double rings around the bowl cap have nicks and chips out of the top and bottom edges of the rims as well as the centre spacer. The next photo shows the stamping on the left hand side of the shank. Metal shank insert that separates the stem from the shank is oxidized.The stem is oxidized and has tooth chatter and tooth marks on both sides near the button. It is also overclocked making the stem sit crooked in the shank.My brother reamed the bowl with a PipNet reamer and cleaned out the insides. Pipes with the threaded metal mortise hold a lot of grime and tars so I will need to clean it further. The exterior was scrubbed with Murphy’s Oil Soap and a tooth brush and the grime and deteriorating finish was removed completely. The stem oxidation came to the surface in the cleaning. The next four photos show the condition of the pipe when I received it. I took a close up photo of the rim to show what it looked like when it arrived. Fortunately the areas on the rim that looked like flaking in the early photos was only lava buildup and it was gone. I breathed a sigh of relief when I saw that.The next two photos show the stem. The tooth chatter was lighter on the top of the stem than the underside. There were two deep tooth marks on the underside. The button edge on the topside was dented from teeth as well.I took the stem off the shank and was surprised that the conical stinger apparatus was gone. I heated the metal tenon with a lighter until the glue softened and twisted the stem around in the mortise until it lined up straight on the shank.I sanded the rim top and the inner beveled edge of the bowl with 220 grit sandpaper to remove the damage and the darkening. It did not take too much work to smooth out the dents and nicks and clean out the darkened inner edge of the bowl.To repair the chip out of the ring around the cap on the bowl on the right side I filled in the gap with briar dust and put drops of clear super glue on top of the dust. I used a dental spatula and a knife to recut the twin rings around the cap. Once it dried I sanded the repaired area on the ring and the rim top with a medium and fine grit sanding sponge and with 1500-6000 grit micromesh sanding pads to smooth out the scratches left behind by the paper.I cleaned out the inside of the mortise and the airway in the shank and stem with pipe cleaners, cotton swabs and alcohol until the cleaners came out white.I sanded the stem with 220 grit sandpaper to remove the oxidation and then used black super glue to fill in the tooth marks on the top edge of the button and the underside of the stem.When the glue dried I sanded the stem with 320 grit sand paper and polished it with micromesh sanding pads. I wet sanded it with 1500-2400 and dry sanded it with 3200-12000 grit pads. I rubbed the stem down after each pad with Obsidian Oil. After sanding it with the 4000 grit pad I buffed it with red Tripoli on the buffing wheel then finished polishing it with the final three grits of micromesh. I gave it a final coat of oil and set it aside to dry. I stained the bowl with Cherry Danish Oil and wiped it down to give it a shine. I wanted to highlight the red colours in the briar. The colour came out really well and the grain shines through on the rim and the smooth portions of the bowl and shank. I buffed it lightly with a shoe brush. The photos below show the staining and the finished bowl. I buffed the stem some more with red Tripoli and with Blue Diamond on the buffing wheel to polish out the oxidation that still remained at the junction of the stem and shank. I gave the stem multiple coats of carnauba wax and gave the bowl several coats of Conservator’s Wax. I buffed the bowl with a clean buffing pad to raise the shine and hand buffed it with a microfibre cloth to deepen the shine. The dimensions on the pipe are Length: 5 1/2 inches, Height: 1 1/2 inches, Outer diameter: 2 inches, Chamber diameter: 7/8 inches. The finished pipe is shown in the photos below. It really is a nice looking older piece of pipe history and should make a great addition to someone’s pipe rack. It will go on the rebornpipes store shortly. If you would like to purchase it contact me via private message on Facebook or through my email at slaug@uniserve.com. Thanks for looking.
