Gifting My Dear Friend, Dal Stanton, an Alexander Zavvos Hygrosystem Pipe


Blog by Paresh Deshpande

Steve, his brother, Jeff and Dal Stanton, The Pipe Steward, were on a visit to India in early May 2019. It was a fun filled week and also a great learning. I have always admired the finish that Dal imparts to the pipes he restores while I am amazed at the speed, the measured quantum of work that Steve puts in his restoration processes and also the profound knowledge that he has on all things pipes!! I was fortunate to see and learn these nuances first hand. I had a desire that there should be a unique pipe which all three of us should have (Jeff being a non smoker) and had laid down for myself, the following parameters for identifying THAT PIPE!

(a) Both should not be having this pipe in their personal collection (knowing well that this would be a very tall order!!)

(b) The pipe must have some historical significance and should have made a contribution to the world’s pipe history.

(c) It must come from a well known carver or manufacturer.

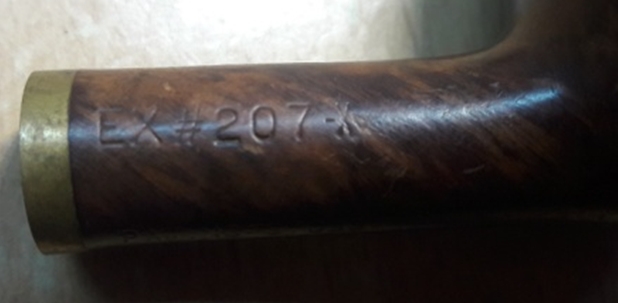

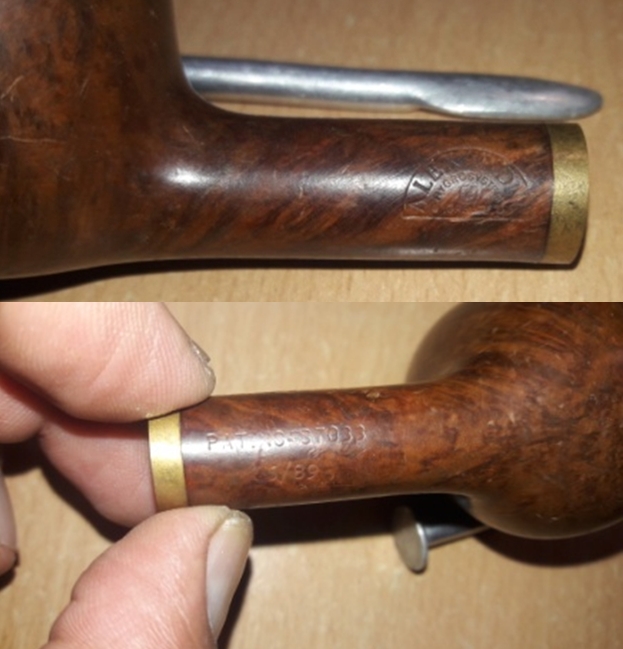

The pipe selected is an ALEXANDER ZAVVOS HYGROSYSTEM, PAT.No 87033, made in the 1970s-80s. What followed was an extensive and prolonged hunt for two such pipes of which the first one was purchased from one seller on Pinterest and the second was on eBay. These pipes were received separately and the last delivery materialized a couple of days prior to the arrival of these esteemed guests. Here are both the pipes as I received them.Since Mr. Dal was the first to arrive in India, he was given a choice between the two. He selected one with an Apple shape and the remaining willy-nilly came to Steve. At that point in time, both Dal and I discussed that it would be the Apple shape that Steve would have selected but… It’s Dal’s pipe now. The stamping on the Apple is crisp and easy to make out. It reads on the left of the shank as “ALEXANDER” over “HYGROSYSTEM” over a square with letter “Zb” over “GREECE”. The right side of the shank is marked as “EX # 207- *”, denoting the shape code, size and grade (?). The bottom of the shank bears the stamping “PAT No. 87033” over “06/ 89”, which I believe is the date code indicating that the pipe was made in June of 1989. I re-searched this pipe on pipedia.org and reproduce excerpts of information on this pipe carver, in his own words, and his immense contributions to the Greek pipe industry in particular and entire world’s pipe community.

I am Alexandros Zavvos, born in Molos, Thermopylae, near Lamia. Since I was a child I had an inclination for art, starting with painting. I studied Radio-electronics, and at age 23 I got involved with commerce with a capital of 150.000 drs. in 1962.

I entered the pipe business where I met, by total chance, with Mr. Libero G. Albanese, first technician and producer of briar-wood models in Kalabria, Italy. When I told him that I am Greek, he almost prayed, saying that we Greeks have the best briar in the world for pipe-making! From that moment on I understood that this fellow is in love with his work – and he transmitted that to me instantly!

From mid-1962 to 1963 I searched all over the world for a college or a school in order to be taught the art of pipe-making, but in vain – there were none. Moreover, I wasn’t able to make it through the big European pipe-makers of that time (British, Italian, Danish). I was convinced that only through experience there was a chance of me becoming what I wanted.

In 1964 I started the commercial briar-wood model production, in 1965 I constructed empirically my first pipe and in 1967 I started the vertical production (this is from the briar Greek woods to the consumer) – maybe there is no other factory in the world producing smoking pipes vertically.

In 1970 I started the research, which was accomplished in 1984, on the 1st generation hygrostatic system. In that same period we founded, my brother and I, our factory in Lamia for the production of ebony epistomes.

Today, 40 years later, I have successfully arrived at the production of the 5th generation hygrostatic pipe. I will finish by saying that this pipe, to what concerns the pleasure it provides, has nothing to do with that pipe for peace, offered by American Indians.

Update:Today I am saddened by the news that Alexander passed away on February 10th, 2015. Our thoughts and prayers are with his family and friends. We are very thankful for his contributions to the World of pipes. —sethile (talk) 21:00, 12 February 2015 (UTC).

The description given by the seller on eBay was equally informative and I reproduce the same for the readers to get a fair idea of the famed Hygrosystem that has been incorporated into the construction of this pipe.

A patented Hygro-system pipe by the greatest and most known (now deceased) Greek pipe manufacturer Alexander (Zabos / Zavvos). His old pieces are by now becoming rare and sought after, as his son who took over the business is not equal to the father. His stamp (Z with a B lower) comes from the two consonants in his name the way it is spelled in Greek. Very big and well known European pipe makers have purchased top briars from Alexander Zavvos, since the Greek briars are among the best in the world.

A few things about Alexader Zabos’s patent : The hygrostatic system  is the result of 35 years research and experience. It is based on the Bernoulli principle, has been allowed to be patterned (No 87833) by the Greek Ministry of Industry and Energy. Unlike most filter or no-filter pipes, the Alexander Hygrostatic Pipe reduces drastically moisture and other heavy residue (such as tar etc), which otherwise could be inhaled into our lungs and extinguishes a bitterness and a burning on the tongue.

Alexander Zavvos’s Hygrosystem pipes were quite expensive if bought new (the cheapest had a value of 160-170 euros) and have become highly collectible after the death of the manufacturer.

From the above information, it is safe to infer that this pipe is from the first generation of the hygrosystem pipes from Alexander Zavvos and made in March 1989.

I have given a detailed description on deconstructing this line of pipes and also a detailed explanation, as I understood it, on the application of the principle employed in the hygrosystem for which these pipes became famous, in my previous write up on a similar pipe which is on its way to Steve in Vancouver, Canada. Here is the link to that article, https://rebornpipes.com/2019/08/02/gifting-my-mentor-and-dear-friend-steve-an-alexander-zavvos-hygrosystem-pipe/

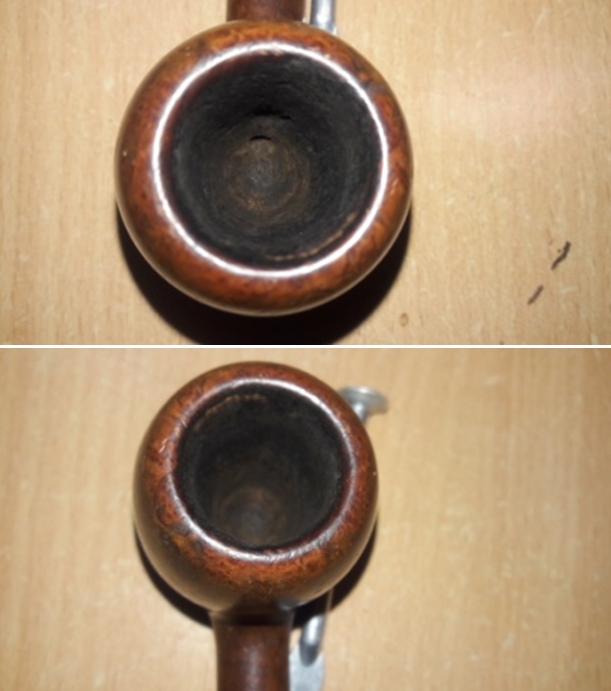

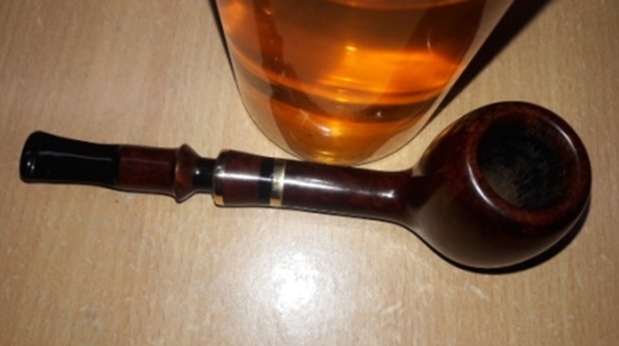

INITIAL VISUAL INSPECTION

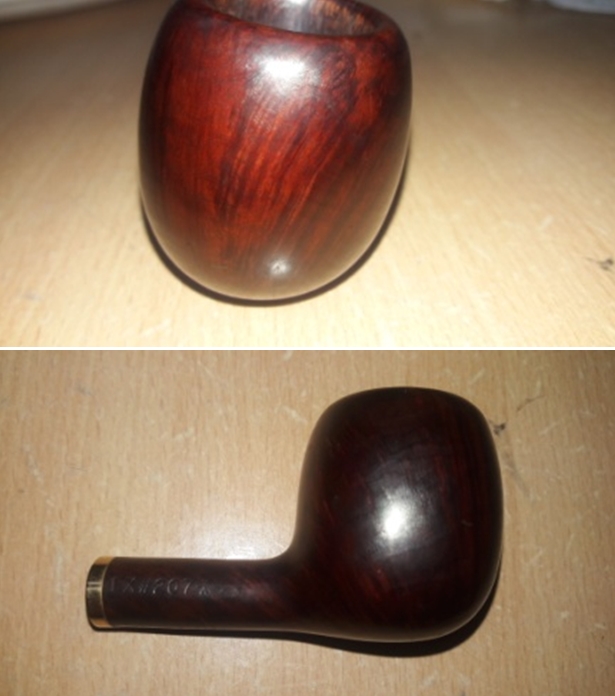

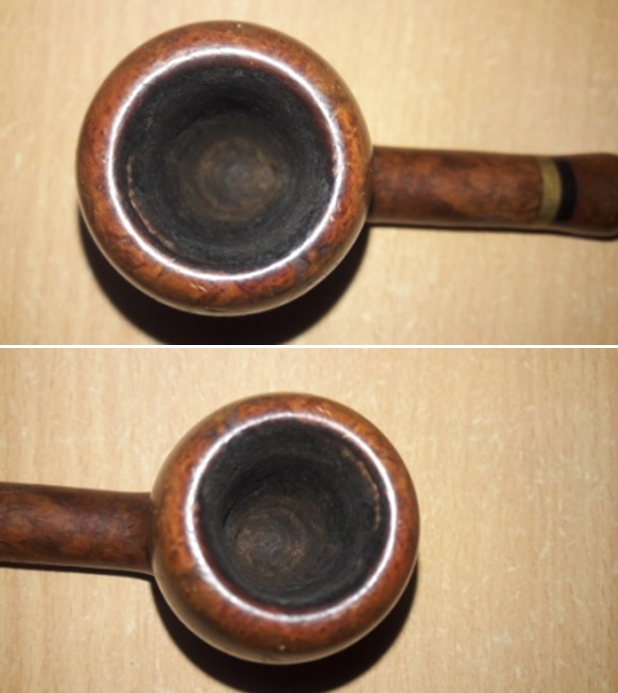

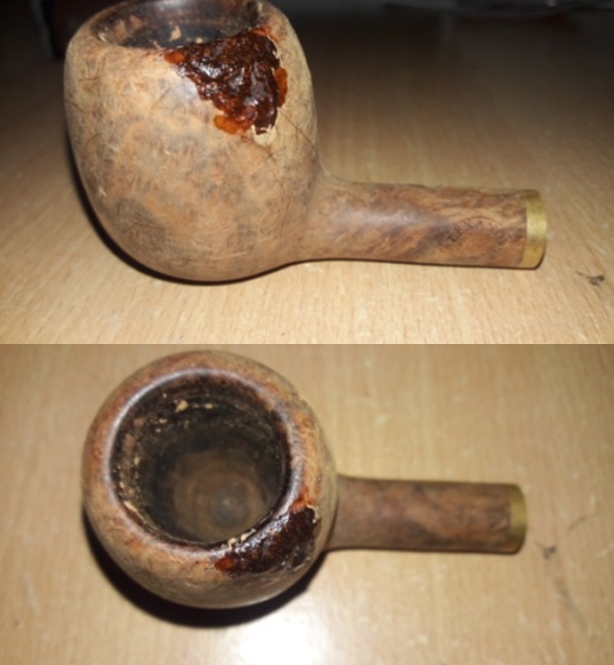

This is a very ornate and beautiful pipe with a perfect shape, size and hand feel with a delicate and a smallish stem. The forward heavy weight of the pipe does not lend itself to clenching and would best be enjoyed while being held in the hand. The brass band at the shank end, the vulcanite band at the shank end of the aluminum shank extension and again a brass band at the tenon end of this shank extension should add a nice classy touch to the pipe’s appearance once polished and it also helps to break the monotony of the briar. The stummel has beautiful mixed grain with a combination of straight on the sides and front with bird’s eye and swirls over the heel and shank. All this beauty is hidden under the accumulation of dirt and grime over the years. The stummel has numerous dents and ding over the entire surface. However, save for one large fill (marked in yellow arrow) and unlike the pipe which will be going to Steve, there are no major issues of fills or cracks that I foresee on this stummel. The outer rim edge curves inwards to form a narrow rim top surface  and shows a slight overflow of lava on the rim top and the surface itself is peppered with numerous dents and dings which should be easy to sort out by sanding the rim top with a piece of 220 grit sand paper.The chamber has a thick and even layer of cake which shrouds the condition of the walls of the chamber. However, the feel of the bowl is solid and I hope there are no major surprises here. There is a brass ring at the shank end which extends inside the shank with threads on to which the aluminum shank extension is screwed in. This brass ring should add a bit of glitz to the pipe appearance once polished. The mortise is clogged and heavy crust of dried oils and tars are clearly visible. This will take some effort to clean out.The screw-in aluminum shank extension that houses a filter is covered in oils and tars. Also the smaller aperture pipe protrusion at the stem end is covered in gunk and tars. The vulcanite band at the shank end and the brass band at the tenon end will need to be polished. The briar at the tenon end is nice and solid with no damage, and that’s a big relief having experienced the challenges firsthand with Steve’s pipe, how difficult it is to address issues on this part of the pipe. The wood gasket which is housed in the tenon end of the shank extension has been dislodged from its place and is stuck on to the tenon. The vulcanite stem with its fused briar at the tenon end is generally in good shape, save for the broken and missing nearly half of the stem. The break is at an angle and only a tiny portion of the button end on one side is available to me as a reference. This should be more than sufficient for me to undertake a complete rebuild of the missing portion of the stem. The stem is very lightly oxidized and the fused and decorative briar saddle, though covered in oils, tars and grime, is intact. The tenon is dirty and clogged with all the gunk and dried oils and tars left behind by the previous owner of this pipe. I took a few close-up pictures of the stem and broken edge of the stem for the readers to better assimilate what I would be dealing with during the stem rebuild. I have the option of cutting off the stem at the point of break and thereafter rebuild and shape a new button on either side, but this would drastically shorten the already short stem and toss the symmetry of this beautiful pipe right through the window. And remember, my dear readers, that this pipe is being sent to my dear friend and a pipe restorer par excellence, Dal!! He is a perfectionist, to say the least. I intend to use the intact part of the stem as a guide for determining the length of the stem, the flare at the button end and the length of the slot and I would be attempting all this by eyeballing all the measurements as I do not have any Vernier calipers for exact measurements. I know, that’s hell of a lot of eyeballing that I would be doing during the restoration.THE PROCESS

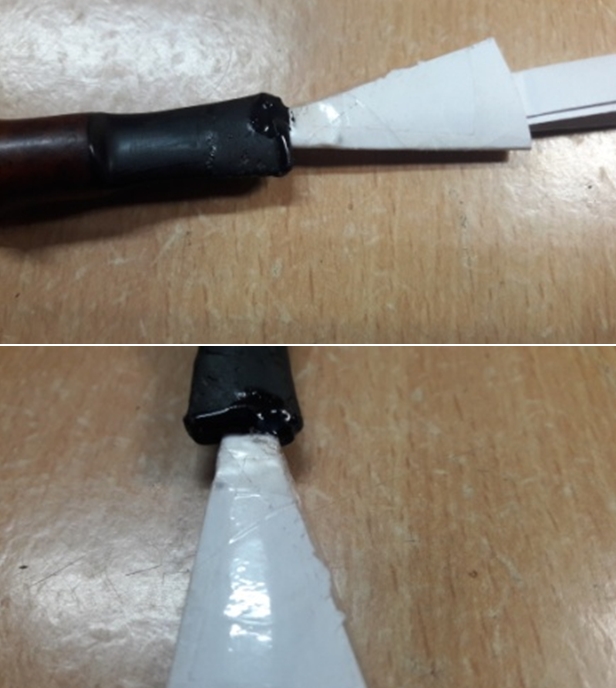

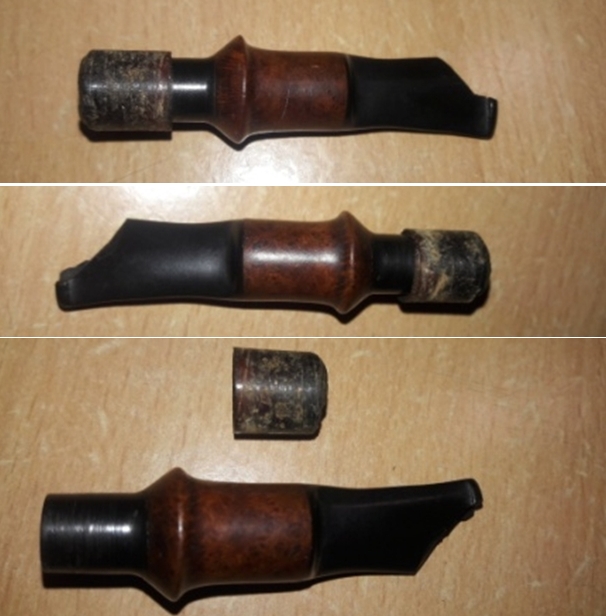

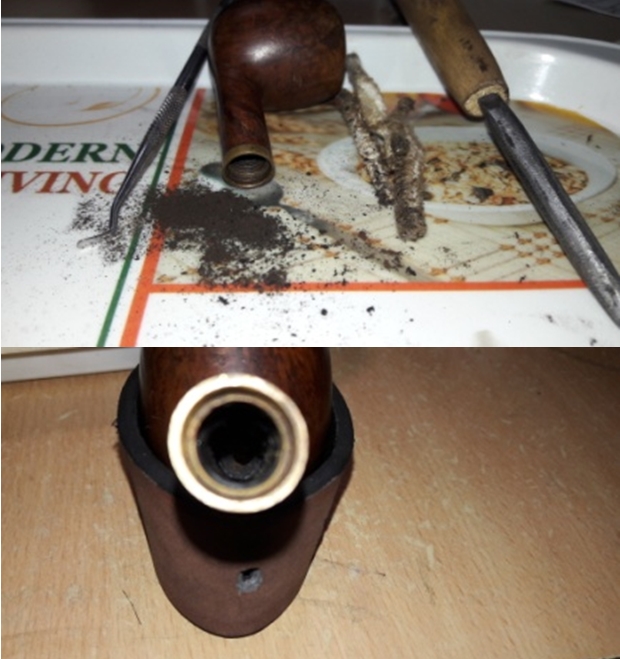

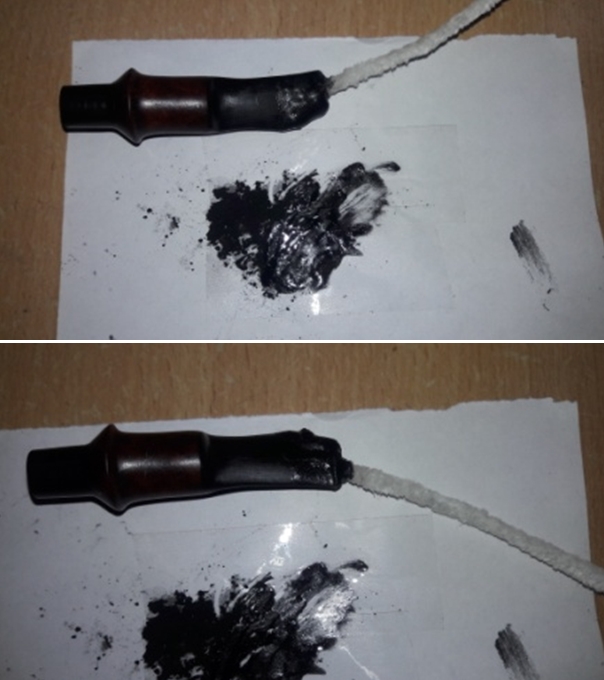

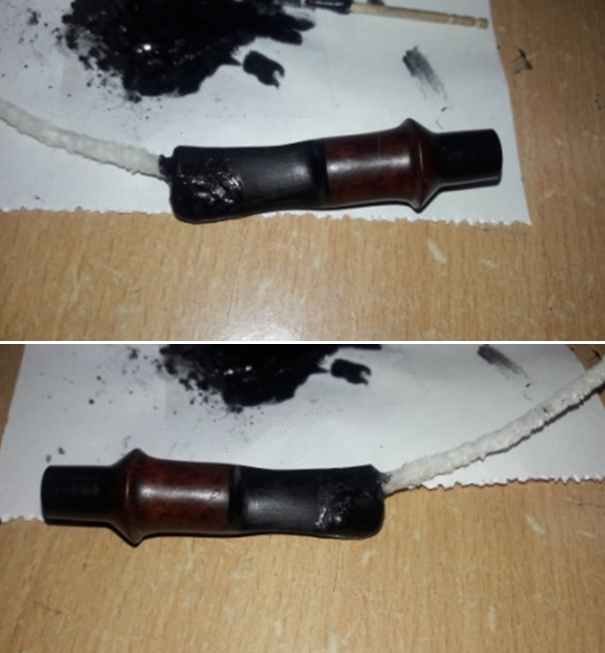

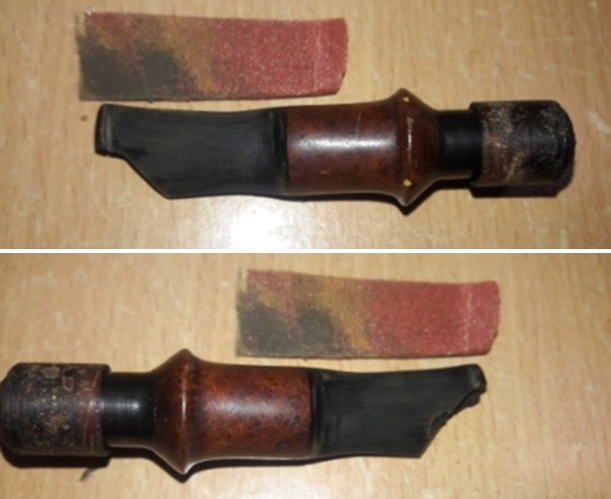

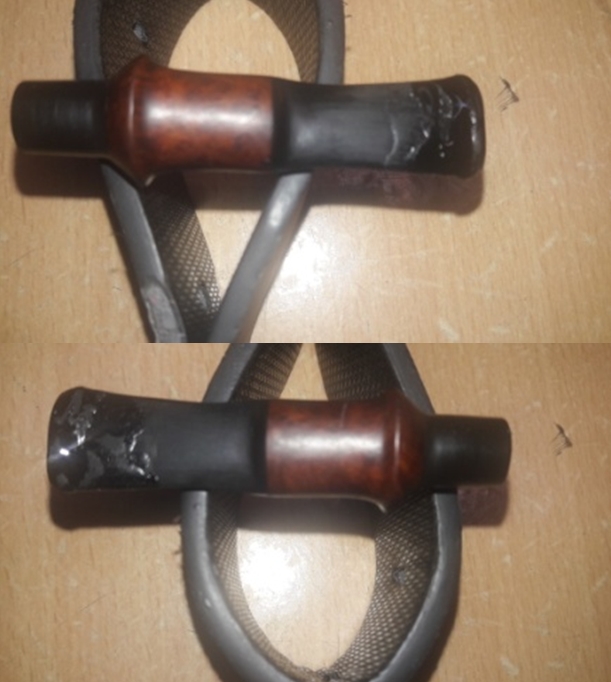

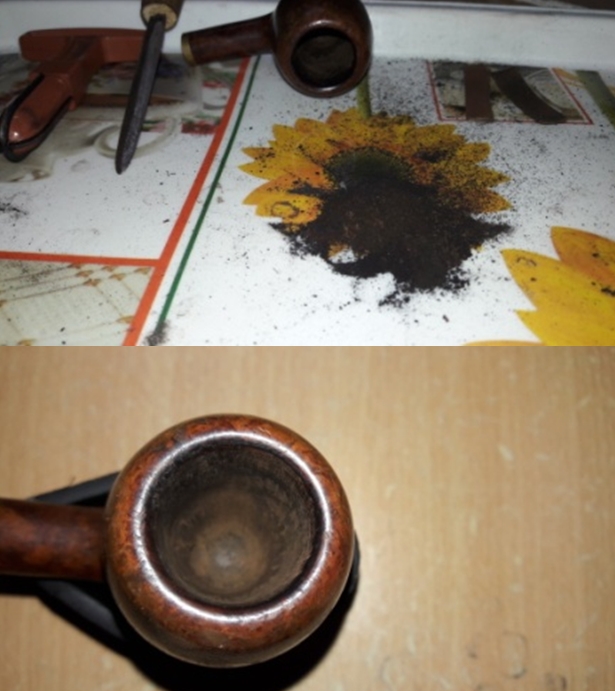

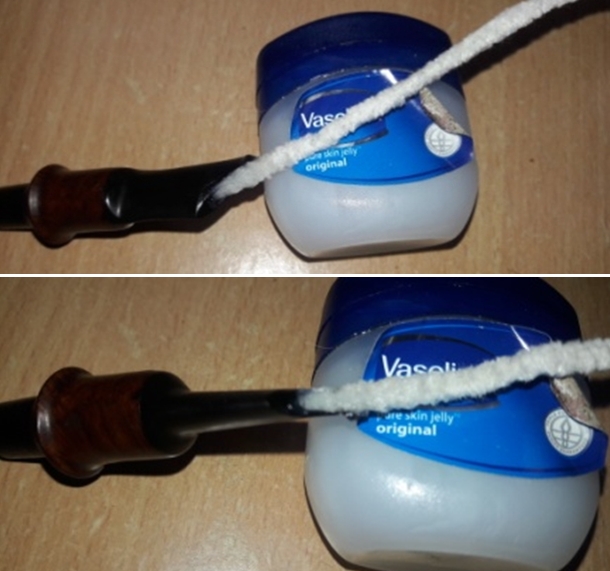

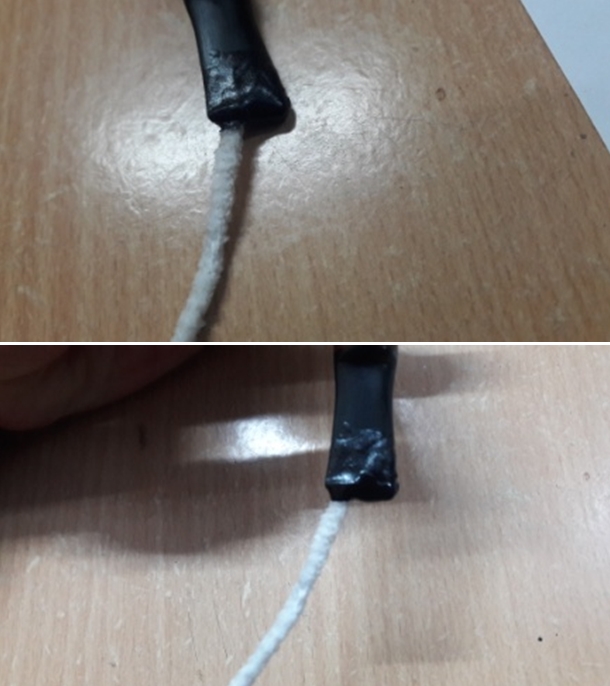

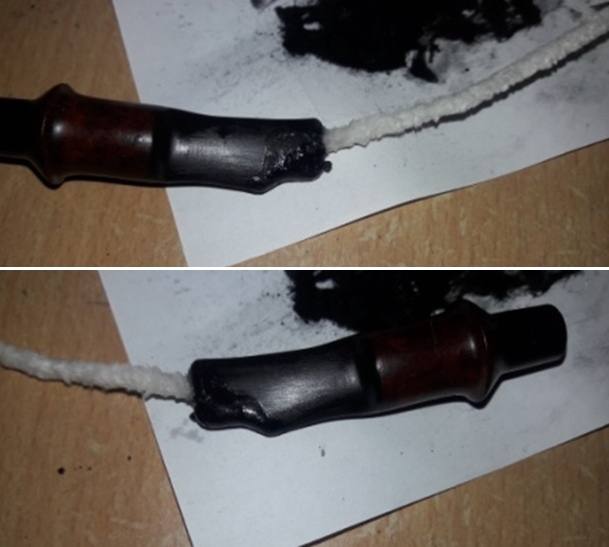

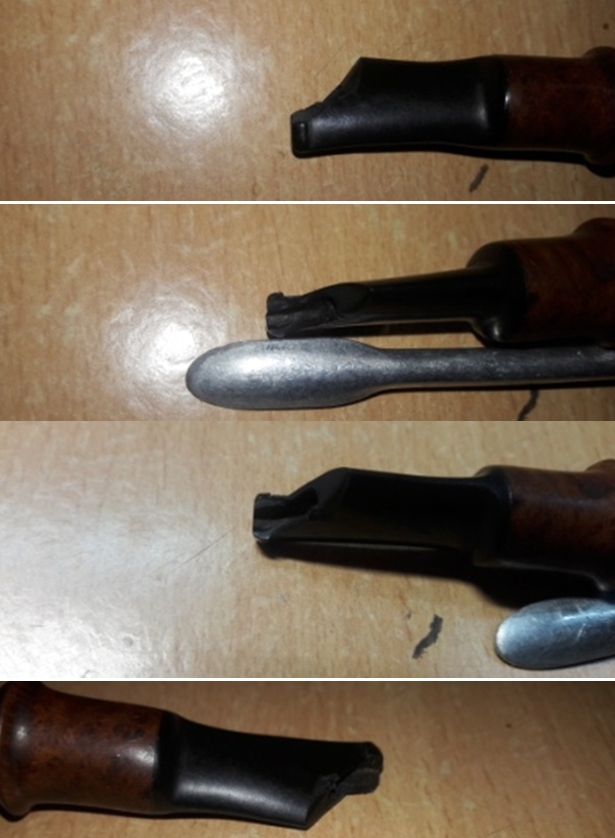

It is the stem reconstruction that takes the most amount of time what with all the curing, sanding, refilling if needed, shaping and polishing and, therefore, I always prefer to start with repairs to the stem. Firstly, I sand off the area of intended fill with a piece of 220 grit sand paper. This not only evens out the surface for the fill but also gets rid of the oxidation which would otherwise show itself through the fills as a brown patch after polishing. This was followed by cleaning up the internals of the stem and the tenon with regular and bristled pipe cleaners dipped in 99% pure isopropyl alcohol. With a dental pick, I scrubbed out the dried gunk from the tenon and from along the broken button end edges. I had seen Dal use a folded triangular index card while reconstructing a broken button end whereas I always used a petroleum jelly (Vaseline) coated pipe cleaner inserted in to the air way to keep it open. My method, though effective, was time consuming as I had to completely reshape the slot thereafter. However, in this instance, since there was nothing to support or hold the folded index card on the other side, I perforce had to fall back on my time tested method of using a pipe cleaner coated with petroleum jelly (Vaseline). I prepared a slightly thin (just thick enough to form a drop but not runny enough to fall down) mix of CA superglue and food grade activated charcoal and applied it over the broken stem area. I also applied this mix over the intact side lip edge to make it even. To get the flare which was evident on the intact side of the stem, I applied a thick blob of this mix and held it sideways so that the mix forms a droplet. Thereafter I maneuvered the drop to the desired shape till it hardens and harden it does so quite rapidly. Once this layer had cured, I applied another layer of the mix. The trick here is that this type of reconstruction needs to be done in layers to a thickness more than the adjoining stem surface. This, thereafter, can be filed and sanded down to match the stem surface. I did exactly as described above and set the stem aside to cure. The following pictures will give you a general idea of what I have described above. Once the mix had cured hard, I went about shaping these fills to match the overall profile of the stem, with a flat head needle file. I was very careful with my use of the needle file, eyeballing the profile frequently. An hour later and I had achieved a rough match profile to the original stem as it would have been before the break. I even had a rough button profile shaped out in conjunction with the intact button edge. Eager to use my newly acquired slot shaping tool, this was an ideal candidate to use it for the first time. Well, this tool is much more effective than using a tightly folded piece of 220 grit sandpaper to shape the slot. I am very happy with the progress being made. From my experience (and I have done many!!) it usually takes a week to reach this stage and here I was on only my third day of working on the stem!!And then a set back! As I was shaping the slot, a chunk of the fill did not feel like staying and just left its place, leaving behind a gaping hole. It is marked in yellow arrow.Such chipping is to be expected and undaunted I again prepared a mix of superglue and activated charcoal, this time more glue and lesser of charcoal. Since I now had both the edges of the slot, I decided to use the folded index card. Once the index card was in place, I applied this mix over the chipped area and set it aside to cure. I also took this opportunity to fill in a few air pockets which were beginning to show as well as increase the button edges on either side.A curing time of nearly 12 hours later, the fill was nicely set and hard enough to start reshaping the slot and the button edge and further fine tune the stem profile and finish. Using a flat head needle file, I file away at the fill and roughly shape the button edge on either side of the stem. I am comfortably placed with the progress being made so far, so to say. As expected, I observed a couple of air pockets and also that one of the lip edge had been filed down more than the other and was dotted with many air pockets. I addressed these issues with a layer of superglue and charcoal powder mix. However, in this mix, the percentage of superglue was higher than the charcoal powder. I set the stem aside to cure. I would have ideally applied black CA glue, but…don’t have it.Moving ahead, I reamed the chamber with size 2 head of the PipNet reamer. Using my smaller sized fabricated knife, I further reamed out the cake from places where the PipNet reamer could not reach. I gently scrapped out the lava overflow from the thin rim top surface and followed it with sanding the chamber walls with a 220 grit sand paper. How I miss my younger daughter, Pavni, who specializes in smoothing the chamber walls and removing every trace of the old cake. Dal, I know you would have loved to have a pipe that your “Bollywood Queen” had worked on, but hope I have come close to her finesse!! Once the cake was taken down to bare briar, the walls of the chamber were found to be smooth and flawless. The draught hole is dead center and at the bottom of the chamber. I am sure that this will be a nice smoker! Removing the overflow of lava from the rim top revealed a thin surface that is peppered with numerous dents and dings. I continued with cleaning of the stummel and worked the mortise using the smaller fabricated knife first to scrap out the dried out gunk, oils and tars left behind by the previous steward. The amount of grime scrapped out is a testimony to the efficacy of this Hygrosystem, I say. A few pipe cleaners dipped in alcohol later, the shank is clean. Now that the chamber and shank internals are clean, I move ahead with the external cleaning of the stummel.I cleaned the externals of the stummel with Murphy’s oil soap and toothbrush. Rinsing under tap water (remember, I am in India and its hot here and even the tap water is equally warm!!) revealed just a few fills in the briar on left back side of the stummel and nearer to the rim top and these have been marked by yellow arrows. To be honest, I feared a rerun of the nightmare that I just went through while restoring Steve’s Alexander Zavvos Hygrosystem pipe! Not the case this time around, Thank God for such mercies!!! The stummel has a number of small dents and dings, which should be addressed when I sand the stummel with a piece of 220 grit sand paper followed by complete micromesh pad polishing cycle. I do not intend to be overly aggressive with the 220 grit sandpaper as I wish to preserve as much of the old patina as I can. Beautiful straight and mixed grains are now clearly visible. This should turn out to be a beautiful looking pipe, I think. I began removing the old fills and preparing the stummel for a fresh fill. Using my dental tools, I progressed to removing the fills. The fill on the left back side of the stummel was large and deep while the two on the rim top were smaller in size but deep.At this point in the restoration, I decided to address the issue of old odors in the chamber and shank by subjecting it to a cotton and alcohol bath. I wrapped some cotton around a folded pipe cleaner, keeping the tip of the pipe cleaner free of wrapped cotton as this would be inserted through the draught hole in to the chamber. This would form the wick for the shank. I tightly packed the chamber with cotton balls and filled it with 99% pure isopropyl alcohol using a syringe and set it aside. By next day, the cotton and alcohol had drawn out the all the old tars and oils from the chamber and max from the shank. I let the stummel fills dry out completely and after all the alcohol had evaporated, proceeded to fill the deep gouges with CA superglue and briar dust using the layering technique where I put down a thin layer of superglue in to the fill and press briar dust in to this fill over the glue. I continue with this till the fill rises above rest of the stummel surface. Once all the gouges were filled up, I set the stummel aside to cure for the next 24 hours.I file the raised mounds of the patched fills with a flat needle file. The only drawback of the layering technique is that a number of air pockets are revealed after the filing. This time was no exception and I refilled the exposed air pockets only with superglue and set it aside to cure.Since there was still time before I hit the bed, I decided to address the stem. I sand the fill with a needle file to a rough match with the surface of the stem. For a better match, I further sand the entire stem with a folded piece of 220 grit sand paper. I topped the slot on a piece of 220 grit sand paper to even it out. The repairs looked good at this stage.With the stummel fills nicely cured, it was time again to work on it. Using a flat head needle file, I sanded the fills and followed it by sanding with worn out folded piece of 150 grit sand paper. The fill has blended in quite well. However, I shall strive to further achieve a near perfect blend during further sanding and polishing with micromesh pads.I again worked on the stem, filing with a needle file and followed with sanding with a piece of 220 grit sand paper. With my slot tool, I carved out and shaped the slot. Here, the intact part of the stem gave me an idea of the extent of the spread of the slot from the edge. I achieved the desired shape and size by just visual estimations. I sand the slot end on a piece of 220 grit sand paper. I am happy with the way the stem reconstruction including the buttons and the slot, has shaped up till this point. I rubbed a little Extra Virgin Olive oil in to the stem surface for it to be absorbed and hydrate the vulcanite and set it aside. With the stem repairs well under control and progressing steadily, I turn my attention to the stummel once again. I address the dents and dings with further sanding of the entire stummel and the thin rim top using a worn out piece of folded 150 grit sand paper followed by a 220 grit paper. The dents and dings on the stummel and rim top are addressed to a large extent. What dents and dings remained, I let them be as a part of the history associated with the pipe and its previous owner. While going through with the micromesh polishing cycle, I extend this care to the brass band at the shank end. The now nicely shining brass band adds a touch of class to the pipe and helps in breaking the monotony of the pipe.I rubbed some “Before and After” restoration balm. This product has been developed by Mark Hoover and it helps to enrich and enliven the briar. For me it is an absolute “must have” item in my list of items for pipe restorations. I rub this balm in to the briar and set it aside for some time. I turned my attention back to the stem. I sanded the stem, including the briar insert at the tenon end with a 220 grit paper and progressively moving to 600 and 800 grit sand papers. As expected, a clean and neat looking stem stared back at me. I rubbed a little Extra Virgin Olive oil in to the stem surface to hydrate it and set it aside to be absorbed in to the vulcanite.I was satisfied with the way the stem has now turned out. I finished the stem reconstruction by polishing the stem with micromesh pads, wet sanding with 1500 to 12000 grit pads. I applied a small quantity of Extra Virgin Olive oil to the vulcanite stem and rubbed some “Before and After” restoration balm before setting it aside.I had undertaken restoration of two of the three parts of this pipe, the stem and the stummel, and now turned my attention to the third and last part, the aluminum shank extension. This part was in pristine condition, save for the accumulated oils, tars and gunk which I had already cleaned out from the aluminum tube, the smaller aperture tube and the wide shank extension at the stem end, and yes, I had missed out on taking pictures and documenting this step. I went through sanding the vulcanite band and the briar insert with a folded piece of 220, 400 and 600 grit sand papers in that order. I cleaned the aluminum tube protrusion and the threading with a brass wire brush. I further polished it with a 0000 grade steel wool followed by dry sanding with all the nine pads of micromesh. The aluminum tube is now clean and shining. I finished the cleaning regime of the tube and threads in the shank extension by polishing it with a multipurpose liquid polish.This was followed by micromesh polishing cycle, wet sanding these components of the shank extension, including the brass band, with 1500 to 12000 grit pads. I rubbed some “Before and After” restoration balm and set it aside. This part definitely adds some nice class to the overall appearance of the pipe.I cleaned out the wood gasket which makes the fit of the tenon in to the shank extension airtight with cotton buds dipped in alcohol. I applied a little Extra Virgin Olive oil to this gasket, inside and outer surface to hydrate the wood and set it aside to be absorbed by the wood. When I had initially dismantled the pipe, this gasket came out attached to the tenon. However, close observation of the outer surface of the gasket points to the fact that the gasket was stuck inside the shank extension towards the stem end. I did not sand the outer surface to a smooth finish as I wanted to keep the surface rough when I applied superglue and reaffixed it inside the shank extension.Nearing the home run, I decided to stain the stummel and the rim top surface with a dark brown stain in the hope that it would help in a nice blending of the one and only major stummel fill. I heated the stummel surface with my heat gun to open up the pores on the stummel so that the stain is well set while being careful that I do not overheat the fill, a lesson learned while restoring Steve’s Alexander Zavvos pipe. I dipped a folded pipe cleaner in Feibing’s Dark Brown leather dye and liberally applied it over the heated surface, flaming it with the flame of a lighter as I went ahead to different self designated zones of the surface. This helps in the setting of the stain in the grain of the briar.I was not very comfortable in heating the aluminum shank extension and the briar insert on the stem as this could result in warping of the vulcanite band and the briar inserts on the shank extension and stem. I decided to use a dark brown stain pen instead. I applied the dark brown stain over the briar inserts of the shank extension and stem. I set both the stummel and shank extension aside for the stain to dry and get completely absorbed in the surface.The next evening, approximately 18 hours later, as Dal describes, I began to unwrap the stain in the hope to see beautiful grains. I mount a felt cloth buffing wheel on my hand held rotary tool and setting the tool at its slowest speed, again my recent experience while working on Steve’s pipe came in handy and the damage that can be caused due to heating while using the felt buffing wheel still fresh in my memory; I began to peel off the stain from the stummel surface first. The stain was peeled out gradually. This was followed with wiping the stummel with a cotton swab and alcohol to lighten the stain a little as it was too dark for my liking. This also helps in cleaning the surface of all the residual stain and highlighting the grain. Now, the fear that besieged me was the stain running down Dal’s hand as he smoked the pipe and so I set the stain by again heating the stummel surface with the heat gun. Unfortunately in my exuberance, I missed out on taking pictures of this step.

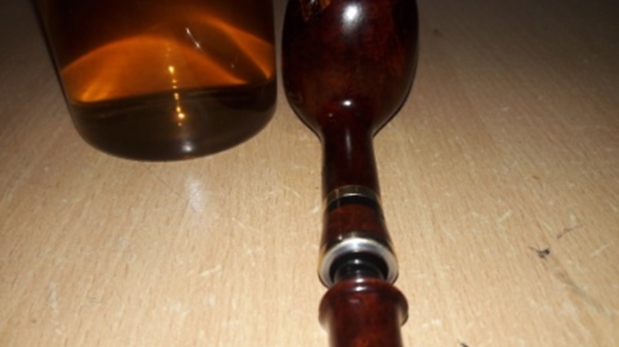

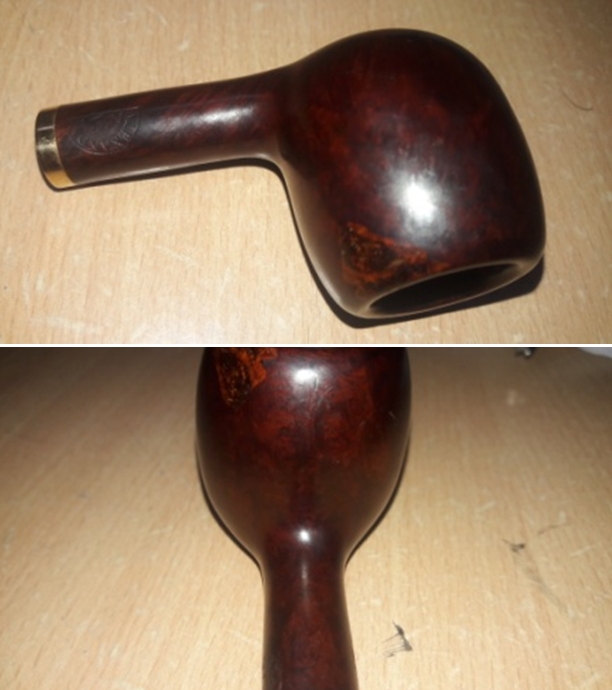

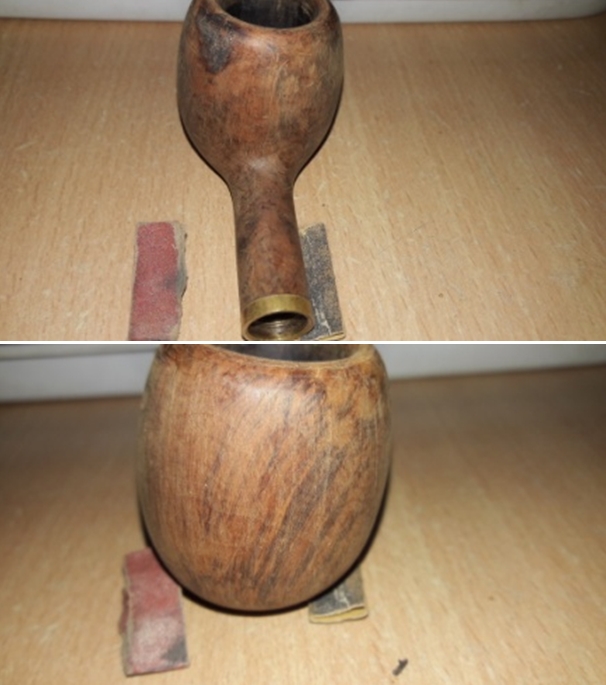

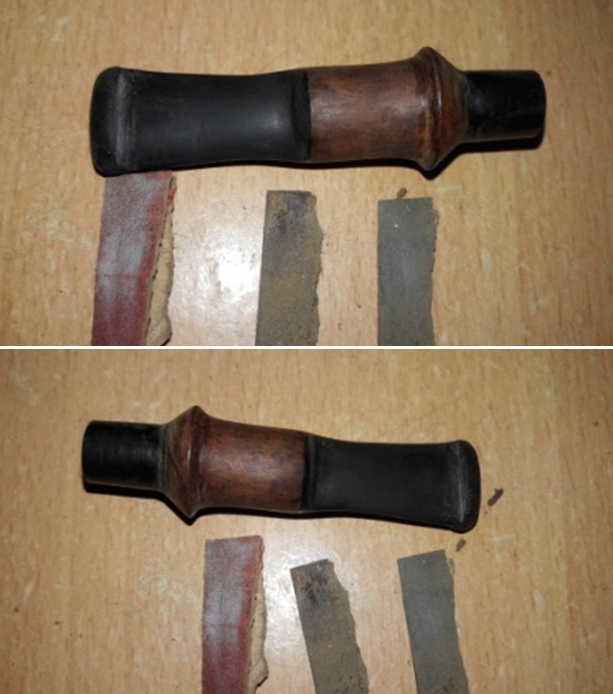

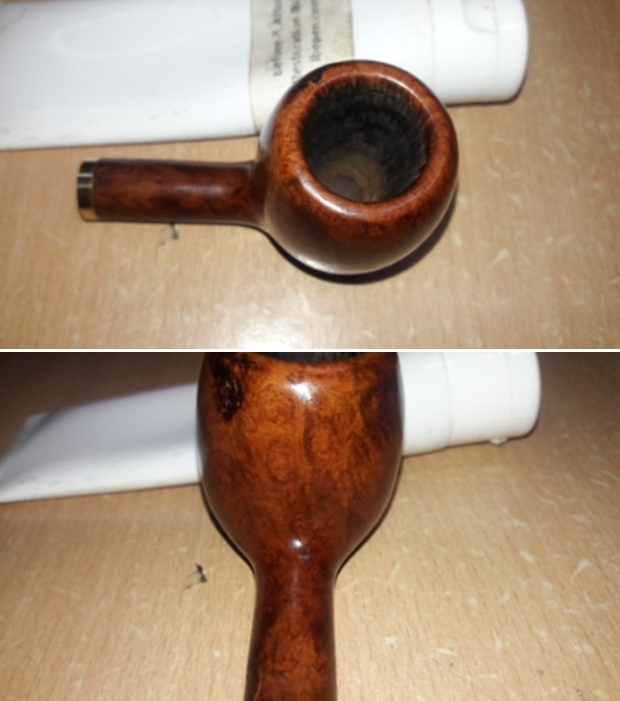

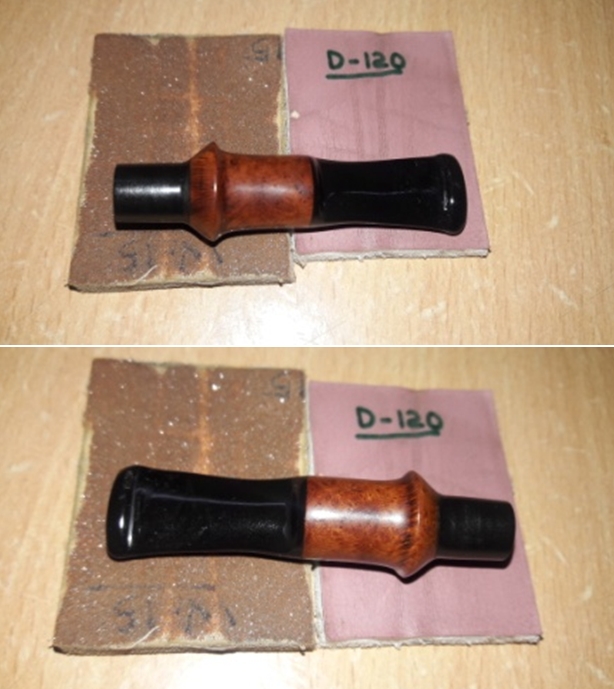

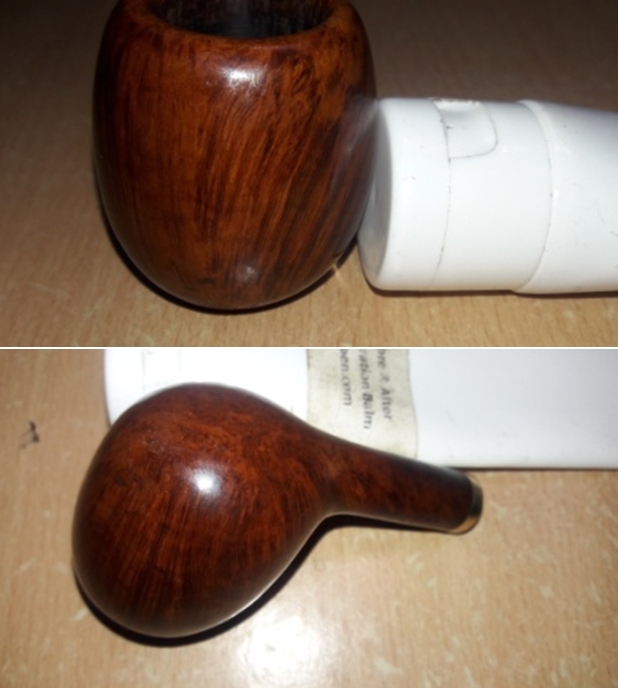

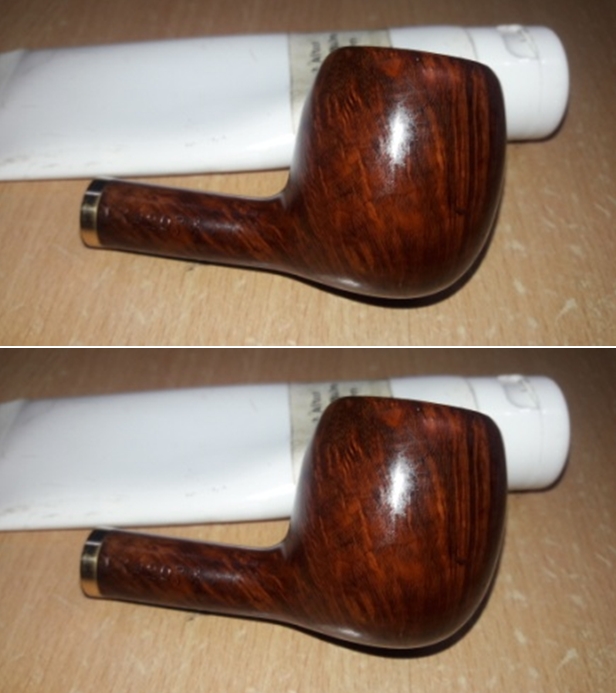

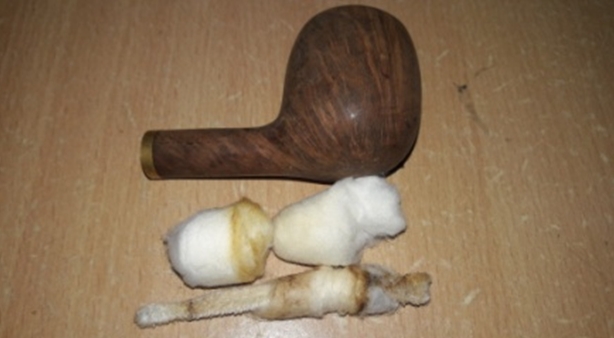

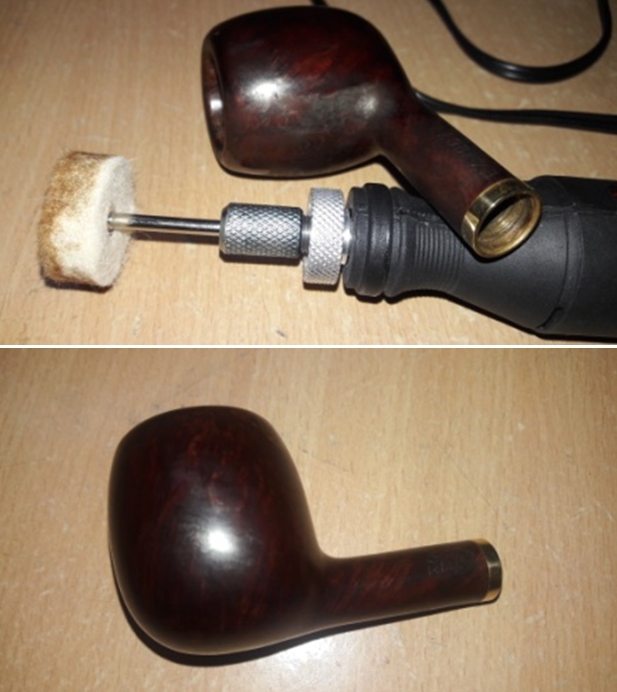

I felt as though the stummel, shank extension and the stem appeared patchy, though when I shared pictures with Abha, my wife, she found them to be nice, smooth and shiny. However, I decided to go with my instinct and dry sanded the entire pipe with 1500 to 12000 grit micromesh pads, aluminum tubing and brass bands included. Now I am satisfied by the appearance of the pipe at this stage and ready to move on to the final stage of polishing. Next, I mount a cotton cloth buffing wheel and setting the speed to ¼ of the full power, I applied a thick coat of carnauba wax over the stummel, aluminum shank extension and the stem. I worked the complete pipe till the time all the wax was absorbed by the briar. The pipe now boasts of a beautiful and lustrous shine. I vigorously rubbed the pipe with a microfiber cloth to deepen the shine and also clean away any residual wax that had been left behind. I am very happy with the way this beauty has turned out.Before re-assembling the pipe, I once again thoroughly cleaned the internals of the shank, aluminum shank extension and the stem airway with pipe cleaners and ear buds dipped in isopropyl alcohol. I also fixed the wooden gasket with superglue in to the stem end of the shank extension. I checked the draw to make sure that the airways in the shank, extension and stem are open. The draw is nice, smooth and open and somewhat similar to the draw experienced on a Peterson’s P-lip stem. I also applied a little Vaseline over the threads of the aluminum shank extension and the wood gasket to protect and keep it soft.To finish, I reassembled the complete pipe and gave it a final buff with a microfiber cloth to deepen the shine. This dude has come a long way when it started its journey in June 1989 and now 30 years later, it shall soon be traveling all the way to Bulgaria to serve my dear friend and fellow pipe restorer, Dal Stanton while he reminisces about his visit to me, Abha, Mudra and his Bollywood Queen!! I sincerely thank all the readers to have spared their valuable time in going through this write up. P.S. This project has been very close to my heart as this pipe is intended to be with my friend and guide, Dal as a memento of his visit to my family in India, fond memories of which will always stay with me. I hope that whenever he sits down with this pipe, packs it with his favorite tobacco, LANE BCA and fires it up, the first whiff reminds him of us here in India.

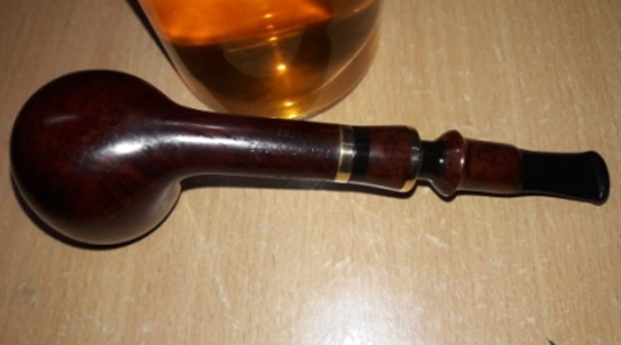

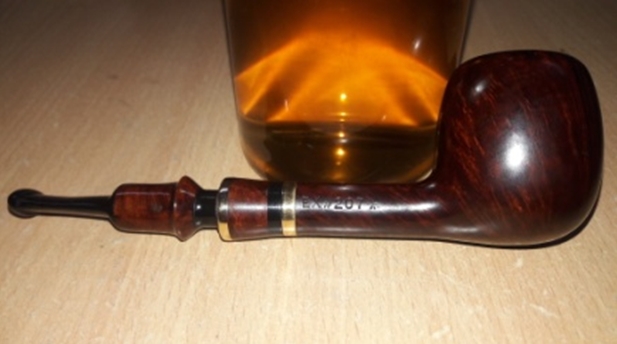

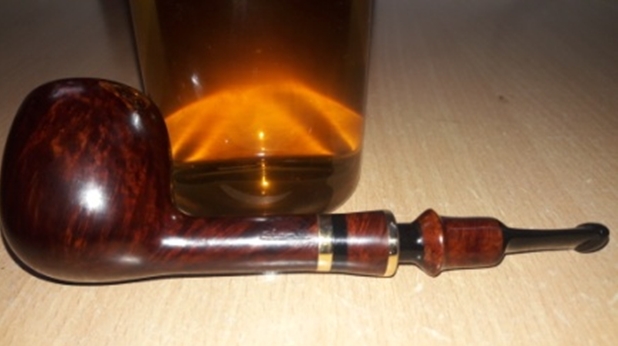

Some readers must have observed that the fill still stands out as a sore thumb, but I would like to assure you that it’s the smooth glossy surface of the highly polished superglue that reflects more light than the surrounding and hence is more prominent. To the naked eye, however, it is not so evident. Any inputs and suggestions are always valuable to me and most appreciated as they help me grow and improve.

Lastly, I thank everyone for sharing the joy that I experienced while working on this pipe.







Advertisements

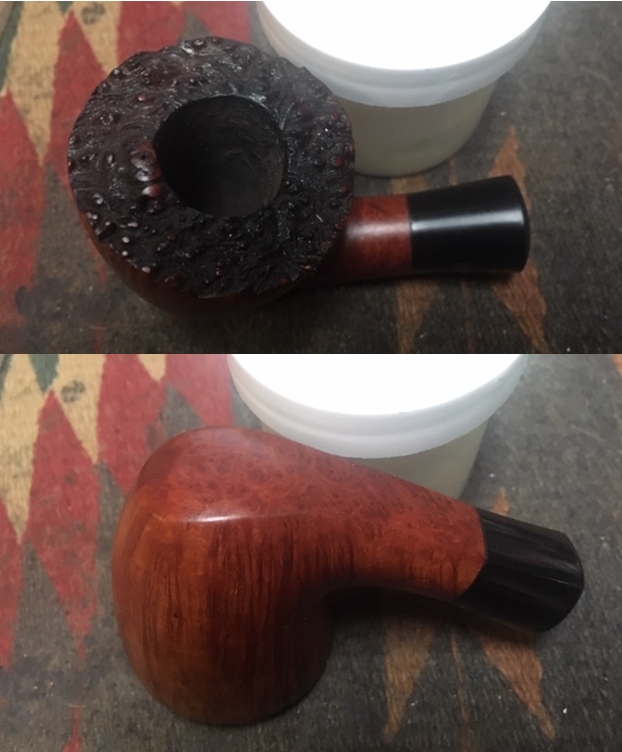

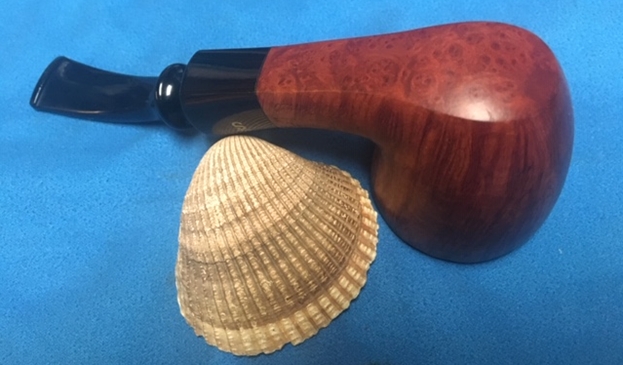

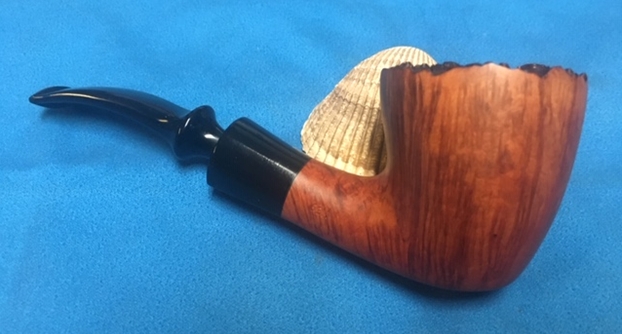

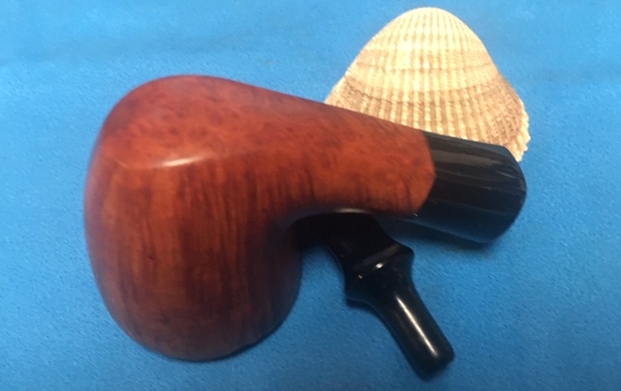

Repairing a Broken Shank Extension on a Stanwell Diplomat 63M


Blog by Steve Laug

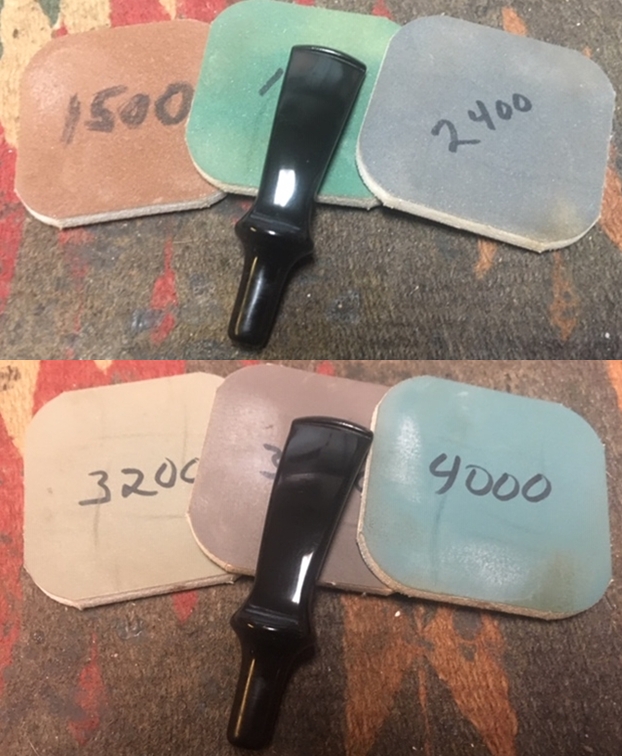

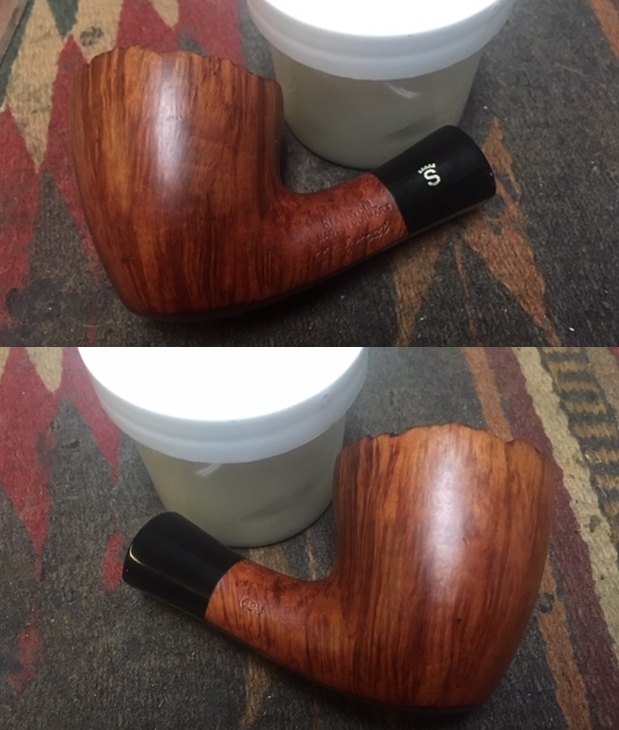

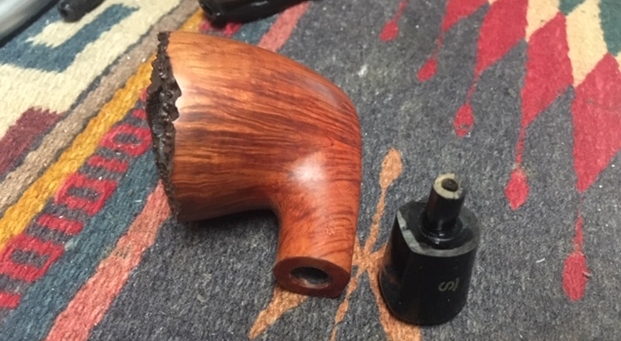

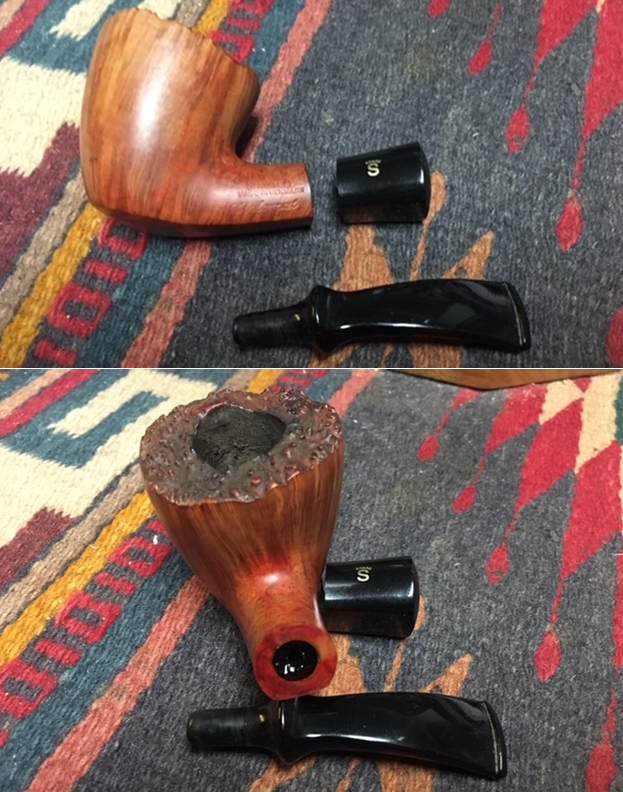

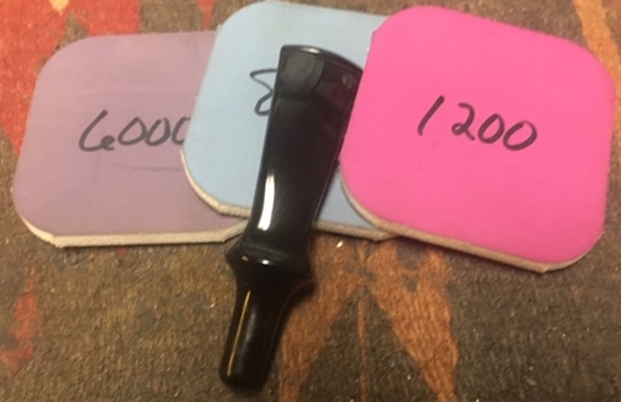

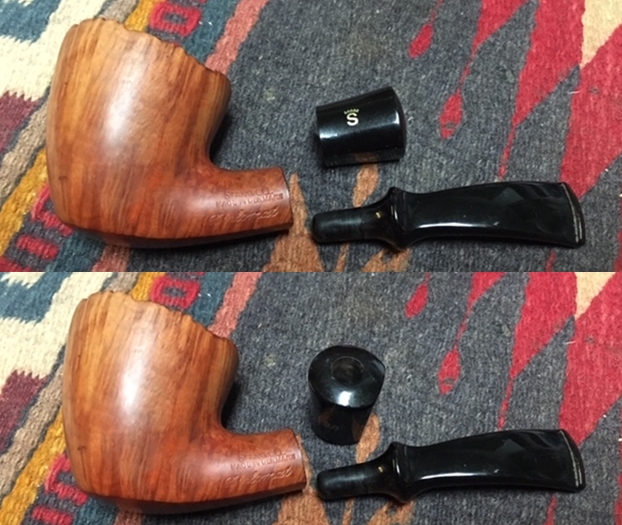

I receive a phone call referral from a customer of City Cigar here in Vancouver. I was at work so I gave him a quick call and after a bit of dance trying to connect we talked. He had a Stanwell pipe with what he called “a broken stem”. He had dropped the pipe and it had snapped. I fully expected a broken tenon as usual on this kind of repair. But I would see when it arrived what it needed. He dropped the pipe off at my place leaving it in the mailbox and when I came home I took it out of the box. I could see why he called it a broken stem as the normal Stanwell shank extension and stem appeared to be a single unit. This was not something I had seen on a Danish Made Diplomat but I took some time to check it out. The stem was firmly stuck in the shank extension so I coaxed it out carefully and it came free. This changed the repair a little for me. Instead of a new tenon in the stem I needed to pull the broken tube that held the shank extension to the shank and then drill out the extension and at a replacement tube. I took a few photos of the pipe in pieces to show what I was dealing with. The fourth photo shows the snapped tube in the shank. I tried to pull out the tenon in my usual way – a screw in the airway and wiggling it but it was stuck. I painted the edged of the mortise with acetone to break loose whatever was causing it to stick but it did not work. I finally resorted to drilling it out. I put the bit in place in my cordless drill and turned the stummel onto the bit by hand to carefully remove the tenon. I changed bits often until I was using one almost the size of the airway and finally had removed the stuck tenon.I drilled out the end of the shank extension as well. This was a touchier job as there was a thin section between the end of the extension and the mortise. I did not want to break through into the mortise so I drilled it very slowly. I went through my piece of vulcanite and Delrin tubing and found one that was the right fit. I used the topping board to square off the ends of the tube and then glued it in place in the shank extension first with super glue.When the tube had set in the shank extension it was time to glue it in place in the shank. I usually use a two part epoxy but did not have any in the shop. The stores were closed so I decided to mix a batch of JB Weld which would work just as well. I mixed the two parts together with a tooth pick and painted it on the face of the shank and the extension. I also painted it on around the tenon end so that all surfaces were covered with a coat of the epoxy mix.I lined the parts up and pressed the shank extension into place on the shank. The glue sets pretty quickly but I had enough time to make sure the alignment was correct on the underside of the shank. I wiped off the excess glue with a damp cloth and once the glue set I took a few photos of the repaired shank. I set it aside to let the glue cure overnight. Once it sets and cures the connection should be very strong. I polished the joint of the repair with 6000-12000 grit micromesh sanding pads – dry sanding it to raise a clean shine. I wiped the shank and extension down with a damp cloth after each pad to remove the sanding debris. After the final sanding pad I hand buffed it with a cotton cloth to raise a shine. Here are some photos of the pipe at this point in the process. I really have come to appreciate Mark Hoover’s Before & After Restoration Balm for its restorative properties with dry briar. I use it on virtually every pipe that I work on. I worked it into finish of the briar with my fingertips to clean, enliven and protect it as I usually do at this point in the process. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The Restoration Balm really makes the grain stands out beautifully. I finished polishing the bowl and set it aside and turned my attention to the stem. There was quite a bit of tooth chatter on the top and underside ahead of the button. Though in talking to the client I did not mention cleaning up the stem to me it is just part of the process. I polished the stem with micromesh sanding pads – wetsanding it with 1500-12000 grit pads. I wiped the stem down with Obsidian Oil after each pad and gave it a final coat and the 12000 grit pad and set it aside to dry. I put the stem and bowl back together and buffed the pipe with Blue Diamond on the buffing wheel. I polished the briar and the stem until there was a rich shine. This Danish Made Stanwell Diplomat 63M has a classic shape and a rich finish that highlights the amazing grain on a proportionally well carved pipe. Once I buffed the pipe the grain just popped. The black stem had a rich glow. The finished pipe is actually quite stunning. It is a beautifully grained Freehand with a military style stem that fits well in the hand and sits right in the mouth. Have a look at it with the photos below. The dimensions are Length: 5 1/2 inches, Height: 2 inches, Outside diameter of the bowl: 1 3/4 inches, Chamber diameter: ¾ of an inch. I will be giving the owner a call to let him know it is ready for pickup. Thanks for walking through the repair on the shank extension with me as it was a pleasure to work on.

Gifting my Mentor and Dear Friend, Steve, an Alexander Zavvos Hygrosystem Pipe.


Blog by Paresh Deshpande

When Steve, his brother, Jeff and Dal Stanton, The Pipe Steward, were on a visit to India, I had a desire that there should be a unique pipe which all three of us should have (Mr. Jeff being a non smoker) and had laid down for myself, the following parameters for identifying THAT PIPE!

(a) Both should not be having this pipe in their personal collection (knowing well that this would be a very tall order!!)

(b) The pipe must have some historical significance and should have made a contribution to the world’s pipe history.

(c) It must come from a well-known carver or manufacturer.

I began this selection with going through my own personal modest collection, rather my Grandfather’s collection to which I have made miniscule additions. Amidst all the WDCs, Charatans, Comoy’s, Barlings, Ben Wades, Stanwells and Kriswills, there was this one pipe which was very different. Very early in my association with Steve, we had discussed this pipe which Mr. Steve had not come across (which was unbelievable!!!) and did not own a pipe from this carver, but was very much interested in it. An oblique enquiry from Dal also confirmed that he did not have this make. Well, this helped me zero in on this pipe to be gifted to my friends during their visit to India. The pipe selected is an ALEXANDER ZAVVOS HYGROSYSTEM, PAT.No 87033, made in the 1970s-80s. What followed was an extensive and prolonged hunt for two such pipes of which the first one was purchased from one seller on Pinterest and the second was on eBay. These pipes were received separately and the last delivery materialized a couple of days prior to the arrival of my esteemed guests. Here are both the pipes as I received them.Since Dal was the first to arrive in India (and being the youngest amongst arriving guests…LoL), he was given a choice between the two. He selected one with an Apple shape and the remaining willy-nilly came to Steve. At that point in time, both Dal and I discussed that it would be the Apple shape that Steve would have selected but… Well after working on Steve’s pipe, am I glad that the Dublin came to Steve as it provided me with an opportunity to present my first ever rusticated pipe to the person who has introduced me to this art and mentored me all along. Thank you Steve for being with Abha and me on this journey.

The stamping on the Dublin is pretty worn out and hard to make out. However, the stampings on my pipe and that on Dal’s is pretty crisp and clear. It reads on the left of the shank as “ALEXANDER” over “HYGROSYSTEM” over a square with letter “Zb” over “GREECE”. The bottom of the shank bears the stamping “PAT No. 87033” over “03/ 89”, which I believe is the date code indicating that the pipe was made in March of 1989. This stamping is visible only under a white light with a magnifying glass and the area around the stampings has bubbled up skin surface, something akin to chipped paint.I researched this pipe on pipedia.org and reproduce excerpts of information on this pipe carver, in his own words, and his immense contributions to the Greek pipe industry in particular and entire world’s pipe community.

I am Alexandros Zavvos, born in Molos, Thermopylae, near Lamia. Since I was a child I had an inclination for art, starting with painting. I studied Radio-electronics, and at age 23 I got involved with commerce with a capital of 150.000 drs. in 1962.

 I entered the pipe business where I met, by total chance, with Mr. Libero G. Albanese, first technician and producer of briar-wood models in Kalabria, Italy. When I told him that I am Greek, he almost prayed, saying that we Greeks have the best briar in the world for pipe-making! From that moment on I understood that this fellow is in love woth his work – and he transmitted that to me instantly!

From mid-1962 to 1963 I searched all over the world for a college or a school in order to be taught the art of pipe-making, but in vain – there were none. Moreover, I wasn’t able to make it through the big European pipe-makers of that time (British, Italian, Danish). I was convinced that only through experience there was a chance of me becoming what I wanted.

In 1964 I started the commercial briar-wood model production, in 1965 I constructed empirically my first pipe and in 1967 I started the vertical production (this is from the briar Greek woods to the consumer) – maybe there is no other factory in the world producing smoking pipes vertically.

In 1970 I started the research, which was accomplished in 1984, on the 1st generation hygrostatic system. In that same period we founded, my brother and I, our factory in Lamia for the production of ebony epistomes.

Today, 40 years later, I have successfully arrived at the production of the 5th generation hygrostatic pipe. I will finish by saying that this pipe, to what concerns the pleasure it provides, has nothing to do with that pipe for peace, offered by American Indians.

Update: Today I am saddened by the news that Alexander passed away on February 10th, 2015. Our thoughts and prayers are with his family and friends. We are very thankful for his contributions to the World of pipes. —sethile (talk) 21:00, 12 February 2015 (UTC).

The description given by the seller on eBay was equally informative and I reproduce the same for the readers to get a fair idea of the famed Hygrosystem that has been incorporated into the construction of this pipe.

A patented Hygro-system pipe by the greatest and most known (now deceased) Greek pipe manufacturer Alexander (Zabos / Zavvos). His old pieces are by now becoming rare and sought after, as his son who took over the business is not equal to the father. His stamp (Z with a B lower) comes from the two consonants in his name the way it is spelled in Greek. Very big and well known European pipe makers have purchased top briars from Alexander Zavvos, since the Greek briars are among the best in the world.

A few things about Alexader Zabos’s patent: The hygrostatic system  is the result of 35 years research and experience. It is based on the Bernoulli principle, has been allowed to be patterned (No 87833) by the Greek Ministry of Industry and Energy. Unlike most filter or no-filter pipes, the Alexander Hygrostatic Pipe reduces drastically moisture and other heavy residue (such as tar etc), which otherwise could be inhaled into our lungs and extinguishes a bitterness and a burning on the tongue.

Alexander Zavvos’s Hygrosystem pipes were quite expensive if bought new (the cheapest had a value of 160-170 euros) and have become highly collectible after the death of the manufacturer.

From the above information, it is safe to infer that this pipe is from the first generation of the hygrosystem pipes from Alexander Zavvos and made in March 1989.

DECONSTRUCTING THE PIPE

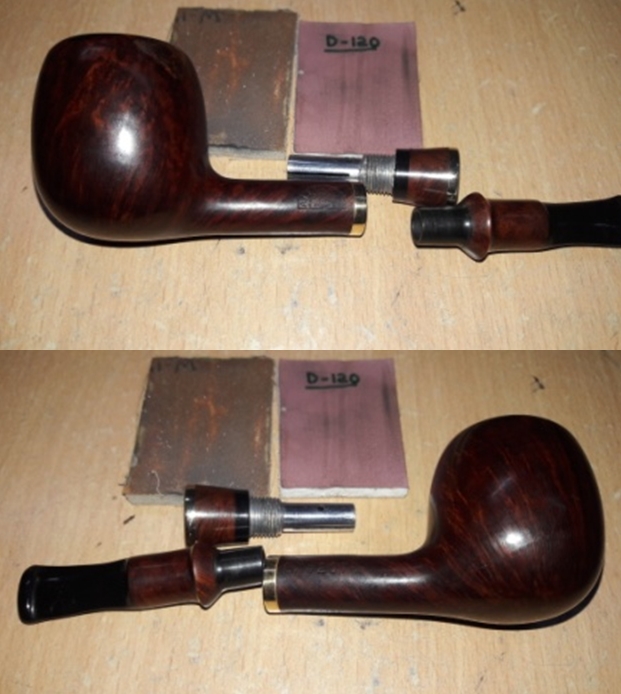

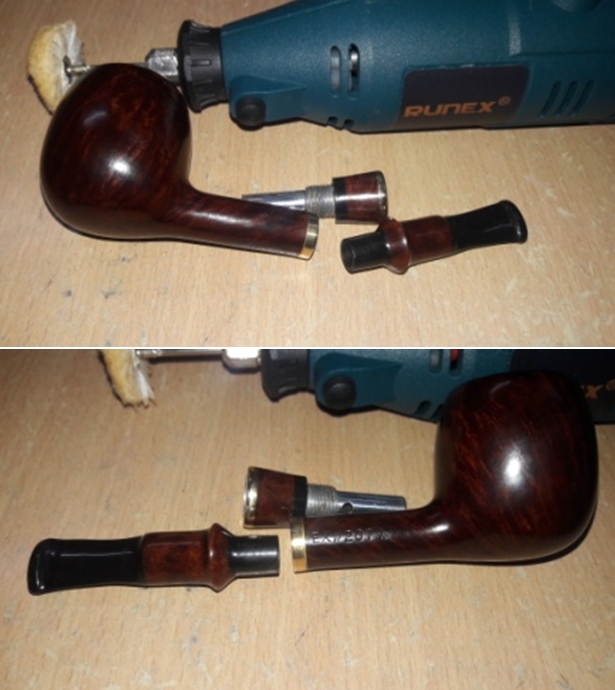

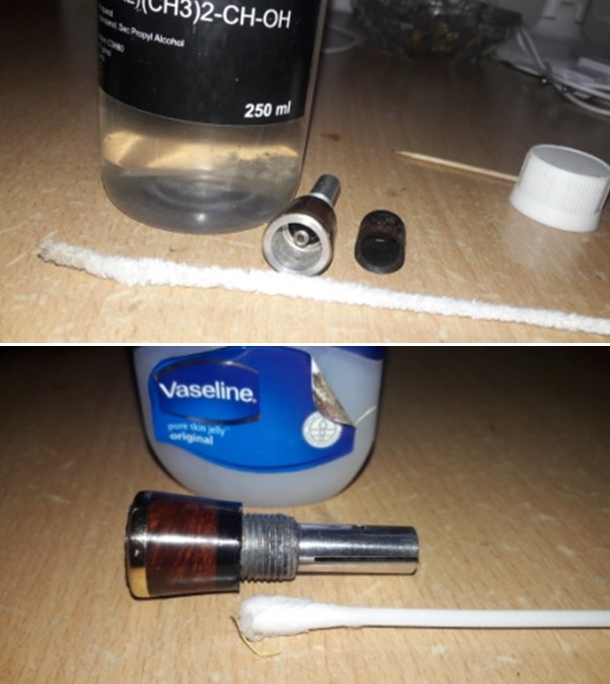

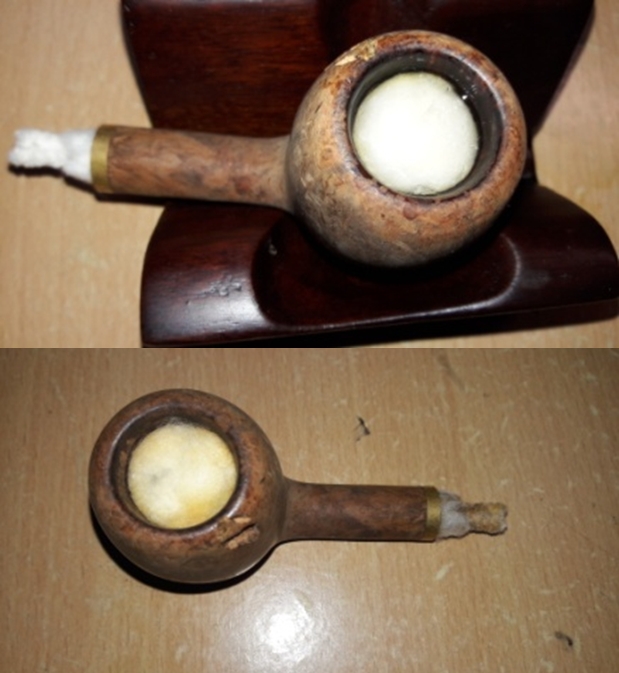

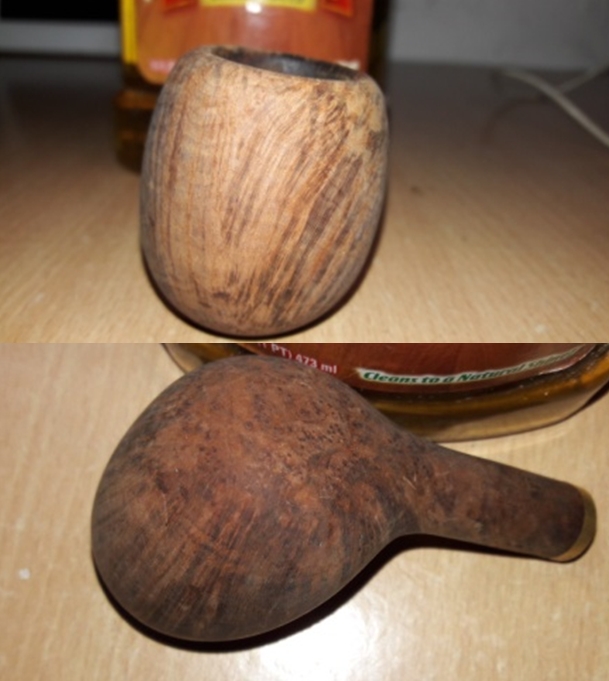

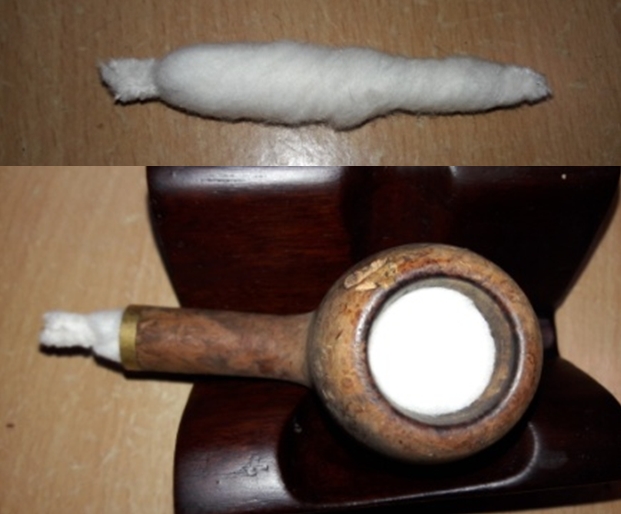

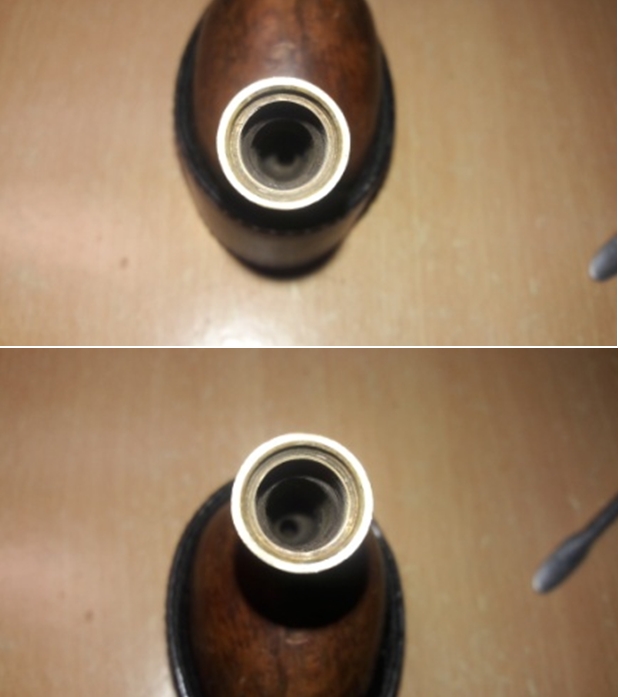

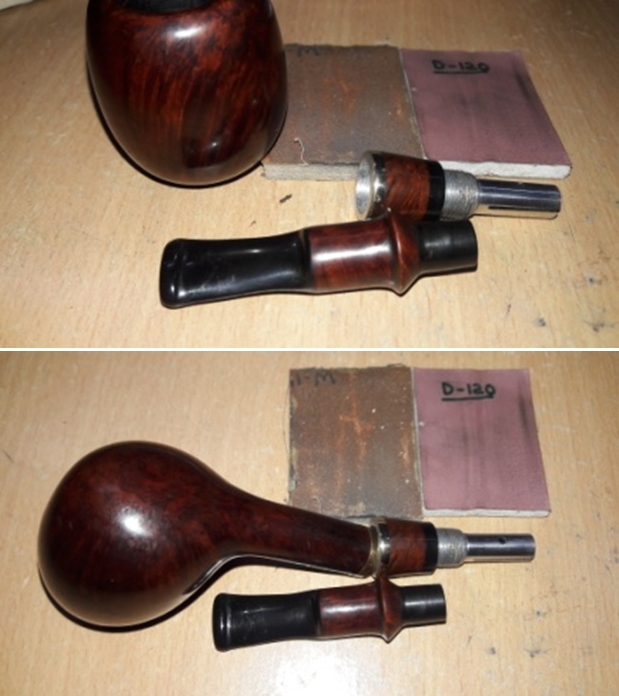

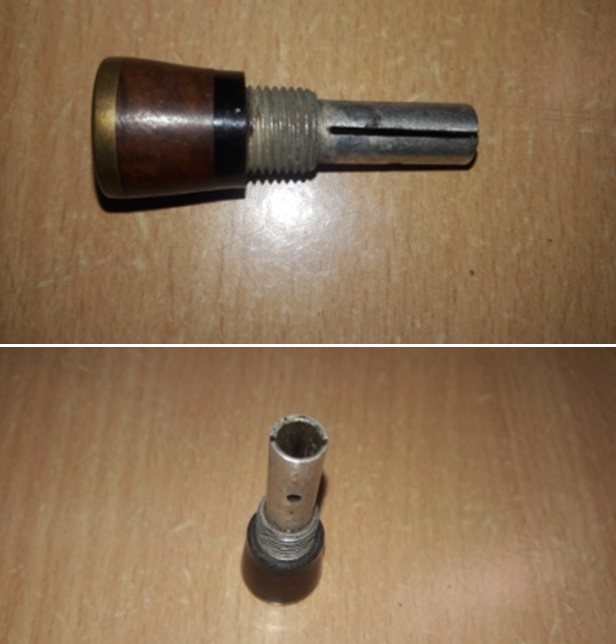

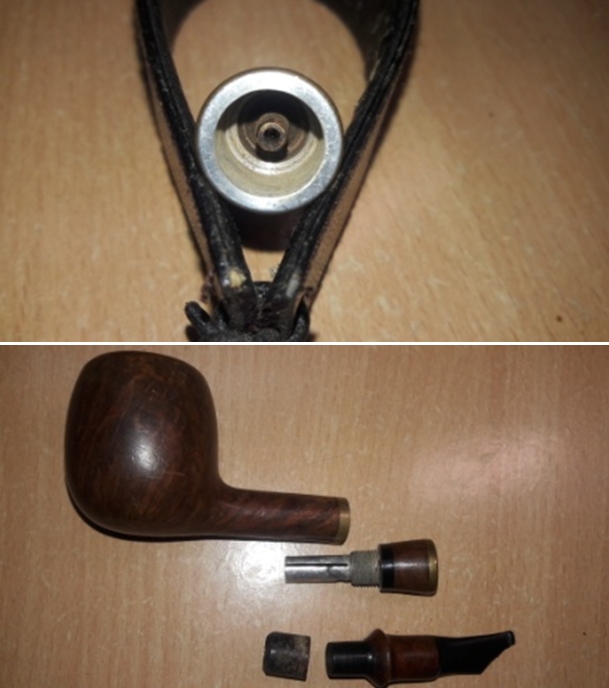

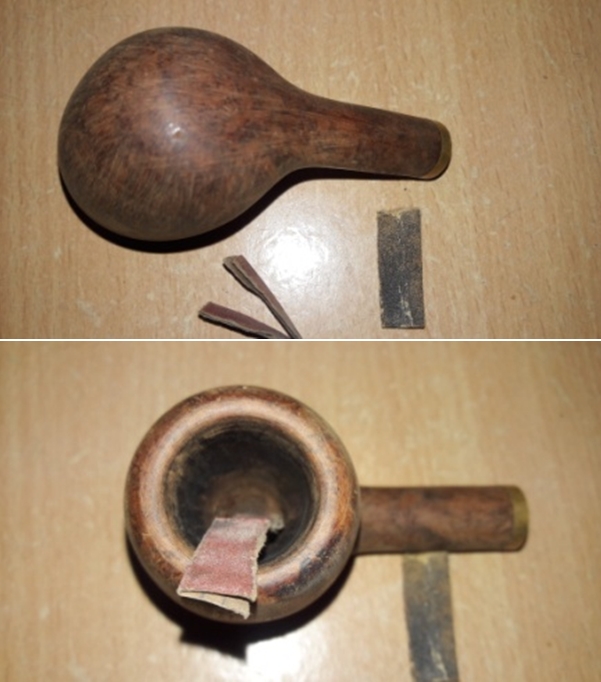

In my quest to understand the functional principal of the famed HYGROSYSTEM used in this pipe, I began by first dismantling the pipe. The pipe was dismantled in three parts; first the stummel, secondly the aluminum screw-in shank extension which has an aluminum tube to house a filter, probably a 6 mm, and lastly vulcanite stem with a fused briar wood saddle. From my appreciation, it is the shank extension which forms the critical component in the famed Hygro-System, at the stem end of which a smaller aperture pipe protrusion is seen. A similar sized protrusion is seen at the tenon end of the vulcanite stem. The fit of the tenon in to the aluminum shank extension is made air tight with a thin ring of briar wood (not leather, as it is not pliable at all).APPLICATION OF BERNOULLI’S PRINCIPLE IN THE HYGROSYSTEM

Bernoulli’s principle states that an increase in the speed of a fluid occurs simultaneously with a decrease in pressure or a decrease in the fluid‘s potential energy. This is applicable to flow of gases also.

In simple layman’s understanding, the above principle states that “Pressure is inversely proportional to the speed of the liquid or gaseous flow”. So how does this principle work in the hygrosystem of this pipe? To explain application of this principle, refer to the picture of the pipe below that I have drawn:(a) Hot smoke along with heavy particulates of oils, tars and moisture from the chamber enters the mortise and expands due to width of the mortise. As a result, speed is reduced. High pressure is created in the mortise.

(b) Once the smoke enters in to the aluminum shank extension, it is compressed and speeds up considerably creating a low pressure area. Due to the low pressure, heavy particles like oils, tars and moisture settle down and are trapped in the filter in the aluminum tube of the shank extension.

(c) The speed is further increased when the smoke passes through the smaller aperture tube due to further compression, shown in green arrows, further lowering the pressure. When this smoke leaves the smaller aperture tube and enters the wide stem end of the shank extension, there is a sudden increase in pressure. This sudden variation in pressures results in heavy particulates settling down and only smoke, being lighter, propelled ahead.

(d) Similar pressure changes are affected when the smoke passes through the wide tenon and through the smaller aperture tube in the stem, further precipitating the heavy particulates of oils, tars and moisture. The end result is a pure smoke without any oils or tars.

The above understanding is my own reasoning based on my learning of science till Graduation level. Any corrections or clarifications from more knowledgeable readers is always enriching and welcomed.

INITIAL VISUAL INSPECTION

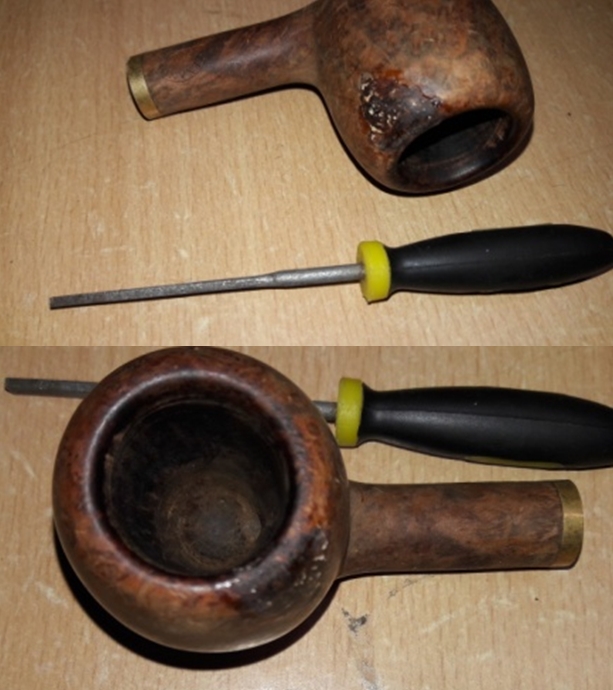

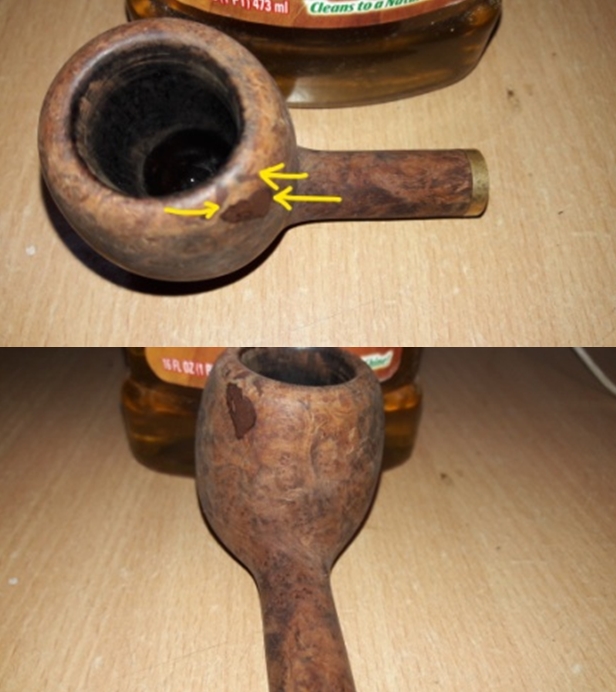

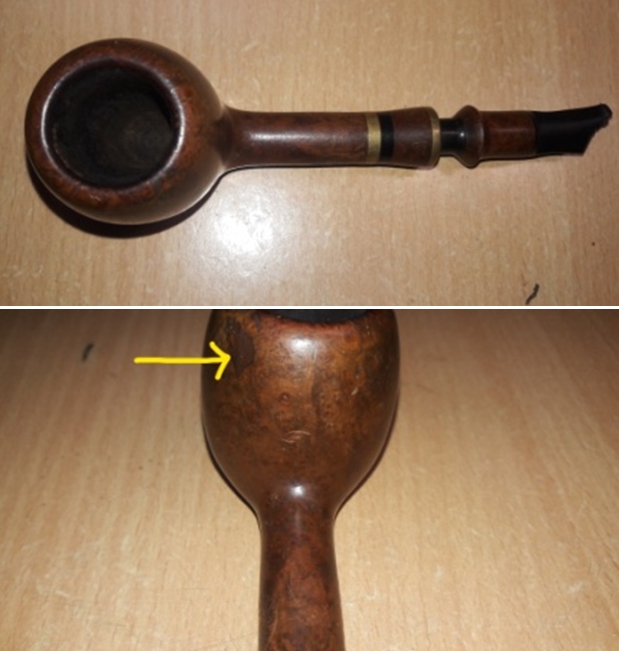

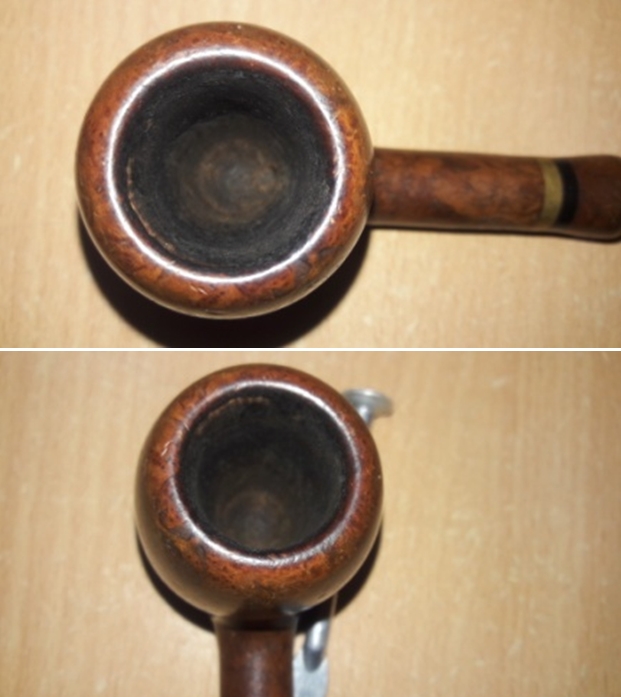

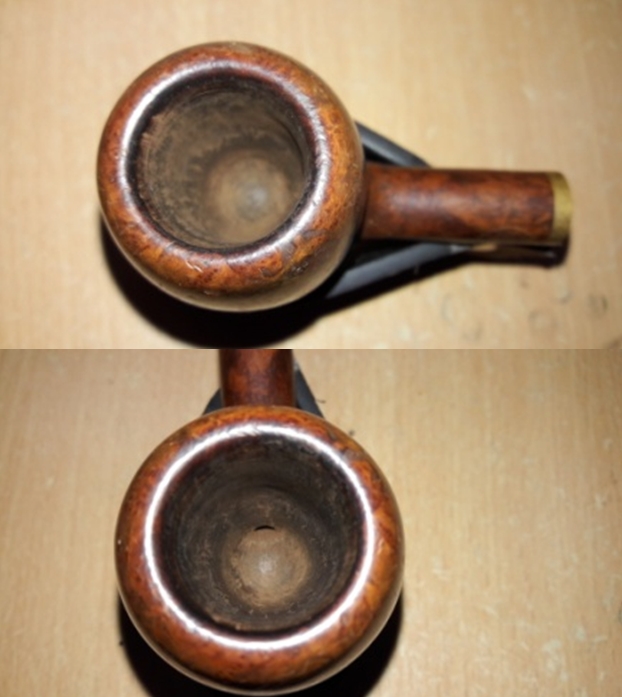

Starting with the rim and rim top surface, there is a slight overflow of lava on the rim top and the surface itself is peppered with numerous dents and dings which should be easy to sort out by topping the rim top. The rim edges are sans any serious damage, save for an odd chip on the outer edge, marked in blue arrow.The chamber however tells a very different story. There is a thin layer of cake which has taken on a grey coloration, which is a first for me, by the way. The way the cake appears to the eye, I suspect a few heat lines in the walls of the chamber towards the back and right side. I just hope that the issue is not a major one and just a bowl coating should suffice. Well, I shall cross the bridge when I reach it. There is strong smell emanating from the chamber which should be addressed to a great extent once the chamber has been reamed and the shank has been cleaned. The stummel surface has signs of accumulated dirt, dust and grime and should clean up nicely. It was surprising to note that these accumulations are in patches, almost following the cross grains seen on the right and front and over the entire shank. The left side, which has some beautiful bird’s eye grain, is clean. There are a large number of dents and dings all around the stummel surface. The shank surface has bubbled up near and around the stampings towards the shank end. Just near to the shank and bowl junction, I could make out a very thin line running all round the shank forming a circle (marked in yellow arrow). This worries me as at this stage, I am not sure about the extent of the depth of the crack. Also along this crack line, I could make out one fill. All in all, this is going to be a challenging restoration to get it back to being smoke worthy. There is a brass ring at the shank end which extends inside the shank with threads on to which the aluminum shank extension is screwed in. This brass ring should add a bit of glitz to the pipe appearance once polished. The mortise is clogged and heavy crust of dried oils and tars are clearly visible. This will take some effort to clean out.   The screw-in aluminum shank extension that houses a filter is covered in oils and tars. Also the smaller aperture pipe protrusion at the stem end is covered in gunk and tars. The briar coating at the top of this extension is chipped at one place (marked in yellow arrow) exposing the underlying aluminum shank extension. At the stem end of this extension, the brass ring is missing (marked in orange). I don’t have any brass rings and hence will have to improvise one that will fit. The vulcanite stem with its fused briar saddle at the tenon end is generally in good shape, save for the broken button end. The stem is very lightly oxidized and has minor tooth chatter on the lower lip surface towards the button end. The lower button itself shows minor tooth marks. Rebuilding of the missing button portion of the upper surface and reshaping of the lower button shouldn’t pose any major issue. The tenon is dirty with all the gunk and dried oils and tars left behind by the previous owner of this pipe. THE PROCESS

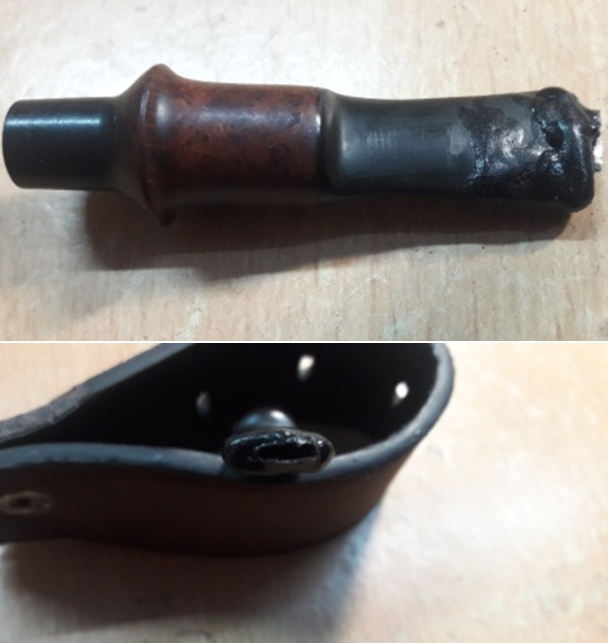

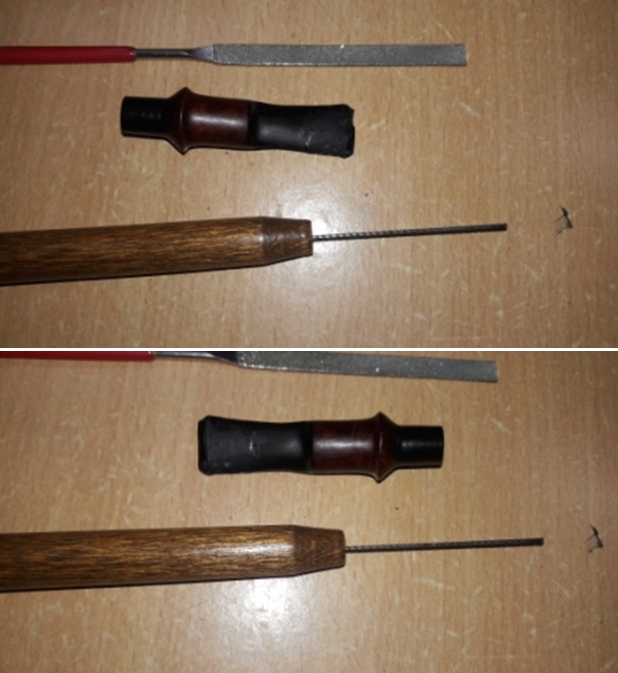

Since any stem reconstruction takes the most amount of time what with all the curing, sanding, refilling if needed, shaping and polishing, I always prefer to start with repairs to the stem. Firstly, I sand off all the tooth chatter and the area of intended fill with a piece of 220 grit sand paper. This not only evens out the surface for the fill but also gets rid of the oxidation which would otherwise show itself through the fills as a brown patch after polishing. This was followed by cleaning up the internals of the stem and the tenon with regular and bristled pipe cleaners dipped in 99% pure isopropyl alcohol. With a dental pick, I scrubbed out the dried gunk from the tenon and from along the broken button end edges. I had seen Dal use a folded triangular index card while reconstructing a broken button end whereas I always used a Vaseline coated pipe cleaner inserted in to the air way to keep it open. My method, though effective, was time consuming as I had to completely reshape the slot thereafter. Therefore for this repair, I decided to adopt Dal’s method. I appropriately folded an index card and covered it with a transparent tape which prevents the superglue and charcoal mix from sticking to the card. This is how it appears and fits in to the broken stem.I prepared a thick mix of CA superglue and food grade activated charcoal and applied it over the broken button area. I also applied this mix over the lip edge to make it even and cover the tooth marks. Once this layer had cured, I applied another layer of the mix. The trick here is that this type of reconstruction needs to be done in layers to a thickness more than the adjoining stem surface. This thereafter can be filed and sanded down to match the stem surface. I did exactly as described above and set the stem aside to cure.First layer.Second layer.Third layer.Final layer.

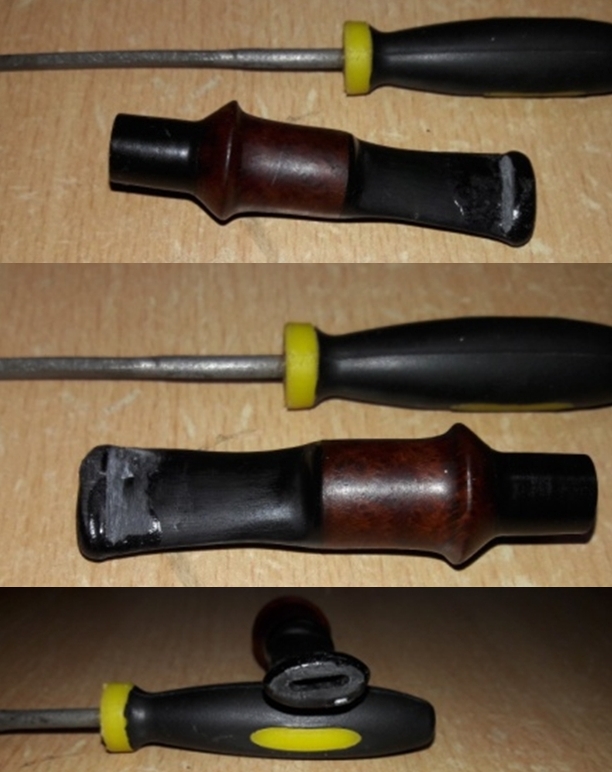

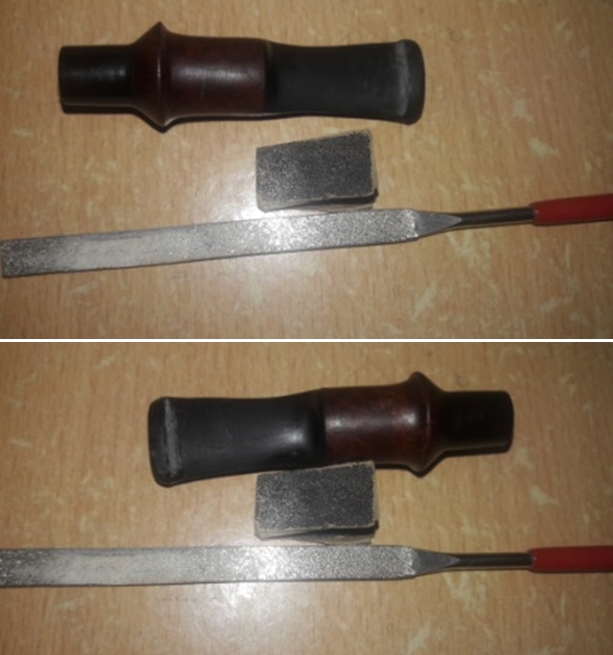

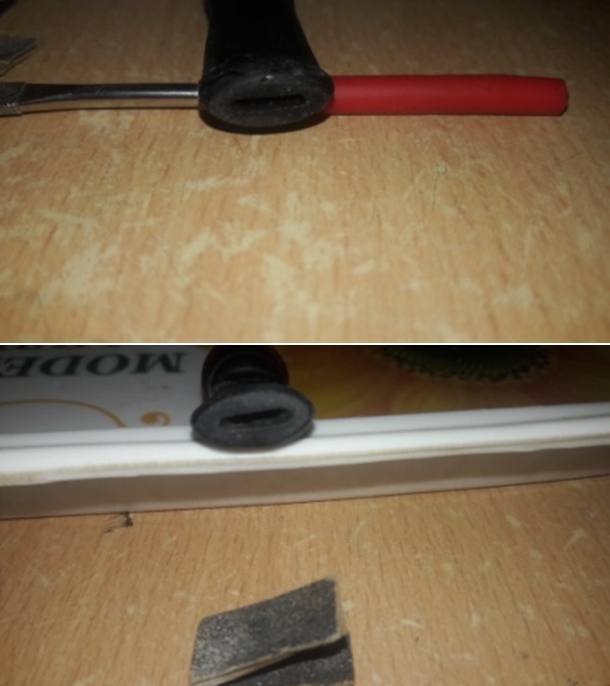

Once the mix had cured hard, I went about matching these fills with a flat head needle file and followed it up with a piece of 220 grit sand paper. As expected, I observed a couple of air pockets and also that one of the lip edge had been filed down more than the other and was dotted with many air pockets. I addressed these issues with a layer of superglue and charcoal powder mix. However, in this mix, the percentage of superglue was higher than the charcoal powder. I set the stem aside to cure. After the stem fills had cured, I repeated the process explained above to match the filled surface with the stem surface using needle files and sand paper. Now the lip edges are even, however, the air pockets persist. It’s very frustrating, I know but you have to be equally persistent. I applied a layer of clear CA superglue (would have ideally applied black CA glue, but……don’t have it) and set it aside. To take my mind off the troublesome stem repair, I decided to tackle the issue of missing brass band from the stem end of the shank extension. Working with limited spares, materials and tools has its advantages. It forces you to think out-of-the-box for ways around the hurdle, many a times with startling and successful results but you pay the price in terms of time penalties. Well, time I have aplenty!!! I decided to fabricate a brass ring of adequate thickness. My fabricator informed me that it would not be possible to make one with this width as he had only wires and not strips of brass. No issues, I had two rings made!! These rings fit perfectly and add a nice unique touch. These should polish up nicely. I shall fix these rings towards the end of the restoration process. Moving ahead, I reamed the chamber with size 1 and 2 head of the PipNet reamer. Using my smaller sized fabricated knife, I further reamed out the cake from places where the PipNet reamer could not reach. I gently scrapped out the lava overflow from the rim top surface. I followed it with sanding the chamber walls with a 220 grit sand paper. How I miss my younger daughter, Pavni, who specializes in smoothing the chamber walls and removing every trace of the old cake. Steve, hope I have come close to her finesse!! Once the cake was taken down to bare briar, my initial fears of heat fissures/line were confirmed, with the only difference being that these were not linear but pits, another first for me. These pits were only on the right side of the stummel and marked in yellow.  To use J B Weld or only a bowl coating (which I prefer) would suffice, shall be decided later. Removing the overflow of lava from the rim top revealed a surface that is peppered with numerous dents and dings. Other than these issues, the walls of the chamber are even and solid. I still did not have the inclination to work on the stem (actually it’s the fear of unknown result of the last fill!!) and continued with cleaning of the stummel. I worked the mortise using the dental tool first to scrap out the dried out gunk, oils and tars left behind by the previous steward. The amount of grime scrapped out is a testimony to the efficacy of this HygroSystem, I say. A few pipe cleaners dipped in alcohol later, the shank is clean. Now that the chamber and shank internals are clean, the smells though reduced, is still prevalent.Staying with the stummel, I cleaned the externals with Murphy’s oil soap and toothbrush. Rinsing under tap water (remember, I am in India and its hot here and even tap water is equally warm!!!!) was the start of my nightmare and prolonged conversations with Steve and on our FB messenger group. Here are the pictures first; description of my observations will follow subsequently. Just follow the arrows… As I had noted during my initial inspection, the hairline crack towards the bowl end is now prominently visible and marked with yellow arrows in each picture. This hairline crack runs all around the shank and is joined end-to-end. This still was okay as I had anticipated it, but what surprised me, or rather rocked my feet, was the thick fill of putty running all around the shank end. The same is marked with blue arrows. This fill runs in a more perfect circle than the one near the bowl shank joint and right through the middle of all stampings!! Aargh……There goes the stampings… Sorry Steve, hope you understand.

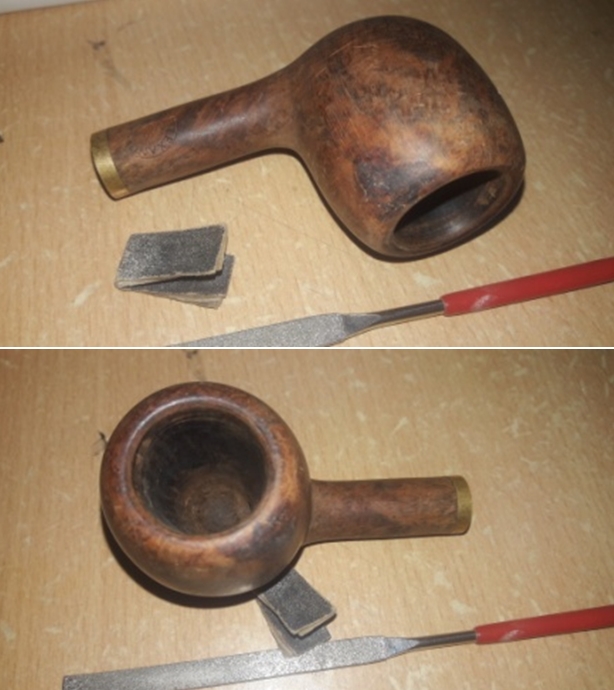

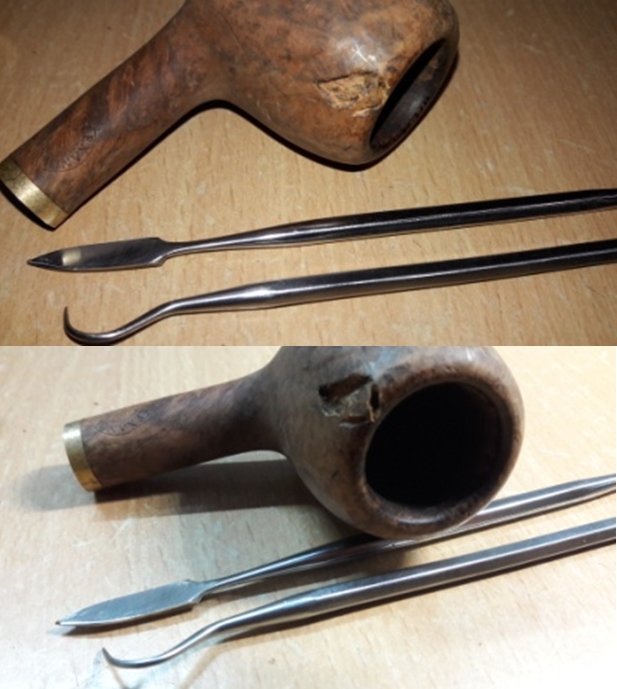

As if the hairline crack and the all-round fill at the shank end was not enough, the right side of the stummel is…. Actually, I am lost for words and the words that come to my mind are most definitely unprintable and I definitely have no desire for a rap on my knuckles from Steve. Have a look at the pictures and please decide for yourself a suitable description. There is not an inch on the right side of the stummel and shank that is free of any fills. Undaunted, I began the arduous journey of removing the old fills and preparing the stummel for a fresh fill. Using my newly acquired dental tools which were procured when Steve, Jeff, Abha and I had gone around the town shopping for tools for pipe resto work, I progressed to removing the fills. This is how the pipe appeared after the old fills were removed, a cheesecake pipe!!!! The fills were large and deep. The only saving grace was the crack near the bowl shank joint was only superficial and the fills on it would act as counter hole, what am I writing!! It’s a complete circular crack. The long and short of it is that the crack is stable and going nowhere damaging the structural integrity of the pipe. At this point in the restoration, I decided to address the issue of old odors in the chamber and shank by subjecting it to a cotton and alcohol bath. I wrapped some cotton around a folded pipe cleaner, keeping the tip of the pipe cleaner free of wrapped cotton as this would be inserted through the draught hole in to the chamber. This would form the wick for the shank. I tightly packed the chamber with cotton balls and filled it with 99% pure isopropyl alcohol using a syringe and set it aside. Immediately a few seconds later, the alcohol started oozing out of all the fills. The pipe appears to be shedding tears at its present condition, and so am I. I shared these pictures with my FB messenger group friends inquiring whether to discard the pipe or continue and ways to progress ahead with the restoration. The unanimous reply was to continue and rustication was the way ahead. Well I moved ahead with my work on the pipe but was not sure about the rustication part. Here is how the pipe appeared at this stage in restoration: By next day, the cotton and alcohol had drawn out the tars and oils from the chamber and max from the shank.I let the stummel fills dry out completely and after all the alcohol had evaporated, proceeded to fill the deep gouges with CA superglue and briar dust using the layering technique. I my part of the world, the moment briar dust came in to contact with the glue it becomes rock hard even after trying every trick that Dal had shared with me and Steve when we were together in India. Therefore, I adopted the layering technique where I put down a thin layer of superglue in to the fill and press briar dust over the glue. I continue with this till the fill rises above rest of the stummel surface. Believe you me readers, I spent an entire evening working well past midnight, to get all the gouges filled up. I set the stummel aside to cure for the next 24 hours. Still working on the stummel, I file the raised mounds of the patched fills with a flat needle file. The only drawback of the layering technique is that a number of air pockets are revealed after the filing. This time was no exception and I refilled the exposed air pockets only with superglue and set it aside to cure. Since there was still time before I hit the bed, I decided to address the stem. I sand the fill to match the surface of the stem. For a better blending, I further sand the entire stem with 220. I topped the slot on a piece of 220 grit sand paper to even it out. The repairs looked good at this stage. With the stummel fills nicely cured, it was time again to work on it. Using a flat head needle file, I sanded the fills and followed it with further sanding with a folded piece of 220 grit sand paper. Again the same sordid story, the fills revealed numerous air pockets through which the briar dust was seen. In my quest to make this restoration as perfect as possible, it refilled these air pockets with superglue and briar dust. This time around, I mixed a minuscule amount of briar dust with superglue and surprise! The mix remained pliable for just enough seconds in which I could apply it over the fills. Again I set the stummel aside to cure. This sure is trying my patience and stubbornness. I shall prevail, is what I have decided. Since the glue and briar dust mix had hardened immediately, but not hard enough to use a flat head needle file on it, I decided to address the issue of the numerous dents, dings and scratches on the rim top surface. To do this, I spread out a patch of 220 grit sand paper on my work table. Firmly holding the patch in my left hand and the stummel in my right, I gave a few firm rotations to the rim top over the sand paper patch. I continued the process, checking ever so frequently, till I was satisfied with the result. The rim no appears pristine and even. This was the only uneventful part in the entire restoration, LoL!!The fills on the stummel having sufficiently cured, I went ahead and filed the fills with a folded worn out piece of 150 grit sand paper and followed it up with sanding with a piece of 220 grit sand paper. My reasoning for not using a flat head needle file was that maybe the hard abrasiveness of the file is causing the fill to come out exposing the air pockets. But no, the air pockets still showed themselves in all their ugliness. I decided to press on with the process, even though Steve was still gently prodding me to take the rustication route. This was followed up with micromesh polishing cycle. I wet sanded the stummel going through with 1500 to 12000 grit pads. Intermittent wiping of the stummel with a moist cloth helps firstly, to remove the sanded dust and secondly, gives an idea of the progress being made and areas which needed more attention. The stummel has taken a beautiful sheen where there are no fills, but the right and front of the stummel and the shank tells a different story, it does not look presentable to put it mildly. While going through with the micromesh polishing cycle, I extend this care to the brass band at the shank end. The now nicely shining brass band adds a touch of class to the pipe and some bling too!!I shared the above pictures with Steve and asked for suggestions for the way ahead. He suggested applying some “Before and After” restoration balm as it may also help in further blending the fills. As he was suggesting this, there was a ping on my mobile and there were some pictures of beautifully rusticated pipes that Steve had done over the years. I just smiled and went ahead with applying the balm and see the results. The results were not encouraging at all to say the least. To be honest, the thought of going the rustication route to salvage this pipe had started taking roots in my head, mind you head and not the heart! Disappointed with the stummel appearance at this stage, I turned my attention back to the stem. I had sanded the stem, including the briar insert at the tenon end with a 220 grit paper. I picked it up from there and progressively sanded the entire stem with 600 and 800 grit sand paper. I expected a clean and neat looking stem to stare back at me, but what I saw made me cringe. The top of the button showed some beautiful white spots of air pockets (marked in circle)!! Why, why can’t this restoration progress without any hiccups? I decided to take a break and cleaned out my work table. I loaded my large W. O. Larsen bent brandy pipe with my favorite G. L. Pease Virginia blend, Telegraph Hill (thanks Steve for this pipe and the tobacco, though my gift to you is testing my endurance and determination!) and went out and sat down in the lawns closing my eyes. I thoroughly enjoyed my smoke and came back refreshed. I rubbed a little Extra Virgin Olive oil in to the stem surface to hydrate it and set it aside to be absorbed in to the vulcanite.I had undertaken restoration of two of the three parts of this pipe, the stem and the stummel, and this had proved to be tedious and frustrating. I left them aside in various stages of progress and now turned my attention to the third and last part, the aluminum shank extension. The only issue that I had seen in my initial inspection was that of the chip and bubble in the surface of the briar coating over the aluminum insert. I picked out the bubble and lo, behold, the small chip instantly transformed itself in to larger than life sized!!!! The thickness of the coat was very thin, a few microns, maybe, and instantly peeled of like wall paint. I immediately realized that I am in for a long haul on this one too. Here is what happened and for comprehension, reproducing the picture taken during the initial inspection.It was interesting to note that the aluminum shank extension had a nice design, indicated with a yellow arrow, below the briar finish coat and the coat was pressed on to it. That the coat is heated and wrapped around is evident from the fact that this design can be seen on the intact coat surface. I decided to address the issue of chipped coating by filling it with a mixture of briar dust and superglue. I set the shank extension aside to cure after applying the mix. I missed out on taking pictures of the fill.While fill on the shank extension was curing, I decided to complete the stem repairs. I completely gouged out the area with air pocket for a fresh fill. With a black marker I darkened the fill and thereafter spot filled it with a mix of charcoal powder and superglue, superglue being more than charcoal and set it aside to cure. The mix hardened immediately and I continued with sanding and shaping the button. The fills and stem reconstruction came out good and I was satisfied with the way the stem has now turned out. I followed it up with sanding the entire stem with a folded piece of 220, 400 and 600 grit sandpaper in that order. I finished the stem reconstruction with a polishing with micromesh pads, wet sanding with 1500 to 12000 grit pads. I applied a small quantity of Extra Virgin Olive oil to the stem and set it aside. The fill on the shank extension had cured and I progressed with filing it with a flat head needle file followed with a sanding with a piece of 220 grit sand paper. I further matched the fill with the rest of the surface by sanding the entire wood coating on the shank extension with folded pieces of 400 and 600 grit sand papers. In the pictures below, one may think that there are air pockets in the fill; however, the fill is solid without any air pockets. I also evened out the edges over the aluminum extension in preparation for fixing the two fabricated brass rings, described above. Staying with the shank extension, I cleaned out the aluminum tube protrusion and the threading with a brass wire brush. I further polished it with a 0000 grade steel wool. The aluminum tube is now clean and shining. I finished the cleaning regime of the tube and threads in the shank extension by polishing it with a multipurpose liquid polish.Now it was time to affix the two fabricated brass rings. I applied a little superglue over the exposed aluminum protrusion of the shank extension towards the stem end and fixed the rings over it. I polished the shank extension, the aluminum tube and the two brass rings included, with micromesh pads, wet sanding with 1500 to 12000 grit pads. The shank extension now has a nice shine and the aluminum tube looks like new. The fill does show through in all its awfulness, but this will blend in nicely when I stain and subsequently polish it further. I applied a little “Before and After” restoration balm and buff it with a microfiber cloth after 20 minutes.I cleaned out the wood gasket which makes the fit of the tenon in to the shank extension airtight with cotton buds dipped in alcohol. I applied a little Extra Virgin Olive oil to this gasket, inside and out, to hydrate the wood and set it aside to be absorbed in the wood. When I had initially dismantled the pipe, this gasket came out attached to the tenon. However, close observation of the outer surface of the gasket points to the fact that the gasket was stuck inside the shank extension towards the stem end. I did not sand the outer surface to a smooth finish as I wanted to keep the surface rough when I applied superglue and reaffixed it inside the shank extension.Now that I had completed the restoration and reconstruction of the shank extension and stem respectively, I turned my attention back to the stummel with all its imperfections. Even at this stage, while on Face time with Steve he suggested that I rusticate the stummel. However, when he saw the reluctance, he suggested that I should try to blend the fills, which were standing out like sore thumbs, with a darkest stain available to me. I decided to stain the stummel and the rim top surface with black stain first and later with a dark brown stain in the hope that the contrast would help in a nice blend. I heated the stummel surface with my heat gun to open up the pores on the stummel so that the stain is well set. I mixed black stain powder with isopropyl alcohol and liberally applied it over the heated surface, flaming it with the flame of a lighter as I went ahead to different self designated zones of the surface. This helps in the setting of the stain in the grain of the briar. Similarly, I applied the black stain over the wood of the shank extension. I set both the stummel and shank extension aside for the stain to dry and get completely absorbed in the surface. The next evening, approximately 18 hours later, as Dal describes, I began to unwrap the stain in the hope to see beautiful grains. I mount a felt cloth buffing wheel (for the first time I admit, as I had only recently purchased these) on my hand held rotary tool. Setting the tool at its slowest speed as Dal had explained to me that a felt cloth wheel generates tremendous heat, I began to peel of the stain from the stummel surface first. But, hell there was no unwrapping at all!!! Not an iota of stain was buffed out. Therefore, I decided to increase the speed of the rotary tool a notch higher and still no result. I further upped the ante and took the speed regulator to half of the full power. Now the stain was peeled out gradually. This was followed with wiping the stummel with a cotton swab and alcohol to lighten the stain a little as it was too dark for my liking and this also helps in cleaning the surface of all the residual stain. But as soon as I reached to the right side of the stummel, I started seeing the dreaded patches where the fills got removed. Same for the shank extension!!! Here are the pictures as I saw the after effects of this buffing. Following are my observation on the stummel at this stage:-

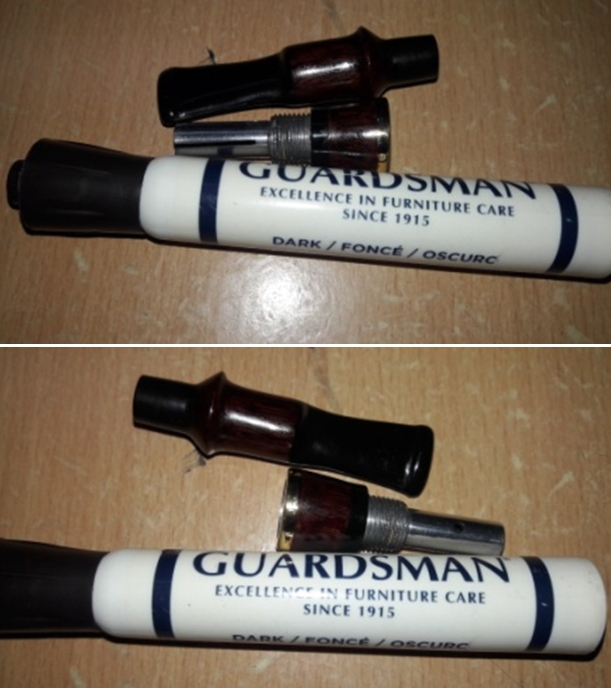

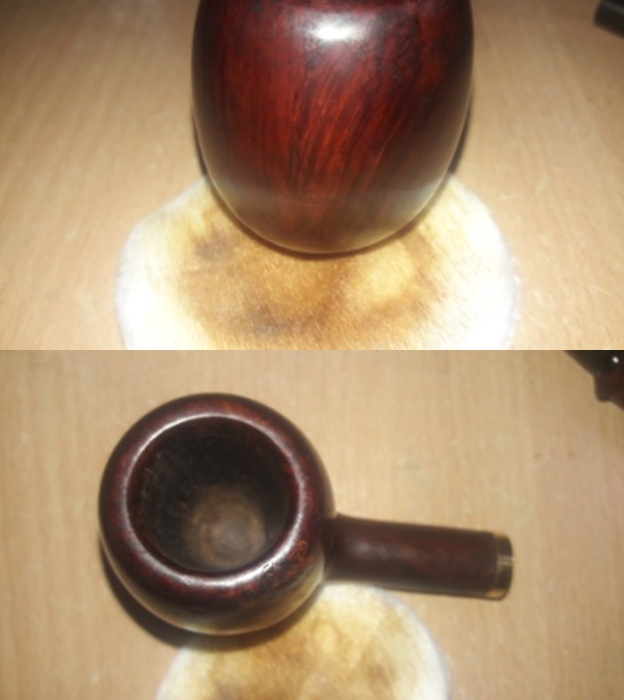

(a) The stain had not set in over certain fills. These stood out like red blisters and are gory to look at.

(b) The fills had come out at certain spots. This was due to my mistake. I had either heated thestummel too much prior to staining or could be that I erred in my handling of the newly acquired felt cloth buffing wheel. Unknowingly, I got the stummel overheated, ditto for the shank extension.

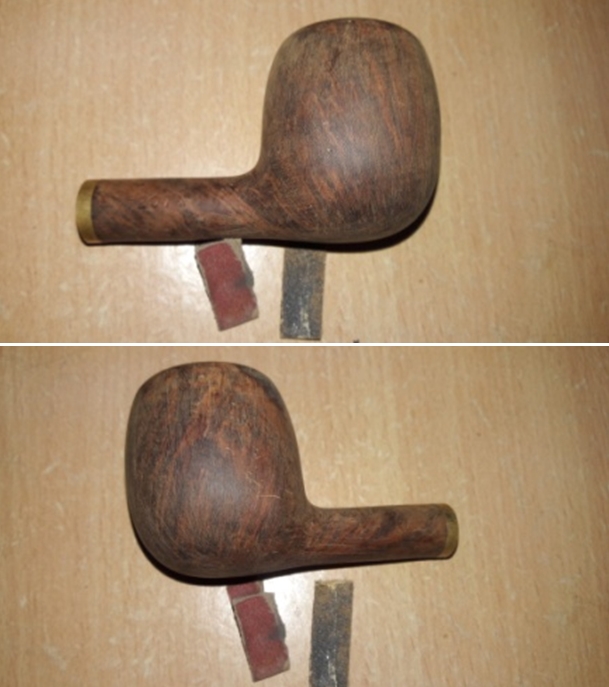

It was extremely frustrating to say the least. Now I had option of either refilling the spots or “RUSTICATING” the stummel and the shank. To the readers, I would like to inform that during the process of filling and subsequent sanding of the stummel there were numerous, or countless I say, times when I had to spot fill small pockets and repeat the sanding of these small spots. I really had no desire to go that route as it would have literally meant starting from square one!! And it has already been nearly 25 days that I have been working on this pipe (and simultaneously on Dal’s pipe too with its own share of challenges!). I decided to go the path pointed by my mentor and rusticate the stummel. I messaged Steve about this decision and his first response was a terse “Good”!!! Before I could forward a message lamenting further about not having suitable tools, he sent me a link on rebornpipes.com about how to make rustication tool from a Philips screwdriver. From the speed and swiftness with which he forwarded the link, it appeared as if he had anticipated this. Here is the link and is a must read for all new exponents of this art. https://rebornpipes.com/2012/11/03/making-a-rustication-tool-out-of-a-phillips-screwdriver/
