Stanwell Made Royal Guard Plateau Dublin


Blog by Steve Laug

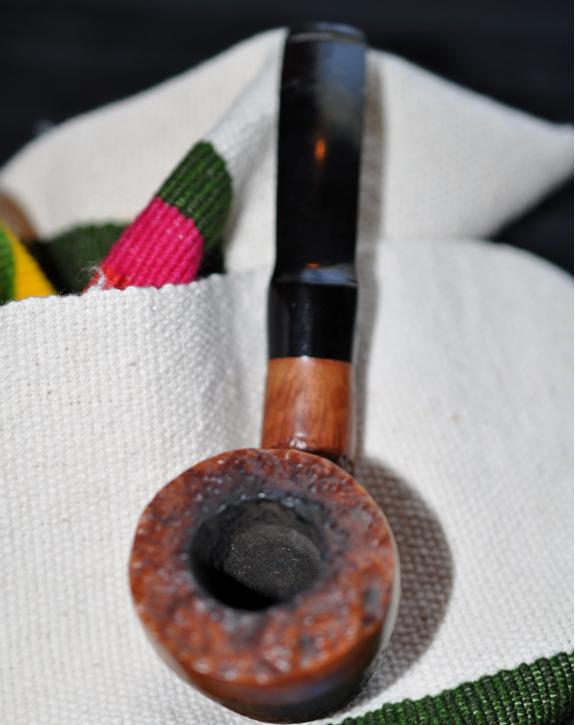

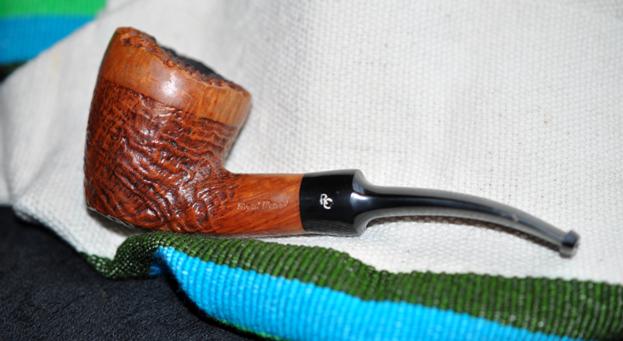

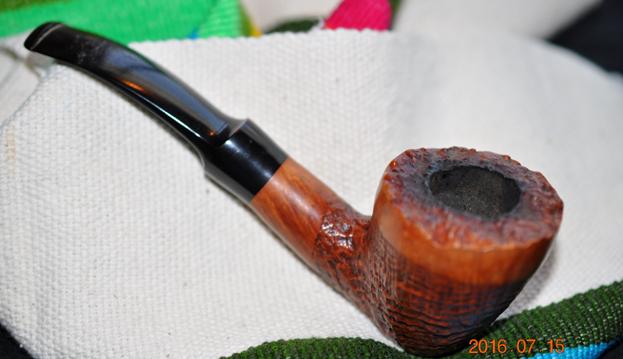

This one was sold as a Parker on Ebay and came with a Parker pipe sock and box. There was nothing about it that looked like a Parker in my opinion. Everything about it said Stanwell made. When the pipe arrived my brother took it out of the box and sure enough it was a Royal Guard pipe which is listed on pipephil’s website as a Stanwell second.  http://www.pipephil.eu/logos/en/logo-r6.html It was in decent shape. The plateau was dirty with tars and oils. The rim had some darkening but no damage to the bowl. There was a light cake in the bowl. The finish was dirty and there was dust in the grooves of the sandblast. The stem was in great shape though there was some tooth chatter on the top and bottom sides near the button. The stamping on the saddle stem was in good shape though there were spots where the white was missing in the stamped letters. My brother took photos of the pipe before he cleaned it.

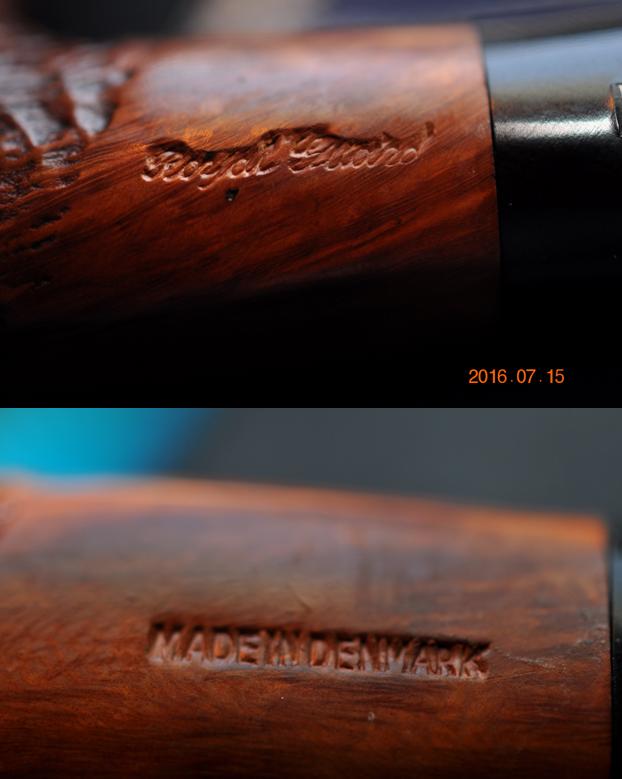

Guard1Guard2Guard3He took photos of the stamping. On the left side of the shank it was stamped Royal Guard. On the underside of the shank it was stamped Made in Denmark.Guard4The next photo he took shows the tooth chatter on the bottom of the stem.Guard5He also took a close up photo of the rim top. It shows the dust and the tars and oils in the grooves of the plateau.Guard6My brother scrubbed the exterior of the bowl and rim with Murphy’s Oil Soap and a tooth brush. He rinsed it off with water and dried it. He scrubbed the rim and removed the tars, oils and dust in the plateau. The soap and rinse also removed the dust and grime in the sandblast finish. He cleaned out the inside of the shank and stem. Once he had finished there was not much that I would have to do once I received it.

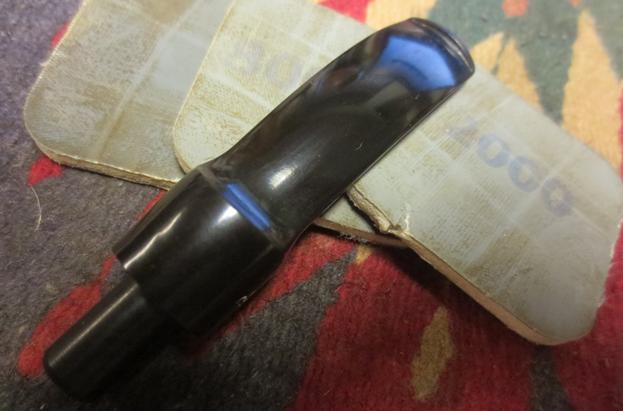

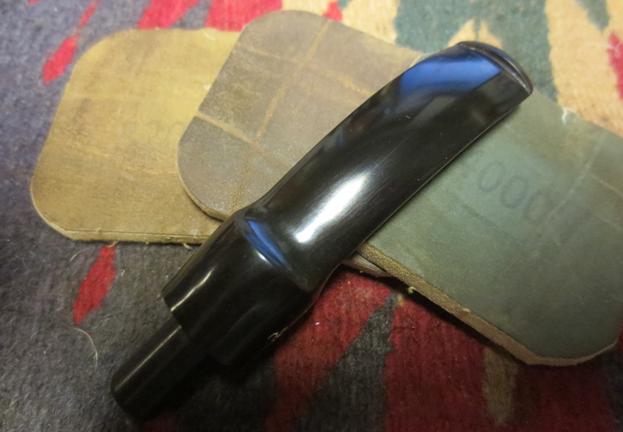

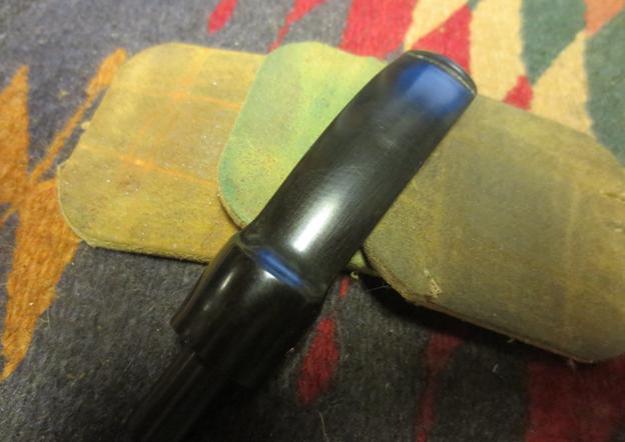

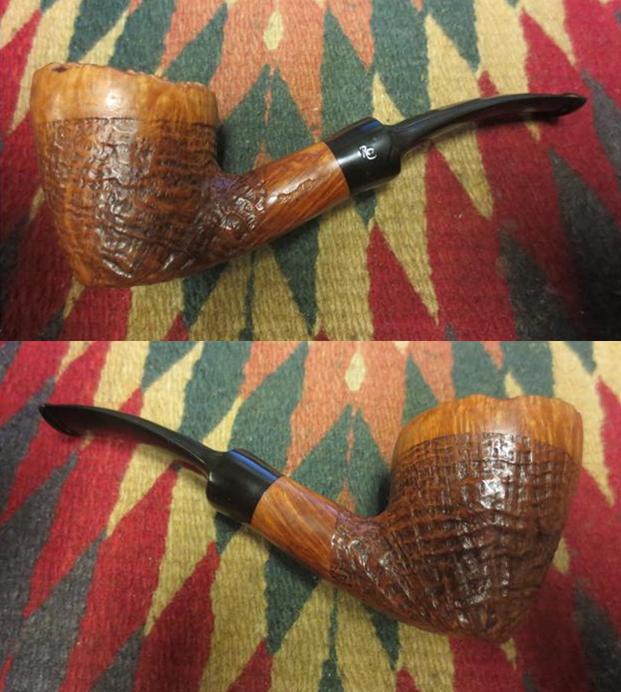

When the box came I opened the Parker box, took out the Parker pipe sock and slipped the Royal Guard pipe out of the sock. It really was a beautiful pipe. The sandblast and the smooth portions worked together to make a stunning pipe. The plateau on the rim was also perfect and the darkening worked well with the colouration of the briar in the sandblast finish. I took some photos of the pipe when I took it out of the box.Guard7 Guard8I took some close up photos of the rim and the stamping on the stem. The plateau looks really good and the inner edge of the bowl is clean. The stamping on the stem is clearly an interlocking RG. The white colour in the stamp is in great shape.Guard9I used the Savinelli Pipe Knife to clean up the remnants of cake in the bowl. It did not take much to remove the last of the cake. I took it back to bare briar and wiped out the inside of the bowl with a cotton pad.Guard9aI wet sanded the stem with 1500-2400 grit micromesh sanding pads and rubbed it down with Obsidian Oil. I dry sanded it with 3200-4000 and with 6000-12000 grit pads and gave it a rub down with the oil between each set of three pads. I finished by giving it a final coat of Obsidian Oil and set it aside to dry.Guard10 Guard11 Guard12I gave a quick touch up cleaning with alcohol, pipe cleaners and cotton swabs. It took very few because the pipe was clean other than the dust from my sanding.Guard13I gave the bowl several coats of Conservator’s Wax and hand buffed it with a shoe brush.Guard14I buffed the pipe with Blue Diamond on the wheel and lightly buffed it with several coats of carnauba wax. I buffed it with a clean buffing pad and then hand buffed it with a microfibre cloth. The finished pipe is shown in the photos below. This one is available if you are interested in adding it to your rack. Send me an email (slaug@uniserve.com) or a message. Thanks for looking.Guard15 Guard16 Guard18 Guard19 Guard20 Guard21 Guard22 Guard23

Advertisements

Cleaning up a Unique Savinelli Autograph Grade 4


Blog by Steve Laug

My brother found this Savinelli Autograph on a trip through Nebraska. He picked it up in an antique shop. It was in very good shape with a light cake in the bowl. It is a large pipe that is sandblasted on three sides of the bowl and the shank. The sandblast finish was very clean and the smooth portion was also smooth and undamaged. The Pipes and Cigars website http://www.pipesandcigars.com/pipes/73592/savinelli-autograph-pipes/ says that:

“Savinelli Autographs are as individual as your fingerprints. Each is the dream of an expert pipe maker realized in briar and personally selected by Giancarlo Savinelli. Every Autograph is 100% ‘Hand made’ using only the highest grade of Sardinian and Corsican Briar Plateau blocks. Well grained briar, worthy of becoming an Autograph is rare and therefore, these beautiful masterpieces are very limited and coveted by pipe smokers worldwide. Truly an achievement to be treasured, Autographs are available in smooth, paneled, sandblasted brown or black.” The Autograph my brother found is a paneled version.

On the Savinelli website it says this about the Autographs:

This rare, unique and irreplaceable pipe is shaped from the raw material following the grain and the “fiammatura” (“flame”), which Mother Nature has put at our disposal, according to the artistic mood of our master craftsmen. The wood is natural and the shape is unique for each piece. The name “Autograph” was created from the handwritten signature of Achille Savinelli Senior printed on the mouthpiece.”

“These pipes are graded according to very strict parameters: the 0 (zero) category goes from 000, an outstanding masterpiece, to 00 and then 0. The grading then goes down to 8, 6, 5, 4 and 3.” The one my brother found is stamped with a 4 thus it is a 4 Grade pipe.

The Savinelli website went on to confirm that the Autograph are available as ‘Panel’ pipes which have both a smooth and a sandblasted part or are completely sandblasted. http://www.savinelli.it/en/autograph-lisciaAuto1The rim was dirty but undamaged. The inner and out edge was in perfect shape. The stem was oxidized and had some tooth marks on the top and bottom sides near the button.Auto2There was a smooth spot on the underside of the bowl and shank that is stamped Savinelli Autograph over the number 4 over Italy. The finish was a little dirty on the bottom of the shank and would need to be scrubbed off. The first photo below shows the underside of the bowl and the shank. The second photo shows the stamping on the pipe. The third photo shows the state of the stem.Auto3 Auto4My brother is doing all of the initial cleanup work for me. He reamed the bowl and cleaned up the rim and the shank. He scrubbed out the internals in the shank and the stem. He scrubbed the stem with Murphy’s Oil Soap to remove the stickiness and some of the surface grime on the stem. When I received the pipe it was in very good shape. The finish was very clean. The bowl and the rim were cleaned. The stem had some oxidation and there were tooth marks on the top and underside of the stem.Auto5 Auto6I took a close up photo of the rim to give a clear view of the cleanup Jeff had done for me. He is doing some excellent work preparing the pipes before I get them. I can’t thank him enough as it saves me a lot of time and work.Auto7I quickly swabbed out the mortise and airways in the shank and in the stem with pipe cleaners, cotton swabs and alcohol. It did not take too much work to clear out the sanding dust and debris from my work on the pipe.Auto8The stem had the autograph of Achille Savinelli Senior printed on the mouthpiece. It was faded and worn and the gold colour in the stamp had disappeared. I cleaned off the oxidation with 220 grit sandpaper being careful around the autograph. I rubbed it down with some Obsidian Oil and used Rub n’ Buff Antique Gold to fill in stamped area on the stem. I rubbed it in place with a soft cloth.Auto9 Auto10I was able to sand out the tooth chatter on the underside of the stem with the 220 grit sandpaper. There were several deeper tooth marks on the top side. I patched them with a drop of black super glue. I let it harden over night and sanded it smooth to blend into the surface of the stem.Auto10aWith the stem cleaned and repaired I just needed to polish it. I wet sanded it with 1500-2400 grit micromesh sanding pads to begin to polish it and remove the remaining oxidation. I worked carefully around the signature so as not to damage it. I rubbed the stem down with Obsidian Oil. I dry sanded it with 3200-12000 grit pads using the Obsidian Oil between each set of three pads. I gave it a final rubdown and let it day.Auto11 Auto12 Auto13I buffed the stem with Blue Diamond on the buffing wheel and gave the stem multiple coats of carnauba wax. I hand waxed the bowl with Conservator’s Wax and buffed the bowl and stem with a clean buffing pad. I hand buffed the pipe with a microfibre cloth to deepen the shine. The finished Autograph is shown in the photos below. It is a unique and stunning pipe made in a shape that is unique to this particular pipe. The combination of smooth and sandblast finish works well on this panel version of the Autograph. The finished pipe is shown in the photos below. If any of you are interested in adding this one to your rack let me know. I am sure we can make a deal. Thanks for looking.Auto14 Auto15 Auto16 Auto17 Auto18 Auto19 Auto20 Auto21
