A Desirable REJECT London Made


Blog by Dal Stanton

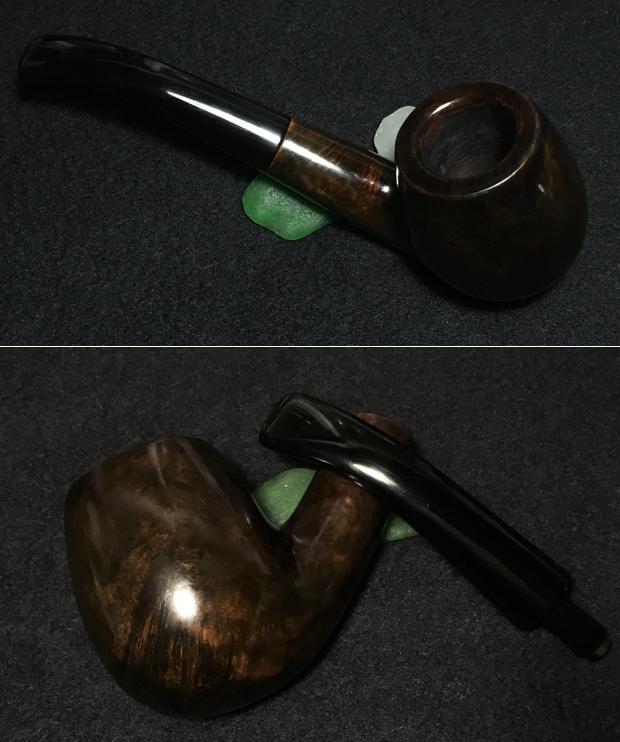

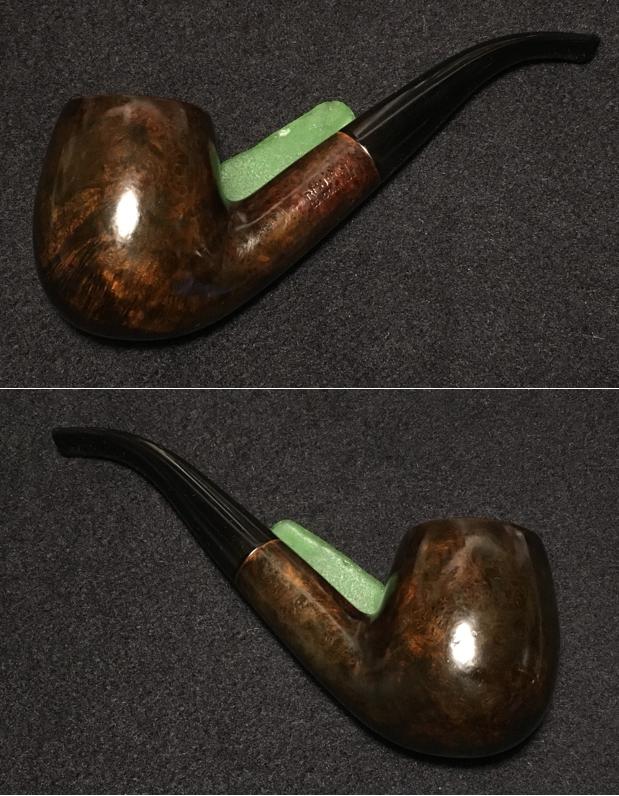

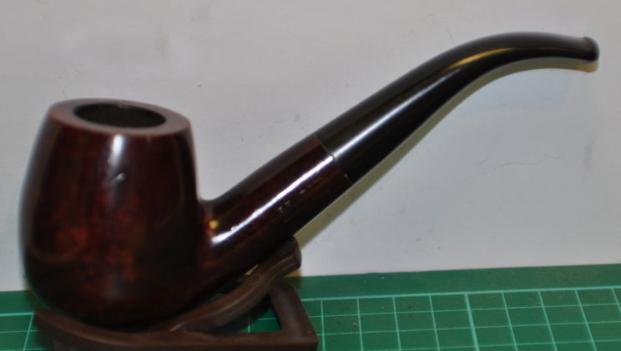

When I came across this classic half bent billiard while I was trolling through 100s of offerings on eBay’s auction block, I paused. The first thing that claimed my attention was its size. If there was ever a ‘meat lovers sized’ pipe, to use the American burger sound bite, this would be it. The UK seller simply described it as a ‘superb large bowl’. When the pipe arrived, I measured it and it is: length 6 5/16 inches, height 2 3/8 inches, chamber diameter 7/8 inches, chamber depth 1 13/16 inches, and the full stummel width is 1 3/4 inches – 68 grams for those who weigh pipes. A fist-full of stummel! Here is the eBay picture of the Billiard.The other interesting thing about the eBay offering was its marking.  The left shank side reads “REJECT” over “LONDONMADE”.  The only lead I found for this “REJECT” stamping was in ‘Who Made That Pipe?’ by Herb Wilzak and Tom Colwell, which provided only one reference to “Reject” as belonging to the W. H. Carrington Co. started in 1891 by William Henry Carrington in Manchester, England.  This came from the brief Pipedia article which also states that after a century of operation it went out of business.  I found more information in a Pipes Magazine Forum thread  but the source of the information was not cited.

WH Carrington as an entity dates back at least to the late 1880s. It continued to exist for about a century, with liquidation notices appearing in the London Gazette in 1987. Whether or not the business remained in the family that whole time is another matter; I doubt it, but have no evidence one way or the other.

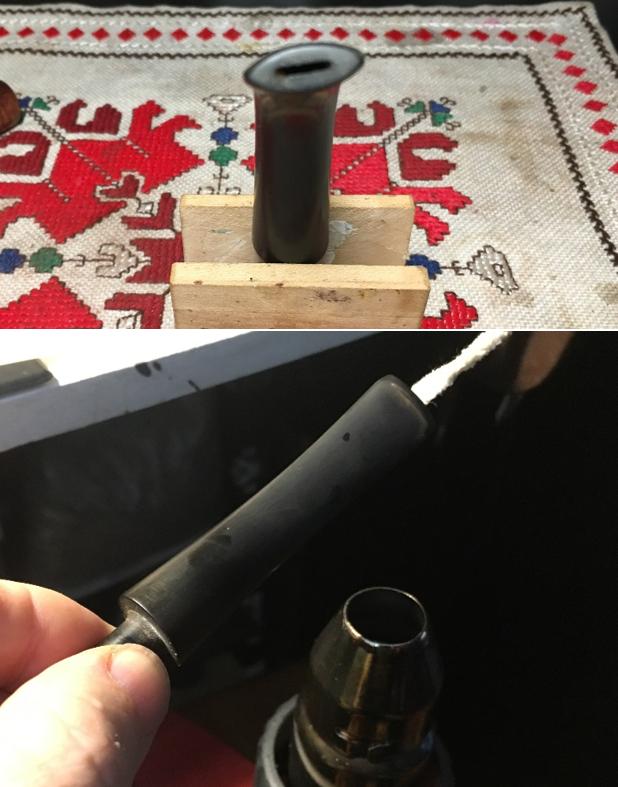

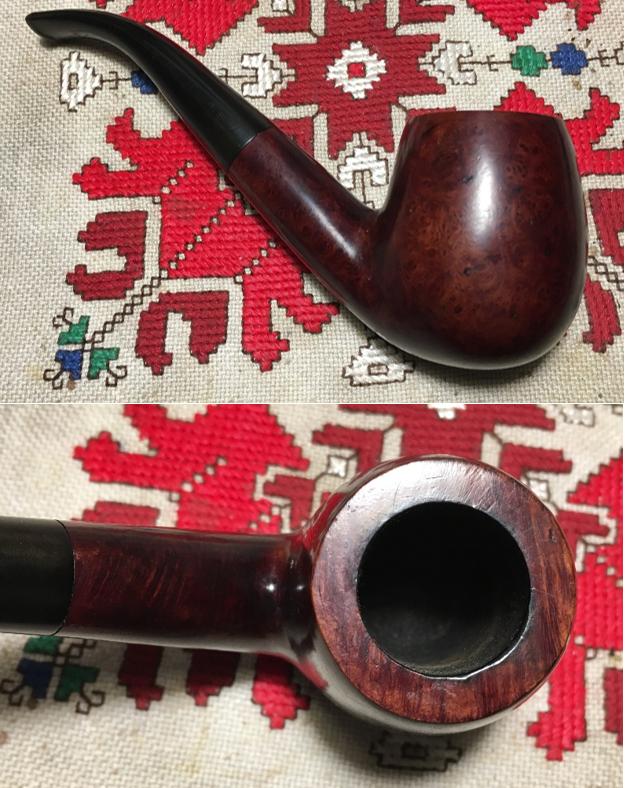

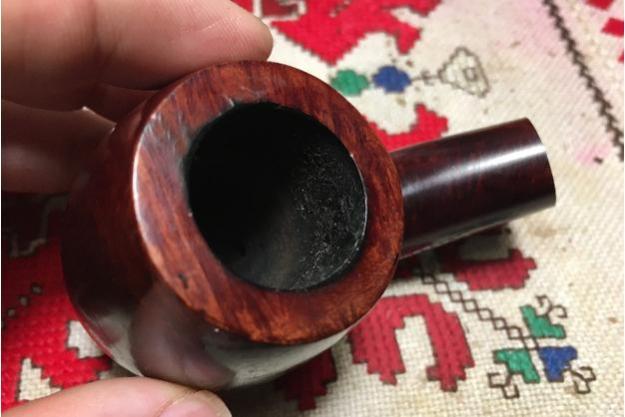

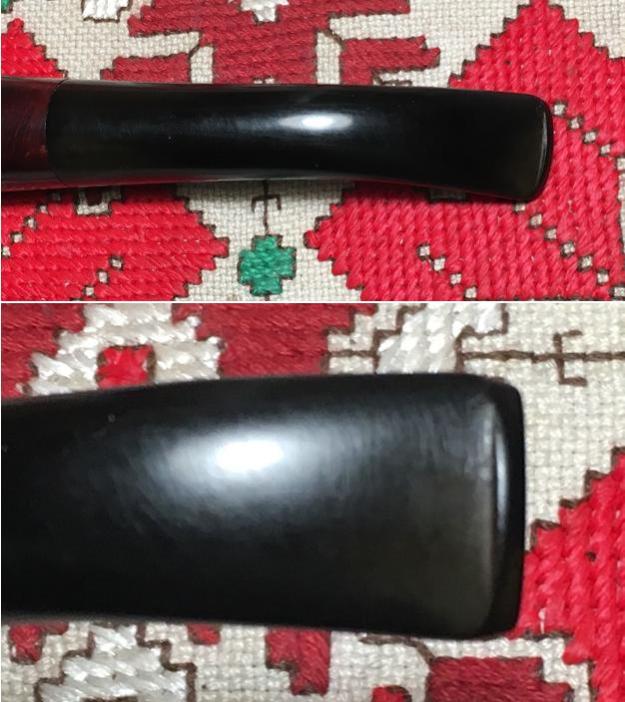

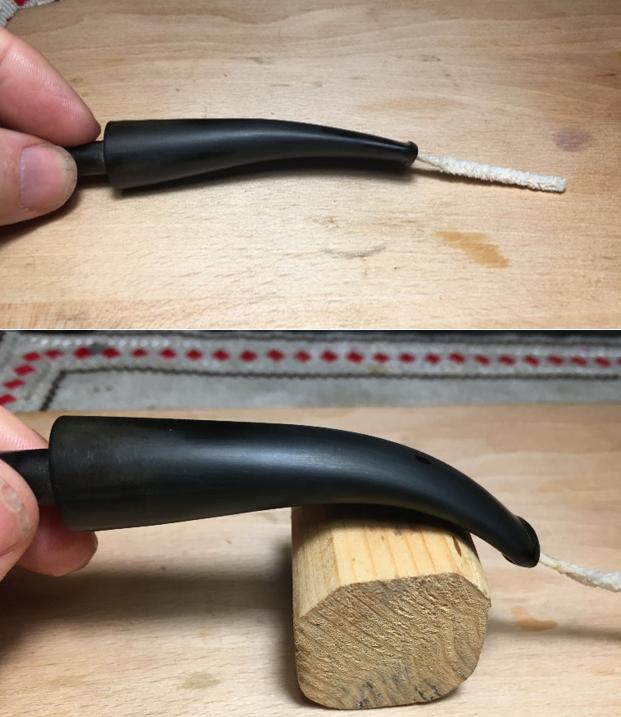

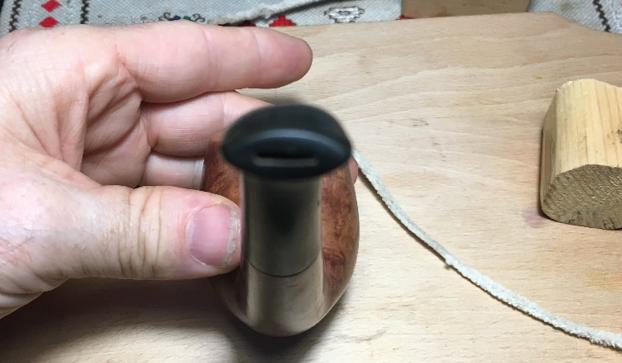

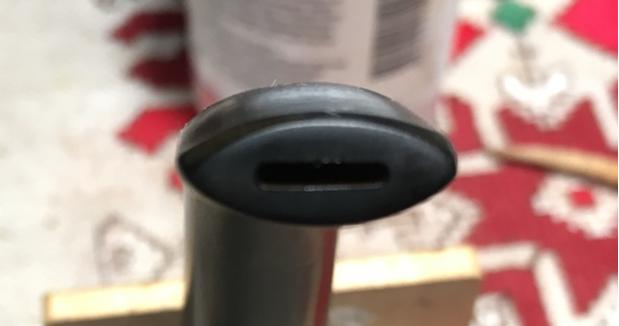

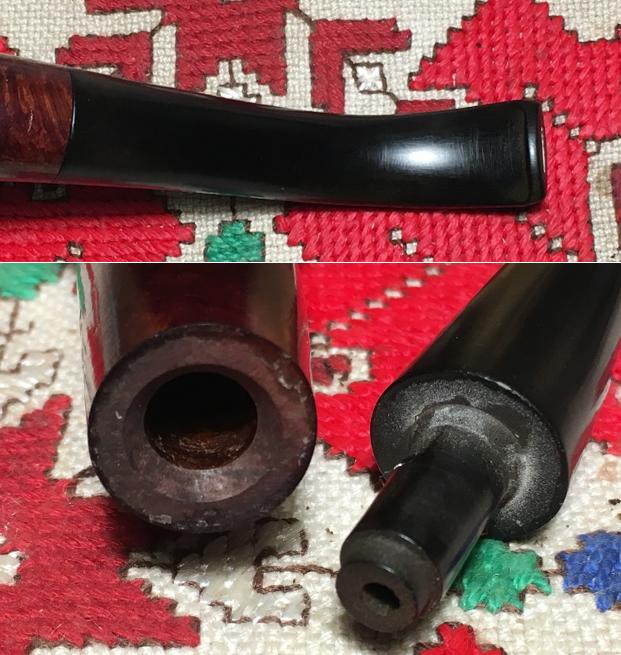

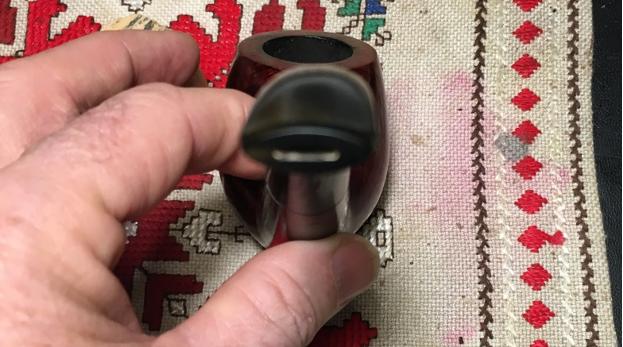

Most threads I read commenting on WHC pipes were about earlier turn of the century pipes with hallmarks – a much earlier vintage.  I came up empty finding information that would confirm that the Reject before me is indeed a WHC pipe except for Wilczak and Colwell’s reference.  With a very nice looking Reject on my work table now, I take additional pictures to fill in the gaps. The question that begs asking is what is ‘Reject’ about this pipe?  Overall, it’s in good shape.  The chamber has very mild cake build up, and the stummel surface shows some small fills and usual dents of wear.  The stem has been cleaned, it seems, very little chatter or oxidation.  I only detect two issues as I look at the Reject London Made.  First, the finish on the stummel is shiny and acrylic-like, which, to me, hides the natural briar.  It is cloudy and I’ll remove it and work on the broad landscape of this stummel real estate to bring out the briar.  I like this challenge!  The other issue is the stem – it is under-clocked and a bit catawampus.  I will heat the vulcanite and restore a good bend in alignment with the pipe.  The reason this pipe was stamped ‘Reject’ coming out of the factory is a mystery to me unless it was destined to be a higher end pipe and the briar had too many imperfections…. Only conjecture and I would appreciate anyone’s input on this.

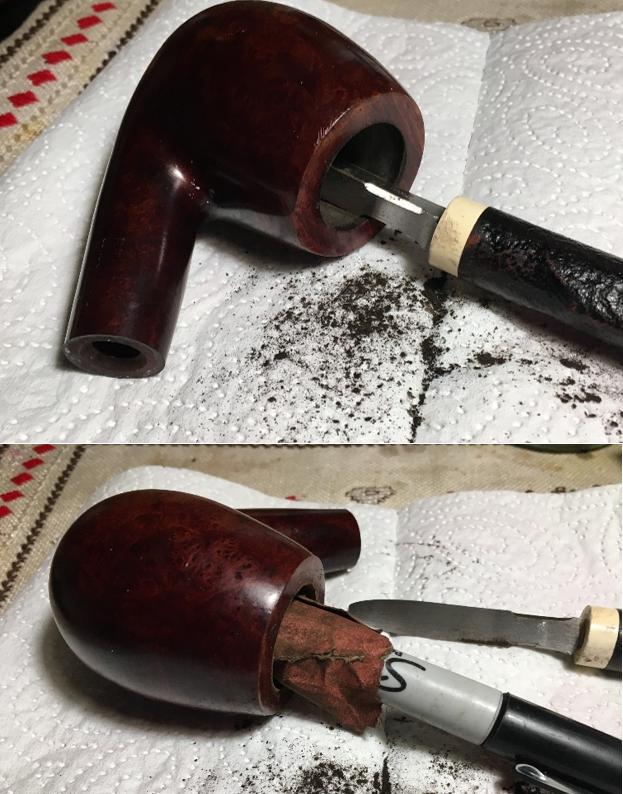

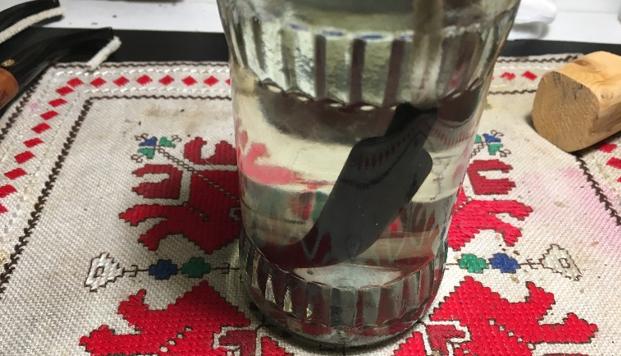

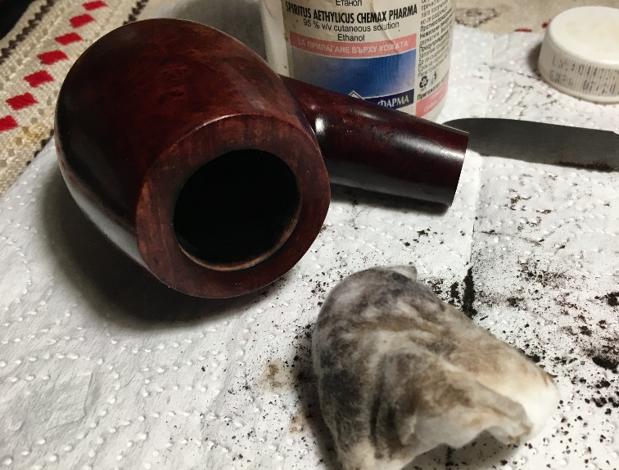

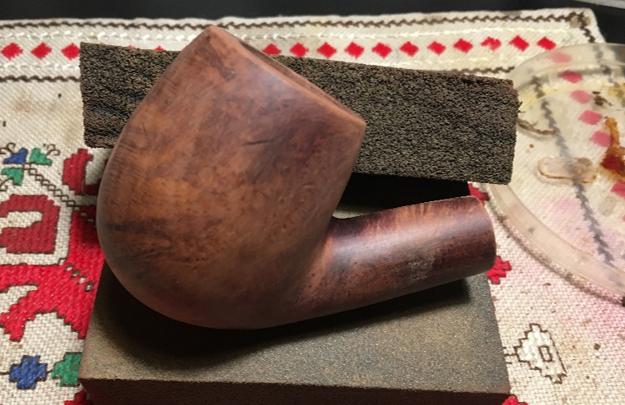

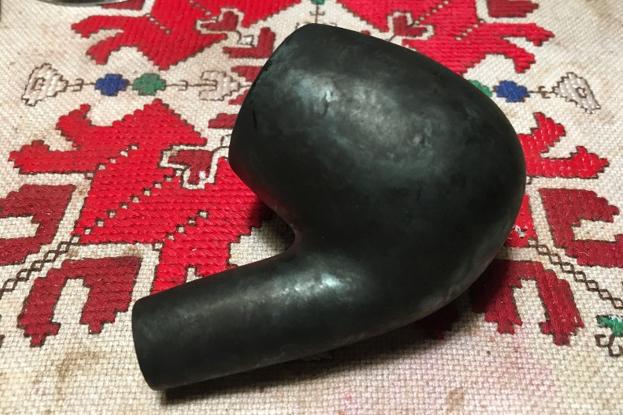

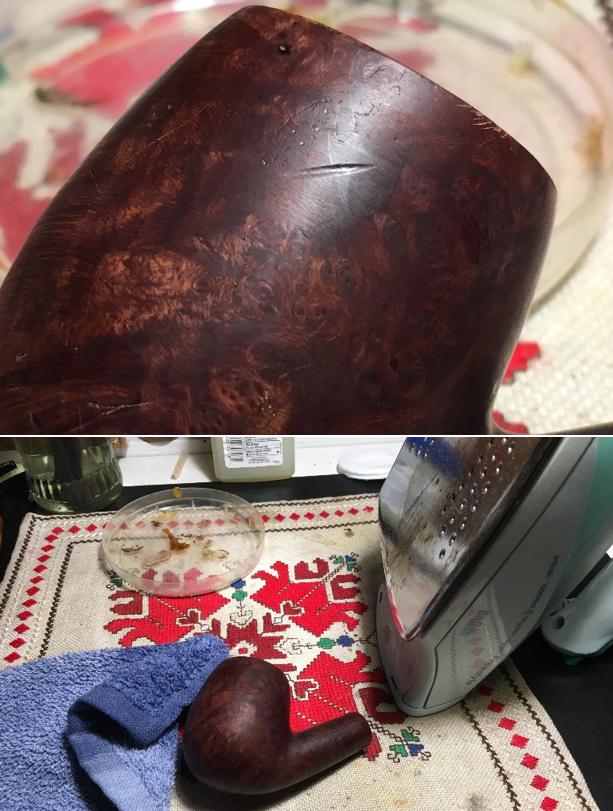

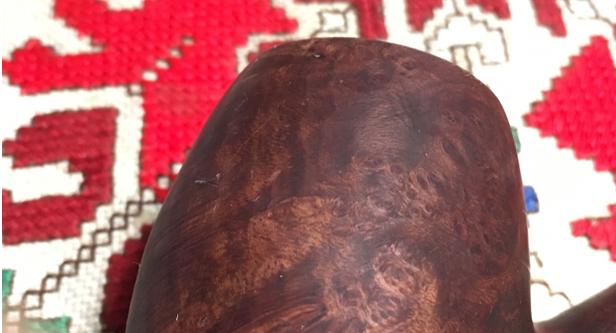

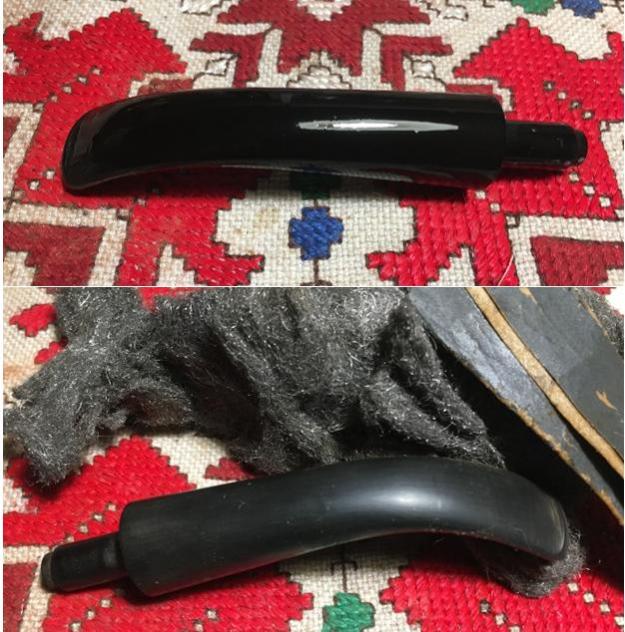

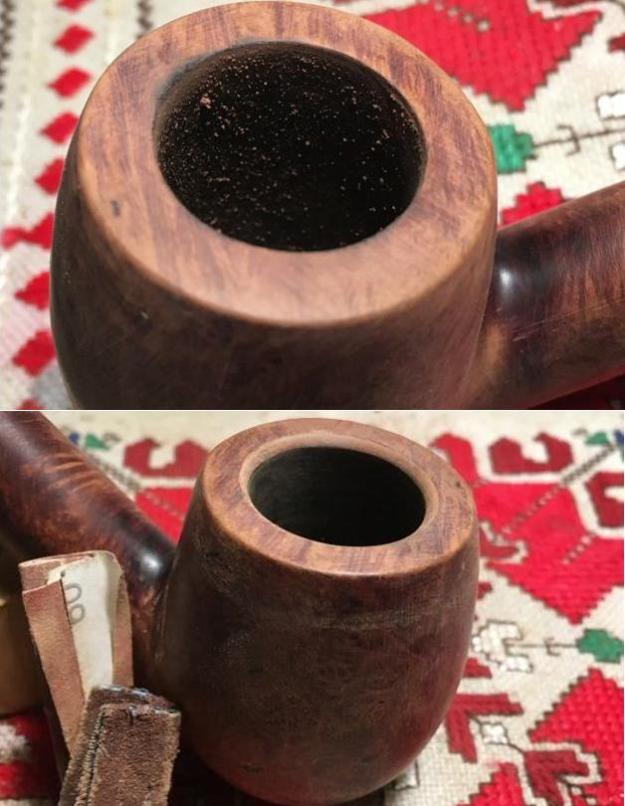

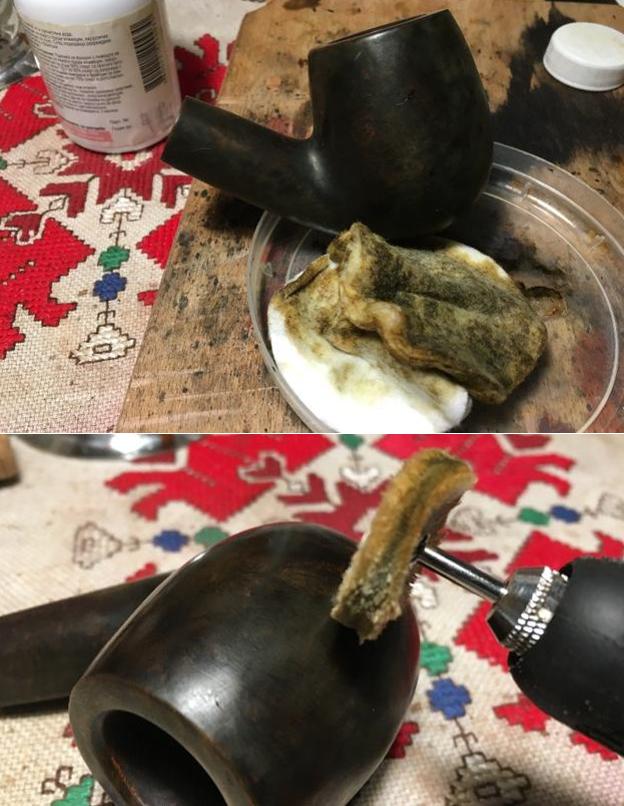

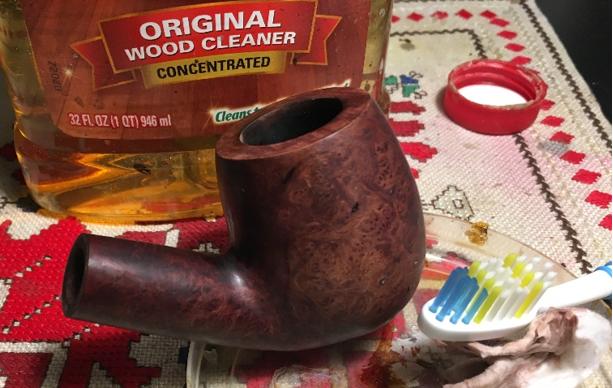

I begin by plopping the stem in an Oxy-Clean bath even though the oxidation seems very light.  While the stem is in the bath, I use the Savinelli pipe knife to clean up the chamber walls which takes little time.  I follow by sanding the chamber wall with 240 grit paper wrapped around a Sharpie Pen.  To clean the carbon dust residue, I wipe the chamber with a cotton pad wetted with isopropyl 95%.  The pictures show the progress. I like working on a clean pipe so I work on the internals using cotton swabs and pipe cleaners dipped in isopropyl 95%.  With very little effort the mortise and draft are clean.Moving to the external stummel surface, I use Murphy’s Soap undiluted with cotton pads and a bristled tooth brush to clean the grime off.  The Murphy’s Soap does a good job removing the old shiny finish.Looking closely at the surface, the dent I saw earlier I want to remove using the iron approach, that I have yet to try, but this dent looks like a good candidate.  I’ve read several other restorations where this method was used.  Using a heated clothes iron, I use a wet wash cloth and lay it over the dent area and then I apply the iron to that point.  The concept is based upon the water content of wood being heated and absorbing the water and expanding the dented area – wood is a sponge-like material when wet.  I apply the iron several times and gradually I see the severity of the dent lessening with each heat application.  I can still see the dent but it should be more easily removed using a sanding sponge. Using a medium and light grade sanding sponge I work on the stummel to remove the minor wear nicks and dents on the surface. I like a softer edge on the inner rim lip so I introduce a gentle bevel both to give it a softer look and to remove some scorched areas. I think an inner bevel adds a bit of class as well.  I first use a coarser 120 grit paper to cut the bevel then I follow with 240 grit and 600 grit paper to smooth and blend the bevel.  The pictures show the progress. I now turn to the micromesh pad cycles.  Using pads 1500 to 2400 I wet sand the stummel followed by dry sanding with pads 3200 to 4000 and then 6000 to 12000.  Throughout the sanding, I’m careful to avoid the Reject markings. The grain is looking good.  The pictures show the progress. I put the stummel aside and fish the stem out of the Oxy-Clean bath.  Very little oxidation has surfaced.  I use 600 grit paper and wet sand the stem followed by sand buffing the stem with 0000 steel wool.  The pictures show the progress.Before I proceed further with the internal cleaning of the stem and the external polishing, I want to correct the bend of the stem.  With great difficulty, I am able finally to pass a smooth pipe cleaner through the stem.  The pipe cleaner helps to maintain the airway integrity while I heat and re-bend the stem. Using the heat gun to heat the stem, I turn the stem to apply the heat evenly over the stem to soften the vulcanite making it pliable.  I then straighten both the stem clock-wise to correct the under-clocking.  While still pliable I re-establish the bend over a block of wood and set the new shape under cool tap water.  The first time around, the button was still not ‘clocked’ to my satisfaction.  I reheated and made the additional adjustment and again, set the shape under cool tap water.  I reattach stem and stummel to eyeball things and the newly aligned stem bend and clocked button look good.  I take pictures to chronicle the progress with the stem. I now clean the internals of the stem using pipe cleaners dipped in isopropyl 95%.  The stem is clean but I find that even though I’ve re-bent the stem the pipe cleaners will not move through the bend of the stem.  I decide to open the slot area with a round pointed needle file moving it back and forth in the slot.  After this, I take a drill bit, smaller than the slot opening, and insert it into the airway rotating it against the edges of the airway hoping to expand the internal airway area as it enters the slot.  This seems to help yet the bend is still tight on the pipe cleaners, but they are passing through.  The stem is clean.  The pictures show the progress. Time to bring out the micromesh pads to finish the stem.  With pads 1500 to 2400 I wet sand the stem.  I follow by dry sanding with pads 3200 to 4000 and then 6000 to 12000.  With each set of 3 I apply Obsidian Oil to the stem to revitalize the vulcanite, and I love to see the pop of the vulcanite as it moves through the micromesh cycles!  I put the stem aside to dry.  The pictures show the progress. Turning back to the stummel, I decide to apply Fiebing’s Dark Brown Leather Dye to the Reject London Made to emulate the darker hues of the original finish.  Since it is an aniline dye, I can lighten the finish to taste by wiping the stained stummel with cotton pads wetted with isopropyl.  The large stummel has a lot of briar real estate to show off with a smattering of different grains – pleasing to the eye and a handful of stummel to boot!  I just acquired Fiebing’s Black Leather Dye and I decide to experiment.  I will add a touch of it to the dark brown to create the blend.  The first snag I run into is that this is the largest stummel I’ve worked on and my usual corks that I use to prop the stummel on the candle stick during the staining process were too small.  I rummaged through our cork supply and found only one large enough.  I warm the stummel to expand the briar enabling the dye to absorb better into the grain.  I apply the dye liberally over the surface with a pipe cleaner folded over.  Then I fire the wet dye and the alcohol content burns off setting the stain.  I repeat the process again to assure total coverage and set the stummel aside to rest.   After several hours, I ‘unwrap’ the fired stummel using the Dremel mounted with a felt buffing wheel.  With the Dremel at its slowest speed, I move methodically over the stummel applying Tripoli compound to remove the crusted fired surface.  I don’t apply too much downward pressure on the briar but I allow the RPMs and the compound to do the work for me.  After completed, I use cotton pads wetted with alcohol to wipe down the stummel to lighten the stained finish and to blend the dye.  After this, I mount a cotton cloth wheel on the Dremel and apply Blue Diamond compound and methodically work the wheel over the entire surface.  After completed, I again wipe the stummel with cotton pads wetted with isopropyl 95%.  I follow this by doing another quick tour over the stummel with the Blue Diamond.  The use of black dye with the dark brown has the effect of darkening the grain which I’m liking as I see the grain surfacing through the compound cycles.   The pictures show the progress.To remove the compound dust, I hand buff the stummel with a flannel cloth.  After mounting the Dremel with a cotton cloth wheel and increasing the speed to 2, one notch over the slowest, I apply several coats of carnauba wax to the stummel and reattached stem.  I follow this with a rigorous hand buffing with a micromesh cloth.  When I experimented by adding black dye to the dark brown I didn’t anticipate the unique hue that would result.  The briar grain veins seem to have latched on to the black and the lighter grains came out with a golden/copper kettle blend that is striking – very interesting and attractive.  If this REJECT – LONDON MADE is a product of the W. H. Carrington Co., I cannot say why it received this factory stamp.  For those who like huge pipes that fill the hand, this big boy, bent billiard fits the bill and needs a new steward!  All the profits of pipes I sell help the Daughters of Bulgaria, an organization we work with that helps women and children who have been trafficked and sexually exploited.  If you’re interested in this REJECT, hop over to my blog site, The Pipe Steward.  Thanks for joining me!





A Restored LHS Certified Purex #95 Squashed Tomato


Blog by Dave Gossett

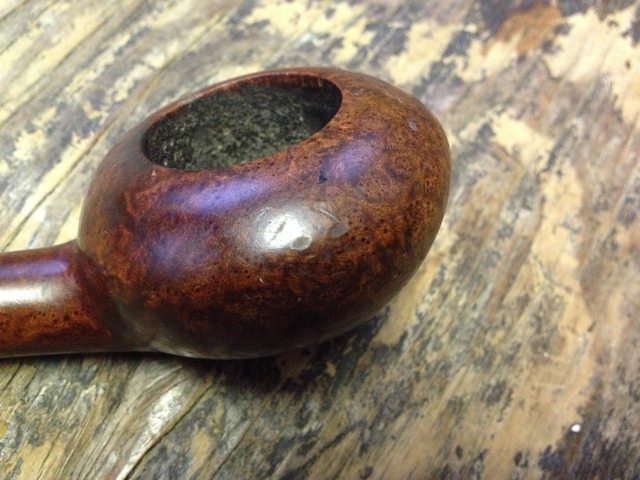

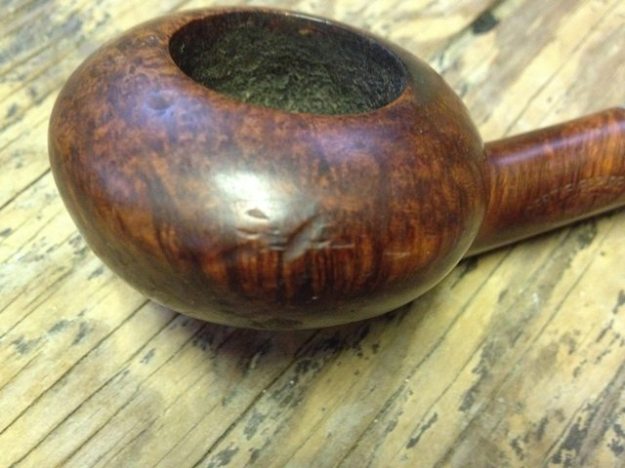

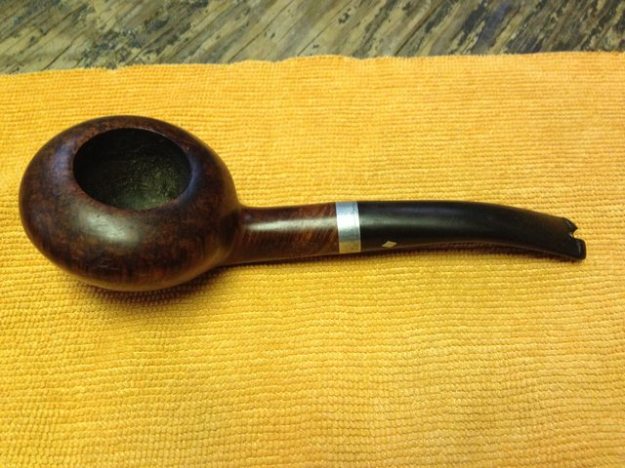

A pipe shape this elegant deserves a better name than squashed tomato. I received this pipe looking more like a bruised tomato. It was beat up and chewed up. An LHS this shape doesn’t pop up very often so I was happy to accept the pipe in any condition.dPk6umBl

Dave2

Dave3

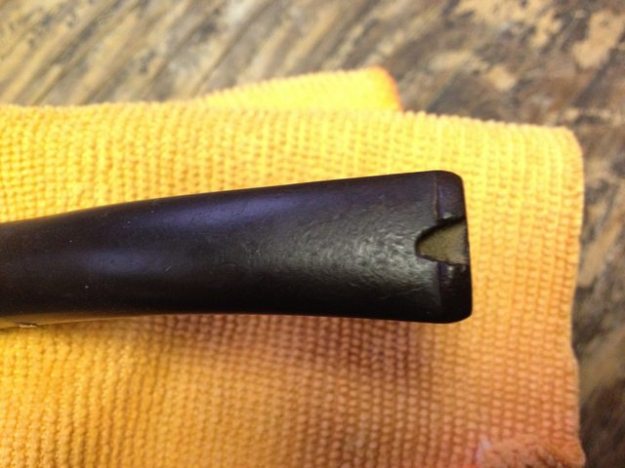

Dave4 I started off with the routine internal cleaning of the pipe with alcohol, pipe cleaners, and shank brush.

Next I began to work out the dents by heating a butter knife with a propane torch and pressing it firmly to the dented areas with a damp rag between the two. This generates steam and lifts the dents out of the briar. This may have to be done several times to the same area depending how bad the dents are.

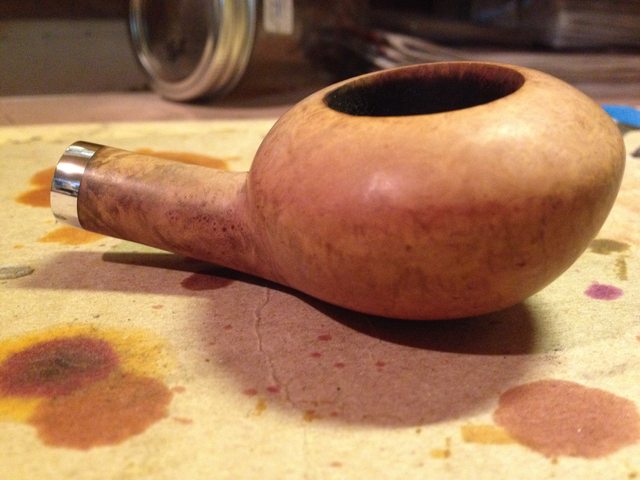

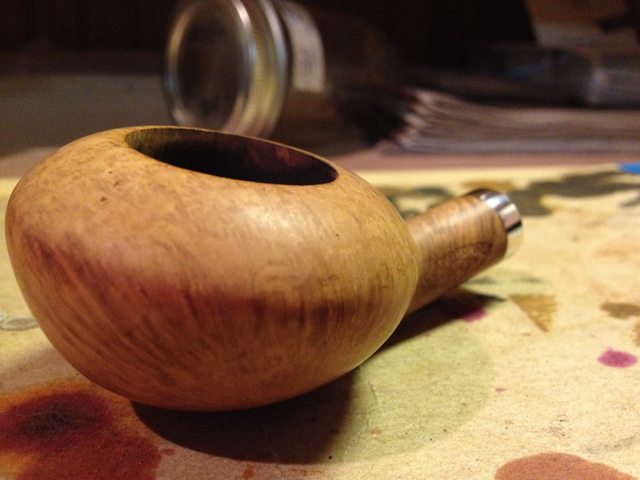

After steaming, I sanded the scratches from the rest of the briar, smoothed out the bowl chamber, prepping it for the carbon coating, gave it a light alcohol scrub with 0000 steel wool to remove the leftover patchy original finish, and finally, masked off the shank and polished the aluminum.Dave5

Dave6

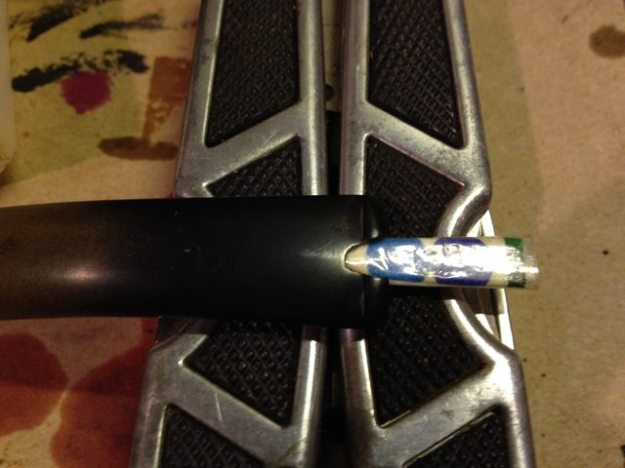

Dave7 Next up is the stem rebuild.Dave8 A tight fitting plug/form for the air way and bit is made from cardboard wrapped in clear tape.

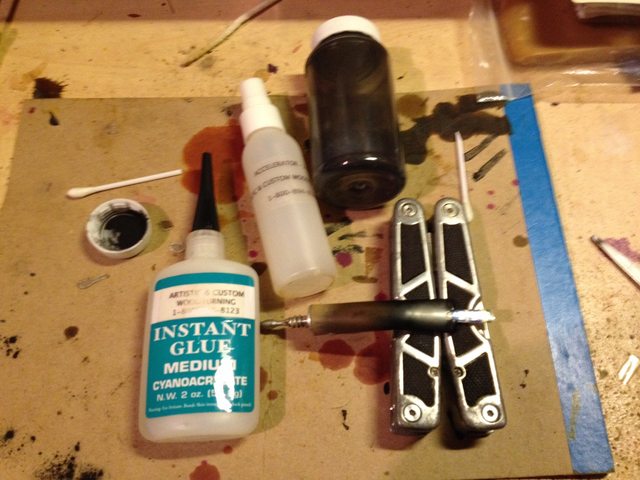

Here is a picture of all the materials used for the stem rebuild.

Cyanoacrylate glue (medium viscosity), activated charcoal. Dave9 I use disposable things for mixing and application process. 25% charcoal/75% glue mixed thoroughly is the recipe. I mix it in bottle caps, and use a q-tip stem with a small scoop/spoon cut into the end to apply to the repair site.

The repair site needs to be scored and cleaned before the mix is applied.Dave10 Once the material has cured, the tape covered cardboard plug is easily removed. Using a needle file I reshaped the button and then wet sanded the stem.

Back to briar.

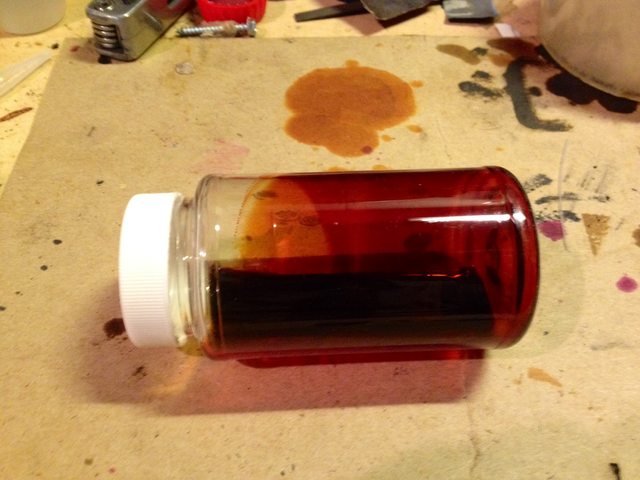

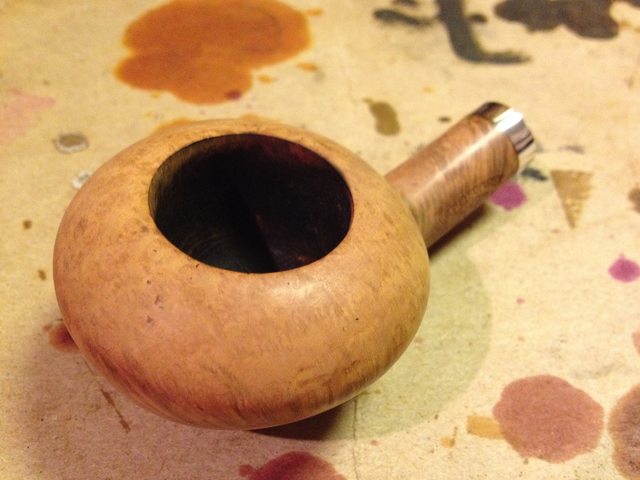

Now that it has been steamed, sanded, and had the old stain removed, I applied a custom color mix of Fiebings, consisting of dark brown, a hint of orange, and a bit of oxblood, thinned a bit with alcohol.Dave11

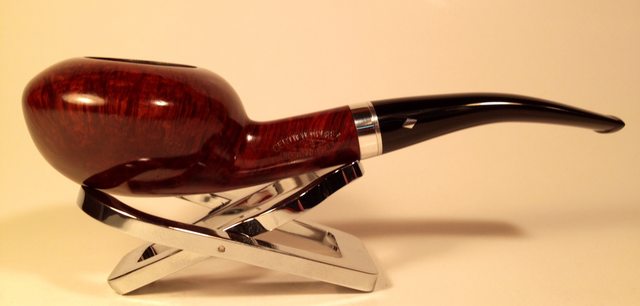

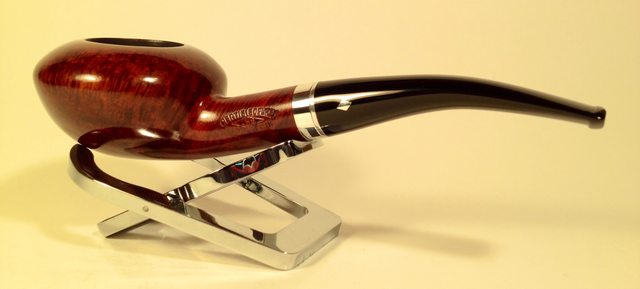

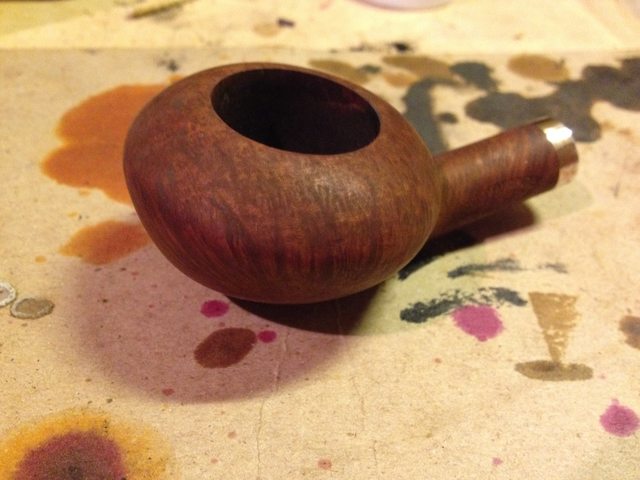

Dave12 I always like seeing the color transformation from the dry stained tint to the very different shade it becomes after the carnauba wax is applied.

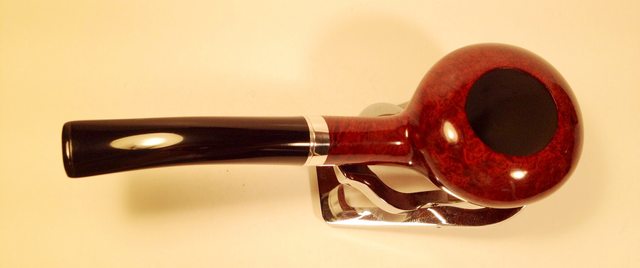

The final step in the restoration after waxing is the carbon bowl coating. It’s a very simple detail to make an old estate pipe look fresh again. Maple syrup and activated charcoal. After the bowl chamber is clean and smooth, lightly coat the bowl chamber with maple syrup, then fill the bowl to the top with the charcoal. Leave it for one hour or more then dump the bowl and blow through the shank to remove the excess. Next is the hard part. Don’t touch it for 5 days. It takes 3-5 days for it to harden and cure. I usually give it a week just to be sure. Once it has set up, it’s as tough as a Savinelli carbon coating and looks just as good. The pipe will have the familiar slightly bitter taste of a brand new pipe, but it doesn’t last nearly as long. After you smoke a bowl or two it goes away. Dave13

Dave14

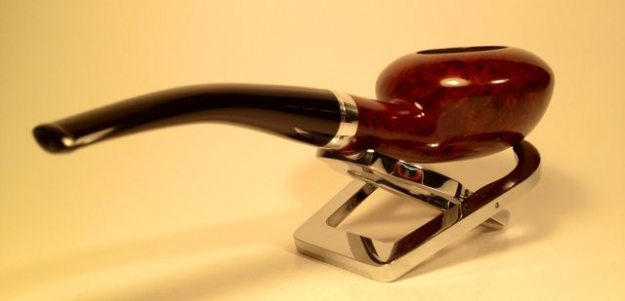

Dave15

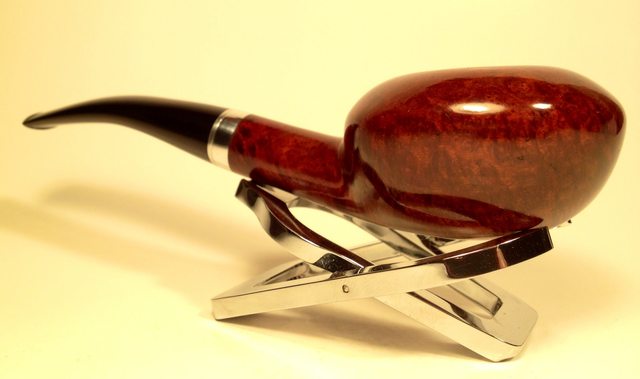

Dave16

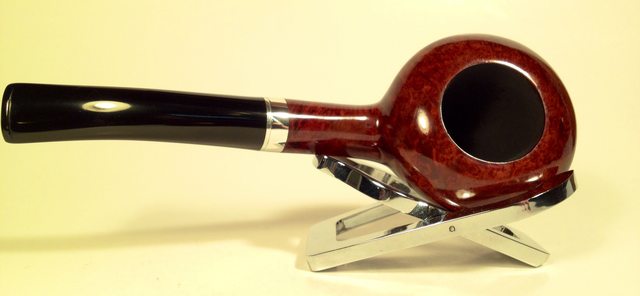

Dave17

Dave18

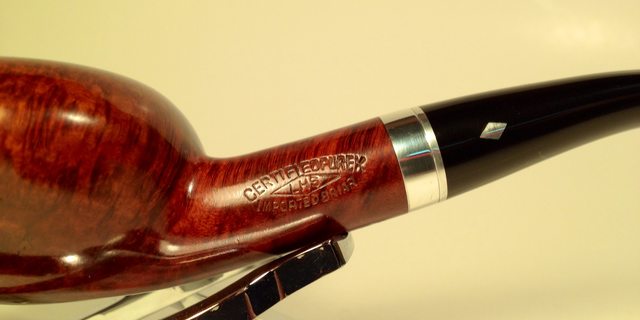

Dave19

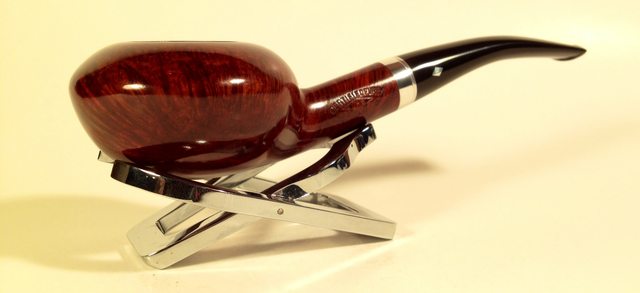

Dave20

GBD Originale 569M Restoration


This was one of two GBD’s I recently acquired thru the Smokers Haven in Ohio. Back in the day, that shop sold quite a few GBD’s. I normally collect only GBD’s made in England, but I made an exception for this Originale which is stamped “Paris, France”. I knew only a few tidbits about the Original line, from a GL Pease comment in a pipe forum thread on a $500 GBD Originale. I wondered what made that one so special and GLP commented:

“The Originale is an uncommon grade of GBD, sought after by more than a few collectors. I’ve seen very few of them, and in my years of collecting GBDs”.

I also found a reference to the Originale series on Jack Thompkins home page and attributed to John Tolle. The briar definitely has an unusual sheen and depth to it, similar to an older Comoys

The GBD Originals came out in the 60s and were made in Paris Fr.
All were rather small in size and came from older briar dating
to pre/during WWII. Not many were made and very few shapes.
Thanks John Tolle

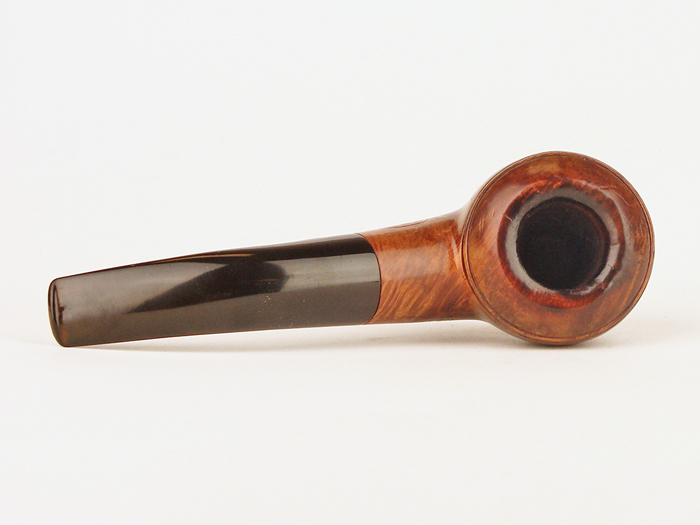

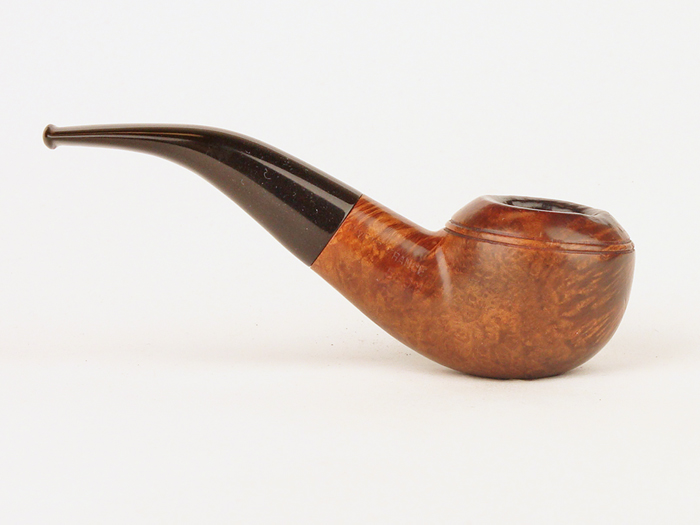

This pipe was already restored by the shop, but I thought some of the bowl top dents and scorch marks might come out.

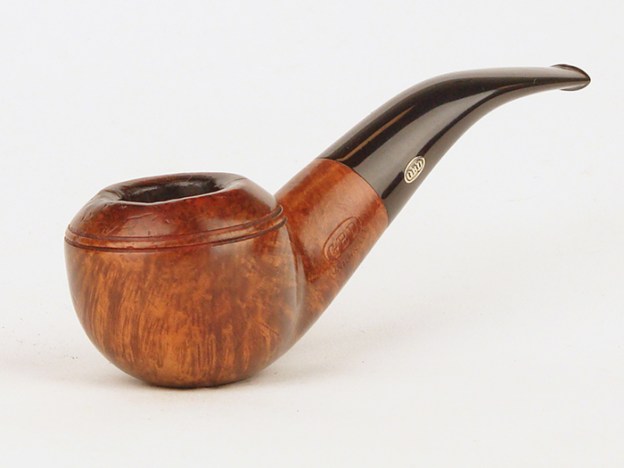

GBD_569M_Originale

GBD_569M_Originale (1)

GBD_569M_Originale (2)

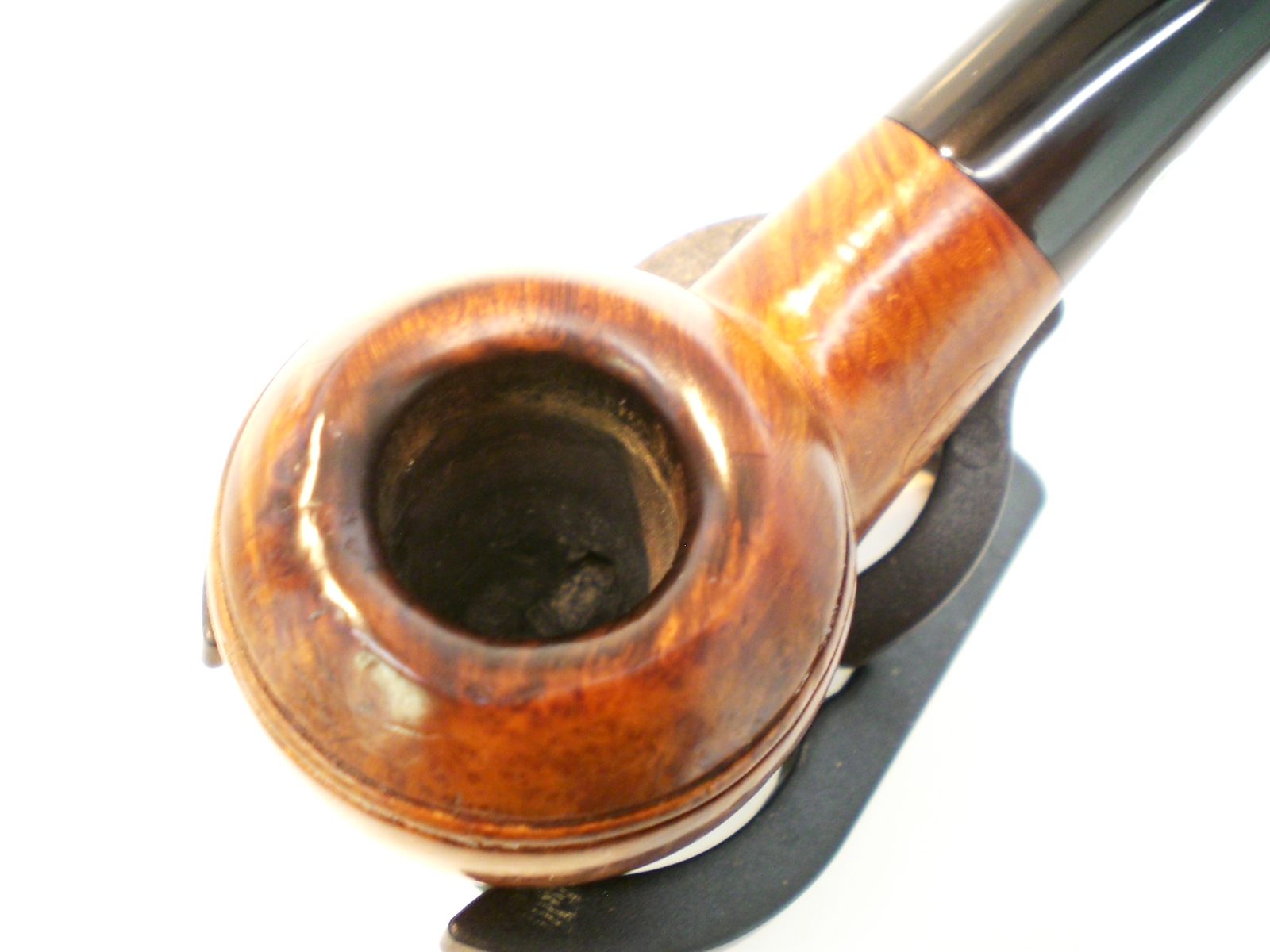

Using a propane torch, a wet rag and an old kitchen knife, I was able to work out many of the dents on the bowl top and one seam on the side of the bowl. The scorch marks still remained, so using some worn micromesh sheets, I was able to get down to the briar without disturbing the stain. I was tempted to let well enough alone, but I’m very pleased with these results and it was worth the additional effort.

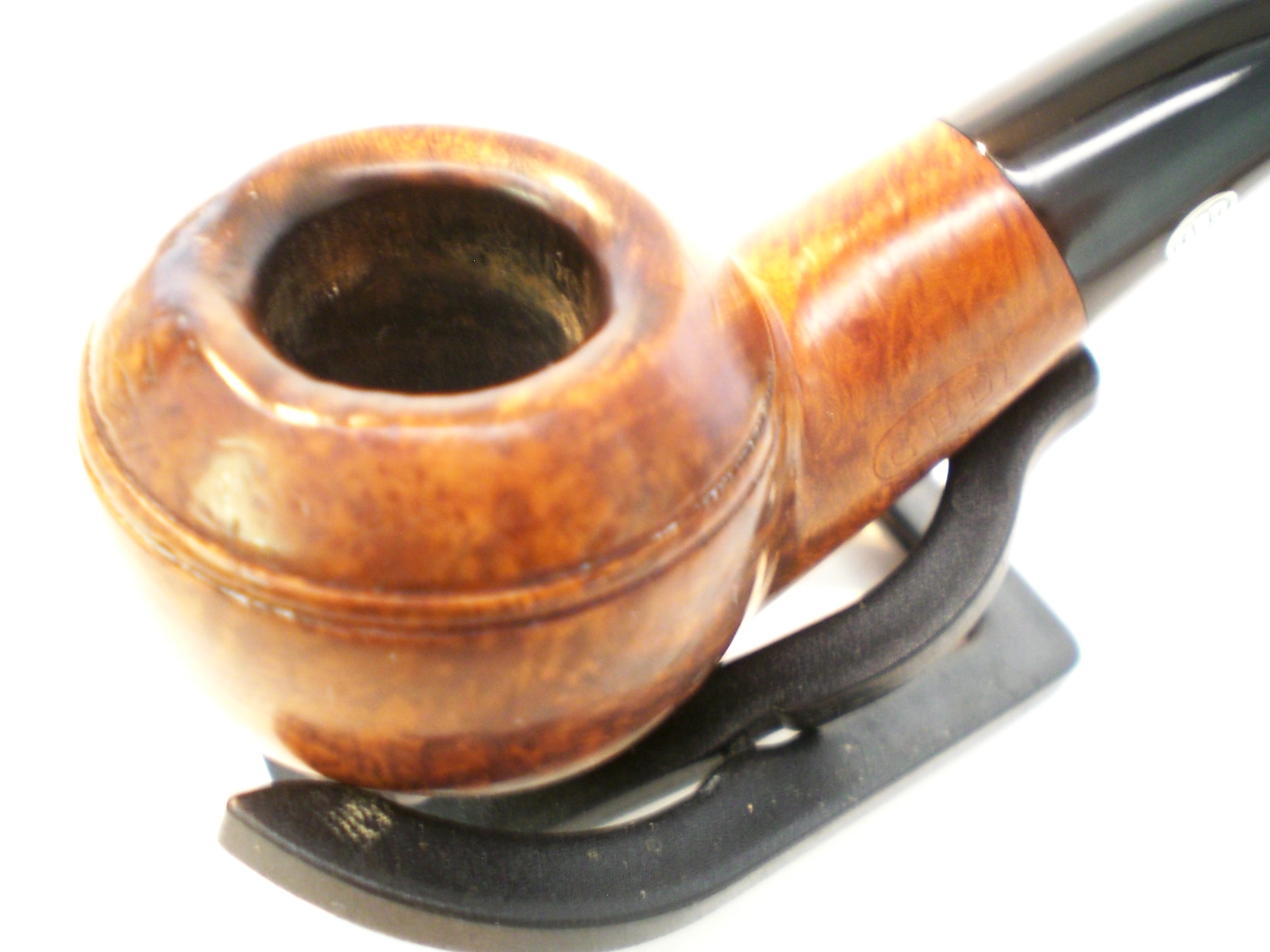

GBD_569M_Originale_Finish (3)

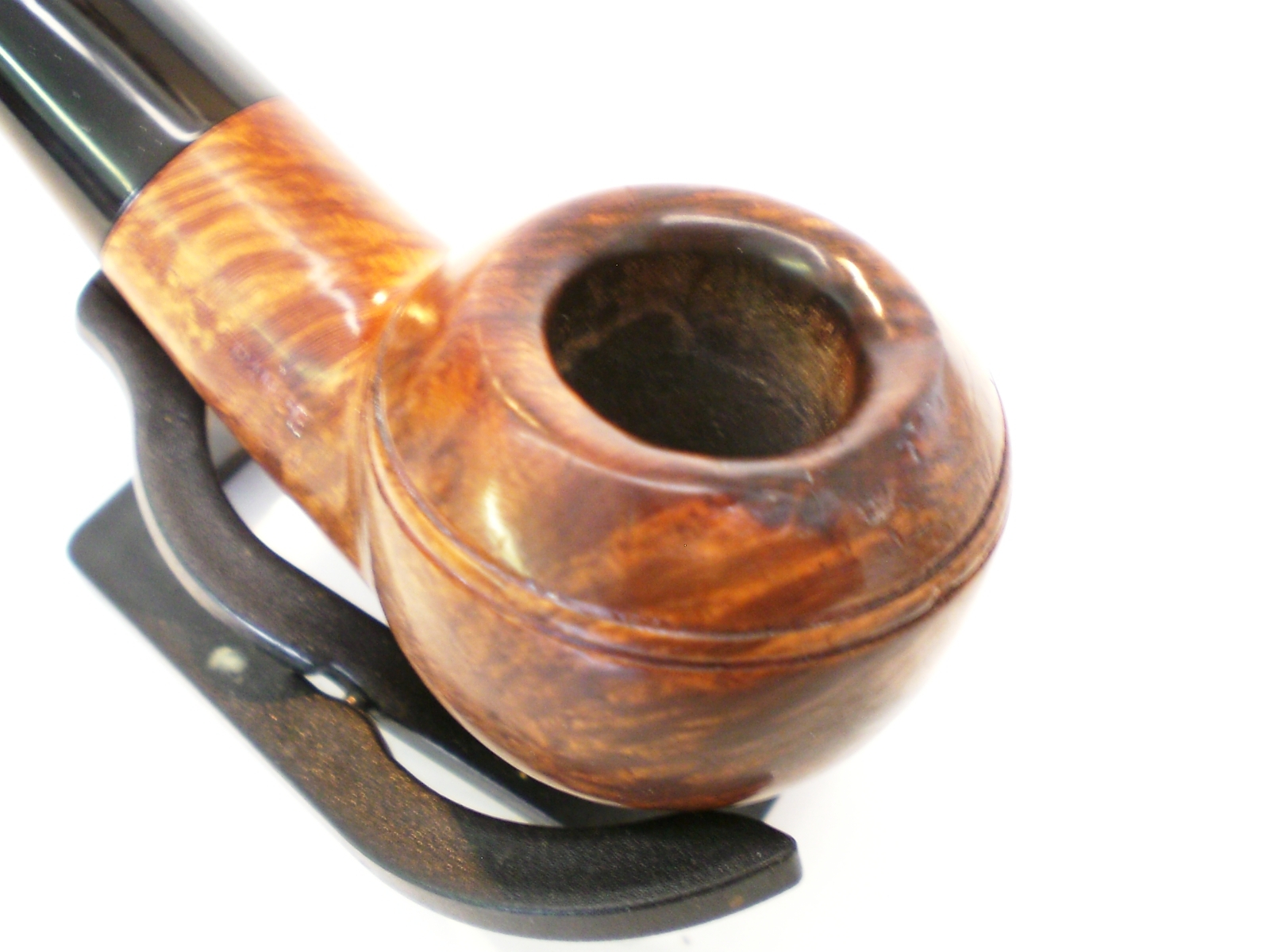

GBD_569M_Originale_Finish (4)

GBD_569M_Originale_Finish (2)

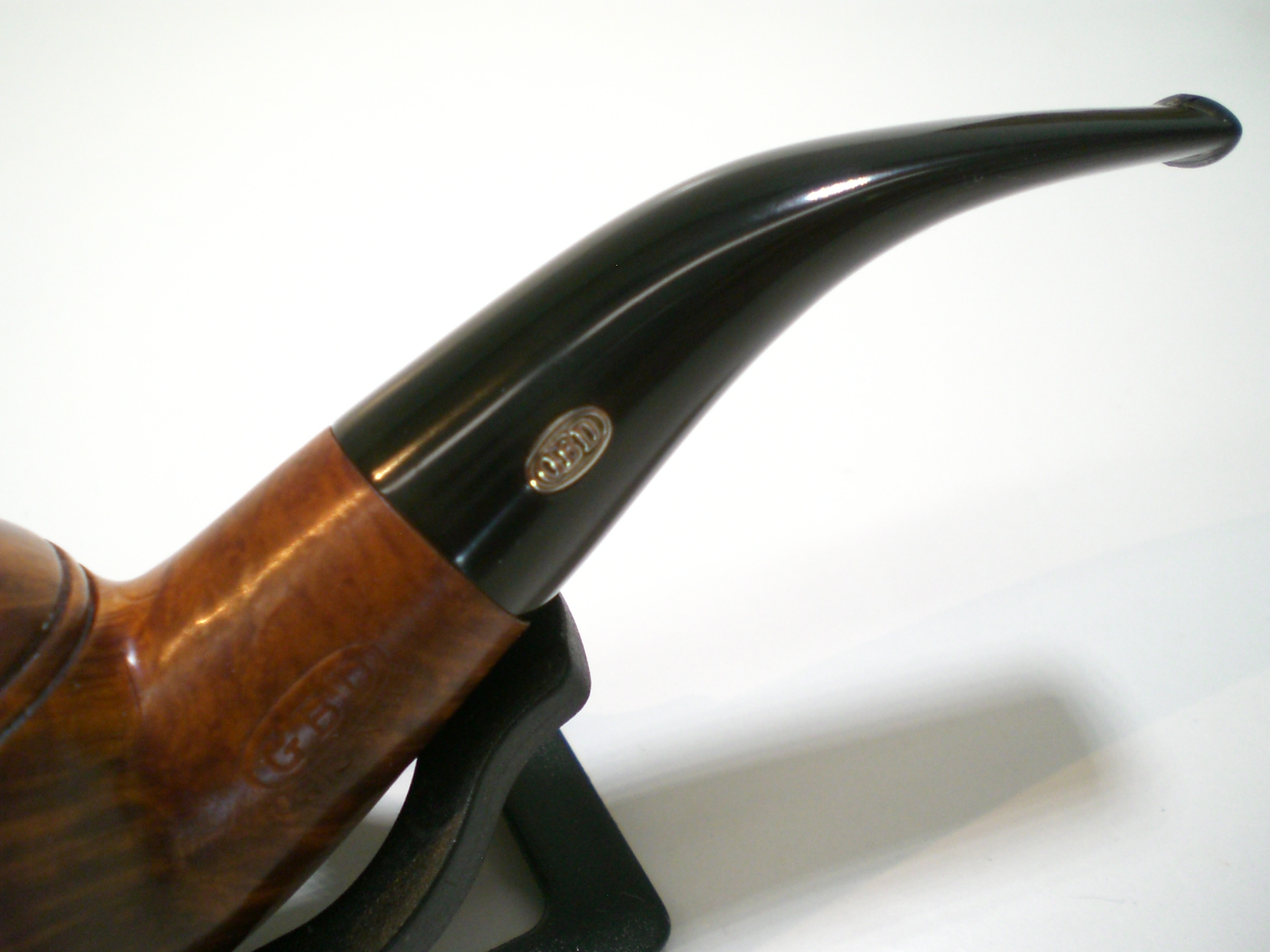

The oxidiation had already been removed, so the stem only required a polish with 8000 and 12000 grit micromesh and a light buff with White Diamond rouge. Under magnification, it looked like there was a small crack near the button. I added a few layers of black superglue to strengthen the area.

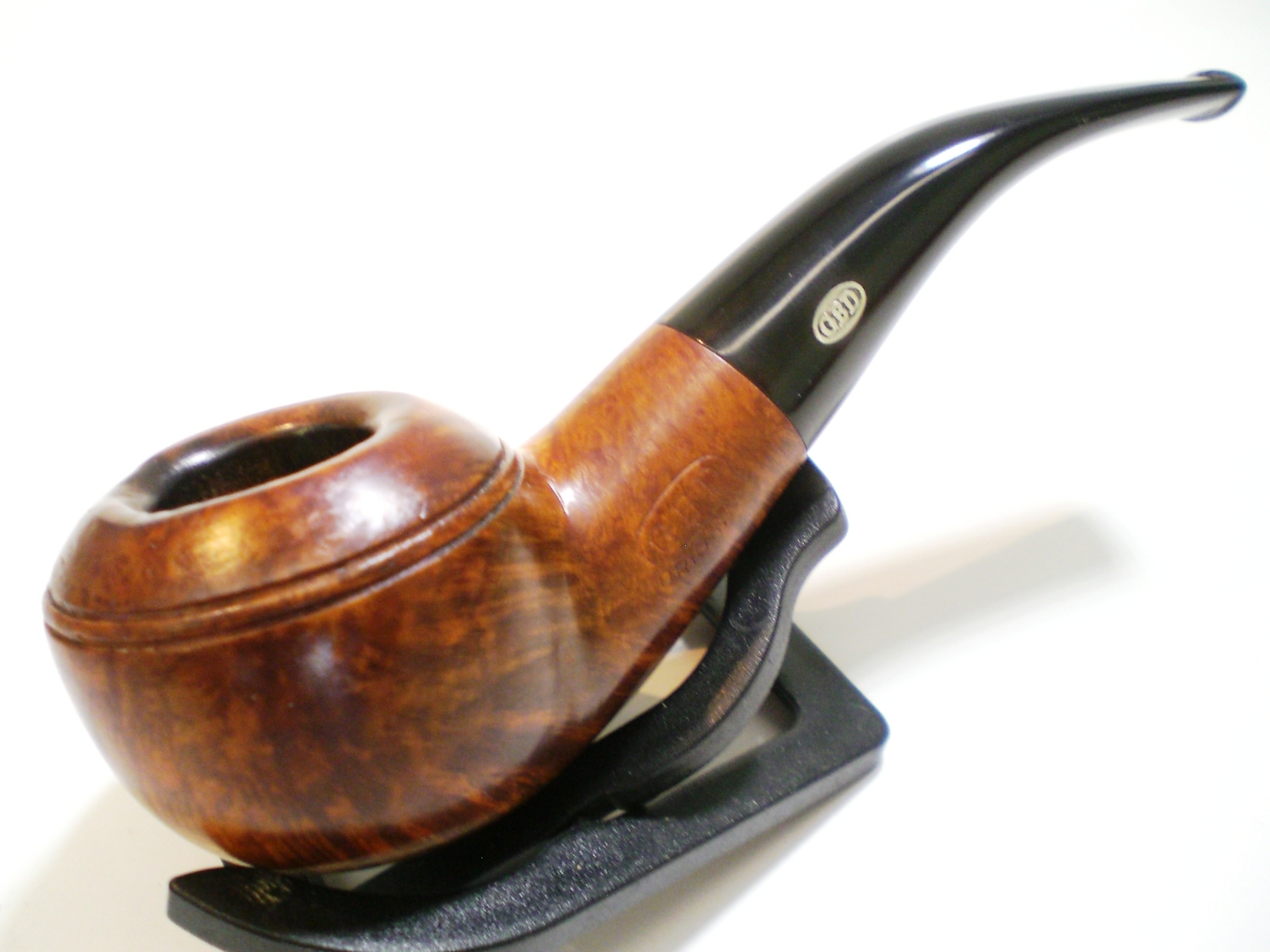

I’m very pleased to add this one to my collection of GBD Rhodesians.

GBD_569M_Originale_Finish (1)

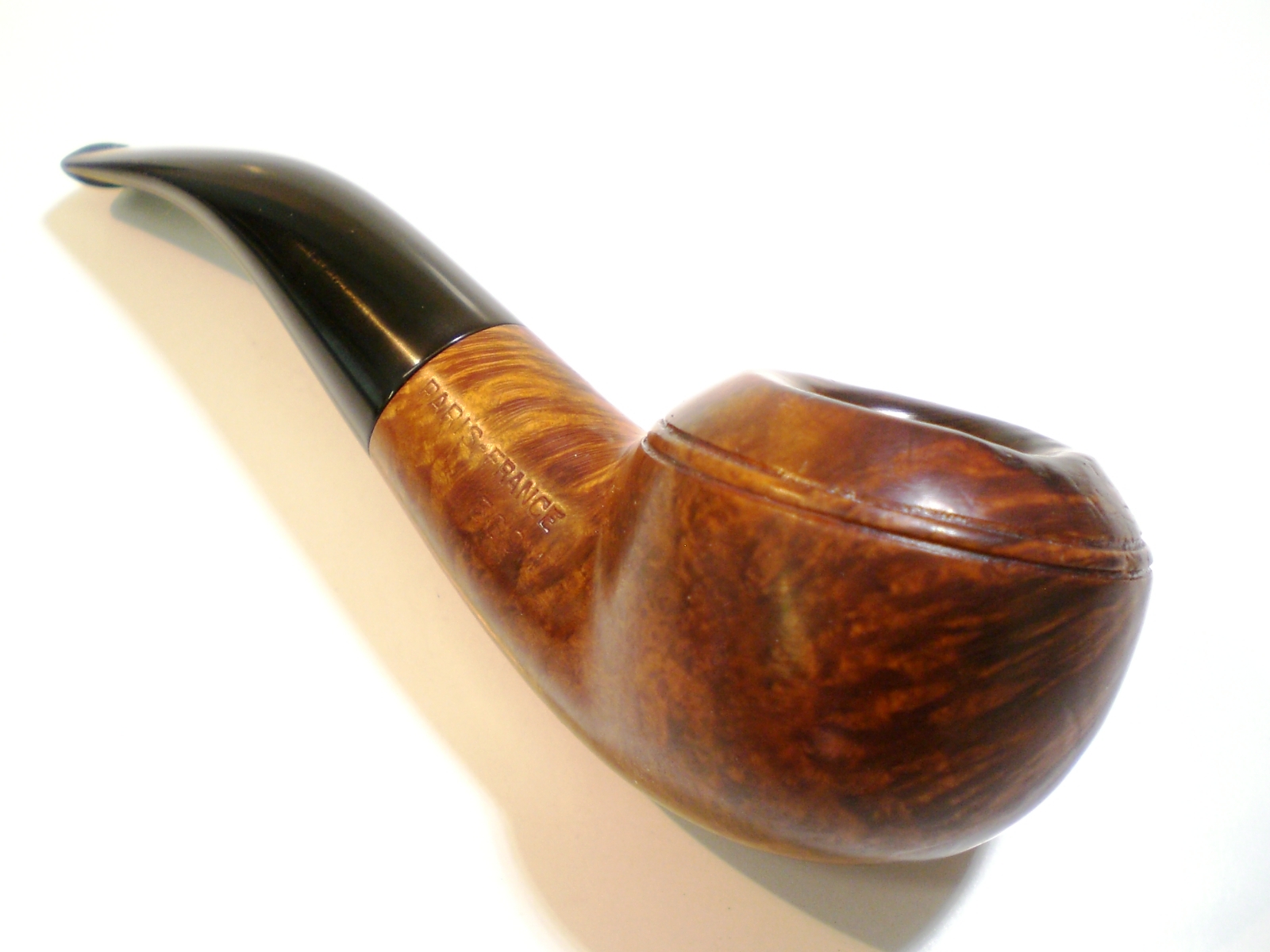

GBD_569M_Originale_Finish (6)

GBD_569M_Originale_Gallery

Kaywoodie Super Grain 07C Restored (Unsmoked)


I found this unsmoked Kaywoodie Super Grain 07C on Ebay. It has a four-hole, “Drinkless” stamped stinger. That and the three digit shape number help identify the timer period when it was made. Hacker sais the 07C bulldog was made from 1947 and that style stinger was discontinued by Kaywoodie in 1954.

Kaywoodie_07C_Before (1)

Kaywoodie_07C_Before (3)

Kaywoodie_07C_Before (4)

The bowl top had some dings from handling or bouncing around someones drawer for 50 plus years.

Kaywoodie_07C_Before (6)

Using a propane torch, old butter knife, and a small piece of wet cloth, I was able to steam out all of the dents on the bowl top. I heat the knife tip until it is glowing orange, than place the wet cloth (folded over twice) on the dent, then press the hot tip into the cloth. This causes the damp cloth to steam, which usually makes the dents spring back nicely.

Kaywoodie_07C_Finished (11)

The stem was oxidized but mint. The “Drinkless” engraving on the four-hole stinger was also like new. I removed the oxidation with 800 grit paper. I use a Popsicle stick to maintain the angles on the bulldog stem. Working around the logo was a little tricky. Then, I finished the stem with 2000 grit paper, followed by the 8000 and 12000 grade micromesh sheets. I then lightly buffed the stem with white diamond rouge and an automotive plastic polish.

The briar only needed a light buff with white diamond and then a few coats of carnuba wax. The bowl has several visible fills. Removing the oxidation revealed some “freckles” in the vulcanite, which I’ve learned is not uncommon on Kaywoodie or Doctor Grabow stems of that era.

Kaywoodie_07C_Finished (2)

Kaywoodie_07C_Finished (5)

Kaywoodie_07C_Finished (7)

Kaywoodie_07C_Finished (8)

Kaywoodie_07C_Finished (10)
