The Interesting History of a Borkum Riff Bent Billiard

Leave a reply

by Kenneth Lieblich

Rummaging through a bucket full of pipes resulted in finding some interesting odds and sods. This handsome bent billiard caught my eye because of the attractive shape and some amazing grain. It was very dirty, to be sure, but I could see the potential it held. Indeed, it turned out to be a beautiful pipe and I am happy to make it available to you. The markings were, shall we say, not immediately helpful, but they resulted in an interesting history. On the left side of the shank were the letters BR. These initials had a very particular look to them. On the underside of the shank, right near the end, was the word Israel. In fact, the pipe was so dirty that I only discovered the word Israel after cleaning the stummel. There were no other marks. There was a very attractive band around the stem: two rings of brass sandwiching a bright red acrylic ring. In order to determine what the ‘BR’ referred to, I went to Pipephil and found the exact same ‘BR’ on a pipe there. That led me to this entry:Aha! So, there were pipes made under the Borkum Riff name. To be clear: the reference to Savinelli above is specifically related to the pipe in the photos – not to all Borkum Riff-branded pipes (as we will soon see). Unfortunately, there was no mention of Israel.

The connection between Borkum Riff and tobacco is obvious, but less so the connection between Borkum Riff and pipes themselves. I went and looked up the Pipedia article on Borkum Riff and found that, in fact, the Wikipedia article is slightly more thorough:

Borkum Riff is a brand of pipe tobacco manufactured in Denmark for the Scandinavian Tobacco Group. ‘Borkum Riff’ tobacco was launched in Sweden in 1962, named after a lighthouse of the same name, located at 53° 58′ N, and 6° 22′ E in Heligoland Bight off the Dutch coast in the North Sea. It was a landmark for seafarers and was well-known to Swedish radio listeners, as weather reports mentioned Borkum Riff several times a day. The former lightship was used from 1960 to 1964 as the first radio ship of Radio Veronica, which became the first offshore radio station in the Netherlands.

The tobacco was a rough-cut blend of Virginia and Burley and had been developed by Bertil Sandegård with an eye on the US pipe tobacco market. Initial sales were slow-moving, but when Borkum Riff’s Bourbon Whiskey blend was successfully introduced in the US in 1969, sales increased. Since then, new flavours and new packaging have been introduced. Today, Borkum Riff is also sold in India, Canada, Australia, Switzerland, Norway, Spain, New Zealand, Japan, France, Italy, and Germany as well as in several other markets around the world. Borkum Riff’s biggest market, however, is still the United States.

Today, the Borkum Riff, which is manufactured in Denmark for Swedish Match, is the third-largest tobacco producer on the Swedish market. In 2011, Borkum Riff’s ownership changed to Scandinavian Tobacco Group. The ship in the Borkum Riff’s company logo originates from a 17th-century engraving made by Johann Baptist Homann.

The tobacco is manufactured on behalf of Swedish Match at the Scandinavian Tobacco Group’s Orlik factory in Assens, Denmark. Formerly, it had been produced by Mac Baren on a dedicated production line.This article had interesting information, but none of it directly related to pipes, per se. I was immediately reminded of a blog post I wrote about a year ago on an ‘Old Port’-branded pipe (made by Brigham). I wondered if it was a similar situation: could it be that when you bought a tin of Borkum Riff tobacco, you received a coupon and when you collected a sufficient number, you could redeem them for a pipe? It’s a reasonable assumption, given how many tobacco companies did similar things. You can read that article here. If you have any Borkum Riff brochures, etc. that describe this, I would love to hear from you.

So, I started searching. Not much was coming up in my searches until I found a tiny nugget that connects things together. Back in 2022, Steve wrote a blog post on a Burl King freehand pipe (you can read that post here). In that article, Steve quotes from the Pipedia post on Burl King:

We can confirm that it was at one time a pipe used for promotion of Borkum Riff tobacco, as reported by Bob Taylor of the Seattle Pipe Club, who mailed in a coupon and received the pipe with a postmark of Jan. 11, ’78, and a return address of Sparta, N.C., which indicates it may have come from the Dr. Grabow / Sparta Industries plant. Bob recently noticed his “Burl King” was also marked, made in Israel, so it was likely made by the Shalom Pipe Factory, though apparently distributed through Sparta Industries. The box shipped for 50 cents and the return address said “After 5 days return to P. O. Box 21882 Greensboro, N. CC. 27240.” So apparently these pipes were made by Shalom, but distributed for Borkum Riff by Sparta Industries.

If further confirmation was needed that Borkum Riff offered coupon pipes, then it can be found at the Baccy Pipes blog. In 2017, Troy posted an entry on Borkum Riff pipes (named Wimbledon) made by the Dr Grabow/Sparta Industries plant. I encourage you to read that post here. Thanks to Troy also for the photo below.

Eureka! Now the thread seemingly runs through everything. This information lends itself to what I suspected: Borkum Riff had coupon pipes that were made by the Shalom Pipe Factory in Israel and this is a particularly nice example of such a pipe. I’m not able to date it accurately, but an educated guess would be that it comes from the 1970s or 80s.

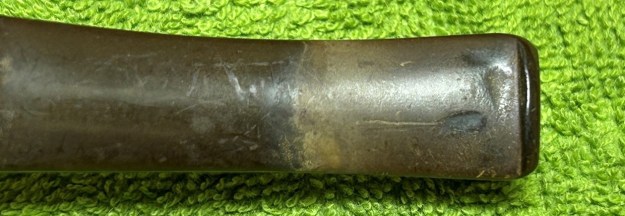

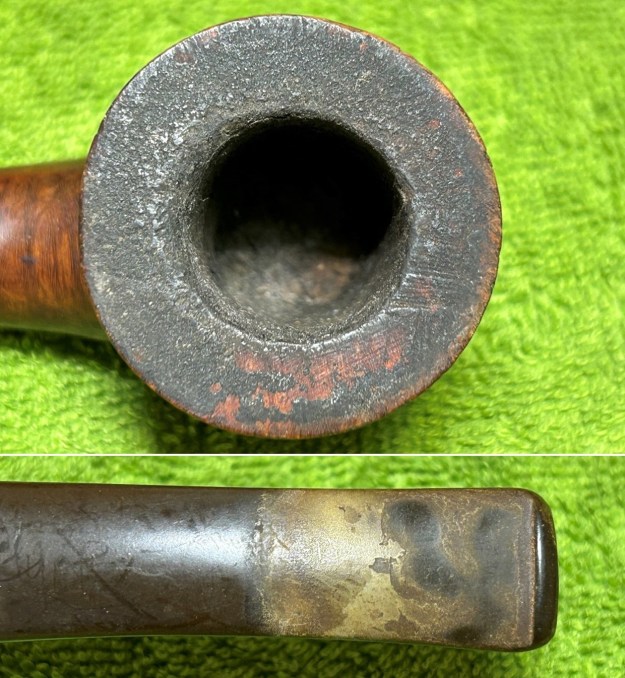

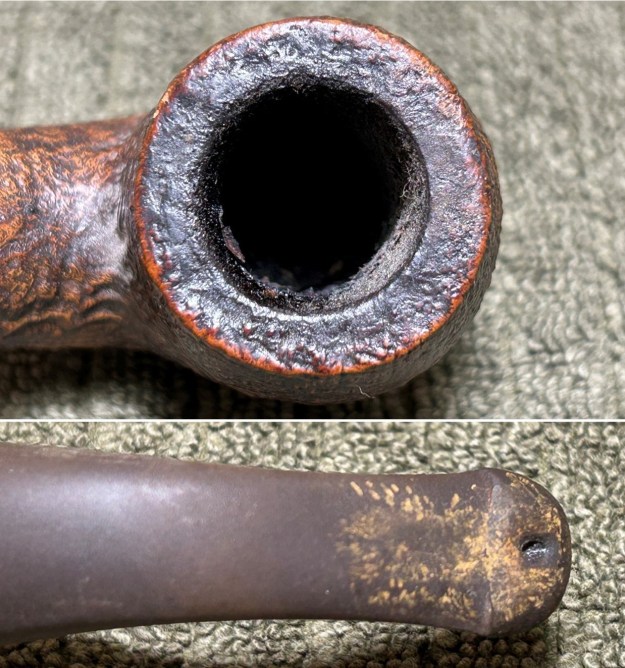

Let’s look at the condition. Yikes! This was one dirty pipe. Who knows where it’s been living for the past few decades? The stem was a bit scraped and dented. It had quite a bit of oxidation and the band seemed to be a bit corroded. The stummel was incredibly filthy. There was cake inside the bowl and a bit of lava on the rim. However, one side of the stummel had the most unsightly stain all over it. It wasn’t immediately apparent what the stain was, but I did wonder if I could get it off. I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. The primary cleaning came next. I disinfected the inside of the stem with pipe cleaners dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean. I used a lot of pipe cleaners – it was so dirty.As I was disassembling the pipe, the band came off the stem and then promptly separated into pieces. This wasn’t such a bad thing, as it simplified my restoration. I wiped the pieces down with alcohol, then sanded them with some 0000-grit steel wool. This served to both clean the pieces and slightly roughen them for gluing back together. This I did with some regular white glue. I also (eventually) glued the whole thing back in place on the tenon of the stem.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush. Due to the severity of the oxidation, I then repeated the scrubbing with the cream cleanser for maximum effect.As the stem was now clean and dry, I set about fixing the marks and dents in the vulcanite. This was done by filling those divots with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done. And doesn’t the band complement the stem beautifully?As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed.My next step was to remove the lava on the rim. For this, I took a piece of machine steel and gently scraped the lava away. The metal’s edge is sharp enough to remove what I need, but not so sharp that it damages the rim.The inside of the stummel needed to be cleaned thoroughly. However, this pipe was so clogged, that I first needed to open the horribly occluded airway. So, I took a long drill bit, held in a drill chuck, and hand-cranked it to dislodge the dreadful detritus inside. Hand cranking is essential because it provides a precision and caution that a power drill cannot provide.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean.I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar – but it most certainly didn’t affect the ugly stain on the bowl. So, I used some acetone to wipe the area down. This worked a bit, but not much – I would have to sand this area down. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.I used all nine micromesh pads (1,500 through 12,000 grit) to sand the outside of the stummel and finish it off. It also removed the dreadful stain and the pipe looks terrific now. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of carnauba wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.All done! This handsome Borkum Riff bent billiard looks fantastic again and is ready to be enjoyed by its next owner. I am pleased to announce that this pipe is for sale! If you are interested in acquiring it for your collection, please have a look in the ‘Various Makers’ section of the store here on Steve’s website. You can also email me directly at kenneth@knightsofthepipe.com. The approximate dimensions of the pipe are as follows: length 5¼ in. (133 mm); height 2 in. (51 mm); bowl diameter 1⅝ in. (40 mm); chamber diameter ⅞ in. (21 mm). The weight of the pipe is 1¾ oz. (52 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I enjoyed restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email. Thank you very much for reading and, as always, I welcome and encourage your comments.

A Special Gift for Christmas

Leave a reply

by Kenneth Lieblich

I have been restoring pipes for more than five years now, and I have learned everything at the feet of the master: Steve Laug. And, because of him, there is a pipe I have dreamt of finding since I started. Recently, I acquired a large lot of pipes and, as these things often are, the box contained everything from the absurd to the sublime. Quite a few pipes in the box were Danish, so that’s always a delight. When I took the box of pipes home, I didn’t realize it, but the pipe of my dreams was inside.

Perhaps I should be more explicit in what I’m talking about. In essence, I have always wanted to find a pipe that Steve really wanted – so I could give it to him. In the world of pipes, Steve has really been-there, done-that. Steve has seen it all (or just about all), and it was always going to be a tall order to find a pipe he wanted that he hadn’t owned before or seen before. This box of pipes had it! Steve told me that he always wanted a pipe from Danish master carver Åge Bøgelund. Turns out, there was one in this box. I grabbed it, restored it, and presented it to him as a gift. It seemed the least I could do in thanks for all he’s done for me. Let me take a moment to tell you a little bit about the pipe maker, Åge Bøgelund. There isn’t much information available, but here’s what I found. From Pipedia:

Åge Bogelund was in charge of the Bari factory after Viggo Nielsen. During factory operation and after the factory closed he made some handmade pipes stamped with his name, some are quite large and some are very unique. They are scarce and have become collectible.

From 1978 to 1993 Åge Bogelund and Helmer Thomsen headed Bari’s pipe production. Helmer Thomson bought the company in 1993 re-naming it to “Bari Piber Helmer Thomsen”. The workshop moved to more convenient buildings in Vejen. Bogelund created very fine freehands of his own during the time at Bari.

Next, from MBSD Pipes:

Age (or rather, Åge) Bogelund is a somewhat less known carver from the 20th century Danish pipe-making tradition – though he was no less a master than his contemporaries. Originally, he worked for Viggo Nielsen’s Bari pipe company, being charged with making some of its higher-grade freehands. Later, Bogelund made pipes under his own name, each displaying a distinct style and talent, even among his celebrated Danish peers. Bogelund’s pipes have for a long time been coveted by collectors, though in more recent years, these creations have attracted a more popular enthusiasm.

Next, from SmokingPipes:

We haven’t seen many Åge Bogelund pipes come through our estate department, so this intricate Freehand makes for a rare and welcomed sight. The Danish carver was in charge of Bari at one point, having headed up the marque’s pipe production alongside Helmer Thomsen before Thomsen bought the company in 1993. During his time there, though, Bogelund fashioned his own pipes as well, which have since become quite collectible. Many are large and quite unique, as Åge rendered many Freehands.

You get the idea: his pipes are well-regarded and rare.

So, let’s take a closer look at this pipe. It really is a beauty and, if Steve hadn’t wanted it, I would certainly have kept it for myself. What would you call this shape? It’s probably a freehand brandy.

The markings are very clear. On the left side of the shank, we see Åge [over] Bøgelund – written in a semi-circle. To the right of that, are the initials DB. On the right side of the shank, we see Handmade [over] in Denmark. Finally, on the underside of the shank, we see the initials EN. Despite much investigation, I cannot determine what the initials DB or EN are meant to represent. I wondered if DB was meant to signify Design Berlin – the connection is possible but tenuous. Google’s AI function suggested that there was a connection (without any source references), which makes me think this info from Google AI represents another pair of letters: the first being a B and the second being an S. I am pleased to report that the condition of the pipe is good. The stem obviously had a Softy Bit on it (Deo gratias). I’m pleased because it protected the bit from too much damage. The stem has quite a bit of calcification on it, but not too much oxidation. The stummel is dirty, but sound. There is plenty of cake in the bowl, and a good amount of lava on the rim. There is minor wear to the briar for the most part – except for a small cut on one side. The stem’s calcification was notable. I used an old butter knife and gently scraped some of the thicker accretion off. Doing this now helps later in removing the oxidation. I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush.As the stem was now clean and dry, I set about fixing the marks and dents in the vulcanite. This was done by filling those divots with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed.My next step was to remove the lava on the rim. For this, I took a piece of machine steel and gently scraped the lava away. The metal’s edge is sharp enough to remove what I need, but not so sharp that it damages the rim.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean.I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.Having completed that, I was able to address the nicks on the rim and the bowl. I dug out my iron and a damp cotton flannel cloth. By laying the cloth over the affected areas and applying the iron to it, the hot and moist steam can cause the wood to swell slightly and return to shape. There was some improvement – not a lot, but it was better than doing nothing. I forgot to take a photo, however.

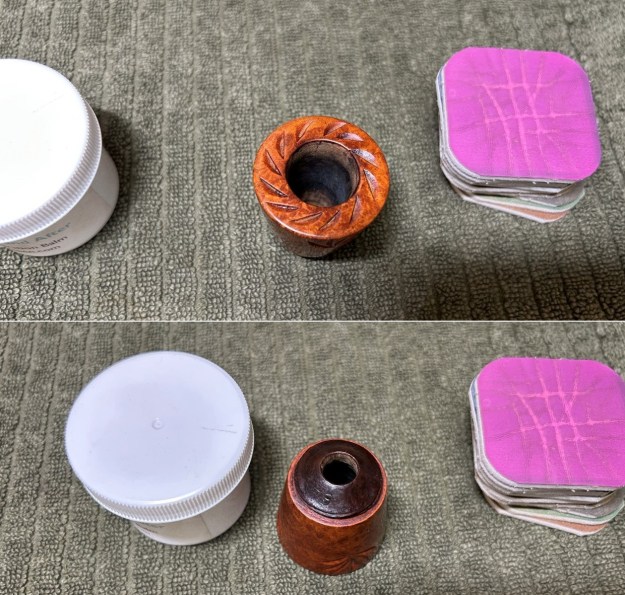

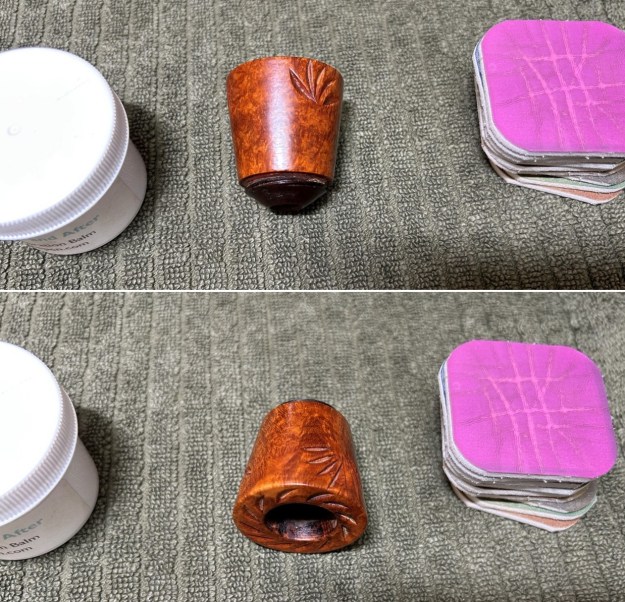

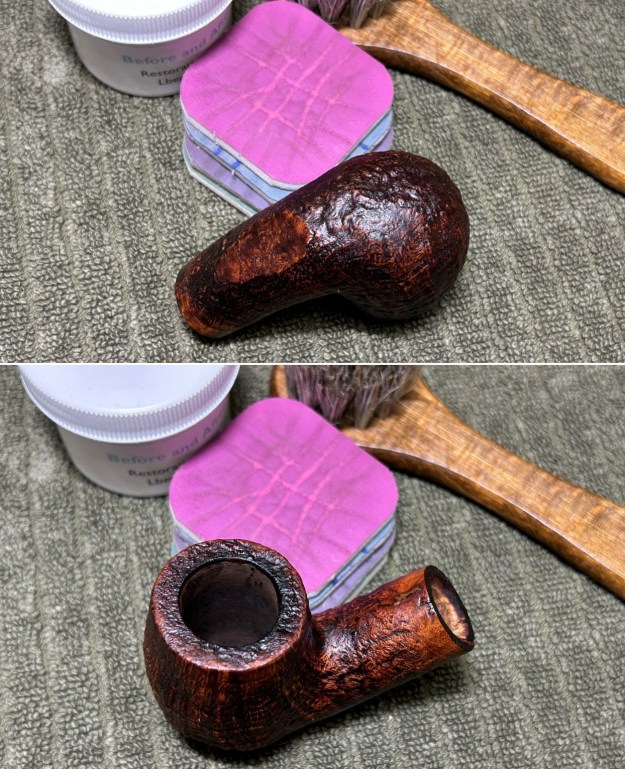

I used all nine micromesh pads (1,500 through 12,000 grit) to sand the outside of the stummel and finish it off. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of carnauba wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.All done! This Åge Bøgelund freehand brandy pipe looks fantastic again and is ready to be given to Steve. It was a pleasure to work on. It’s a gorgeous pipe. The approximate dimensions of the pipe are as follows: length 6 in. (153 mm); height 2⅛ in. (53 mm); bowl diameter 1¾ in. (44 mm); chamber diameter ¾ in. (19 mm). The weight of the pipe is 2⅛ oz. (61 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I enjoyed restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email at kenneth@knightsofthepipe.com. Thank you very much for reading and, as always, I welcome and encourage your comments.

Restoring an Unlisted Brigham 3-Dot Scoop

Leave a reply

by Kenneth Lieblich

What a charming pipe this is! I got it in auction with a few other pipes, and I liked the shape of it immediately. This is a Brigham 3-dot scoop, with a handsome and rugged rustication. It really feels good in the hand. It has that look – no one could mistake it for anything but a Brigham. The tenon (which holds the maple distillator) on this pipe is made of aluminum – so it’s an older one. Curiously, it doesn’t have any shape number marked on it, nor is it listed in the book on Brigham pipes. Let’s examine what marks it does have. On the underside of the stummel, we read Brigham [over] Made in Canada. Of course, how those words are marked is what matters in dating Brigham pipes. I’ll get back to that. To the left of the aforementioned markings is the solitary digit 3. I can only assume that this refers to the three brass pins found on the stem. Thanks to Charles Lemon’s book, Brigham Pipes: A Century of Canadian Briar, dating this pipe was quite straightforward. On page 40, Lemon writes,

The Brigham Country of Manufacture (COM) stamp was modernized in about 1970 to consist of an upwardly-slanted Brigham logo over “Made in Canada” in small block letters. This stamp was used until approximately 1980.

I can confidently date this pipe to the 1970s. I looked thoroughly in the book’s Unofficial Brigham Shape Chart and this pipe was nowhere to be found. I know that Brigham experimented with many shapes over the years, so this must have been one of those. Charles, if you’re reading this, please let us know in the comments below!I read through the article on Pipedia on Brigham Pipes. You can read it here. It’s a good article and contains lots of helpful information. I have included the chart below from the site as it shows the Brigham System and how it works.This is a beautiful pipe, but it did have some issues. The stem, however, was in good shape. Very dirty, to be sure, but not damaged. The stummel looks great – a bit dirty, some cake in the bowl and quite a bit of lava on the rim. I didn’t know it yet, but the lava hid some damage to the rim. This would be revealed later. I used a disposable lighter and ‘painted’ the stem with its flame. The gentle heat of the flame can cause the dents in the vulcanite of the stem to expand back into shape. In this case, the vulcanite did move – which was great – but it didn’t move fully. No problem.I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean. I used a lot of pipe cleaners and cotton swabs – it was surprisingly dirty in there.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush.As the stem was now clean and dry, I set about fixing the marks and dents in the vulcanite. This was done by filling those divots with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean. It was very dirty.My next step was to remove the lava on the rim. For this, I took a piece of machine steel and gently scraped the lava away. The metal’s edge is sharp enough to remove what I need, but not so sharp that it damages the rim. This work revealed some significant burn damage to the rim. Unfortunate and annoying, but not catastrophic. I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.In order to lessen the burns damage on the rim, I ‘topped’ the pipe – that is to say, I gently and evenly sanded the rim on a piece of 400-grit sandpaper. This effectively minimized the damage, without altering the look of the pipe. Fortunately, this required only minimal topping.I took a solid wooden sphere, wrapped with my micromesh pads, and lightly sanded the inner edge of the rim. This achieved two things: first, it removed some of the burn marks; and second (and more importantly), the circular shape and motion of the sphere gradually returned the edge to a circle shape.I used all nine micromesh pads (1,500 through 12,000 grit) to sand the rim and the underside of the shank. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of conservator’s wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.All done! This unlisted Brigham 3-dot scoop looks fantastic again and is ready to be enjoyed by its next owner. I am pleased to announce that this pipe is for sale! If you are interested in acquiring it for your collection, please have a look in the ‘Canadian’ section of the store here on Steve’s website. You can also email me directly at kenneth@knightsofthepipe.com. The approximate dimensions of the pipe are as follows: length 6⅛ in. (155 mm); height 1¾ in. (45 mm); bowl diameter 1⅓ in. (34 mm); chamber diameter ¾ in. (20 mm). The weight of the pipe is ⅞ oz. (27 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I enjoyed restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email. Thank you very much for reading and, as always, I welcome and encourage your comments.

A Peterson Donegal 264 Canadian with an Unusual History

Leave a reply

by Kenneth Lieblich

If you’re interested in acquiring a Peterson unlike any other, have I got the pipe for you! I unearthed this pipe a couple of years ago at an antique fair and I found it quite peculiar. The shape seemed perfectly normal, the components were in good (albeit, used) condition – but the finish was something I’d never seen before from an old Pete. I was definitely curious about what it might be. The pipe turned out very well, all things considered, and, like I said, if you want a pipe that no one else has – this is your pipe. I’m sure it’ll be a good smoker. Neither Steve nor I were clear on how this pipe ended up the way it did. I initially wondered if this was an odd finish that Peterson tried years ago – but that didn’t seem likely. I had another theory, but Steve suggested that I contact Peterson expert, Mark Irwin, to ask him about it. Mark basically confirmed what I suspected: this Donegal has had its rustication (mostly) removed. In other words, it’s been sanded down. This is strange, but there’s no way of determining why this was done. Thanks for your help, Mark. Regardless, we’ve ended up with an interesting finish and a pipe that I need to make beautiful.The markings on this pipe were a problem, since they had suffered a bit during the sanding process. However, I did manage to figure them out. On the underside of the shank, we can see the word Peterson’s. There is something marked underneath that, but I’ll come back to that as it’s somewhat unreadable. Next to Peterson’s is the shape number, 264. And next to that are the words Made in the [over] Republic [over] of Ireland. It took me quite a while to determine what was marked underneath of Peterson’s, but, of course, it is the word Donegal. This is the Peterson line. You will have noticed that the stem is the traditional Peterson P-lip, and it has the classic letter P. Most importantly, there is a sterling silver band on the end of the shank. On the sterling silver band is displayed three shields each containing the three marks K&P [over] Sterling [over] Silver. These are not silver hallmarks – they are simply Peterson’s marks. However, it does have a set of proper hallmarks (which are very difficult to see): Hibernia, which indicated that it was made in Dublin. Next is the Harp Crowned, which indicates sterling silver. Third is the date letter. In this case, it’s a stylized M. Checking the Irish hallmarks chart tells me that this pipe dates from 1978. So, what is the state of the pipe? Well, it’s a mixed bag, as these things tend to be. The stem is in surprisingly good shape – not too dirty or oxidized. It does have a notable cut into the vulcanite, near the tenon end, but that’s not a problem to repair. The stummel is, for the most part, also quite nice. It has a few unsurprising scratches, but it’s fairly clean inside. The silver band is heavily tarnished and has a few bumps and knocks. On with the restoration! This pipe had an inner tube, so I cleaned that first. I wiped it with some alcohol and ran a pipe cleaner or two through it. Much improved.The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. This one wasn’t too bad at all.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush.As the stem was now clean and dry, I set about fixing the nasty cut in the vulcanite. This was done by filling it with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.After this, I painted the logo on the stem with some enamel nail polish. I restored the logo carefully and let it fully set before proceeding. Most of the logo has gone with the passage of time, but at least a bit of it still shows.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to clean out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I didn’t need a reamer this time, so a pipe knife and a piece of sandpaper taped to a wooden dowel did the trick. Collectively, these ensured that all the debris was removed.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. Since the pipe wasn’t too dirty, it didn’t take long to clean it.I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes.I used all nine micromesh pads (1,500 through 12,000 grit) to sand the outside of the stummel and finish it off. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. I had to be especially careful this time, to avoid losing any more of the markings on the underside of the shank. To clean the silver band, I gently removed the tarnish with a soak in a bath of aluminum foil, baking soda, and hot water. Worked like a charm! I polished it up and glued it back in place. There are still some bumps and bashes, but it looks so much better. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of conservator’s wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.

This Peterson Donegal 264 Canadian looks fantastic again and is ready to be enjoyed by its next owner. I am pleased to announce that this pipe is for sale! If you are interested in acquiring it for your collection, please have a look in the ‘Irish’ pipe section of the store here on Steve’s website. You can also email me directly at kenneth@knightsofthepipe.com. The approximate dimensions of the pipe are as follows: length 5½ in. (138 mm); height 1¾ in. (45 mm); bowl diameter 1¼ in. (33 mm); chamber diameter ¾ in. (20 mm). The weight of the pipe is 1 oz. (32 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I did restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email. Thank you very much for reading and, as always, I welcome and encourage your comments.

Cleaning Up a Stylish Jobey Shellmoor Extra Hawkbill

Leave a reply

by Kenneth Lieblich

This good-looking pipe came from the great state of Washington and I’ve been meaning to clean it up for some time. This is a Jobey Shellmoor Extra pipe, in the hawkbill shape, and, although this particular pipe doesn’t show any shape number, it is identical to a Jobey Shellmoor Extra E527 that Steve restored last year. You can read that restoration here. It’s not immediately clear to me why this one doesn’t have a number, but no matter! Let’s look at the markings that do appear on this pipe. On top of the shank, we see Jobey [over] Shellmoor [over] Extra. On the stem, we see the Jobey logo inlaid in brass.Regarding the Jobey company itself, there is precious little background information. The Pipedia article on Jobey (which I encourage you to read here) begins with this tidbit:

English – American – Danish – French… Sadly, solid information about Jobey is scant. Probably established in England around 1920(?) the brand hiked into the USA later.

And Pipephil adds this note:

These pipes are made in St Claude (France) by Butz-Choquin (Berrod-Regad group) since 1987. Before this date some were manufactured in England and Denmark (Jobey Dansk).So? Not much history to learn, sadly. Let’s clean this pipe up. Fortunately, this pipe was in good condition and didn’t require too much labour. The stummel is dirty but sound. The rim is coated in lava. The bowl has a decent amount of cake in it. The stem is also dirty, oxidized, and shows signs of calcification. There are lots of tooth scratches and some minor dents. I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean. Actually, it wasn’t too bad inside.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush.As the stem was now clean and dry, I set about fixing the marks and dents in the vulcanite. This was done by filling those divots with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.

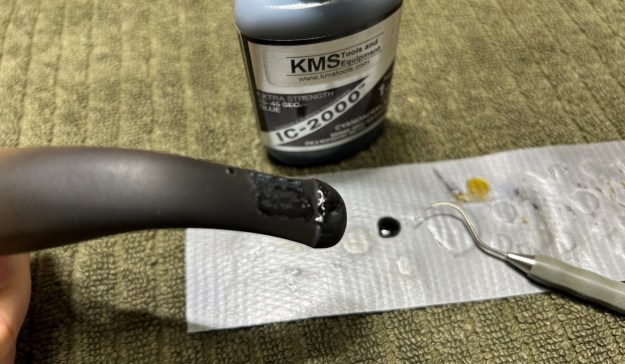

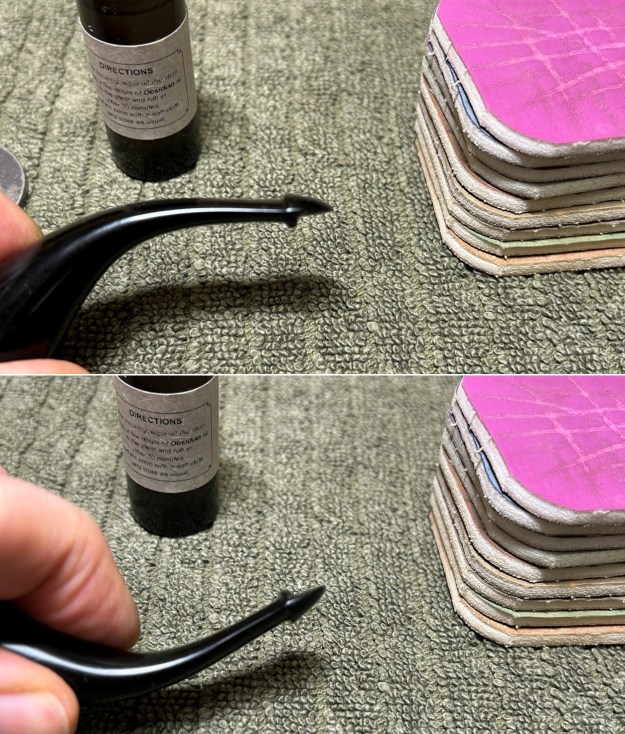

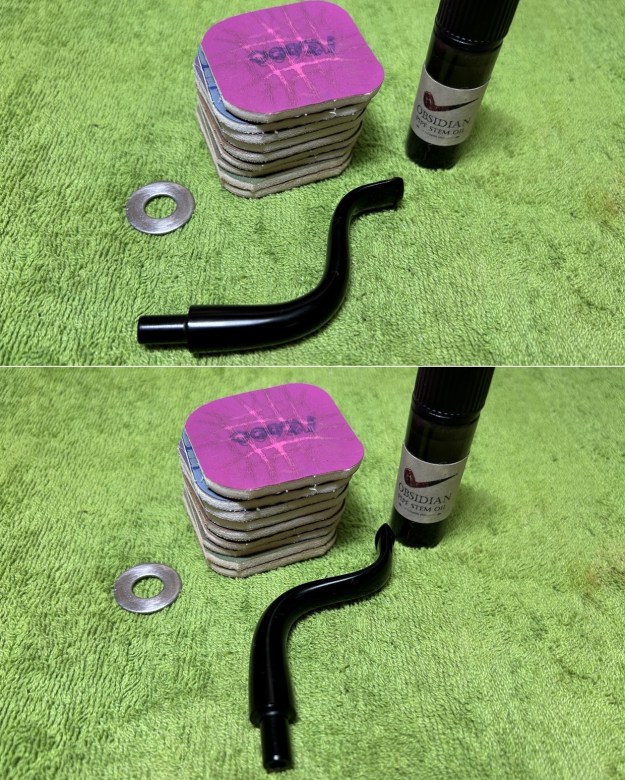

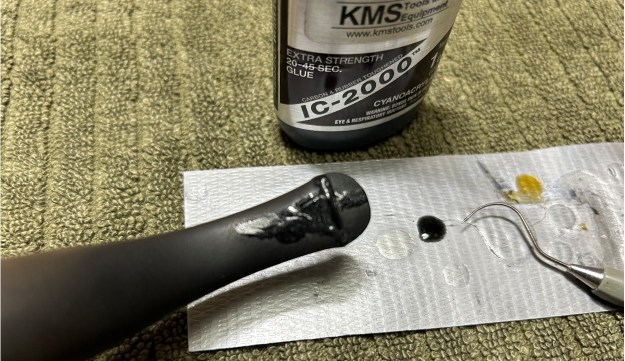

The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed.My next step was to remove the lava on the rim. For this, I took a piece of machine steel and gently scraped the lava away. The metal’s edge is sharp enough to remove what I need, but not so sharp that it damages the rim. Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean.I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of carnauba wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.This Jobey Shellmoor Extra hawkbill pipe looks fantastic again and is ready to be enjoyed by its next owner. I am pleased to announce that this pipe is for sale! If you are interested in acquiring it for your collection, please have a look in the ‘American’ pipe section of the store here on Steve’s website. You can also email me directly at kenneth@knightsofthepipe.com. The approximate dimensions of the pipe are as follows: length 5⅓ in. (135 mm); height 1⅞ in. (48 mm); bowl diameter 1⅞ in. (47 mm); chamber diameter ⅞ in. (22 mm). The weight of the pipe is 2⅛ oz. (62 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I did restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email. Thank you very much for reading and, as always, I welcome and encourage your comments.

Restoring a Handsome Patent-Era Brigham 226 Bent Squatty

Leave a reply

by Kenneth Lieblich

Last Sunday, a gentleman at my church approached me about restoring some pipes that he recently found at the local Sally Ann. He found some nice things and I happily restored three of his pipes – one of which ended up as this blog post! This is a very handsome Brigham 2-dot bulldog and, from first viewing, I could tell that this one was a bit older than the usual Brighams I see. This Brigham had the patented ‘Rock Maple Distillator’ filter system in it. Even though this one had been through the ringer, I was keen to get this it shining and bright again. A quick look at the markings told me a lot of information. First of all, the stem showed two dots (or, to be more precise, two brass pins). This is typical of Brigham’s marking system and, in this case and in this era, two dots means the ‘Select’ level of briar. As Charles Lemon wrote in his book, Brigham Pipes: A Century of Canadian Briar,

A single brass pin inserted in the left flank of the stem near the shank was originally used as a physical anchor to hold the press-fit aluminum tenon/filter holder securely in the stem. Brigham built on this manufacturing necessity by setting additional pins or Dots as they came to be known to denote the quality level of his pipes.On the underside of the shank, we can see the word Brigham [over] Can Pat 372982. To the left of that is the shape number 226,

where the first digit refers to the pipe’s grade and the second and third digits to the pipe shape itself.The markings have been somewhat worn over time, but they are still readable. Crucially, they told me that this pipe was made during the patent era of Brigham pipes – that is to say, between 1938 and 1955. The Brigham logo is the variety that Lemon describes as the thin-script logo with a long tail on the “m” wrapping back under the name. The patent in question is the Canadian patent number for the filter system. Finally, the initial 2 in the three-digit shape number obviously connects to the two brass dots. Referring back to Lemon’s book, I found that shape 26 was called the ‘Bent Squatty’, with the description: Medium, ¼ Bent Bulldog, Diamond Taper Stem. Yep, that describes this pipe, alright. Anyway, for a more thorough view of Brigham’s history, please visit Pipedia’s article here. Meanwhile, here is a view of Brigham’s patented filter system:On with the restoration! The pipe is in good condition for its age – just particularly grungy. I was fairly impressed with the condition of the stummel. There was no notable damage, just a lot of grime – especially on the rim, where the grime was really ground in. The stem was heavily oxidized and had quite a bit of tooth chatter. There were some significant dents in the vulcanite and the button was somewhat squashed. First things first. I used a disposable lighter and ‘painted’ the stem with its flame. The gentle heat of the flame can often cause the dents in the vulcanite of the stem to expand back into shape. In this case, there was perhaps a bit of movement – but not much. I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps.The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean. I used a huge number of pipe cleaners and cotton swabs – more than shown in the photo. In addition, the aluminum filter chamber was so heavily choked with debris, that I used a drill bit to break down and remove all of this detritus. Amazing. The goal of the next step is the removal (or minimization) of oxidation. In this case, it was only minimization – the photos simply do not communicate how badly oxidized this stem was. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush. Due to the severity of the oxidation, I then repeated the scrubbing with the cream cleanser for maximum effect. It turns out that even that wasn’t good enough. I actually used red Tripoli on my buffing wheel to remove even more oxidation.As the stem was now clean and dry, I set about fixing the marks and dents in the vulcanite. This was done by filling those divots with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean. Although, it was easy compared to the stem!I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it with three coats of conservator’s wax. This procedure makes the pipe look its best – the stummel sings and the stem glows. All done! This Brigham 226 Bent Squatty looks fantastic again and is ready to be enjoyed by my friend at church. It was a pleasure to work on and such a treat to see an older Brigham come back to life. The approximate dimensions of the pipe are as follows: length 5¾ in. (146 mm); height 1½ in. (38 mm); bowl diameter 1⅔ in. (42 mm); chamber diameter ¾ in. (20 mm). The weight of the pipe is 1¼ oz. (38 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I enjoyed restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email at kenneth@knightsofthepipe.com. Thank you very much for reading and, as always, I welcome and encourage your comments.

Spiffing Up a Rare Dunhill Bruyere 32 from 1959

3 Replies

by Kenneth Lieblich

This very handsome pipe came to me from a local gentleman who was letting go of his pipes. I was charmed by this one right away. This is a Dunhill Bruyere 32 billiard pipe, with an attractive tapered, vulcanite stem. It has been stained in the Dunhill version of oxblood – and it sets off the pipe very nicely. Let’s have a look at the markings. On the left side of the shank, we see 32. Further along to the right, we see Dunhill [over] Bruyere. On the right side of the shank, we see Made in [over] England9. And further along we also see ① A.What do all these markings mean? John Loring’s book, The Dunhill Briar Pipe, provides many of the answers. The number 32 indicates the shape number – in this case, a billiard with a tapered bit. The word bruyere, of course, means briar, and, in this case, refers to a classic line of Dunhill pipes that dates back to 1910. The 9 found at the end of the word England is slightly raised and this indicates that the pipe was made in 1959 (see below). The encircled number one indicates that this pipe is from Group 1 – the smallest of the pipe sizes. With such a small size, these pipes tend to get damaged, over-smoked, and lost more easily. They have historically been less likely to survive intact over the years, making them uncommon. The letter A is an indication that this is from the smooth, bruyere line. As Loring writes,

1955-1960: the code is a raised, smaller then [sic] the preceding “D” and normally [but not always] underlined 5 through 0.

Most Bruyeres of the patent period will be found with an “A” stamped on the side of the shank near where the shank meets the bowl. When the Root finish was introduced in 1931 the “A” came to mean Bruyere but initially the “A” probably denoted that the pipe was of first quality.

Here is a visual representation of the dating process from Pipephil: Let’s take a closer look at the pipe’s condition. It was in surprisingly good condition, considering its age and size. The stem had only light tooth chatter and scratches – nothing major at all. Also, the oxidation was minimal. The stummel was also great. There were a few small nicks in the briar, but I was sure I could correct those. There was also some lava and/or charring on the rim top, but nothing too bad. I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. Fortunately, it wasn’t too dirty.My next step was to remove the lava on the rim. For this, I took a piece of machine steel and gently scraped the lava away. The metal’s edge is sharp enough to remove what I need, but not so sharp that it damages the rim. This work revealed that there was a bit of charring, but very mild. I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.Having completed that, I was able to address the small nicks on the bowl. I dug out my iron and a damp cotton flannel cloth. By laying the cloth over the affected areas and applying the iron to it, the hot and moist steam can cause the wood to swell slightly and return to shape. There was some considerable improvement. It didn’t remove every dent, but it looks much better.I used all nine micromesh pads (1,500 through 12,000 grit) to sand the outside of the stummel and finish it off. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. After that, the tiny spots of bare wood on the rim needed to be tinted in the same colour as the rest of the stummel. I used some of my furniture pens (which is simply dye in pen form) to match the colours. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of carnauba wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.

This Dunhill Bruyere 32 billiard is a beauty and I have decided to add it to my collection. It was a pleasure to work on. The approximate dimensions of the pipe are as follows: length 4⅞ in. (124 mm); height 1⅝ in. (41 mm); bowl diameter 1¼ in. (31 mm); chamber diameter ¾ in. (19 mm). The weight of the pipe is ¾ oz. (23 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I enjoyed restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email at kenneth@knightsofthepipe.com. Thank you very much for reading and, as always, I welcome and encourage your comments.

Rescuing a Remarkable Old Torpedo of Grenoble

Leave a reply

by Kenneth Lieblich

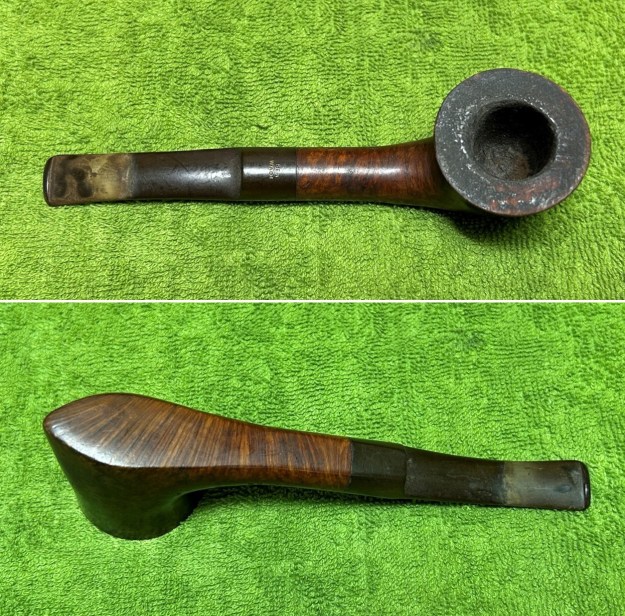

If you’re interested in an old and highly unusual pipe with incredible grain, have I got a pipe for you! This pipe is in the shape of a torpedo – but not like the screw-in zeppelin pipes you may have seen. This one is much older and more fascinating. It has a substantial chunk of briar and a lovely horn stem, with a bone tenon. I received it in a large lot of French pipes and it has been sitting in my box for a long time. Now, the time has come for it to be brought back to life. I’ve mentioned several times that I have an interest in French pipes and pipemaking. I think we’re going to have fun with this one. You may wonder why I called this pipe a torpedo, and that’s a fair question. The markings on the pipe are what gave it away. If you look at the photos below, you’ll see a difficult-to-read word on the side of the stummel. It took me a long time to figure out what it said (and I also used chalk like a gravestone rubbing), but my knowledge of the French language helped. The word is torpille, which is the French word for torpedo. Aha! The word fit the letters and the shape of the pipe. These photos also show the wonderful grain. At this point, since we’re talking about markings, I’m momentarily going to jump ahead in the story. It wasn’t until after I had cleaned the stummel (much later) that I uncovered more marks! These were very faint (as the photos below attest). Again, after quite a bit of staring with magnification, I figured out what the words were. They are A La Havane [over] Grenoble. Naturally, I was curious about this and discovered that this was the name of an old tobacco shop in the French city of Grenoble (obviously). Incidentally, A La Havane means ‘In Havana,’ which seems like a suitable name for a tobacconist. In fact, there is a tobacco shop in Grenoble to this day which is called Le Havane. I wonder if this is just the modern incarnation of that old shop. It seems likely. Here’s a Google Street View image of it:Steve has restored a couple of pipes similar to this one, but not quite the same. He referred to the pipe he had as a ‘slug’, which is both humorous and accurate. You can read about one of the restorations here. Mine is a bit different, as it has a very different stem and is missing the slug’s ‘foot’. Have a look at Steve’s here:Moving on to the state of this pipe and, well, it had seen better days. This pipe was worn, dirty, and rough. The stem was made of horn and was heavily chewed and beaten. Its tenon was made of bone and, in theory, should be able to be unscrewed – but some of these century-old pipes are awfully difficult. Meanwhile, the stummel was very dirty, with dust and grime ground into the wood. The rim was heavily burned and the insides were clogged with filth.To begin, I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. I wanted to clean out the insides next, but I felt it important to try and remove the tenon. First, I soaked the stem in isopropyl alcohol for about an hour – and that did precisely nothing. Second, I stuck the stem in the freezer for about 30 minutes – sometimes that can help the unscrewing process, but it didn’t. Third, I warmed the stem with my heat gun, hoping that that might loosen the gluey goo inside. After heating for quite a while, I could feel just a little give. I used my fingers to undo the screw. It was so challenging that I actually developed (and burst) a blister on my left index finger. But the good news is that I actually got it unscrewed. What I won’t do for pipes! The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean. I used quite a few pipe cleaners and cotton swabs. I also cleaned the tenon very well too.As the stem was now clean and dry, I set about fixing the marks and dents in the horn. This was done by filling those divots with clear cyanoacrylate adhesive. There was quite a bit of horn missing and the repair took quite a while. I left this to cure and moved on. I neglected to take photos of this stem, so you’ll just have to take my word for it.

The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the horn. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the horn, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed. I noticed that the bottom of the bowl had been somewhat scraped out over the years, and the heel was lower than one would wish. However, I left it as it was – this is part of its history.Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean. Holy moly, was this pipe ever dirty!I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a toothbrush in the crevices. This did a good job of cleaning any latent dirt on the surface of the briar. It was at this point in the cleaning process that I noticed the faint markings that I mentioned earlier.The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.I took a solid wooden sphere, wrapped a piece of 400-grit sandpaper around it, and lightly sanded the inner edge of the rim. This achieved two things: first, it removed some of the burn marks; and second (and more importantly), the circular shape and motion of the sphere gradually returned the edge to a circle. Some of the burning will always remain, but that’s fine – it is part of this pipe’s history.

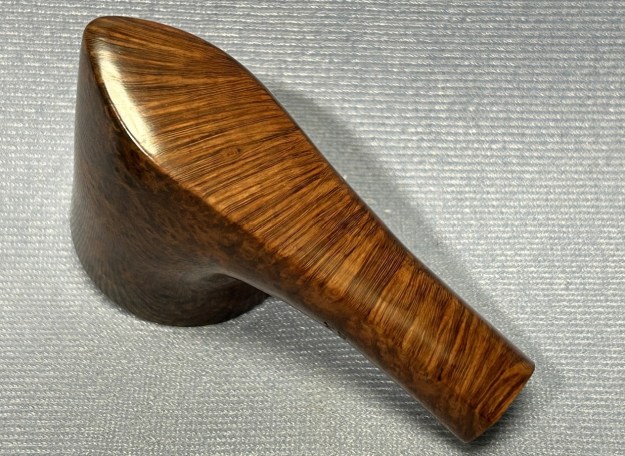

I used all nine micromesh pads (1,500 through 12,000 grit) to sand the outside of the stummel and finish it off. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of carnauba wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.This French ‘Torpille’ Torpedo pipe looks fantastic again and is ready to be enjoyed by its next owner. I am pleased to announce that this pipe is for sale! If you are interested in acquiring it for your collection, please have a look in the ‘French’ pipe section of the store here on Steve’s website. You can also email me directly at kenneth@knightsofthepipe.com. The approximate dimensions of the pipe are as follows: length 5½ in. (140 mm); height 1¼ in. (30 mm); bowl diameter 1½ in. (36 mm); chamber diameter ¾ in. (19 mm). The weight of the pipe is 1¼ oz. (37 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I did restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email. Thank you very much for reading and, as always, I welcome and encourage your comments.

Restoring a Work of Art from Viggo Nielsen

Leave a reply

by Kenneth Lieblich

When I first saw this pipe, I thought that it was a very fine example of Danish pipemaking. But the more I worked on it, the more I recognized the incredible workmanship involved in carving it. This is a majestic, hand-finished freehand from master carver, Viggo Nielsen. This is the sort of pipe that offers you more each time you look at it. Examining the curves, angles, transitions, and plateau was very rewarding and reminded me of a rugged mountain landscape. It’s a beautiful pipe! There are some markings on the shank of this pipe and they are helpful for identification. On the left side of the shank, we see Nielsen [over] Handmade [over] in Denmark. On the right side of the shank, we see Hand [over] Finished. That’s all – no other markings to be found.It is worth looking up the work of Viggo Nielsen from the usual sources. On Pipedia, his article states:

Viggo is surely one of the seminal figures in the evolution of the Danish pipe. His pipes are all handmade – also handmade stems, often in Cumberland. Most of the pipes are quite big, and a large number are made for 9mm filter. The finish is just perfect and when holding one of Viggo’s pipes, you can tell, he’s a pro.

Viggo Nielsen was born in 1927. During World War II he started making pipes at a now closed factory. These pipes were made of birch due to the lack of briar (because of the war). In 1948 Viggo started his own pipe factory, “Bari”. But it wasn’t until 3 years later he could actually acquire Briar wood for his pipes. The business was very successful producing both classic shapes and freehand models.

In 1978 Viggo sold the business to a German tobacco manufacturer and he began making the Fåborg Pipe together with his two sons Jørgen Nielsen and Kai Nielsen. Even when Viggo had reached the age of retirement, he could not quite leave his workshop and he still made about 100 pipes a year, some of them based on the famous “Fåborg Pibe” but also a few “Jewels of Denmark”, until he passed away.

This pipe doesn’t have a Cumberland stem, nor a filter, but it is a healthy size. I also went to Pipephil and found the following:

Artisan: Viggo Nielsen (1927 – †2009) starts making pipes during WWII. He estabishes his own Bari factory in 1948. The business is sold to a German tobacco manufacturer in 1978 and from this period on he starts the “Faaborg Pipe” (Fåborg Pibe) with his two sons Jørgen Nielsen and Kai Nielsen. The “Jewel of Denmark” stamping is reserved for perfect pipes (flawless straight grain).

Let’s examine this wonderful specimen. The pipe was in great condition – just very dirty from lots of smoking. You can see lots of lava on the plateau rim top. The briar bowl was in nice shape, with a bit of grime ground in. The stem was well-worn, but a good, solid freehand stem. It has a few tooth marks and some oxidation, but nothing to worry about. To begin, I used isopropyl alcohol on a few cotton rounds and wiped down the stem to provide an initial cleaning of filth before moving on to the next steps. The primary cleaning came next. I disinfected the inside of the stem with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. I scrubbed thoroughly to make sure the interior was very clean. I used quite a few pipe cleaners and cotton swabs – far more than are shown in the photo.The goal of the next step is the removal (or minimization) of oxidation. Going to my sink, I used cream cleanser, cotton rounds, and a toothbrush, and scoured the stem to remove as much surface oxidation as possible. As the photos show, the result was a hideous, ochre-coloured mess – but better off the stem than on it.Once the stem was reasonably clean, I soaked it overnight in some Briarville Stem Oxidation Remover. This solution works to draw oxidation in the stem to the surface of the vulcanite. This is a major aid and an important step in ensuring a clean stem. The following day, I drew out the stem from its bath and scrubbed the lingering fluid with a toothbrush.As the stem was now clean and dry, I set about fixing the marks and dents in the vulcanite. This was done by filling those divots with black cyanoacrylate adhesive, impregnated with carbon and rubber. I left this to cure and moved on.The penultimate step for the stem is sanding. First, with my set of needle files, I reduced the bulk of the cyanoacrylate repairs. I removed the excess adhesive as near to the surface as possible, without cutting into the vulcanite. Following that, I used all nine of the micromesh sanding pads (1,500 through 12,000 grit) to sand out flaws, even out the vulcanite, and provide gentle polishing of the finished surface. I also applied pipe-stem oil while using the last five micromesh pads. There was a wonderful, deep black shine to the stem when I was done.As the stem was (nearly) complete, I moved on to the stummel. The first step was to ream out the bowl – that is to say, remove all the cake inside the bowl. This accomplished a couple of things. First (and most obviously), it cleaned the bowl and provided a refurbished chamber for future smoking. Second, when the old cake was removed, I could inspect the interior walls of the bowl and determine if there was damage or not. I used a reamer, a pipe knife, and a piece of sandpaper taped to a wooden dowel. Collectively, these ensured that all the debris was removed. And – holy moly – there was a lot of debris!Similar to the stem, I then cleaned the stummel with both pipe cleaners and cotton swabs dipped in lemon-infused 99% isopropyl alcohol. With a pipe this dirty, it took quite a while and much cotton to clean.I then decided to ‘de-ghost’ the pipe – that is to say, exorcize the remaining filth from the briar. I filled the bowl and the shank with cotton balls, then saturated them with 99% isopropyl alcohol. I let the stummel sit overnight. This caused the remaining oils, tars and smells to leach out into the cotton.To tidy up the briar, I wiped down the outside, using a solution of a pH-neutral detergent and some distilled water, with cotton rounds. I also used a nylon brush in the crevices of the plateau. This did a good job of cleaning any latent dirt on the surface of the briar. The last step of the cleaning process was to scour the inside of the stummel with the same mild detergent and tube brushes. This was the culmination of a lot of hard work in getting the pipe clean.I used all nine micromesh pads (1,500 through 12,000 grit) to sand the outside of the stummel and finish it off. This sanding minimizes flaws in the briar and provides a beautiful smoothness to the wood. I rubbed some LBE Before & After Restoration Balm into the briar and let it sit for 30 minutes or so. The balm moisturizes the wood and gives a beautiful depth to the briar. I then buffed the stummel with a microfibre cloth. Just look at that pipe! For the final step, I took the pipe to my bench polisher and carefully buffed it – first with a blue diamond compound, then with three coats of conservator’s wax. This procedure makes the pipe look its best – the stummel sings and the stem glows.This Viggo Nielsen Hand-Finished Freehand looks fantastic again and is ready to be enjoyed by its next owner. I am pleased to announce that this pipe is for sale! If you are interested in acquiring it for your collection, please have a look in the ‘Danish’ pipe section of the store here on Steve’s website. You can also email me directly at kenneth@knightsofthepipe.com. The approximate dimensions of the pipe are as follows: length 6⅛ in. (156 mm); height 3 in. (76 mm); bowl diameter 1⅞ in. (46 mm); chamber diameter 1 in. (25 mm). The weight of the pipe is 2¼ oz. (67 g). I hope you enjoyed reading the story of this pipe’s restoration as much as I did restoring it. If you are interested in more of my work, please follow me here on Steve’s website or send me an email. Thank you very much for reading and, as always, I welcome and encourage your comments.

A Special Pipe Rest

3 Replies

by Kenneth Lieblich

This silver pipe rest is another treasure I have inherited from my late grandfather. He was a great pipe smoker and I now own many of his old pipes – several of which I have restored here on Steve’s blog. I always thought that this piece was very attractive – so it is time to clean it up a bit. My father couldn’t remember where his father acquired it, other than to say that he must have bought it while he and my grandmother lived in Brussels, Belgium. As the photos show, there are some lovely, engraved designs on the piece and – most notably – the image of a man from times past, lighting his pipe. How fitting!This short blog post is less to do with its clean-up and more to do with its identification. However, I will give you a brief rundown of my procedure. The silver was heavily tarnished (as you can plainly see). I gave the piece a gentle cleaning in soap and warm water. Next, I placed a piece of aluminum foil in the bottom of a bowl, added some baking soda, and dissolved it in hot water. I submerged the pipe rest in the solution and let it sit for 15 minutes. After that, I hand-rubbed the remaining tarnish with a simple paste of baking soda and water. Finally, I rinsed it off and dried it with a microfibre cloth. I could not get every bit of wear/tarnish off this piece – I’m sure it hasn’t been cleaned in several decades! However, I did not want to do any damage by using aggressive cleaning techniques. The photos here below show the pipe before cleaning. The cleaned pipe can be seen at the end of the blog. Let’s look at the various silver marks on this piece and see what we can learn. In the photo below, we can see the maker’s mark: B2V*. This refers to the silversmith J.M. Visser of Bijkamp & Co., in the city of Steenwijk, in the Netherlands. This maker’s mark was used between 1946 and 1975.Now let’s look at the photo below. In the hexagon on the left, we can see the purity mark. The lion passant with a number ‘2’ beneath its chest indicates that this is .833 purity – in other words, 83.3% pure silver. The circle in the middle is the duty mark: the head of Minerva, with the letter ‘F’ in her helmet. This corresponds to the assay office in the city of Leeuwarden, in the Netherlands. Finally, the third circle displays the date letter: ‘Q’. This letter corresponds to the year 1951. Therefore, this piece is, at the time of writing, 74 years old.All of this makes sense and corresponds with what my father said. I know that my grandparents acquired many beautiful items when they lived in Brussels – including many pieces of Dutch silver. My grandfather must have bought it then and there. This is a treasured item for me and I will happily use it for many years to come – Deo volente.

Thank you for joining me on this little look at a bit of pipe paraphernalia. If you are interested in more of my work, please follow me here on Steve’s website or send me an email at kenneth@knightsofthepipe.com. Thank you very much for reading and, as always, I welcome and encourage your comments.
