A Sad and Tired Looking Jobey Stromboli 440 Square Shank Billiard


Blog by Steve Laug

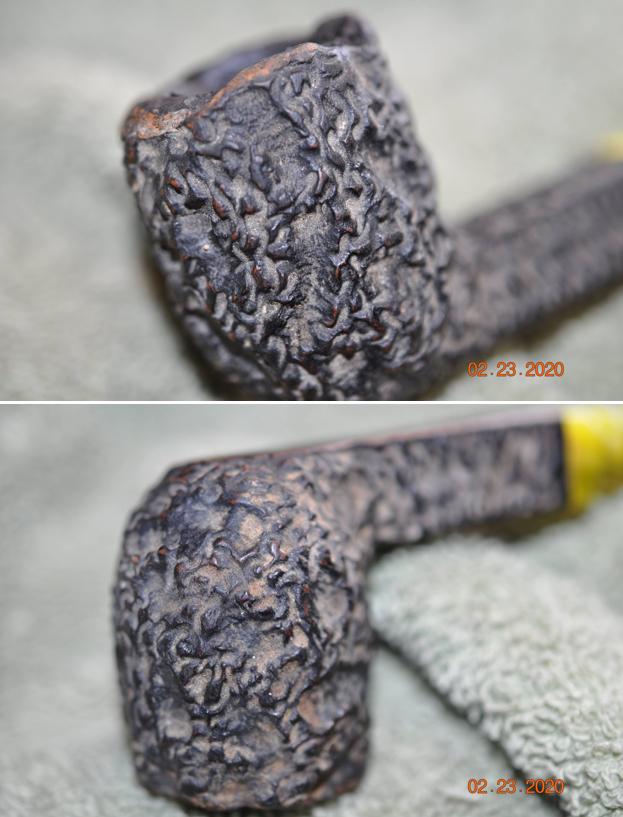

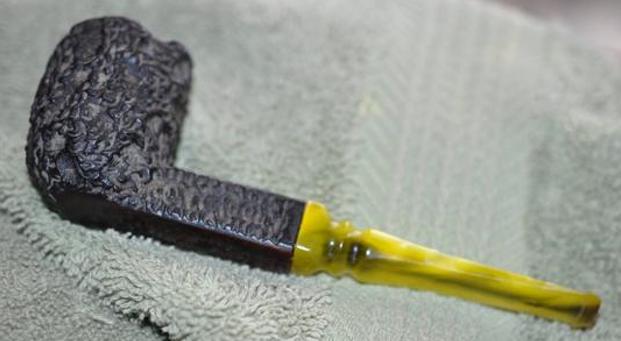

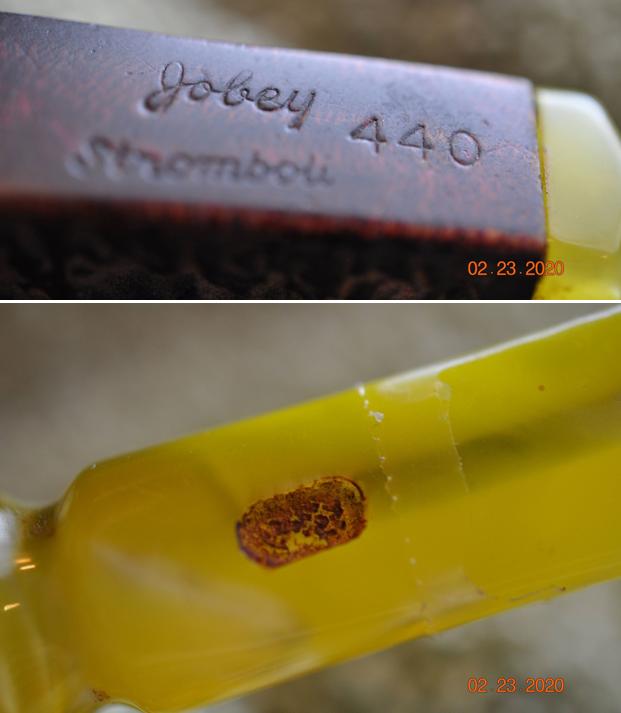

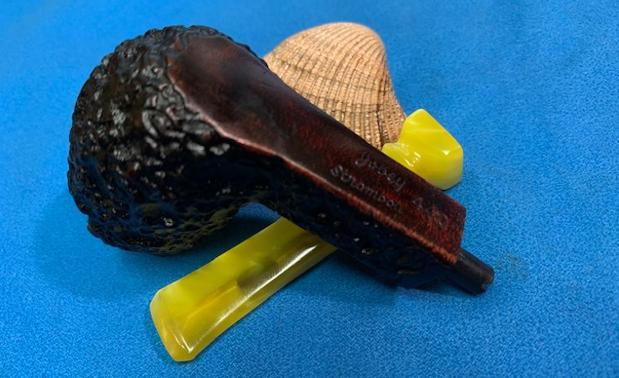

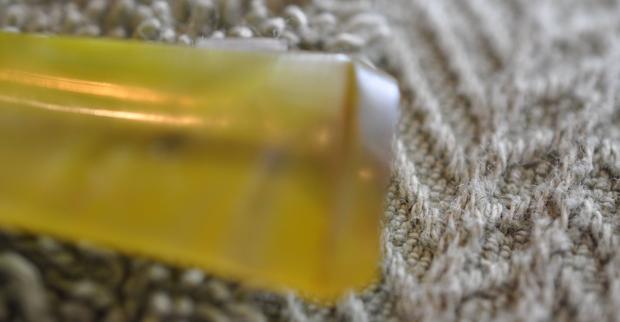

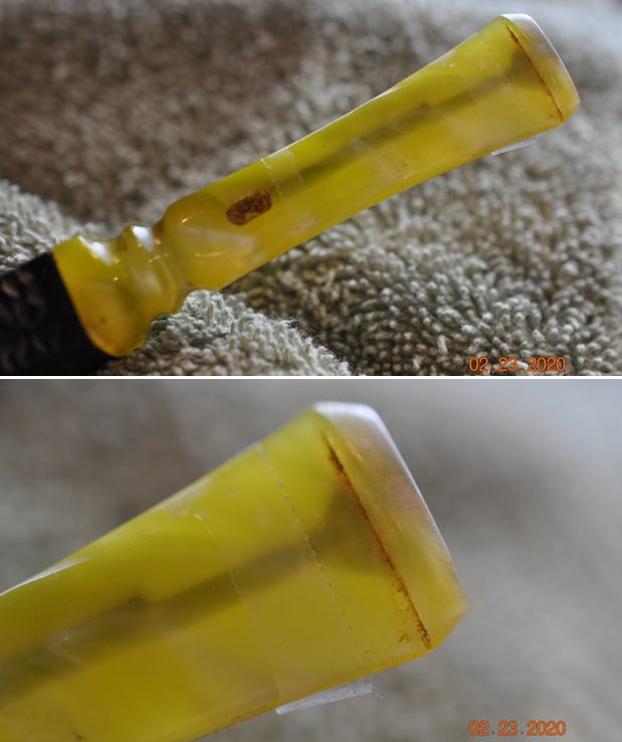

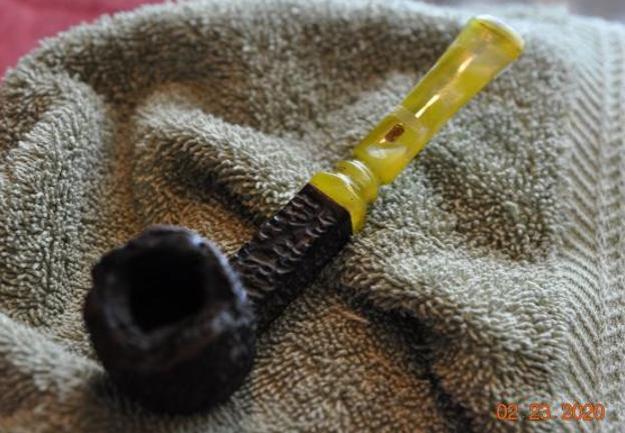

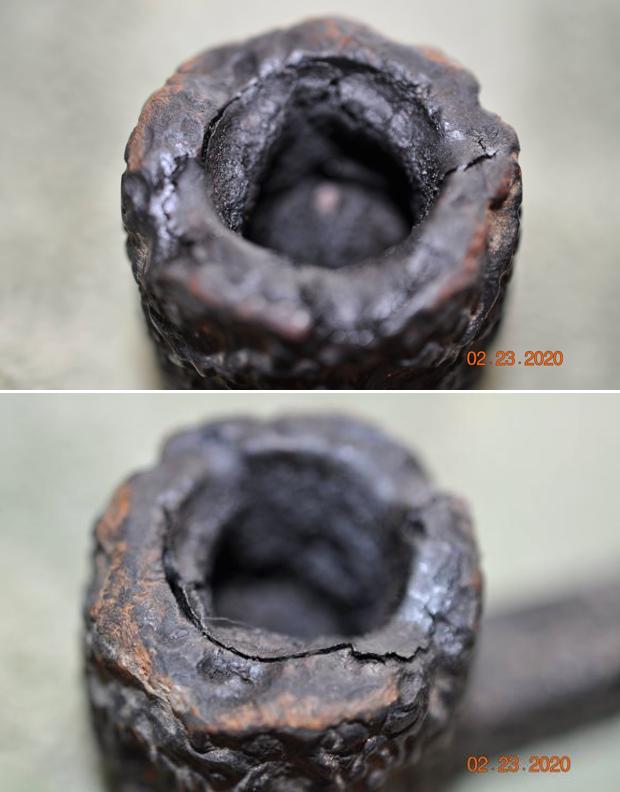

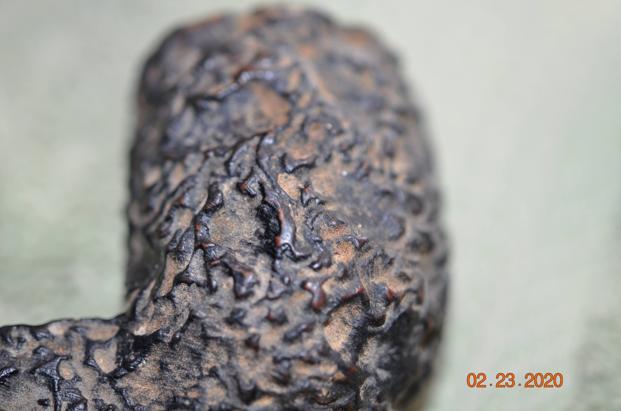

The next pipe on the work table is one that came to us from a fellow we have bought pipes from in Brazil, Indiana, USA early in 2020 and I am finally getting to it. It is a nice looking Jobey rusticated, square shank billiard with a fancy acrylic stem. It is stamped on the underside of the shank Jobey [over] Stromboli. To the right of that is the stamped shape number 440. The yellow acrylic saddle stem was missing the brass inlaid Jobey oval. The pipe has a heavily rusticated finish with deeper random craters carved in the rusticated surface. The finish was absolutely filthy on this one with grime and dust deep in the crevices. There was a heavy cake in the bowl and a heavy overflow of lava onto the rim top. There were some nicks or at least worn spots on the outer edge of the rim but the rustic carved rim top makes it hard to know if they deep or just worn. The stem had a blackened airway from the tobacco juices and it had some shallow tooth marks and chatter on both sides near the button. The stem was screwed onto the shank with the Jobey Link system which was in excellent condition. Jeff took some photos of the pipe before he did any clean up.    He took photos of the rim top and the stem. The photo of the rim top shows the incredibly thick cake in the bowl and the heavy coat of lava on the filling in the crevices and valleys of the heavily rusticated rim top. The stem photos show the oils and tars in the airway of the bright yellow stem and some tooth chatter and tooth marks. Jeff took photos of the sides and heel of the bowl to give a sense of the rustication on the pipe and the sheer filthy condition of the finish. There is still something attractive about the rusticated finish on the bowl. I took photos of the stamping on the right and left side of the shank. The stamping is clear and reads as noted above. You can also see the top of the stem where the brass Jobey logo is missing. I removed the stem from the shank and took a photo of the Jobey Link system tenon. The threads screw into the threaded shank and the smooth portion is supposed to fit snugly in the stem.I reread several of the blogs I have written on the brand in the past restorations of Jobey pipes and decided to include the material on the brand before I write about the cleanup of the pipe. Here is the link to the blog (https://rebornpipes.com/2020/04/03/restoring-jennifers-dads-jobey-asti-245-pot/). I quote:

I turned to Pipephil’s site for a quick review of the brand (http://www.pipephil.eu/logos/en/logo-j3.html). I quote a section of the post on the Jobey brand: These pipes are made in St Claude (France) by Butz-Choquin (Berrod-Regad group) since 1987. Before this date some were manufactured in England and Denmark (Jobey Dansk).

I turned then to Pipedia to gather further information regarding the brand and quote the first part of the article (https://pipedia.org/wiki/Jobey).

English – American – Danish – French… Sadly, solid information about Jobey is scant…

Probably established in England around 1920(?) the brand hiked into the USA later. In the course of time owner, distributor and manufacturer changed repeatedly. As far as is known the following companies have been involved with the brand:

George Yale Pipes & Tobacco, New York (1942)

Norwalk Pipe Co., New York (1949)

Arlington Briar Pipes Corp., Brooklyn (when?)

Hollco International, New York (1969).

Weber Pipe Co., Jersey City, NJ (1970’s)

The Tinder Box, (1970’s – 80’s).

Throughout decades Jobey pipes were mainly sold in the USA, Canada and England but remained almost unknown in continental Europe. The bulk of Jobeys was predominantly made according to classical patterns and mainly in the lower to middle price range. The predominant judgment of the pipe smokers reads: “A well-made pipe for the price.” So there is hardly anything very special or exciting about Jobey pipes although a flyer from ca. 1970 assures: “The briar root Jobey insists upon for its peer of pipes is left untouched to grow, harden and sweeten for 100 years. […] Jobey uses only the heart of this century old briar and only one out of 500 bowls turned measures up to the rigid Jobey specifications.” 99.80% of cull… that makes the layman marveling!

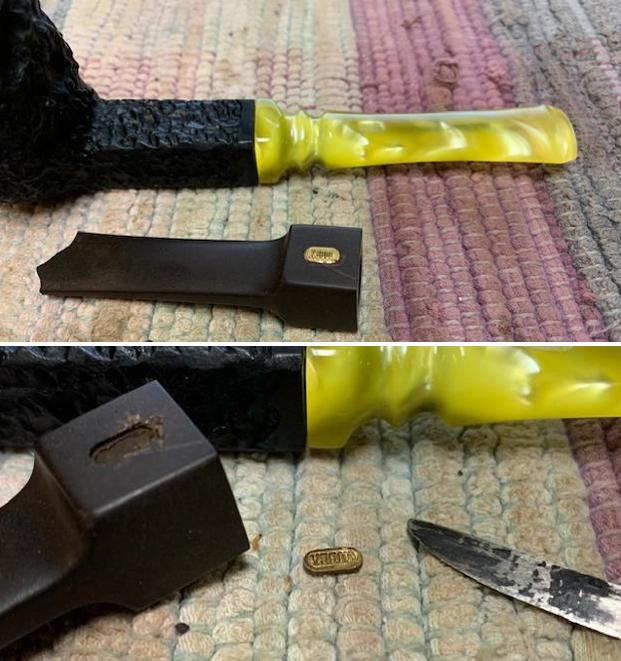

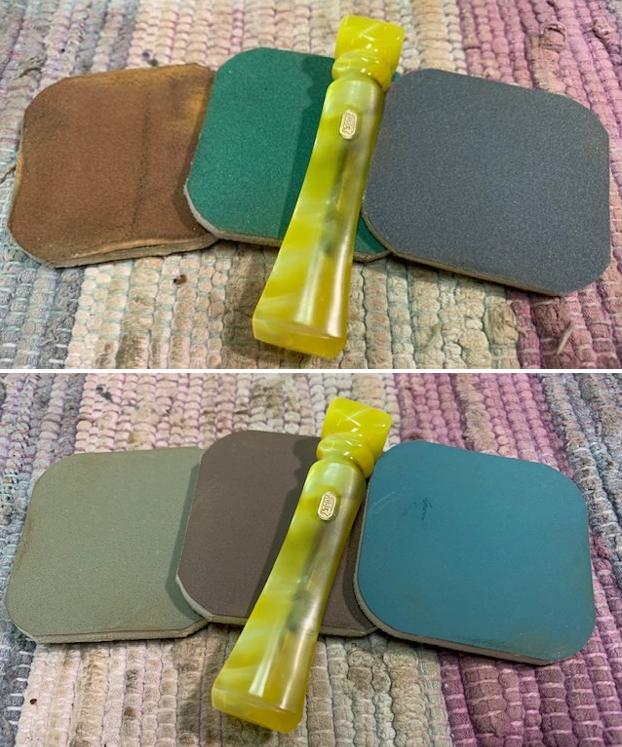

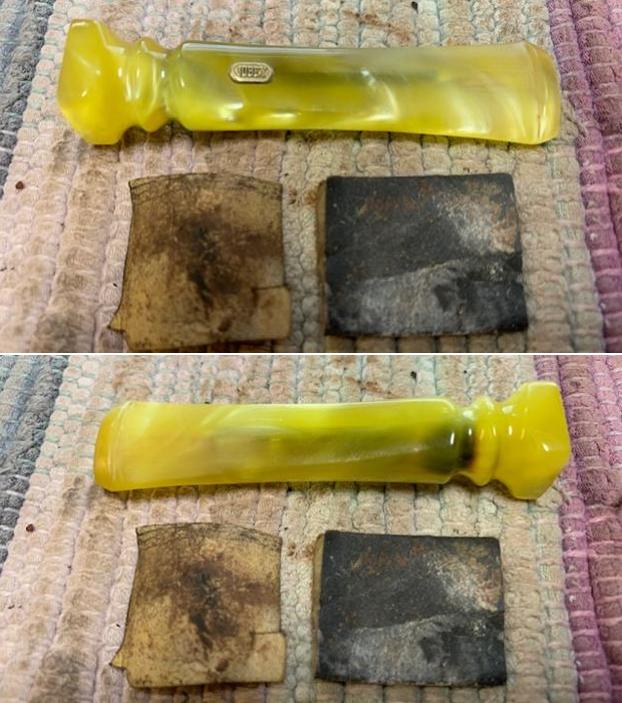

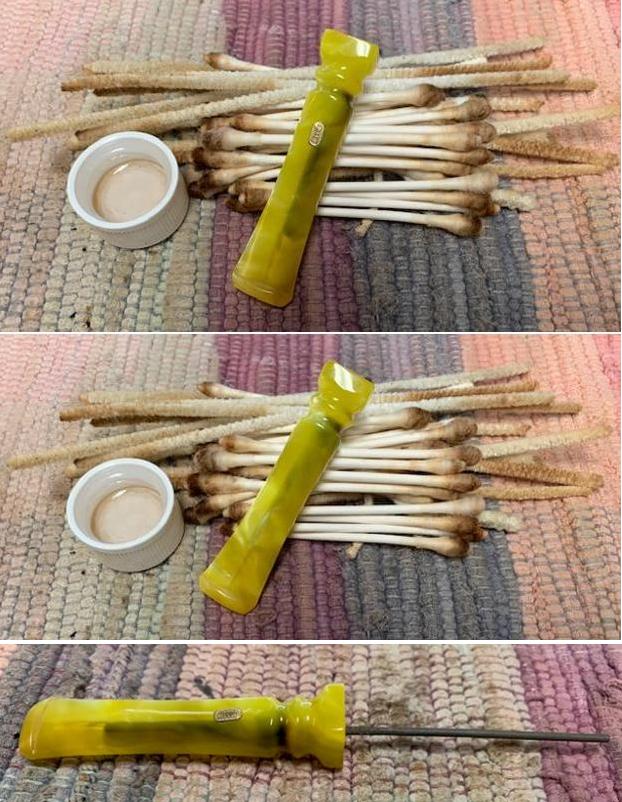

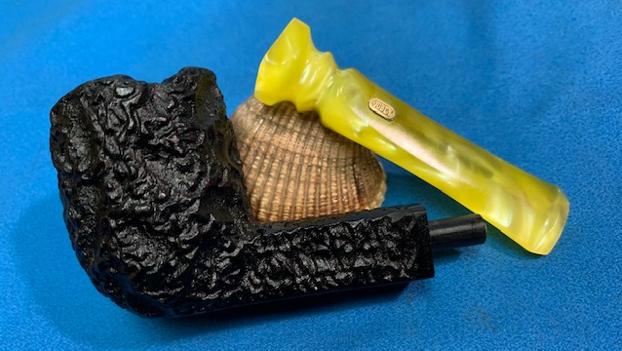

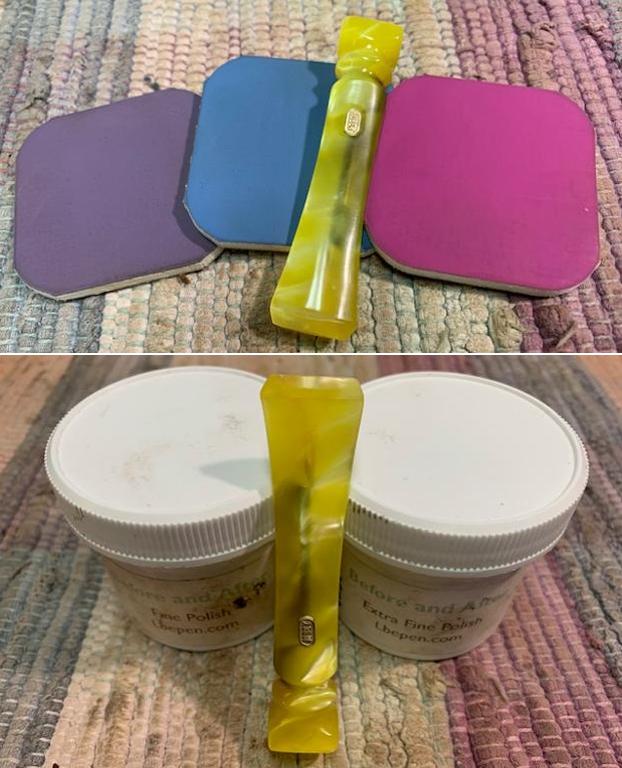

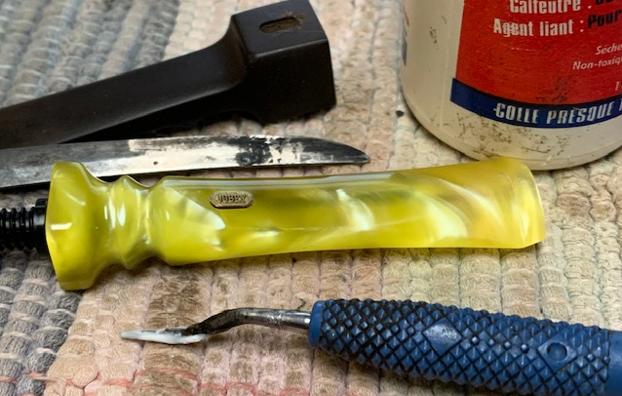

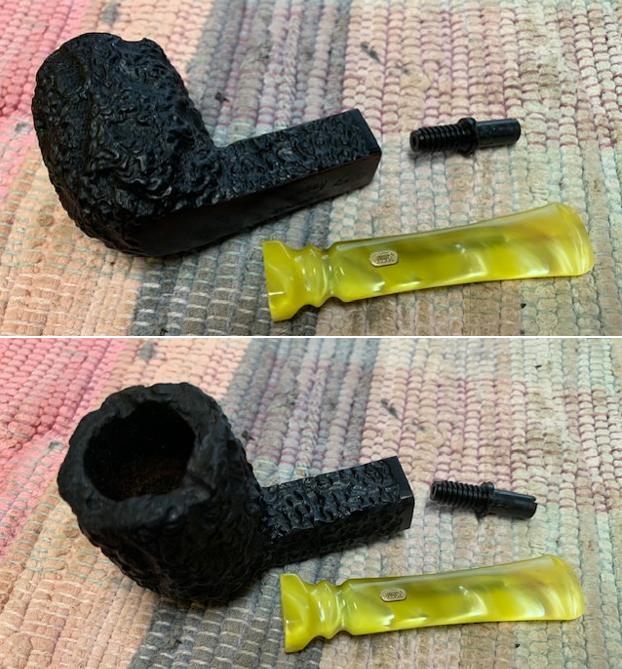

Now it was time to work on the pipe. I decided to start with the stem. I sorted through some of the pipes remaining for me to work on and I had this broken Jobey stem. I used a small pen knife to lift the brass logo out of the damaged stem to use on the yellow one. I put some white all purpose glue in the indentation on the stem top and used a small dental probe to press the brass logo into the spot it was missing. I wiped off the excess glue and pressed the edges down with the probe and I was happy with the look and fit of the “new” brass logo. The Jobey link was stuck fast in the stem and I had a hard time removing it. I used a small screw driver as a wedge and lifted it out of the stem. Once I had it out I would need to sanded the smooth side to loosen the fit while yet leaving it snug.With the tenon removed from the stem I was able to clean out a lot more of the tars and oils in the airway in the stem with pipe cleaners, cotton swabs and alcohol. I also used a small round needle file to file the inside of the airway and remove more of the staining. Once I finished it looked much better. I used a wood rasp to smooth out the surface of the tenon end that fit in the stem. I sanded it with 220 grit sandpaper to smooth out the scratches in the Delrin. I wanted the fit to be snug but not tight. I worked well.I sanded the stem surface with 220 grit sandpaper to remove the tooth marks and chatter and blend them into the surface of the acrylic. I started polishing the stem with 400 grit wet dry sandpaper. I polished the stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. I turned back to the bowl. I rubbed the it down with Before & After Restoration Balm. I worked it into the surface of the rustication on the bowl and with a horsehair shoe brush to get into the nooks and crannies of the finish. The product works to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine.   Once again I am the part of the restoration that I always look forward to – the moment when all the pieces are put back together. I put the Jobey Stromboli 440 Square Shank Billiard back together and buffed the bowl and stem with Blue Diamond on the buffing wheel. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. It is fun to see what the polished bowl looks like with the dark rusticated finish. The swirled fancy yellow acrylic stem stands in contrast to the dark colours of the bowl. It is a light weight pipe that could be clenched and smoked while doing other things. Have a look at it with the photos below. The dimensions of the pipe are Length: 5 ½ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 37 grams/1.31 oz. This one will soon be on the American Pipemakers page on the rebornpipes online store. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of the next generation.

Giving New Life to a Classic French Billiard – A Butz Choquin Régate 1601 of St. Claude


Here is Dal’s next installment… well done. He has me thinking about finishes a lot right now and working through in my mind the difference between a complete refinish like Dal does extremely well and a restoration of an old finish… no answers yet but still thinking.

The Pipe Steward

The next pipe on the worktable is a handsome Butz Choquin Régate . I acquired this pipe in August of 2018 from an eBay seller in Paris. It was part of what I have called the French Lot of 50 which has produced many treasures, many of which are now with new stewards. The full straight Billiard has striking and expressive grain which is begging to come out. This pipe got Darren’s attention in the For “Pipe Dreamers” Only! collection and he commissioned it along with several other pipes – all benefitting the Daughters of Bulgaria – helping women and girls who have been trafficked and sexually exploited. Darren is from Pennsylvania and is part of a church that has supported our work in Europe for years. He is also part of an active pipe club in his region which I hope to visit one day! Here are pictures of…

View original post 1,759 more words

This Rare Sixten Ivarrson Design Stanwell Shape 96 – a shape I have never understood


Blog by Steve Laug

The next pipe on the work table was purchased from a fellow in Los Angeles, California, USA. This one is obviously a Stanwell made pipe from just looking at it. The sandblast finish is quite beautiful even through the grime. The shape of the pipe is very odd in my opinion – almost oval but odd and designed to sit on the desk top. There is a Crown S stamped in the left side of the saddle stem. It was stamped on the underside of the shank on a smooth panel. The shape number 96 is stamped mid shank. Under that it reads Hand Made. Next to that it reads Stanwell [over] Regd. No. 969-48. With the Regd. No. I know it is an older pipe. The finish was dirty with dust and grime ground into the nooks and crannies of the sandblast finish. There was a thick cake in the bowl and lava overflow on the rim top. The inner edge of the rim was covered so thickly in lava it was hard to know what was underneath. The vulcanite fancy saddle stem was calcified, oxidized and had tooth marks and chatter ahead of the button on both sides. Jeff took some photos of the pipe before he started to work on cleaning it up for us. Jeff took photos of the rim top and the stem to show the condition of the pipe when we received it. You can see the thick cake in the bowl and the heavy coat of lava filling in the blast on the rim top and inner edge of the bowl. The stem is calcified and oxidized with light tooth chatter and marks on both sides near the button. He took photos of the sides of the bowl and the heel to give an idea of the shape and the condition of the briar around the bowl. It really is a strangely shaped pipe in my opinion but it has a great sandblast around the sides. The next photo Jeff took shows the stamping on the underside of the  shank. It is clear and readable as noted above. The Crown S logo is also visible on the left side of the saddle stem.Before I started working on it I did a bit of research on the brand to get a feel for where it fit in the Stanwell line. I turned to Pipephil’s site to see if I could some information on the shape or line (http://www.pipephil.eu/logos/en/logo-r6.html). While there was a lot of information on the brand there was nothing on this particular shape. There was a note on one of the shapes regarding the “Regd. No.” stamping being discontinued in late 1960s to very early 1970s. That helped to pin down and end date for the manufacture of this pipe.

I then turned to Pipedia and quickly scanned the article on Stanwell getting a great overview of the history. I went through the photos and did not find the shape of the pipe that I was working on (https://pipedia.org/wiki/Stanwell).

I followed one of the links at the end of the site to an article on rebornpipes written by Bas Stevens on the shape numbers and the designers who originally carved those shapes for Stanwell (https://pipedia.org/wiki/Stanwell_Shape_Numbers_and_Designers).

The shape number 96 is listed as follows: 96. Freehand, oval bowl, long saddle mouthpiece by Sixten Ivarsson. It also appears to be a rare shape that has been compared to a potato sack.

Jeff had cleaned up the pipe following his normal cleaning process. In short, he reamed the bowl with a PipNet pipe reamer and cleaned up the reaming with a Savinelli Fitsall Pipe Knife.  He scrubbed the smooth bowl with undiluted Murphy’s Oil Soap with a tooth brush. He worked over the lava and debris on the rim top and was able to remove it. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the stem with Soft Scrub and cotton pads to remove the debris and oils on the stem. He soaked it in a bath of Briarville’s Pipe Stem Deoxidizer to remove the oxidation. He rinsed it with warm water and dried it off. I took photos of the pipe once I received it. It really looked good. I took close up photos of the stem and the rim top to show both how clean they were and what needed to be addresses with both. The rim top and bowl edges look very good. The stem looked better and the tooth marks and chatter was very light.I took a photo of the stamping on the underside of the shank. You can see from the photo that it is clear and readable.I removed the stem from the bowl and took a photo of the parts to give a sense of the beauty of the pipe.The bowl was in such good condition that I started by rubbing the bowl down with Before & After Restoration Balm working it into the briar with my finger tips and into the blast and plateau with a shoe brush. The product works to clean, revive and protect the briar. I let it sit on the pipe for 10 minutes then buffed it off with a soft cloth. I set the bowl aside and turned my attention to the stem. Continuing with Al’s (upshallfan) recommendation I applied some acrylic white nail polish to the stamping on the stem side. I was paying so much attention to getting it in the stamp that I forgot to take a photo until after I cleaned it up. The nail polish worked great. Thanks again for the reminder Al!I polished out the tooth chatter and marks on the stem with micromesh sanding pads – wet sanding it 1500-12000 pads. I wiped it down with some Obsidian Oil each pad to remove the dust and polishing debris. I polished it with Before After Pipe Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to dry. This is another pipe that I am really happy about the look of the finished restoration. This reborn Sixten Ivarrson Design Stanwell 96 Sandblast Freehand turned out really well. I think that it really is a great looking pipe with a great shape and grain. The freehand/plateau top bowl and the vulcanite saddle stem goes well together. The polished black of the stem works well with the briar. The briar really came alive with the buffing. The rich brown stains of the finish make the grain really pop with the polishing and waxing. I put the stem back on the bowl and buffed the pipe with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Stanwell 96 Sandblast Freehand really feels great in the hand and it looks very good. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ¾ inches, Height: 2 inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 34 grams/1.20 oz. The pipe will be going on the rebornpipes store soon. It will be in the section on Danish Pipe Makers if you would like to add it to your collection. Thanks for reading this blog and my reflections on the pipe while I worked on it. It was a fun one to work on!
