Breathing New Life into a Stanwell Golden S Dublin 64


Blog by Steve Laug

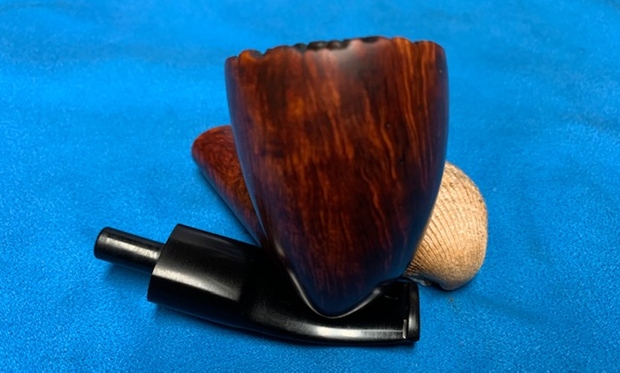

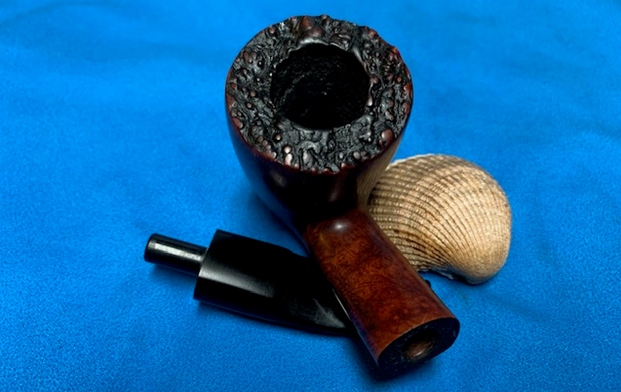

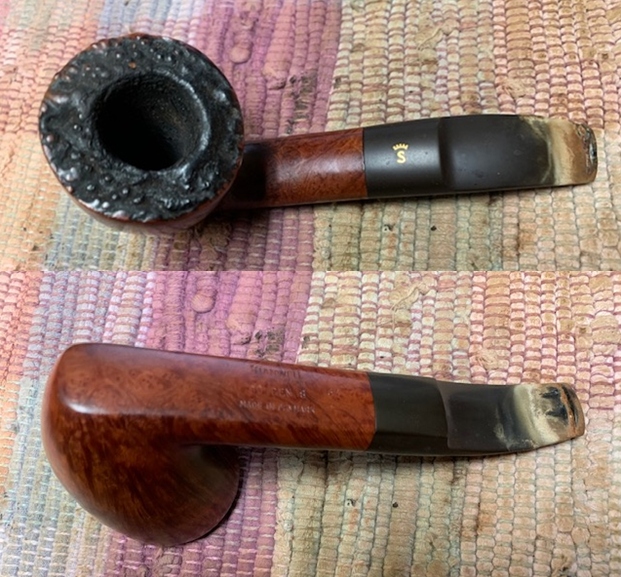

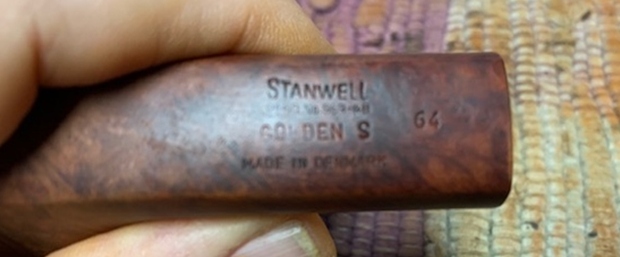

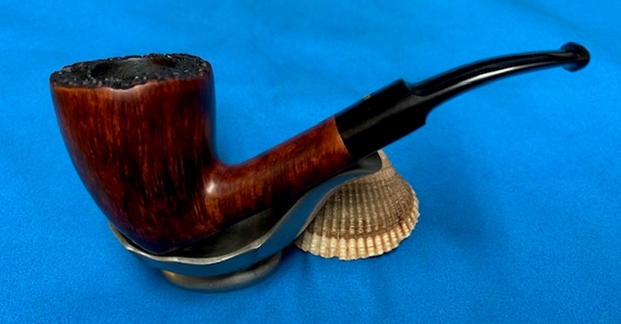

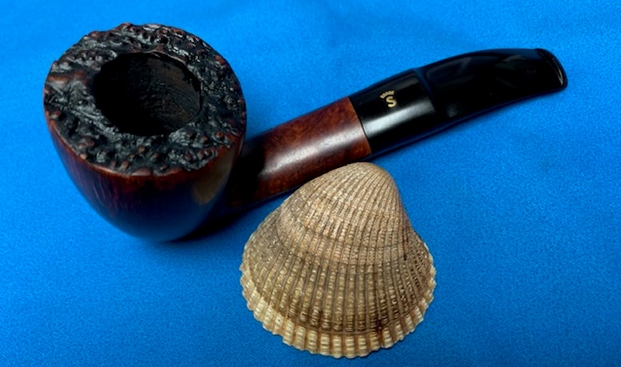

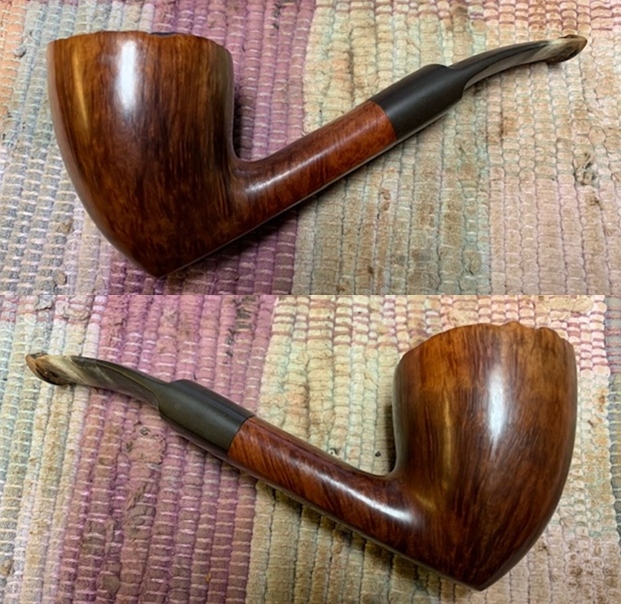

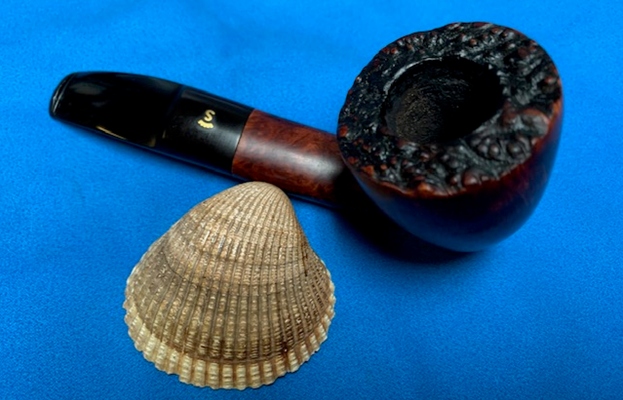

The next pipe on the work table came to me from either a trade I made (pipes for labour) or a find on one of my pipe hunts. I honestly don’t remember where it came from. It has been around for a while waiting to be worked on. It is a beautifully grained Stanwell Golden S Dublin that really looks quite nice. The stamping is clear and readable. It is stamped on the underside of the shank and reads Stanwell [over] Regd. No. 969-48 [over] Golden S [over] Made in Denmark. To the right of that stamping is the shape number 64. The pipe had a lot of grime ground into the smooth finish on the bowl and some darkening around the sides of the bowl. The bowl was heavily caked and had an overflow of thick lava on the plateau rim top. It was hard to know what the rim top and inner edge of the bowl looked like under the grime. The stem was calcified, oxidized and had light tooth chatter and marks on the top and underside and the top surface of the button had a tooth mark. There an inset golden Crowned S on the top of the saddle stem. The pipe had promise but it was very dirty. I took photos of the pipe before he started his cleanup work. I took photos of the rim top and bowl to give a clear picture of the thickness of the cake and the overflow of lava on the rim top. It is hard to know for sure if there is damage to the inner edge of the bowl because of the thickness of the lava coat. I also took photos of the top and underside of the stem to show the oxidation, calcification, light chatter and tooth marks.     I took a photo of the stamping on the underside of the shank. It reads as noted above and is clear and readable. There is a gold Crown S logo on the top of the saddle stem.I looked on Pipephil’s site for information on the Stanwell Regd. No. 969-48 Golden S line and found the following information (http://www.pipephil.eu/logos/en/logo-stanwell.html). I found one piece of information on the Regd. No. that was helpful to me. I quote:

The “Regd. No.” stamping discontinued in late 1960s to very early 1970s

I also went to Pipedia and read the article on the Stanwell brand. It is a great read and worth the time to read it (https://pipedia.org/wiki/Stanwell). There was a note toward the end of the article on the Golden S series. I quote that note below:

Golden S: This series was last produced in the mid to late 1970s. Its distinguishing mark was an 18 carat gold Stanwell logo, crown and “S”, on the mouthpiece.

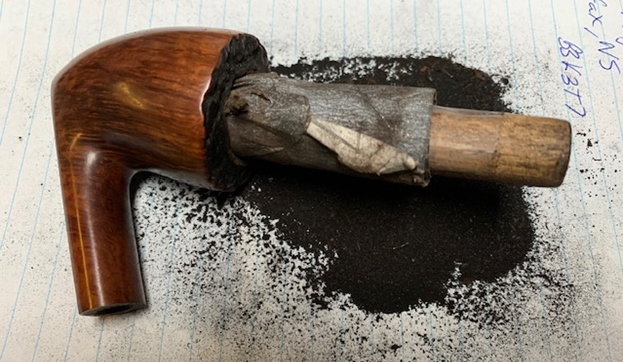

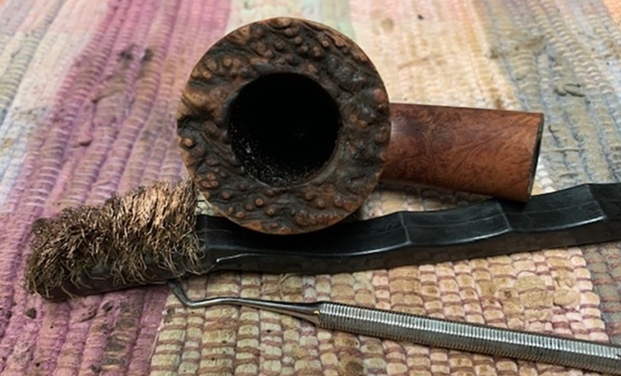

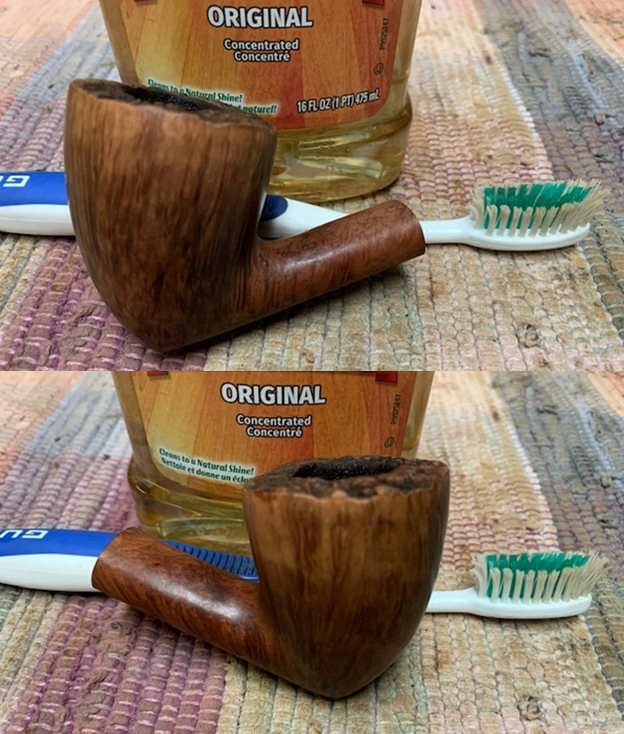

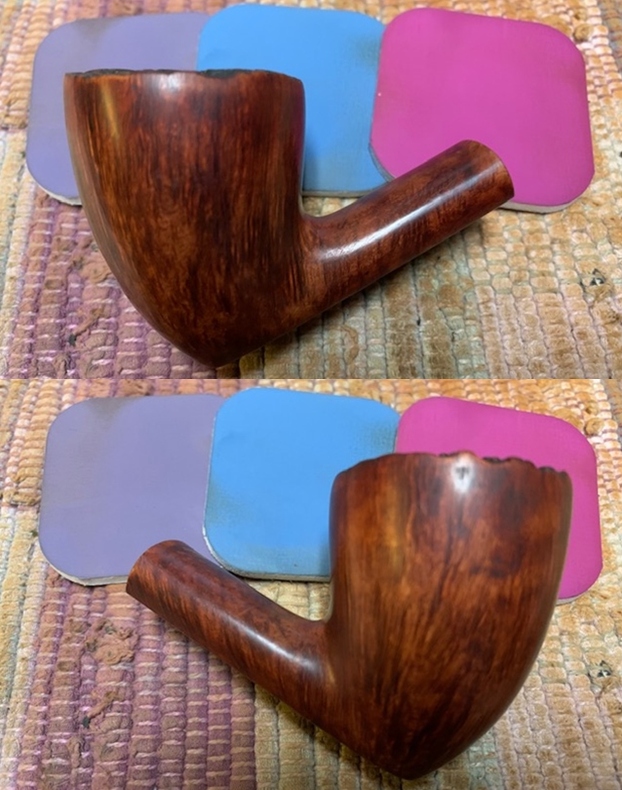

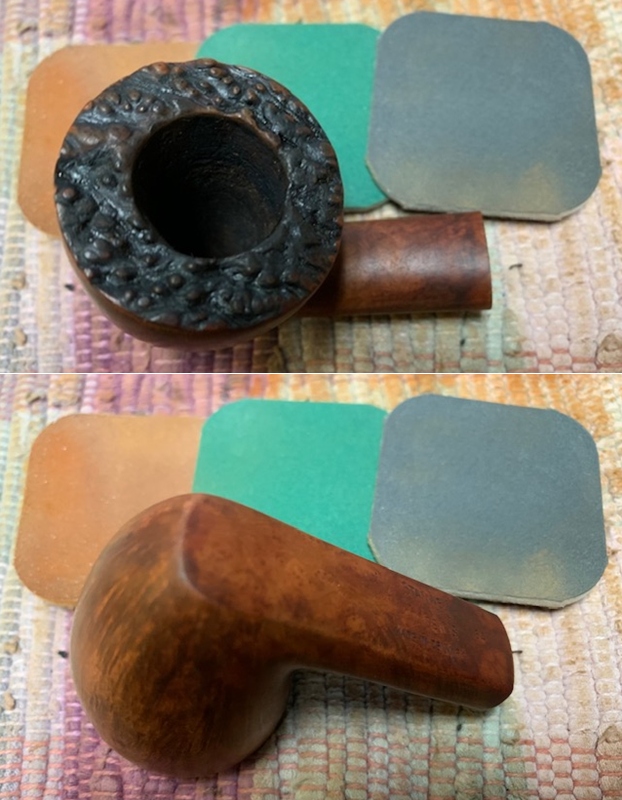

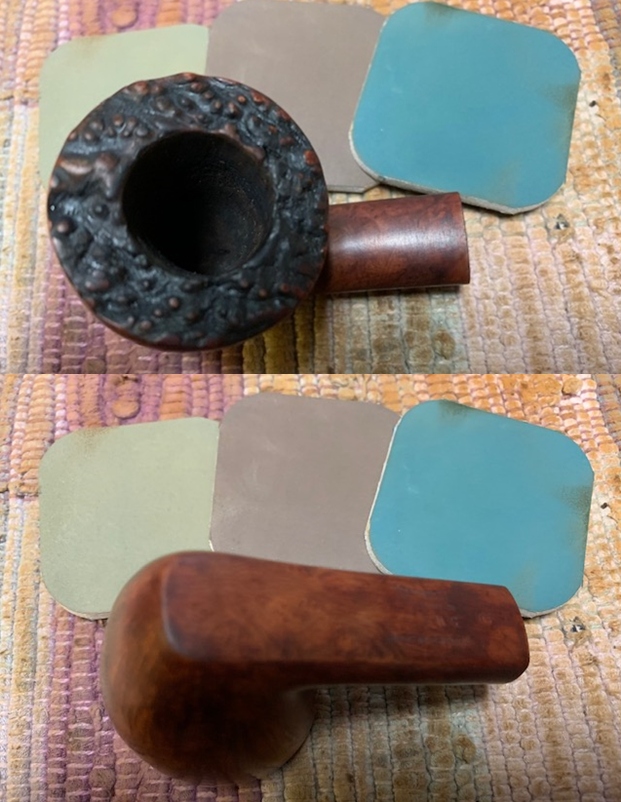

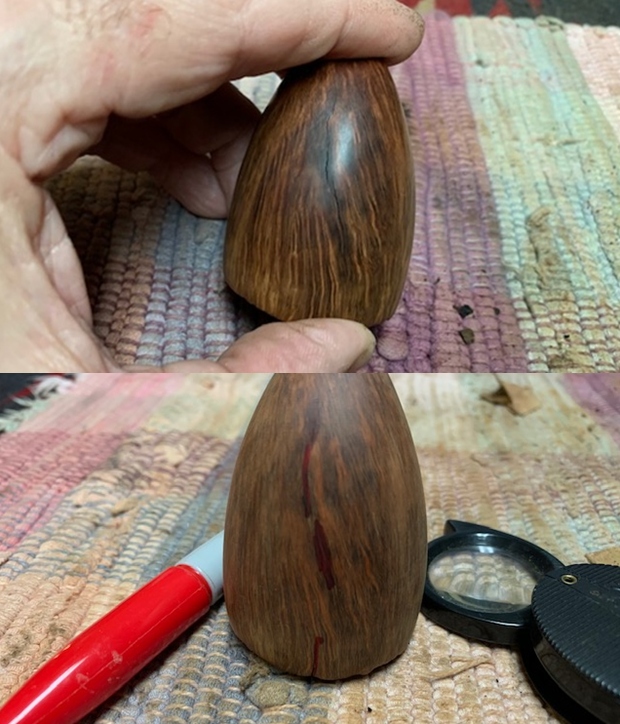

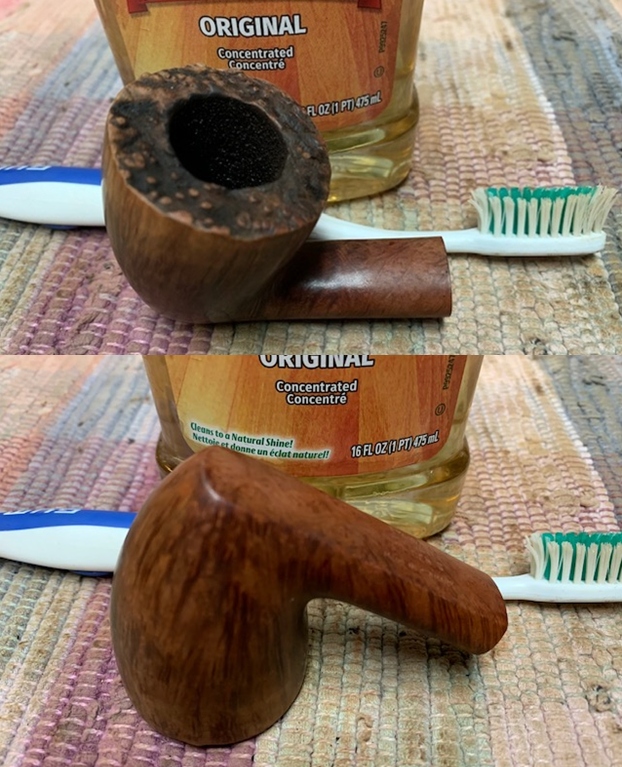

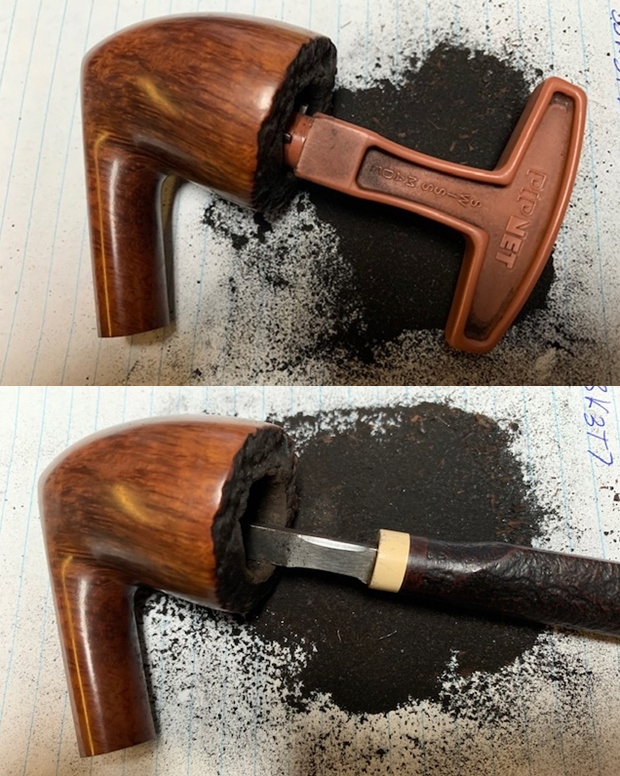

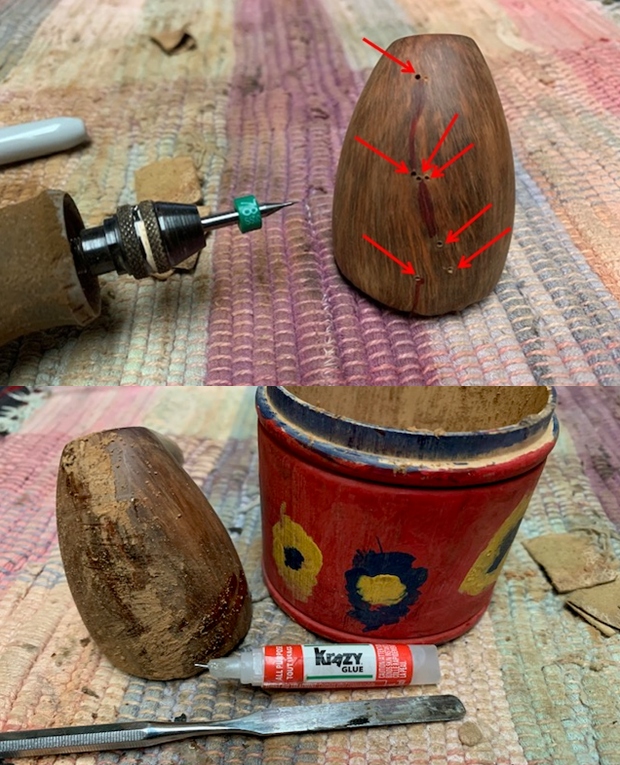

Now it was time to work on the pipe. I have to say it once again that I am really spoiled having Jeff clean up the pipes for me. Having to start with them in this condition adds time. I reamed the bowl with a PipNet pipe reamer using the first two cutting heads. I followed up by scraping the remaining cake with a Savinelli Fitsall Pipe Knife. I finished cleaning up the cake in the bowl with a piece of dowel wrapped in 220 grit sandpaper to smooth out the walls of the bowl.  I used a dental pick to pick out the lava in the plateau finish on the rim top. I used a brass bristle wire brush to remove the debris from the finish. The rim top cleaned up really well with the lava coat removed. I scrubbed the exterior of the bowl and rim top with a tooth brush and undiluted Murphy’s Oil Soap to remove the debris from the finish. I rinsed the bowl with warm water to remove the grime and soap and dried it off with a soft towel. While I was scrubbing the bowl I felt a rough spot on the front of the bowl. I examined it and found cracks on the front. There was a short one at the top from the rim down about ½ inch and below that were two further cracks extending down the height of the bowl. None of them go through to the inside of the bowl and are quite shallow. In the second photo below I showed the line of the crack with red ink. I used a microdrill bit on the Dremel to drill pin holes at the ends of each crack. You will see 7 pin holes in the photo below. I filled in the drill holes and the cracks with briar dust and clear super glue. Once the repair cured I sanded it smooth with 220 grit sandpaper and followed that with 1500-2400 grit micromesh sanding pads.  I stained the bowl with a dark brown aniline stain and flamed it with a Bic lighter to set it in the grain. I repeated the process until the coverage of the briar was even and the repaired areas were hidden.  I stained the plateau rim top with a black stain pen to highlight the grooves in the finish. I wiped the bowl down with alcohol on a paper towel to remove the excess stain and bring the grain to the surface. I polished the bowl and the rim top, sides and shank with micromesh sanding pads –sanding with 1500-12000 grit pads and wiping it down after each pad with a damp cloth. I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine.   While I was working on the bowl the stem was soaking in Briarville Pipe Repair’s – Pipe Stem Oxidation Remover. The stem sat in the mixture for 2 ½ -3 hours. I removed the stem from the bath, scrubbed lightly with a tooth brush and dried if off with a paper towel. I was surprised that it was quite clean. Just some light tooth marks on the button and underside of the stem near the button.   I filled in the small tooth marks on the surface of the stem on both sides with clear super glue. Once the repairs cured I sanded the stem with 220 grit sandpaper and started polishing it with 400 grit wet dry sandpaper.  I polished the vulcanite stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. At this point it dawned on me that I had not cleaned the inside of the shank or stem… boy I am rusty at this and have to tick off the steps! I cleaned the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners until the pipe smelled and looked clean.  This beautiful Stanwell Golden S shape 64 Dublin with a vulcanite saddle stem is a great looking pipe now that it has been restored. The rich browns and blacks of the contrasting stains on the bowl and the plateau rim top came alive with the polishing and waxing. The repairs to the cosmetic cracks on the front of the bowl blended in very well. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Stanwell Golden S Dublin is a beauty and fits nicely in the hand and looks very good. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ½ inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!

Restemming and Rebirthing a L’Artigiana Italian Made Freehand


Blog by Steve Laug

The next pipe in the queue came to us from a recent pipe hunt that Jeff and his wife did in Utah. It is an interesting Freehand bowl that has a heavy rustication around the bowl and shank and a plateau rim top and shank end. It has a smooth panel on the left side where it is stamped. It reads L’Artigiana [over] Italy. I think that this will be another nice looking piece once it is cleaned up and restemmed. The bowl is thickly caked with an overflow of lava filling in much of the plateau rim top. The rustication around the bowl and shank are very deep and craggy and filled in with a lot of dust and debris. The top and edges of the bowl look good but I would be more certain once I reamed and cleaned it. The exterior of the briar was dirty with grime and dust. Jeff took photos of the pipe before my cleanup work. They tell the story and give a glimpse of the promise that we see in this pipe. He took a photo of the plateau rim top to show the cake in the bowl, the lava on the rim top and the inner edge.  The lava coat on the rim top filled in the plateau top to the point of the valleys being filled in.The next photos show the rustication portions of the bowl. The dust and debris has filled in many of the deepest grooves in the rustication. It is a pretty nice looking pipe under the grime.   He took photos of the stamping on the left side of the shank. It is faint on the left end but is otherwise readable in the photo below and is as noted above. I turned to Pipedia to read about L Artigiana Pipes. There was no specific listing for the brand but under the Makers list it was listed as a sub brand or second connected the brand to Cesare Barontini (https://pipedia.org/wiki/Italian_Pipe_Brands_%26_Makers_K_-_L). Quote:

Cesare Barontini sub-brand / second.

From there I turned to the article that I have read previous on Pipedia about Ceare Barontini (https://pipedia.org/wiki/Barontini,_Cesare).

In 1890 Turildo Barontini opened a factory for the production of briar. In 1925 his son Bruno began to produce the first pipes. Cesare Barontini, son of Bruno, started direction of the factory in 1955, and still runs it together with his daughters Barbara and Silvia.

Sub-brands & Seconds:

Aldo Velani

Cesare

L’artigiana

Stuart

Cortina

See also Barontini, Ilio, Cesare’s cousin.

I love the description as it truly captures the shape and beauty of this freehand pipe. The article above stated that the pipe is handcrafted by artists so that each one is a unique piece. It is cut from the plateau to leave that exposed on the top of the rim and down the shank to the end. It has a thumb hole cut for comfort in holding it while smoking. It is suggested that pipe sold for $60. Now to work on the pipe.

Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet pipe reamer and removed the rest of it with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. It looked very good but I forgot to take photos of the bowl when I brought it to the table – one of those days I guess. You will get a feel for it in the photos below.

I found a perfect fancy stem for the pipe in my stem can that was a potential candidate for the pipe. The issue with it was that the tenon had broken somewhere in its life. I tend to keep this kind of thing around as I have learned that I seem to always have a use for them. I drilled out the airway with a series of drill bits starting with one slightly larger than the airway in the stem and ending with one that would fit the threaded end of the new tenon. I put a pipe cleaner in the airway and painted the threaded tenon end with black super glue. I threaded the new tenon onto the pipe cleaner and pressed it into the hole in the stem. I set it aside to let the glue cure while I worked on the bowl. Now you will finally see the bowl! I worked some Before & After Restoration Balm into the surface of the briar with my fingertips and a horse hair shoe brush to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. I set the bowl aside and turned my attention to the stem. Eventually I would need to soak it in Briarville’s Deoxidizer but I had some work to do first to clean the damages to the stem. I “painted” the tooth marks with the flame of a Bic lighter and was able to raise all of them on the underside and all but one on the top side.  Before I put the stem in the soak I decided to put it in the shank and take pictures of the pipe at this point in the process. I am really pleased with the overall look. Once the vulcanite is polished the stem will look perfect with the pipe. I removed the stem from the pipe and put it in the bath of Briarville’s Pipe Stem Oxidation Remover overnight to let it do its magic. When I took it out of the bath I dried it off with a paper towel and rubbed off the product it had softened the oxidation but did not remove it. Lot of sanding and polishing remained on this one.I sanded the top surface of the stem and filled in the tooth mark along the button with black super glue. Once the glue cured I used a small file to flatten out the repair. I followed that by sanding the entire stem with 220 grit sandpaper to remove the oxidation remaining on the stem. I started to polish the stem with 400 grit wet dry sandpaper.I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.     With both parts of this unique L’Artigiana Freehand finished, I polished the bowl and the stem with Blue Diamond polish on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The mix of grain on the bowl came alive with the buffing. The finish on the briar works well with the polished black vulcanite stem. The finished pipe is a well-proportioned, nicely grained L’Artigiana Freehand. Have a look at it with the photos below. The dimensions are Length: 6 inches, Height: 2 ¾ inches, Outside diameter of the bowl: 1 ¾ inches, Chamber diameter: ¾ of an inch. This interestingly made Freehand will be going onto the rebornpipes store very soon. If you would like to purchase it and carry on the legacy of the previous pipe smoke send a message or an email to me. Thanks for walking through the restoration with me on this Italian Made L’Artigiana pipe.
