There is a Gorgeous Sunrise Amber Grain 398 Squat Bulldog under the Grime


Blog by Steve Laug

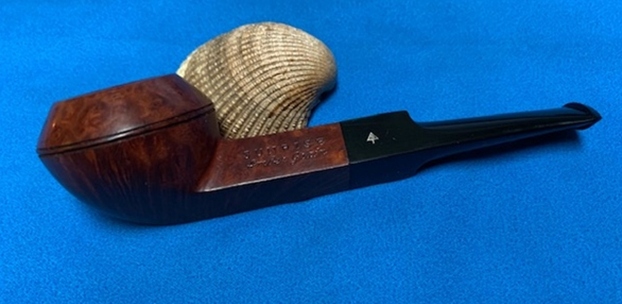

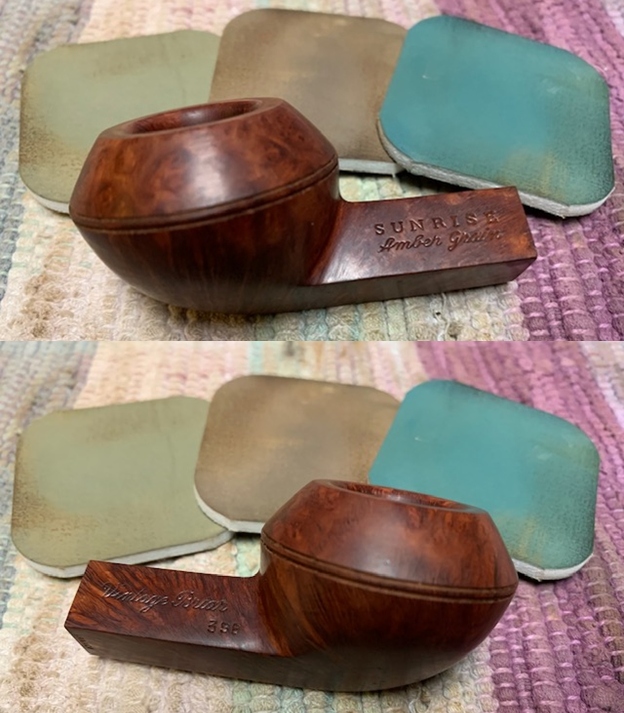

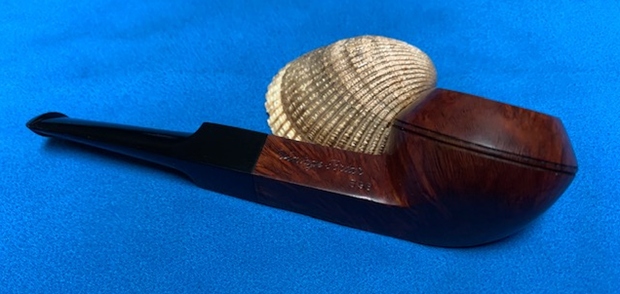

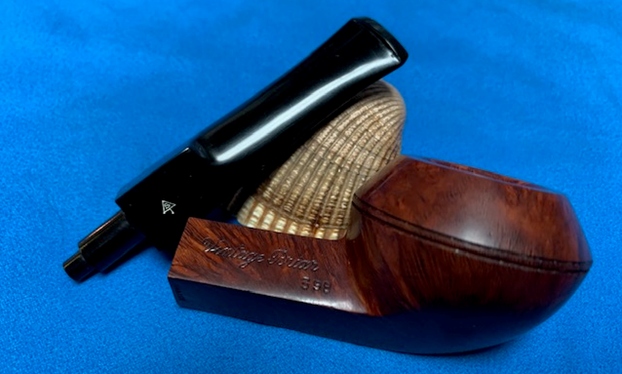

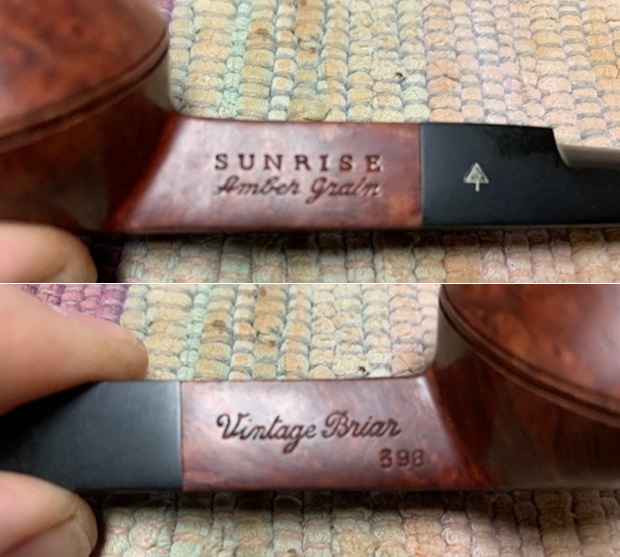

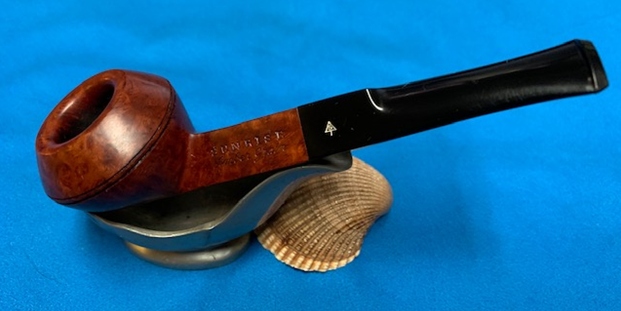

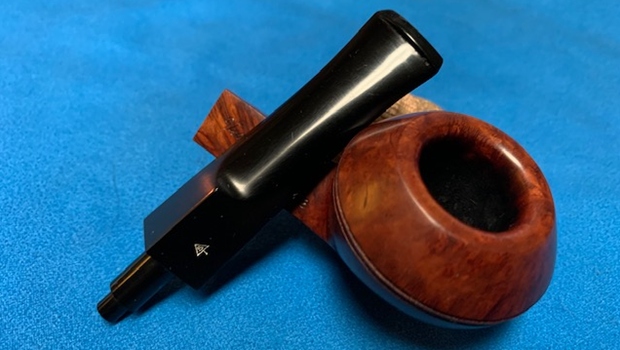

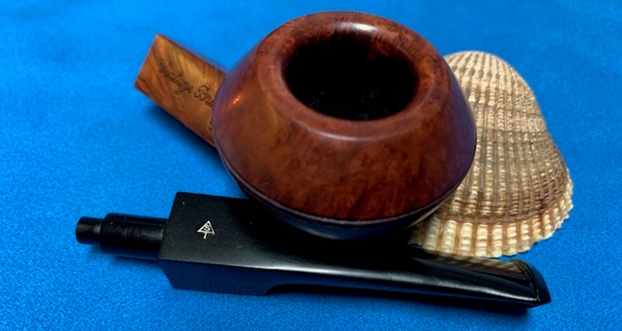

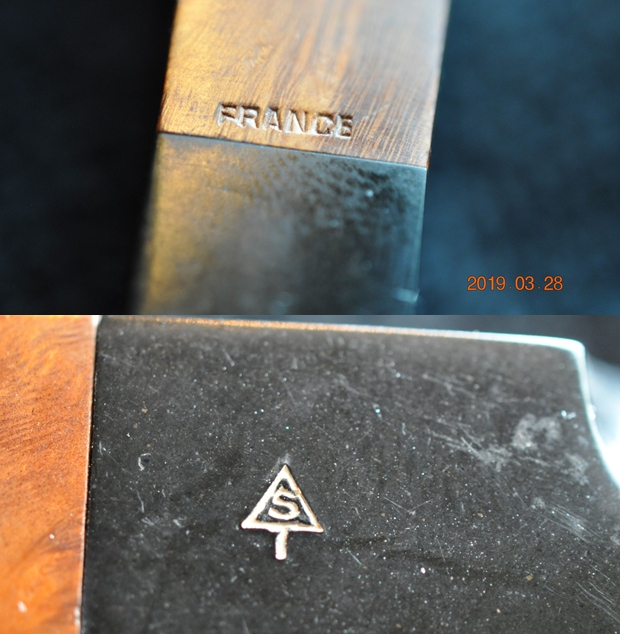

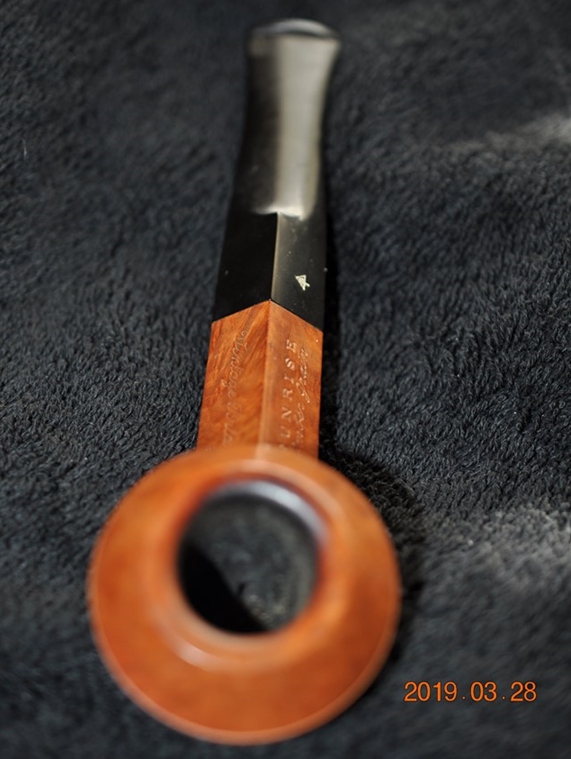

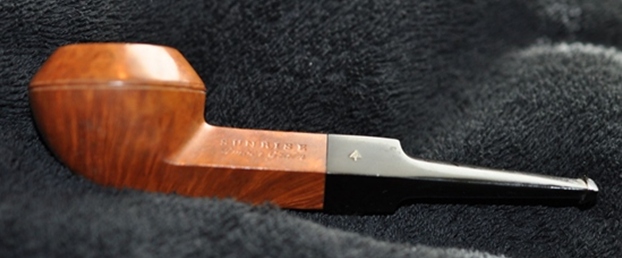

The next pipe on the work table came to us from a group of pipes that Jeff and I picked up from an auction from Wilkes Barre, Pennsylvania, USA. The pipe is beautifully grained squat bulldog shaped pipe with a mix of medium brown stains. The pipe is stamped on the left side of the shank and reads Sunrise [over] Amber Grain. On the right side of the shank it reads Vintage Briar [over] the shape number 398 near the bowl end. The pipe was dirty with a lot of grime ground into the bowl but the grain was still visible. The bowl was heavily caked with a light lava coat flowing onto the beveled rim top and inner edge toward the back of the bowl. It was hard to know what the rim and top looked like under all of the thick lava cake. The stem had a tree like logo on the left top side of the saddle stem. It was lightly oxidized and dirty with light tooth chatter and marks on the top and underside near the button. It had promise but it was very dirty. Jeff took some photos of the pipe before he started his cleanup work. He took photos of the rim top and bowl to give a clear picture of the thickness of the cake and tobacco debris as well as the lava and darkening on the backside of the rim top and inner edge. He also took photos of the top and underside of the stem to show the light oxidation and the light chatter and tooth marks. Jeff took a photo the sides and heel of the bowl to give a picture of the beautiful grain around the bowl and shank.   The stamping on the sides of the shank are clear and readable and read as noted above. If my memory served me correctly this pipe was Comoy’s made pipe and the France stamp on the shank pointed me to the connection between London and St. Claude. I turned to Pipephil’s site (http://www.pipephil.eu/logos/en/logo-s13.html) to get some background information on this beauty. I have included a screen capture of the pertinent section. The first pipe listed bears the same stamping as the one I am working on.The side bar includes this interesting piece of information. I quote:

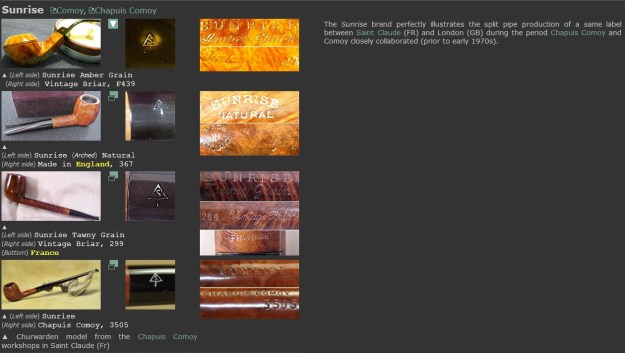

The Sunrise brand perfectly illustrates the split pipe production of a same label between Saint Claude (FR) and London (GB) during the period Chapuis Comoy and Comoy closely collaborated (prior to early 1970s).

I turned to Pipedia and looked under the French makers and the brand was not listed. Under the English makers it was listed as a Comoy’s Sub-brand or second. I turned to the Comoy’s listing and at the bottom of the article was a list of these pipes (https://pipedia.org/wiki/Comoy%27s). I have included the list in its entirety and highlighted the Sunrise in red.

Seconds made by Comoy’s

Ace of spades, Ancestor, Astor, Ayres, Britannia, Carlyle, Charles Cross, Claridge, Coronet?, Cromwell, Dorchester, Dunbar, Drury Lane, Emerson, Everyman, Festival of Britain, Golden Arrow, Grand Master, Gresham, Guildhall, Hamilton (according to Who Made That Pipe), Kingsway, Lion’s Head, Lord Clive, Lumberman, Hyde Park, Lloyds, Mc Gahey, Moorgate, Newcastle, Oxford, O’Gorman, Rosebery Extra, Royal Falcon, Royal Guard, Royal Lane, Scotland Yard, St James, Sunrise, Super Sports, Sussex, The Academy Award, The Golden Arrow, The Mansion House, The Exmoor Pipe, Throgmorton, Tinder Box Royal Coachman, Townhall, Trident, Trocadero, Westminster, Wilshire

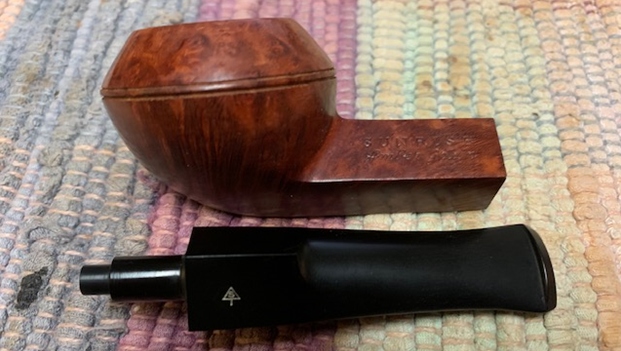

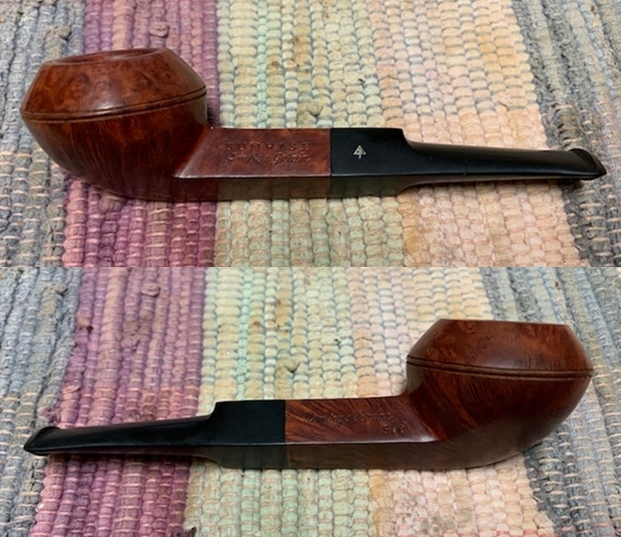

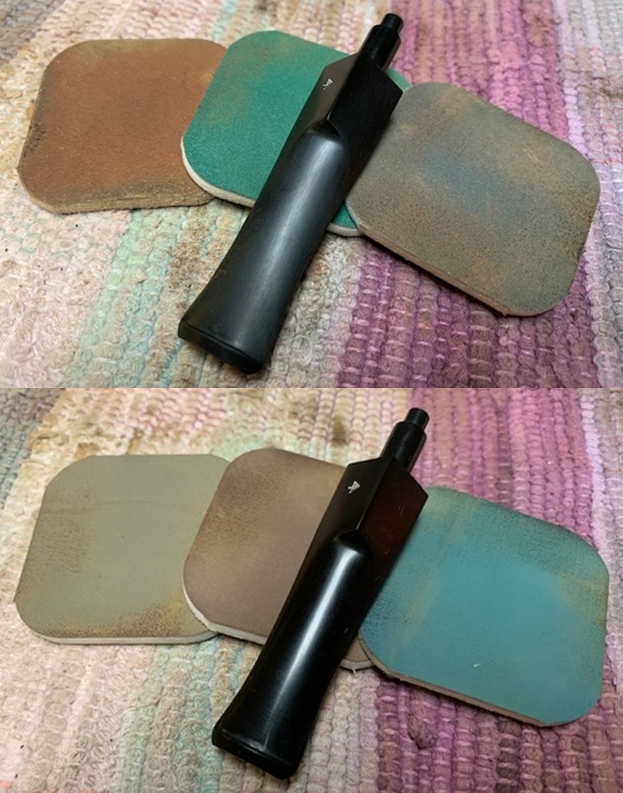

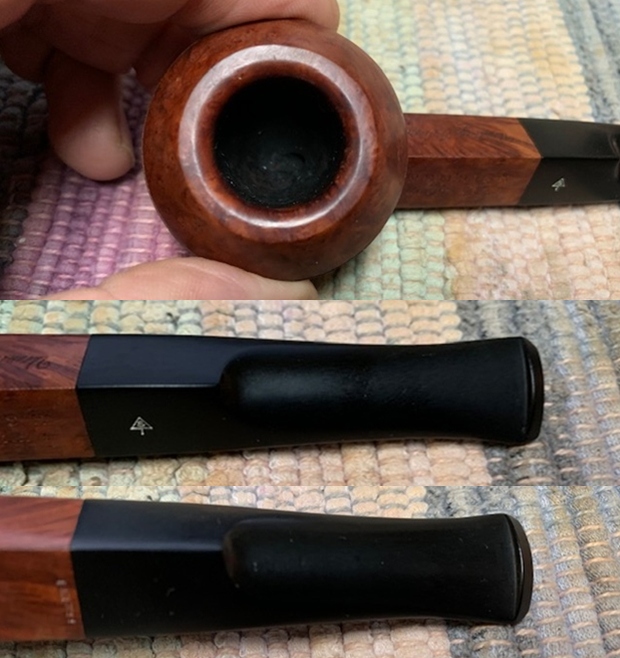

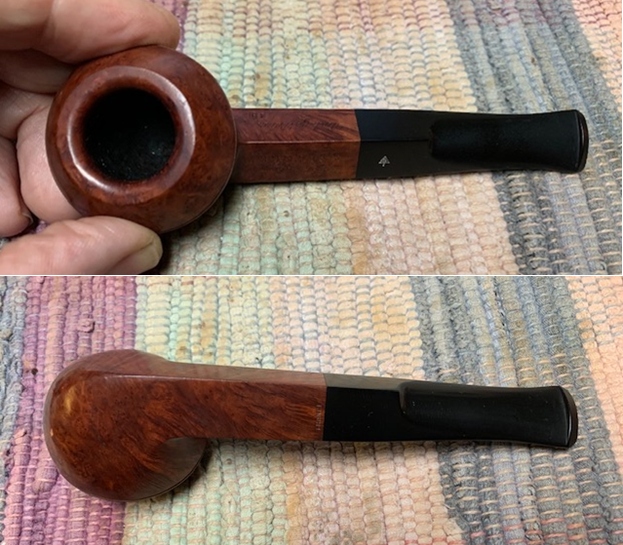

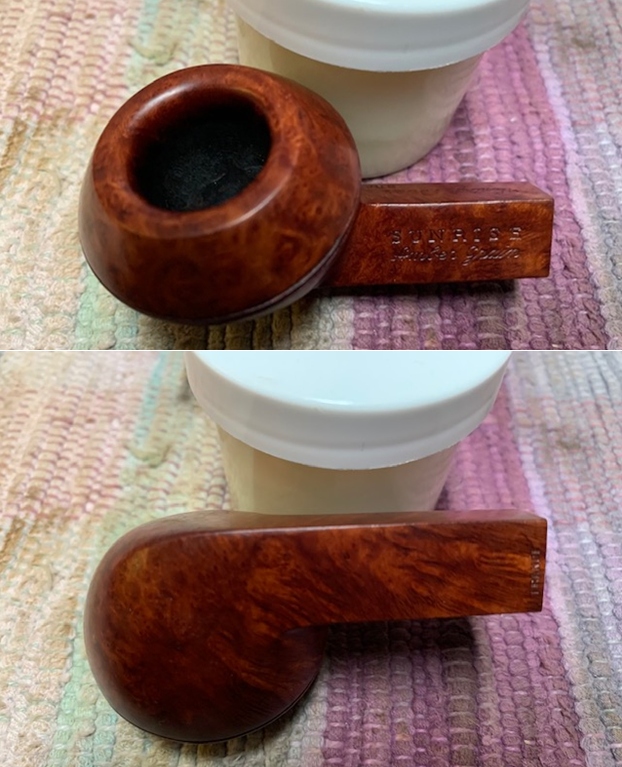

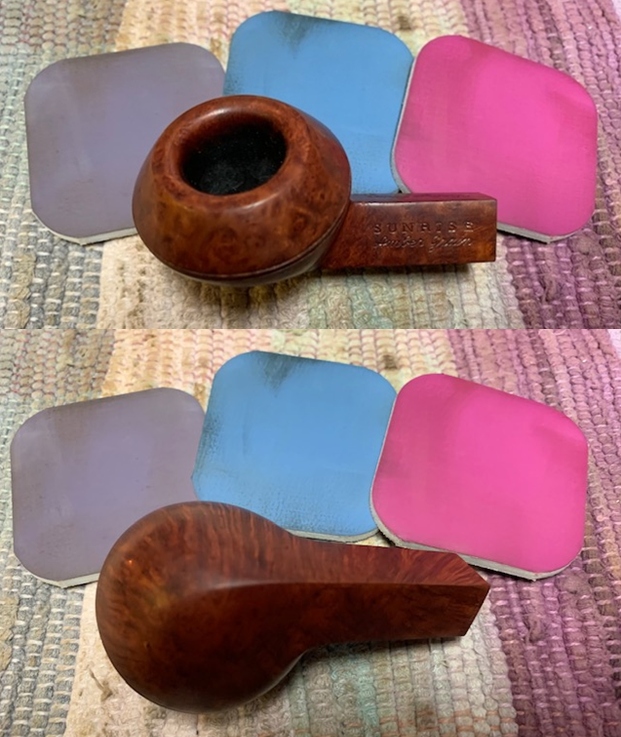

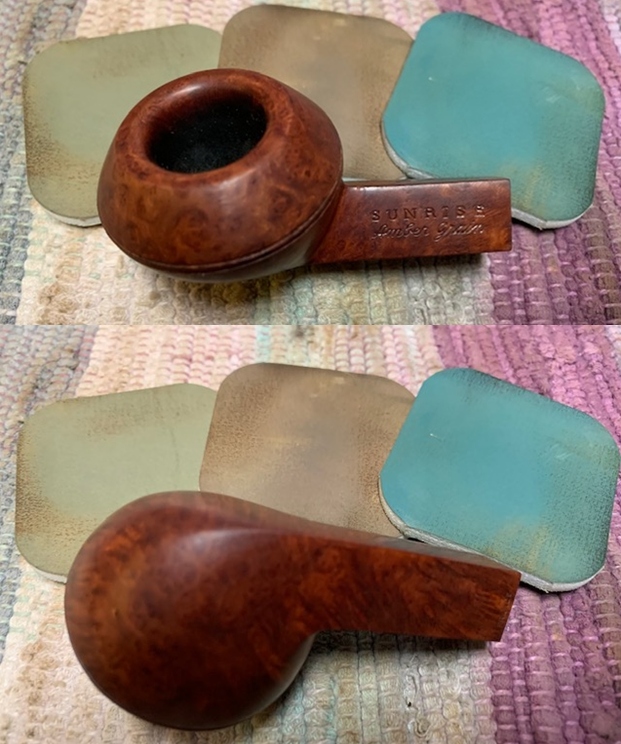

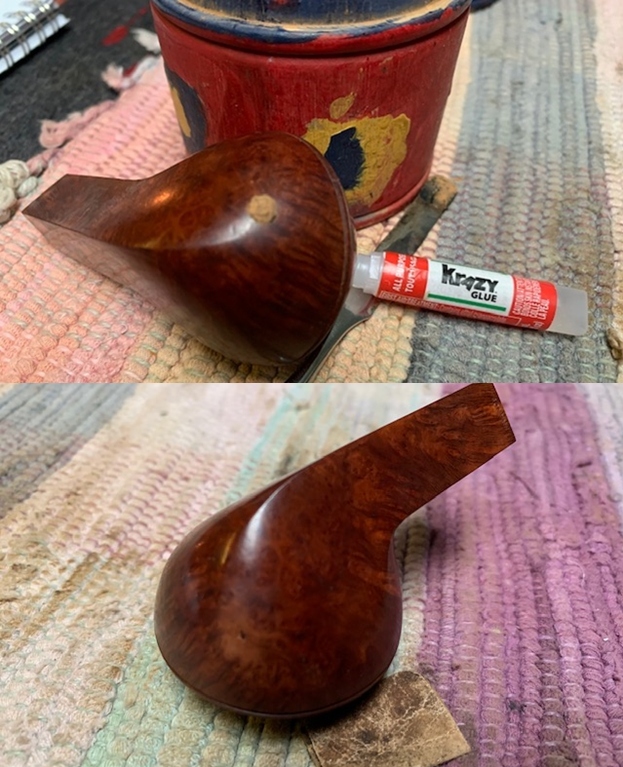

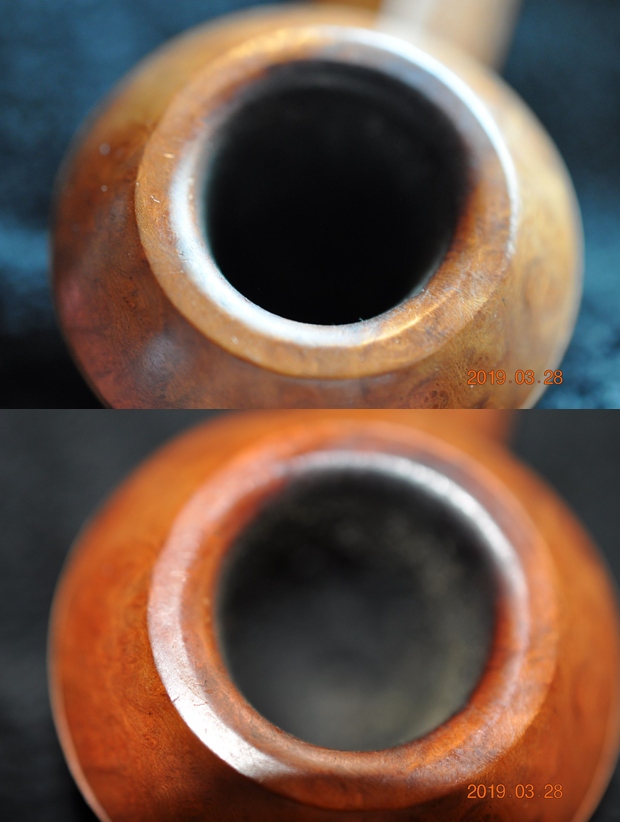

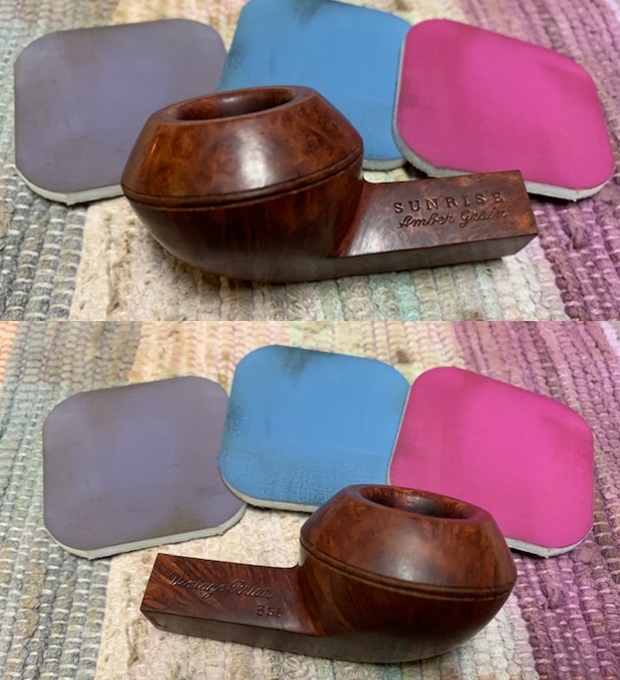

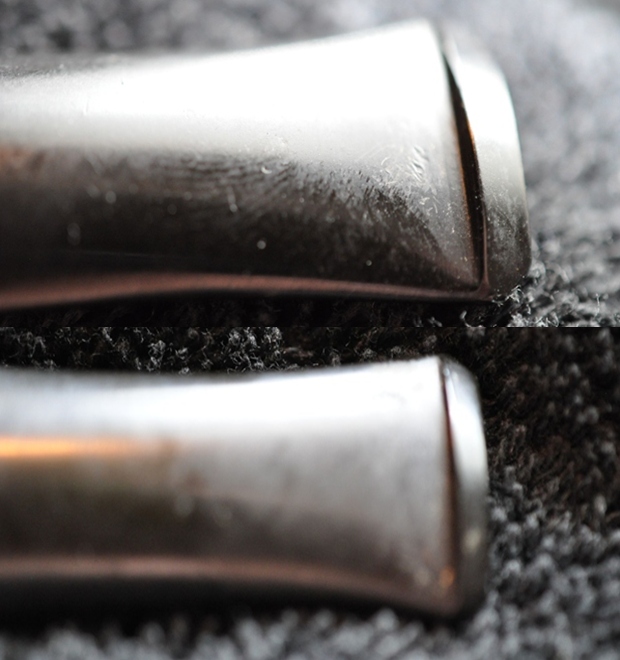

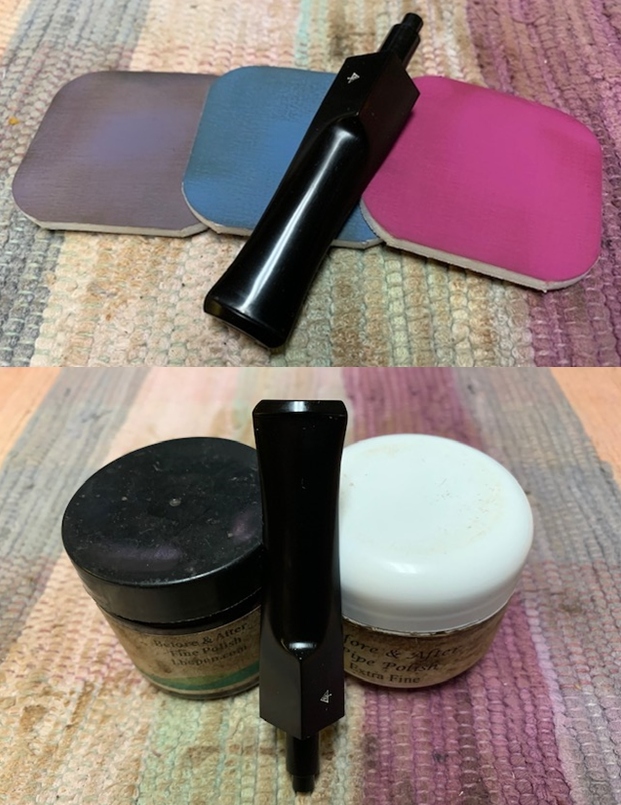

Now it was time to turn my attentions to the pipe itself. Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet pipe reamer and removed the rest of it with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. I took photos of the pipe once I received it.  The rim top cleaned up really well. The rim top and outer edge of the bowl appear to be in good condition. The stem surface looked very good and the light chatter on the stem on both sides near the button could easily be sanded out.  The stamping on the underside of the shank is faint and readable and reads as noted above.    I removed the stem and took a photo of the pipe to give a sense of the whole. The bowl looked very good and once I cleaned up the stem the pipe would look very good.Now it was time to do my work on the pipe. There was one fill on the bowl on the front right side that had fallen out. I filled it in with briar dust and super glue and once it cured I sanded it smooth with 220 grit sandpaper.I polished the briar with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. The bowl was in such good condition that I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine.    The stem was in good condition so I polished it with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.     This Comoy’s Made Sunrise Amber Grain 398 Squat Bulldog is a great looking pipe now that it has been restored. The rugged sandblasted brown stained finish around the bowl is quite beautiful and highlights the nooks and crannies of the sandblast. The finish works well with the polished vulcanite oval taper stem. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Sunrise Amber Grain Vintage Briar Squat Bulldog sits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ½ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 ¾ inches, Chamber diameter: ¾ inch. I will be putting it on the rebornpipes store shortly. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!

Breathing Life to a Tired and Worn Handmade in Denmark Dublin


Blog by Steve Laug

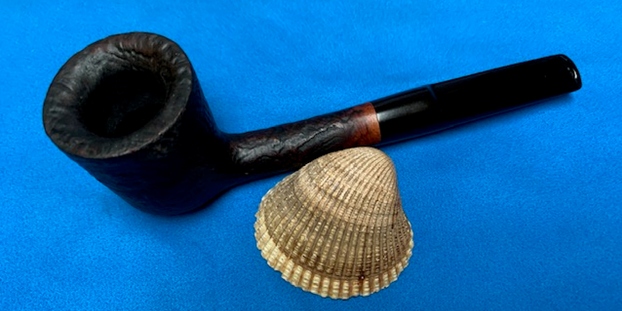

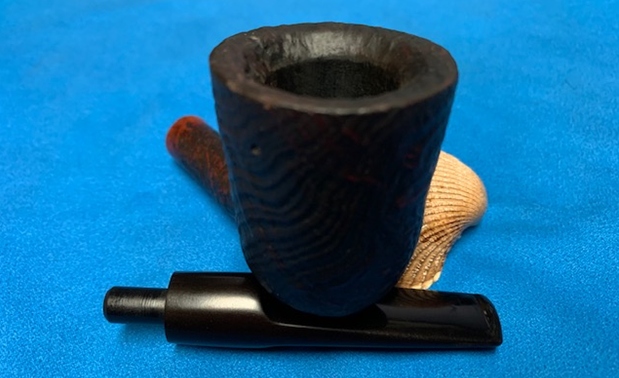

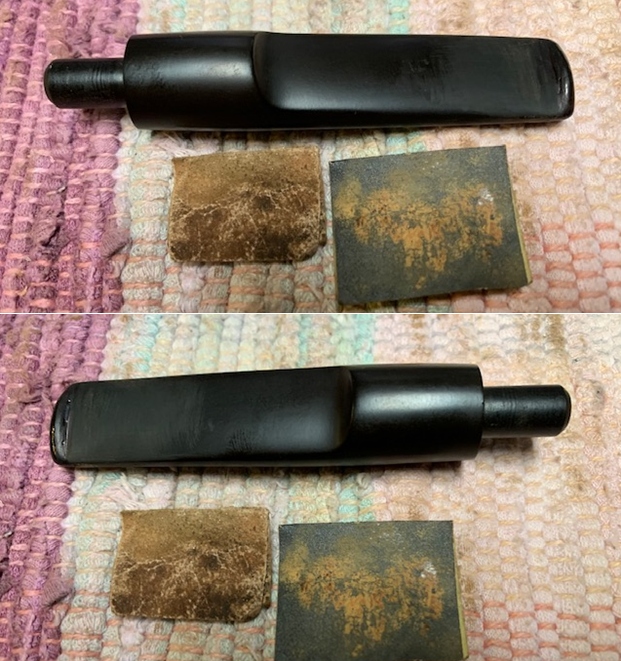

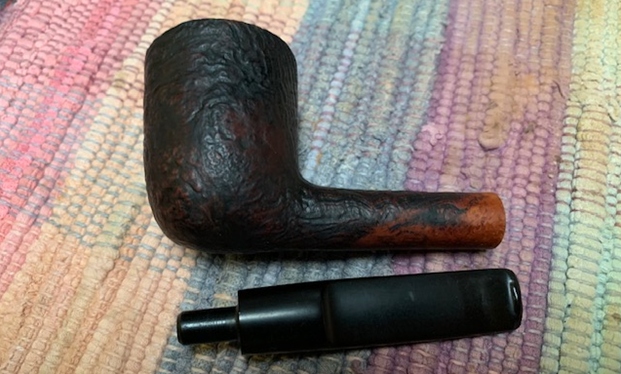

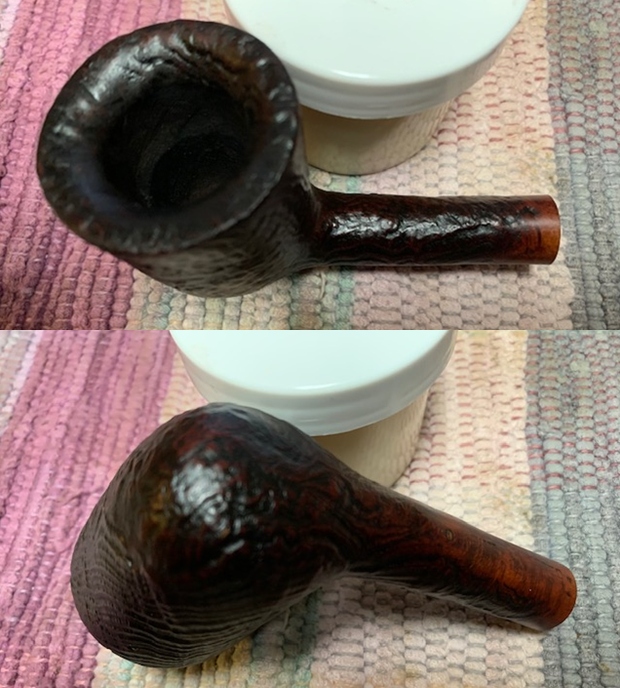

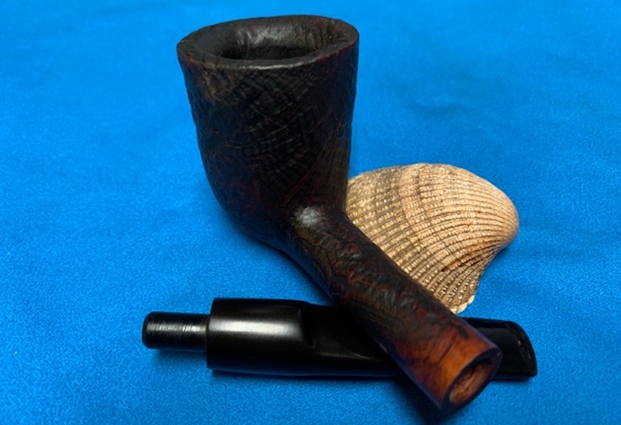

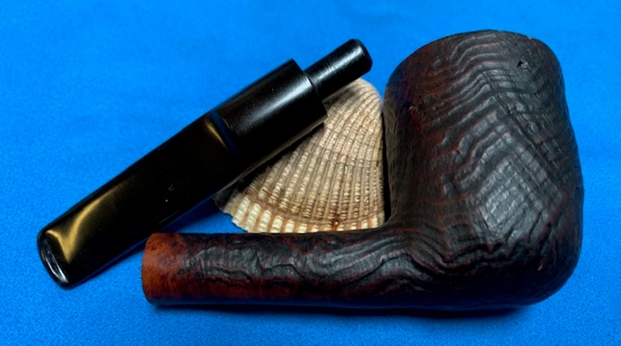

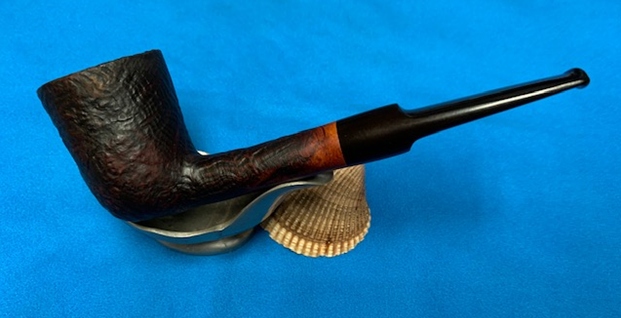

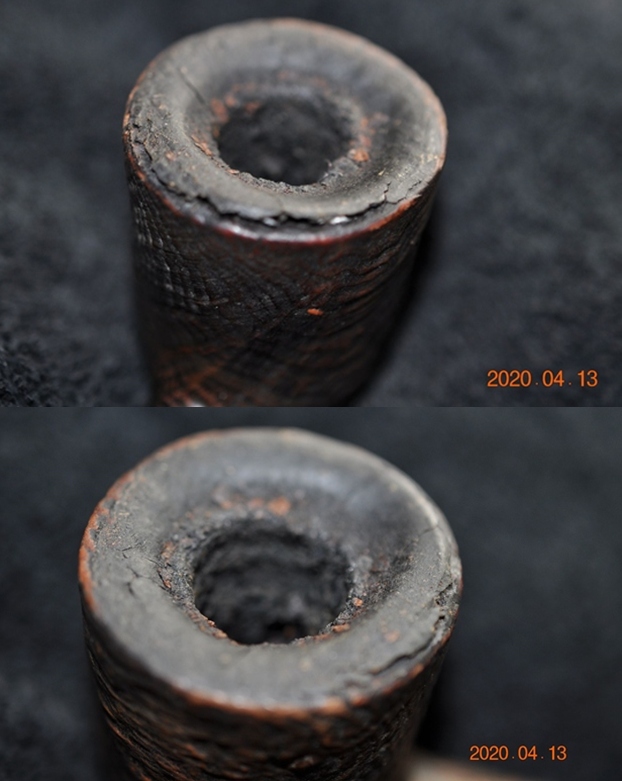

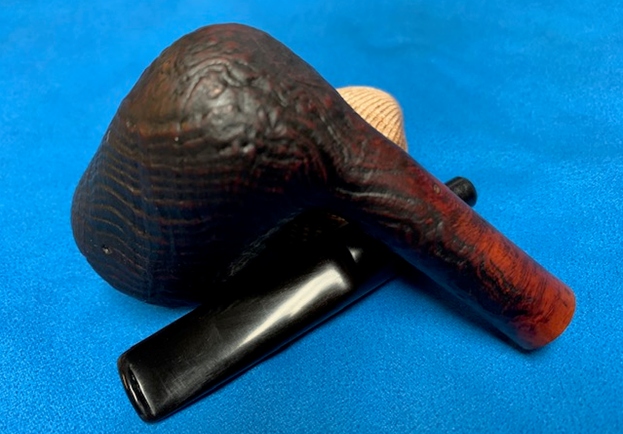

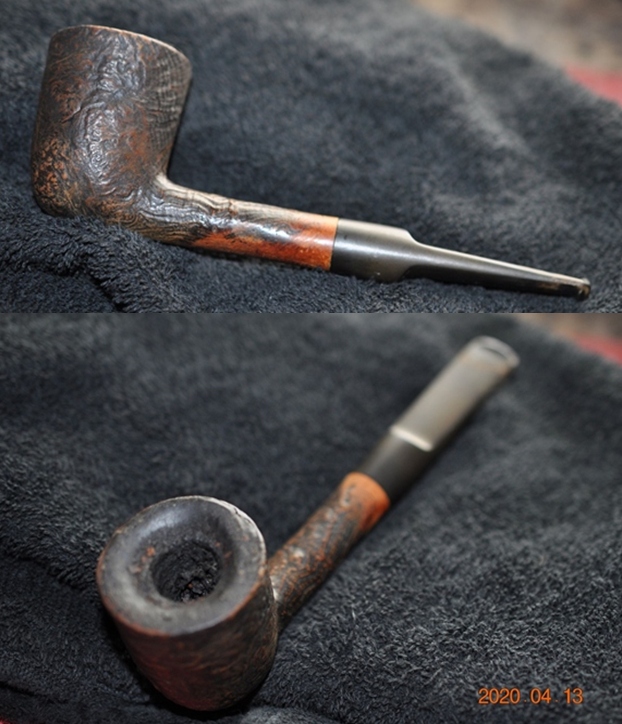

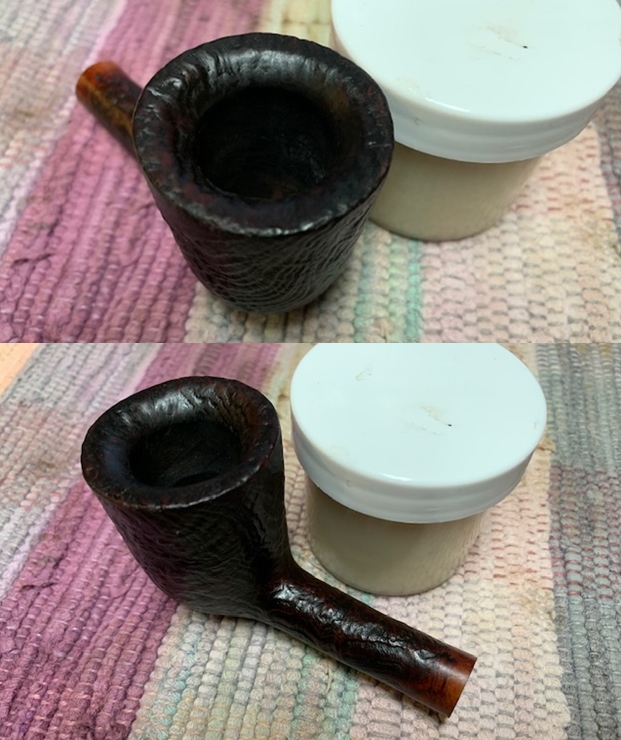

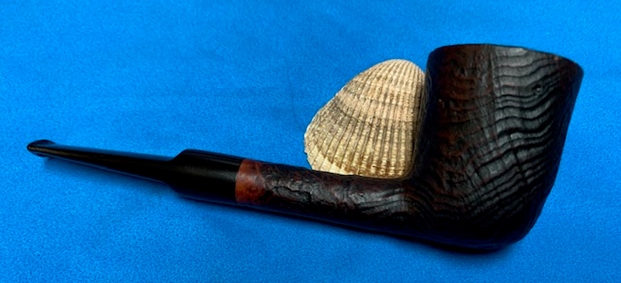

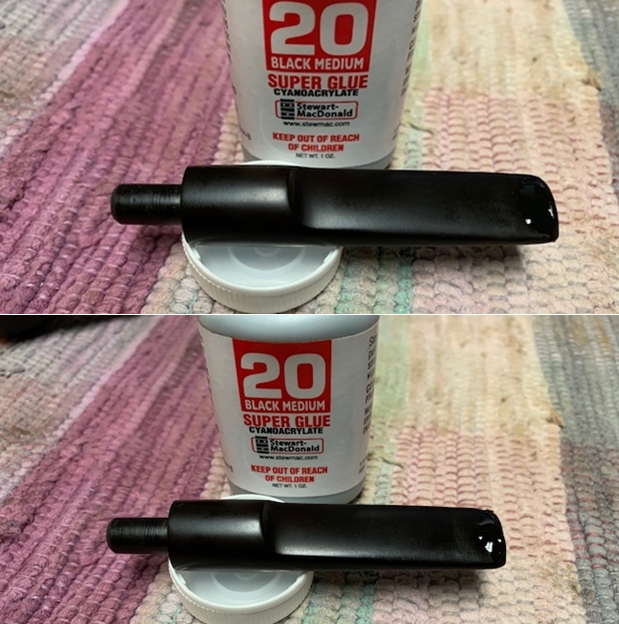

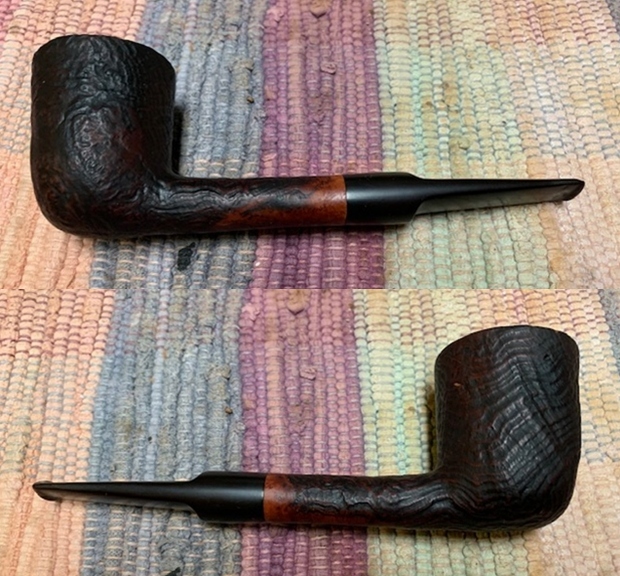

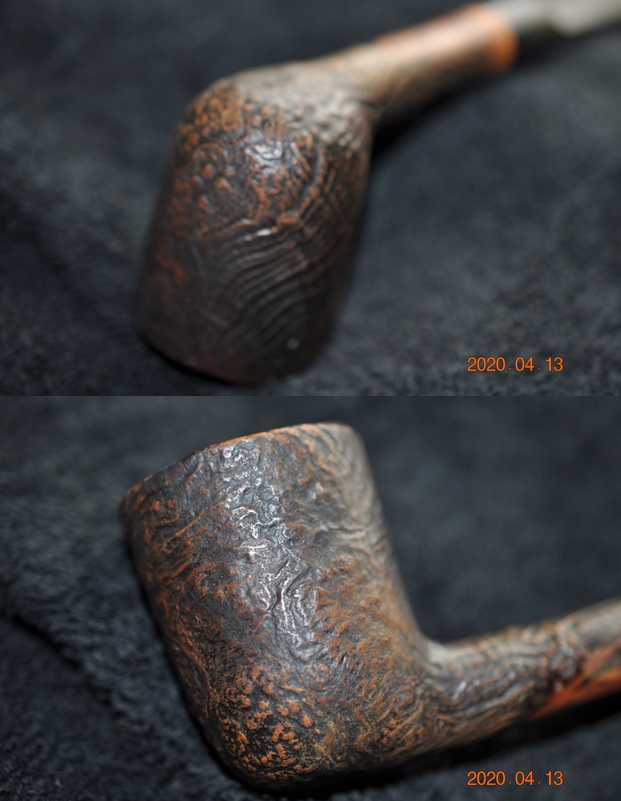

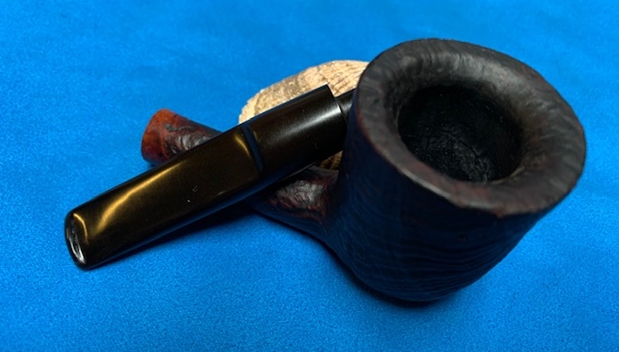

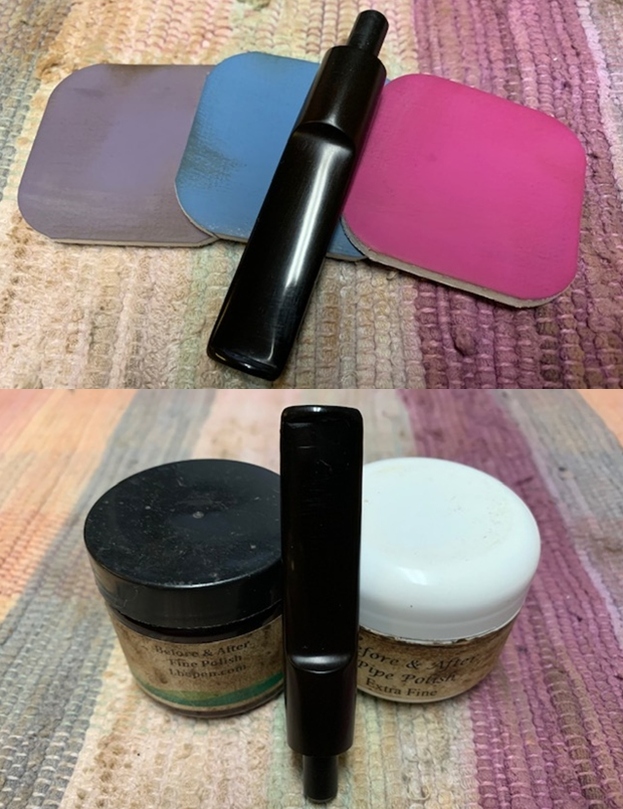

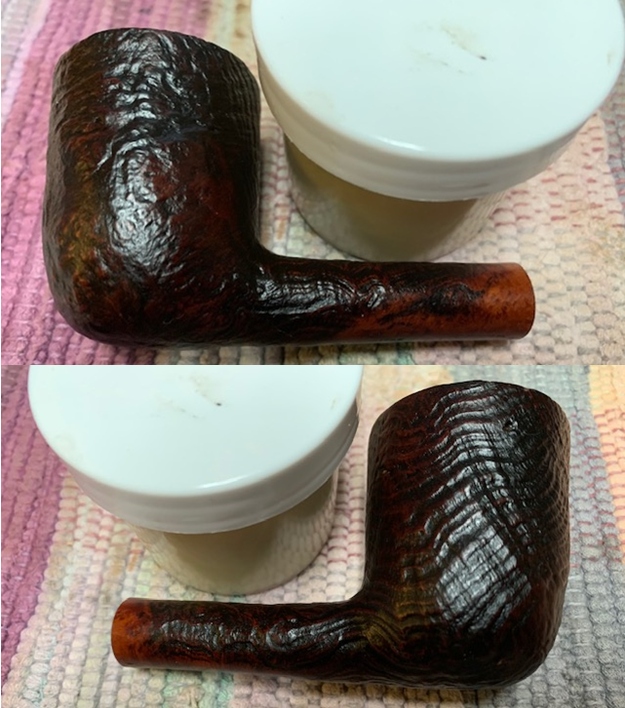

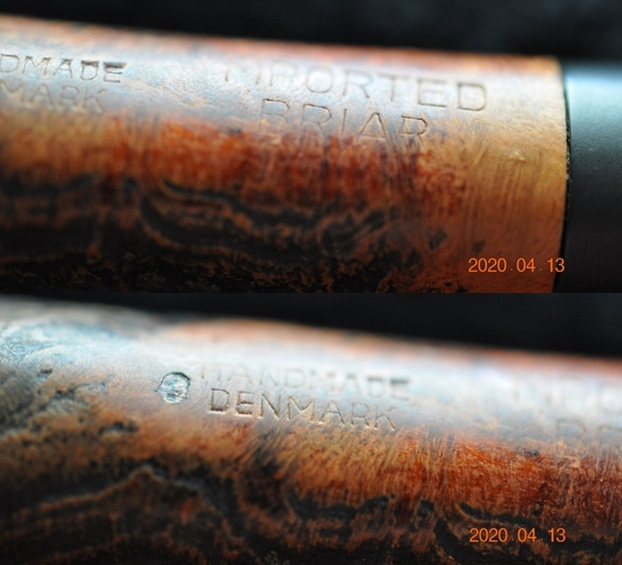

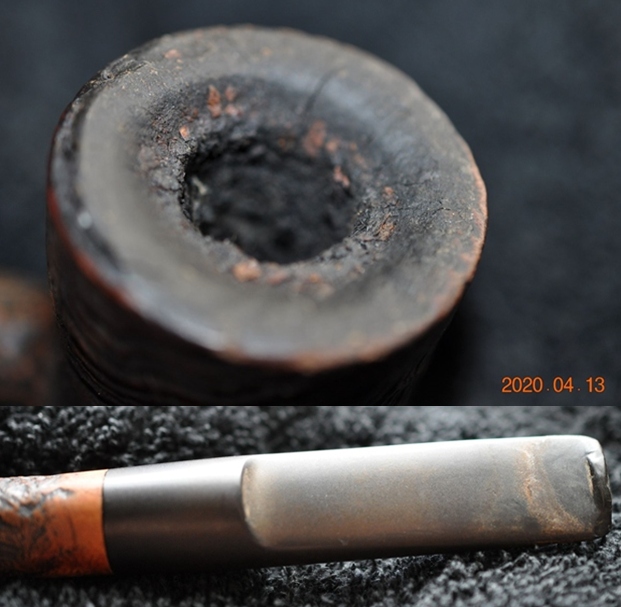

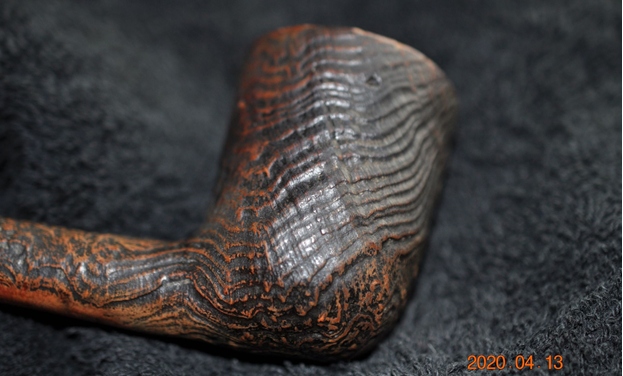

The next pipe on the work table came to us from a group of pipes that Jeff and I picked up from a fellow in Hermann, Missouri, USA. The pipe is sandblast Dublin shaped pipe with a mix of brown stains. It is a medium sandblast with shallow valleys and ridges around the bowl and shank. The pipe is stamped on smooth panel on the underside of the shank and reads Handmade [over] Denmark that is followed by a second stamp that reads Imported [over] Briar near the stem end. The pipe was tired and worn looking with a lot of grime and dust in the crevices and valleys of the sandblast finish. The bowl was heavily caked with a heavy lava coat flowing onto the beveled sandblast rim top. It was hard to know what the rim and top looked like under all of the thick lava cake. The stem was oxidized, calcified and had tooth chatter and deep tooth marks on the top and underside near the button and on the button surface. It had promise but it was very dirty. Jeff took some photos of the pipe before he started his cleanup work. He took photos of the rim top and bowl to give a clear picture of the thickness of the cake and tobacco debris as well as the thick lava on the rim top and inner edge. He also took photos of the top and underside of the stem to show the oxidation and the chatter and deep tooth marks. Jeff took a photo the sides and heel of the bowl to give a picture of the sandblast and the worn finish on the bowl.   The stamping on the top and underside of the shank are clear and readable and read as noted above. This was a mystery pipe – the stamping read Handmade Denmark and Imported Briar and lead to no further information on the maker. I decided to leave the mystery and just work on the pipe itself. Jeff had cleaned up the pipe with his usual penchant for thoroughness. He reamed the pipe with a PipNet pipe reamer and removed the rest of it with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He soaked the stem in Before & After Deoxidizer and rinsed it off with warm water. I took photos of the pipe once I received it.  The rim top cleaned up really well. The rim top and outer edge of the bowl appear to be in good condition. The stem surface looked good other than the deep tooth marks on the button surface and stem on both sides near the button.  The stamping on the underside of the shank is faint and readable and reads as noted above.I removed the stem and took a photo of the pipe to give a sense of the whole. The bowl looked very good and once I cleaned up the stem the pipe would look very good.Now it was time to do my work on the pipe. The bowl was in such good condition that I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips and a horsehair shoe brush to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine.    The tooth marks on the top and underside of the button and stem service were very deep and no amount of heating or sanding them would lessen them. I filled them in with black super glue and set the stem aside to let the repairs cure. Once they had hardened I used a needle file to flatten the repair to match the surrounding vulcanite. I sanded the stem with 220 grit sandpaper to smooth out the remaining chatter on the top of the stem and further blend in the repair on the underside. I started the polishing process with 400 grit wet dry sandpaper. I polished the vulcanite stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.     This Danish Handmade Imported Briar Sandblast Dublin is a great looking pipe now that it has been restored. The rugged sandblasted brown stained finish around the bowl is quite beautiful and highlights the nooks and crannies of the sandblast. The finish works well with the polished vulcanite oval taper stem. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Danish Handmade Sandblast sits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 6 inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: 1 inch. I will be putting it on the rebornpipes store shortly. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!
