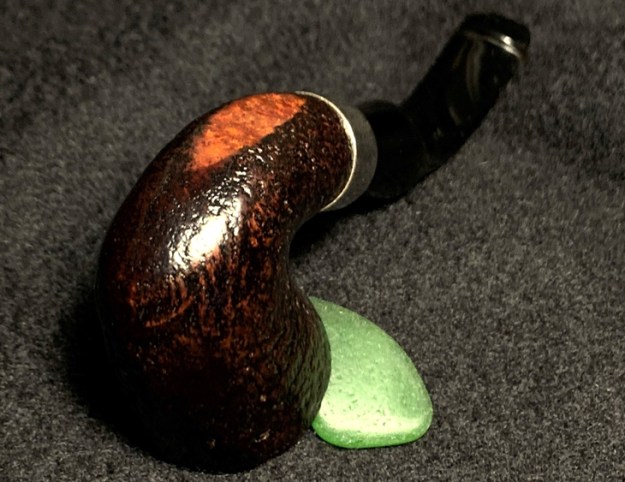

Recommissioning a Smart Savinelli Dry System 3621 Bent Dublin

Blog by Dal Stanton

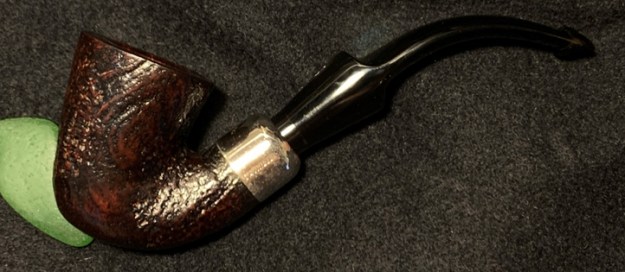

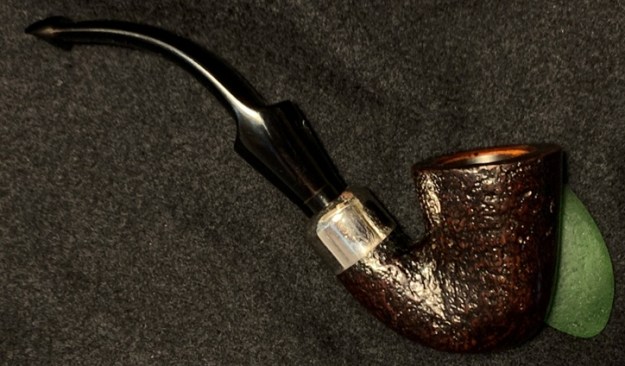

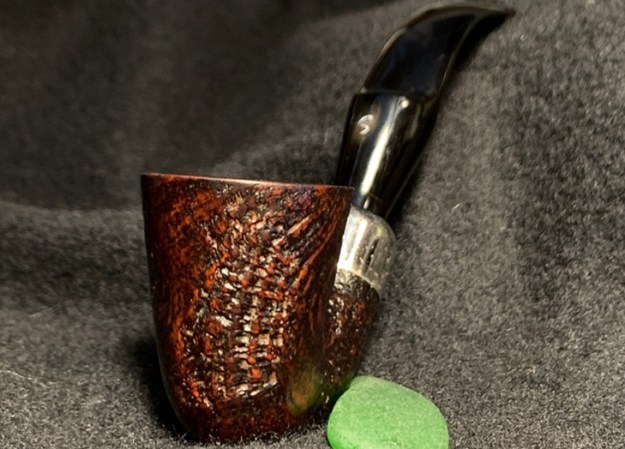

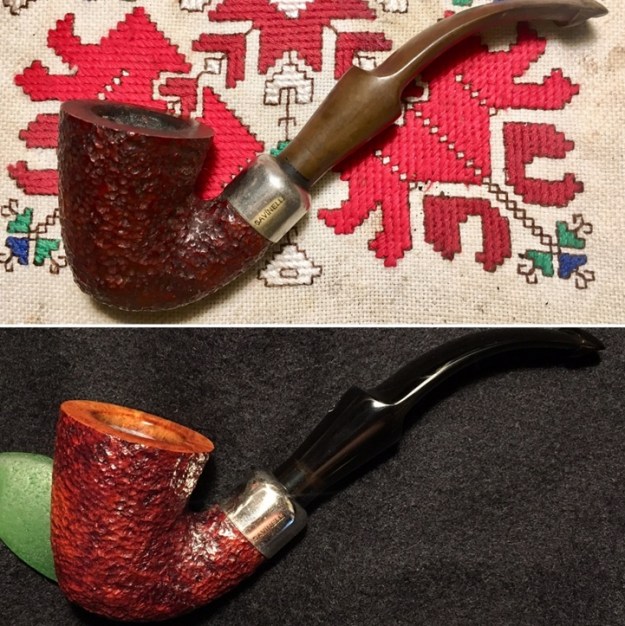

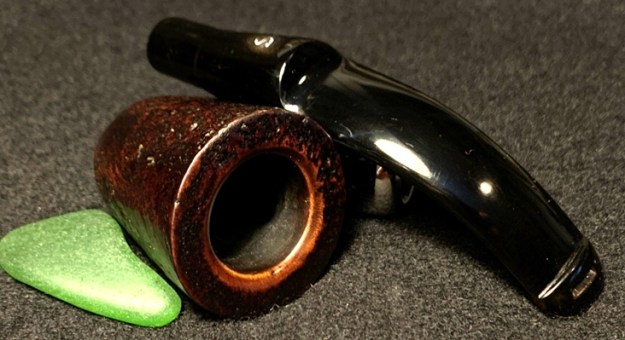

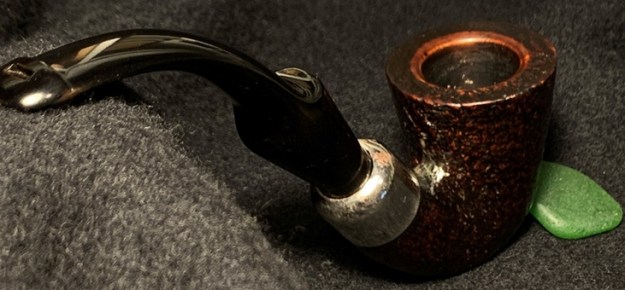

This is the second of 4 pipes that pipe man Nathan, from St. Louis, has commissioned from the online ‘Help Me!’ baskets that I call ‘For “Pipe Dreamers” Only!’ – a collection of pipes waiting to be commissioned by pipe men and women which benefit the Daughters of Bulgaria – women and girls who have been trafficked and sexually exploited.  I acquired this Savinelli Dry System along with almost a twin brother from a seller in Poughkeepsie, New York.  What attracted me initially to the pair was the ‘Peterson-like’ description – ‘Dry System’.  I also liked the tight 3/4 bend and the ‘Dublin-esque’ conical bowls – a tight configuration that got my attention immediately.  They almost seemed identical, but one had the shape number 3621, the one on my worktable now, and the other had 362.  When I unpacked them here in Bulgaria and took a closer look, I could see the differences.  Both have identical shapes but the 362 was a lighter rusticated finish with a smooth rim.  The 3621, Nathan’s choice, is a darker blasted finish with a blasted rim.  These pictures show the before & after comparison of the results of my first restoration, the Savinelli Dry System 362, which is now under the watchful care of a steward in Jackson, Mississippi.  It turned out great!Nathan commissioned 4 pipes after seeing some of my other restorations posted on various pipe Facebook groups.  I appreciate the opportunity to work on this next pipe that got Nathan’s attention, the Savinelli Dry System 3621. The smooth underside panel holds the nomenclature.  To the left is stamped arched, SAVINELLI [over] DRY [over] SYSTEM (reversed arch) forming a unified oval stamping.  The Savinelli crown ‘S’ logo is to the right of this.  Then on the far right of the logo is 3621 [over] ITALY.  The nickel shank cap is stamped on the left side with ‘SAVINELLI’ along with ‘S’ on the topside of the military stem. In my previous research, I found nothing about the Dry System on Pipedia but Pipephil.eu helped with some useful information – especially about the shape number differences.  Looking at the Savinelli shapes chart on Pipedia’s Savinelli article, shapes 362 or 3621 were not among those listed.  Pipephil.eu provided this on the Savinelli Dry System with the information that the Dry System could be stamped with either 3 or 4 digits for the shape number:I find interesting that the panel above also references a link comparing Savinelli’s Dry System P-Lip stem with the Peterson standard. Repeating my previous research: I found the most information about the Savinelli Dry System on another site as I broadened my online search.  A South African based tobacconist, Wesley’s  (See LINK), provided a gold mine of information about the Savinelli Dry System:

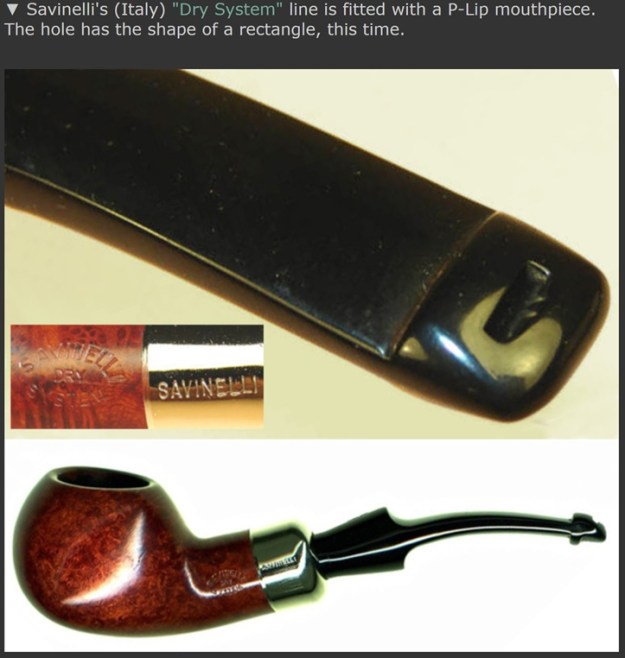

Launched in 1981, it had taken several years of research into the negative points of existing system pipes, in order to improve on them. Perseverance paid off – by combining trap and filter, and enlarging the smoke hole, Savinelli achieved the “Dry System”, which in our opinion is the best answer to “Wet Smoking” so far developed.

Especially for new pipe smokers, the Savinelli Dry System pipe incorporates everything needed to provide a cool, dry smoke.

The name “Dry” comes from the introduction of the Balsa “filter” into the traditional system pipe – the “System” being the presence of the built-in moisture trap in the shank, linked with the “smokehole on the top” mouthpiece. The balsa mops up the moisture in the smoke hence the term “Dry” system, and if the pipe is smoked without the balsa all that will happen is that this moisture will condense and collect in the trap. It can then either be mopped up with a folded pipe cleaner or flicked out. Just be careful where you flick it!

Put this all together and you can see why we say these are technically our best designed pipes. But the technical qualities are not all these pipes have to offer. Extra bonuses are the feel, the finishes and the balance.

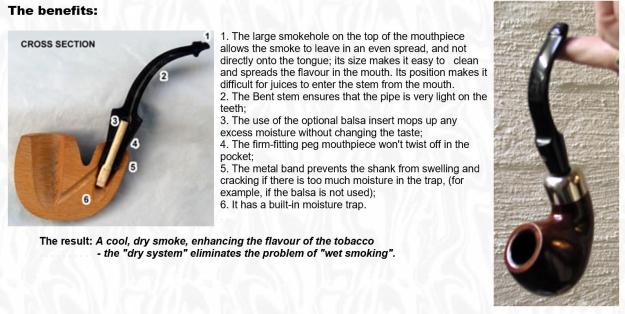

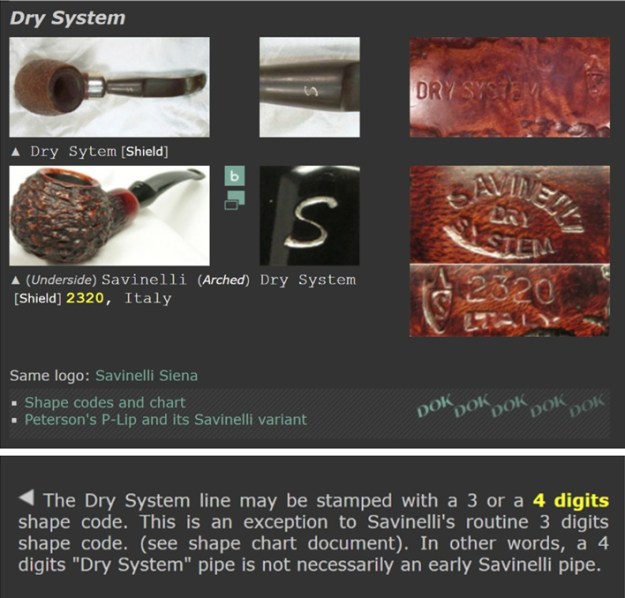

This information marks the genesis of the Savinelli Dry System line in 1981. Added to this information, Wesley’s included the following benefits of the Savinelli system with a helpful cut-away showing the internals:The description of the ‘smokehole’ of the mouthpiece, is interesting in the way it disperses the smoke so that it avoids tongue burn as well as keeping moisture entering the stem from the mouth. The trademark filtering system is also optional – use of the balsa insert which I use with great satisfaction with some of my own Savinelli pipes.  Yet, even if you do not utilize the absorbing qualities of the balsa insert, the built-in moisture trap will hold the moisture for clean-up after smoking.  Sounds good!

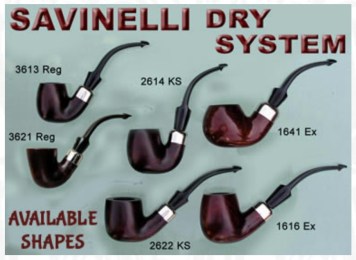

Wesley’s Tobacconist also included this helpful Shapes Chart for the Savinelli Dry System pipes. The description for the 3621 suggests:

Regular shapes 3613 & 3621 are ideal for the new pipe smoker or for a short smoke for anybody.

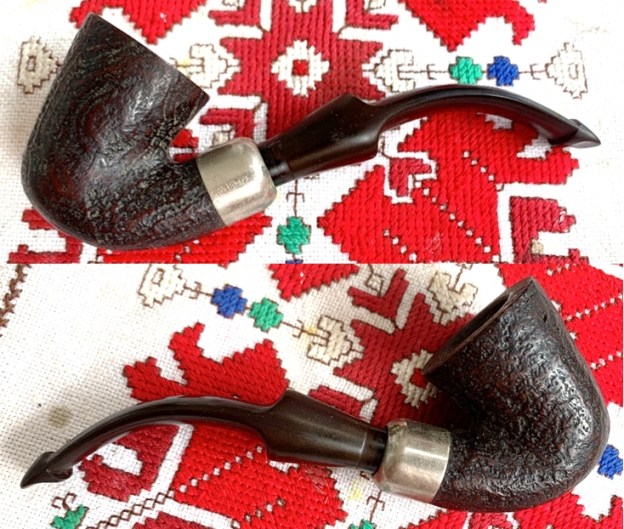

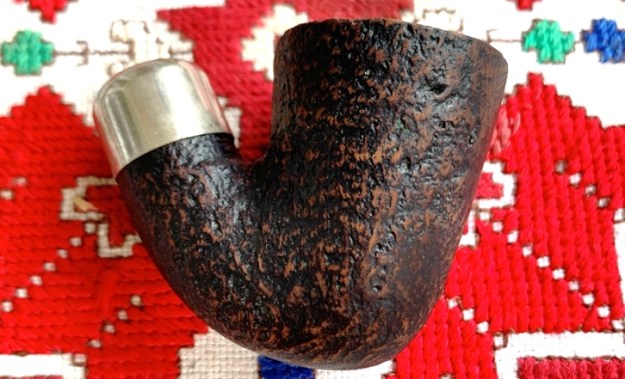

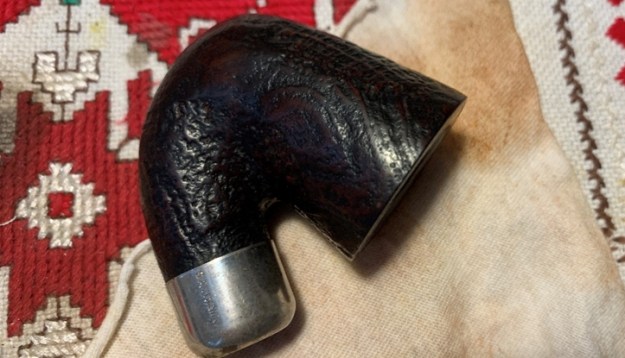

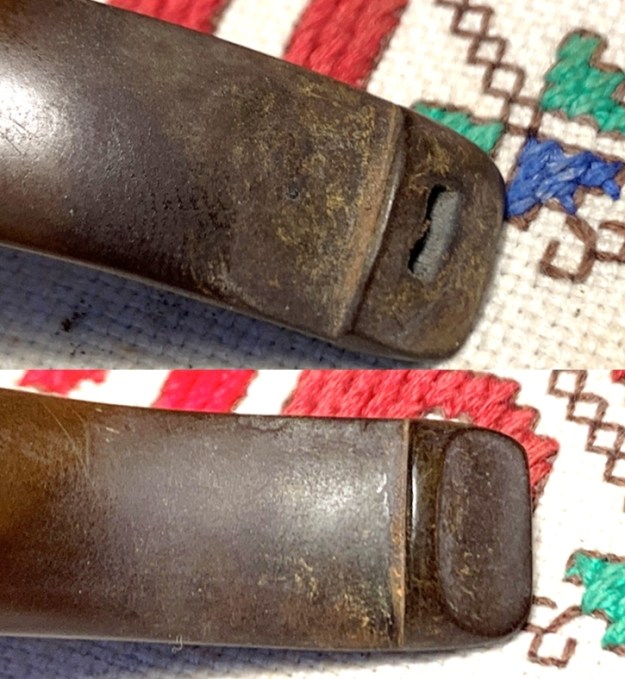

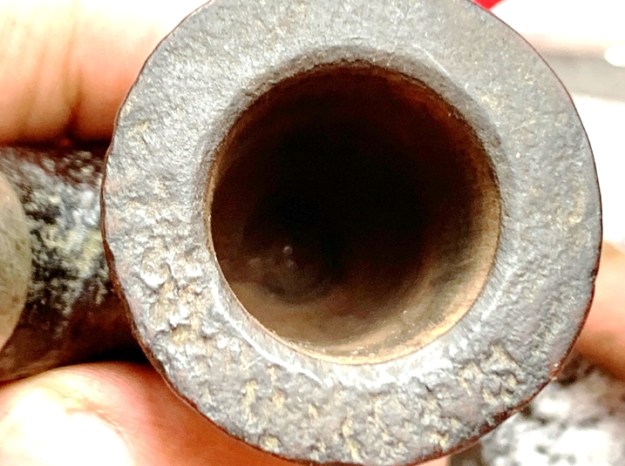

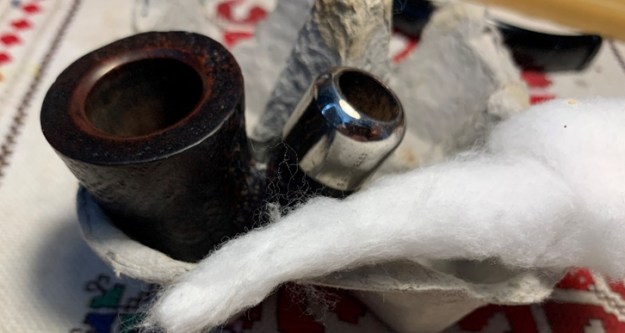

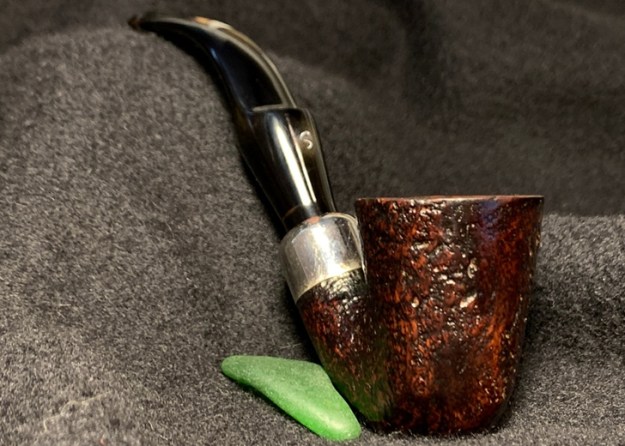

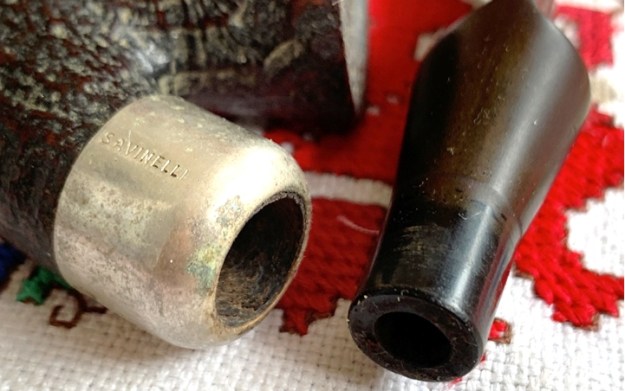

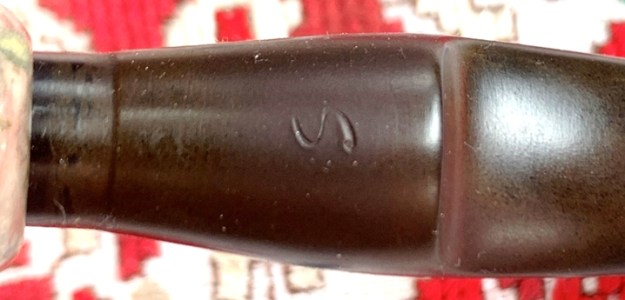

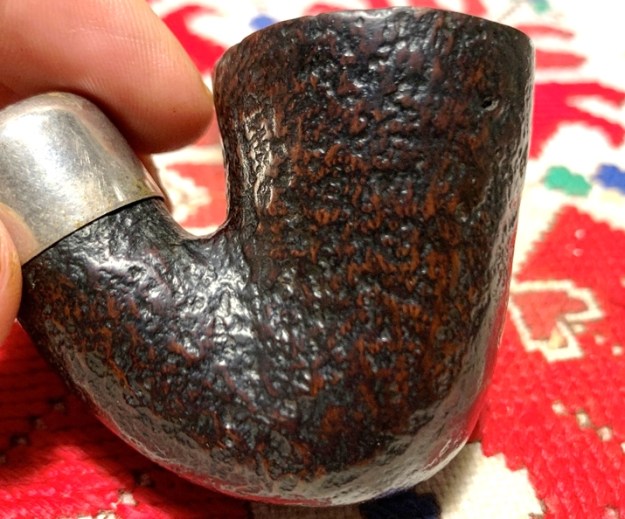

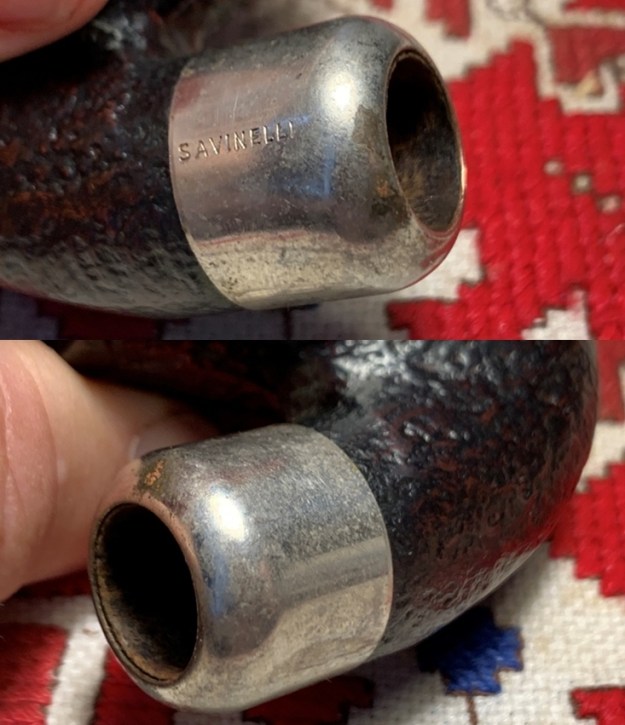

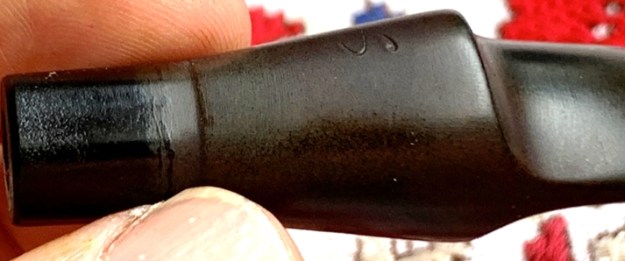

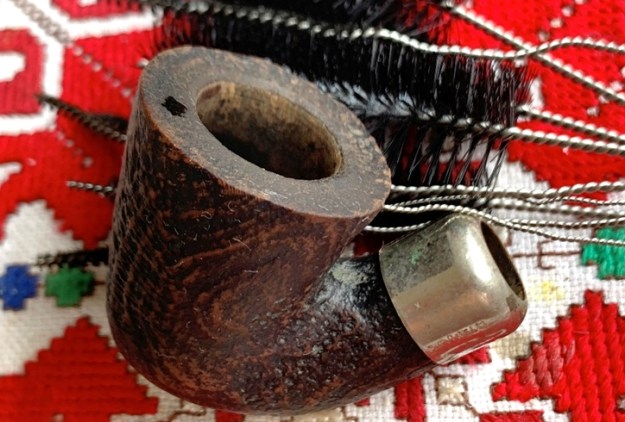

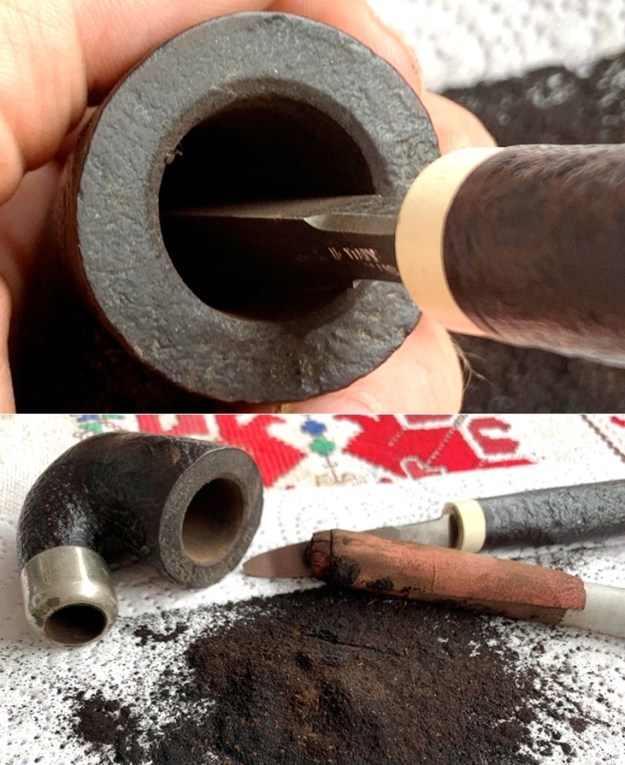

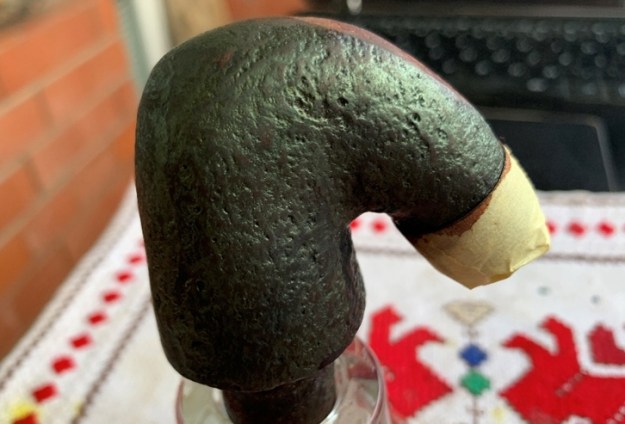

Looking now at the 3621 now on my worktable, the chamber shows thick cake that will be removed to recover fresh briar and to inspect the condition of the chamber walls. The blasted rim and stummel have grime and in need of cleaning.  The blasted briar landscape is attractive, and I look forward to what cleaning will reveal.  The nickel shank cap is in ok shape but needs cleaning and polishing. There are evidences of the nickel plated surface around the facing having come off revealing the base metal beneath.  The stem has deep oxidation and will take some work to clean it out.   The P-Lip, which is much easier to clean than Peterson’s version, has some compressions and chatter and needs sanding out.

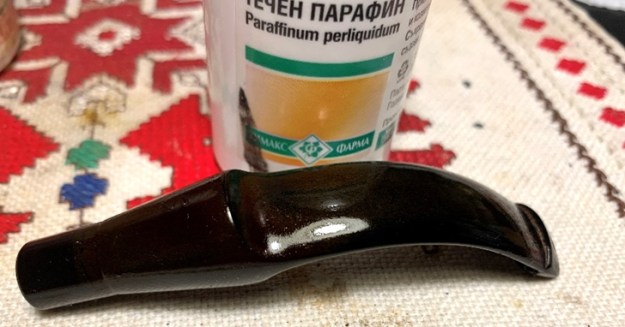

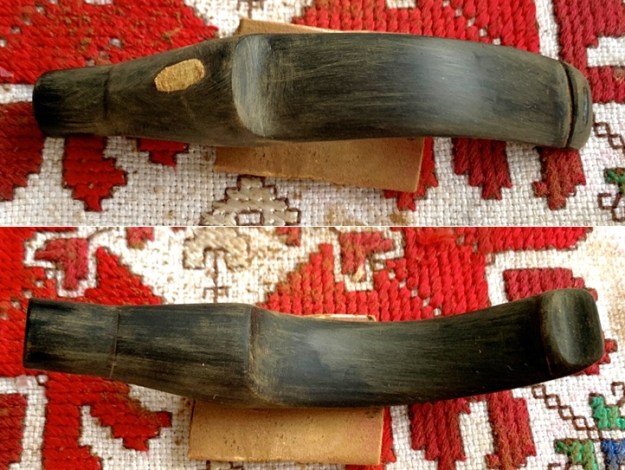

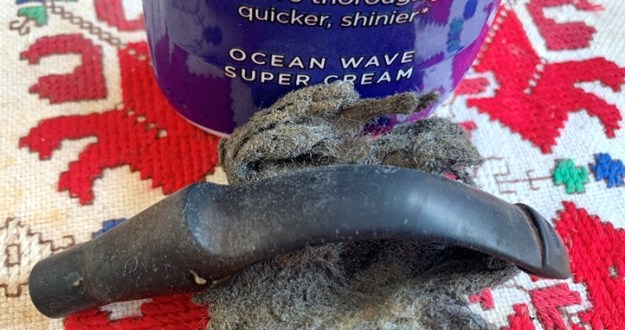

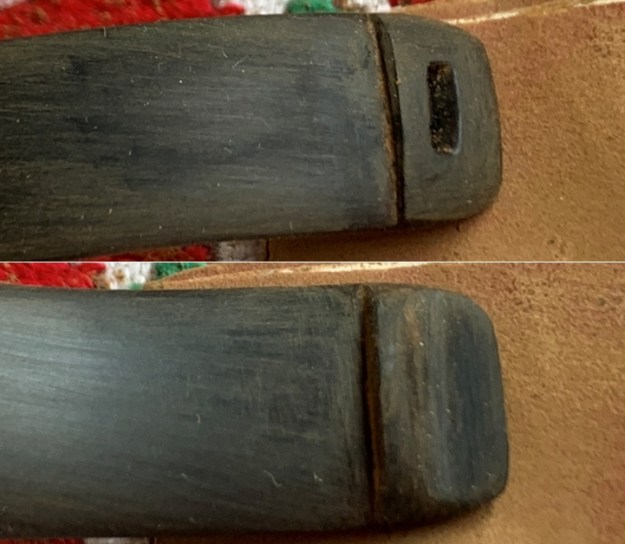

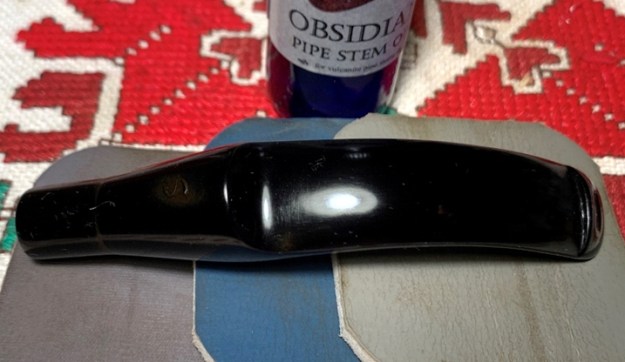

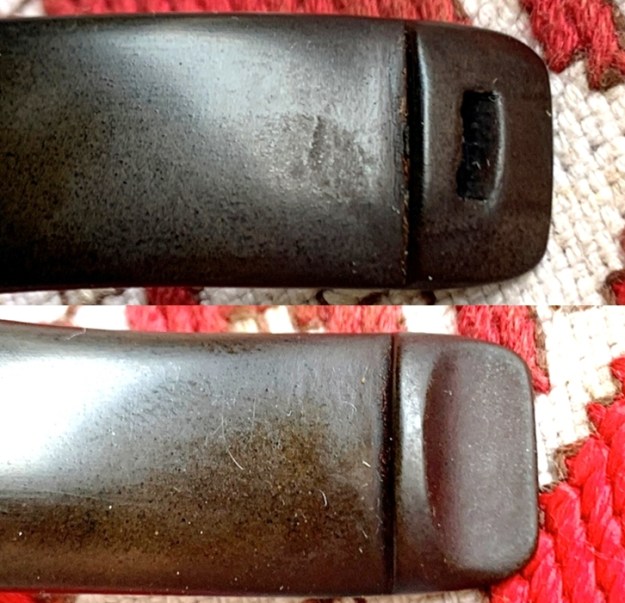

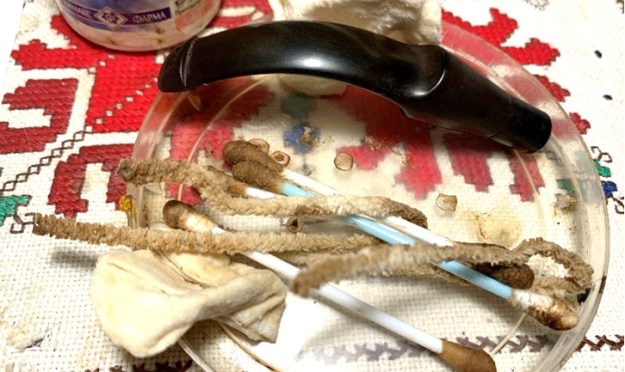

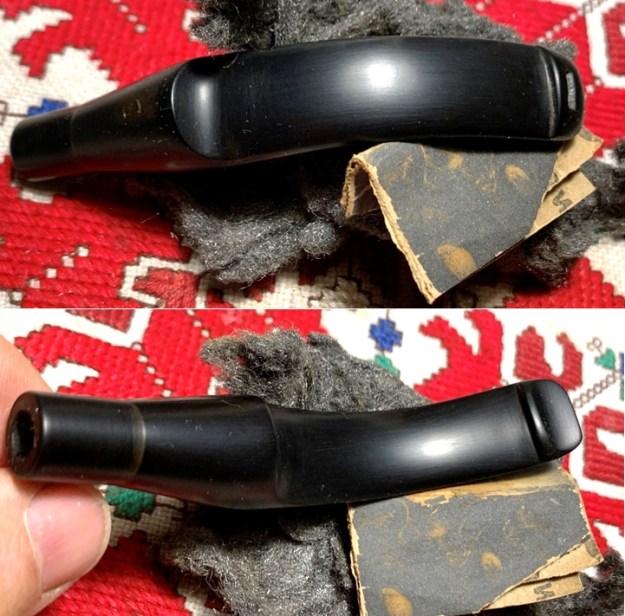

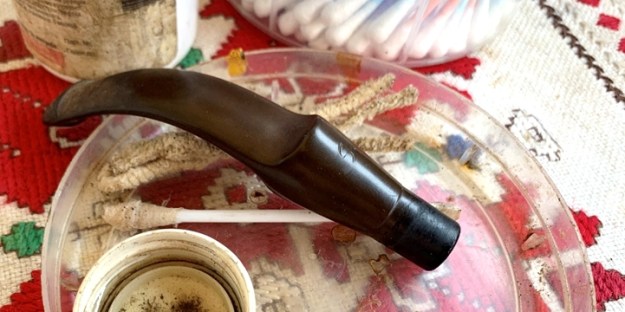

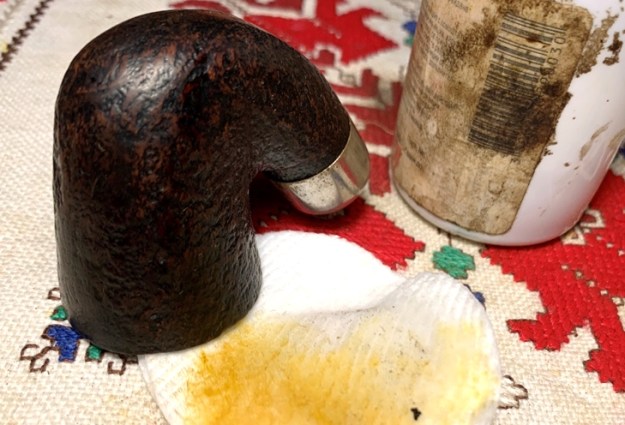

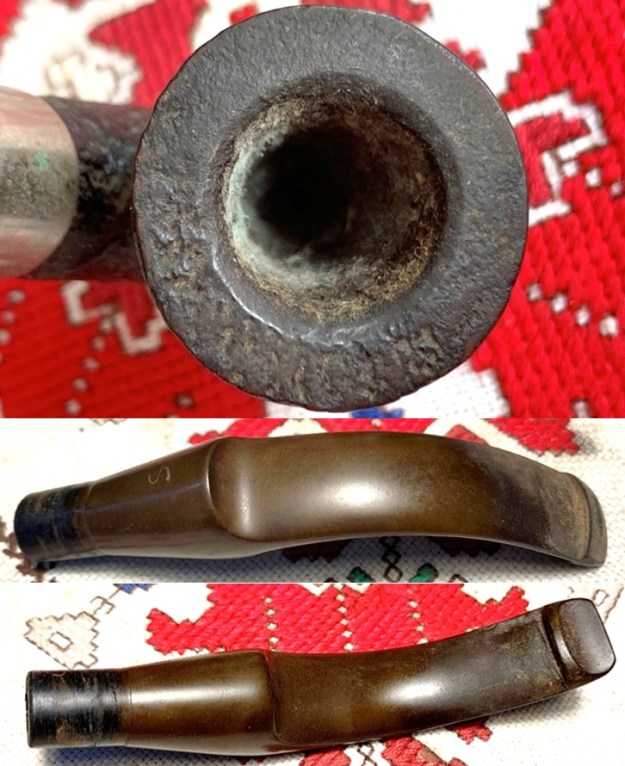

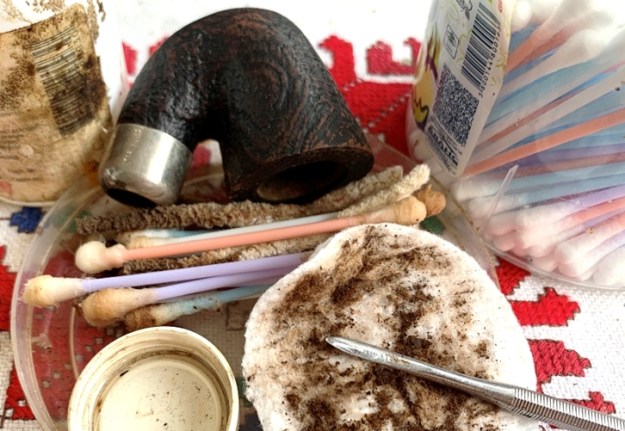

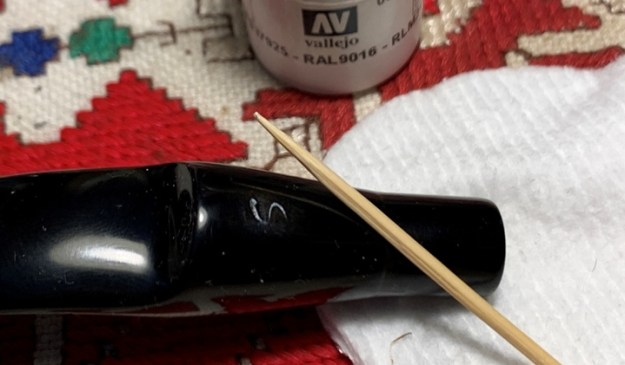

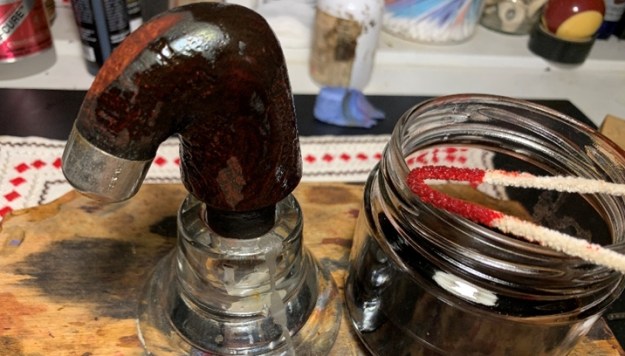

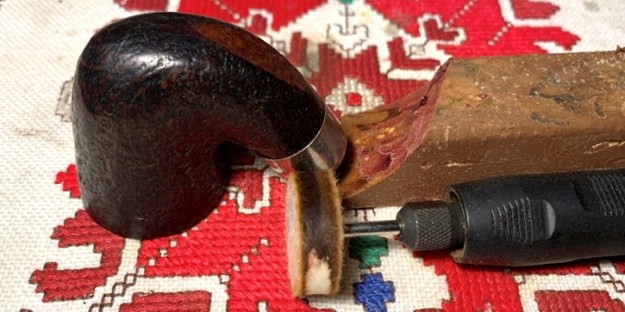

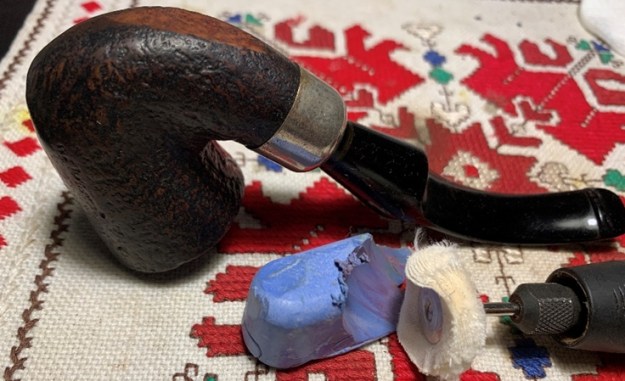

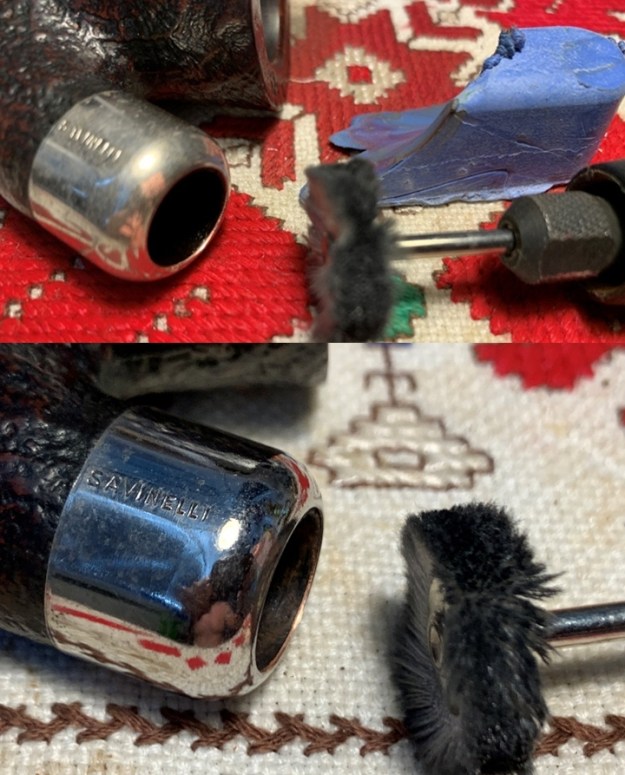

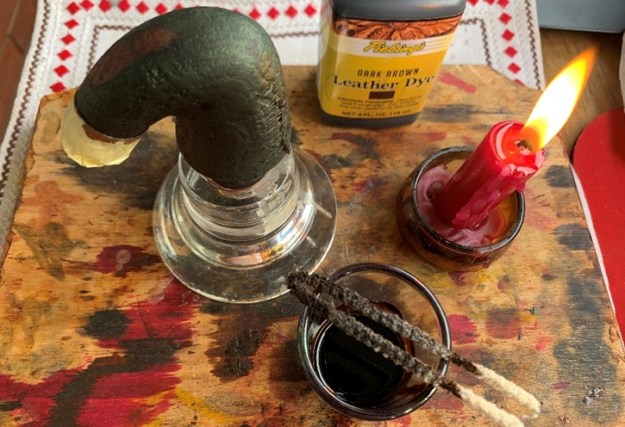

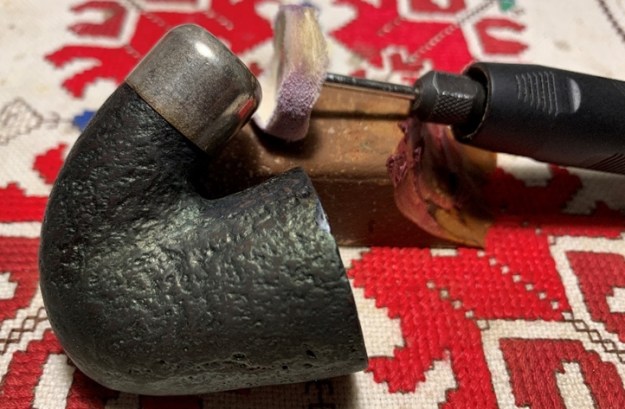

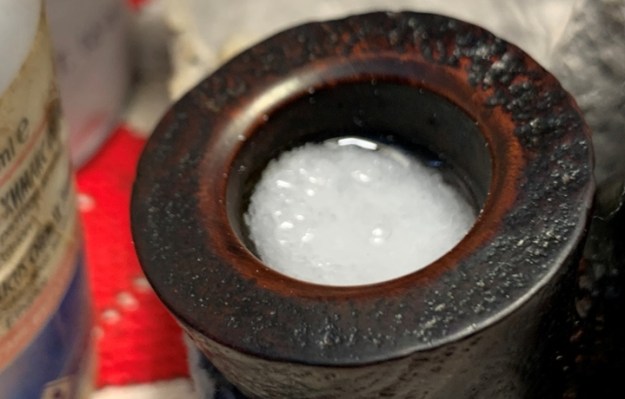

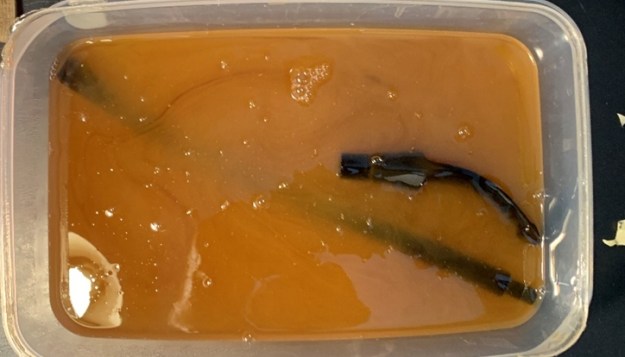

To begin the recommissioning of this Savinelli Dry System 3621, the military stem’s airway is cleaned using pipe cleaners and a cotton bud dipped in isopropyl 95%. As I said above, this P-Lip system is much friendlier than Peterson’s!  The cotton bud reaches up into the balsa wood filter cavity to clean.  The pipe cleaner works through the airway and P-Lip ‘smokehole’.To get a head start on the deep oxidation, a ‘Soft-Scrub’ like product available here in Bulgaria is used with 000 grade steel wool.  I’m hoping to break up the oxidation to enable the Before & After Deoxidizer to be more productive.Next, the Savinelli stem joins other stems in the Before & After Deoxidizer soak.  I leave it in the soak for several hours, but it seems that more hours does not translate into more effectiveness.After removing the stem from the Deoxidizer, the liquid is drained back into the vat and I help by squeegeeing with my fingers.  Pipe cleaners and cotton buds wetted with isopropyl 95% are used to clear the liquid from the airway and filter cavity. Cotton pads wetted with alcohol also wipe the surface to remove raised oxidation.To help with conditioning the vulcanite stem, paraffin oil is applied, and the stem is set aside to absorb the oil.Turning now to Dublin stummel, I first take a picture to show the starting point.  I remember my experience with the 3621’s brother – the conical chamber is angled severely toward the floor of the chamber. To avoid carving a reaming ‘shelf’ from using the regular reaming blade heads, I go directly to using the Savinelli Fitsall Tool which lives up to its billing.  My general rule of thumb in reaming to determine if you’ve removed all the carbon cake build up is, cake crunches as you’re using the tool, but wood surface is smooth.  After cleaning the carbon cake off the walls of the chamber, the chamber is sanded using 240 paper wrapped around a Sharpie Pen.After reaming is completed, an inspection of the chamber reveals healthy briar – no burning or heating problems.Next, using undiluted Murphy’s Oil Soap, a cotton pad goes to work on cleaning the blasted surface of the Savinelli Dublin stummel.  A bristled toothbrush assists in cleaning the blasted surface and the brass wired brush helps with lava flow on the blasted rim.Next, the stummel is transferred to the kitchen sink where internal cleaning is commenced using warm water with anti-oil dish liquid soap and shank brushes.  After scrubbing and rinsing thoroughly, the stummel comes back to the worktable.Next, internal cleaning is continued using pipe cleaners and buds wetted with isopropyl 95%.  The built-in moisture trap has done a good job of trapping the gunk in the trap.  It takes many buds and pipe cleaners wetted with isopropyl 95% to do the job.  Using a small dental spoon also helps by scraping the buildup on the internal walls allowing me to scoop out the old gunk left behind.  When the buds and pipe cleaners start emerging lighter, I call it a cease fire with the plan of continuing the cleaning at the end of my work day using a kosher salt and alcohol soak to further clean and refresh the internals for the new steward.Pausing now to examine the stummel after cleaning, I like the blasted finish.  The finish is thin, but a good foundation is present. On the rim, I’m interested to observe that the right side has more of a rough blasted surface, but the left side is smoother.  Looking at the picture above you can see the grain moving upwardly toward the rim.  What one would expect the rim to be showing as a result, would be the bird’s eye grain formations.  Hence, smoother roughness on the left side of the rim.  Also, on the rim, the Savinelli folks cut a ‘smart bevel’ on the internal rim edge.  My next step before sprucing up the stummel’s color is to refresh the bevel. To do this, I use a hard surface to back 240 sanding paper and recut the bevel. I follow the 240 paper with 600 grade paper.  The results are good!  This slight bevel which reveals some smoother briar will look great later in contrast to the rough, blasted rim surface. To refresh the stummel’s hue, I use Fiebing’s Dark Brown Leather Dye to provide an undercoat foundation.  The great thing about blasted surfaces, they are forgiving but later with some light sanding, the tips of the blasted briar landscape can give an attractive lighter contrasting that gives the surface depth and character.  I assemble the desktop staining module and after covering the nickel shank cap with masking tape, I heat the stummel with the hot air gun to help the briar surface to open and be more receptive to the dye. I then paint sections of the stummel with a folded pipe cleaner and flaming it as I go.  The lit candle ignites the alcohol in the aniline dye and after it combusts it leaves the pigment in the grain.I then put the newly stained stummel to the side for several hours allowing the new dye to set.With the stummel on the side, I turn to the military mount P-Lip Savinelli stem.  I take another closer look at the issues with the stem.  Both upper and lower bit have some tooth chatter, but it is minor.  It should sand out without difficulty. The bigger issue is the oxidation. The picture below tries to show the contrast between the inserted part of the stem that is black, without oxidation, and the rest of the exposed stem.  UV light is not good for vulcanite and the oxidation comes primarily because of this.To address the oxidation and the light tooth chatter, 240 grade paper is used to sand the upper- and lower-bit area.The sanding it expanded to address the oxidation throughout the stem.  To protect the Savinelli ‘S’ stem stamping, I cover it with masking tape.After the 240 grade paper, the entire stem is wet sanded with 600 grade paper and this is followed with 000 grade steel wool.Continuing with the stem, the full regimen of micromesh pads is applied.  Starting with pads 1500 to 2400, the stem is wet sanded.  Following this the stem is dry sanded with pads 3200 to 4000 and 6000 to 12000.  Obsidian Oil is applied between each set of 3 to condition the stem as well as protect it from oxidation. Turning now back to the stummel, the flamed dye has been resting for several hours and ready to be unwrapped.  To do this, a cotton cloth buffing wheel is mounted to the Dremel with the speed set at about 40% full power.  Tripoli compound is used to help clear the fire crusted dye revealing the blasted surface beneath.After using the cotton cloth buffing wheel, I transition to a felt buffing wheel again using Tripoli compound with the Dremel set to the slowest speed.  I lightly go over the rough blasted surface primarily to buff the peaks of the blasting with the coarser wheel to create flecking in the surface.  This gives the surface more contrast and depth.I then wipe the dyed surface with a cotton pad wetted with alcohol not so much to lighten the dye but to blend the hue and to dissolve any dye clumps that didn’t dissolve during the buffing process.I reattach the stem and mount another cotton cloth buffing wheel to the Dremel setting it at 40% full power.  I then apply Blue Diamond compound to the Savinelli blasted surface and to the stem.After completing the application of Blue Diamond compound, I look at the stummel more closely.  I’m getting the desired flecking affect in the blasted surface, but I’m not satisfied with the hue of the flecks.  The flecks appear more of a light brown rather than a darker, richer reddish bend. I decide to apply a dye wash of red aniline dye over the dark brown. After heating the stummel once again, I apply the red dye over the entire stummel surface with a folded pipe cleaner.  After applying the dye thoroughly, the stummel is set aside for a few hours for the overcoat red dye to set.After a few hours, I again use the Dremel and apply Blue Diamond compound with a cotton cloth buffing wheel.  I realize later that I didn’t picture this process.  I like the results of the overcoat red dye wash.  Next, to prevent the new dye coming off on the hands later when the pipe is put into surface, I warm the stummel with the hot air gun.  This emulates the heating up of the stummel when lit and this usually is when newly dyed briar leaches dye onto the hands. After heating the stummel, I give it a rigorous hand buffing using a cotton cloth to remove the raised dye. Before moving on to the waxing of the stem and stummel, I have a few mini projects to do.  The first is to clean and shine the nickel-plated shank cap.  I first use a tarnish remover which is applied to the nickel with a cotton pad. After the liquid is buffed on, I rinse the cap with tap water.  The tarnish remover does some good but leaves a lot to be desired.  The nickel cap is rough, and you can see some small patches of the nickel I referenced earlier have worn off.After the tarnish remover, I transition to using Blue Diamond compound on the nickel.  After mounting another cotton cloth buffing wheel onto the Dremel dedicated to nickel buffing and I methodically apply the compound to the metal working around the cap.  I like these results.  The nickel has cleaned and shined up very nicely.The second mini project is to color the Savinelli ‘S’ stamping on the stem.  Using white acrylic paint, I place a small amount of paint on the ‘S’ and then dob it dry with a cotton pad.Then I use the flat edge of a toothpick rubbing gently over the stamping removing the excess paint from the stem.  The ‘S’ is left with color and with definition.In the home stretch – another cotton cloth buffing wheel is mounted on the Dremel with the speed at 40% of full power.  Carnauba wax is then applied to both stem and stummel.  After a few coats of wax, the pipe is given and rigorous hand buffing to raise the shine and to disperse undissolved carnauba wax.Ugh – I thought I was finished but remembered that I was going to further clean and freshen the internals with a kosher salt and alcohol soak.  After twisting and stretching a cotton ball to form a wick, I use a wire to help guide the cotton wick down the airway into the mortise/trap and airway. The cotton wick serves to draw out the residual tars and oils during the soak process.  After inserting the wick, kosher salt is placed in the bowl.  Kosher salt has no aftertaste unlike iodized salt.  Using a large eye dropper, Isopropyl 95% fills the bowl until it surfaces over the salt.  After a few minutes, the alcohol is absorbed into the internal cavity and I top off the alcohol once again.  After several hours, the wick and salt do not appear to have been soiled at all.  I hope this means that the internals are clean.  After removing the expended salt from the bowl, paper towel is used to wipe the chamber and I blow through the mortise to make sure all the salt crystals have been removed.  I follow this by using one cotton bud and pipe cleaner to confirm that the internals are indeed clean.  I forgot to picture this!After reassembling the pipe and a quick hand buffing with a microfiber cloth, the recommissioning of this Savinelli Dry System 3621 is completed.  The tight Dublin bend presents a smart, compact look, with a genuinely nice flow from the bowl through the nickel shank cap that is carried through the military mount P-Lip stem.  The smooth briar contrasts are nice – the internal rim ring and the nomenclature panel.  Nathan commissioned this Savinelli Dry System 3621 and will have the first opportunity to acquire him in The Pipe Steward Store.  This pipe benefits the Daughters of Bulgaria – women and girls who have been trafficked and sexually exploited.  Thanks for joining me!

Cleaning up an Interesting Hardwood All Wood Cutty

Blog by Steve Laug

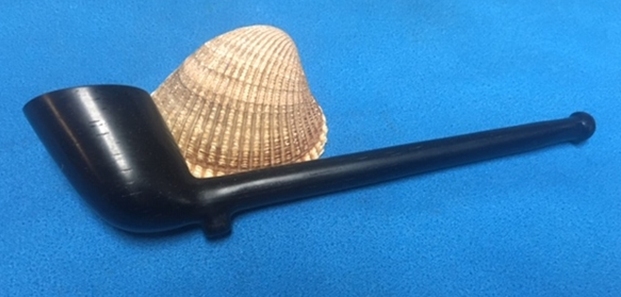

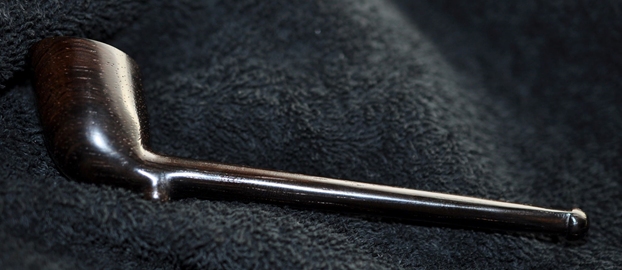

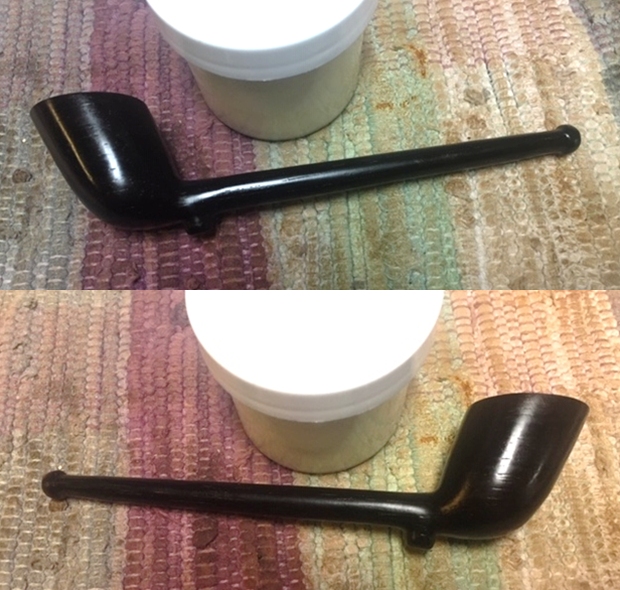

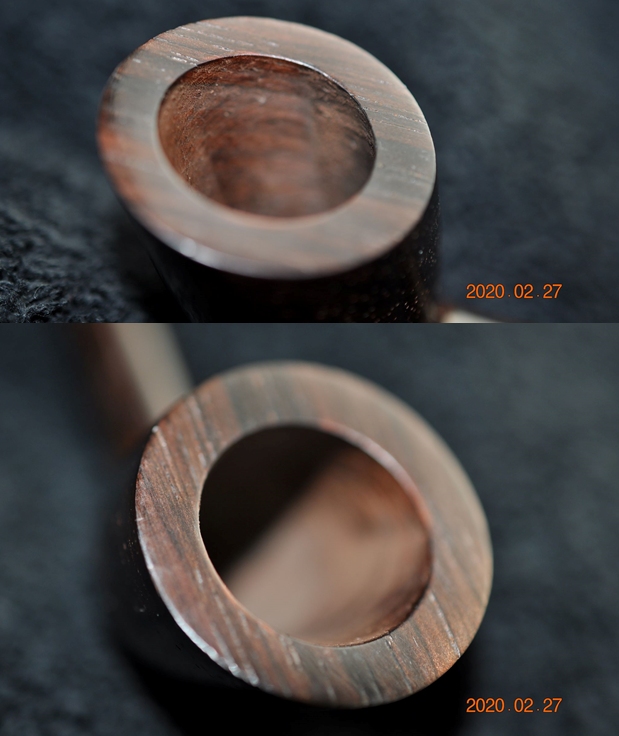

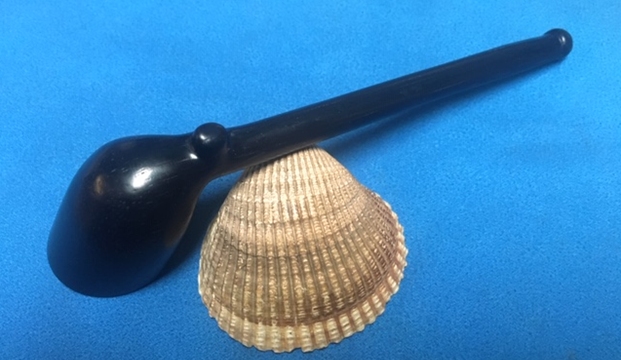

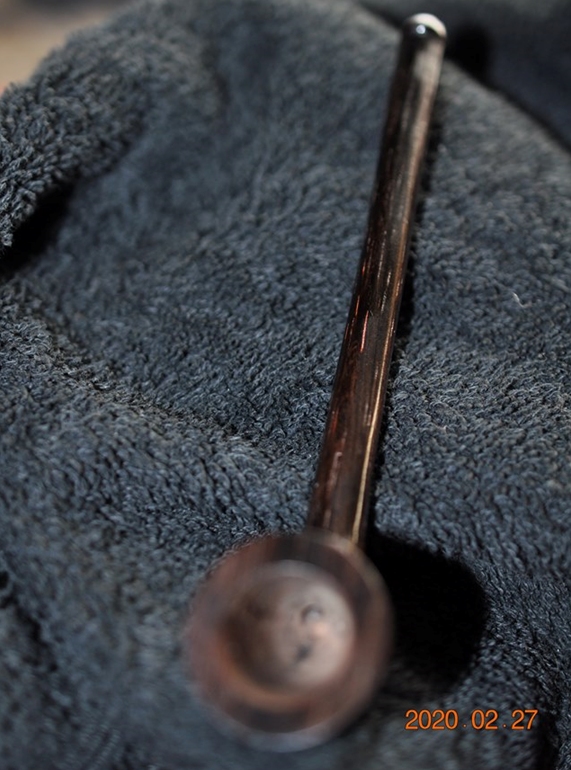

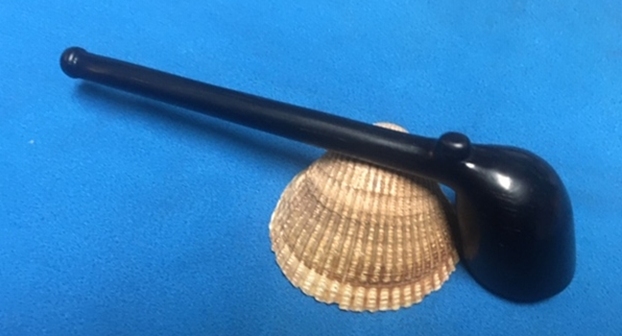

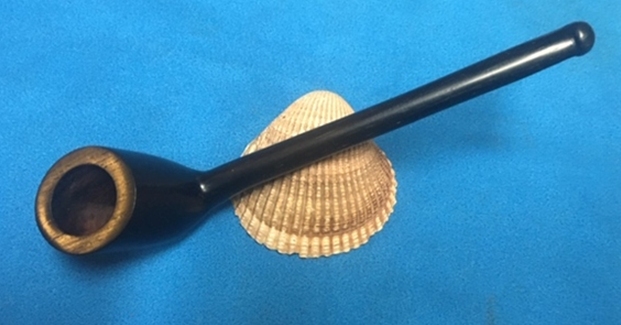

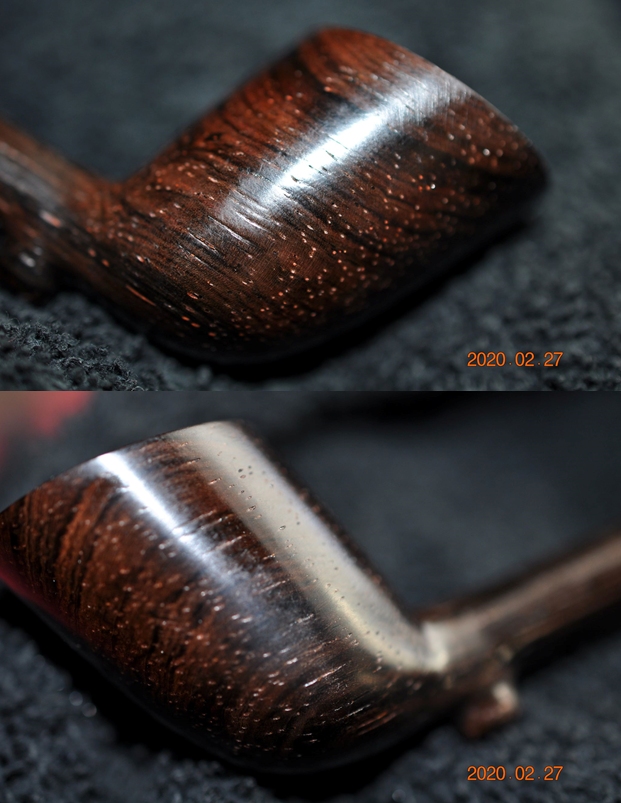

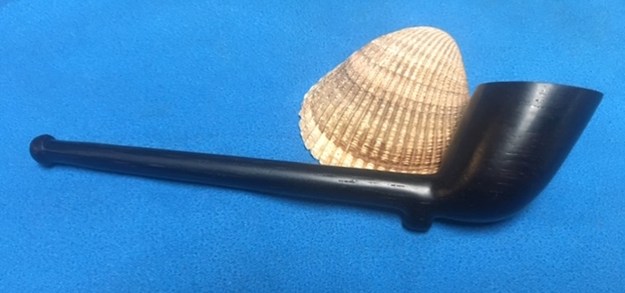

Jeff sent me this interesting looking hardwood all wood Cutty in one of the last boxes he shipped to me here in Canada. It was a dark tightly grained hardwood. My first thought was ebony but it was too light weight for that wood. The more Jeff talked about it the more I thought it was more likely to be black walnut that had been stained. You can look at the pictures below and see what you think. Keep in mind it is very lightweight wood. The pipe was unsmoked but dirty from sitting. There was dust in the bowl and shank. The wood was unblemished – no tooth marks on the stem portion of the pipe and no darkening from smoked tobacco in the chamber. The rim top was clean. The pipe was unstamped so there was no information on the maker but it was well made and very smoothly finished. Jeff took photos of the pipe before he did his clean up on it. The bowl was well drilled and smooth. The grain on the inside of the bowl also makes me think Black Walnut. The grain around the rim top is tight and beautiful. The airway enters the bowl slightly to the right side rather than dead centre at the bottom of the bowl.The grain around the bowl is a mix of cross grains. There is a bit of a sparkle to the exterior of the bowl that shows up in the pictures but was not visible once I had it in hand. The nub on the bottom of the bowl/shank junction is also well done.The long shank of the pipe was straight and carries on the grain pattern of the bowl. It is straight and well done unlike many homemade pipes that I have worked on. The mouthpiece portion of the shank was a round button with an orific opening in the end of the mouthpiece. The draught on the pipe is  wide open and smooth.Jeff had done a great job cleaning up the pipe as usual. He scrubbed the interior of the bowl and shank with pipe cleaners, cotton swabs and alcohol to remove the dust and debris. He scrubbed the exterior of the pipe with Murphy’s Oil Soap and a tooth brush to remove the dirt and dust from the finish. Because the pipe looked so good I decided to move on to rubbing the wood down with Before & After Restoration Balm. I worked it into the wood with my fingertips. The product works to clean, enliven and preserve the wood. I let it sit for 10 minutes and after the time passed I buffed it with a cotton cloth to deepen the shine. The wood really comes alive with the balm. This interesting hardwood Cutty that is a unified bowl, shank and stem is a quite unique and nice looking pipe. The dark stain on the wood highlights the grain patterns around the bowl sides, top and bottom. The finish on the pipe is in excellent condition and the contrasting stains work well. I buffed the pipe with Blue Diamond on the buffing wheel and gave it multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished small Cutty is quite nice and feels great in the hand. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ½ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 inch, Chamber diameter: 5/8 of an inch. Thanks for walking through the restoration with me as I worked over another beautiful pipe. This pipe will be added to the METAL PIPES FROM VARIOUS PIPE MAKERS & OTHER PIPES section of the rebornpipes store soon. If you want to add it to your collection send me an email or a message! Thanks for your time.
