Comoy’s 409 Tradition Restored

By Al Jones

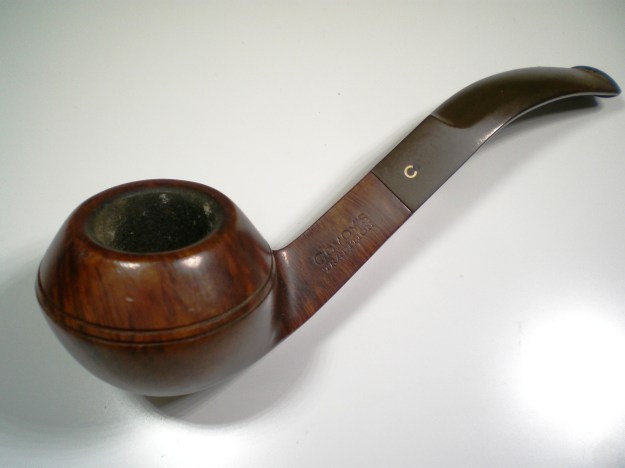

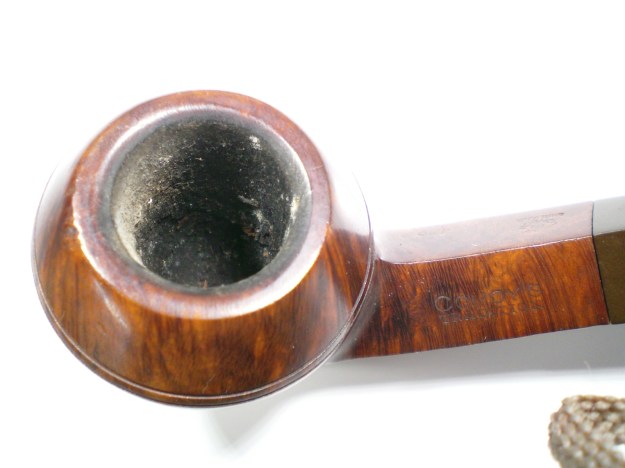

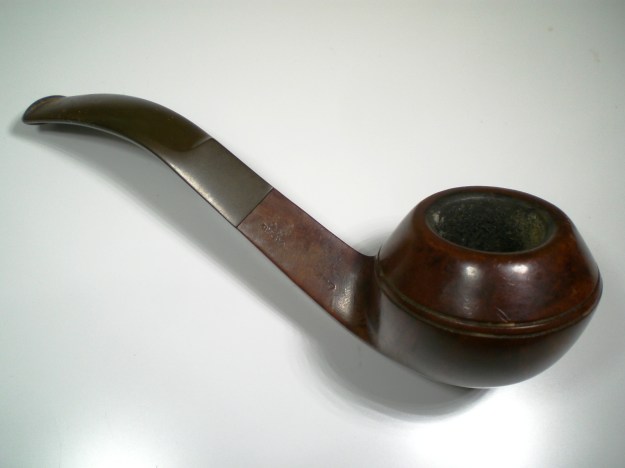

Here’s another pre-Cadogan (or merger if you prefer) Comoy’s. The 409 shape is Comoy’s traditional bent bulldog, so it is surprising that I didn’t have one in my collection. This one arrived in favorable condition and looked like a simple clean up. The stem was oxidized and some light teeth marks, but no dents. The bowl had a few dings that would have to be steamed out.

I used a solution of Oxy-Clean on a cloth to remove the build-up on the bowl top. After reaming, the bowl was then soaked with alcohol and sea salt. The stem was also soaked in this solution overnight, with a dab of grease on the C-logo. The interior of the bowl was in great shape. There were a few dents on the bowl top, but they steamed out nicely with an iron set on “high” and a wet cloth folded double.

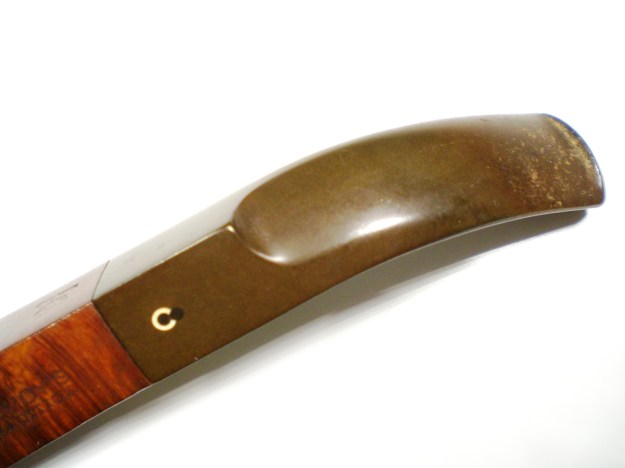

I used 800, 1000 and 2000 grit paper to remove the oxidation from the stem. I wrap it around a popsicle stick to keep the edges sharp. I then used 8000 grit micromesh, followed by buffing with White Diamond and Meguiars Plastic polish.

The bowl was polished with White Diamond and then several coats of Carnuba wax.

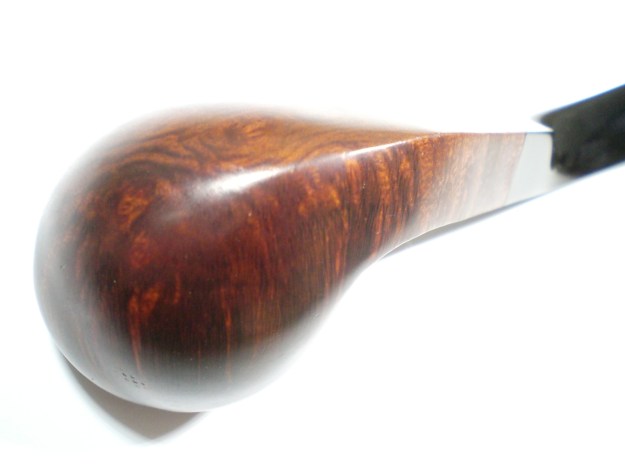

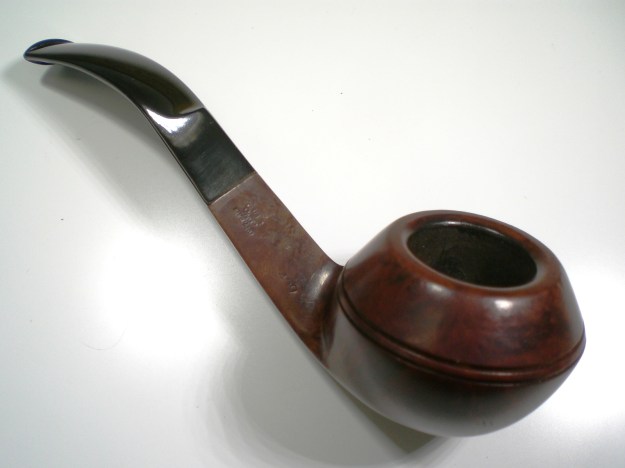

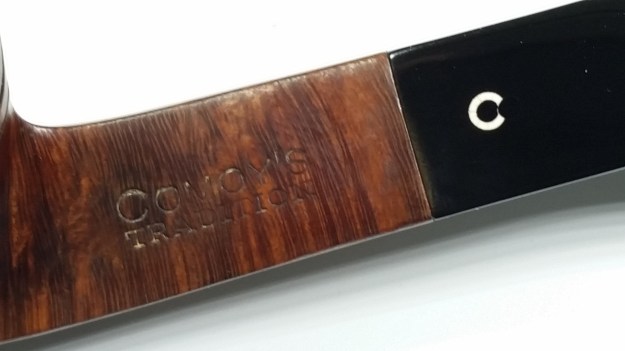

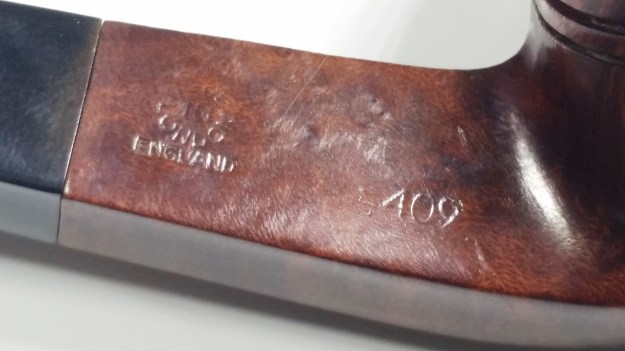

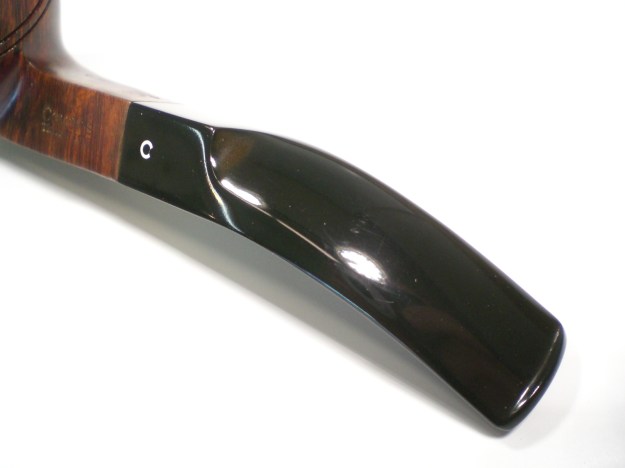

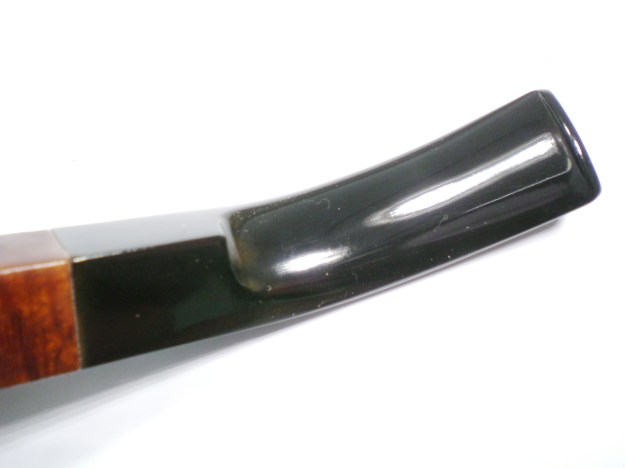

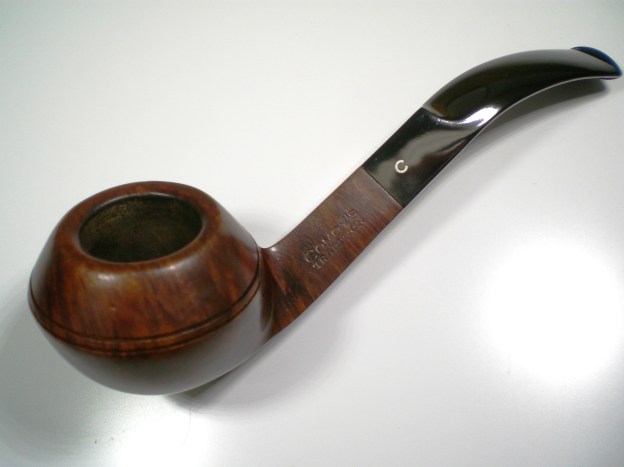

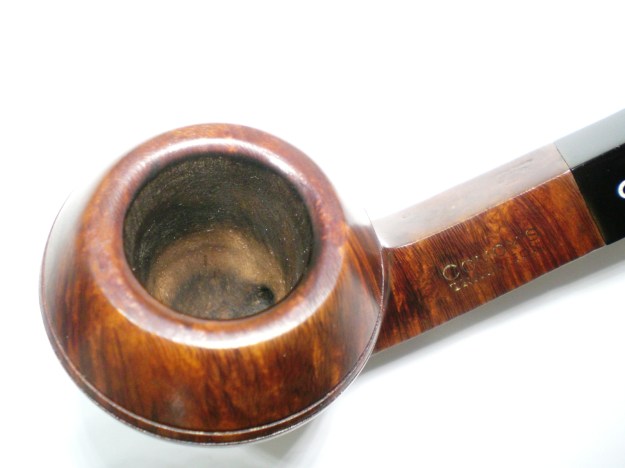

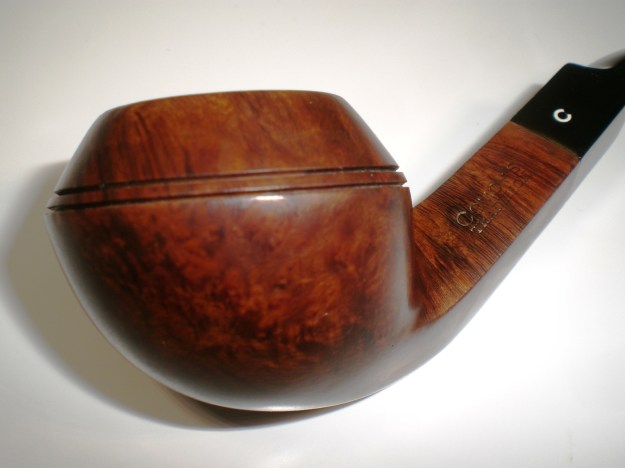

Below is the finished pipe.

Comoy’s Golden Grain 215 Restoration

2 Replies

By Al Jones

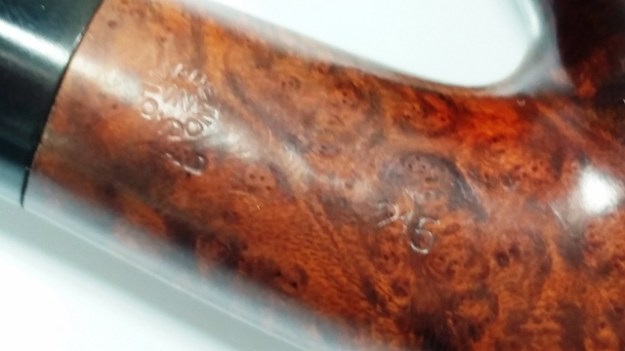

Despite the heavy build-up of tars on the bowl top, this Comoy’s Golden Grain shape 215 looked like a good candidate for restoration. The stem was in good shape, but heavily oxidized. The 3 piece “C” stem logo was also in excellent shape.

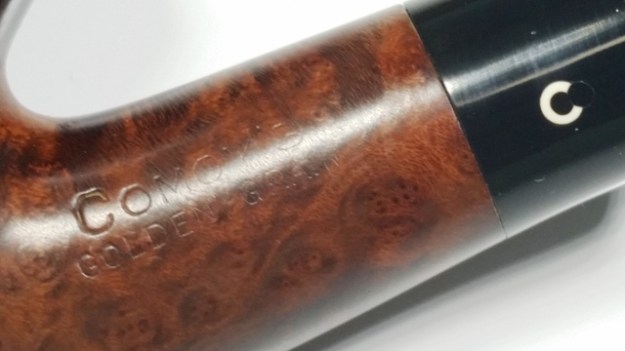

In searching for information about the Golden Grain finish, I found this in an old eBay ad posted by Tony Soderman (aka Mr. Can). This was the first Golden Grain to cross my work bench.

Exactly when the “GOLDEN GRAIN” was first introduced is not clear, but it became one of COMOY’s most popular lines. By 1977 it was the Company’s third highest grade beneath the “Designer” and “London Pride” and ranked ahead of other favorites including the “Royal Comoy,” “Guildhall,” “Everyman” and so on! The GOLDEN GRAIN was offered as a “new look” with what COMOY called an “antique patina” and later called a “golden hue.” It was advertised as “finished in golden hues to highlight the gorgeous grains in the ‘Classical’ Comoy’s of London tradition.” As you can see, there is some truth to their claim that the GOLDEN GRAIN’s “warm seductive beauty will win your heart.” The GOLDEN GRAIN was dropped from the COMOY line in 1980

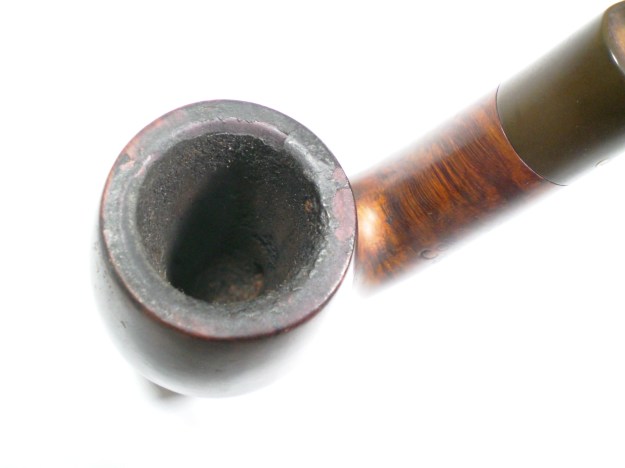

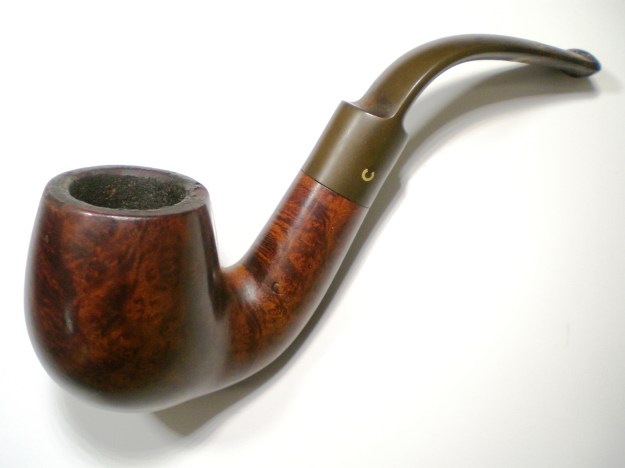

Below are pictures of the pipe as it was received.

I used a mild solution of Oxy-clean and a towel to rub off the build-up on the bowl top. A lovely, beveled edge was hiding underneath the grim. I then reamed the bowl and soaked it with sea-salt and alcohol. While the bowl was soaking, I put a dab of grease on the “C” stem log and soaked it in Oxy-clean to loosen the oxidation.

Following the soak, I cleaned the shank of the bowl with several brushes and alcohol. The bowl interior was in very good condition.

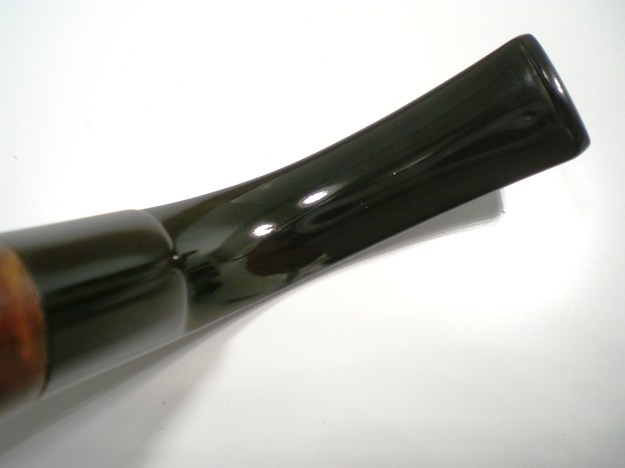

There was one tooth mark on the bottom of the stem. I was able to lift it slightly using flame from a lighter. I mounted the stem and removed the oxidation first with 800 grit paper, followed by 1000, 1500 and 2000 grades. Next up was 8000 grade micromesh. The stem was then buffed with White Diamond and Meguiars Plastic polish.

The bowl was buffed with White Diamond and several coats of Carnuba wax.

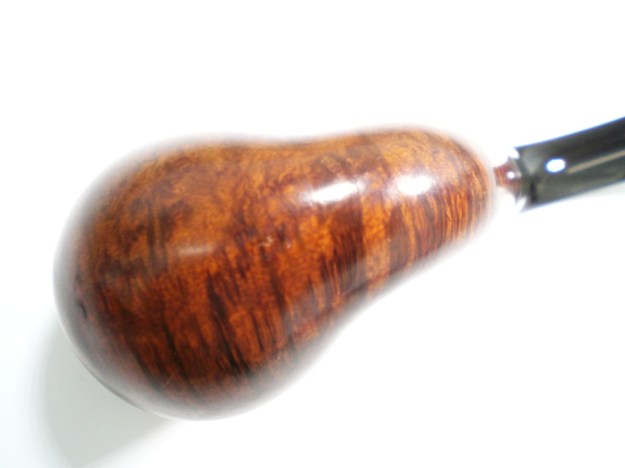

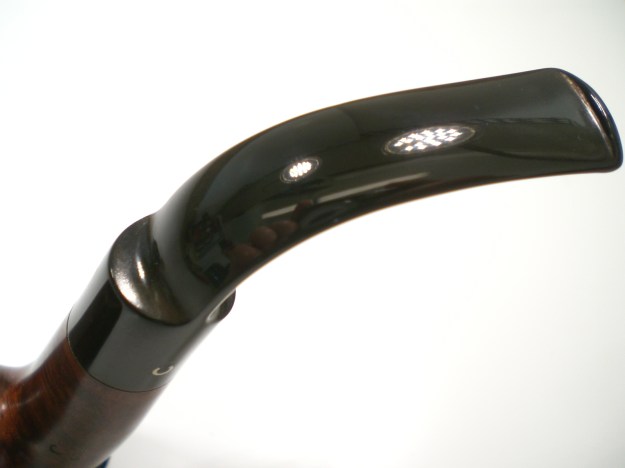

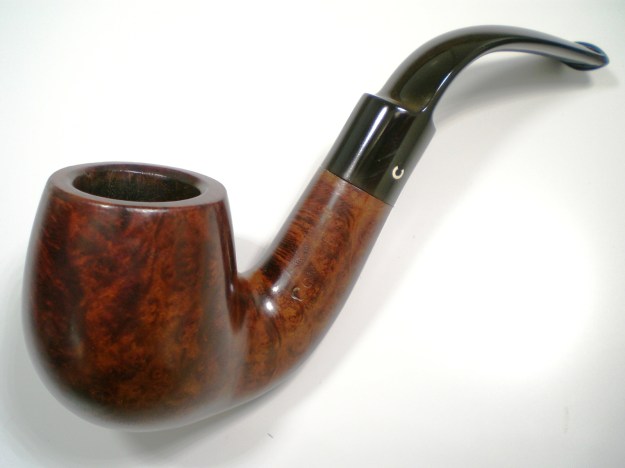

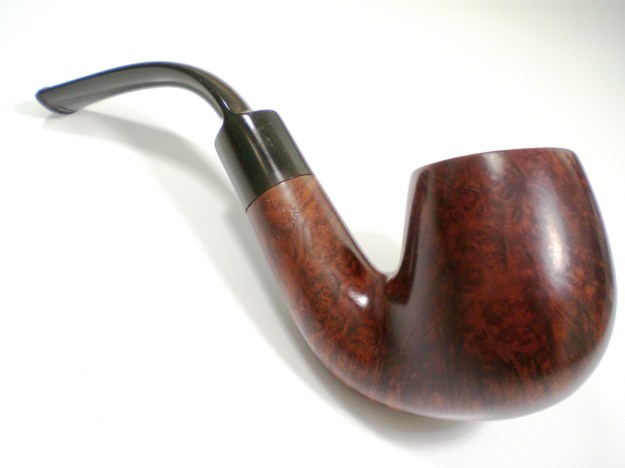

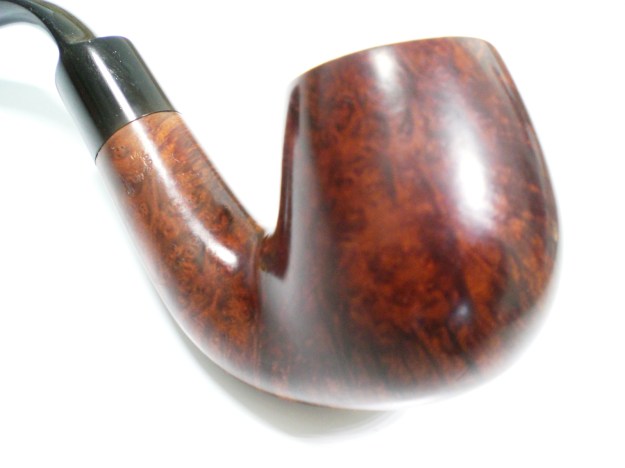

Below is the finished pipe. My photography skills don’t do justice to the bowl finish and stem, they both look beautiful.

Another nice find at the ‘Hole in the Wall’ – Jeantet Fleuron 70-7

15 Replies

Blog by Dal Stanton

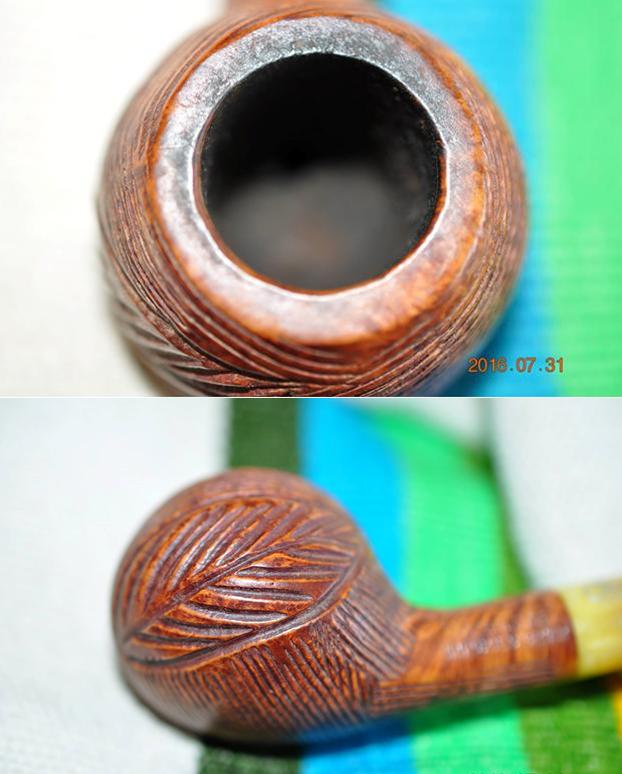

The Jeantet Fleuron before me was mentioned when I posted the restoration of a beautiful BBB Banker Bent Volcano. I found both pipes last April, during a visit to ‘The Hole in the Wall’ antique store near the Zhenski Pazar (Women’s Market) in downtown Sofia, Bulgaria. In order to achieve a better bargain for the BBB Banker I grabbed the Jeantet out of the basket as a good candidate for a bundled deal, which helped me negotiate 30 Bulgarian Leva for the pair – not a bad deal! When I arrived home from the Hole in the Wall I took these pictures: The bent egg shape is in pretty good condition with an attractive elongated bowl that fits well in the hand. The left side of the shank is marked with Jeantet (pronounced, ‘Zhawn-Te’) over Fleuron and on the right what I assume is the shape number 70-7. The stem has the nice Jeantet J stamp. Looking at Pipedia to do a little research on this name led me to Sainte Claude, France, considered to be the birthplace of the serious production of briar pipes and scores of French made pipe names claim Saint Claude as home. My curiosity piqued, I wanted to know why St. Claude, France? Was the briar in good supply there? I looked to the history of the city itself to see what I could find. I unearthed an archived New York Times article written March 20, 1983, in the ‘Shoppers World’ travel section entitled, THE PIPE CAPITAL OF FRANCE – very interesting and worth reading. I found the answer to the question, ‘Why Saint Claude and pipes?’ with this article I found posted on Fumerchic.com with these informative excerpts:

In the 15th Century, Saint-Claude was canonised by Pope Louis XI, the city took on the name Saint-Claude alone and remained a favoured site for pilgrims.

Since Saint-Claude was one of the stops on the Way of Saint James, the monks, who had been turning wood since the 7th century, began crafting wooden religious objects like crucifixes and rosaries. These monks slowly began training craftsmen, which lead to the establishment of the first wood turning workshop in Saint-Claude.

The craftsmen developed the manufacture of wooden items and widened the scope of their operation by making toys (spinning tops, whistles and rattles), so children and pilgrims could play during their pilgrimages. The number of turning workshops then grew. The main materials they used were wood, bone and ivory.

But with the introduction of tobacco to France, of smoking tobacco in particular, the wood turning workshops adapted by making snuff boxes and pipes made from local boxwood. The pipe craftsmen of Saint-Claude gradually forged themselves a reputation for an unparalleled level of manual skill and expertise.

So, it wasn’t the plentiful supply of briar that put Sainte Claude on the pipe-makers’ map but industrious wood-turning monks who passed their wood working skills on to local craftsman. The story went on with the discovery of a non-burning pipe made from our beloved briar:

During the 19th Century, pipes from Saint-Claude underwent a profound change. Boxwood had been the wood used to make the pipes until then, but it produced a bitter taste when smoked. Around 1855, a businessman passing through Saint-Claude presented a Saint-Claude wood turner with a pipe, the bowl of which did not burn, carved from a heavy wood in dark shades. It was the first pipe made from briar. The arborescent briar pipe is highly resistant to heat and fire, giving the smoker the greatest possible pleasure from the plumes of tobacco smoke. The craftsmen of Saint-Claude therefore began using briar instead of boxwood, ensuring the Saint-Claude pipe caused excitement in the pipe smoking community. The number of workshops grew, with names like Chacom and Butz-Choquin appearing for the first time, while the craftsmen began producing more and more high-quality pipes thanks to their expertise that became globally renowned among pipe smokers.

Considered to be the capital of briar wood pipes, Eole, Chacom, Bayard,Butz-Choquin, Denicotea, Jeantet and Ropp are well-known names all originally claimed by Saint Claude, France. The works of Saint Claude’s craftsmen are also present, for example, in the unique handmade pipes created by Pierre Morel (link).

One more factoid about Saint Claude’s history caught my attention. In 1966, Saint Claude established the Confrérie des Maîtres-Pipiers de Saint-Claude (The Brotherhood of Master Pipe-Makers in Saint-Claude) to promote the expertise of the many masters that have historically resided and worked in Saint Claude. Famous personalities are inducted as the “Premier Pipe-Smoker of the Year’ to serve as ambassadors for the pipe industry in Saint Claude. For every personality chosen, Paul Lanier (awarded the prestigious meilleur ouvrier de France title in 1991), crafts a pipe that includes a portrait of the inductee, thus perpetuating the tradition of the sculpted briar pipe. I think this is a very cool tradition and found it very interesting that the first likeness below strongly resembles the master pipe restorer who oversees Rebornpipes.com!According to Pipedia, the Jeantet name came on to the scene in 1775. The 1800s saw great expansion of production of Jeantet pipes primarily through the development of local cottage industry – farming out different aspects of the pipe production to small shops in Saint Claude. Consolidated production grew in the 1900s but in the 1960s sales dwindled in spite of attempts to modernize. This final part of my research comes from Pipehill:

1988
The company was taken over by S.A. Cuty Fort Entreprises⁽¹⁾ while keeping its label. It established in the group beside Chapuis-Comoy (Chacom), Jean Lacroix and Emile Vuillard. Today (2010) the brand isn’t part of the group any more. The label owned by Dominique Jeantet still exists but pipe production is discontinued.When I take this product of Sainte Claude, France, the Jeantet Fleuron, out of the ‘Rescue Me’ basket, I take a closer and more appreciative look at the pipe. First impressions mark the nice shape of the stummel – I like the tapered egg shape that culminates in a tightly circled rim beveled on the inner chamber side. The bowl shows minor cake and appears to have been cleaned before but I will bring it down to the briar and clean it well. The stummel surface has minor dents and ‘blemishes’ on the finish. A significant ‘scab’ is evident where the shank and bowl converge on the topside. It doesn’t appear to be a burn through but this will need attention after cleaning the exterior surface. The rim has minor dent marks on the blade edge of the beveled rim. When I take off the stem, I notice that in the mortise is a metal cylinder – some sort of a metal airway or a stinger that got loose? With a few thumps on my palm, the rogue stinger shakes loose (pictured below). After attempting to insert it into the end of the tenon, I have questions as to whether this stinger is original – the fit is very loose which explains why it slipped down into the stummel airway. I decide the stinger is history and it goes in the spare parts bucket. Minor teeth dents are on the underside of the bit. I take some close up shots for a better look at problem areas. I begin by putting the stem in an OxiClean bath to soak in order to raise the oxidation out of the vulcanite. Then I take my Pipnet Reaming Kit and work on the light cake build up in the bowl. I use the two smaller blades of the four blades available to me to ream the bowl. After this I use 240 grit sanding paper to further clean and smooth the chamber wall. I like working on a clean pipe so I take pipe cleaners and Q-tips dipped in isopropyl 95% and work the mortise and stummel airway. The internals were surprisingly clean so it didn’t take long.

Now to the external surface. I use undiluted Murphy Oil Soap on the stummel with cotton pads to remove the grime and hopefully to eradicate some of the blemishes I detect on the surface. After cleaning with Murphy Soap I rinse the stummel with cool tap water avoiding water entering the fire chamber or mortise. The ‘scab’ at the upper junction of the shank and bowl is starting to look like a botched superglue repair job. I’ll need to give some thought as to how to address this eyesore on an otherwise attractive piece of briar – I’m starting to see the briar’s potential. The pictures show the progress. I put the stummel aside and turn to the clean-up of the stem. I fish the stem out of the Oxyclean bath. It did the job of ‘surfacing’ the dull greenish oxidation and I initially attack it with 000 steel wool. I then clean the internal airway with bristled and smooth pipe cleaners dipped in isopropyl 95%. The stem put up more resistance than the stummel. After several pipe cleaners I’m satisfied that the airway is ready for service. Next, the ‘scab’ on the bowl surface. I take 240 grit sanding paper rolled as close to a blade as I could make it and sanded the gummed up super glue patch – at least I believe that is what it is – at the junction between the upper shank and bowl. I sand the super glue or epoxy down to the surface. When I remove the buildup bump it appears to be a patch – I don’t believe it’s a burn through, but it’s definitely a fill. It appears to be solid so I leave it as is and hope to blend it when I finish the stummel. Next I prepare a batch of briar dust super glue putty to fill in two holes just below the rim at about 1 o’clock (picture below). I use a toothpick as a trowel to pack the holes well and to leave an overflow so that it will sand out smoothly with the surface. The final repair is to apply black super glue to two small tooth dents on the underside of the bit. When cured, it will sand smooth and polish well. The pictures show the progress of the patch work. After the KE-150 Black super glue patch on the underside of the bit cures, I take 240 grit sanding paper to smooth out the patch bumps bringing them down to the stem surface level. I do the same to remove light tooth chatter on the upper side. To redefine the button, I use the needle file to shape the contours of the button lip top and bottom. I again use 240 grit to remove the file marks and remove light tooth chatter. With micromesh pads grit from 1500 to 2400 I wet sand the stem and apply Obsidian Oil. Unfortunately, after admiring the shine beginning to move to the surface, I also saw some small ‘patches’ of oxidation remained visible – a bit near the button and on both upper and lower parts of the saddle stem that tapers from shank level down to button level. If this part of the saddle stem has a special name, I’m not sure what it is! I was frustrated and therefore forgot to picture this! I put the stem back in the Oxyclean bath for another baptism. The pictures below represent the micromesh process after the second bath, which raised the residue oxidation to the surface and I remove it beginning with the 1500 grit micromesh pad. Following the 1500 to 2400 micromesh wet sand cycle (again!) I apply Obsidian Oil. With pads from 3200 to 4000 grit I dry sand and follow again with applying Obsidian Oil to the stem. I complete the micromesh polishing with pads 6000 to 12000, apply Obsidian Oil and put the stem aside to dry. I’m pleased with the results even though I had a detour. The pictures show the progress on the stem repairs and polishing. With the stem ready for a stummel, I start working on completing the Jeantet’s re-commissioning by using 240 grit sanding paper to remove the cured briar dust super glue putty patch on the holes just below the rim. I’m careful to sand strategically by folding the paper and using it like a blade directly on the patch so I don’t unintentionally sand into the rim’s sharp beveled top edge – that would not be good to deface the rim! I take a before and after picture to show the progress. The rim already has a very nice bevel, but to remove the dents and pitting on the rim I use 240 grit paper folded and work on the rim. I pinch the paper with my thumb on the beveled contour as I rotate the stummel. I find that this method allows for an even movement and a consistent bevel angle to develop. With the bevel already in place, I simply go with the contour that is already present but remove the damage producing a fresh beveled surface. Well, all work on the Jeantet came to a halt for about 3 weeks as my wife and I enjoyed our annual R&R on the Black Sea coast near the fishing town of Sozopol. Reading books and enjoying the beach is one of our favorite things to do to relax and decompress from the work we do in Bulgaria. A special joy to us during these weeks was the visit of our daughter and her husband from Denver, Colorado. They joined us at the Black Sea for our last few days on the beach and from there we took them to see different sights in Bulgaria as well as spending the last week of their visit on the beautiful Greek island of Santorini! Another great part about their visit was that they brought supplies and pipes I had ordered and purchased from eBay. They also brought another prize – the Savinelli pipe knife to add to my tool box that I won in a fierce bid on eBay! During this time of R&R I also visited several antique shops in different Bulgarian towns and secured some future restorations – it was a good time but now, back to life and the Jeantet Fleuron!

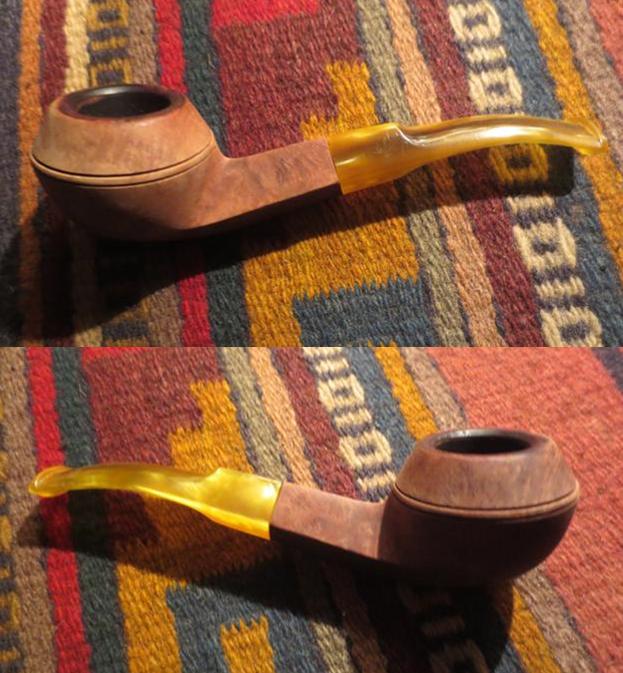

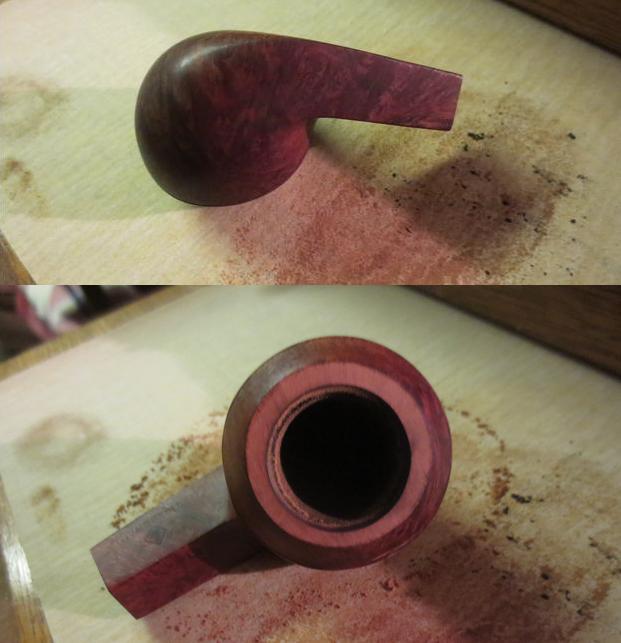

With stem reattached to the stummel I use a medium grade sanding sponge on the bowl. Following this, I utilized all 9 micro-mesh sanding pads, 1500 to 12000 to sand/polish the bowl preparing it for staining. I’m liking the briar grains beginning to make an appearance on the Jeantet. The pictures show the progress on the stummel surface. I’m anxious to try out one of the supply items that my daughter and son in law brought from the US – Fiebing’s Leather Dye. They brought dark brown and oxblood colors and I decide to try the dark brown on the Jeantet. One of the challenges that I have finding supplies in Bulgaria is not having good selection of aniline (alcohol based) dyes or stains that would readily ‘flame’ helping to set the stain in the wood. I remove the stem and give the bowl a cleaning with alcohol with a cotton pad to make sure it is clean from the residue left over from sanding. I set the bowl up on the cork and candle stand, inverted to apply the dark brown dye that I have chosen. Using a cotton dauber, also a new arrival from the US, I apply the dye liberally over the inverted bottom of the bowl allowing the dye to saturate the briar surface. I’m able to rotate the bowl with the cork in hand to make sure dye reaches the rim beveled surface on the bottom. When the surface is covered I flame it with a butane lighter which evaporates the alcohol from the dye and sets the color more deeply in the grain. After it cools to the touch, I repeat the process above a second time, applying dye and flaming. The pictures below show the progress but also the fact that I need to figure out a better way of pouring the dye into the lid so I’m not wasting so much on my work board missing the briar! After cooled, I use cotton pads with isopropyl 95% and wipe down the newly stained bowl to lighten it and even out the dye application. This allows the grain to jump out more it seems to me. I let the bowl sit overnight to thoroughly dry and set the newly stained surface. I turn to my Dremel using a felt wheel with Tripoli compound on the bowl surface and stem to begin the polishing process. I utilize the slowest RPM speed and keep the wheel moving over the briar surface – not pressing too much allowing the wheel and compound to do the work. I follow the Tripoli with Blue Diamond – also with its own dedicated felt wheel (each compound has dedicated wheels) and again, allow the RPMs, wheel and compound to do the work, keeping the movement of the wheel moving on the stummel surface. For the carnauba wax application, I switch from a felt wheel to a cotton cloth wheel and also increase the RPM speed on the Dremel by one number. I have discovered that the carnauba needs a bit more ‘heat’ to spread evenly over the surface. I apply several coats of carnauba wax over the bowl surface and stem. I love to watch how the briar grain increasingly pops with each step of the polishing process. The beauty of the grain on the Jeantet Fleuron is living up to its name – Fleuron. Since I didn’t study French in school, Google translate provided the English meaning of Fleuron – ‘finial’, which is, according to Dictionary.com, “a relatively small, ornamental, terminal feature at the top of a gable, pinnacle, etc.” Or, simply, a nice finishing touch! I complete the Jeantet Fleuron with a clean cotton cloth wheel buff with the Dremel and then a rigorous buffing by hand with a microfiber cloth to bring out the grain even more and deepen the shine.

Since my wife has lovingly started to put her foot down regarding my growing collection of pipes (I’m sure some of you have faced this as well!) this Jeantet Fleuron 70-7 will make a debut on eBay Europe and US to find a good home! I am considering how to sell more restored pipes and giving the profits to help further the work we do here, with the Daughters of Bulgaria – Bulgarian women who are sexually exploited and trafficked. If you’re interested in adding the Jeantet to your collection, leave a comment below. Thanks for joining me!

GBD 9456 New Standard Restoration

4 Replies

By Al Jones

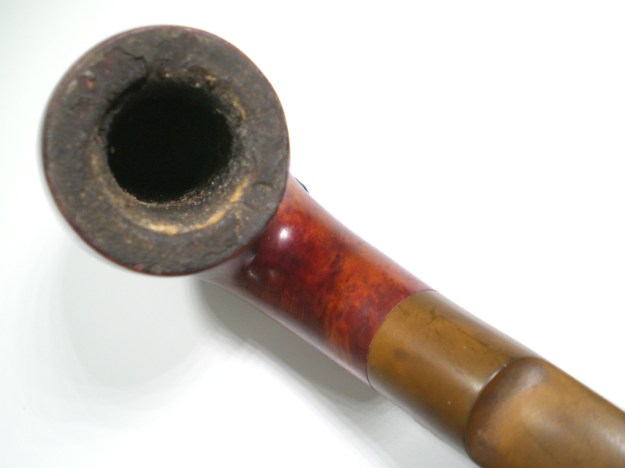

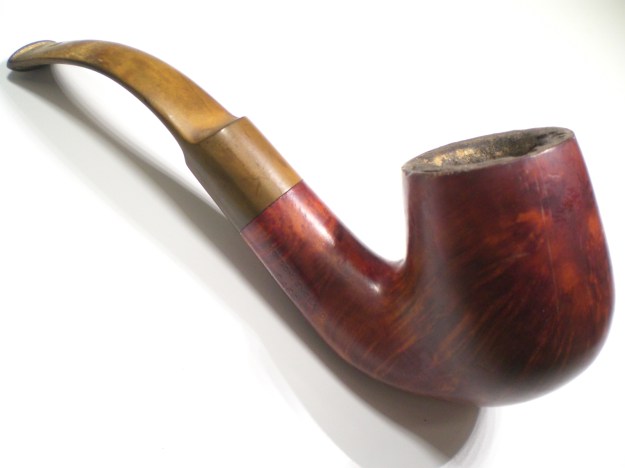

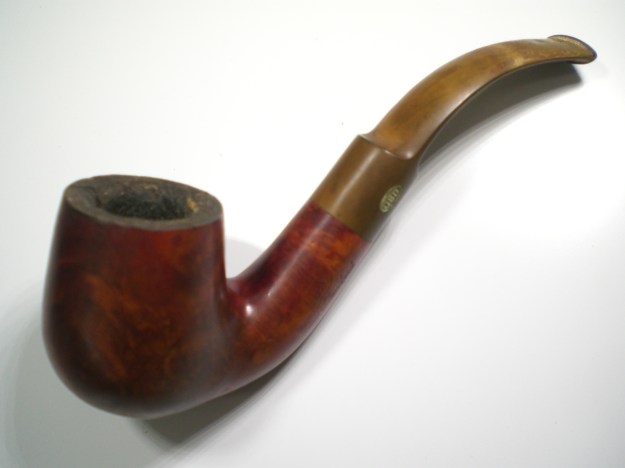

I found this shape 9456 on eBay and it looked to be a good candidate for restoration. While there was heavy build-up on the bowl top, I’ve found that these pipes are quite durable and clean up nicely. Besides the coated bowl top, the stem had the typical layer of oxidation and a few teeth indentions.

I removed the bowl top build-up with a cloth and a mild solution of Oxy-Clean (be careful to not get the Oxy-Clean on other parts of the bowl, it will lighten the stain). I used some 2000 grit wet paper to lessen the darkened area of the rim.

The bowl was then reamed and soaked with sea salt and alcohol. While the bowl was soaking, the stem was soaked in the mild solution of Oxy-Clean.

After the bowl soak was complete, I used an iron on high and wet cloth to steam out some of the handling marks around the bowl. The bowl was then polished with White Diamond and several coats of Carnuba wax.

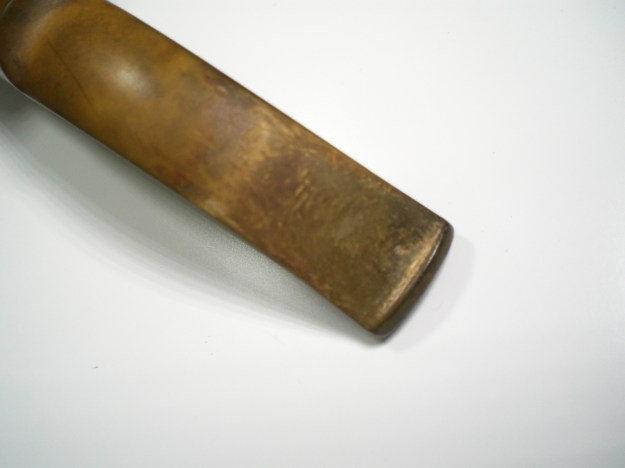

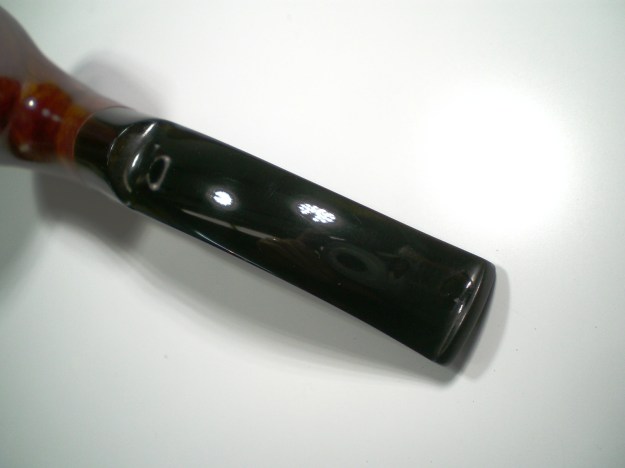

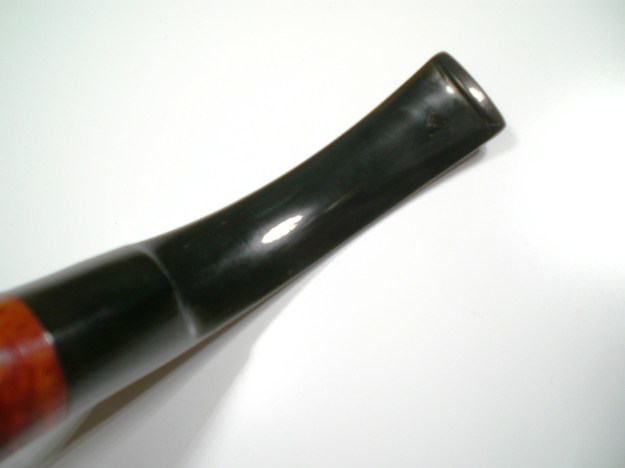

Following the Oxy-clean soak, I removed the oxidation on the stem with 800 grit wet paper. I filled some small teeth indentions on both sides of the stem with the black superglue product and accelerator. Those were sanded flush with 800 grit paper and then 1500 grade. Next up was 1500 and 2000 grade wet paper on the rest of the stem, followed by 8,000 and 12,000 grade micromesh sheets. The stem was then polished with White Diamond and Meguiars Plastic polish.

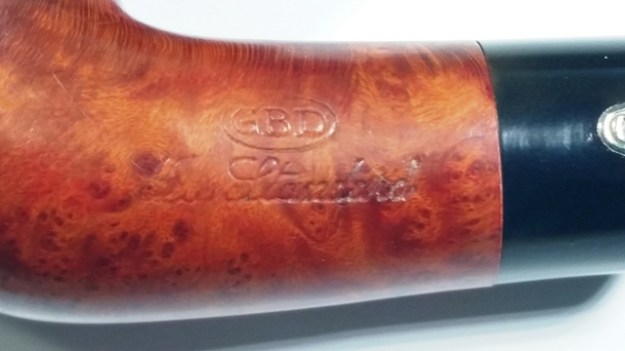

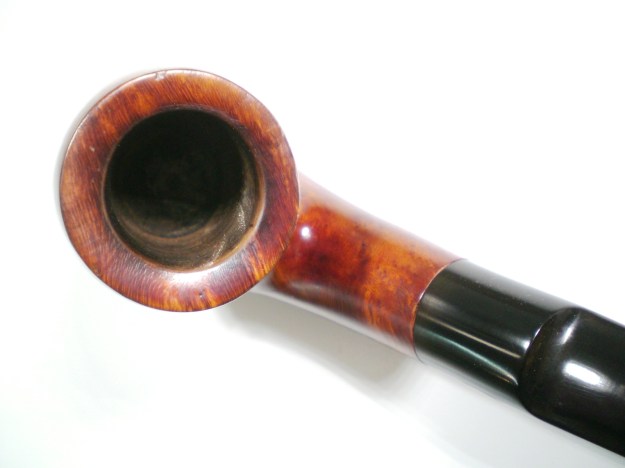

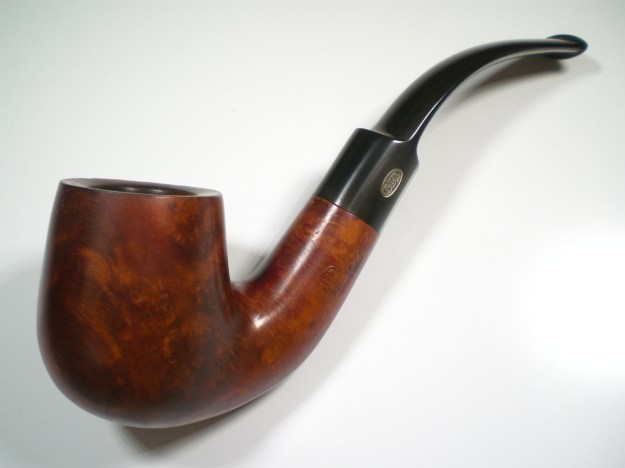

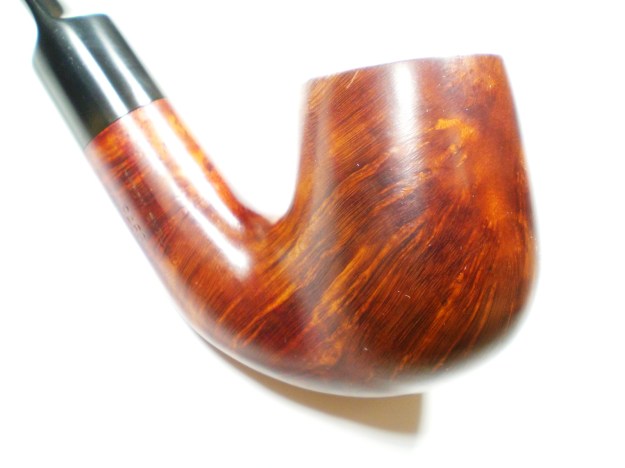

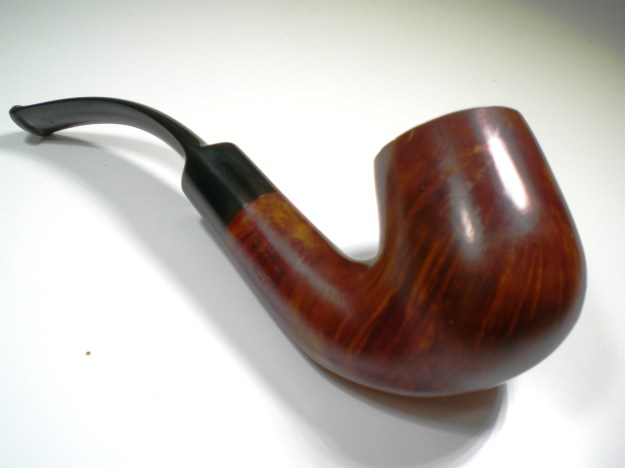

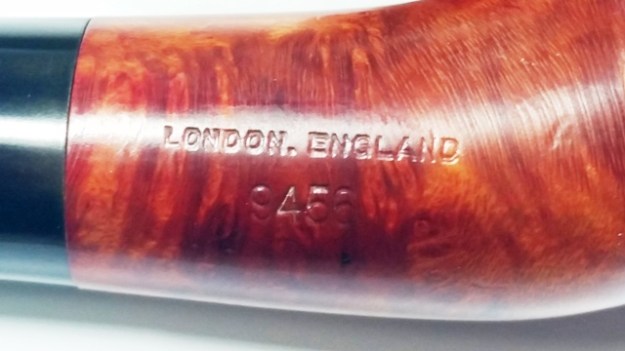

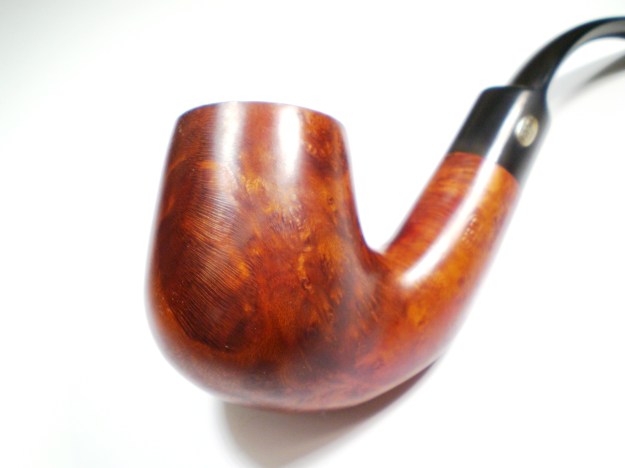

Below is the finished pipe. It has a better grain pattern than I typically see on a New Standard. It is now being enjoyed by fellow pipe restorer, Charles Lemon and I was honored that he chose to purchase one of my pipes.

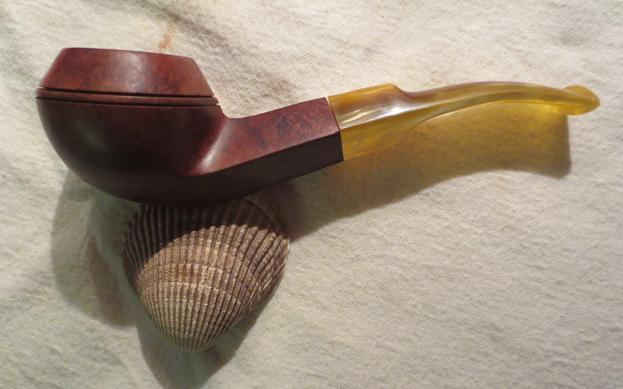

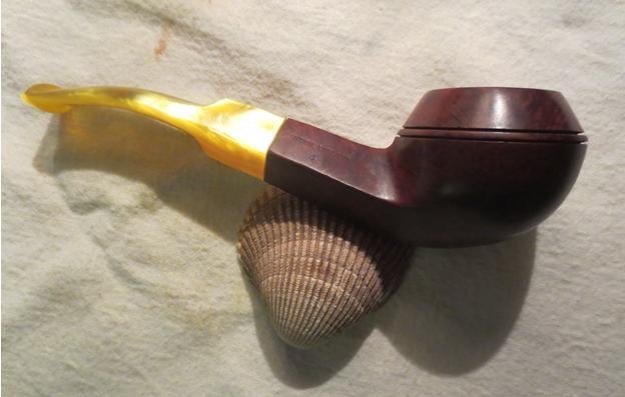

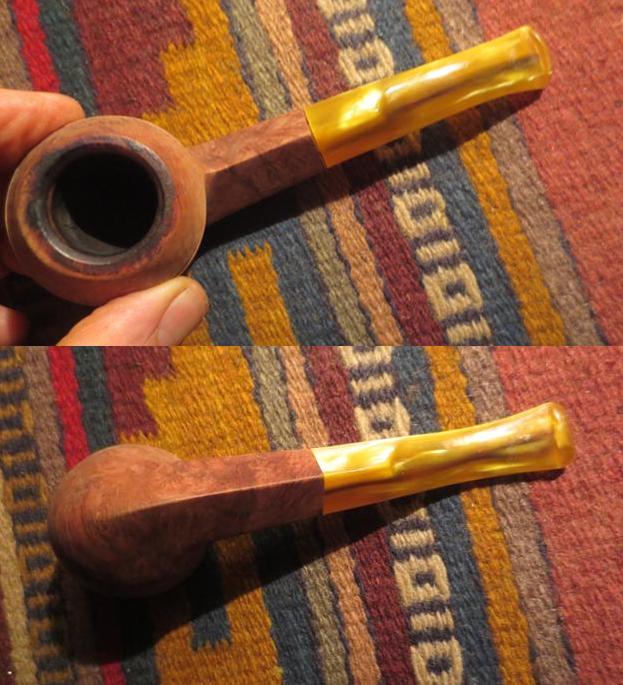

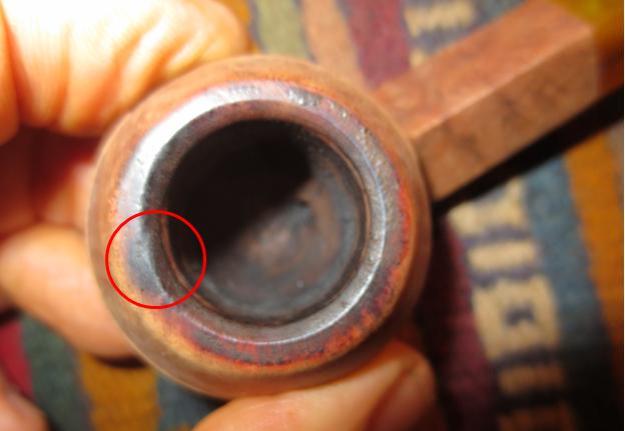

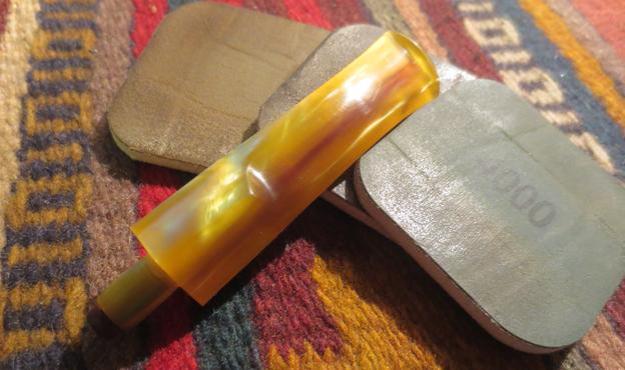

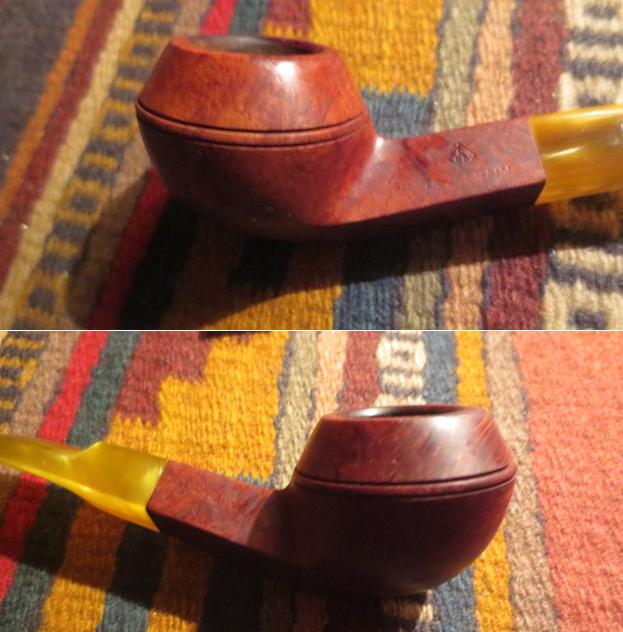

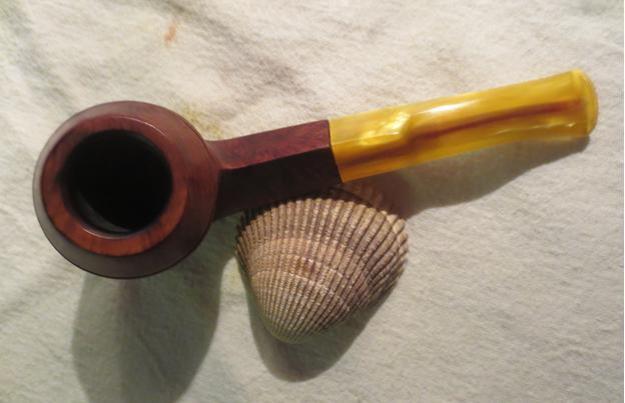

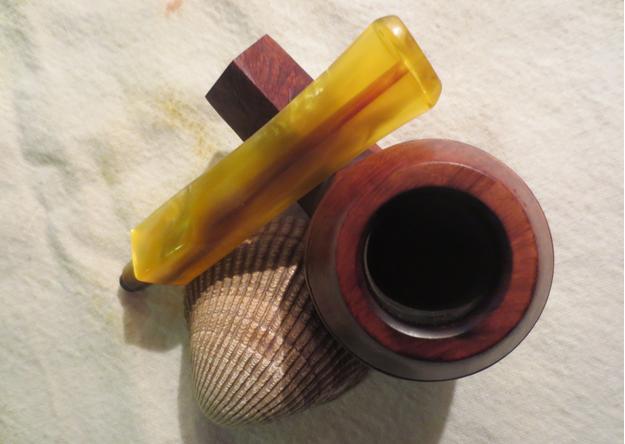

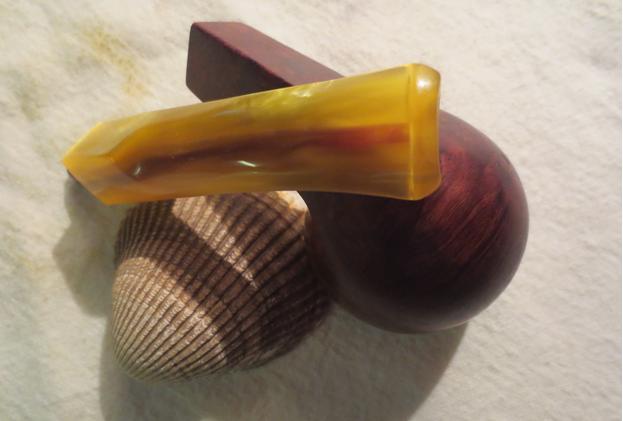

This BBB Tiger Grain Bulldog was in rough shape

3 Replies

Blog by Steve Laug

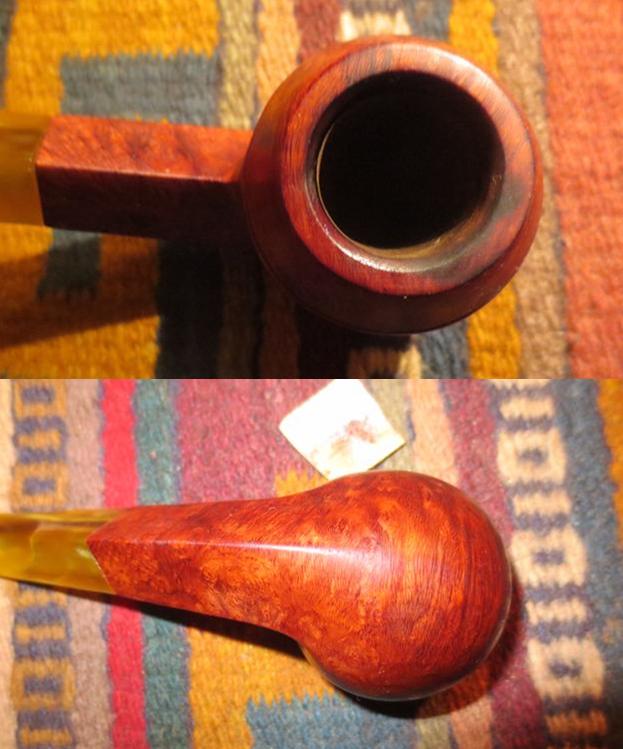

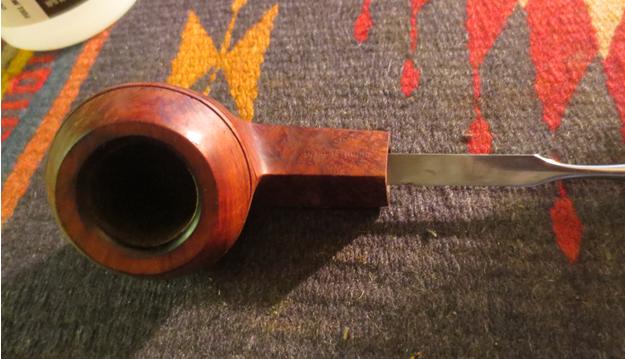

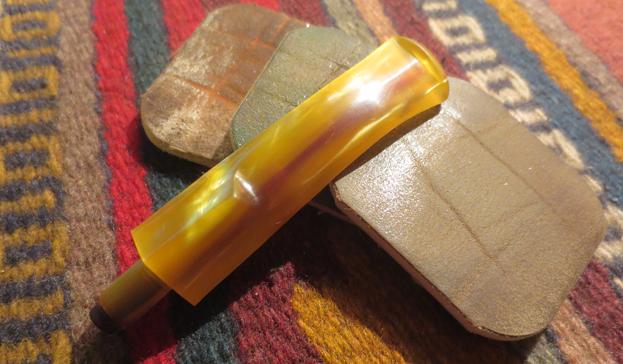

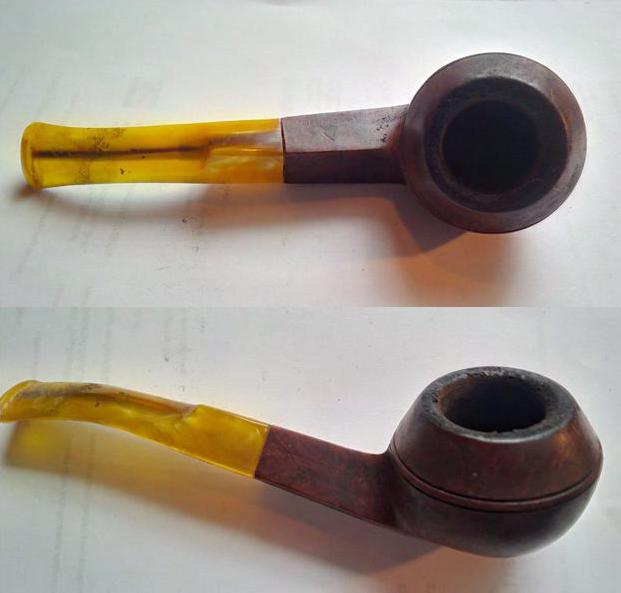

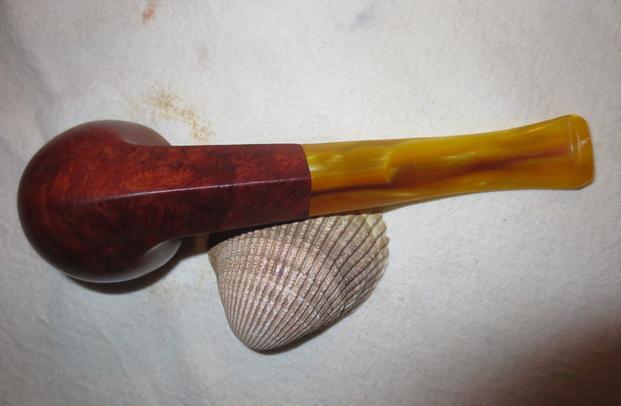

I have always liked older BBB pipes. I used to buy them on eBay when no one was hunting for them for almost nothing. The prices they are today they are generally untouchable for me. Once in a while though one slips under the radar. This Tiger Grain with a Lucite stem was one my brother caught in his ongoing prowl of eBay. He got it for a decent price. It is either a newer BBB or it has a replacement stem on it. My thinking tends toward the previous – a newer pipe from when Cadogan took over the line. The pipe is stamped on the left side of the shank with BBB in a Diamond and underneath it reads Tiger Grain. The right side of the shank reads London England and the number 4. The next two photos show the condition of the pipe when it arrived in Idaho. The bowl finish on the bowl was dirty and there were rough spots. The rim had burn marks on the outer and inner edges on the front side. The beveled rim was thickly caked with the overflow from the cake in the bowl. The Lucite stem had tooth marks and was covered with sticky debris. The airway in the stem was darkened with tars and oils. The mix of bright yellows, white and greys looked good underneath the grime. The dark black/brown airway stood out like a sore. With the exterior that dirty I could only guess that the inside was also very dirty.My brother once again did the major clean up on this pipe. He reamed the bowl with a PipNet reamer and took the cake back to bare briar. He scrubbed the exterior with Murphy’s Oil Soap to remove all of the grime and grit. He was able to scrub away much of the rim build up and the surface of the stem. He scrubbed the internals with pipe cleaners and cotton swabs. When the pipe arrived in Vancouver it was pretty clean. I took the following photos of the pipe before I began to work on it. I took a close up photo of the rim to show the small amount of cake on the rim and the burn marks on the front of the pipe on both the inner and outer edge of the rim. I circled the burned spot with a red circle in the photo below.There was a red tone to the briar. I rubbed it down with a light coat of olive oil and brought out the red. I wanted to see what the bowl and rim looked like when it had been oiled.I sanded the rim and bevel with a folded piece of 220 grit sandpaper to remove the remaining cake and clean up the bevel on the rim. When I finished the rim was clean but it still showed the burn marks and the inner bevel on the rim was also darkened.I decided to top the bowl on the topping board to remove the damaged rim top and the burn marks. I sanded it until the rim top was smooth and the outer edge was clean.I polished the topped bowl with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. When I finished the rim was smooth and polished.I worked on the mortise and shank with pipe cleaners, cotton swabs and alcohol. I used a dental spatula to scrape out the mortise. Once I was finished cleaning it the shank and airway was clean. I also scrubbed out the airway in the stem with pipe cleaners and alcohol. I used bristle pipe cleaners- both thin and thicker to scrub out the tars and dark stains. I sanded out the tooth marks on the top and underside of the stem to remove them and blend them into the surface of the Lucite.I polished the stem with micromesh sanding pads – wet sanding it with 1500-2400 grit pads and dry sanding it with 3200-12000 grit pads. I wiped it down with a damp cloth between each grit of micromesh pads. I buffed the pipe and stem with Blue Diamond on the buffing wheel to polish the pipe. I carefully avoided the stamping. I gave the bowl and stem several coats of carnauba wax and buffed it with a clean buffing pad. I hand buffed it with a microfibre cloth to deepen the shine. The finished pipe is shown in the photo below. It is a nice looking pipe. The bowl and rings are in perfect shape. The new rim top looks like it has always been there. Thanks for looking.

The Thrill of the Hunt and a Bakelite Learning Curve with a 1920’s Grundel Special Canadian

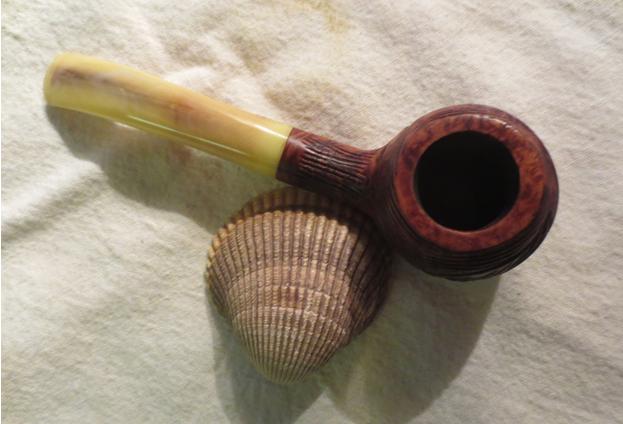

A unique old WDC Turin Rustic Volcano

5 Replies

Blog by Steve Laug

When I saw this one on eBay I sent a message to my brother and asked him to bid on it. He did and we got it. I love the rustication on the Turin Rustic series. It is rough and yet dignified at the same time. The seller billed it as restored/refurbished and clean. By and large that was true. The shank and the inside of the stem were very clean. The rim had been knocked about a bit and the inner edge of the rim was rough and uneven. The bowl had been reamed. The stem was polished though there were deep tooth marks on the top and underside of the stem next to the button. My brother took the above photos and the following ones before he cleaned the pipe. You can see the damage to the rim top and the inner edge in the next photo. The second photo shows the stamping on the left side of the shank.Though I knew a bit about the WDC pipe maker and the William Demuth Company I thought it might be good to review the history before I started restoring the pipe. I googled the Turin Rustic to see what I could find. It immediately referred me to a post on the Kaywoodie Forum that in turn was an excerpt from pipedia.org. Here is the link.

http://kaywoodie.myfreeforum.org/archive/w.d.c.-master-list__o_t__t_191.html

William Demuth, a native of Germany, entered the United States at the age of 16 as a penniless immigrant. After a series of odd jobs he found work as a clerk in the import business of a tobacco tradesman in New York City. In 1862 William established his own company. The William Demuth Company specialized in pipes, smoker’s requisites, cigar-store figures, canes and other carved objects.

The Demuth Company is probably well known for the famous trademark, WDC in an inverted equilateral triangle. William commissioned the figurative meerschaum Presidential series, 29 precision-carved likenesses of John Adams, the second president of the United States (1797-1801) to Herbert Hoover, the 30th president (1929-1933), and “Columbus Landing in America,” a 32-inch-long centennial meerschaum masterpiece that took two years to complete and was exhibited at the World’s Columbian Exposition in Chicago in 1893.

The Presidential series was the result of Demuth’s friendship with President James A. Garfield, a connoisseur of meerschaum pipes. Demuth presented two pipes to Garfield at his inauguration in 1881, one in his likeness, the other in the likeness of the President’s wife. Later, Demuth arranged for another figurative matching the others to be added to the collection as each new president acceded to the White House, terminating with President Hoover.

In 1897 Ferdinand Feuerbach joined the Demuth Company and by 1903 had become the production manager. Feuerbach is credited with developing Demuth’s popular Royal Demuth and Hesson Guard Milano pipelines. He left in 1919, when Sam Frank Sr. needed an experienced pipe man to run his pipe factory, located at 168 Southern Blvd., in the Bronx. Feuerbach and Frank had been close friends since Frank started his own business in 1900 and was closely associated with the sales staff of WDC, selling their line of pipes.

In early 1937, the City of New York notified S.M. Frank & Co. of their intent to take by eminent domain, part of the land on which the companies pipe factory was located. This was being done to widen two of the adjacent streets. As a result of this, Frank entered into negotiations to purchase the Wm. Demuth Co.’s pipe factory in the Richmond Hill section of Queens. It was agreed upon that Demuth would become a subsidiary of S.M. Frank and all pipe production of the two companies would be moved to Demuth factory. New Corporate offices were located at 133 Fifth Avenue, NYC.

Demuth pipes continued to be made at the Richmond Hill plant till December 31. 1972. Then the Wm. Demuth Company met its official end as a subsidiary company by liquidation. Demuth’s mainstay pipe, the Wellington continued to be offered in the S.M. Frank catalog until 1976. In the mid-80’s, the Wellington even made a brief return as a direct to the consumer offer.

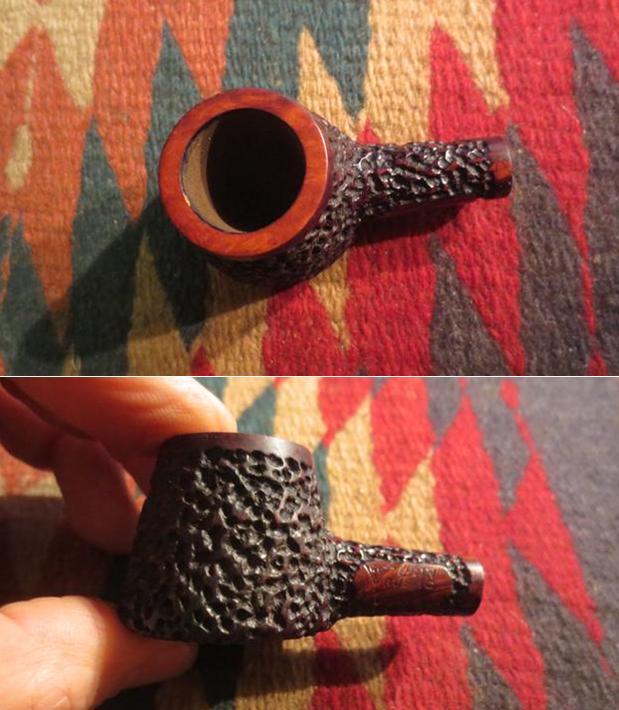

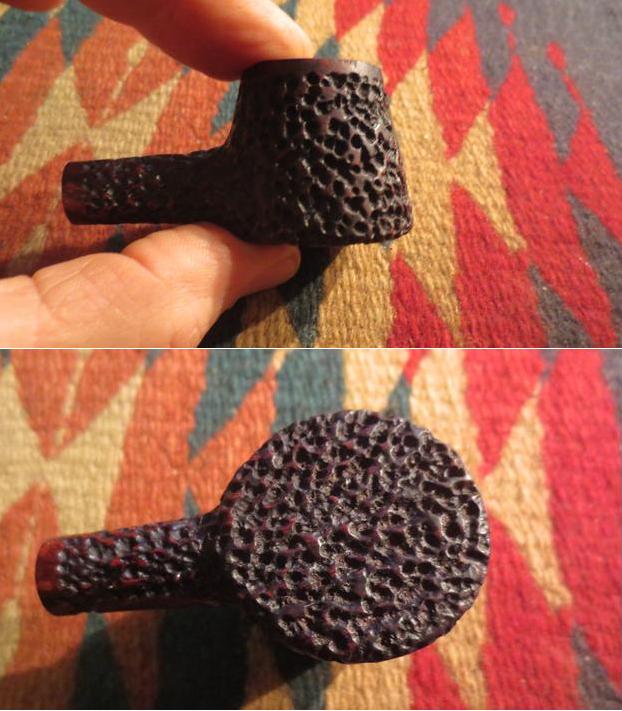

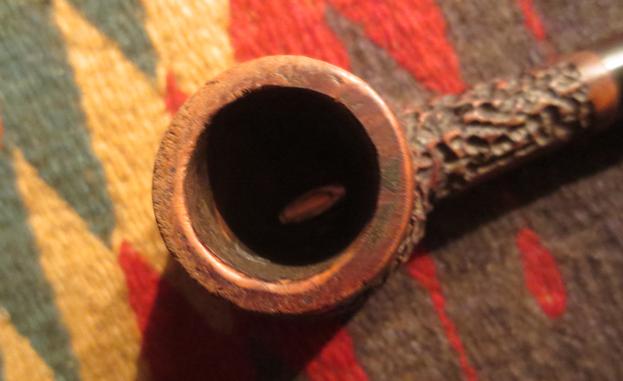

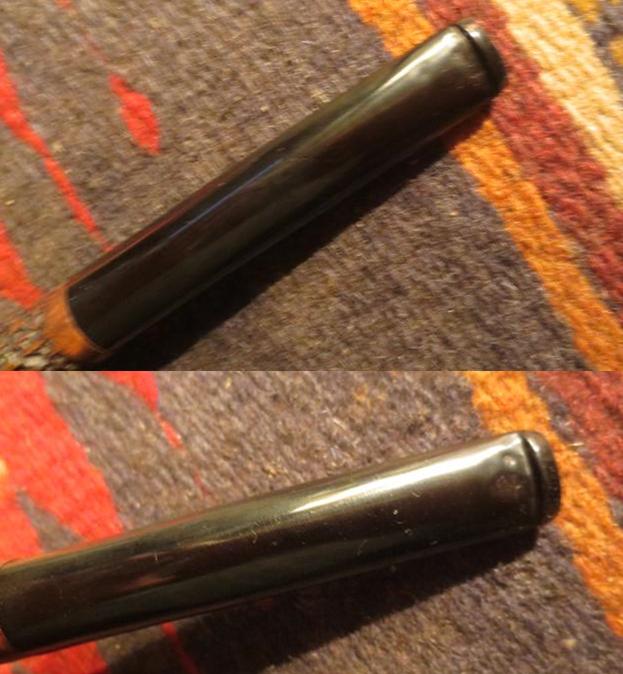

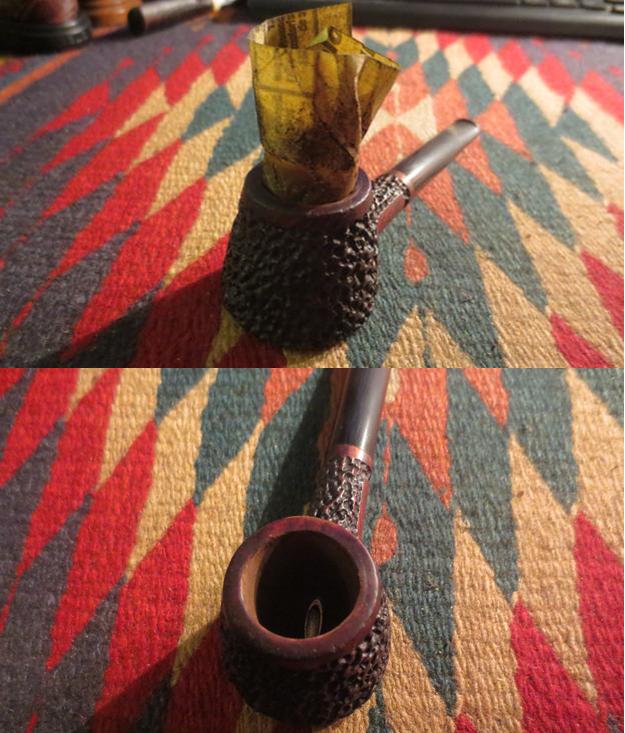

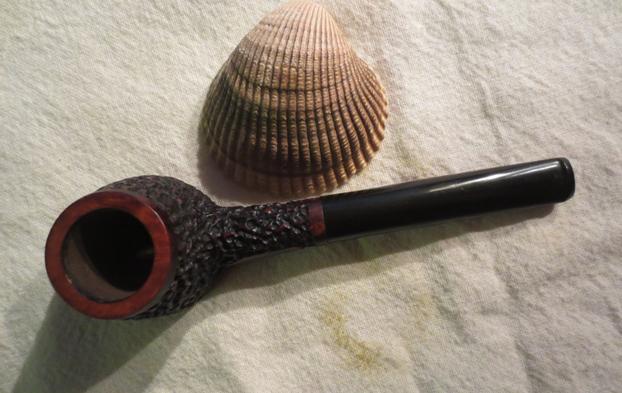

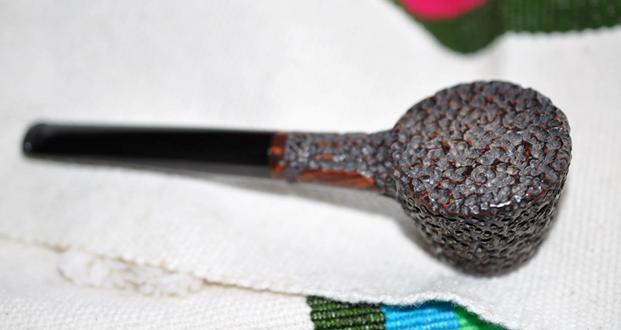

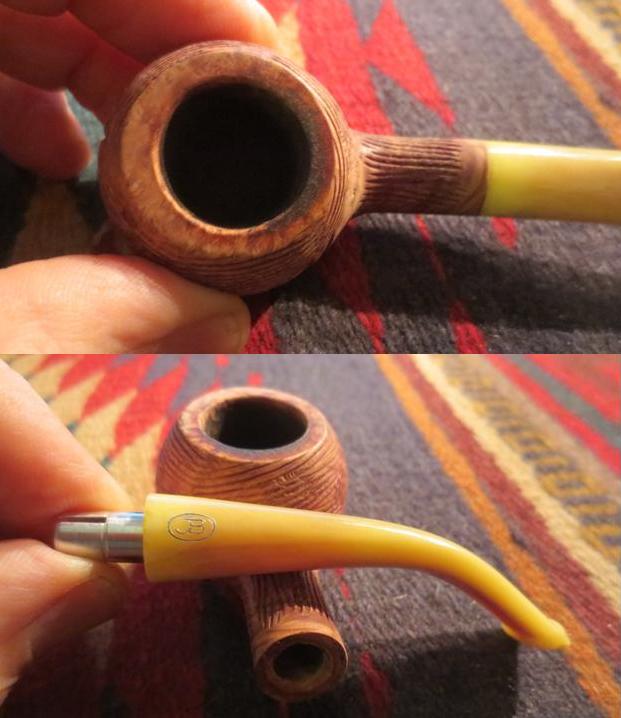

When the pipe arrived from Idaho it was quite clean and ready to work on. I took some photos of it before I started. The next photo shows the rim and the damage to the surface. There were a lot of dents and dings as well as some roughness on the right side toward the front of the bowl. The inner edges was also worn and rough.The next photos show the condition of the stem – it had some deep tooth marks on the top and underside that are visible in the photo below.I “painted” the surface of the vulcanite with the flame of a Bic lighter to lift the dents and I was able to raise all but one of them completely. Even the worst one on the underside came up so that is only needed a little patch. The rest of them I was able to sand smooth with 220 grit sandpaper.I cleaned the sanded area on the underside of the stem with alcohol and then filled in the remaining tooth mark with a spot of clear super glue. Once it dried I sanded it smooth with 220 grit sandpaper and blended it into the surface of the stem.I rolled a piece of sandpaper and sanded out the inside of the bowl and the inner edge of the rim to smooth out the damage.

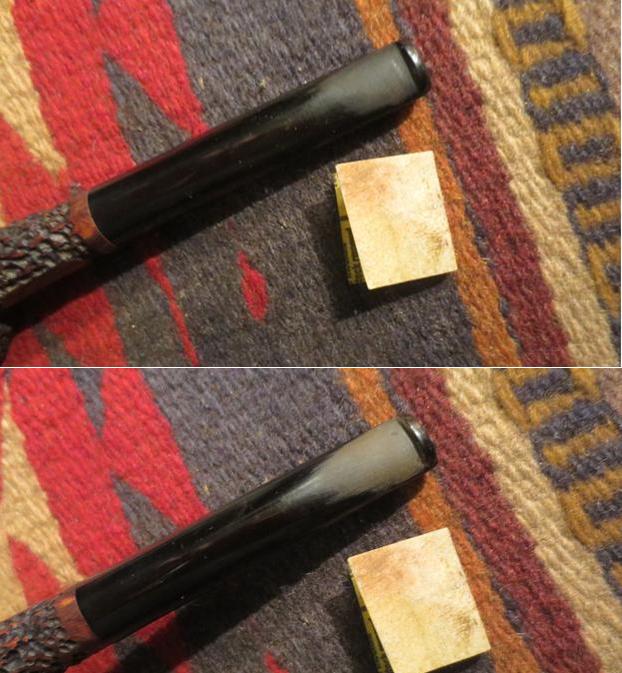

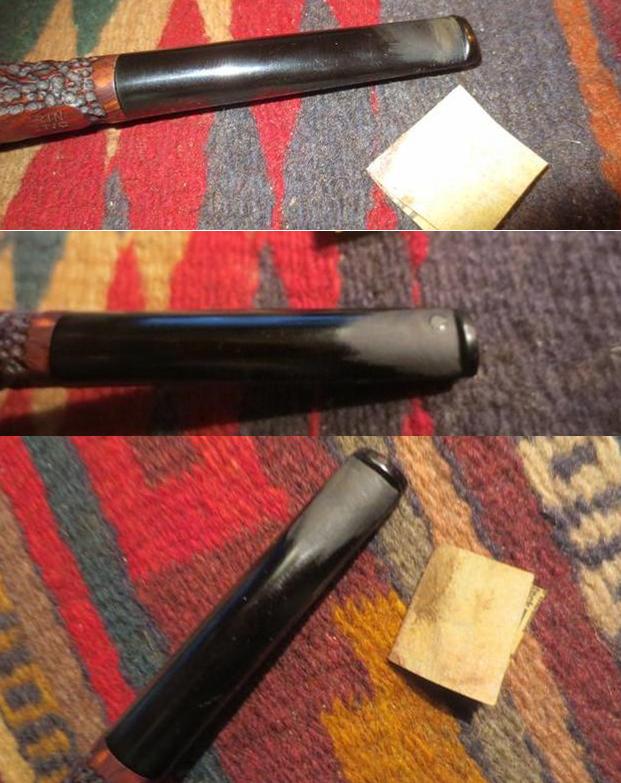

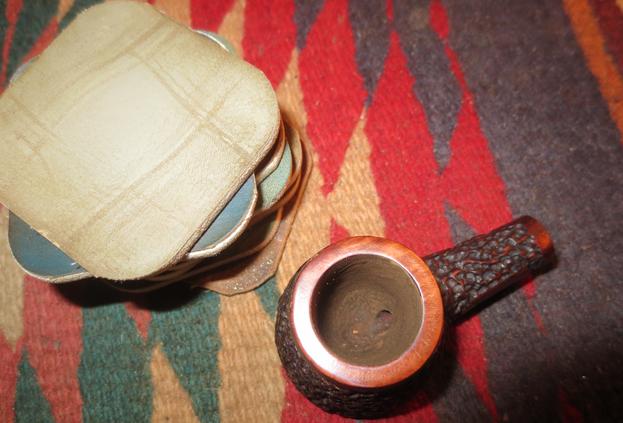

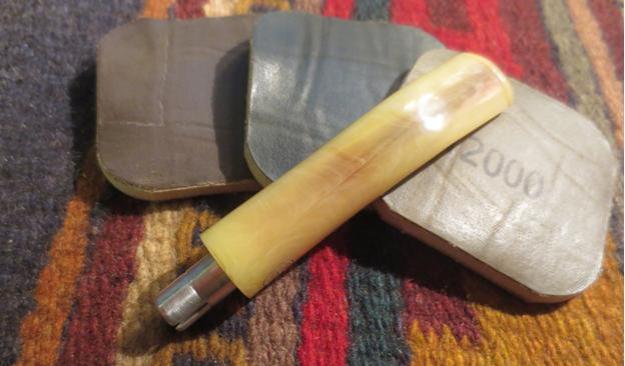

I touched up the rough spots on the inner edge with a piece of 220 grit sandpaper and smoothed out the edge until it was back in round. In the photo below you can see the damage to the top and outside edge of the bowl toward the front. It looked like it had been knocked out on concrete.I decided to lightly top the bowl on the topping board with 220 grit sandpaper until the rim top was smooth and clean of damage.I sanded the rim top with micromesh sanding pads from 1500-12000 grit until the surface of the rim was clean and smoothly polished.I used a light brown stain pen and touched up the rim top. The next four pictures show the bowl after I had rubbed it down with a light coat of olive oil. I love the rustication on the bowl sides and bottom. It really is a unique pattern. I polished the stem with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I rubbed the stem down with Obsidian Oil after each set of three pads. After the final rub down I set the stem aside to dry.

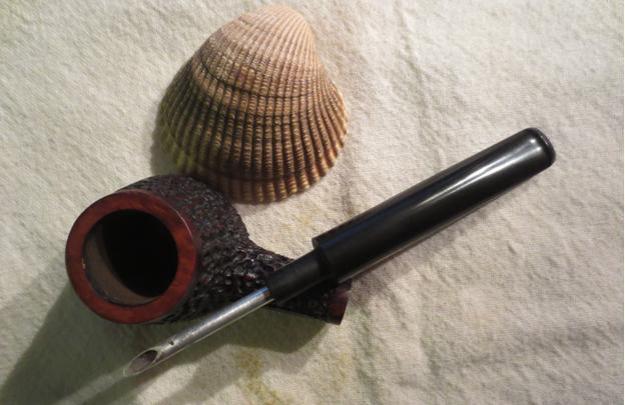

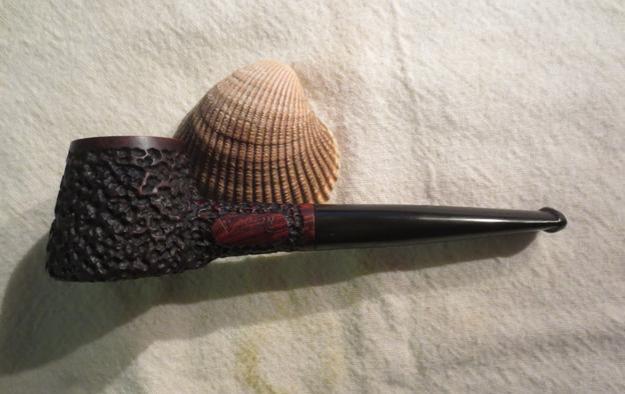

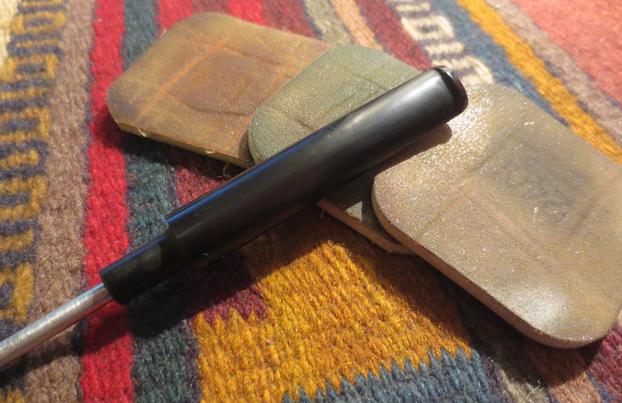

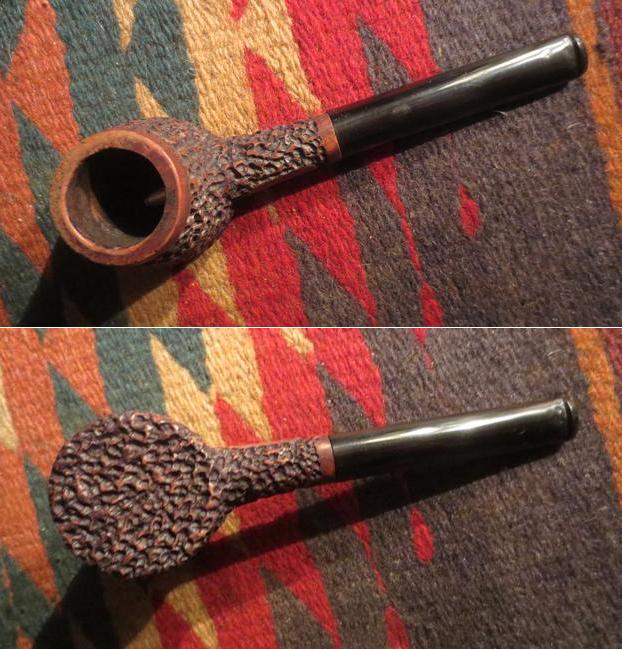

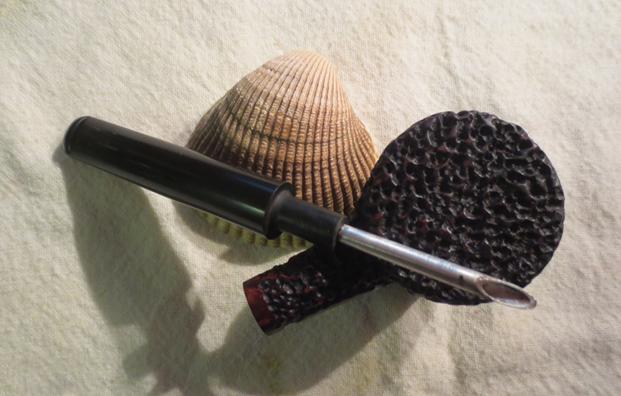

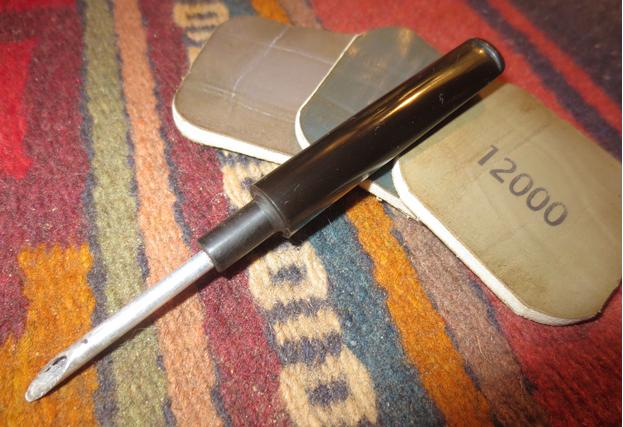

I buffed the bowl and stem with Blue Diamond on the buffing wheel. I gave the stem multiple coats of carnauba wax and buffed it with a clean buffing pad to raise the shine. I hand wax the bowl with Conservator’s Wax and buffed it with a clean buffing pad. The finished pipe is shown in the photos below. The finish shines and the pipe belies its age. It is a beauty. Thanks for looking.

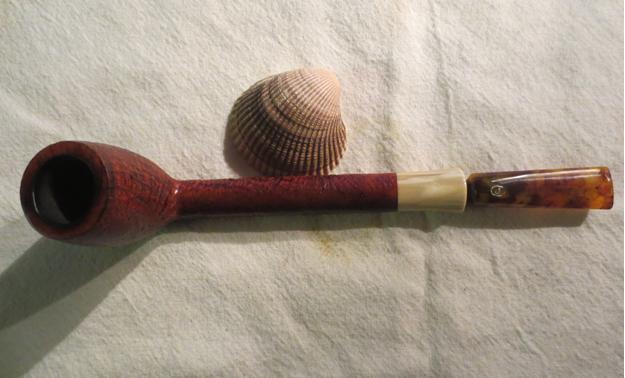

Cleaning up a Long Shanked Jeantet Lumberman

2 Replies

Blog by Steve Laug

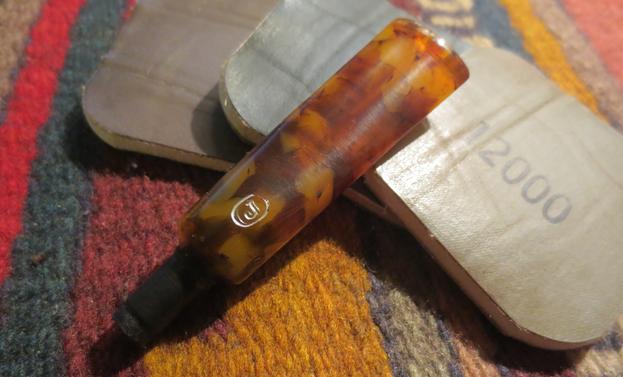

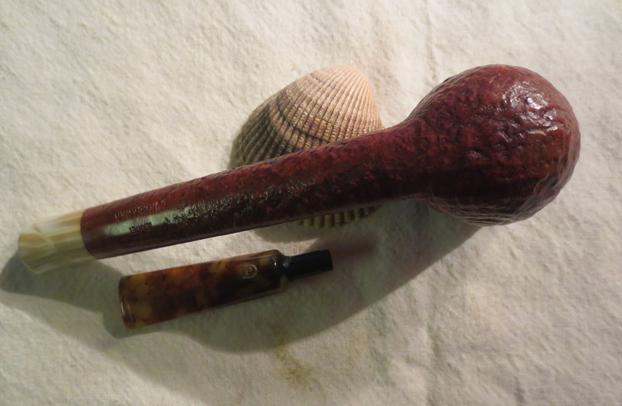

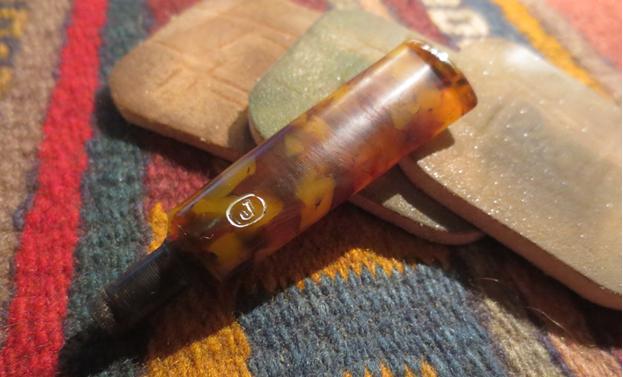

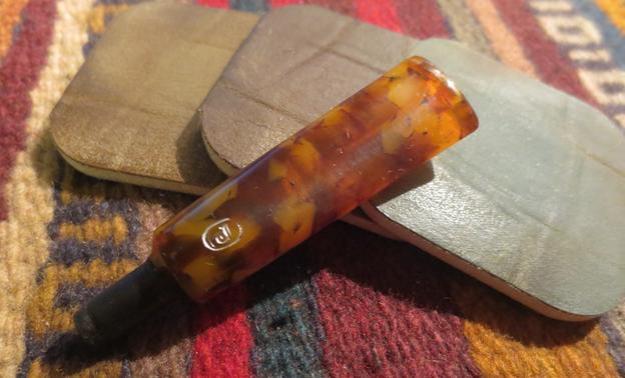

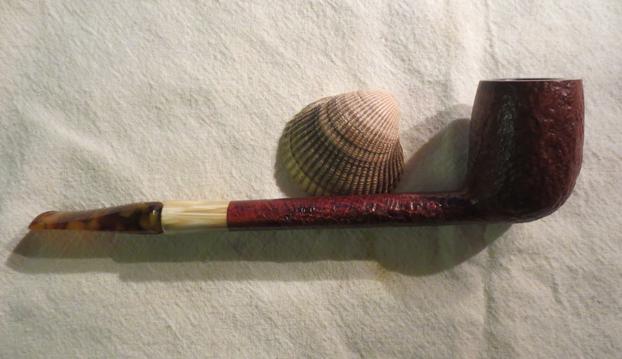

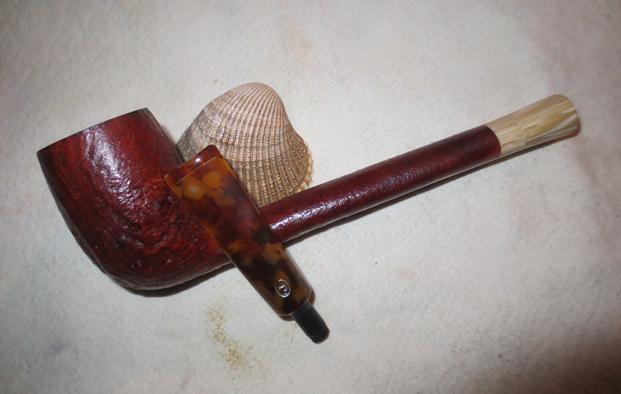

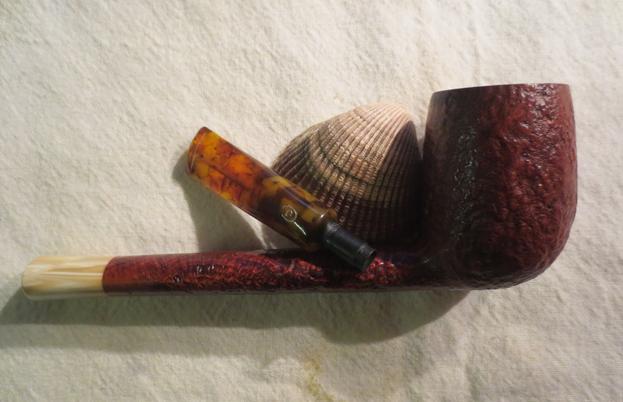

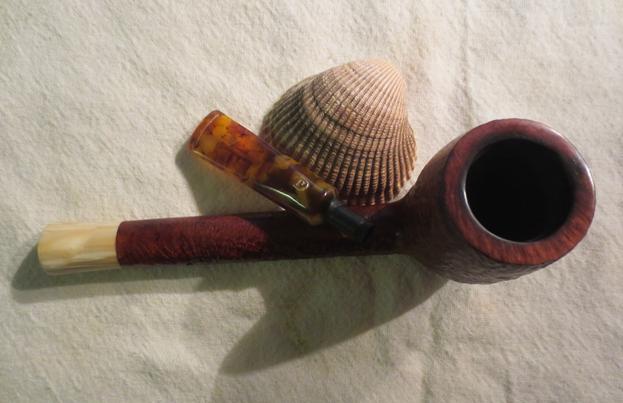

This lightly sandblasted long shank Canadian is stamped Jeantet over Lumberman on the underside of the shank. The tortoise-shell Lucite stem is stamped with a J in a circle on top of the freehand style stem and on the underside it is stamped Hand Cut and France. The shank extension is made of acrylic made to look like faux bone. The mortise is lined with a brass insert to stabilise the shank extension. The tenon is Delrin. The fit in the shank is snug and clean. The slot in the stem was dirty with a black buildup in the edges and the Y-shaped opening. The shank smelled dirty and strongly of aromatic tobacco. The finish was dirty but looked to be in good condition under the grime. There was a large nick in the right side of the bowl half way down the side. It was rough to the touch. The rim was tarry and dirty but underneath it was smooth. The inner and outer edge of the rim looked in good condition. There was a light cake in the bowl. It is a big pipe – 8 inches long, 2 inches tall, bowl is 1 ¾ inch deep, the bowl diameter is ¾ inch.I have had a few older Jeantet pipes over the years but never one that was quite like this one. It is truly a beautiful piece of workmanship. I looked up information on two of my go to websites for information. The first was pipehphil’s Logos and stamping site. There I found that the Jeantet Company joined the Cuty-Fort Enterprises group (Chacom, Ropp, Vuillard, Jean Lacroix…) in 1992. In 2010 it dropped out and the brand isn’t part of the group any more. The label once again is owned by the Jeantet family (Dominique Jeantet). The production of pipes is currently discontinued. Dominique Jeantet retired in 2000. http://www.pipephil.eu/logos/en/logo-jeantet.html

The second site I looked on was Pipedia (https://pipedia.org/wiki/Paul_Jeantet_SA). There I found information from a book by José Manuel Lopes’ entitled Pipes, Artisans and Trademarks. Since I have the book here I went and read it first hand in the book. Here is what I found there.

Paul Jeantet SA (formerly Ebonite Co. is a French factory in Saint-Claude, and the name and business of the business man who in 1912 began making vulcanite stems for the pipe industry. Coming from a family of pipe makers (see Jeantet), Paul started using ebonite for the stems.

Paul Jeantet SA factory (1905 Saint-Claude), from the Jeantet Website: At one point the company was producing 35 million stems a year, and is still one of the few to produce ebonite stems in Europe.

From the Jeantet website: Founded in 1905 by Paul JEANTET, our company is being progressing in the field of rubber compound. Since the 70´s, JEANTET élastomères has been controlling the both processes of over molding and adhesion rubber / metal. Our manufacture is set in a 7000 m2 block, based in Saint-Claude, France. We are at one hour far from Geneva and one hour and a half far from Lyon. From prototype to mass production, JEANTET élastomères, certified ISO 9001, guarantee you availability and speed answers to all your asks of quotation.

Today, our group includes three companies specializing in vulcanized and thermoplastic elastomers : JEANTET élastomères, IXEMER ans PERROT. We are at your disposal for the creation and the development of innovating solutions. In 2014, the Group JEANTET took back the clientele of the Swiss company DUFOUR industries, what consolidates an important presence on the Swiss market of parts in Elastomers. (The Lopes’ book included the following contact information for the brand.

Contact Information:
JEANTET élastomères
Website: http://www.jeantet.com
6 Faubourg des Moulins
39200 SAINT-CLAUDE
Phone: +33 (0)3 84 45 79 00
E-mail: jeantet@jeantet.com

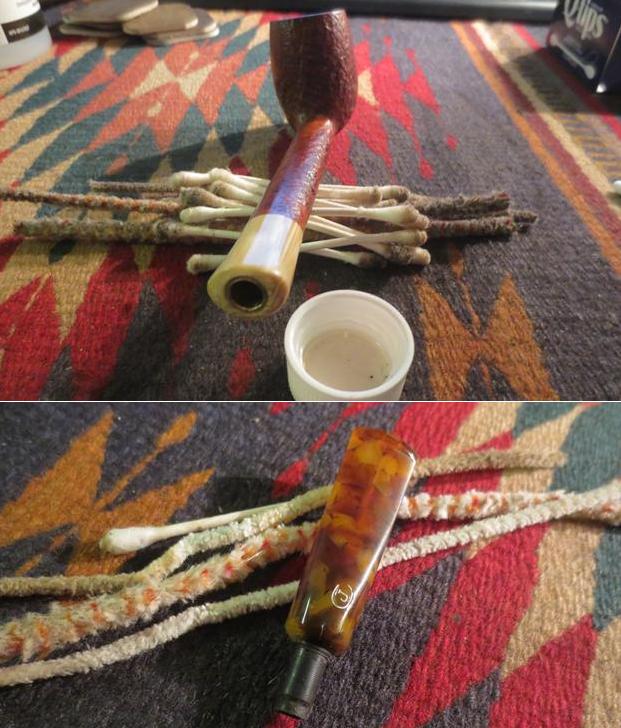

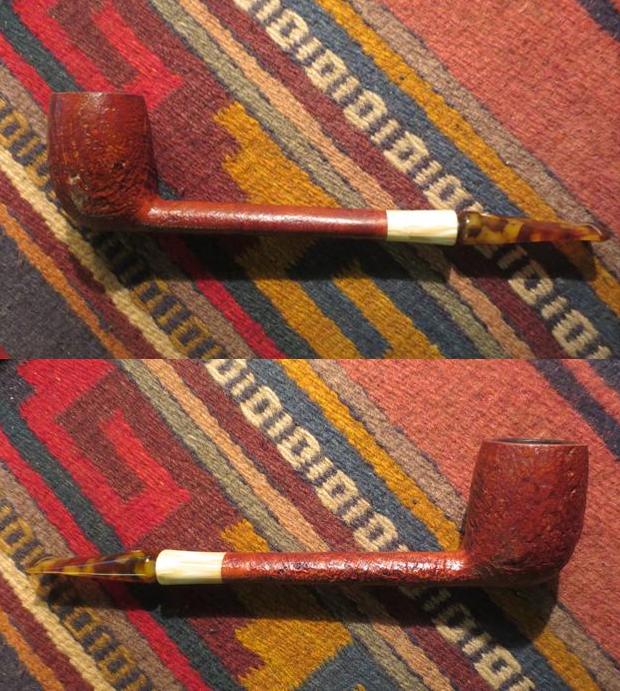

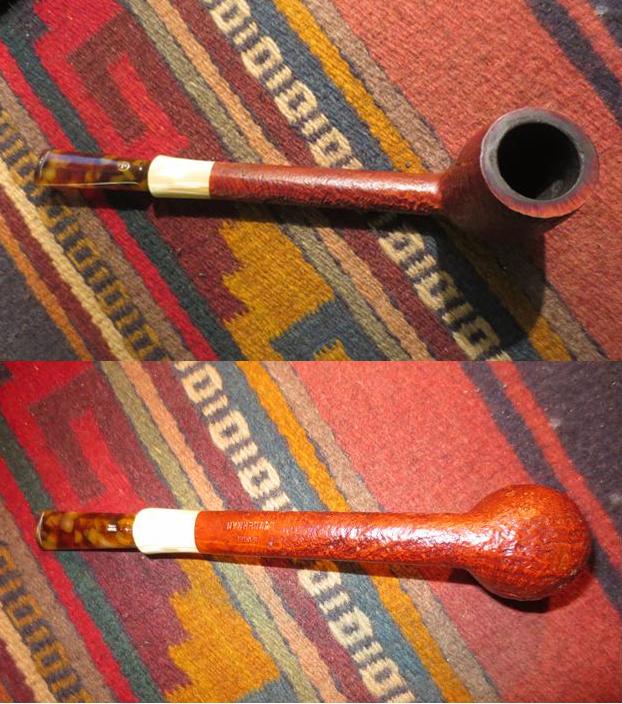

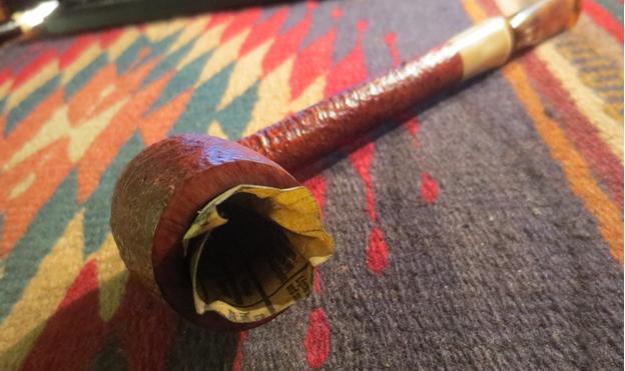

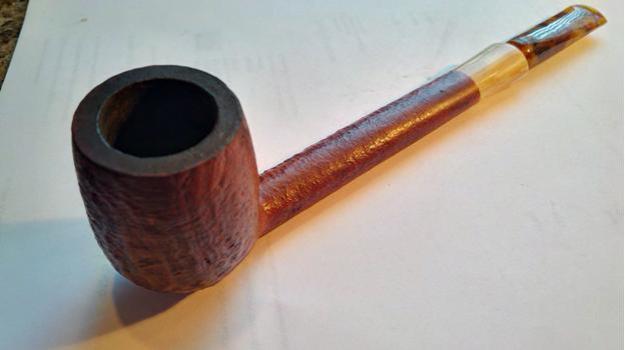

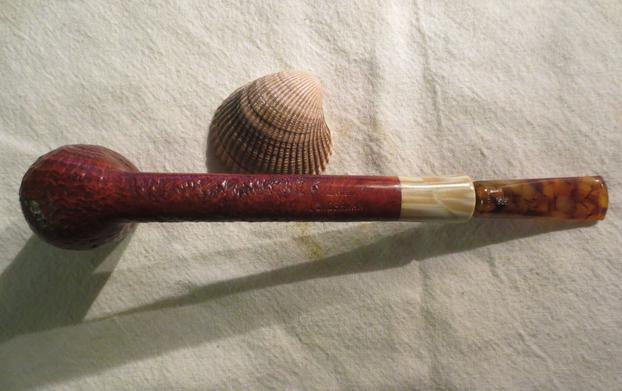

When the pipe arrived in Vancouver in a lot of pipes that Jeff sent me it caught my eye. It is a beautiful pipe. I took the next four photos to show the condition of the pipe when I started working on it. I took a close up photo of the bowl and the rim. You can see the light cake in the bowl and the overflow on the back and the right side of the rim top. Underneath it looks like there is some good-looking grain.I sanded the rim clean and took off the burned areas on the rim top with 220 grit sandpaper. I followed that by sanding the rim with 1500-4000 grit micromesh sanding pads. I wiped it down with alcohol and then used a light and a medium brown stain pen to touch up the rim to match the rest of the bowl.I rolled a piece of sandpaper and sanded the inside of the bowl and the inner edge of the rim to clean up the damage left behind by the burns.I waxed the bowl and shank with Conservator’s Wax and buffed it with a shoe brush to give it a shine.I cleaned out the inside of the mortise, the airway in the shank and the stem with pipe cleaners, cotton swabs and alcohol until it was clean.I polished the tortoise coloured Lucite stem with micromesh sanding pads – wet sanding with 1500-2400 grit and dry sanding with 3200-12000 grit pads. I wiped the stem down with a damp cloth to remove the grit and grime. I buffed the pipe with Blue Diamond on the buffing wheel to polish the stem and the rim. I buffed the bowl and stem with carnauba wax and buffed it with a clean buffing pad to raise the shine. I hand buffed it with a microfibre cloth to deepen the shine. The finished pipe is shown in the photos below. It is a beautiful pipe and one I have not seen before. There is something about it that draws the eye. For a pipe this large it is well-balanced and proportionally works well. Thanks for looking.

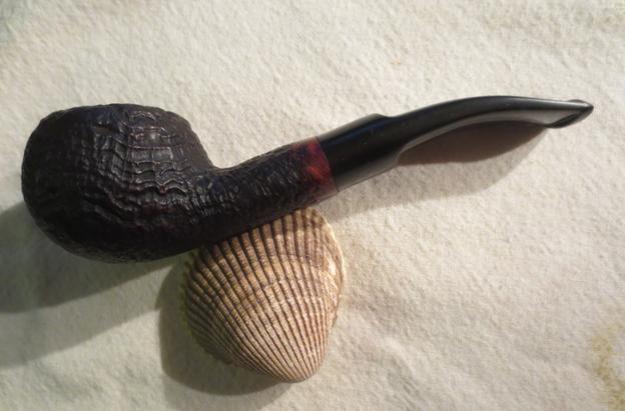

New Life for a Danish Made Don Regular Author 34

2 Replies

Blog by Steve Laug

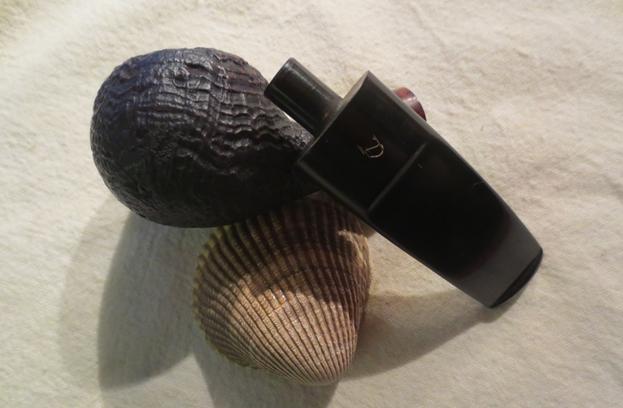

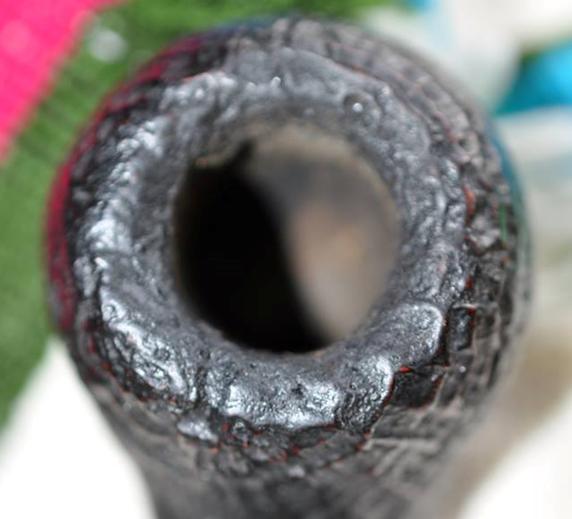

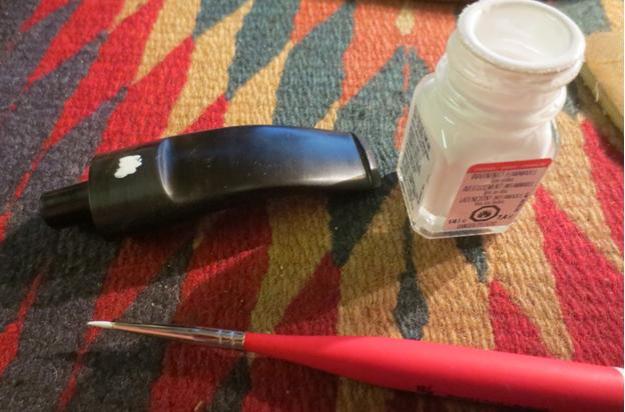

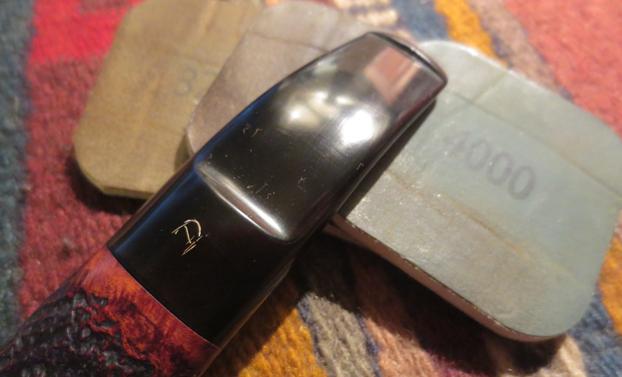

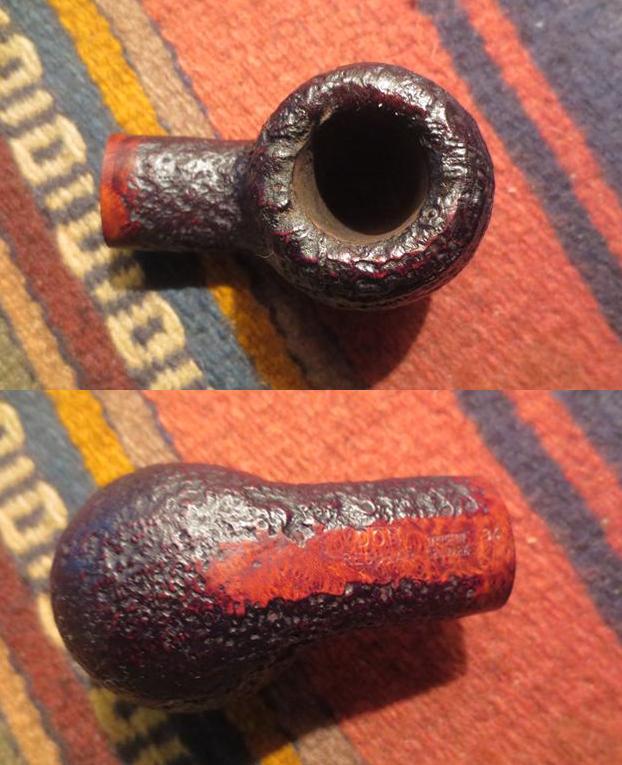

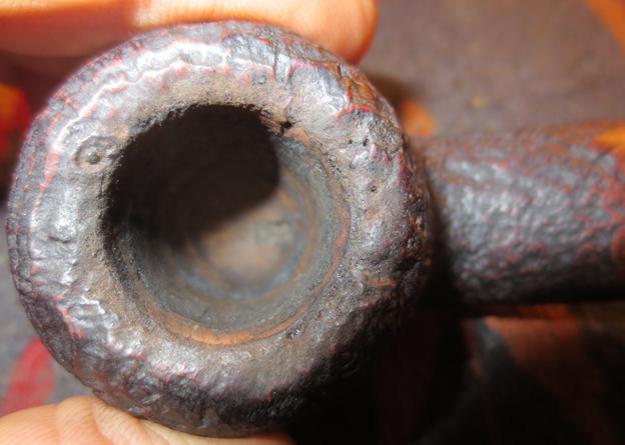

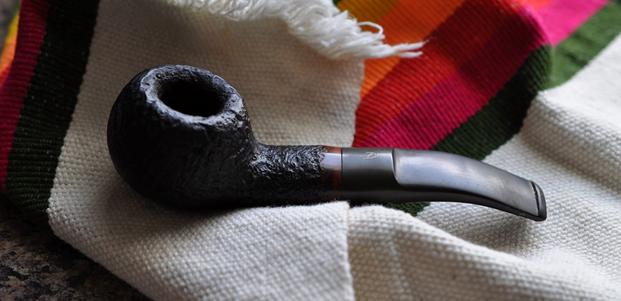

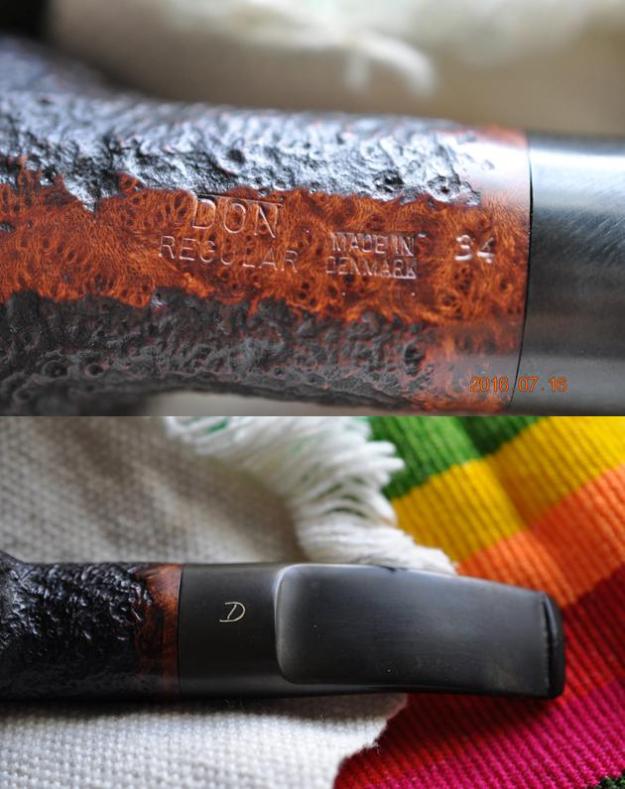

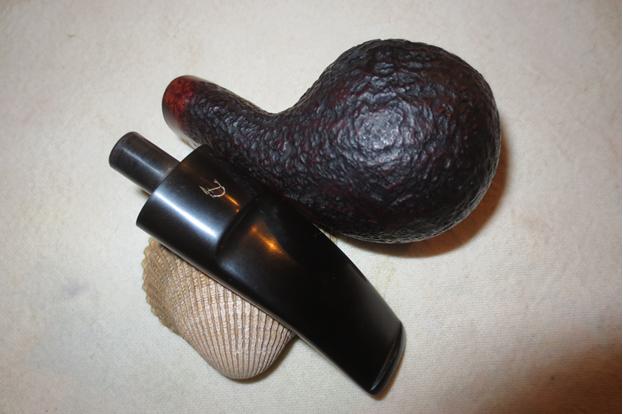

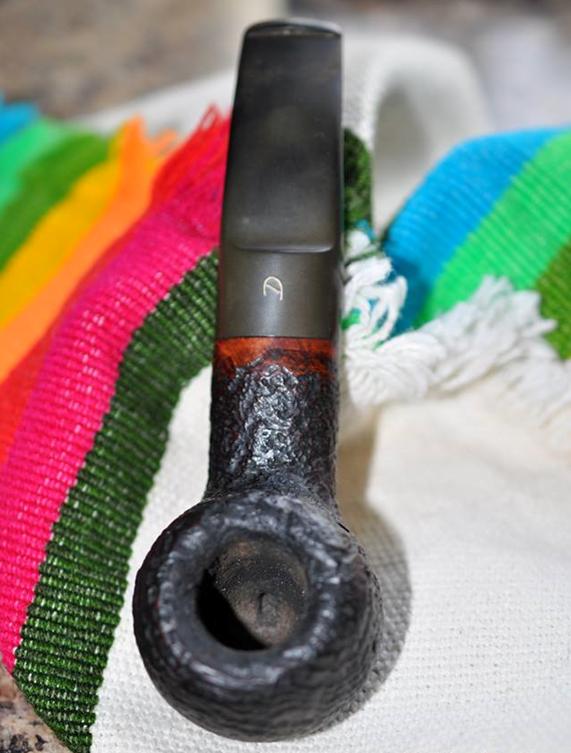

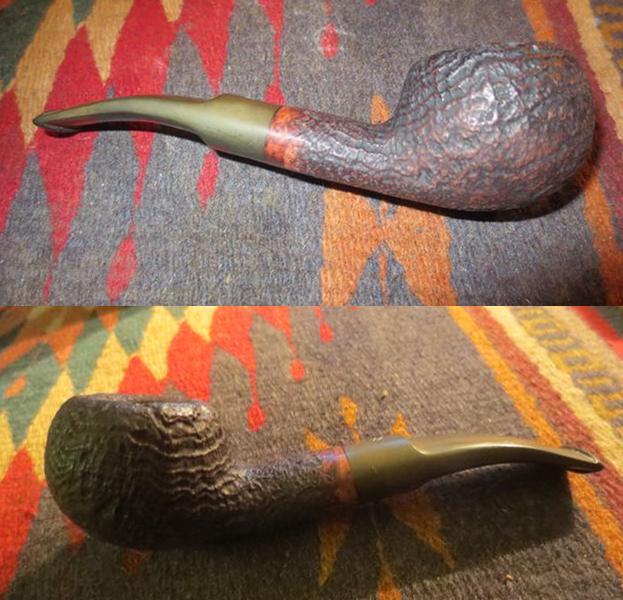

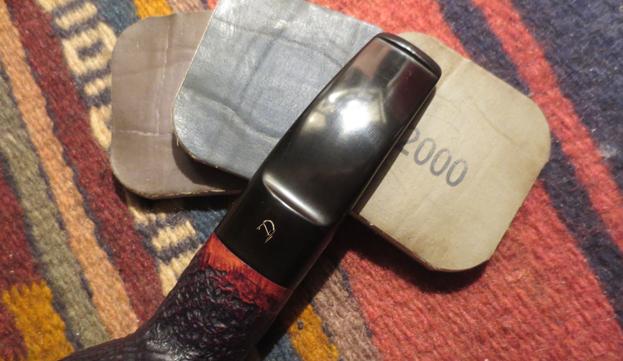

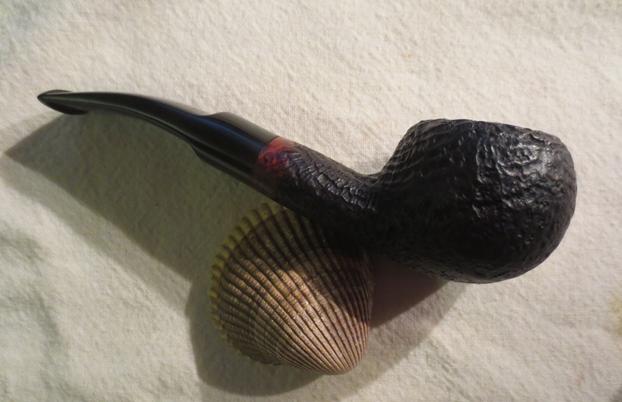

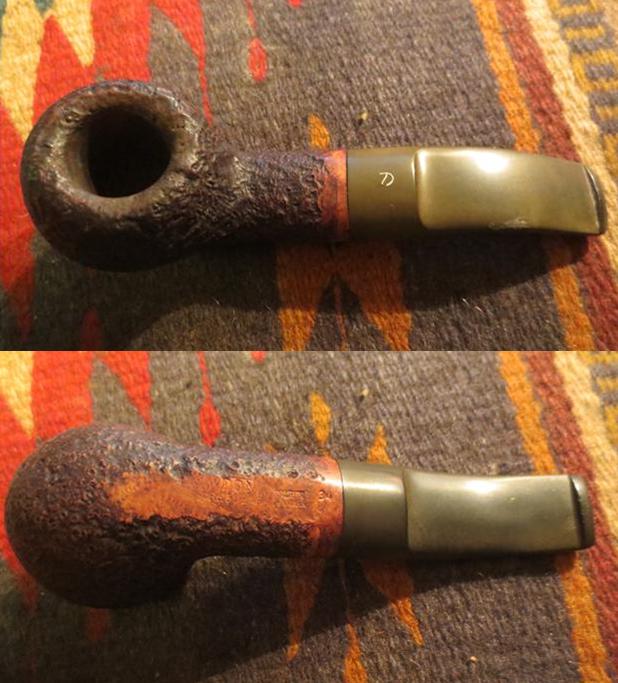

The next pipe on the work table is a nice little author shaped pipe that was stamped Don Regular next to Made in Denmark and the shape number 34. The finish on the briar was quite clean on the sides, shank and bottom of the bowl. The rim was thickly caked with tars and oils and the bowl had a thick cake. The stem was in good shape with some tooth chatter on the underside of the stem next to the button. There were no tooth marks or gouges in the stem surface. The button was in excellent condition. The D stamping on the stem was readable but light in some places along the tails of the D. The next two photos show the pipe as it was when my brother received it from the eBay seller. He took the next three close up photos to show the condition of the bowl and rim, the stamping on the smooth portion on the underside of the shank and the stem logo.I had not seen a Don Regular pipe before so I did a bit of digging to see what I could find. I found a note on Pipedia that it may have been a Bari sub brand but it was unsubstantiated. I did some more digging and found that the pipephil website verified that the Don was a second brand to Bari pipes and was made by them.

Here is what the link on pipephil said: Brand founded by Viggo Nielsen in 1950 and sold to Van Eicken Tobaccos in 1978. At this time Age Bogelund managed Bari’s production. The company has been bought in 1993 by Helmer Thomsen. Bari’s second lines: Don, Proctus. http://www.pipephil.eu/logos/en/logo-d7.html.

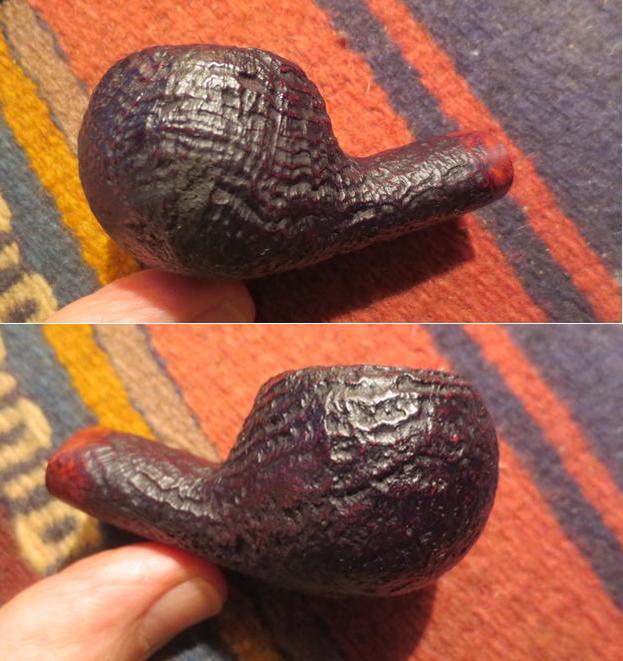

My brother scrubbed the exterior of the pipe with a tooth brush and Murphy’s Oil Soap under running water. He dried off the pipe. He cleaned out the internals of the pipe with pipe cleaners and cotton swabs. He also cleaned off the stem. The next four photos show what the pipe looked like when it arrived in Vancouver. I took a close up photo of the rim as well. My brother had gotten a lot of the tars and oils off the rim but there was still some deep in the grooves of the sandblast. There as a light cake around the inside of the bowl rim.I scrubbed the rim with a brass bristle tire brush until all of the grime came free of the rim. I scrubbed it back and forth until the ridges and grooves were clean and free of debris and tars. I wiped it down with alcohol until it was clean. I rubbed the bowl down with a light coat of olive oil and buffed the bowl with a shoe brush. The following four photos show the pipe at this point in the process. I hand painted the white back into the D on the stem using a small paint brush and acrylic white paint. I scraped off the excess paint. There were some scratches around the D that also took paint so I would need to work on it some more.I polished the stem with micromesh sanding pads – wet sanding with 1500-2400 grit pads. I worked on the area around the D to try to clean up the letter. I dry sanded with 3200-12000 grit pads and rubbed the stem down with Obsidian Oil between each set of three pads. I set the stem aside to dry. I buffed the stem with Blue Diamond and worked on the area around the D to see if I could minimize the scratches. I was able to reduce the scratches around the D and improve the overall look of the stamping. I gave the bowl several coats of Conservator’s Wax and buffed the bowl and stem with a clean buffing pad to give it a shine. The finished pipe is shown in the photos below. The sandblast and the contrast stain work well together. It is a beautiful old pipe. Thanks for looking.
