Underneath the Grime lay a beautiful Royal Guard 504


Blog by Steve Laug

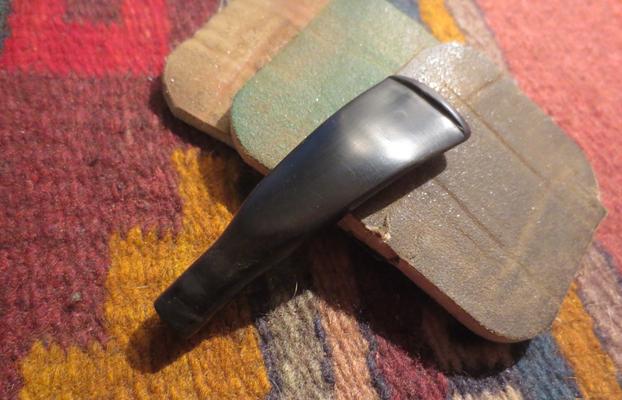

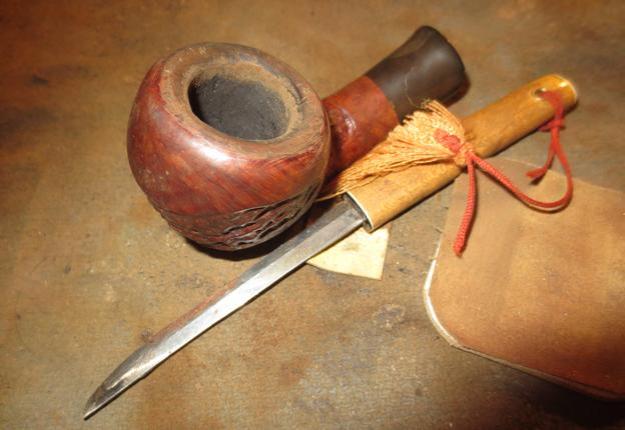

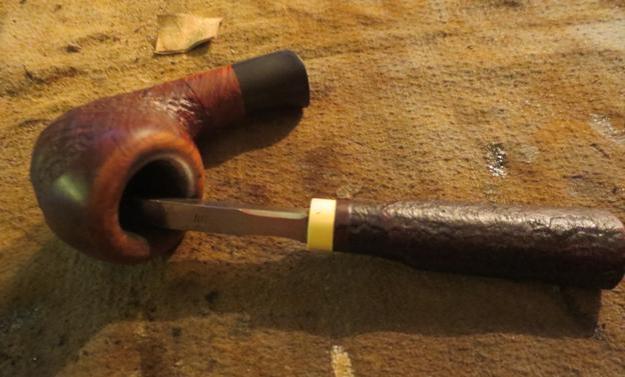

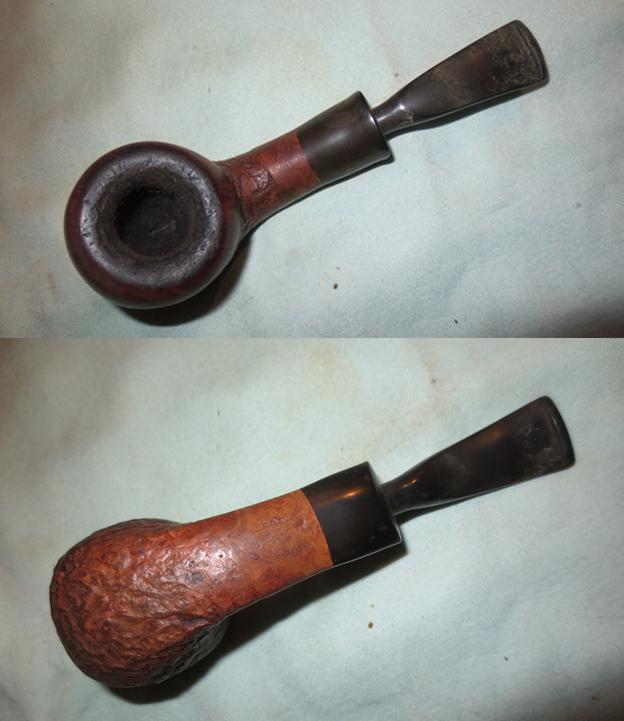

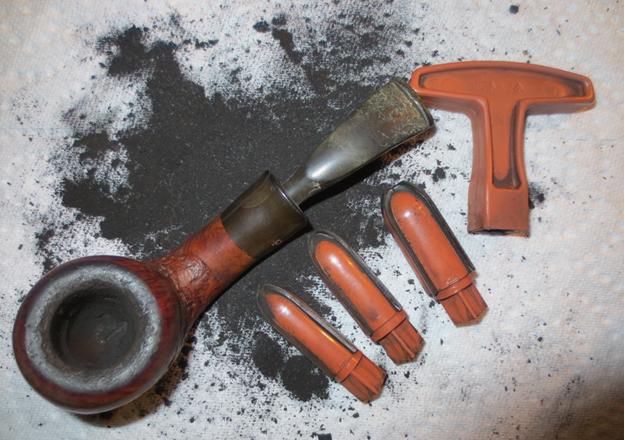

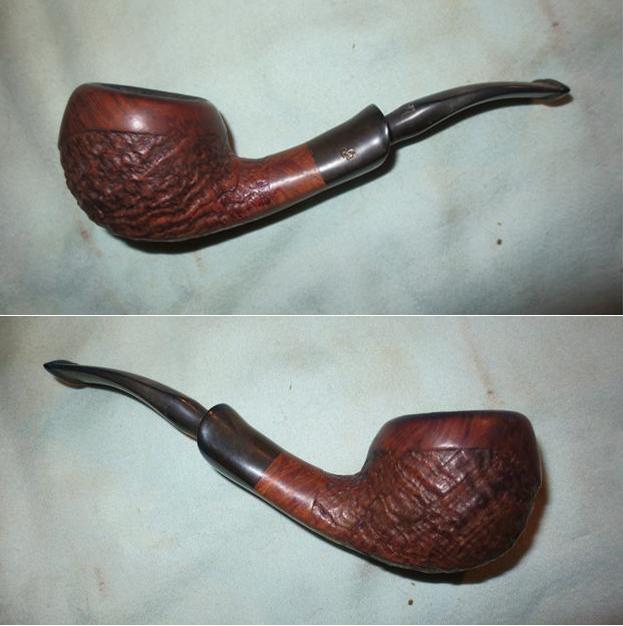

I have a box of pipes from a friend in Dawson Creek to clean up. In trade for a few restorations he was the one who gave me the Preben Holm Pair. I asked him to prioritize which pipes he wanted me to tackle first. Number one on his list was a Stanwell made Royal Guard 504 that combines smooth and sandblast areas into the finish. It was in rough shape. The finish was dirty and worn with the brown top coat worn down. The vulcanite shank extension was oxidized and the RG stamp on the left side was faded. The bowl was thickly caked and the lava overflow on the top of the bowl was also very thick. I was a bit concerned that underneath the cake I would find burn. You can never tell – sometimes a thick cake protects the rim top and sometimes it hides a lot of rim damage. Once I got into the cleanup I would be able to tell better with this one. The stem was lightly oxidized and there was tooth chatter and bite marks on the top and the bottom sides near the button. The top edge of the button had a small dent as well. The deepest tooth mark was on the topside of the stem and would need to be repaired. But even under all the grime I could see that this pipe would be a thing of beauty once it was finished.RG1 RG2I took a closeup photo of the rim to show how thick the cake was in the bowl and the extent of the overflow on the rim. It was very thick and quite hard.RG3I reamed the bowl with the first three cutting heads on the PipNet reamer and then cleaned it up more with the Savinelli Pipe Knife. The amount of carbon that came out of the bowl was amazing.RG4I used a pen knife with a thin stiff blade to carefully scrape off the buildup on the rim. It was pretty thick and hard so I slowly and carefully flaked it off with the knife.RG5I scrubbed the bowl and rim with acetone on a cotton pad and was able to remove the grime and the buildup of wax and oils in the grooves of the sandblast.RG6There were some scratches and nicks in the curved top of the rim that needed to be sanded out. I also sanded the inner bevel on the rim. I used 180 and 220 grit sandpaper to remove most of the damaged areas. The photo below shows the rim after quite a bit of work. There was still more sanding to do at this point.RG7I did some more work on the rim with sandpaper and on the inner edge of the rim with the Savinelli Pipe Knife and was able to smooth out some more of the damage.RG8I wiped down the inner edge of the bowl and the rim with alcohol to see where I stood with the rim resurfacing. It was starting to look really good.RG9I used black super glue to repair the deep tooth mark on the top side of the stem. When it dried I sanded it and filed it smooth the surface of the stem.RG10I sanded the shank extension with micromesh sanding pads. I wet sanded it with 1500-2400 grit pads and dry sanded it with 3200-6000 grit pads. I rubbed it down with Obsidian Oil. I used some European Gold Rub n’ Buff on the stamping on the stem to refresh it.RG11I restained the bowl with a dark brown aniline stain cut by 50% with alcohol. I applied the stain and flamed it with a lighter. I repeated the process until I was satisfied with the coverage.RG12I wiped the bowl down with isopropyl alcohol to even the stain coat and make it more transparent. The combination of grains in the sandblast and underneath is beautiful.RG13 RG14I scrubbed out the internals with alcohol, pipe cleaners and cotton swabs until the airways in the shank and the stem and the mortise in the shank were clean.RG15I buffed bowl with Blue Diamond on the buffing wheel and then gave it multiple coats of carnauba wax. I buffed it with a clean buffing pad to raise the shine.RG16 RG17Once I had the repair smoothed out and blended into the surface of the stem top I polished the stem with micromesh sanding pads. I wet sanded it with 1500-2400 grit pads and dry sanded it with 3200-12000 grit pads. I rubbed the stem down with Obsidian Oil after each set of three pads. Once I had finished I set the stem aside to dry.RG18 RG19I forgot to take a photo of the stem after sanding it with the 6000-12000 grit pads. I took the pipe to the buffer and buffed the stem with Blue Diamond and then gave the pipe multiple coats of carnauba wax. I buffed it with a clean buffing pad and with a microfibre cloth to deepen the shine. The finished pipe is shown in the photos below. I am hoping the pipe man in Dawson Creek likes the new look to this old pipe. It is truly a beauty. Thanks for looking.RG20 RG21 RG22 RG23 RG24 RG25 RG26 RG27

Advertisements

Restoring a Pair of Preben Holm Deluxe Walnut Pipes


Blog by Steve Laug

I picked up this pair in a trade for a pipe I was selling plus some restoration work credit. They are really an interesting pair of Preben Holm pipes. I have no idea of the age or where they fall in the line of Preben’s pipes but I liked the look of the two of them. Both of them are stamped Preben Holm over Deluxe Walnut over Hand Made in Denmark on the underside of the shank. Both had a matte finish dark reddish-brown stain with identical stems. Both pipes were sitters.

The first of them was a square long shanked Dublin freehand with rounded outer edges to the bowl. The grain looked quite good on the briar but it was dirty. The rim had some heavy cake buildup on it and the bowl was thickly caked. The stamping on the underside of the shank was very sharp and clear. The stem was lightly oxidized and there was lots of tooth chatter and tooth marks on the top and bottom sides near the button. The crown logo with the PH below it on the stem was faint but legible. Here are some pictures of the first pipe when it arrived.Deluxe1 Deluxe2I took a close up photo of the bowl rim to give you a clear picture of what the rim and the cake looked like. It would take some careful scrubbing to remove the build up without damaging the finish.Deluxe3The second of the pair had a more rounded edge semi-square shank and was also a more squat Dublin freehand with rounded outer edges to the bowl. The grain on the briar looked just as good as that on the first and was just as dirty. The rim on this one also had some heavy cake buildup on it and the bowl was thickly caked. The stamping on the underside of the shank was very sharp and clear. The stem was lightly oxidized and there was lots of tooth chatter and tooth marks on the top and bottom sides near the button. The crown logo on the stem was faint but legible. Here are some pictures of the second pipe when it arrived.Deluxe4 Deluxe5I took a close up photo of the bowl rim to give you a clear picture of what the rim and the cake looked like. It would take some careful scrubbing to remove the build up without damaging the finish.Deluxe6I reamed both pipe with a PipNet pipe reamer starting with the smallest cutting head and working up to the third head. I cleaned up the transitions with a Savinelli Pipe Knife.Deluxe7I scraped the tarry build up on the rims of the pipes with a pen knife I used for that. It is sharp and thin so with it I can carefully scrape the cake off the rim. I wiped the rims down with alcohol on cotton pads.Deluxe8I sanded the inside of the bowls with a rolled piece of sandpaper around my index finger. I was able to smooth out the inside of both of the bowls.Deluxe9I scrubbed out the mortises and airways in the bowls and stems with alcohol, cotton swabs and pipe cleaners.Deluxe10 Deluxe11I sanded the tooth chatter and tooth marks on both sides of both stems. All the marks were identical on both pipe stems so I am guessing that they belonged to the same smoker. The first two photos are of the first pipe’s stem and the next two are from the second pipe.Deluxe12 Deluxe13I used a small brush and some white acrylic paint to touch up the crowns on the top of each stem.Deluxe14I waxed both bowls and buffed them on the buffing wheel. The photos below show the bowls after the cleanup and buffing.Deluxe15 Deluxe16 Deluxe17I polished the stem on the first pipe with micromesh sanding pads – wet sanding it with 1500-2400 grit pads and dry sanding it with 3200-12000 grit pads. I rubbed down the stem with Obsidian Oil between each set of three pads. When I got through with the 12000 grit pads I gave it another coat of oil and set it aside to dry.Deluxe18 Deluxe19 Deluxe20I repeated the polishing practice spelled out above on the second stem. The photos below show the progress of the work.Deluxe21 Deluxe22 Deluxe23I buffed the pipes with Blue Diamond on the wheel and gave them both multiple coats of carnauba wax. I buffed it with a clean buffing pad to raise the shine. I hand buffed it with a microfibre cloth. The finished pipes are shown in the photos below. These two came out looking really nice. The shape and the finish of both are eye catching. Thanks for looking.Deluxe24 Deluxe25 Deluxe26 Deluxe27 Deluxe28 Deluxe29 Deluxe30 Deluxe31 Deluxe32 Deluxe33 Deluxe34 Deluxe35 Deluxe36 Deluxe37 Deluxe38 Deluxe39
