Cleaning up another CPF – this time it is a square shank Bulldog Setter


Blog by Steve Laug

If you have been reading rebornpipes for long, you will have figured out that I really like older C.P.F. pipes (Colossal Pipe Factory). I have quite a few of them in my collection and really like them. The history is an intriguing and enjoyable part of the brand for me. The artisanship and design of these pipes captures my appreciation and admiration. The shapes are always unique; even in the same line the shapes vary from pipe to pipe. The creativity and inventiveness of the smoking delivery systems of their pipes are always a pleasure to study. The variations of Bakelite bases and stems with briar bowls, briar bowls with Bakelite stems, briar bowls with horn and with vulcanite stems. The names the company gave their pipes always has me wondering where they came from. Sometimes they seem to be humorous like the Siamese conjoined stem pipe I just finished and sometimes descriptive like this one – the square shank, horn stem Setter. The pipe came from Jeff in a box he shipped to me just before he left for his European adventure. The box arrived last evening. I was like a kid on Christmas morning. No matter how many boxes he sends my reaction is always the same. There were two C.P.F. pipes that immediately caught my attention. Jeff had shown me these two on FaceTime before he left so I was awaiting their arrival. When he was cleaning them both he somehow switched the stems in a hurry and in the process broke the tenon off the wrong stem in the shank of this pipe. Both pipes had a bone tenon so it is easy to understand what happened. He had put both pipes in individual bags in the box. When I saw this one, I decided it was the next one I wanted to work on.The pipe is a bulldog with a square shank and square tapered horn stem. It has twin rings around the top of the bowl. The shank had a gold coloured ferrule on it with the end turned over to cover the exposed end of the shank. On the left side of the ferrule, it was stamped with the C.P.F. oval logo. There was no other stamping on the metal ferrule. The bowl had a thick cake that lightly overflowed like lava over the top of the rim. The inner edge of the rim shows a lot of damage from what looks like reaming with a knife. The outer edge showed some nicks on the right side and a few on the left front. Jeff took some photos from different angles showing the condition of the bowl. It was a beauty. The grain was quite nice and the twin rings around the rim were in excellent condition with no chips. On the top of the shank there was faint gold lettering reading Setter in a Germanic script that I have come to expect on C.P.F. pipes from this era of the late 1890s to early 1900s. The finish was worn and dirty as expected on a pipe of this age. The two photos that follow that are different views of the shank and the ferrule. The ferrule appeared to have slipped off during its life and there was a dark space just in front of it showing its original position on the shank. The diameter of the stem was larger than the diameter of the shank so it looked a little awkward making me wonder if it was not a replacement horn stem. If not it was poorly fitted and would need to be properly fitted to the shank. There were issues with the stem that might lessen with reshaping but they were present and can be seen in the photos below. These included deep nicks on the edges of the square stem – a chip at the right corner near the shank, a nick on the right side about a ½ inch from the shank end, and another on the left side that looked like a wormhole.The threads in the shank were evidently worn and someone had wrapped the bone tenon in scotch tape to facilitate a tight fit. I have seen this done often so it is not a surprise but it also makes me wonder if the stem is not a replacement. I won’t know until I check out the threads in the mortise when it arrives.The button showed some wear and tear and there was light tooth chatter on both sides of the stem. Fortunately it appeared that there were no deep tooth marks present.Jeff did a lot of cleaning and scrubbing on the pipe before he sent it to me. He reamed the bowl with a PipNet pipe reamer and a Savinelli Fitsall Pipe Knife. He cleaned up the rim and the exterior of the bowl with Murphy’s Oil Soap and removed the grime and debris of the years. He had cleaned out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. The bone tenon on the stem was in good condition. The stem damage was clearly visible and the nicks and marks stood out in clarity. I drilled out the broken tenon in the shank of the pipe so that I could put it back together and check out the fit of the stem to the shank. Over the years I have developed my own method of drilling out a broken, threaded tenon. It may be different from the one that you use but it works for me. I followed that procedure on this pipe. I set up a cordless drill on my worktable and put a drill bit a little larger than the airway in the broken tenon. I slowly twisted the stummel onto the drill bit. I wanted it to grab onto the tenon and allow me to either twist it free or break it enough that I can remove it without damaging the threads in the mortis. I repeated this several times until the broken tenon came out on the bit. I blew the dust out of the shank. The pipe was now ready for me to work on.I checked out the threads in the mortise and they were slightly worn but not too severely damaged. They would easily be renewed for a better fit. I screwed the stem on the shank and took the following photos of the pipe before I started my work. These photos are kind of a benchmark for me to compare the finished pipe with the original shown in the photos. Note the fact that the stem is larger in diameter than the shank as noted above. It is the right shape but it sits above and below the top of the ferrule on the shank. The fit on the sides of the shank is perfect. That kind of fit makes me think that perhaps this was a replacement stem. The shape was correct but the fit was off. I have worked on enough C.P.F. pipes to know that they do not send them out of the factory with this kind of sloppy fit. Jeff had managed to clean up the rim quite well. The bowl was clean and the inner edge damage was clear.The next photos show the nicks and worm hole in the stem. These would need to be repaired. The side view photos show the fit of the stem against the shank. You can see from the photo that the top of the stem is significantly higher than the top of the ferrule and shank. I decided to address the nicks and worm hole first. I was not sure how much of the repair would be left once I reshaped the stem but I figured I might as well start with smoothing those out before I started shaping. I sanded the stem to smooth out the tooth chatter and the edges of the damaged areas first. I wanted to see if I had any filling to do around the button before I repaired the damaged areas. Fortunately there were no deep marks at the button. I filled the nicks and hole in with amber super glue. The photos below show the stem repairs from different angles. Note that the damage was on the top and side mid stem on the left and toward the front on the right. Once the glue dried I used a needle file to smooth out the repairs and blend them into the surface of the stem. I sanded the stem with 220 grit sandpaper to further blend them in. I used the Dremel and sanding drum to reduce the height of the stem on the top and bottom at the shank as well as adjust the width on both sides. Once I had it close I sanded it more with the 220 grit sandpaper. I painted the thread on the bone tenon with clear fingernail polish and let it dry. Once it was dry I screwed it into the shank and it was a snug fit. You can see in the photos below that the fit to the shank in terms of height and width is getting much closer. I sanded the stem until I was happy with the transition between the stem sides and the ferrule. I wanted it to be smooth. It took a lot of sanding to get it to the place where I was happy with the flow. I was happy to see that the sanding removed much of the repaired areas from the stem. The right side repairs are virtually invisible and on the left side it was quite small. Once it was there I polished the stem with micromesh sanding pads. I wet sanded with 1500-2400 grit pads and dry sanded with 3200-12000 grit pads. I wiped the stem down with Obsidian Oil after each pad. I polished the stem with Fine and Extra Fine Before & After Pipe Polish to further remove the scratches. I buffed the stem with Blue Diamond on the buffing wheel. I set the stem aside and turned my attention to the damaged rim and edges of the bowl. I lightly topped the bowl to remove the damage on the surface and the outer edges of the rim. I used a folded piece of 220 grit sandpaper to reshape the inner edge of the rim and bring it back close to round. I wiped down the surface of the bowl with alcohol on cotton pads and then put a drop of clear super glue in the damaged spot on the right side edge of the rim and bowl. When the glue dried I sanded it smooth with 220 grit sandpaper and polished it with 1500-4000 grit micromesh sanding pads. I used a dark brown stain pen to blend the repaired area on the side of the rim cap and the top of the rim into the existing colour of the pipe. It did not take much work to get a good match. I tried to add Rub’n Buff European Gold to the stamping on the shank top but the stamping was not deep enough to hold the repairs. I buffed the pipe with Blue Diamond on the buffing wheel to polish the briar and the stem. I gave the entire pipe multiple coats of carnauba wax and buffed it with a clean buffing pad to raise the shine. I hand buffed it with a microfibre cloth to deepen the shine. I am quite happy with the finished pipe. It looks far better than it did when I started the restoration. The fit of the stem to the shank and the overall look of the bowl is better. The small burn mark on the right side of the rim top is a beauty mark of the past life of the pipe. The rim and bowl look very good. The finished pipe is shown in the photos that follow. Thanks for looking and enduring my obsession with these older C.P.F. pipes.

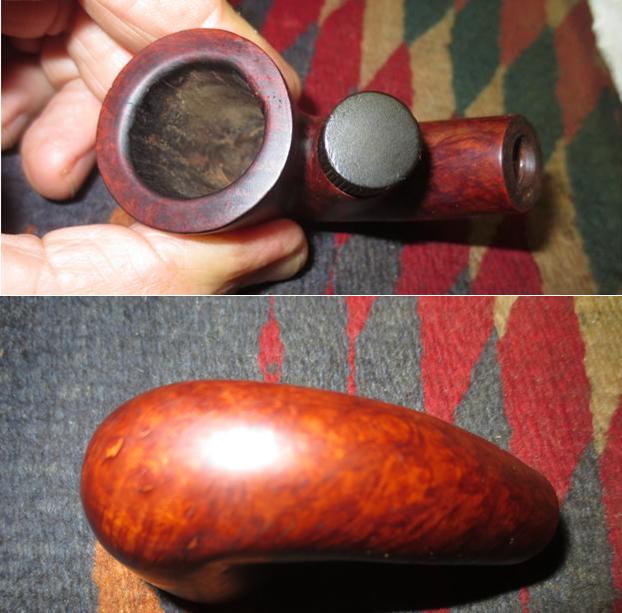

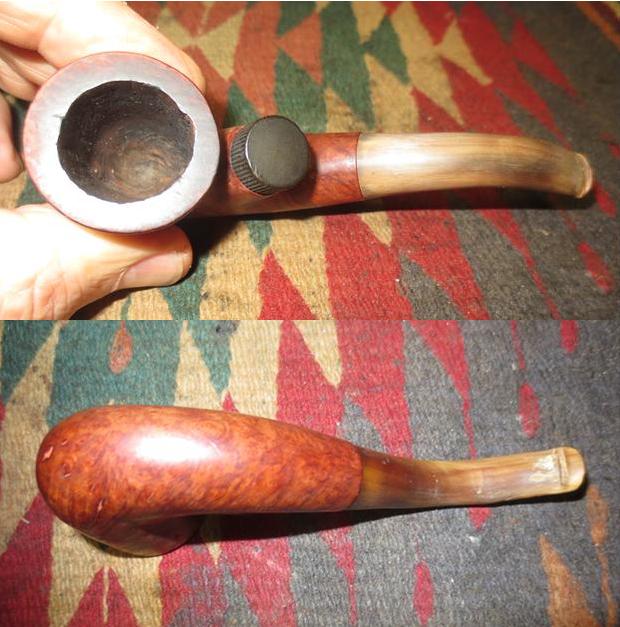

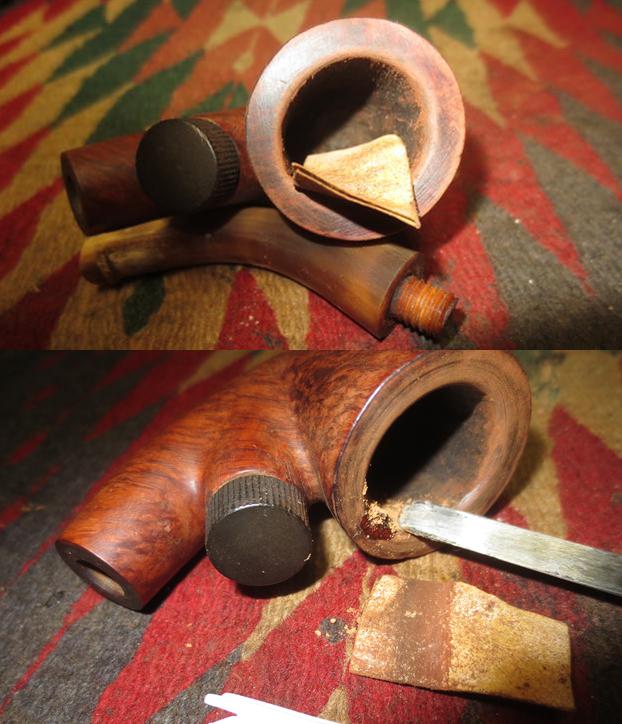

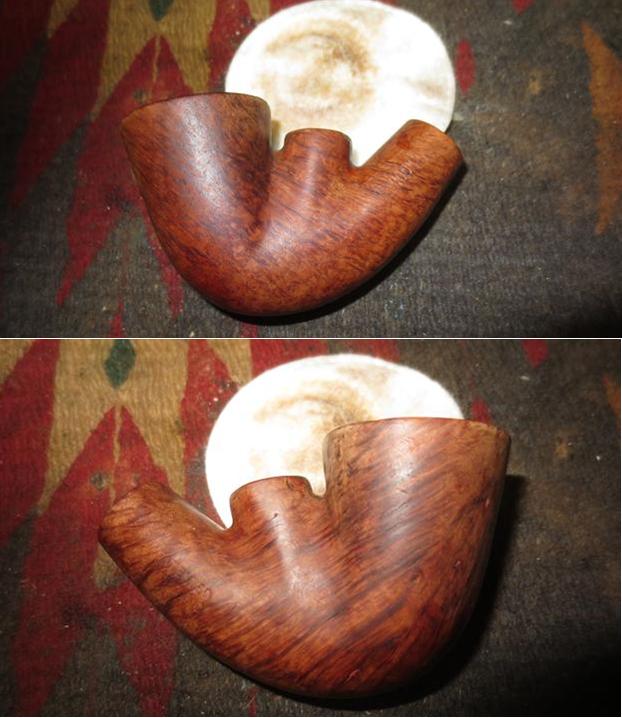

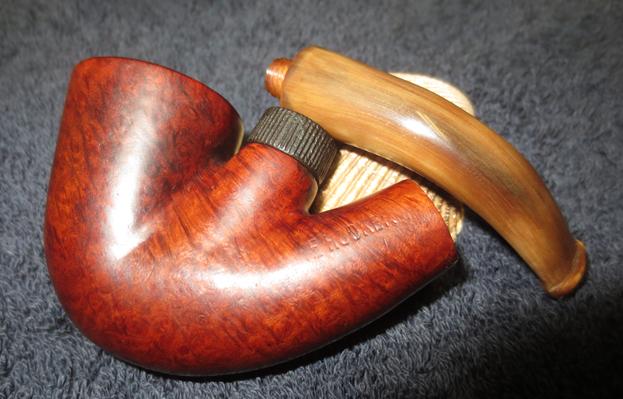

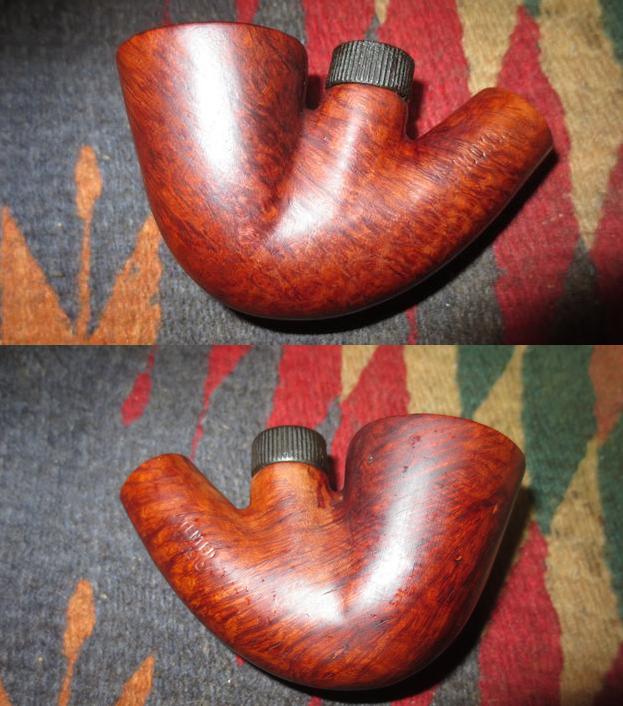

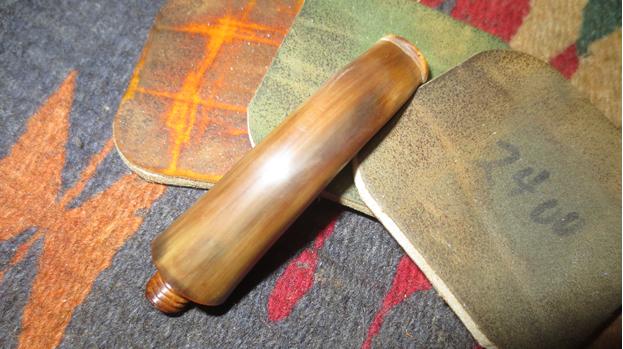

Restoring a Unique Horn Stem W.E. Hooker System Pipe


Blog by Steve Laug

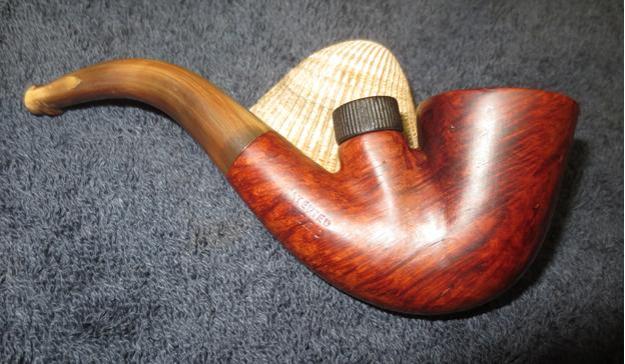

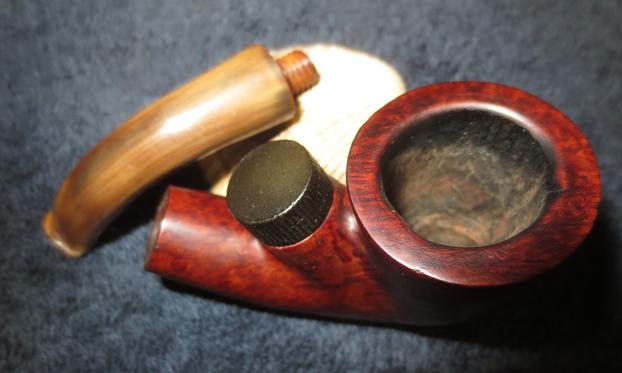

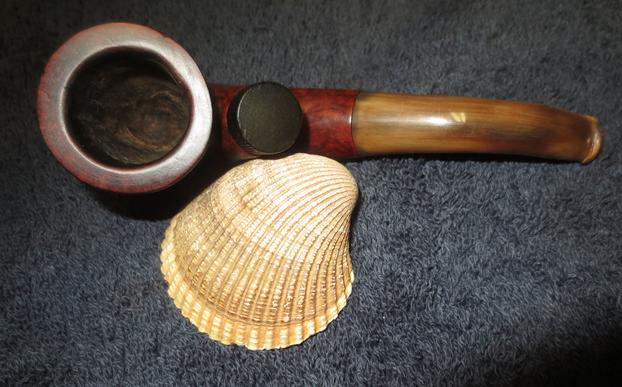

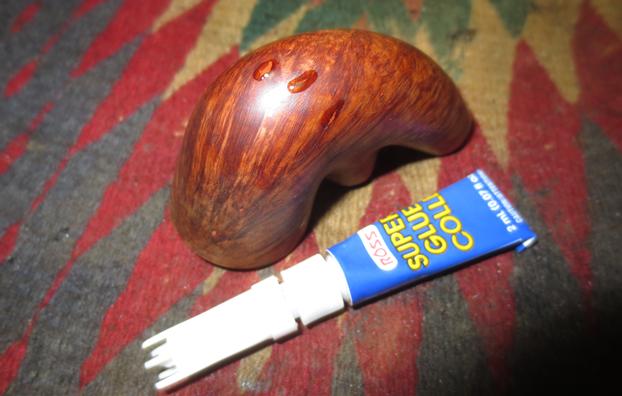

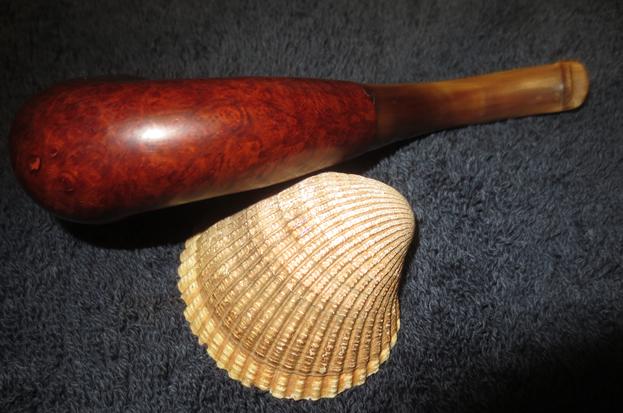

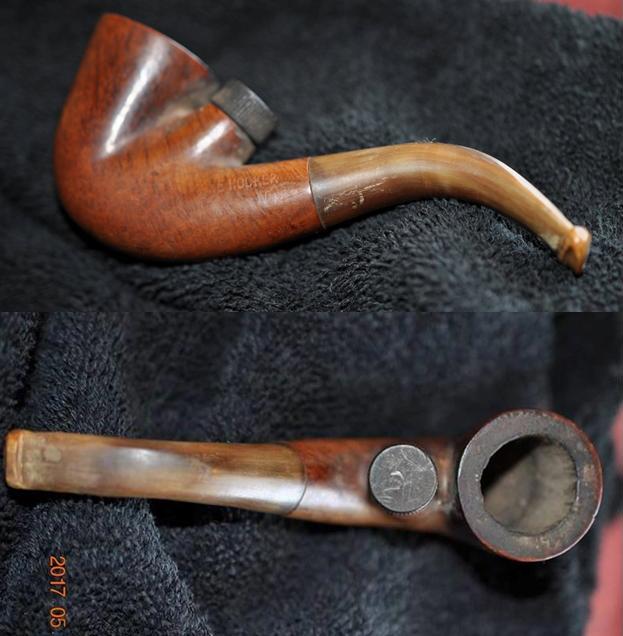

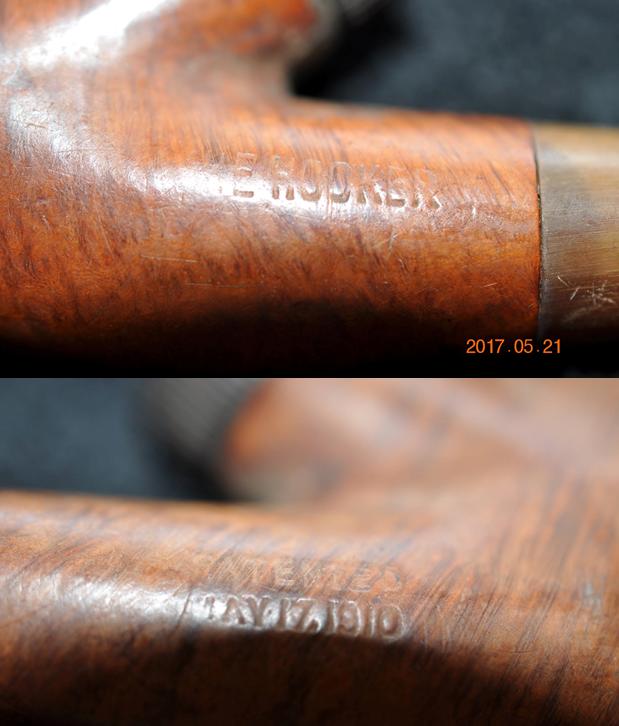

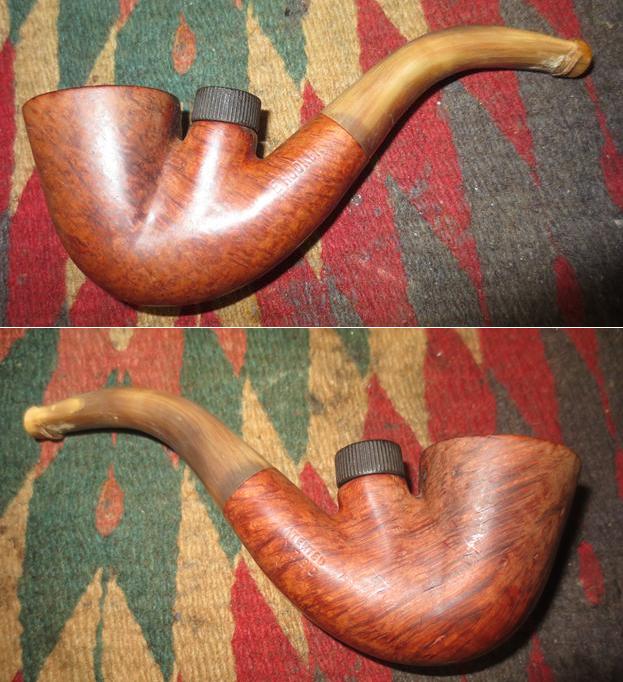

Another one of the pipes found on the Virtual Pipe Hunt in Montana was this interesting old piece. It is an oddity and I was sure when we found it that it was another example of the eternal hunt for the dry, perfect smoke. I joking call it a camel pipe for the humps it has from a side view. This old timer is stamped on the left side of the shank with the words W.E. Hooker and on the right side of the shank it is stamped Patented over May 17, 1910. The pipe was in pretty rough shape at first glance with wear and tear to the finish and the rim caked with lava flowing over to the top. The inner edge of the bowl was out of round and there was some damage to the surface. There were some small sandpits on the right side of the bowl and on the top of the shank. The vulcanite cap in the middle of the shank perplexed me a bit so I was curious what we would find beneath the cap. The stem was horn and it had a lot of tooth damage to the top and underside at the button as well as some significant damage to the button itself and the edges around it. It looked as if someone had taken a knife to it and done some whittling on the horn. It had originally had what looked like a faux P-lip as the airway left the button on the end rather than the top. It was going to be a fun one to clean up.My brother Jeff took quite a few photos of the bow from various angles to give an idea of the overall condition of the pipe.The function of the cap on the top of the shank intrigued me and the overall airflow of the pipe was a mystery. When I put a pipe cleaner in the shank it came out in the sump under the cap. There were two other holes in the sump – one at the top front that connected to the airway as it entered the bowl and one at the top back that went back into the shank and the stem. When I pushed a pipe cleaner through the stem it stopped at the bottom of the sump under the cap. Now I really wanted to know how this worked. I Googled W.E. Hooker tobacco smoking pipe and came up with a patent number 958,398. The inventor was a William E. Hooker of Buffalo, New York. He filed the patent October 13, 1909 and it was patented on May 17, 1910 (just like the stamping on the right side of the shank). I have copied that information below. Note the airflow in the diagram accompanying the patent, I have inserted red arrows how it flowed through the pipe.

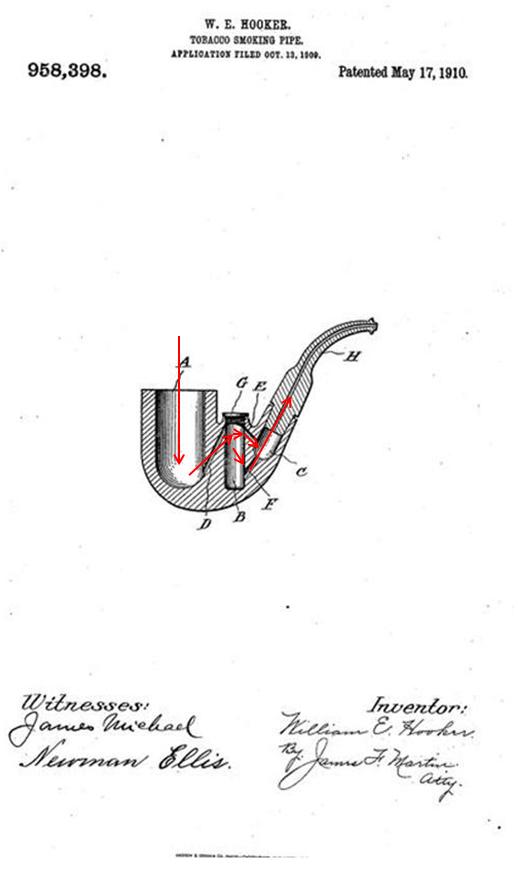

I have included the complete text of the patent below. It explains the letters A-H in the above diagram.

W.E. HOOKER- TOBACCO SMOKING PIPE.

APPLICATION FILED OCT. 13, 1909.

Patented May 17, 1910.

PHOTOLITHOGRAPHER: WILLIAM  E. HOOKER, OF BUFFALO, NEW YORK.

TOBACCO-SMOKING- PIPE.



Specification of Letters Patent.

Application filed October 13, 1909. Serial No. 522,496.

To all whom it may concern:

Be it known that I, WILLIAM E. HOOKER, a citizen of the United States, residing at the city of Buffalo, in the county of Erie and State of New York, have invented a new and useful Tobacco-Smoking Pipe, of which the following is a specification.

My invention relates to certain improvements in a tobacco smoking pipe and I do hereby declare the following to be a full, clear, and exact description of my invention such as will enable others skilled in the art to which it appertains to make and use the same, reference being had to the accompanying drawings and to figures and letters of reference marked thereon, which form a part of this specification.

The objects of my improvements are: First: To provide a chamber or receptacle wherein can be collected all the moisture, nicotine and other foul secretions usually present in a tobacco smoking pipe and prevent the said moisture, nicotine and foul secretions from reaching the mouth of the smoker by means of the aforesaid chamber or receptacle and smoke channels, thereby insuring a clean and sanitary smoke. Second: By means of this chamber or receptacle and smoke channels and drainage channels, to prevent all moisture or saliva that might collect in the pipe stem from flowing into the pipe bowl. Third: To provide ample and easy facilities and means for cleaning the pipe. I attain these results by the position and location in which the nicotine receptacle or chamber and the smoke and drainage channels, are constructed or drilled in the pipe bowl, as illustrated in the accompanying drawings and which forms a part of this specification.

The accompanying drawing is a central vertical longitudinal section of my pipe embodying my invention.

A is an ordinary pipe bowl. B is a chamber or receptacle, for the purpose of collecting nicotine, moisture and other foul secretions, situated between the pipe bowl A and the pipe stem H, in a vertical position and parallel with the pipe bowl A, with an opening at the top. I prefer to have said chamber or receptacle in a vertical position as indicated and parallel with the pipe bowl, to insure the best results with my invention, although it is not absolutely essential that the chamber or receptacle aforesaid, should be nearer to the pipe bowl than to the pipe stem, but the vertical position and location of the chamber or receptacle is essential and necessary. This chamber or receptacle in the position or location described, serves as a collector of all moisture, nicotine and foul secretions which might flow through channels D and E and also has for its purpose the conveying of smoke from channel D to channel E. The opening at top of the aforesaid chamber permits of the easy cleaning of the nicotine and moisture chamber B, and the smoke channels D and E.

C is the well or socket, into which the mouth-piece or stem H fits and also serves as a smoke conductor from channel E, to stem H and as a conductor of any moisture or nicotine which might collect in said well, to the bottom of chamber or receptacle B, through channel F.

D is a smoke channel leading from the bottom of pipe bowl A to the top of chamber or receptacle B and serves as a smoke passage to convey the smoke from the bottom of pipe bowl A to the top of chamber B, thence across said chamber B into and through smoke channel E into the well C and thence to the mouth of the smoker through stem H.

E is a smoke channel leading from the top of chamber B into well or socket C and terminating midway between the end of well or socket C and where the pipe stem or mouth piece H enters said well or socket, and is a conductor of smoke from top of chamber B to the well.

F is a drainage channel to convey saliva, moisture, nicotine and foul secretions which might form in the well or socket C, from said well to the bottom of chamber or receptacle B. By the particular position and location of this drainage channel F, any moisture, saliva, nicotine or secretions, which might form and collect in said well or socket C, pass through this drainage channel and into the bottom of the chamber or receptacle B, and a free and unobstructed draft is thus obtained.

G is a cap which can be removed and it screws into the top of chamber B, to close opening of said chamber and can be easily removed for the purpose of cleaning chamber B and smoke channels D and E.

H is a pipe-stem or mouth piece.

I am aware that prior to my invention, Patented May 17, 1910. tobacco smoking pipes have been made with nicotine chambers or receptacles. I therefore do not claim the invention of a nicotine receptacle; but having thus fully described my invention, I claim: In a tobacco smoking pipe, a moisture or nicotine receptacle, situated or located between the pipe bowl and pipe stem

 or mouth piece, in a vertical position and parallel with the pipe bowl, having an opening at the top of said moisture or nicotine receptacle or chamber, with two smoke channels entering said receptacle or chamber at the top and a drainage channel entering said receptacle or chamber at the bottom as substantially set forth herein and for the purposes specified. In testimony whereof, I have hereunto subscribed my name in the presence of two witnesses, this 11th day of October, 1909. WILLIAM E. HOOKER. Witnesses: Himmler BOWEN, CHAUNCY W. ABBOTT.

Now, I had it in the words of the inventor himself – he designed a different kind of sump vertically in line between the bowl and the stem. That made his invention different from the sump in a Peterson System pipe designed to accomplish the same thing. This is truly a complicated piece of tobaciana.

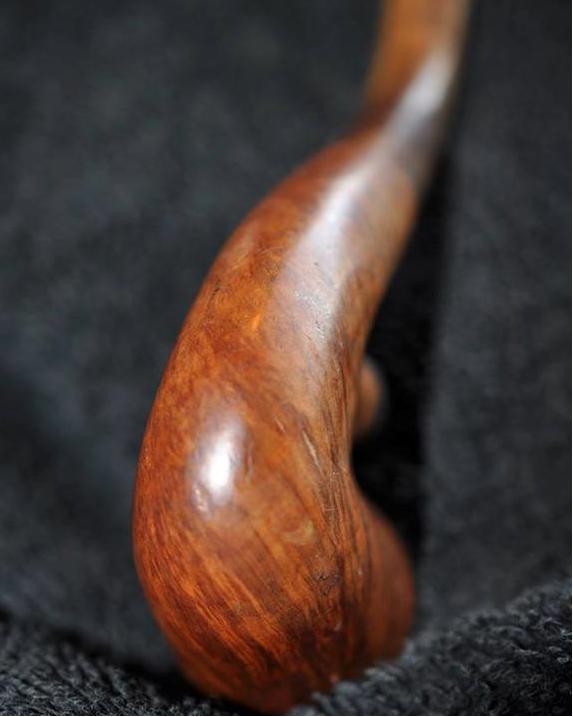

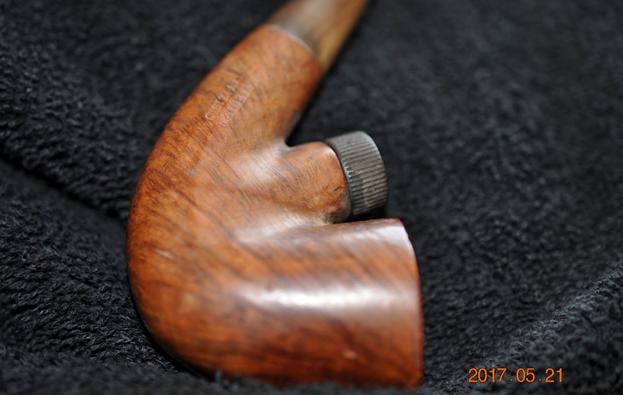

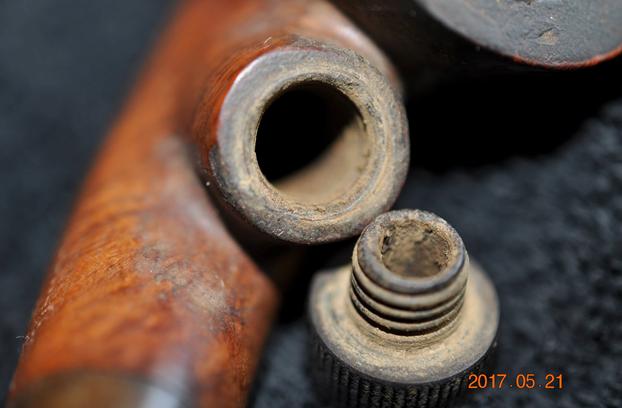

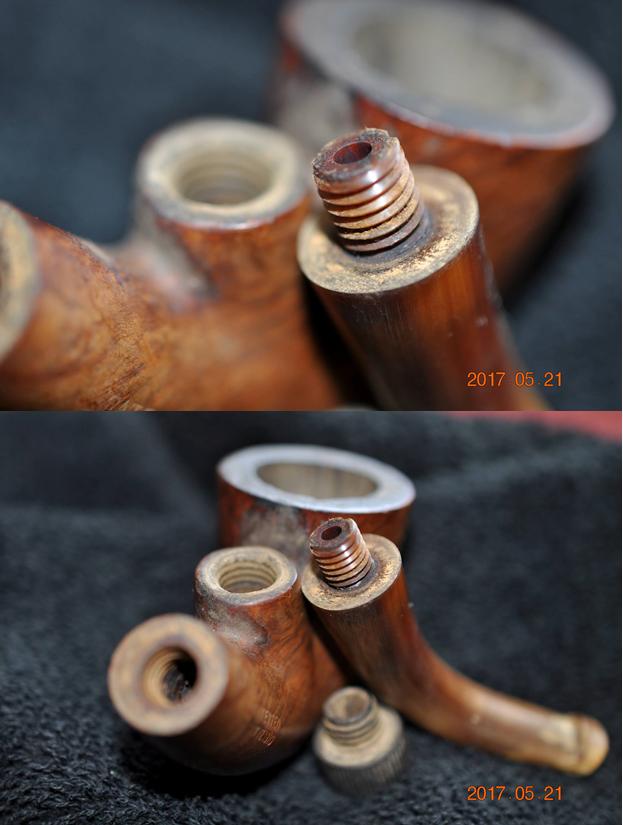

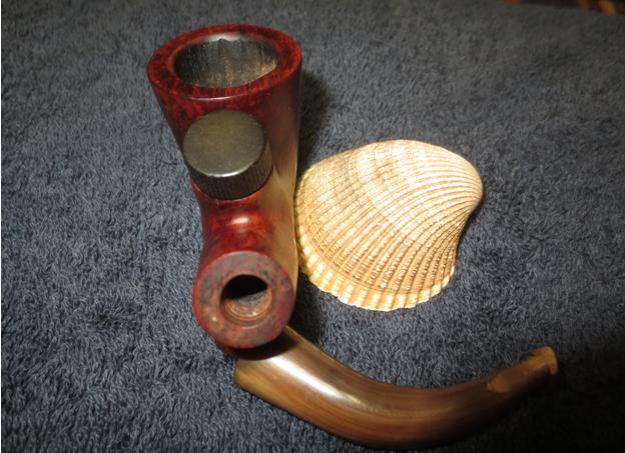

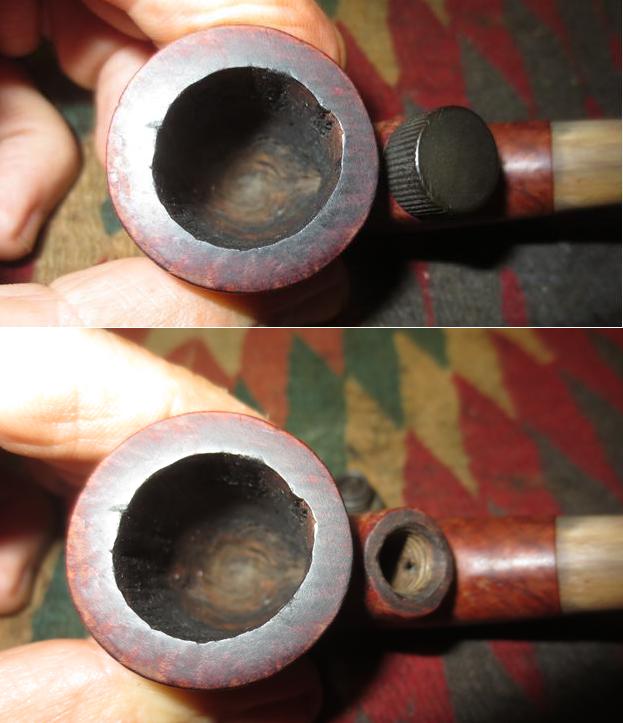

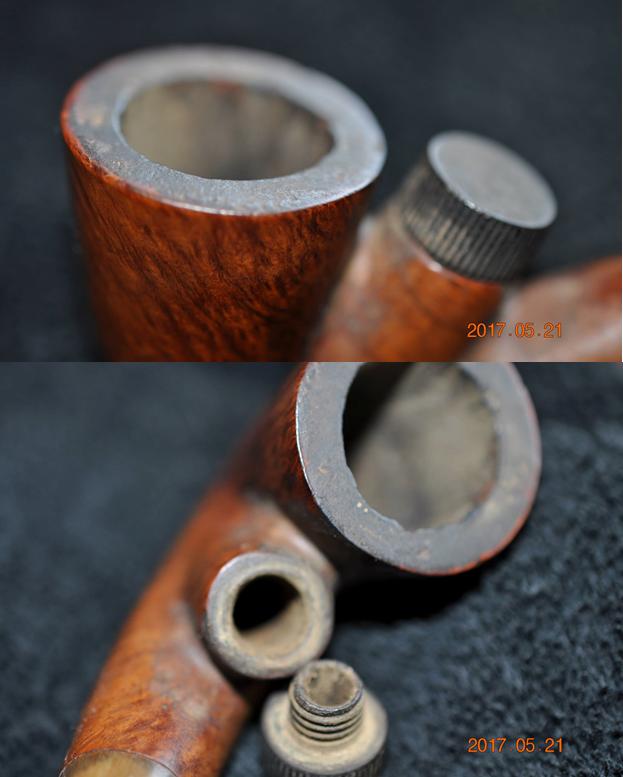

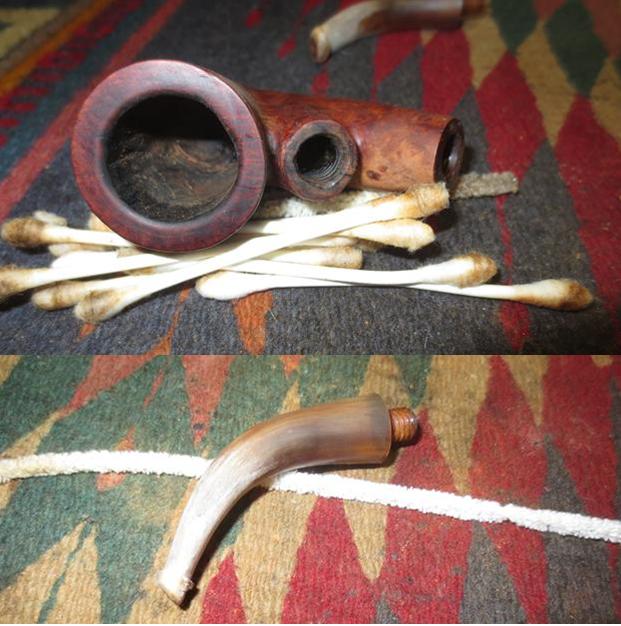

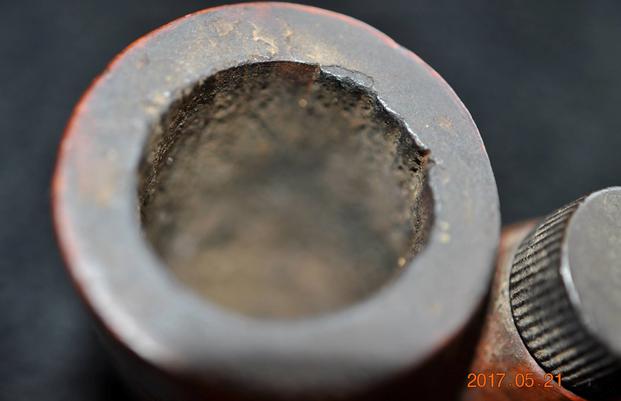

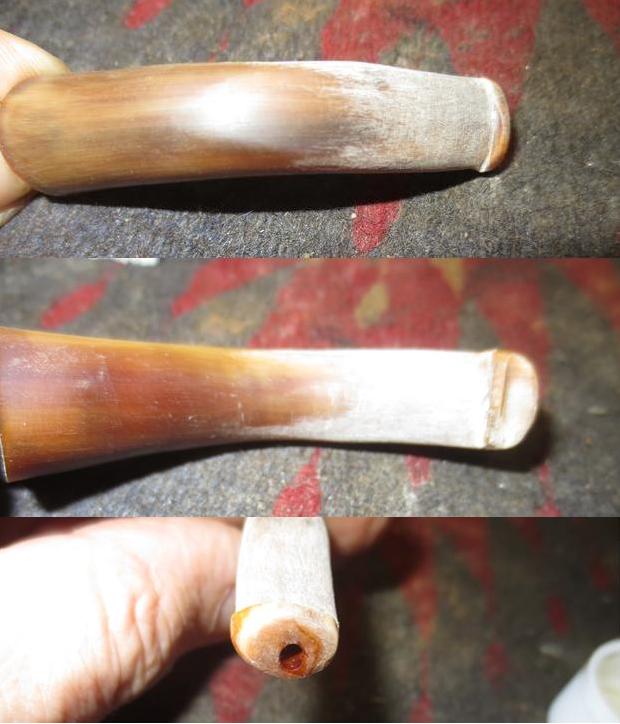

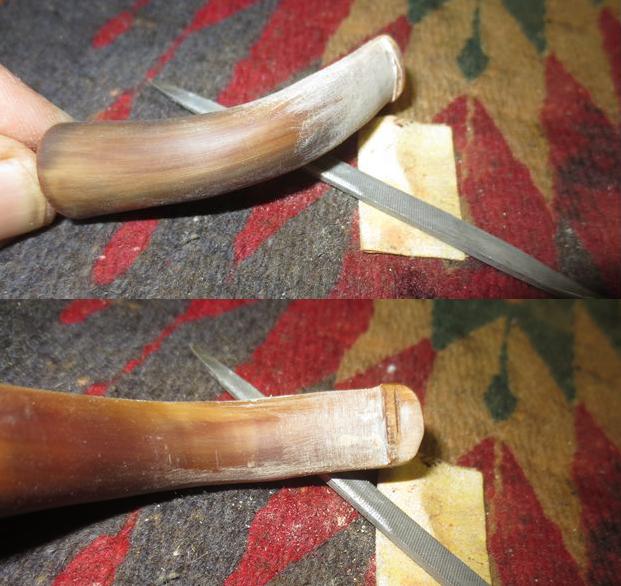

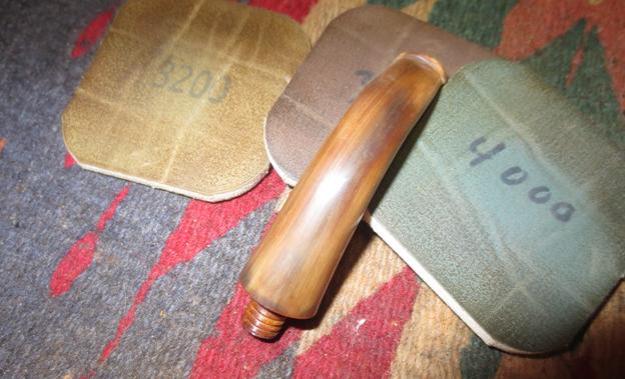

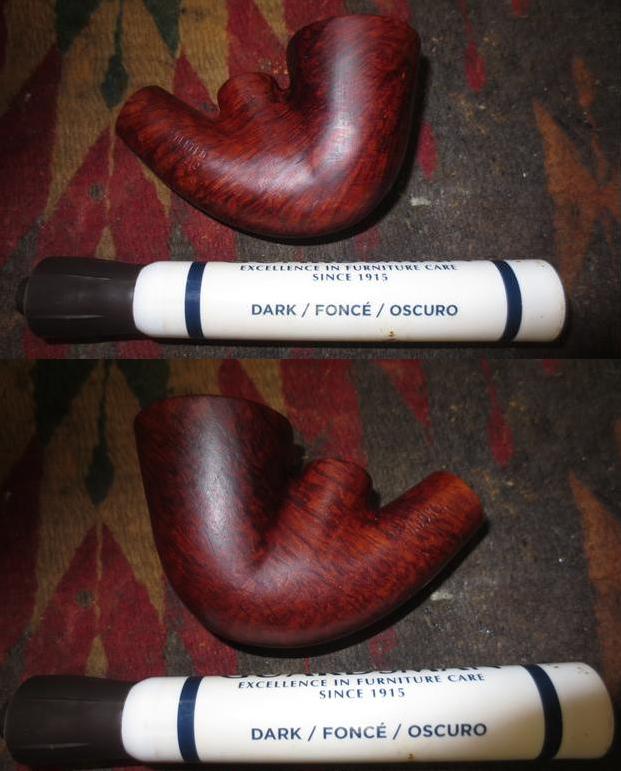

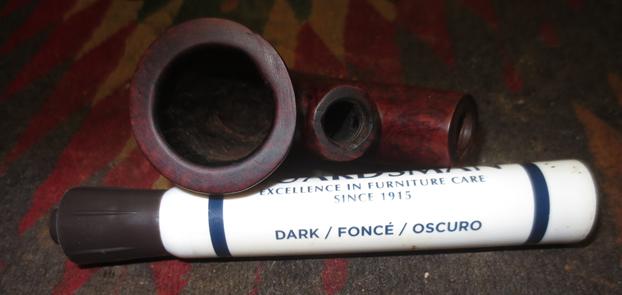

My brother took close up photos of various angles showing the grain of the pipe, the structure and the pipe taken apart. These give a clear picture of what we would have to deal with in the restoration process. The rim top photo shows the cake in the bowl and the overflow of lava on to the rim top. You can also see the damage to the inner edge of the bowl at the back of the pipe.The next series of photos show the hard rubber cap on top of the entrance to the sump on the shank. It is threaded and can be removed by unscrewing it from the briar shank. The horn stem was held onto the shank by a threaded bone tenon that screwed into the threaded mortise in the briar. Both threaded portions were in excellent condition. The second photo below shows the view of the pipe with the three openings showing from the shank to the bowl.The stamping on both sides of the were faint but readable. As mentioned above the left side read W.E. Hooker and the right side read Patented over May 17,1910. I was dealing with an old pipe.The horn stem had tooth chatter and tooth marks as well as some nicks from a knife that had been used to try and reshape the stem. The next photos tell the story. Jeff did a pretty thorough job cleaning this old timer up. The finish was really rough and dirty and the cake in the bowl foretold a very dirty interior. He reamed the bowl with a PipNet reamer and took the cake back to briar. He cleaned the interior of the bowl with alcohol, cotton swabs and pipe cleaners. He worked through the various channels and airways in the shank and the stem until they were clean. I took the photos below to show the condition of the pipe when it arrived in Vancouver, clean and ready for me to work on. I took a close up photo of the bowl with the sump cap on and off. Note the nicks out of the inside edge of the bowl leaving it out of round.I took some photos of the stem to show the cleanness of the horn and the damage to the various parts – sides near the button, the button surface and the stem next to the button on the top and underside.I worked on the inner edge of the bowl to smooth out the damaged areas and even out the rim top. I wanted to work as much as possible to bring the bowl back into round. Once I had sanded the edge I mixed some putty of clear super glue and briar dust to build up the back edge of the rim. Fortunately the damage did not go deep into the bowl but was concentrated at the top.I sanded the repaired area with 180 and 220 grit sandpaper and took the following photo. I still needed to do more sanding but the rim top is taking shape.I wiped down the bowl and rim with cotton pads and alcohol to remove the sanding debris and any remaining finish on the bowl. I did that in preparation for repairing the filled areas on the right side of the bowl and the top of the shank. I put drops of clear super glue in the fills and sandpit areas on the bottom of the bowl and right side. Once they had dried I put some in the sandpits on the top of the shank near the stem shank junction. I sanded the repairs smooth with 220 grit sandpaper and blended them into the surface of the surrounding briar. I wet sanded the areas with 1500-2400 grit micromesh sanding pads. I used the needle file to reshape the stem edges and button and smooth out the damage that had been caused by the knife. I smoothed out the flow of the P-lip style button and recut the ledge on the underside of the stem.I cleaned the airways in of the pipe and stem with pipe cleaners and alcohol. I cleaned out the sump area with cotton swabs and alcohol. There was still some sludge in the bottom of the sump that came out with coaxing. I cleaned out the mortise as well for good measure.I continued to reshape the stem some more with 220 grit sandpaper. I really wanted to have it smooth to touch and closer in appearance to what it must have looked like when it left the factory. When I was done with the sanding the shape was looking much better.I touched up the repaired areas of the bowl and rim with a dark brown aniline stain pen. The colour matched perfectly with the existing stain. I wiped the bowl down with a light coat of olive oil and took the following photos to show where things stood at this point in the process. With the bowl finished I went to work polishing the stem with micromesh sanding pads – I wet sanded with 1500-2400 grit pads and dry sanded with 3200-12000 grit pads. I rubbed the stem down with Obsidian Oil after each pad. It is always amazing to me to see the horn begin to develop a deep glow and shine. I polished the hard rubber sump cap with the micromesh once I finished the stem. I buffed the pipe and stem with Blue Diamond on the buffing wheel to remove any minute scratches that remained in the stem and the briar. I gave the pipe multiple coats of carnauba wax and buffed it with a clean buffing pad to raise a shine. I hand buffed it with a microfiber cloth to deepen the shine on the briar and horn. The finished pipe is shown in the photos below. I am really having a bit of a dilemma with these old pipes – in all of my time refurbishing and restoring old pipe I have never seen pipes like these… I am so tempted to hang on to the lot of the old C.P.F. pipes and the rest that come from that era as I probably will never see them again… ah well definitely a first world problem. Time will tell. Thanks for coming with me on this interesting old restoration. It was a fun one to work on.

Reworking a horn stem on a Regent Pipe


Blog by Steve Laug

I restored this old horn stem on June 9, 2012 and fit it to an old horn-shaped bowl I had in my box. The bowl is stamped The Regent arched around a star. I wrote about the restoration of the stem and the bowl previously in this post: https://rebornpipes.com/2012/06/09/refurb-on-an-old-the-regent-fit-a-horn-stem-7/ I love the translucence of the horn material. I trimmed off excess horn material to fit the end of the shank. The first photo shows the stem when I started.Regent1 The next three photos show the stem after I had trimmed it to match the diameter of the shank band.Regent2

Regent3

Regent4 This holiday season I find that I am out of pipes to restore – I have finished the last of the ones in my box. So during the doldrums of no pipes to refurbish I spent time looking through my collection. I took on the horn stem pipes to look at. I posted on PSU – Pipe Smokers Unlimited – Forum about horn stem pipes. I have quite a few in my collection as I really like the look and feel of a well restored horn stem. I posted the above photos and really did not like the overall look of the stem. It did not seem to flow with the lines of the bowl. In those days I was just starting out on restoring horn stems and I was fearful of ruining the old stem so I did not shape it as aggressively as I do now. I don’t know if it fearlessness or just stupidity but I still am not careless in the work.

I took the pipe out of the cupboard and reworked the stem. I sanded the stem with 220 grit sandpaper to match the angle of the shank – top and sides. I wanted to take out the bulging look, the pinch at the shank stem union. I took off quite a bit more material until the flow looked better and the bulge was gone. I worked to also straighten the sides of the stem from that junction to the button on the end of the stem. I sanded it with medium and fine grit sanding sponges and a fine grit sanding block to flatten angles from shank to button. I finished by wet sanding with 1200-3200 grit sanding pads and then buffed the stem with White Diamond. I took it back to the work table and dry sanded it with 3600-12,000 grit micromesh sanding blocks. I rubbed it down with Obsidian Oil and then gave the bowl and pipe several coats of carnauba wax. I finished by buffing it with a soft flannel buff until it shone.

The finished pipe is shown below. I like the new look of the stem far better than the previous fitting. The pipe is sitting on my desk now and will be in my rotation for this weekend.Regent5

Regent6

Regent7

Regent8
