Breathing Life into a strange German Made Trogesa French Briar House Pipe


Blog by Steve Laug

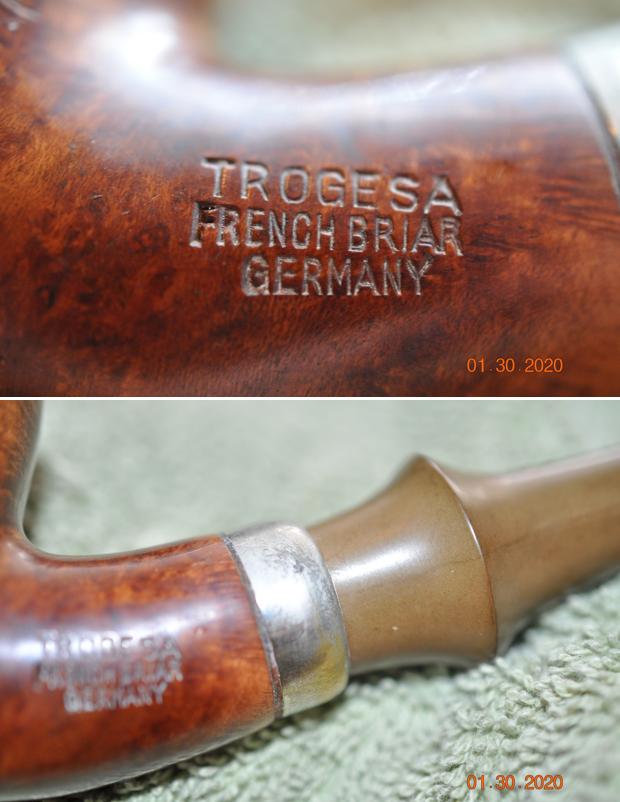

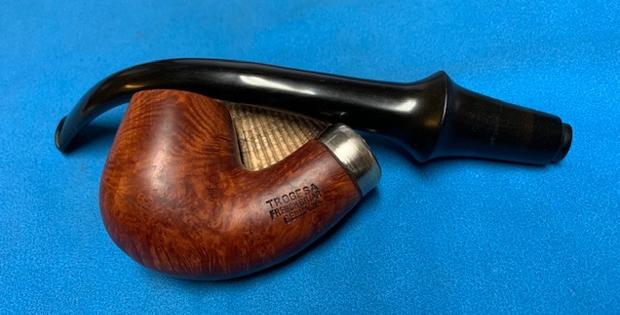

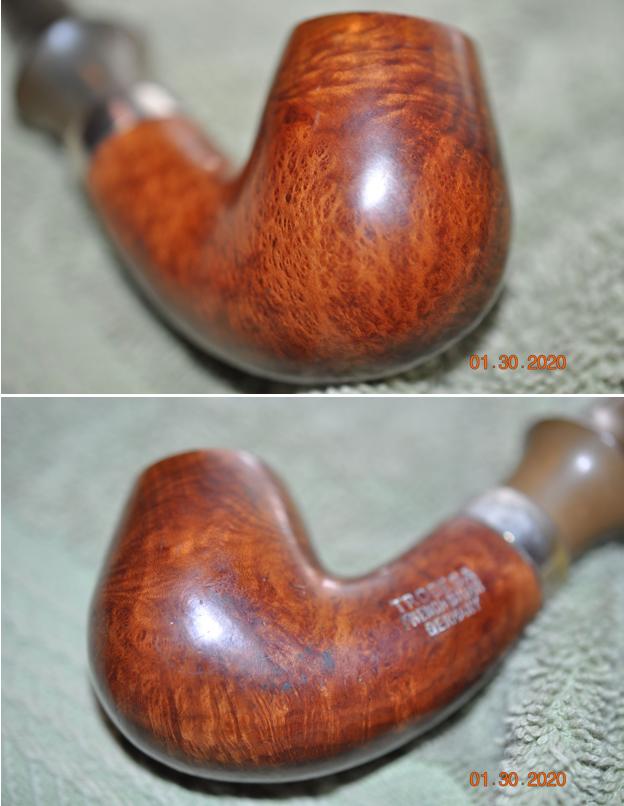

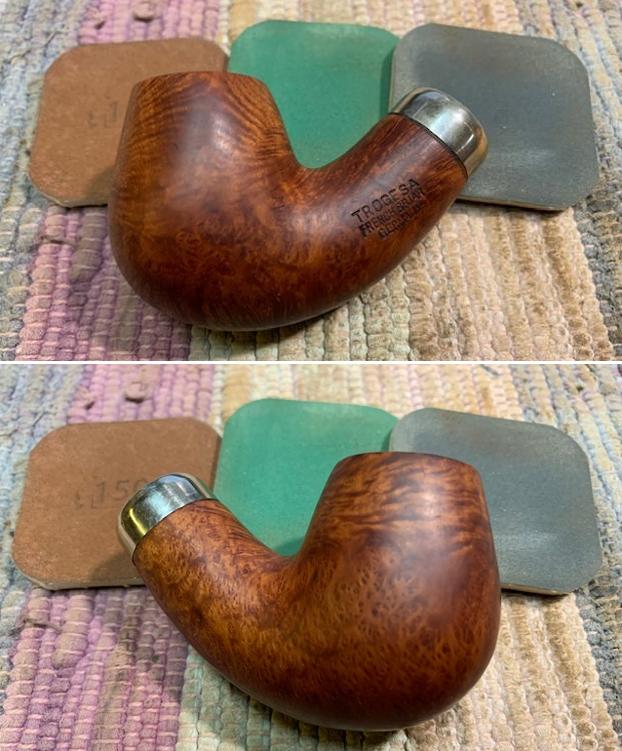

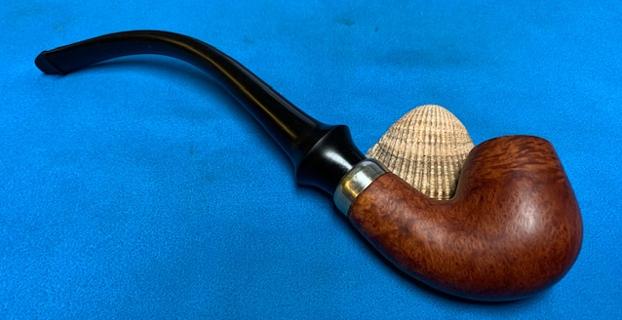

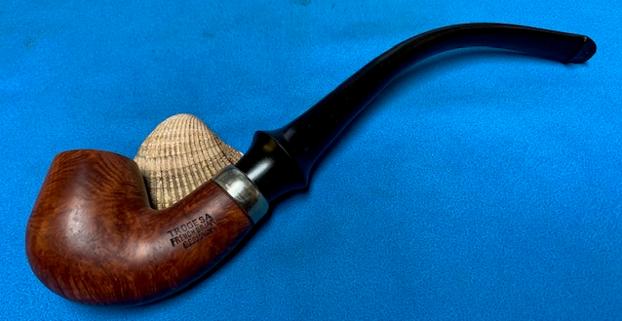

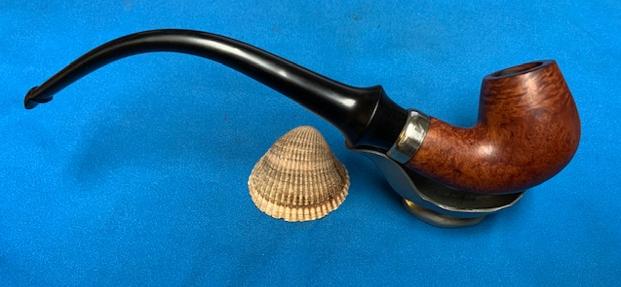

I have only a couple more of the pipes from the old fellow’s collection left to do and they have some challenges that I need to think through before I tackle them. For a bit of a break I am doing some others that we have here in the queue. The next pipe I chose to work on came to us from an online auction back in 2018 in Wilkes Barre, Pennsylvania, USA. This pipe is the size of a Peterson’s House Pipe  – same size and shape. It is an interesting system pipe that is stamped on the left side of the shank and reads TROGESA [over] French Briar [over] GERMANY. The stamping is clear and readable.

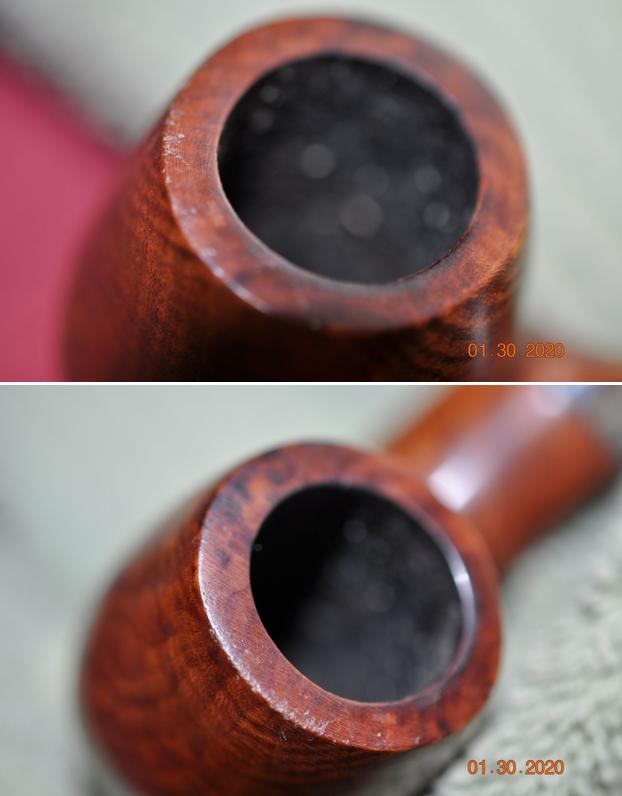

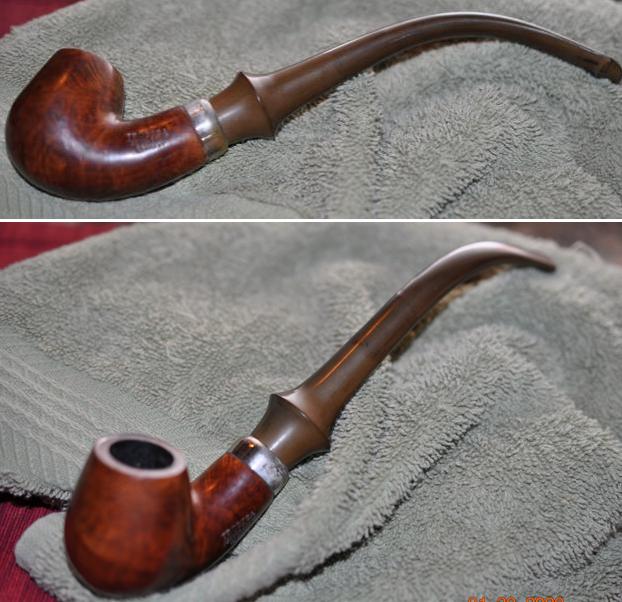

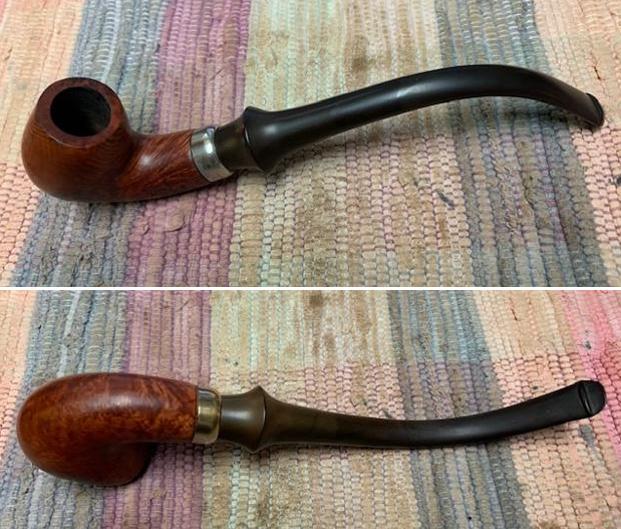

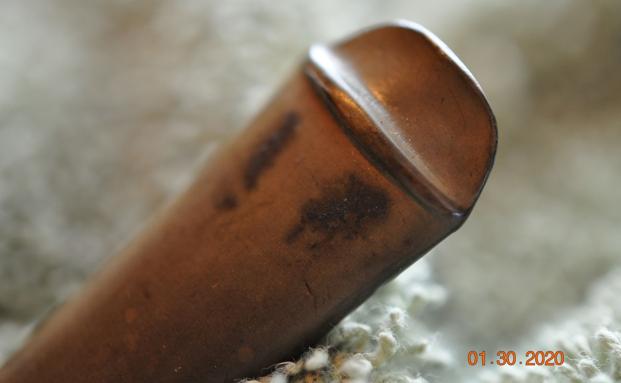

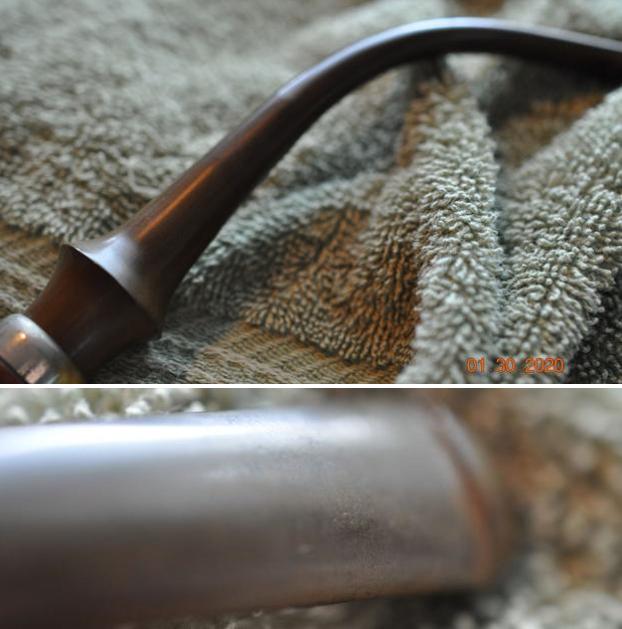

The rim top looks to be in good condition with some nicks on the outer edge. There is a thick cake in the bowl and the finish is dirty and lifeless. The shank has an end cap that is part of an inset mortise in the shank that is cylindrical with a tube at the top that enters the bowl at the bottom of the chamber. That mortise cylinder is also quite dirty. The long vulcanite saddle stem is similar in design to the KB&B Wellington or Yello-Bole style P-Lip. The airway comes out on the end of the button like those stems rather than the top like a Peterson’s stem. The stem does not have any stamping and is heavily oxidized but has light tooth chatter but no tooth marks on both sides near the button. Jeff took some photos of the Trogesa Pipe before he worked his magic in cleaning up the pipe. It is a an interesting pipe with a lot of potential and what appears to be some great grain under the grime and debris of the years.   Jeff took photos of the bowl, rim top to show the thickness of the cake in the light scratches on the surface of the rim and edges. There is some light lava on the inner edge but nothing too thick. He took photos of the top and underside of the vulcanite stem showing the oxidation, calcification, tooth marks, chatter and wear on the stem and button. Jeff took photos of the end of the stem and the internals of the metal insert in the shank end. It is definitely and interesting pipe. I will try to get a few more detailed pictures of the shank end once I have it in hand.Jeff took photos of the sides and heel of the bowl to show the condition of the briar. You can see the beautiful shape of the bowl and some great grain even through the dirt and debris of many years. Jeff took photos of the stamping on the left side of the shank and the look of the shank cap on the end. It is definitely a different looking cap and fit.I wrote to Dutch Pipe Maker Martin Romjin to see if he could give me any information. In the past he has been a great resource for Dutch and German pipes. I figure it was worth a shot to see if he could help me out. Here is his reply (thanks Martin).

Hello Steve, sorry for it took me so long to answer. I have no idea…..never heard about TrogesaI will contact a friend, maybe he knows

He answered, “it seems like stamped TROBE SA….Trobe is a major supplier of smoking supplies in Germany. Had these made in France. Bimalt in the Netherlands has also had this done. Inspired by the Peterson pipes. Peterson’s system pipes were a great success and they wanted to get a piece of it.”

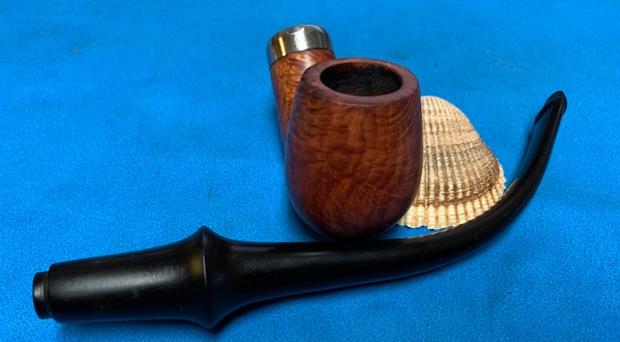

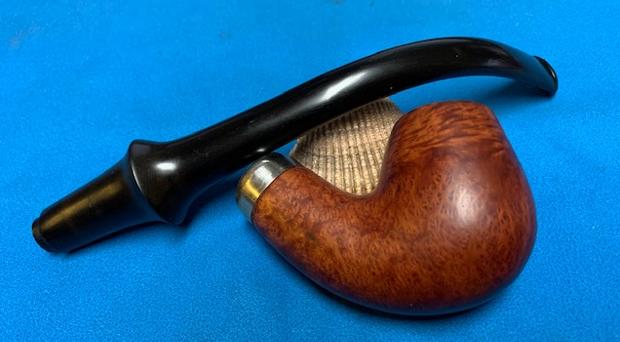

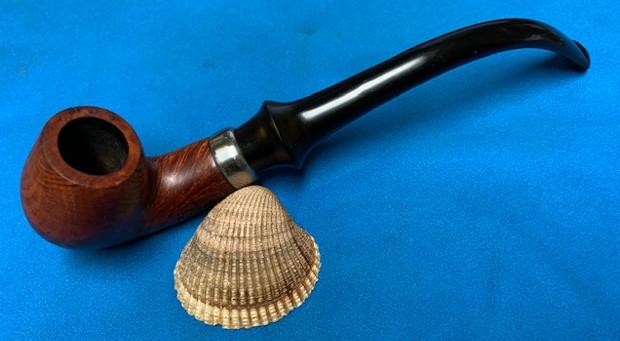

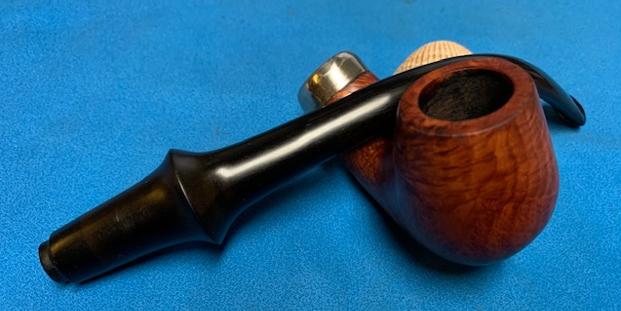

This information was all that I could find on the brand but the description fit very well. It is stamped both French Briar and Germany so that matches. It is also a pipe obviously inspired by Peterson’s Pipes so that also fits well. The last sentence stating that since Peterson’s System pipes were a great success both Trobesa/Trogesa and Bimalt wanted a piece of the action. Now I have a better idea of the brand. Made for a supplier of smoking supplies in Germany it is a beauty. Now it was time to work on the pipe.

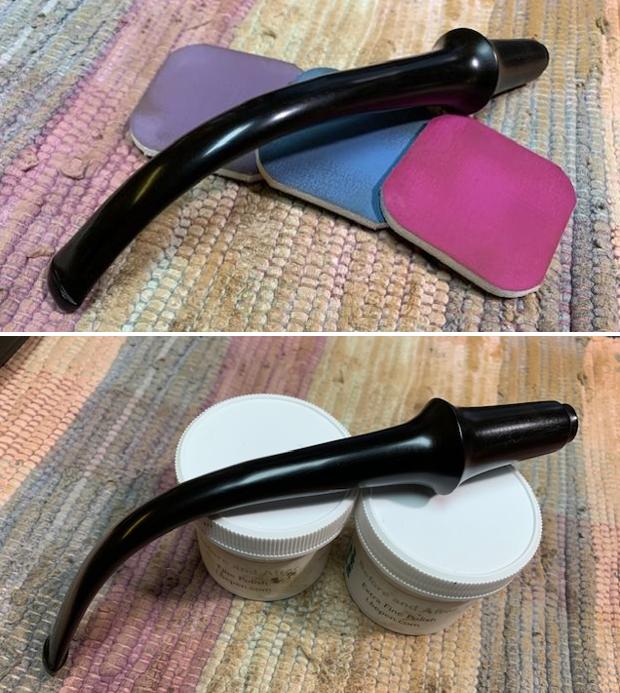

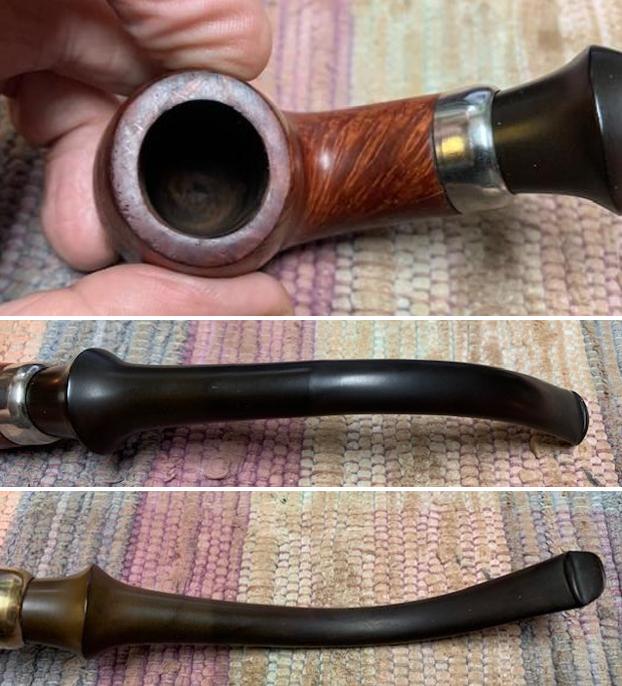

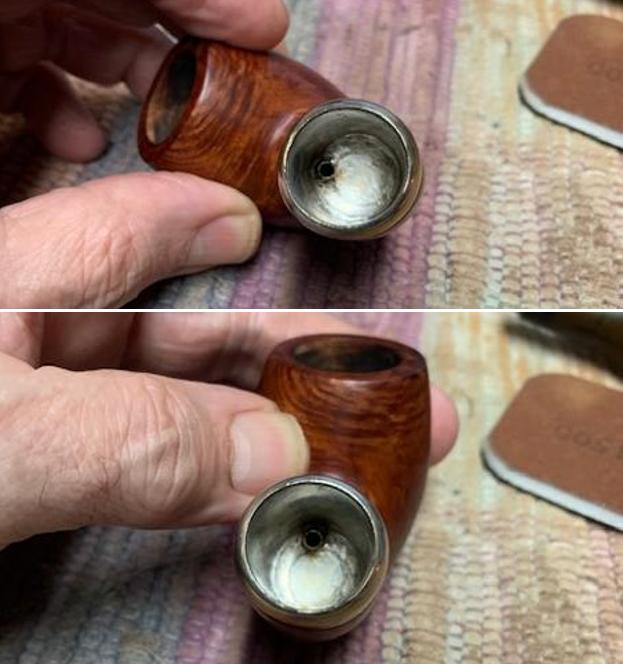

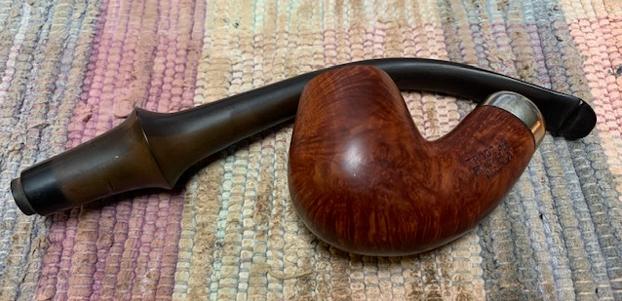

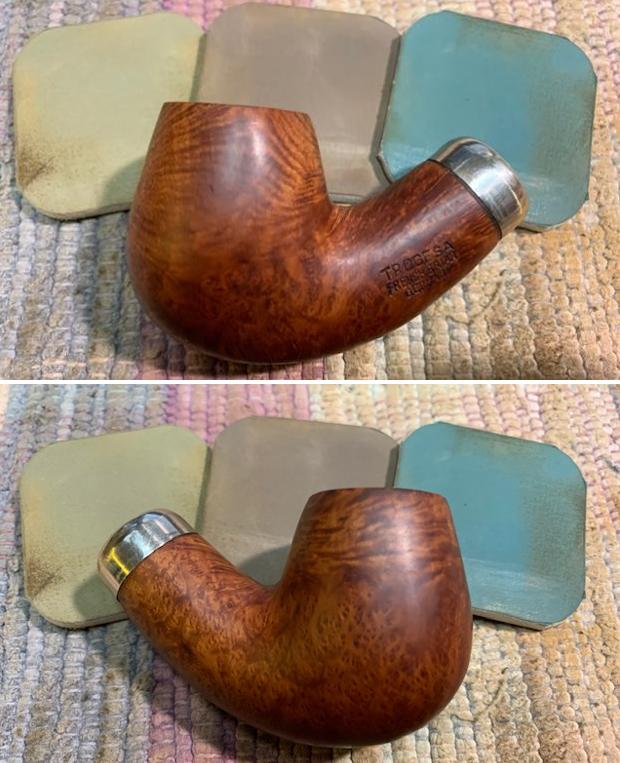

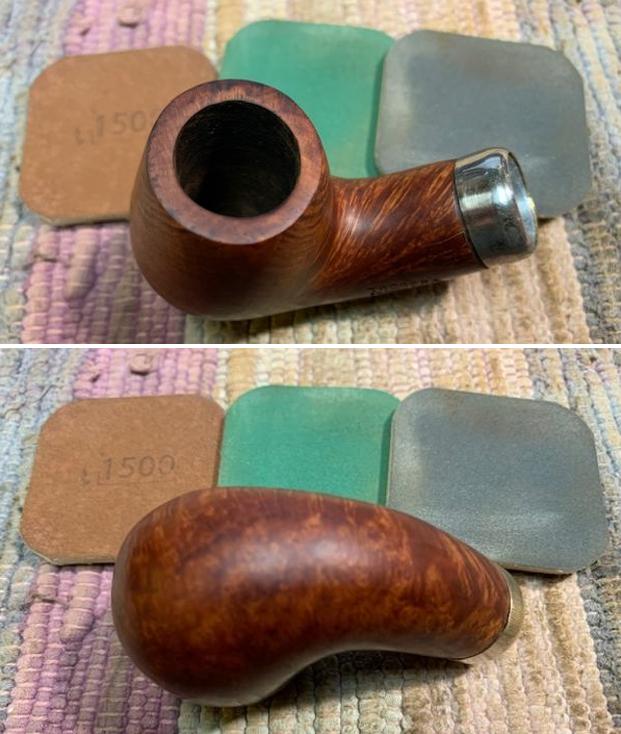

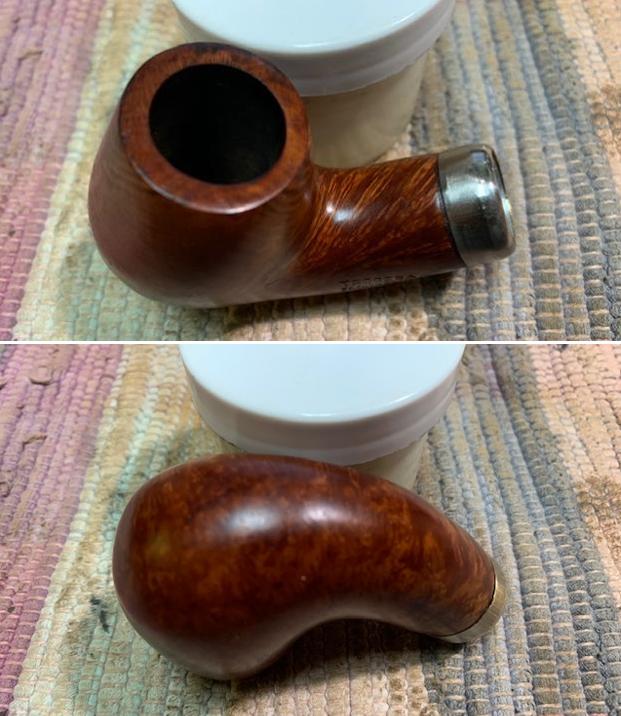

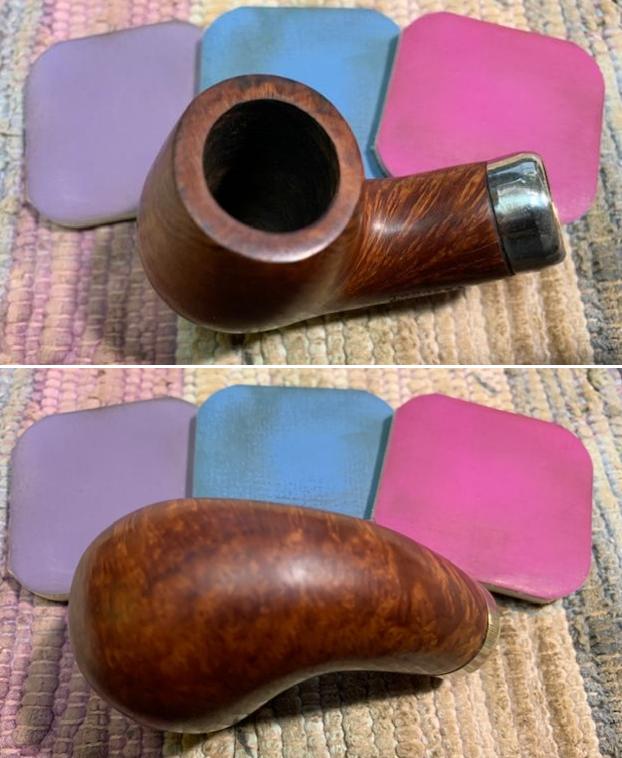

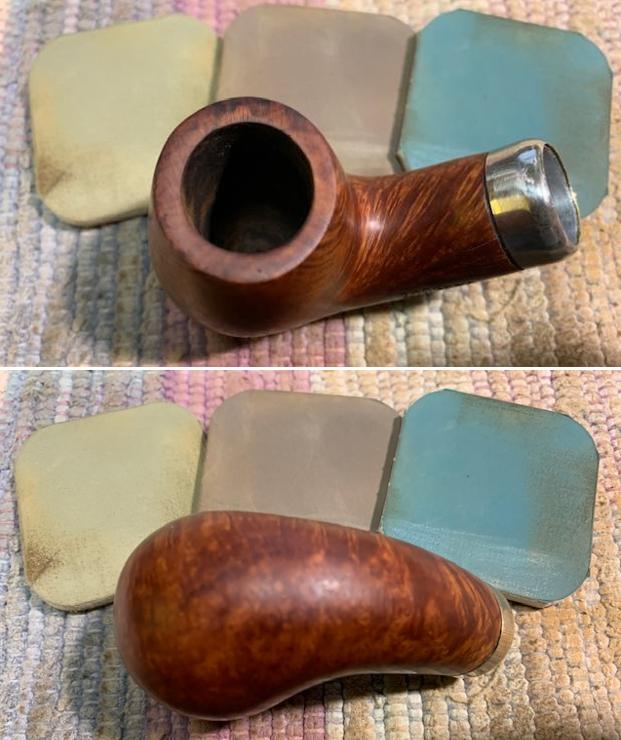

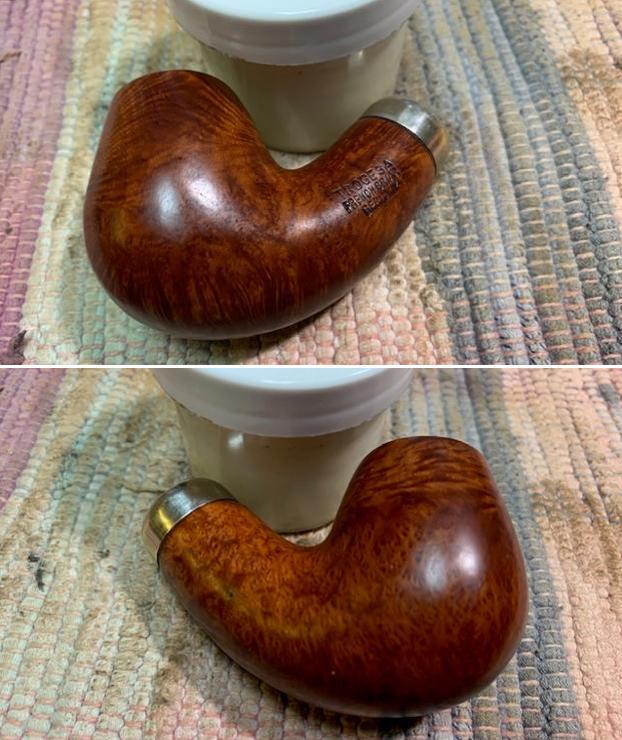

Jeff carefully cleaned the pipe. He reamed it with a PipNet pipe reamer and then cleaned up the reaming with a Savinelli Fitsall Pipe Knife. He scrubbed out the internals of the shank, stem and shank extension with alcohol, pipe cleaners and cotton swabs until the pipe was clean. He scrubbed the exterior of the bowl with Murphy’s Oil Soap and a tooth brush to remove the grime and grit on the briar and lava on the rim top. The finish looks much better and has a deep richness in the colour that highlights the dimensions of the grain. The chip on the back of the rim top was clear and looked like a relatively easy repair. The edges looked good otherwise. He soaked the stem in Briarville’s Pipe Stem Deoxidizer and scrubbed it with Soft Scrub to remove the remnants of oxidation. When the pipe arrived here in Vancouver I was amazed that it looked so good. Here are some photos of what I saw. I took some close up photos of the rim top and the stem surface. The top and inner and outer edge of the rim look to be in good condition. The bowl is a bit oval in shape rather than round but appears to have been made that way. The stem was clean of tooth marks and had light chatter on the button surface. There was some residual oxidation on the underside of the saddle area that would need to be dealt with. I took a photo of the stamping on the side of the shank. It is readable and clear. I removed the stem from the shank and took a photo of the parts of the pipe. I took some photos of the mortise area and shank. It is a metal (aluminum?) insert with a tube at the top that angles to the bottom of the bowl. It is an unusual reverse Calabash system that I have not seen before.I started my work on the pipe by polishing the briar with micromesh sanding pads. I dry sanded it with 1500-12000 grit pads and wiped it down with a damp cloth after each pad to remove the sanding dust. I worked some Before & After Restoration Balm into the surface of the bowl and shank with my fingertips to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. I set the bowl aside and turned my attention to the stem. I sanded it with a folded piece of 220 grit sandpaper to remove the remaining oxidation on the saddle area and smooth out the tooth chatter on the button area. I started polishing the stem with 400 grit wet dry sandpaper.I polished the stem with micromesh sanding pads – dry sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil. With the bowl and the stem finished I put the beautiful and unusual German made Trogesa French Briar House Pipe back together and buffed it on the wheel using Blue Diamond to give it a shine. I gave the bowl and the stem multiple coats of carnauba wax on the wheel. I buffed it with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The grain on this pipe really is a great looking. The dimensions of the pipe are – Length: 9 inches, Height: 1 ¾ inch, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of this large pipe is 2.36 ounces /67 grams. This Trogesa French Briar German House Pipe is another great find from this collection. It is much more beautiful in person than these photos can capture. I will be putting it on the rebornpipes store soon. If you would like to add it to your collection let me know. This is another pipe that has the possibility of transporting the pipe man or woman back to a slower paced time in history where you can enjoy a respite. Thanks for walking through the restoration with me.

Repairing and Refurbishing a Jobey “Gondoli” From Steve’s Grab Box


Blog by Paresh Deshpande

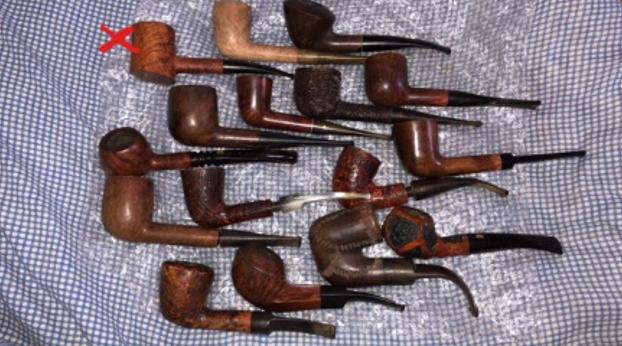

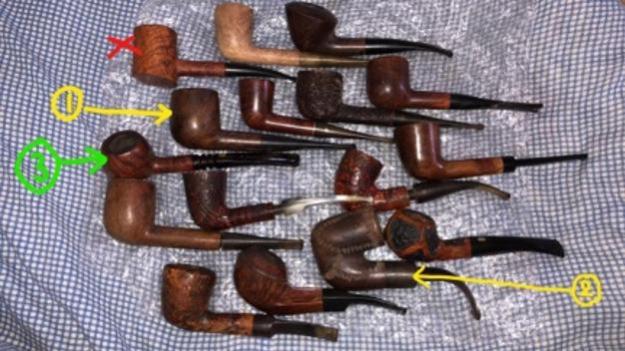

Steve, my friend and mentor, had sent me a pipe lot of 15 pipes for restoration about 3 years back. These assorted pipes were requested by me with an intent that these would provide me with an opportunity to further hone my skills and gain experience in tackling varied issues that one may come across during restoration. Each of these pipes has its own set of issues to address and I look forward to work on each one of this pipe lot. Here is the picture of the pipes as I received it. The one marked with a red cross is a Dunhill Root that has been restored by Steve for my personal collection.

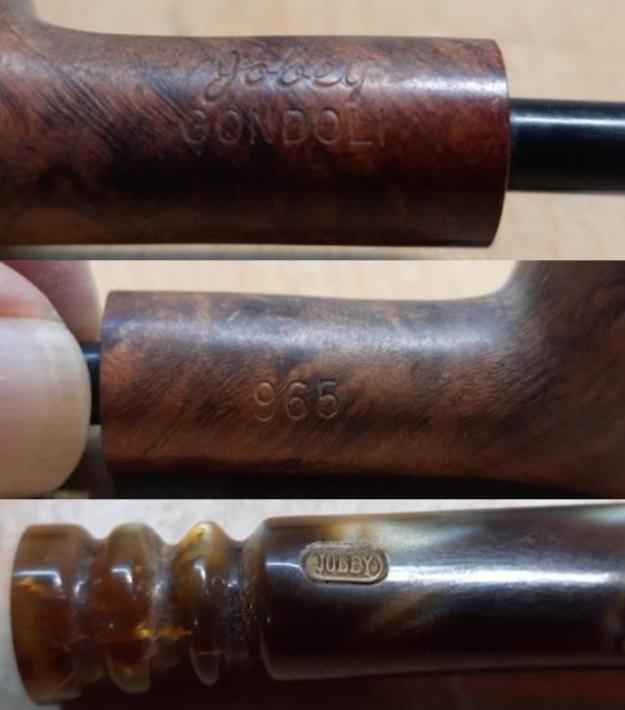

I have worked on a no name straight billiard and an Oom Paul from this lot and both turned out to be beautiful pipes. The next pipe from this lot that I selected to work on is a Jobey “GONDOLI” and is marked with a green arrow and numeral 3.This pipe has a nice hand feel to it and the classic Prince shape with a beautiful variegated fancy stem makes it a very attractive looking pipe. The stummel boasts of beautiful mixed grains. It is stamped on the left side of the shank as “Jobey” in fancy script over “GONDOLI” in capital letters, towards the shank end. On the right side of the shank it is stamped with shape code “965”. The variegated acrylic stem with swirls of brown carries the trademark logo of JOBEY in a brass roundel atop the surface of the stem.I had previously worked on two Jobey pipes and had researched the brand at that time. Here is the link for the research and write on the pipe.  A Simple Restoration of a “Jobey Filtersan # 690” | rebornpipes

No other information was available on the internet that I could link with the GONDOLI line or the shape code # 965. Any assistance in unearthing additional information is most welcome!!

Initial Visual Inspection

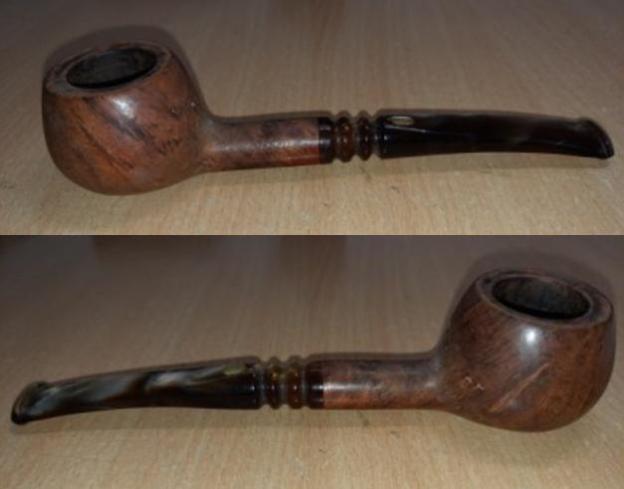

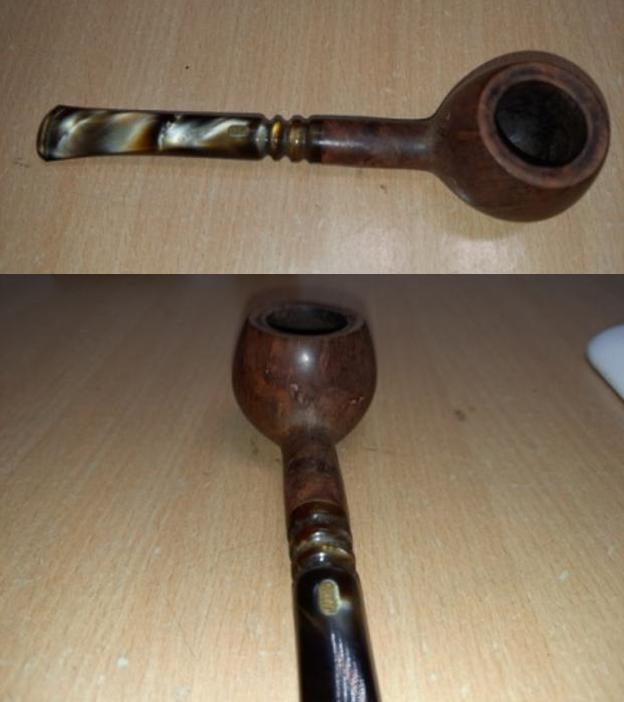

This grab bag that Steve had sent me contained few pipes that Jeff had already cleaned and sent across to Steve for further restoration. Thus, unfortunately, before condition pictures are not available with me to share with the readers, but fortunately, I get to work on a pipe that Jeff has already worked his magic upon and presented me with a clean pipe. Below are a few pictures of the pipe as I had received it. Detailed Inspection

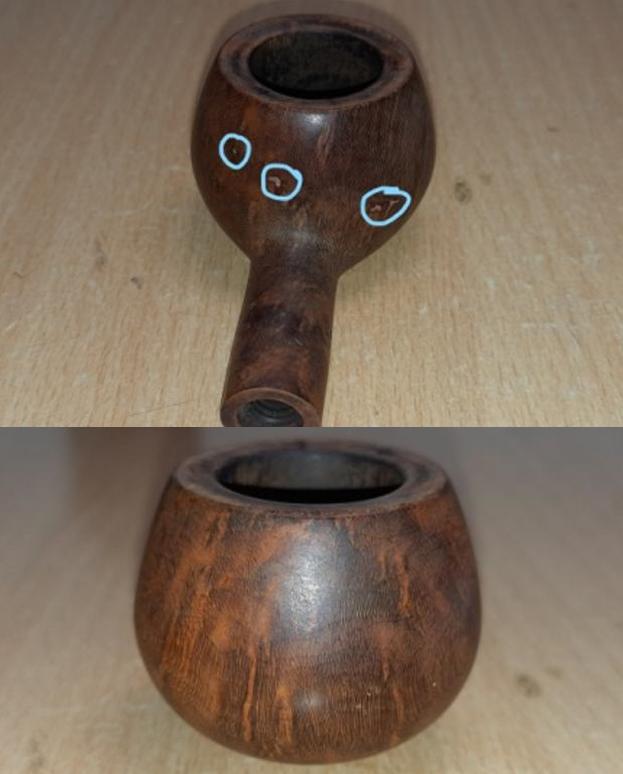

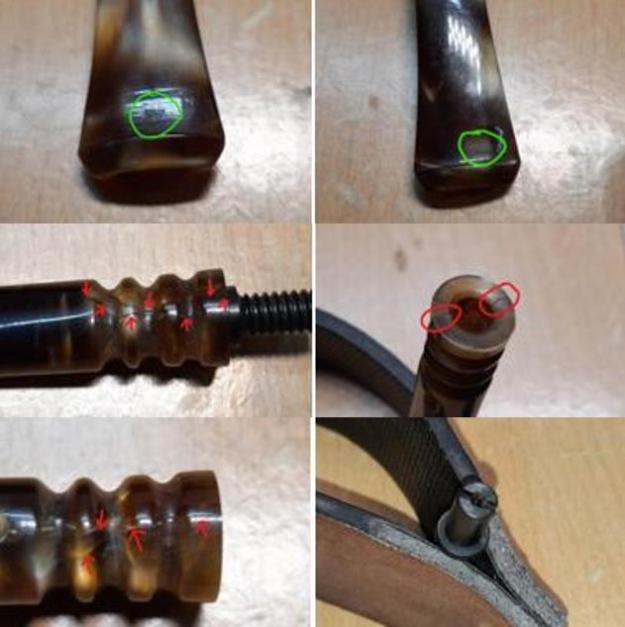

The chamber is nice and clean with thick walls without any damage. The rim top surface has a couple of darkened areas which should be easy to clean up. The inner and outer rim edges are in decent shape and the chamber smells clean.The external surface of the stummel has been cleaned and lacquer coat has been removed in most of the places. However, a few spots remain where the lacquer coating is visible. The stummel had a reddish orange stain that has been cleaned out but would need to be eliminated completely (personal choice!). There are a few fills (encircled in pastel blue) at the back of the stummel that would need to be refreshed. There are few dents and dings over the stummel surface that needs attention. Through all this patchy lacquer coat and stain, beautiful Angel’s hair peeks out from the smooth surface. Once the stummel is cleaned and polished, these grains will pop out in all their refined glory. All in all as it stands now, this is one dull and tired looking stummel that requires a lot of TLC!! The mortise is threaded to accommodate the screw-in Jobey link tenon which was patented by Jobey. The mortise is otherwise clean but for the accumulation of dust and grime from three years of storage. This will need to be thoroughly cleaned. The famed Jobey-link Delrin tenon is shown below.The variegated acrylic fancy stem with swirls of browns and grey look very attractive, but to put it mildly, is an utter mess!! It has bite marks (encircled in green) on both upper and lower stem surface with minor tooth chatter all over the bite zone on both sides; however, these should be an easy fix. The real serious damage to the stem can be seen at the tenon end. There is a deep crack from the face of the tenon end on either surface that extends right up to the shoulders of the stem. Along the way this crack on either surface, has further bifurcated in to a couple of more cracks extending to the sides. The extents of all these cracks are indicated with red arrows.

Note: This is one tricky stem repair that I would be undertaking. I had half a mind to completely replace this stem with a new one rather than repair it. But I wanted to preserve the originality of the pipe and secondly, I did not have a suitable acrylic stem to match the beauty of the original stem and pipe combo. So repairs to this stem are the way out for me at the moment. The Process

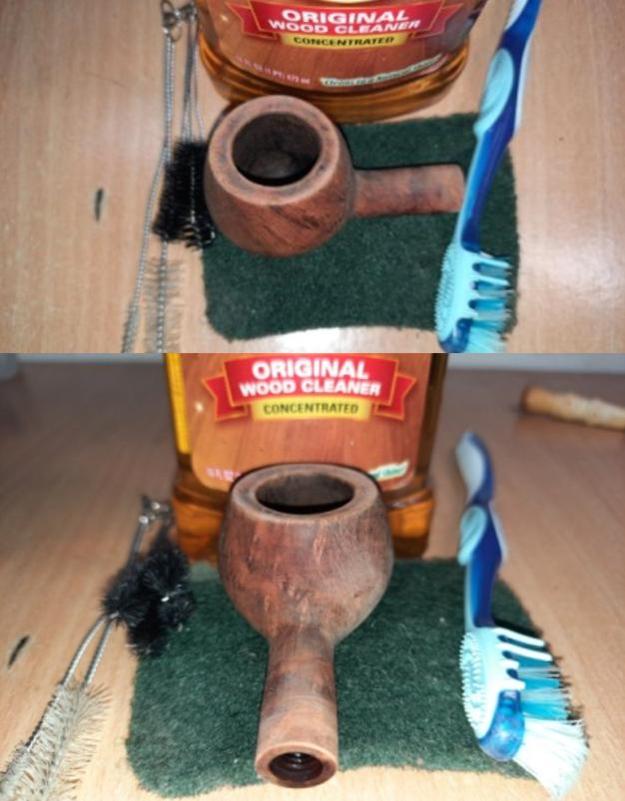

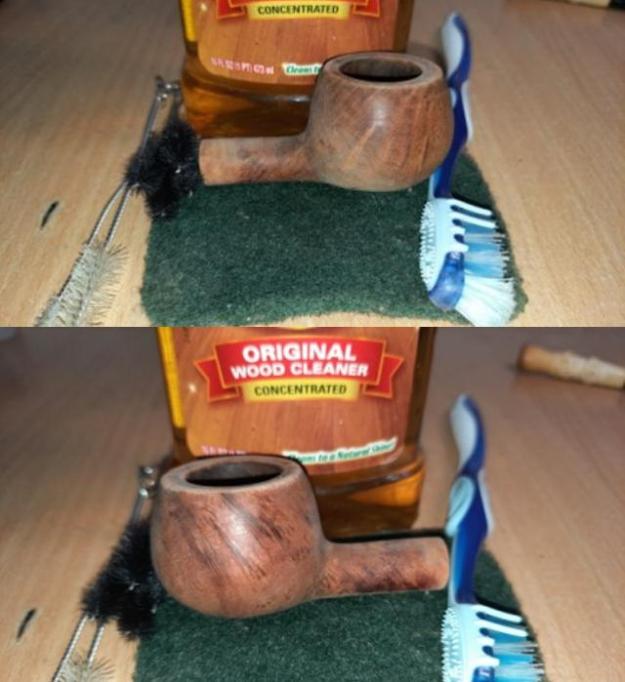

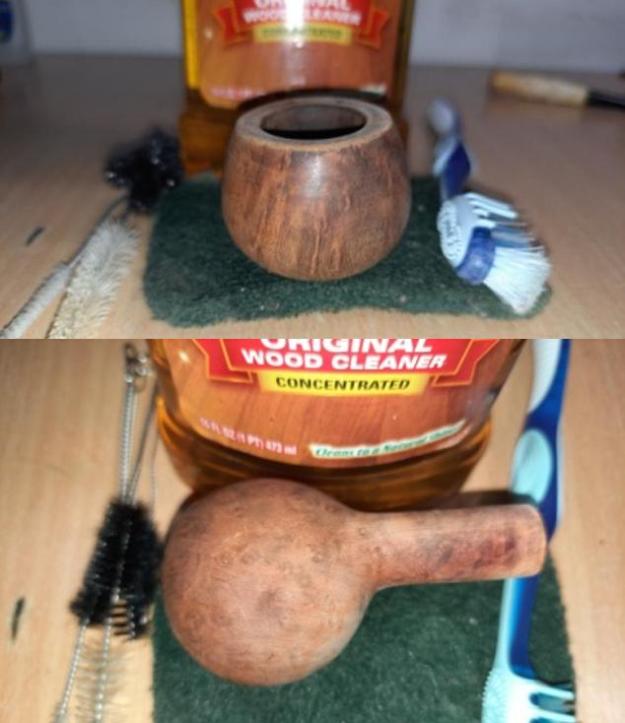

Firstly, I cleaned the stummel exterior with Murphy’s soap and hard bristled tooth brush. I used an abrasive Scotch Brit pad to completely eliminate the lacquer coat from the surface. I diligently worked the rim top surface to remove the minor traces of darkened stains that remained. With a shank brush, I thoroughly cleaned the mortise of all the dust that had accumulated inside and along the mortise walls.

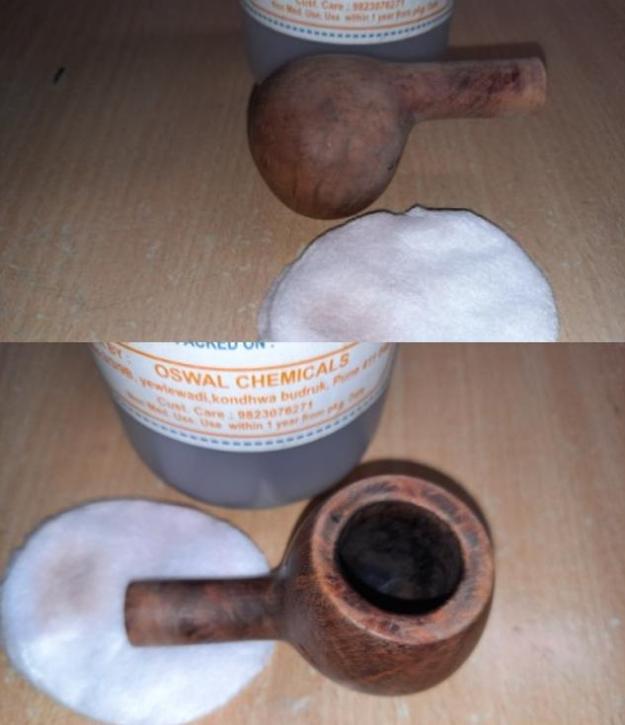

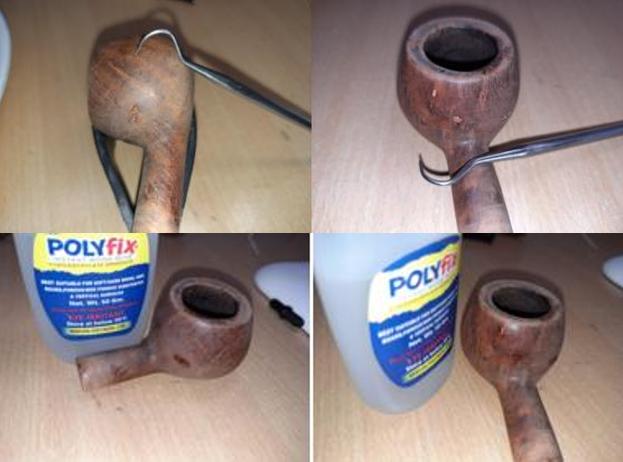

Note: The reddish orange stain on the stummel has reduced significantly, but not completely. I would need to resort to other stronger measures to eliminate the old stain. The rim top is now clean and the lacquer coating from surface has been removed completely. The fills would need to be refreshed. Next, I wiped the stummel with pure acetone on a cotton swab to eliminate the minor reddish orange stain that remained on the surface. The acetone worked well and the stummel is now free of the old stain, presenting me a fresh canvas to work further. Continuing with the stummel refurbishment, I decided to refresh the fills at the back of the stummel. Using a sharp dental tool, I removed the old fills and cleaned the area with a cotton swab and isopropyl alcohol. The gouged out spots were filled with clear CA superglue and set aside for curing.With the stummel fills set aside for curing, it was time to undertake the repairs to the stem. I first cleaned the stem surface with isopropyl alcohol on a cotton swab. Using nose pliers, I gently flexed the crack just enough for the superglue to seep in. I applied a generous layer of clear CA superglue of medium viscosity over the crack and flexed it a couple of times to make sure that the glue had seeped in to the crack. I pressed the crack together in a vice and set it aside for the glue to cure.

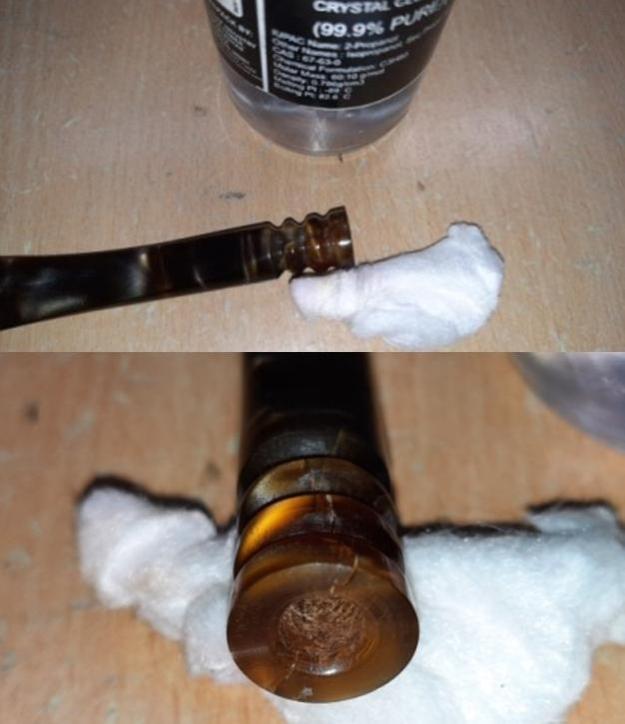

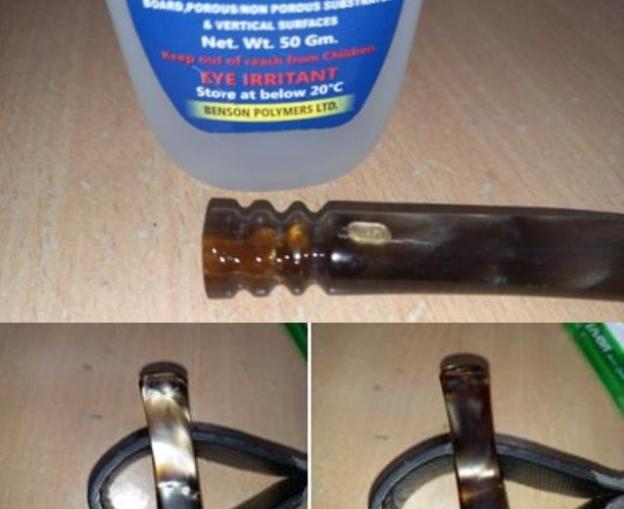

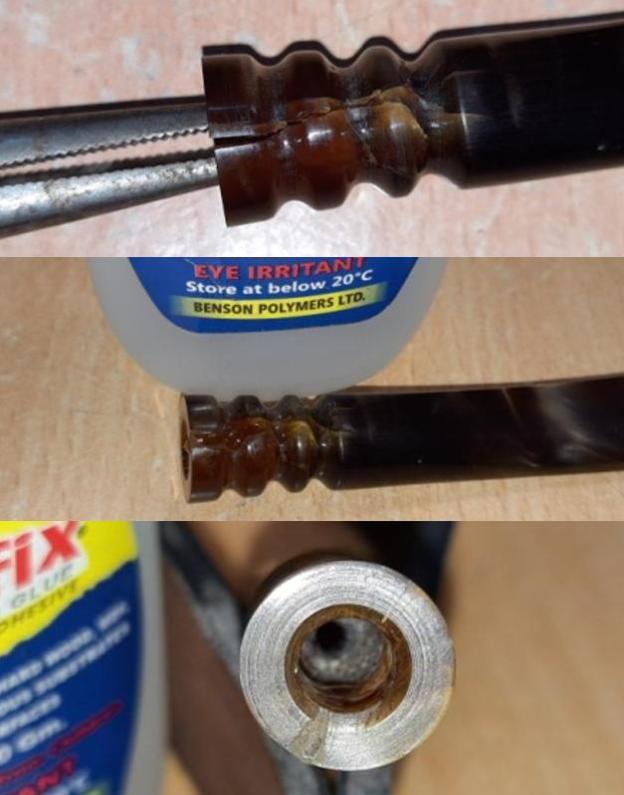

Note: The last picture shows that the glue had seeped completely in to the crack and inside the stem opening that houses the tenon. I shall resort to sanding to remove the excess glue from inside the stem.  Once the glue had completely hardened, I applied another coat of superglue over and around the cracks on either surface. I spot filled the tooth indentations in the bite zone with clear CA superglue and set the stem aside for the glue to cure.Next, while the stem fills are curing, I sand the stummel fills with a flat head needle file to achieve a rough match with the rest of the surface. To achieve a better match and also to address the dents/ dings over the stummel surface, I sand the entire stummel surface with a piece of 220 grit sand paper. I also work the rim top surface and inner rim edge with the sandpaper to even out the rim edge. This sanding also helps in removing residual old stain while providing a smooth surface for the next stage which is polishing cycle using complete set of micromesh pads. I was especially very careful while sanding the sides of the shank around the stampings, as it is very easy to miss out the stamp and one swipe of the sand paper is enough to ruin/ damage the stampings. To remove the sanding marks and bring a deeper shine, I polished the stummel with micromesh pads, wet sanding with 1500 to 12000 pads. I wiped the surface with a soft cloth at the end of the micromesh cycle. The shining stummel looks amazing with a deep brown coloration and beautiful Angel’s hair grains popping over the stummel surface. Next, I rub a small quantity of “Before and After Restoration Balm” in to the briar with my finger tips and let it rest for a few minutes. The balm almost immediately works its magic and the briar now has a nice vibrant appearance with the beautiful darkened grain patterns on full display. I further buff it with a horse hair shoe brush. The next afternoon, I work the stem as the fills had hardened nicely. First, with a flat head needle file, I sand the fills in the bite zone to achieve a rough match. I further fine tuned the match by sanding the filled area with a folded piece of 220 grit sand paper pinched between my thumb and forefinger.Next, I sand the excess glue from over and around the crack using a flat head needle file followed by a piece of 220 grit sand paper. I used a round needle file and a rolled piece of 220 grit sandpaper to sand out the excess glue from inside the stem opening for the tenon. I also remove excess glue from within the grooves of the fancy stem.

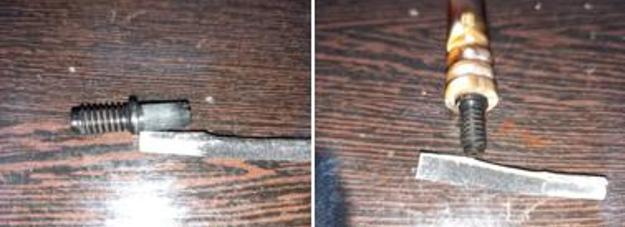

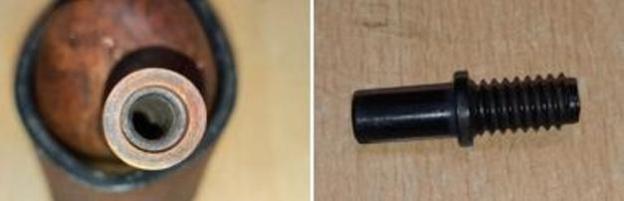

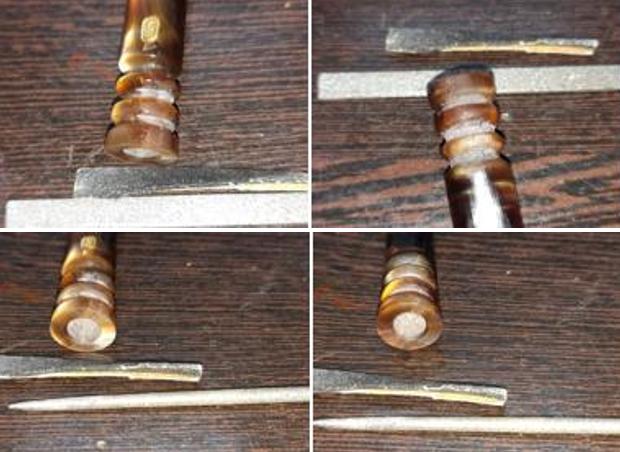

Note: I was careful to maintain a very thin layer of glue over the cracked surface as it would lend additional support and rigidity to the cracked area. Also, I was extra careful while sanding the inside of the stem opening for the tenon to achieve a smooth and even surface for the seating of the tenon.One of the probable causes for the cracks over the tenon end of the stem could have been a very tight fitting tenon. I lightly sand the smooth end of the Delrin tenon with a folded piece of 220 grit sandpaper to achieve a snug fit (not tight and not very loose) in to the stem opening for the tenon. I frequently checked for the seating as I did not want to open up the cracks again. At this stage I am very pleased with the stem repairs and the seating of the Delrin tenon in to the stem.

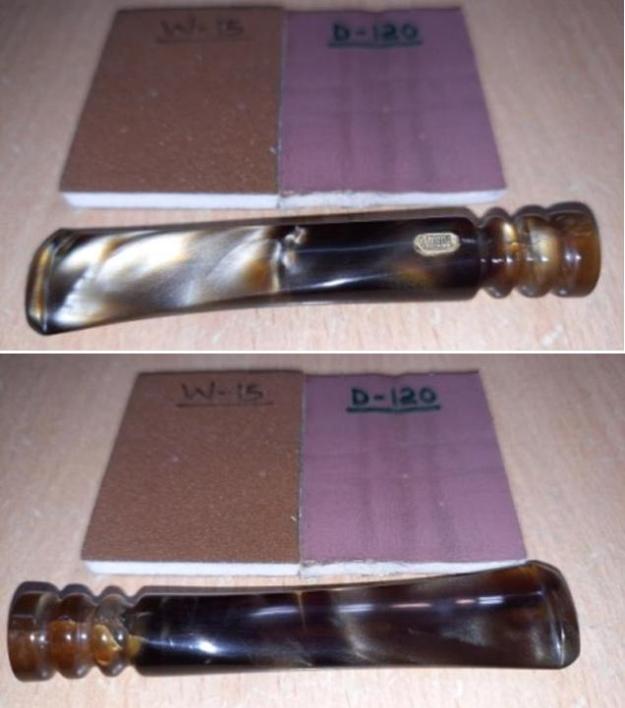

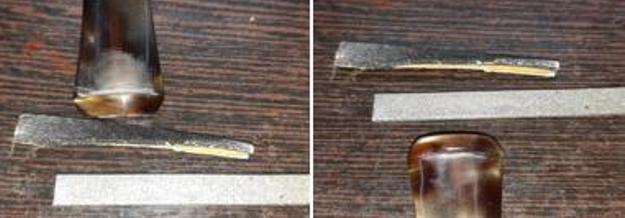

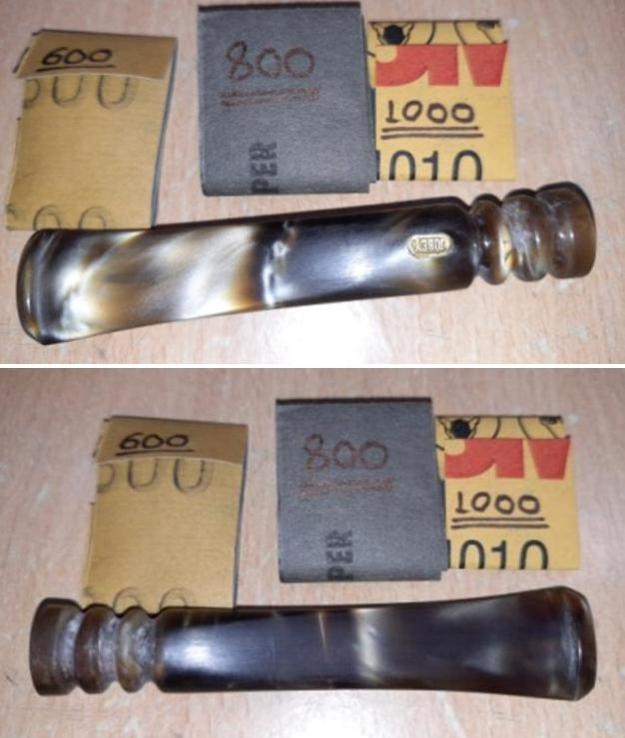

Note: While sanding the smooth end of the Delrin tenon, one has to be careful and ensure an even all around sanding of tenon as it directly affects the seating of the tenon in to the mortise and thus the seating of the stem face against the shank.  Next I dry sand the entire stem surface using 600 and 800 grit sand papers followed by wet sanding with 1000 grit sandpaper. This serves to reduce the sanding marks of the more abrasive sand papers. I also sharpened the button edges with the sand papers. I wiped the stem with a cotton swab and alcohol to remove all the oxidation and sanding dust from the surface.I followed up the sanding regime with micromesh polishing to bring a shine on the stem surface. I wet sand the stem with 1500 to 12000 girt micromesh pads. I rub a small quantity of olive oil (though not necessary for acrylic stem) in to the stem surface to hydrate it and set it aside. The stem looks nice and shinning.Now, on to the home stretch!! I very excited to see the result of the final polishing cycle with Blue Diamond and carnauba wax.

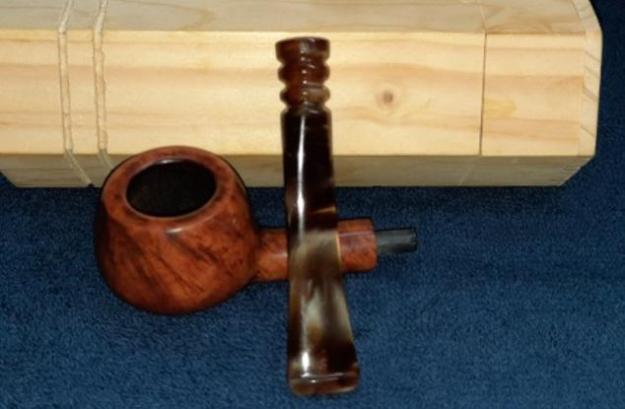

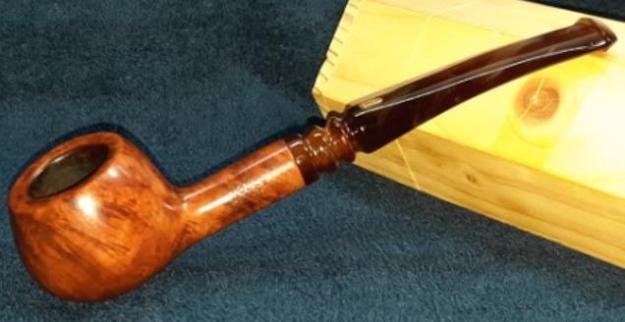

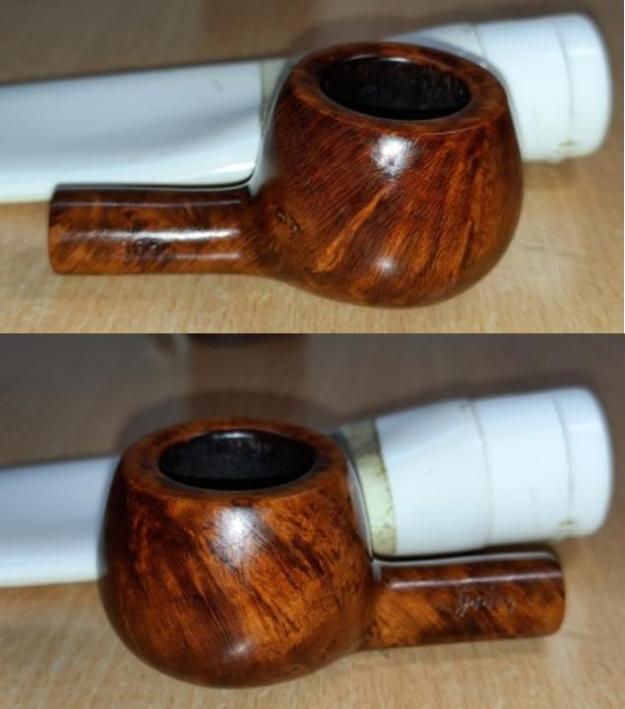

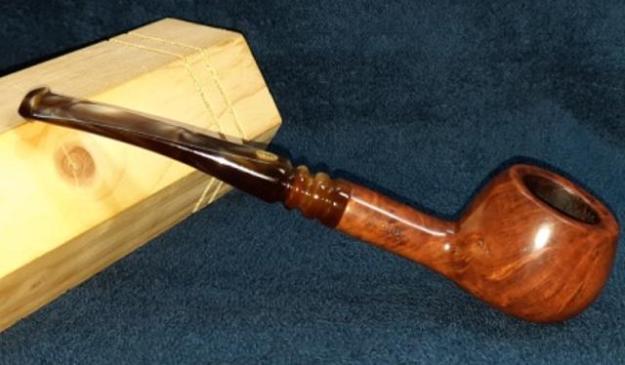

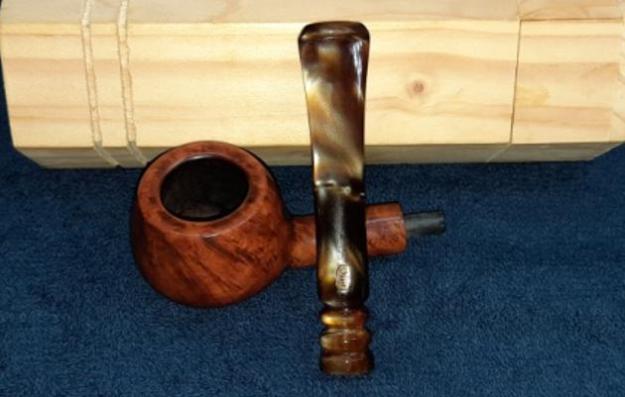

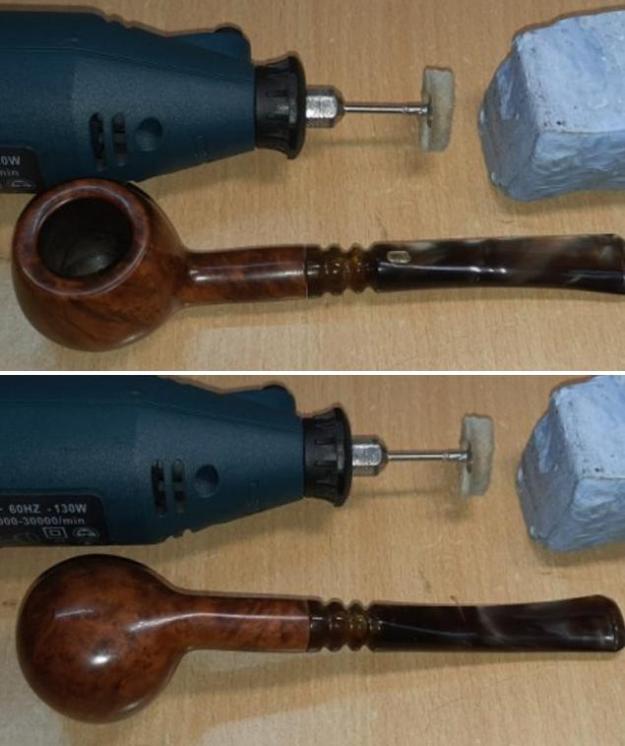

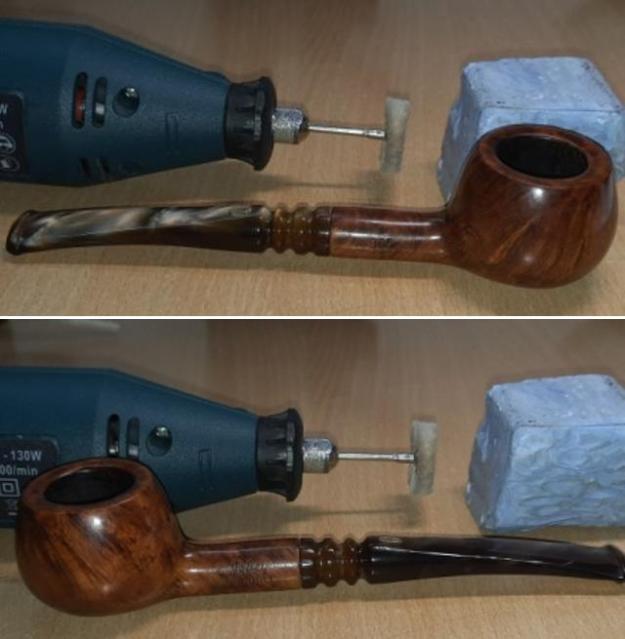

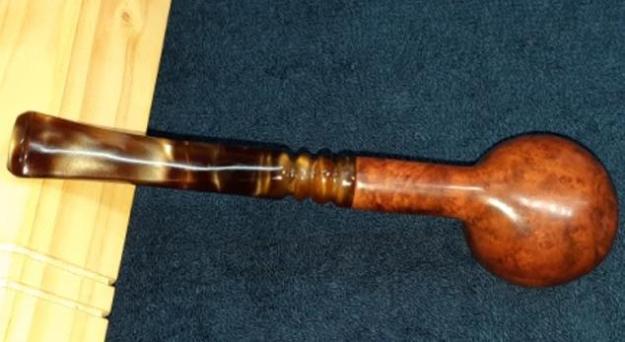

To apply the finishing touches, I first mount a cotton cloth buffing wheel on to my hand held rotary tool and apply a coat of Blue Diamond to the stummel and the stem to polish out the minor scratches. With a cotton buffing wheel that I use for carnauba wax, I apply a coat of carnauba wax and continue to work on it till the complete coat of wax had been polished out. I mount a clean cotton cloth buffing wheel and give the entire pipe a once over buff. I finished the restoration by giving the entire pipe a rigorous hand buffing using a microfiber cloth to raise the shine further. The finished pipe looks fantastic, the beauty of which is accentuated by its classic shape, size and hand feel. P.S. The stem repairs are solid and with a little care while handling, this pipe should last a few more decades. This pipe is all set for a new home and is now truly ready for a long hiatus with a new piper, providing years of service in future.

Thank you all for reading through this write up and for the valuable time you have invested in doing so. If any reader is interested in adding this pipe to his/ her pipe rotation, feel free to contact me at deshpandeparesh@yahoo.co.in
