Breathing Life into an Italian  Hand Made Prince of Wales Bent Billiard


Blog by Steve Laug

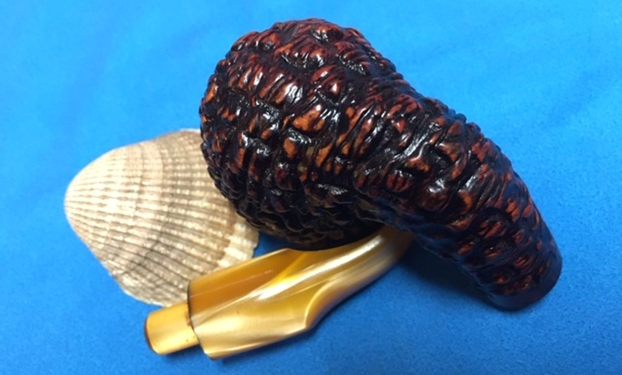

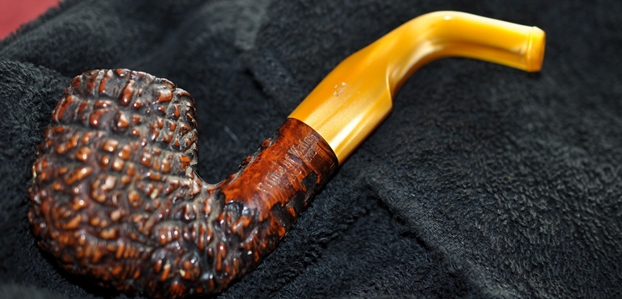

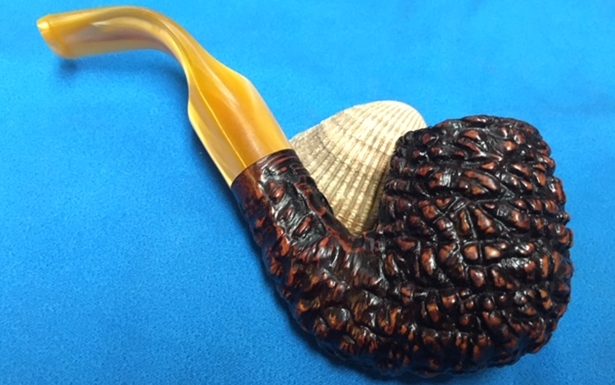

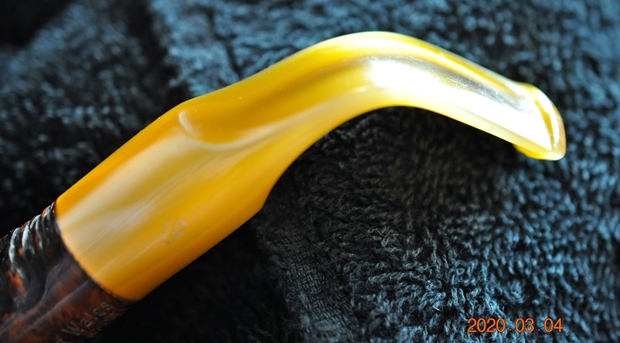

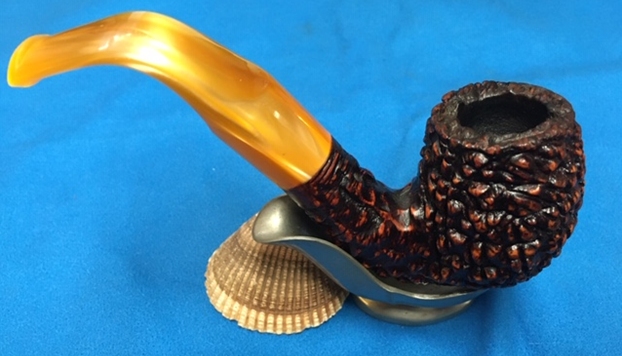

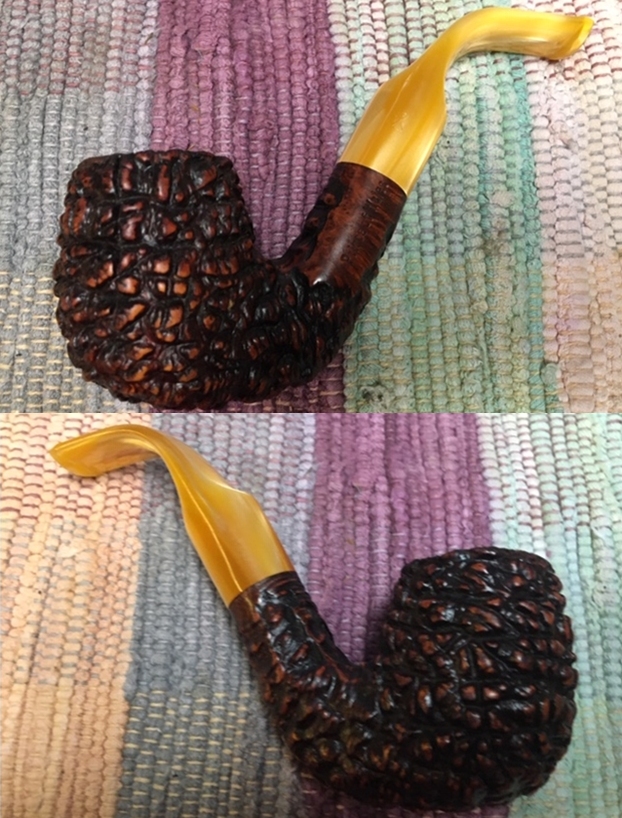

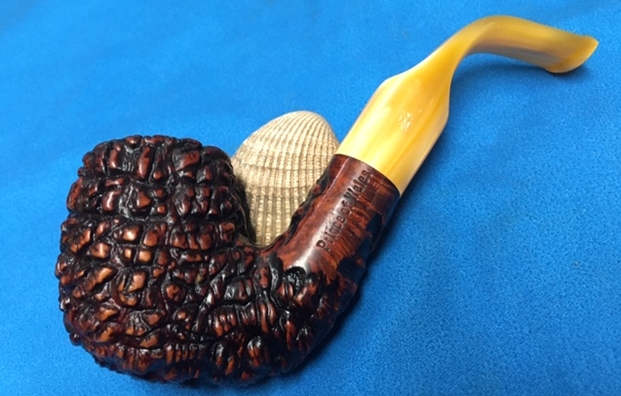

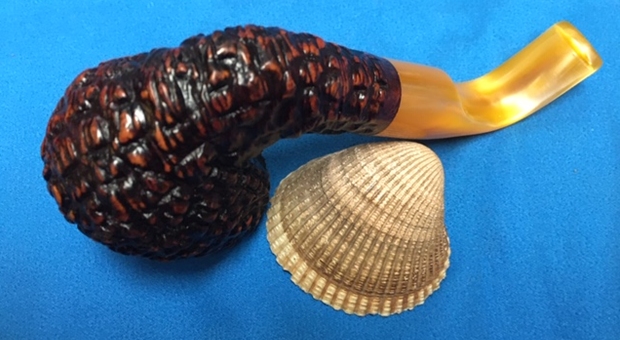

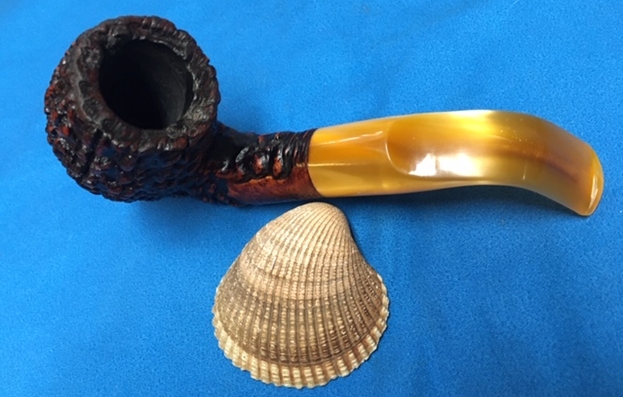

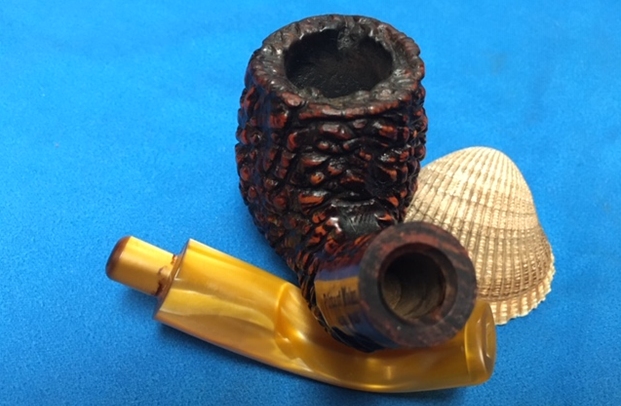

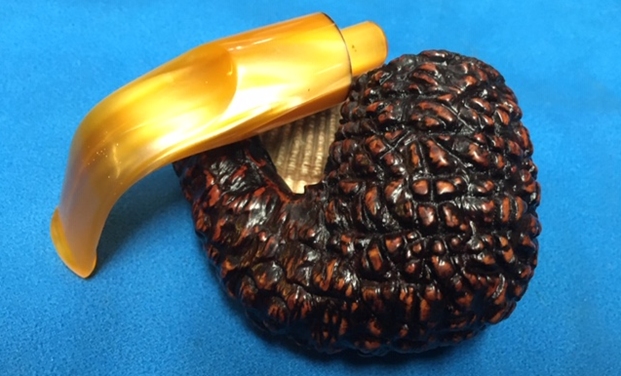

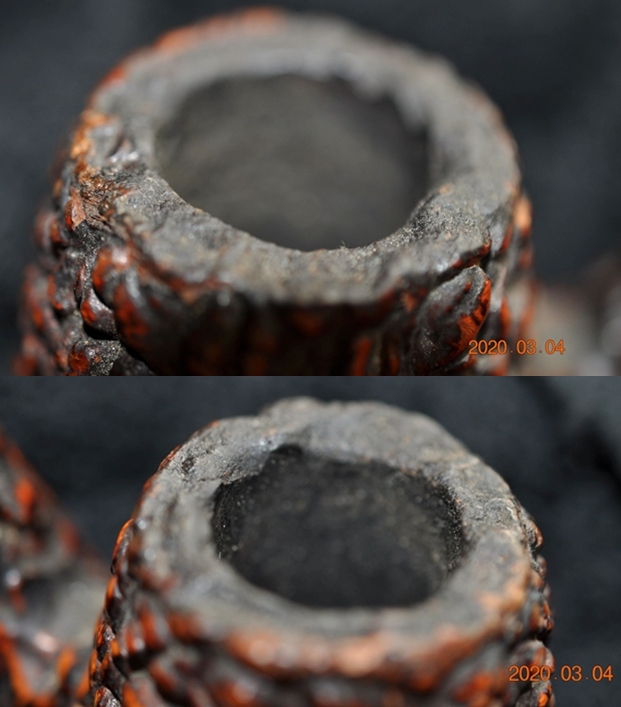

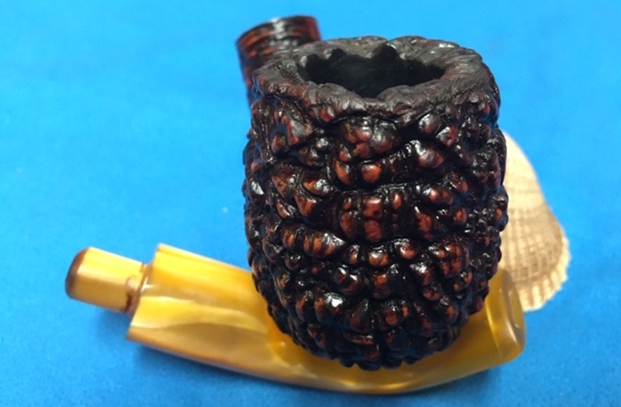

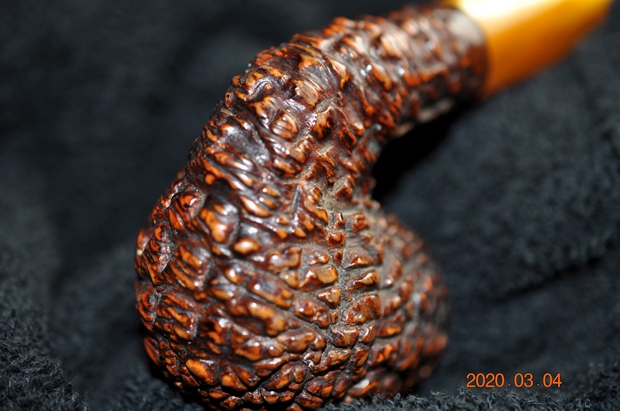

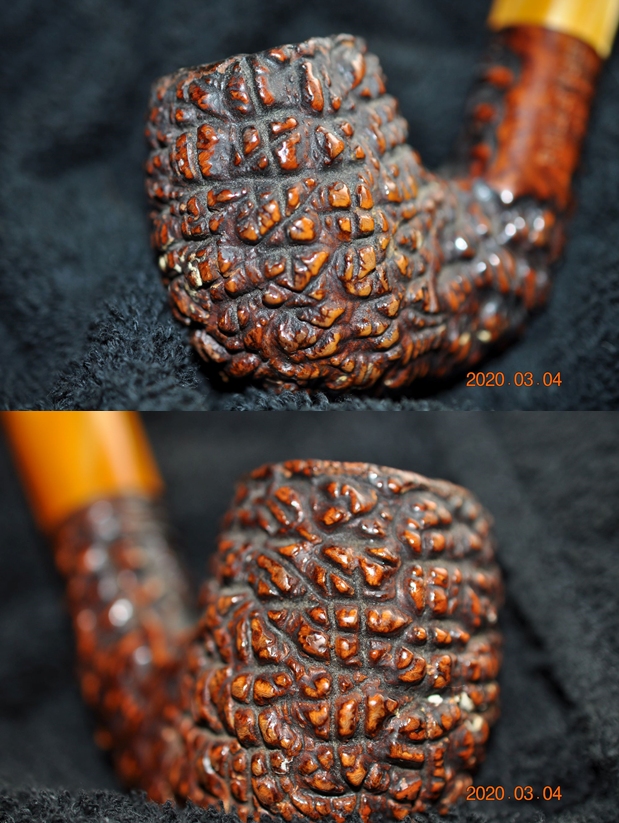

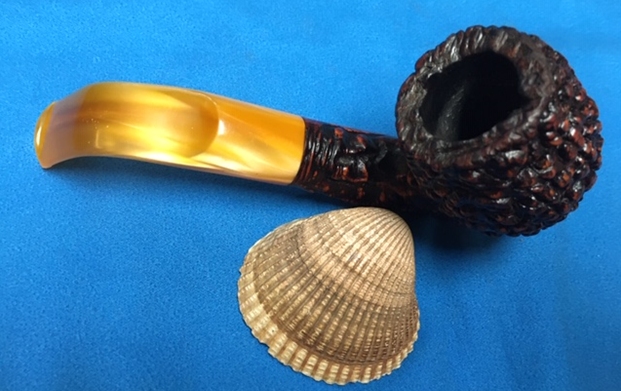

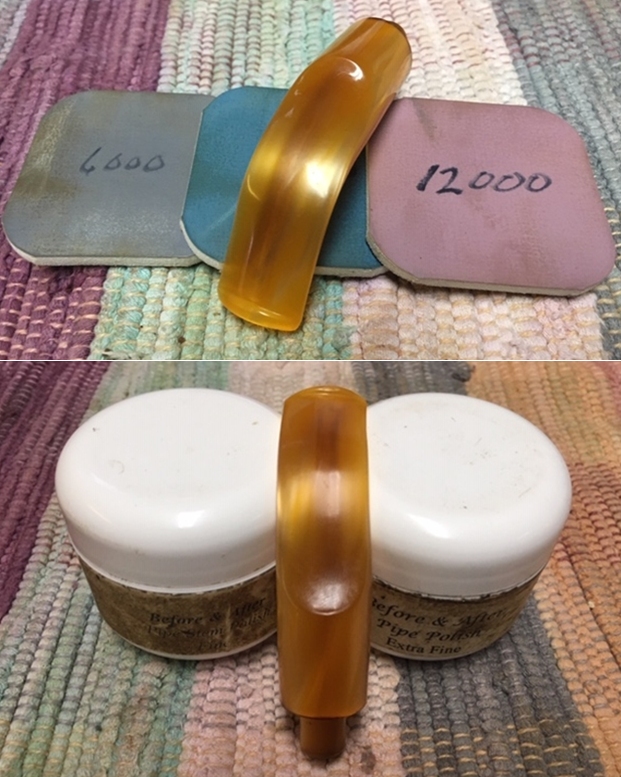

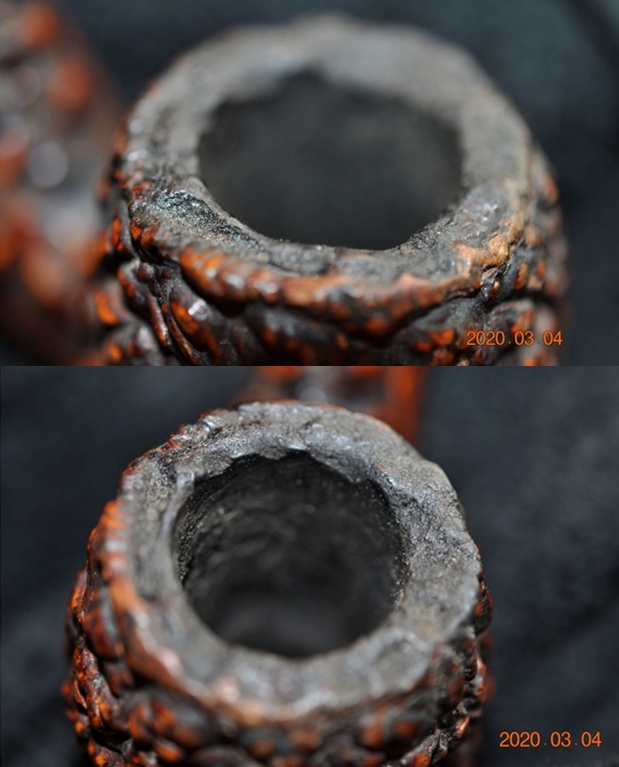

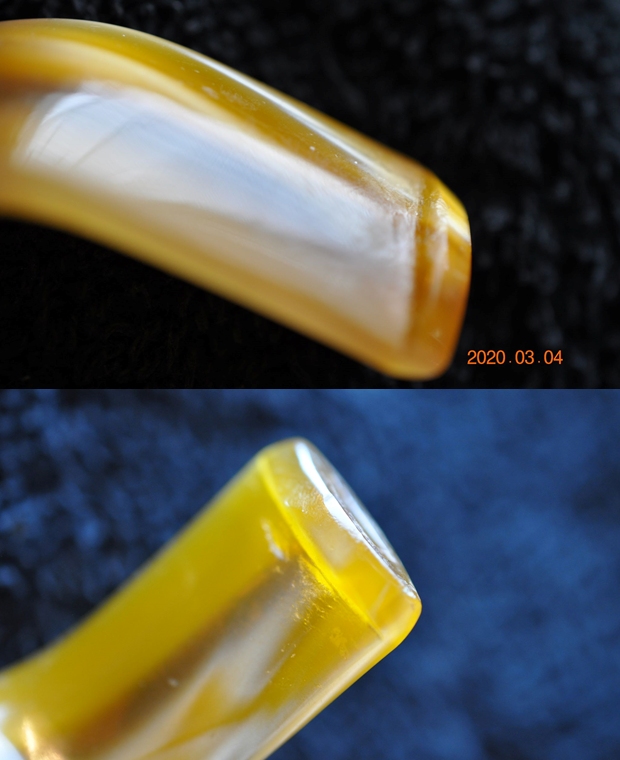

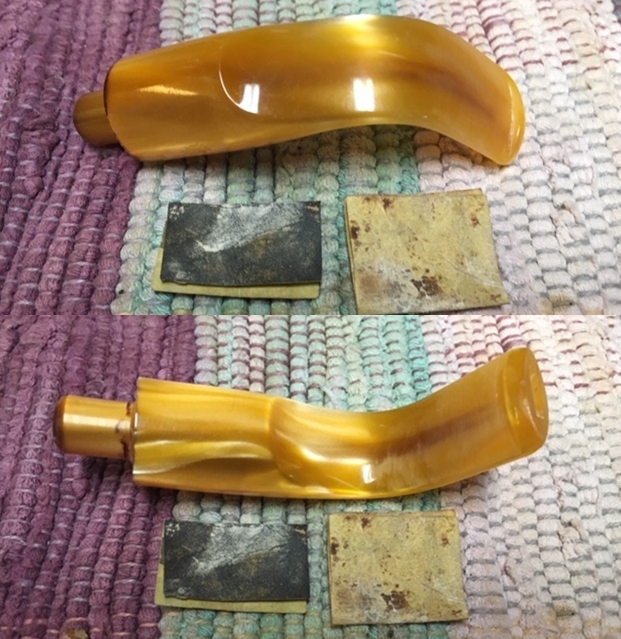

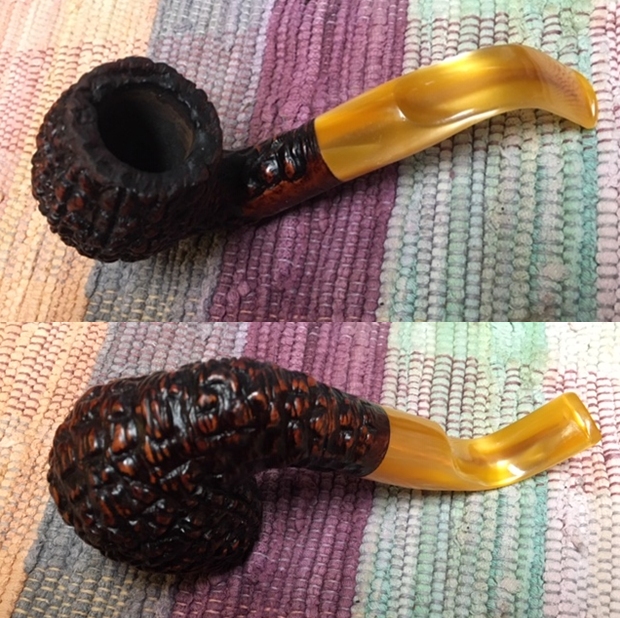

The next pipe on the work table is a really nice; Sea Rock style rusticated Bent Billiard. It is stamped Prince of Wales over Hand Made on the left side of the shank and Italy on the underside near the stem shank junction. The rusticated finish was quite dirty and the rim top had a thick overflow of lava deep in the rustication on the top. The bowl was thickly caked and between that and the lava I was not sure what to expect of the inner edge of the bowl underneath the grime. Time would tell. The stem was a golden acrylic saddle shape that was quite nice. It was dirty and had some tooth marks and chatter on both sides near the button. There was a faint logo stamped on the left side of the saddle.  Jeff took some photos of the pipe to show the general condition of the pipe before he started his clean up. He took some photos of the rim top and bowl from various angles to give me a clear picture of the condition of the rim top and bowl. You can see the cake in the bowl and the thickness of the lava coat. It also looks like these is some damage on the outer edge in the photos. Jeff took some photos of the sides and heel of the bowl to show the condition of the rusticated finish on the pipe. Under the oils and grime it was a nice looking bowl. I think it will be a really nice looking pipe once it is restored. He took some photos of the stamping on the sides of the shank. On the left side is the Prince of Wales stamp over Hand Made. On the underside of the shank it is stamped Italy. On the left side of the saddle stem was stamp that was washed out but looked like a flag of some sort. The next two photos show the top and underside of the stem. It is good condition with tooth chatter and some light tooth marks. It should clean up nicely. The final photo shows the curve of the full stem. Before I started my part of the restoration I wanted to have a clear picture of the background and what the stem logo looked like on the Prince of Wales pipe. I turned to Pipephil as he often has photos that give me the information that I am looking for (http://www.pipephil.eu/logos/en/logo-p5.html). Sure enough he had a photo showing the rough stamped A on the stem. It is white and it is rough which is exactly how this one looks. Hopefully in the restoration process I can get it back a bit. I did a screen capture of the picture on the site and include it below.What is interesting in these photos is that it is the same logo but several of them say made in Leeds. They seem to be English made or at least maybe made for a pipe shop. The logo is a Scottish Flag. The one I have is stamped Italy which makes me think that someone had the pipe made by an Italian company for their shop.

I turned to Pipedia and looked up the brand there (https://pipedia.org/wiki/Prince_Of_Wales). Here is what I found there. I quote in full.

“It is quite a three pipe problem …”

  1. The name “Prince of Wales” was used at times by GBD for a sub-brand.

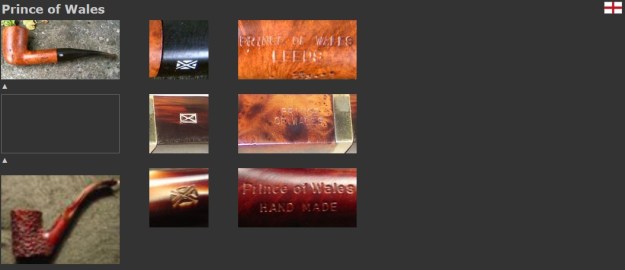

  2. Pipephil shows English made Prince of Wales which bear the Scottish flag (X-shaped cross representing the cross of the Christian martyr Saint Andrew, the patron saint of Scotland) as logo.
  3. Also listed by Pipephil is a brand named P.O.W. attributed to a Scottish firm G.M. Frame. Now, if P.O.W. doesn’t stand for “prisoner of war”, this might be an indication that there are two different Prince of Wales productions.
  4. Danish made semi-freehands stamped “PRINCE OF WALES” + “DANISH LINE” + “HANDMADE IN DENMARK”. The stems, as usual for the bulk of such pipes, often as stitch in stems. Decorated with a white ring and a stylized Danish flag. (Were once mentioned as order production for GBD. – Unconfirmed!)
  5. Prince of Wales Made in Italy. Quotation: “In the spirit of the Bing’s Favorite Pipe, Savinelli expands its line of pipes favored by famous pipesmokers. Prince of Wales Favorite series features a new mosaic designed mouthpiece which gives it a unique look like no other series. This pipe can be used with or without Savinelli balsa inserts (20pk included).”

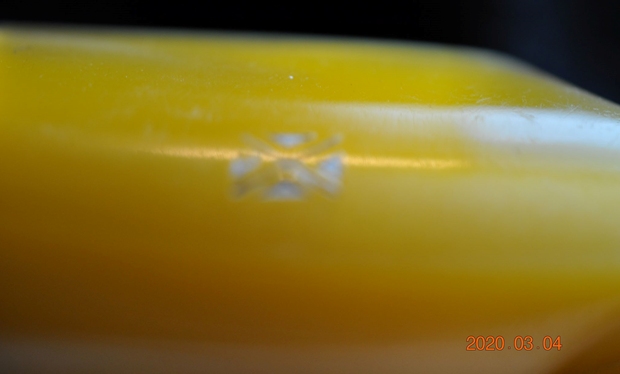

Now I knew I was dealing with a bit of a mystery pipe. It has a Scottish Flag on the stem, an Italy stamp on the shank and the name Prince of Wales which sounds British. Very interesting piece. But no definitive information!!

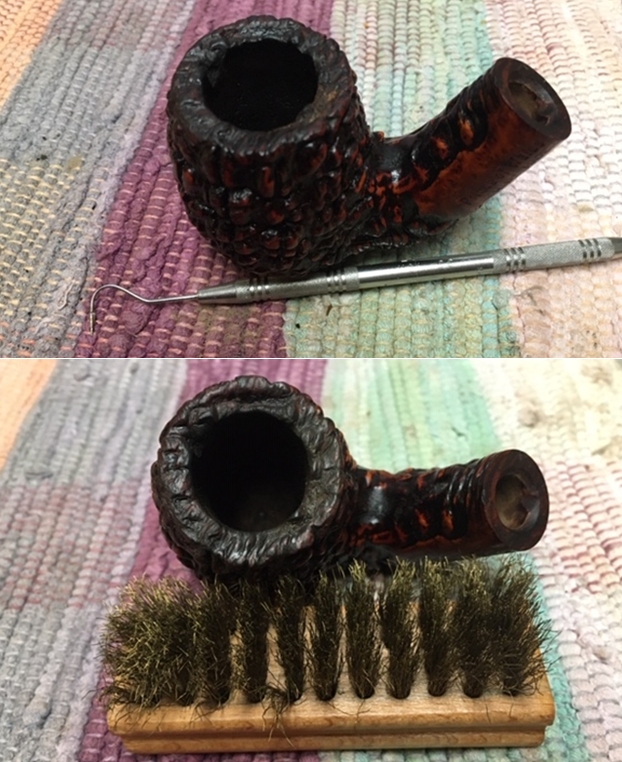

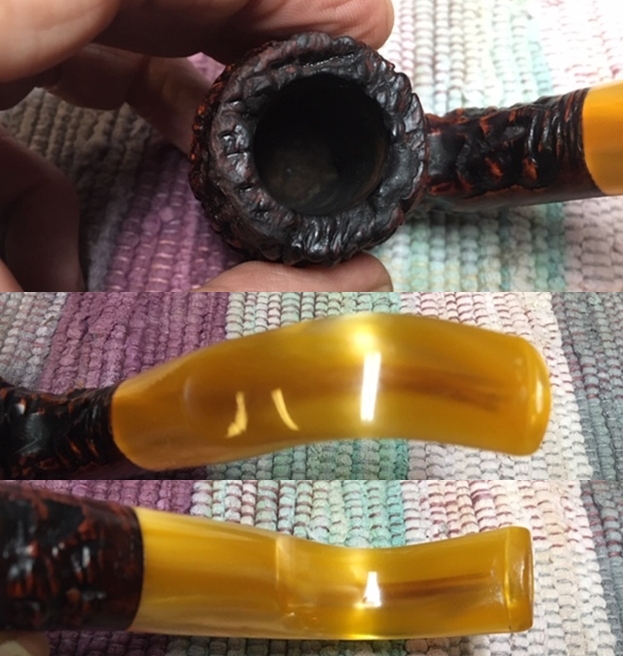

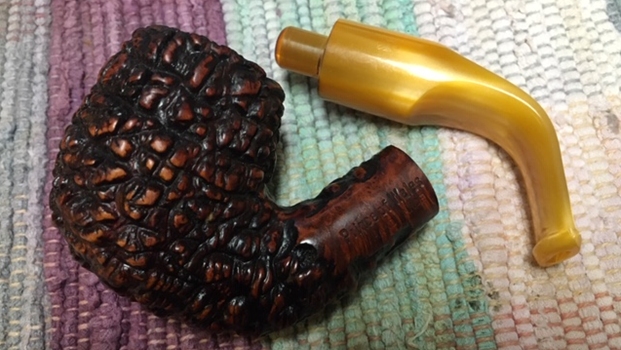

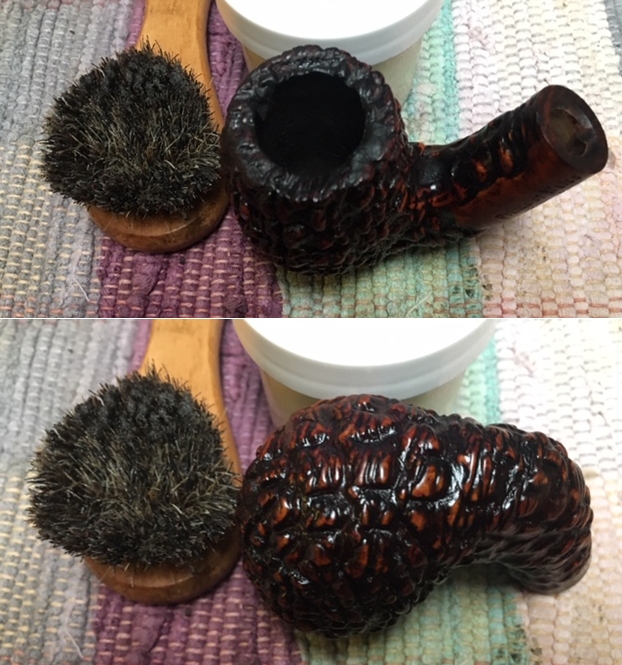

Jeff once again did an amazing job cleaning the pipe. He reamed it with a PipNet pipe reamer and got rid of the cake so that we could see the walls of the bowl and assess for damage. He cleaned the internals of the shank and stem with alcohol, pipe cleaners and alcohol. He scrubbed the exterior with undiluted Murphy’s Oil Soap and a tooth brush to get into the grooves and valleys of the rustication. He rinsed the pipe under warm water. He dried it off with a cloth and then let it air dry. The rustication and the rim top cleaned up pretty good. I took pictures of the pipe to show how it looked when I unpacked it. I took a close up photo of the rim top to show how clean it was. There appeared to be a hard bit of lava on the back edge. Overall the pipe looked impressive at this point in comparison to where it had started.I took a photo of the bowl and stem taken apart. There is some staining on the end of the tenon.I decided to address the spot of hard lava on the rim top first. I picked at the chunk of lava with a dental pick and was able to break through the hard coat. It came off in large chunks but it was like rock. I used a brass bristle wire brush afterward to work the remainder of the lava out of the rim crevices. I am happy with the results.I worked some Before & After Restoration Balm into the briar with my finger tips and a horsehair shoe brush. The product is a great addition to the restoration work. It enlivens, enriches and protects the briar while giving it a deep glow. It is a product I use on every pipe I work on. I set the bowl aside and turned my attention to the stem. I sanded out the tooth chatter and marks in the acrylic with a folded piece of 220 grit sandpaper and polished out the scratches with 440 grit wet dry sandpaper.I polished the stem with Denicare Mouthpiece Polish from a tin of it I have in the drawer here. It is a gritty red paste that I rub on with my finger tips and work it into the surface of the stem and button and buff it off with a cotton pad. It gives me a bit of a head start on the polishing work.I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I buffed the stem with a soft cloth to raise the shine. I used some Paper Mate Liquid Paper to repair the white in the A stamp on the left side of the shank. Once it dried I used a 2400 grit micromesh sanding pad to remove the excess. While not flawless it is recognizable. It would clean up a bit more when I buffed it.As always I am excited to finish a pipe that I am working on. I put the pipe back together and buffed it using a light touch with Blue Diamond on the buffing wheel. I gave the bowl several coats of Conservator’s Wax and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad and hand buffed it to raise the shine. It is fun to see what the polished bowl looks like with the grain and the variations of colour in the rustication around the bowl and shank. Added to that the polished golden acrylic saddle stem was a beautiful touch. This is nice looking pipe and I am sure that the tactile nature of the rustication will feel great as the bowl warms up during smoking. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 5 ¾ inches, Height: 2 inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. It is a beautiful pipe and one that will be on the rebornpipes store soon. You can find it in the section of Pipes by Italian Pipe Makers. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog. I want to keep reminding us of the fact that we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of the next pipeman or woman.

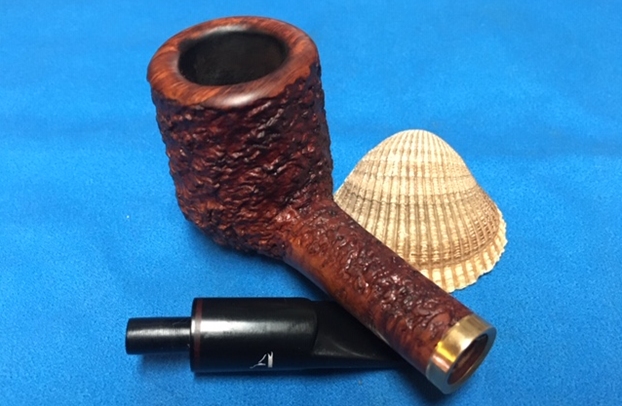

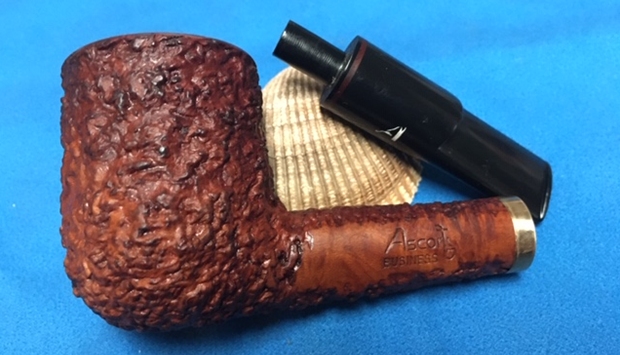

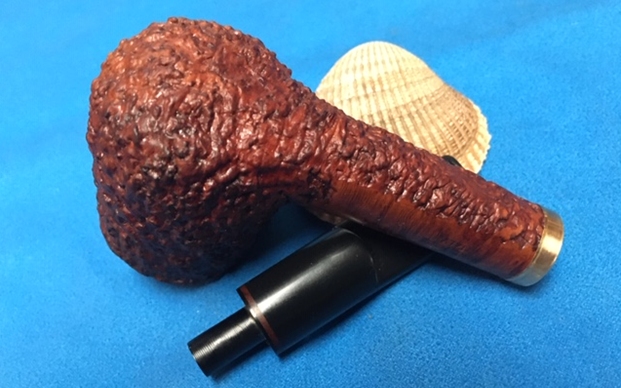

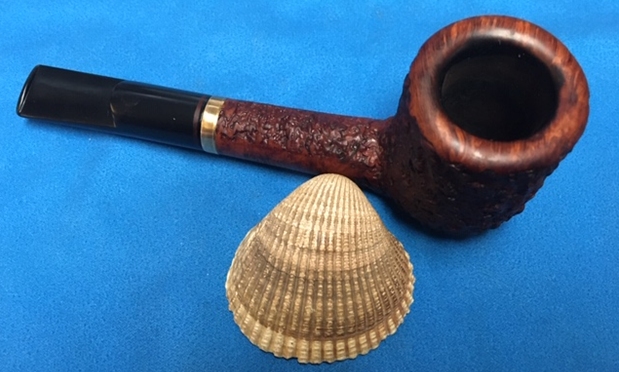

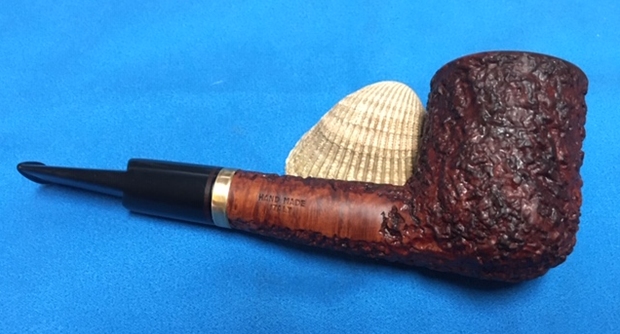

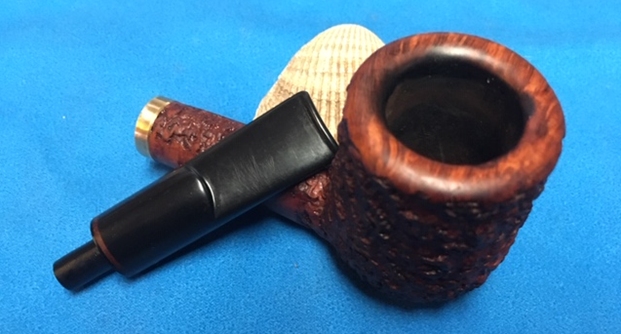

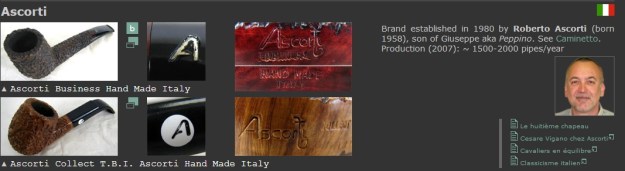

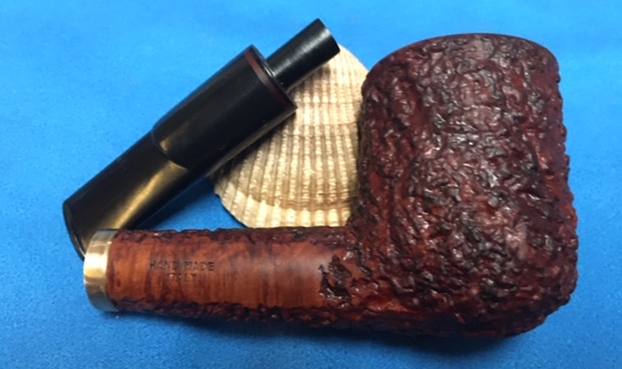

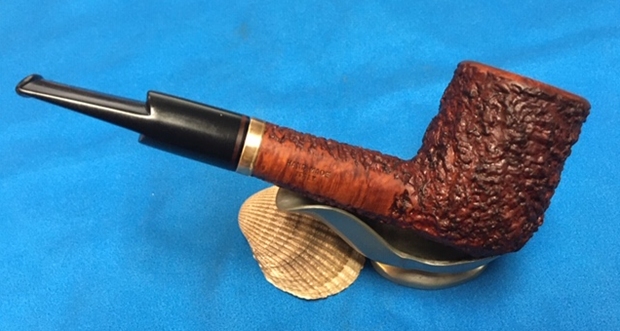

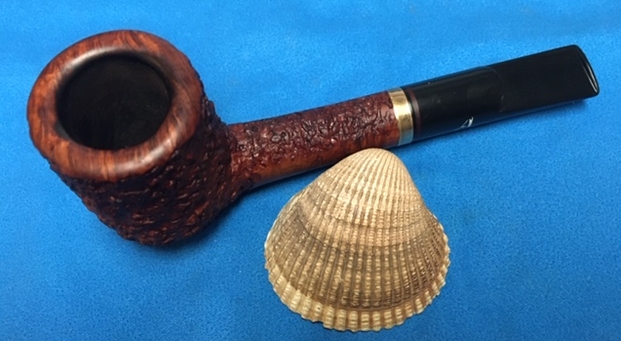

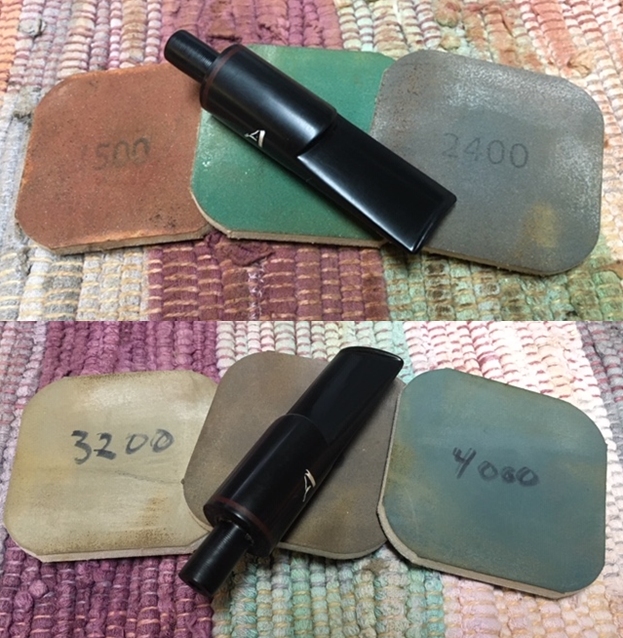

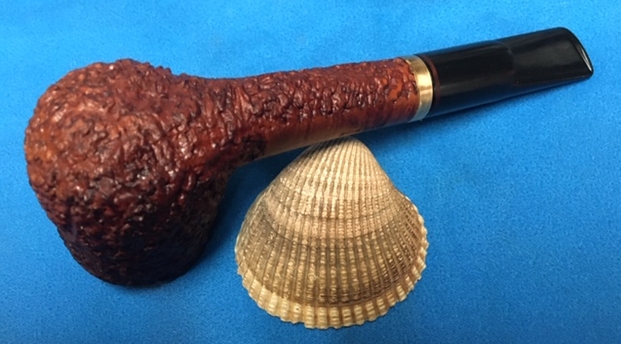

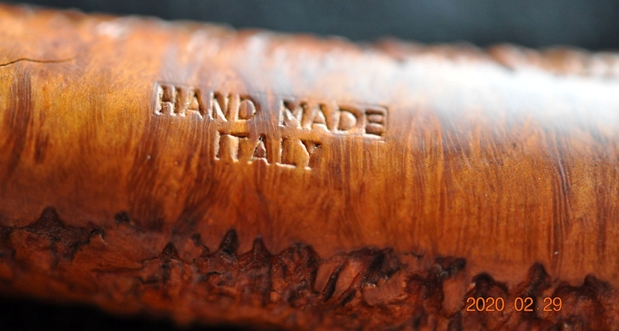

Repairing, Banding and Restoring a Damaged Hand Made Ascorti Business Billiard


Blog by Steve Laug

Not too long ago I received an email from an online friend and contributor to rebornpipes, Joe. He had picked up a great estate that he was cleaning and selling for the family. He sent me a list of the pipes. I purchased a nice Bari Freehand pipe from the lot. We came to an agreement on the price and I paid him for it. In the email interaction he talked about one of the Ascorti Business pipes that he was cleaning. He wrote:

…Now, I have a question. When cleaning one of the Ascorti Business, I found two cracks in the stummel. I know you have fixed cracks before. I’m attaching photos. Is it repairable and how much would it cost?

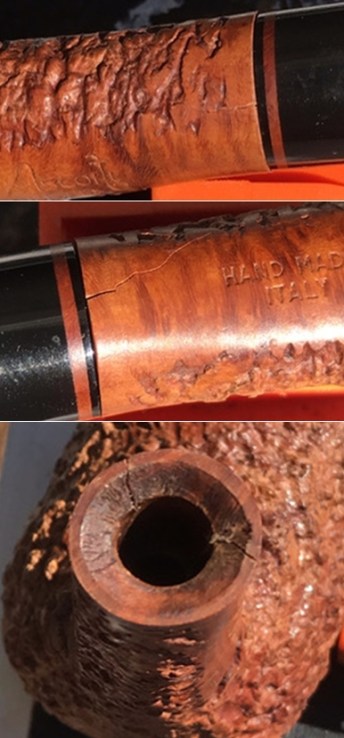

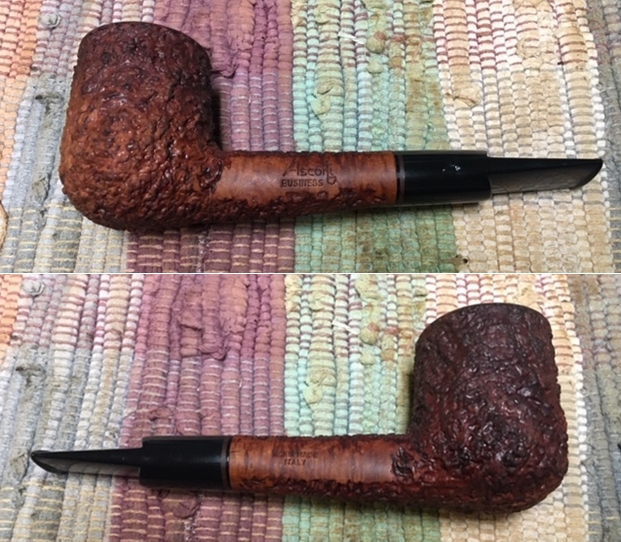

I looked at the photos that he attached which I have included to the left of this paragraph for you to see. The next paragraph of the email he came up with an interesting possibility.

Second thought. If I ship it with the Bari, would you be interested in fixing it and selling it?… (He went on to make a business proposition regarding the sale of the pipe.)

We struck a deal and the Bari I purchased and the Ascorti were in the mail to my brother Jeff’s place so he could work his magic on the pipe.

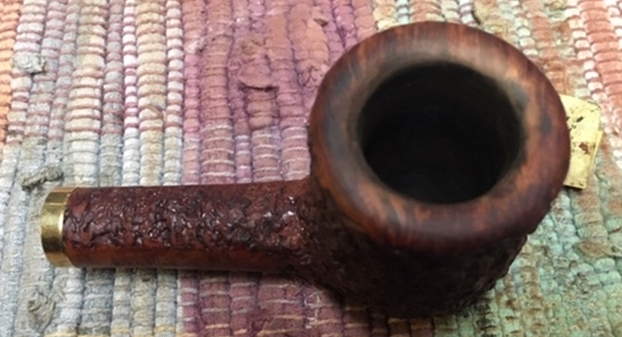

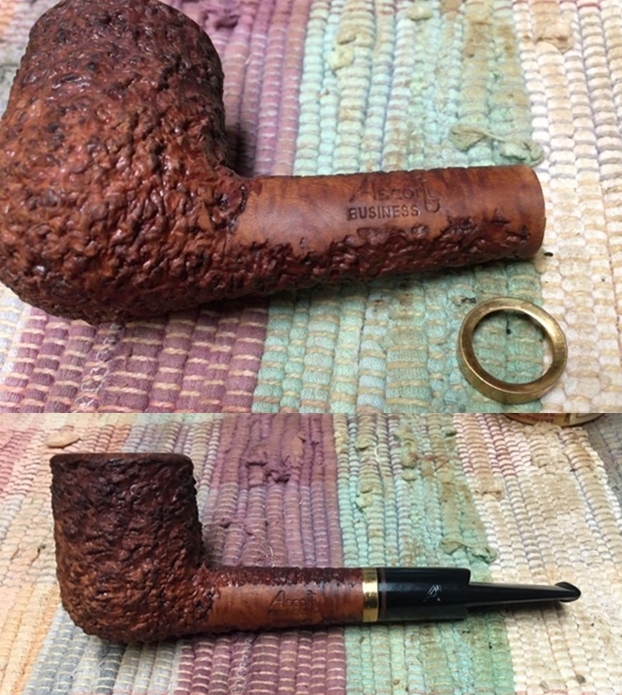

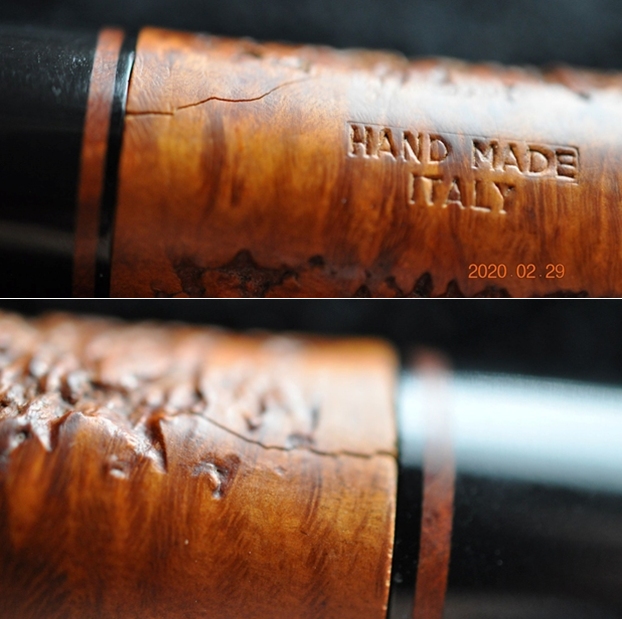

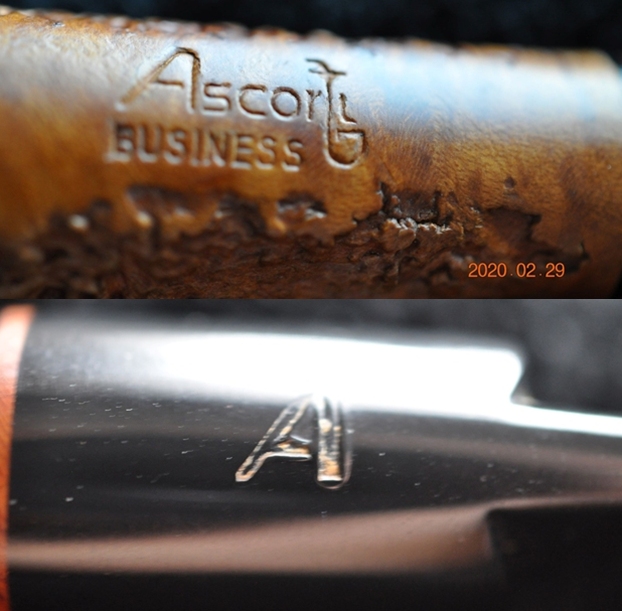

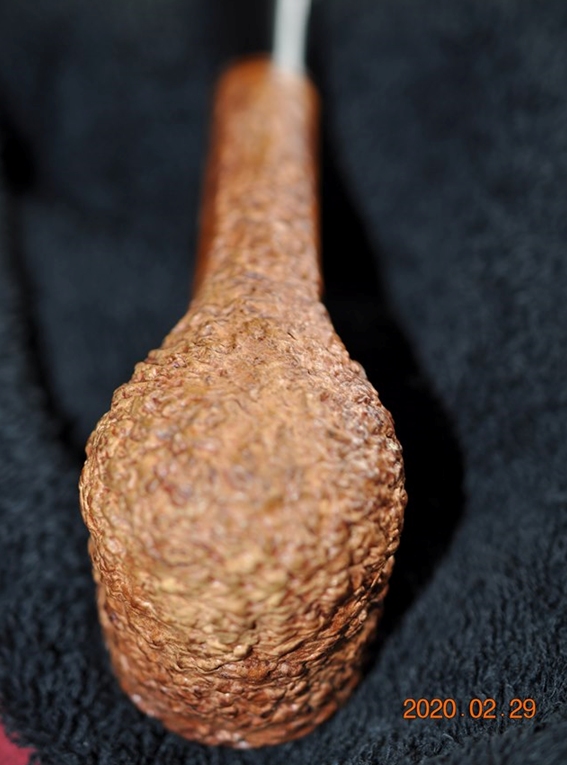

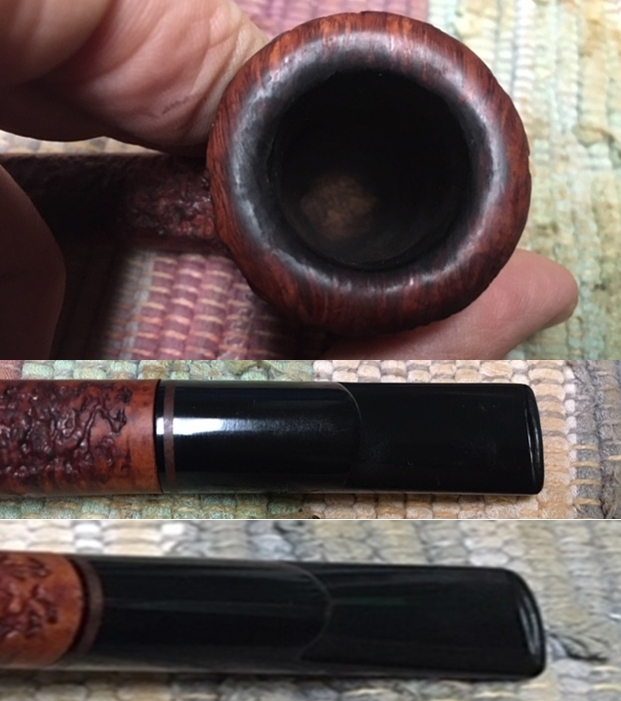

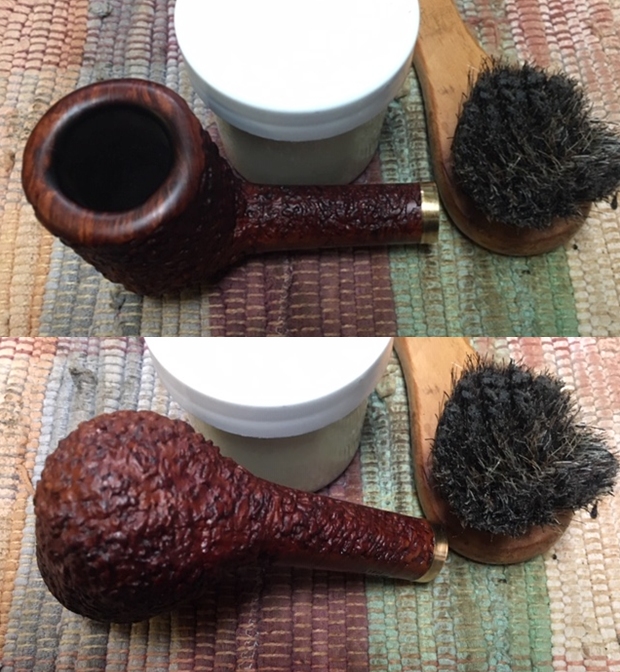

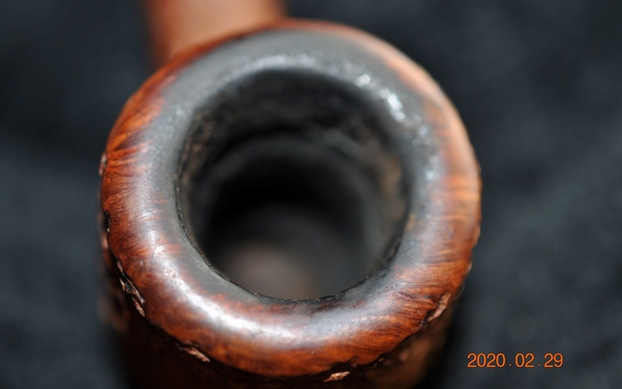

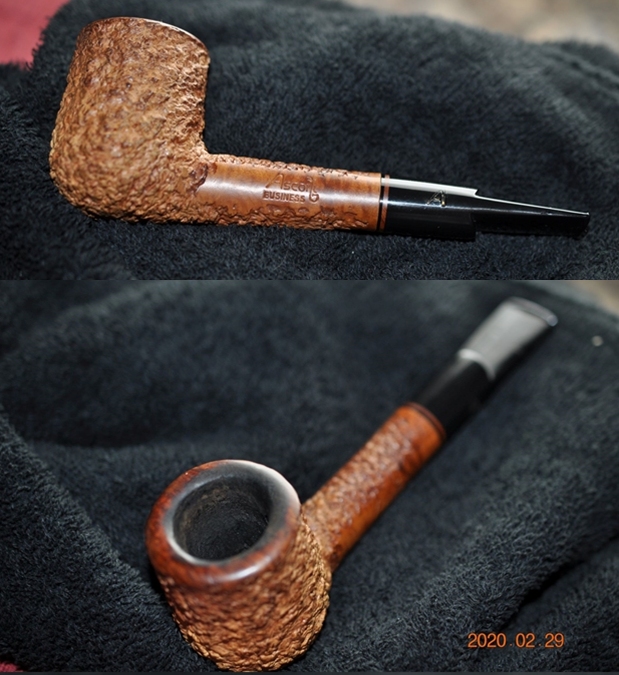

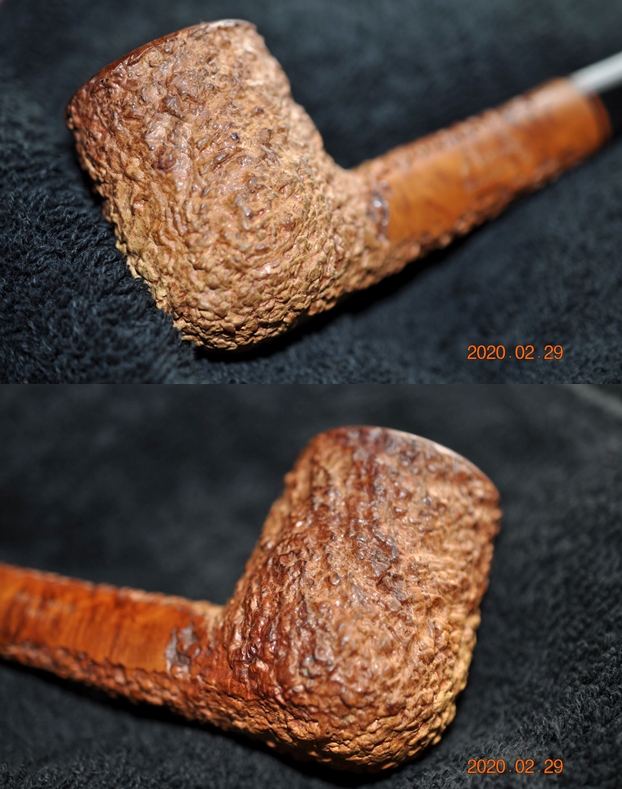

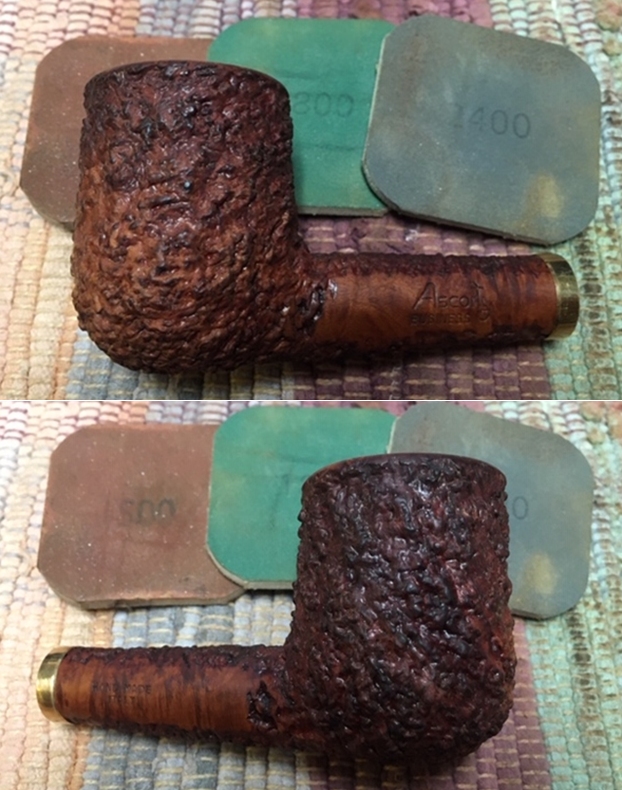

When the pipe arrived Jeff showed me the pipe while we were on Facetime. He showed the entirety of the pipe and also the shank end. It looked to both of us that there were actually three cracks in the shank. The stem was very loose fitting because the cracks had opened the mortise enough that it would not snugly hold the stem in place. The rusticated finish was quite dirty and the rim top had an overflow of lava on the smooth crown. The bowl was caked and between that and the lava I was not sure what to expect of the inner edge of the bowl underneath the grime. Time would tell. Jeff took some photos of the pipe to show the general condition of the pipe before he started his clean up. He took some photos of the rim top and bowl from various angles to give me a clear picture of the condition of the rim top and bowl. You can see the cake in the bowl and the thickness of the lava coat. It also looks like these is some damage on the inner edge and bevel in the photos. Jeff took some photos of the sides and heel of the bowl to show the condition of the rusticated finish on the pipe. Under the oils and grime it was a nice looking bowl. I think it was well worth the effort to repair the shank as there was a lot of life left in this old timer. He took some photos of the stamping on the sides of the shank. On the left side is the Ascorti logo with a pipe forming a “t” in the brand name. On the left side of the saddle stem was the Ascorti slanted A stamp. On the right side it was stamped Hand Made over Italy. You can also see part of the crack on the left of the third photo. Jeff took several photos of the cracks in the shank. Interestingly they both are on or alongside of the smooth panels on the sides of the shank.The next two photos show the top and underside of the stem. It is good condition with tooth chatter and some light tooth marks. It should clean up nicely.Before I started my part of the repair and restoration I wanted to have a clear picture of what the stem logo looked like on the Ascorti Business pipe. I turned to Pipephil as he often has some photos that give me the information that I am looking for (http://www.pipephil.eu/logos/en/logo-a8.html). Sure enough he had a photo showing the rough stamped A on the stem. It is white and it is rough which is exactly how this one looks. Hopefully in the restoration process I can get it back a bit. I did a screen capture of the picture on the site and include it below.Jeff once again did an amazing job cleaning the pipe. He reamed it with a PipNet pipe reamer and got rid of the cake so that we could see the walls of the bowl and assess for damage. He cleaned the internals of the shank and stem with alcohol, pipe cleaners and alcohol. He scrubbed the exterior with undiluted Murphy’s Oil Soap and rinsed the pipe under warm water. He dried it off with a cloth and then let it air dry. The rim top cleaned up pretty well and there was indeed some damage to the crowned top and inner edge of the bowl. I took pictures of the pipe to show how it looked when I unpacked it. I took a close up photo of the rim top to show the damage to the rim. You can see the damage on the back crowned rim top and on the inner edge on both the front and the back. There is some roughness and marks on the surface of the rim top as well.I took photos of the cracks in the shank sides and also of the shank end. I have circled the three cracks in red on the last photo of the shank end.I opened the cracks with a dental pick and pressed CA glue into the cracked areas. I clamped them together until the CA cured. I went through a bag or brass bands that I picked up through a friend online. I had one that was a perfect fit and when pressed onto the shank would fully bind the glue. I heated the band with a lighter and pressed it onto the shank. I put the stem in place and it was snug! The repair had cured the cracks and the loose fitting stem. I took a photo of the pipe with the band and the stem in place to have a look.  I took the stem off and set it aside so that I could work on the crowned rim and inner edge damage. I used a folded piece of 220 grit sandpaper to clean up the inner edge and the top of the crowned rim. It was slow and tedious but the results were what I was hoping for. I polished the smooth panels on the sides of the shank and the rim top with micromesh sanding pads. I wet sanded with 1500-12000 grit pads. I wiped the rim down with a damp cloth after each sanding pad to remove the sanding debris. I worked some Before & After Restoration Balm into the smooth portions with my finger tips and the rustication with a horsehair shoe brush. The product is a great addition to the restoration work. It enlivens, enriches and protects the briar while giving it a deep glow. It is a product I use on every pipe I work on. I set the bowl aside and turned my attention to the stem. I sanded out the tooth chatter and marks in the acrylic with a folded piece of 220 grit sandpaper and polished out the scratches with 440 grit wet dry sandpaper.I polished the stem with Denicare Mouthpiece Polish from a tin of it I have in the drawer here. It is a gritty red paste that I rub on with my finger tips and work into the surface of the stem and button and buff off with a cotton pad. It gives me a bit of a head start on the polishing work.I used some Paper Mate Liquid Paper to repair the white in the A stamp on the left side of the shank. Once it dried I used a 2400 grit micromesh sanding pad to remove the excess. While not flawless it definitely looks better.I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I buffed the stem with a soft cloth to raise the shine. Looking forward to hearing what Joe thinks of the restoration on this Ascorti Business pipe that he sent to me. As always I am excited to finish a pipe that I am working on. I put the pipe back together and buffed it using a light touch with Blue Diamond on the buffing wheel. I gave the bowl several coats of Conservator’s Wax and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad and hand buffed it to raise the shine. It is fun to see what the polished bowl looks like with the grain popping through on the rim top and the variations of colour in the rustication around the bowl and shank. Added to that the polished black acrylic stem with the briar band on the saddle was beautiful. The new brass band sets off the bowl and stem really well and I am pleased with the classy look it gives to the pipe. The shank repair and band take care of the cracked shank and it should work well for a long time. This is nice looking pipe and I am sure that the tactile nature of the rustication will feel great as the bowl warms up during smoking. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 5 ¾ inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: 7/8 of an inch. It is a beautiful pipe and one that will be on the rebornpipes store soon. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog. I want to keep reminding us of the fact that we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of the next pipeman or woman.

Ehrlich – Another Iconic Boston Tobacconist (1868-1968): An Ehrlich Special Chimney


Blog by Dal Stanton

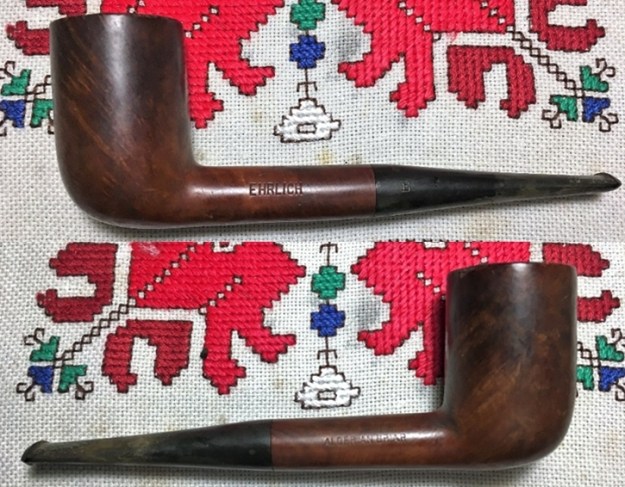

I saw this pipe on eBay from a seller in the New England state of Connecticut.  What drew my attention was the tall bowl – a Chimney shape.  There’s something about ‘Chimneys’ that I like.  They have the basic Billiard workhorse air about them, but with the tall Chimney – it’s like a challenge: pack it high and tight!  My bid held firm and the Ehrlich, which I assumed had a German COM, was added to the online collection, For “Pipe Dreamers” Only! for a pipe man or women to see, ‘dream’ of the possibilities, and commission to benefit the Daughters of Bulgaria – women and girls who have been trafficked and sexually exploited.  Todd saw this Ehrlich and commissioned him along with two other pipes – a Borge Mortensen Handmade of Denmark (see: Link for the restoration) and a Heritage Blasted Apple still in the queue – up next.  Here are the pictures of the Ehrlich Special Chimney that got Todd’s attention. The bowl is stamped with the nomenclature, EHRLICH, on the left shank.  On the upper right-hand side of the shank is stamped, SPECIAL [over] ALGERIAN BRIAR, which is dropped lower on the shank.  The stem is stamped with ‘E’ I had assumed that ‘Ehrlich’ was a German name and I had assumed, wrongly, that the Country of Manufacturing was Germany as well.  I was fully surprised to discover in my initial research that Ehrlich was a tobacconist located in one of my favorite cities, Boston.  This was a pleasant surprise because I have long appreciated the story of the US’s second oldest Tobacconist shop also located in Boston – the L. J. Peretti Co., still in operation and one of the few establishments remaining that mix blends while you test blends as you wait.   My son used to live in Boston and the city has had an attraction to me for its history, its character and yes, its sports team – Boston Red Sox and Bruins – sorry, as a long-time Miami Dolphins fan, I cannot stomach New England’s version of NFL!  My discovery of L. J. Peretti shop pipes, most of which were manufactured in NYC and some in London, started for me a fun advocation of collecting them.  I had never heard of Ehrlich of Boston until finding the article in Pipedia on the Ehrlich name.  I include it here because I enjoy adding to the opus of information, of especially Boston tobacconist shops.

The David P. Ehrlich story

Pipemakers and Tobacconists for a Hundred Years, 1868-1968.

The David P. Ehrlich Company has remained solely in the hands of one family during its century of business, yet it has had several firm names and locations. David P. Ehrlich went to work in 1881 at the age of twenty for Ferdinand Abraham, who dealt in cigars and tobacco and who had begun business in 1868 at 1188 Washington Street in the South End, but in 1880 moved to the center of the city, where the firm has been ever since. David Ehrlich married the boss’s daughter. In 1916 the name became the David P. Ehrlich Company and Mr. Ehrlich devoted the rest of his life to this business. Since David’s death in 1912 it has been owned by – his nieces and nephews including Richard A. and William Ehrlich.

Ehrlich shop has since 1880 had a predilection for historic sites. 25 Court Street was close to the spot where from 1721-1726 James Franklin had, with the assistance of his brother Benjamin, published The New-England Courant. In 1908 the firm moved a few doors up Court Street to number 37, on the opposite corner of the alley that is grandiloquently named Franklin Avenue. This new locution was on the site of the one-time printing office of Edes and Gill, publishers of the Boston Gazette, in whose back room some of the “Indians” of the Boston Tea Party assumed their disguises. Soon after the end of World War II at which time the store was located at 33 Court Street a move around the corner to 207 Washington Street brought the shop diagonally across from the Old State House and onto the site occupied from 1610-1808 by the First Church of Boston. The demolition of 207 Washington Street in 1967 caused still another move to 32 Tremont Street, adjoining King’s Chapel burying Ground, which is the oldest cemetery in Boston.

The David P. Ehrlich Co. has not just occupied sites intimately associated with Boston history and institutions; it has in the past century become a Boston institution in its own right. It has specialized in fine cigars, pipes, and pipe tobacco. In addition to the retail business, the firm has long specialized in the manufacture of pipes, both from Algerian briar root and from meerschaum, a beautiful white fossilized substance, mined from the earth in Turkish Asia Minor. Meerschaum lends itself to carving, and in the nineteenth century there developed in Austria a fashion for carving pipes from it with formidably intricate decoration.

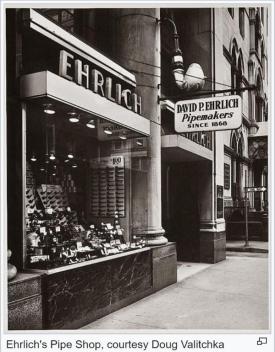

The Ehrlichs have long had meerschaum carvers, who ply their craft in the shop window to the delight of passersby. For years the bearded Gustave Fischer was a familiar figure in the window at 33 Court Street. A succession of craftsmen have continued the tradition. and still make and repair pipes in the window of the new Tremont Street shop. They still turn their meerschaum pipes by hand on a foot operated wooden lathe made in Austria about 1871. Although briars are today turned on power lathes, meerschaum can only be turned on a foot-operated lathe.

As amber was used for the bits in his better pipes, David P. Ehrlich found himself in the amber business as a side line. For years the firm has been noted for amber jewelry in its many types and forms, often purchasing old examples from estates to maintain its large and varied assortment. And with the meerschaum and die amber as a nucleus, a variety of artifacts dealing with tobacco and smoking, as well as prints of Boston have come to decorate the shop. There is a display case in the Boston Museum of Science donated by David P. Ehrlich Company which outlines the story of amber.

Many of the mahogany display cases that were installed in Court Street early in the century have been transplanted to Washington and then to Tremont Streets, so that the present premises, although new, have a strong family resemblance to those that we knew on our earliest visits to Ehrlich’s. This is good sense in Boston, where people do not welcome needless change for its own sake.

In 1956 when the old Harvard Square firm of Leavitt and Peirce was offered for sale, the Ehrlich brothers, because of their Harvard connections, could not resist acquiring it. Richard A. Ehrlich was a member of the class of 1922; his brother William of 1925. As they had known for years this seventy-year-old establishment, which had done business in the same location in Harvard Square longer than any except the College itself, they took it over, with the idea of keeping it as it was, even to the metal ceiling. In 1958, to celebrate its 75th anniversary, David McCord edited for them an engaging volume entitled 75 Aromatic Years of Leavitt & Peirce in the Recollection of 31 Harvard Men . And as Leavitt & Peirce is to Harvard College, so is the even older David P. Ehrlich Co. to Boston – the purveyor of “a brand of special knowledge” built up over a century of honest dealing.

The January 1968 issue of Antiques Magazine carried a feature by Wendell D. Garrett titled “Paraphernalia of smokers and snuffers” describing in considerable detail the impressive collection of paraphernalia and smokers articles from many countries and centuries on permanent exhibit in their Leavitt & Peirce Cambridge tobacco shop. The Boston Public Library in Copley Square devoted twenty-five display cases during the month of January to the David P. Ehrlich Company Centennial Exhibition of Tobacciana made up of the Leavitt & Peirce antique collection, the David P. Ehrlich collection of carved meerschaum pipes and their two venerable Cigar Store Indians.

There are pipes of every price and size and shape, from good ordinary smoking pipes up to briars of the finest grain and meerschaums band cut, turned and polished front the best Turkish blocks. This is in keeping with a catalogue statement: “we have never ceased to regard smoking as an exquisite pleasure, rather than a mere habit.” Another of the principles of the firm is embodied in the observation: “we are pipe makers – not plumbers. There are no tricky gadgets in Ehrlich pipes.” But when a man drops his pipe, the makers will transform themselves into repairmen in a highly efficient manner. All this has been going on for a century, and we confidently trust that it will outlast our time, and then some.

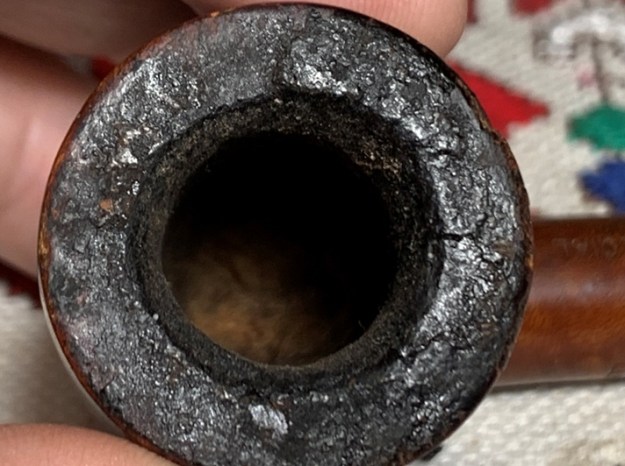

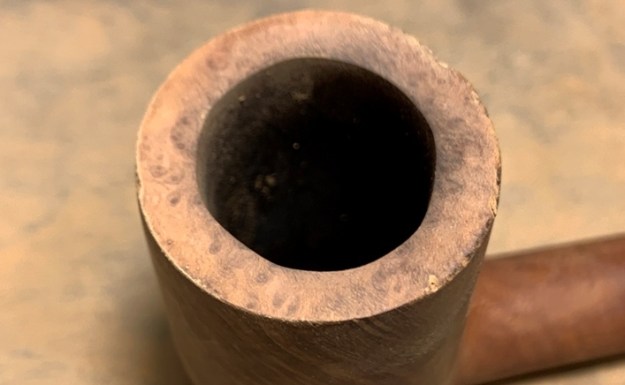

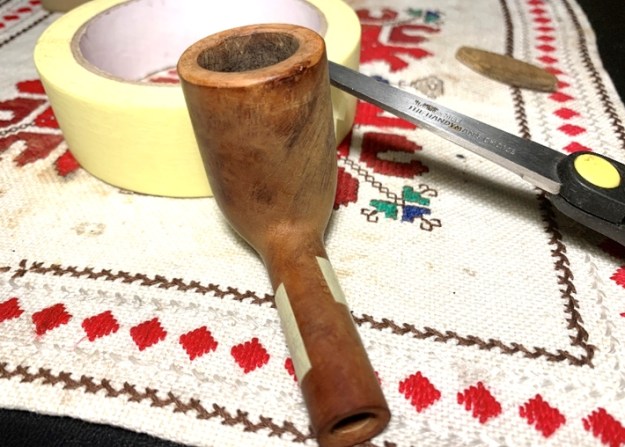

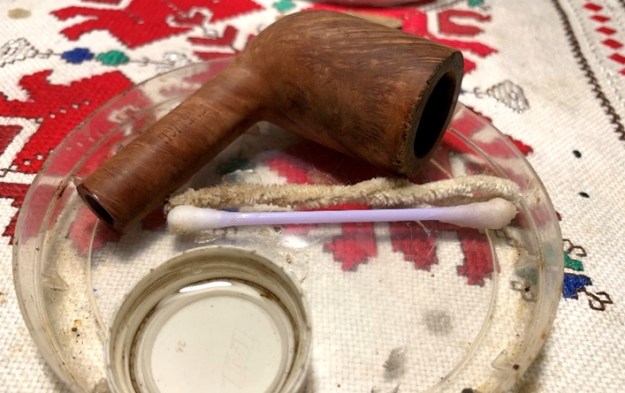

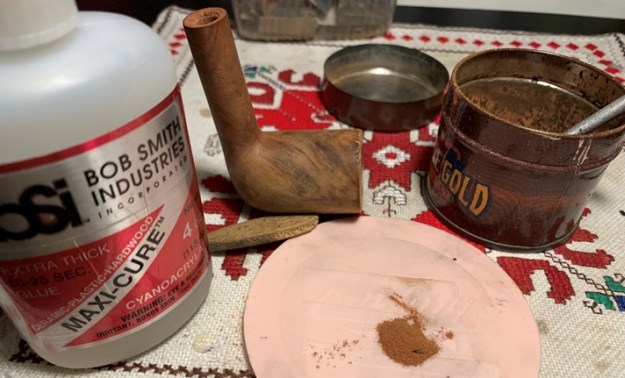

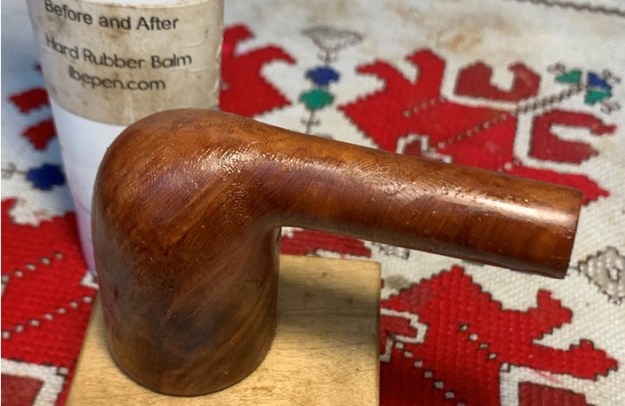

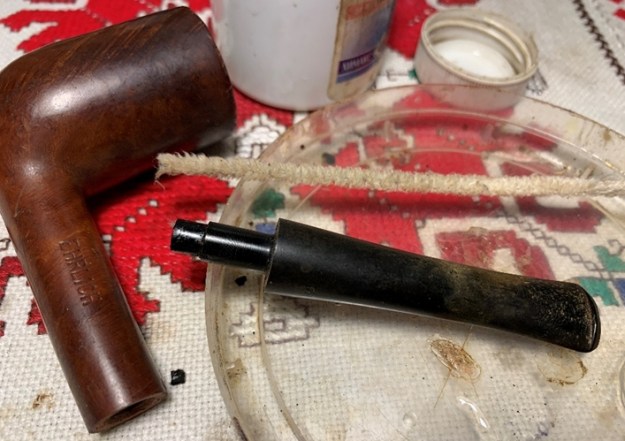

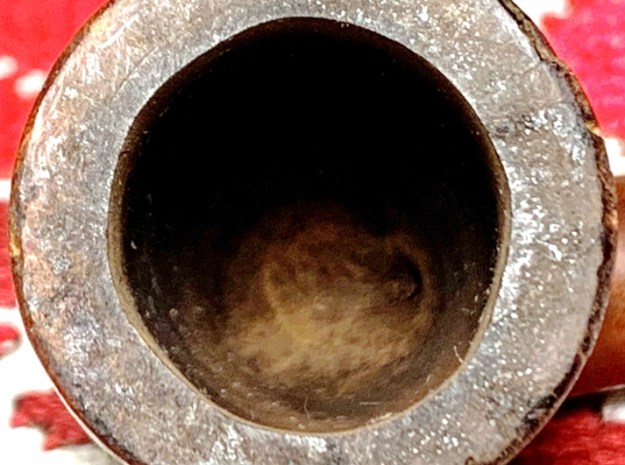

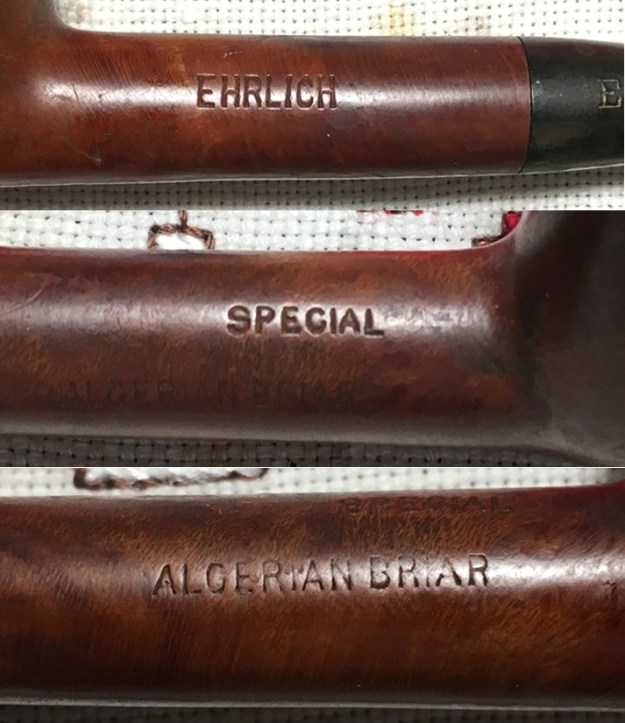

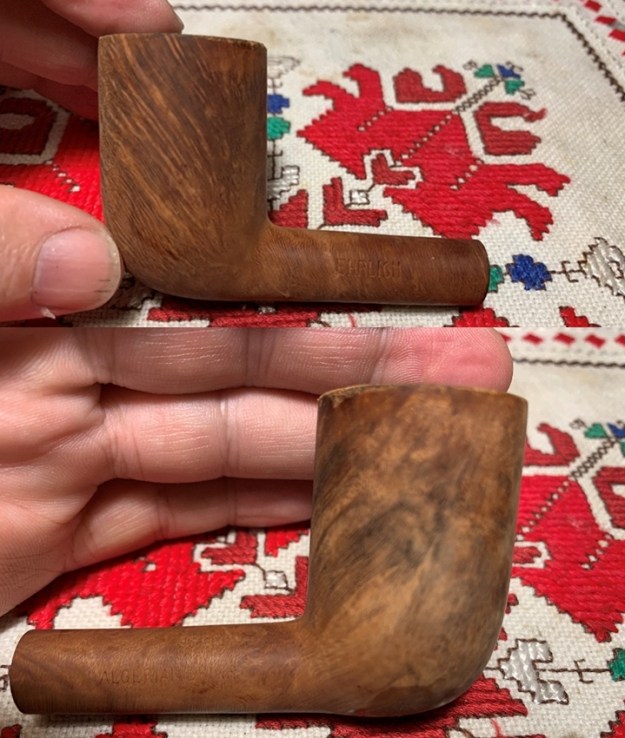

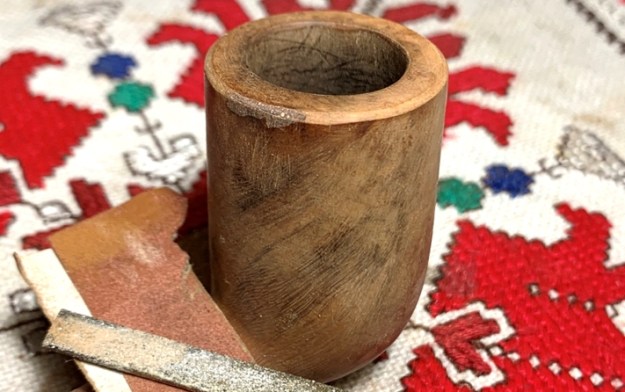

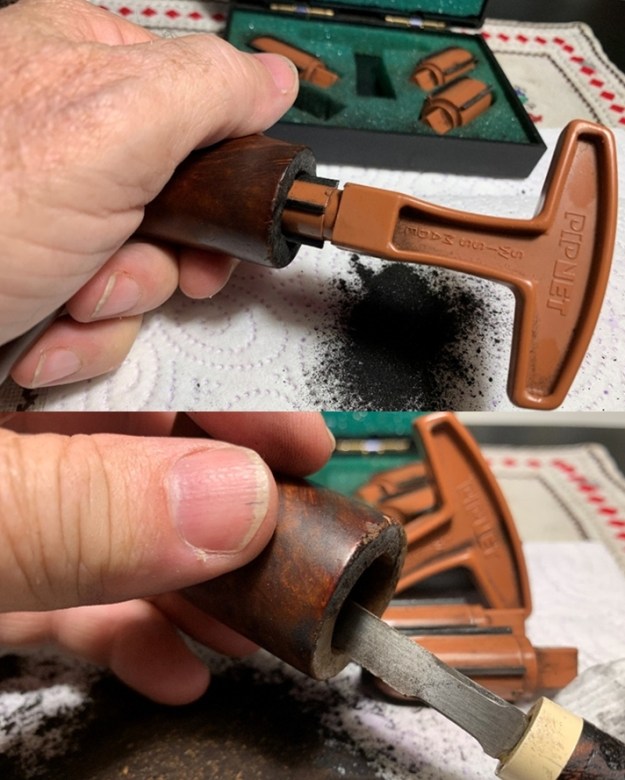

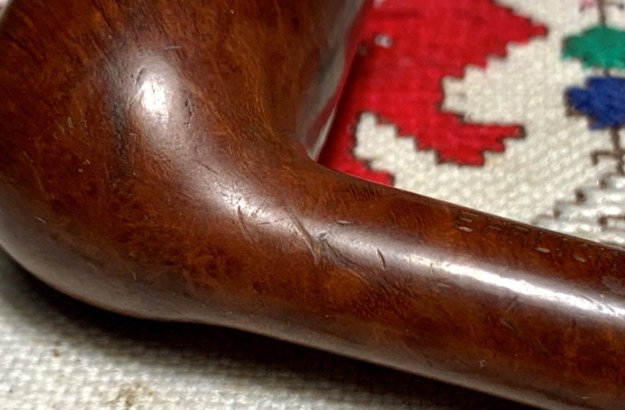

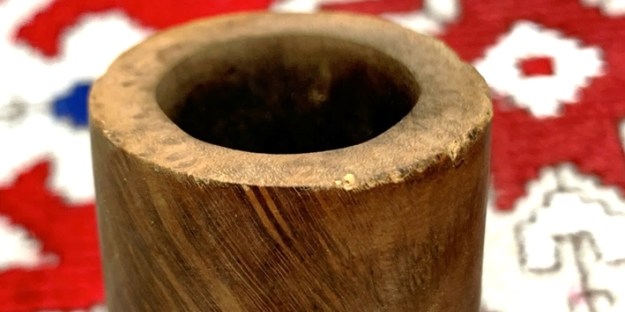

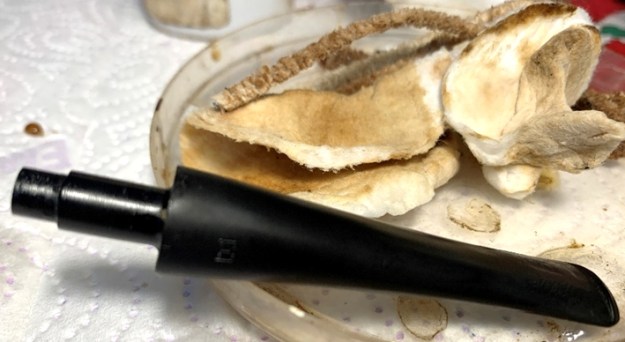

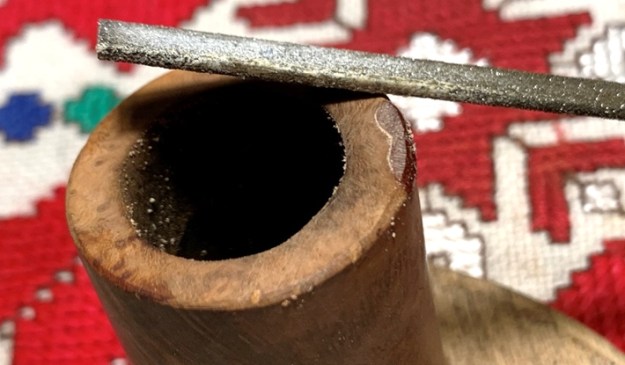

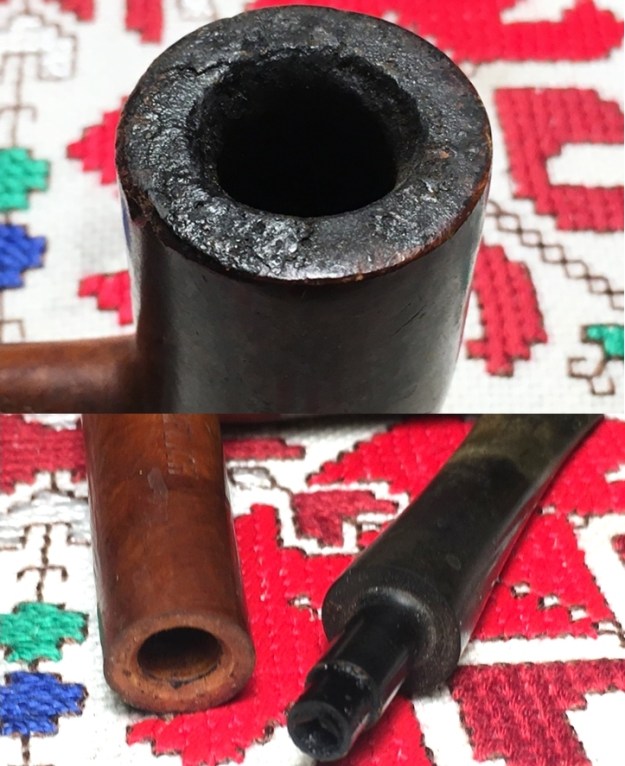

With the information included above, the Ehrlich Chimney now on my worktable dates to at least the late 60s.  With a greater appreciation for the Ehrlich name and the richness of its story, I begin the restoration first with an assessment of its condition.  This old boy is in rough shape. The chamber has thick cake build up which needs to be removed to expose fresh briar for a new start.  The rim is caked with lava.The rim has notches and divots on the lip aft and forward areas.Generally, the briar surface is scratched and dinged a good bit.  The finish is darkened and needs cleaning to remove the surface dirt that has collected.The original stem with the Ehrlich ‘E’ reveals that this pipe was well loved and driven into the ground!  The calcium build-up on the bit is thick along with the oxidation.  The tooth chatter seems to reveal a lot of possible New England winters with the former steward’s teeth chattering as he clinched the stem.  The lower button has disintegrated from biting.  I’m concerned that it’s too damaged for a normal button rebuild.  I love to salvage original stems but this one presents some challenges.  The lower vulcanite surface looks suspect – that there may be a crack in the vulcanite.To start, using a pipe cleaner wetted with isopropyl 95%, the stem’s airway is cleaned.To address the oxidation, a new batch of Before & After Deoxidizer is ready to go to work.  The other pipe’s stem that Todd commissioned, the Heritage Blasted Apple, joins the Ehrlich for a bath.  The fluid is eerie as it swallows the stems!After a few hours of the soak, I use a stiff wire to snag the stem and to allow the B&A Deoxidizer to drain.  I then squeegee more fluid off with my fingers then wipe with cotton pads wetted with alcohol to remove the raised oxidation.  Another pipe cleaner helps to clear liquid from the airway.The B&A Deoxidizer seemed to do an adequate job.  I add paraffin oil to the vulcanite with a cotton pad to further the rejuvenation of the stem.Turning now to the Ehrlich Chimney bowl, I ream the chamber using the Pipnet Reaming Kit.  I use the 2 smaller of 4 blades available in the Kit to navigate the Chimney chamber.  Following this, the Savinelli Fitsall Tool continues the scraping and finally sanding with 240 paper wrapped around a Sharpie Pen cleans the remaining cake. After wiping the chamber with a cotton pad wetted with alcohol to remove the carbon dust, an inspection of the chamber reveals no problems with heating or cracking.   I also scraped the rim with the Savinelli Fitsall tool to remove the crusting lava flow.Next, the external briar surface is dark and dirty. I use undiluted Murphy’s Oil Soap on a cotton pad to clean the briar surface.  I also use a brass wire brush to clean the rim.  The brass brush does not damage the wood surface.  After scrubbing, I transfer the bowl to the sink and continue cleaning using hot water and shank brushes.  Using anti-oil dish soap, the shank brushes reach into the mortise and after scrubbing and rinsing thoroughly, I bring the bowl back to the worktable.The cleaning does a good job.  The briar is lighter, but the rim is still discolored. It doesn’t happen often but returning to the internal cleaning with pipe cleaners and cotton buds reveals a clean pipe!To clean the rim, I use the topping board covered with 240 grade paper to begin.  The topping board will remove the discoloration with fresh briar, and it will help remove the divot damage on the rim edge.  The next pictures show the progression of the topping. Next, the 240 grade paper is replaced with 600 grade paper and several more rotations follow.  What emerges on the rim are round bird’s eye patterns of grain.I decide to stop the topping not to lose more briar real estate off the rim.  There remain some divots on the edge of the rim.To remedy this, instead of taking off more briar to remove the divots, I mix Thick CA glue with briar dust to form a putty to fill the divots.  After putting a small amount of briar dust on the plastic disc, covered with scotch tape for easier cleanup, a few drops of CA glue are placed next to the dust and then mixed with a toothpick.  Gradually, briar dust is pulled into the CA glue and mixed until it thickens to the consistency of molasses.  Using the toothpick as a trowel, putty is placed on the divots.  When sufficiently covered, I put the stummel aside for the putty to cure.After some time, the briar dust putty has cured.  I first use a flat needle file to remove the excess putty until it is flush with the rim surface.  I also use 240 grade paper to smooth the patch further.I also sand the side of the patch with 240 paper.  Finally, using 240 sanding paper tightly rolled, I cut a small bevel around the circumference of the rim to remove smaller cuts and divots and to blend the rim patch.  After the 240 paper, 600 grade paper is used to further smooth and blend.  The rim looks good.  I move on.To further clean the briar surface of nicks and scratches, I utilize sanding sponges.  Before applying the sanding sponges, I cover the Ehrlich Special nomenclature with masking tape.With the tape protecting the nomenclature, I first apply a coarse sanding sponge followed by a medium grade then a light grade.  Sanding sponges address the minor blemishes on the briar surface well without too much invasion. On a roll, I also apply the full regimen of micromesh pads beginning with wet sanding with pads 1500 to 2400.  Following this I dry sand with pads 3200 to 4000 and 6000 to 12000.  The grain comes out well through the micromesh process. One more step before putting the stummel aside to focus on the stem.  Applying Before & After Restoration Balm teases out the subtle hues of the briar grain.  Whenever possible, the natural briar is my preferred presentation of a pipe.  The Balm does a great job.  After placing some of the Balm on my fingers, I work it into the briar surface.  The Balm starts with a crème-like consistency but thickens to a waxy feel as the Balm is worked.  After applying the Balm, I put the bowl aside for 10 to 15 minutes then wipe off the excess Balm with a cloth and buff up the surface.Turning now to the stem, I take another long, focused look at the condition of especially the underside of the bit and button, but the upper bit has some issues too.  First the upper side. The tooth chatter is profound and there are two compressions that are in the center of the stem.  The one closest to the button is rounded, resembling an eye-tooth compression.  The other one is interesting as it runs parallel with the length of the stem.  The angle makes it difficult to imagine it to be a bite, unless it’s a back molar….  That could be, but the compression appears to run parallel to the airway tunnel directly below.  For the upper bit, I’ll attempt to raise the compressions using the heating method and follow by sanding out the chatter.  Fortunately, the upper button lip is in good shape.When I first examined the stem, before cleaning, I was concerned that there might be a crack running down the stem coming from the button break.  Looking at it now, even under a magnifying glass, thankfully, there is no sign of a crack.  That good news barely tempers the catastrophic break of the bit and lower button.  Interestingly, the lower bit shows evidence of also having parallel compression as the top side.  The area extending to the immediate left (in the picture below) of the break is compressed.  The forensics it seems, point to the former steward clinching the stem between his molars for a hands-free mode.  It worked until the force of the clinching on the underside faulted – the rest is history. To repair, I will first attempt to raise as much of the compression through the heating method, then rebuild the button with a mixture of CA glue and activated charcoal dust.  The new steward will need to treat the button with some TLC because a rebuild is not as strong as an original surface. The heating method is painting the compressions with the flame of a Bic lighter.  With the heating of the vulcanite, a rubber compound, the rubber expands to retake its original condition, or closer to it.  After painting the upper and lower with the flame, the compressions are noticeably less pronounced but still evident.Next, using 240 grade sanding paper, I sand out the residual compressions on the upper and lower bit.  The paper also removes the tooth chatter very nicely.  With the button rebuild now before me, I first clean the area with a cotton pad wetted with alcohol.A piece of index card stock serves well to create a wedge to serve as a form.  The wedge fits into the airway to form the mold that will allow the patch material to fill the cavity yet keep the airway open.After covering the wedge with scotch tape, I place some petroleum jelly on the tape to keep the patch material from bonding onto the wedge – allowing the wedge to be removed without problems.The patch material is a putty created from mixing Extra Thick CA glue with activated charcoal dust. A small mound of the charcoal is placed on the plastic disk which acts as my mixing pallet.  I also put scotch tape down on the disk to help in the cleaning.   Next to the mound of charcoal dust, a small puddle of CA glue is placed.I use a toothpick to gradually pull charcoal into the CA glue mixing as I go.  When the putty forms and reaches the viscosity of molasses, I use the toothpick to trowel the putty onto the wedge, filling the damaged area with patch material.I build a mound of the patch material to be more than is needed.  This allows filing to shape the new button by removing the excess and shaping as I go.The wedge is removed easily with a tug.Next, the filing process begins.  I start from the end of the stem to remove the excess to first form the slot facing.With the slot facing flat and flush with the surviving upper button lip, starting with the upper bit, I use the flat needle file to refresh the surviving upper button lip.Next, flipping over to the lower bit, the flat needle file begins to shape the lower button lip.  The next few pictures show this progress. The process is slow, but patience pays off nicely.  The lower button looks good.  A few air pockets show up in the patch area.  I’ll sand and work on removing these as I go.Using 240 grade paper first on the upper bit, the residual chatter and compressions are fully erased.Next, focusing on sanding the lower bit area, 240 paper does well in smoothing out the scratches left by the needle file.  Shaping the button is coming along well.Next, using 600 grade paper, I wet sand the entire stem upper and lower.  Following this, 000 steel wool is applied to smooth the surface further.  The repair is looking great.Some air pockets remain on the lower bit and button lip repair.  I paint a small amount of acrylic nail polish to fill these microscopic pockets.  Again, I apply the 000-steel wool to the acrylic patch.With the stem repair complete, I move on to the full regimen of micromesh pads.  Using pads 1500 to 2400, I wet sand followed by dry sanding with pads 3200 to 4000 and 6000 to 12000. Between each set of 3 pads, Obsidian Oil is applied to the stem to rejuvenate it and to retard the growth of oxidation. Now on the home stretch.  I rejoin the stem and Ehrlich Chimney stummel after a small amount of sanding on the tenon.  After the cleaning, the fit was a bit tight.  After the sanding, the tenon engaged the mortise nicely.  After mounting a cotton cloth buffing wheel to the Dremel, and setting the speed to about 40% full power, Blue Diamond compound is applied.  After completing the application of the compound, I buff the pipe with a felt cloth to remove the compound dust in preparation for the wax.  Before applying carnauba wax, I have one more project to complete.  The Boston tobacconist Ehrlich ‘E’ needs some attention on the stem.  Using white acrylic paint, I put a small drop of paint over the ‘E’ and then tamp the wet paint with a cotton pad.  This flattens the paint and dries it.  I then gently rub the surface with the side edge of a toothpick which clears away the excess paint leaving the ‘E’ filled.  I repeat this process twice to render the finished product.  It looks great. After mounting another cotton cloth buffing wheel to the Dremel leaving it at the same speed, I apply carnauba wax to the entire pipe.  To finish, a microfiber cloth is used to give the pipe a rigorous hand buffing to raise the shine.

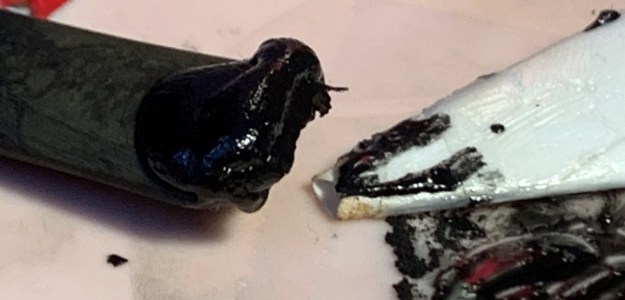

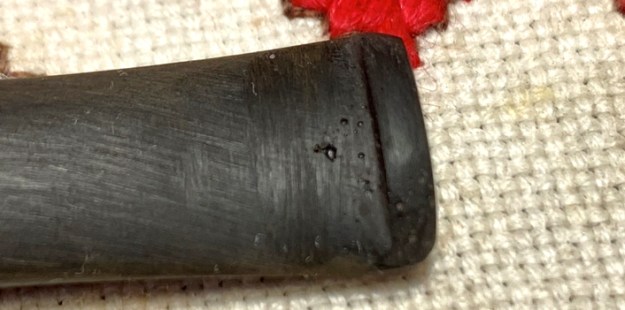

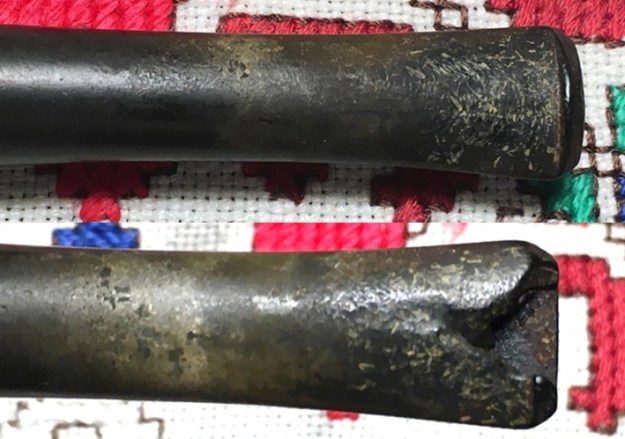

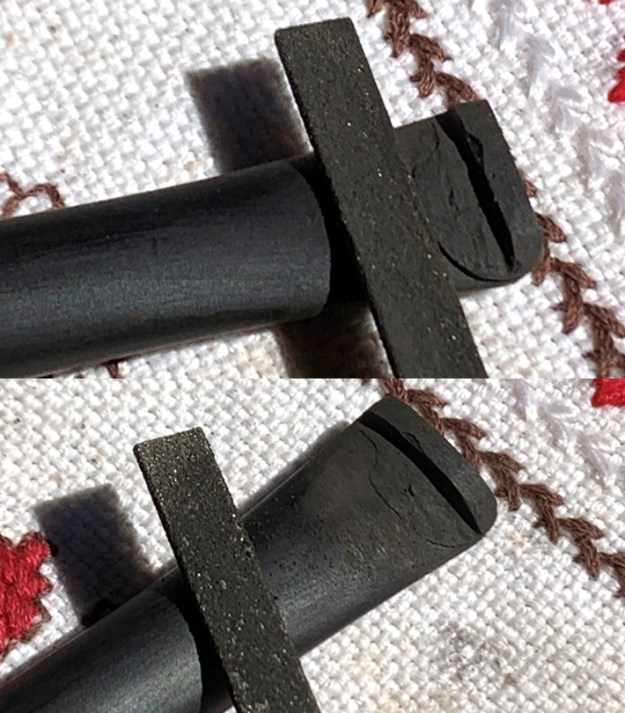

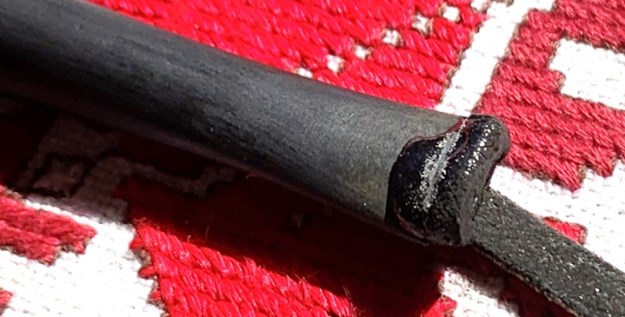

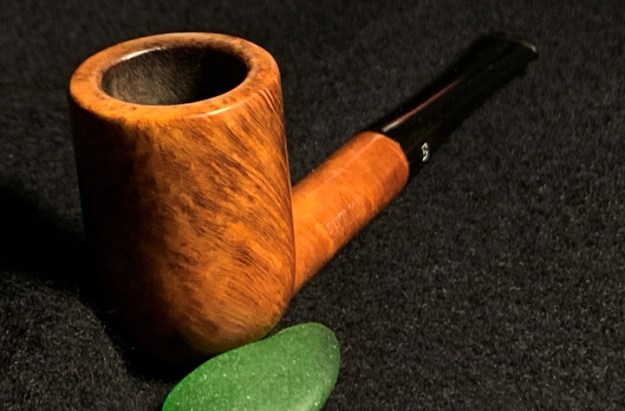

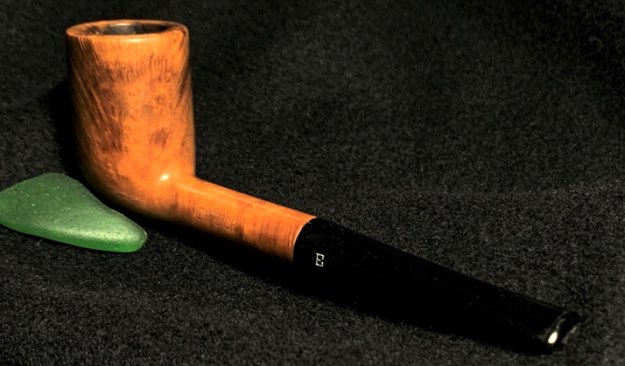

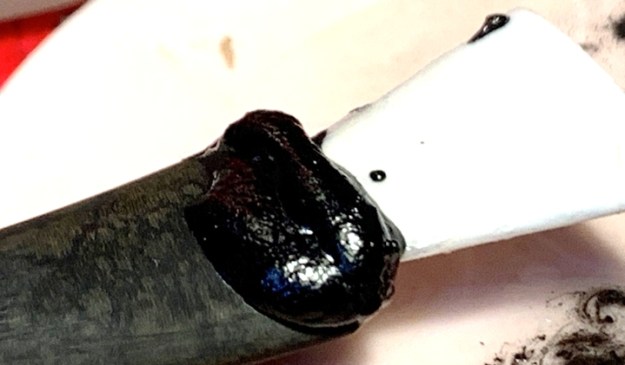

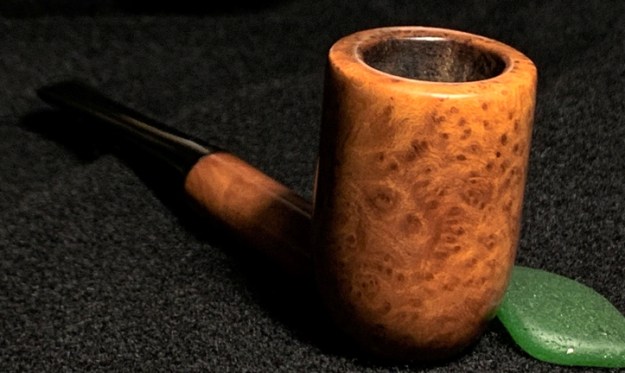

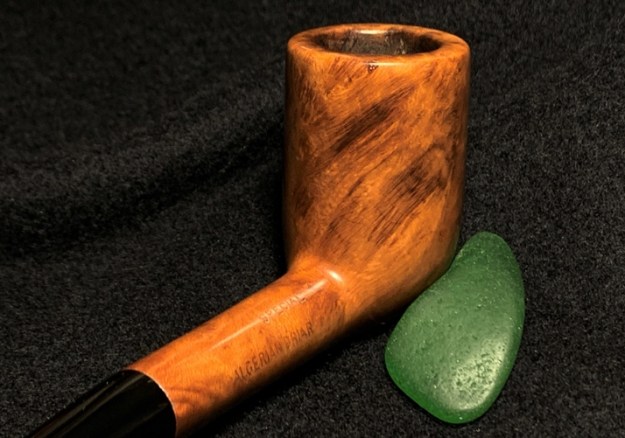

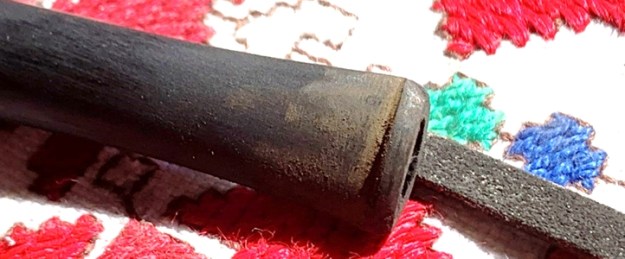

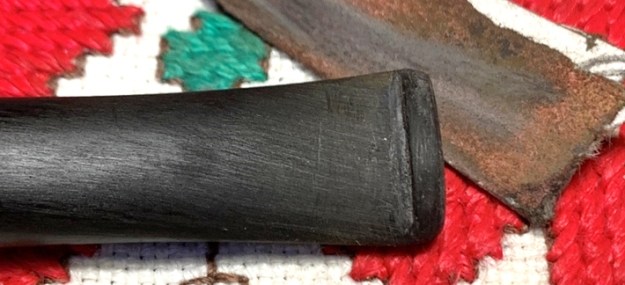

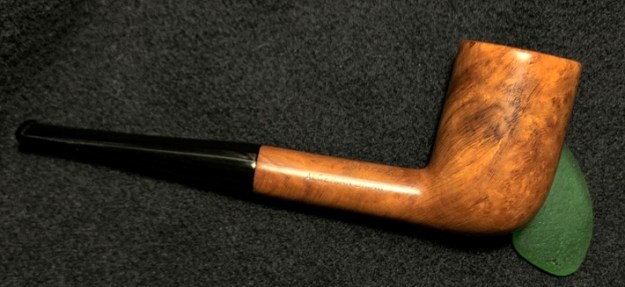

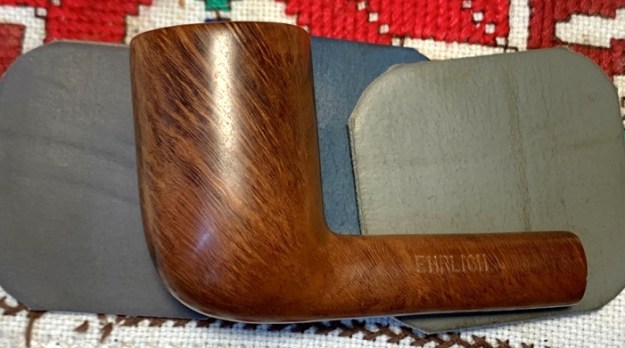

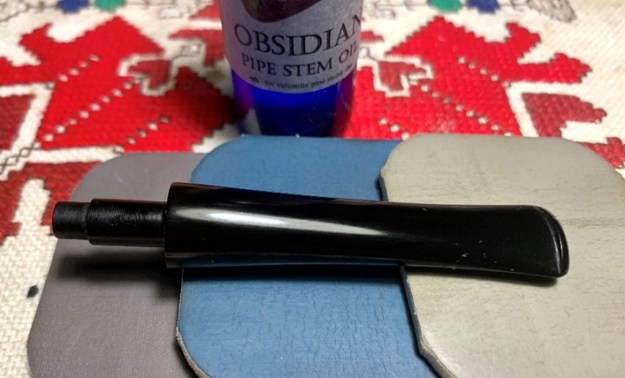

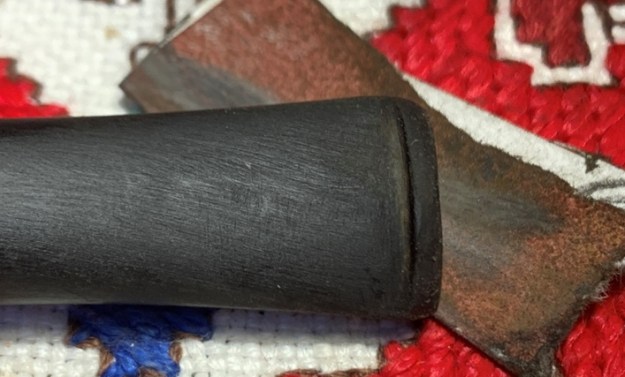

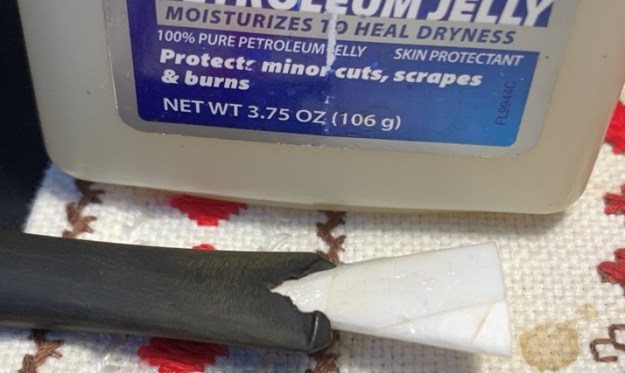

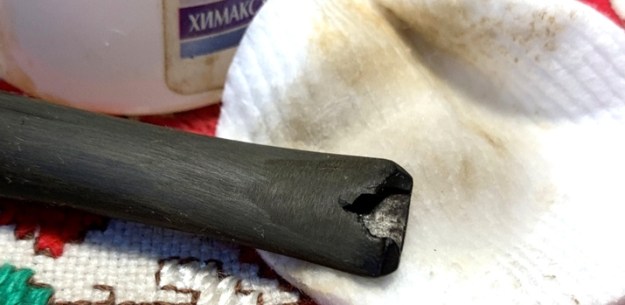

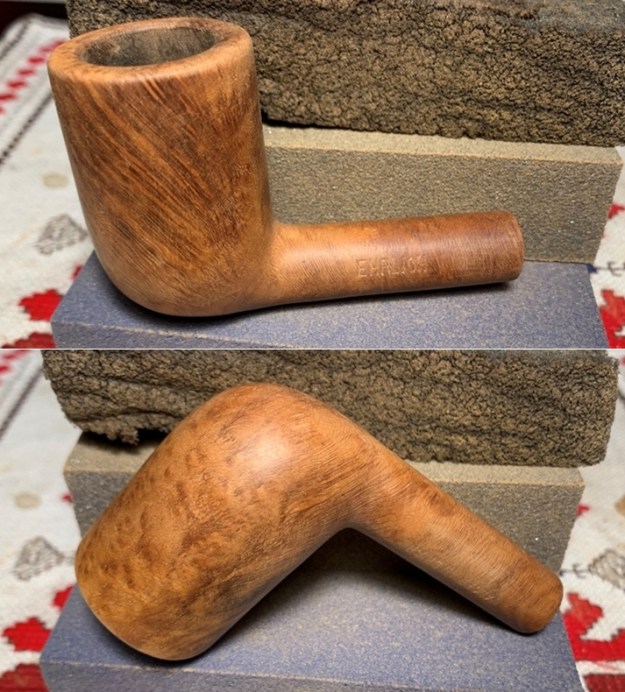

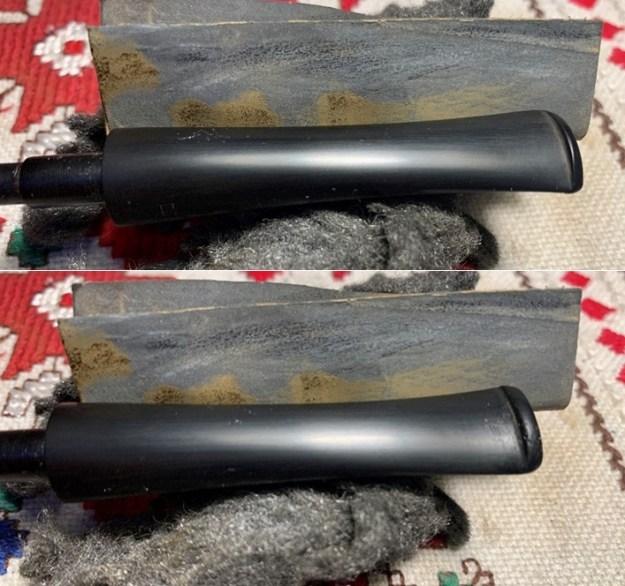

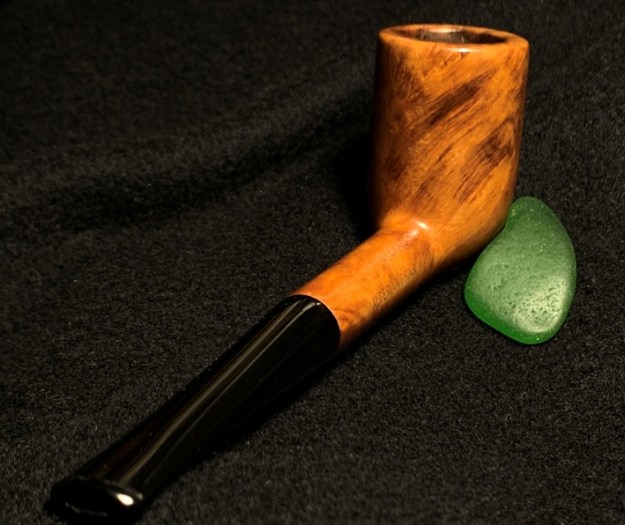

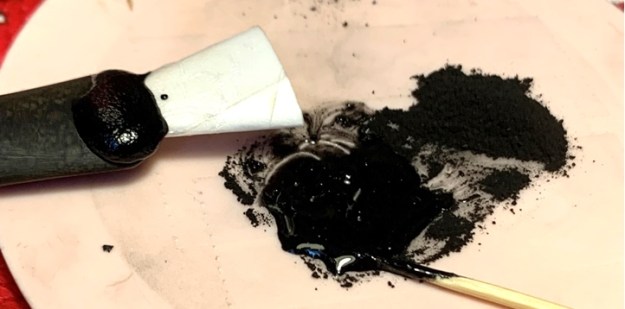

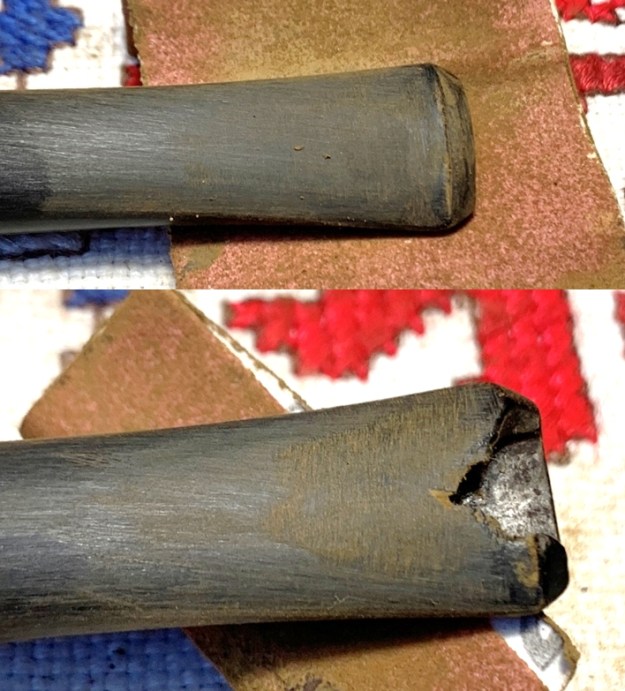

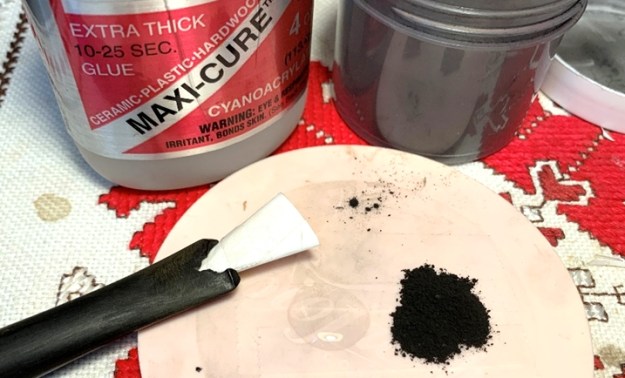

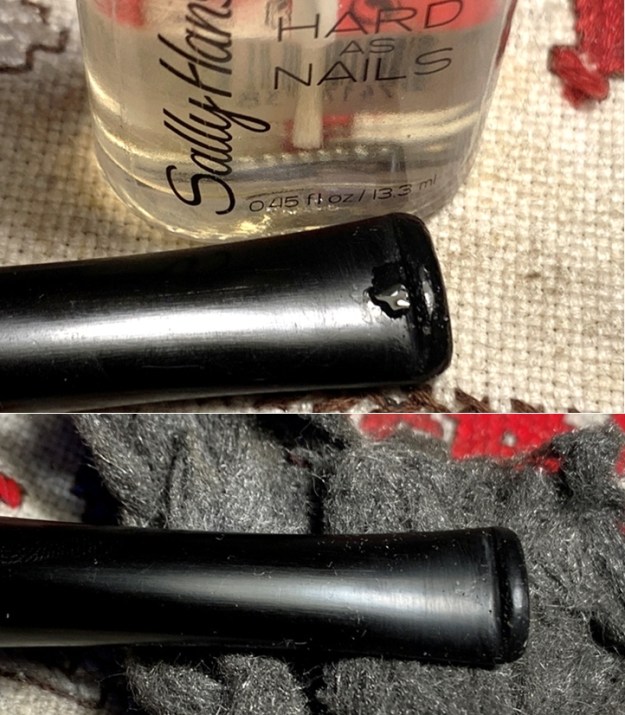

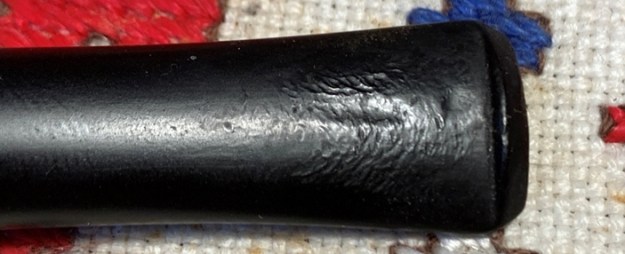

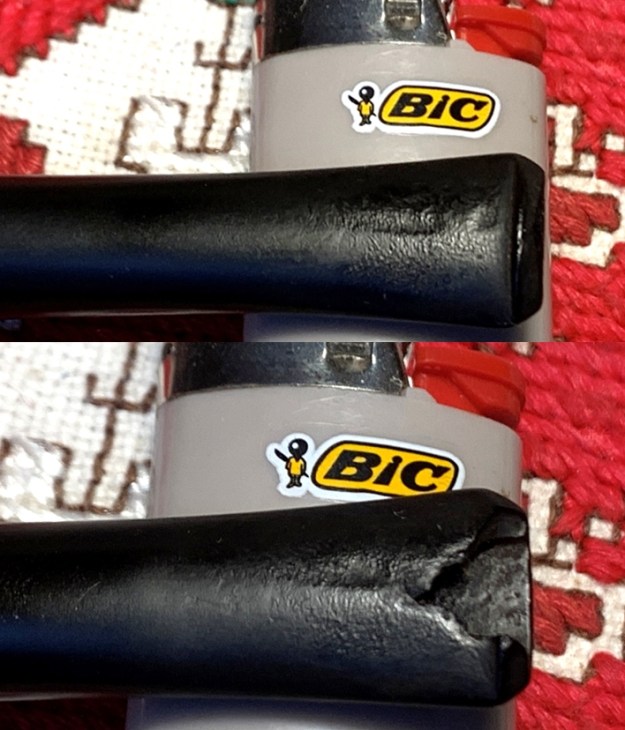

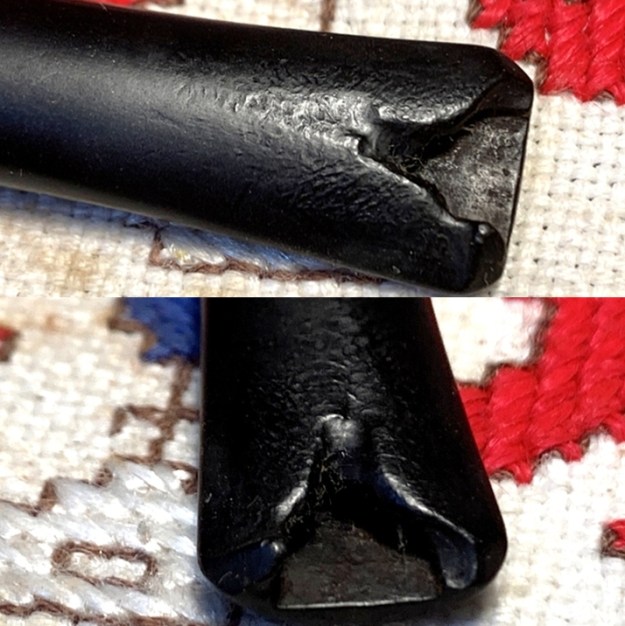

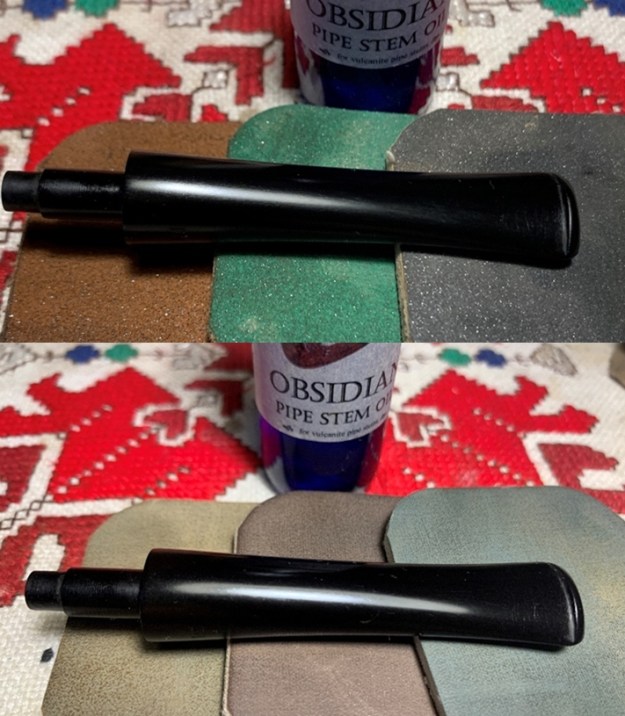

This Ehrlich Special Chimney turned out well.  I appreciated learning about the history of the Ehrlich name as one of Boston’s Tobacconist shops.  The button repair looks good and what a change from the molar damage with which the restoration began.  The vertical fire grain on the left side of the Chimney is nice and the bird’s eye grain on the right completes the ensemble. Without doubt, the pipe fits nicely in the palm.  I enjoyed this restoration and Todd who commissioned the Ehrlich Special Chimney, will also have the first opportunity to secure him from The Pipe Steward Store.  This pipe benefits the Daughters of Bulgaria – women and girls who have been trafficked and sexually exploited.  Thanks for joining me!
