Renewing one of Alex’s first pipes – a Lorenzetti Lovat


Blog by Steve Laug

Alex has been an ongoing source of restoration projects for me for a few years now. I actually have a box of Alex’s pipes that he drops by periodically and adds new ones to. It has been fun to see him pick up the restoration hobby himself lately. He leaves the harder ones to me to work on – whether harder in terms of issues or harder in terms of cleaning. I have quite a few of his to work on so I spread them among the others that I am working on. This next pipe is an interesting Lorenzetti Lovat that was one of his first pipes. It has some issues with the finish that will need to be addressed. The pipe is stamped Lorenzetti over Italy on the left side of the shank and Avitus 03 on the right side. It has been in the box for quite a while now so I took it to the work table. The finish is a combination of reddish browns and dark brown in streaks on the bowl sides. It almost appears that it was to make it look like grain. There were some spots around the heel and sides of the bowl where it looked like the shellac coat was peeling off the bowl. The rim top had an inward bevel that had some darkening to the inner edge on the back of the bowl. There were some nicks around the outer edge toward the front. The stem was lightly oxidized with calcification around the button. It has the cursive Lorenzetti “L” on the left of the saddle stem. There were tooth marks and chatter on both sides of the stem ahead of the button. I took some photos of the pipe as I received it.  I took a close up photo of the rim top. It shows some darkening on the back of the inward beveled top. The outer edges were nicked and damaged on the right side. The photos of the stem show tooth marks and chatter on both sides ahead of the button. The stem is also quite oxidized.I took photos of the stamping on both sides of the shank. You can see that it reads as noted above. I also took a photo of the stamping on the side of the saddle stem.I took photos of the bubbled finish around the sides of the bowl. It looked to me that the bubbled portions were over putty fills in the briar. Time would tell! I don’t believe I have worked on this brand before so I turned to Pipephil to get a quick overview of the brand (http://pipephil.eu/logos/en/logo-l6.html). I have included a screen capture of the information on that site for quick reference. I learned that the brand was created in 1934 by Otello Lorenzetti. As of (2009) the company was managed by Alessandro Lorenzetti.I then turned to Pipedia and found a great historical survey of the founder Otello Lorenzetti. It is a great read regarding the history of the brand and its development from small beginnings with Otello selling pipes from his bicycle around his community to a brand that is available around the world today. (https://pipedia.org/wiki/Lorenzetti).

This is a thick shank classic looking Lovat with a briar insert in the vulcanite stem. The staining     would have originally hidden the fills very well.  The stain gives the appearance of cross grain around the bowl when in reality the pipe is a mix of grains. I wiped the bowl down with a cotton pad and alcohol to remove the shiny, spotty top coat of the finish. The combination of brown stains on the finish makes it interesting. Now it was time to work on Alex’s pipe. I started the work by reaming the bowl and cleaning out the shank. The pipe was amazingly clean so it did not take too much to clean it.I polished the bowl and rim top with micromesh sanding pads – wet sanding with 1500-12000 grit pads and wiped the bowl down after each pad with a damp cloth. The polishing gave the bowl a rich shine. After polishing the rim it was slightly lighter than the other smooth portions of the bowl. I used a Maple Stain Pen to match the colour of the rest of the bowl and blend the new finished rim into the surrounding pipe. I rubbed it down with Before and After Restoration Balm. It is a product developed by Mark Hoover to clean, enliven and protect briar. I worked it into the briar with my fingertips. I let it sit for about 10 minutes and buffed it off with a cotton cloth. You can see the results in the photos below. I set the bowl aside and turned to address the light tooth marks, chatter and gouges on the stem surface. I sanded both the top and underside of the stem with 220 grit sandpaper to remove the damages to the vulcanite. Fortunately they were not too deep so they came out fairly quickly. I also did a quick sanding to remove the oxidation on the stem.I polished the stem with micromesh sanding pads – wet sanding it with 1500-12000 grit pads and wiping it down after each pad with a damp cotton pad to remove the dust. I polished it with Before and After Pipe Polish – both fine and extra fine. I finished by wiping the stem down with some No Oxy Oil that  received from Briarville Pipe Repair to try out and get a sense of its value to me and others. Once I finished I put the stem back on the shank and buffed the pipe with Blue Diamond polish briar and vulcanite. I gave the stem a vigorous polish being careful around the white spot. I gave the bowl and the stem several coats of carnauba. I buffed the pipe with a clean buffing pad and hand buffed it with a microfiber cloth. The finished pipe is shown in the photos below. This Lorenzetti Lovat is a great piece of Alex’s personal pipe history and looks better than when I began the process. The dimensions of the pipe are Length: 4 ½ inches, Height: 1 ½ inches, Outer Bowl Diameter: 1 ¼ inches, Chamber Diameter: ¾ of an inch. The pipe will soon be heading back to Alex so he can continue to enjoy it. I have told him that if he ever wants to part with it I get the right of first refusal. Thanks for walking with me through the restoration.

A Refurb and a Replacement Stem for a Lorenzetti Galatea Apple


Blog by Steve Laug

Not long ago I received a phone call from an interesting woman who had been given my phone number by a local pipe and cigar shop. She had a couple of pipes that needed some stem repair. In our conversation it turned out that they belonged to her husband and he had a total of two pipes. Both of them needed work and she was determined to get them repaired for him. In our talking we spoke of the options – either repairing the stem or making a new stem. She spoke with him and they decided to repair them. A few days later her husband stopped by the house to show me the two pipes. We talked and he decided to work on one pipe at a time so that he would have one to smoke while I repaired the other one. I finished the repair on the stem of his Big Ben Nautic 252 bent apple kind of quasi brandy shaped pipe. Here is the link to the stem repair on that pipe. https://rebornpipes.com/2017/12/22/restoring-repairing-a-damaged-stem-on-a-big-ben-nautic-252/ I returned it to him and he dropped off his second pipe for a repair as well. Two days later he called and said he had already chomped through the repair on the one he took with him. Even with a rubber softee bit he had demolished the repair. So we decided on this one to replace the stem.

The second pipe is a Lorenzetti Galatea Bent apple shape. It is stamped on the left side of the shank Lorenzetti over Italy. On the right side it is stamped Galatea. There is no shape number on the bowl or shank. The end of the shank has a decorative ferrule that is silver with two silver rings and a Lucite ring. The original stem also had a silver band between the shank and the rest of the stem. Lots of bling on this Italian beauty. The stem was black acrylic. From the side view photos below the pipe looked pretty good. The finish was dirty but the pipe appeared to be in decent condition. The top view photos show what the bowl and stem looked like from the top and underside views. Like the other pipe the bowl on this one had never been reamed and there was a thick cake that was composed of aromatic tobacco. It was soft and sticky. The lava overflow on the rim top was also sticky to touch. The smell of the pipe was a sickly sweet and sour smell of a pipe that had never seen a pipe cleaner and never had been cleaned. Once again he had gnawed the stem and had broken the top edge and a bit of the stem in front of the button. It was a mess. The underside had deep tooth marks and was also damaged. The poor pipe was a mess but he obviously smoked it as much as he did the first one. Now I had a task – clean and replace the stem on this one so that I could put a new stem on the first one. I had a mission. I took photos of the pipe before I cleaned it up. I took a close up photo of the bowl and rim to show the thickness and composition of the cake and the thick overflow of lava on the rim top. It looked to me that there was some damage to the inner edge and bevel of the rim on the right side of the bowl toward the back. I would know more once I reamed the cake back and could see what was underneath. It was not in nearly the condition of the Big Ben that finished for him early. I also took some photos of the stem damage so that you could see what I was up against. The sad thing to me was that this second pipe had exactly the same damage to the stem and the bowl looked identical as well.I reamed the bowl back to bare briar with a PipNet pipe reamer. I started reaming it with the smallest cutting head and worked my way up to the second cutting head which matched the diameter of the bowl. I touched up the reaming with a Savinelli Fitsall Pipe knife.The rim was in rough condition. There was gouging around the inner edge of the bowl cause by a knife and there was some charring in that area as well. The rest of the rim was in rough condition and appeared to have been knocked about a bit. It would need to be topped and reworked.I topped the bowl on a hard board with a piece of 220 grit sandpaper. I was able to remove much of the surface damage to the rim top. The second photo below shows the top of the rim after the topping. You can see the charred area in that photo as well.I used a folded piece of 220 grit sandpaper to re-bevel the inner edge of the rim and smooth out the damaged areas on the right inner edge. I blended that area into the rest of the beveled rim. Once it was shaped correctly I wiped it down and polished the briar with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-6000 grit pads. I restained the top and inner edge of the rim with a dark brown stain pen. The colour blended well with the rest of the bowl.I had enough of the smell of the pipe permeating the workspace so I decided to rid it of the smell filled my work area. I used pipe cleaners, cotton swabs and alcohol to clean out the interior of mortise and the airway in the shank. I used a dental spatula to scrape the walls of the mortise area. It took a lot of pipe cleaners to remove all of the buildup but once it was clean the pipe smelled better and it would be more pleasant for me to work on.With internals clean I turned my attention to the outside of the briar. I rubbed the bowl and shank down with Before & After Restoration Balm to deep clean the smooth finish, enliven and protect the briar. I hand rubbed it with my fingers and wiped it off with a soft cloth. I buffed the bowl with a soft cotton cloth to polish it. It really began to have a rich shine in the briar. I took some photos of the bowl at this point to mark the progress in the restoration. With the bowl finished I set it aside and went through my can of stems to find one that would work well with the pipe. I had two that could work – one was a vulcanite stem that had promise and looked good on the shank. It was the same length but slightly smaller in diameter than the original stem. The other stem was Lucite/acrylic. It was the same diameter as the previous stem and about 1/8 inch shorter. It also looked good with the pipe. Neither stem had the metal adornment on the end. I had nothing like that in my available stems. I chose the acrylic stem as it as harder than the vulcanite and I believe it will outlast the vulcanite stem with this particular pipe man. The tenon was slightly shorter but the shank was wide open with a deep mortise that was designed for a filter. I figured the length of the tenon did not matter in this case. I bent the stem over a heat gun to match the original stem. I sanded out the nicks and marks on the stem surface. The second and third photos below show the stem after the bend. I continued to sand out the nicks and scratches with 220 grit sandpaper to smooth out the stem surface. There were a lot of rough places on the stem and the tenon that needed to be smoothed out and blended into the surface.I polished out the sanding scratches and marks in the acrylic on both sides of the stem and the button surface itself with micromesh sanding pads – wet sanding it with 1500-2400 grit pads and dry sanding it with 3200-12000 grit pads. I wiped down the stem after each pad with a damp cloth to remove the sanding dust. I used a series of needle files to open the stem and funnel the airflow. After that I buffed the stem on the buffing wheel with Blue Diamond to polish out the final scratches in the acrylic. I put the stem on the bowl and worked the pipe bowl over on the buffing wheel using Blue Diamond to polish the bowl and stem. I hand buffed the stem to raise the gloss on the stem and polished the metal stem adornment with a silver polishing cloth. I gave the bowl and stem multiple coats of carnauba wax and buffed it with a clean buffing pad to raise the shine. I buffed the entire pipe with a clean microfiber cloth to deepen the shine. The finished pipe is shown in the photos below. The medium brown stains on the smooth finish of the apple shaped bowl works well with the rich black of the Lucite stem. The new stem and the polishing revealed a beautiful piece of briar and a well-shaped pipe. Thanks for looking.

NEPAL PROJECT PIPE SALE 2 – Breathing New Life into a Lorenzetti Dublin


Blog by Steve Laug
I was gifted a box of pipes from a good friend of mine with the instructed purpose of cleaning them up and selling them with all of the proceeds going to the aid of earthquake victims in Nepal. The funds raised will all go to the SA Foundation, and organization that has worked in Nepal for over 15 years helping provide recovery, housing and job training for women who are victims of sexual exploitation and trafficking. The ongoing earthquakes (over 300) that continue to shake Nepal have left much in ruins. The SA Foundation Project there was able to find new housing for the women and help with staff as well. Every dollar raised from the sale of these pipes will go to the work in Nepal.

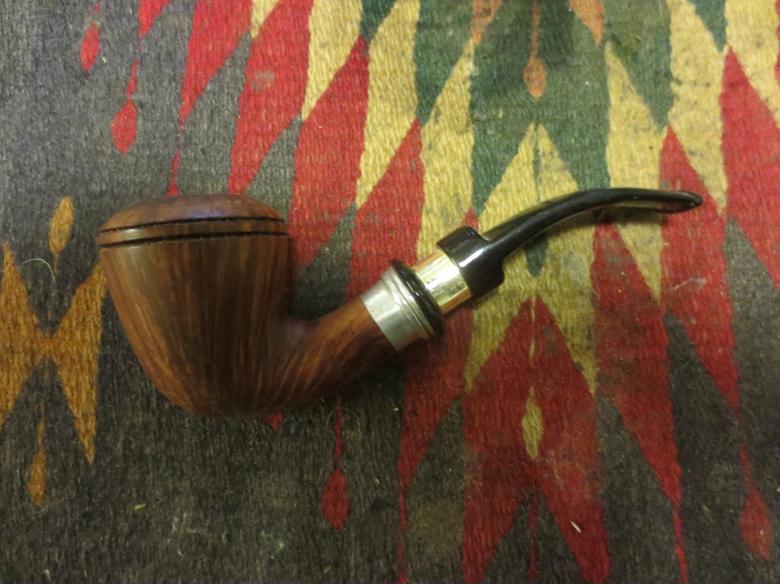

The second pipe I decided to clean up from the box of donated pipes is a beautifully grained Lorenzetti bent Dublin. This one will also be sold and all the proceeds will go to the project in Kathmandu. It is stamped Lorenzetti over Italy over 2 on the left side of the shank. It is a great looking piece of briar with a few nicely done fills that blend into the briar.Lor1

Lor2

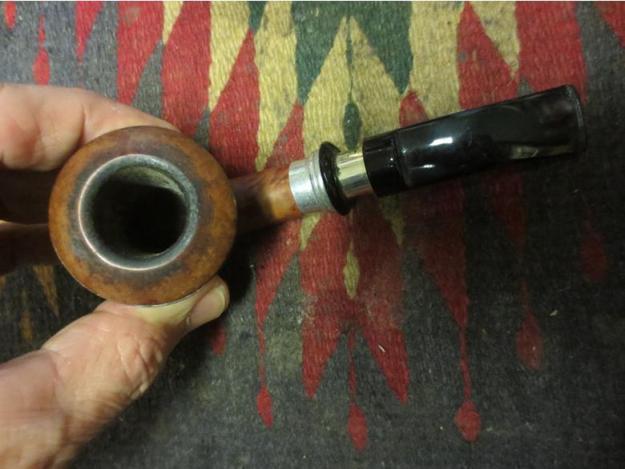

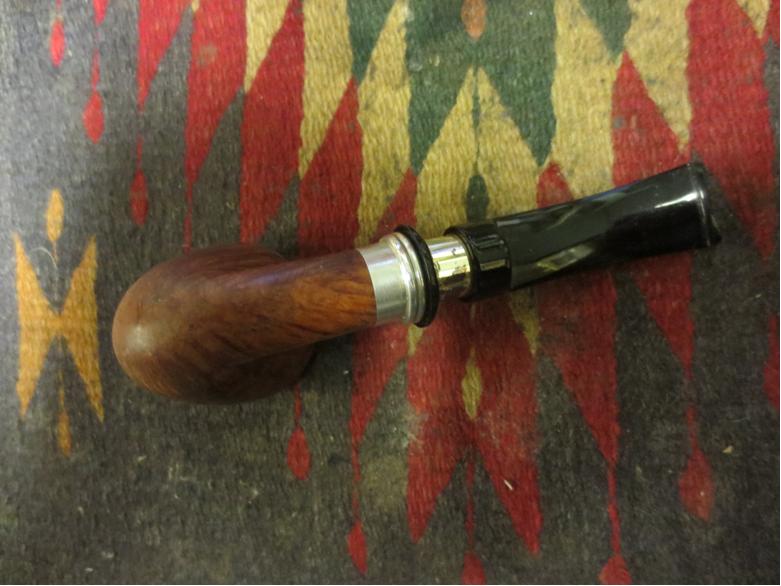

Lor3 When I brought it to the worktable the briar was very dirty. The finish was natural so it was not going to be a problem. It would need to be wiped down and scrubbed. The two rings around the top of the bowl were full of grime and needed to be cleaned as well. The silver on the shank and on the stem was oxidized. The top of the rim was covered with tars and oils that overflowed the bowl. The bowl itself was still round which was a plus but the cake in it was quite thick. The inner bevel of the rim was thick with tars and oils and I was concerned there would be damage underneath. The stem was Lucite and had minimal tooth chatter at the button. Looking at the Lorenzetti website I am uncertain the stem is the original but the fit and look are good.Lor4

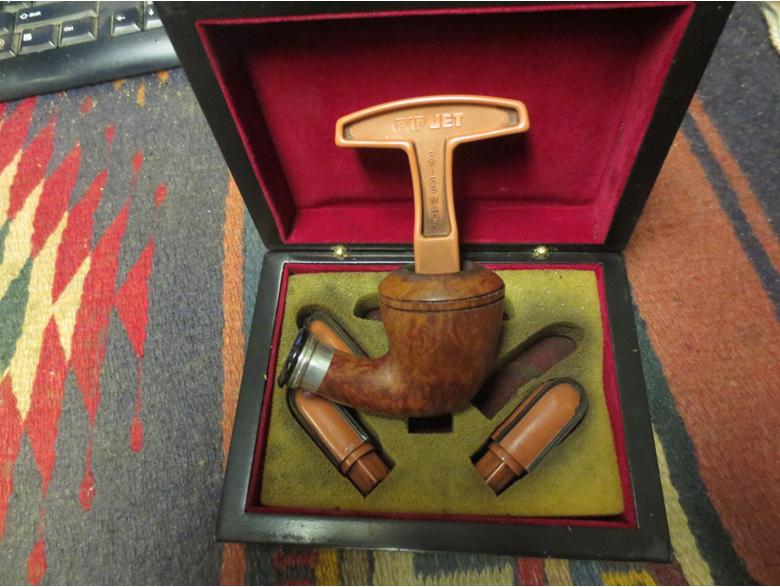

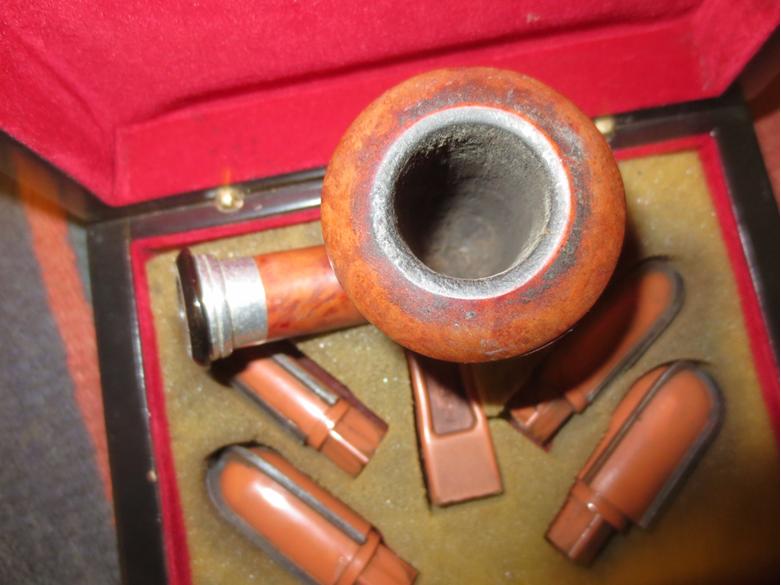

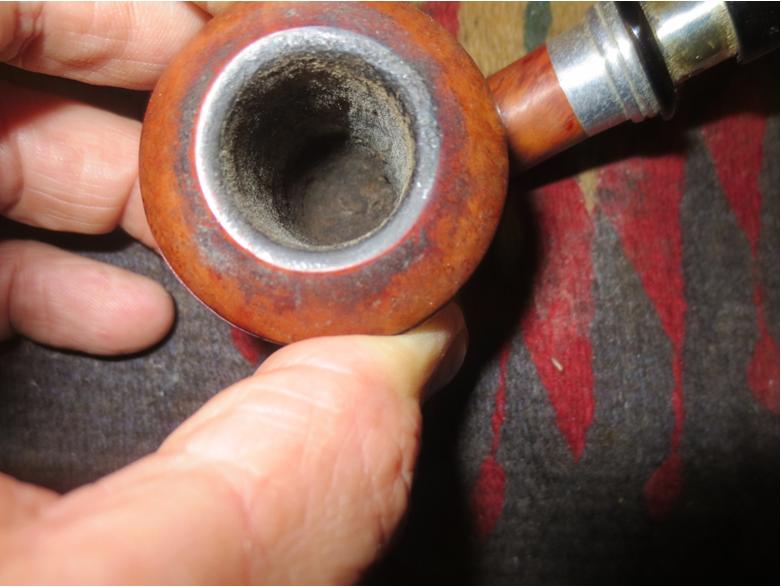

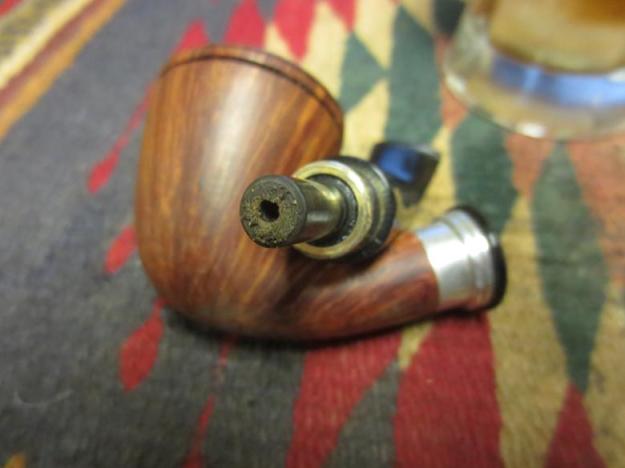

Lor5 Internally the airway in the stem was filthy. There was even build up on the end of the tenon. The slot in the end of the stem had some of the same debris built up in the corners. The shank airway and mortise was darkened with the tars and at the bottom of the mortise there were small chunks of debris.Lor6 I reamed the bowl with a PipNet reamer to remove the cake. I took it back to bare wood to remove the crumbling cake and give whoever purchases this pipe the opportunity to build the cake the way they choose.Lor7

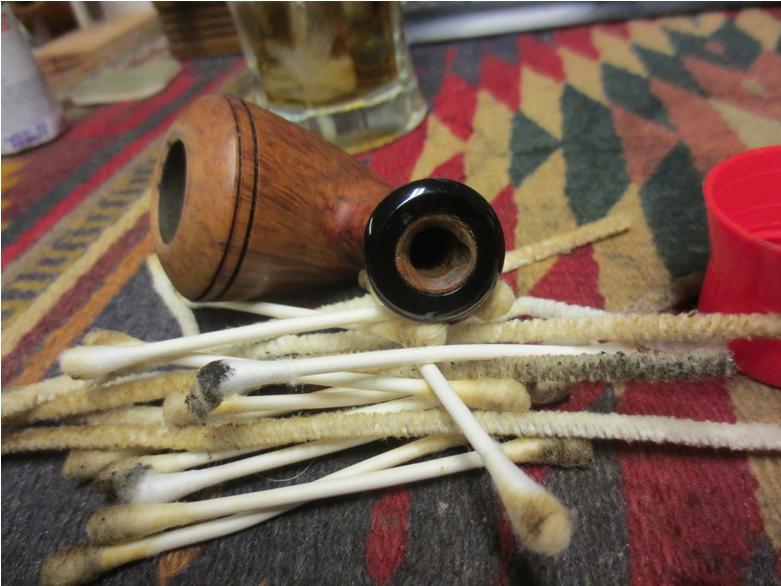

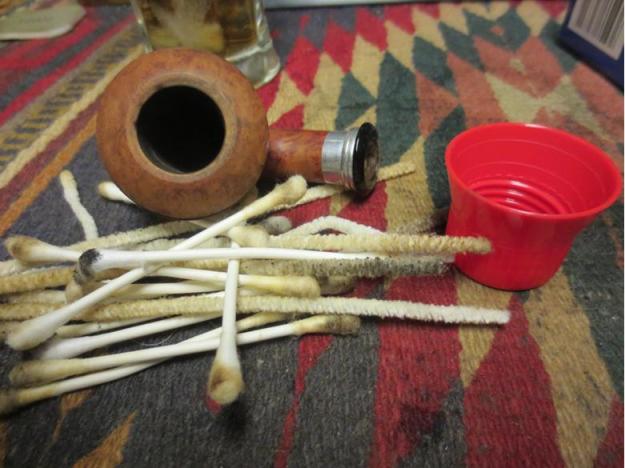

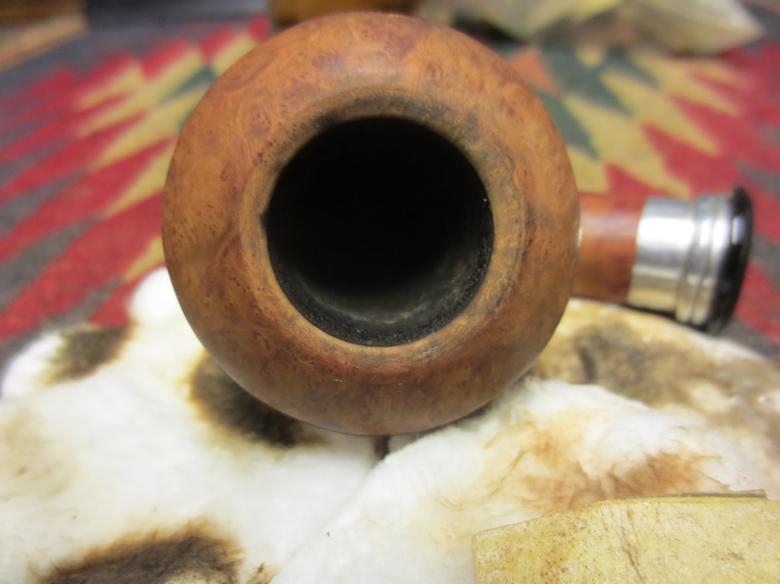

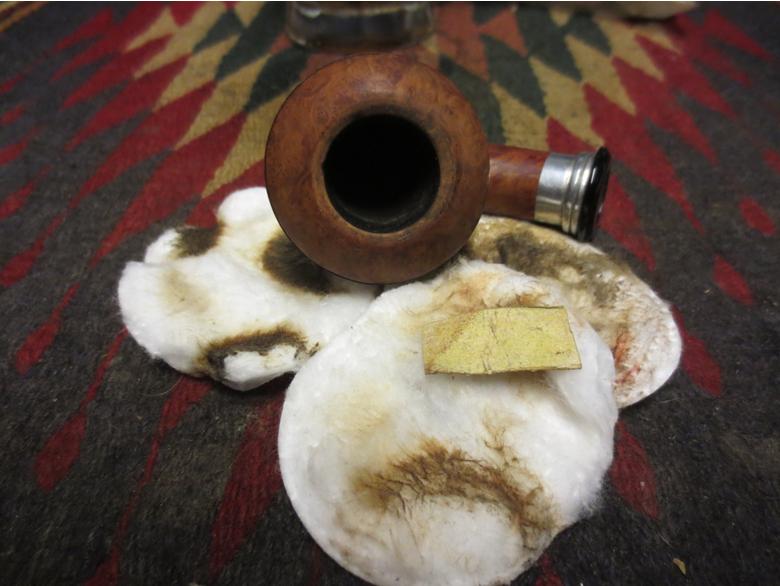

Lor8 I touched up the reaming with a sharp pen knife and cleaned the internal edges at the top carefully. I scrubbed the bowl and rim with Murphy’s Oil Soap on cotton pads to remove the grime and the tars and oils on the top of the rim. I scrubbed the rings around the bowl with a tooth brush and the soap.Lor9 I touched up the bevel of the inner edge of the rim with a folded piece of sandpaper and then a medium and fine grit sanding sponge to remove the stubborn buildup. When I had finished I rinsed the bowl with cool water to rinse off the oil soap and dried it with a cotton cloth. The rim came out looking far better than I expected. There was one spot in the front, directly at the centre that darkened but the overall rim looked very clean.Lor10 I cleaned out the internals of the mortise and airway with pipe cleaners, cotton swabs and alcohol. I scrubbed until the cleaners came out white. I used the drill bit on the KleenReem reamer and ran it through the airway to remove any buildup there.Lor11

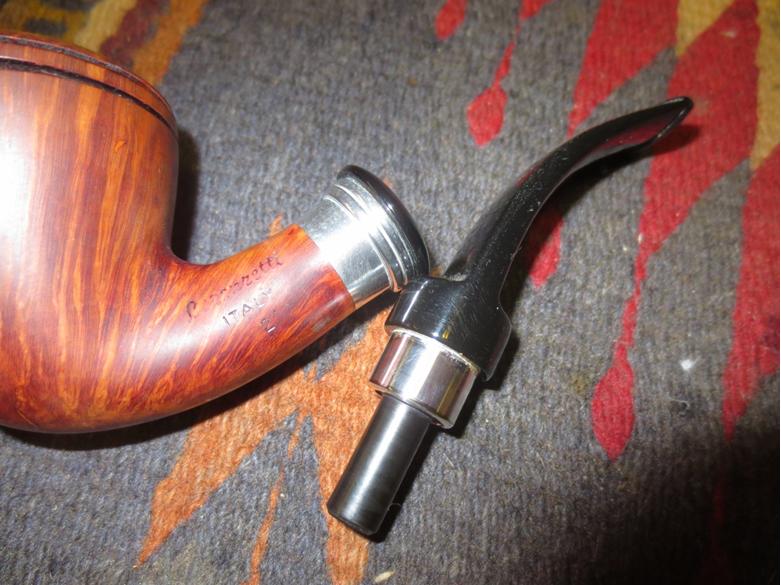

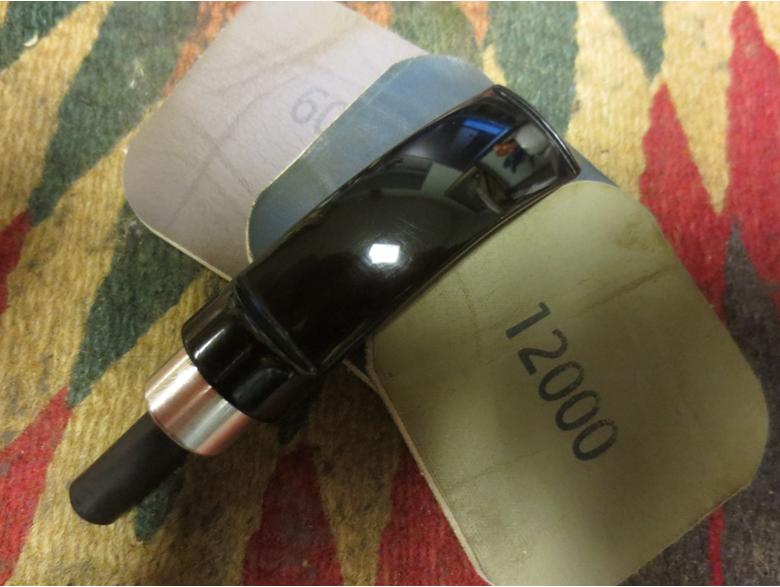

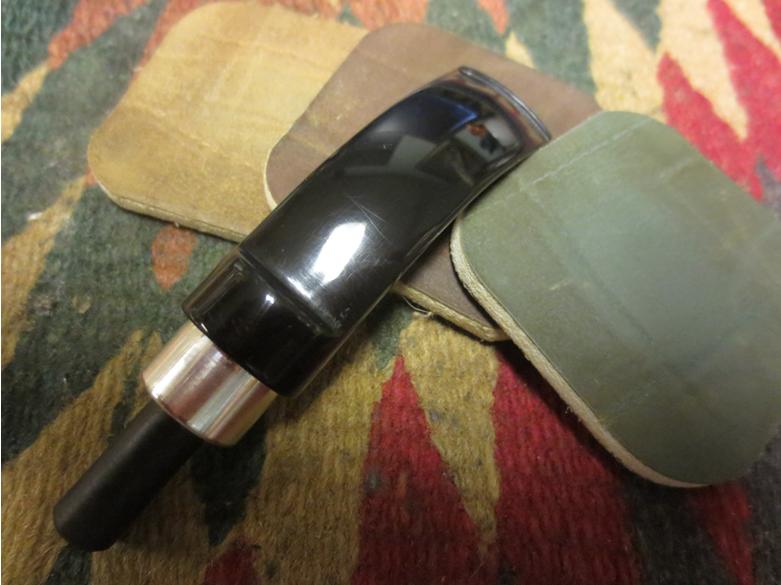

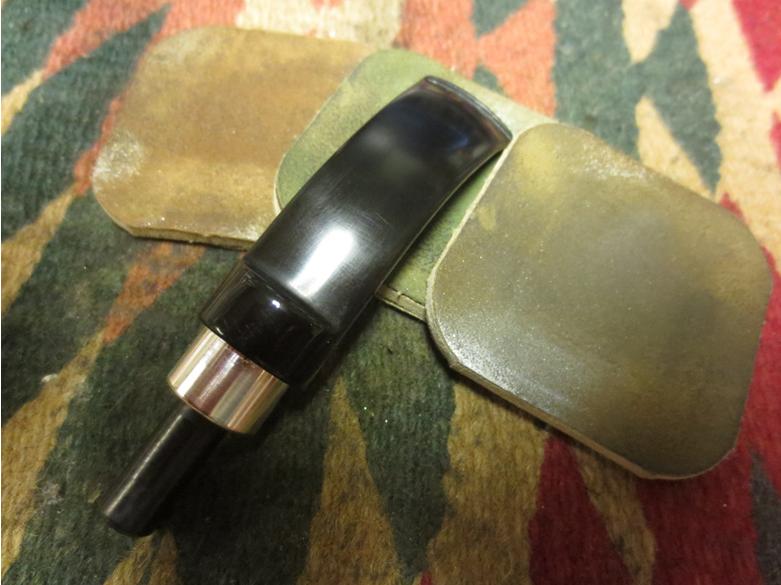

Lor12 I scrubbed the silver band on the shank and the stem with silver polish on a cotton pad. I scrubbed until all the oxidation was removed. I then polished them both with a jeweler’s cloth.Lor13 Then it was time to polish the stem. I used micromesh sanding pads to polish the Lucite. I worked to remove the tooth chatter at the button end by wet sanding it with 1500 grit micromesh pads. I wet sanded the entire stem with 1500-2400 grit pads and dry sanded with 3200-12,000 grit pads. I rubbed the stem down with Obsidian Oil between each set of three pads. I buffed it with White Diamond between the 2400 and the 3200 grit pads.Lor14

Lor15

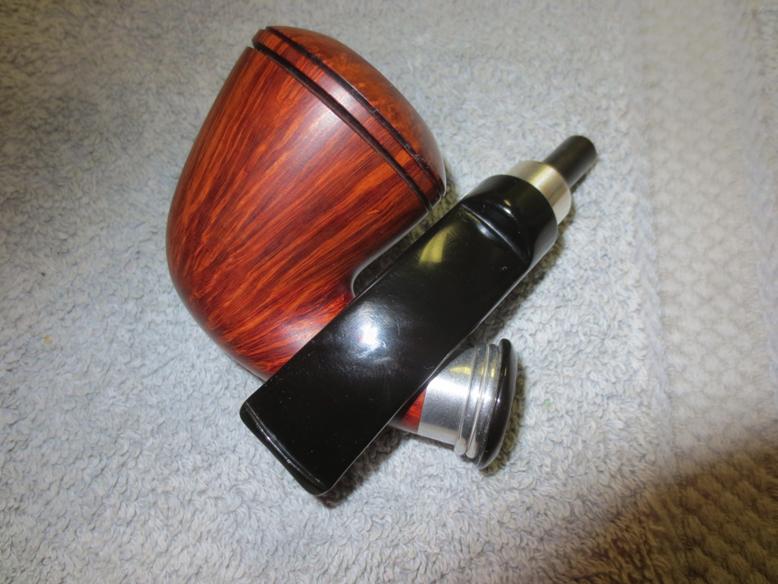

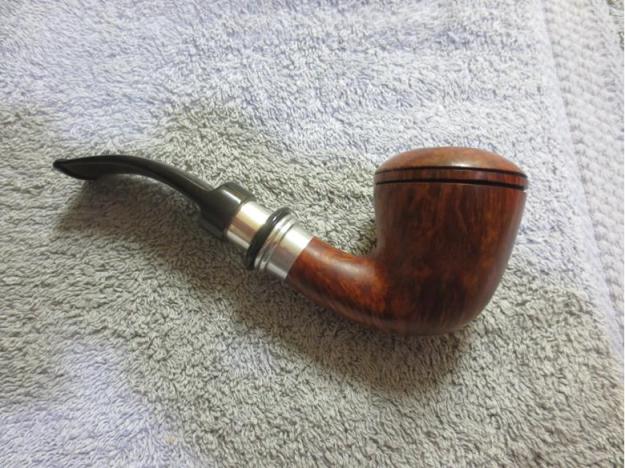

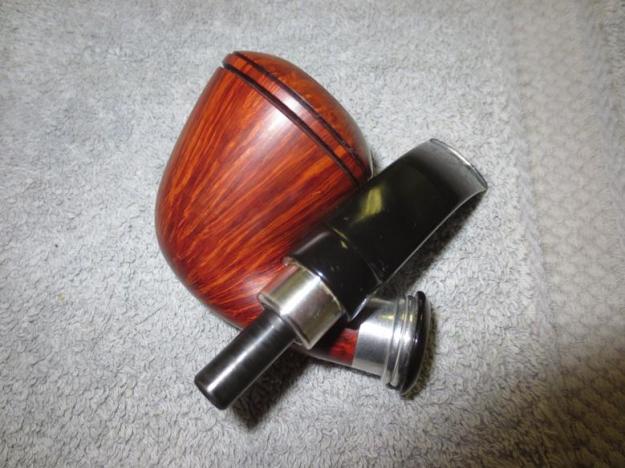

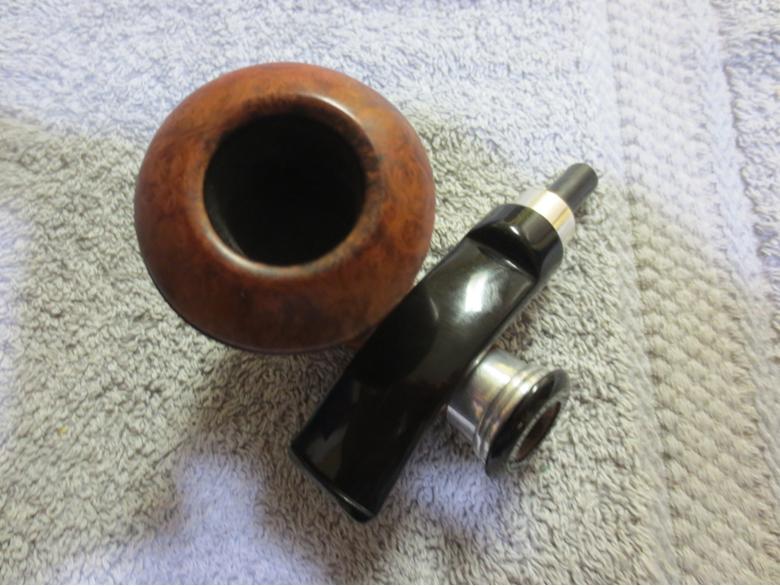

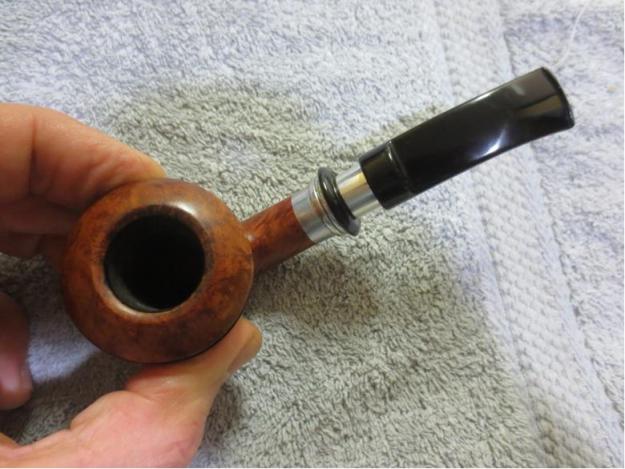

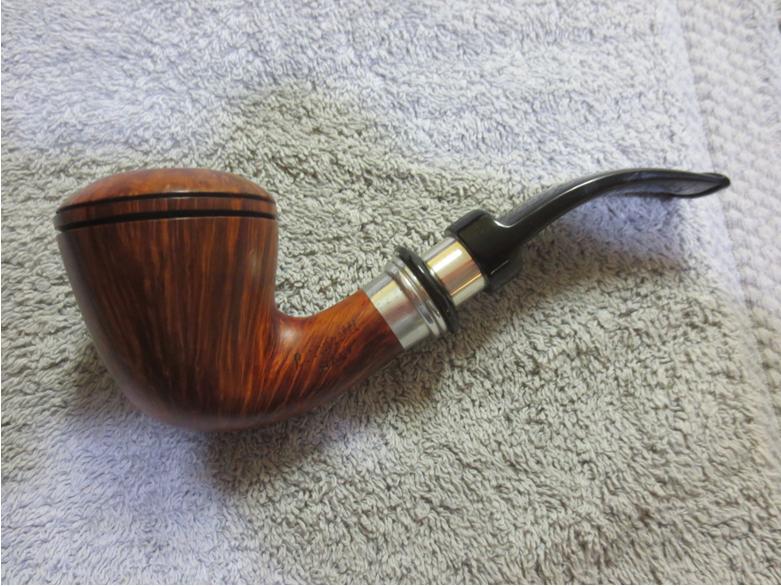

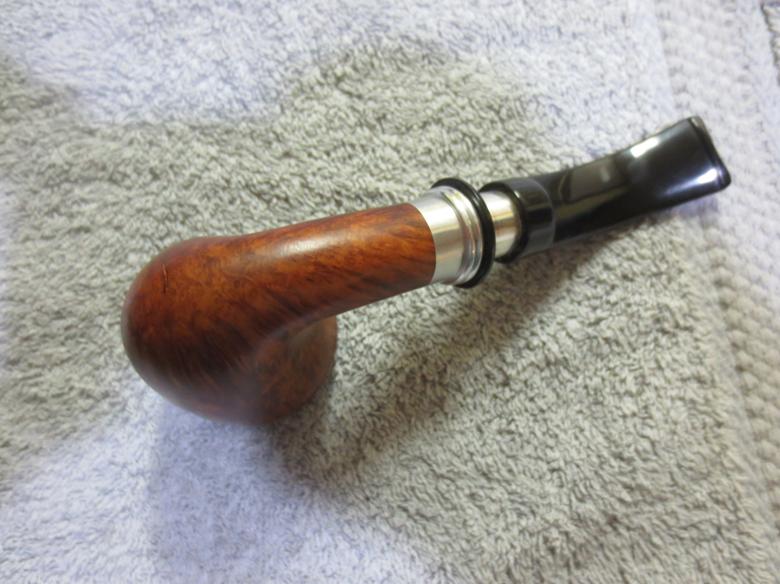

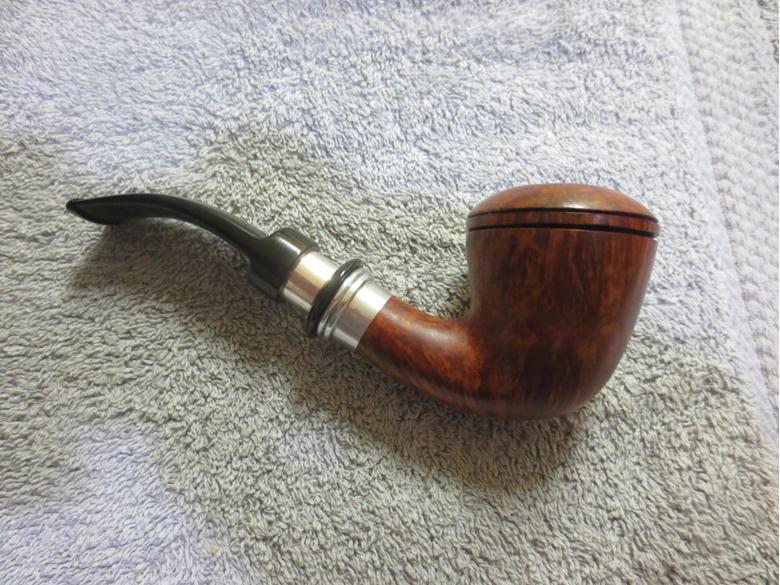

Lor16 I rubbed the bowl down with a light coat of olive oil and let it dry. Then I buffed the bowl and stem with Blue Diamond Plastic Polish on the wheel. I gave it multiple coats of carnauba wax and buffed it to a shine with a clean, soft flannel buff. The finished pipe is shown below.Lor17

Lor18

Lor19

Lor20

Lor21

Lor22

Lor23 On EBay Lorenzetti pipes sell for between $180-$200 each for the sand blast versions. This is a smooth so I would think that it could easily sell for that or more should it strike someone’s fancy. If you are interested in this pipe email me at slaug@uniserve.com and we can discuss it. The entirety of the sale price will go to the Nepal project. I will pay the postage so that does not get taken off the proceeds. If you are interested in reading about the SA Foundation you can look at their website at http://www.safoundation.com.

Thanks for looking.
