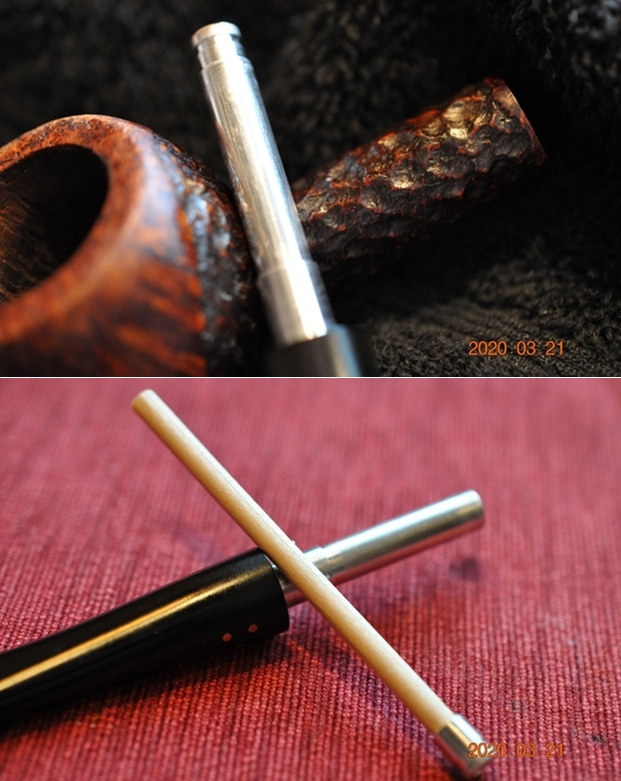

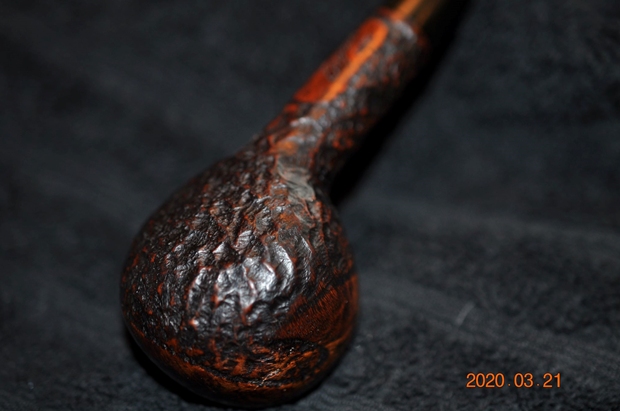

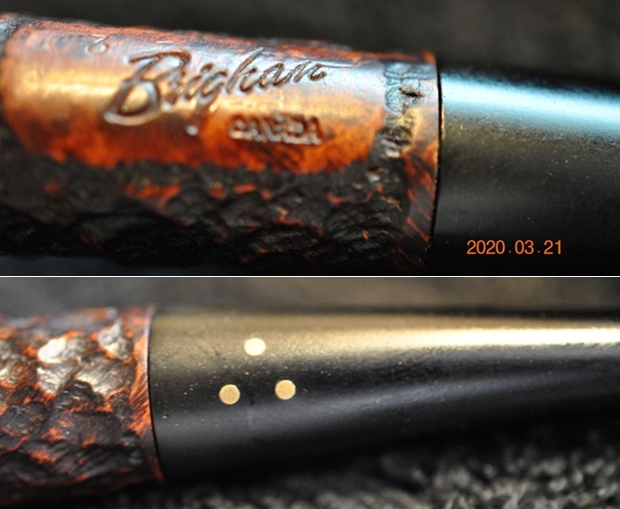

Transforming an Old, Battered and Abused Brigham #417 Four Dot

Blog by Paresh Deshpande

This pipe has been in my possession for so long that details of how, when and where of this pipe have faded away from my memory. However, years after procrastinating on the restoration of this pipe, it’s finally on my work table.

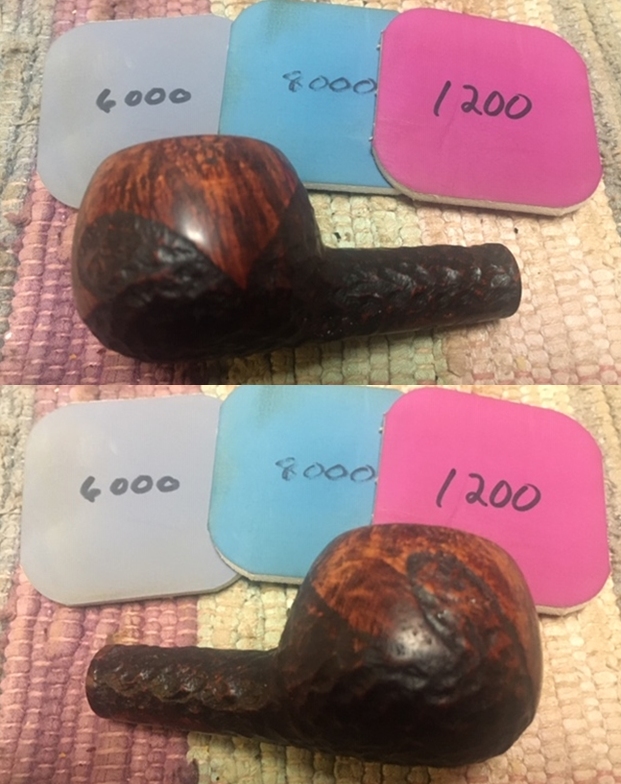

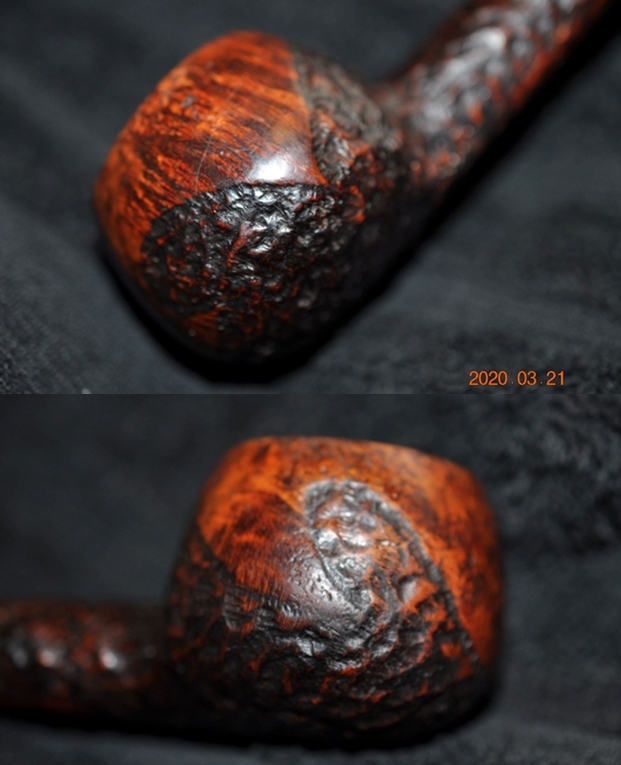

This is a partially rusticated straight Rhodesian with smooth side panels and a smooth shank bottom that bears the stampings of this pipe. The rustications are worn down and at some places the rustications have completely smoothed out, signifying that it had been in regular use of the previous pipe man/ woman and has been extensively used. Though the stampings are quite worn, they are easily discernible under bright light and magnification. It is stamped towards the shank end as “BRIGHAM” in script at an upwards angle moving from left to right over “CANADA” in straight capital letters. Towards the bowl end, faint shape code # “417” can be seen. The left of the stem towards the tenon end and shrouded beneath all the oxidation and grime, four dots arranged in a diamond shape are visible. I have a post-patent era (1956- 1969) Brigham that I had got from Steve and had read through the entire write up. It provided a deep insight in to the genesis, history and the dating of Brigham pipes. Here is the link to the write up and is highly recommended read.

https://rebornpipes.com/2019/01/13/restoring-pipe-16-from-bob-kerrs-estate-a-brigham-3-dot-canadian-691/

Next to ascertain the date and significance of the dots, I visited pipedia.org and went through the complete article written by well known to me pipe restorer, researcher and author of an authoritative book on Brigham pipes, Charles Lemon of Dad’s Pipe. I have reproduced an extract of relevant information related to the pipe that I am working on.

“I have dubbed the decades between 1980 and 2000 the Late Canadian Era, a period that saw several changes at Brigham that are of note to the collector. First, the traditional 8-grade pinning system (the famous Brigham “Dots” which denoted the quality of the pipe) was changed to a 7-grade system to simplify pinning (more on this below), and the Norsemen and Valhalla series were merged to form the President Series, which represented the very finest pipes coming out of the Toronto factory. Early pipes from this era (left, below) are stamped with a shape number and “Brigham” over “Canada”; later pipes (late 1980s+, on right below) are stamped simply with a shape number and the Brigham logo.”

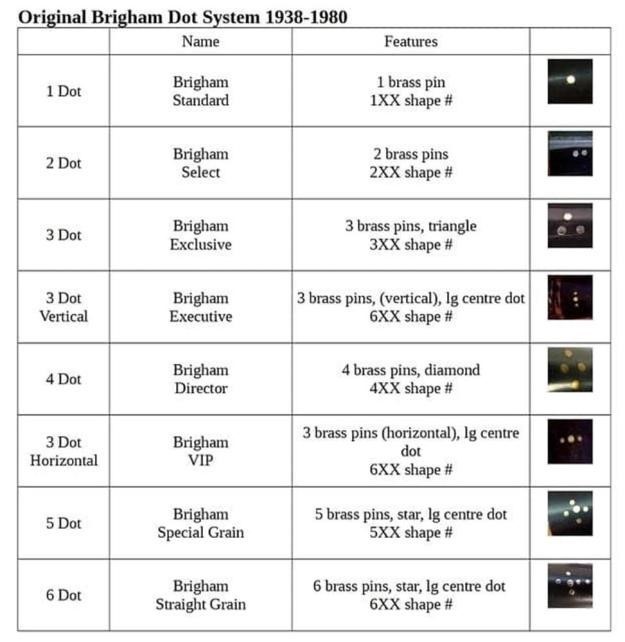

The Original Brigham Dot System 1938 – 1980
Brigham pipes are reknown in the pipe world for their famous “Brigham Dots”, a system of brass pins inset in the stem to denote the grade of each pipe. The original 8-grade pinning system, used for 42 years between 1938 and 1978 (spanning the Patent, Post-Patent and Canadian Eras) looked like this:The pipe on my work table, thus, is from the early 1980s and a “Director” grade Brigham.

With the provenance of the pipe now established, it was time to move ahead with the initial/ detailed inspection and restoration.

Initial Inspection
The pipe, as it sits on my work table, does not present a very promising picture. However, having worked on a couple of hundred pipes, some in much worse condition that this one, I am sure with some TLC and repairs, the beauty of this pipe can be restored to its former glory. The smooth rim top shows damages consistent with having been knocked against hard edges and is covered with overflowing lava. The partially rusticated stummel surface is covered in dirt and grime giving the surface a dull and lacklustre appearance. The rustications are worn down at places to nearly a smooth surface. The vulcanite stem is deeply oxidized and is missing a chunk of vulcanite from the bite zone on the lower surface. The seating of the stem in to the mortise is loose. The following pictures will give you a clear idea to the condition of the pipe as I start the restoration work. Detailed Inspection
The stummel is smooth towards the tapered upper ½ inch and extends over the rim top surface. The rim top surface is uneven, a result of being knocked against a hard edge of a table. I suspect that this damage is more severe on the left side between 6 and 9 o’ clock direction (encircled in green). The cake is thick and hard and overflowing over the rim top surface. It is also observed that the cake is thicker towards the upper half of the chamber and has a strong sweet molasses like smell permeating from the pipe. The condition of the chamber walls is hidden beneath the thick cake and will be ascertained only after the cake has been taken down to the bare briar. However, after careful external examination of the surface, I am confident that there is no damage to the chamber walls as the stummel surface is hard and solid all around.The partially rusticated stummel surface is covered in dirt, dust and grime giving the surface a dull, dirty and lifeless appearance. The nooks and crannies of the rustications shows accumulated oils, tars and dust that have darkened over time. There are flecks of white paint embedded within these crevices of the rustications. These rustications have worn down significantly and have smoothed out at many places. The stummel surface is solid to the touch signifying less likelihood of any chamber damage. The stummel has taken on a nice dark patina from 40 years of heavy usage and I would like to preserve it through all the cleaning and polishing. The mortise is relatively clean as expected since the long metallic tenon housing the trademark maple wood filter sits close to the mortise face. The vulcanite stem is deeply oxidized and appears dirty green. The lower surface of the stem has a large chunk of vulcanite missing from the bite zone, including the button. The four brass dots are covered in oxidation and would need to be cleaned and polished. Once the stem has been cleaned and polished, these brass dots will add an element of dazzle to the entire pipe. The long aluminum tenon which houses the Brigham trademarked Maple wood filter is covered in dried oils and tars. The filter is completely stuck in to the tenon and wouldn’t budge and the sweet smell too is very strong.The Process
The first issue that I tackled was that to separate the maple filter from the aluminum tube tenon. I chucked the stem in to the freezer for a couple of hours. Thereafter, I gently and lightly heated the tenon with a Bic lighter. This loosened the oils and tars and gunk that held the filter in to the tenon. Using a pair of nose pliers, I gently pulled out the maple wood filter. The following pictures will give you an idea as to how filthy and dirty the filter was and made me ask myself whether the filter was ever replaced/ cleaned.In preparation for immersing the stem in to the oxidation remover solution, I cleaned out the aluminum tenon and stem airway using dish washing soap and shank brushes. I further cleaned the stem airway using hard and regular pipe cleaners and alcohol. The stem internals are now clean and ready for further processes.I immersed it in “Before and After Deoxidizer” solution along with the stems of other pipes in line for restoration. This solution works to draw out all the deep seated oxidation from the surface making its subsequent cleaning and polishing a breeze. I would definitely recommend this product as it saves on to time and efforts. The pipe has been marked with a blue arrow for easy identification. At this stage, I called it a day as it was well past midnight.The next afternoon, I removed the stems that had been soaking in the deoxidizer solution overnight. I cleaned the stem and the stem airway under running warm water and scrubbed the raised oxidation from the stem surface using a Scotch Brite pad and the airway with thin shank brush. I further removed the oxidation by scrubbing the stem with 0000 grade steel wool and applied a little olive oil to rehydrate the stem. I used the steel wool to clean the aluminum tenon and it did make a world of difference to the appearance of the tenon.Continuing with the stem repair, I inserted a triangulated index card covered in transparent tape in to the slot. The tape prevents the mix of superglue and charcoal from sticking to the index card. I mixed superglue and activated charcoal powder and generously applied it over the bite zone, including over the buttons and set it aside for the fill to cure.Once the repairs had hardened, I shaped the button and the bite zone using a flat needle file. I roughly matched the freshly shaped surface with the rest of the stem by sanding the patch with a folded piece of 220 grit sand paper. At this stage, I noticed air pockets in the patch on the upper surface of the stem (encircled in red) and also the horizontal slot needed a rebuild. I mixed a fresh batch of activated charcoal and superglue and rebuilt the entire bite zone on the upper surface and also the horizontal slot. I set the stem aside for the fills to cure. While the stem repairs were set aside to cure, I moved on to reaming the chamber with my PipNet pipe reamer. I started the reaming process with head size 1 of the PipNet reamer blade and progressed through to head size 2. I used my fabricated knife to remove cake from areas inaccessible to the reamer blades and completed the process of removing the cake by sanding the walls smooth with a folded piece of 180 grit sandpaper. I wiped the chamber with a cotton swab wetted with alcohol to clean the residual carbon dust. The chamber walls are solid and the hard layer of cake had worked well to protect the chamber walls.Next, I cleaned the mortise by scraping out all the dried oils and tars from the walls with a dental tool. I further cleaned the mortise using bristled and regular pipe cleaners dipped in alcohol. Continuing with the internal cleaning of the chamber and mortise, I subjected it to a salt and alcohol bath. I used cotton balls which is an at par substitute as I have realized over the years. I drew out a wick from the cotton and along with a folded regular pipe cleaner; inserted it into the mortise and through the draught hole and further into the chamber. Thereafter, I packed the chamber with cotton balls to about quarter of an inch below the rim inner edge and soaked the cotton balls with isopropyl alcohol up to the brim. About half an hour later, the level of alcohol had gone down, having being absorbed by the cotton. I topped it up once again and set it aside overnight. By next afternoon, the cotton and alcohol had drawn out all the remaining oils/ tars from the chamber and mortise and loosened out any residual cake and tar build up, fulfilling it’s intended task. I removed the cotton balls and ran pipe cleaners through the mortise to clean out all the loosened tars and gunk. Using my fabricated tool, I scraped out the entire loosed gunk from the mortise and further cleaned it with alcohol and q-tips. The large blobs of now moistened gunk that was removed from the mortise should give the readers an idea of how filthy the mortise was when I started the process of cleaning. The chamber now smells clean and fresh. I cleaned the external surface of the stummel with undiluted Murphy’s oil soap and a hard bristled toothbrush. I cleaned the smooth rim top surface with the soap and Scotch Brite pad. I scrubbed the rim top surface with a wire brush to remove the lava overflow and followed it up with a scrub using Scotch Brite pad. The stummel was dried using paper towels and soft cotton cloth. The clean rim top presents charred surface between 6 and 9 o’clock and in 12 o’clock direction (encircled in yellow) and also a couple of dents with thinning of the rim (encircled in red). I simultaneously cleaned the mortise with dish washing soap and shank brushes till all the loosened oils, tars and gunk, a result of the salt and alcohol bath, were completely removed. I dried the shank internals using paper towels and pipe cleaners.The external cleaning had revealed all the issues to the stummel surface that needed to be addressed and I decided to tackle the darkening and dents/ dings to the rim top surface. To address the rim top damage, I topped the rim top on 220 grit sandpaper till the surface was nice and even. I hate losing any briar and restrict it to the barest minimum that is required. The damage to the inner rim edge, though greatly eliminated, can still be seen to the back and left side of the rim edge (encircled in green) and the chamber too appeared to be out of round. These issues would be addressed next. To get the chamber back to round and address the still visible chipped surfaces over the inner rim edge, I created a bevel over the inner and outer edge with a folded piece of 220 grit sand paper. I am pretty pleased with the progress being made thus far. Next, I subjected the smooth surfaces over the stummel to a complete cycle of micromesh polish, wet sanding with 1500 to 12000 grit pads. I wiped the stummel with a moist cloth after every grit pad to remove the sanding dust left behind by the pads. This also helps in monitoring the progress being made and ensures early corrective action. I am happy with the progress being made until now. I massaged a small quantity of “Before and After Restoration Balm” into the briar surface with my finger tips and worked it deep into the surface and let it rest for a few minutes. The balm almost immediately works it’s magic and the briar now has a nice vibrant appearance with the beautiful bird’s eyes and cross grain patterns on full display. Now that the stummel repairs are completed, I turned my attention back to the stem repairs. The second attempt fills were well cured and I moved ahead with the process of filing and shaping the button end with a flat head needle file. With a flat needle file, I reshaped the horizontal slot end. For a better blending, I further sanded the entire stem with a folded piece of 220 grit sandpaper. The few minor air pockets that are visible will be completely eliminated as I progress with the sanding and polishing process. I continued to work on the stem and progressed to wet sanding the entire stem with a folded piece of 320 followed by 600, 800, 1000, 1500 and 2000 grit sand papers. Thereafter, I polished the stem by dry sanding the stem with 3200 to 12000 grit micromesh pads. I strictly avoided running the lower grit sand papers over the four brass dots, polishing them with 6000 to 12000 grit micromesh pads. I rubbed a small quantity of EVO into the stem surface and set it aside for the vulcanite to absorb and hydrate. Before moving on to final polishing of the entire pipe using polishing compounds, there was one aspect, though not critical, but important and that was to clean the gaps between the two rings separating the cap from the rest of the stummel. I used a sharp dental tool to clear out all the debris that had lodged between the rings.To complete the restoration, I mounted a cotton cloth buffing wheel on to my hand held rotary tool and polished the stummel and stem with Blue Diamond compound. This compound helps to remove the minor scratch marks that remain from the sanding. I wiped/ buffed the pipe with a soft cotton cloth to clear it of any leftover compound dust. With a cotton buffing wheel that I use for carnauba wax, I apply a coat of carnauba wax and continue to work on it till the complete coat of wax had been polished out. I mount a clean cotton cloth buffing wheel and give the entire pipe a once over buff. I finished the restoration by giving the entire pipe a rigorous hand buffing using a microfiber cloth to raise the shine further. The finished pipe looks beautiful and is ready to join my other Brigham that I had received from Steve. Looking forward to enjoying my leisure time with this beautiful and gorgeous looking pipe, smoking my favorite tobacco!! P.S.: No Brigham pipe is complete without it’s trademark Maple wood filter. I replaced the old and clogged filter with a fresh filter and now it’s truly ready to deliver it’s unique smoking experience that I have come to appreciate after smoking the one in my collection. I storngly recommend that every pipe smoker must experience the pleasures of smoking a Brigham pipe at least once.

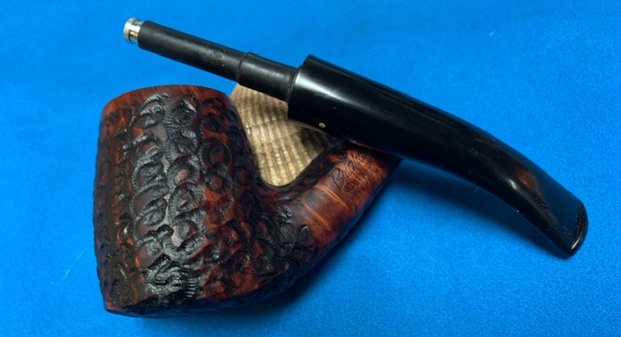

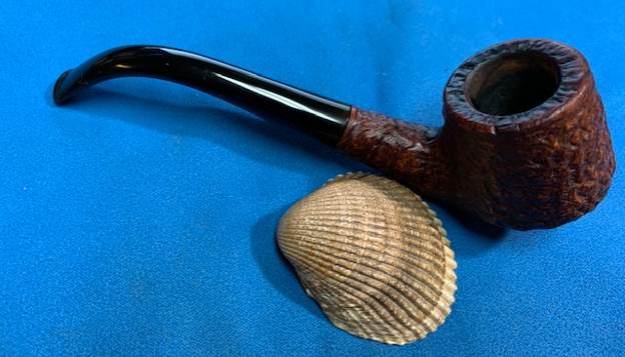

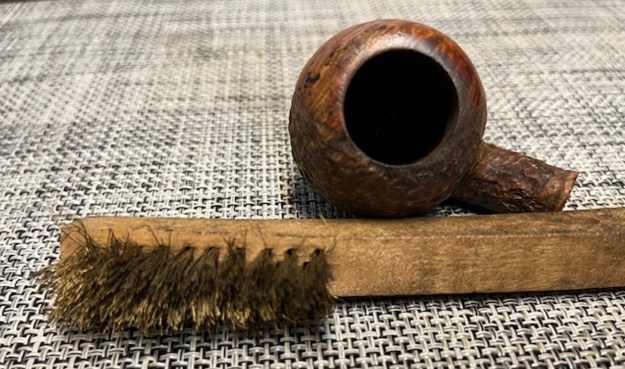

Restoring a Family Heirloom Brigham Select Canada Two Dot 289 Bent Acorn

Leave a reply

Blog by Steve Laug

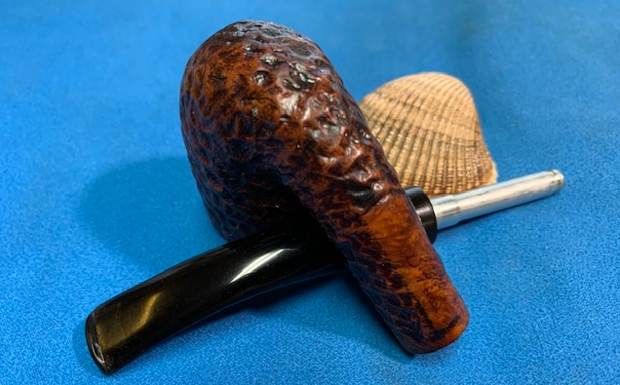

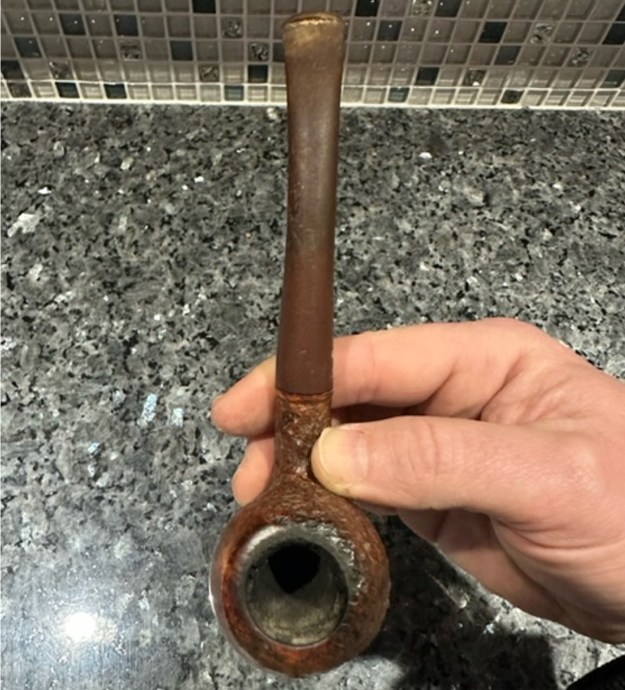

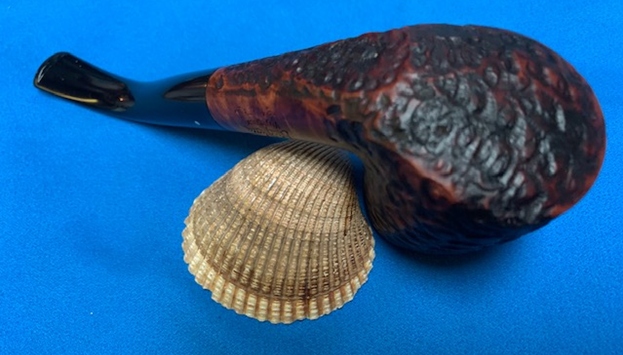

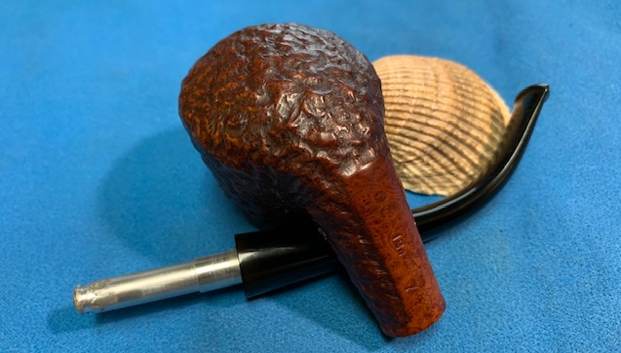

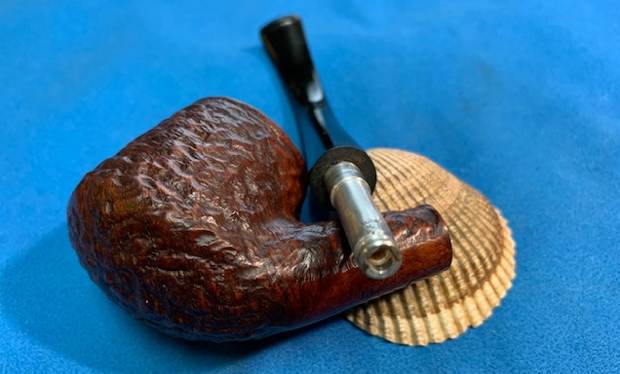

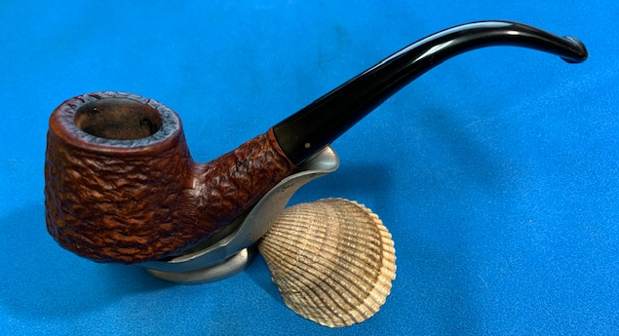

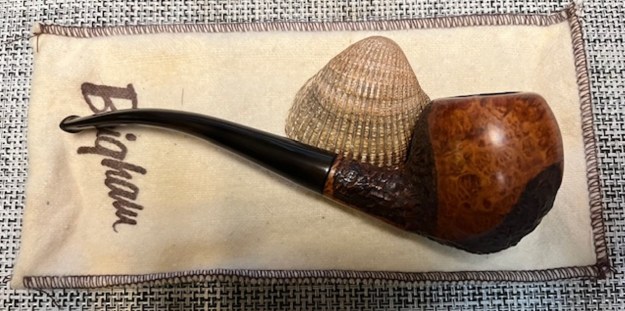

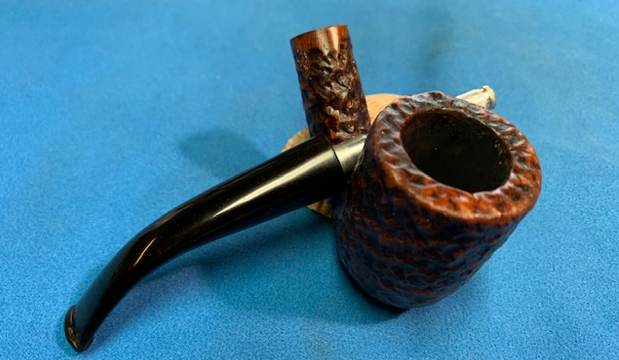

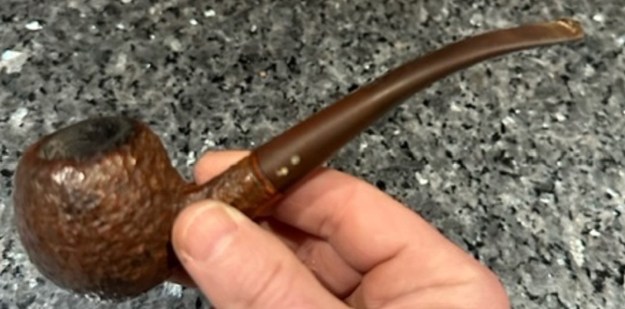

The pipe on the table is a rusticated Brigham Bent Acorn that came to me for restoration from a Alex who shipped it to me from Quebec. He had written recently to ask about restoring the pipe. Here is what he wrote at that point.

Hello,

I was gifted a Brigham from my grandfather who passed away in 1982.

The pipe still has the filter and had tobacco that I tossed out. It has heavy cake, the bottom of the bowl is now V shape and not U shape.

Also, I can’t get a pipe cleaner to pass the shank and get into the bowl, yet I can get air when I sip it.

How much would it cost to restore this pipe?

Thanks, Alex

We discussed what it would cost and chatted back and forth through emails. I asked him to send me some photos of the pipe so I could see what I would be dealing with. He sent the photos that I have included below that really give a clear picture of the pipe and what needs to be done with it. I told him I would take it on and he dropped it into the post for me to work on. The pipe arrived in Vancouver in this morning’s post. I opened the box and I examined the pipe carefully and no additional issues arose that I had not seen in the photos that Alex sent. I wrote Alex an email regarding what I saw. Here is my assessment:

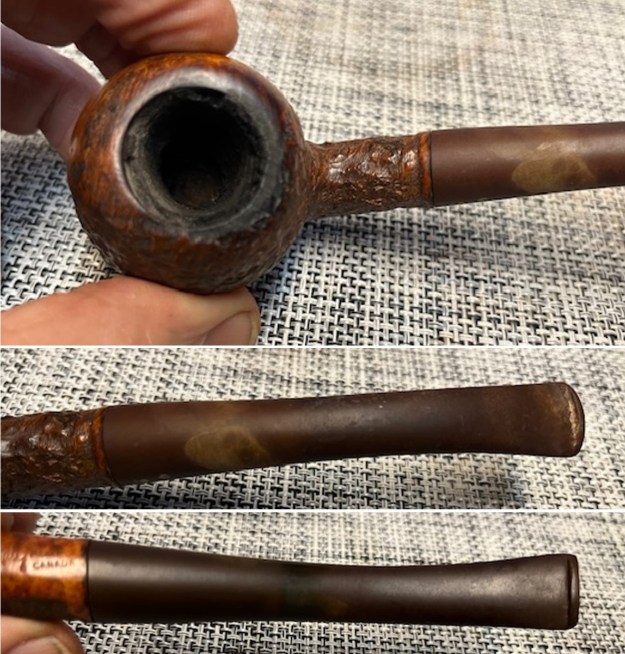

The bowl is thickly caked as you noted and it is hard cake. No issues that I can see there though. Once I ream it I will know what the briar is like on the inside.
Rim top has a thick lava overflow on the top along the back and the inner edge. Will know more about the condition of the edge once I ream it.
The finish on the bowl was very dirty with grime and grit ground into the rustication on the finish. The smooth portions had sticky spots of tars and oils on the surface.

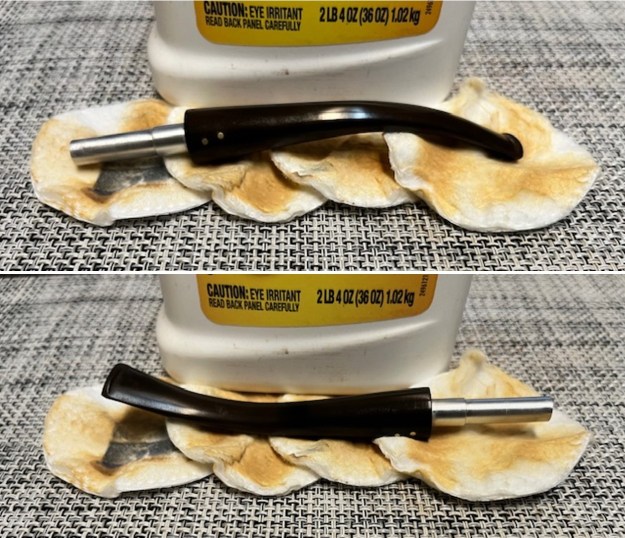

The stem fit very tightly due to a thick tar coating on the inside of the shank but no issues there. No cracks in the shank.
The filter is as you guessed garbage but once I have cleaned the pipe I will replace it with a new one.

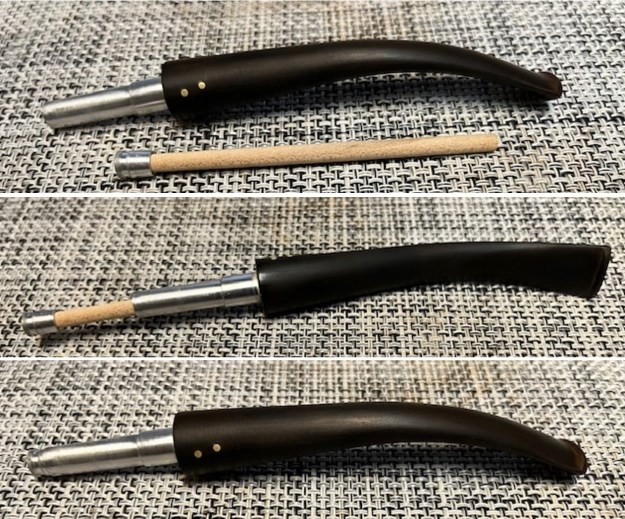

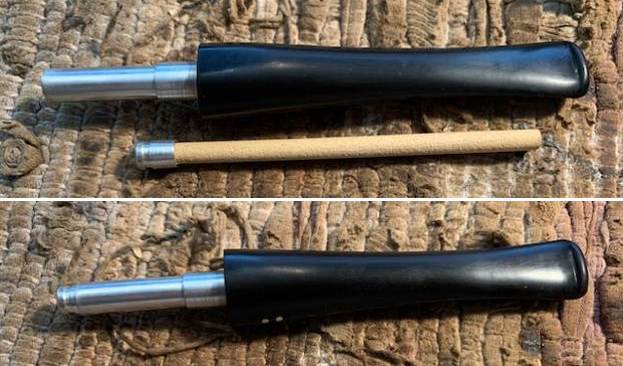

Aluminum tenon/holder for the filter is dirty and has some oxidation at the stem end.
The inside of the stem is filthy but easy to clean.

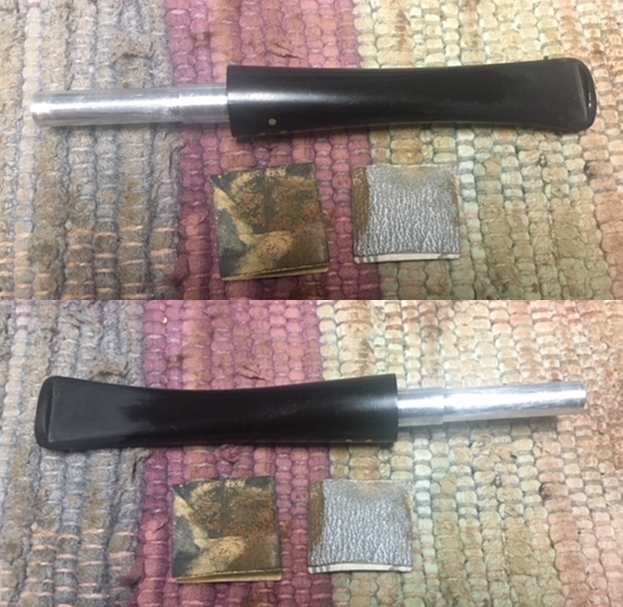

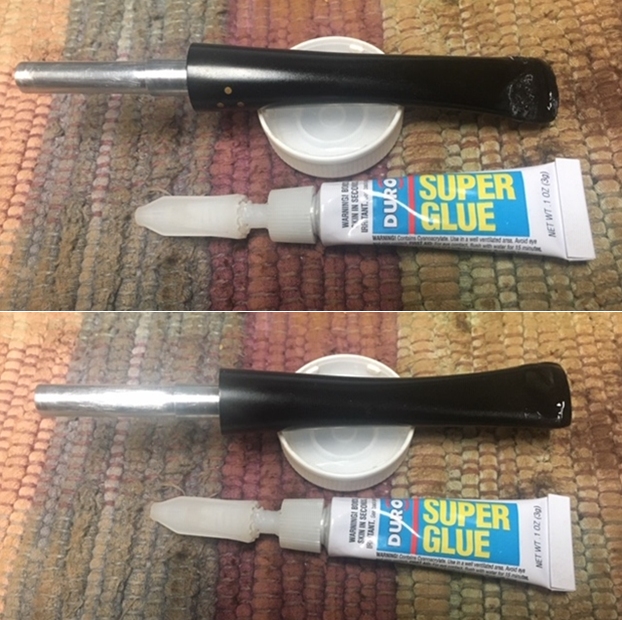

Stem is badly oxidized but the tooth marks are very light and the tooth chatter is also very light.

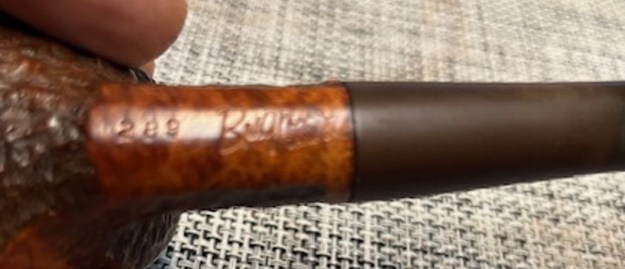

This Brigham is stamped on a smooth panel on the underside of the shank and reads 289 (shape number) followed by Brigham in script (over) Canada. There was a thick cake in the bowl leaving it almost conical as Alex noted. There was a lava overflow on the smooth rim top that was heavier on the back side of the top. The inner edge of the bowl were in good condition with a few small nicks and some darkening. The rusticated finish is dirty and dusty. The stem was oxidized and spotty on the top and underside and around the shank end. The stem did not have tooth marks or chatter. There were two brass dots on the left side of the taper stem. I took photos of the pipe before I started my cleanup work on it. I took a close-up photo of the bowl and rim top to show the cake in the bowl. The rim top shows the thick lava on the back half of the rim top. The inner edge of the bowl shows an overflow of thick lava and cake. I took photos of the top and underside of the stem surface and button to show its general condition. It looked very good under the spotty oxidation. I took a photo of the stamping on the underside of the shank on the smooth patch. It is very clear and readable.I removed the stem from the shank and was not surprised to see the Brigham Hard Maple filter in the metal tenon. You can see the two brass dots on the left side of the stem in the photo below. I thought it would be helpful to give you all the background of the brand for those unfamiliar with the brand. I am including the information from Pipedia on Brigham pipes. It is a great read in terms of the history and background on the pipes (https://pipedia.org/wiki/Brigham_Pipes). Charles Lemon (Dadspipes) has recently published a book on the history of the brand. If you can get a hold of a copy it is a great read. The Pipedia article is a good summary. I have included it below.

Roy Brigham, after serving an apprenticeship under an Austrian pipesmith, started his own pipe repair shop in Toronto, in 1906. By 1918 the business had grown to include five other craftsmen and had developed a reputation across Canada for the high quality of workmanship. After repairing many different brands of pipes over the years, Roy noted certain recurring complaints by pipe smokers, the most common referred to as “tongue bite”. Tongue bite is a burning sensation on the smoker’s tongue, previously thought to be due to the heat of the smoke (i.e. a “hot smoking pipe”).

He soon began manufacturing his own pipes, which were lightweight, yet featured a more rugged construction, strengthening the weak points observed in other pipes. The problem of tongue bite intrigued him, and he decided to make overcoming it a future goal.

About 1938, Roy’s son Herb joined him to assist in the business. The business barely survived the great depression because pipes were considered to be a luxury, not a necessity, and selling pipes was difficult indeed. In approximately 1937 [1], after some experimentation, Roy and Herb discovered that tongue bite was in fact a form of mild chemical burn to the tongue, caused by tars and acids in the smoke. They found that by filtering the smoke, it was possible to retain the flavour of the tobacco and yet remove these impurities and thereby stop the tongue bite.

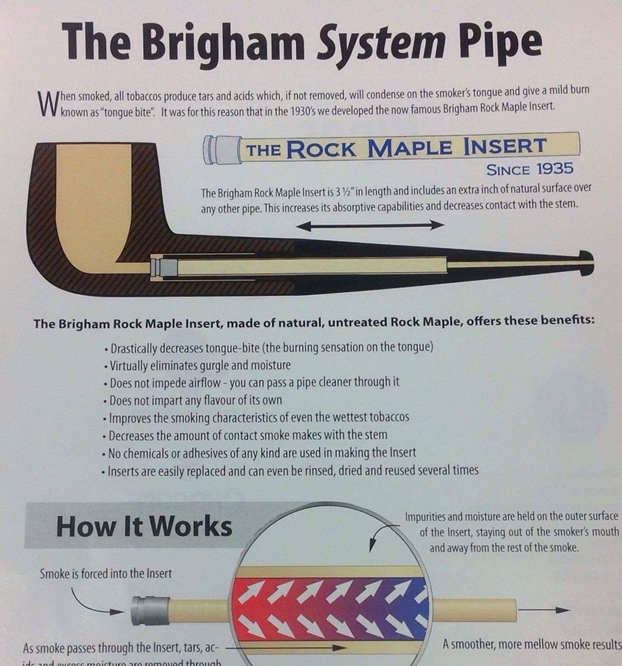

Just as Thomas Edison had searched far and wide for the perfect material from which to make the first electric light bulb filaments, Roy & Herb began experimenting with many materials, both common and exotic, in the quest for the perfect pipe filter. Results varied wildly. Most of the materials didn’t work at all and some actually imparted their own flavour into the smoke. They eventually found just two materials that were satisfactory in pipes: bamboo and rock maple. As bamboo was obviously not as readily available, rock maple then became the logical choice.

They were able to manufacture a replaceable hollow wooden tube made from rock maple dowelling, which when inserted into a specially made pipe, caused absolutely no restriction to the draw of the pipe, yet extracted many of the impurities which had caused tongue bite. The result was indeed a truly better smoking pipe…

Charles Lemon has also written a great article on the stamping and marking on the Brigham pipes that fit into a time line that he has drafted. It is well worth a read and is fascinating. (https://pipedia.org/wiki/Brigham_Pipes_%E2%80%93_A_Closer_Look_at_Dots,_Dates_and_Markings). I quote from the pertinent section on the time frame for this pipe.

I have dubbed the decades between 1980 and 2000 the Late Canadian Era, a period that saw several changes at Brigham that are of note to the collector. First, the traditional 8-grade pinning system (the famous Brigham “Dots” which denoted the quality of the pipe) was changed to a 7-grade system to simplify pinning (more on this below), and the Norsemen and Valhalla series were merged to form the President Series, which represented the very finest pipes coming out of the Toronto factory. Early pipes from this era (left, below) are stamped with a shape number and “Brigham” over “Canada”; later pipes (late 1980s+, on right below) are stamped simply with a shape number and the Brigham logo.

This solidly places the pipe I am working on in the period of Brigham production that Charles calls the Late Canadian Era (1980-2000). It is a great looking pipe with a slightly different rustication pattern than some of the early Brighams I have worked on.

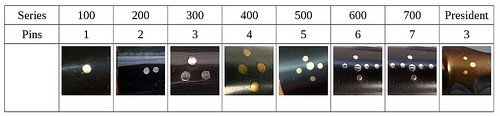

Charles also put together a chart that helps the restorer to understand the Brigham dot system. I quote from the same link on Pipedia as noted above. Since this pipe could be from the 1980s I have included the chart below.

The Original Brigham Dot System 1938 – 1980

Brigham pipes are renown in the pipe world for their famous “Brigham Dots”, a system of brass pins inset in the stem to denote the grade of each pipe. The original 8-grade pinning system, used for 42 years between 1938 and 1978 (spanning the Patent, Post-Patent and Canadian Eras) looked like this:

With the information from Charles’ article and the chart above I knew what I was dealing with in terms of the stamping and the age of this pipe. The pipe was made between in 1970-1980 because of the style of the stamping noted above. The 2 dots on the pipe told me that it was a Brigham Select. Now it was time to work on the pipe.

I began my work by reaming the bowl with a PipNet pipe reamer using the third cutting head to take the cake back to bare briar. I cleaned up the reaming with a Savinelli Fitsall Pipe Knife. I sanded the bowl walls with 220 grit sandpaper wrapped around a piece of dowel. The walls were clean and showed no damage from heat. I scrubbed the exterior of the bowl and the rim a tooth brush and undiluted Murphy’s Oil Soap. It looked much better and the dust and debris was gone. I used a brass bristle wire brush to cleanup the thick cake on the rim top. It worked very well to remove the remnant on the top of the rim. It looks much better.I scrubbed out the internals with 99% isopropyl alcohol, pipe cleaners and cotton swabs until the shank and the airway into the bowl and the stem were clean. I worked on the rim top and inner edge of the bowl with a folded piece of 220 grit sandpaper to remove the damage and marks.I polished the smooth rim top and smooth patches on the bowl sides with 1500-12000 grit micromesh sanding pads. I wiped it down with a damp cloth after each pad. The rim top and patches took on a deep shine that highlighted the grain. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips and a horsehair shoe brush to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. With that done, the bowl was finished other than the final buffing. I set it aside and turned my attention to the stem. I scrubbed the surface of the stem with Soft Scrub to remove the oxidation on the surface of the vulcanite. It came out looking much better.I sanded out the remaining oxidation and the tooth marks with 320-3500 grit sanding pads. They take the surface from rough to shiny by the time I use the 3500 grit pad. Before polishing the stem further, I decided to fit it with a new Rock Maple Distillator.I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I finished polishing it with Before & After Pipe Stem Polish – both Fine and Extra Fine and buffed it off with a cotton cloth. I gave it a coat of Obsidian Oil to preserve and protect the stem. I am excited to finish this Brigham Canada 289 Bent Acorn. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine and hand buffed it with microfiber cloth to deepen the shine. It is fun to see what the polished bowl looks like with the rusticated finish. Added to that the polished black vulcanite stem with the shining brass pins was beautiful. This mixed grain on the rusticated Brigham Select 2 Dot 289 Bent Acorn is nice looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 6 inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.69 ounces/48 grams. It is a beautiful pipe and one that will be heading back to Alex to smoke in memory of his Grandfather. Thanks for walking through the cleanup with me as I worked over this pipe.

As always, I encourage your questions and comments as you read the blog. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipe men and women who hold our pipes in trust until they pass on into the trust of those who follow us.

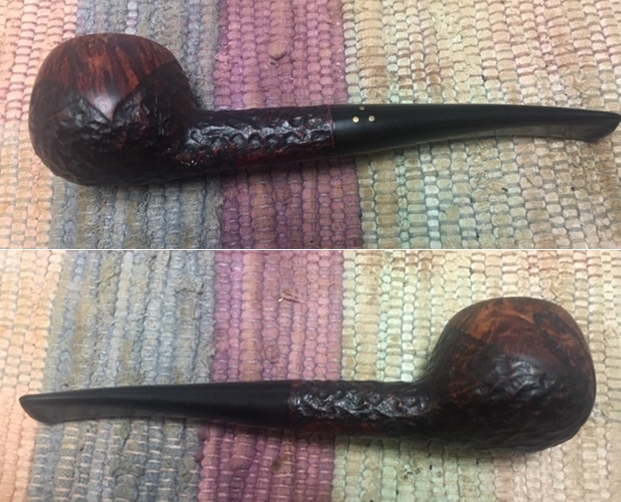

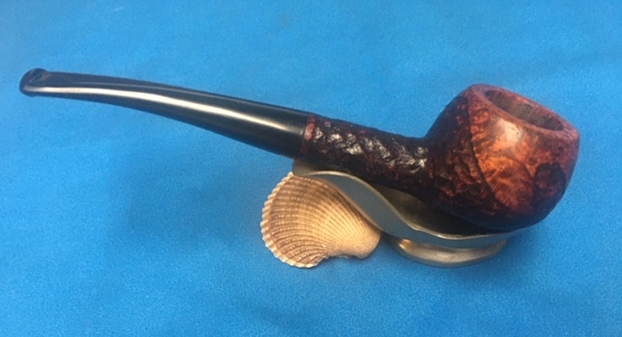

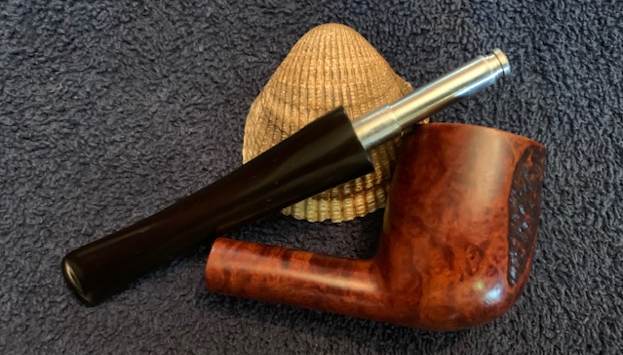

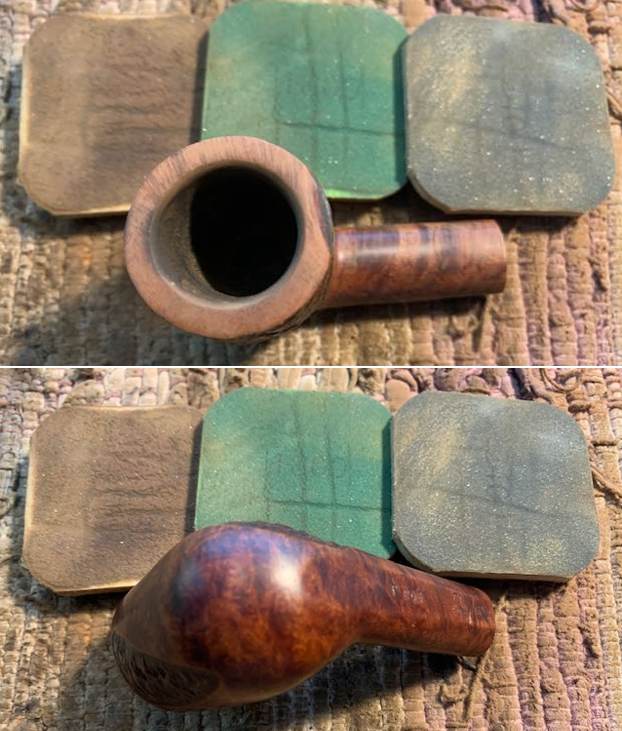

Restoring a Antique Show Find – a Unique Brigham 2 Dot Straight, oval shank P203 Billiard

Leave a reply

Blog by Steve Laug

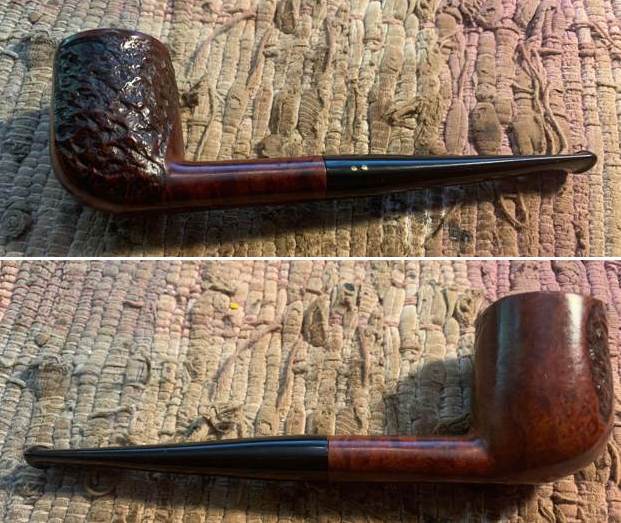

This morning two of my daughters and I met Kenneth and went on a hunt for pipes at an Antique and Collectible sale not far from here. We arrived when they opened the doors and the girls went off on their own hunt. Kenneth and I wandered row by row through the sale. We saw a lot of pipes for sale on the tables and the majority of them were worth far less than the seller was expecting. There were Kaywoodies, Grabows, Lorenzos and other odds and ends all priced between $50-70 dollars. It was discouraging to say the least. We finally came to one table where the seller was far more reasonable. Kenneth picked up two old timers – a Boer War trench art pipe and a Custombilt bent. I picked up a Kings Cross Cutty. We met my daughters and they had found a nice Brigham they took me to see. It had a shape number for a Billiard but it was preceded by the letter “P”. It also had an oval shank but all those made me want to add it to my list. With a bit of negotiation I picked up that Brigham as well. That closed out our hunt and we came home with our finds.

The pipe had a been given a coat of varnish that made it shine. The outside of the bowl had been cleaned off and wiped down. The finish was unique with rusticated patches with a classic Brigham rustication on both sides of the bowl. There was a smooth finish all the rest of the way around the bowl, rim top and shank. The rim top was in bad condition with burn damage on the front inner edge of the bowl that made the inner edge out of round. The back outer edge of the bowl had a chip out of the top edge and down 1/8 of an inch into the rustication leaving that portion flat and making the outer edge out of round. The rim top was a real mess but the uniqueness of the pipe made me want to deal with the trouble. I took photos of the pipe when I brought it home. I took some closeup photos of the rim top and the stem to show the condition. The rim top is in the condition described above. You can see the damage to the top front and inner edge of the rim and the damage to the outer edge of the bowl at the back. It is really quite a mess and will take some work to get it back to normal. The stem was in very good condition with no oxidation and minimal tooth chatter or marks on the surface ahead of the button. It looked quite good. I took a photo of the stamping on the shank and the 2 brass dots on the left side of the stem. The stamping is clear and readable as noted above. I removed the stem and took a photo of the pipe to give a sense of the side view. It is a great looking pipe from this vantage point. While I started my work on the pipe I wrote to Charles Lemon, my go to guy on all things Brigham. He is still in the process of writing the definitive history of the brand. I am including my email to him about this pipe and his response below. As usual his answer was definitive and very helpful.

I wrote him: Hi Charles, I went to an antique show this morning and picked up a couple of pipes. One is a Brigham P203 Oval Shank… it is a shape and a number I am not familiar with.. has the metal fitment. Some rim top damage but not a bad looking pipe.

Charles responded and wrote: Hey Steve. Good to hear from you. The “P” in the shape code stands for “promotional”. These were usually made from stummels that for one reason or another didn’t quite meet the requirements for production pipes – things like slightly small briar blocks, short shanks, etc. I used to have one with an acrylic shank extension that made up the missing briar.

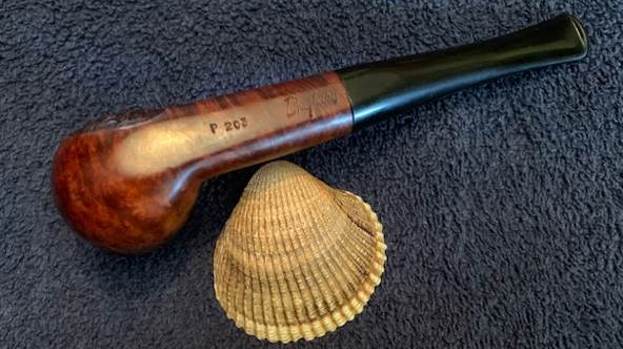

Apart from that, your 203 is a 2 Dot medium straight Billiard. If you put it side by side with a regular 03 shape you will likely be able to spot the differences that made it a promotional pipe.

Thanks Charles! Now I knew I was dealing with a 2 Dot Medium Straight Billiard (203 shape). The “P” stamp meant that it was a Promotional shape that used a block of briar that somehow did not meet the requirements for a production pipe. Now it was time to work on the pipe.

I reamed the pipe with a PipNet pipe reamer using the first three cutting heads to take the cake back to bare briar. I cleaned up the bowl walls with a Savinelli Fitsall Pipe Knife and removed the remaining spots of cake. I sanded the bowl walls with a piece of 220 grit sandpaper wrapped around a piece of briar. The bowl interior looked very good and the walls showed no damage. I cleaned out the interior of the shank and the stem with alcohol, pipe cleaners and cotton swabs. I worked over the interior until the cleaners came out clean. The pipe smelled and looked clean.With the pipe cleaned it was time to clean up the damaged rim top and edges. I topped the bowl with 220 grit sandpaper on a topping board. Once it was smooth I worked over the inner edge of the rim with a folded piece of 220 grit sandpaper. I gave the inner edge a slight bevel to minimize the damage. I rebuilt the back outer edge of the rim with clear CA glue and briar dust as well as the damaged inner edge at the front of the bowl. I topped the rim top again with 220 grit sandpaper to smooth it out and blend it in. I smoothed out the inner edge and outer edge with 220 grit sandpaper. I wiped down the bowl sides with acetone to break the varnish/lacquer coat on the smooth and rusticated portions of the bowl to remove it and leave the finish clean. I polished the bowl sides, the top and inner edge of the bowl with micromesh sanding pads – dry sanding with 1500-12000 grit sanding pads. I wiped it down with a damp cloth after each pad to remove the debris. The smooth finish and the rustication took on a rich glow. The rim top and edges looked better and polished well. I worked some Before & After Restoration Balm into the briar with my finger tips and into the rustication with a shoe brush. The product works to clean, revive and protect the briar. I let it sit on the pipe for 10 minutes then buffed it off with a soft cloth. I polished out the tooth chatter and marks on the stem with micromesh sanding pads – dry sanding it 1500-12000 pads. I wiped it down with some Obsidian Oil each pad to remove the dust and polishing debris. I polished it with Before After Pipe Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to dry. I put a new Maple Distillator tube in the metal tenon and took a photo. This system works amazingly well and delivers a smooth dry smoke and allowing the free insertion of a pipe cleaner in the stem. This is another pipe that I am really happy about the look of the finished restoration. This reborn Brigham P203 2 Dot Promotional Oval Shank Billiard turned out really well. I think that it really is a great looking pipe with a great shape and grain. The rebuilt rim top and cleaned up inner edge came out very well. The combination of the smooth finish and rusticated patches look good.. The polished black of the stem works well with the briar. The briar really came alive with the buffing. The rich brown stains of the finish make the grain really pop with the polishing and waxing. I put the stem back on the bowl and buffed the pipe with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Brigham Promotional Oval Shank Billiard really feels great in the hand and it looks very good. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ¾ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: 7/8 of an inch. The weight of the pipe is 35 grams/1.23 oz. The pipe will be going on the rebornpipes store soon. It will be in the Canadian Pipe Makers Section if you would like to add it to your collection. Thanks for reading this blog and my reflections on the pipe while I worked on it. It was a fun one to work on!

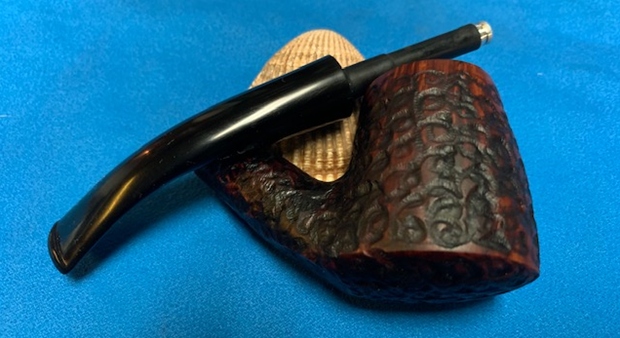

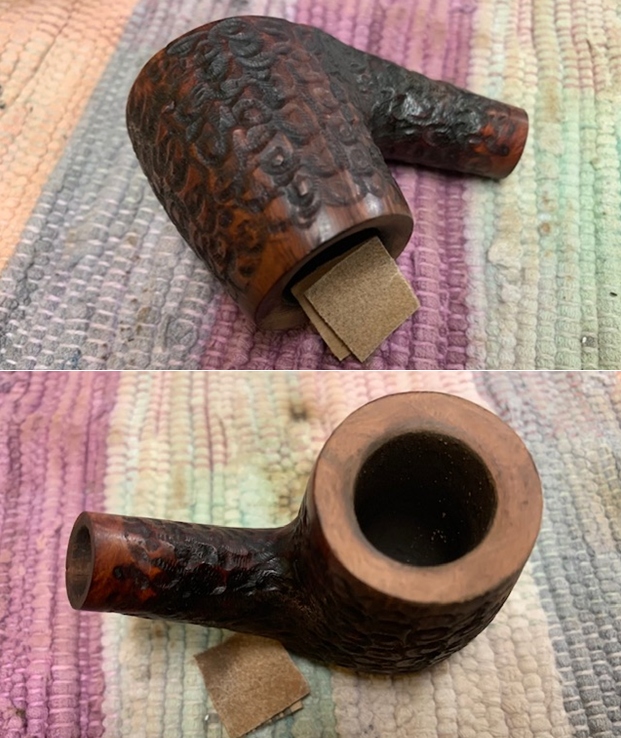

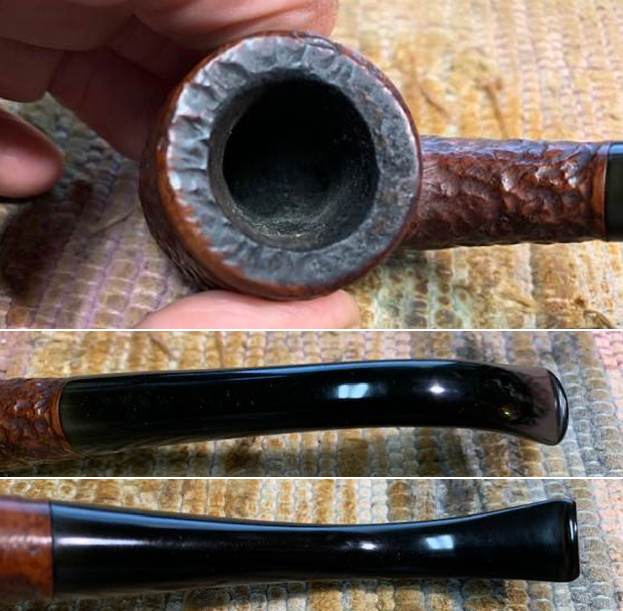

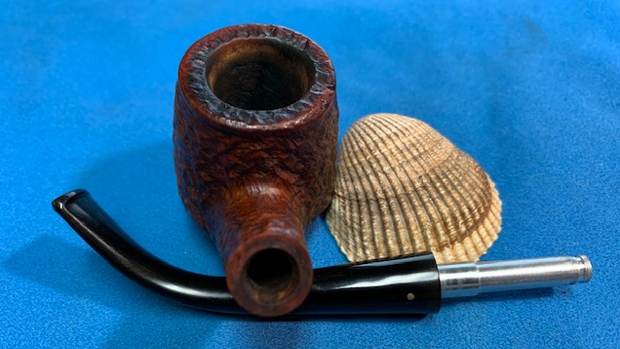

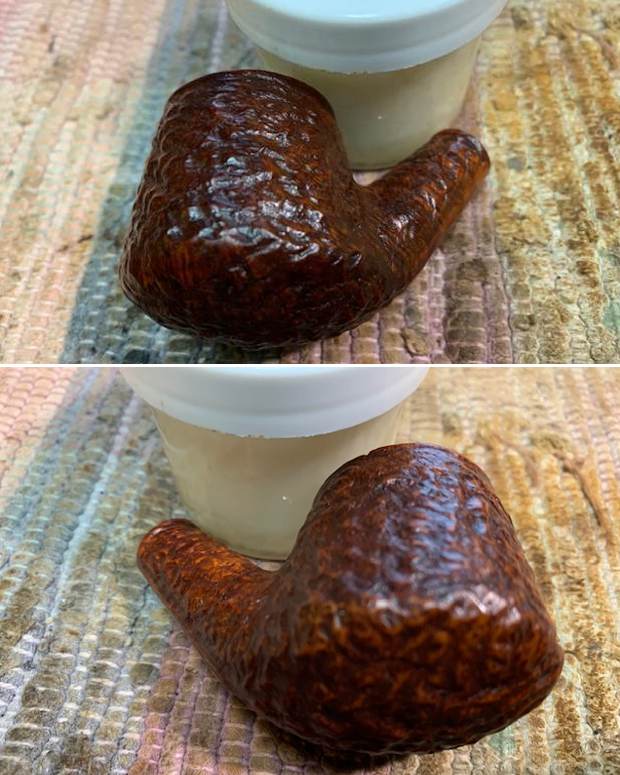

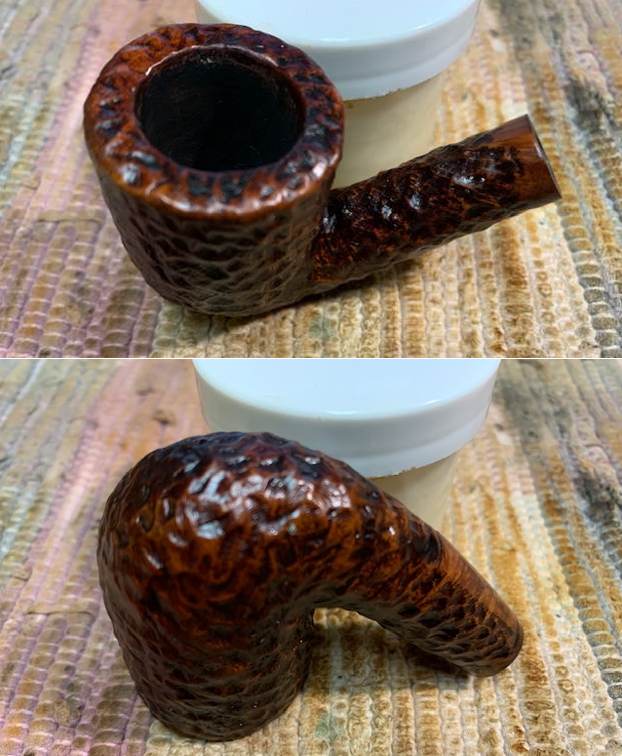

Restoring a Brigham (1 Dot) Rusticated 184 Bent Volcano

Leave a reply

Blog by Steve Laug

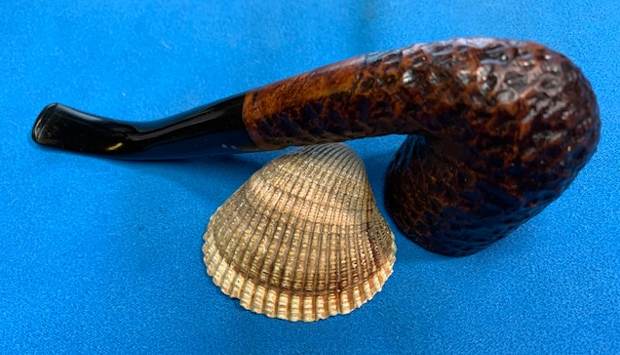

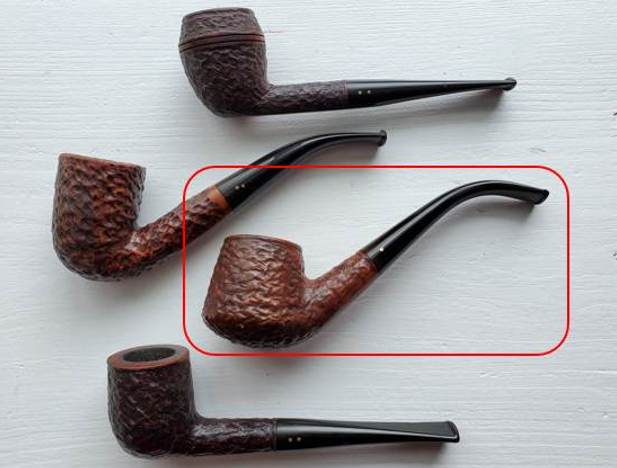

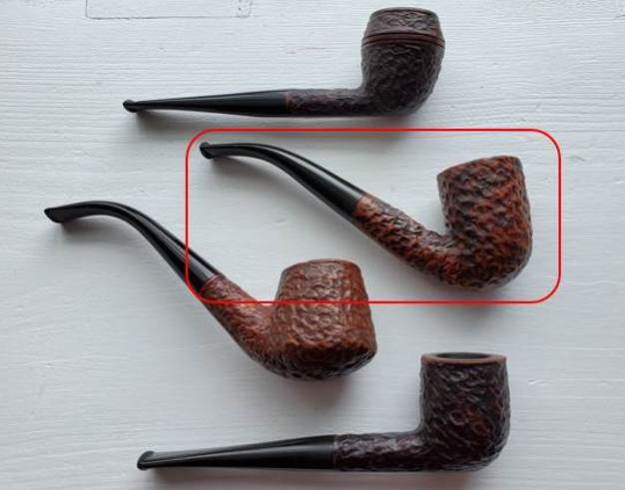

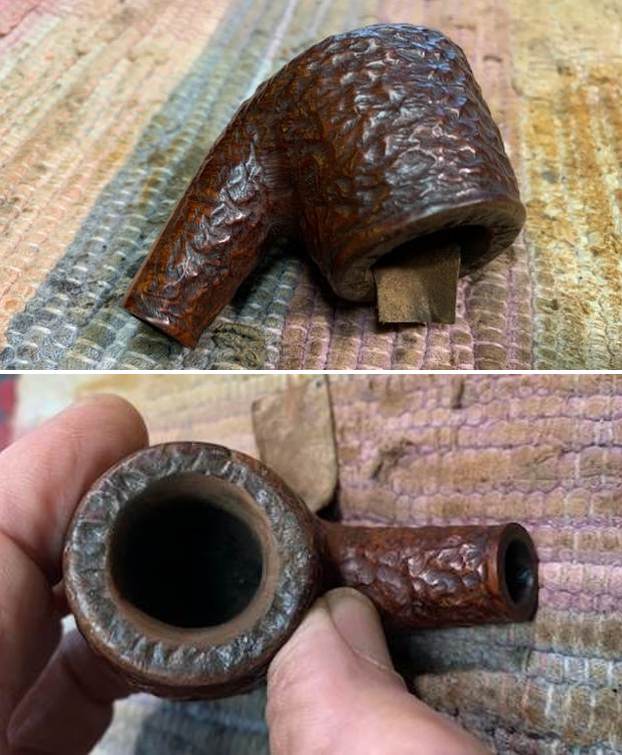

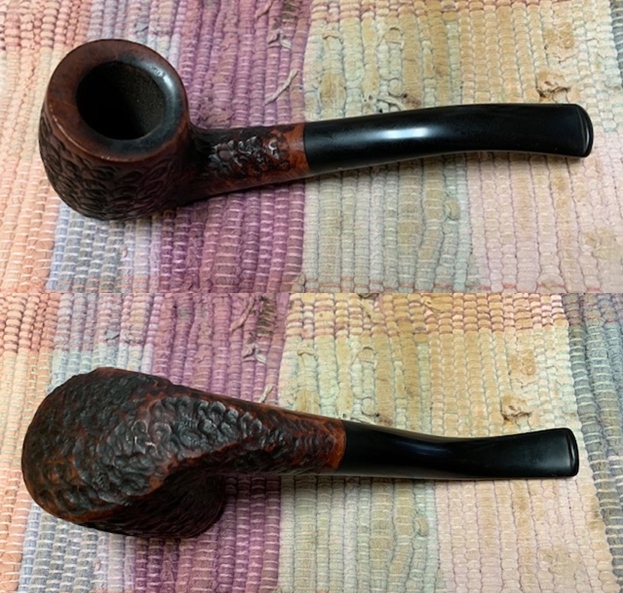

Not too long ago a fellow in Eastern Canada was selling a foursome of Brigham rusticated pipes on Facebook. Jeff contacted him and we became the new owners of the pipes. He sent us some photos of the pipes that I have included below. It did not take long for them to arrive here in Vancouver. When they did I was amazed at how good they looked. Two of them were relatively clean and two were used. The top two pipes in the photo were clean and the bottom two were still dirty with cake and debris in the bowls. I decided I would work on them next. I turned to the final pipe of the lot a Bent Volcano shape – the second from the bottom in the photos below as marked by the red box outlining it. It is stamped on the underside with the shape number 184 on the shank followed further down the shank by Brigham. It was by far the most used of the four pipes. It had the thickest cake in the bowl, lava on the rim top and some damage to the end of the metal tenon/keeper for the Brigham Rock Maple Distillator. It was also probably the newest of the lot of four but I would figure that out as I worked on it. I took photos of the pipe when it arrived. There was some damage on the inner edge with the bowl being out of round. There was a moderate cake in the bowl in the bowl with lava overflowing into the rustication of the rim top. The shank and airways seem to be dirty with tars and oil. It did not have the Hard Rock Maple filter in the shank but the interior smelled strongly of tobacco. The stem was very clean and shiny without any tooth damage to the top or underside of the stem. The button was clean with no damage. Overall the pipe looked good even though it was a dirty one. I took photos of the rim top and the bowl to show the condition. The rim top was rusticated and covered in lava heavily at the back of the bowl. You can see the damage on the inner edge of the bowl making it out of round and the thick cake that is present. I also took photos of both sides of the stem to show the lack of tooth marks and chatter. Over all the pipe was in okay condition.I took a photo of the stamping on the underside of the shank. It is faint but it reads as noted above.I took a photo of the pipe with the stem removed to give an overall picture of the pipe. It really is quite beautiful.I took a photo of the rim top to show how out of round the bowl was and of the damage on the end of the aluminum Distillator holder/tenon. I have included them below. The red arrow shows one of the spots where the damage is visible.For historical background for those unfamiliar with the brand I am including the information from Pipedia on Brigham pipes. It is a great read in terms of the history and background on the pipes (https://pipedia.org/wiki/Brigham_Pipes). Charles Lemon (Dadspipes) is currently working on a book on the history of the brand. Until that is complete this article is a good summary. I have included it below.

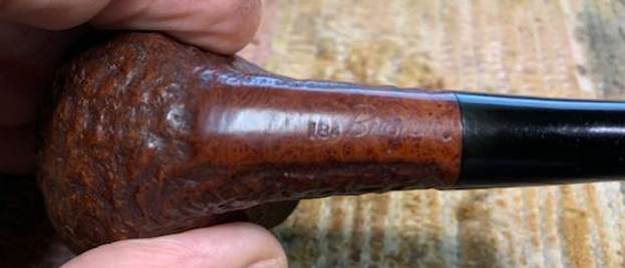

Charles Lemon has also written a great article on the stampings and marking on the Brigham pipes that fit into a time line that he has drafted. It is well worth a read and is fascinating. (https://pipedia.org/wiki/Brigham_Pipes_%E2%80%93_A_Closer_Look_at_Dots,_Dates_and_Markings). I quote from the pertinent section on the time frame for this pipe.

This solidly places the pipe I am working on in the period of Brigham production that Charles calls the Late Canadian Era (1980-2000). It is a great looking pipe with an older style rustication pattern than the later Brighams that I have worked on.

Charles also put together a chart that helps the restorer to understand the Brigham dot system. I quote from the same link on Pipedia as noted above.

Revised Dot System 1980

Brigham changed the Dot system in 1980, adding a 7 Dot at the top of the line, dropping the names of each series and eliminating the confusing vertical and horizontal 3 Dot configurations. The Norsemen and Valhalla series were combined to form the President series of freehand pipes, which adopted a 3 Dot pattern with a larger dot on the right as shown below. The 7- grade pinning system stayed in place from 1980 to 2001. I knew that I was dealing with a pipe made between 1980-2000 from the Late Canadian Era. It sports 1 dot making it Brigham Series 100 pipe with a 3 digit shape number 184. Now to do a bit of spiffing with the pipe itself.

I reamed the pipe with a PipNet pipe reamer to remove the light cake from the bowl walls. It was uneven and needed to be removed so I took it back to bare briar. I cleaned up the reaming with a Savinelli Fitsall Pipe Knife and then sanded the bowl with a dowel wrapped with 220 grit sandpaper to smooth out the walls. I cleaned up the damage to the inner edge of the rim with a folded piece of 220 grit sandpaper and made the bowl edge both smooth and round.I scrubbed the exterior of the pipe with a brass bristle wire brush and a tooth brush with undiluted Murphy’s Oil Soap. I scrubbed it to remove the build up on the rim top. I rinsed it with warm water and dried it off with a soft cloth. I touched up the stain on the rim top and edges with a Maple Stain Pen to match the surrounding colour of the briar. Once it is buffed and polished I think it will look good.I cleaned out the internals with alcohol, cotton swabs and pipe cleaners to remove the debris and the oils from the shank and tenon as well as the airway into the stem and bowl. I rubbed the bowl down with some Before & After Restoration Balm. I worked it into the briar with my fingertips and a horse hair shoe brush. The product works to clean, renew and protect briar. I let it do its work for 15 minutes then buffed it off with a soft cloth. The pipe is really quite a beauty. I set the bowl aside and turned my attention to the stem. I polished out the surface of the stem ahead of the button on both sides using micromesh sanding pads. I also polished out the damaged end of the aluminum tube. I was not perfect but it was smooth and held the filter in place. I dry sanded the stem and tenon with the 1500-12000 grit pads, then wiped it down with a cloth impregnated with Obsidian Oil. I finished polishing it with Before & After stem polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to dry. I fit the clean and polished stem with the Brigham Rock Maple Distillator and took photos to show what it looked like. This is in essence a hollow Maple wood tube that serves to filter out the moisture and deliver a clean and flavourful smoke. I am excited to finish this Late Canadian Era Made in Canada Brigham 184 Bent Volcano. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine and hand buffed it with microfiber cloth to deepen the shine. It is fun to see what the polished bowl looks like with the rusticated finish. Added to that the polished black vulcanite stem with the shining brass pin was beautiful. This mixed grain on the rusticated Brigham 184 Volcano is nice looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 6 inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.55 ounces/44 grams. It is a beautiful pipe and one that will be on the rebornpipes store in the Canadian Pipe Makers Section soon. If you are interested in adding it to your collection let me know. Thanks for walking through the cleanup with me as I worked over this pipe. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of those who follow us.

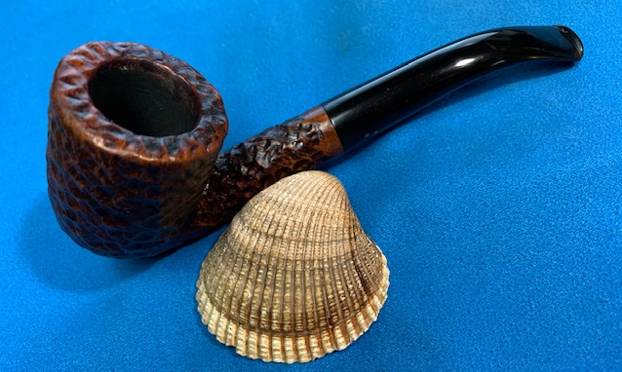

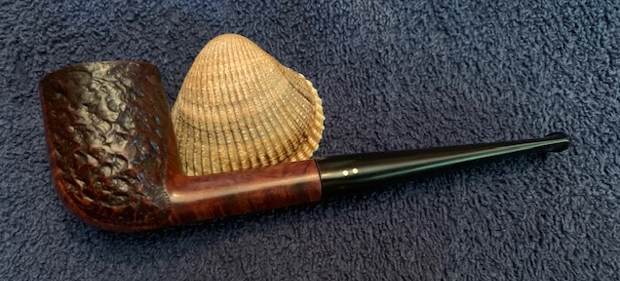

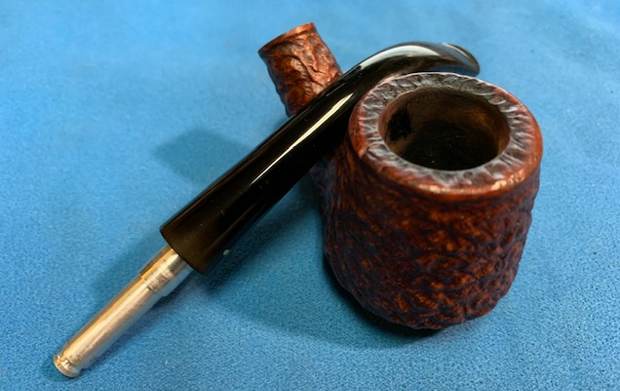

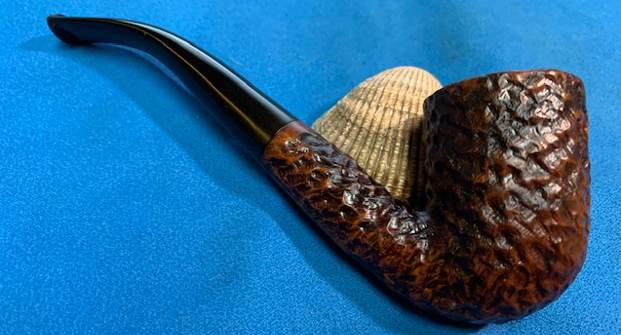

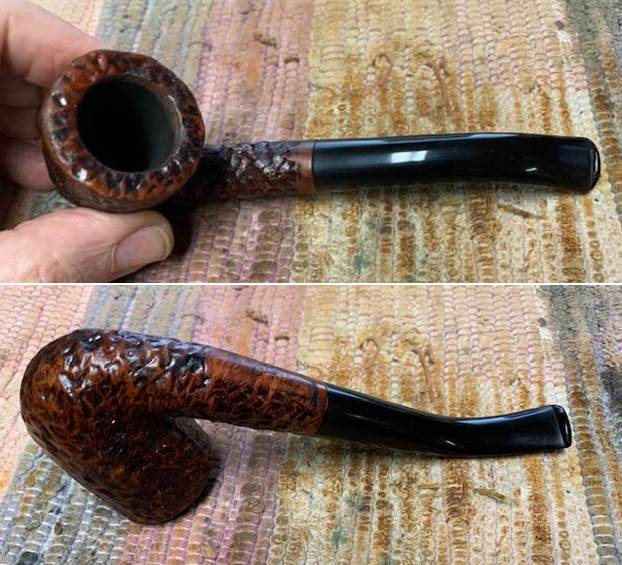

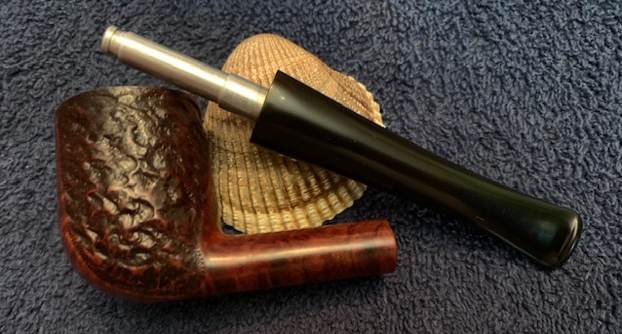

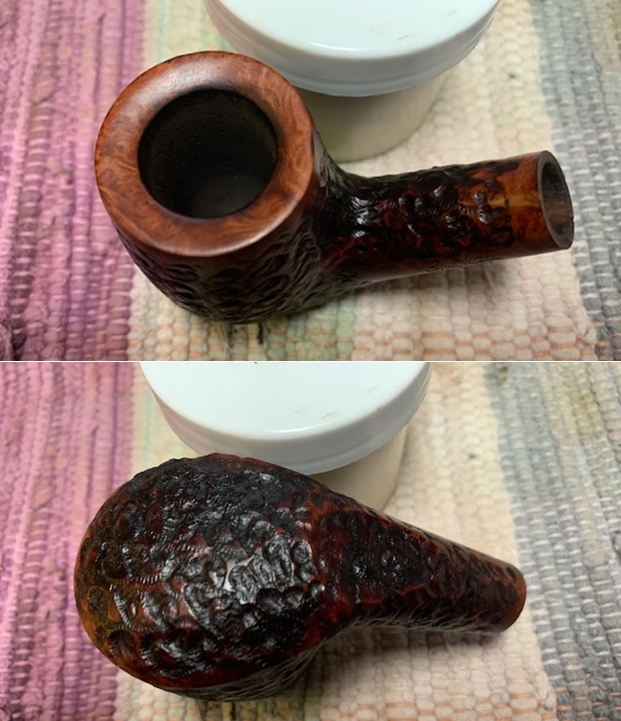

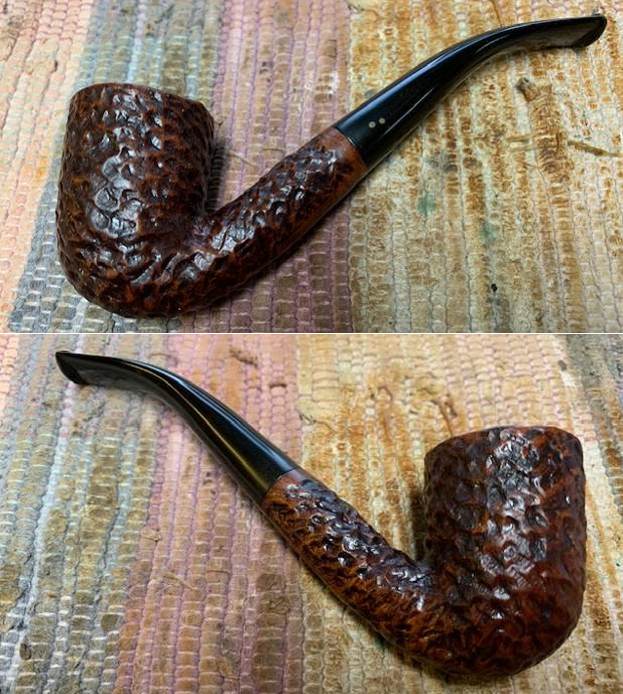

Refreshing a Late Canadian Era Brigham Canada Rusticated 2 Dot Bent Billiard

Leave a reply

Blog by Steve Laug

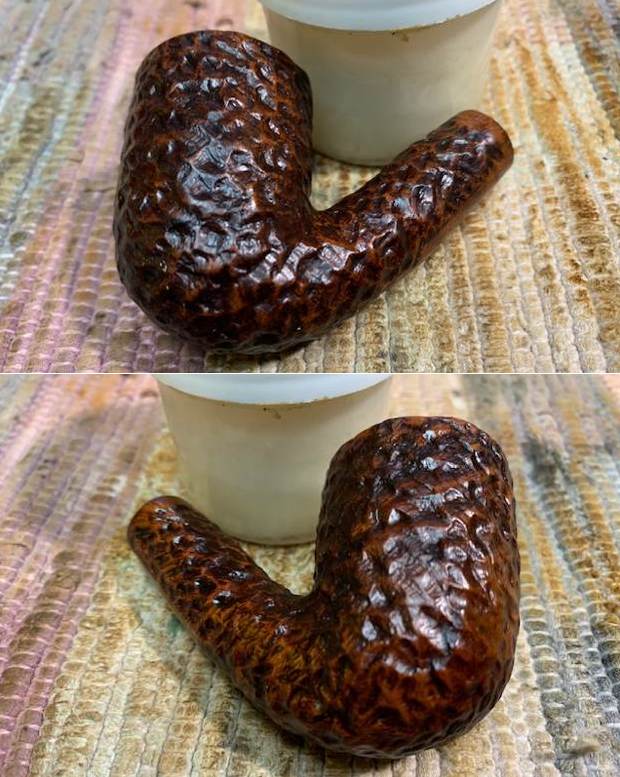

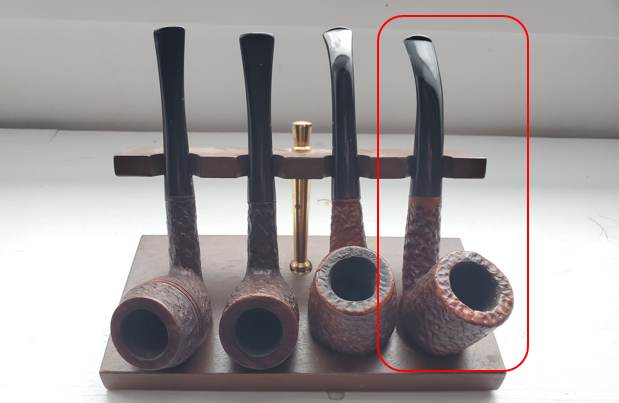

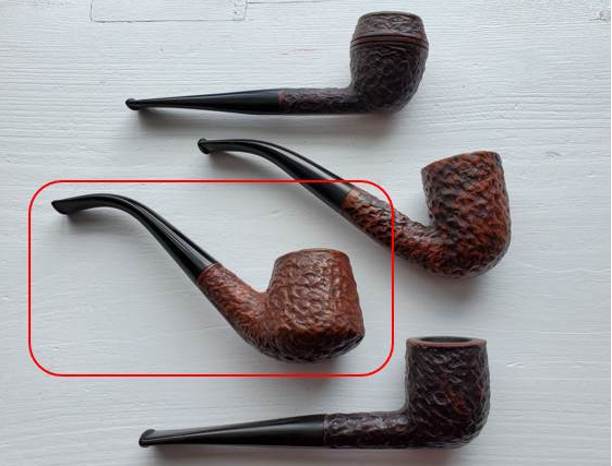

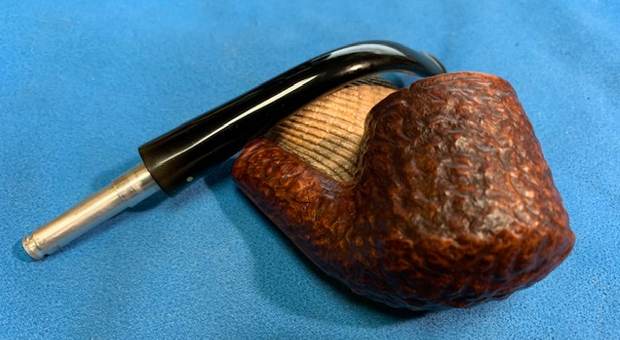

Not too long ago a fellow in Eastern Canada was selling a foursome of Brigham rusticated pipes on Facebook. Jeff contacted him and we became the new owners of the pipes. It did not take long for them to arrive here in Vancouver. When they did I was amazed at how good they looked. Two of them were relatively clean and two were used. The top two pipes in the photo were clean and the bottom two were still dirty with cake and debris in the bowls. I decided I would work on them next. I started with the Bent Billiard – the second one down in the photos below as marked by the red box outlining it. Stamped on the underside with the number 2 on the heel of the bowl followed further down the shank by Brigham [over] Canada. He sent us photos of the pipes we bought. I took photos of the pipe when it arrived. It was clean other than some ash in the bowl and in the airway. The finish was quite clean and the aluminum tenon also is clean. It did not have the Hard Rock Maple filter in the shank but it appeared to be very clean. The stem was very clean and shiny with no tooth marks on the top or underside of the stem. The button was very clean as well with no damage. Overall the pipe looked very good. I took photos of the rim top and the bowl to show the condition. I also took photos of both sides of the stem to show how clean it looked. Over all the pipe was in good condition. I would need to run pipe cleaners through to remove the carbon in the bowl.I took a photo of the stamping on the underside of the shank. It is faint but it reads as noted above in the photos.I took a photo of the pipe with the stem removed to give an overall picture of the pipe. It really is quite beautiful.For historical background for those unfamiliar with the brand I am including the information from Pipedia on Brigham pipes. It is a great read in terms of the history and background on the pipes (https://pipedia.org/wiki/Brigham_Pipes). Charles Lemon (Dadspipes) is currently working on a book on the history of the brand. Until that is complete this article is a good summary. I have included it below.

Charles also put together a chart that helps the restorer to understand the Brigham dot system. I quote from the same link on Pipedia as noted above.

The Original Brigham Dot System 1938 – 1980

Revised Dot System 1980 — Brigham changed the Dot system in 1980, adding a 7 Dot at the top of the line, dropping the names of each series and eliminating the confusing vertical and horizontal 3 Dot configurations. The Norsemen and Valhalla series were combined to form the President series of freehand pipes, which adopted a 3 Dot pattern with a larger dot on the right as shown below. The 7- grade pinning system stayed in place from 1980 to 2001. I knew that I was dealing with a pipe made between 1980 and 2000 from the Late Canadian Era. It sports 2 dots making it a Series 200 pipe. Now to do a bit of spiffing with the pipe itself.

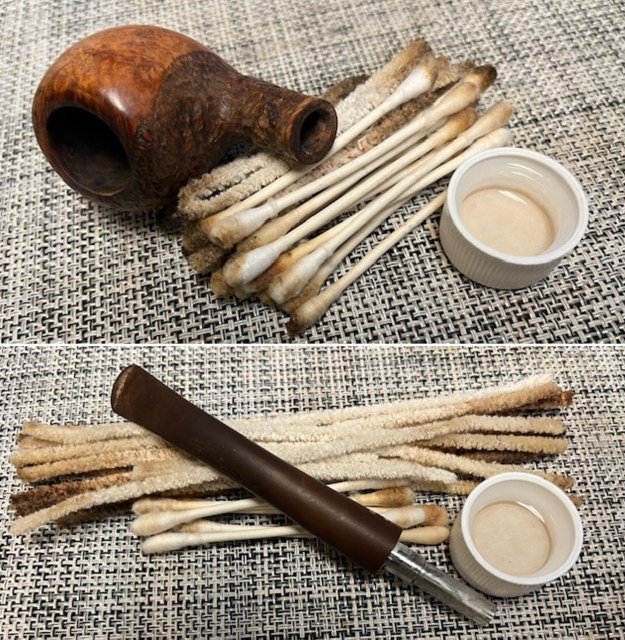

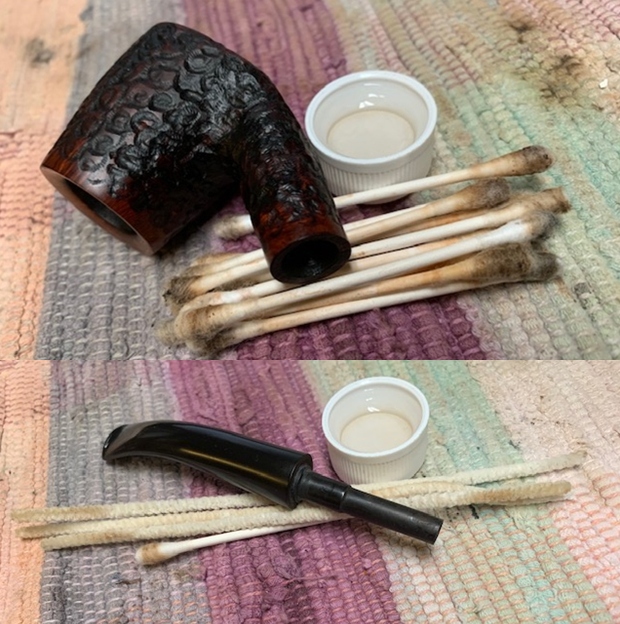

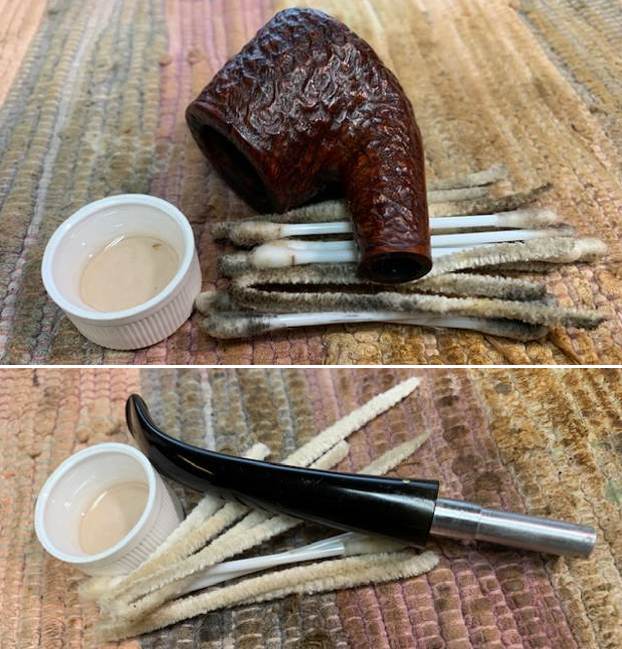

I cleaned out the internals with alcohol, cotton swabs and pipe cleaners to remove the debris and the oils from the shank and tenon as well as the airway into the stem and bowl. I also wiped down the inside of the bowl with a paper towel. to remove the carbon dust that was there.I rubbed the bowl down with some Before & After Restoration Balm. I worked it into the briar with my fingertips and a horse hair shoe brush. The product works to clean, renew and protect briar. I let it do its work for 15 minutes then buffed it off with a soft cloth. The pipe is really quite a beauty. I polished out the light tooth scratches in the surface of the stem ahead of the button on both sides using micromesh sanding pads. I dry sanded the stem and them wiped it down with a cloth impregnated with Obsidian Oil. I finished polishing it with Before & After stem polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to dry. I fit the clean and polished stem with the Brigham Rock Maple Distillator and took photos to show what it looked like. This is in essence a hollow Maple wood tube that serves to filter out the moisture and deliver a clean and flavourful smoke. I am excited to finish this Brigham 2 Bent Billiard. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine and hand buffed it with microfiber cloth to deepen the shine. It is fun to see what the polished bowl looks like with the rusticated finish. Added to that the polished black vulcanite stem with the shining brass pins was beautiful. This mixed grain on the rusticated Brigham 2 Dot Bent Billiard is nice looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 5 ½ inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.66 ounces/47 grams. It is a beautiful pipe and one that will be on the rebornpipes store soon. If you are interested in adding it to your collection let me know. Thanks for walking through the cleanup with me as I worked over this pipe. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of those who follow us.

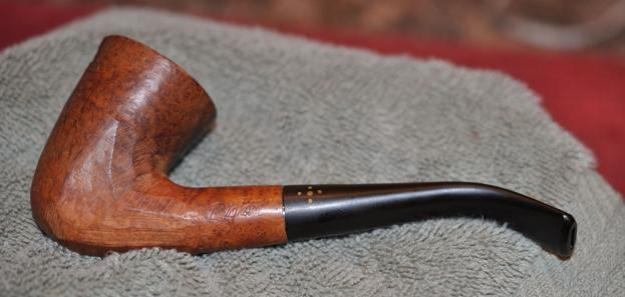

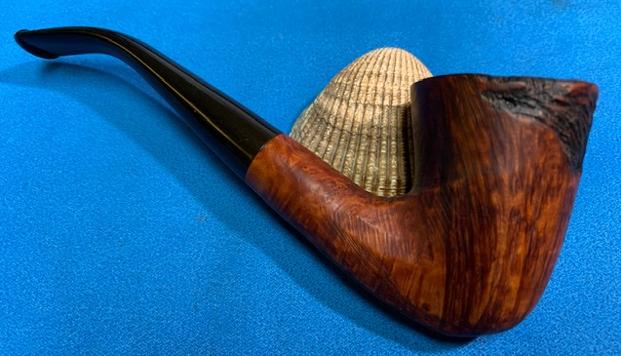

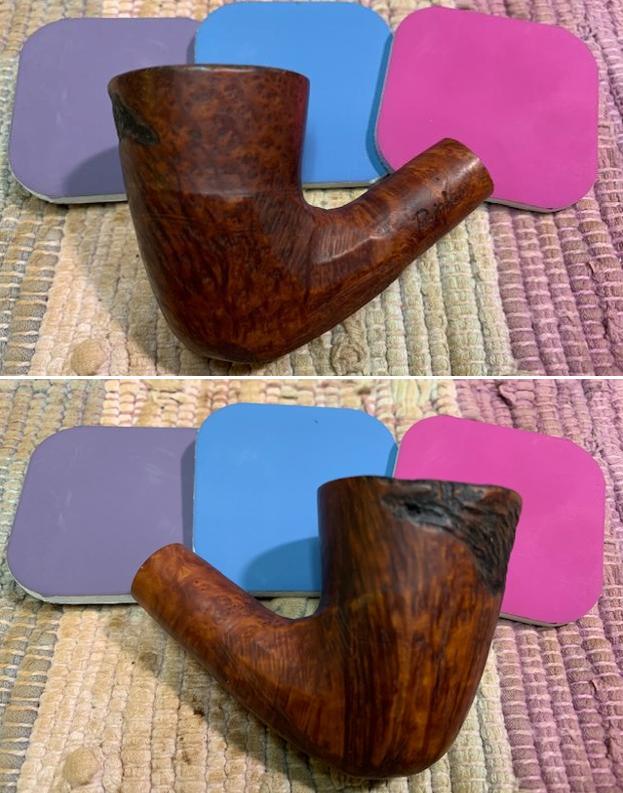

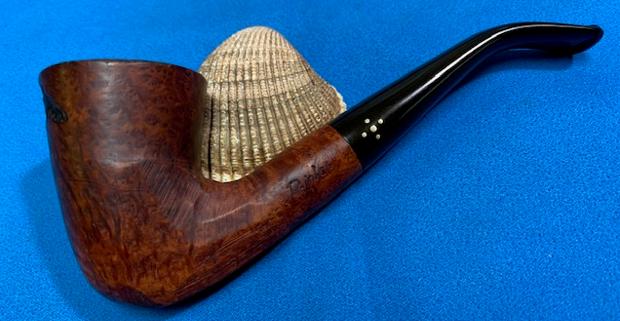

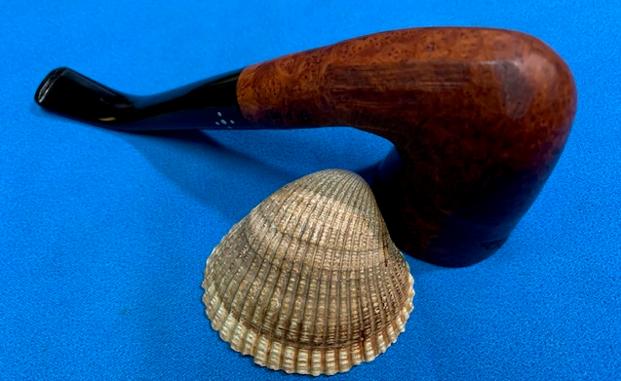

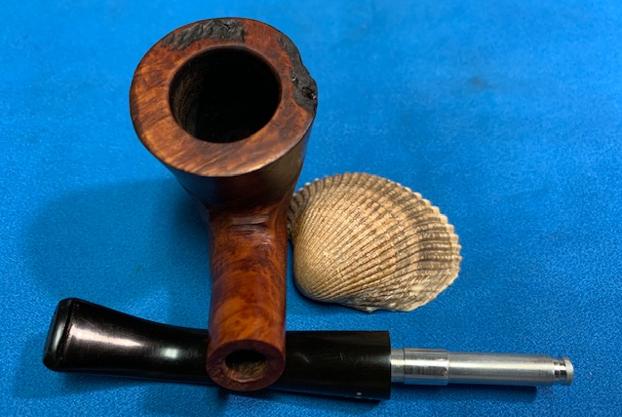

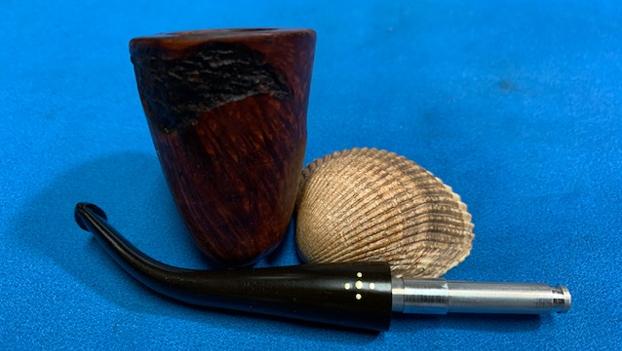

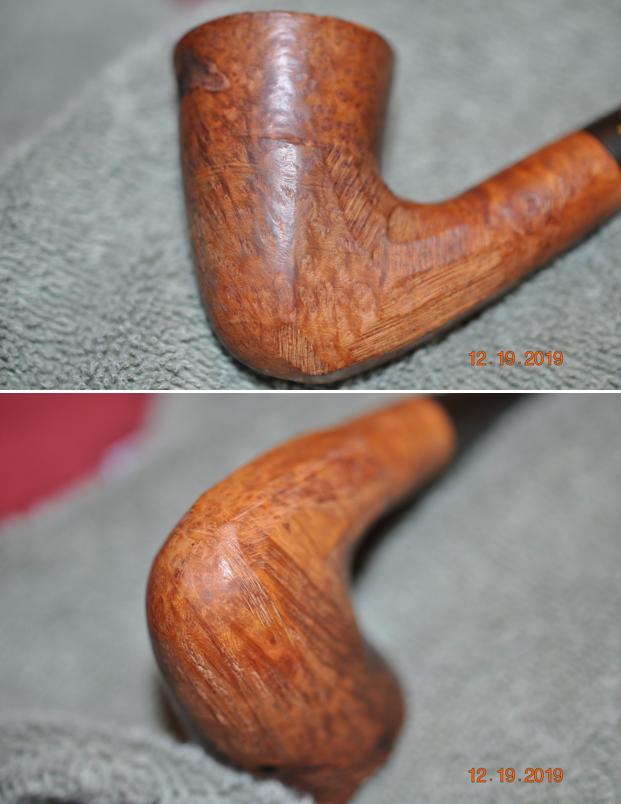

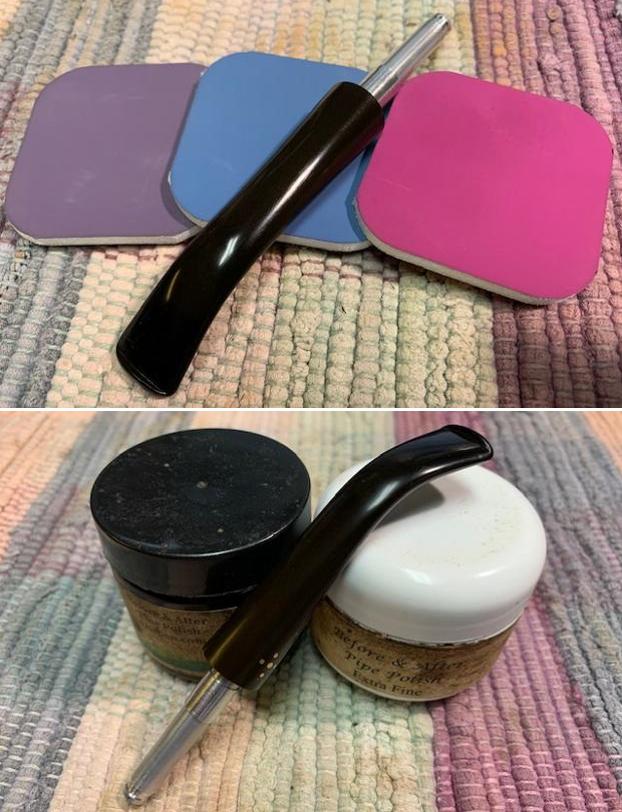

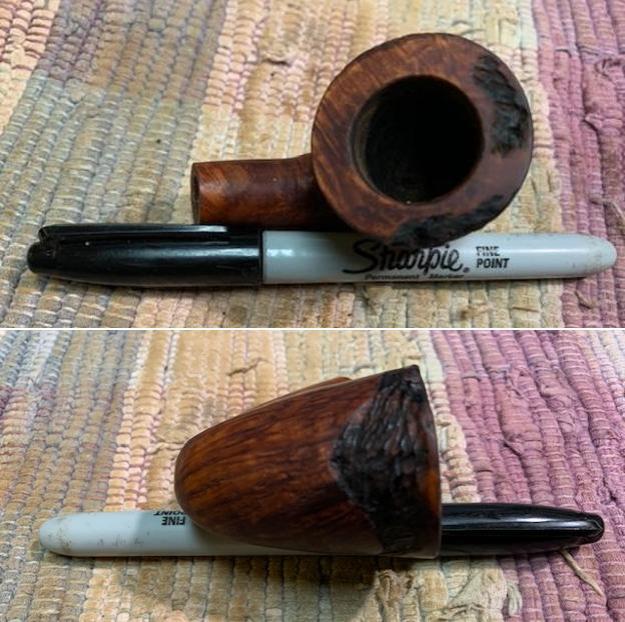

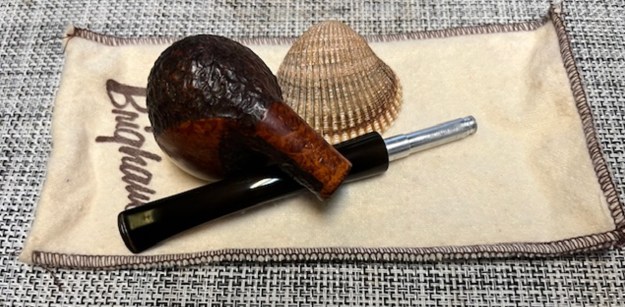

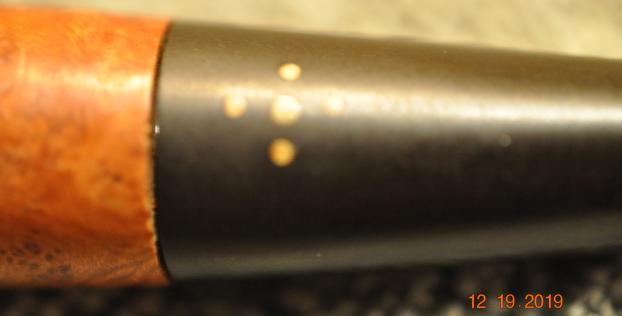

New Life for a Rustic Brigham Sportsman 5 Bent Dublin

Leave a reply

Blog by Steve Laug

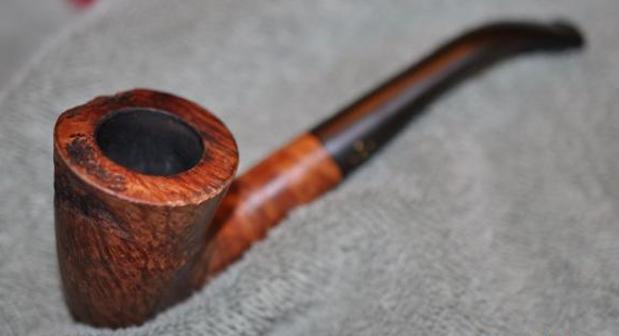

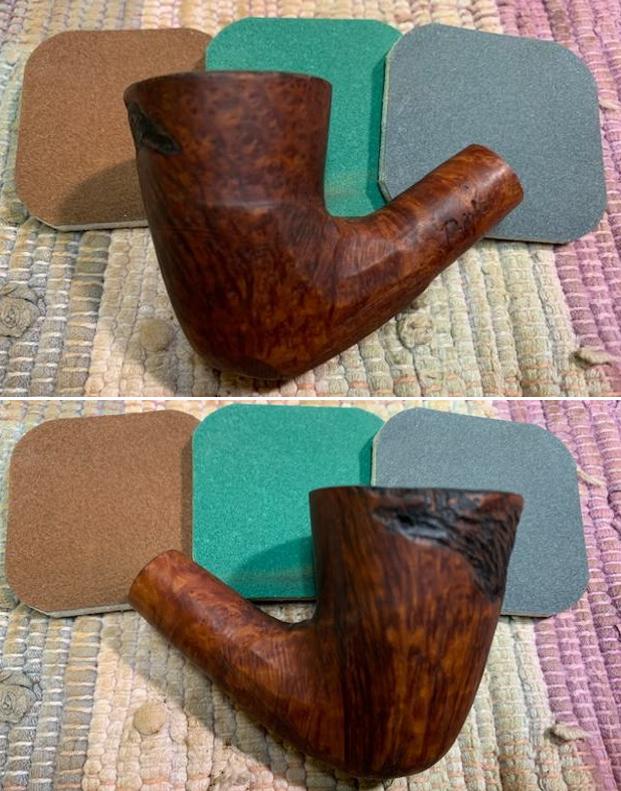

I have been working on Peterson’s pipes from my friend’s estate for the last little while and I needed a break from them for a while. I chose to work another Canadian Made Brigham for a change of pace. The pipe was never sanded out and the finish was very rustic with file marks and carving marks in the briar around bowl and shank. It was very roughly carved and shaped. The semi-finished briar is a Brigham Sportsman circa 1980s. It is stamped only with “Brigham”. There is a number 5 stamped on the underside of the shank and five brass pins on the stem side.. There was a moderate cake in the bowl and some light lava overflow on the inner edge of the rim. The top and edges of the rim have some rustication to cover what appears to be flaws in the briar. The grain on the smooth portions of the bowl was very nice straight and flame grain. There was a rusticated patch on the front of the bowl that wrapped around to the right side near the top. I think that there was a beautiful pipe underneath all of the buildup of years of use. The stem was lightly oxidized and had some tooth chatter near the button. There was a pattern of five brass dots on the left side of the taper stem. Jeff took photos of the pipe before he started his cleanup work on it. Jeff took photos of the bowl and rim top to show the condition of the bowl with the light cake in the bow and on the rim edges. The rim top had some interesting rusticated patterns on the top and on the right outer edge of the bowl. The rest of the outer edge was rough matching the carving, or lack of it on the sides below. The second photo below shows the side rustication and the flaw in the briar at that point on the block. He took photos of the top and underside of the stem showing the tooth marks, chatter and oxidation on the stem surface. Jeff took photos of the sides and heel of the bowl to show the rustic condition of the finish. You can see the beautiful grain around the smooth portions on the top half of the bowl. The rustication is well done and rugged in the spots on the bowl and rim. Even under the dirt and debris of the years it looked very good. The stamping is double and triple stamped and hard to capture well even with a flash. What you can see reads as noted above. He included a pic of the 5 brass dots on the stem. For the needed background I am including the information from Pipedia on Brigham pipes. It is a great read in terms of the history of the brand (https://pipedia.org/wiki/Brigham_Pipes). Charles Lemon (Dadspipes) is currently working on a book on the history of the brand. Until that is complete this article is a good summary. I have included it below.

I turned to Dadspipes, Charles Lemon’s blog, to see what he had on the Sportsman pipe line from Brigham and was not disappointed (https://dadspipes.com/2016/10/24/re-stemming-an-unsmoked-1980s-brigham-sportsman-author/). I quote the section below that Charles picked up on the Brighampipes.com website.

Brigham describes the Sportsman series on their website as follows:

“Regular Brigham (filtered) pipes were taken from production prior to the final sanding, staining and finishing processes to create what we called “Semi-finished” or “Sportsman” pipes. They were originally created for the Ontario Sportsman show in Toronto where we used to sell a significant number of pipes. Times have changed, and the show is no longer a viable marketing tool for a pipe company, but the “Sportsman” designation remains….

The Brigham “Sportsman” pipe is ideal for situations where getting a little “knocked-around” is anticipated because you won’t need to worry about scratching the finish….there isn’t one!”

– BrighamPipes.com

I sent Charles a quick email asking him about this pipe and sent along a photo of the pipe. I have included his response below.

Rough Cut 5-Dot is a Sportsman model, probably Shape 47 (Calabriar). The Sportsman series was made specifically for sale at the Toronto Sportsmen’s Show, starting in the early 1950s and continuing to the late 1990s when domestic pipe production wound down. In the beginning, you could only buy one at the show, but by the late 70s or early 80s (I’m still trying to track down a date), a small number of Sportsman pipes were distributed each Spring to retail stores. Your 5-Dot (a rare grade for this series) is from the 1990s, based on the stamping. The series was reintroduced in 2011 using European-made pipes.

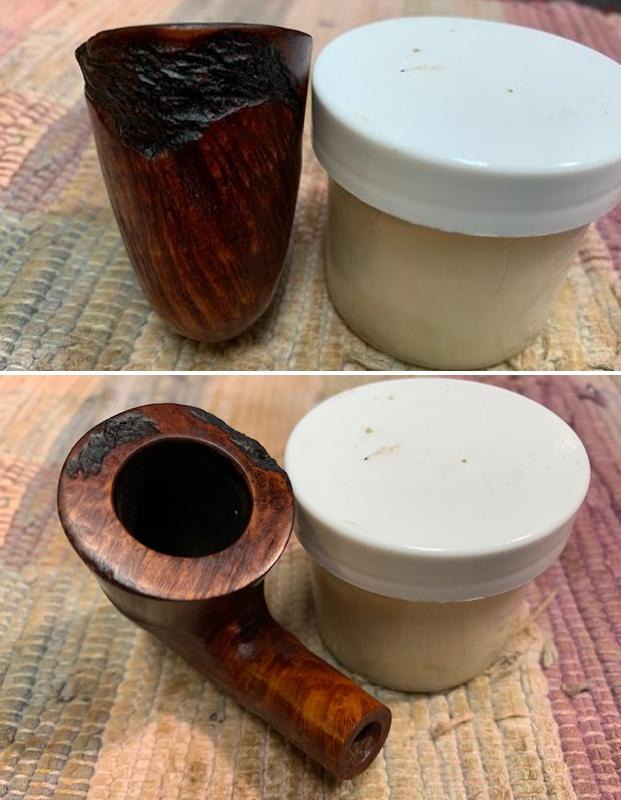

With the information from Charles’ I knew what I was dealing with in terms of the stamping and the age of this pipe. I learned that Sportsman pipe was originally carved for the Ontario Sportsman Show. It was made in the 1990s because of the stamping on the shank. It is interesting to not that the 5-Dot is a rare grade for this series. Now it was time to work on the pipe.

I am really happy to have Jeff’s help on cleaning up the pipes that we pick up along the way. He cleaned this filthy pipe with his usual penchant for thoroughness that I really appreciate. This one was a real mess and I did not know what to expect when I unwrapped it from his box. He reamed it with a PipNet pipe reamer and cleaned up the reaming with a Savinelli Fitsall Pipe Knife. He scrubbed out the internals with alcohol, pipe cleaners and cotton swabs until the pipe was clean. He scrubbed the exterior of the bowl with Murphy’s Oil Soap and a tooth brush to remove the grime and grit on the briar and the lava on the rim top. The finish looks very good with great looking grain around the top half of the bowl and great rustication on the rest of the bowl and shank. Jeff soaked the stem in Before & After Deoxidizer to remove the oxidation on the rubber. He scrubbed it with Soft Scrub All Purpose Cleaner to remove the majority of the oxidation. When the pipe arrived here in Vancouver it looked very good. I took some close up photos of the pipe before I started my part of the restoration. I took photos of the bowl and rim top as well as both sides of the stem to show its condition. The rim top and edges show a darkening and the damage on the inner edge of the rim at the front of the bowl. I took close up photos of the stem to show the tooth marks on the surface and on the button. I took a photo of the stamping on the side and underside of the shank. You can see that it is stamped as noted above. It is messy but still readable.I took the pipe apart and took a photo of the pipe. It is an interesting pipe that you can see the rustic finish on in the photo below.I decided to start my restoration work on this one by dealing with the damage to the inner edges. I worked over the inner edge of the bowl with a folded piece of 220 grit sandpaper. When I had finished it looked much better.I touched up the dark stain on the rustication around the front of the bowl and the rim top with a back Sharpie pen. I polished the smooth portions of the bowl and the rim top with micromesh sanding pads – wet sanding it with 1500-12000 grit pads. After each pad I wiped the briar down with a damp cloth. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. With that done the bowl was finished other than the final buffing. I set it aside and turned my attention to the stem. I “painted” the tooth marks on the stem surface with the flame of a lighter to raise them. It worked very well and only the tooth mark on the underside that was close to the button and a small mark on the right topside near the button remained. I filled it in with CA and set it aside to cure. Once the repairs cured I used a file to smooth them out and recut the edge of the button. I sanded them with 220 grit sand paper to blend them into the rest of the stem surface. I started to polish it with a folded piece of 400 wet dry sandpaper. Before I finished the polishing stem I fit the clean stem with a new Rock Maple Distillator. I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I am excited to finish this Brigham 5-Dot Sportsman – an interesting looking pipe that was on the market . It has a unique Brigham “partially finished” look that is different from any other pipe making company. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I buffed it with a clean buffing pad to raise the shine. I hand buffed the pipe with a microfiber cloth to deepen it. It is fun to see what the polished bowl looks like with the grain popping through on the bowl and shank. Added to that the polished black vulcanite stem with five shining brass pins was beautiful. This Brigham 5-Dot Sportsman is nice looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 5 ½ inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: 7/8 of an inch. The weight of the pipe is 41grams/1.45ounces. It is a beautiful pipe and one that will be on the rebornpipes store soon. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog.

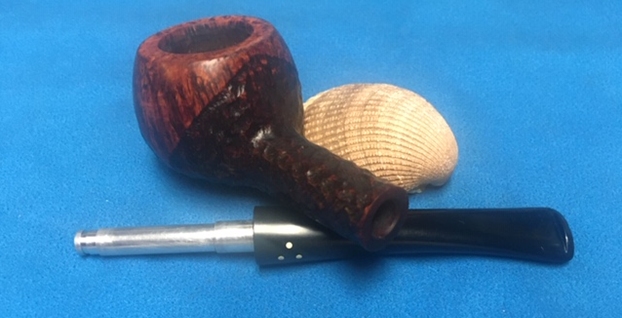

Restoring a newer Italian Made Brigham Voyageur 184 One Dot

Leave a reply

Blog by Steve Laug

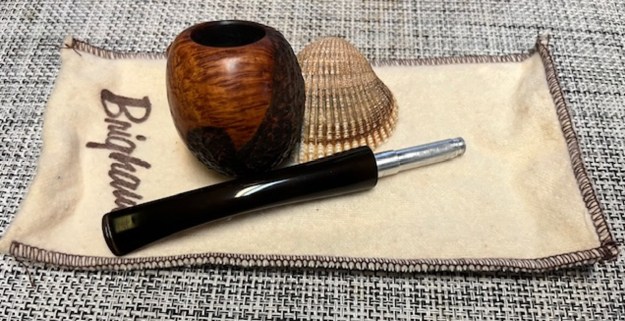

The next pipe I have chosen is one that neither Jeff nor I remember picking up. It could have come to us through a trade for work on a pipe or it could have come from one of my earlier pipe hunts. It is a Brigham in a shape I would call a bent volcano. It had an unusual pattern of rustication on the bowl with a smooth rim top and panel on the shank as well as a smooth ring around the shank end. I like the older style Brigham rustication pattern far better than this one. The mix of brown stains gave depth to the texture of the pipe under the grime on the finish. It was stamped on the left side of the shank. The stamping was readable. It read Brigham [over] Voyageur [over] the shape number 184 Italy. It also had a single brass dot on the left side of the taper stem. The Italy stamp told me it was a newer Brigham made after the manufacture of the pipes left Canada and moved to Italy. It was in decent condition when I brought it to the table. The finish was dirty with grime ground into the briar sides and rim. There was a thick cake in the bowl and an overflow of lava on the inwardly beveled rim top and the inner edge of the bowl. The stem was dirty but otherwise in good condition. There were light tooth marks and chatter on the top and underside on and near the button. The Maple Distillator was missing and the extended tenon which was aluminum on the Canadian made pipe had been replaced with nylon or Delrin. I took photos of the pipe before my cleanup work. They tell the story and give a glimpse of the promise that we see in this pipe. I took a photo of the rim top to show the interior the bowl and the rim top and inner edge. It is heavily caked with a thick lava overflow on the back part of the top. I am also unsure of the condition of the inner edge as it appears to have some darkening. I will know more once I remove the lava coat. The stem is in decent condition with light tooth marks on the top and underside near the button. I took a photo of the left side of the shank to show the stamping. The stamping is readable in the photos below and is as noted above. The stem has a single brass dot on the left side. I took the stem off the bowl and took a picture of the nylon/Delrin thin tube tenon with the Maple Distillator missing. I will need to provide a Maple Distillator for the pipe when I have finished the cleanup.I turned to Pipedia and read through the article there (https://pipedia.org/wiki/Brigham_Pipes). It gives a good overview on the beginnings of the Canadian Brand and the different time periods. I have included the chart below from the site as it shows the Standard (1 Dot) pipes and includes the Voyageur. The shape number 84 is the shape of the pipe on the table now.The site referred me to an article by Charles Lemon (Dad’s Pipes) on the marking and dating of the pipes so that I could identify the time period when the brand moved its manufacture to Italy (https://pipedia.org/wiki/Brigham_Pipes_%E2%80%93_A_Closer_Look_at_Dots,_Dates_and_Markings). From there I was able to identify the move as happening in 2001. I quote the section of Charles’ article on that era that he calls the Transition Era.

The Transition Era (2001 – 2006). The biggest change to hit Brigham since the advent of the Rock Maple filter occurred in 2001 when Brigham moved production from Toronto to Italy. The product lineup was, not surprisingly, heavily impacted, with the most obvious change a sharp decrease in the number of pipe shapes available.

Daniel More, President of Brigham Enterprises Inc. explains the move to the EU: Admittedly the hardest decision we ever needed to make. With an aging skilled work force we were losing the skills required at an alarming rate. We made attempts to bring in new people but we were not effective in staving off the atrophy. We were fortunate though to be able to move by increments allowing us control and comfort throughout the process. For example, instead of turning our own bowls we began to purchase turned bowls; then we had stems added with sanding at 100-grit ; then sanding to finer degrees; then staining and so on. The last bit of control was grading.

I still visit the manufacturing facility in the EU at least once a year to discuss QC and pick shapes and designs. The shift [to the EU] resulted in fewer shapes. However, one of the biggest benefits was access to a wider variety of finishes. We had never been able to offer a sandblasted pipe and the access to accessories like rings and different colours, I think, allowed us to make the line more interesting

Another interesting point in the article was the section on the shift from the aluminum tenon/holder to the nylon/Delrin material used since the move. I have always wondered about this shift and the rationale behind it.

Coincidental with shifting production to the EU was the move from the original aluminum tenon/filter holder to one made of a composite material. Daniel More provides insight into the switch:

Principally there were two catalysts for the change. We were using a very specific OD for our Aluminum Tenons. In fact, we were one of only two companies in North America using this OD, the other being an aircraft manufacturer in California. When this aircraft company shifted to an alternative, it left us and us alone purchasing this specific size. To stay with Aluminum, our only alternative was to purchase an oversized OD and tool this down to our requirements results in significant expense due to the wasted material costs.

We had, for many years, experimented with a number of composite materials for both the tenons and Distillator Tips. The issue was always heat resistance. Technology having advanced as it did by the 1990’s presented us with a selection of alternatives. We tested 10 different compositions before landing on the formula we still use today.

Cost saving aside, the Composite Tenon virtually eliminated the breaking of shanks. That is, when a pipe shank would break due to leverage (think, in the pocket and sitting down), we could not repair this. The Composite Tenon would now break away rather than the shank allowing for an inexpensive repair versus having to throw out “an old friend”. Without a doubt, there were many cries about the inferior Composite Tenon breaking but with our offer to provide no cost tenon repairs we assuaged this concern. We still offer to this day no charge repairs for broken Composite Tenons – no questions asked.

During the Transition Era, the 100 – 300 series pipes looked very similar to Canadian-made pipes and continued to be recognized by their traditional brass pin patterns. These lower series pipes were offered in 9 shapes. The 400 series disappeared temporarily, while the 500 to 700 series pipes, available in only 8 shapes, lost their brass pins and were identified only by their 3-digit shape numbers.

Later in the article Charles gave some excellent information on the 2007 series of pipes. The one dot pipes identify the pipe as part of the 100 series. Thus the pipe I am working on is a 100 series shape #84 = the shape number stamping of 184.

Modern Brigham Pipes

Except for the lowest three grades, pipes in the current (2007) Brigham series cannot be identified by brass pins or shape availability. All grades are available in 12 standard shapes, but are distinguished by their unique finishes and markings. As noted above, the Voyageur, Algonquin and Mountaineer pipes are made in Italy, while the remaining pipes in this series (Chinook, Heritage, Klondike and Acadian) are produced in France.Before I get into the restoration part of this pipe I decided to include a poster I picked up that shows the filtration system of the patented Brigham Distillator. Give the poster a read. It also helps to understand the internals of these older Canadian made pipes as well as the newer Italian and French made pipes.I reamed the pipe with a PipNet reamer and cut back the cake back to the bare briar. I cleaned up the walls with a Savinelli Fitsall Pipe Knife. The interior walls of the pipe looked free of burn or heat damage. To me that is always a relief. I decided to address the damage to the rim top next in my restoration of this pipe. I used a folded piece of 220 grit sandpaper to clean off the rim top and the inner edge of the bevel. It took some time but I was able to bring it back to a pretty clean condition. I polished the bowl and rim top with micromesh sanding pads – dry sanding it with 1500-12000 grit pads. After each pad I wiped the briar down with a damp cloth. This served a dual purpose of both removing the sanding debris and the dust that had accumulated in the rustication patterns around the bowl and shank. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips and a horsehair shoe brush to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. It looks quite nice at this point. At this point it dawned on me that I had not cleaned the internals of the pipe. I am so used to having Jeff do the cleaning that I just skipped over it. Fortunately I remembered at this point! I cleaned out the shank and airway in the shank and stem with pipe cleaners, cotton swabs and alcohol. I was surprised that I also was removing some brown stain from the end of the shank.With that done the bowl was finished other than the final buffing. I set it aside and turned my attention to the stem. The stem was in great condition and I was certain I could remove the chatter and marks with micromesh pads. Before polishing stem I decided to fit it with the Rock Maple Distillator. I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I am excited to finish this Brigham Voyageur Series 1 shape 84. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I hand buffed the pipe with a clean buffing pad to raise the shine. It is fun to see what the polished bowl looks like with the grain popping through on the bowls sides and rim top. Added to that the polished black vulcanite stem with the shining brass pins was beautiful. This rusticated Brigham 1 Dot Voyageur 184 turned out to be a nice looking pipe that feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 6 inches, Height: 2 inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 53grams/2.08oz. It is a beautiful pipe and one that will be on the rebornpipes store in the Canadian Pipe Makers section soon. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of the next pipeman or woman.

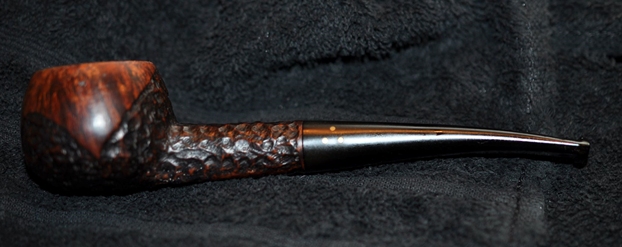

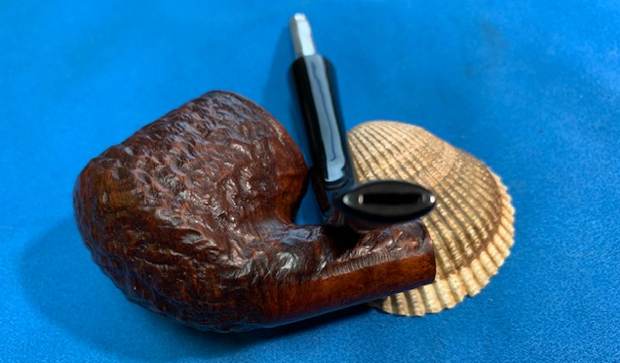

Hard Work on Restoring a Brigham 3 Dot Prince 3

Leave a reply

Blog by Steve Laug

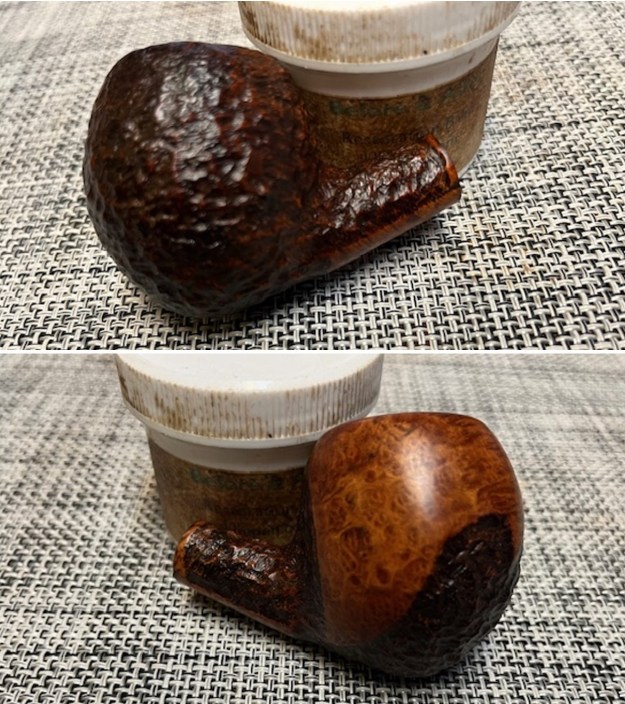

The next pipe I have chosen is an interesting looking mixed finish Prince that was stained with a rich brown colour on both the smooth upper portion and rusticated lower portion of the bowl and shank. It was stamped on the smooth underside of the shank. The stamping was readable. The shape number 3 and the stamping Brigham over Canada was on the smooth band on the underside of the shank. The age on this one is Post-Patent era, nominally 1960s. The pipe was another pipe that Jeff picked up on his hunts. It was in decent condition when he brought it to the table. The finish was dirty and the rim top had some damage but otherwise looked decent the inner edge of the bowl was in good condition. The bowl had been reamed and smoked a few times after that. Whoever had reamed it, had overdone the reaming and left some deep gouges around the inside base of the bowl. The internals were quite clean. The stem was in rough condition with deep tooth marks on the top and underside on and near the button. The Maple Distillator had been recently replaced. Jeff took photos of the pipe before his cleanup work They tell the story and give a glimpse of the promise that we see in this pipe. Jeff took a photo of the rim top to show the interior the bowl and the rim top and inner edge. It is clean but damaged.Jeff took some photos of the bowl sides and heel to show grain that was around this bowl. It is a nice looking pipe. He took a photo of the underside of the shank to show the stamping. The stamping is readable in the photos below and is as noted above – it reads Brigham in script over Canada. In the left corner of the smooth panel is the number 3. The stem has three dots in a triangular pattern on the left side. The stem was a very good fit to the shank. It was lightly oxidized and had deep tooth marks on the stem and on the button surface. Jeff took the stem off the bowl and took a picture of the aluminum tube tenon with the Maple Distillator in place and out of the tenon on top of the tube.Before I get into the restoration part of this pipe I decided to include a poster I picked up that shows the filtration system of the patented Brigham Distillator. Give the poster a read. It also helps to understand the internals of these older Canadian Made pipes.Jeff had done a great job cleaning up the pipe as usual. He reamed the pipe with a PipNet reamer and cut back the cake back to the bare briar. He cleaned up the walls with a Savinelli Fitsall Pipe Knife. He scrubbed the interior of the bowl and shank with pipe cleaners, cotton swabs and alcohol to remove the tars and oils. He scrubbed the exterior of the pipe with Murphy’s Oil Soap and a tooth brush to remove the grime from the finish. He worked on the rim top lava and darkening with the soap and tooth brush. He scrubbed the inside of the stem with alcohol and pipe cleaners. He scrubbed the exterior with Soft Scrub and then soaked it in Before & After Deoxidizer. He washed it off with warm water to remove the deoxidizer. The pipe looked far better. The stamping on the side of the stem was very light and the white that had remained was gone. I took some close up photos of the rim top and also of the stem surface. I wanted to show how well it had cleaned up. The rim top and edges show a lot of damage on the surface. It is rough looking and rough to touch. I also took close up photos of the stem to show the deep tooth marks on the surface and on the button. It was in rough condition. I took a photo of the stamping on the underside of the shank. You can see that it is stamped as noted above. It is clear and readable. I took the pipe apart and removed the Distillator from the aluminum tenon. It obviously been replaced by whoever reamed this pipe before we got it. I decided to start my restoration work on this one by dealing with the over reaming of the bowl and the damaged rim top. I sanded the bowl walls to smooth out the reaming damage with a piece of dowel wrapped with sandpaper. I was able to smooth out much of the damage. I cleaned up the inner edge of the bowl and rim top with 220 grit sandpaper to remove the damage. I polished the smooth portions of the briar with micromesh sanding pads – wet sanding it with 1500-12000 grit pads. After each pad I wiped the briar down with a damp cloth. I worked some Before & After Restoration Balm into the surface of the briar with my fingertips to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. With that done the bowl was finished other than the final buffing. I set it aside and turned my attention to the stem. I filled in the tooth damage with clear CA glue and set the stem aside to cure. Once it had cured I used a needle file to recut the button edge and flatten out the repaired spots. I sanded out the repaired tooth marks and chatter with 220 grit sand paper to blend them into the rest of the stem surface. I started to polish it with a folded piece of 400 wet dry sandpaper. Once it was finished it had begun to shine. I polished the stem with Denicare Mouthpiece Polish from a tin of it I have in the drawer here. It is a gritty red paste that I rub on with my finger tips and work into the surface of the stem and button and buff off with a cotton pad. It gives me a bit of a head start on the polishing work.Before I finished the polishing stem I decided to fit it with the Rock Maple Distillator.I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I am excited to finish this Brigham Prince. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I hand buffed the pipe with a clean buffing pad to raise the shine. It is fun to see what the polished bowl looks like with the grain popping through on the bowls sides and rim top. Added to that the polished black vulcanite stem with the shining brass pins was beautiful. This mixed grain on the smooth finish Brigham 3 Prince is nice looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. When I was going through the pipes in my box of pipes to be done I came across this beautiful 3 Dot Brigham. The dimensions are Length: 6 inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. It is a beautiful pipe and one that will be on the rebornpipes store soon. If you are interested in adding it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipemen and women who hold our pipes in trust until they pass on into the trust of the next pipeman or woman.

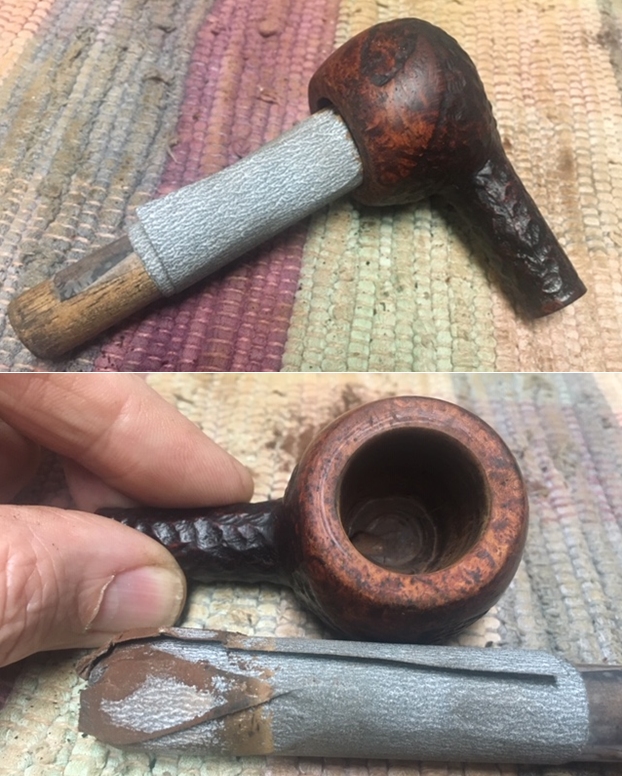

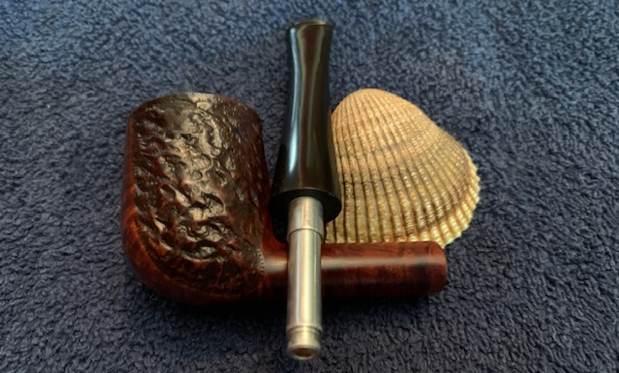

A Brigham Patent Era Standard 102 Rusticated Crosby from Bob Kerr’s Estate

Leave a reply

Blog by Steve Laug

As I continue to work through the pipes in Bob Kerr’s Estate I am enjoying choosing different brands that he had to focus on for a bit. He had six different pipes from Brigham in his collection so I decided to work my way through that sub collection of the estate. Out of the 6 pipes, #5 has a ruined bowl with a crack all the way around it as well as a cut off aluminum tenon. #6 went to Paresh Deshpande in India for his collection. That left behind four pipes for me to restore – #1, #2, #3 and #4. Here is the list of what I saw when I examined the 6 pipes. I have already restored #1, #2 and #3 and included the link to the appropriate blog.

Brigham 503T Can. Pat. 372982 5 Dot Stack. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty, thick cake and lava overflow on the rim top. Rim top has is worn and damage on the back edge. I have finished restoring this one. Here is the link: (https://rebornpipes.com/2019/12/21/a-brigham-patent-era-special-grain-stack-from-bob-kerrs-estate/).
Brigham Made In Canada 490 4 Dot Canadian. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty, thick cake and lava overflow on the rim top. Rim top is worn and damaged. I have finished restoring this one. Here is the link: (https://rebornpipes.com/2019/12/22/a-brigham-patent-era-director-490-rusticated-canadian-from-bob-kerrs-estate/).
Brigham Made In Canada 2199 2 Dot Club/Lovat. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty and worn. Stamping is worn. There is a thick cake and lava overflow on the rim top. Rim top is worn and damaged. I have finished restoring this one. Here is the link: (https://rebornpipes.com/2019/12/21/a-brigham-patent-era-select-601-club-lovat-from-bob-kerrs-estate/).
Brigham Made In Canada 102 1 Dot Bing Crosby Style Pipe/Small Billiard. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty, thick cake and lava overflow on the rim top. Rim top is worn and damage on the back edge.
Brigham Made In Canada 6 Dot Bent Billiard. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. The aluminum tenon has been cut off. Finish is dirty and worn with paint on the bowl. There is a thick cake and lava overflow on the rim top. Rim top has a crack on the right side. CRACKED BOWL
Brigham Made In Canada 4 Dot Canadian. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty and stamping is worn. There is a thick cake and lava overflow on the rim top. Rim top is worn and edges are damaged. SENT TO PARESH

I chose to work on #4 next, the second rusticated pipe in the collection. It is a Brigham Rusticated Crosby or what Brigham calls a small billiard. To me the long stem will forever remind me of Bing Crosby and White Christmas. It was stamped on the underside of the shank with faint stamping visible with a lens under light. It reads Brigham over Can. Pat. 372982. On the heel of the bowl it was stamped with the shape number 102. There was a thick cake in the bowl with remnants of tobacco stuck on the walls. There was a lava overflow on the rim. The top and edges of the rim appear to have some damage all the way around the bowl. The rustication was the pattern I have become accustomed to on Brigham pipes. Once again, I think that there was a beautiful pipe underneath all of the buildup of years of use. The stem was oxidized and calcified toward the end with some tooth chatter. There were also some tooth marks on both sides of the stem ahead of the button. There was a pattern of four brass dots on the left side of the tapered stem. Jeff took photos of the pipe before he started his cleanup work on it. Jeff took photos of the bowl and rim top to show the thick, hard cake in the bowl with remnants of tobacco stuck on the walls of the bowl. There was a lava build up on the smooth rim top and the edges of the bowl. The rim top looked pretty good but it was hard to know for sure but it appeared that there was damage all around the inner edge. The outer edges looked good. Jeff took a photo of the side and heel of the bowl to show the condition of the finish. You can see the beautiful rustication patterns around the side of the bowl and shank. Even under the dirt and debris of the years it looked very good. The stamping is very faint. With a light and lens the stamping Brigham is visible. The first photo shows the shape number on the heel of the bowl. The second photo shows the Can. Pat. Number that is underneath the Brigham stamp. He included a pic of the 1 brass dot on the stem. Jeff took photos of the top and underside of the stem showing the tooth chatter, scratching and oxidation on the stem surface and wear on the edges of the button.I am also including the information from Pipedia’s article on Brigham pipes. It is a great read in terms of the history of the brand (https://pipedia.org/wiki/Brigham_Pipes). Charles Lemon (Dadspipes) is currently working on a book on the history of the brand. Until that is complete this article is a good summary. I have included it below.

I wrote to Charles Lemon (Dadspipes) and asked him about the stamping on the pipe. He responded with information on all of the foursome. I am including the information on this particular pipe.

Hey Steve! Good to hear from you.

Lastly, the 102 is a Small Billiard- not the smallest Brigham (the 01 shape is an even smaller billiard) but pretty compact…As these are all Patent pipes, it’s more accurate to refer to their grade by name (the post 1980 grading scheme refers to Dots). Here is the original scheme:With the information from Charles’ message and the chart above that he included I knew what I was dealing with in terms of the stamping and the age of this pipe. I learned that this Patent Era 102 is a Brigham Standard (1-Dot) Small Billiard, though I would call the long shanked bowl a Crosby. It was made between 1938 and 1955. Most of Bob’s pipes were purchased in the 50s and 60s so my guess is that this is fits that time frame well. Now it was time to work on the pipe.

I am really happy to have Jeff’s help on cleaning up the pipes from Bob’s estate as the 125+ pipes were taking me a long time to do alone. He cleaned this filthy pipe with his usual penchant for thoroughness that I really appreciate. This one was a real mess and I did not know what to expect when I unwrapped it from his box. He reamed it with a PipNet pipe reamer and cleaned up the reaming with a Savinelli Fitsall Pipe Knife. He scrubbed out the internals with alcohol, pipe cleaners and cotton swabs until the pipe was clean. He scrubbed the exterior of the bowl with Murphy’s Oil Soap and a tooth brush to remove the grime and grit on the briar and the lava on the rim top. The finish looks very good with great looking grain around the bowl and shank. Jeff soaked the stem in Before & After Deoxidizer to remove the oxidation on the rubber. When the pipe arrived here in Vancouver for the second stop of its restoration tour I was amazed it looked so good. I took some close up photos of the rim top and also of the stem surface. I wanted to show what an amazing job Jeff did in the cleanup of the rim top. The rim top was darkened with nicks and damage to the rim top and inner edge of the bowl. The outer edge looked very good. I also took close up photos of the stem to show the tooth marks and chatter on the stem surface.I took the stem off the shank to show the aluminum tenon/tube that was used to hold the Brigham Rock Maple Distillator. The original Distillator (filter) had been filthy so after Jeff had cleaned the pipe up he threw it away. I will replace it once I have finished with the restoration.This was a tough pipe to photograph the stamping on because it was very faint. When it starts out faint it is very easy to lose even that remnant of a stamp. But one of the things I appreciate about Jeff’s cleanup is that he works to protect and preserve the nomenclature on the shank of the pipes that he works on. I took some photos to show the stamping. In the first photo shows the shape number on the left side 102 and the Patent number mid shank followed by Brigham. The second photo gives a close-up of the shape number. Since this is another pipe Bob’s estate I am sure that some of you have read at least some of the other restoration work that has been done on the previous pipes. You have also read what I have included about Bob Kerr, the pipeman who held these pipes in trust before I came to work on them (see photo to the left). Also, if you have followed the blog for long you will already know that I like to include background information on the pipeman whose pipes I am restoring. For me, when I am working on an estate I really like to have a sense of the person who held the pipes in trust before I worked on them. It gives me another dimension of the restoration work. Bob’s daughter wrote a short tribute to her father. I thank you Brian and tell your wife thank you as well.

I am delighted to pass on these beloved pipes of my father’s. I hope each user gets many hours of contemplative pleasure as he did. I remember the aroma of tobacco in the rec room, as he put up his feet on his lazy boy. He’d be first at the paper then, no one could touch it before him. Maybe there would be a movie on with an actor smoking a pipe. He would have very definite opinions on whether the performer was a ‘real’ smoker or not, a distinction which I could never see but it would be very clear to him. He worked by day as a sales manager of a paper products company, a job he hated. What he longed for was the life of an artist, so on the weekends and sometimes mid-week evenings he would journey to his workshop and come out with wood sculptures, all of which he declared as crap but every one of them treasured by my sister and myself. Enjoy the pipes, and maybe a little of his creative spirit will enter you!

Now with all of the background on the line and the background on Bob Kerr it was time to get on with the restoration of this rusticated Brigham Standard Crosby/Small Billiard. I really appreciate the hard cleanup work that Jeff did on these pipes. They were a real mess when I sent them to Jeff and I have to tell you it was great that I did not need to clean this pipe. I decided to start the process by dealing with the damage to the rim top and edges of the bowl. I topped it on a topping board with 220 grit sandpaper. I worked on the inner edge with a folded piece of 220 grit sandpaper and gave it a very slight bevel so that it took care of the damage on the inner edge. The photos show the progress. I polished the briar on the rim top with micromesh sanding pads – wet sanding it with 1500-12000 grit pads and I wiped the bowl down after each sanding pad with a damp cloth. The grain progressively stood out as I polished the pipe with the pads. I rubbed the bowl and rim down with Before & After Restoration Balm. I worked it into the surface of the briar with my fingertips and a horsehair shoe brush to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. I really like watching the Balm do its magic and bring the briar alive. With the bowl done it was time to address the stem. The dents in the top and underside were the right depth for me to lift them. I “painted” the surface of the stem with the flame of a Bic lighter to raise the dents in the surface. I was able to lift them to the point that a repair would be a simple sanding job. I sanded the surface of the stem with 220 grit sandpaper to remove the remaining oxidation in the vulcanite. I polished it with 400 grit wet dry sand paper. I rubbed the stem down with Denicare Mouthpiece Polish. I have a few tins of this laying around so I am trying to use them up. It does a pretty good job polishing the stem. I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit sanding pads. I wiped it down after each pad with a damp cloth to remove the sanding dust. I polished it further with Before & After Pipe Polish – both Fine and Extra Fine. I finished by rubbing the stem down with some “No Oxy Oil” to protect the vulcanite. I am experimenting with the product from Briarville and tracking how it works so I can write a review of it. With the pipe cleaned and ready to polish I put a new Brigham Distillator filter in the stem. The photos show the Distillator out of the tenon and in place in the tenon. It is a Maplewood tube that collects the moisture from the smoke and delivering a dry, cool smoke sans tongue bite. Once again at this point in the restoration process I am excited to be on the homestretch. This is the last Brigham from the four that are in Bob’s estate so I look forward to the final look when it is put back together, polished and waxed. I put the bowl and stem back together. I polished the bowl and stem with Blue Diamond to polish out the scratches in the briar and the vulcanite. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The rustication is worn but still stands out with the wax and polish. The black of the tapered vulcanite stem along with the four brass pins is a beautiful contrast to the browns of the rusticated bowl and shank. This is a beautiful Patent Era Standard Small Billiard/Crosby that was another fun pipe to work on thanks to Jeff’s cleanup work. The pipe is comfortable pipe to hold in the hand. The finished pipe is shown in the photos below. The dimensions of the pipe are Length: 7 inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 1/8 inches, Chamber diameter: ¾ of an inch. This interesting long Crosby will be going on the rebornpipes store very soon. I have a lot more of Bob’s estate to work on of various brands. Perhaps one of those will catch your attention. Thanks for reading this blog and my reflections on the pipe while I worked on it. This is an interesting estate to bring back to life.

A Brigham Patent Era Special Grain Stack from Bob Kerr’s Estate

3 Replies

Blog by Steve Laug

Brigham 503T Can. Pat. 372982 5 Dot Stack. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty, thick cake and lava overflow on the rim top. Rim top has is worn and damage on the back edge.
Brigham Made In Canada 691 3 Dot Canadian. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty, thick cake and lava overflow on the rim top. Rim top is worn and damaged.
Brigham Made In Canada 601 2 Dot Lovat. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty and worn. Stamping is worn. There is a thick cake and lava overflow on the rim top. Rim top is worn and damaged.
Brigham Made In Canada 1 Dot Bing Crosby Style Pipe. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty, thick cake and lava overflow on the rim top. Rim top is worn and damage on the back edge.
Brigham Made In Canada 6 Dot Bent Billiard. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. The aluminum tenon has been cut off. Finish is dirty and worn with paint on the bowl. There is a thick cake and lava overflow on the rim top. Rim top has a crack on the right side.
Brigham Made In Canada 4 Dot Canadian. Stem is oxidized, tooth marks and chatter near the button, some calcification with damage to the button. Finish is dirty and stamping is worn. There is a thick cake and lava overflow on the rim top. Rim top is worn and edges are damaged.

I chose to work on these in the order above. The first pipe I tackled was #1 which was a beautifully grained Brigham 503T Stack. It was stamped on the left side of the shank with clear stamping Brigham over Can. Pat. 372982. On the right side of the shank it was stamped with the shape number 503T. There was a thick cake in the bowl with remnants of tobacco stuck on the walls. There was a lava overflow on the rim. The top and edges of the rim appear to have some damage all the way around the bowl. The grain on the shank and bowl was a combination of flame and straight grain. There was a dent mid bowl on the left side of the bowl. I think that there was a beautiful pipe underneath all of the buildup of years of use. The stem was oxidized and calcified toward the end with some tooth chatter. There were also some tooth marks on both sides of the stem ahead of the button. There was a pattern of five brass dots on the left side of the tapered stem. Jeff took photos of the pipe before he started his cleanup work on it. Jeff took photos of the bowl and rim top to show the thick, hard cake in the bowl with remnants of tobacco stuck on the walls of the bowl. There was a lava build up on the top of the rim and the edges of the bowl. The rim top looked pretty good but it was hard to know for sure but it appeared that there was damage all around the inner edge. The outer edges of the rim had some damage on the back side where it appeared to have been hit against a hard surface and left behind a rough edge. Jeff took a photo of the side and heel of the bowl to show the condition of the finish. You can see the beautiful grain around the side of the bowl and shank. Even under the dirt and debris of the years it looked very good. Jeff took photos of the stamping on the left side of the bowl and shank. It read Brigham over Can. Pat 372982. The stamp on the right side of the shank read 503T which was the shape number. The last photo shows the five brass dots on the left side of the tapered stem. Jeff took photos of the top and underside of the stem showing the tooth chatter, scratching and oxidation on the stem surface and wear on the edges of the button. I am also including the information from Pipedia’s article on Brigham pipes. It is a great read in terms of the history of the brand (https://pipedia.org/wiki/Brigham_Pipes). Charles Lemon (Dadspipes) is currently working on a book on the history of the brand. Until that is complete this article is a good summary. I have included it below.

As a result, sales of Brigham pipes climbed briskly afterwards, and by the 1960’s there were well over 40 full time production staff. For over four decades now, the company has been the leading Canadian pipe manufacturer, producing more than three quarters of all the pipes made in Canada.

In 1978, Roy’s grandson Mike joined the firm and together with Herb (now in his 80s) they still produce pipes and wooden filters according to long established techniques, resulting in consistently high quality products. Several pipe makers who learned the craft of pipe making here at Brigham went on to make a name for themselves in Canada and internationally including Philip Trypis and Julius Vesz.

I wrote to Charles Lemon (Dadspipes) and asked him about the stamping on the pipe. He responded with information on all of the foursome. I am including the information on this particular pipe.

Hey Steve! Good to hear from you.

The ‘T’ suffix to the Brigham 3-digit shape number indicates a Tall bowl (ie taller than the standard shape). Thus your Patent Era 503T is a Brigham Special Grain Shape 03 (Medium Billiard) with a Tall bowl, made between 1938 and 1955…

…As these are all Patent pipes, it’s more accurate to refer to their grade by name (the post 1980 grading scheme refers to Dots). Here is the original scheme:With the information from Charles’ message and the chart above that he included I knew what I was dealing with in terms of the stamping and the age of this pipe. I learned that the ‘T’ suffix to the Brigham 3-digit shape number indicated a Tall bowl (i.e. taller than the standard shape). This Patent Era 503T is a Brigham Special Grain Shape 03 (Medium Billiard) with a Tall bowl, made between 1938 and 1955. Most of Bob’s pipes were purchased in the 50s and 60s so my guess is that this is fits that time frame well. Now it was time to work on the pipe.

I am really happy to have Jeff’s help on cleaning up the pipes from Bob’s estate as the 125+ pipes were taking me a long time to do alone. He cleaned this filthy pipe with his usual penchant for thoroughness that I really appreciate. This one was a real mess and I did not know what to expect when I unwrapped it from his box. He reamed it with a PipNet pipe reamer and cleaned up the reaming with a Savinelli Fitsall Pipe Knife. He scrubbed out the internals with alcohol, pipe cleaners and cotton swabs until the pipe was clean. He scrubbed the exterior of the bowl with Murphy’s Oil Soap and a tooth brush to remove the grime and grit on the briar and the lava on the rim top. The finish looks very good with great looking grain around the bowl and shank. Jeff soaked the stem in Before & After Deoxidizer to remove the oxidation on the rubber. When the pipe arrived here in Vancouver for the second stop of its restoration tour I was amazed it looked so good. I took some close up photos of the rim top and also of the stem surface. I wanted to show what an amazing job Jeff did in the cleanup of the rim top. The rim top was darkened with nicks and notches around the top and inner edge. The inner edge was very rough and looked like the bowl had been reamed with a knife at some time in its life. I also took close up photos of the stem to show the lack of tooth marks and chatter on the stem surface. It was very clean.I took the stem off the shank to show the aluminum tenon/tube that was used to hold the Brigham Rock Maple Distillator. The original Distillator (filter) had been filthy so after Jeff had cleaned the pipe up he threw it away. I will replace it once I have finished with the restoration.One of the things I appreciate about Jeff’s cleanup is that he works to protect and preserve the nomenclature on the shank of the pipes that he works on. The stamping on this one was very faint to start with so I was worried that it would disappear altogether with the cleanup. He was not only able to preserve it but it is clearer than shown in the earlier photos. I took some photos to show the clarity of the stamping. I have noticed that many restorers are not careful to protect the stamping in their cleaning process and often by the end of the restoration the nomenclature is almost destroyed. I would like to encourage all of us to be careful in our work to preserve this as it is a critical piece of pipe restoration! Since this is another pipe Bob’s estate I am sure that some of you have read at least some of the other restoration work that has been done on the previous pipes. You have also read what I have included about Bob Kerr, the pipeman who held these pipes in trust before I came to work on them (see photo to the left). Also, if you have followed the blog for long you will already know that I like to include background information on the pipeman whose pipes I am restoring. For me, when I am working on an estate I really like to have a sense of the person who held the pipes in trust before I worked on them. It gives me another dimension of the restoration work. Bob’s daughter wrote a short tribute to her father. I thank you Brian and tell your wife thank you as well.

Now with all of the background on the line and the background on Bob Kerr it was time to get on with the restoration of this beautiful straight grained Brigham Special Grain Tall Billiard. I am really coming to appreciate the hard cleanup work that Jeff did on these pipes. They were a real mess when I sent them to Jeff and I have to tell you it was great that I did not need to clean this pipe. I decided to start the process by dealing with the damage to the rim top and edges of the bowl. I topped it on a topping board with 220 grit sandpaper. I worked on the inner edge with a folded piece of 220 grit sandpaper and gave it a very slight bevel so that it took care of the damage on the inner edge. The photos show the progress. I polished the briar with micromesh sanding pads – wet sanding it with 1500-2400 grit pads and I wiped the bowl down after each sanding pad with a damp cloth. There were some scratches in the bowl on both sides and there appeared to be a dent in the left side mid-bowl. I interrupted the polishing of the briar to deal with the dent in the bowl side. I heated a knife and used it and a wet cloth to steam the dent out of the surface of the briar. The first photo shows the process while the second shows the bowl after the steaming. The dent is gone. With the dent removed I went back to polishing the briar with the remaining micromesh sanding pads – wet sanding it with 3200-12000 grit pads and I wiped the bowl down after each sanding pad with a damp cloth. I rubbed the bowl and rim down with Before & After Restoration Balm. I worked it into the surface of the briar with my fingertips to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. I really like watching the Balm do its magic and bring the briar alive. The stem was in great condition so I did not need to sand out tooth marks or chatter. I polished the stem with micromesh sanding pads – wet sanding with 1500-12000 grit pads. I wiped the stem down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. Once I had finished the polishing I gave it a coat of a new product I am experimenting with from Briarville Pipe Repair. It is called “No Oxy Oil” and it is made to protect the stem from oxidizing. I set it aside to dry. With the pipe cleaned and ready to polish I put a new Brigham Distillator filter in the stem. The photos show the Distillator out of the tenon and in place in the tenon. It is a Maplewood tube that collects the moisture from the smoke and delivering a dry, cool smoke sans tongue bite. Once again at this point in the restoration process I am excited to be on the homestretch. This is the first Brigham from the four that are in Bob’s estate so I look forward to the final look when it is put back together, polished and waxed. I put the bowl and stem back together. I polished the bowl and stem with Blue Diamond to polish out the scratches in the briar and the vulcanite. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The grain is quite stunning and really pops with the wax and polish. The shiny black vulcanite stem with the five brass pins is a beautiful contrast to the browns of the bowl and shank. This was another fun pipe to work on thanks to Jeff’s cleanup work. It really is a quite stunning piece of straight and flame grained briar whose shape follows the flow of the briar. The Brigham 503T Patent Era Special Grain Stack is a comfortable pipe to hold in the hand. The finished pipe is shown in the photos below. The dimensions of the pipe are Length: 5 ¾ inches, Height: 2 inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. I am a bit undecided on this pipe. I am thinking of holding onto it for a while but I am still not sure. If I decide to let it go this beautiful pipe will be going on the rebornpipes store. I have a lot more of Bob’s estate to work on of various brands. Perhaps one of those will catch your attention. Thanks for reading this blog and my reflections on the pipe while I worked on it. This is an interesting estate to bring back to life.
