Restemming a Drummond Imported Briar Squashed Tomato

 Blog by Steve Laug

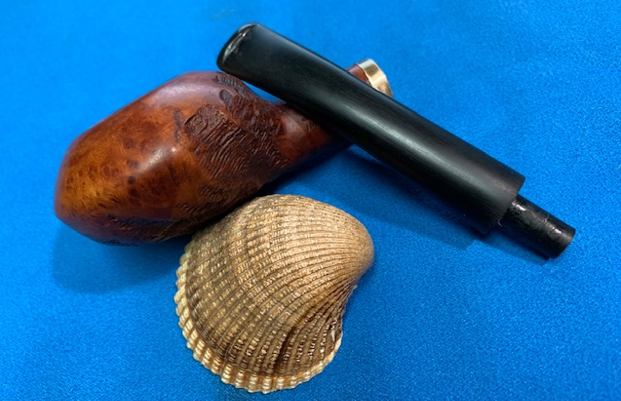

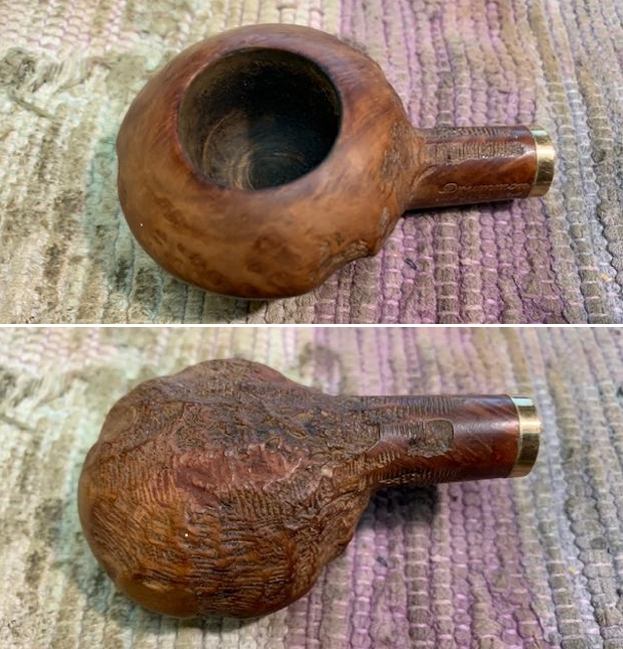

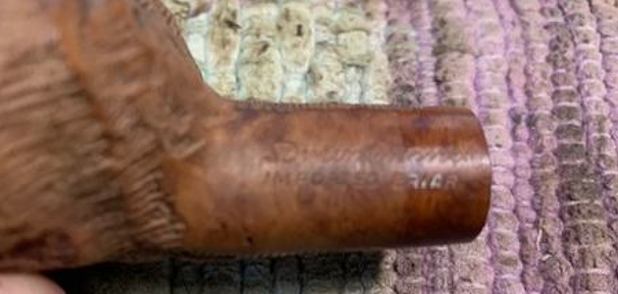

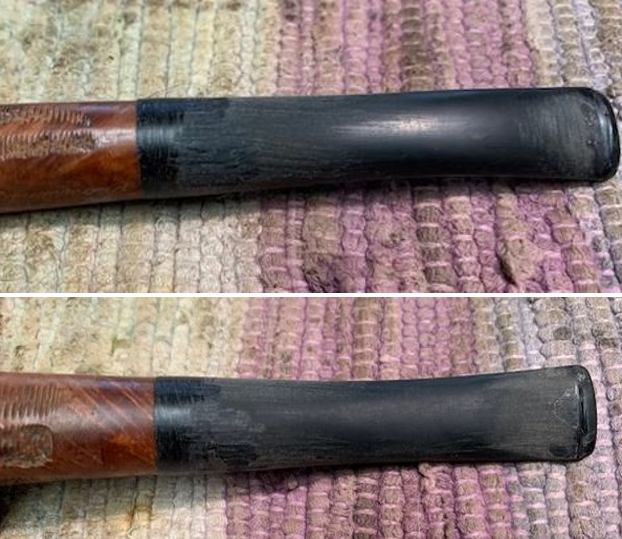

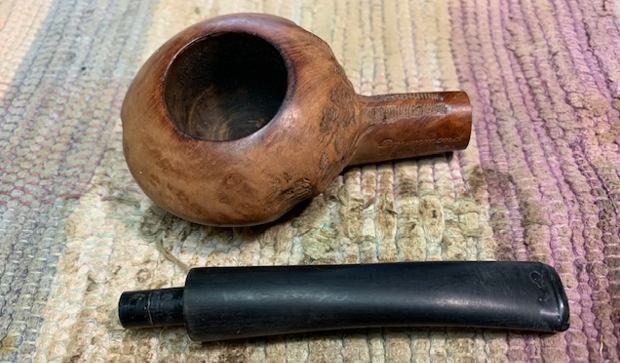

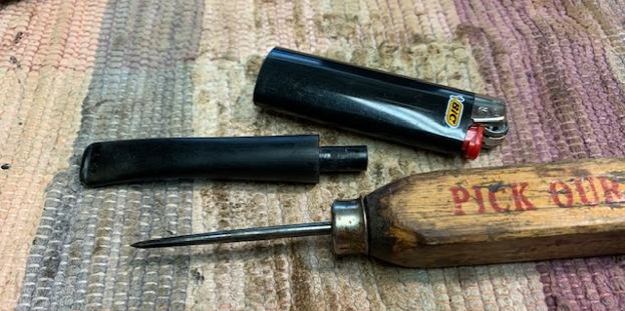

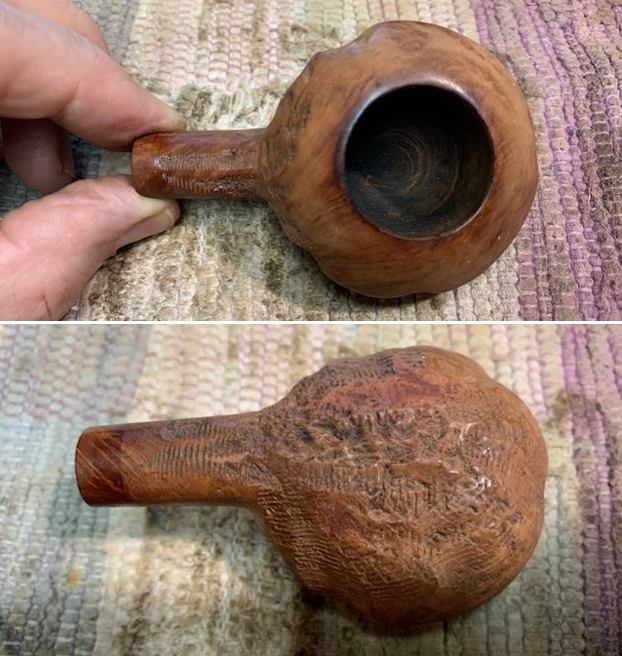

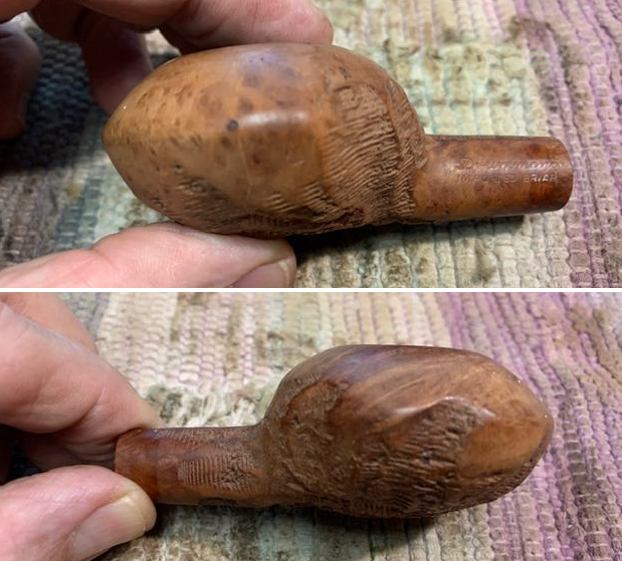

The next pipe on the work table is bowl that needed to be restemmed. It has a finish that is reminiscent of Custom-Bilt fame but this one is not one of those. It is a squashed tomato shaped bowl with a smooth rim top and rusticated bowl bottom and shank. The pipe is stamped on the left side of the shank and reads Drummond in script [over] Imported Briar. There was some darkening on the shank end where there had been a band that covered the edge of the final d in Drummond. The band was gone. The bowl had been cleaned with the thoroughness that usually is a sign that Jeff has worked on it. It had been reamed and cleaned. The inside of the bowl and shank looked and smelled clean. The inside edges looked to be in good condition. The briar was dry and lifeless looking and it was without a stem. I took some photos of the bowl before I worked on the new stem for it. It is a very interesting looking old pipe. I took a photo of the stamping on the left side of the shank. It reads as noted above and faint but very readable. I went through my can of stems and found an interesting hard rubber stem with an inset tenon that would fit the shank with a little bit of work. It was a little larger in diameter than the shank so I would need to reduce that. There were some interesting marks on the top and underside ahead of the button that looked like it had been repaired somewhere along the way. It was pretty clean otherwise. I also found a thin brass band that would fit nicely on the shank end and replace the one that had been there previously. I could find nothing listed on either Pipedia or Pipephil’s site on the Drummond Brand. I did a quick search of the name and came across quite a few photos of tins of tobacco and pouches of tobacco made by Liggett & Myers. It is labeled as Antique Pipe Chewing Tobacco Tin that is called The Genuine Drummond Natural Leaf Thick. Have a look at the photos I have included below (

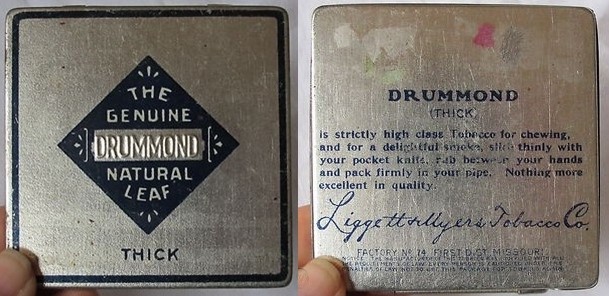

Antique Pipe Chewing Tobacco Tin Genuine Drummond Natural Leaf Liggett & MyersI am pretty certain that the pipe was a Tobacco Company Coupon pipe possibly that was earned by tobacco coupons. I cannot prove that but that appears to be what is happening with this mystery brand. Now on to working on the pipe.

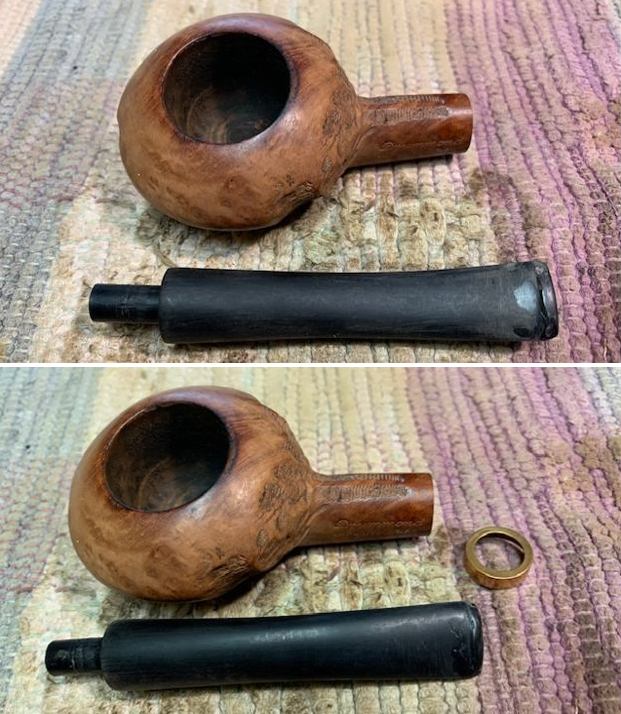

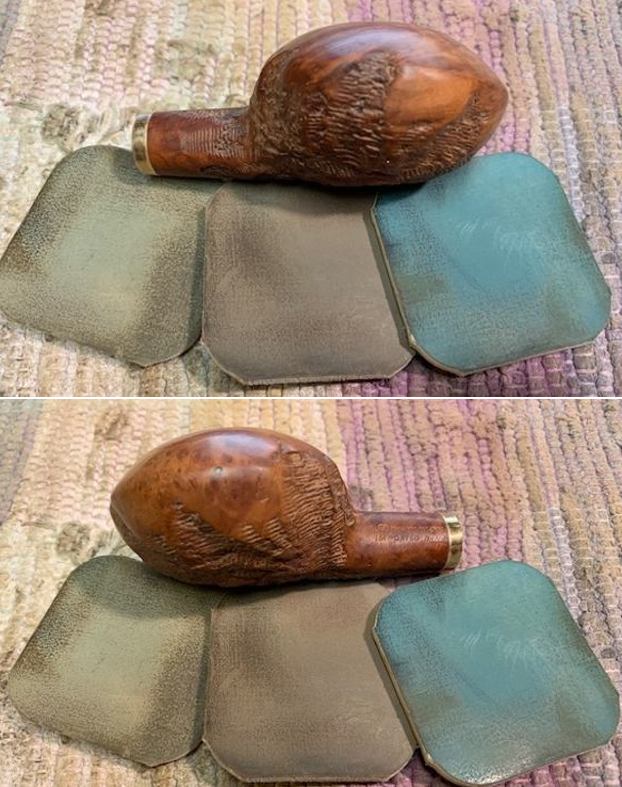

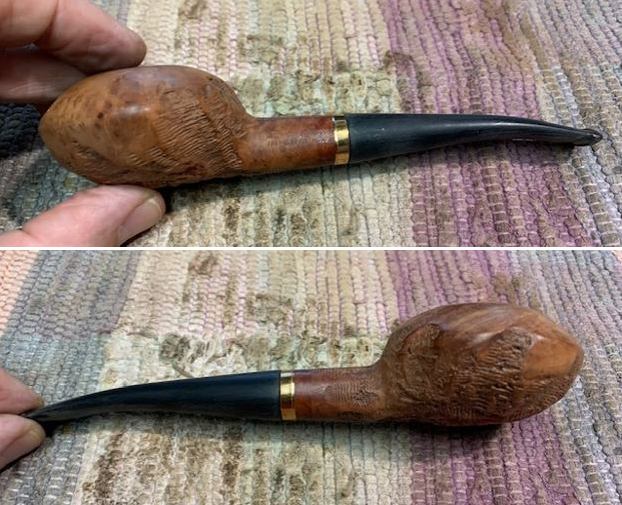

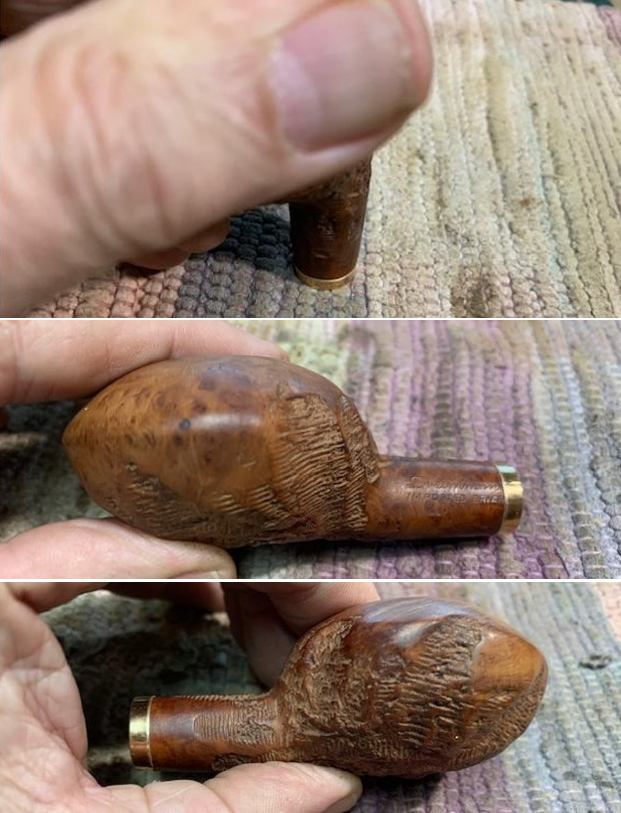

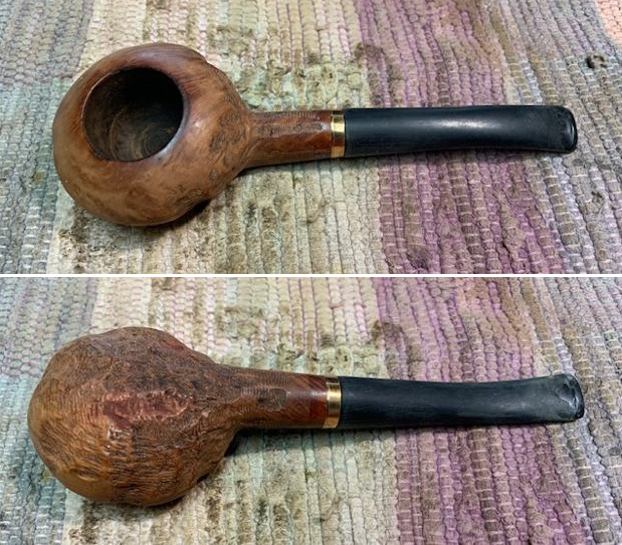

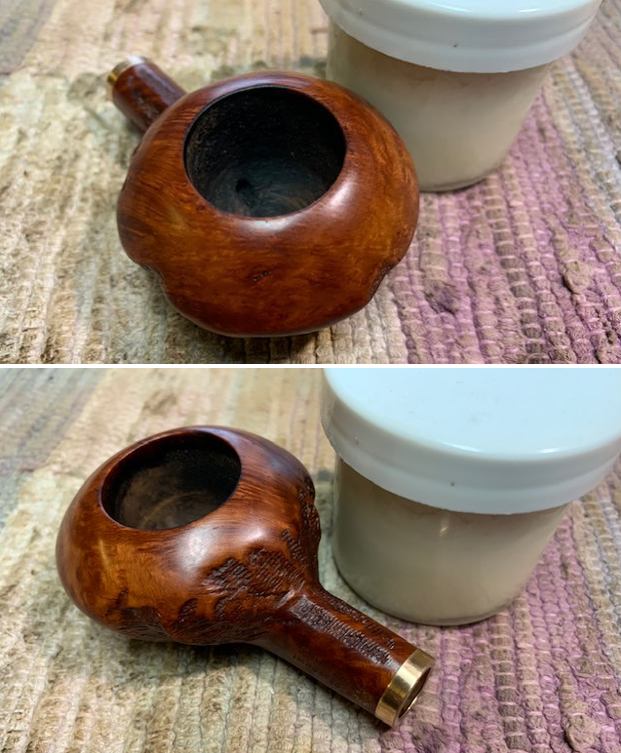

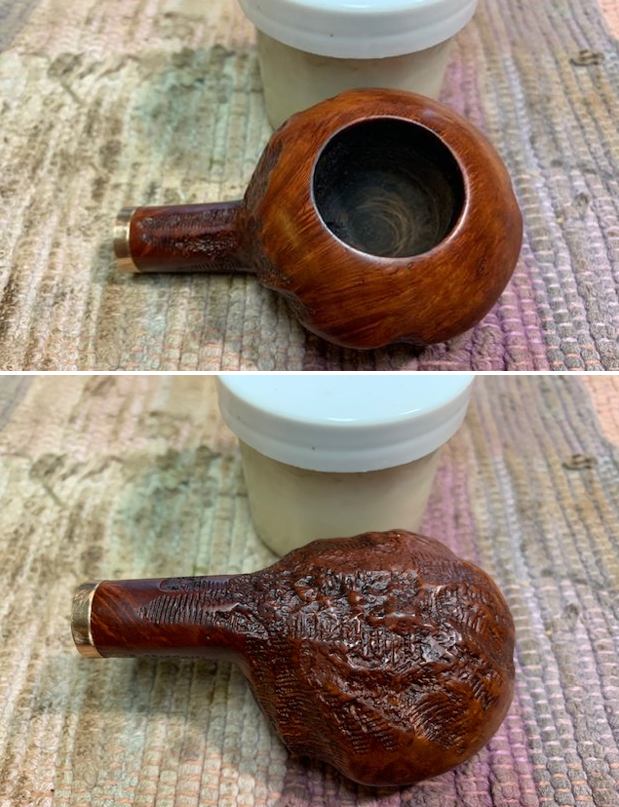

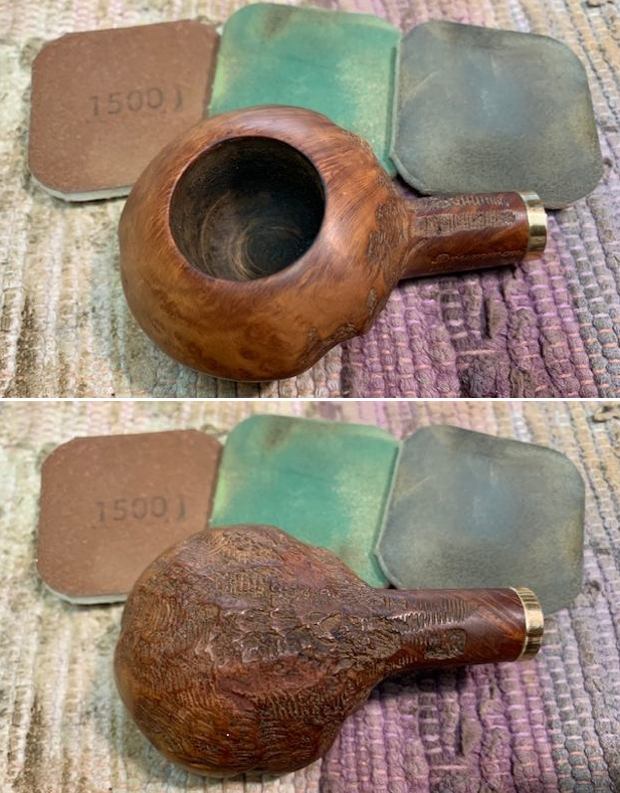

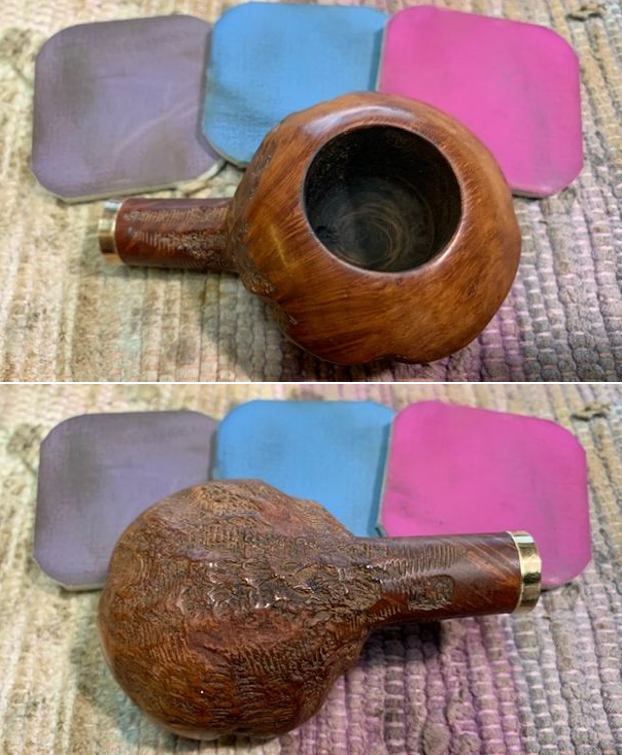

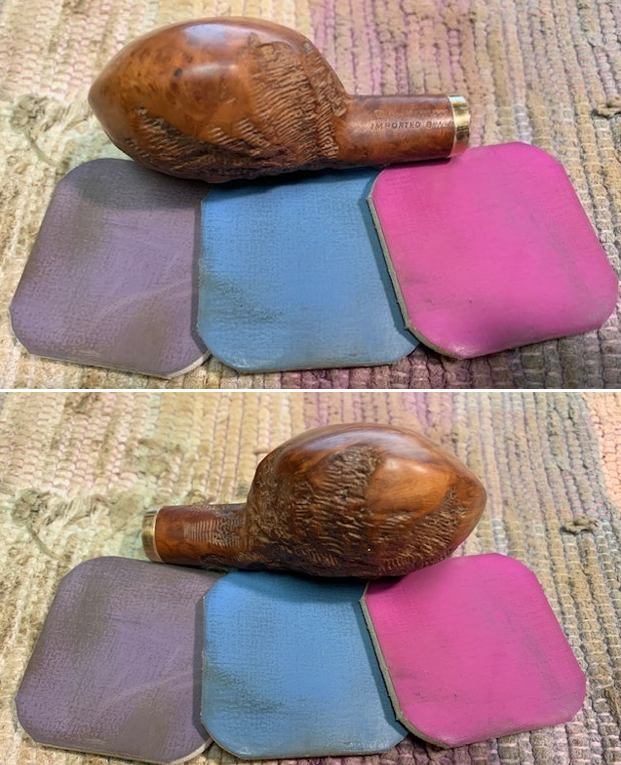

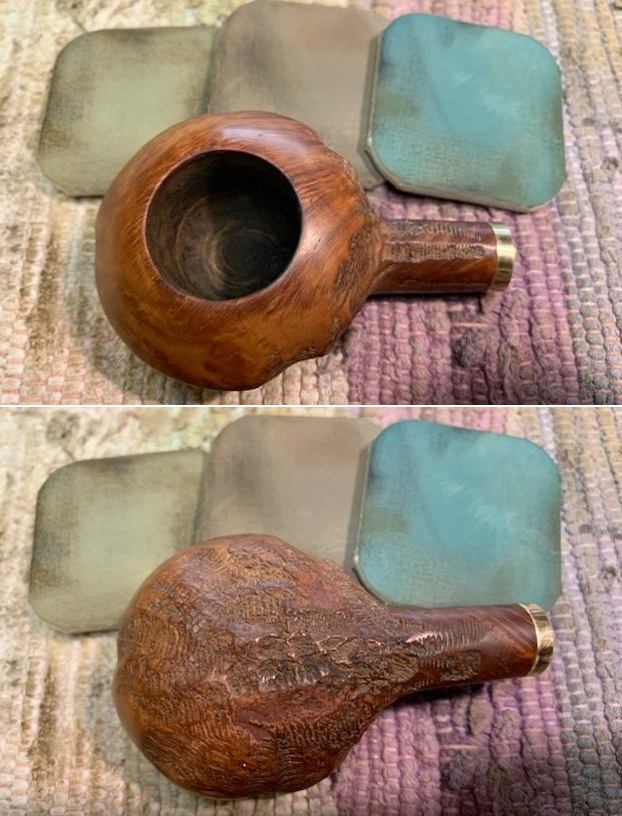

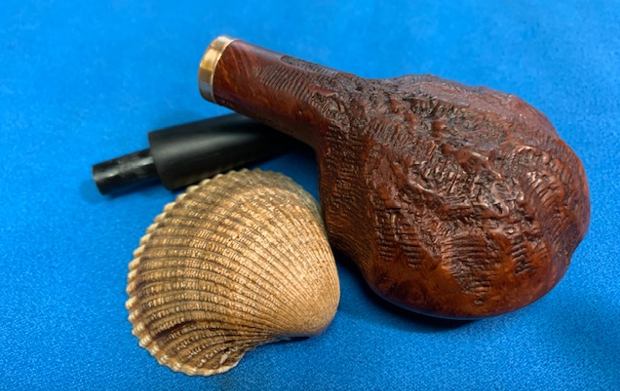

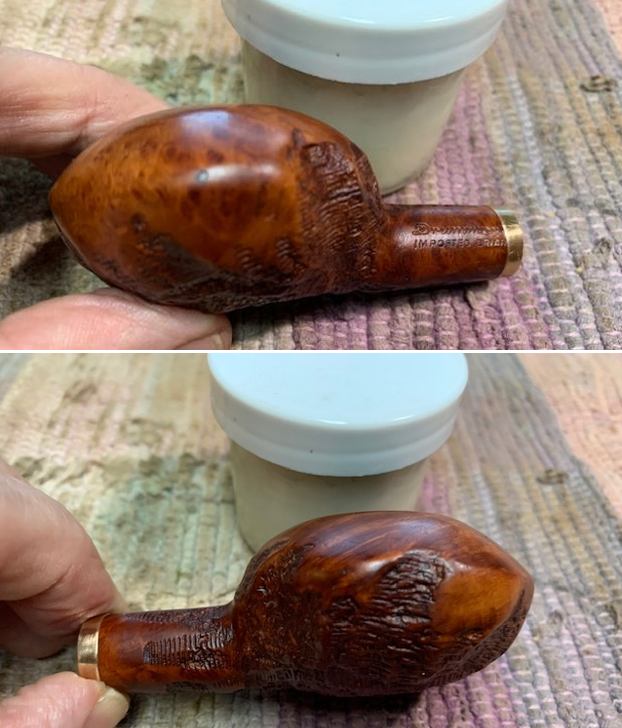

Now to work on the pipe itself. I pressed the band in place on the shank and put the stem on the shank to get a feel for the look. I took some photos to show the general look. You can see that the stem is slightly larger in diameter than the shank and will need to be reduced. Even so I really like the slight bend in the stem and the look of the pipe as it stands with the stem.  I started my work on the bowl and permanently pressed the brass band on the shank end against my desk top. It was a tight fit and though it is only cosmetic gave the shank a nice touch of bling. I polished the smooth portions of the briar with micromesh sanding pads – dry sanding with 1500-12000 grit pads and wiping it down after each pad with a damp cloth. I used the final three grits on the rusticated portion as well. It really began to take on a rich shine. I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips and a horsehair shoe brush to clean, enliven and protect the briar. I let the balm sit for 10 minutes then buffed with a cotton cloth to raise the shine. The grain and the rustication patterns came alive. It looks better than when I began. I set the bowl aside and turned to work on the stem. The fit of the tenon in the shank was loose so I heated an ice pick and inserted it in the tenon to expand the diameter slightly. It did not take much and the fit was perfect! The next photos are slightly out of order. Before I pressed the band in place on the shank I used the Dremel and sanding drum to take down the diameter of the stem to get a clean fit on the shank. I removed as much of the excess as possible with the sanding drum and would finish the fit with sand paper afterwards. I sanded the stem with 220 grit sandpaper to smooth out the fit to the shank and band as well as smooth out the repairs near the button that stood out on the stem in the photos above. I started the polishing of the stem with 400 grit wet dry sandpaper.  I polished the stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. I gave it a final coat of Obsidian Oil and set it aside to dry.  This Drummond Imported Briar Squashed Tomato is a great looking pipe now that it has been restored and restemmed. The mix of rusticated and smooth finishes around the bowl is quite beautiful and highlights the grain and works well with the polished taper stem. The stem looks very good but the repaired areas ahead of the button on each side are solid but visible. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Drummond Squashed Tomato fits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 6 ½ inches, Height: 1 ¼ inches, Outside diameter of the bowl: 2 inches, Chamber diameter: 1 of an inch. The weight of the pipe is 1.66 oz./47 gr. I will be putting it on the rebornpipes store shortly. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it.
