Dropped in at the Dunhill Deep End


Blog by Kenneth Lieblich

This is the first and introductory blog by Kenneth. We have been working through his Grandfather’s pipes and others that he has purchased to help him learn the processes that I use to restore and refurbish pipes. He is a quick study and able student. Give his first blog a read and enjoy it. Thanks Kenneth and welcome to rebornpipes.

I must admit that I never thought that the first pipe I ever restored would be a Dunhill Shell Briar Bulldog. Talk about nerve-wracking! I figured I would start out on an old clunker of a pipe so that if I made a mess of it, there was no great loss. But Steve Laug insisted that this was the one I had work on first because it was, in fact, a microcosm of pipe restoration all in one little pipe. I want to express my gratitude to Steve for not only permitting me to post the story of this pipe’s restoration, but most especially for guiding me every step of the way through the process. The vagaries of life (thanks to Covid) necessitated several FaceTime and Zoom chats, but he was always generous, friendly, and helpful. Any compliments on this restoration are for him – any criticisms are for me.

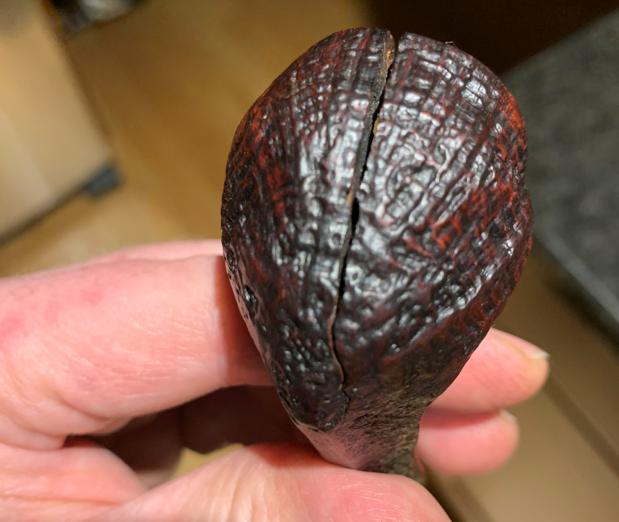

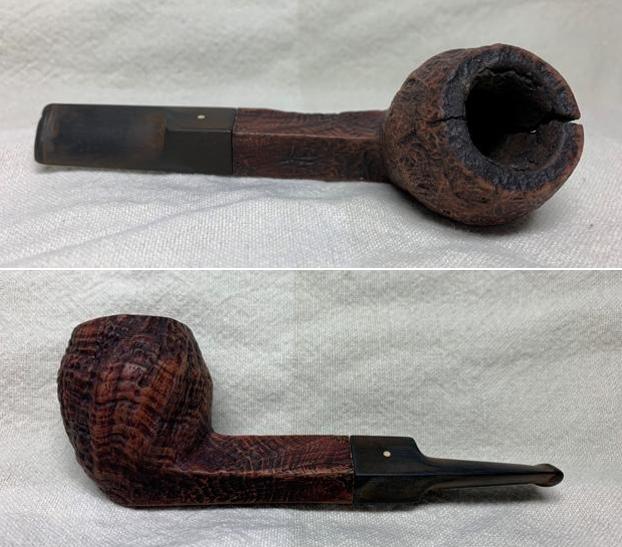

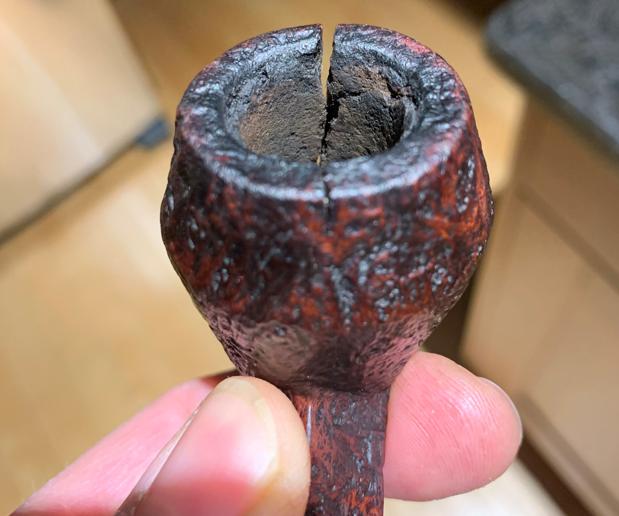

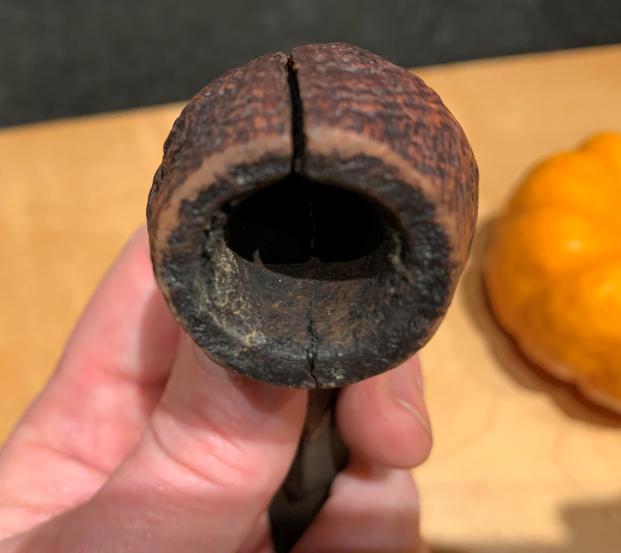

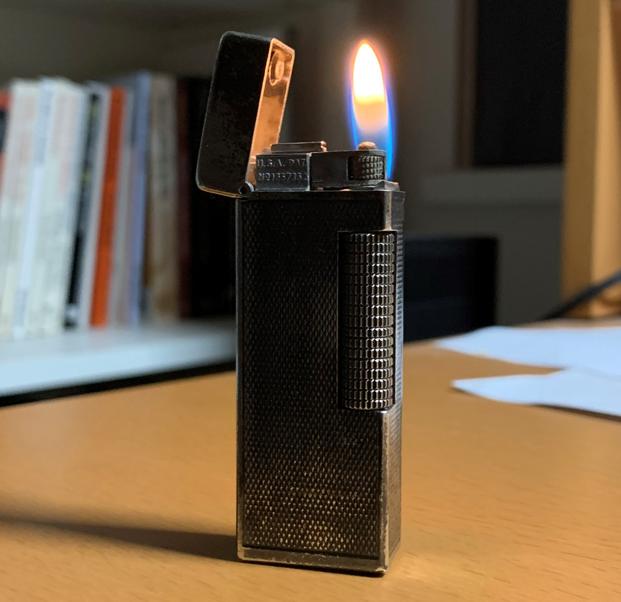

This charming Dunhill Shell Briar Bulldog pipe belonged to my paternal grandfather and was one of seventeen pipes left to my father, and which he has now given to me. A little detective work over at http://www.pipephil.eu revealed that this Dunhill dates from 1937 – which would have made my grandfather 29 years old when it was made.He died in 1975, so this pipe has not been smoked for at least 45 years (and probably more). As a side note, while this restoration was ongoing, I also restored his Dunhill Rollagas lighter (dated to the mid-1950s), so that I could use it to light the pipe one day. In that pipe will be some very old tobacco that is also from my grandfather. I am not sure what the tobacco is, but it smells lovely. I have another two Dunhill pipes I inherited from my grandfather, but I will save those restorations for future posts! As you can see from these initial photos, this poor pipe had some serious issues! The front of the bowl had a large crack, reaching all the way from the rim to the heel. There was also another crack (albeit considerably smaller) on the opposite side of the bowl. Smaller it may have been, but no less daunting to me. There was some cleaning that needed to be done inside the shank and stem, but less than might have been expected from an 85-year-old pipe. The usual routine of isopropyl alcohol, pipe cleaners, Q-tips, etc. made short work of that. Unfortunately, I do not have a handy brother like Jeff Laug to help clean my pipes, so I did it myself. I learn by doing, so this was just as well.

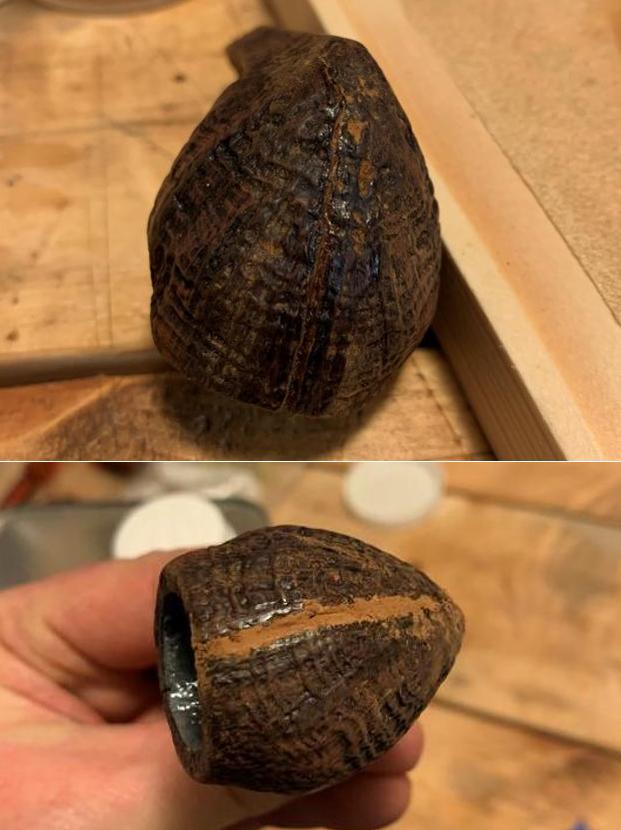

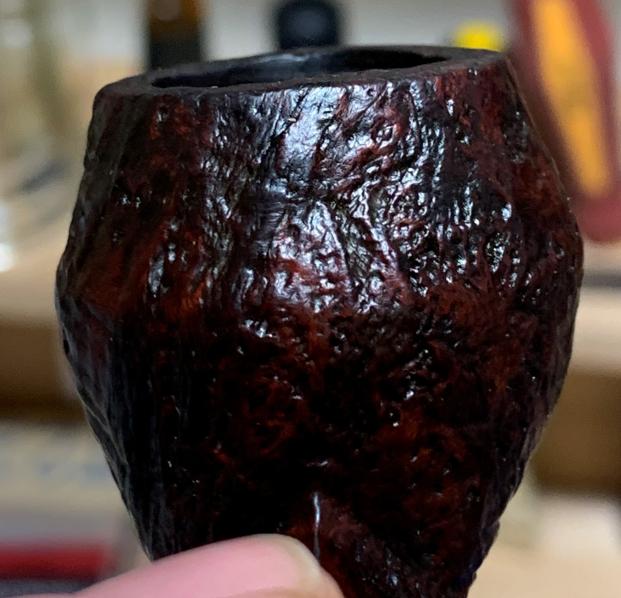

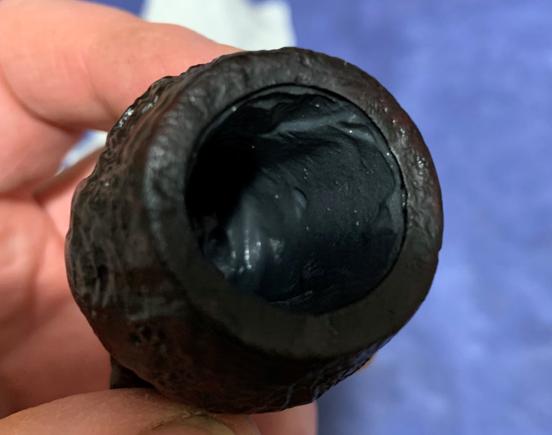

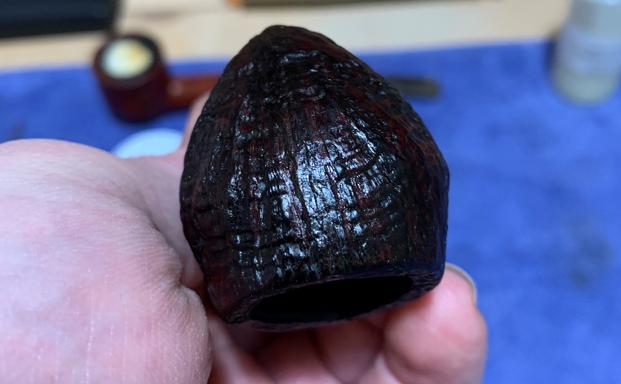

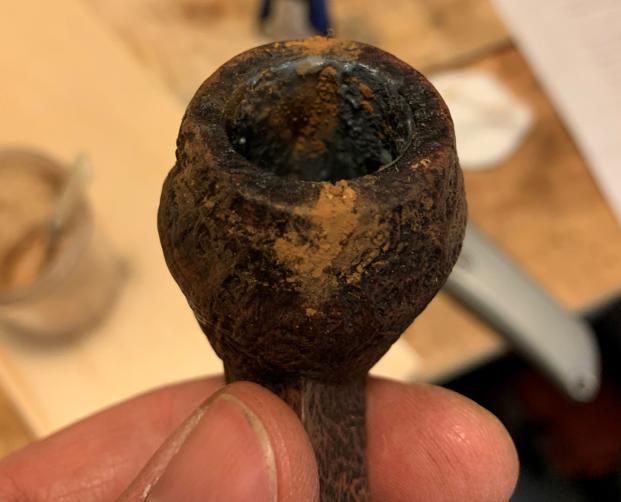

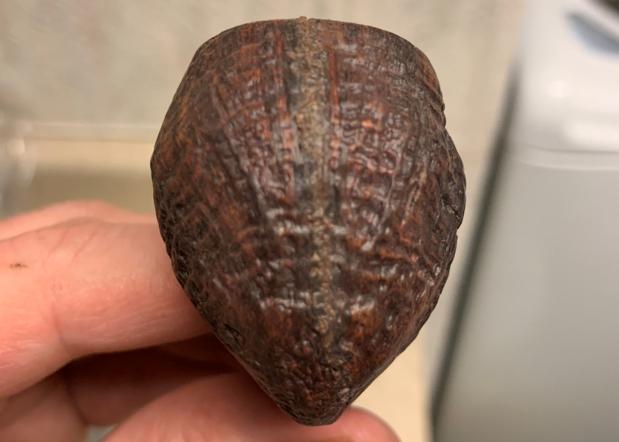

After using both the Pipnet Reamer and the KleenReem, the bowl was stripped down to the bare briar. This afforded me a good look at the condition of the bowl and just how far the two cracks had penetrated the wood. The smaller crack was not any worse than it initially appeared, but the large crack went all the way to the underside of the bowl. I cleaned the stummel with Murphy’s Oil Soap and that made a world of difference to the overall appearance of the wood, but not to the cracks, obviously. I prepared some J.B. Weld epoxy and filled the breach from the inside, ensuring that the epoxy did not ooze out to the front. I filled in the crack from the outside with a mixture of briar dust and cyanoacrylate adhesive. This was a tricky business, as the crack varied from ‘gaping’ at the rim to essentially ‘imperceptible’ at the heel. After putting down some layers of briar dust and glue, I noticed that there were still some small gaps that only iPhone magnification could reveal, as seen here. These were soon mended and left to cure.Following this, some rustication was needed, and a brass-bristle brush was the tool I used. In fact, the brush was used several times – including after I applied some stain to the briar-glue repair. The stain was used in conjunction with the Before & After Restoration Balm, to help meld everything together. I must admit that I wish I could have done this step better – all I could see were flaws, but everyone else told me how much better it looked, especially when compared with how it began. These photographs show you that it wasn’t complete, but I guess it really was better. Once this had fully cured, I coated the entire inside of the bowl with a mixture of activated charcoal and my wife’s homemade yogurt. Once hardened, this provided a good, slightly rough surface for a new cake to build. Then it was time for the stem. It was in pretty good condition, considering its age. There were a couple of relatively minor tooth marks and the button needed some work. However, without doubt, restoring the stem was the most frustrating part of the restoration. It began easily enough, with the stem taking a swim in the Before & After Hard Rubber Deoxidizer. In order to address the chatter, I waved the flame of a BIC lighter over the mouthpiece. I also took some of the cyanoacrylate adhesive and filled in the deeper tooth marks. But then the tough stuff came: sanding, more sanding, then even more sanding. Did I mention the sanding? As you know from Steve’s similar work, I used 220, 400, and 600 sandpapers to wet-sand the stem. Then followed that with all nine Micromesh pads (1,500 through 12,000 grit) – using Obsidian Pipe Stem Oil in between each pad. The pictures only tell a fraction of the story. Quite frankly, my lack of experience was my undoing, as I had to do this entire sanding sequence twice over. It just did not look right the first time. In fact, I was not even convinced that it looked right the second time, but Steve reassured me (with his typical kindness) that I was merely suffering from the same sort of pipe perfectionism that he does – not to mention the fact that this pipe is 85 years old: it is not meant to look brand new! At some point, one has to stop or else one will simply sand the pipe away into oblivion!

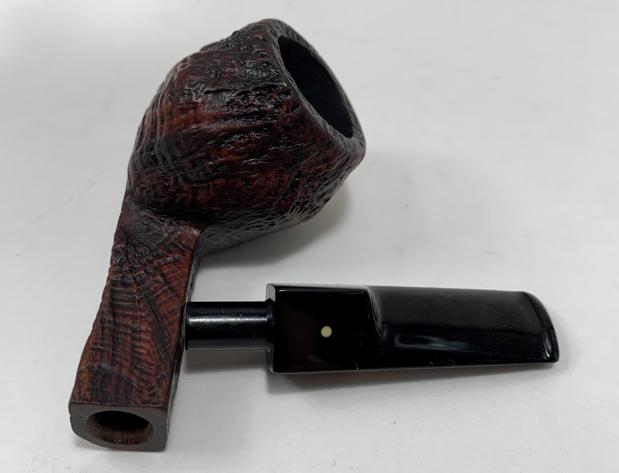

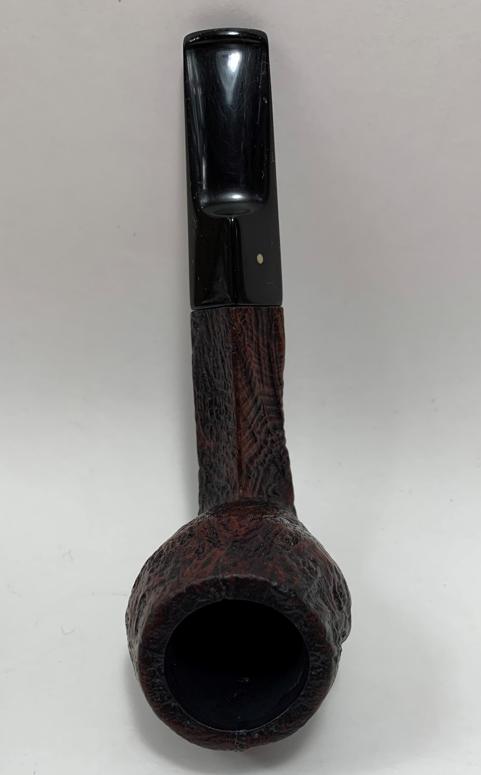

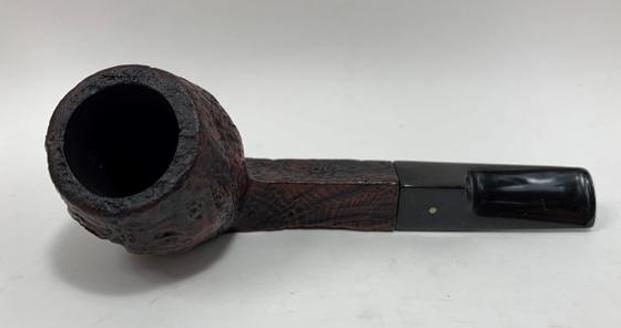

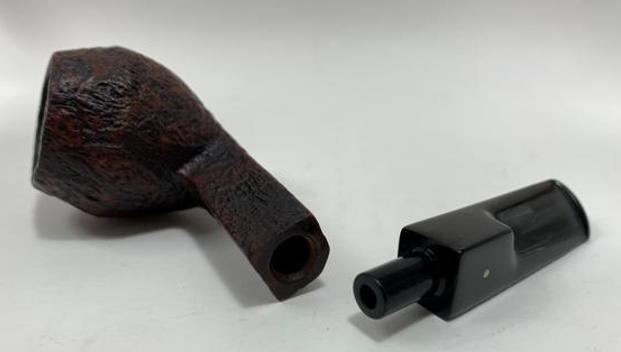

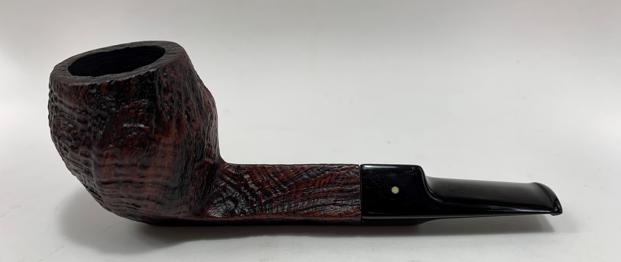

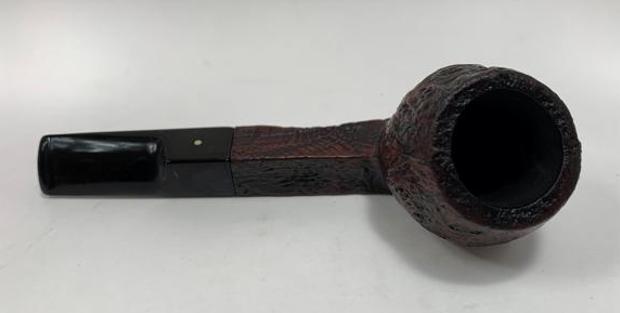

At long last, I was at the point where I could throw down some more Obsidian Pipe Stem Oil, Before & After Restoration Balm, and Paragon II Wax. Microfibre cloths, horsehair shoe brushes, and buffing pads followed – all to provide a final product (hopefully) worthy of my beloved grandfather’s memory. This was certainly a labour of love and I look forward to firing up his 85-year-old Dunhill pipe, with his 65+ year-old Dunhill lighter, filled to the rim with his 50+ year-old tobacco. The dimensions of the pipe are as follows: length 4⅝ inches; height 1⅝ inches; bowl diameter 1½ inches; chamber diameter: ¾ of an inch. The weight of the pipe is ⅞ of an ounce (or 27 grams).

Thank you very much for reading and I welcome and encourage your comments. Kenneth sent me this message and photo on Facebook.

This is my grandfather, Alfred Lieblich,  in Vienna in 1938. Look what’s in his mouth! Amazing!
