Restoring a Tiny Bonnie Brier Rhodesian


Blog by Steve Laug

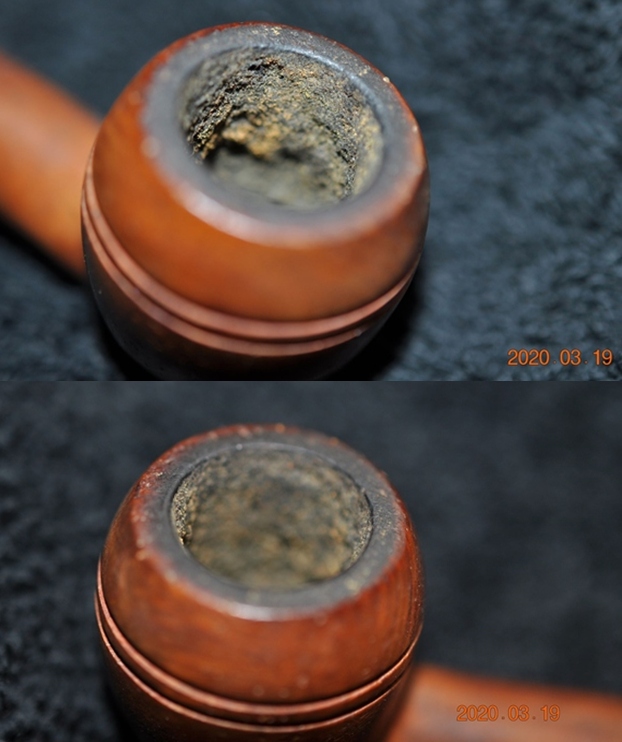

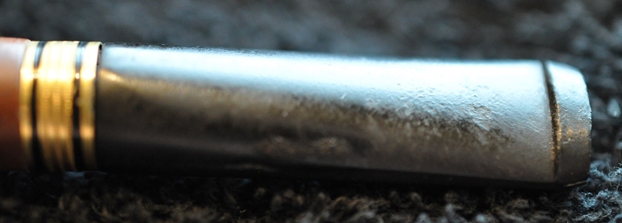

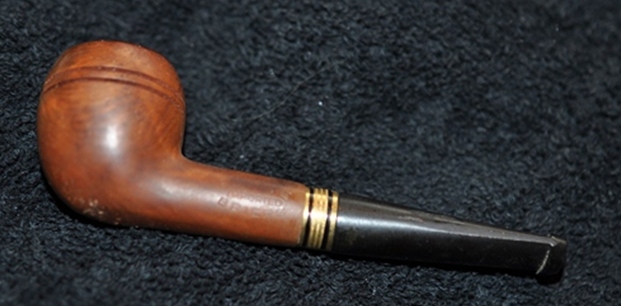

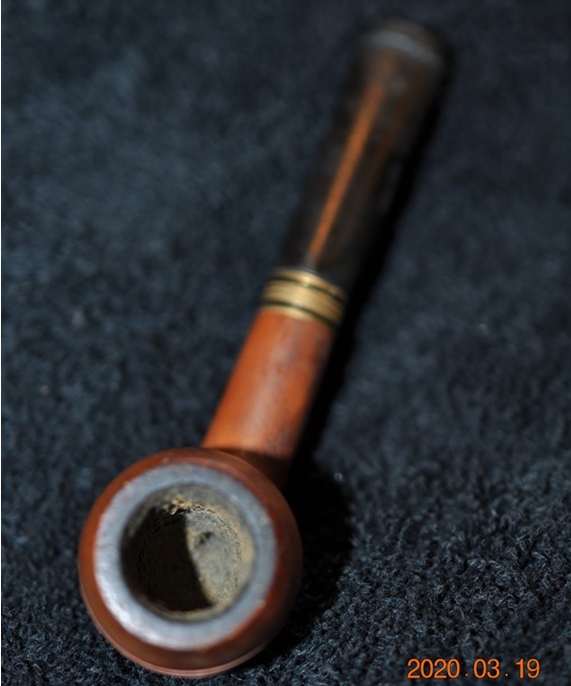

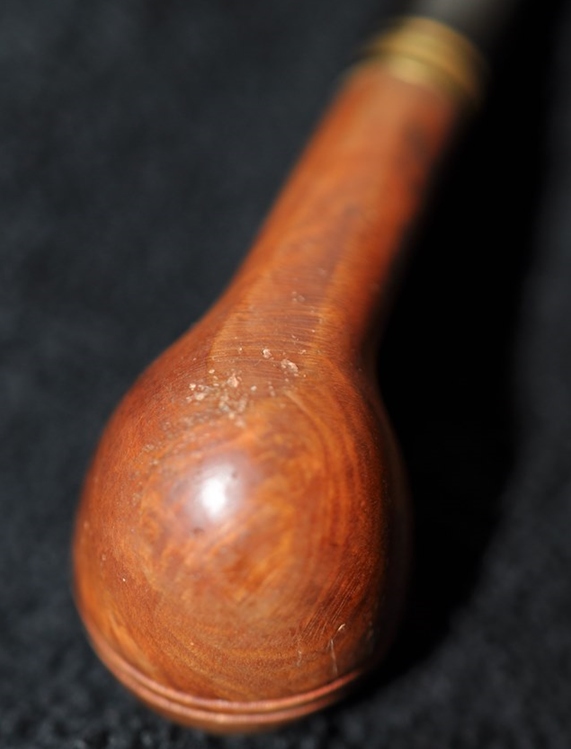

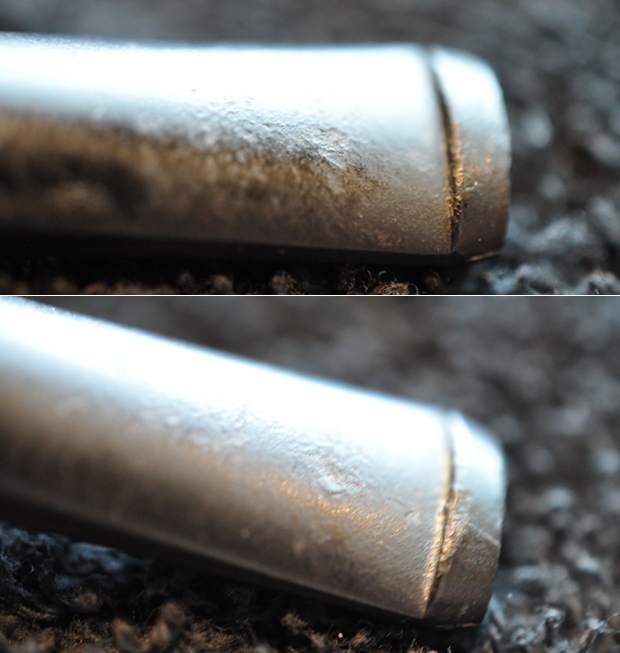

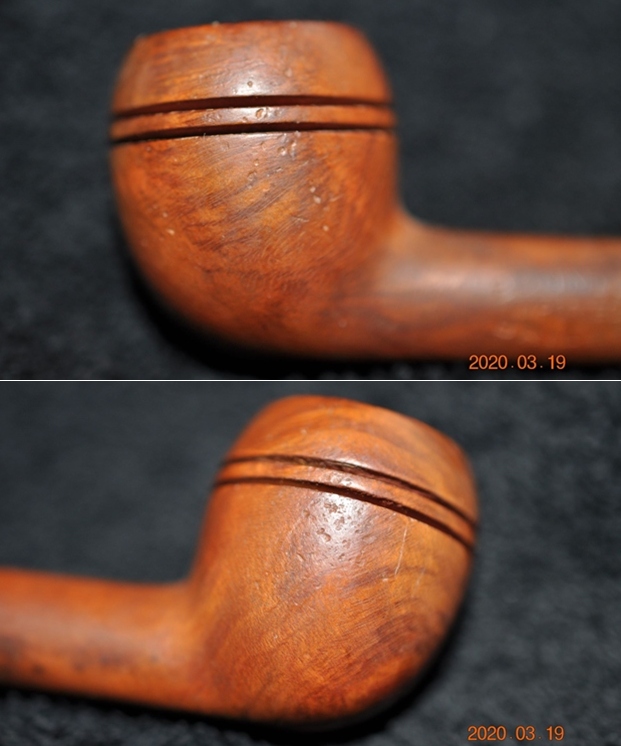

The next pipe on the work table is a tiny little straight Rhodesian with a fancy band on the shank and a vulcanite stem. The pipe reminds me of a small size Salesman’s pipe that was carried as a sample by pipe salesmen. It has a brown smooth finish that highlights the grain around the bowl sides and shank. When I first took the pipe out of the box to work on it this morning I was surprised by how small of a pipe it really was. It is stamped on the left side of the shank and reads Bonnie in an arch [over] Imported [over] Brier arched below it.  The tiny pipe had definitely been smoked and the stem had tooth marks in the vulcanite. The finish was very good around the bowl sides but the rim top had some darkening. There was a lot of grime ground into the bowl and in the rings around the cap. The bowl was heavily caked and there was a lava coat on the top of the rim. The inner edge of the bowl was covered with thick lava but it appeared to me that there was damage and burning around the edges. The vulcanite taper stem was oxidized and had tooth marks and chatter on both sides near the button. The tiny pipe had promise but it was very dirty. Jeff took photos of the pipe before he started his cleanup work. He took photos of the rim top and bowl to give a clear picture of the thickness of the cake and the condition of the rim top and edges. To me it is unbelievable that a pipe this tiny was smoked this much! The pipe is only 3 ½ inches long and 1 inch tall. He also took photos of the top and underside of the stem to show the horrible condition of the chatter and tooth marks.   Jeff took photos of the sides and heel of the bowl to give a picture of what the briar around the pipe looked like. There is some interesting grain under the grime and nicks on the bowl sides. Jeff took a photo of the stamping on the side of the shank. It read as noted above.  I turned Pipephil’s section on Bonnie Brier Pipes to see if I could get a sense of the brand before I started working on it (http://www.pipephil.eu/logos/en/logo-b6.html). These are all regular sized pipes while the one on the table is a mini!I turned to Pipedia and looked up the specifics on the Bonnie Brier pipes (https://pipedia.org/wiki/Bonnie_Brier).

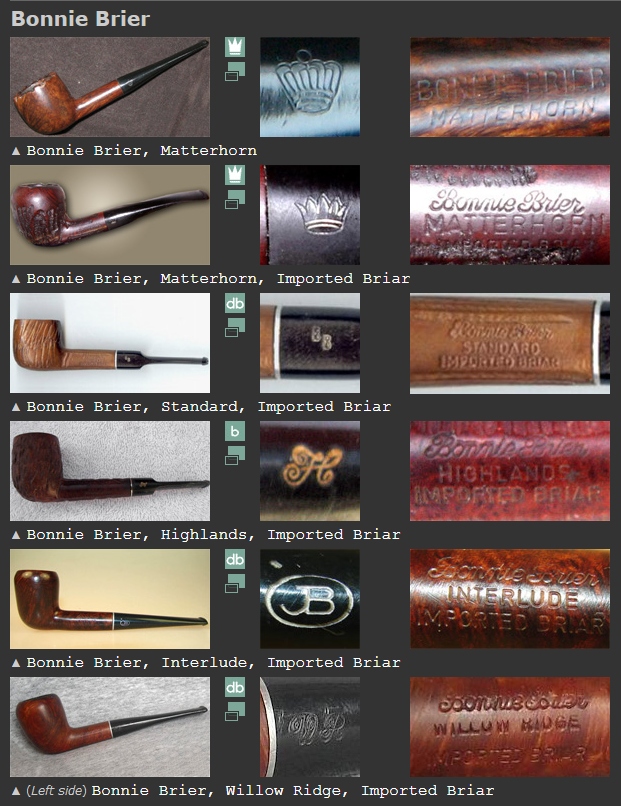

Bonnie Brier is a trademark of Finsbury Products, Inc. of Elmsford, NY. The trademark was registered in November of 1976, and expired in August of 1997. The pipes are signed “Bonnie Brier” in script with the name of the model line underneath and “Imported Briar” below. There are several model lines with different makers marks on the stem or shank: Matterhorn (a crown), Standard, Highlands (script “H”), Interlude (stylized “JB” in an oval) and Willow Ridge (script “W R”).

I knew that the tiny Bonnie Brier Imported Rhodesian pipe I was working was made between 1976-1997. I probably would not get much closer than that for a date on the pipe. It may well have been a salesman’s pipe that was carried as a sample of the brand carried by salesmen. Now it was time to work on the pipe.

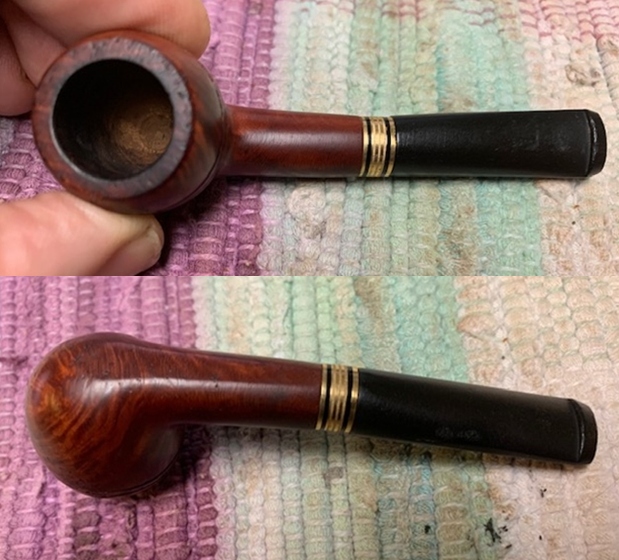

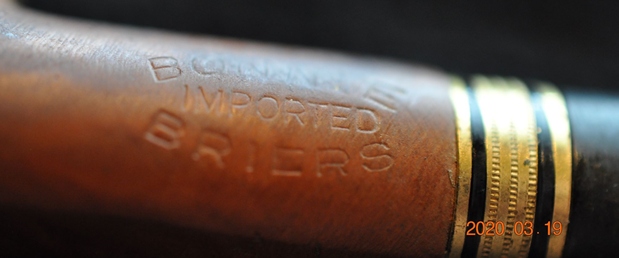

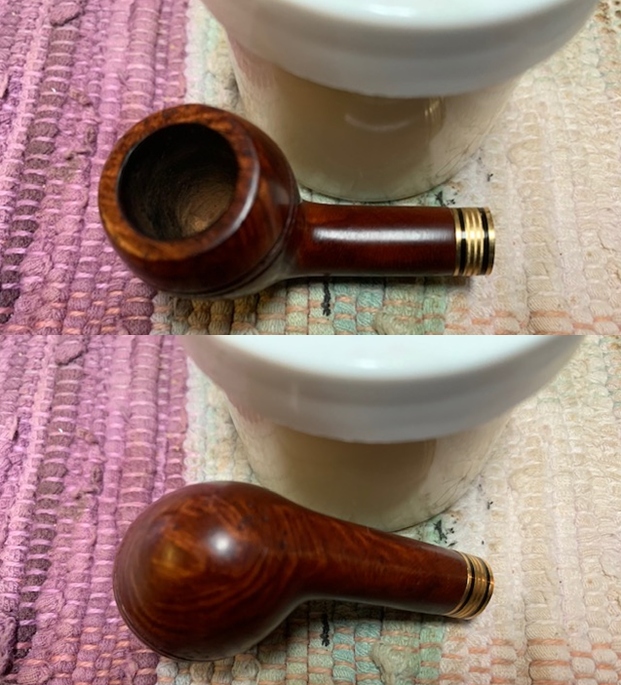

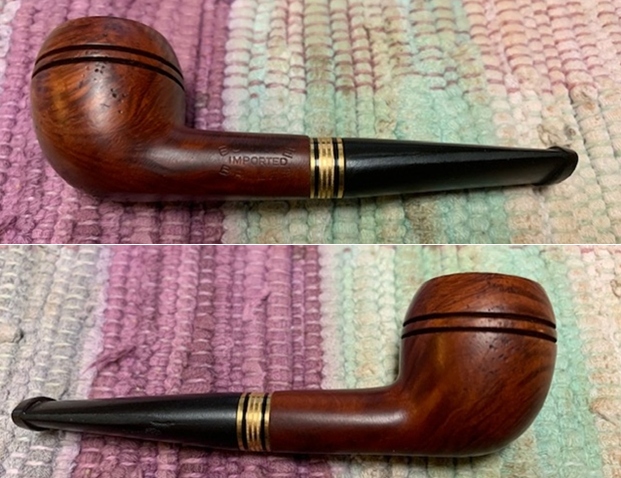

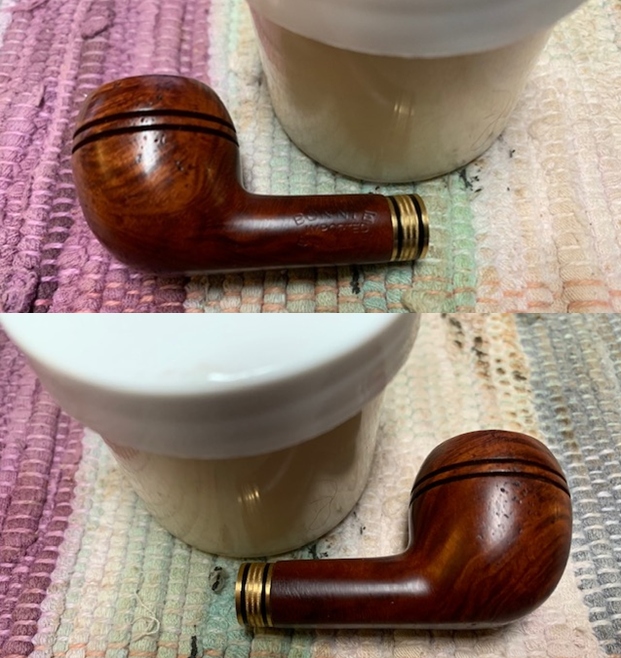

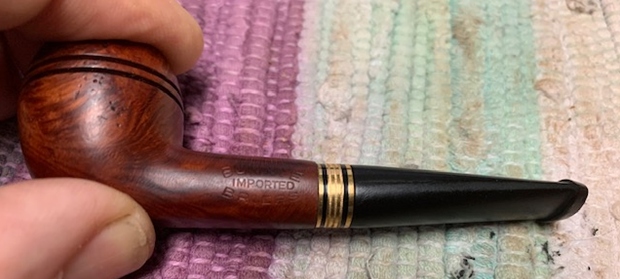

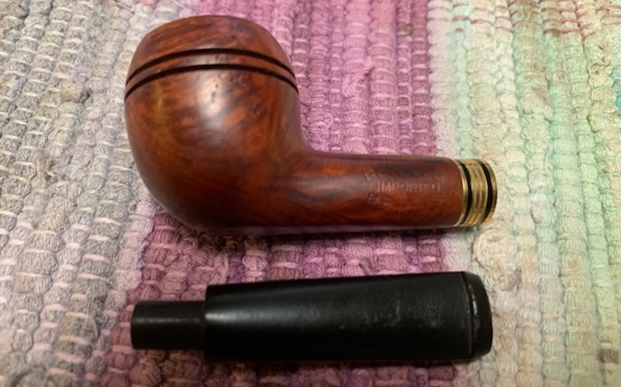

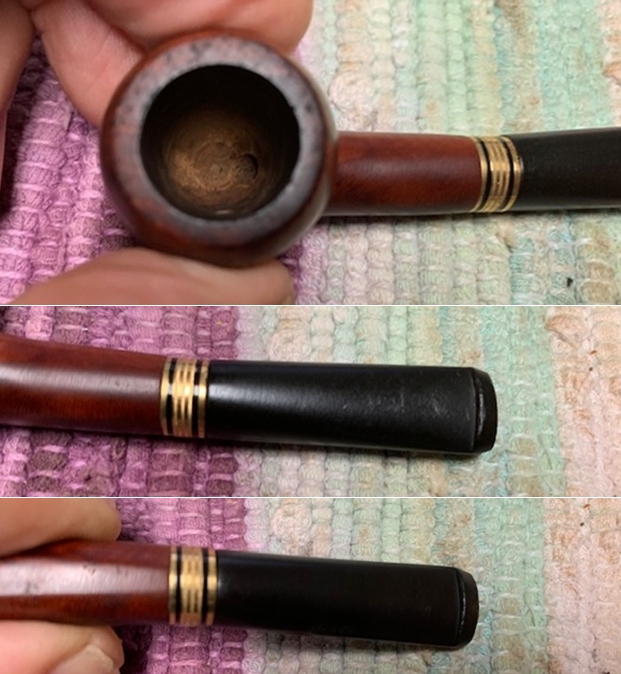

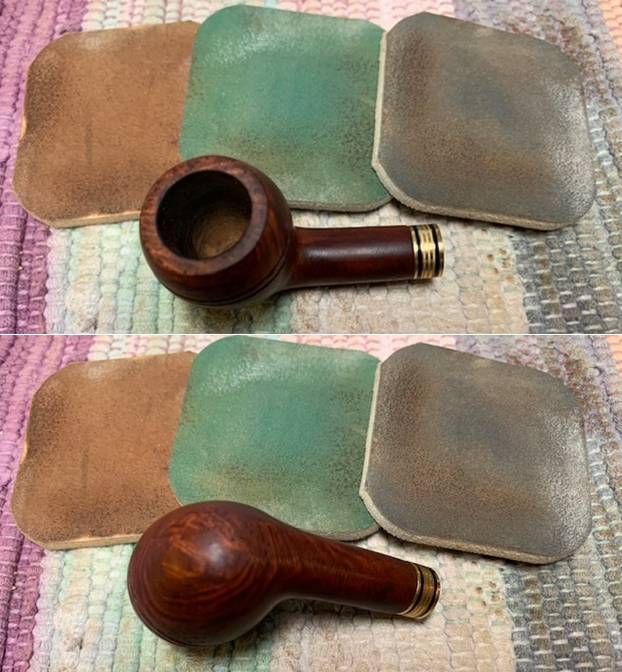

Since Jeff follows the same pattern of work in his cleanup we do not include photos but rather just a simple summary. Jeff reamed the bowl with a Savinelli Fitsall pipe knife to remove the cake. He scrubbed out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the exterior of the bowl, rim, shank and stem with a tooth brush and Murphy’s Oil Soap to remove the oils and tars on the rim and the grime on the finish of the bowl. He rinsed it under running water. He dried it off with a soft cloth. He cleaned the internals and externals of the stem with alcohol, pipe cleaners and cotton swabs. The stem was clean and you could clearly see the tooth marks on the top and underside. I took photos of what the pipe looked like when I brought to my worktable. The bowl and rim top cleaned up really well. The edges look good with just a few nicks on inner edge. The rim top has some darkening and nicks in the surface. The small short vulcanite stem surface looked very good with light tooth chatter and marks on both sides ahead of the button.  I took a photo of the stamping on the left and underside of the shank. It read as noted above.  I removed the stem and took a photo of the pipe to give a sense of the whole. It is a well shaped Rhodesian that is proportionally well done.Now it was time to do my work on the pipe. I cleaned up the inner edge of the bowl and gave it a slight bevel to minimize the damage.     I polished the briar with micromesh sanding pads. I wet sanded it with 1500-12000 grit pads and wiped it down after each pad with a damp cloth. I decided to leave the nicks and pits in the bowl as part of the story of the pipe. I rubbed the bowl and shank down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. It helped to give depth to the stain around the bowl.  The final buffing would bring the pipe alive. I polished the band with a jeweler’s cloth to remove the remaining oxidation that was on the metal.     I set the bowl aside and turned my attention to the stem. I filled in the deep tooth marks with black super glue and set the stem aside to let the repairs cure.    I used 220 grit sandpaper to smooth out the repairs on the surface and the tooth chatter and marks and blend them into the stem surface. I started the polishing with 400 grit wet dry sandpaper. I polished the acrylic stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with a damp cloth after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.     This tiny, well constructed Bonnie Brier Imported Rhodesian with a black and gold band on the shank and the taper vulcanite stem is a great looking pipe now that it has been restored. I was able to minimize damages on the edge of the bowl and rim. The rich brown stain came alive with the polishing and waxing. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Mini Rhodesian Salesman Pipe is a beauty and looks very good for a tiny pipe. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 3 ½ inches, Height: 1 inch, Outside diameter of the bowl: 1 inch, Chamber diameter: ½ inch. If you are interested in adding this pipe to your collection send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!
