Rejuvenating a Norwegian Made Lillehammer 204 Horn

Blog by Steve Laug

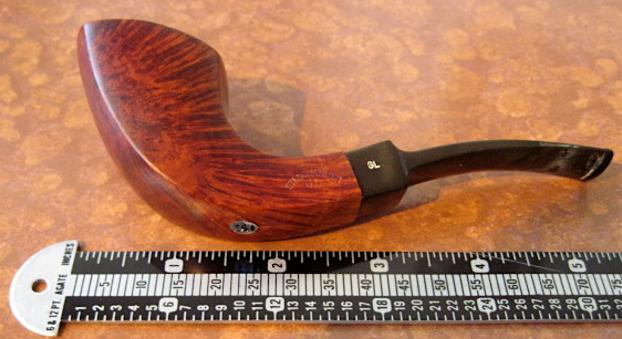

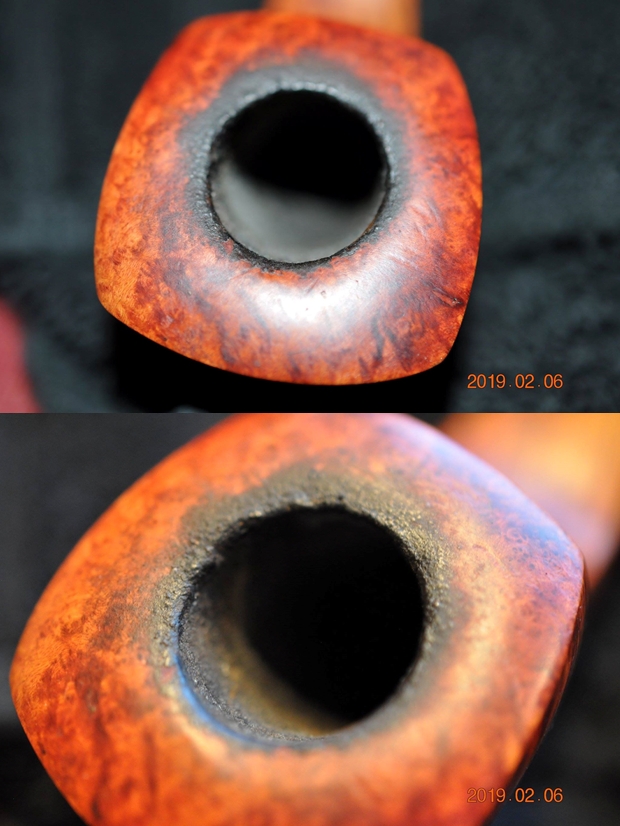

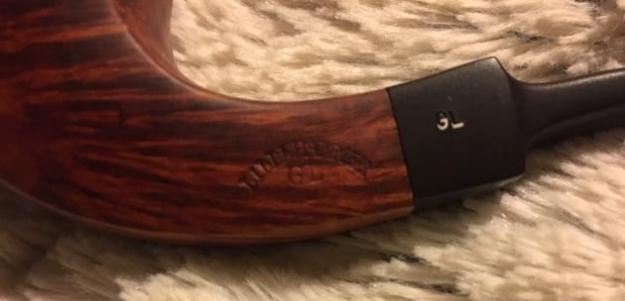

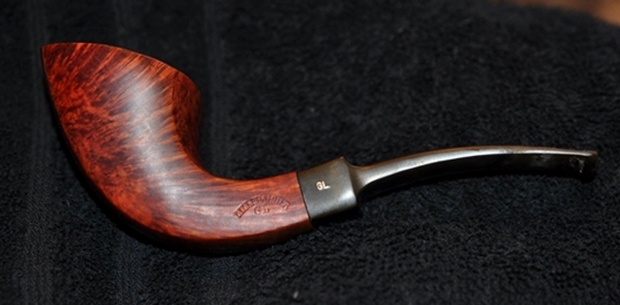

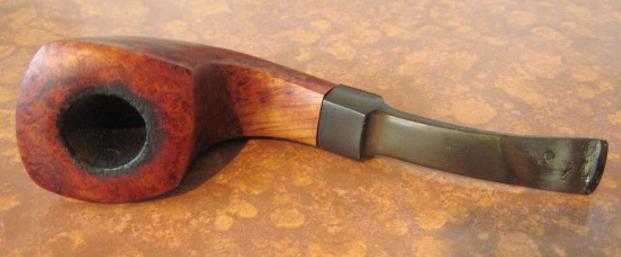

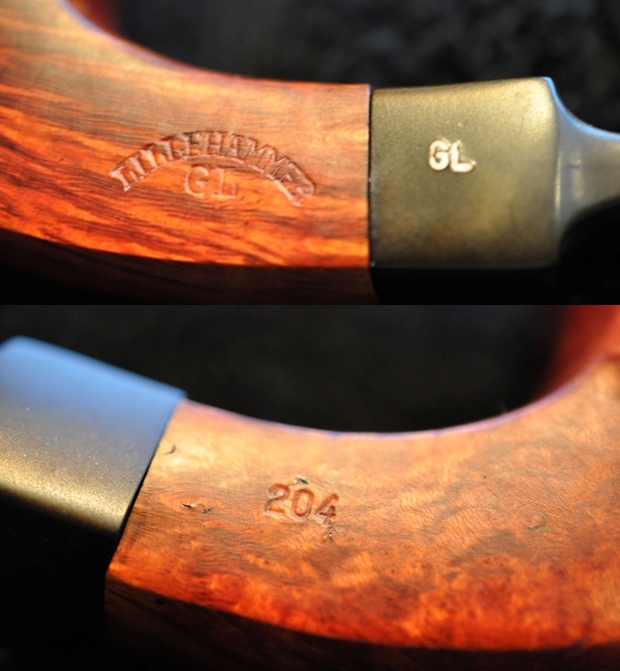

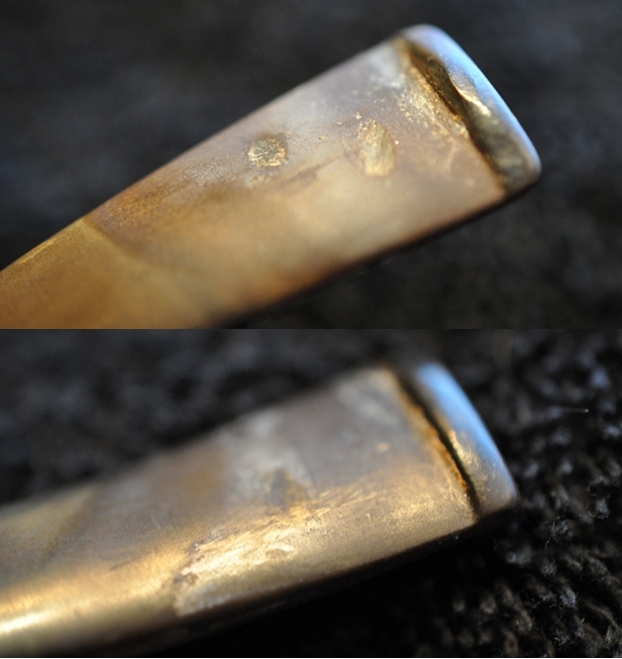

It was time to turn back to a couple of pipes that Jeff and I purchased recently. We bought some pipes from a guy in Pennsylvania. The next pipe on my worktable comes from that collection. This one is a panel shape horn with a square shank and a saddle stem. The rim topped is crowned and the shape follows the grain of the block of briar very well. It is stamped on the left side of the shank Lillehammer arched over GL and on the right side it has the shape number 204 stamped just ahead of the stem/shank union. The stem has a GL stamped on the left side of the saddle. The pipe was very dirty with a thick cake in the bowl and some lava overflowing on to the rim top. It was hard to know what the inner edge of the rim looked like because of the lava and cake. From the photos there seemed to be some damage to the inner edge at the back of the bowl but I could not be sure. Other than being dirty the finish appeared to be in good condition. The stem was lightly oxidized and had come calcification where a pipe Softee bit had been. There was some light tooth chatter and tooth marks on both sides of the stem at the button. I have included two photos that the seller sent to me to give an idea of what Jeff and I saw when we were deciding to purchase the pipe. We had the pipe lot shipped to Jeff in the US so he could do the cleanup on them for me. He took photos of the pipe before he started working on it so I could see what he was dealing with. I am including those now. He took photos of the rim top to show the thick cake in the bowl and the overflow of lava. The cake is thick and hard and the lava overflow is a thick band around the bowl. The bowl is a real mess. This must have been a great smoking pipe.The next photos show the side and bottom of the bowl to give a clear picture of the beauty of the birdseye, cross and flame grain around the bowl of the pipe. Under the grime there is some great grain peeking through.Jeff took photos of the stamping to capture the clarity of it even under the grime. The brand and the shape number are very readable. The stem looked dirty and oxidized with the calcification left behind by a pipe Softee bit. The bite marks and tooth chatter on the stem was light and should not take too much work to remedy. The oxidation was another issue that would need to be addressed.Before I started my work on the pipe I wanted to learn more about the Lillehammer brand so I turned to the first two sites that I always check to gather information on a brand. The first site I turned to this time was the Pipedia site (https://pipedia.org/wiki/Lillehammer). There I was able to learn the backstory and history of the brand. I quote in full from that article and include pictures of the two principals.

In the 1830’s a young Norwegian wood-carver named Gudbrand Larsen saw some pipes made from meershcaum. He though they were beautiful and wanted to make pipes like that, but he could not obtain the material. So he decided to go where it was to be found.

Gudbrand Larsen (1815-1902)

Larsen went to Eskisehir, Turkey, to learn all about meerschaum. But the most beautiful pipes in those days were not made there but in France, so he continued his journey to Marseielle, where he found work in one of the most famous factories at the time. In 1844 he returned to Norway and started a small factory for meerschaum pipes in the town of Lillehammer. The pipes garnered a good reputation from the first.

Gudbrand’s son, August, followed in his father’s footsteps and joined him in the business. However, father and son did not get along very well, so Junior–as August usually was called–did like his father once had, he traveled to learn more about pipe-making.

Martin August “Junior” Larsen (1855-1915)

Junior understood that briar, not meerschaum, was the material of the future, so during his journey he studied the subject carefully, first in England and then in France.

In Paris Junior earned a position with a pipemaker of good repute and became highly respected in his work. However, Gudbrand was getting old and considering retirement, so he asked his son to come home and take over the family business, an offer Junior willingly accepted. As a businessman Junior was even more successful than his father, and during his period of leadership the business prospered.

In 1902 Gudbrand Larsen died at almost 90 years of age. Then Junior passed away a dozen years later, in 1914. His death was followed by some unstable years for the factory because it lacked competent management. And World War I had just started on the continent, which made it difficult to obtain raw material.

In 1916 the factory was bought be a company that appointed new management, and a long, stable period of successful expansion had begun. That period was to last for almost half a century. The main part of the production was briar pipes, but they also continued to make some meerschaums.

Problems at the factory began again at the end of the 1960s, when sales slowed dramatically. The main reason was the “fancy pipes” had become very popular, and Larsen’s of Lillehammer had nothing to offer there. Something had to be done and two steps were taken. In the middle of the 1970s the Danish company Kriswill was bought, and in that way they obtained access to that company’s more modern shapes. A new designer was also employed, but these efforts were not sufficient, and in the 1979 the factory closed.

I turned to the my usual second information site – Pipephil’s (http://pipephil.eu/logos/en/logo-l4.html) and most of the information was confirmed. There was one startling difference that I have highlighted above in the Pipedia information and below in the Pipephil information with bold, italic and underlined text with the main point in red text.

While Lillehammer’s sales went from bad to worse in the 1960’s, Kriswill purchased the brand and used to manage the Norwegian plant a short period.

Now there was a mystery that needed checking. On the Pipedia site it said that in the mid 70’s the Lillehammer Company bought out Kriswill to access the modern shapes. Pipephil reverses that and says that the purchase went the other way around – Kriswill bought out Lillehammer and managed the shop for a short period which putting the two articles together was from the mid 1970s until the plant closed in 1979.

I did some searching on the web to see if I could clarify the above anomaly. The first link I found was to the Pipe Club of Sweden site. There was a great article on the pipe maker Bård Hansen who followed the tradition of the Lillehammer Factory and was trained by a retired engineer from the Lillehammer Factory thus tying him to the brand. In that article there is confirmation for the Pipedia information above (http://www.svenskapipklubben.se/en/pipemakers/bard-hansen/). I quote in part the article there by Jan Andersson. (Once again I have highlighted the pertinent information in the text below using bold, italic and underlined text and marking the main point highlighted in red.

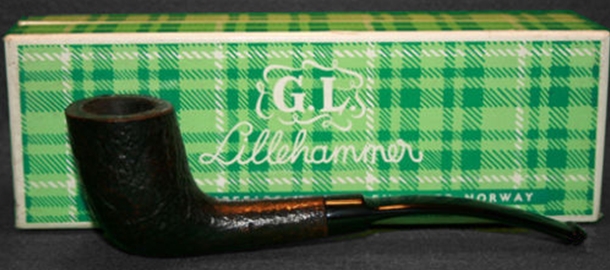

In a Swedish tobacco shop, even in small places in the province, there were usually a fair number of pipes in the 50s and 60s with stems from aluminum. But even for the more traditional pipesmoker, who wanted a pipe from wood and ebonite, there was a lot to choose from. Ratos was the dominant brand, but for those who were willing to spend a little extra, there were usually at least a few more exclusive pipes – pipes in green or blue-checked boxes. Those pipes came from Norway, from G.L. Larsens pipe factory in Lillehammer.

Photo is from the Pipephil Website.

Lillehammer pipes were found in two qualities, Bastia was a little cheaper and Lillehammer GL was for the truly discerning pipesmoker. Later I have learned that there were also more expensive and finer qualities, even one called Best Make, but those luxury pipes were never found in the shops in the small town where I lived. Lillehammer pipes were easily recognizable, they usually were rather slim and with a long stem, which was the fashion at the time. So while a true English gentleman smoked a Dunhill with the white dot on the stem, Norwegian or Swedish pipesmokers preferred an elegant Lillehammer.

We will not go into detail about the interesting story of Lillehammer, but unfortunately we can see that from the beginning of the 70s, it rapidly went downhill for the factory. They bought the Danish company Kriswill but that was not a success, nor was the new series of shapes created by the pipemaker Thorbjørn Rygh. So G.L. Larsen’s pipe factory in Lillehammer had to close, deeply missed by many of us. This feeling persists to this day, which is particularly evident in the great interest in the Lillehammer pipes at auctions and collector’s markets.

The article goes on to make the tie with Bard Hansen. I quote in part to show the ongoing life of a brand and its machinery and to help establish a date for the pipe that I am working on.

Until last spring, I thought that Norwegian manufacture of smoking pipes was just a memory, but fortunately I was wrong. In Bergen there is a man called Bård Hansen, who carries the tradition on.

It all began six years ago when Bård met Hans Tandberg, a retired engineer who had been working as a pipemaker in Larsen’s pipe factory. He had built a workshop with machines from his old workplace and as he had no heirs, he wanted to sell it all to someone who could carry on the traditions. Bård was interested to learn, so he bought the machines and a large stock of briar from the old Lillehammer factory and, not least, he was trained in the art of making pipes by Hans Tandberg.

Bård keeps the old traditions from the Lillehammer factory alive. He prefers the classical, clean lines and two things are important to him: balance and rhythm.

Mainly Bård makes small and medium-sized pipes. The pipes are stamped Tabago. The stems are from ebonite, except on some pipes, where the shaft is from briar.  Those who wish can get their name or any other engraving on a silver ring.

Gathering the data together from my research I have learned that the pipe I have on my worktable is from the period between the mid 70’s to the closing of the factory in 1979. I am also quite certain that came from the time when Kriswill was purchased with the hope of breathing new life into the old Lillehammer Factory. The purchase was made with the thought that through their innovative and modern shapes the Kriswill company would offer new markets for the Lillehammer brand. The GL stamping on this one makes it one of the higher end pipes from the factory.

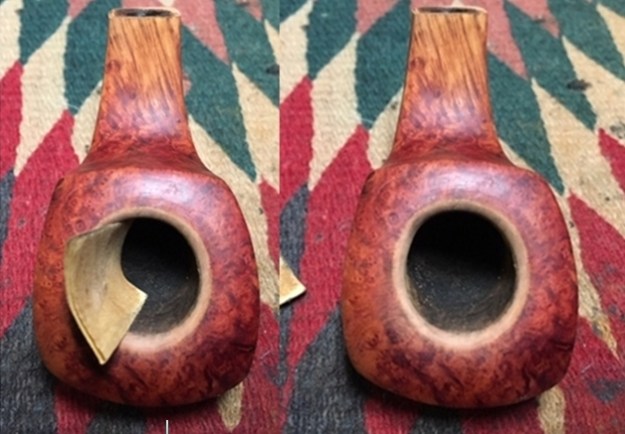

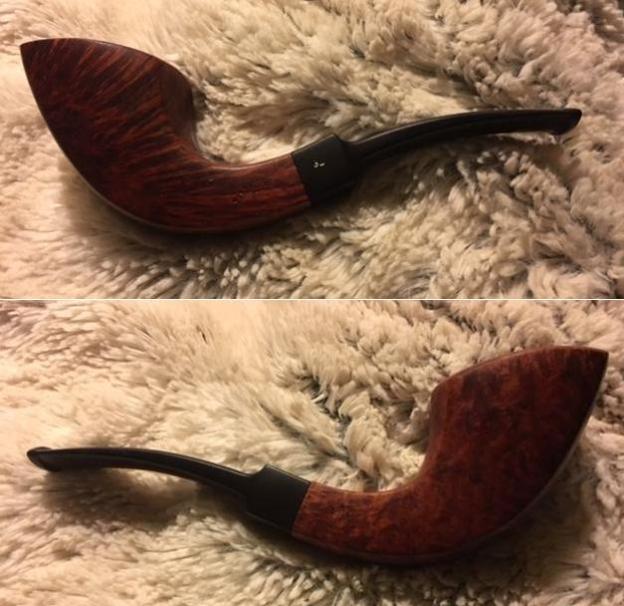

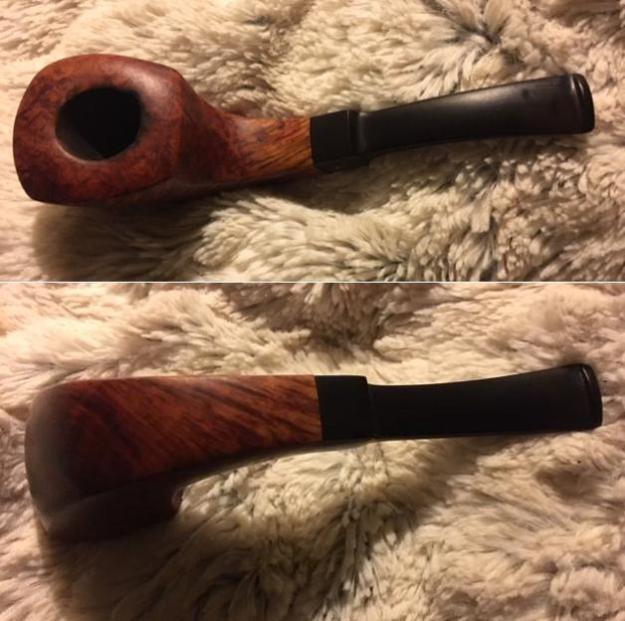

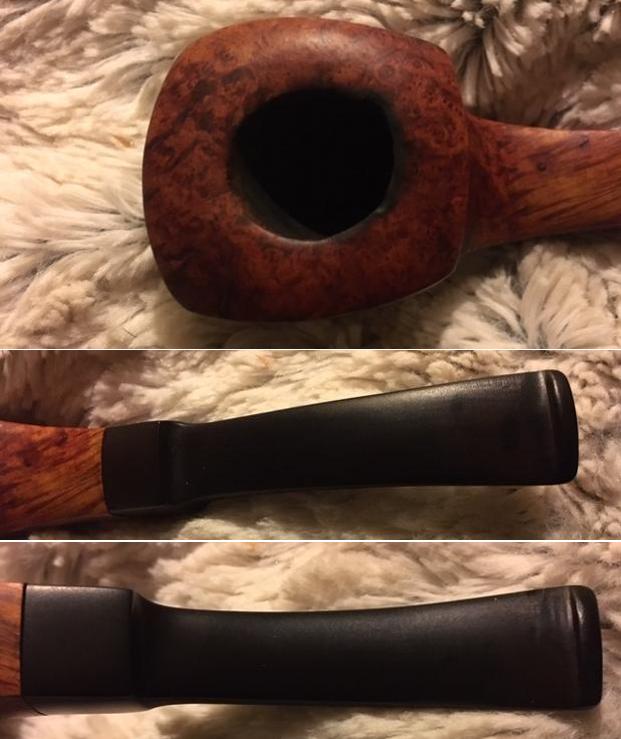

Armed with that information I turned to address the pipe itself. Jeff cleaned up the pipe for me. He reamed the bowl with a PipNet pipe reamer and cleaned it up with a Savinelli Fitsall Pipe Knife. He scrubbed the exterior with Murphy’s Oil Soap and a tooth brush to clean off the grime off the finish and the heavy overflow of lava on the rim top. He cleaned up the internals of the shank, mortise and stem with pipe cleaners, cotton swabs and alcohol to remove all of the oils and tars in the pipe. He soaked the stem in Before & After Deoxidizer and was able to remove much of the oxidation. When it arrived here in Vancouver it was a clean pipe and I knew what I had to work with. I took photos of it before I started my part of the restoration. I took photos of the rim top and the stem to show their condition. Jeff was able to clean up the incredibly thick cake and lava overflow that was shown in the rim and bowl photos above. He was also able to get rid of the grime and grit in the surface of the briar. There was some general rim darkening and a burned and damaged area on the backside of the bowl that made the bowl out of round. The inner edge of the bowl was rough to the touch and a bit jagged because of the burn. The rest of the rim top and edges looked very good. The variation in the size of the shank and stem are also visible in the photos below. You can see the step down transition. However what you cannot see in the photos is the “lip” at that transition on the briar portion. The stem was much cleaner and there was light tooth chatter on both sides near the button.I took a photo of the left side of the shank to show the stamping on the pipe. It read as noted above – Lillehammer GL. You can also see that a portion of the white paint in the GL stamp on the left side of the saddle stem is missing.I decided to address the bowl first. I worked on both the rim damage and on the flow of the shank to the stem. There was a lip on the briar at the shank/stem transition that needed to be dealt with to make it smooth to touch. I worked on the inner edge of the rim first using a folded piece of 220 grit sandpaper smooth out the damage, bevel the inner edge and bring the bowl back as close as possible to round.I then turned to the shank to smooth out the transition to the stem. I sanded the shank with 220 grit sandpaper to match the stem. I carefully avoided sanding the stamping so as not to damage it but to still minimize the lip on the briar at the joint. I  sanded the top and underside with 220 grit sandpaper to smooth that out as well. I polished the briar with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped the bowl down after each pad with a damp cloth. I used a Maple and a Cherry Stain pen to blend the sanded areas with the rest of the bowl and shank. The combination of the two stain pens were a good match. I rubbed the bowl and shank down with Before & After Restoration Balm to deep clean the finish on the bowl and shank. It also helps to blend the newly stained areas in to the surrounding briar. The product works to clean, enliven and protect the briar. I worked it in with my fingers to get it into the briar. After it sat for a little while I wiped it off and buffed it with a soft cloth. The briar really began to have a rich shine. I took some photos of the bowl at this point to mark the progress in the restoration. It is a beautiful bowl. I set the bowl aside and worked on the stem at this point in the  process. I sanded tooth chatter and the remaining oxidation on the stem with folded pieces of 220 to remove the marks and the light brown colouration on the stem surface. I sanded them with 400 grit sandpaper until the marks were gone and the oxidation was gone.I polished the stem with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped the stem down after each pad with a damp cloth to remove the sanding dust. I used the Before & After Pipe Polish to remove the small minute scratches left in the vulcanite even after the micromesh regimen. I finished by wiping the stem down with a final coat of Obsidian Oil and set it aside to dry. I put the stem back on the pipe and the pipe to the buffer. I worked it over with Blue Diamond to polish out the remaining small scratches. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up really well and even the newly beveled rim top looked good. I was happy with the results of the reworking of the rim. The finished pipe is shown in the photos below. The unique horn shape definitely reminds me of the Kriswill pipes that I have restored though none of them were paneled horns. It is my first Lillehammer pipe and I have to say it is quite stunning. The polished black vulcanite stem looks really good with the browns of the briar. The dimensions of the pipe are Length: 6 inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: 3/4 of an inch. This is another pipe that I will be putting it on the rebornpipes online store shortly, if you are interested in adding it to your collection. The “detective” work on the brand was an added bonus for me as I worked on this beauty. Thanks for walking through the restoration with me on this beauty!
