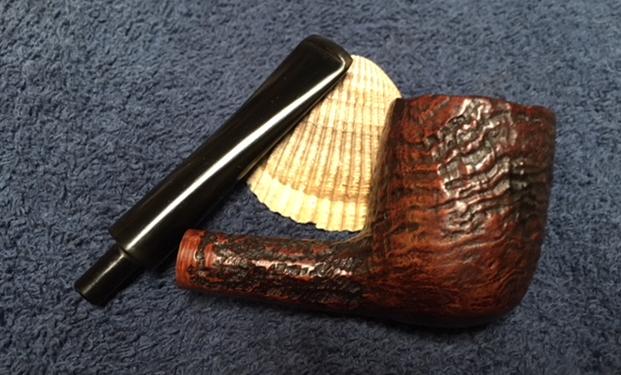

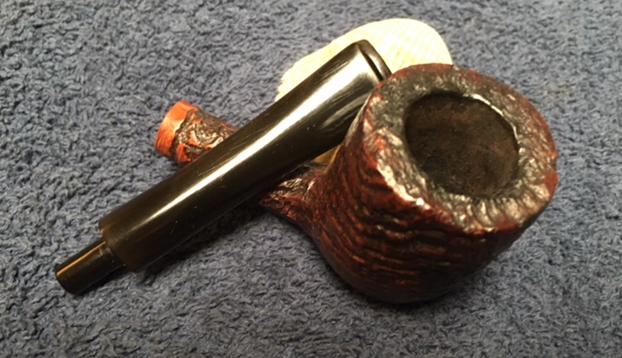

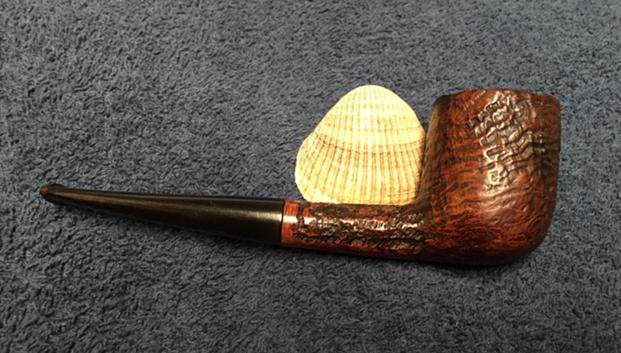

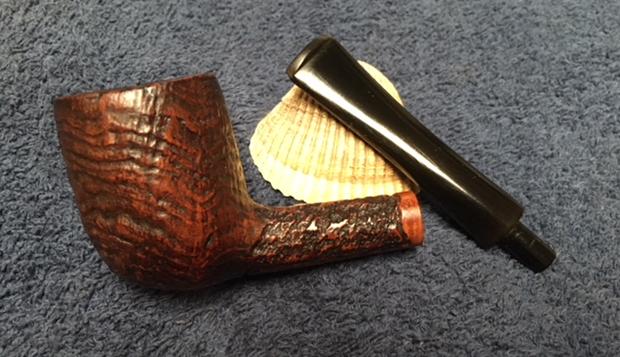

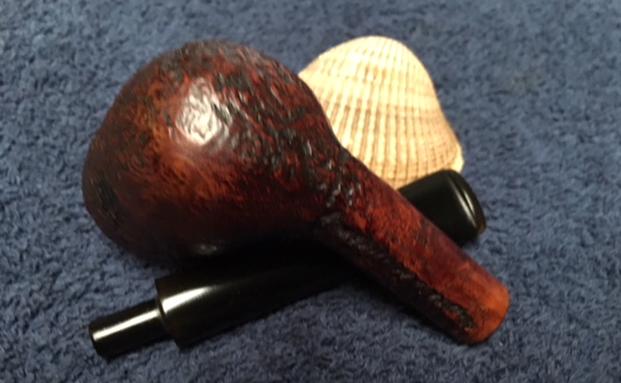

Restoring a Bewlay Sandblast 156 Billiard

Leave a reply

Blog by Steve Laug

Sometimes a voice from the past is a good thing for both parties. Many years ago now, here in Vancouver I met Eric at the Vancouver Pipe Club. We talked at pipe club meetings and had a common calling as ministers in within different Christian Churches. Over time Eric moved to Eastern Canada and I moved on to work for an NGO here in Vancouver. Not too long ago I received an email from Eric about some pipes that he had that he wanted me to work on for him. We made arrangements and soon a box with three of his pipes was traveling to me from Ontario. It arrived quite quickly and I opened it when it arrived. Eric had thoughtfully included a tin of Samuel Gawith’s Commonwealth Mixture Full Strength for me to smoke and I was looking forward to cracking it open. Included in the box were three pipes – a Danbark Hand Carved from Denmark that was quite stunning, a Bewlay Sandblast Billiard and a Le Nuvole Long Shank Dublin. Each had different challenges to address but each was a beautiful example of the pipe maker’s craft. The final pipe was the Bewlay Sandblast London Made Billiard.

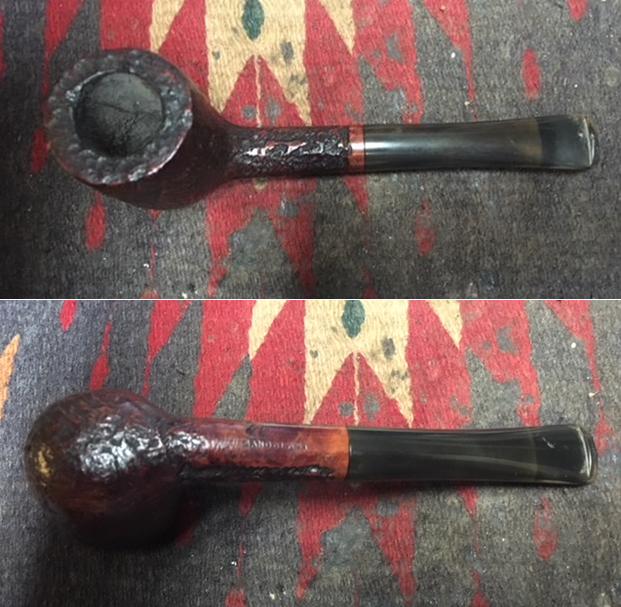

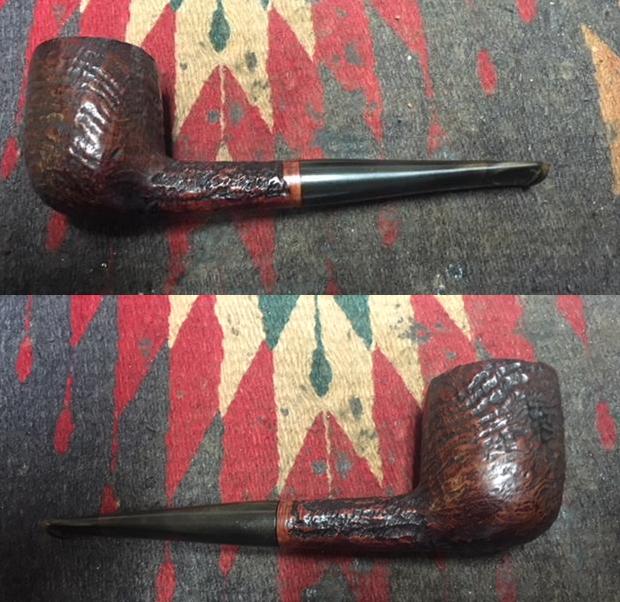

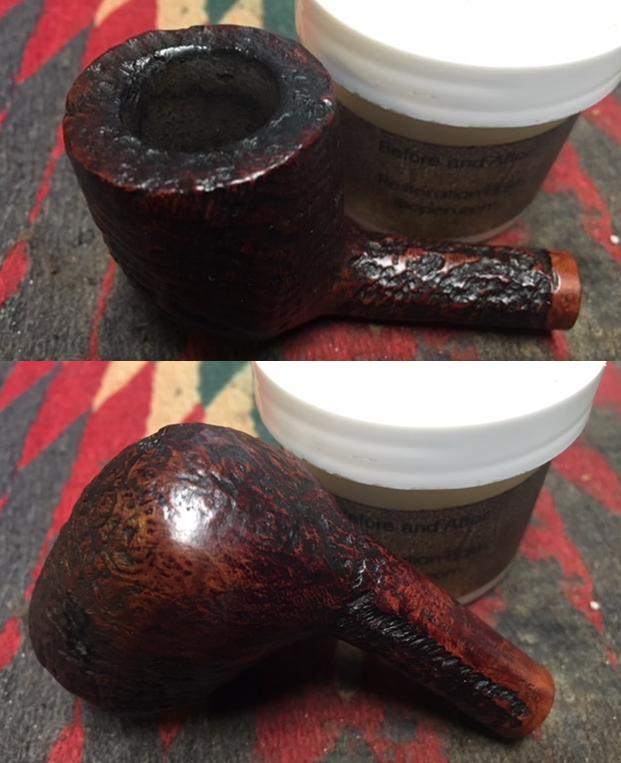

The finish on the pipe was very dirty with a lot of grit and grim in the grooves and crevices of the sandblast. The shank appeared to be rusticated to look like the sandblast around the bowl sides. The rim top was also rusticated to look like a sandblast finish but it is similar to the one that I carved with a dental burr. The rim top was dirty but it did not have a lot of lava overflow. There was a fairly thick cake in the bowl that was soft and brittle. The edges – both inner and outer were in excellent condition other than just dirty. The grain on the sandblast portions was really quite nice and there were places that the finish was worn almost smooth. The underside of the shank was stamped Bewlays in script over Sandblast over London Made followed by what looks like an O. Just below that and toward the stem is the shape number 156. The vulcanite stem had light tooth marks and chatter on both sides at the button. It also had some discolouration on the first inch of the stem that I have come to associate with pipe Softee bits. The pipe was not as dirty and this one smelled of aromatics rather than English blends as the first pipe of Eric’s I worked on. I took photos of the pipe to show the condition it was in when it arrived.    I took close up photos of the bowl and rim top to show its condition. You can see the cake in the bowl and the darkening and dust in the rim top grooves, nooks and crannies. The rim does not look damaged on the inner or outer edge in this photo. I also took photos of the stem to show the general condition it was in as well. It looked pretty good other than chatter on both sides ahead of the button and the puncture on the topside of the stem. I decided to read a little about the Bewlay brand to refresh my memory. On the PipePhil site I found out information on the brand. The brand was distributed by Bewlay & Co. (a chain of pipe stores in England) until the 50’s when it was taken over by Imperial Tobacco & Co. I took a screen capture of the Bewlay brand. The stamping on the one I am working on is shown in the second photo below and you can see that it is the same as this other than the shape number.  http://www.pipephil.eu/logos/en/logo-d2.html

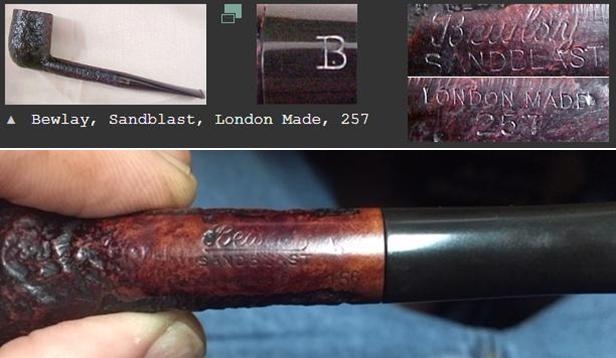

I did some searching on Pipedia and found a short write up on the brand and found a photo and some helpful information that I have included below.The English brand of Bewlay & Co. Ltd. (formerly Salmon & Gluckstein Ltd.), was in business from the early 20th century until the 1950’s. The brand ended up being sold and taken over by Imperial Tobacco Co. The shop chain closed in the 1980’s but there seems to be one shop still in business on Carr Lane in the city of Hull.

Bewlay pipes were made by numerous prestigious firms. Notably Barling, Charatan, Loewe & Co., Sasieni, Huybrecht, and Orlik. So understandably, the English considered a Bewlay pipe a quality pipe.  https://pipedia.org/wiki/Bewlay

The article also cross referenced a thread on the Pipesmagazine.com forum that gave further information on the various makers and shapes. (http://pipesmagazine.com/forums/topic/a-bewlay-pipe-thread-with-pictures). There was one responder there that referred to a pipe that had the same shape number as the one I am working on. He wrote the following: One of my nicest Bewlay’s is a 156 billiard which, it turns out, correlates with nr. 156 on the Orlik shape chart.

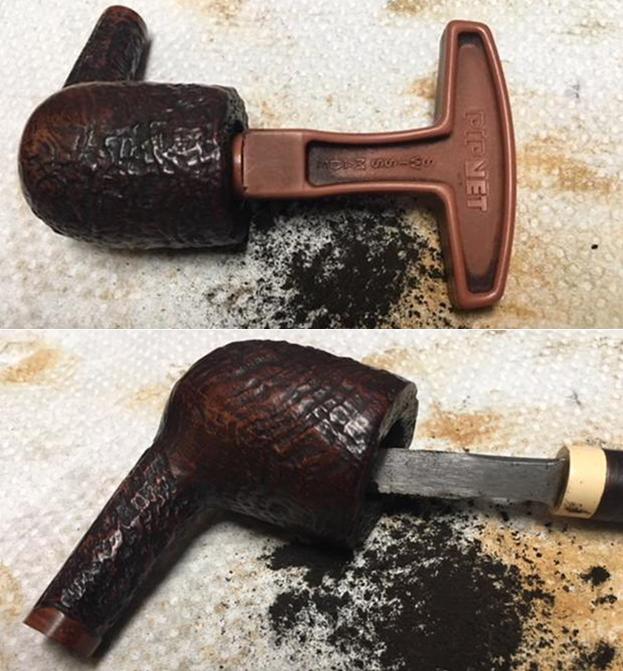

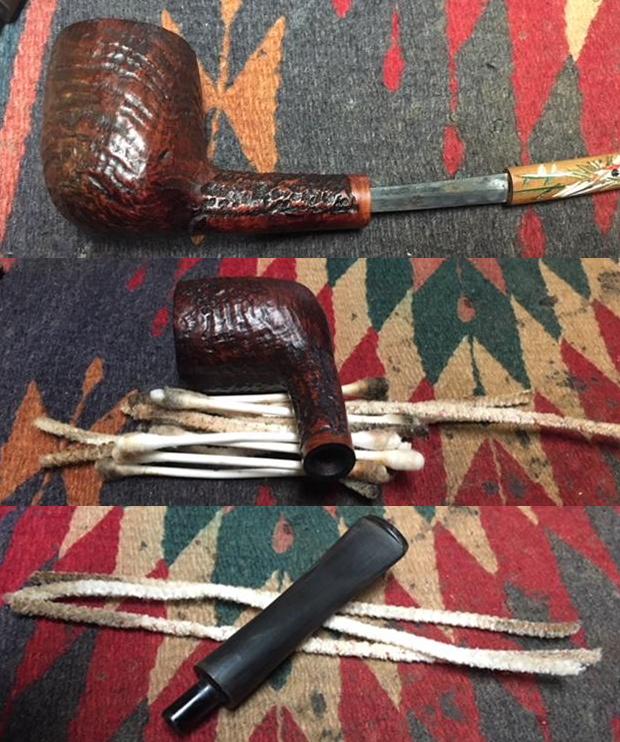

I started my restoration of this pipe by reaming it with a PipNet pipe reamer starting with the smallest cutting head to remove the initial cake and then moving up to the second cutting head to take the cake back to bare briar. I cleaned up what remained with a Savinelli Fitsall Pipe Knife to take back what remained of the cake to bare briar. I scraped the inside of the shank with a pen knife to remove the tars and oils on the inside of the mortise. I followed that up by cleaning out the interior of the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. Cleaning the stem took the same amount of pipe cleaners as the shank but I forgot to include a photo of that. I cleaned it until the cleaners came out white. I scrubbed the briar with Before & After Restoration Balm working it into the nooks and crannies of the sandblast and rusticated finish. The balm cleans, enlivens and protects the briar and removes the dust and debris in the rustication. It also brought new life to the bowl and the rim top. I rubbed it in and let it sit for a little while then buffed it with a horse hair shoe brush to work it into the finish. I buffed it with a cotton cloth to remove the excess and the debris. The photos below show the progress of the polishing.  I set the bowl aside and sanded the repair with 220 grit sandpaper to remove the tooth marks and chatter on the surface of the vulcanite stem. I followed that with 400 grit wet/dry sanded paper – wet sanding until the scratches and repair had begun to blend into the surface of the vulcanite. I polished the acrylic with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped it down after each pad with a damp cloth. I polished it further with Before & After Pipe Stem Polish – both the Fine and Extra Fine. I wiped it down and gave it a shine with some Obsidian Oil. With the stem polished I put it back on the shank and polished the bowl and stem with Blue Diamond on the buffing wheel. I used a light touch on the briar so as not to fill in the sandblast buffing compound and a slightly heavier touch on the vulcanite stem. I gave the bowl multiple coats of Conservator’s Wax by hand rubbing it into the finish and the stem multiple coats of carnauba on the buffing wheel. I buffed the entire pipe with a clean buffing pad to raise the shine on the briar and the vulcanite. I hand buffed it with a microfiber cloth to deepen the shine. The finished pipe is shown in the photos that follow. It is another beautiful piece of pipe crafting. I am sure Eric will enjoy this beauty once it heads back to Ontario. This is the last of his pipes that I had to work on so now I can pack them up and send them on their journey east. Thanks for walking with me through the restoration. Cheers.

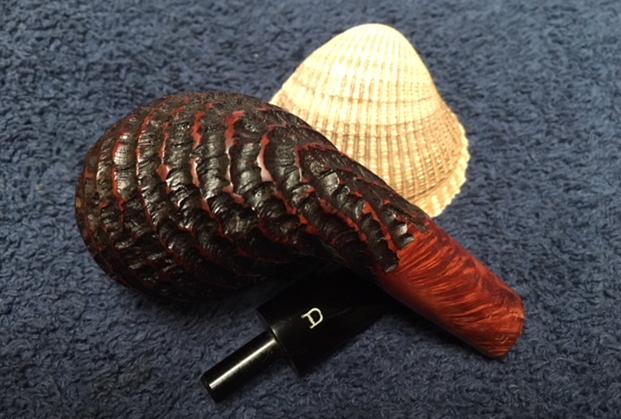

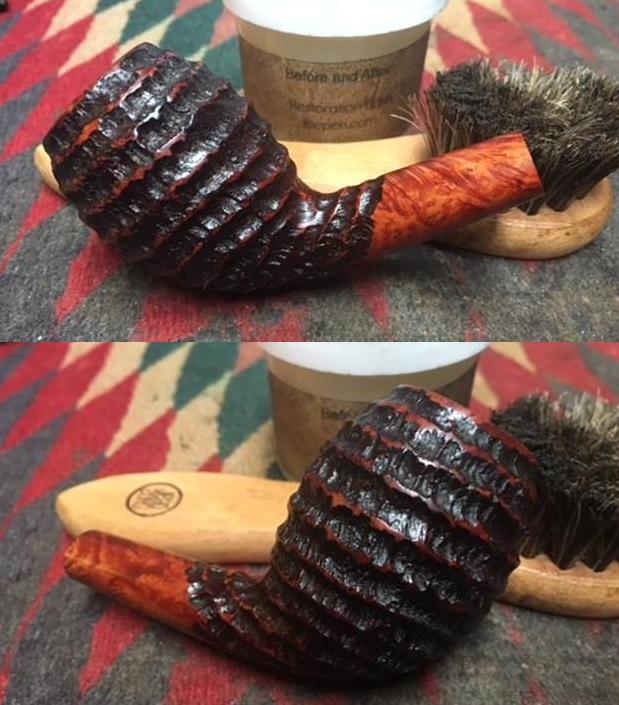

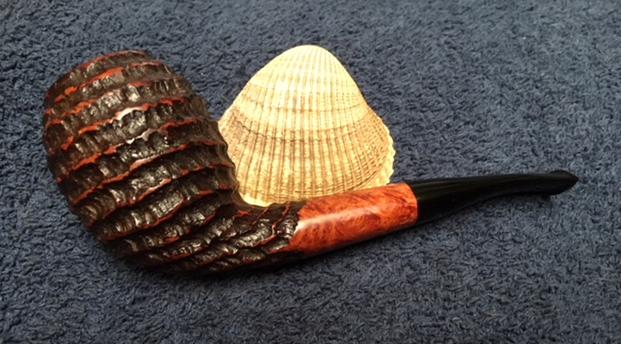

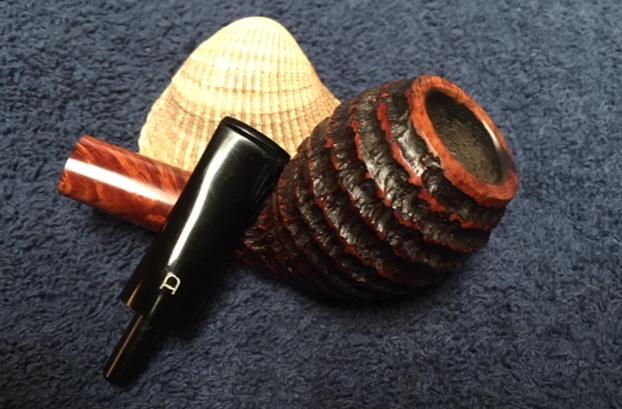

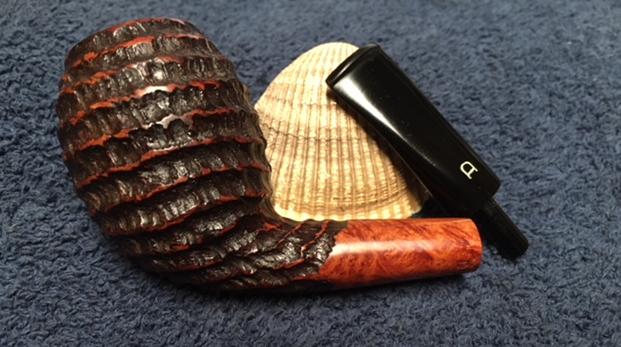

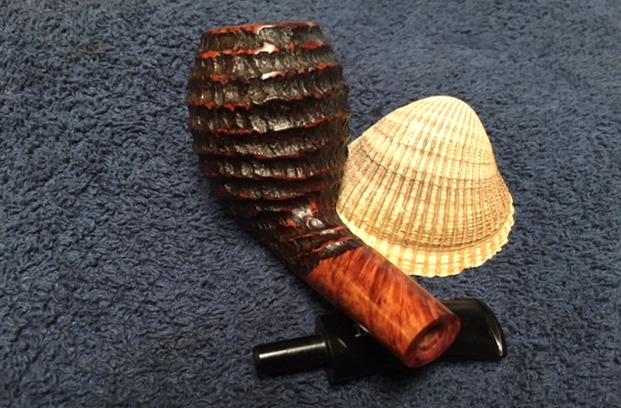

Repairing and Restoring a Hand Carved Danbark “Honey Stick”

Leave a reply

Blog by Steve Laug

Sometimes a voice from the past is a good thing for both parties. Many years ago now, here in Vancouver I met Eric at the Vancouver Pipe Club. We talked at pipe club meetings and had a common calling as ministers in within different Christian Churches. Over time Eric moved to Eastern Canada and I moved on to work for an NGO here in Vancouver. Not too long ago I received an email from Eric about some pipes that he had that he wanted me to work on for him. We made arrangements and soon a box with three of his pipes was traveling to me from Ontario. It arrived quite quickly and I opened it when it arrived. Eric had thoughtfully included a tin of Samuel Gawith’s Commonwealth Mixture Full Strength for me to smoke and I was looking forward to cracking it open. Included in the box were three pipes – a Danbark Hand Carved from Denmark that was quite stunning, a Bewlay Sandblast Billiard and a Le Nuvole Long Shank Dublin. Each had different challenges to address but each was a beautiful example of the pipe maker’s craft. I decided to work on the Danbark Hand Carved pipe next.

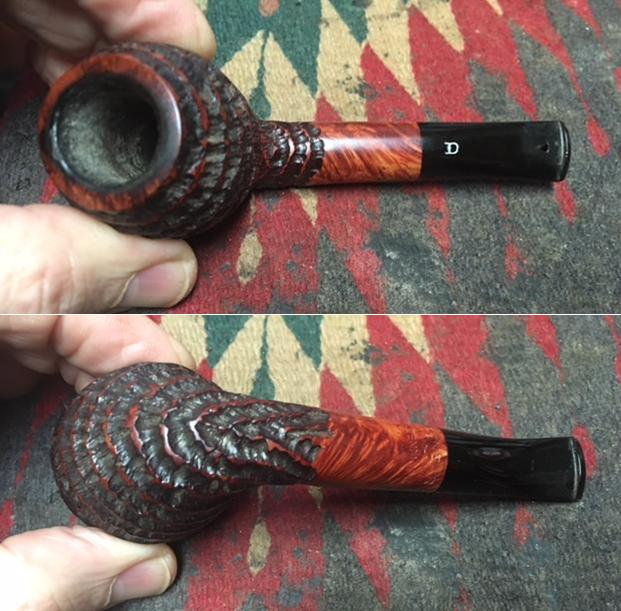

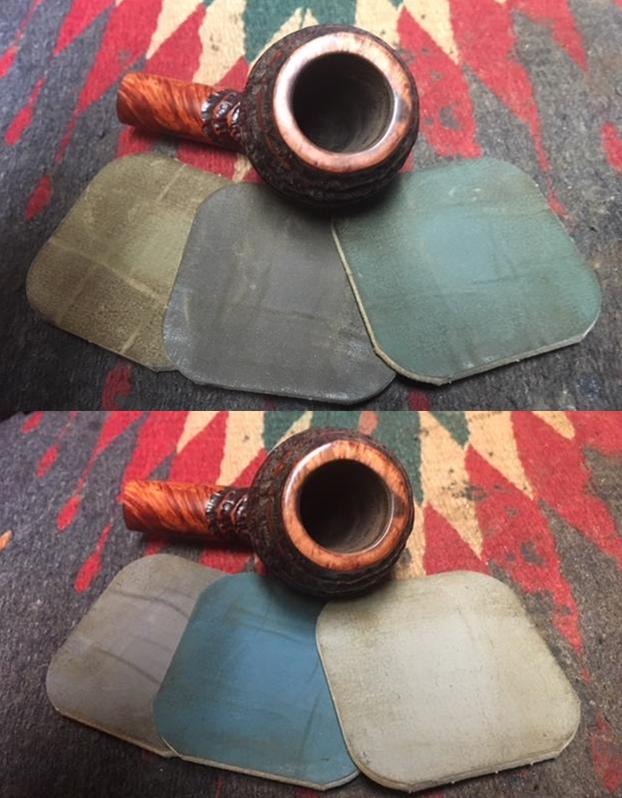

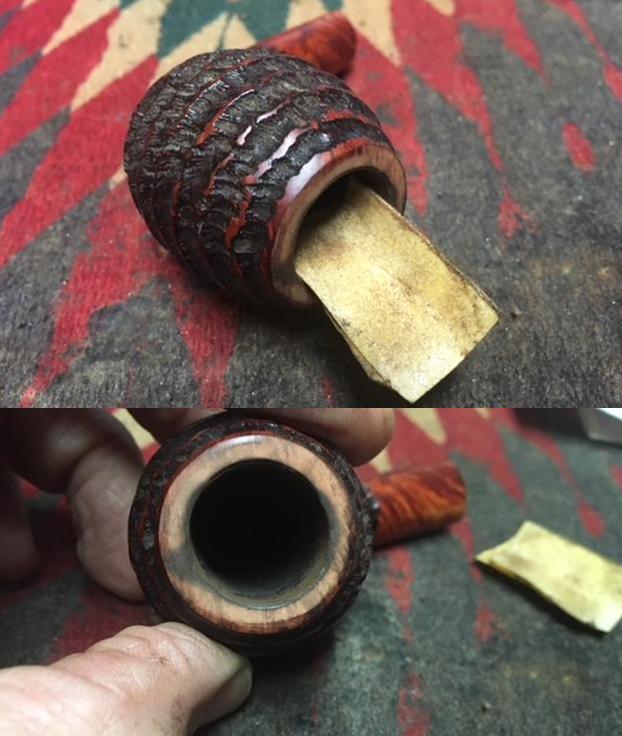

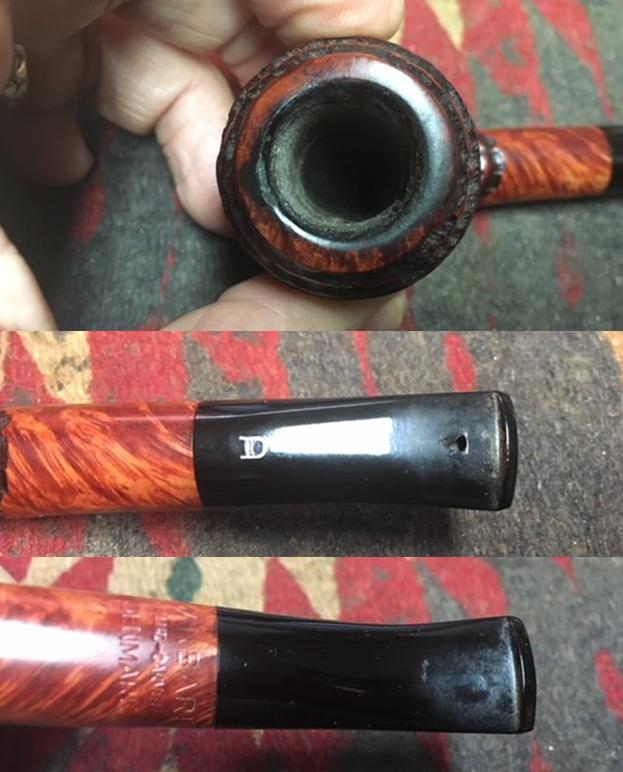

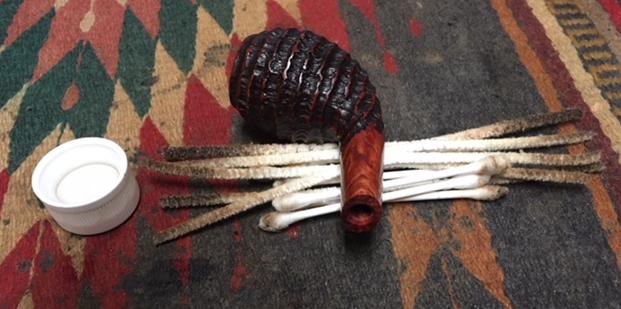

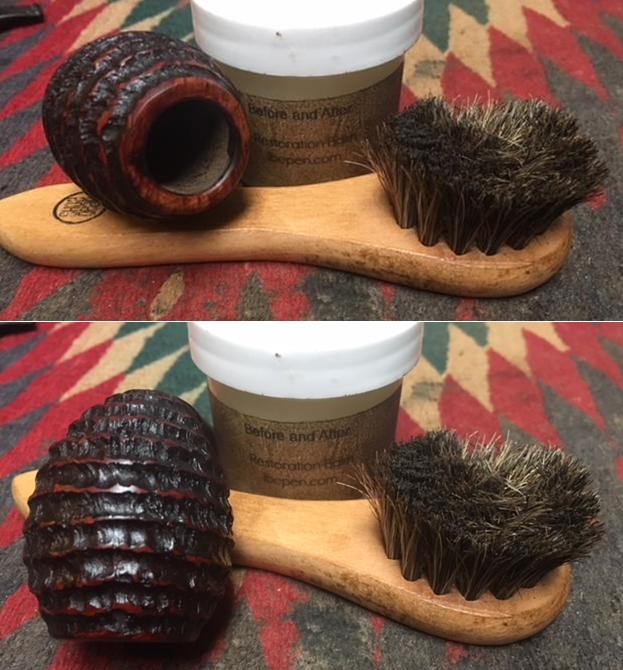

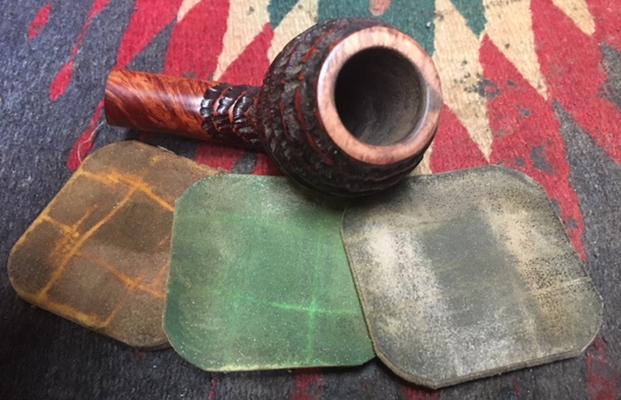

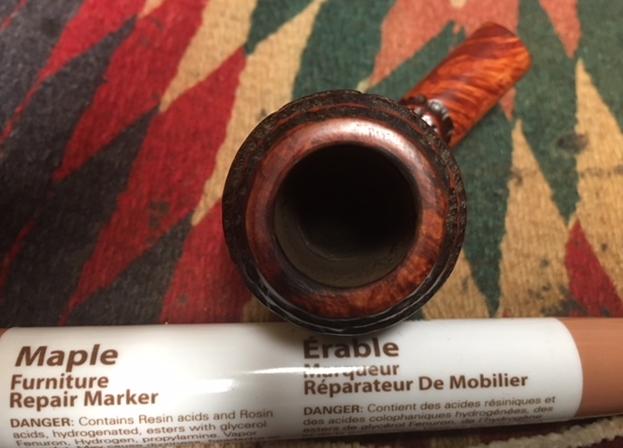

The finish on the pipe was very dirty with a lot of grit and grim in the grooves and crevices of the spiral style of rustication. The rim top was heavily tarred with lava that flowed from a caked bowl. The edges and top of the rim looked like it had burn marks on the front just left of centre and on the rear left side. Other than the burn marks it appeared to be in okay condition though I would not know for sure until I had reamed the bowl and cleaned off the rim top. The bowl was rusticated all around other than the rim top and about half of the shank. The grain on the smooth parts was very nice. The underside of the shank is stamped Danbark over Hand Carved over Denmark.The acrylic stem had the white Danbark “D” logo on the top side. There was tooth chatter on both sides at the button and a triangular shaped puncture on the top side about ¼ inch from the button. The pipe was not as dirty or smelly as the first pipe of Eric’s I worked on. I took photos of the pipe to show the condition it was in when it arrived.  I took close up photos of the bowl and rim top to show its condition. You can see the thick cake in the bowl and the overflow of lava onto the inner edge bevel and on the rim. You can also see the burn marks on the rim top just left of centre and on the back side mid rim. The rim does not look damaged on the outer edge in this photo. I also took photos of the stem to show the general condition it was in as well. It looked pretty good other than chatter on both sides ahead of the button and the puncture on the topside of the stem.I decided to read a little about the brand and the pipemaker. It turns out that the pipe was made by Soren Refbjerg Rasmussen who also made Refbjerg and Soren pipes. That was a surprise to me as I had no recollection of the connection. This “honey stick” style pipe is a Danbark with the same stamping on the shank as the pipe in the photo from Pipephil’s site. I have cleaned and restored several or Soren’s pipes in the past, both Refbjerg and Soren stamped ones but I have never worked on a Danbark. I did a screen capture of all three of the brands carved by Soren and the information included in them. It turns out that the Refbjerg pipes were made for the European market and the Soren ones for the US market. The Danbark pipes seem to overlap on both sides of the Atlantic. The D on the stem is also the same in the photo as the pipe I am working on for Eric.The Danbark that I am working on is stamped on the underside of the bowl and shank at the stem/shank junction. It is stamped with the following information: DANBARK over Hand Carved over Denmark. Soren’s handmade stems have a funneled airway leading through the tenon to a normal rectangular slot in the end of the stem. There is no flaring or shaping done to the slot. It almost looks like a factory blank that has been reworked slightly.

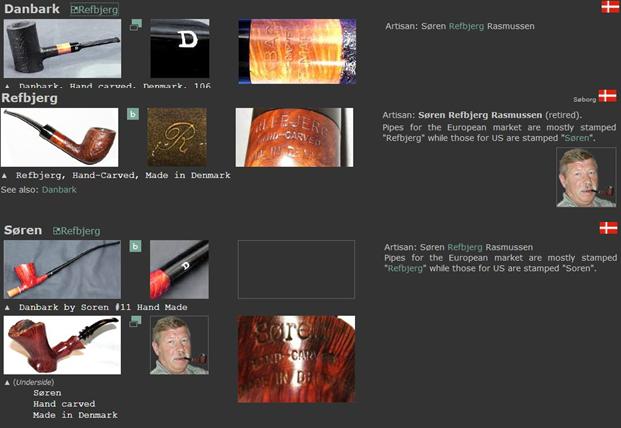

I did a bit more searching and on Pipedia I found out that Danbark was a second line that came from Soren (https://pipedia.org/wiki/Refbjerg). There was also a direct quote from Soren speaking of the Danbark line on Frenchy’s Pipes online. Frenchy’s was an online seller that retailed both new and estate pipes quite a few years back. I did business with him in those years and enjoyed him – great sense of humour. Here is what he quotes from Soren and is requoted on Pipedia.

“A note from the carver: I am very proud to introduce my new (!) series of hand-carved Danbark Pipes by Søren. These pipes are crafted from the finest Corsican and Grecian briars. I take a great deal of pride in crafting the Danbark Pipes to be highly functional and so they will provide the smoker with many years of dedicated service. The Danbark Pipes by Søren are available in several different styles and finishes with my personal touch and inspirations. At this time I favor making classic shaped pipes with a slight touch of my own hands and feelings. I do not produce many pipes today but the pipes that I do make available are individually crafted from the finest Corsican and Grecian Briars available to me. I still make free-hand pipes but not as many as I once made. For the past 35 years I have always tried to make good smoking pipes in my workshop located near Copenhagen, Denmark. I have always tried to craft my pipes in such a way as they will be long lasting and best friends with the owners. I take great pride in the shape of my pipes, the drilling of the pipes, and the overall dimensions of the pipes. I enjoy spending my spare time on the very long, rugged coasts of Denmark. I derive much relaxation from being on the coast while angling for Sea Trout with my own hand-tied flies. I find this environment is a great inspiration to me for making pipes. Many times I think to myself, ‘Inspired by nature, made by me’. — Happy puffing, Søren”

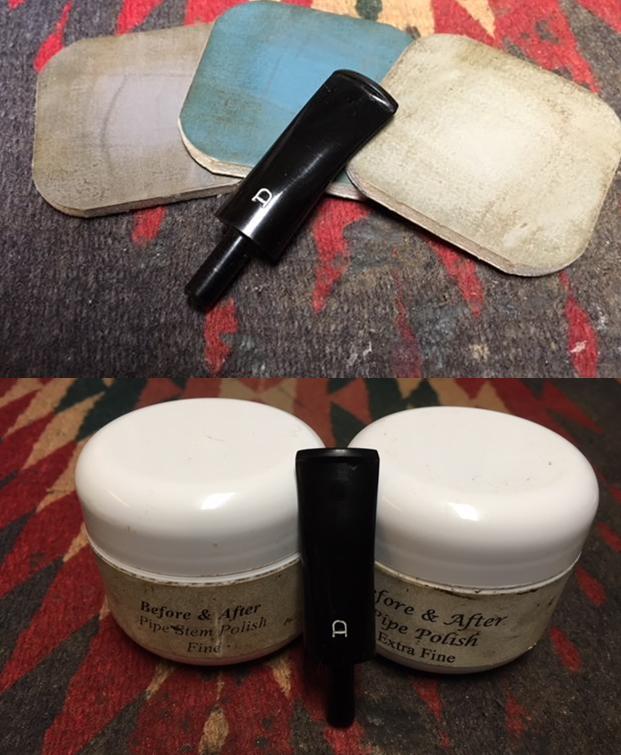

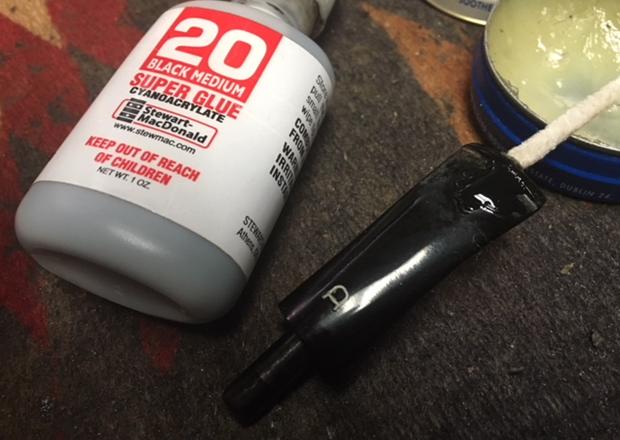

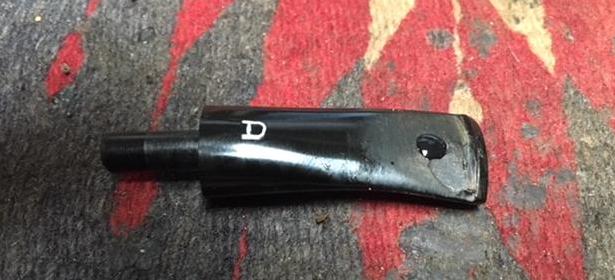

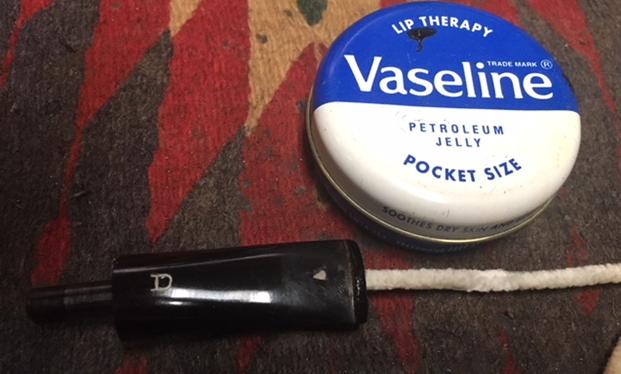

I decided to start the work on this pipe by repairing the puncture in the stem. I cleaned the inside of the stem with pipe cleaners to remove the grime. I wiped the stem down with alcohol on cotton pads to remove any debris or grime on the puncture wound. I cleaned the edges of the puncture with a cotton swab and alcohol. Once it was clean, I greased a pipe cleaner with Vaseline and inserted it through the slot making sure that the space below the puncture was filled with greased fuzz. I filled in the puncture with black super glue. I sprayed it with an accelerator to set the repair quickly so that I could remove the pipe cleaner. I sanded the repair lightly to smooth it out. I refilled the repaired area with a bubble of black super glue to fill in the air bubbles in the repair. I set the stem aside until the repair had hardened. While the repair was curing I turned my attention to the bowl. I reamed the bowl with a Savinelli Fitsall Pipe Knife to scrape away the cake and take it back to bare briar. I worked it over from top to bottom removing the thick cake coat.I rolled a piece of sandpaper around my finger and sanded the walls of the bowl smooth. I worked over the inner edge of the rim and the rim top to remove as much of the burn damage and damage to the edge of the bowl. I worked on it with a folded piece of 220 grit sandpaper to smooth it out. I lightly topped the bowl on the topping board with 220 grit sandpaper to remove more of the damaged wood. The top of the bowl was charred at the front edge a little left of center. I topped it to remove the char and smooth it out. The wood that is left is solid. I did not take too much of the top because of the smooth outer edge above the last spiral of rustication.I cleaned out the interior of the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. I cleaned it until the cleaners came out white.I sanded newly topped rim gently with a worn piece of 220 sandpaper and wet sanded it with some 400 grit wet dry sandpaper. I polished the rim top with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding it with 3200-12000 grit pads. I wiped it down after each pad with a damp cloth. The photos below tell the story of the polishing of the rim top. Once the rim was polished and scratch free I used a Maple stain pen to match the colour of the rest of the smooth areas around the shank and bowl. I wanted the stain to hide the burn marks on the rim. I figured that it would at least mask them a bit.I let the stain dry and then rubbed the briar down with Before & After Restoration Balm working it into the nooks and crannies of the rusticated finish with my fingertips. I am really enjoying working with the balm and it cleans, enlivens and protects the briar and removes the dust and debris in the rustication. It also helped to blend in the stain on the rim and brought new life to it as well. I rubbed it in, used a horsehair shoe brush to work the balm into the finish, let it sit for a little while then buffed it off with a cotton cloth. The photos below show the progress of the polishing.  I gave the bowl and shank multiple coats of Conservator’s wax – once again rubbing it into the finish with my fingertips and then letting harden slightly. I buffed it with a shoe brush and a cotton cloth. I repeated the process until I had given the bowl several coats of the wax. The finish really had taken on a shine that was beautiful. I set the bowl aside and called it a night. When I returned the next evening after work I turned my attention to the stem. The repair had hardened and looked good. I sanded it smooth with a 1500 grit micromesh sanding pad. I did not want to sand too deeply into the repair rather I wanted to have it form a protective layer over the puncture mark. I used 400 grit wet/dry sandpaper to feather in the edges of the repair. I polished the entire stem with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped it down after each pad with a damp cloth. I polished it further with Before & After Pipe Stem Polish – both the Fine and Extra Fine. I wiped it down and gave it a shine with some Obsidian Oil. With the stem polished I put it back on the shank and polished the bowl and stem with Blue Diamond on the buffing wheel. I used a light touch on the briar so as not to fill in the rustication or the rings with buffing compound and a slightly heavier touch on the acrylic stem. I gave the bowl multiple coats of Conservator’s Wax by hand rubbing it into the finish and the stem multiple coats of carnauba on the buffing wheel. I buffed the entire pipe with a clean buffing pad to raise the shine on the briar and the acrylic. I hand buffed it with a microfiber cloth to deepen the shine. The finished pipe is shown in the photos that follow. It is a beautiful piece of pipe crafting. I am sure Eric will enjoy this beauty once it heads back to Ontario. Just one more of his pipes to work on before they all travel east. Thanks for walking with me through the restoration. Cheers.

Cleaning a Peterson Aran – aka The Curse of the Tar Monster

5 Replies

Blog by Dave Weagle

I know my sub-title sounds like a Scooby Doo episode from the 70’s but when you see the condition of the pipe when it arrived in the mail, my first thought was “The Tar Monster”.  Here’s the story of the restoration.

One Saturday afternoon while waiting to go out for supper I had a few minutes to kill so I grabbed my phone and went surfing Ebay for any new pipe listings.  My common searches are Peterson, Kaywoodie & Yello Bole.  When I typed in Peterson a listing appeared for a pipe lot that included two Peterson Aran pipes and a group of pipes.  The only other pipes in the lot other that I could identify from the photos were five Carey Magic Inch (the vents in the stems gave them away).  The sellers description was “Large Lot of Vintage Pipes in Used Condition.  I’ve learned that could be anything from cracked bowls to chewed stems.

Of the eight pictures that appeared in the Ebay listing, one showed both Peterson pipes.  A Canadian (needing a quick cleaning and a stem) and a Bent Billiard that appeared to be partially rusticated.  It looked like the rustication had been nicely done and both pipes appeared to be in good shape.   When the box arrived, I found each pipe was individually wrapped with bubble wrap and taped.  It was like Christmas.  Twenty- seven little presents to unwrap.  I quickly found the five Carey Magic Inch pipes but to my delight there was a GBD, a Wally Frank, a Weber, two Edwards, a few basket pipes and ten Kaywoodie’s (most older four-hole stingers).  The Petersons were at the bottom of the box and to my shock this was not a rusticated billiard.  This was an eruption of lava.  My stomach sank.  My first thought, with this much lava covering the bowl, the pipe must have been smoked hard and the inner bowl would be destroyed.  Between the condition of the bowl and stem I figured the first step was to soak both the stem and the bowl.  I removed the nickel band and placed the bowl to soak in isopropyl alcohol.  The stem actually had so much calcium buildup on it I figured it would take an evening of sanding and rebuilding just to save the stem. While the bowl soaked I mixed up an Oxy clean bath and soaked the stem.   When I pulled the bowl out of the isopropyl alcohol I took it to the sink and using 0000 steel wool I scrubbed the bowl attempting to remove the softened lava.  Some came off. I then removed the stem from its bath and took it to the sink as well.  I used a pot scrubber to remover the buildup on the stem and then using hot water and a sank brush I managed to clean the stem to the point that a pipe cleaner could pass through it.   Not to speak ill of a fellow pipe smoker but I couldn’t smoke a pipe in this condition.Next, I decide to gently scrape the bowl using the back side of my pipe knife.  I didn’t want to gouge the bowl, so I went at it slowly and took a few breaks during the process.  Once I had removed all traces of the lava it was on to sanding.  Using micro mesh pads, I started with 1500 and progressed to 12000.

It cleaned up beautifully. The grain was gorgeous.  I was beginning to feel a bit better about my newest Peterson.  Maybe it would be salvageable.  Maybe it would actually become a nice addition to my Peterson collection and not just another old beater pipe to hangout in the garage with me when I work on my trucks.Now that there was some light at the end of the tunnel, there was still the inner bowl and the stem to deal with. As I said before. I’m not sure how someone smoked this pipe.  The stem was plugged.  The draft hole was plugged.  There was still tobacco flakes still in the bowl.

Starting with my Hedge Hog I opened the bowl enough to move on to my Castleford reamer.  After reaming the bowl, I used a piece of 220 grit sand paper to level out the bowl (I lost the pics of this process).  To my surprise the inner bowl had no scars, no burns or cracks.  It was in excellent shape.  It smelled like an outhouse but was in excellent shape.  Using a 4mm drill bit, I opened up the draft hole. Next using cotton swabs, a shank brush, pipe cleaners and isopropyl alcohol I scrub the bowl and the shank.  After cleaning the bowl, it still stank.  My wife, actually came downstairs to ask me what I was working on.  She could smell the pipe all the way upstairs.  In the 300+ estate pipes I have worked on this is the first that could be smelled on another floor.  I guess reaming the bowl unleashed the funk.  It was off to the retort to remove the smell.  It took four test tubes of alcohol before it came out clear.After finishing with the retort, I flamed the bowl to remove any excess alcohol.The next step was to fix the damage to the stem.  The top of the P-lip was dented and the underside ridge was chewed.  Mixture of rubberized CA glue and charcoal powder was applied to stem and left to dry overnight.   The next evening after a long day it was nice to sit down by the woodstove with a coarse file and set about getting the rough shape of the stem back.  To remove the file marks I sanded the stem starting with 220 grit paper finishing with 800 grit.  I then switched to wet sanding finishing at 3000 grit.  Micro mesh pads were used prior to buffing the stem. Blue diamond was used on the buffing wheel.  Before waxing the stem the P stamped on the side was highlighted with Rub n Buff silver paste.  The bowl was also polished with blue diamond compound on the buffer.  Before waxing the bowl the band was fastened with white glue.  The band was polished with Autosol and the bowl was sweetened.And this is the finished pipe after a few coats of Carnauba Wax. Still blows me away how nice this pipe cleaned up.  Keep on pipe’n.

Breathing Life into a Republic Era Peterson’s System 313 Pipe

4 Replies

Blog by Steve Laug

I have been corresponding with Paresh for some time now and have repaired and restored two of his pipes and sent him others as well. We carry on conversation via WhatsApp on the internet and discuss the various pipes he is purchasing as well as ones that he has inherited from his grandfather. This Peterson 313 System pipe came to me direct from the eBay seller in England. It took so long to get here (almost 2 months) that we both had pretty well given up on it. It arrived in a crushed package that I had to pick up at the post office. I was worried that the pipe inside had been damaged as well. This was one of those times that the seller had done a very thorough wrapping of the pipe in bubble wrap so it was unscathed by the crushing of the box. The pipe was stamped Peterson’s arched over System over Standard on the left side of the shank and Made in the Republic of Ireland on the right of the shank with the shape number 313 under that. The nickel ferrule was stamped K&P over Peterson.

The finish on the pipe was very dirty with a lot of dents on the bottom side of the bowl and shank. There was a long deep dent on the front of the bowl. The bowl had a very thick, hard cake that had overflowed onto the rim top. The bowl was out of round and the inner bevel was burned and damaged. It looked as if some had tried to ream the bowl with a knife sometime in its life. There were two fills – one on the back left and one on the back right. In the angle of where the shank and bowl connected there was a heavy oily grime build up. The inside of the shank and sump were filled with tars and oils. The nickel ferrule was in great condition with light scratching but no real oxidation. The stem was a mess. The top side of the stem had deep tooth grooves extending forward from the p-lip button about 1 inch. On the underside there were also tooth marks. Both sides had a lot of serious chatter and some calcification build up. The stem was oxidized and very dirty. I took some photos of the pipe before I started working on it. I took close up photos of the rim top and the stem to show the condition it was in when it arrived in Vancouver. You can see the heavy lava buildup on the rim top. You can also see the damage on the inner edge, particularly heavy on the right front side. The cake was quite thick and very hard leaving barely enough room for my little finger to fit in the bowl. You can see the condition of the stem and the tooth marks in the oxidation on both sides. The tooth marks and chatter on both sides are deep and worn looking.The stem was stuck in the shank and would not move. I tried to twist it and turn it but nothing moved. I put the pipe in the freezer for half an hour let it do its magic. At the end of the half hour I was able to easily remove the stem from the shank.I decided to soak the stem in a bath of Before & After Pipe Stem Deoxidizer so I dropped it in the airtight container and set it aside overnight to let it do its work.I turned my attention to the bowl. I started by reaming the hard cake back with a PipNet pipe reamer. I started with the smallest cutting head and worked my way up to the second head. I took the cake all the way back to bare briar. I cleaned up the remnants in the bowl with a Savinelli Fitsall Pipe Knife. The knife allowed me to get all the way to the bottom of the bowl and remove the cake that still remained around the airway.I topped the bowl on a topping board with 220 grit sandpaper. I worked on it until I had removed the damage on the top of the rim and was able to minimize the damage to the inner and outer edges of the bowl. I used a folded piece of sandpaper to rework the inner edge of the bowl and give it a slight bevel to hide the burn marks and the damage from the knife reaming. With a little work I was able to remove the damage on the inner edge of the bowl. I also ran the folded sandpaper around the outer edge to smooth out the nicks and marks.The briar on the bowl had some dents around the sides, front and back of the bowl. The underside of the shank was also dented. Before I dealt with the dents in the surface I decided to polish the briar and raise a shine. I wet sanded it with 1500-2400 grit micromesh sanding pads and dry sanded it with 3200-12000 grit pads. I wiped it down after each pad with a damp cloth to remove any sanding dust. The grain in the briar really began to stand out. There was some really nice birdseye on the sides of the bowl and cross grain on the front and back sides. I used a cherry stain pen to restain the rim top to match the colour of the rest of the bowl. I have found that this particular cherry stain perfectly matches the colour of the Peterson’s System Standard pipe.I cleaned out the inside of the shank, the sump and the airway into the bowl with pipe cleaners, cotton swabs and alcohol. It took a few of each but after while the cleaners and cotton swabs came out clean and the pipe smelled fresh.With the internals clean and the externals clean I decided to address all of the dents in the briar on the bottom and front of the bowl. I took photos of the dents to give an idea of the sheer number of them all around the shank, bowl bottom and up the front. They were all quite rounded dents rather than cuts so I figured that I could steam most of them out. I use a wet cloth (not dripping but enough to make steam when heated) and a hot butter knife to steam the dents. I heated the knife over a flame on my gas stove, put the wet cloth over the dents and touched the surface of the briar with the hot knife. The heated blade on the wet cloth created steam and began to lift the dents. I repeated the process until the majority of the dents had been lifted. I took photos of the pipe, knife and wet cloth.I dried off the bowl and took photos of the briar to show how well the steam had lifted the dents in the wood. I rubbed some Before & After Restoration Balm into the briar to lift out the dust in the grain, enliven and protect the clean and steamed bowl. I let it sit for a little while then buffed it off with a soft cloth. I like the way the grain stands out now. Some of the dents are still visible on the bottom left side of the shank but they are far better than they were. I took the bowl to my buffer and buffed it with Blue Diamond to polish it and raise a shine. I was careful around the stamping so as not to damage it or reduce its readability. The bowl looks really good at this point. All that remains for the bowl is to wax it and buff it. I set it aside and began my work on the stem. I took the stem out of the Before & After Stem Deoxidizer bath and rinsed it under warm water. I blew air through the stem to remove the deoxidizer from the inside of the airway. I dried it off with a paper towel to remove the residual oxidation that was on the surface. I took photos of the stem at this point in the process. You can see some of the calcification on the stem around the button and the tooth marks on both sides. The tooth marks on the underside are by far the deepest.I cleaned the inside of the stem with pipe cleaners, cotton swabs and alcohol to remove the residual deoxidizer in the airway.I painted the surface of the stem with the flame of a Bic lighter to left as much of the tooth denting as possible. Once I had repeated that and the stem would no longer rise I sanded it with 220 grit sandpaper to smooth out the damage. I finished by sanding it with 400 grit wet/dry sandpaper to remove more of the scratches in the vulcanite. I sanded the entire stem with 220 grit sandpaper to remove the calcification and remaining oxidation. I used a needle files to sharpen and reshape the sharp edge of the p-lip button on the top side and the shelf on the underside. I need to clean up those areas before I could repair the deep tooth marks. I cleaned out the deeper tooth marks with alcohol and cotton swabs to remove the debris and dust from the divots. I dried them off with a cotton pads. I filled in the tooth dents with black super glue. I spread the glue and smoothed it out with a dental spatula. I set it aside to let the glue cure.I sanded the repairs smooth with 220 grit sandpaper and with 400 grit wet/dry sandpaper. I blended them into the surface or the stem and reshaped the button and shelf. I polished the stem with micromesh sanding pads. I wet sanded it with 1500-2400 grit pads and dry sanded with 3200-12000 grit pads. I wiped the stem down after each pad with a damp cloth. I finished polishing the stem with Before & After Pipe Polish – both Fine and Extra Fine. I rubbed it into the stem and polished it with a cotton pad. I gave it a final coat of Obsidian Oil and set it aside to dry. With the stem reshaped and polished I put it back on the pipe and buffed the bowl and stem with Blue Diamond. I used a light touch on the stem to polish out any remaining scratches. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. The finished pipe is shown in the photos below. This is the fifth pipe I have worked over for Paresh. Once I finish the other two pipes that he has in the queue I will pack them up and send them to India. I look forward to hearing what he thinks one he has them in hand. Thanks for walking through the restoration with me as this one provided a few different challenges to the restoration craft. Cheers.

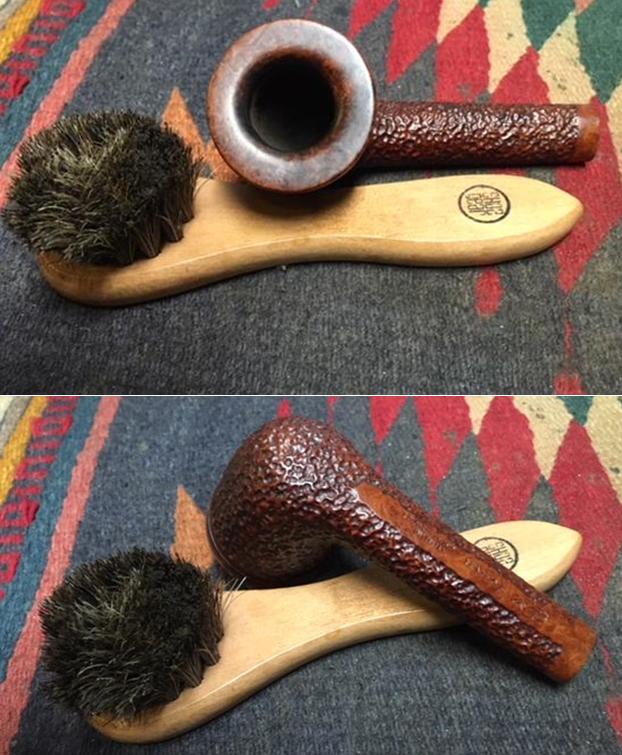

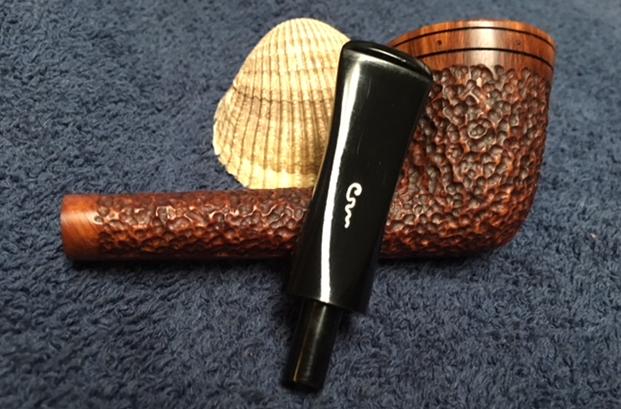

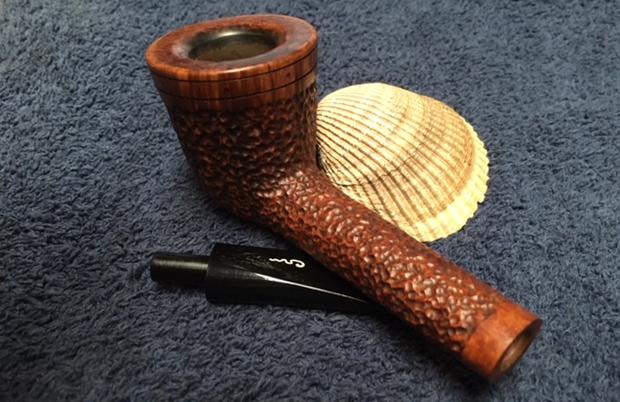

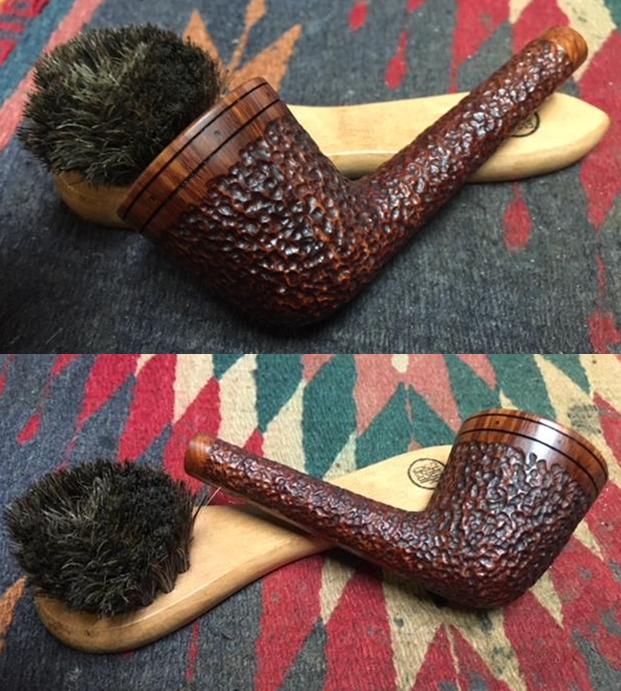

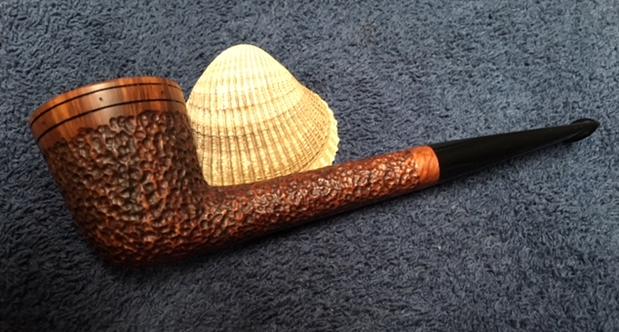

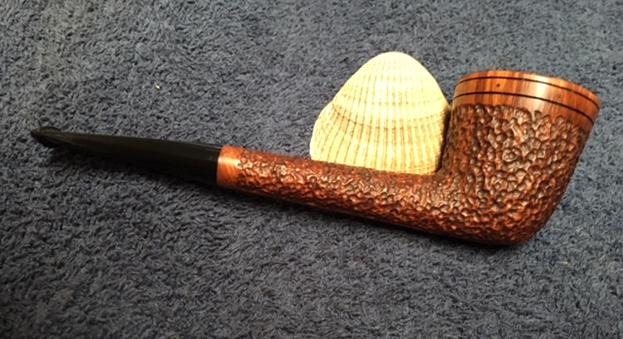

Breathing New Life into a Le Nuvole Rusticated Long Shank Dublin

3 Replies

Blog by Steve Laug

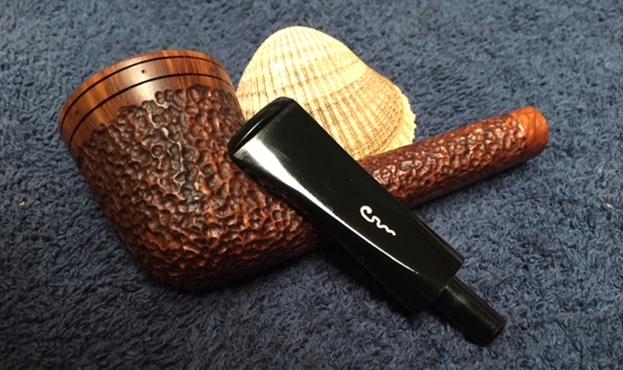

Sometimes a voice from the past is a good thing for both parties. Many years ago now, here in Vancouver I met Eric at the Vancouver Pipe Club. We talked at pipe club meetings and had a common calling as ministers in within different Christian Churches. Over time Eric moved to Eastern Canada and I moved on to work for an NGO here in Vancouver. Not too long ago I received an email from Eric about some pipes that he had that he wanted me to work on for him. We made arrangements and soon a box with three of his pipes was traveling to me from Ontario. It arrived quite quickly and I opened it when it arrived. Eric had thoughtfully included a tin of Samuel Gawith’s Commonwealth Mixture Full Strength for me to smoke and I was looking forward to cracking it open. Included in the box were three pipes – a Danbark Hand Carved from Denmark that was quite stunning, a Bewlay Sandblast Billiard and a Le Nuvole Long Shank Dublin. Each had different challenges to address but each was a beautiful example of the pipe maker’s craft. I decided to work on the Le Nuvole first. I am not sure why I chose that one first but maybe it is because I have a Le Nuvole Cornetto myself and really enjoy the craftsmanship of the pipe. Or perhaps something about the shape and finish caught my eye.

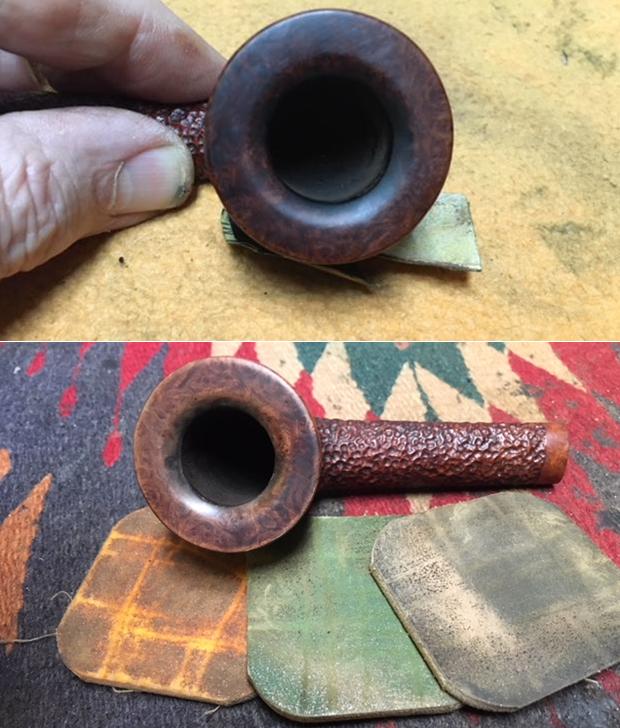

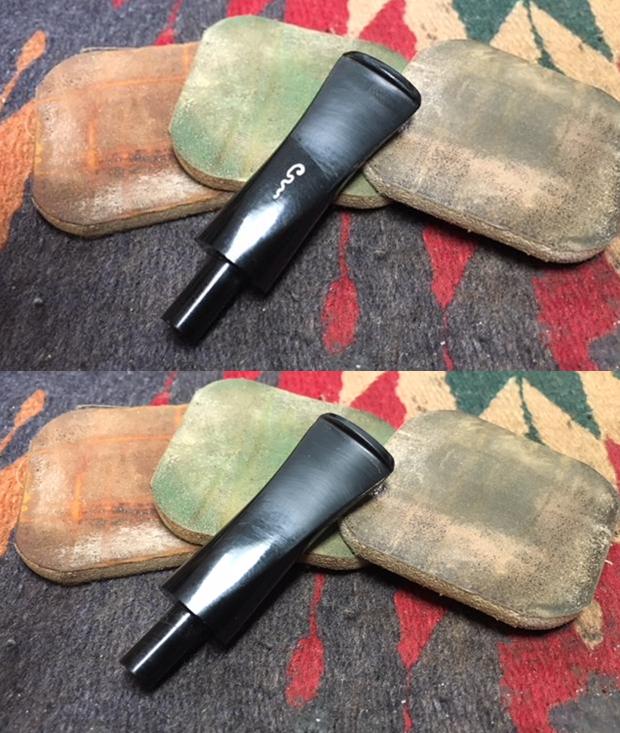

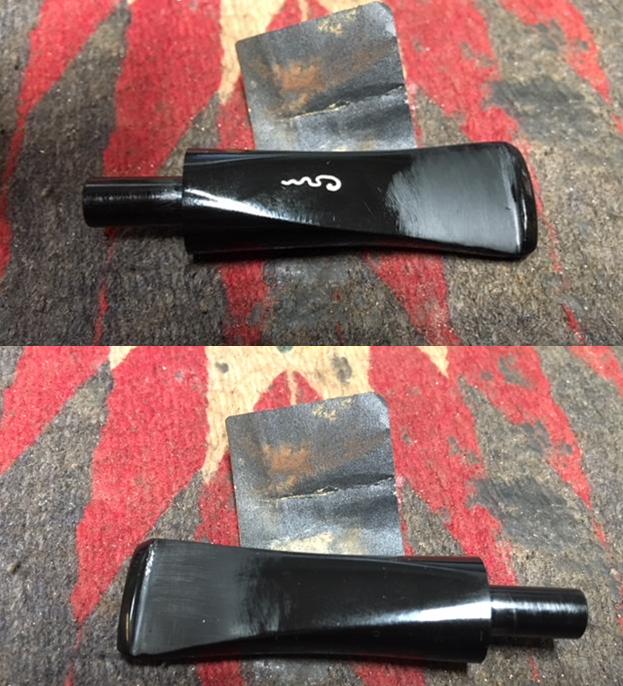

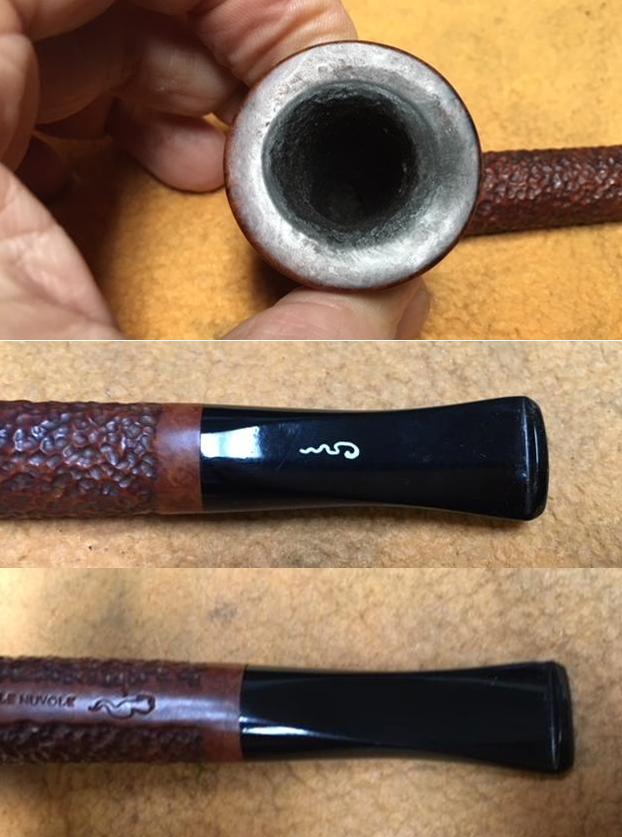

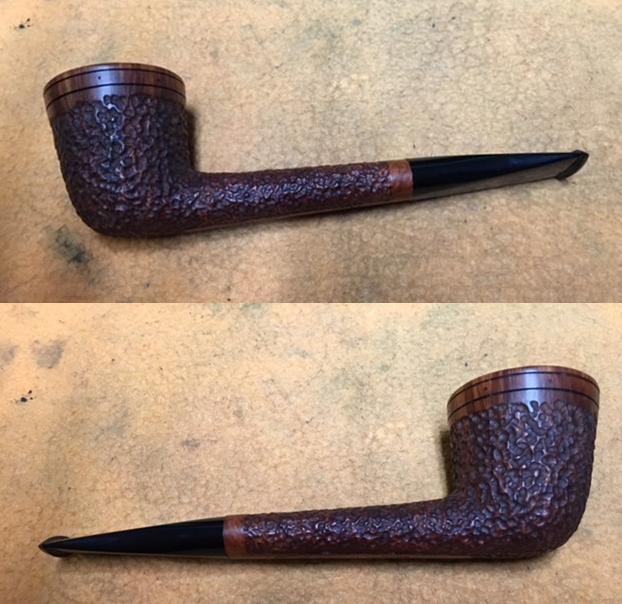

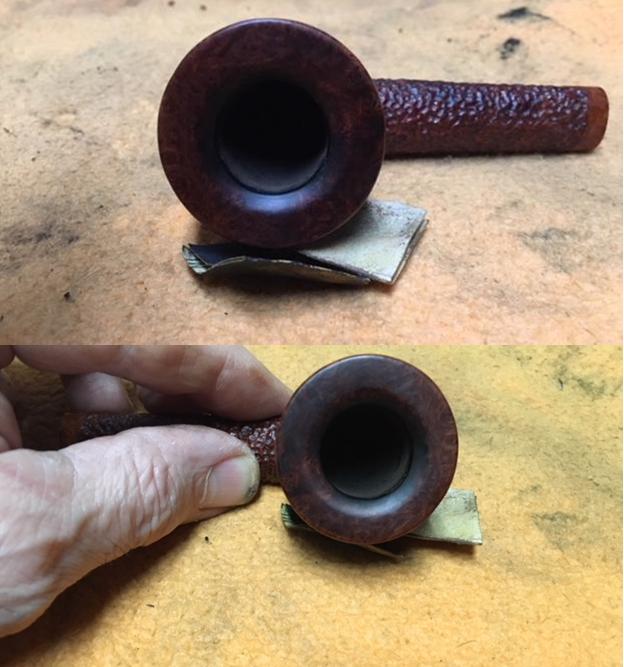

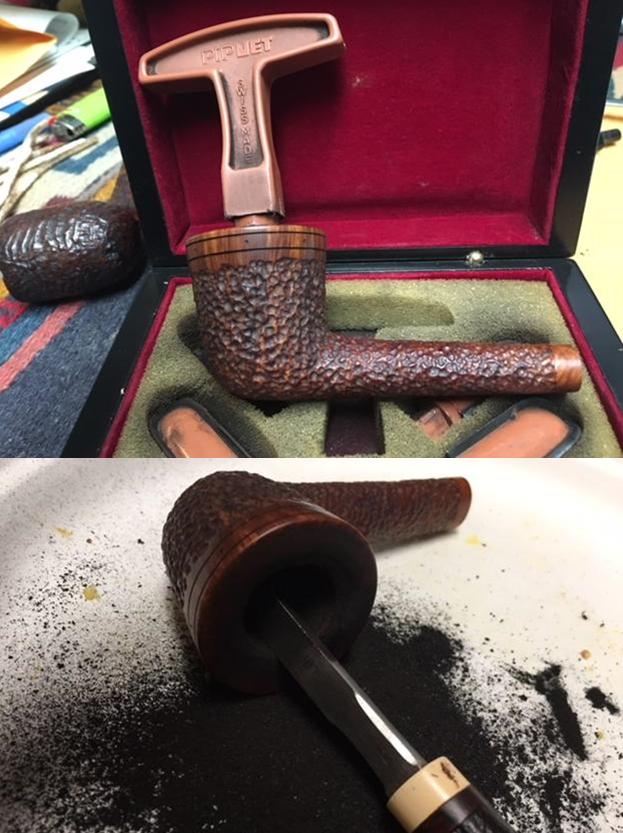

Whatever the reason, I began with it. The finish on the pipe was very dirty with a lot of grit and grim in the grooves and crevices of the rustication. The rim top was heavily tarred with lava that flowed from a thickly caked bowl. The edges of the rim appeared to be in okay condition though I would not know for sure until I had reamed the bowl and cleaned off the rim top. The inner edge of the bowl was beveled inward and showed promise. The bowl was rusticated all around other than a band of smooth briar around the top of the bowl, rim top and the end of the shank. The rim had twin rings around it and also small spots of inlay between the twin rings at ½ inch intervals. The grain on the smooth parts was very nice. The acrylic stem had the white Le Nuvole squiggle on the top side. There was tooth chatter on both sides at the button and a deeper tooth marks on the top next to the button. The pipe was very dirty and reeked of heavy English tobaccos. I think that the previous owner (before Eric) was a stranger to pipe cleaners. I took photos of the pipe to show the condition it was in when it arrived. I took close up photos of the bowl and rim top to show its condition. You can see the thick cake in the bowl and the overflow of lava onto the inner edge bevel and on the rim. The rim does not look damaged on either the inner or outer edge in this photo. I also took photos of the stem to show the general condition it was in as well. It looked pretty good other than a small tooth mark on the underside of the stem next to the button and tooth chatter on both sides. I decided to read a little about the brand and the couple who made the pipes – Maurizo and Stefania Tombari. I have had my Le Nuvole since the early 90s and it is a great smoking pipe and extremely well made. It has a very similar rustication pattern as this pipe. I did some reading on Pipedia and on PipePhil’s site to remind myself of the history of the brand. I thought I would summarize what I found to give some back story to the pipe.

With Le Nuvole line, founded in 1996, Maurizio Tombari would like to offer a fine artisanal product, coupled with the perfection of the execution and a personal and innovative formal research. This is done by melding long experience matured in the Pesarese workshops with the “uncontaminated” creative vision of his wife, Stefania, his partner for the stylistic designs.

Ambitious conductor theme “Ambizioso tema conduttore”: joining functionality and elegance. A particular concession to the fantasy of the shapes and a digression from rationality, is reserved for the ZED line of pipes, an exiguous series of exclusive and numbered models.

Maurizio produces 230 pieces per year; each piece is realized with the same meticulousness and care of details. The ageing of at least 3 years of the briar (from Calabria and Tuscany), stored in an insulated room, plays a vital role in the smokability and the ‘flavour’ of the pipes. The special processing and finishing of the methacrylate(acrylic) mouthpieces ensures a perfect “suitability” of the pipe.

Maurizio Tombari was born in Pesaro in 1953 and received a diploma in painting at Accademia di Belle Arti in Urbino in 1978. Since then until 1996 he worked for pipe makers Mastro de Paja and Ser Jacopo. At the same time, he was an interior designer and he took part in painting exhibitions. https://pipedia.org/wiki/Le_Nuvole

From the PipePhil website I quote: Artisan: Maurizio Tombari (born 1952) collaborates with his wife Stefania. This brand founded in 1996 offers amazing shapes.

Gradings: a number above a cloud. Smooth pipes (ascending): 3 to 8; Sandblast pipes: S1 to S3;    Rusticated pipes: 1 and 2. Dating: From Jan 1st, 2012 the pipes are stamped with a 2 digits number (12=2012). http://www.pipephil.eu/logos/en/logo-l3.html

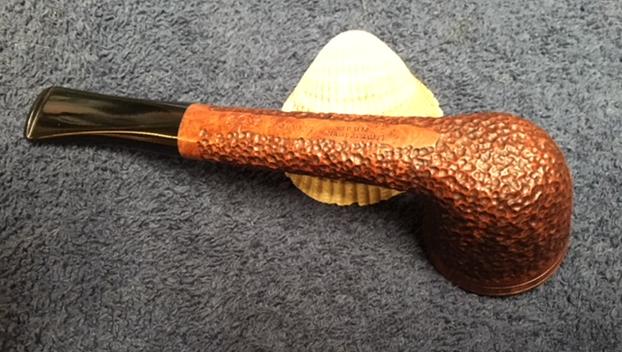

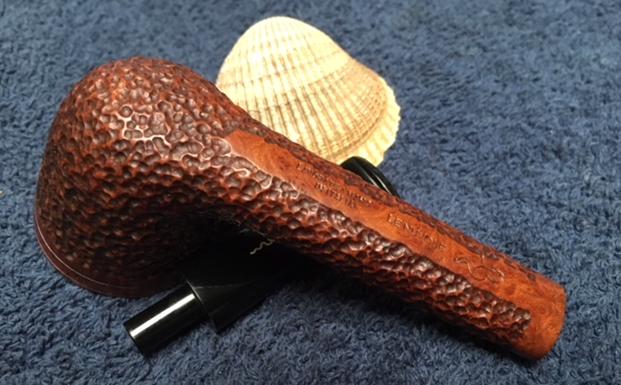

The Le Nuvole I am working on is stamped on the underside of the bowl and shank with the following information: Lavorate A Mano over in Italia. Next to that is the brand Le Nuvole followed by the cloud stamp with a number one over it. The stamping tells me that the pipe is a Grade 1 Rusticated pipe. The photo below shows the stamping on the bowl and shank. Maurizio’s handmade stems have a funneled airway leading through the tenon to the flared slot in the end of the stem. He does beautiful work. I started the restoration of this beautiful pipe by reaming the bowl. I wanted to clean out the cake and examine the inside of the bowl and the edges of the inner beveled rim. I reamed it with a PipNet pipe reamer starting with the smallest cutting head and working up to the second cutting head. The bowl is slightly narrower toward the bottom so I used the Savinelli Fitsall Pipe Knife to finish the reaming.I cleaned out the interior of the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. Cleaning the stem took the same amount of pipe cleaners as the shank but I forgot to include a photo of that. I cleaned it until the cleaners came out white.I carefully scraped the cake on the rim with the edge of the Savinelli Fitsall Pipe Knife to remove the heavy buildup on the bevel and the top. I sanded it gently with a worn piece of 220 sandpaper and wet sanded it with some 400 grit wet dry sandpaper. I polished the rim top with micromesh sanding pads – wet sanding it with 1500-2400 grit pads and dry sanding it with 3200-12000 grit pads. I wiped it down after each pad with a damp cloth. The photos below tell the story of the polishing of the rim top. I scrubbed the briar with Before & After Restoration Balm working it into the nooks and crannies of the rusticated finish. The balm cleans, enlivens and protects the briar and removes the dust and debris in the rustication. It also brought new life to the rim top. I rubbed it in and let it sit for a little while before rubbing it off with a cotton cloth. The photos below show the progress of the polishing.  I polished the briar with a horsehair shoe brush to raise a shine in the nooks and crannies of the rustication. The pipe is beginning to look fresh and new. I set the bowl aside and turned my attention to the stem. I sanded out the tooth mark on the top side next to the button and the tooth chatter on both sides of the stem with 220 grit sandpaper. I followed that with 400 grit wet/dry sanded paper – wet sanding until the scratches were beginning to blend into the surface of the acrylic. I polished the acrylic with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I wiped it down after each pad with a damp cloth. I polished it further with Before & After Pipe Stem Polish – both the Fine and Extra Fine. I wiped it down and gave it a shine with some Obsidian Oil. With the stem polished I put it back on the shank and polished the bowl and stem with Blue Diamond on the buffing wheel. I used a light touch on the briar so as not to fill in the rustication or the rings with buffing compound and a slightly heavier touch on the acrylic stem. I gave the bowl multiple coats of Conservator’s Wax by hand rubbing it into the finish and the stem multiple coats of carnauba on the buffing wheel. I buffed the entire pipe with a clean buffing pad to raise the shine on the briar and the acrylic. I hand buffed it with a microfiber cloth to deepen the shine. The finished pipe is shown in the photos that follow. It is a beautiful piece of pipe crafting. I am sure Eric will enjoy this beauty once it heads back to Ontario. Just two more of his pipes to work on before they all travel east. Thanks for walking with me through the restoration. Cheers.
