Cleaning up a Pair of Goedewaagen Delft Ceramic Pipes


Blog by Steve Laug

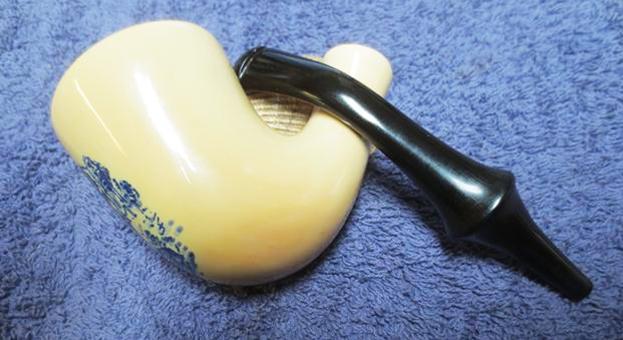

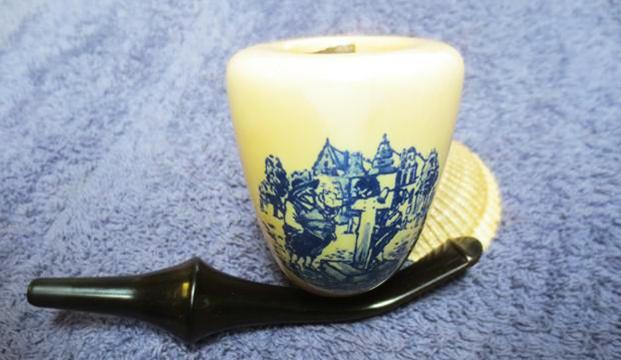

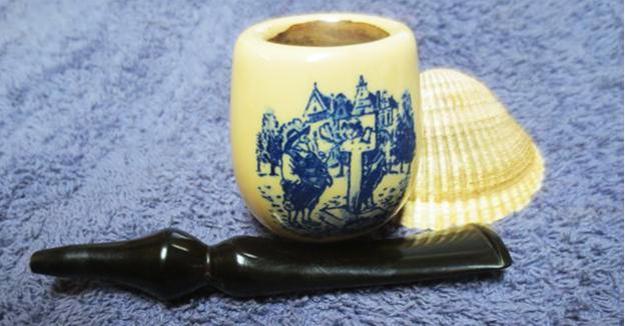

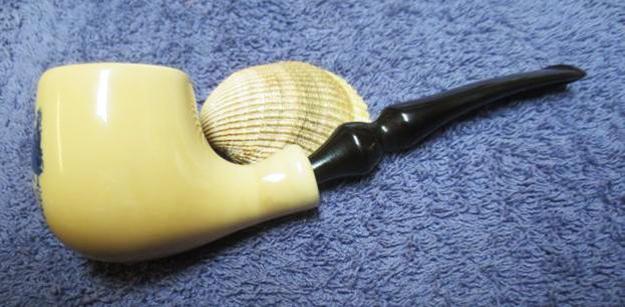

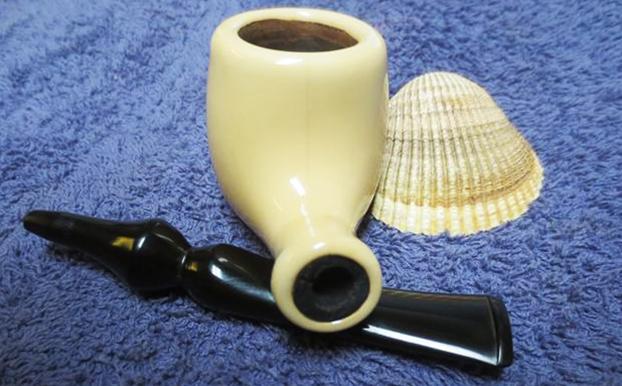

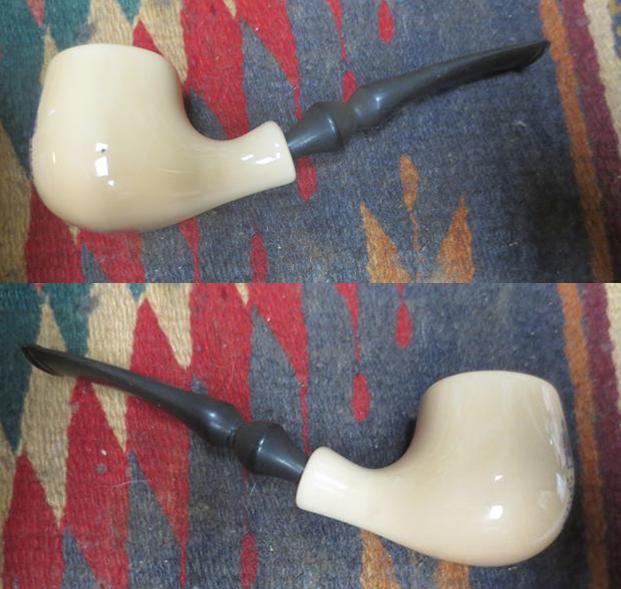

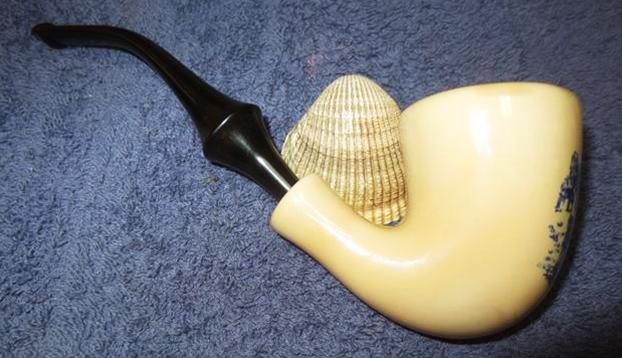

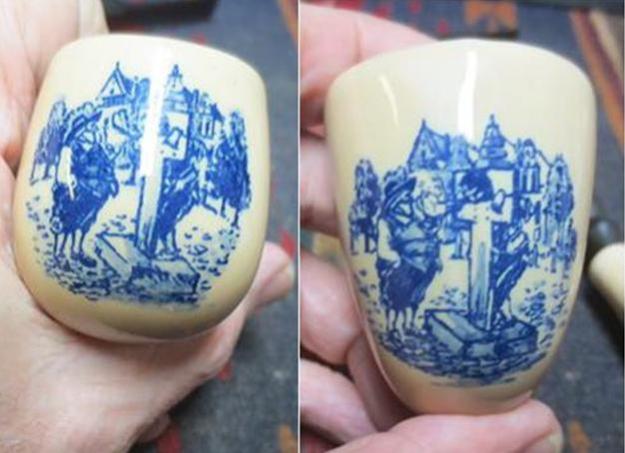

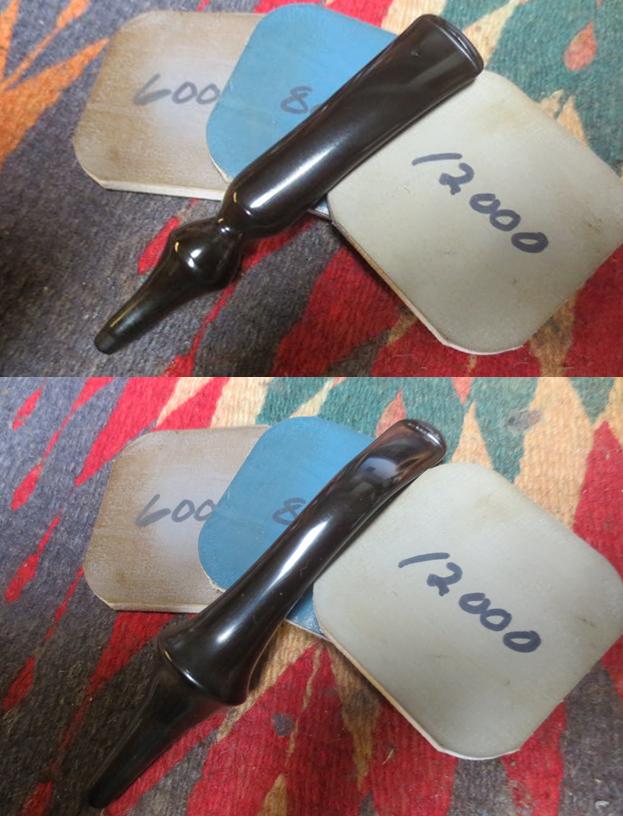

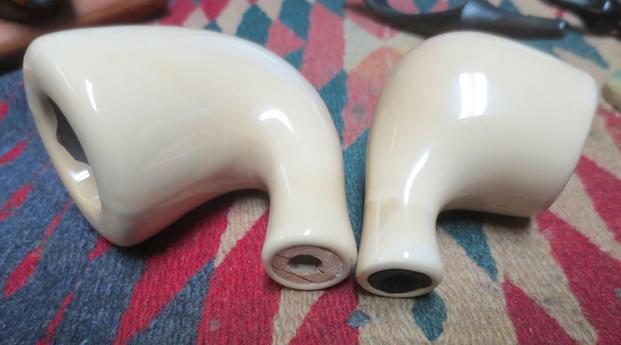

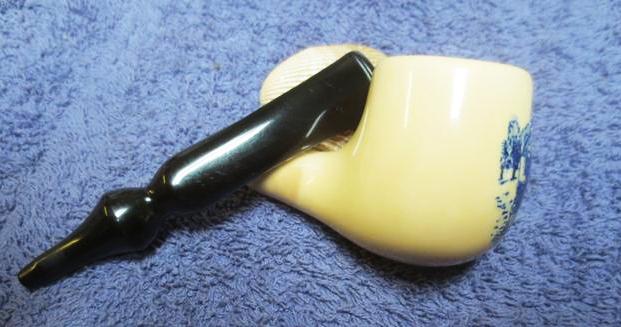

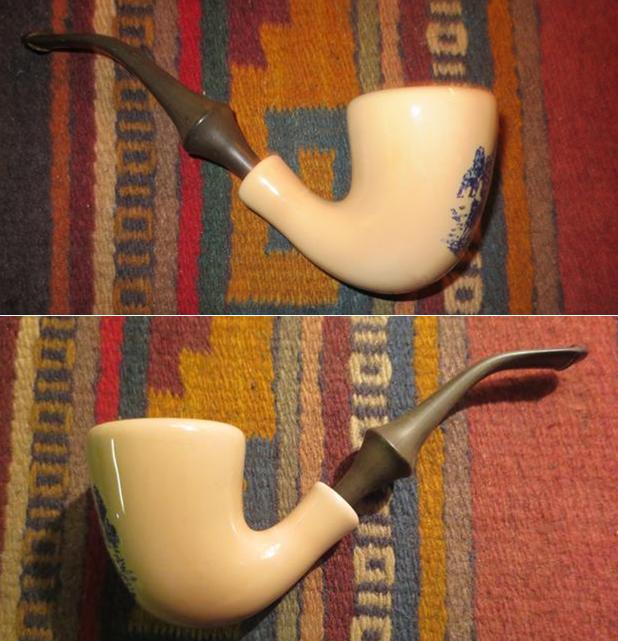

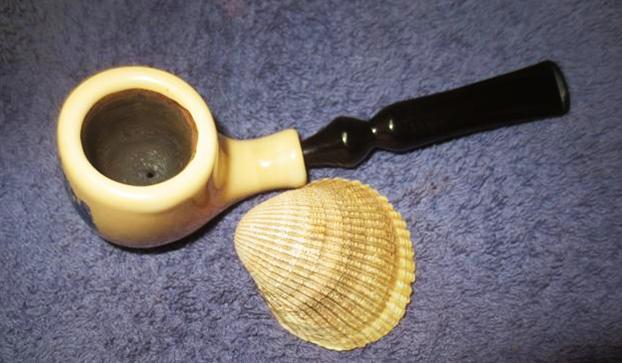

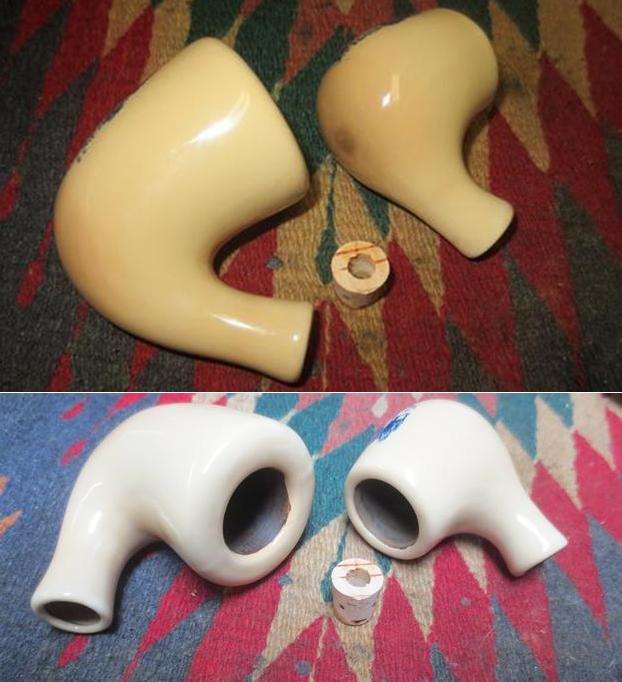

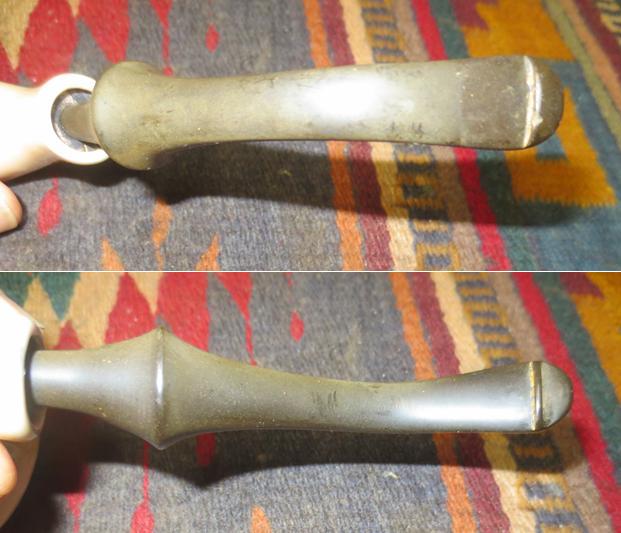

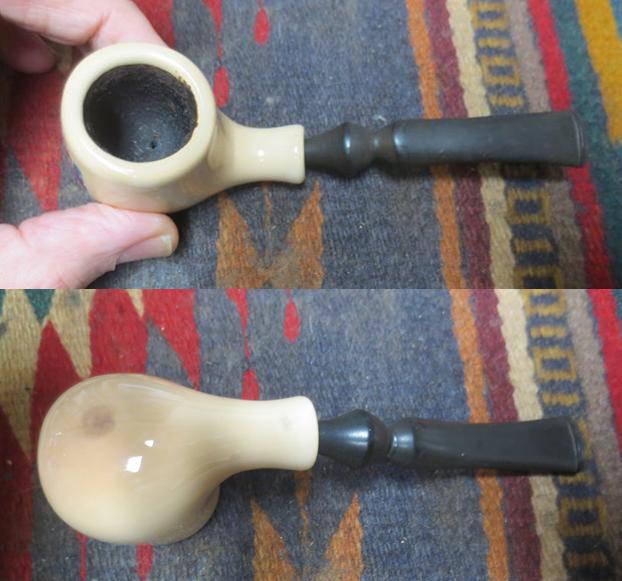

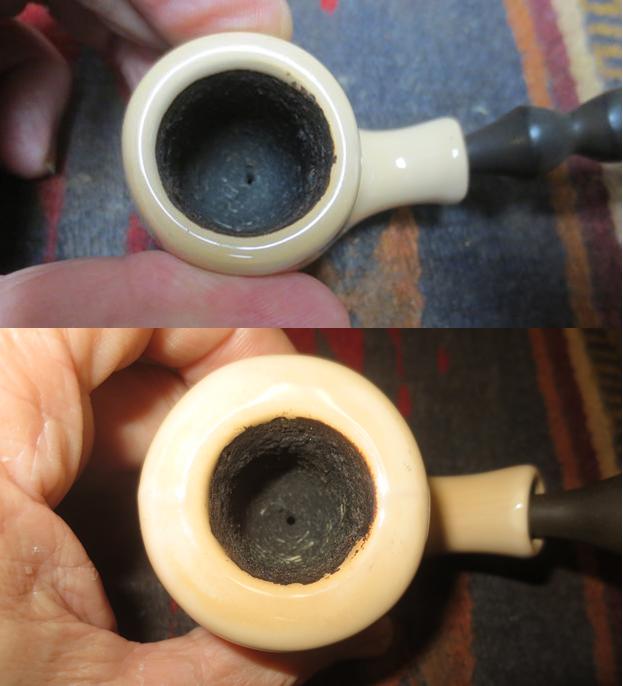

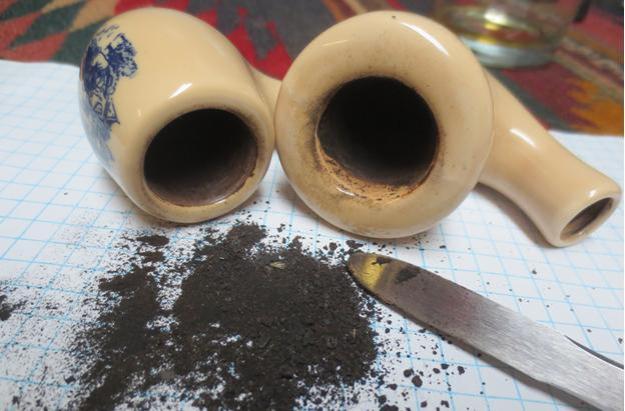

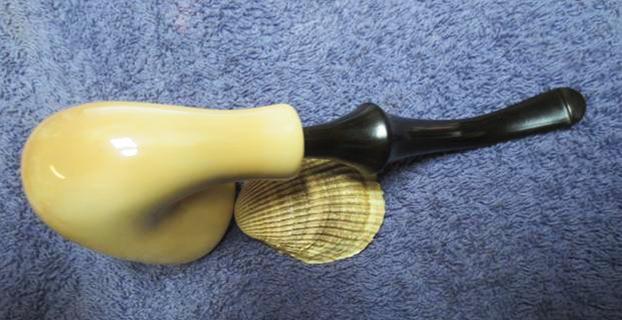

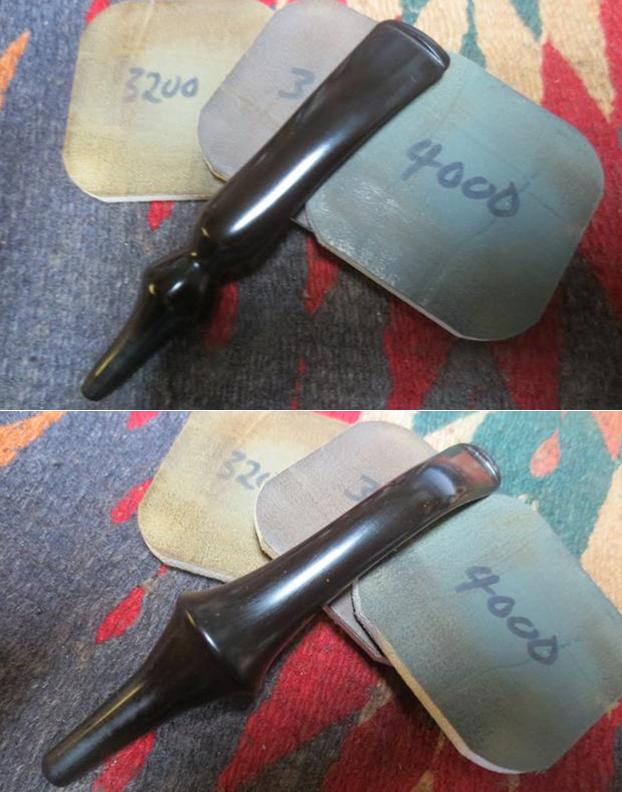

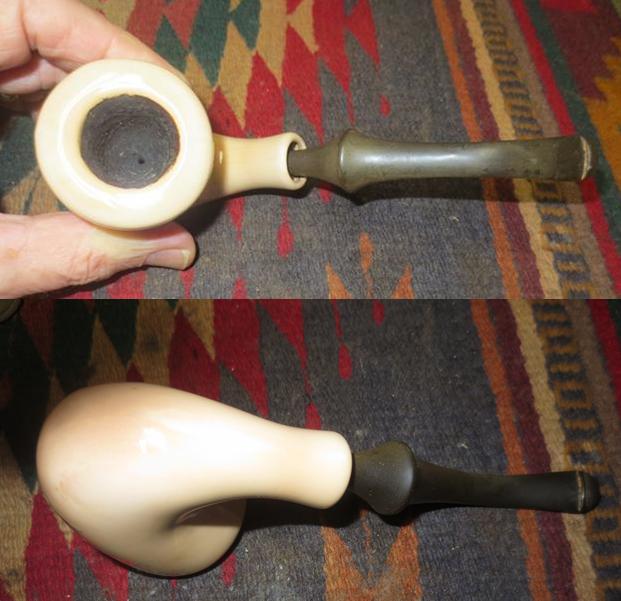

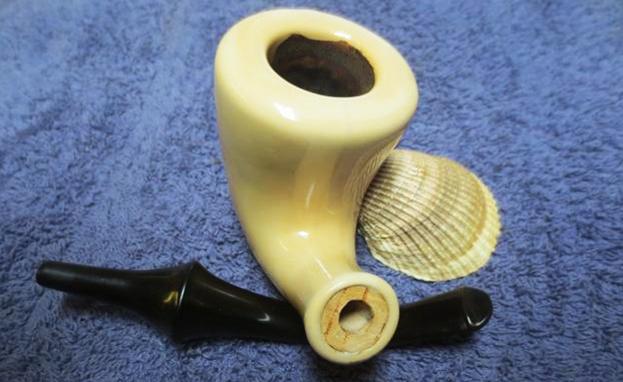

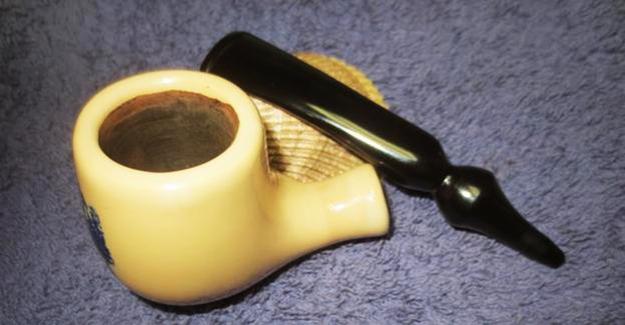

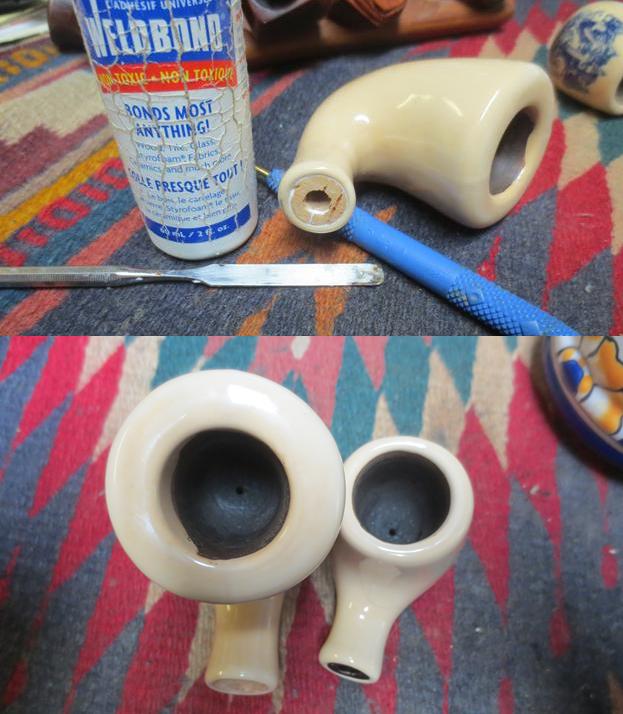

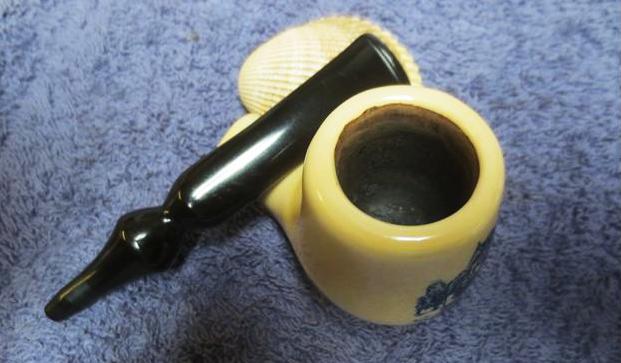

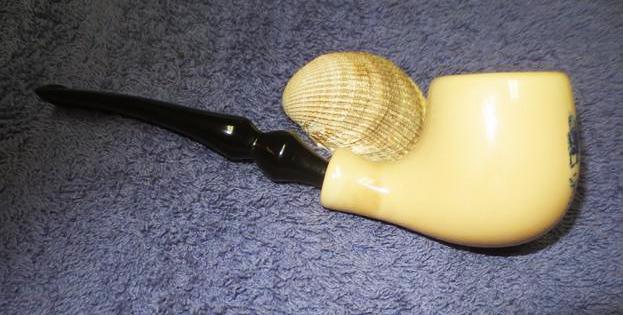

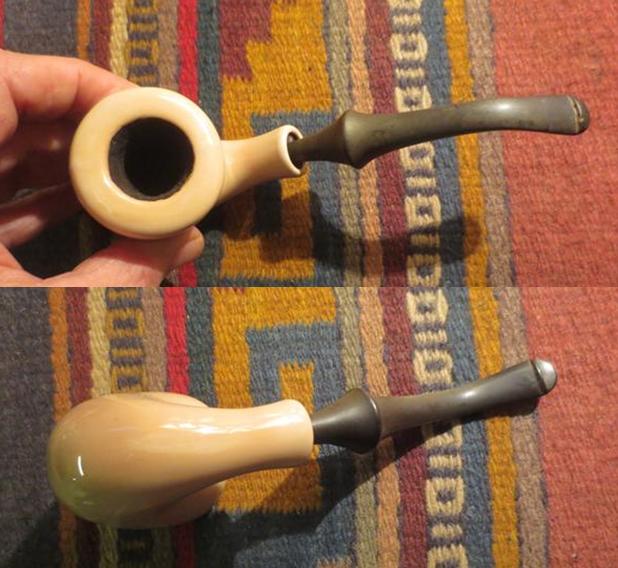

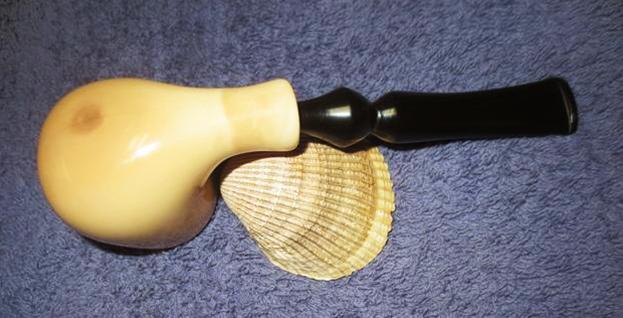

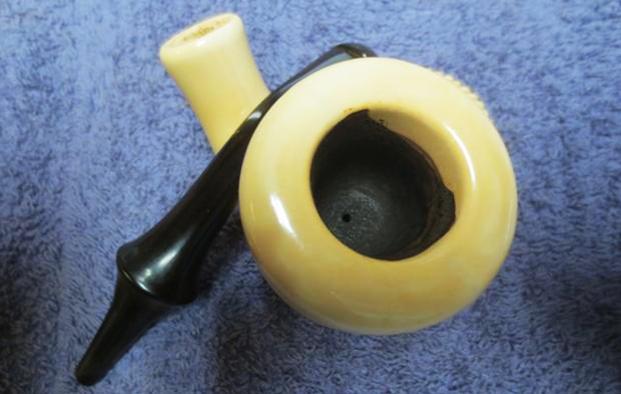

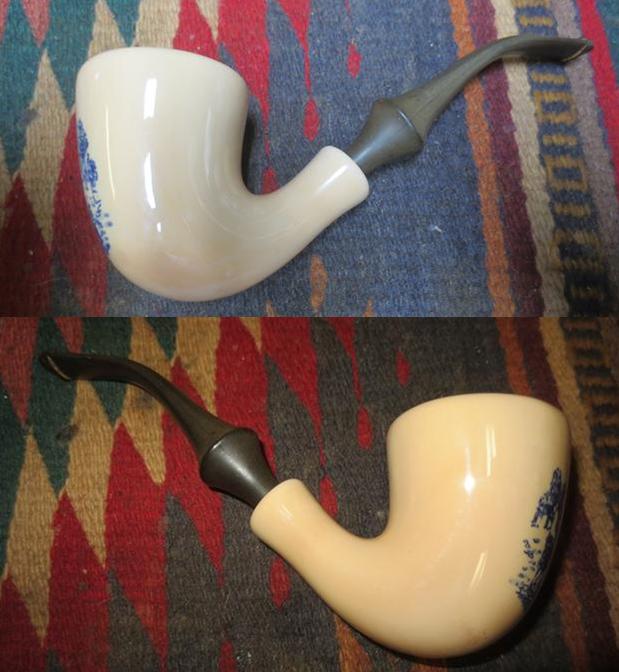

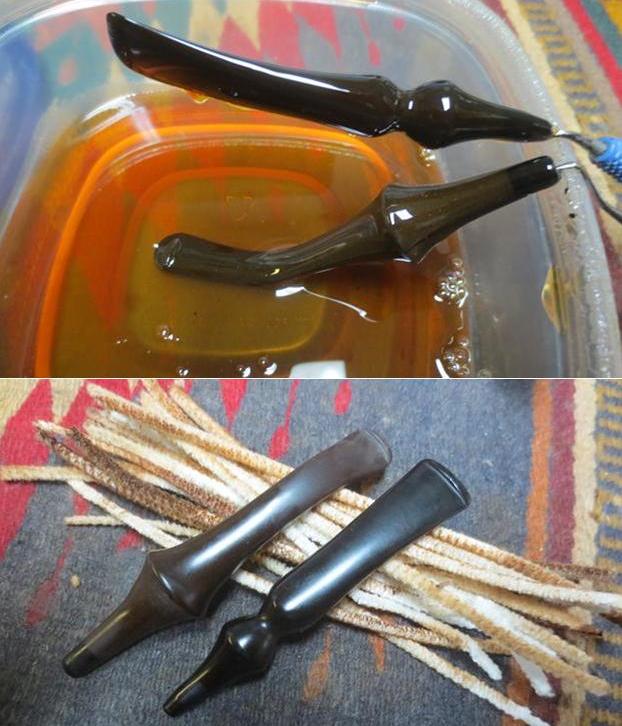

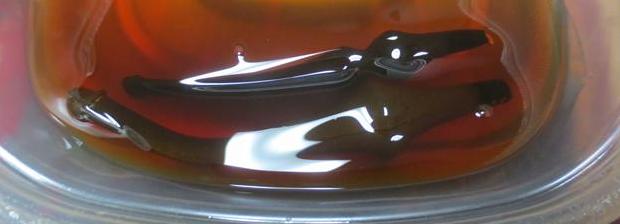

This pair of double walled ceramic pipes was originally white with a blue Delft style scene painted and cured into the ceramic on the front of both bowls. They both have a painting of a scene that is a famous picture from Troost Tobacco where one man is in the stocks and another, rather portly man is helping him smoke a pipe. There is no other stamping on either pipe. Both pipes have begun to develop a nice patina as the bowls darken from smoking them. The stem on the smaller of the two (photos 1-4) was a typical freehand stem like many I have seen and used in the past. The one on the larger calabash (photos 5-8) shaped one is like the stems on WDC Wellington’s – kind of a faux p-lip with the airway coming out the end of the button rather on the top like a Peterson. The smaller pipe had a rubber stopper in the end of the shank to hold the stem in place and the larger one had a crumbling cork stopper. Both pipes were very dirty with cake in the bowls and oxidation on the stem surfaces. The pipes were made by an old Dutch pipe making house called Goedewaagen. Here is the link to their website. Have a look at the history page on the site. It gives a detailed background on the Company that made the pipes. Even though the link is in Dutch it is worth translating with Google Translate. http://www.goedewaagen.nl/goedewaagen/. I have included the cutaway diagram of the double walled ceramic pipe to help give and idea of the concept and construction of the pipe.Both pipes came to me from the estate of a Vancouver pipe smoker whose widow left them with RJ Clarke’s Pipe Shop after he died. I was asked to clean them up and sell them for the shop as it has since closed. I decided to work on them together as they will need the same kind of cleanup and restoration. The photos below show both pipes as they were when I brought them to my work table. I took photos of each of the bowls to show the cake lining the walls and the condition of the bowl and rim top. Both had a thick cake and the airway at the bottom of both bowls was half plugged making the airflow quite restricted.The paintings on both bowls were identical – a painting of a scene that is a famous picture from Troost Tobacco where one man is in the stocks and another, rather portly man is helping him smoke a pipe. As mentioned above both shanks used a stopper in the mortise to hold the stem in place. The smaller pipe used a rubber stopper and the calabash style pipe had a cork stopper. The rubber one was in good condition while the cork one was crumbling and pushed into the mortise. The photos below show the two stoppers.The stems were quite different in terms of condition. It appeared to me that the one on the smaller pipe was better quality vulcanite than the other one and it was barely oxidized. There was light tooth chatter on the stem. The stem on the calabash pipe was heavily oxidized and the tooth chatter and marks were heavier. I put both stems in the Before & After Pipe Stem Deoxidizer bath to soak overnight. I knew that it would work well on the stem from the smaller pipe as it was less oxidized. The heavier oxidation on the calabash stem would be harder because the bath was getting less effective after soaking and cleaning 80-90 stems in it.I scraped out the cake in both bowls using the Savinelli Fitsall Pipe Knife. I removed all of the cake and sanded the inside of the bowls with 220 grit sandpaper to remove the remnants. I used a dental pick to clean out the clogged airway at the bottom of each bowl.The rubber stopper on the smaller pipe was in good condition and still usable. The cork stopper was crumbling and I could hear pieces rattling in between the double walls of the ceramic pipe. I used a pen knife to clean out the pieces of cork. I cleaned both bowls under warm running water. I filled the space between the two walls of both pipe with hot water and shook it to loosen any residual tars or oils that had collected in those spots. I shook the water out and repeated the cleaning until the shanks and insides of both pipes were clean. I scrubbed the outside of the bowl and the inside of the bowl with hot water and a light detergent to remove the dirt on the glazed ceramic finish. While I was cleaning the bowls I remembered that I had inherited a bag of corks that were drilled or Le Peltier ceramic pipes. I took one out and was glad that it was the proper diameter for the calabash.  I dried out the shank and the bowl with paper towels and wetted the cork to cause it to swell. The fit in the mortise was perfect. I used a dental pick to carefully lift it out of the mortise and coated it with all-purpose glue. I pressed it in to the mortise until the surface of the end of the cork was the same distance from the outer edges as the rubber stopper on the other pipe. I set the bowl aside to let the glue dry before trying the stem on the pipe. I took photos of both bowls to show how clean they were at this point in the process. By this time the stems  had been soaking since the night before. I took them out of the bath and held them over the container to let the thick solution drip clean of the stems. When the majority had dripped clean I dried them off with a rough cotton cloth the wipe off as much of the oxidation on the rubber as possible in the drying process. I cleaned the airway on both stems with alcohol and pipe cleaners until the deoxidizer and the tars and oils in the stems was removed and they were clean. In retrospect I should have cleaned them before soaking them but hindsight is always better anyway. The stem with the lighter oxidation came out almost perfect. The other one was certainly better than before the soak.The stems looked good but more work would need to be done before the final black gleam was back. I buffed both stems with red Tripoli to remove the remaining oxidation. I sanded both stems with 220 grit sandpaper to remove the tooth chatter from both sides near the button. I did more work on the stem from the calabash to remove the heavier oxidation of the vulcanite and to reshape the button. Once I was finished with the sanding I buffed both stems again with the red Tripoli. After buffing them I polished them with micromesh sanding pads – wet sanding them with 1500-2400 grit pads and wiping them down after each pad with Obsidian Oil to give the next pad more bite when I sanded. I dry sanded them with 3200-12000 grit pads and again wiped them down with the oil after each pad. After the final pad I wiped them down a final time with the oil and set them aside to dry. I put the stem back on the bowl and buffed the entire pipe with Blue Diamond on the buffing wheel to polish the stem and the bowl. I used a soft touch on the bowl as I did not want to damage the paintings on the bowl fronts of the ceramic polish in any way. I buffed stem hard to work over the remaining small scratches and minute oxidation that was still on the rubber of both stems. It took some work but they cleaned up nicely. I gave the bowls and the stems multiple coats of carnauba wax buffed them with a clean buffing pad to raise a shine. I hand buffed the pipes with a microfiber cloth to deepen the shine. The two double walled bowls with the Delft style painting on the front and the developing brown patina combined with the black vulcanite stems present a beautiful pair of pipes. I find these interesting double walled Goudewaagen ceramic pipes a pleasant change to the briar pipes that I normally work on. The finished pipes are shown in the photos below. The dimensions of the smaller brandy shaped pipe are Length: 6 inches, Height: 1 ¾ inches, Bowl diameter: 1 ½ inches, Chamber diameter: 7/8 inches. The dimensions of the larger calabash pipe are Length: 7 inches, Height: 2 ½ inches, Bowl diameter: 2 inches, Chamber diameter: 7/8 inches.I will be adding both of these pipes to the rebornpipes store shortly. I already have several of these pipes so I will be passing these on to others to try. Thanks for looking.

Advertisements

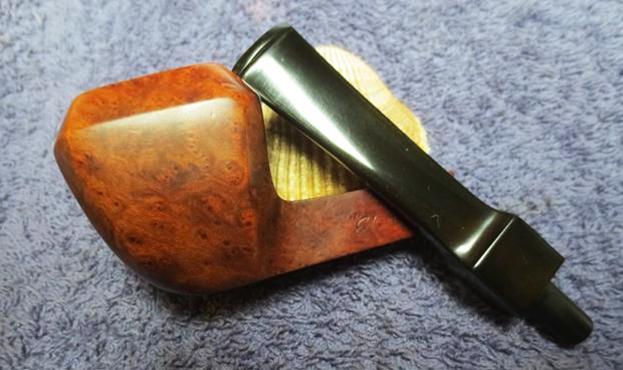

Restoring an Edwards 730 – 4 Panel Rhodesian with a Square Shank


Blog by Steve Laug

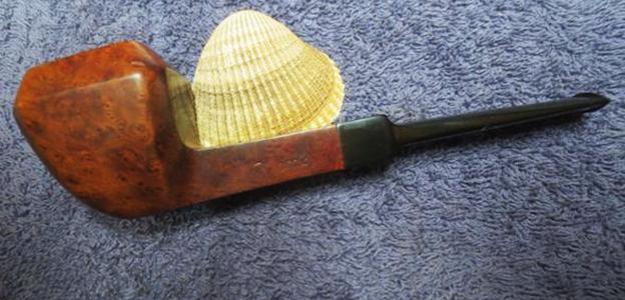

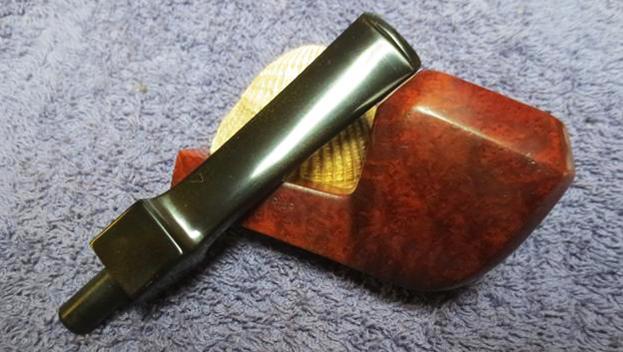

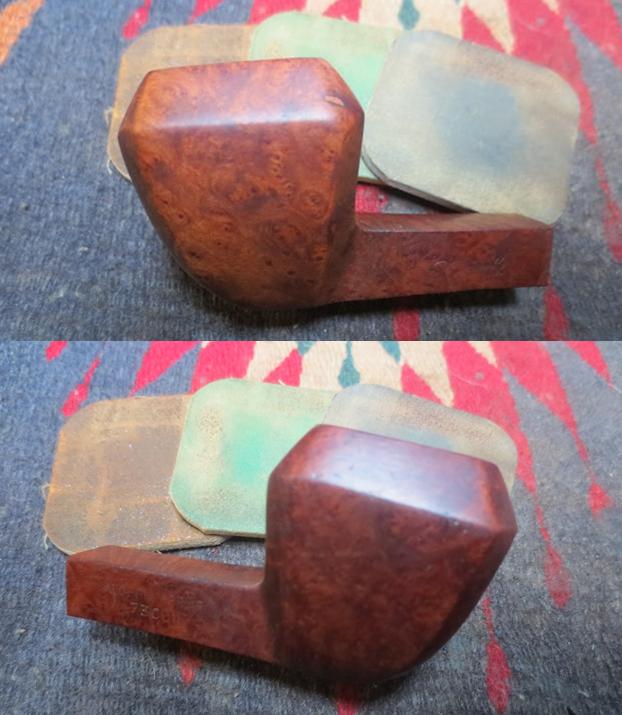

When my brother sent me this Edwards Panel Rhodesian (at least that is what I would call it), I immediately thought of William and wondered if he would be interested in it. He had earlier purchased an Edwards paneled pipe from me so it was not a far stretch to wonder if he might be interested in this one as well. I set it aside and pretty much forgot about my initial thought. However, not long afterward, William wrote about a pipe he wanted to send me to clean up for him. He sent the package to me and when it arrived, I opened it to find an Edwards Octagon shaped paneled Dublin that he wanted reworked. When I saw that, I remembered the other pipe I had that might interested him. I wrote and sent him photos of this pipe to see if he had any interest in adding it to his collection. He wrote back and said he was definitely interested in it. I figured I would restore it the same time I worked on his other pipe and could save postage by mailing them both back to him in the same package. With that in mind, I worked on the pair at the same time. I have already written about the restemming and the restoration of his Octagon shaped pipe (https://rebornpipes.com/2017/10/17/restoring-an-edwards-hexagon-dublin-sitter-97/).

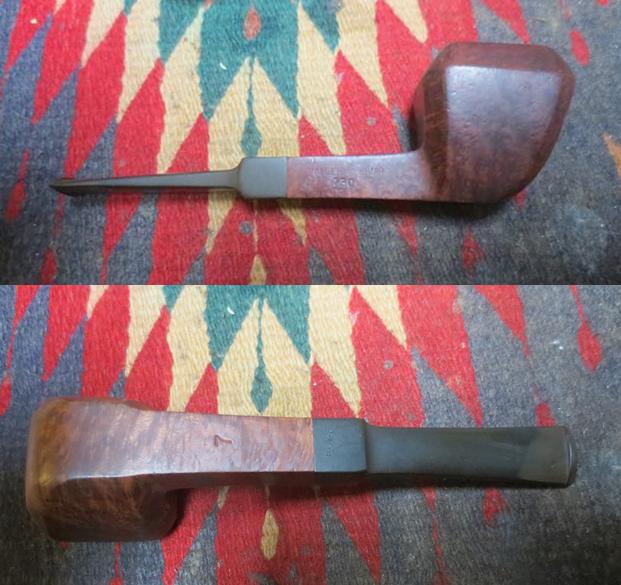

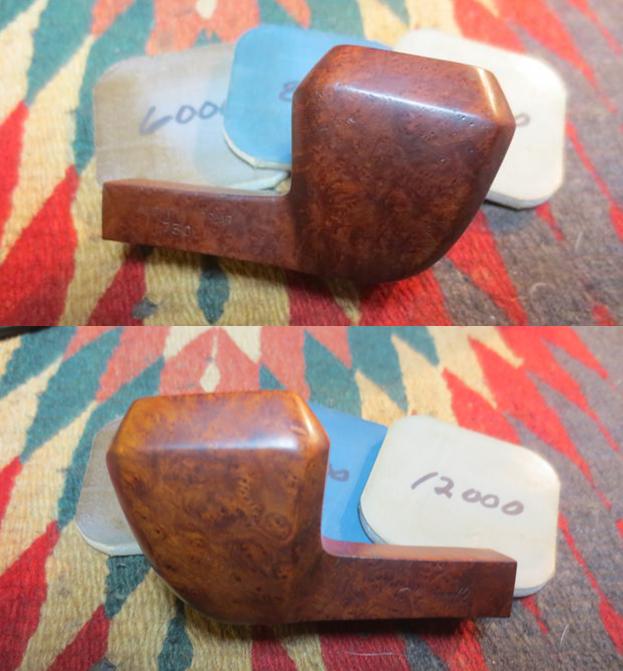

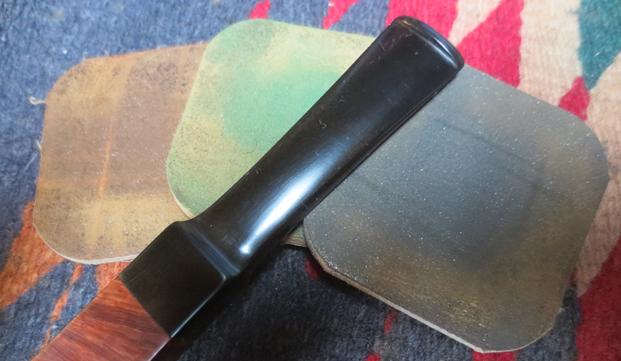

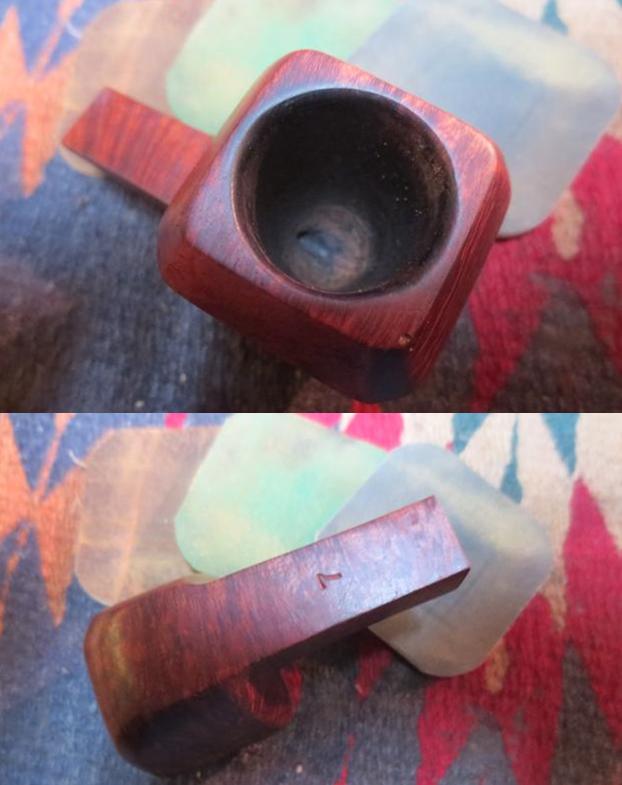

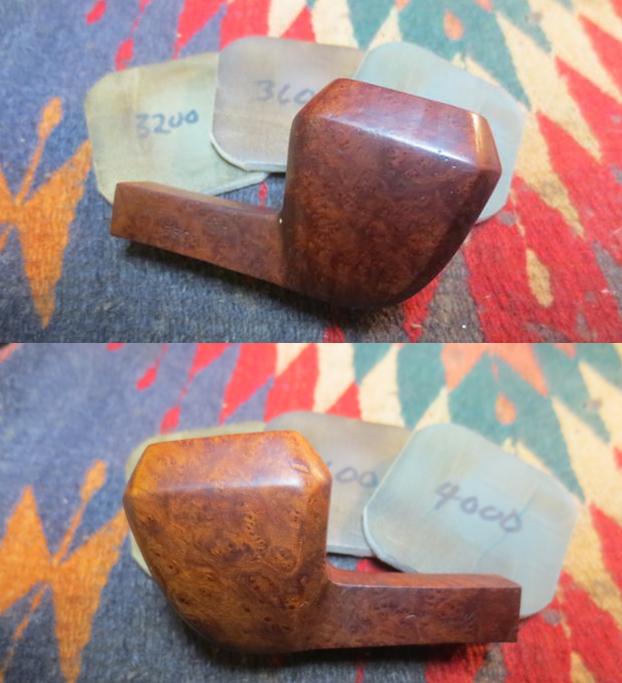

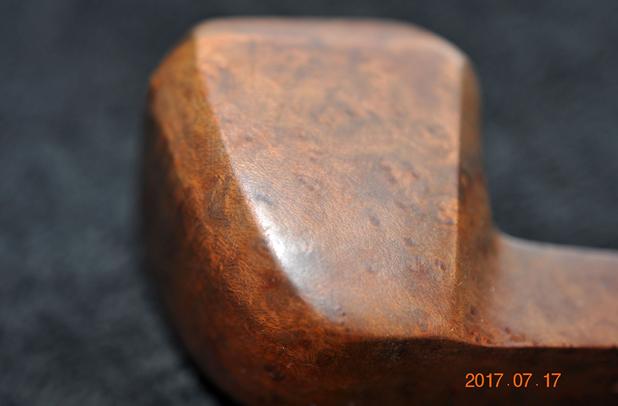

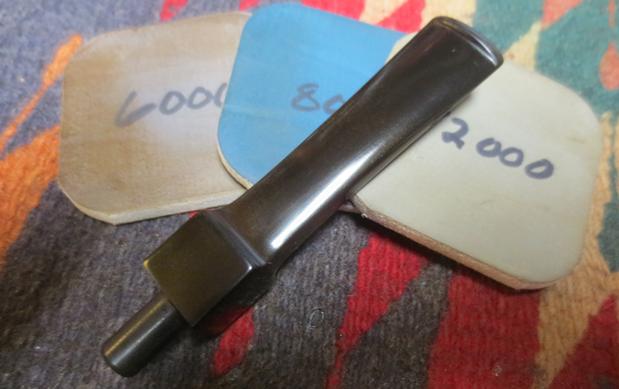

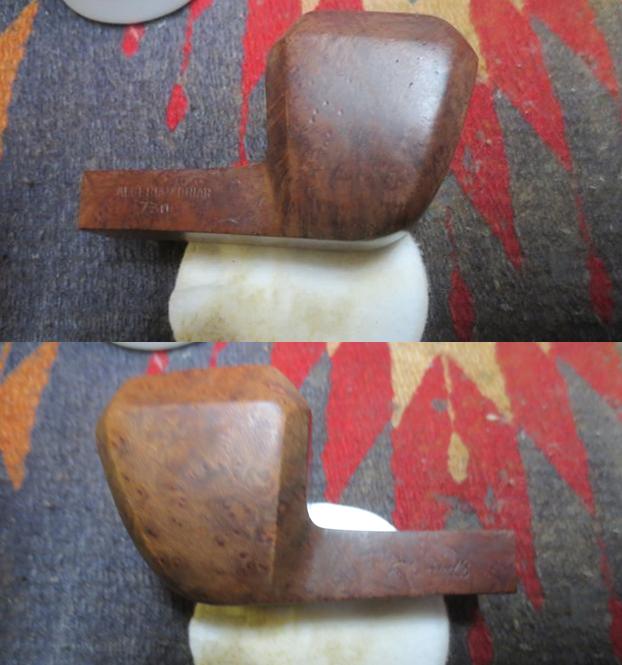

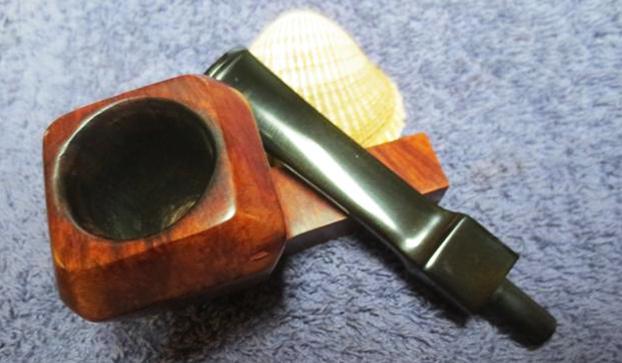

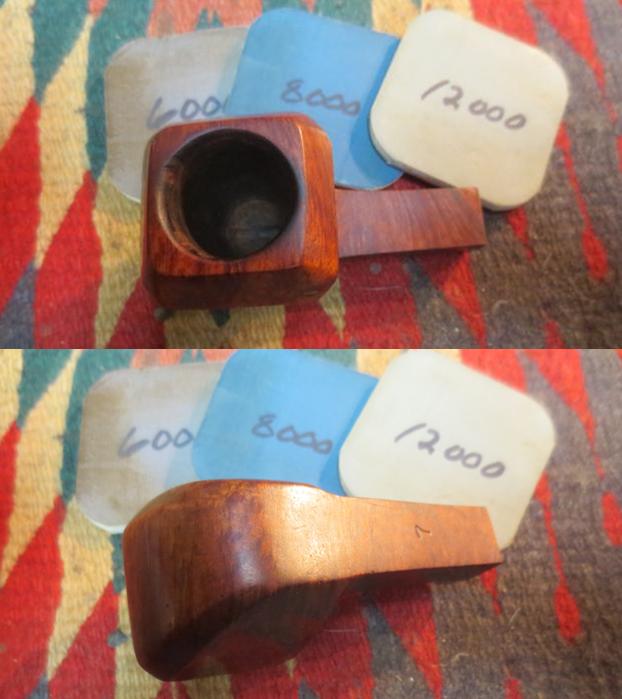

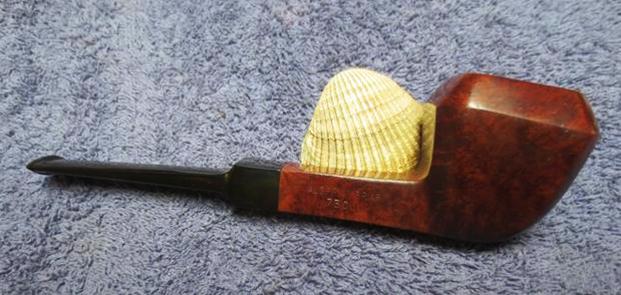

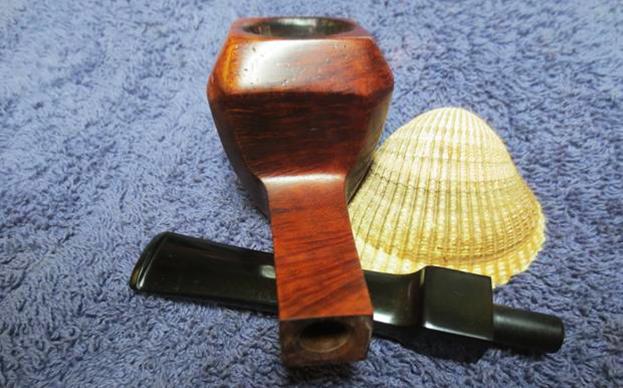

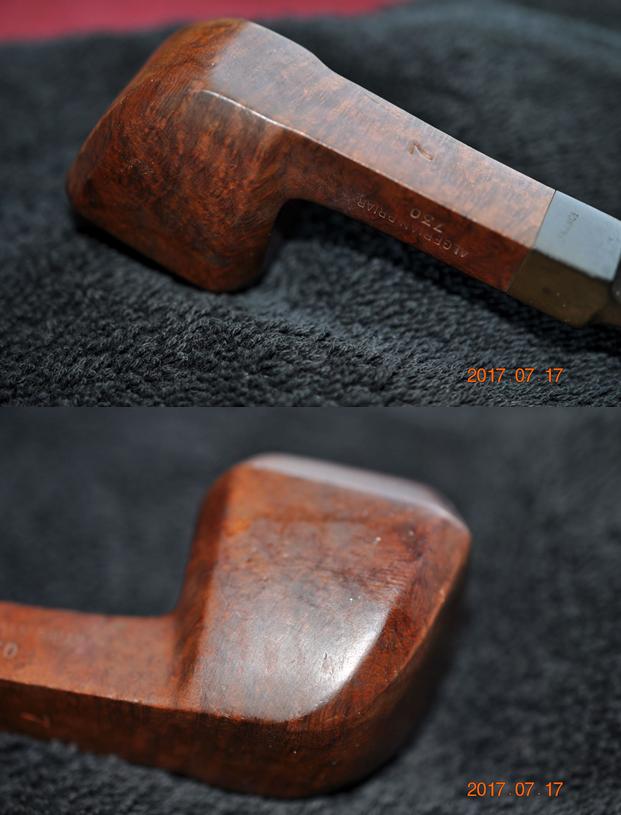

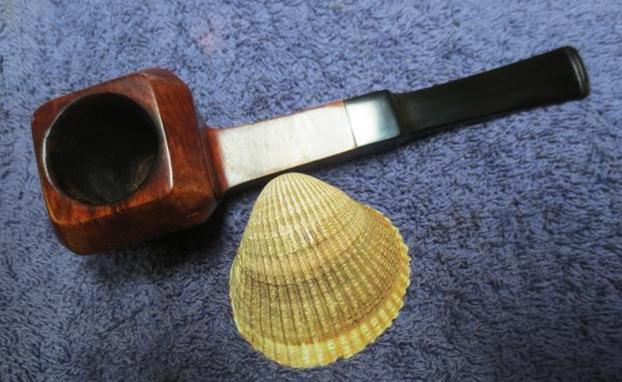

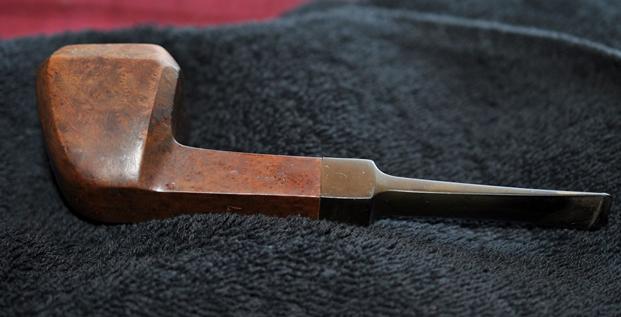

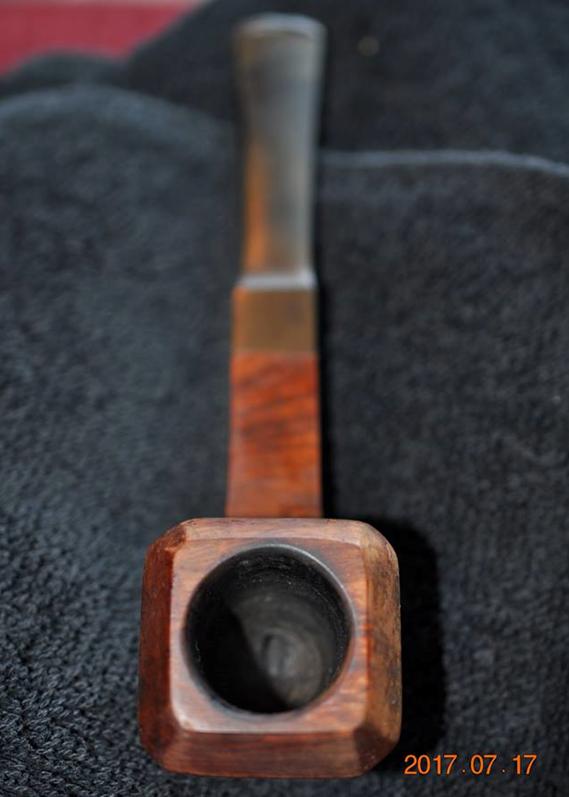

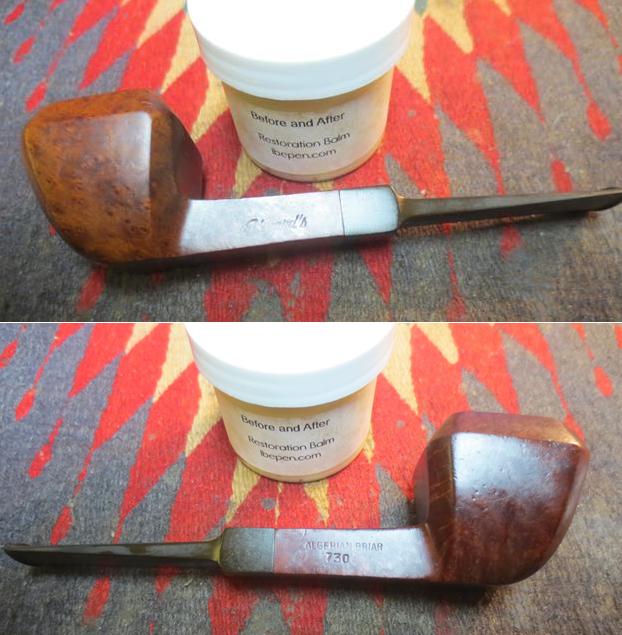

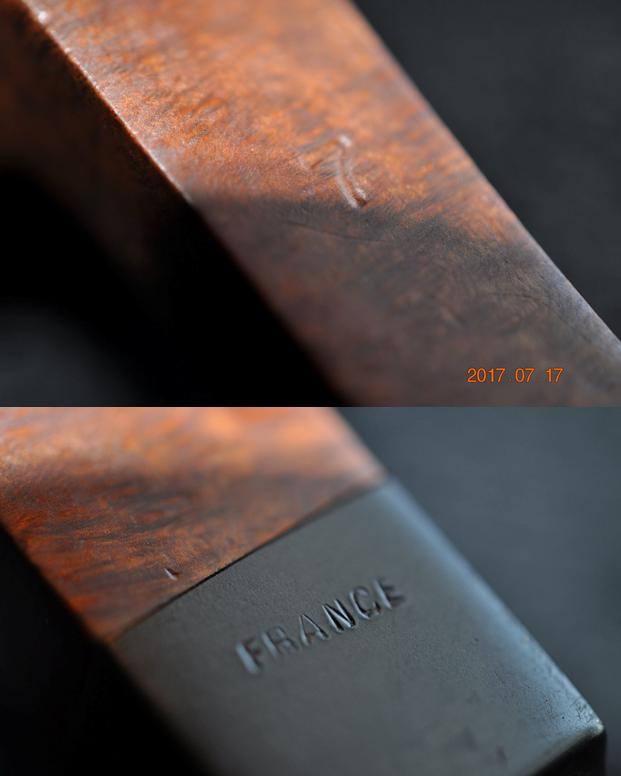

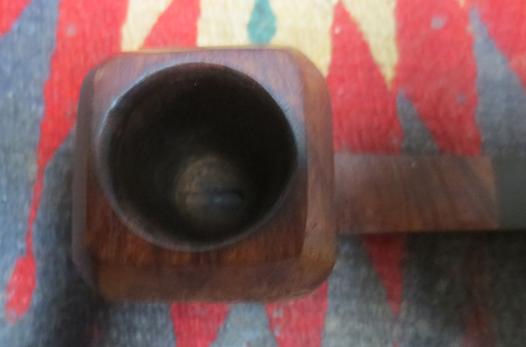

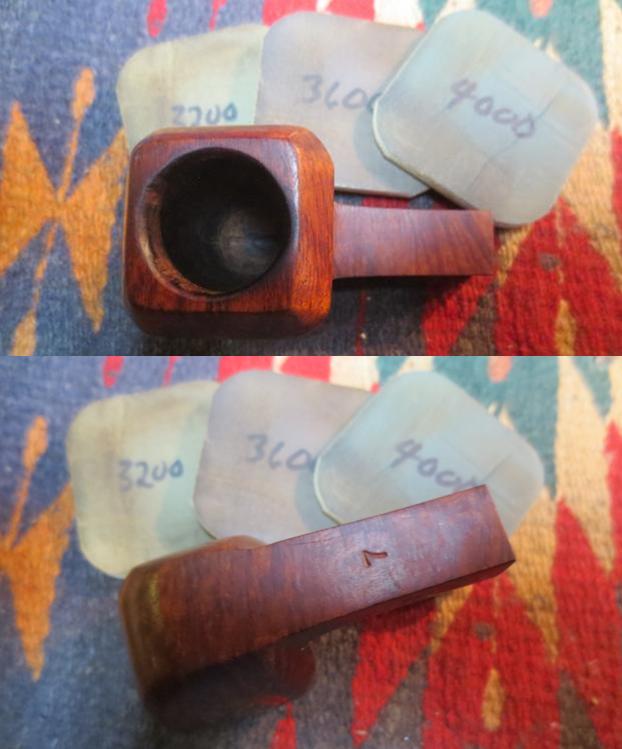

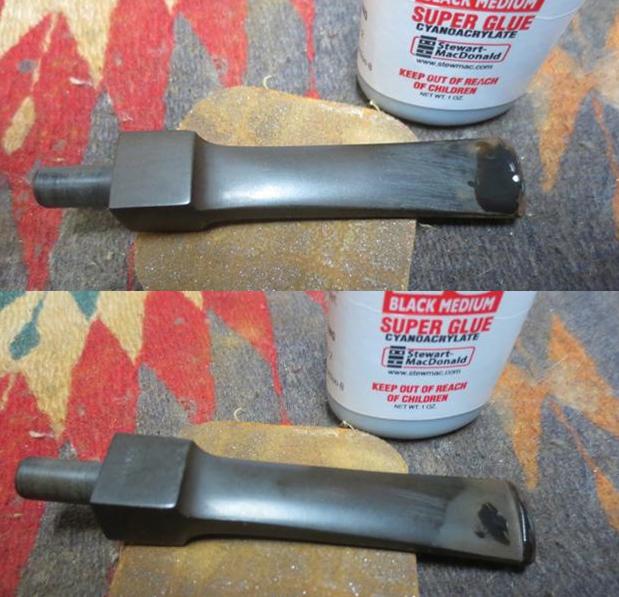

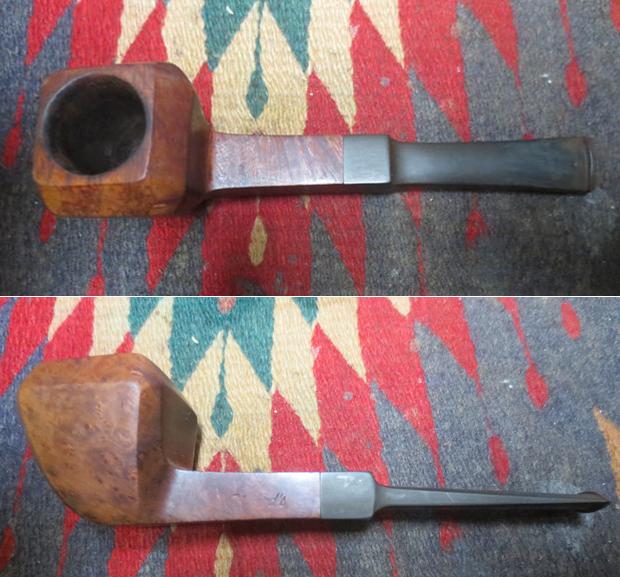

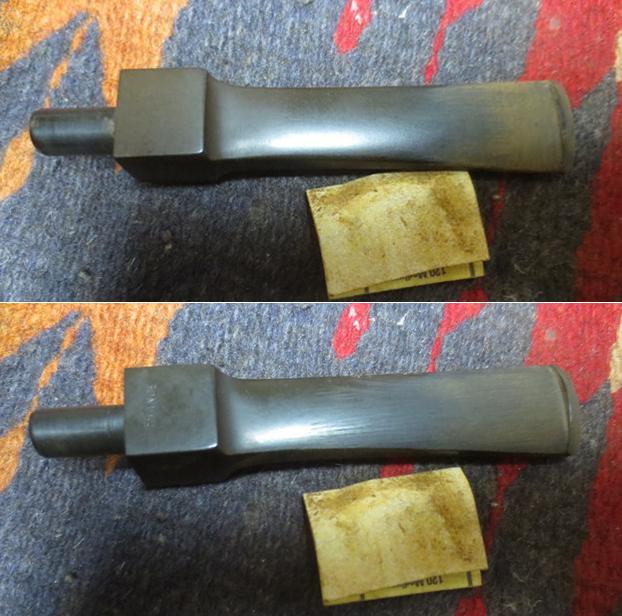

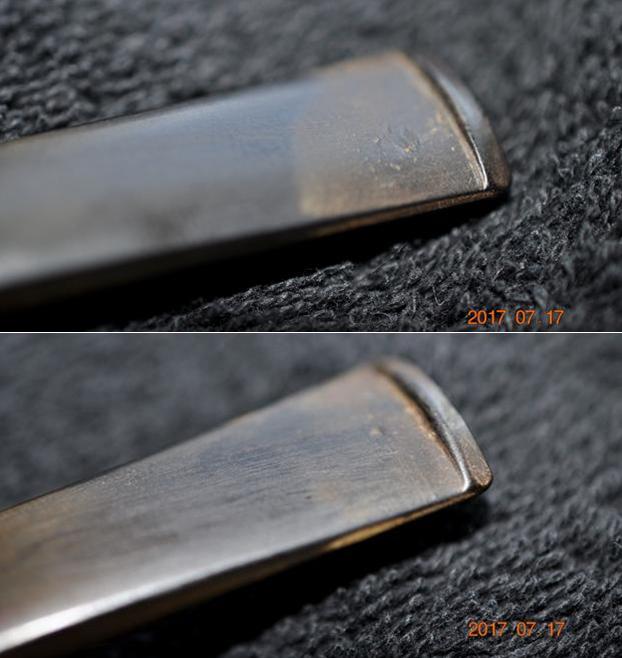

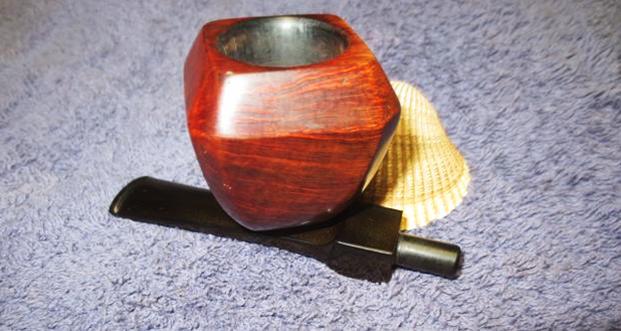

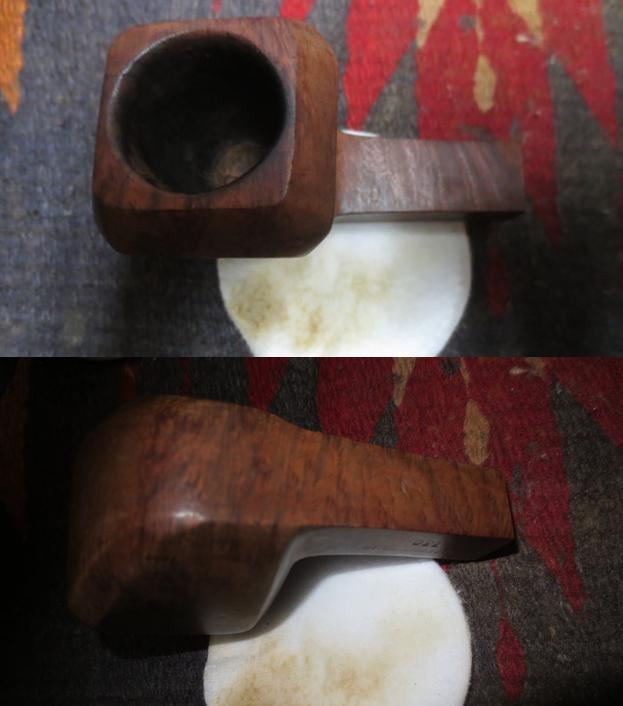

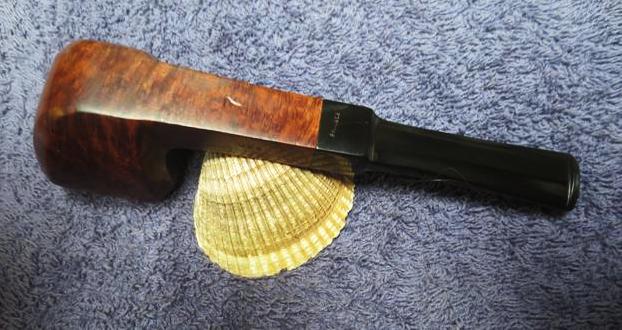

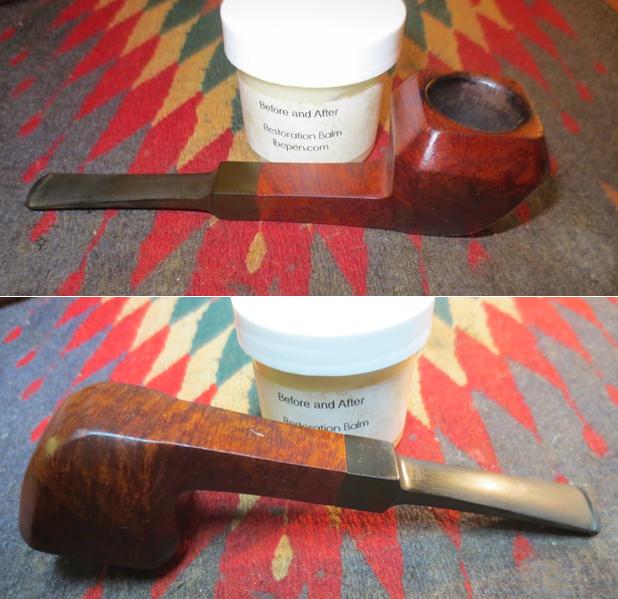

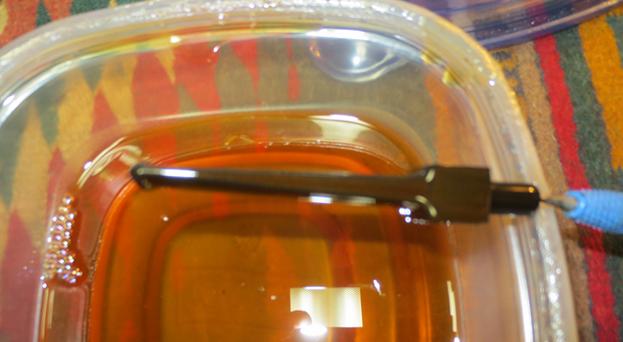

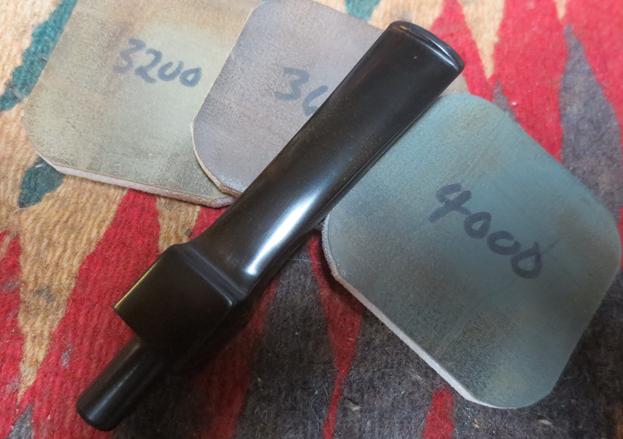

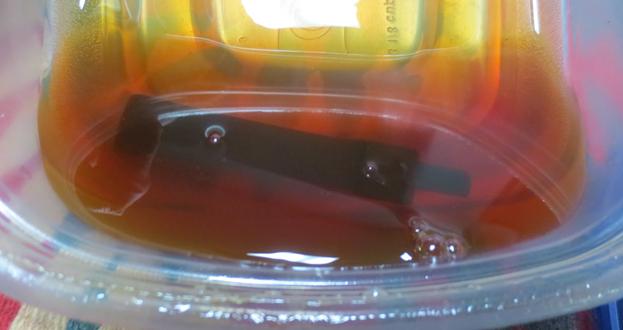

The pipe is stamped Edwards on the left side of the shank and on the right it reads Algerian Briar over the shape number 730. The underside of the shank bears as a large number 7. The Edwards stamp while readable was faint in the middle. The pipe was in pretty decent shape for an estate. There was a light cake in the bowl and some darkening on the rim top but nothing thick or horrible. Even the inner beveled edge of the bowl was in good shape. The finish has some nicks and scratches on the sides and front of the bowl. There were a few small fills in the briar on the rim cap but the pipe was in very god condition. The next series of photos show the condition of the finish on the bowl. The old oiled finish that Edwards put on their pipes was worn but the grain still showed through. There was a mix of grains on the sides and bottom of the bowl and shank – cross grain, birdseye and mixed. The next photos show the stamping on the shank of the pipe. All of it is readable. The last picture shows the France stamp on the underside of the saddle stem. The stem was oxidized and had tooth chatter and tooth marks on both sides near the button. There was some damage to the top edge of the button as well from being chomped.Jeff did his usual impeccable job cleaning off the debris and grime on this old bowl. He reamed the light cake from the bowl with a PipNet reamer and smoothed the walls of the bowl with a Savinelli Fitsall pipe knife. He scrubbed out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the exterior of the bowl, rim and shank with a tooth brush and Murphy’s Oil Soap to the oils and tars on the bowl, rim and shank. He rinsed it under running water. He dried it off with a soft cloth. Once the grime was removed the finish underneath was in decent condition. The rich patina on the grain of the older briar really stood out after the pipe was cleaned. I took photos of the bowl to show its condition before I started my work on it. The condition of the bowl and rim was good. There was a little damage on front right of the inner edge that I had not seen before that would need to be address but otherwise it was clean.The stem had some oxidation around the saddle portion of the stem and the tooth chatter and marks would need to be addressed.I decided to start working on the stem first. I lightly sanded the tooth chatter and marks out of the surface of the stem on both sides at the button. I heated the stem with a lighter to try to raise the marks. While many of them responded well to the heat some of them remained. I have found that if the marks are dents they respond well to heat and typically return to a flat condition. If however, they have any sharp edges on then the heat only works minimally well. I filled in the larger tooth mark and the damage to the top edge of the button with black super glue. I also filled in the lighter, smaller mark on the underside at the same time.While the stem repair was drying I worked on the bowl itself. I wiped down the surface with acetone on cotton pads to remove any remnants of debris and grime that had escaped my brother’s attention or had been picked up in the shipping wrappers. I lightly sanded the inner edge of the bowl to take care of the light damage on the front right edge. By this time the repair on the stem was dry. I recut and reshaped the button with a needle file and smoothed out the surface repairs. I sanded the stem with 220 grit sandpaper to blend the repairs into the rest of the stem. I sanded the stem to remove the oxidation that is visible in the next photos. I put the stem on the bowl and rubbed the bowl down with Before & After Restoration Balm. As part of my ongoing experiment I thought it would be good to use it on an oil finished bowl and this one was a prime candidate. I rubbed it in (using the stem for a handle) and wiped it off with a cotton pad. I removed the stem and dropped it in a bath of Before & After Pipe Stem Deoxidizer to attack the oxidation. My bath is getting older and it is not as effective as it was when I first started using it but it would help minimize the work on the stem for me. (I am waiting for a new jar of the deoxidizer to replace this one. I have cleaned between 80-90 stems with the product so it is tired.) I put the lid on the bath and left it to soak until morning.Before calling it a night I worked on the finish on the bowl some more. I lightly buffed the bowl with red Tripoli to remove as many of the surface scratches and nicks as I could. Doing that got rid of a lot of them and polishing it with micromesh would minimize what remained. I hand polished the briar with micromesh sanding pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-12000 grit pads. I worked on the beveled inner edge of the bowl to clean it up the damage and the darkening a bit more. I wiped the bowl down with a damp cloth after each pad. I hand buffed it with a microfibre cloth after the 12000 grit pad. The pictures below show the progress of the polishing on the briar. In the morning I took the stem out of the bath and let the excess product drain off into the bath before wiping it down with a cotton pad to remove the oxidation that was attached to the product. I ran a pipe cleaner through the airway with alcohol to remove the remnants of the bath. The stem looked good but more work would need to be done before the final black gleam was back. I buffed the stem with red Tripoli to remove the remaining oxidation. I polished the stem with micromesh sanding pads – wet sanding it with 1500-2400 grit pads and wiping it down after each pad with Obsidian Oil to give the next pad more bite when I sanded. I dry sanded it with 3200-12000 grit pads and again wiped it down with the oil after each pad. After the final pad I wiped it a final time with the oil and set it aside to dry. I put the stem back on the bowl and buffed the entire pipe with Blue Diamond on the buffing wheel to polish the stem and the bowl. I used a soft touch around the stamped areas as I did not want to flatten them or polish them away. I buffed stem hard to work over the remaining scratches in the rubber. It took some work but they are smoothed out. I gave the bowl and the stem multiple coats of carnauba wax buffed it with a clean buffing pad to raise a shine. I hand buffed the pipe with a microfiber cloth to deepen the shine. The four panel Rhodesian shaped bowl, and the square shank and saddle stem combine to present a beautiful pipe. I find these interesting shaped Edwards four sided, six sided and eight sided Dublin shaped pipe a real pleasant variation on the normal classic shapes. The combination of grains and the natural oil finish give the pipe a rich patina that is highlighted by the black of the polished vulcanite stem. The finished pipe is shown in the photos below. I think William is going to really like this new pair of Edwards pipes. They are both ready to pack up and head back to him in the mail. Thanks for looking.
