Cleaning up one of my restorations from many years ago

Leave a reply

Blog by Steve Laug

I have always liked the GBD 9438 shaped pipe and this one was one of the first that I picked up many years ago when I first started working on pipes. I found it at an antique shop. It was in the early days when I picked up most every pipe I found. I believe that like others I found in the early days this pipe cost me about $6CDN. Just remembering that reminds me how much things have changed over the years. It became a favourite shape of mine and over the years I have purchased many more 9438 pipes made by GBD for their main and their seconds lines such as Irwin and Dr. Plumb. I have added them to my collection. Here is a link to a blog I did on my collection back in 2013 (https://rebornpipes.com/2013/12/12/my-gbd-9438-saddle-stems-and-tapered-stem-rhodesians/). I have 12 – some were in rough shape and others not so bad. I have been sorting through my pipe collection and thinning out pipes that I am willing to part with. I have sold many already and others are currently on the store. For the most part these pipes have been early restorations and all need a bit of work to bring them up to my current standard. I have set aside three 9438 pipes that I decided to rework. The first of them is stamped on the left side Dr. Plumb [over] London Made. On the right side it is stamped London England [over] 943810. While it was very workable and I had actually smoked it quite a bit over the years I knew that original restoration on it was less rigorous than my current standards. So, before I listed it for sale I wanted to work it over again. I took photos of the pipe to give a sense of the beauty and the work that needed to be done. I took photos of the pipe’s bowl and rim top to show the moderate cake in the bowl and some damage to the inner edge of the bowl. There was also burn damage on the rim top and darkening on the rear and front right top of the bowl. I also took photos to capture the condition of the stem. You can see in the first photo below the dark dot on the top of the saddle. It was originally a Dr. Plumb style logo but over time it had darkened. Fortunately, I am not a biter or stem chewer so there were no deep tooth marks on the top and underside of the stem. There was some oxidation on the vulcanite stem and some chatter around the button.I took photos of the stamping on each side of the shank. It is readable and clear as noted above.I took the stem off the shank and took a photo of the look of the pipe. It really is a beauty.I decided to address the damage to the rim top and inner edge of the bowl. To deal with the burned inner edge of the rim and the rim top damage I lightly topped it on a piece of 220 grit sandpaper. I used a piece of 220 grit sandpaper on a wooden ball to give the rim top a light bevel. It took a bit of work to smooth out the damage and lightly bevel the inner edge of the bowl. I used a Cherry stain pen to restain the rim top and begin the process of blending it in. I reamed the bowl with a Savinelli Fitsall Pipe Knife to take out the cake. I removed ti back to bare briar. I sanded the bowl walls with a piece of 220 grit sandpaper wrapped around a dowel to smooth out the walls. It looked very good. No burn damage or checking on the bowl walls.I scrubbed out the shank and the stem with pipe cleaners, cotton swabs and alcohol to remove the tars and oils. The shank was dirty though the stem airway was not too bad. It cleaned up well. I sanded the bowl and rim top to clean up the damage and repairs to the edge and start the polishing of the bowl. I used 320-3500 grit sanding pads. I wiped the bowl down with a damp cloth after each pad. It really began to take on a shine. I polished the briar with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped it down after each sanding pad with a damp cloth to remove the sanding debris on the surface. I rubbed the bowl down with Before & After Restoration Balm. I worked it into the surface of the briar with my fingertips to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth and shoe brush to raise the shine. I set the bowl aside and turned to address the stem. It was in good condition other than the light tooth chatter so I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. I gave it a final coat of Obsidian Oil and set it aside to dry. This Dr. Plumb London Made 943810 Bent Rhodesian cleaned up much better this second time around and looks very good. The Before & After Restoration Balm brought the colours and grain out in the smooth finish on the pipe. It works well with the polished vulcanite saddle stem. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel using a light touch on the briar. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel. I followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Dr. Plumb London Made Rhodesian 943810 fits nicely in the hand and I think it will feel great as it heats up with a good tobacco. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 ½ inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.76 ounces/50 grams. I will be adding this one to the British Pipemakers Section of the rebornpipes store shortly. If you want to add it to your collection let me know. Thanks for reading this blog and my reflections on the pipe while I worked on it.

Repairing a Trio of His Dad’s Pipes for a fellow here in Vancouver – Part Two

1 Reply

Blog by Steve Laug

Last week I received a call from a fellow pipeman, Keith here in Vancouver who had been referred to me by City Cigar, a local pipe and cigar shop in the city. He was a soft spoken gentleman who had a request for me. In January  this year his Dad died and he had three of his Dad’s pipes that he wanted restored in memory of his Dad. He also was a pipe smoker so he fully intended to enjoy them for a long time as he smoked them in his Dad’s honour. I told him to send me some photos of the pipes so I would know what I was dealing with.

I received the email below from Keith that included the photos of the pipes that he wanted me to work on. He even went to the trouble of marking the trouble with each of the pipes that needed work.

Hi Steve,

Glad your call back today, my name is Keith, I got your contact from City Cigar. My dad has three pipes include two Dr Plumb DINKY and one not sure brand. My dad passed this year January and I looking for fix those pipes which had broken and cracked, understand they are not expensive pipes but for me is priceless memory…

…Have a wonderful day!

Best regards

Keith

I called him as soon as I received the photos and talked over what I saw when I looked them over. We struck a deal and he dropped them off to me late on Friday afternoon and I started to work on them a bit over the weekend. All three pipes needed varying degrees of work on them. Two were Dr. Plumb Dinky Bent Billiards and one was a Real Briar Dublin. I decided to work on them in the order of the photos that he sent me. I completed the restoration of the first one and posted the blog (https://rebornpipes.com/2021/03/16/repairing-a-trio-of-his-dads-pipes-for-a-fellow-here-in-vancouver-part-one/). Give it a read.

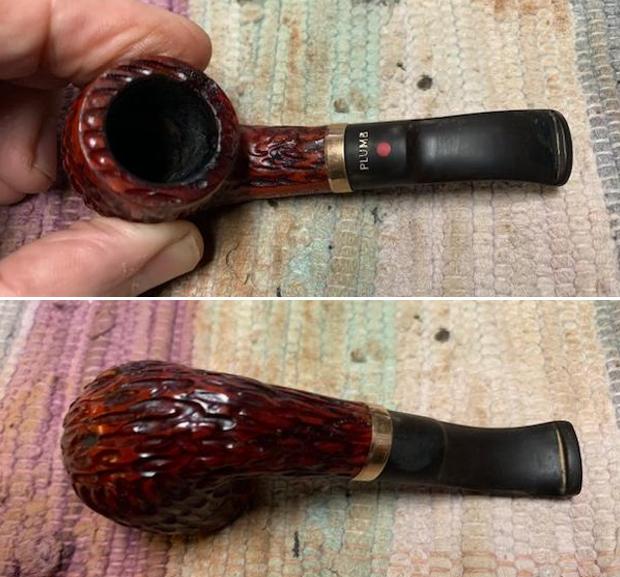

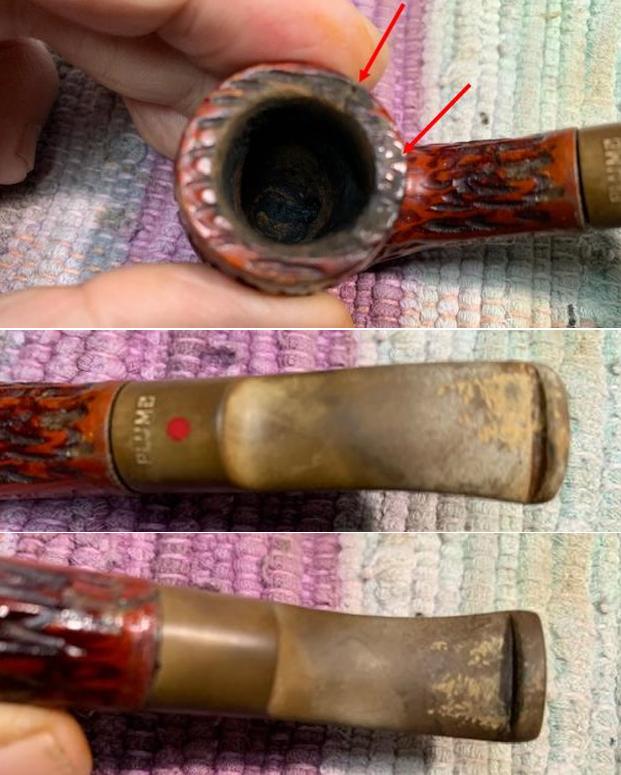

The second Dr. Plum Dinky Bent Billiard was in better shape than the first one. There were no cracks in the bowl or shank. The issues on this pipe were caused when Keith smoked it and lit it with a cigar torch lighter. The rim top was damaged on both the right and the left sides and there was a thick cake in the bowl. In the first two photos show what the pipe looks like as a whole. On the second you can see some darkening on the right side of the outer edge of the rim. It is identical in make and shape to the previous repair. The third photo Keith included show the damage to the rim top – he identifies it as ring damage. I took pictures of the pipe when Keith dropped it off before I started my clean up work. It was much dirtier than the first pipe. The bowl had a thick cake in it and the rim top was damaged on both the right and left top and inner edges. I took a close up photo of the rim to show the condition of the bowl and the rim. You can see the damage to the rim top and inner edge of the bowl as noted above and shown in the photo below by the red arrows. I also took photos of the stem to show the general condition as noted above. There is also a deep tooth marks on both the top and the underside of the stem near the button.I took a photo of the stamping on the left side of the shank – it read the same as the first of the trio that I worked on – Dr. Plumb [over] Dinky and was clear and readable.I removed the stem from the shank and took a photo of the pipe. There is something quite winsome about this tiny pipe.I have included some information on the Dr. Plumb brand and the history in the previous blog on the first Dinky pipe (https://rebornpipes.com/2021/03/16/repairing-a-trio-of-his-dads-pipes-for-a-fellow-here-in-vancouver-part-one/). Give the blog a read if you are curious about the background.

Now it was time to work on this pipe. It was more used and dirty than the previous pipe and had different issues that I would need to address. I reamed the bowl with a PipeNet pipe reamer to remove the thick cake. I cleaned up the reaming with a Savinelli Fitsall Pipe Knife. It came out looking significantly better.I cleaned the rim top with a cotton pad and alcohol to remove the tars and oils. I rebuilt the inner edge of the bowl and the rim top using clear CA glue and briar dust. I layered it on a layer of glue, a layer of dust and repeated the process until it was even with the rest of the rim top. I used a brass bristle brush while it was still curing to match the rustication on the rest of the rim top and edge. I am happy with the way it turned out. I stained the finished rim top with a Maple stain pen to match the colour on the bowl sides. The CA and briar dust dries darker so the rim top looks darker than the over all bowl in the photos but it is not as dark as it appears. I worked some Before & After Restoration Balm into the surface of the bowl and shank with my fingertips and a horsehair shoe brush to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. As I looked at these photos it dawned on me at this point that I had not cleaned the shank. I had been so busy working on the rim edge and top that I had not stopped to clean out the bowl and shank. I scrubbed it with 99% isopropyl alcohol, pipe cleaners and cotton swabs. It was quite dirty so I am glad I remembered. I wiped out the bowl with alcohol and cotton pads to remove the briar dust from the repair.I set the bowl aside and turned my attention to the stem. I removed it from the deoxidizer bath and it did not really look much better. It had the same heavy oxidation as the previous stem. I scrubbed it down with Soft Scrub and a cotton pad. I found that the oxidation was significantly softer and came off quite easily.I scrubbed out the airway in the pipe with alcohol and pipe cleaners until it was clean. It was a well used pipe. I “painted” the surface of the stem with the flame of a Bic lighter to lift the tooth dents in the vulcanite. I was able to lift the majority of them and I filled in the remaining marks with clear CA glue. Once the repairs cured I sanded them smooth with a folded piece of 220 grit sandpaper to blend them in the rest of the stem surface. I started polishing the stem with 400 grit wet dry sandpaper. I polished the stem with micromesh sanding pads – dry sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil. With the bowl and the stem finished I put the second tiny GBD Made Dr. Plumb Dinky Bent Billiard back together and buffed it on the wheel using Blue Diamond to give it a shine. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax on the wheel. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. It really is a great looking pipe. The dimensions of the pipe are – Length: 4 inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 inch, Chamber diameter: ¾ inch. The weight of this small pipe is .85 ounces /24 grams. This second small Dr. Plumb Dinky is another great reminder for Keith of his Dad’s Pipe smoking and one that he can enjoy for a long time. Once I finish the last of the pipes I am sure he will be excited to load them with a memorable tobacco and slip back into the memories of his Dad. Thanks for walking through the restoration with me.



Repairing a Trio of His Dad’s Pipes for a fellow here in Vancouver – Part One

2 Replies

Blog by Steve Laug

Last week I received a call from a fellow pipeman, Keith here in Vancouver who had been referred to me by City Cigar, a local pipe and cigar shop in the city. He was a soft spoken gentleman who had a request for me. In January  this year his Dad died and he had three of his Dad’s pipes that he wanted restored in memory of his Dad. He also was a pipe smoker so he fully intended to enjoy them for a long time as he smoked them in his Dad’s honour. I told him to send me some photos of the pipes so I would know what I was dealing with.

I received the email below from Keith that included the photos of the pipes that he wanted me to work on. He even went to the trouble of marking the trouble with each of the pipes that needed work.

Hi Steve,

Glad your call back today, my name is Keith, I got your contact from City Cigar. My dad has three pipes include two Dr Plumb DINKY and one not sure brand. My dad passed this year January and I looking for fix those pipes which had broken and cracked, understand they are not expensive pipes but for me is priceless memory…

…Have a wonderful day!

Best regards

Keith

I called him as soon as I received the photos and talked over what I saw when I looked them over. We struck a deal and he dropped them off to me late on Friday afternoon and I started to work on them a bit over the weekend. All three pipes needed varying degrees of work on them. Two were Dr. Plumb Dinky Bent Billiards and one was a Real Briar Dublin. I decided to work on them in the order of the photos that he sent me.

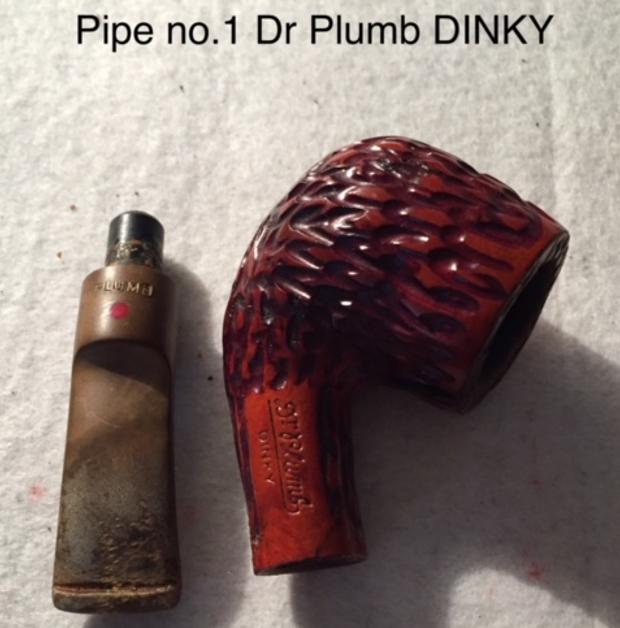

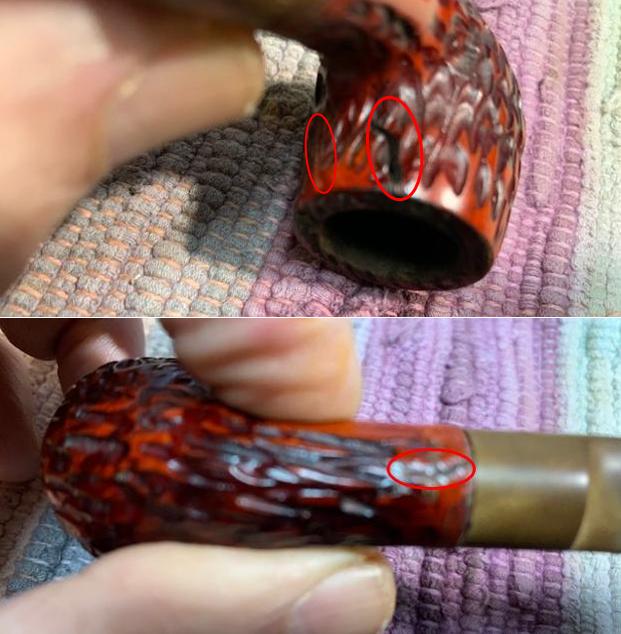

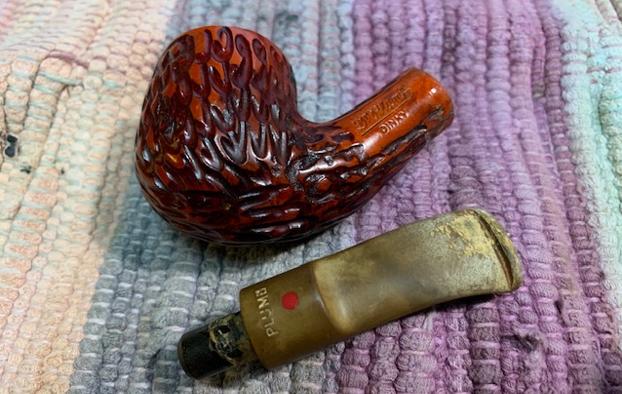

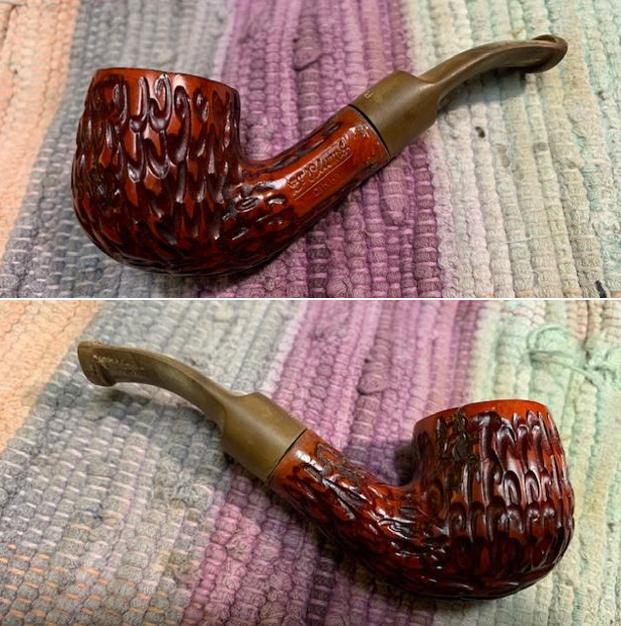

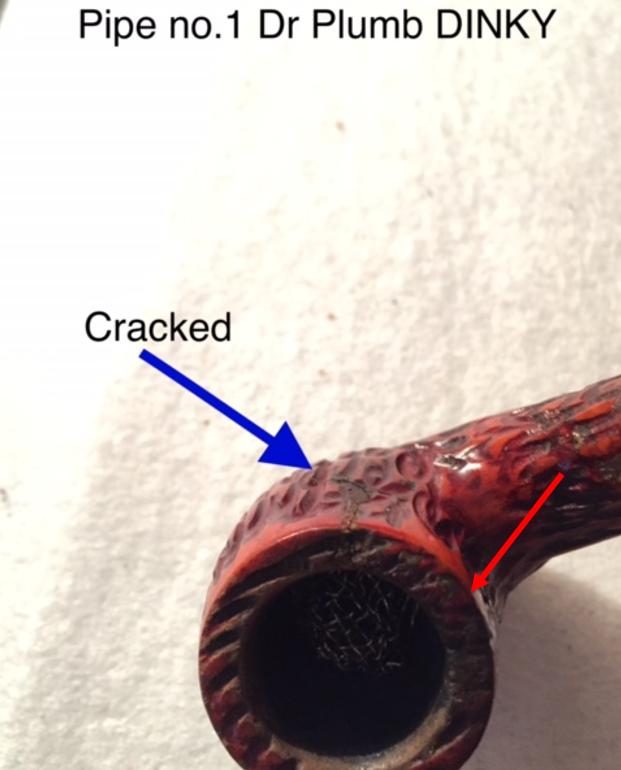

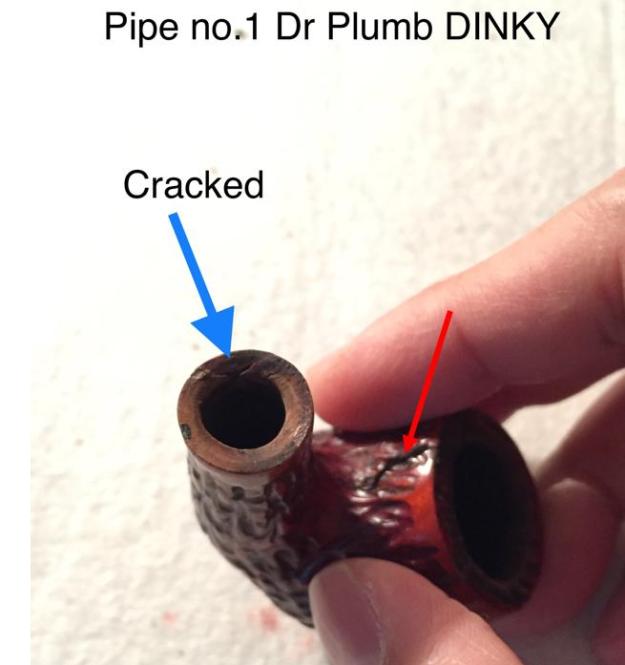

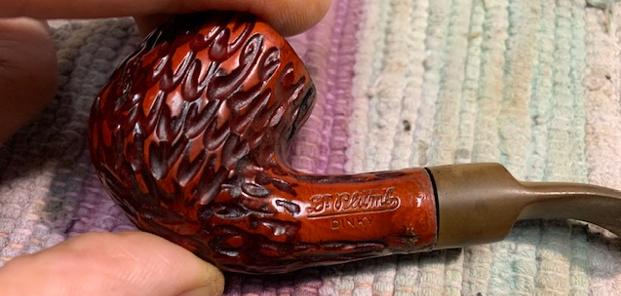

The first of them is a Dr. Plum Dinky Bent Billiard. It was probably in the roughest shape in many ways. It had a crack on the back right and middle of the exterior of the bowl. Neither were spread and they both had stopped cracking but they were significant. In the first photo below that  Keith sent he noted one of the cracks with the blue arrow. I inserted a second arrow (red) to show the location of the second crack. The second photo below also shows a crack in the shank on the underside as Keith noted with a blue arrow. That photo also clearly shows the crack on the back of the bowl that I have noted with a red arrow. Keith also included a photo of the side view of the pipe and the condition of the stem. The bowl had a thick coat of varnish that would need to be cleaned up before I repaired the cracks. The stem was heavily oxidized, calcified and had tooth marks on both sides just ahead of the button. The Dr. Plumb logo stamp was clear and readable.I took pictures of the pipe when Keith dropped it off before I started my clean up work. He had cleaned the bowl and removed the screen that was visible in the bottom of the bowl in the photos above. It was very clear from the cleaned pipe what needed to be addressed on this first one. The rim top was darkened and had debris in the carved finish.I took a close up photo of the rim to show the condition of the bowl and the rim. You can see the cracks as noted above and shown in the photo below by the arrows. I also took photos of the stem to show the general condition as noted above.I took a photo of the stamping on the left side of the shank – it read Dr. Plumb [over] Dinky and was clear and readable.The next two photos show the cracks (though a bit blurry the cracks are clear). I have circled the three cracked areas that will need to be dealt with and repaired.I removed the stem from the shank and took a photo of the pipe. There is something quite winsome about this tiny pipe.I turned to Pipephil’s site for see what I could find on the brand (http://pipephil.eu/logos/en/logo-d8.html). I quote the sidebar below followed by a screen capture of the pertinent section.

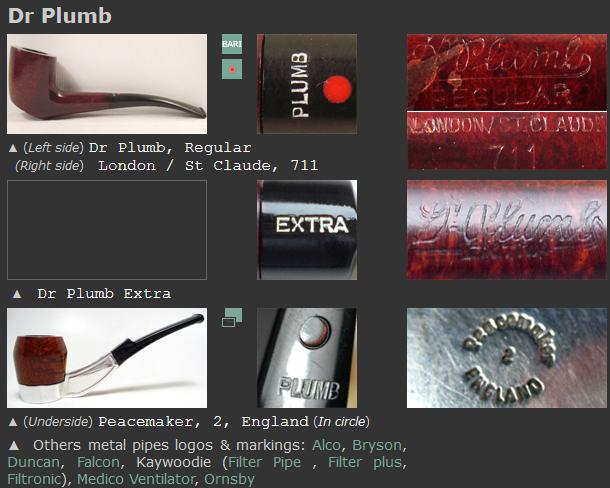

Brand created in 1925 by GBD’s Parisian sales manager J.B. Rubinovich. The Dr Plumb production was run by the Ruchon & Verguet and also Ropp factories (Saint-Claude – France). The brand now belongs to the English Cadogan group.I turned to Pipedia and looked up the brand (https://pipedia.org/wiki/Dr._Plumb%27s). I have included the additional information below.

The Dr. Plumb’s brand name is owned by A. Oppenheimer & Co., Limited, owners of Cadogan Investments, Ltd.. J.B. Rubinovich, GBD’s Parisian sales manager, created this brand in 1925. The pipes was produced by the Ruchon & Verguet and also Ropp factories (Saint-Claude, France). In 1962 a Dr. Plumb’s pipe sold for between C$3.95 and C$4.95, or $31.72 in 2015 U.S. dollars, and pipes can still be purchased from this brand for a similar price today.

These pipes have long been advertised as Dr. Plumb’s Perfect Pipe, that name coming from an aluminum tube system designed to keep the smoke cool and dry while at the same time permitting the “cooling chamber” to be cleaned by simply twisting the stem. While Dr. Plumb’s pipes were long made in France and stamped accordingly, they are now British made.

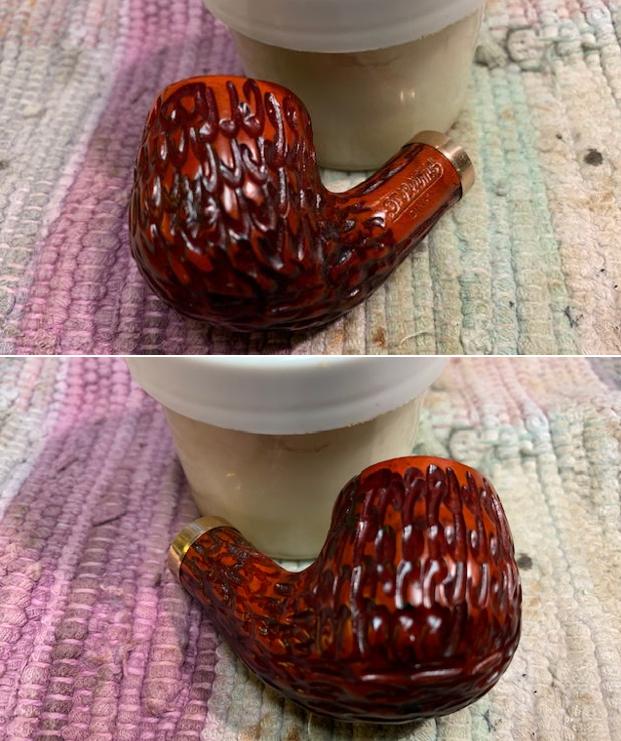

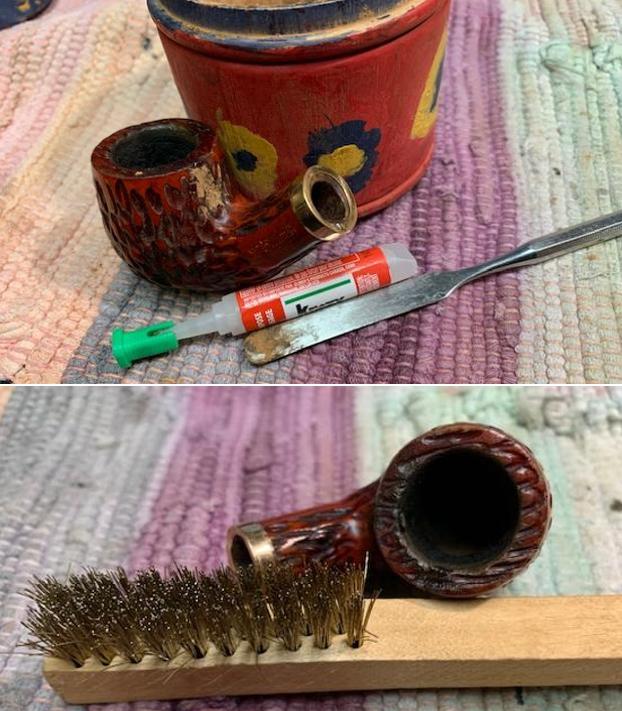

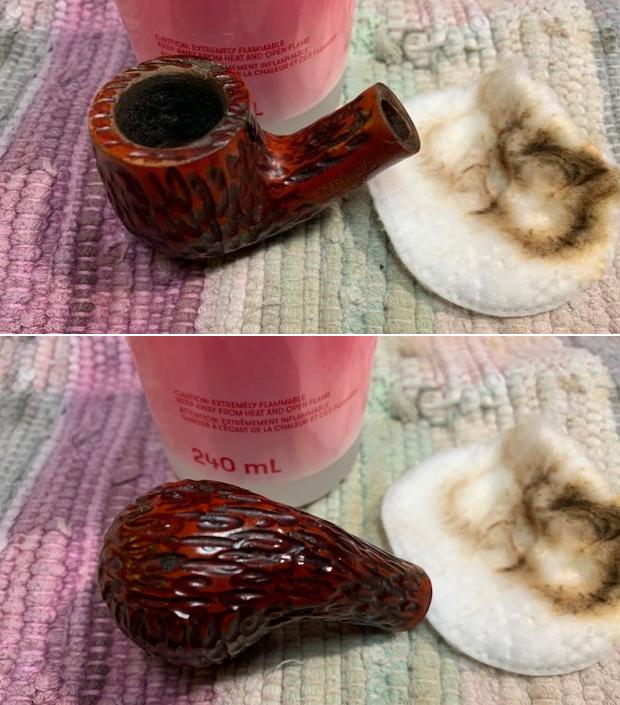

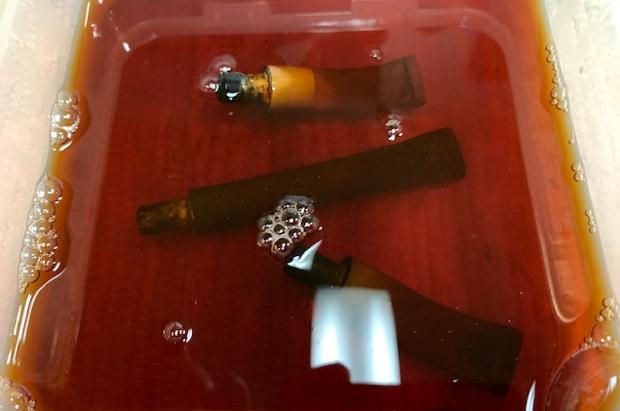

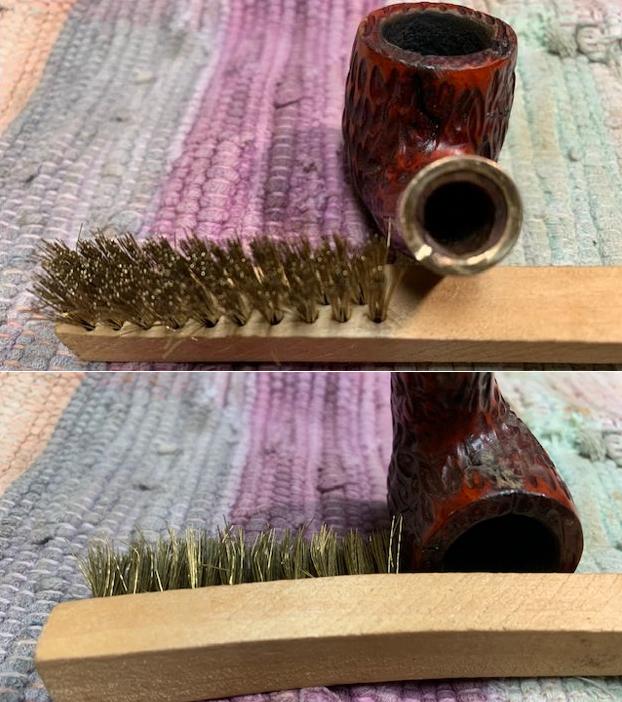

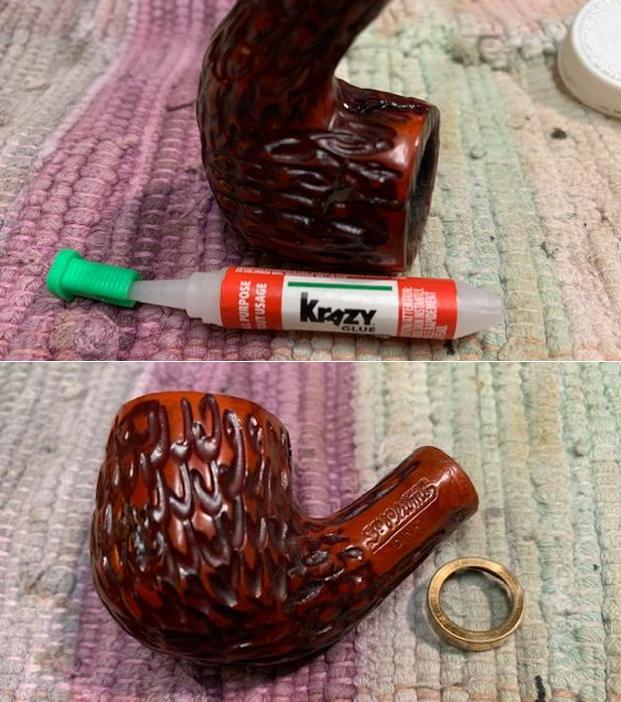

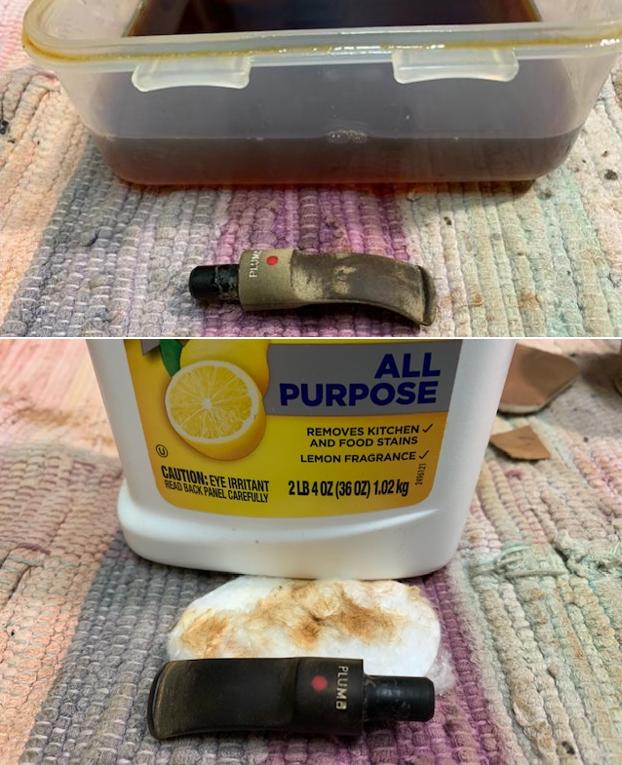

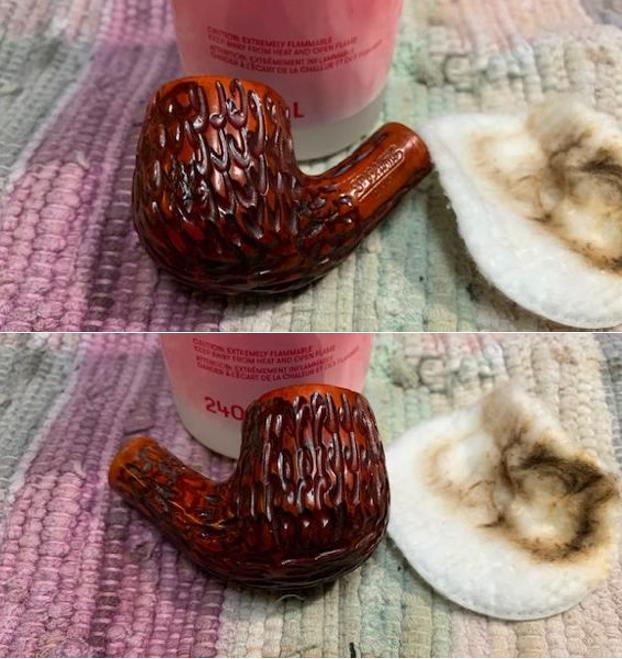

None of the sites included information on the Dinky line. I knew who made the pipe and where it was made but not anything about the tiny little pipes in this estate. Now it was time to work on the pipes. I removed all of the stems and dropped them in a bath of Briarville’s Pipe Stem Deoxidizer. I put the lid on the box and let them sit for 24 hours.I wiped the bowl down with acetone on a cotton pad to cut the shiny varnish coat. It took a lot of scrubbing and I was able to greatly reduce it but not remove it. With the bowl cleaned up it was time to address the cracks in the bowl and shank. I pressed some briar dust into the cracks on the back of the bowl and filled them in with clear CA glue. I did the same with the crack on the underside of the shank. I repeated the process until the repair was finished. I found the proper sized brass band for the shank end and dribbled some CA around the shank end and pressed the band in place on the shank.I filled in some of the spots that remained on the crack on the back of the bowl and then used a brass bristle brush to score the repairs to match the surrounding rustication. I also worked over the rim top at the same time with the brush. The repairs on the bowl are a little darker than the rest of the bowl but the repairs are solid. It dawned on me at this point that I had not cleaned the shank. I scrubbed it with 99% isopropyl alcohol, pipe cleaners and cotton swabs. It was quite dirty so I am glad I remembered.I worked some Before & After Restoration Balm into the surface of the bowl and shank with my fingertips and a horsehair shoe brush to clean, enliven and protect the briar. I let the balm sit for 15 minutes and then buffed with a cotton cloth to raise the shine. The photos show the bowl at this point in the restoration process. I set the bowl aside and turned my attention to the stem. I removed it from the deoxidizer bath and it did not really look much better. I scrubbed it down with Soft Scrub and a cotton pad. I found that the oxidation was significantly softer and came off quite easily.I scrubbed out the airway in the pipe with alcohol and pipe cleaners until it was clean. It was a well used pipe.I still needed to polish the stem with micromesh and buff the pipe but I had to put the stem on and have a look at the pipe. I took some photos so you could see what I see. I polished the stem with micromesh sanding pads – dry sanding with 1500-12000 grit sanding pads. I wiped it down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a final coat of Obsidian Oil. With the bowl and the stem finished I put the tiny GBD Made Dr. Plumb Dinky Bent Billiard back together and buffed it on the wheel using Blue Diamond to give it a shine. I gave the bowl multiple coats of Conservator’s Wax and the stem multiple coats of carnauba wax on the wheel. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. It really is a great looking pipe. The dimensions of the pipe are – Length: 4 inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 inch, Chamber diameter: ¾ inch. The weight of this small pipe is .85 ounces /24 grams. This small Dr. Plumb Dinky is a great reminder for Keith of his Dad’s Pipe smoking and one that he can enjoy for a long time. Once I finish the other two pipes I am sure he will be excited to load them with a memorable tobacco and slip back into the memories of his Dad. Thanks for walking through the restoration with me.
