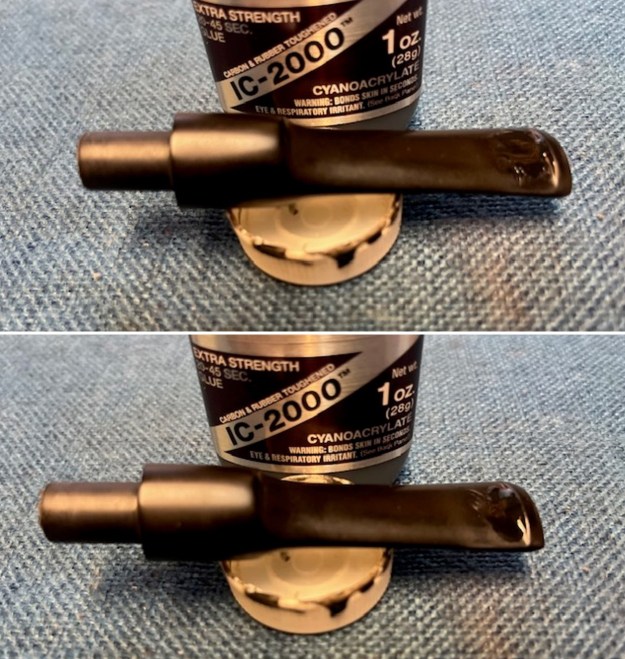

Tag Archives: repairing deep tooth marks with clear CA glue

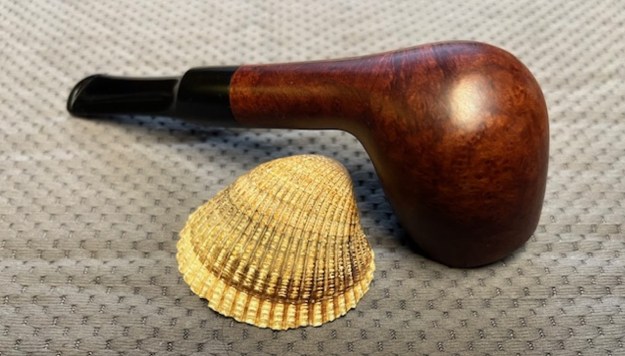

Restoring another of Gene’s pipes – an A. Jason 96 Saddle Filter Stem Billiard

by Steve Laug

In January Jeff found out about an estate sale in Pocatello, Idaho, USA. It turned out that the sale was for a fellow Jeff and I had purchased pipes from in the past, Gene. He had been the owner of Outwest Tobacco in Pocatello (long closed now) and I bought tobacco and other smoking items from him in the past. As I think about it now, it seems that I had known Gene for over 30 years Jeff and I had been to his home and enjoyed coffee and a few pipes together. I have no idea how many pipes we bought on those visits as well as to the antique shop of his daughter. I know that there were many pipes. When we heard that it was Gene’s personal collection that was for sale and that he had passed away we decided for Jeff to go to the house and have a look. He went on January 25, 2024 to scope it out as we had seen his personal collection of pipes and there were definitely some among those well smoked old warriors that would be great to pick up. Perhaps there would even be one that could join my own collection in memory of Gene.

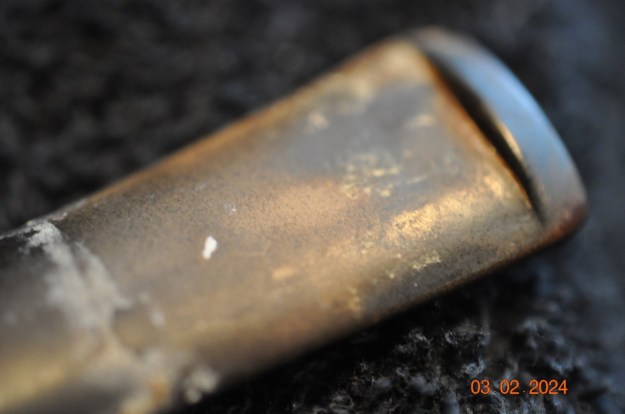

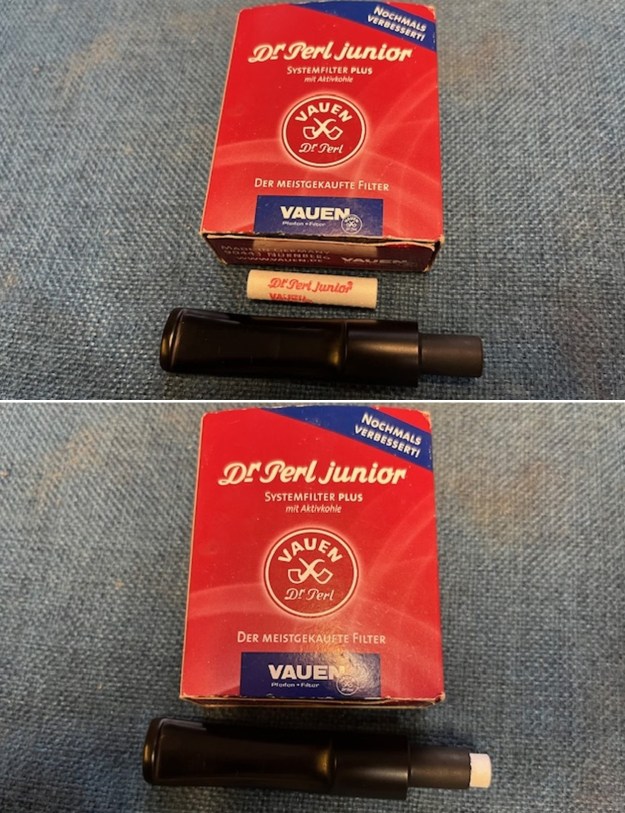

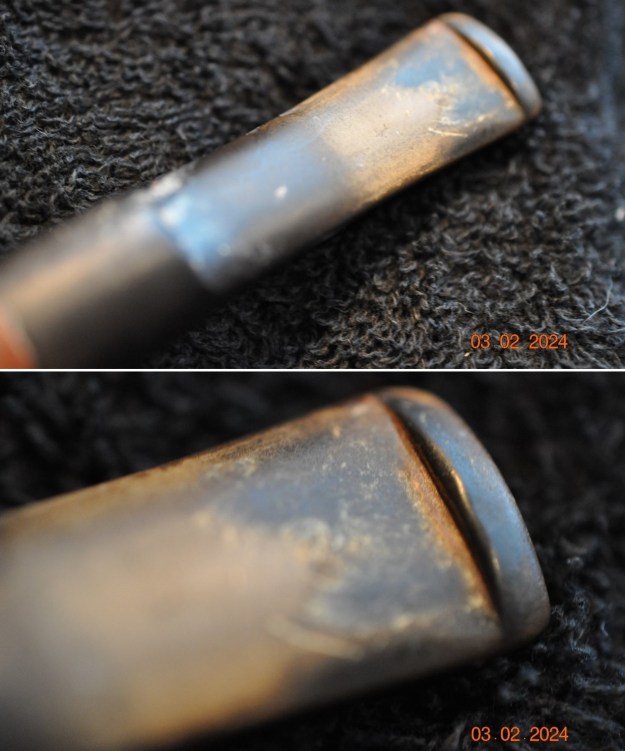

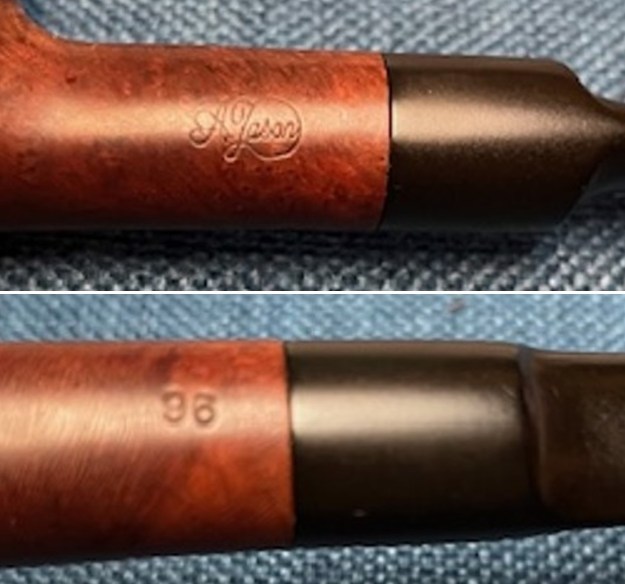

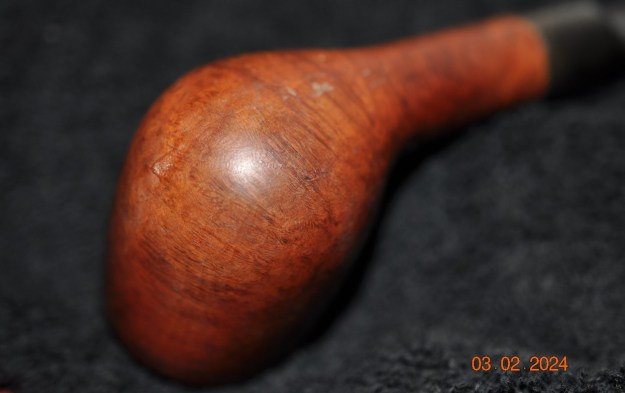

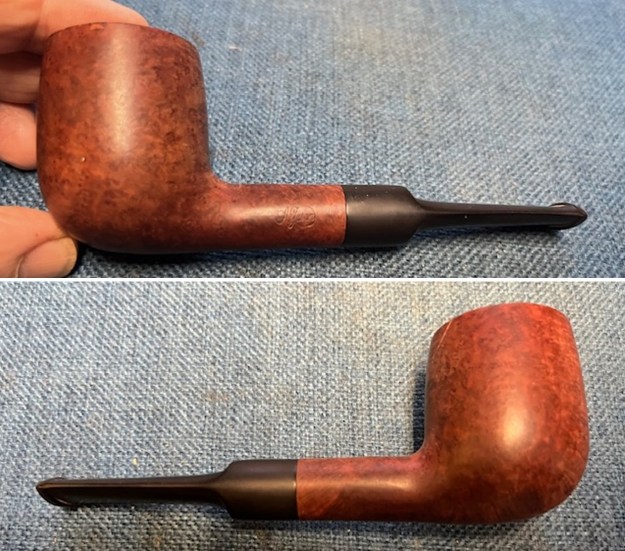

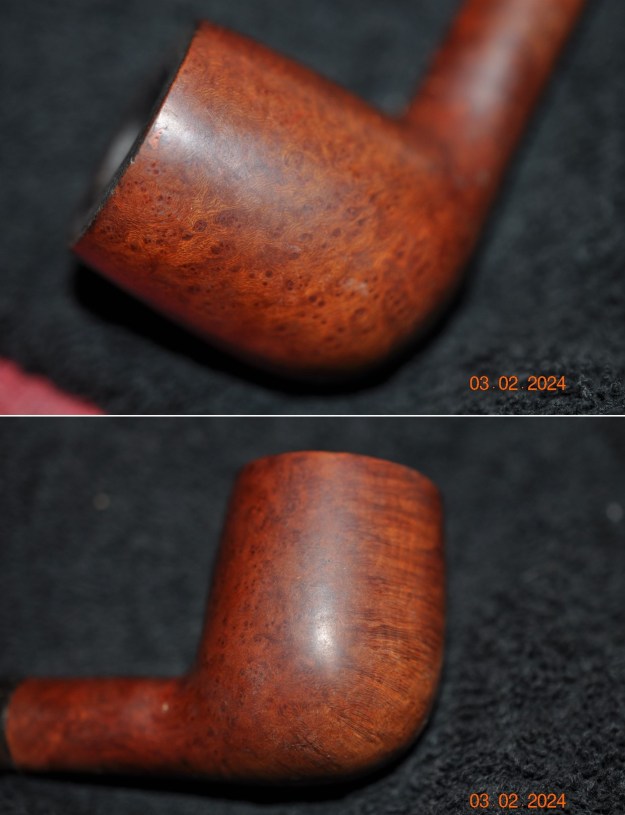

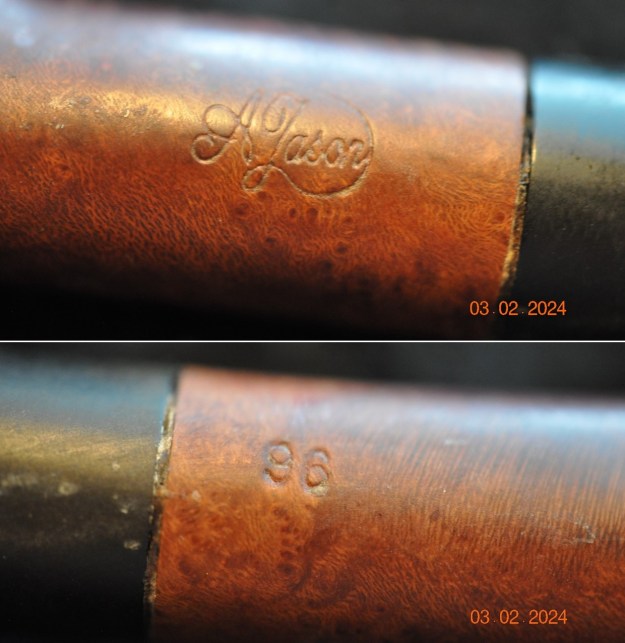

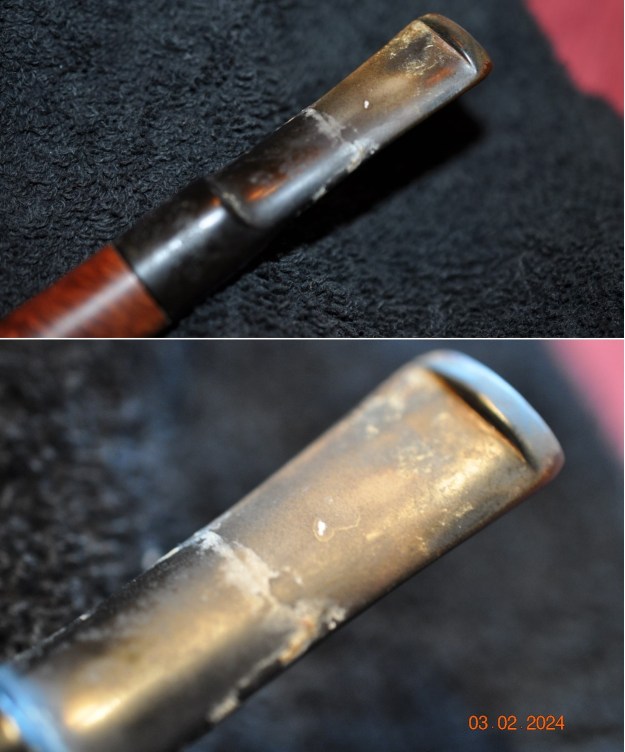

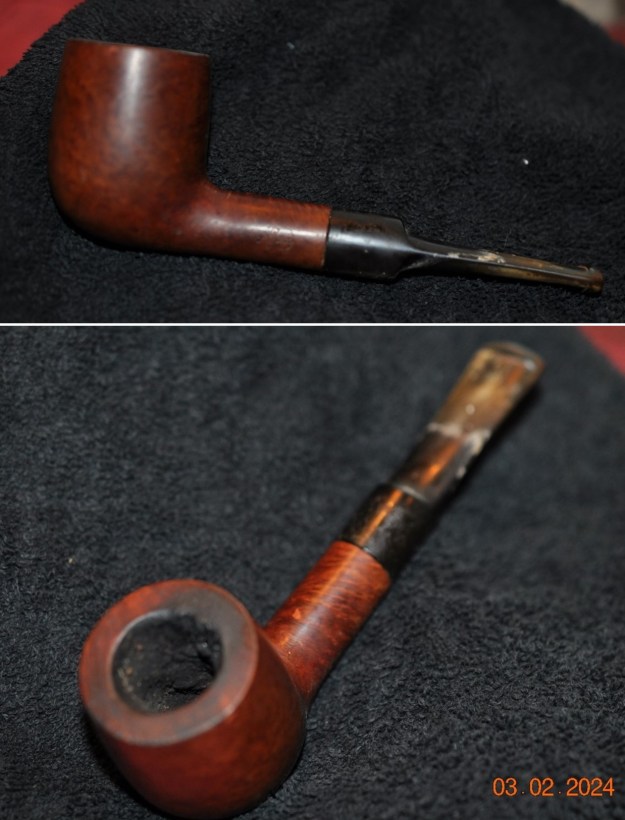

Jeff went to the house and looked through the racks, pipe bags, tobacco both bulk and tinned as well as a variety of pipes. All the pipes were well smoked and needed serious cleaning. Another one of the pipes he picked up was this A. Jason Billiard with a well fitting vulcanite saddle stem. It was very dirty and was a reddish, brown coloured pipe when it started. The smooth finish around the bowl was dirty and had hand oils ground into the grooves. The bowl had a thick cake that overflowed in lava onto the rim edge and top of the bowl. The stem was vulcanite that was very dirty and had the marks of a rubber Softee Bit on the end. It was also a very dirty 9mm filter stem. It had become discoloured and there was a line where the debris from smoking had accumulated along the edge and under the bit protector. The good news was that there were some deep tooth marks and chatter under the calcification and grime. The rest of the stem was dirty and had lost the characteristic shine. The pipe was stamped on the left side of the shank and read A. Jason in script in an oval. On the underside of the shank it is stamped with the shape number 96. Jeff took photos of the pipe so I could have a sense of what it looked like before he started his work on it.Jeff took photos of the stem surfaces and the bowl and rim to give a sense of condition of the pipe. You can see the thick cake in bowl and the lava overflow on the edges and rim top of the bowl. It is hard to know if there is any damage as the cake and lava is quite thick. The stem surface is very dirty and you can see the area on the end of the stem where the Softee Bit had protected it from chewing though there were some previous deep tooth marks covered by the dirt and debris. He also took photos of the sides of the bowl and the heel to show the interesting grain that went around the bowl. The grain is beautiful and you can see the oils and debris in the surface of the briar. He took photos of the stamping on the sides of the shank. It is clear and readable on all the shank sides as noted above.I did some searching on Google and could not find any pipe makers with the name A. I did a search in Washington and Oregon as well as Idaho and Utah all states within reach for Gene to have either visited or ordered a pipe. There was nothing that I could find in terms of a US pipe maker. I did a search on Google for A. Jason tobacco products and came across a cigar label and cigar cutter with the same stamp as the pipe – A. Jason. Further searching took me to a German tobacco supplier called A. Jason-Hanse Hamburg, Germany. They are a small tobacco shop located at Barmbeker Str. 17-19, 22303 Hamburg, Germany that sells cigars, humidors, cigar cutters, pipes and pipe tobacco. They were some pictures of the label on a humidor and a cigar label with the same stamp.I posted a question about the brand on Facebook pipe groups and Sascha Martens answered and did a bit of research on the brand and sent a link to the Hanse Tobacco Company in Hamburg who was a cigar cutter and tobacconist. Thank you for the information Sascha. Here is the link (https://www.northdata.com/Hanse%20Tobacco%20GmbH,%20Hamburg/HRB%20109995). I have included the information from the link below:

Hanse Tobacco GmbH

Heinrich-Hertz-Str. 139 – 139 a, 22083 Hamburg, Germany

Norderstedt, Germany

Corporate purpose – The object of the undertaking is the trade in goods of all kinds, insofar as they are not subject to authorisation, in particular tobacco products and smoking supplies. In addition, the company is engaged in the operation of catering, beverages and restaurants, with the dispersing of alcoholic beverages.

I knew from the above information that I was working on a German made pipe or at least one made for the German market. I also knew that originally it had come from the A Jason-Hanse shop in Hamburg. How it got to Pocatello, Idaho in the US is truly anyone’s guess. Was it a gift from a customer to Gene or did he pick it up on a trip to Europe? I suppose we will never know. Now it was my turn to work on the pipe.

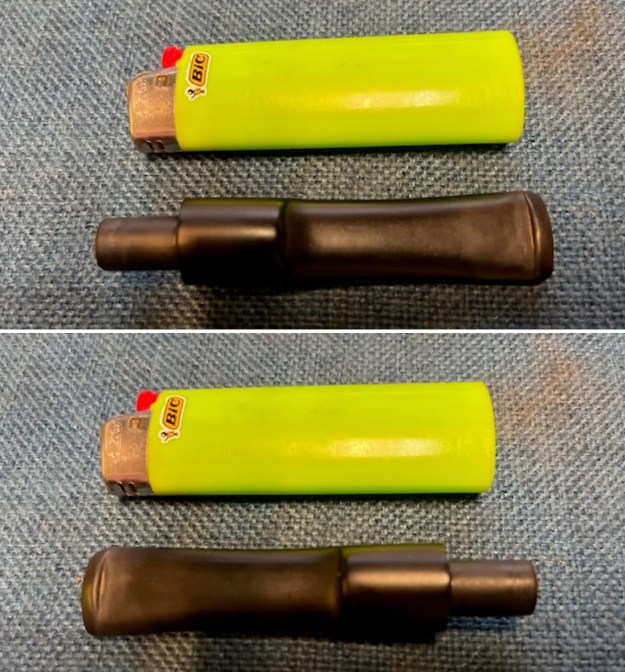

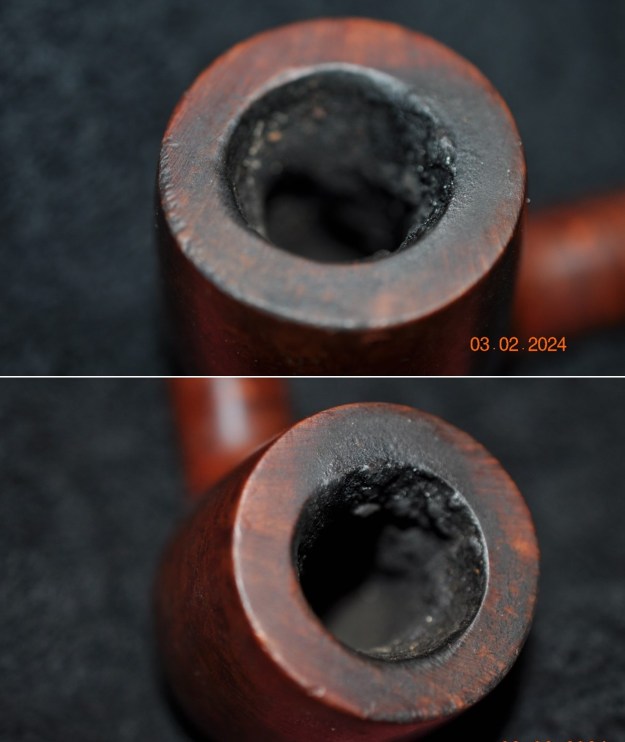

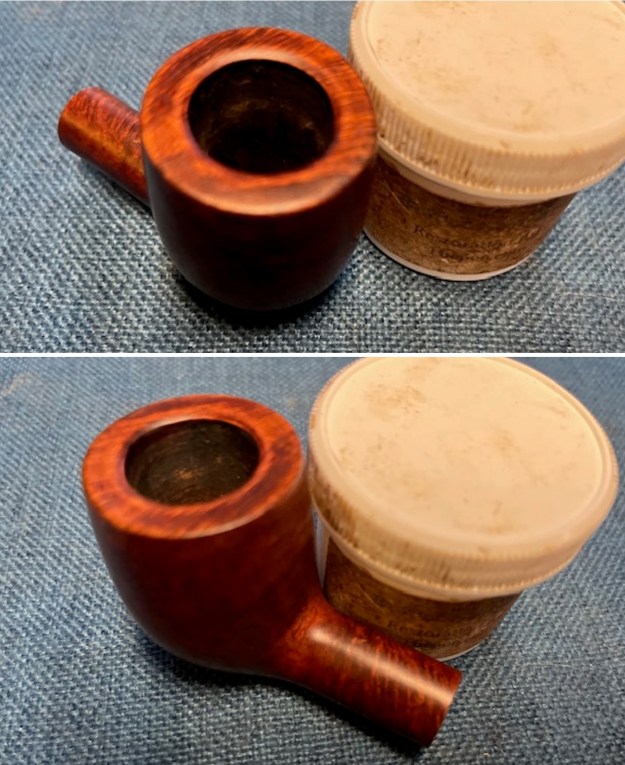

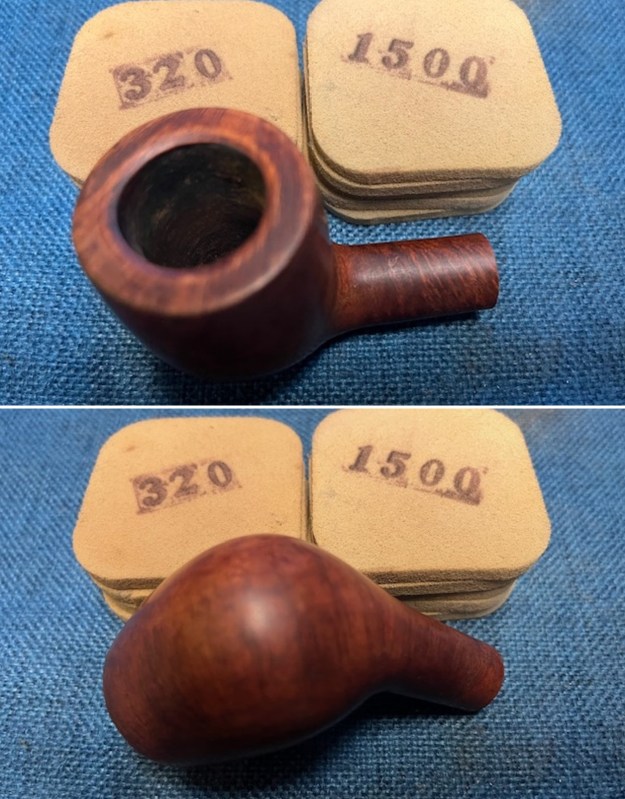

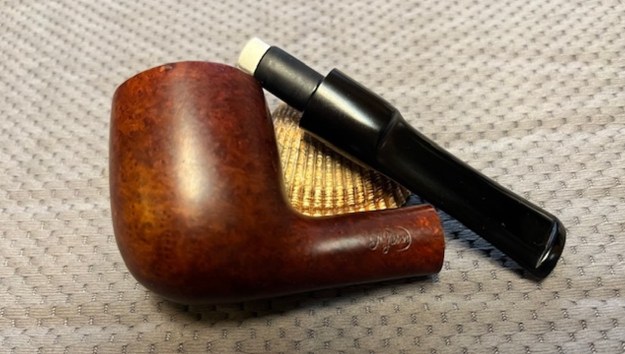

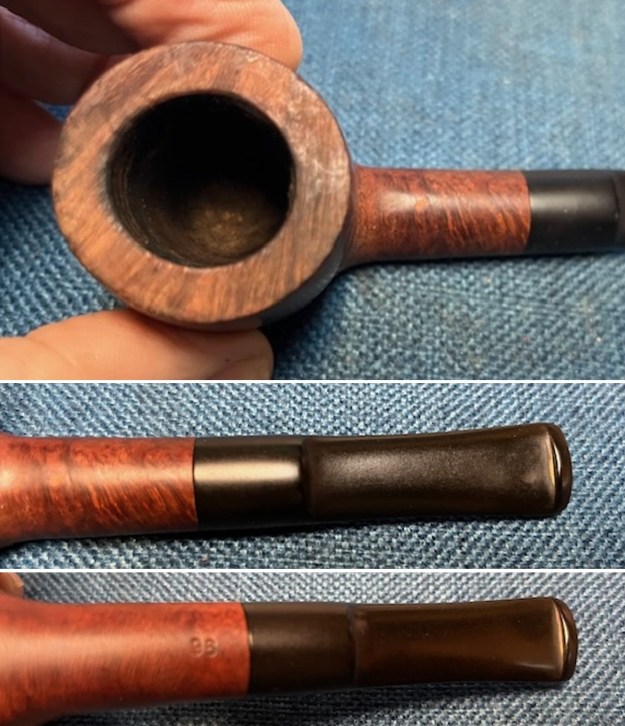

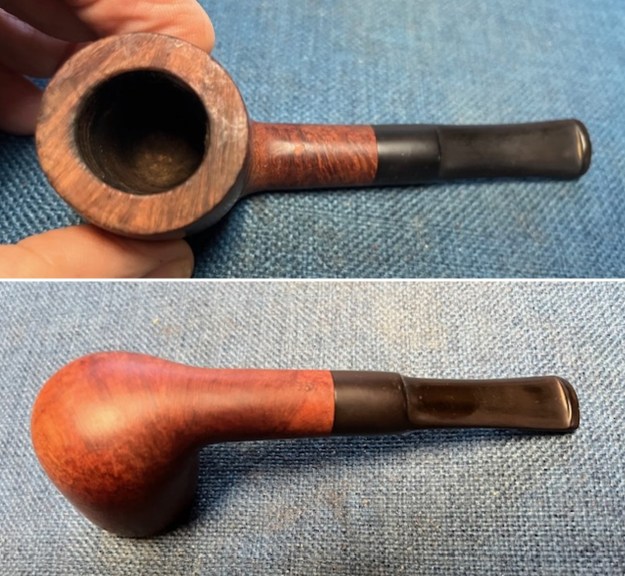

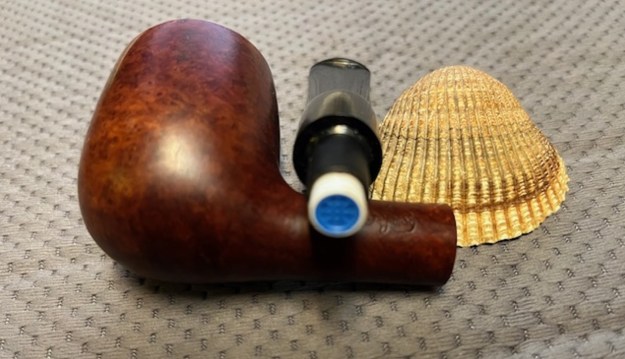

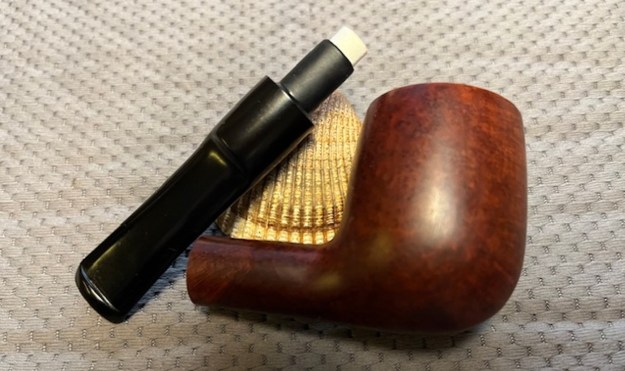

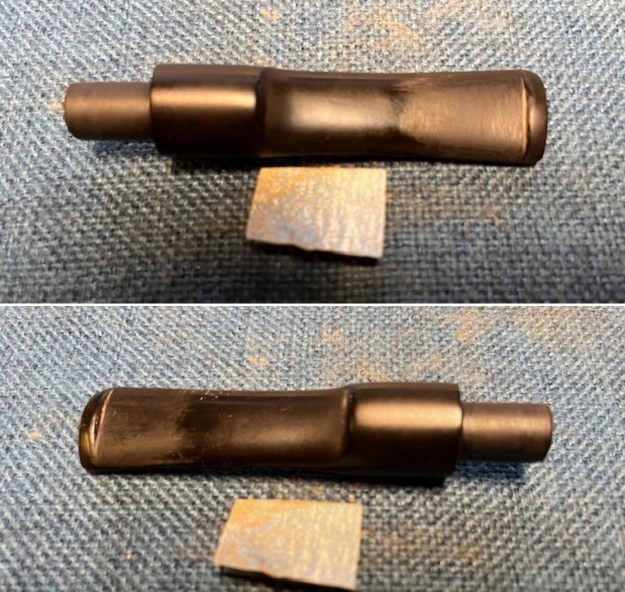

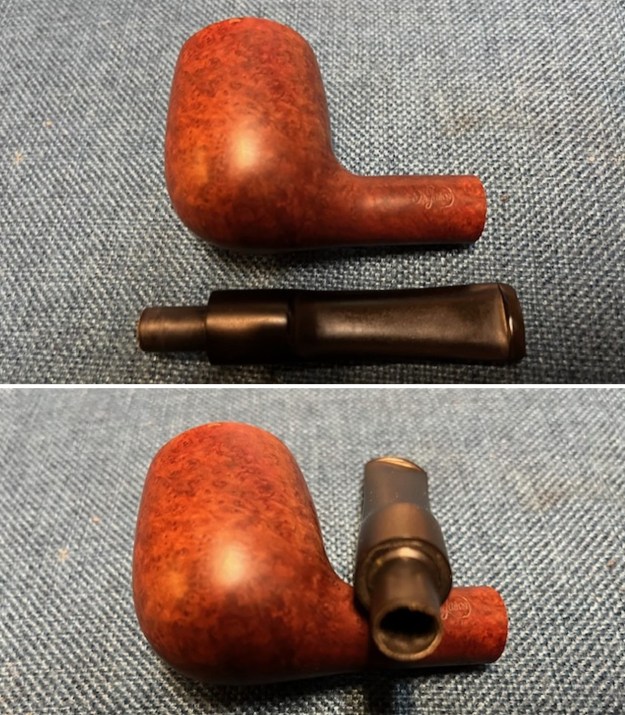

Jeff had done an amazing cleanup of the pipe. He reamed the cake with a PipNet reamer and cleaned up that with a Savinelli Fitsall Pipe Knife. He scrubbed the internals of the bowl and stem with alcohol, cotton swabs, shank brushes and pipe cleaners. He scrubbed the externals with undiluted Murphy’s Oil Soap and rinsed the bowl off with running water. He soaked the stem in Briarville’s Pipe stem Deoxidizer and once it had soaked, rinsed it off with warm water to remove the residual solution. He dried it off and rubbed it down with Soft Scrub to remove any oxidation that was still on the stem. The pipe looked very good when I received it. I took a photo of the rim top to show the condition. You can see the clean bowl. The bowl is in excellent condition and is clean. The rim top and the inner edge had a few issues. The top had some pitting and nicks and the inner edge had some burn damage toward the front of the bowl. The stem came out looking clean. There were some tooth marks and chatter on both sides.I took photos of the stamping on the shank sides. It is clear and readable as noted above. I removed the stem from the shank and took a photo of the pipe parts to show what I was working with. The first is a side view and the second is showing the 9mm filter tenon on the stem. I worked over the rim top and inner edge with a folded piece of 220 grit sandpaper to minimize the damage. I followed that by using a wooden ball and some 220 grit sandpaper to give the inner edge a light bevel to take care of the burn damage on the front inner edge of the bowl. A benefit of the sanding with a sphere is that it also cleaned up the damage on the rim top. The top looked better. The bowl is a little out of round but it is much better. I sanded the surface of the bowl and rim top with 320-3500 grit sanding pads. They well to remove the surface scratches and nicks in the briar. I wiped it down after each sanding pad with a damp cloth. I polished the briar with micromesh sanding pads. I dry sanded it with 1500-12000 grit sanding pads and wiped the bowl down after each pad with a damp cloth. By the final pads the briar really had a shine. I rubbed the briar down with Before & After Restoration Balm. I worked it into the briar with my fingertips. The product works to clean, enliven and preserve the briar. I let it sit for 10 minutes then I buffed it with a cotton cloth to deepen the shine. The briar really comes alive with the balm. I set the bowl aside and turned my attention to the stem. I “painted” the surface of the stem with the flame of a Bic lighter to lift the tooth marks. I was able to lift many of the marks significantly. I filled in what remained with black CA glue (rubberized and carbonized). It is a great product that has some elasticity and cures hard but not brittle. Once it cured I used a flat file to smooth out the repairs. I finished blending them in with 220 grit sandpaper. I moved on to further smooth out the surface of the repairs to the vulcanite. I sanded them smooth with 320-3500 grit sanding pads to further blend them into the surface of the stem.I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. It really took on a shine and I knew that once it was buffed it would look amazing. I fit the stem with a 9mm filter. I used some Vauen Dr. Perl Junior Filters when I am replacing 9mm filters. The fit was perfect and the draught very good.I put the stem back on the A. Jason Billiard 96 with a vulcanite saddle 9mm filter stem and took it to the buffer. I worked it over with Blue Diamond to polish out the remaining small scratches. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up really well and the rim top looked good. I was happy with the look of the finished pipe. The photos below show what the pipe looks like after the restoration. The German made A. Jason Saddle Stem Billiard 96 is a beautiful and unique take on a classic shape. The polished vulcanite saddle stem looks really good with the browns of the briar. The dimensions of the pipe are Length: 5 ½ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.80 ounces/52 grams. This is another pipe that I will be putting it on the rebornpipes store in the Pipes from Various Makers Section shortly, if you are interested in adding it to your collection. The pipe looks and feel great in the hand. This one should be a great smoker. Thanks for walking through the restoration with me on this beauty!

Restoring a Lovely Frasorteret Hand Made in Denmark Freehand

Leave a reply

Blog by Steve Laug

The next pipe on the table is a rugged, sandblast Freehand with a smooth rim and plateau shank end. It had a fancy, turned saddle vulcanite stem. We purchased it from a seller on eBay from Jordan, Minnesota, USA on 01/22/2024. The pipe is stamped on the underside of the shank and reads Frasorteret [over] Hand Made [over] In [over] Denmark. The rim was in good condition other than lava overflowing from the thick cake in the bowl onto the smooth rim top. It is hard to assess the condition of the inner edge of the rim due to the cake and lava overflow. There may be some darkening or damage at the back of the bowl but I cannot be sure. There were oils and grime ground into the bowl sides gives the finish a flat look. The fancy saddle stem is dirty, with grime and grit on the surface. There were also tooth marks on both the top and underside of the stem just ahead of the button. Jeff took photos of the pipe before he started his clean up work. I have included them below. He took photos of the pipe’s bowl and rim top to show the cake in the bowl and the lava coat overflowing onto the top. It is another dirty pipe. He also took photos to capture the tooth marks on the top and underside of the stem near the button. He took photos of the sides and heel of the bowl to show the grain around the bowl and the amount of grime ground into the surface of the briar. He took photos of the stamping on the underside of the shank. It is faint but still quite readable. I had a memory that Frasorteret pipes came from the creative carving of Preben Holm so I wanted to do some checking. I turned to Pipephil’s site (http://www.pipephil.eu/logos/en/logo-f4.html). It tied the line to Preben Holm but there was not too much more information at this point.I turned to Pipedia (https://pipedia.org/wiki/Frasorteret) to gather further information. There the information was a bit clearer about the tie. Here is the information.

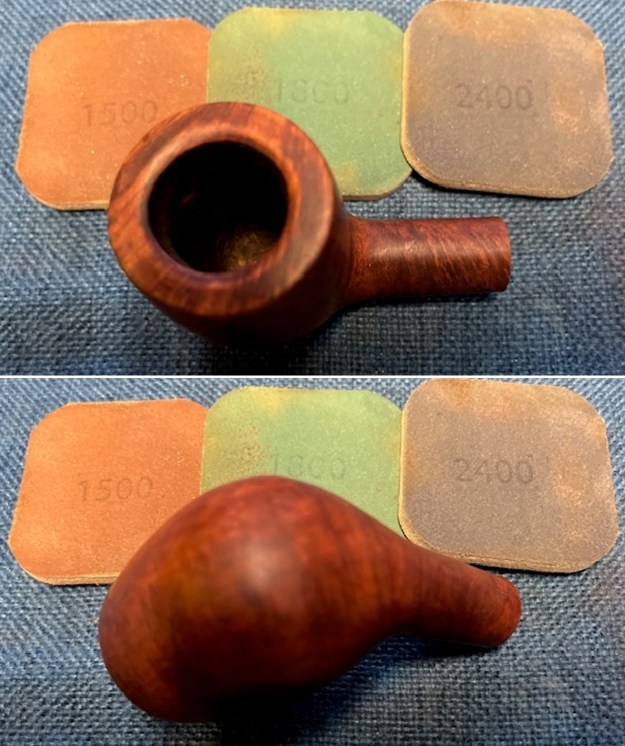

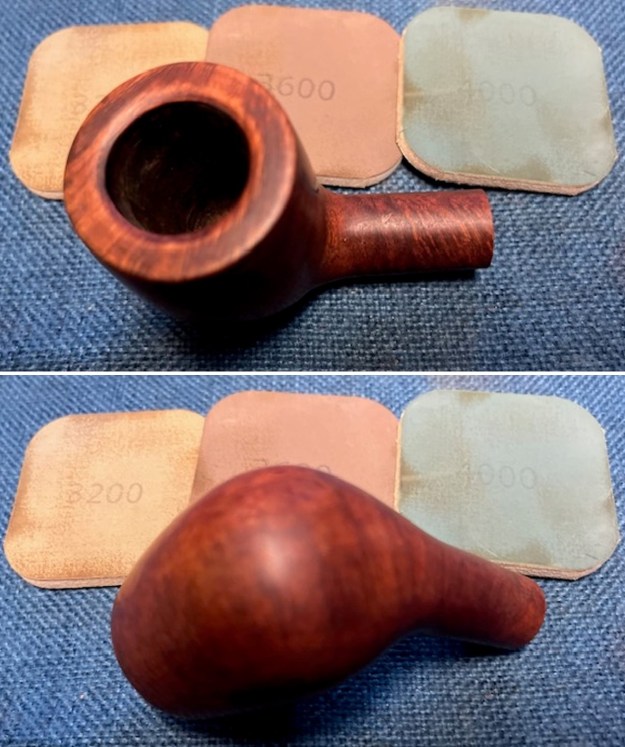

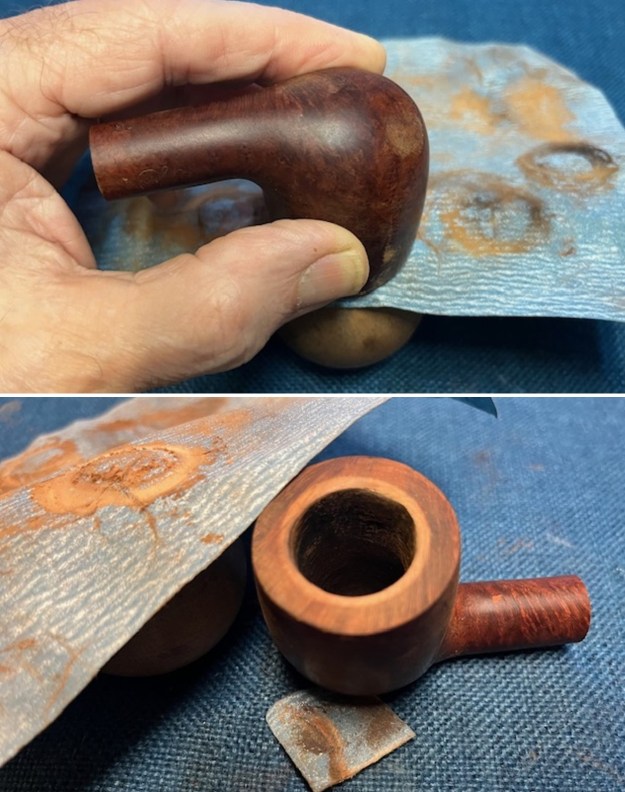

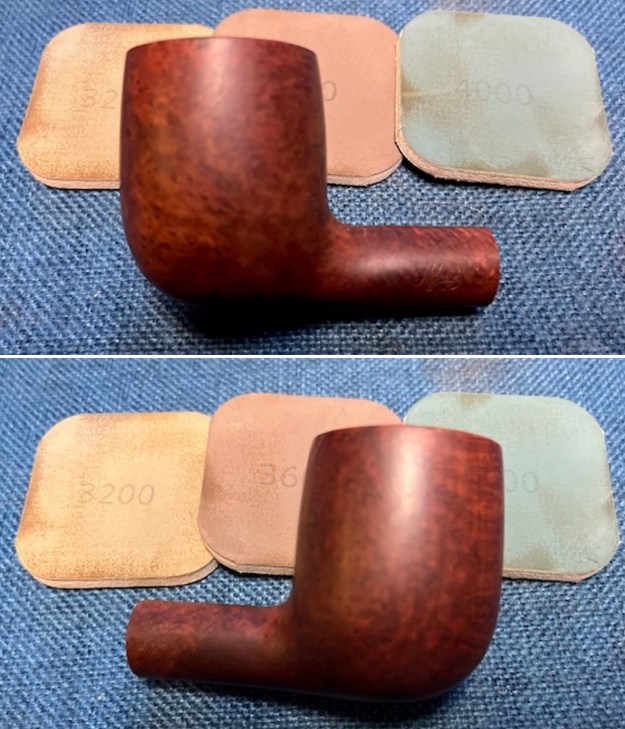

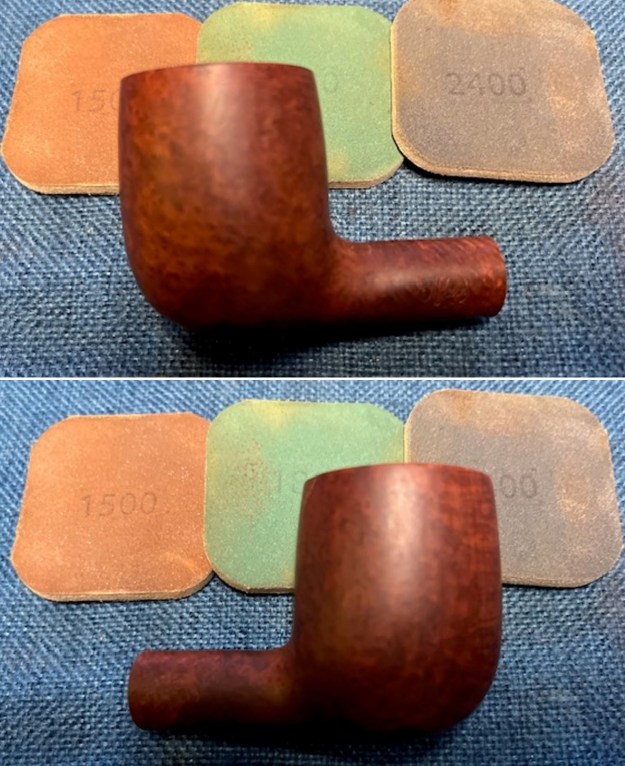

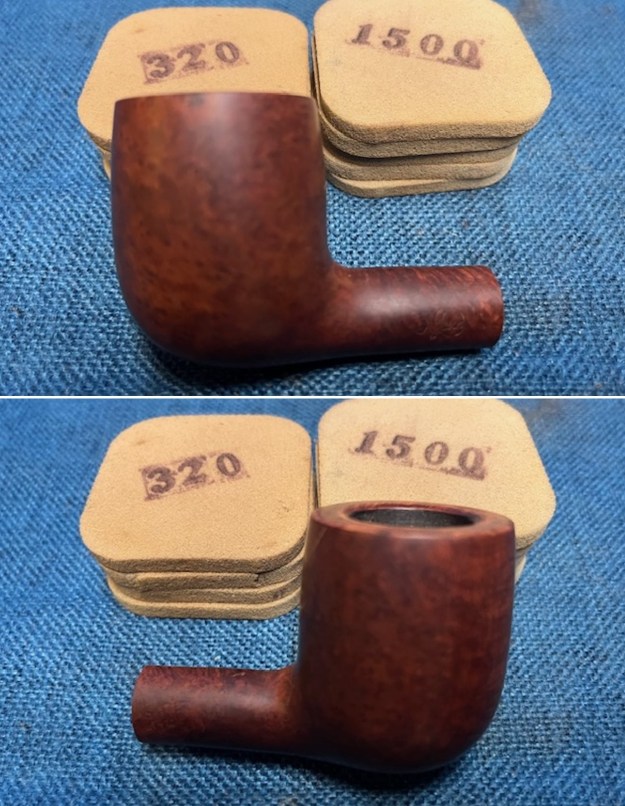

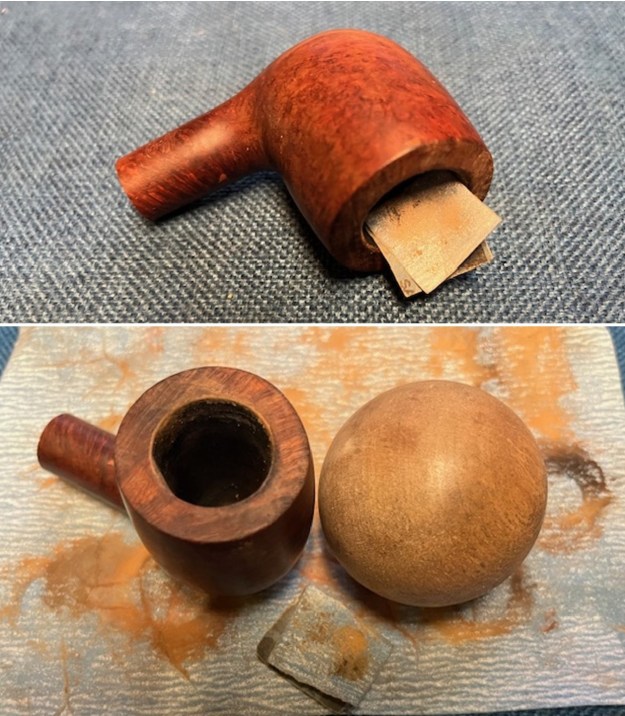

The Frasorteret line of pipes were made by Preben Holm and were nearly identical to his normal line of pipes but for fills and pits and the like. The pipes were stamped Frasorteret Made in Denmark. I took a photo of the rim top to show the condition. You can see the clean bowl. The bowl is in excellent condition and is clean. The rim top and the inner edge shows a lot of damage and burn marking on the bowl. The stem came out looking clean. There were definitely deep tooth marks and chatter on both sides. I took photos of the stamping on the shank. It is faint but still very readable. I removed the stem from the shank and took a photo of the pipe parts to show what I was working with.I started my work on the pipe by addressing the damage on the inner edge of the rim. I used a folded piece of 220 grit sandpaper to smooth out the roughness. I then used 220 grit sandpaper and a wooden ball to give the inner edge of the bowl a slight bevel. It looked much better at this point in the process. I sanded the briar rim top and the sides of the bowl with 320-3500 grit sanding pads. I wiped the bowl down with a damp cloth after each pad. By the time I finished with the 3500 grit pad the briar had taken on a rich glow.I went over the sandblast finish on the bowl and shank with a brass bristle wire brush to knock off the debris in the grain. Once finished it looked much better. It was ready for the next work on the rim and shank end. I worked over the plateau shank end with the wire brush to prepare it for the traditional black stain. I touched it up with a black stain pen making sure that all the grooves and surfaces were evenly stained. Once the stain cured I sanded it with a 320 grit sanding pad to knock the stain off the high spots on the plateau to give a sense of contrast to the plateau. It looked very good once I had finished doing that. I polished the smooth rim top with micromesh sanding pads – dry sanding with 1500-12000 grit sanding pads. I wiped it down with a damp cloth after each pad to remove the debris. The crowned rim top took on a rich glow. I rubbed the bowl down with Before & After Restoration Balm. I worked it into the surface of the briar with my fingertips and a horsehair shoe brush to clean, enliven and protect it. I let the balm sit for 10 minutes and then buffed with a cotton cloth and shoe brush to raise the shine. Mark Hoover’s Balm is a product that I have come to appreciate and one I use on every pipe I have been working on. I set aside the bowl and turned my attention to the stem. I “painted” the stem surface with the flame of a lighter. I was able to lift the tooth marks significantly. There were still some deep marks. I filled them in with a coat of clear CA glue and spread it across the surface with a dental spatula.Once the repairs cured I flattened them with a small file. I started the process of blending them into the surface of the surrounding vulcanite. I sanded it with 220 grit sandpaper to clean up the file marks and smooth out the surface of the stem. I moved on to further smooth out the surface of the vulcanite. I sanded it smooth with 320-3500 grit sanding pads to further blend them into the surface of the stem.I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. It really took on a shine and I knew that once it was buffed it would look amazing. I put the stem back on the Preben Holm Hand Made in Denmark Frasorteret Sandblast Freehand and took it to the buffer. I worked it over with Blue Diamond to polish out the remaining small scratches. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up really well and the rim top looked good. I was happy with the look of the finished pipe. The photos below show what the pipe looks like after the restoration. The Frasorteret Sandblast Smooth Rim Top Freehand is a beautiful and very Preben Holm take on a Freehand shape. The polished vulcanite fancy saddle stem looks really good with the browns of the briar. The dimensions of the pipe are Length: 7 inches, Height: 2 inches, Outside diameter of the bowl: 1¾ inches x 2 inches, Chamber diameter: 1 inch. The weight of the pipe is 2.26 ounces/64 grams. This is another pipe that I will be putting it on the rebornpipes store in the Danish Pipe Makers Section shortly, if you are interested in adding it to your collection. The long shank and tall bowl look and feel great in the hand. This one should be a great smoker. Thanks for walking through the restoration with me on this beauty!

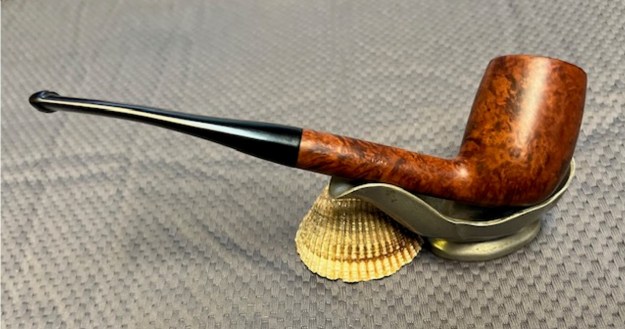

Restoring one of Gene’s Favourite Pipes – A Savinelli Made Bings Favorite Italy

1 Reply

Blog by Steve Laug

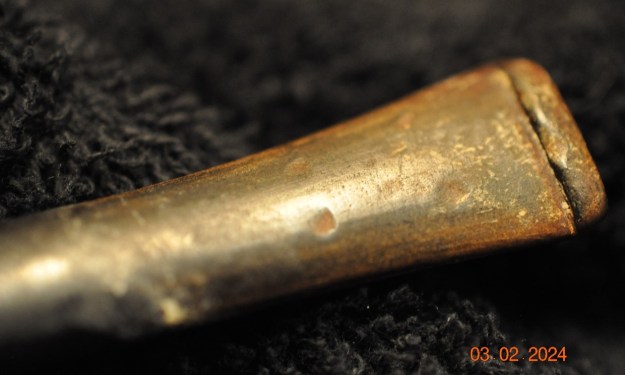

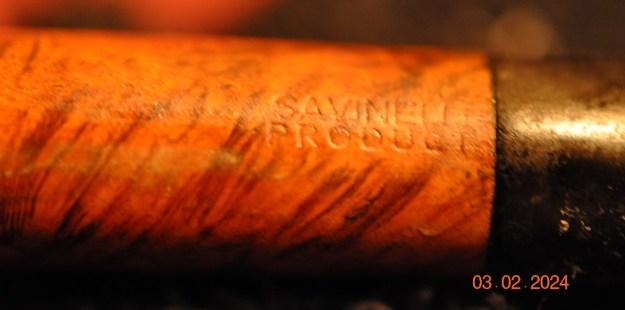

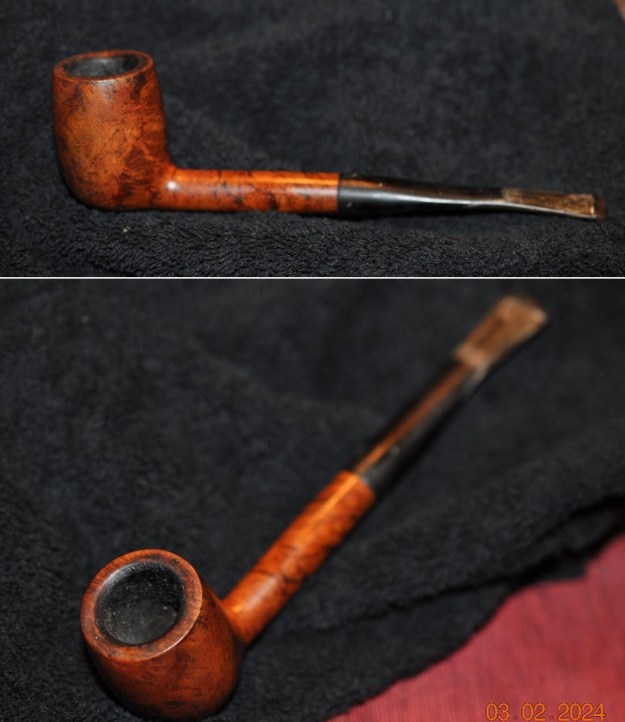

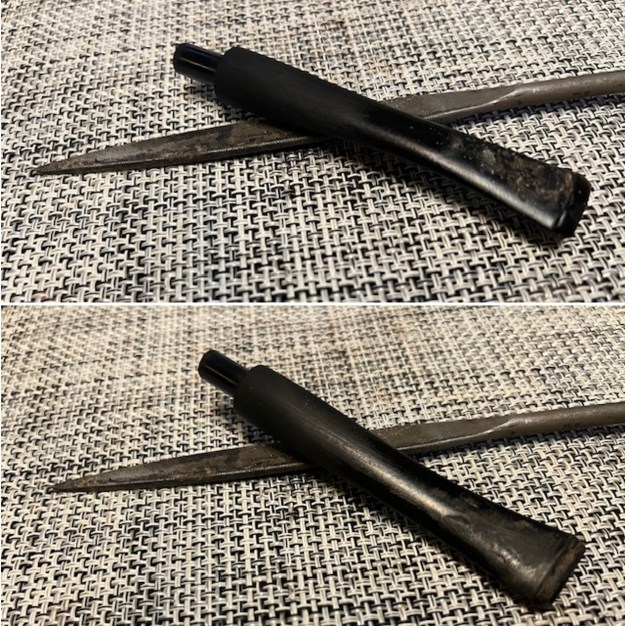

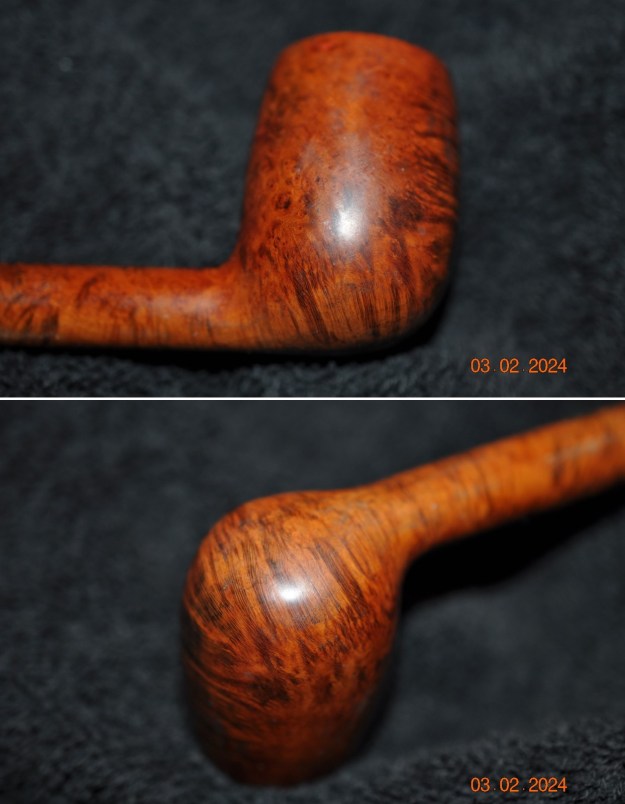

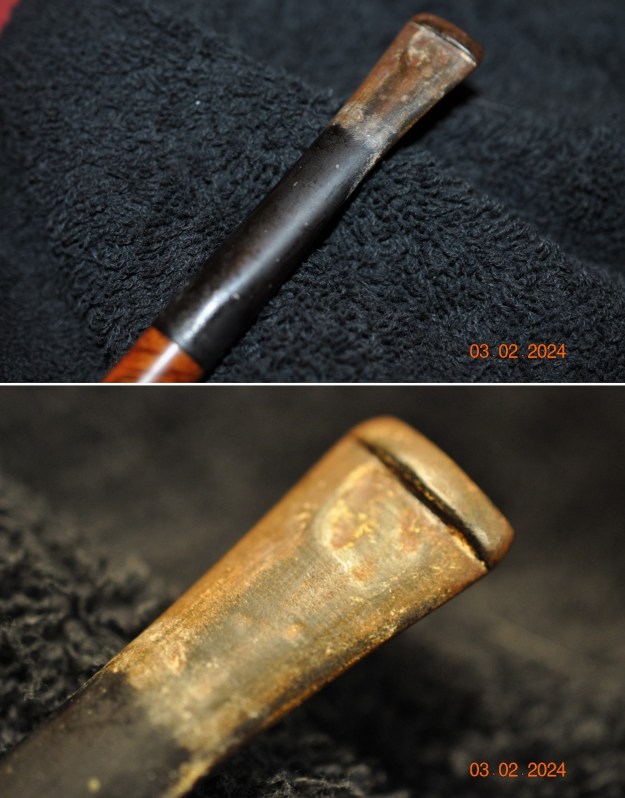

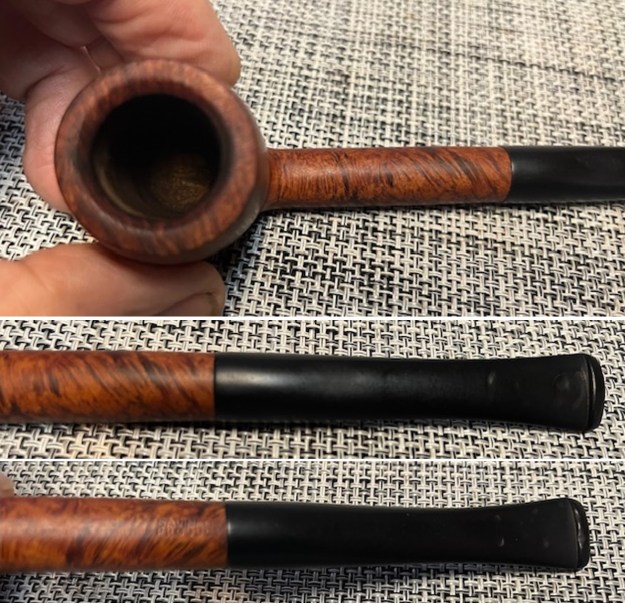

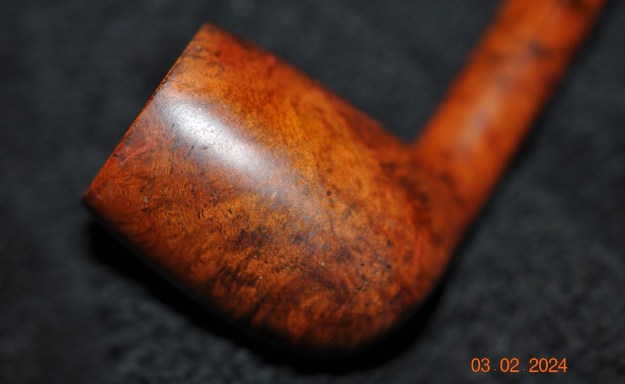

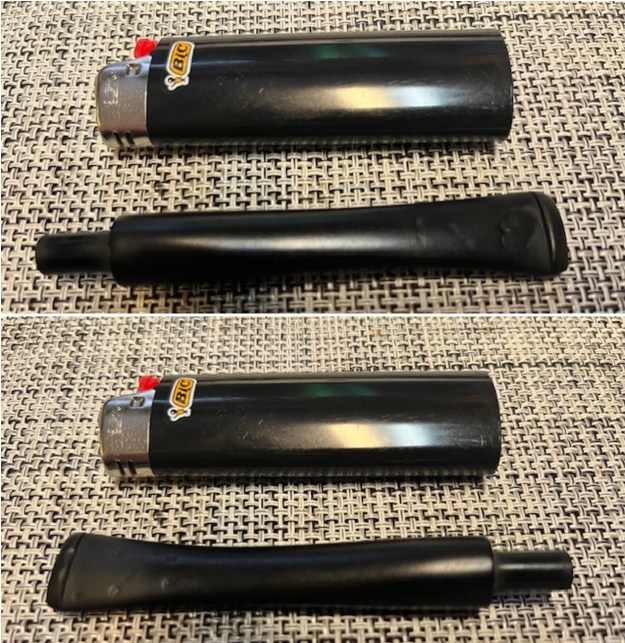

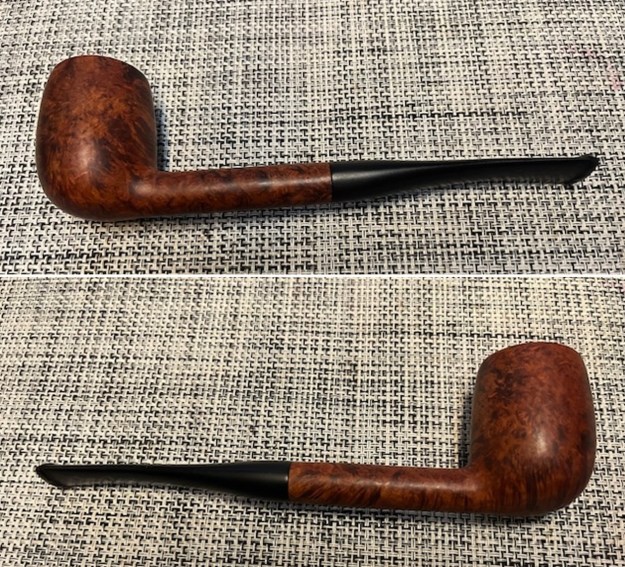

Jeff went to the house and looked through the racks, pipe bags, tobacco both bulk and tinned as well as a variety of pipes. All the pipes were well smoked and needed serious cleaning. Another one of the pipes he picked up was this Savinelli Made Bings Favorite pipes with a poorly fit replacement black vulcanite taper stem. It was very dirty and was a reddish, brown coloured pipe when it started. The smooth finish around the bowl was dirty and had hand oils ground into the grooves. The bowl had a thick cake that overflowed in lava onto the rim edge and top of the bowl. The bottom of the bowl was flattened so the pipe could be set on a desktop. The stem was vulcanite that was very dirty and had the marks of a rubber Softee Bit on the end. It had become discoloured and there was a line where the debris from smoking had accumulated along the edge and under the bit protector. The good news was that there were some deep tooth marks and chatter under the calcification and grime. The rest of the stem was dirty and had lost the characteristic shine. The pipe was stamped on the left side of the shank and read Bings Favorite. On the right side of the shank it is stamped Italy. On the underside of the shank it was stamped Savinelli Product. Jeff took photos of the pipe so I could have a sense of what it looked like before he started his work on it.Jeff took photos of the stem surfaces and the bowl and rim to give a sense of condition of the pipe. You can see the thick cake in bowl and the spots of lava overflow on the edges and rim top of the bowl. It is had to know if there is any damage as the cake and lava is quite thick. The stem surface is very dirty and you can see the area on the end of the stem where the Softee Bit had protected it from chewing though there were some previous deep tooth marks covered by the dirt and debris. I am pretty sure the stem was a replacement and it did not fit the diameter of the shank properly. It was larger than the shank and would need to be fitted. He also took photos of the sides of the bowl and the heel to show the interesting grain that went around the bowl. The grain is beautiful and you can see the oils and debris in the surface of the briar. He took photos of the stamping on the sides of the shank. It is clear and readable on all the shank sides as noted above. I turned to Pipephil’s site (http://www.pipephil.eu/logos/en/logo-savinelli1.html) to get a sense of the Bing’s Favorite. It is a Savinelli Product and it is listed in the Savinelli pipe section. I did a screen capture of the section and included it below. The stamping on the stem confirms that the stem I have is a replacement.I turned to Pipedia (https://pipedia.org/wiki/Savinelli) and after reading through the history I focused on a section entitled Editions in the “Favorite” line. I have included that section below.

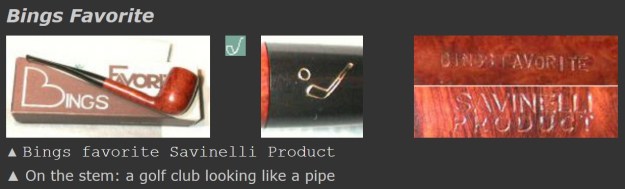

We are compiling a sub-list of known editions in the “Favorite” line of Savanelli pipes, starting with those in Fred Huening’s collection. If you know of others, or have additional information about this line of pipes, please add it here, or send them to sethile.pipes@gmail.com and we can add them for you:

Bing’s Favorite
Byron’s Favorite
Clark’s Favorite
Ginger’s Favorite
Achille’s Favorite (apparently, I, II, and III)

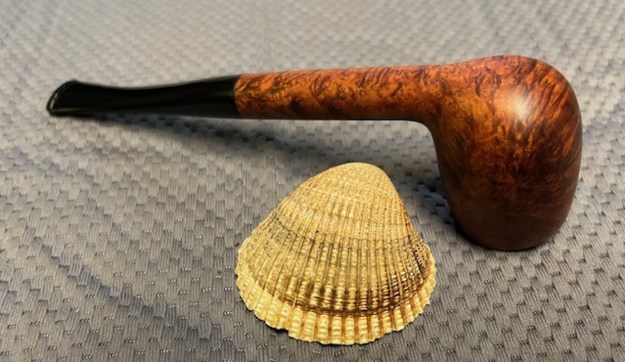

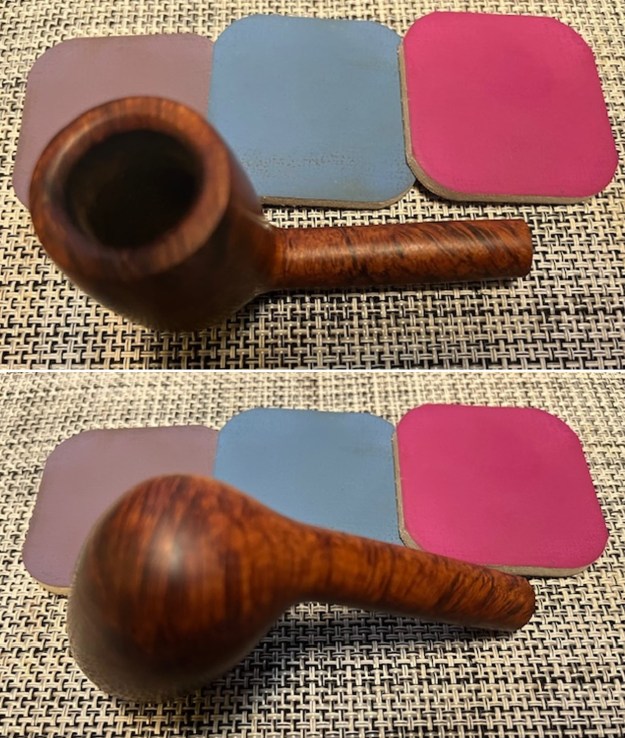

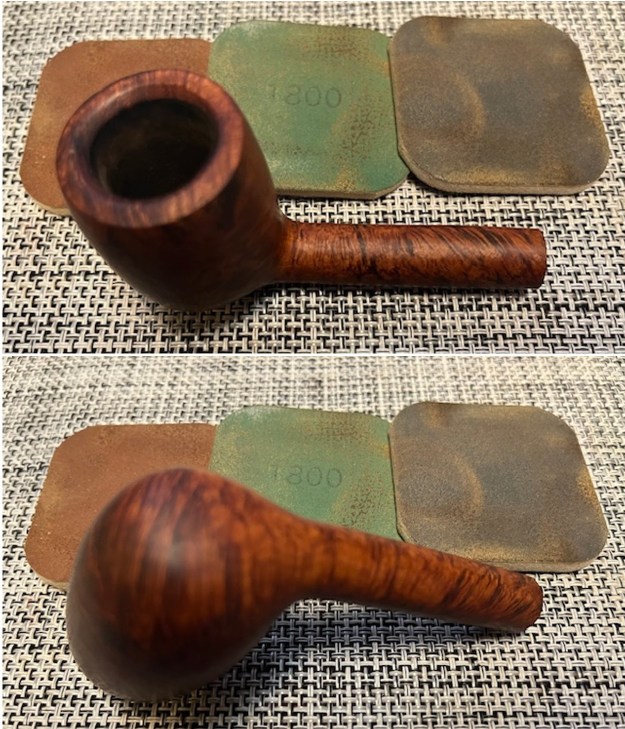

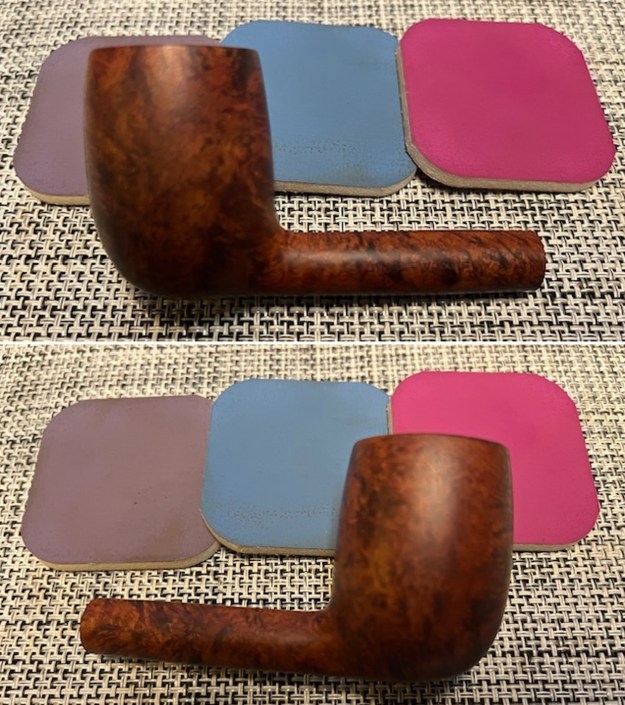

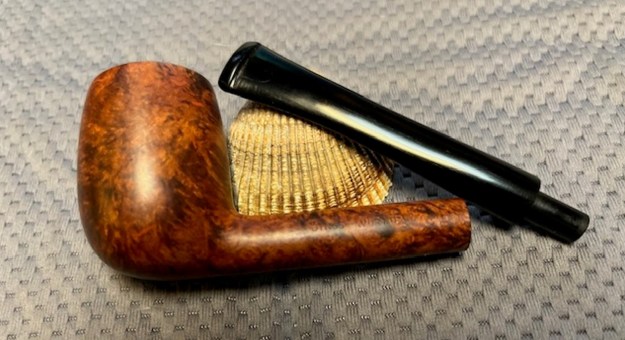

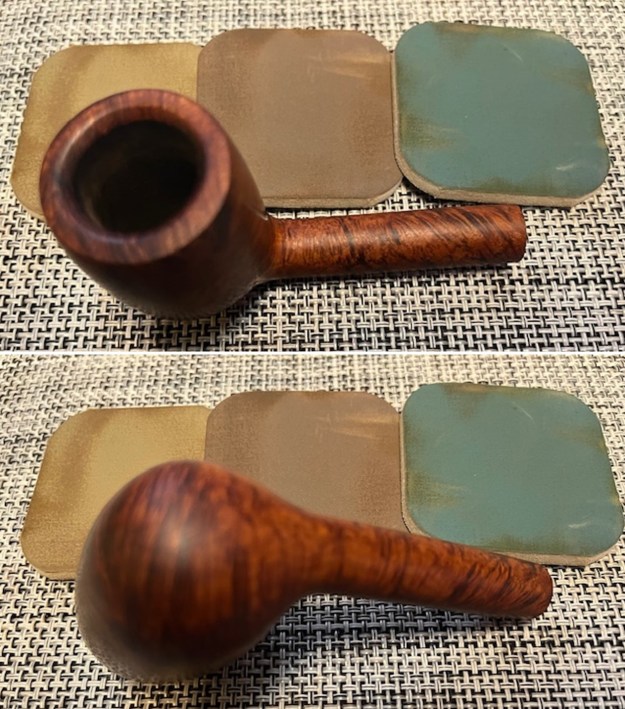

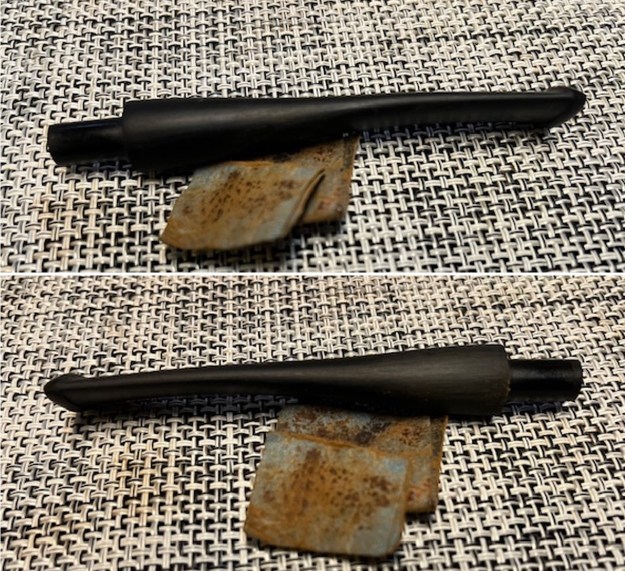

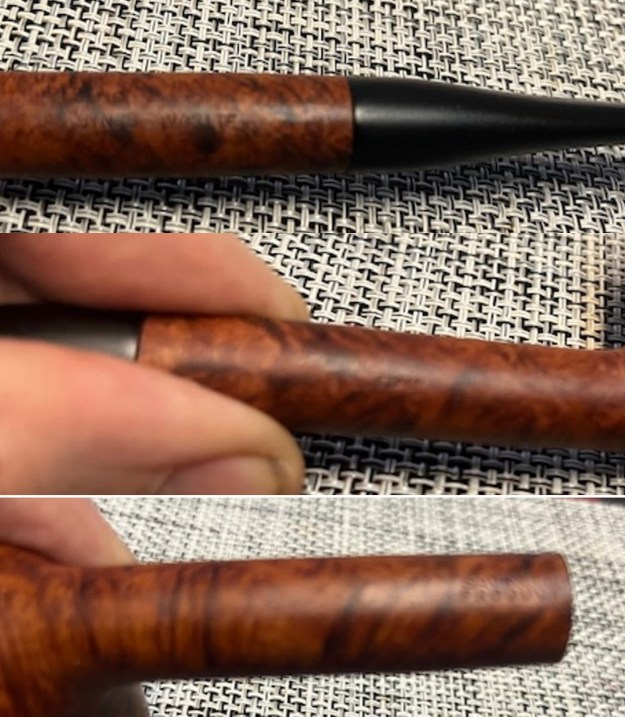

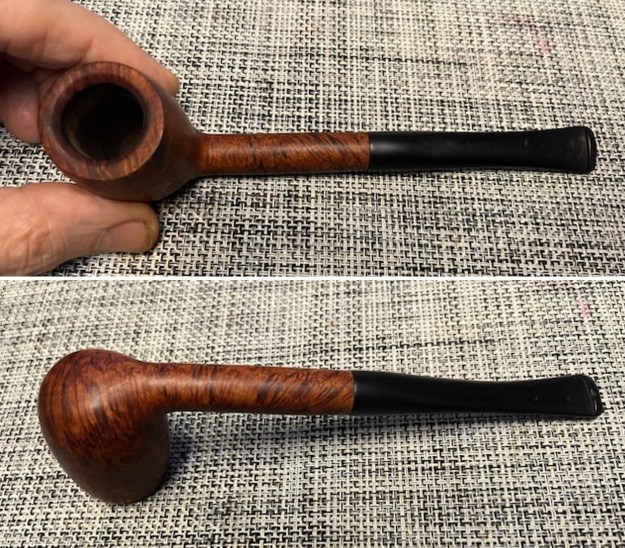

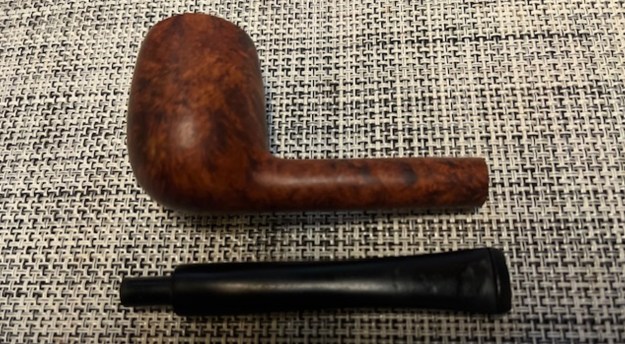

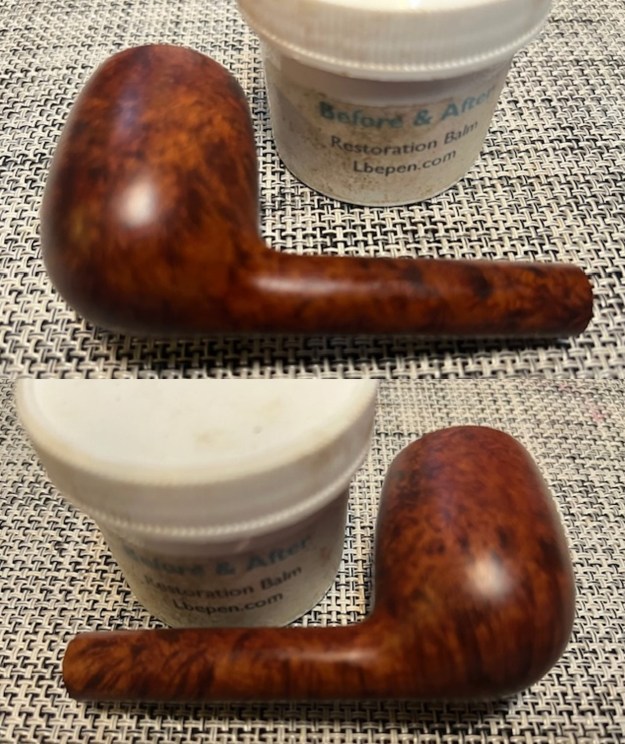

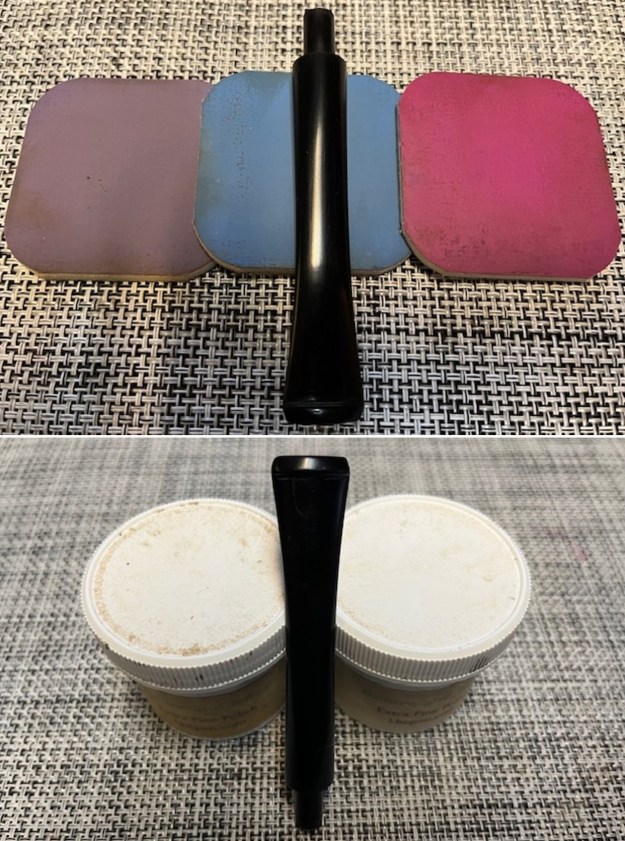

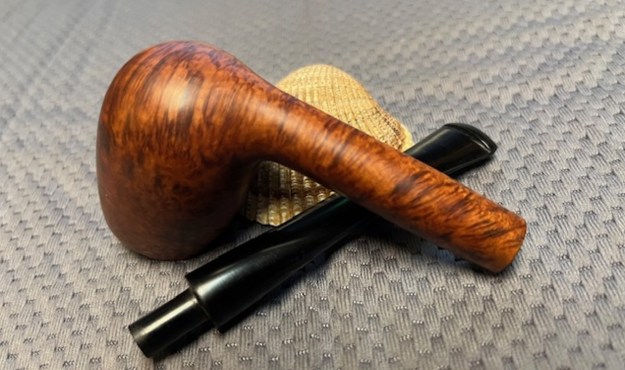

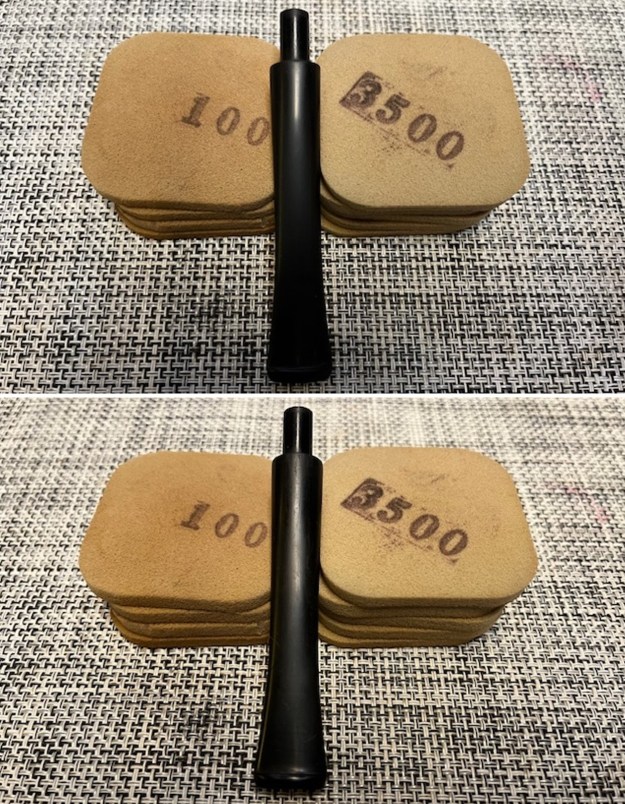

Now it was my turn to work on the pipe. Jeff had done an amazing cleanup of the pipe. He reamed the cake with a PipNet reamer and cleaned up that with a Savinelli Fitsall Pipe Knife. He scrubbed the internals of the bowl and stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the externals with undiluted Murphy’s Oil Soap and rinsed the bowl off with running water. He soaked the stem in Briarville’s Pipe stem Deoxidizer and once it had soaked, rinsed it off with warm water to remove the residual solution. He dried it off and rubbed it down to remove any oxidation that was still on the stem. The pipe looked very good when I received it. I took a photo of the rim top to show the condition. You can see the clean bowl. The bowl is in excellent condition and is clean. The rim top and the front inner edge was in great condition. The stem came out looking clean. There were definitely deep tooth marks and chatter on both sides. I took photos of the stamping on the shank. It is faint but still very readable. I removed the stem from the shank and took a photo of the pipe parts to show what I was working with. The pipe had cleaned up so well that I turned to polish the briar with micromesh sanding pads. I dry sanded it with 1500-12000 grit sanding pads and wiped the bowl down after each pad with a damp cloth. By the final pads the briar really had a shine. I rubbed the briar down with Before & After Restoration Balm. I worked it into the briar with my fingertips. The product works to clean, enliven and preserve the briar. I let it sit for 10 minutes then I buffed it with a cotton cloth to deepen the shine. The briar really comes alive with the balm. I set aside the bowl and turned my attention to the stem. I “painted” the stem surface with the flame of a lighter. I was able to lift the tooth marks significantly. There were still some deep marks. I filled them in with a coat of clear CA glue and spread it across the surface with a dental spatula. Once the repairs cured I flattened them with a small file. I started the process of blending them into the surface of the surrounding vulcanite.Once I finished that work I addressed the diameter of the stem. I needed to take off the excess so that the flow between the shank and the stem were smooth. I used a flat rasp to quickly remove the excess then sanded it with 220 grit sandpaper to clean up the file marks and smooth out the surface of the stem. I moved on to further smooth out the surface of the vulcanite. I sanded it smooth with 320-3500 grit sanding pads to further blend them into the surface of the stem.I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. It really took on a shine and I knew that once it was buffed it would look amazing. I put the stem back on the Bings Favorite ¼ Bent Vulcanite Stem Long Billiard and took it to the buffer. I worked it over with Blue Diamond to polish out the remaining small scratches. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up really well and the rim top looked good. I was happy with the look of the finished pipe. The photos below show what the pipe looks like after the restoration. The Bings Favorite Savinelli Product is a beautiful and unique take on a classic shape. The polished, reshaped vulcanite taper stem looks really good with the browns of the briar. The dimensions of the pipe are Length: 6 ½ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.23 ounces/35 grams. This is another pipe that I will be putting it on the rebornpipes store in the Italian Pipe Makers Section shortly, if you are interested in adding it to your collection. The long shank and tall bowl look and feel great in the hand. This one should be a great smoker. Thanks for walking through the restoration with me on this beauty!
