Restoring a 1978 Peterson’s Dublin 221S Bent Billiard

1 Reply

by Steve Laug

The next pipe I have chosen is another Peterson’s Dublin Bent Billiard pipe. This one is a nice smaller size It has a silver ferrule and a taper style Peterson’s stem on the shank end. It came to us from our contact in Copenhagen, Denmark on 04/11/2024. This pipe was obviously a favourite of the previous pipe smoker. It had been well smoked but was also well cared for. The bowl was recently reamed and there was no lava on the rim. The briar was dirty with grime and oils ground into the finish and some of the lava flowing down the bowl sides. The Sterling Silver ferrule was oxidized but undamaged. The pipe was stamped vertically on the left side and read Peterson’s with a forked P [over] Dublin. On the right side it had the three-line Republic of Ireland stamp [over] the shape number 221S. The ferrule was stamped Peterson’s [over] Dublin on the top left side. That is followed by Sterling [over] Silver. To the right that it has three hallmarks – Hibernia seated arm on a harp (signifies country of manufacture), a crowned harp designating Sterling quality and finally a Date Letter mark – in this case it is an italic “m” (1978). The stem was lightly oxidized and was free of tooth marks or chatter on both sides ahead of the button. Jeff took photos of the pipe before he started his clean up work on it. Jeff took photos of the rim top and stem to show the general condition of the pipe. The bowl and the rim top were quite clean. The inner edge of the bowl had some darkening around the edges. The photos of the stem show the light tooth marks and chatter on both sides near the button. Jeff took some photos of the bowl sides and heel to show the amazing grain that was around this bowl underneath the grime and grease coat on the surface. It is a nice looking pipe. He took photos of the sides of the shank to show the stamping. The stamping is readable in the photos below and is as noted above. He also captured some of the stamping on the Sterling Silver band on the shank. I am including the link to the Pipedia’s article on Peterson pipes. It is a great read in terms of the history of the brand (https://pipedia.org/wiki/Peterson).

I turned to “The Peterson Pipe” by Mark Irwin and Gary Malmberg to get some background on the Peterson’s London Made England line. On page 298 it had the following information.

“Dublin” (1906-2003) Although DUBLIN appears under PETERSON’s on many pipes over the decades, it has served mostly to part of the brand name. The word first appeared on pipes hallmarked 1906-11, stamped PETERSON’S over PATENT over DUBLIN. The simpler PETERSON’S over DUBLIN first appeared on pipes hallmarked 1912 after the expiration of the patent. Illustrations of pipes in the’37 catalog show a random dispersion of the stamp PETERSON’S over OF DUBLIN together with the ordinary PETERSON’S over DUBLIN on ever model offered. Specimens of the former will bear either an Irish COM and almost certainly date from 1945-62. It was first mentioned in print as pat of the model name in the’68 price list, as K&P DUBLIN, in ’92 for a Danish market line.

I knew the date for the pipe I was working on from the stamping on the silver– 1978. Since the one I was working on did not have a D shape it is not provable that it was made for the Danish market. Now it was time to work on the pipe.

Jeff had done a great job cleaning up the pipe as usual. He reamed the pipe with a PipNet reamer and cut back the cake back to the bare briar. He cleaned up the walls with a Savinelli Fitsall Pipe Knife. He scrubbed the interior of the bowl and shank with pipe cleaners, cotton swabs, shank brushes and alcohol to remove the tars and oils. He scrubbed the exterior of the pipe with undiluted Murphy’s Oil Soap and a tooth brush to remove the grime from the finish. He worked on the rim top lava and the darkened spots with the soap and tooth brush. He scrubbed the inside of the stem with alcohol and pipe cleaners. He scrubbed the exterior with Soft Scrub and then soaked it in Briarville Pipe Stem Deoxidizer. He washed it off with warm water to remove the Deoxidizer. The pipe had some dark spots on the briar but it looked far better when it arrived. I took some close up photos of the rim top and the stem surface. I wanted to show how well it had cleaned up. The rim and inner and outer edge looked very good. It should polish well. I also took close up photos of the stem to show the condition of the stem surface near the button.I took photos of the stamping on the sides of the shank. You can see that it is stamped as noted above. It is faint in spots but readable. I took photos of the stamping on the silver band to try and capture what was on the band. It is readable. I removed the stem and took a photo of the pipe to have a look at the parts and overall look. I sanded the briar with 320-3500 grit 2×2 inch sanding pads. I wiped the bowl down after each sanding pad to remove the sanding debris. It really looks much better. I polished the briar with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the bowl down after each pad with a damp cloth. I rubbed the bowl down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips. The product works to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. I polished silver band with a jeweller’s cloth to remove the tarnish and protect the finish from further tarnishing. It took on a rich shine. I set the bowl aside and turned my attention to the stem. I polished the stem with micromesh sanding pads – dry sanding it with 1500-12000 grit pads. I wiped the stem down with Obsidian Oil after each pad. I polished it with Before & After Pipe Polish – both Fine and Extra Fine and gave it a final coat and set it aside to dry. I am excited to finish this Peterson’s Dublin Silver Banded Bent Billiard. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I hand buffed the pipe with a clean buffing pad to raise the shine. It is fun to see what the polished bowl looks like with beautiful mixed grain all around it. Added to that the polished black vulcanite stem combined with the bowl and sandwich brass/nickel/brass band on the shank and made a stunning pipe. This smooth Classic Peterson’s Dublin banded Bent Billiard is great looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 5 inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 1/8 inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 44 grams/1.59 ounces. It is a beautiful pipe that I will soon be putting on the rebornpipes store in the Irish Pipe Makers Section. If you are interested in adding it to your collection send me an email or a message. Thanks for walking through the restoration with me as I worked over this pipe. Thanks to each of you who are reading this blog.

As always, I encourage your questions and comments as you read the blog. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipe men and women who hold our pipes in trust until they pass on into the trust of those who follow us.

Life for a Peterson’s System Standard 313 Made in the Republic of Ireland

Leave a reply

by Steve Laug

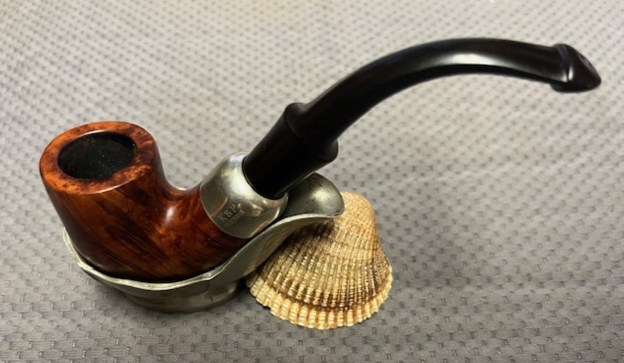

The next pipe I have chosen is another Peterson’s System Standard pipe. This one is a nice smaller size It has a saddle style Peterson’s stem on the shank end. It came to us from a seller in Sylacauga, Alabama, USA on 04/08/2024. This pipe was obviously a favourite of the previous pipe smoker. It had been well smoked and there was a thick cake in the bowl and lava overflowing onto the rim top. The briar was dirty with grime and oils ground into the finish and some of the lava flowing down the bowl sides. The nickel ferrule was oxidized but undamaged. There were oils oozing out under the ferrule and also out of the top of the ferrule onto the stem. The pipe was stamped vertically on the left side and read Peterson’s [over] System [over] Standard. On the right side it had the three-line Republic of Ireland stamp [over] the shape number 313. The ferrule was stamped K& P over Peterson’s on the left side. The stem was oxidized and had light tooth marks and chatter on both sides ahead of the button. Jeff took photos of the pipe before he started his clean up work on it. Jeff captured the thick cake in the bowl and the heavy lava overflow onto the rim top in his photos. There really was no way of knowing what the edges looked like under the thick cake. You can also see the lava flowing down the sides of the bowl in the photos. The stem surface had tooth chatter and marks and was oxidized. He took photos of the sides and the heel of the bowl to show the interesting grain patterns in the briar. It was quite beautiful. He took photos of the stamping on the sides of the shank and on the ferrule. It is readable and clear as noted above. While dating a Peterson’s pipe, I always fall back to my under mentioned favourite site; http://thepetersonpipeproject.blogspot.com/2007/07/dating-peterons-pipes.html

I quote from the above site.

Stamping of Bowl:

During the years of Kapp and Peterson’s business operations, the country of Ireland has undergone several name changes and K&P’s stamping on their pipes reflects these changes. Knowing these changes, a Peterson pipe can be roughly dated and placed in “eras.”

The Republic Era is from 1949 until the present. The Republic of Ireland was formed on 17 April 1949. From 1949 to present the stamp for this era is “Made in the Republic of Ireland” in a block format generally in three lines but two lines have been used with or without Republic being abbreviated.

With that information at hand I turned to work on the pipe itself. Jeff had thoroughly cleaned up the pipe. He reamed the pipe with a PipNet Pipe Reamer and cleaned up the remnants with a Savinelli Fitsall Pipe Knife.  He scrubbed the bowl with undiluted Murphy’s Oil Soap with a tooth brush. He rinsed it under running warm water to remove the soap and grime. He cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and pipe cleaners. He scrubbed the exterior of the stem with Soft Scrubb to remove as much of the oxidation as possible. He soaked the stem in Briarville’s Pipe Stem Deoxidizer and rinsed it off with warm water. I took photos of the pipe once I received it. I took photos of the rim top and bowl as well as the stem to give a sense of the condition of both. The rim top looked had some scratching on the top and some damage to the inner edge but over all it was in much better condition than I thought. The stem cleaned up well and the tooth marks on the top and underside ahead of the button are visible in the photos.I took photos of the stamping on the shank sides. The are clear and readable as noted above. There is some faintness on parts of the stamping but it is still readable. I took the stem out of the shank and took a photo of the overall look of the pipe. I decided to start my work on the pipe by addressing the damage on the inside edge of the bowl and the rim top. I used a folded piece of 220 grit sandpaper to smooth out the edge. I wiped it down with a damp cloth and the rim top damage and darkening on the inner and outer edges were gone.I sanded the briar with 320-3500 grit 2×2 inch sanding pads. I wiped the bowl down after each sanding pad to remove the sanding debris. It really looks much better. I polished the briar with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the bowl down after each pad with a damp cloth. I rubbed the bowl down with Before & After Restoration Balm. I worked it into the surface of the bowl sides and shank with my fingertips. The product works to clean, enliven and protect the briar. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. I set the bowl aside and turned to work on the stem. I polished the stem with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem. This Republic Era Peterson’s System Standard 313 Bent Billiard with a vulcanite stem is a great looking pipe now that it has been restored. The beautiful grain that shines through the polished finish is stunning. As the pipe is smoked the patina should develop and look even better. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Peterson’s System Standard 313 fits nicely in the hand and feels great. Give the finished pipe a look in the photos below. The dimensions of the pipe are Length: 5 inches, Height: 1 ½ inches, Outside diameter of the bowl: 1 1/8 inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 37 grams/1.31 ounces. This one has been reserved for first refusal. If you are interested in being in the queue for this pipe send me a message or an email. Thanks for reading this blog and my reflections on the pipe while I worked on it. There are many more to come!

Reworking an early, Gentle Metal System Pipe

Leave a reply

by Steve Laug

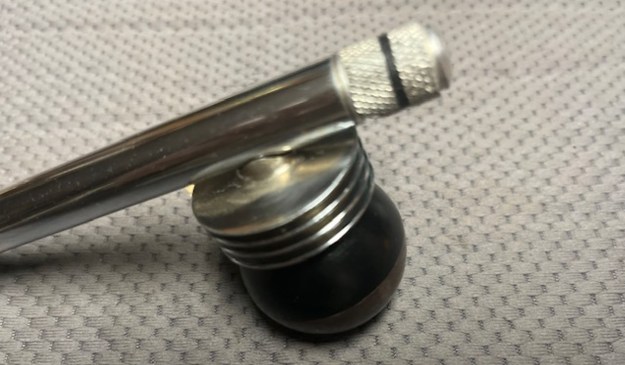

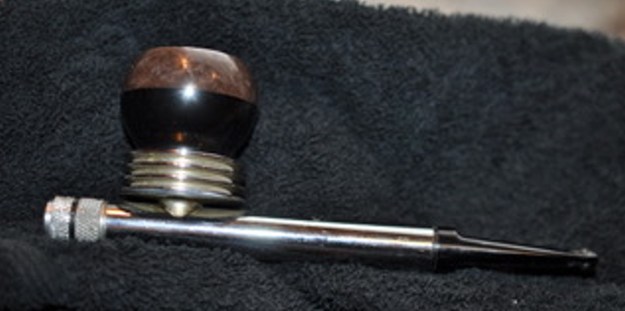

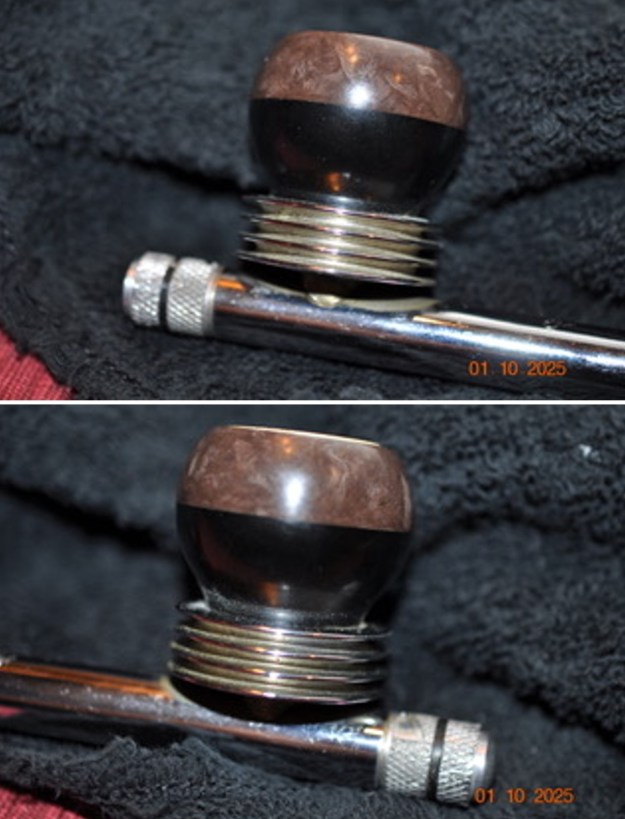

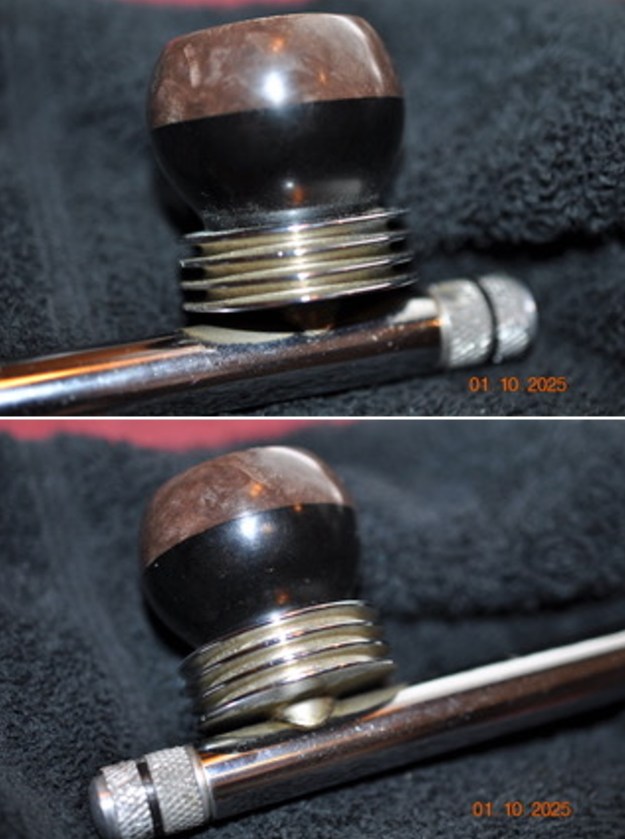

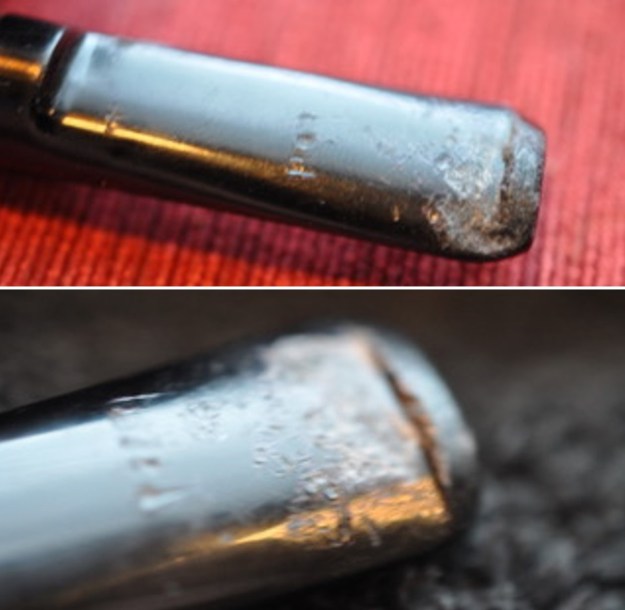

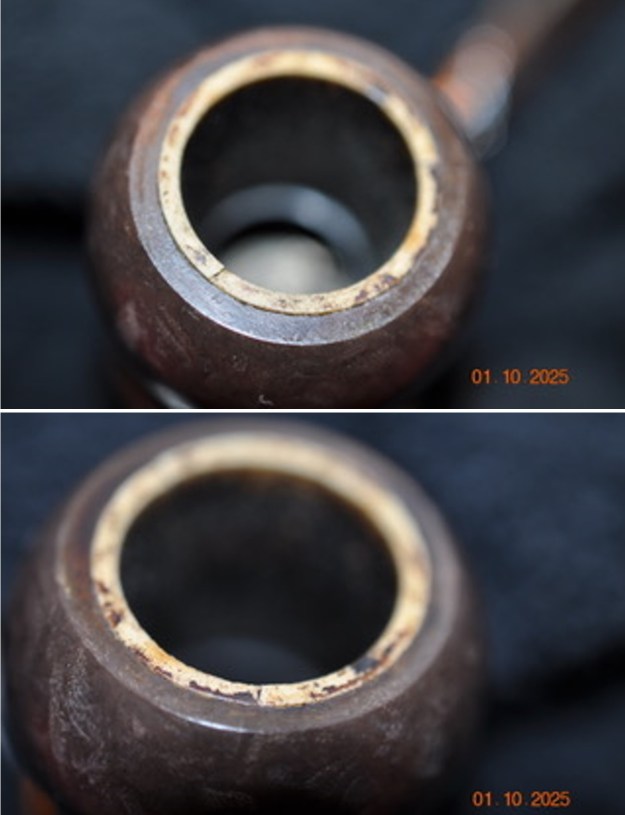

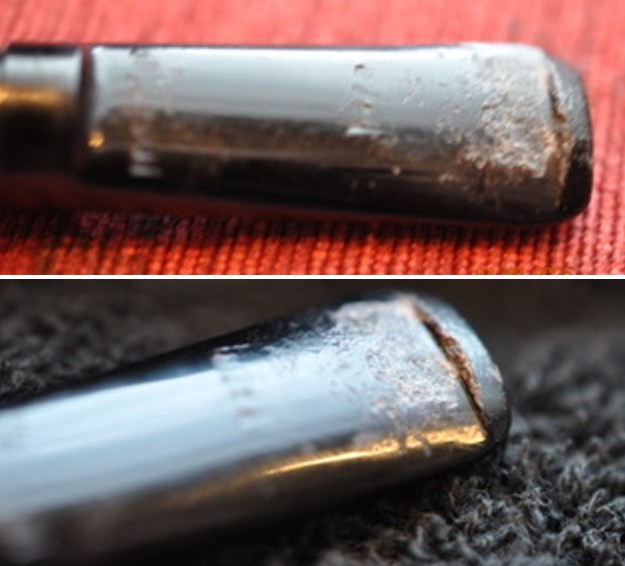

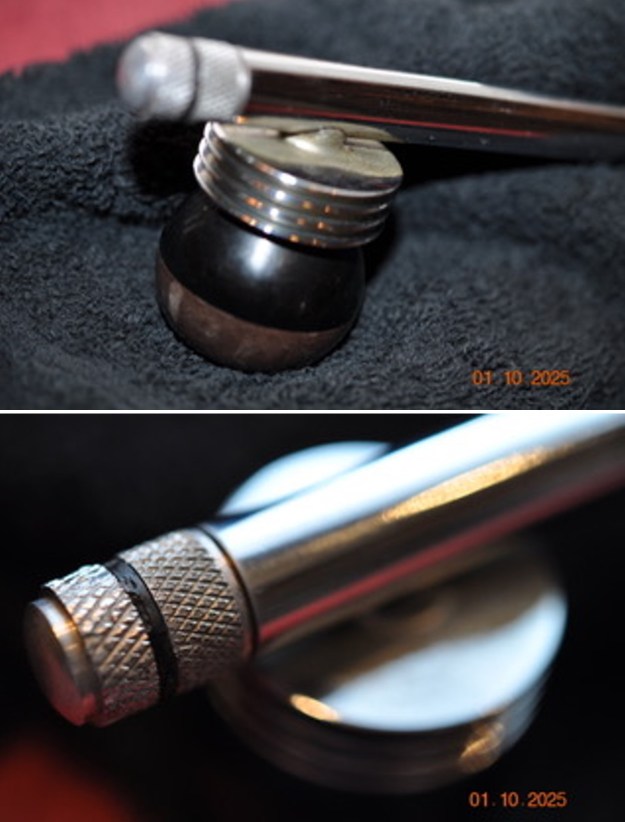

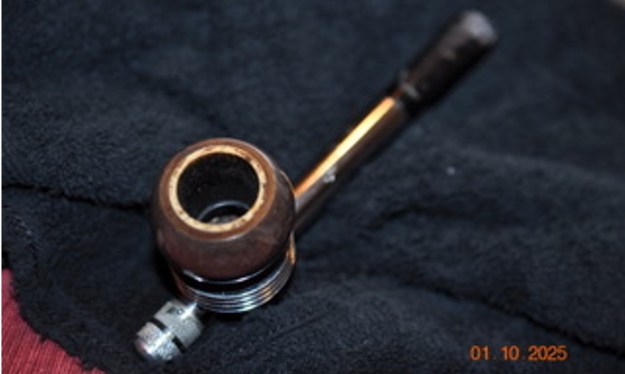

I am down to four more pipes to work on from Jeff’s last box of pipes. The one I have chosen to work on next is one that came to us from a seller in Ogden, Utah, USA on 12/12/2024. The pipe is quite unique with a metal base and a plastic or Bakelite outer bowl and a ceramic sleeve inserted inside. The surface of the bowl is very dirty with grime and oils built up around the outside. The bowl seems to me pressed into the base and the base is finned metal with a nut in the bottom holding the base to the shank. There are four small holes in the base that provide the airflow into the shank. There is a knurled cap on the end of the shank that is not removable (though it probably was originally). There is a small airhole in the top of the knurled end nearest the bowl. The shank tube is engraved with the word Gentle in script on the left side at an angle. Jeff took photos of the pipe when he received it and before he started his clean up work. He took photos of the rim top to show the cake on the walls of the ceramic sleeve in the bowl and the lava on the rim top. The bottom of the bowl is open into the base and there was tar and oils in the bottom of the base. The stem appears to be made of something other than rubber or vulcanite. I think it is probably some kind of nylon type substance or and early acrylic. It has a lot of tooth marks and chatter on both sides ahead of the button. He took photos of the sides of the bowl to show the look of it. The top third of the bowl is a brown Bakelite that looks quite interesting. The middle of the bowl is a dark/black Bakelite. The bottom third is the base that is screwed onto the shank. It is finned and is hollow and holds the bowl pressed in place. He took a photo of the stamp on the left side of the metal shank. The stamping is clear and readable as noted above.Jeff was able to take the pipe apart as much as possible. He was able to remove the bowl from the base and I am not able to do that here. It is an interesting pipe. The bowl is a ceramic sleeve within a Bakelite sleeve. I turned to my favourite metal pipe site – Smoking Metal UK. I am including the link to the site and the information that the site include (http://www.smokingmetal.co.uk/pipe.php?page=359). I quote from the article and also included the photos of the pipe on the site below:

GENTLE – Department : METAL STEM & Plug in bowls

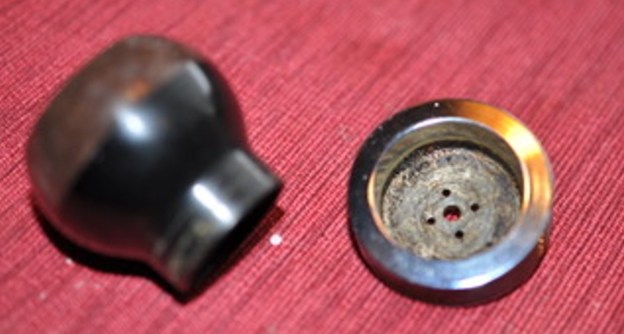

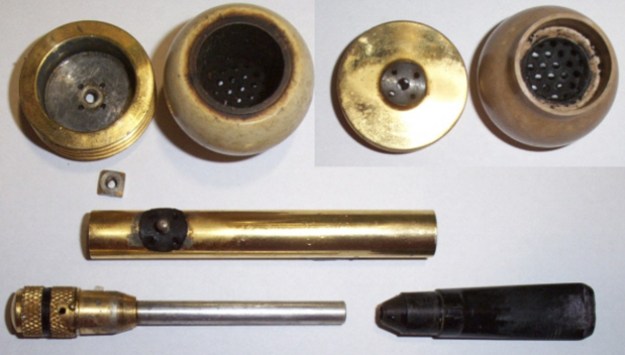

GENTLE- another early system pipe that seems over engineered. The plastic outer bowl holds an inner, seemingly ceramic liner with a perforated base. This all push fits into the vaned metal part which is in turn attached to the stem by a square nut. There are four smoke holes through to the stem. The stem appears not to be the usual method of increasing the distance for the smoke to travel, just a tar trap. There is a device at the front by which, twisting a collar, a small hole is opened allowing in air. I am sure the end cap must be removable; however, my example is firm and I am not risking any damage. The name GENTLE is engraved on top of the stem in script lettering

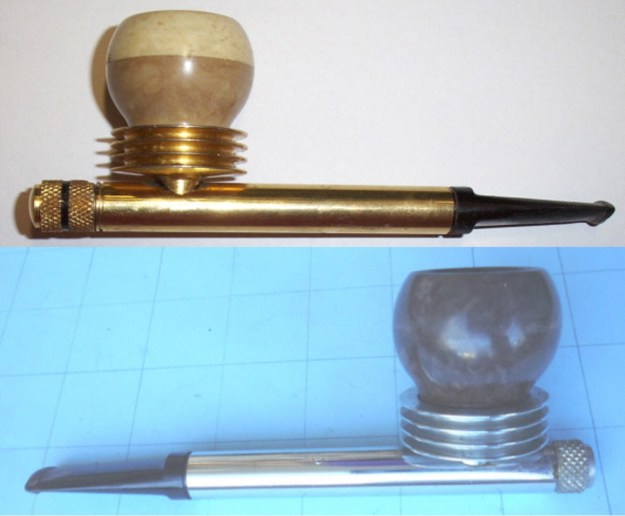

The pipe shown with the blue background appears to have a different detail in the knurled end cap. No idea if this an earlier or later version. The seller of the “blue” one also could not undo this knurled piece.

Overall length is 6 inches (152 m/m)

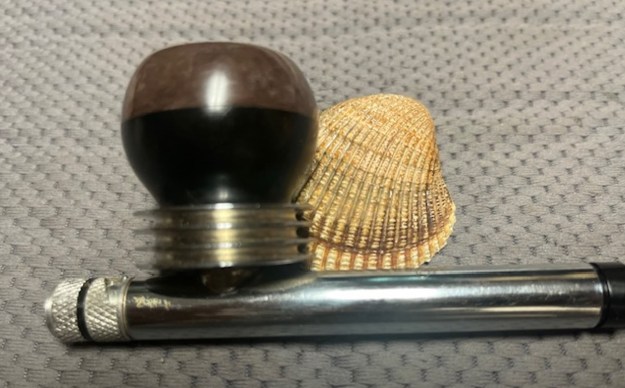

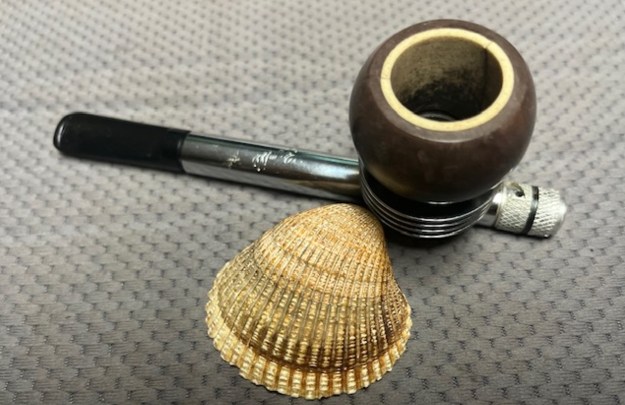

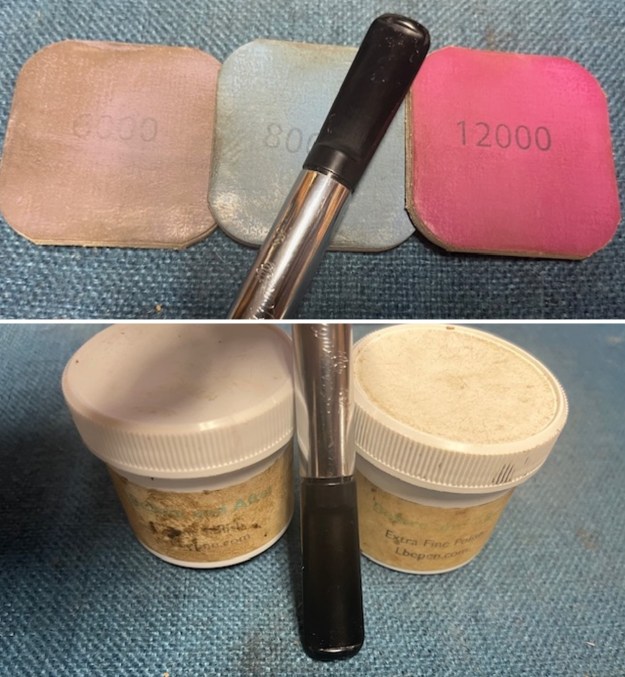

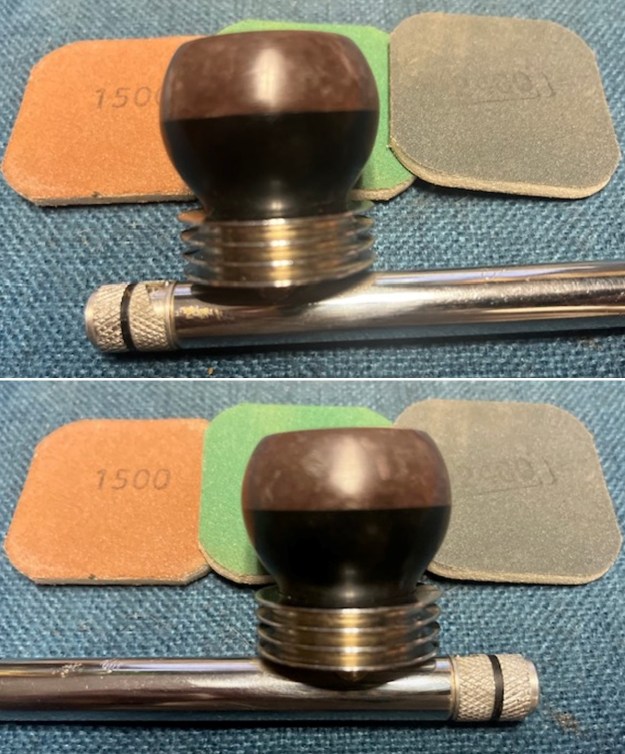

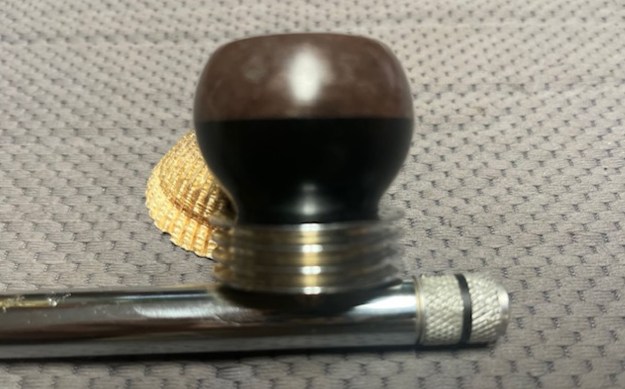

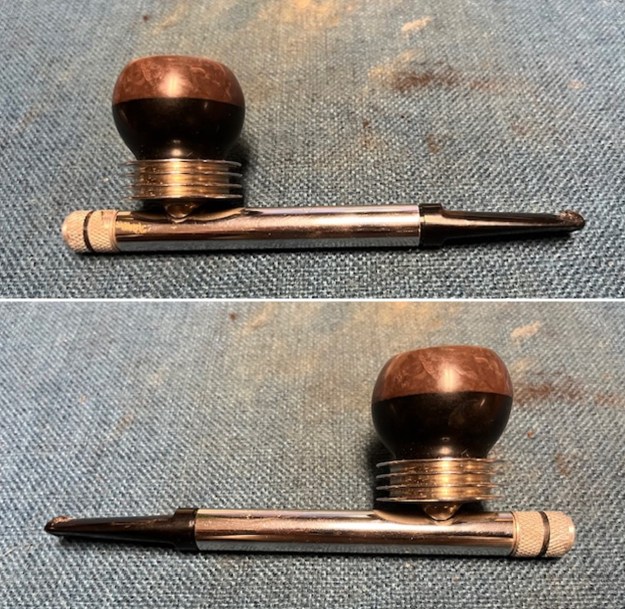

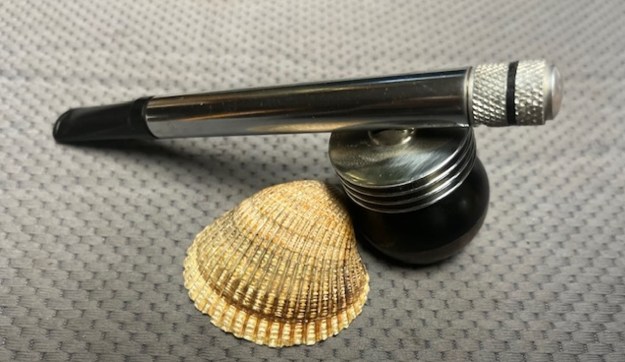

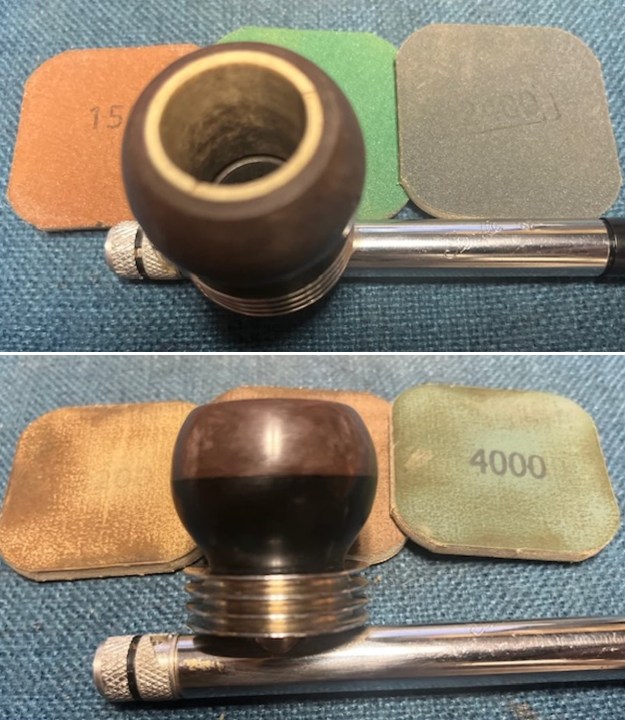

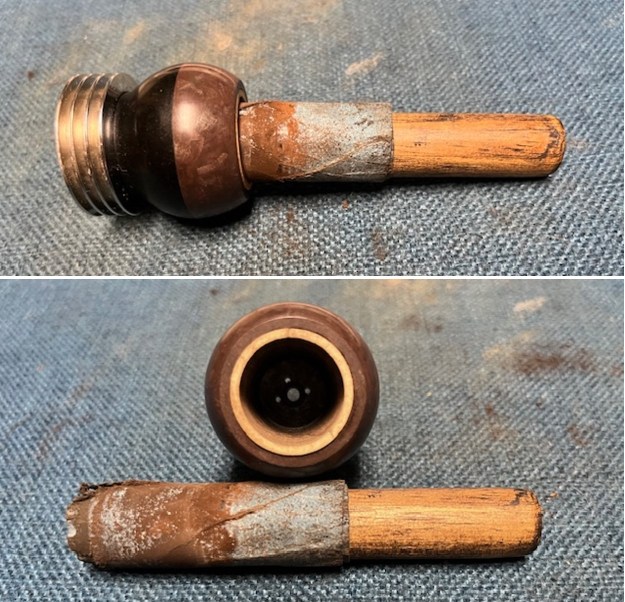

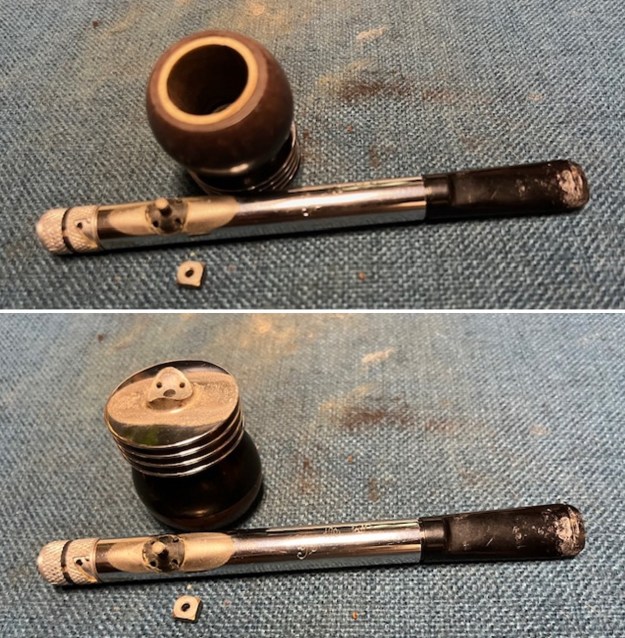

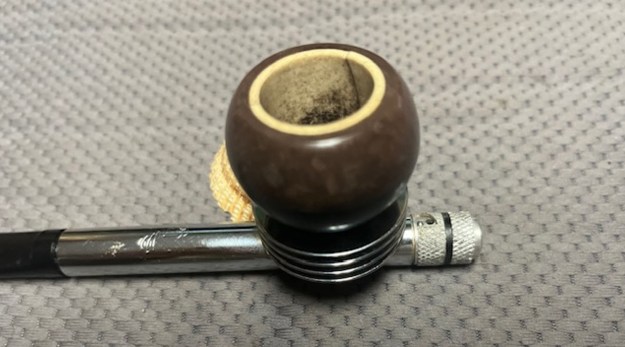

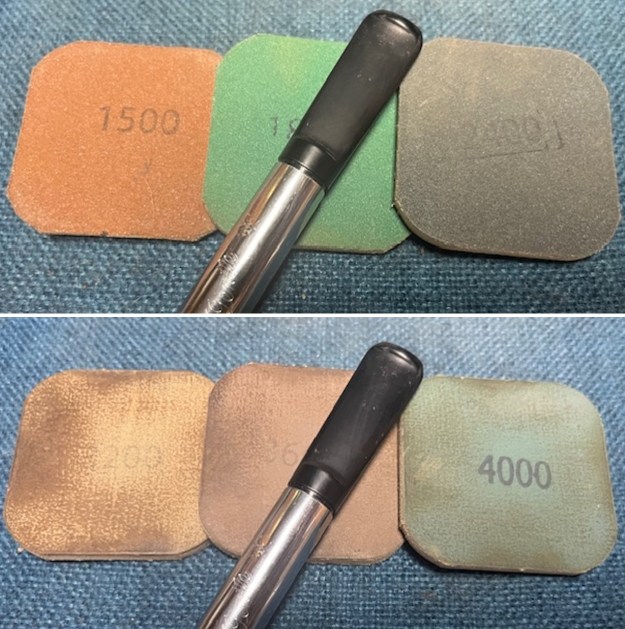

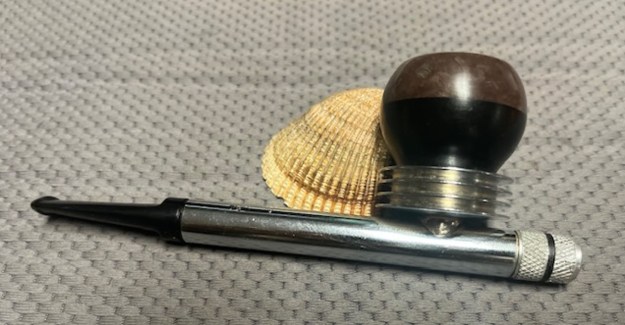

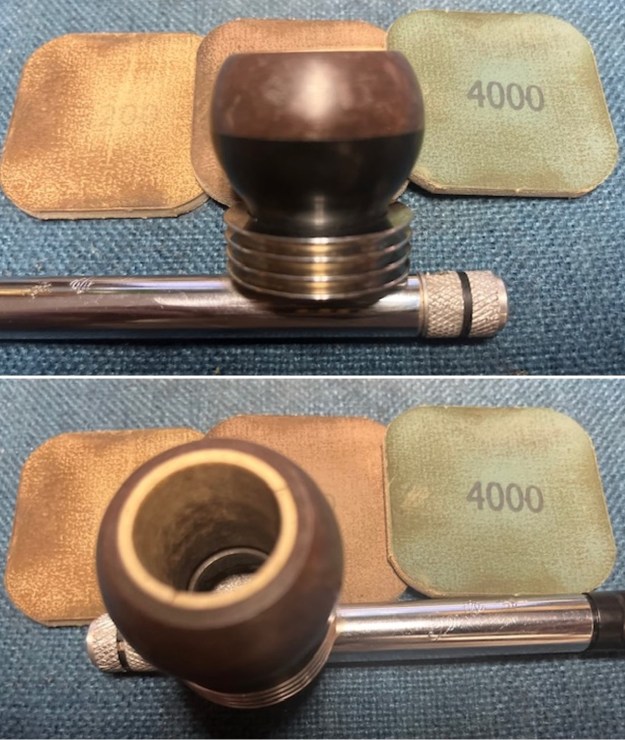

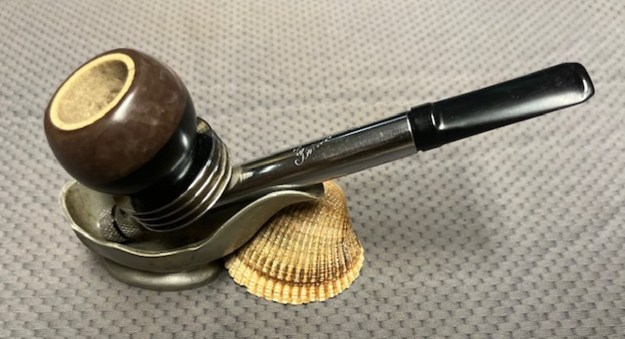

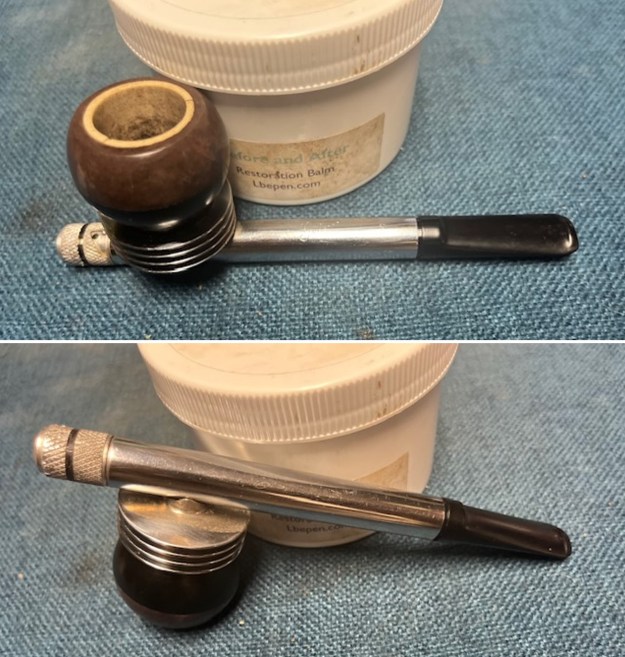

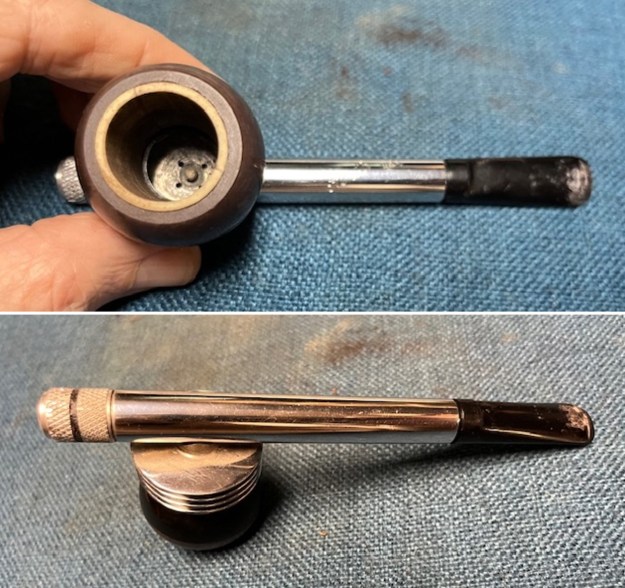

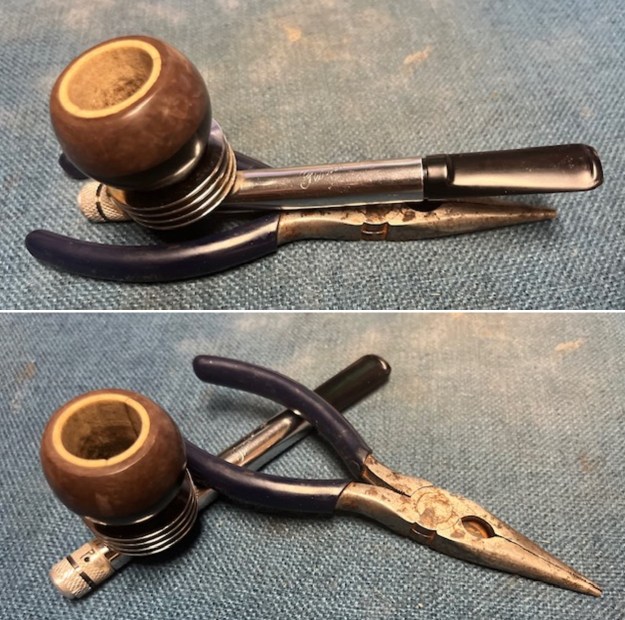

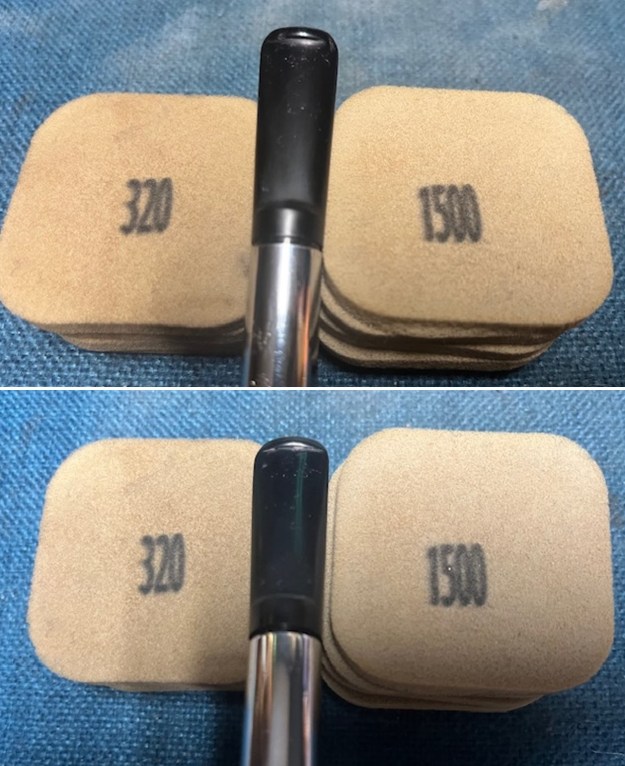

The advert is from the October 1949 Popular Science magazine Jeff cleaned up the parts and put them back together once again. It cleaned up very well. As I guessed from the photos on the bowl top the ceramic liner had cracks on the insides of the bowl. They were tight and hairline and went from top to the bottom of the inner tube. He carefully reamed the pipe and sanded the bowl. He cleaned out the shank and other parts with alcohol, cotton swabs and pipe cleaners and alcohol. It looked good when it arrived. I was able to remove the bowl/base by undoing the square nut on bottom of the base with a pair of needle nose pliers.I sanded the walls of the ceramic sleeve with 220 grit sandpaper wrapped around a piece of dowel. I smoothed out the bowl walls and cleaned up the cracks. It looked very good.I set the bowl aside and dealt with the tooth marks, chatter and scratches on the surface of the stem. I sanded the stem surface with 220 grit sandpaper until I had blended all of the chatter and marks into the surface.I sanded the stem further with 320-3500 grit 2×2 inch sanding pads. I wiped the stem down after each sanding pad with Obsidian Oil. It began to look very good.I polished the stem with micromesh sanding pads – dry sanding with 1500-12000 grit sanding pads. I wiped the stem down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – Fine and Extra Fine. I gave it a final coat of Obsidian Oil and set it aside to cure. I polished the Bakelite bowl with 1500-12000 grit micromesh sanding pads. I wiped the bowl down with a damp cloth to remove the sanding debris after each sanding pad. It looked amazing by the final pad. I tightened the nut in the base of the bowl with a pair of needle nose pliers so that it was snug on the shank. It is a square nut and I held it with the pliers and then twisted the bowl on the shank.I worked some Before & After Restoration Balm into the Bakelite Bowl with my finger tips. I let it sit on the bowl for 10 minutes and then buffed it off with a paper towel and soft cloth. The product is a great addition to the restoration work. It enlivens, enriches and protects the bowl even a Bakelite bowl while giving it a deep glow (typically briar). It is a product I use on every pipe I restore. It was great to finish this Unique Gentle System Pipe with Bakelite Bowl lined with a Ceramic sleeve and nylon/rubber stem. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine. I hand buffed the pipe with a microfiber cloth to deepen the shine. It is fun to see what the polished bowl looks like. Added to that the polished black, saddle stem was beautiful. This Gentle System Pipe is great looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 6 inches, Height: 2 inches, Outside diameter of the bowl: 1 ½ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 45 grams/1.62 ounces. It is an interesting pipe and one that will soon be on the rebornpipes store in the Pipes from Various Makers Section. If you want to add it to your collection let me know. Thanks for walking through the restoration with me as I worked over this pipe.

As always, I encourage your questions and comments as you read the blog. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipe men and women who hold our pipes in trust until they pass on into the trust of those who follow us.
