Restoring a 1967 Dunhill Oom Paul 591


Blog by Steve Laug

The next one to my work table was a Dunhill Oom Paul 591. It was a Dunhill shape that I had not seen before. The stamping on the left side showed the shape number 591 next to DUNHILL over BRUYERE. On the right side of the shank it was stamped Made in England7 and next to that Circle 4A designating the size of the pipe. From several sources I was able to ascertain that the pipe was made in 1967. The finish on this one was in good shape. There was a light build up on the top of the rim and there was an uneven cake in the bowl. There were some small dents in the sides of the bowl but not enough for me to steam them out and risk harming the original finish. The stem would not fit down into the shank. In the pictures below you can see how far it would go into the mortise. I removed the stem and the mortise was dirty and black. The stem was oxidized and had some minimal tooth chatter on the underside near the button. There was also a shallow tooth mark on the underside amidst the chatter.Dun1

Dun2

Dun3

Dun4 I cleaned out the shank with pipe cleaners, cotton swabs and isopropyl alcohol until the swabs came out clean. I cleaned the airway to the bowl and gave the bowl a light reaming to remove the uneven build up. I scrubbed down the rim and removed the light build up that was there and polished the bowl with carnauba on the buffer.Dun5 I lightly sanded the stem with a medium grit sanding sponge to loosen the oxidation and with 220 grit sandpaper to remove the tooth chatter and small dent.Dun6

Dun7

Dun8

Dun9 I mixed up a batch of oxyclean and put the stem in the bath to soak overnight.Dun10 In the morning I took the lid off the container and removed the stem. The water had turned amber coloured. The oxidation had risen to the surface of the stem and I rubbed most of it off with a coarse cloth. I cleaned out the stem with alcohol and pipe cleaners and used the dental pick to clean out the slot on the stem.Dun11 I sanded it with a medium and a fine grit sanding sponge to remove the softened oxidation.Dun12 Then it was time to polish it with the micromesh sanding pads. I wet sanded with 1500-2400 grit pads and dry sanded with 3200-12,000 grit pads. I rubbed the stem down with Obsidian Oil between each set of three pads. I buffed the stem with red Tripoli after I finished with the 2400 grit pad and with White Diamond after the 12,000 grit pad.Dun13

Dun14

Dun15 There were still some scratches that showed up in the bright light of the flash so I worked it over again with the last set of pads and then buffed it with Blue Diamond Plastic Polish on the wheel. I finished by giving the bowl and stem multiple coats of carnauba wax and then buffing it with a clean, soft flannel buffing pad to raise the shine. The finished pipe is shown below. Somehow in the photos the fluorescent lights lend the photo a yellow tint that I normally do not get. The stem is absolutely shiny and black and the bowl is a rich oxblood red. It is ready to be smoked and enjoyed.Dun16

Dun17

Dun18

Dun19

Dun20

Dun21

Dun22 Thanks for looking.

Advertisements

Peterson 9BC “Kapruf” (Pre ’59)


This isn’t a restoration, but I hope you will indulge my fascination with the Peterson 9BC shape.

I enjoy collecting different finishes for my preferred shape and recently, the Peterson 9BC has caught my attention as of late. I found this “Kapruf” finish pipe on Ebay (via infamous seller Shinypipes…) and made an offer that was accepted. 9BC shapes don’t show up that often, but curiously, the seller had not identified the model in the ad, which was to my advantage. They had the pipe incorrectly listed as a “Pre-Republic, 1940’s-1950 era pipe. The stamping is worn but completely legible with the naked eye. The round “Made in England” stamp was reportedly used up to 1959, at least by the Pipepedia article.

I didn’t know much about the Kapruf line. It is described in a 1960’s catalog as:

Quote :
A fine sandblast finish distinguishes this range of light natural grained pipes with their distinctive red colouring. Very popular with sportsmen.

The second page shows the 9BC shape.

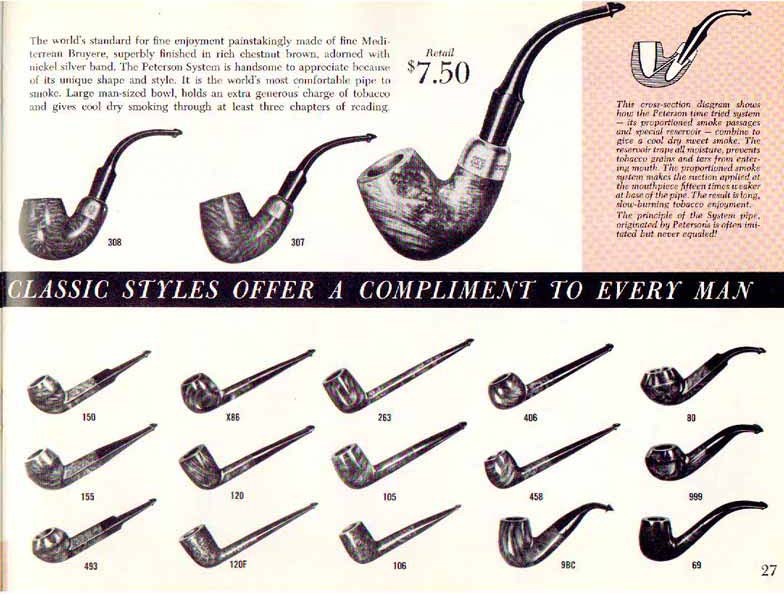

Peterson_Page- Rogers Catalog 1957

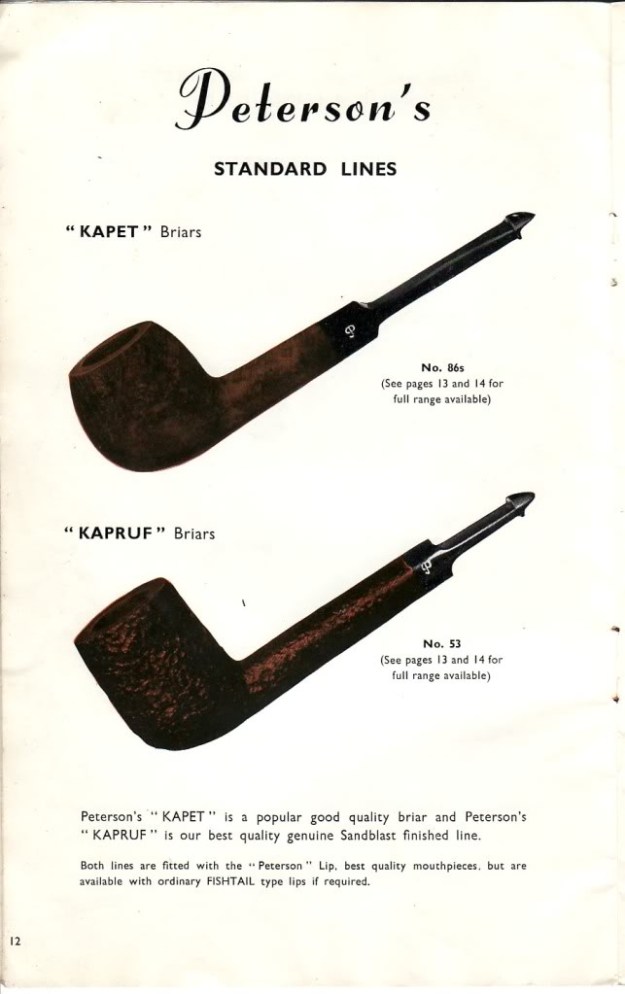

1965-Peterson-Catalogue - Kapruf Line

This one has a little grain and some flaws that would have otherwise been fills on a smooth pipe. It has plenty of character, that is for sure.

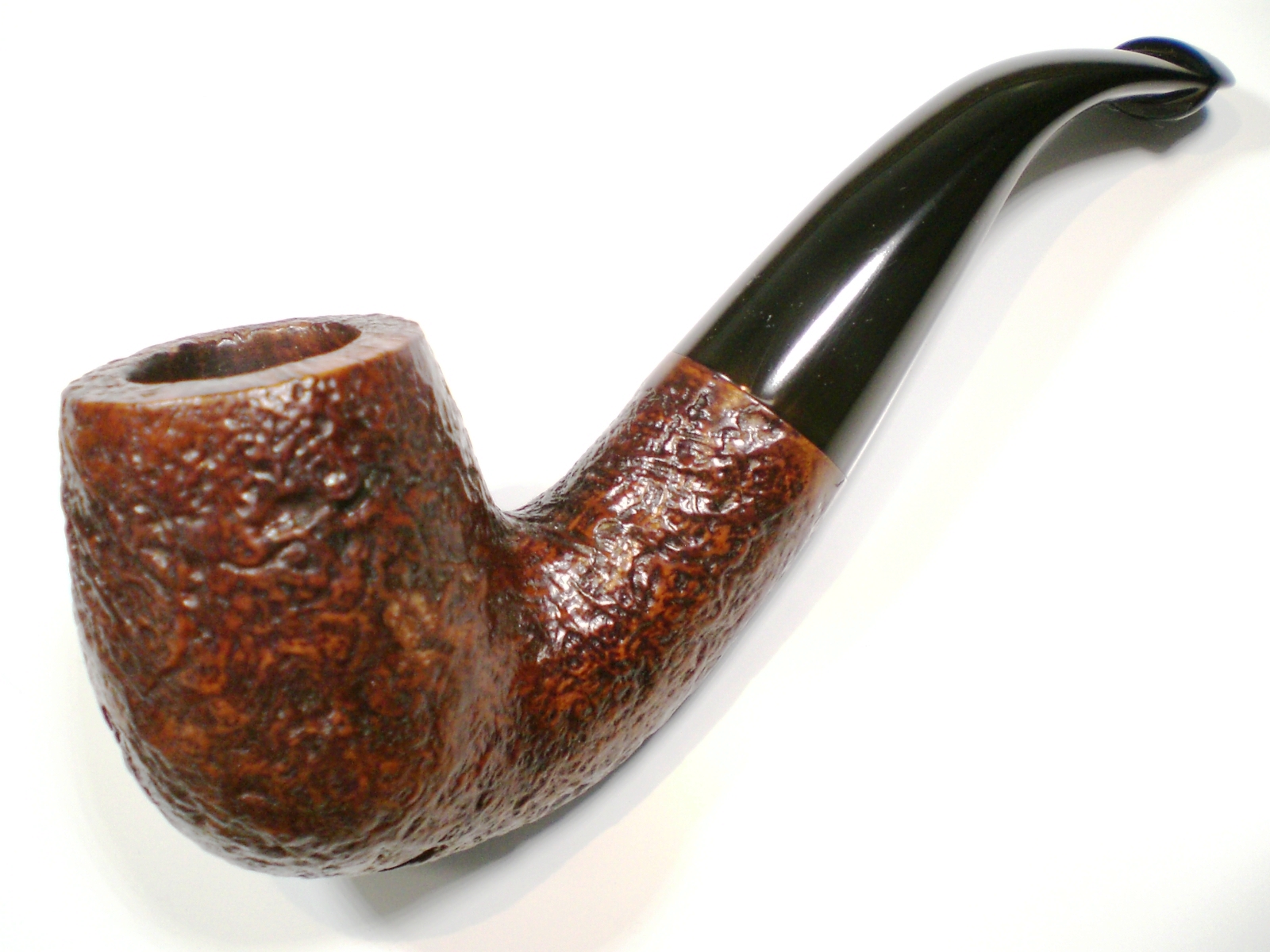

Peterson_9BC_Kapruf_Gallery

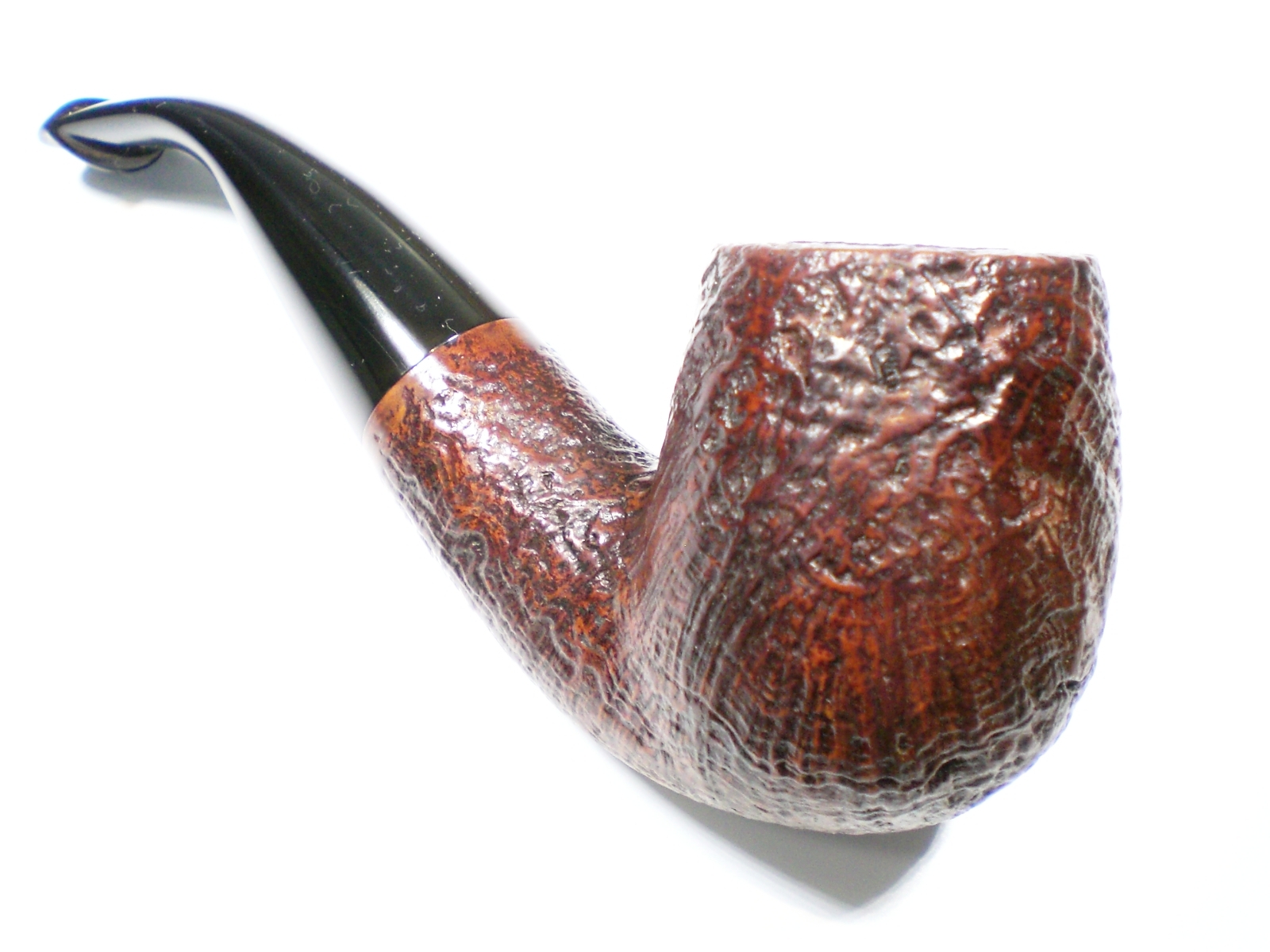

Peterson_9BC_Kapruf (2)

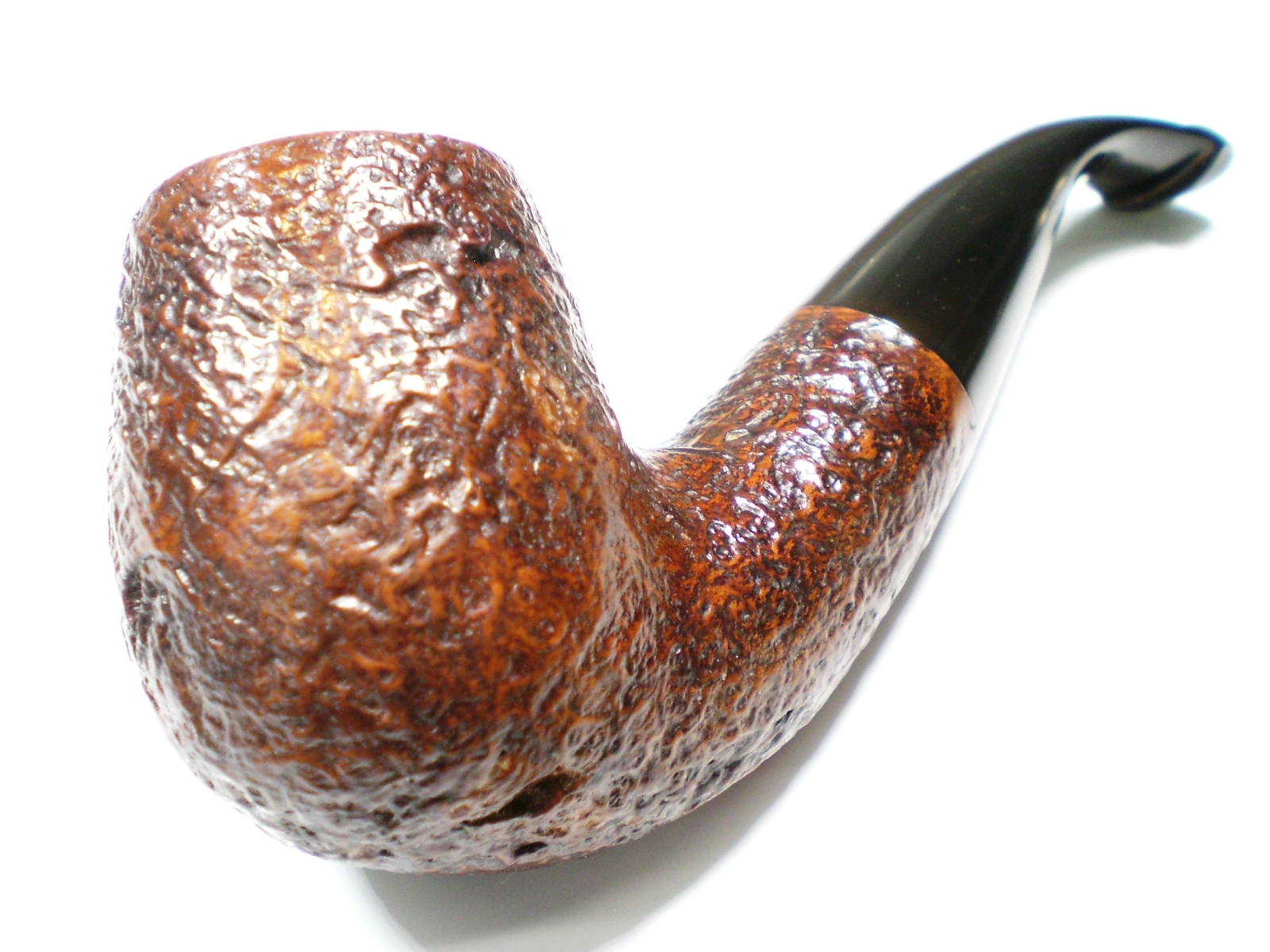

Peterson_9BC_Kapruf (4)

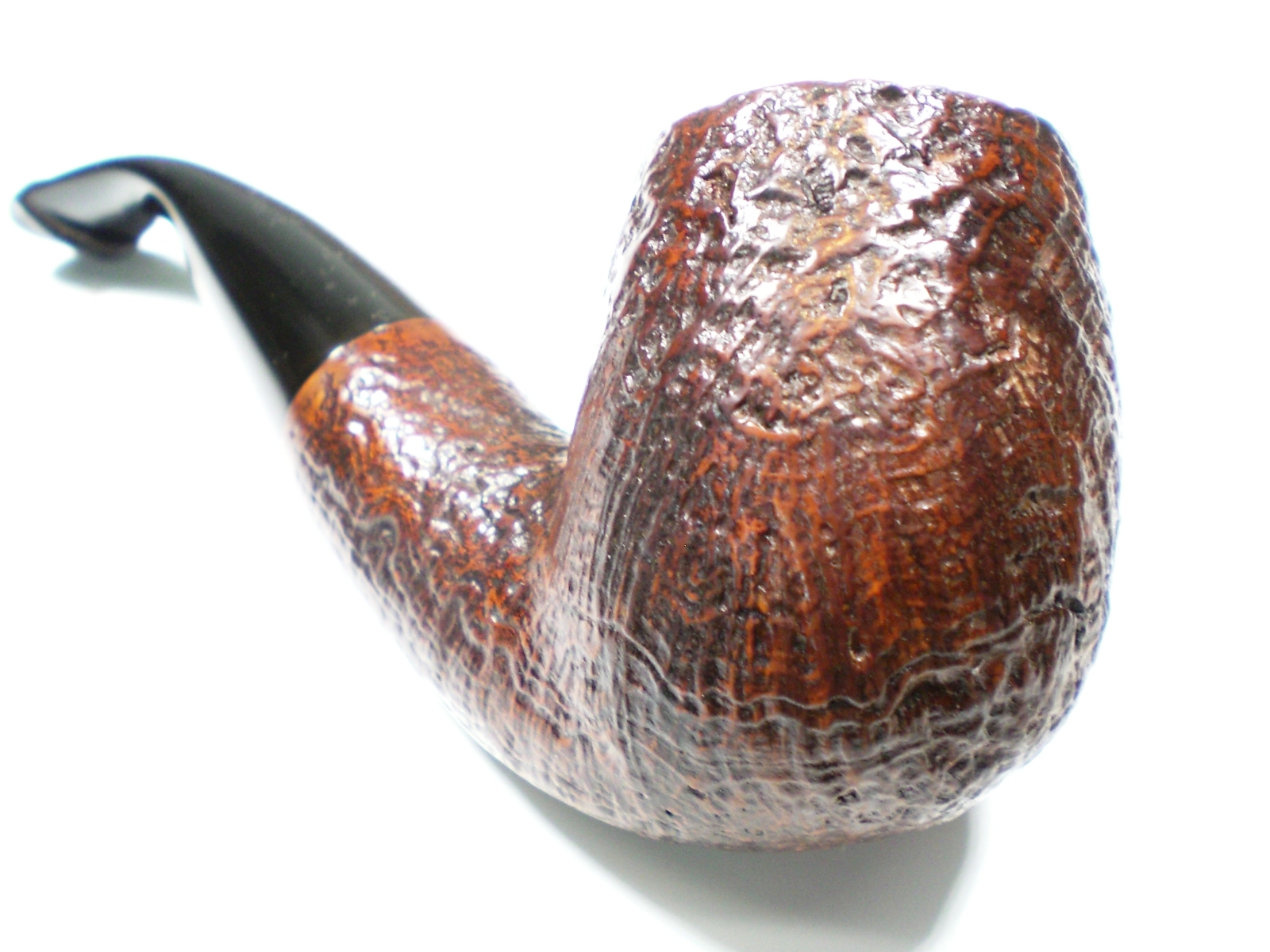

Peterson_9BC_Kapruf (3)

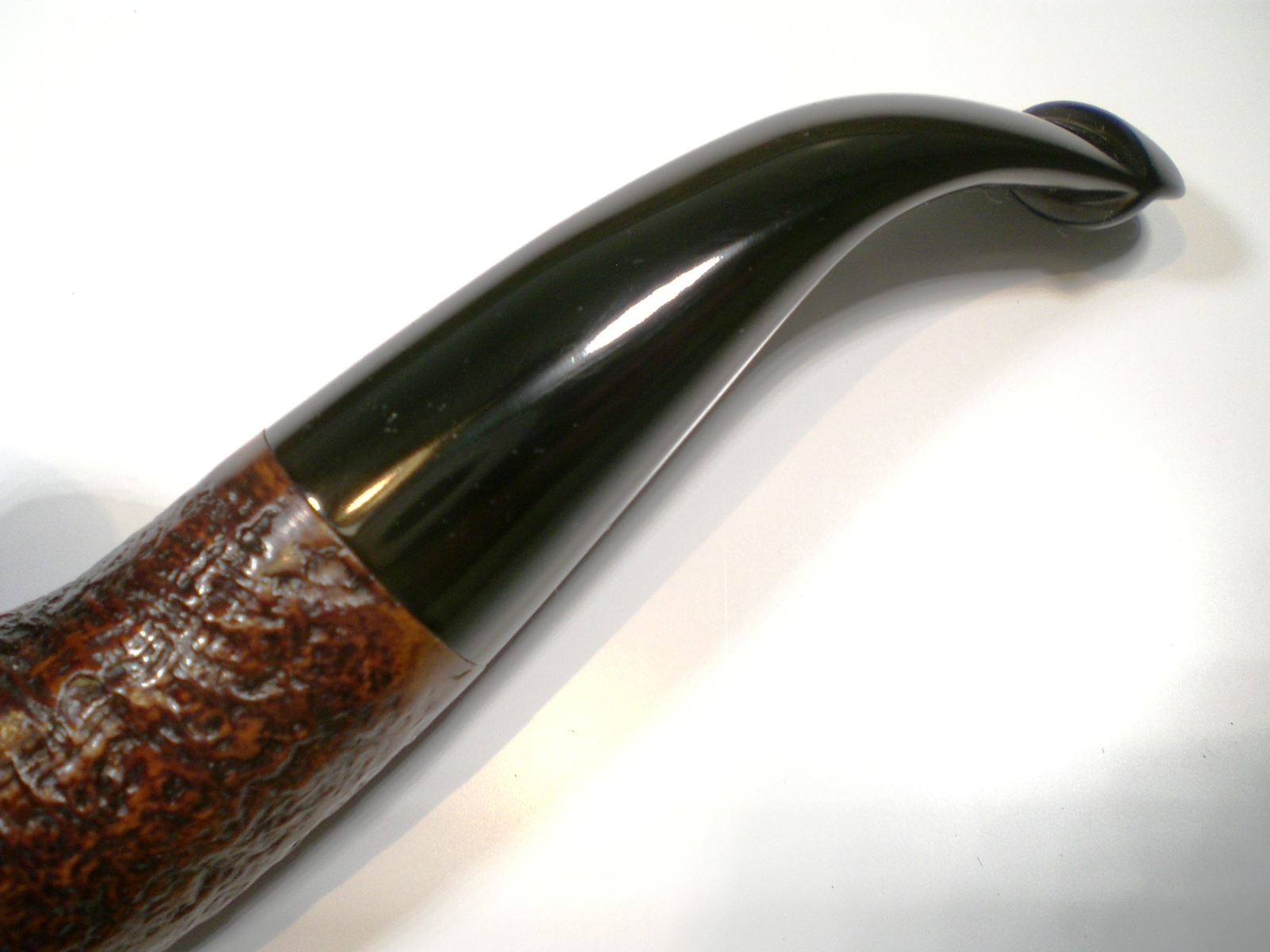

Peterson_9BC_Kapruf (1)

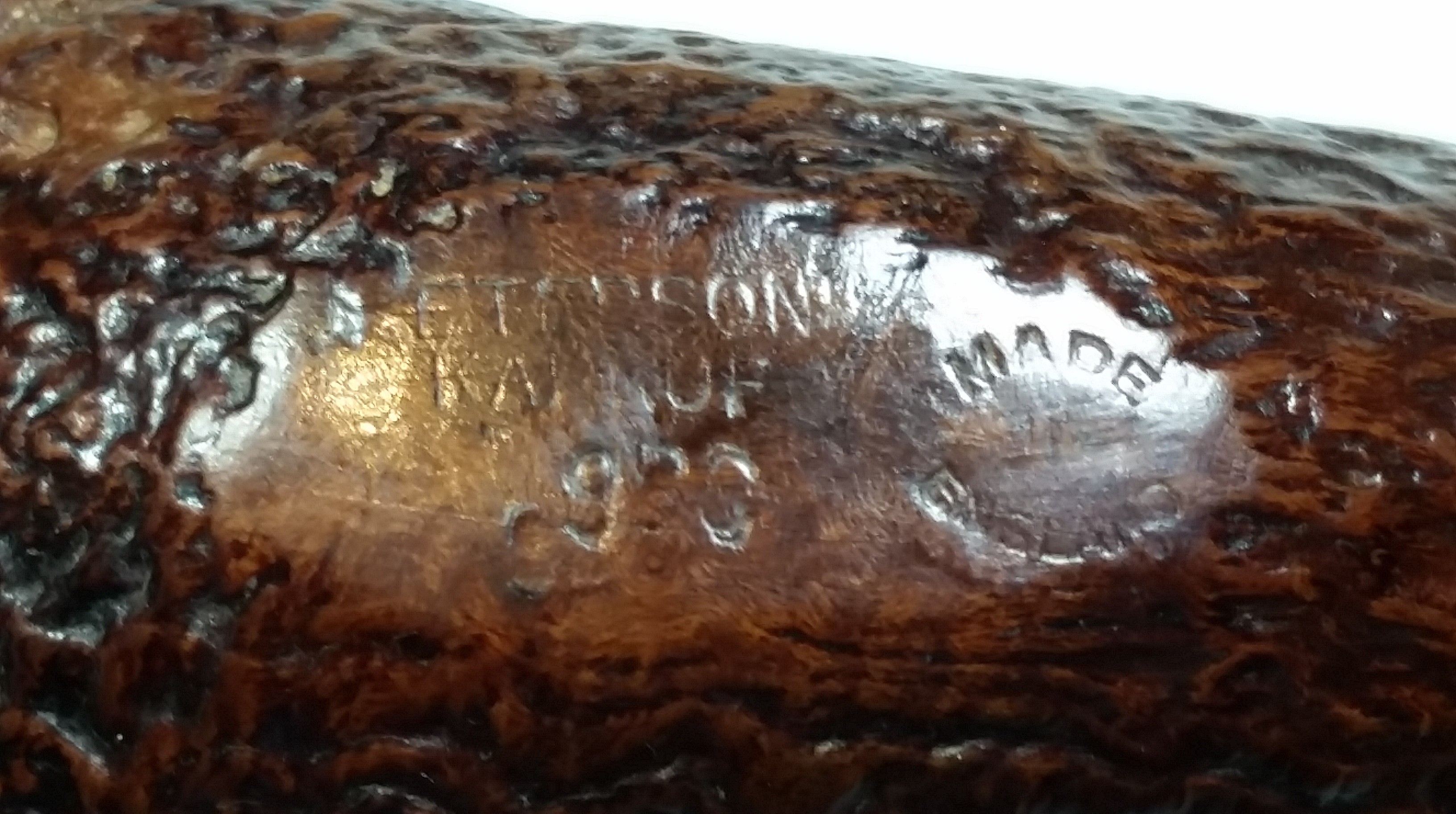

Peterson_9BC_Kapruf_Nomenclature

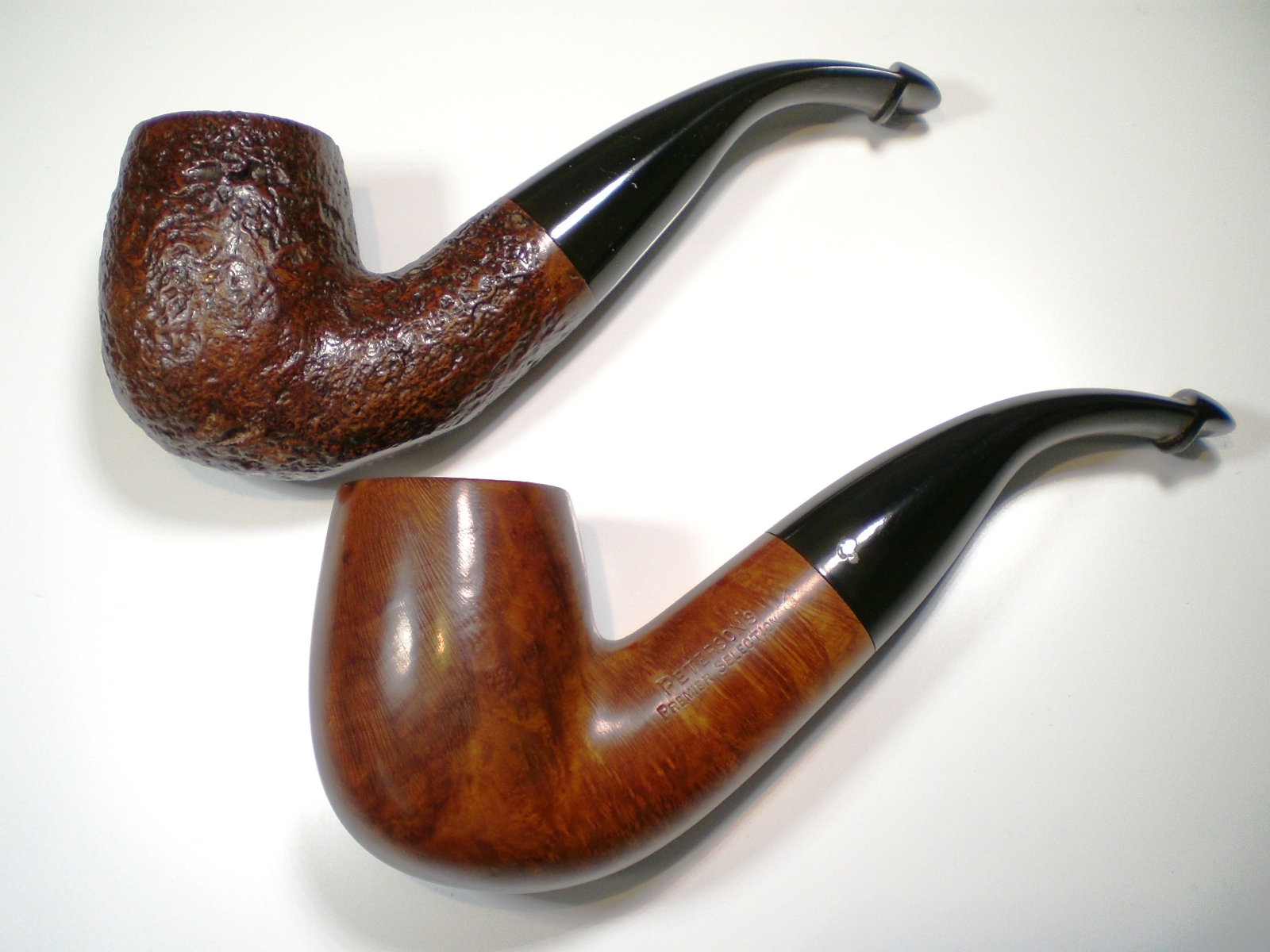

Compared with my other 9BC (Premiere Selection), this one is incrementally smaller in all dimensions and 67 grams vs. 72 for the smooth pipe. The P on the stem is long gone (as were most I’ve come across, save my smooth) but the robust p-lip button has the same profile as the smooth pipe.

Peterson_9BC_Kapruf (5)
