A National Washington, D.C. Straight Rhodesian from the Bertram Collection


Blog by Steve Laug

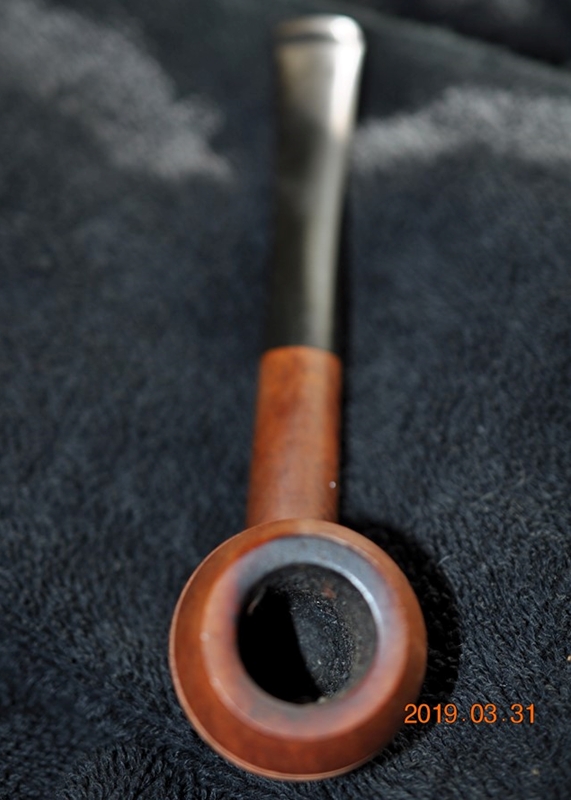

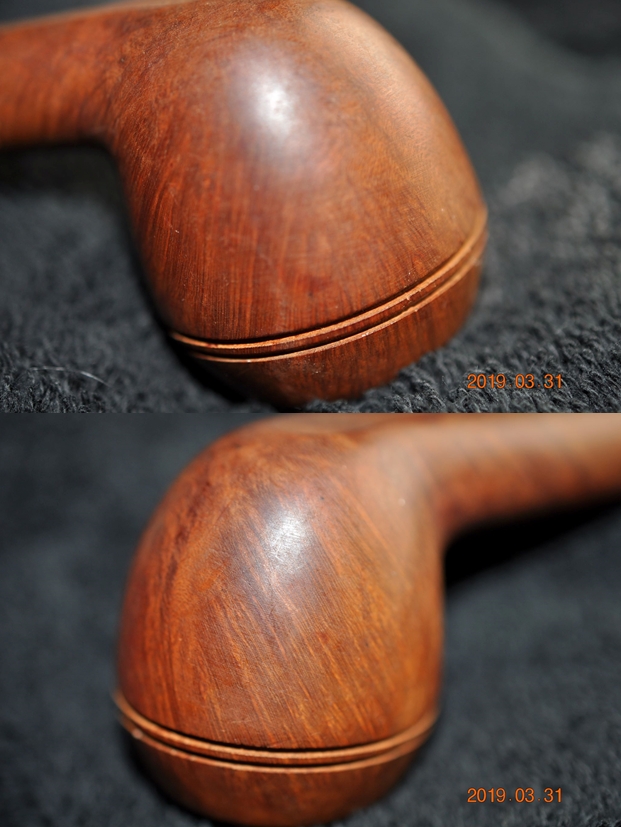

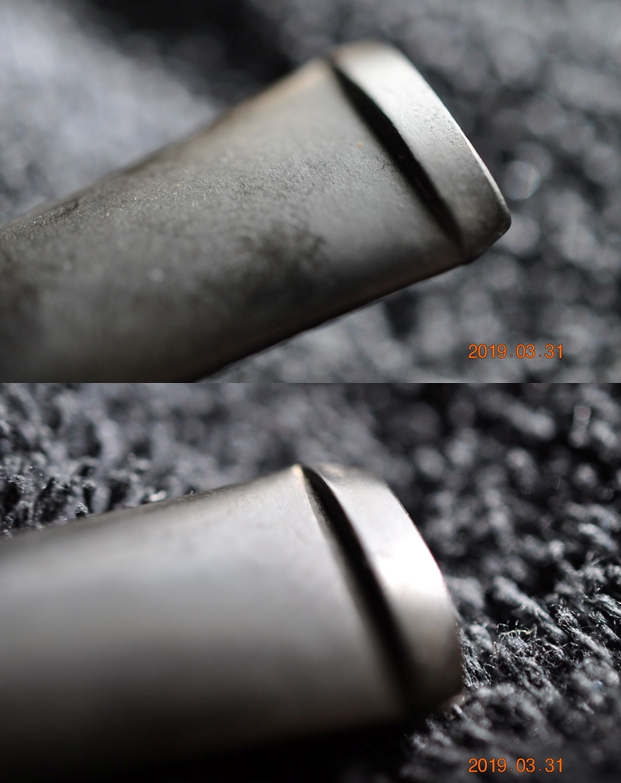

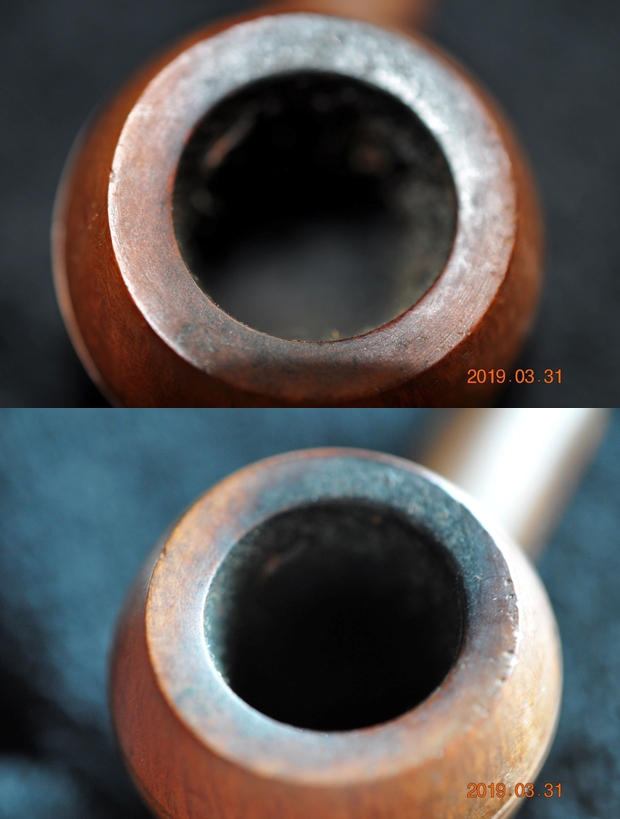

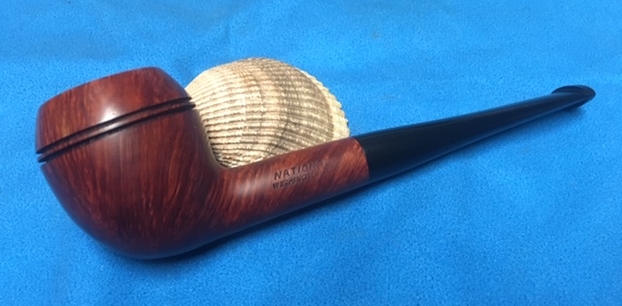

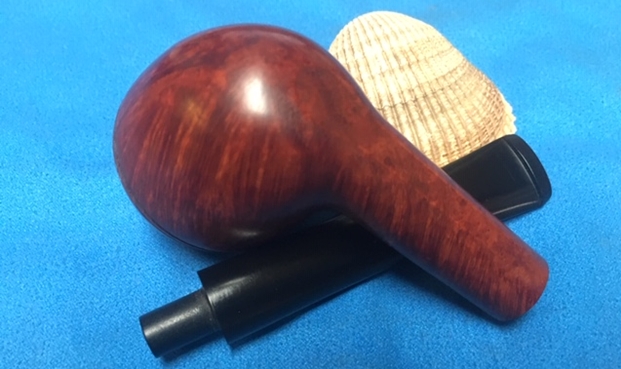

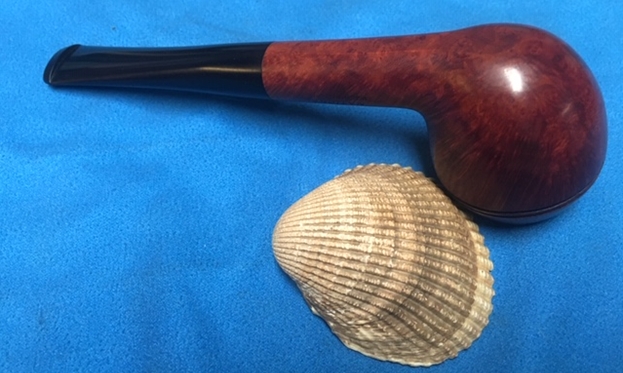

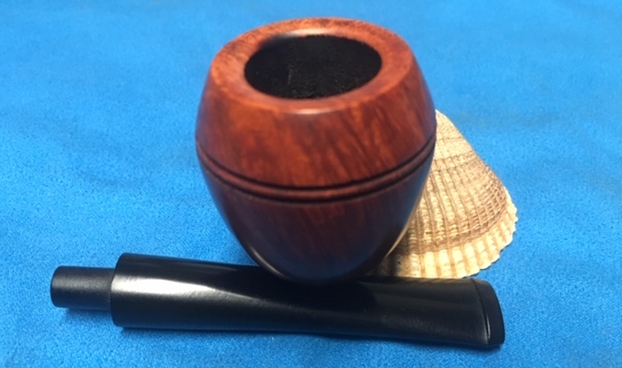

Give the previous blogs a read to have an idea about the Bertram Collection that I am working on these days. I can’t adequately describe how overwhelmed I am when I look at the 200+ pipes that need to be restored but there is only one way to move ahead – 1 pipe at a time. Jeff is doing the major cleanup on the lot as that would be more than I could handle by myself in moving through this many pipes. From his cleaned pipes the next one I chose is a National Washington, D.C. straight Rhodesian to be the next pipe that I would work on. It has some amazing straight grain around the bowl and shank. The bowl had cake in the chamber that was no problem. The rim top had some darkening and lava overflow on the back side. The inner edge of the bowl looked like it might have some burn damage and the outer edge of the bowl appeared to be in good condition but we would know more once the bowl had been reamed and cleaned. The exterior of the briar looked lifeless and was dusty with the grime of years of storage. The stem had some oxidation, tooth chatter and marks near the button on both sides. Jeff took some photos of the pipe before he began his cleanup work on it. Jeff took close-up photos of the bowl and rim to capture the condition of the pipe when it arrived. The rim top had a thick coat of lava and the bowl had a thick cake. It was hard to see what the inner and outer edge looked like with the cake and lava. Jeff took a picture of the bowl side and the heel to show the marvelous grain on the bowl. It really is quite stunning and very dirty!The next photo shows the stamping on the left side of the shank. The left side is stamped with National over Washington, D.C. The stamping on the shank is very readable.The next two photos show the condition of the stem surfaces. The stem was oxidized and had some calcification on the surface as well as tooth marks and chatter on both sides near the button.I have already done the work on one of the National pipes in the Bertram lot so I turned to that to have another look at the history of the brand (https://rebornpipes.com/2019/05/21/doing-some-cosmetic-work-on-a-national-pipes-rhodesian/). I quote in full from that blog.

Before I started my restoration work I wanted to refresh my memory about the brand. I remembered from previous National Pipes that I had worked on that there was a tie to the Bertram Pipe Company in Washington, D.C. I also knew that it was a very different company than the National Briar Pipe Company of Jersey City, New Jersey but that is where all the trails let in terms of Pipedia and Pipephil’s site. I turned back to a previous blog that I had written on the brand when I restored a pipe with the same stampings to review the history and connection of the brand to Bertram. https://rebornpipes.com/tag/national-washington-d-c-pipes/. I knew that the fact that there were several of these included with the large lot of Bertram pipes that Jeff and I purchased was not accidental. Here is the link to that previous blog. I quote in part:

I had a gut feeling that the pipe had some connection to Bertram Pipe Company of Washington DC but only the vaguest memory of that connection. I could not remember where I picked that up but just had the memory. I did some searching on the Internet and found a National Briar Pipe Company of Jersey City, New Jersey with no clear ties to Washington DC on the Pipedia site. This was the company that purchased the Doodler after Tracy Mincer died. I could see that the Jersey City pipes were stamped differently and all had line names stamped on them. On the Pipephil site I found an English version that had very different stamping on the left side of the shank as well as Made in England on the right side of the shank.

Thus I was reminded of the non-connection to the New Jersey Pipe Company. The blog went on to record some information that tied the National Washington, D.C. Company to Bertram more definitively. I quote

I…posted a question on Smokers Forum (SF) and Pipe Smokers Unlimited regarding the brand. I received several responses that gave me information. One of them on SF came from Ed Klang and provided me with some confirmation regarding my memory of the connection with Bertram. I quote him in full, “In the history of the Bertram company, after the fire at the Washington, D.C. facility and the decision was made to discontinue Bertram production a group of employees and a few investors wanted to buy the rights to the Bertram name, which was turned down and it was then proposed that they would rebrand the pipes as National, no mention was made whether anything ever came of that proposal. Supposedly this group did produce pipes for a while but the effort was finally abandoned and I have never been able to reliably confirm this. Just bits and pieces here and there.” Thanks Ed. This is the random memory that I was trying to dig up.

I also received a reply on SF from Radiobob that read as follows: “National Pipe and Tobacco was located on the 1700 block of Pennsylvania Avenue in Washington, D.C., just about a block from where I worked. I still have two Canadians that I bought there, as well as a Comoy’s Patina Apple. In my recollection, it closed down–much to my regret–in the mid to late 1980s.”

Those responses gave me the kind of details that I always find helpful in my restoration work. I will continue to do some digging on the company and see what I can find but that bit confirmed the visual tie to the Bertram Company of DC. Thank you for your help Ed and Bob.

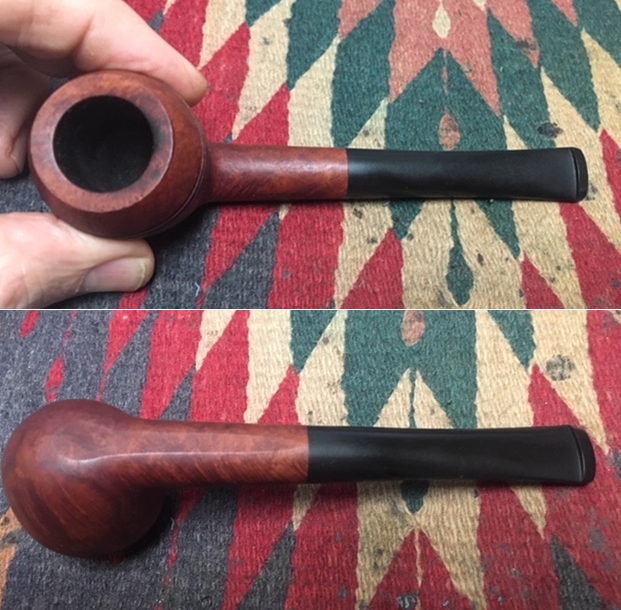

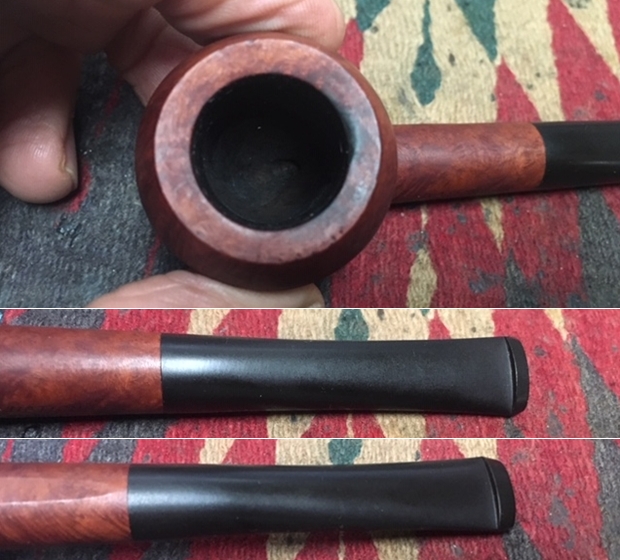

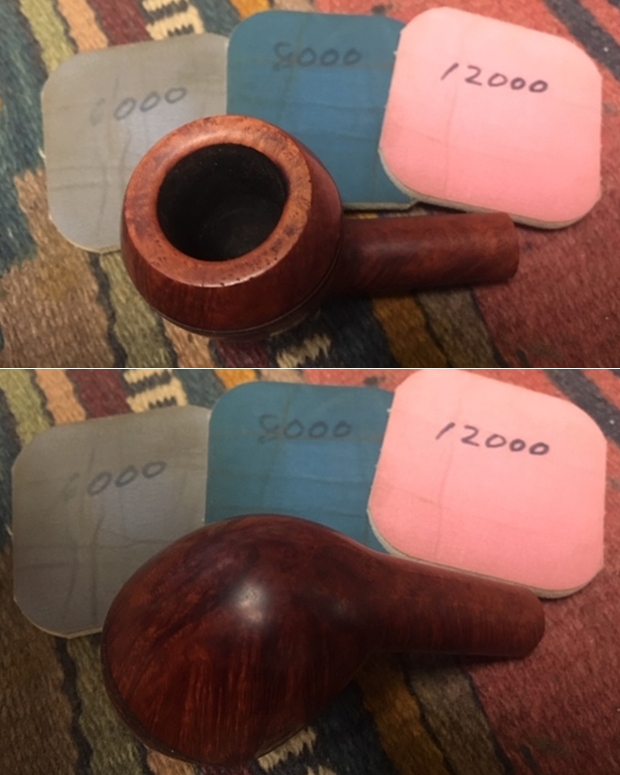

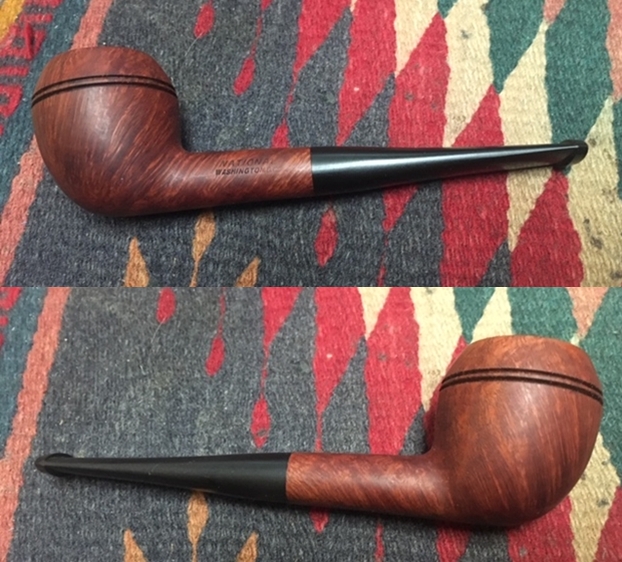

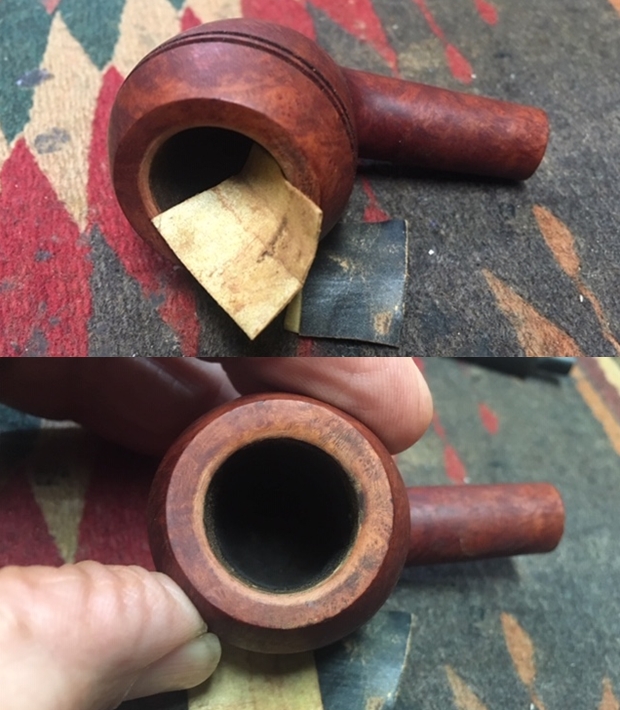

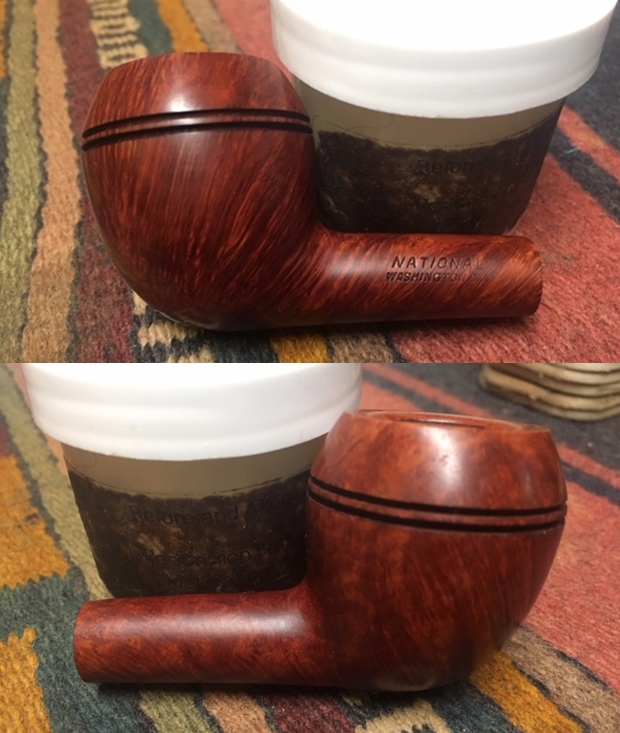

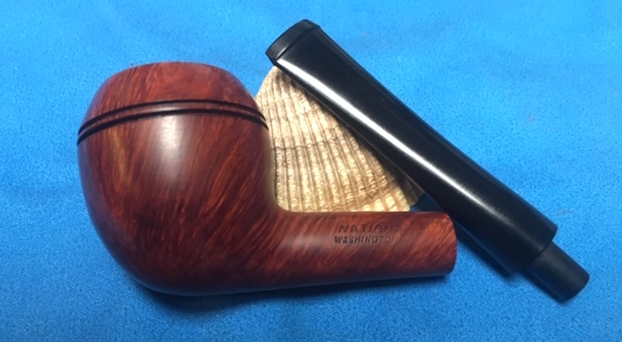

When I received the pipe Jeff had already reamed the bowl with a PipNet pipe reamer and followed up with a Savinelli Fitsall pipe knife to remove the cake. He had scrubbed out the mortise and the airway in the shank and the stem with alcohol, cotton swabs and pipe cleaners. He had scrubbed the exterior of the bowl, rim, shank and stem with a tooth brush and Murphy’s Oil Soap to remove the oils and tars on the rim and the grime on the finish of the bowl. He had rinsed it under running water. He dried it off with a soft cloth. He was able to remove lava build up on the rim top and you could see the great condition of the bowl top and edges of the rim. There was still some damage on the back inner edge and some darkening to the rim top toward the back of the bowl. He soaked the stem in Before & After Deoxidizer to remove the oxidation. I took photos of the pipe before I started my work on it. I took a close up photo of the rim top to show the condition of the bowl and rim after Jeff had cleaned up the grime and lava. You can see the damage on the inner edge of the rim at the back side and the darkening on the rim top. The stem photos show that the oxidation is gone. The surface of the vulcanite looked very good. There were some light tooth marks and chatter on the top and underside of the stem near the button.I also took a photo of the stamping on the left and right side of the shank showing how the stamping was laid out.I worked on the inner edge of the rim and the darkening on the backside of the top with a folded piece of 220 grit sandpaper to smooth out the damage and remove the darkening. I polished it further with 400 grit wet dry sandpaper to smooth out the scratches in the briar.I polished the bowl and rim top with micromesh sanding pads – wet sanding it with 1500-12000 grit pads. I wiped the bowl down with a damp cloth after each pad to remove the sanding debris. After the final sanding pad I hand buffed it with a cotton cloth to raise a shine. (I forgot to take photos of the bowl and rim top after I polished it with 1500-2400 grit micromesh pads.) I worked some Before & After Restoration Balm into finish of the briar with my fingertips to clean, enliven and protect it. I let the balm sit for a little while and then buffed with a cotton cloth to raise the shine. The Restoration Balm really makes the grain stands out beautifully. I set the bowl aside and worked on the stem. I used a folded piece of 220 grit sandpaper to blend the tooth marks and chatter into the surface of the stem. Once the surface was smooth I sanded out the scratch marks and started the polishing of the stem with a folded piece of 400 grit sandpaper. I wiped the stem down with Obsidian Oil.I polished the stem with micromesh sanding pads – wetsanding it with 1500-12000 grit pads. I wiped the stem down with Obsidian Oil after each pad. I polished it with Before & After Pipe Polish – both Fine and Extra Fine and gave it a final coat and set it aside to dry. This is the part of the restoration process that I really look forward to! When all the parts are finished and the pipe is clean then I put the stem and bowl back together and buff the pipe with Blue Diamond on the buffing wheel. I polish the briar and any minute scratches still in the vulcanite of the stem until there is a rich shine. This National Washington, D.C. pipe is a classic straight Rhodesian shape with a natural finish that highlights some amazing straight and flame grain on a proportionally well carved pipe. Buffing the pipe made the briar come alive and the grain popped with polishing. The black vulcanite stem had a rich glow. The finished pipe is a beautifully grained National Straight Rhodesian that feels really good in the hand and sits right in the mouth. Have a look at it with the photos below. The dimensions are Length: 5 ½ inches, Height: 1 3/4 inches, Outside diameter of the bowl: 1 1/4 inches, Chamber diameter: ¾ of an inch. Thanks for walking through the restoration with me as it was a pleasure to work on.

Advertisements

I can’t believe it – rebornpipes is seven years old…


Blog by Steve Laug

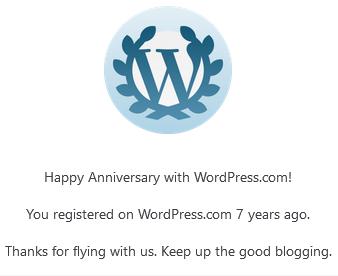

One morning toward the end of May I was greeted by an Anniversary message from WordPress stating that rebornpipes was 7 years old. I was surprised that it was that had been that long to be honest. I have long since forgotten the exact year when the blog started and had no real idea of how long it has been going. I know that I started it in May and put up the first posts throughout the month. I had no recollection of the year I had done that. I find that the older I get the more quickly one year slides into the next and I lose track. With all that I am doing with work and home, remembering that kind of thing is not one of my priorities. I explain it to my wife and kids that it is like forgetting addresses but not forgetting locations. You ask me for an address and I typically don’t remember it but ask me how to get there and that is a different story. Ah well, it is good to have computer generated reminders of this kind of thing for folks like me.

After reading this reminder I have been thinking about the seven years that have passed. If I look at just the many pipes have re-entered the smoking rotations of people that alone is amazing. I looked at the stats on the Admin page and was a bit surprised to see that there are over 2800 individual blogs on rebornpipes. That means that we have recorded the restoration or refurbishing of over 2000 pipes from all levels of pipe craftsmanship. There are blogs on high-end pipes and on low end manufactured pipes and everywhere in between. These are solely the pipes belonging to folks who write blogs for rebornpipes or have sent us write-ups of their work. When you think about it in terms of pipes put back in use after being refurbished it is a lot of pipes.

That does not even begin to take into account those who have started their own blogs. Charles Lemon of DadsPipes and Dal Stanton of ThePipeSteward are two that come to mind. Those gentleman are doing great work and are bringing pipes back into service. (I know that Dal submits his work here and then reblogs it on his own site. However, when you consider he also lists pipes that can be commissioned for restoration it adds even more to that number.) I know that there are others who have also started their own blogs and pipe restoration businesses from our number that add to the mix. It is exciting to watch this community expand. The impact of rebornpipes continues to grow and develop and it is hard to know where it will go in the years ahead.

On top of those known individuals within our community are also the unknown ones. I cannot begin to give you numbers for the individuals – male and female who have entered the hobby after reading the blog. I know there are many because of the emails that I receive in thanks and with questions. There is rarely a day that goes by that I do not receive several emails from blog readers who have questions about restoration procedures or brands. This an exciting part of the blog for me because it is the outcome that I had hope for when I started. I remember when I started restoring pipes there was little information available online. I had to reach out to kind and helpful pipemen who answered my questions willingly. I know that rebornpipes fills a niche that has contributed to making pipe restoration and refurbishing accessible to anyone who wants to give it a try.

Another part of the over 2800 blogs is that of making information available on brands and makers. I have scanned dozens of pamphlets, catalogues and brochures that have been sent to me and added them to the information that it available. I have also received many scanned documents as gifts to be added to the blog. The beauty of this is that there is a lot of research that has been done on brands pulling together information from a variety of sources online – Pipedia, pipephil, pipemaker websites and Patent sites. This is easily accessible to anyone searching for information. There is a repository of booklets, brochures and pamphlets that have been made available on a lot of different brands. rebornpipes blogs and materials are often high on the Google searches that folks do and for that I too am thankful. It has been a process to get here but it is also something grand to celebrate as it is also an outcome I had dreamed of when I started.

Finally rebornpipes also includes other pieces of pipe information such as reviews of books, tools, supplies and pipes. These are brief and experiential reviews to enable the readers to peruse them prior to investing in them personally. I have also included some of my own contributions to pipe lore through Father Tom stories, short stories and personal reflections on the art and craft of pipe refurbishing. This was also an outcome I had dreamed of when I started the blog. rebornpipes really does have a broad range of information available to the reader who uses it. Sometimes I forget the breadth of material that is stored on the blog.

As I close these reflections I want to thank each of you readers for faithfully being part of our community and also submitting your work to be included. It is great to be a part of this community of people that really make distance quite irrelevant. I realized that seven years is a remarkable time for a blog to be active and growing. Each year is marked by growth of daily readership and also materials. It surprises me that the readership continues to grow with people following us from around the world. I had no idea when I began of the reach the blog would have nor of the community of refurbishers that would be built. For that I am truly grateful.

Here’s to the next seven years and more….
