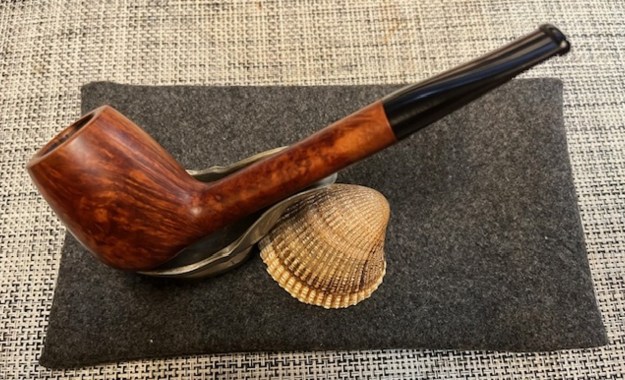

Someone Must Have Loved Smoking This Stanwell FM 2008 113 Conical Canadian

Blog by Steve Laug

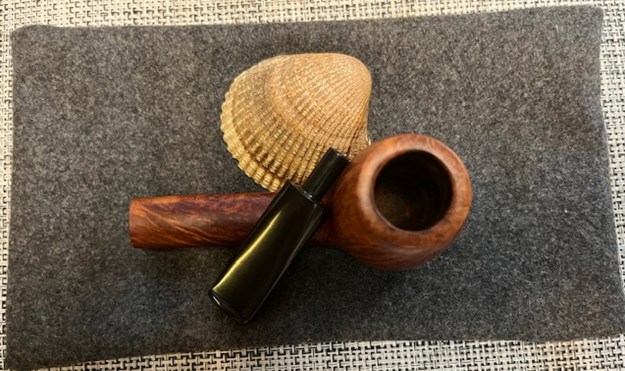

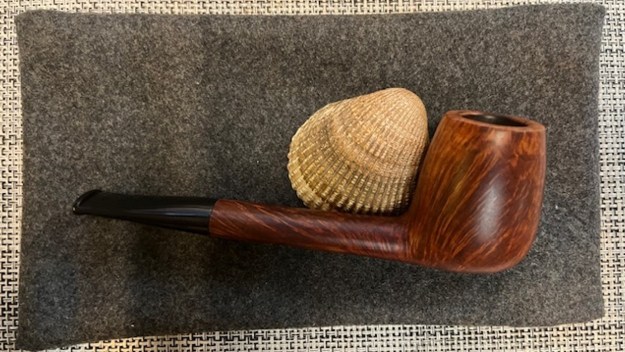

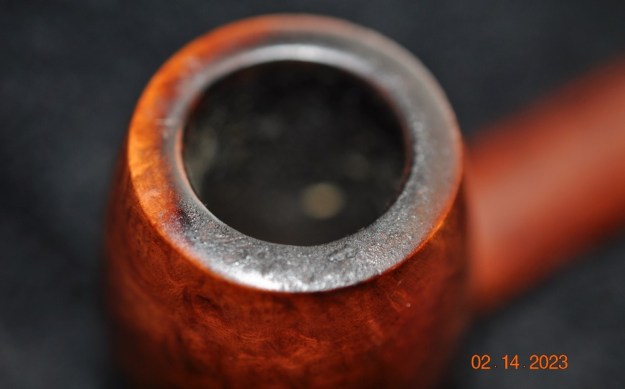

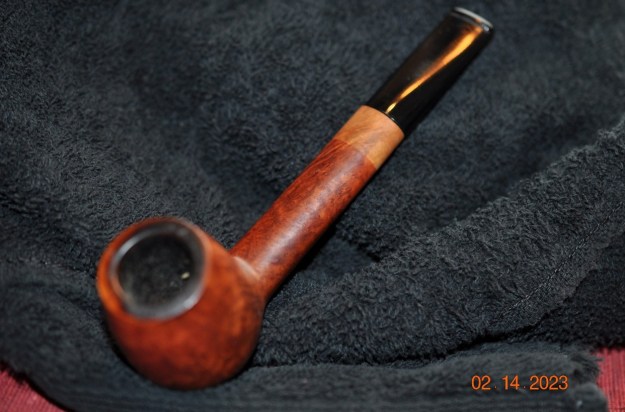

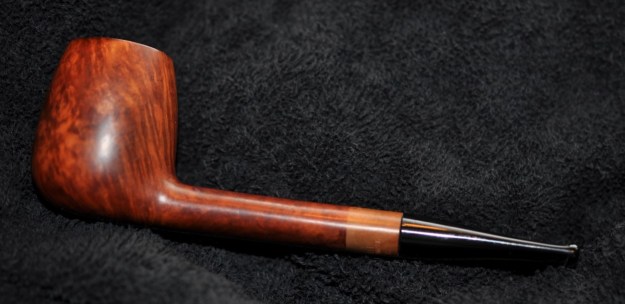

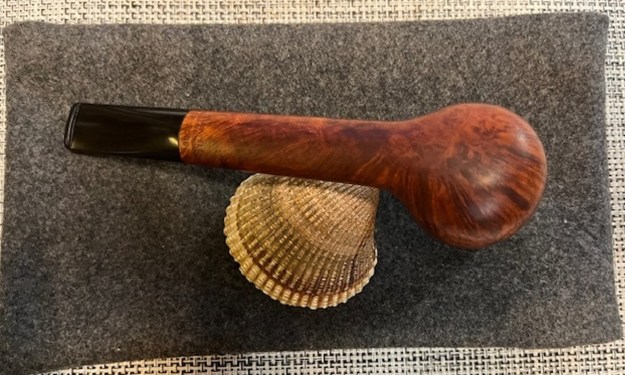

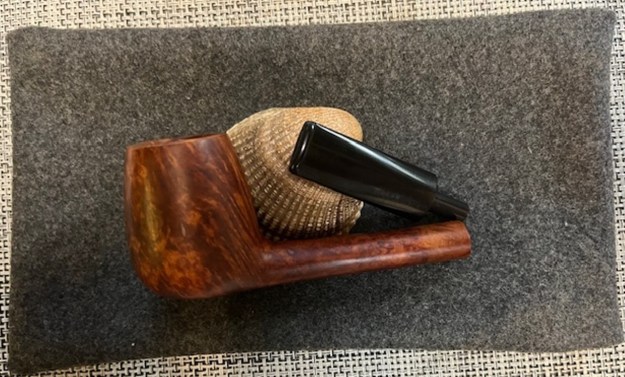

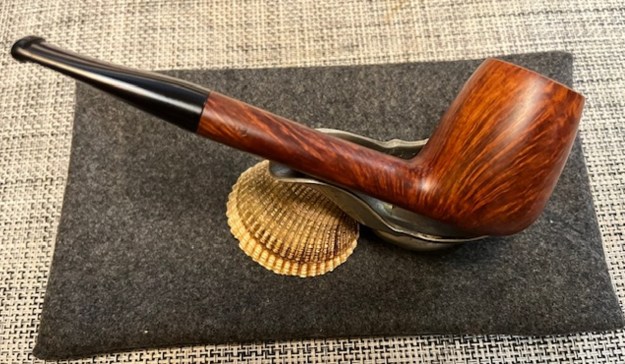

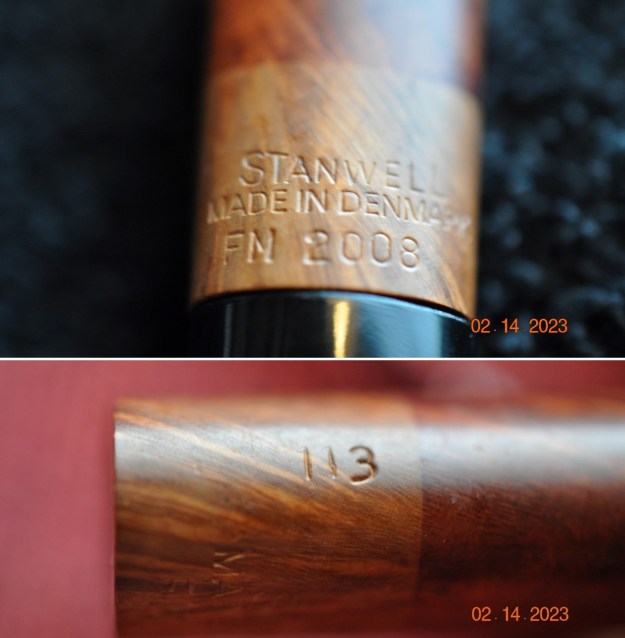

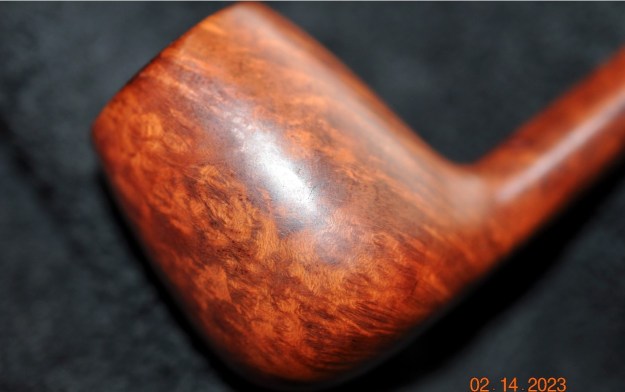

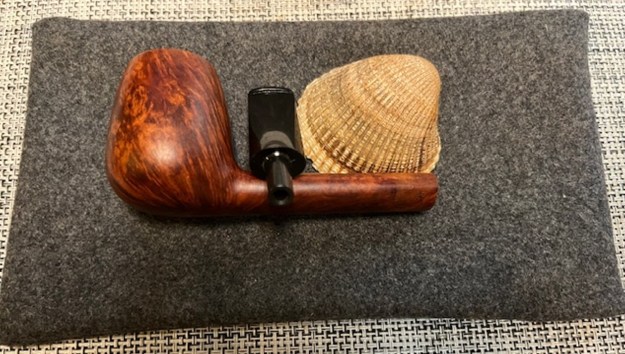

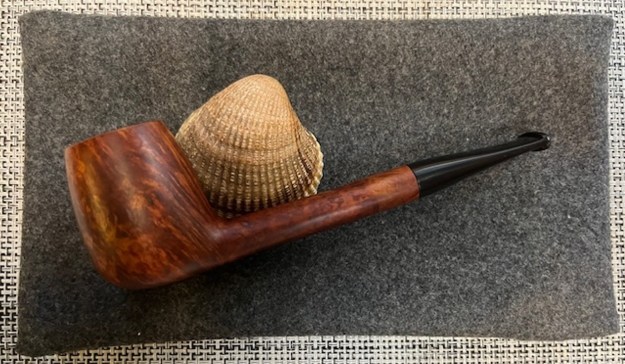

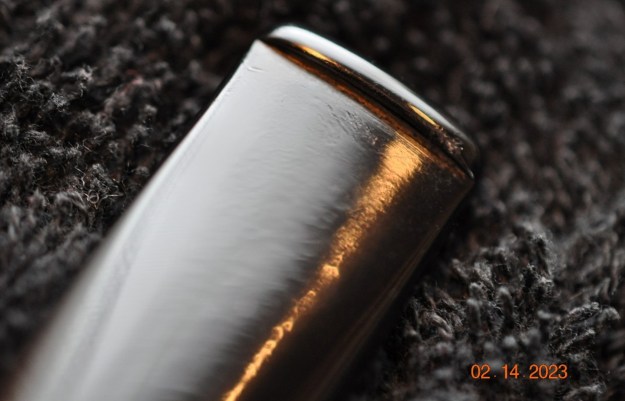

The next pipe I am working on was purchased on 01/26/2023 as part of a group of pipes from a fellow in Copenhagen, Denmark. This was another dirty pipe with a lot of wear and tear and obviously it had been someone’s favourite smoker. The pipe is stamped on the underside of the shank and reads Stanwell [over] Made in Denmark [over] FM 2008. On the right side of the shank it is stamped with a 113 shape number near the stem/shank junction. The FM2008 stamp had me a bit mystified though I figured it was probably made for a smoking competition thanks to Jesper’s previous help. I would need to check that out. The dirty smooth finish was not able to hide the beauty of the grain around the bowl and shank. There were tars and oils ground into the surface of the briar. The finish on the first ½ inch of the shank was lighter than the rest of the pipe and it is not clear why. There does not appear to be cracks or a previous band so I am uncertain why it is there. Perhaps in the clean up Jeff will figure it out. The bowl had a very thick cake that flowed over the top of the smooth rim in a heavy lava coat. The inner edge was so heavily coated that it to assess its condition. The stem was a black acrylic taper stem without a logo stamp. It had some light tooth marks and chatter on both sides ahead of the button. Jeff took photos of the pipes before he started his clean up work. Jeff took photos of the rim and bowl to show the heavy cake and heavy lava coat covering the rim top. The inner edge of the rim was so thickly caked that it was not possible to know with certainty the condition. It really was a dirty pipe but still a beauty. He also took photos of the stem surfaces to show its overall condition when it arrived. The photos of the sides and heel of the bowls show some beautiful grain around the bowl and shank sides. The brown stain on the briar adds depth to the finish on the pipe and makes the grain really stand out on the bowl and shank. It shows some promise. He also took photos of the stamping on the sides of the shank. It is clear and reads as noted above.I decided before I started my work on the pipe to try and unravel the stamping on the underside of the shank. I did a Google search of Stanwell FM 2008 and got no hits. I changed the search to hunt for a Stanwell Made in Denmark FM 2008 and came up with one solid hit to a discussion the Brothers of Briar pipe forum where Bas Stevens had a pretty extensive post on the shapes of Stanwells (https://www.brothersofbriar.com/threads/basil-stevens-stanwell-shape-list.8421/). Toward the end of that discussion he had three notes on unique stamping. The final one listed was a not on the FM stamp. I quote:

Pipes stamped with FM are ones that were made for the Frederikshavn Pipe Smoking Championship.

I wrote to Jesper Klith on Facebook and asked if that information was correct. He replied quickly with confirmation and an interesting personal note that I have included below.

That is correct, the club in Frederikshavn held some large contests, I attended once and met both Anne Julie and Peter Hedegaard there.

So now I knew! The FM 2008 stamp was referring to a large smoking contest in Frederikshavn in 2008. The pipe was made to be used in the competition and was also a commemorative piece. Now it was time to start my work on the pipe.

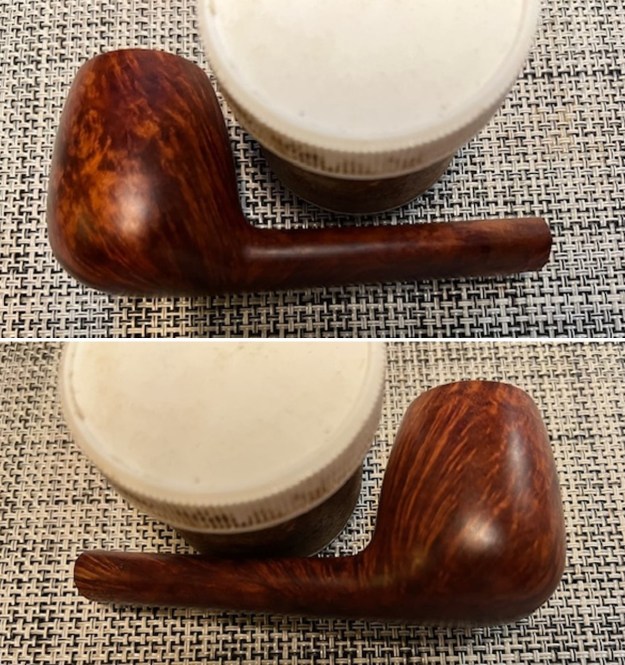

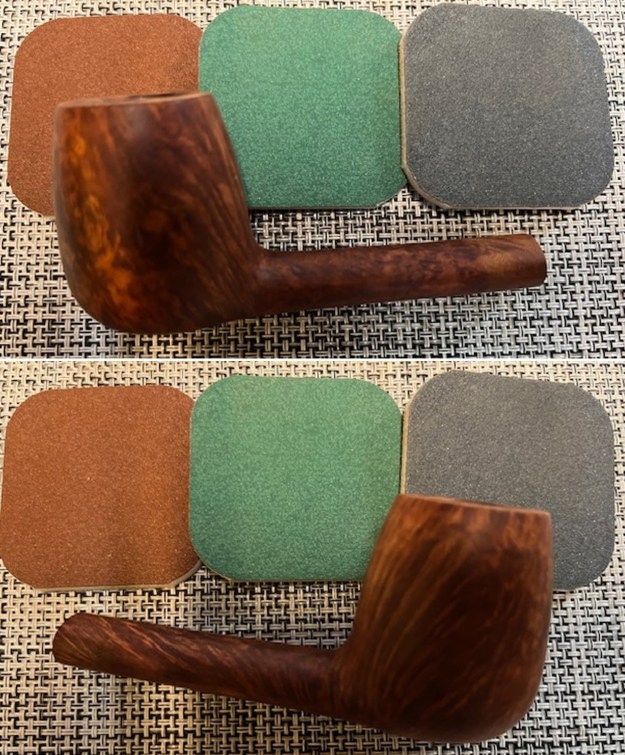

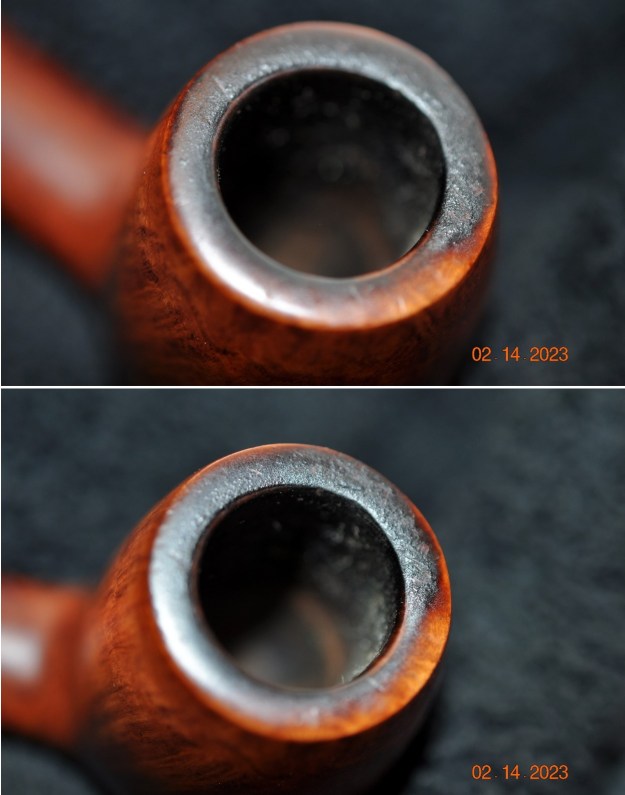

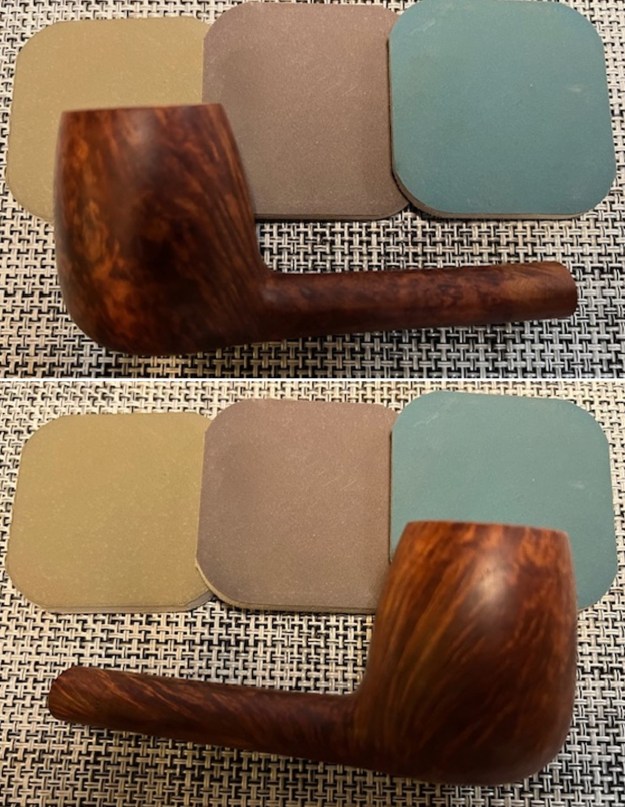

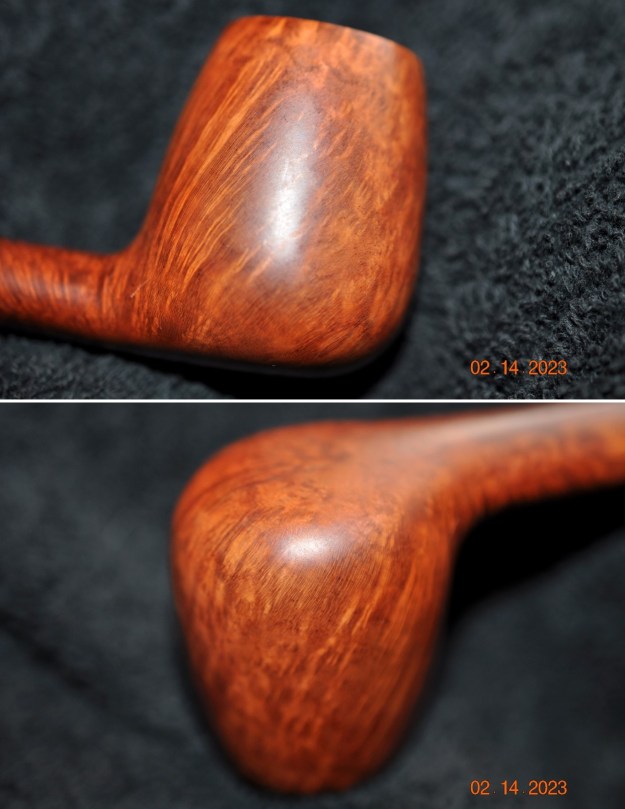

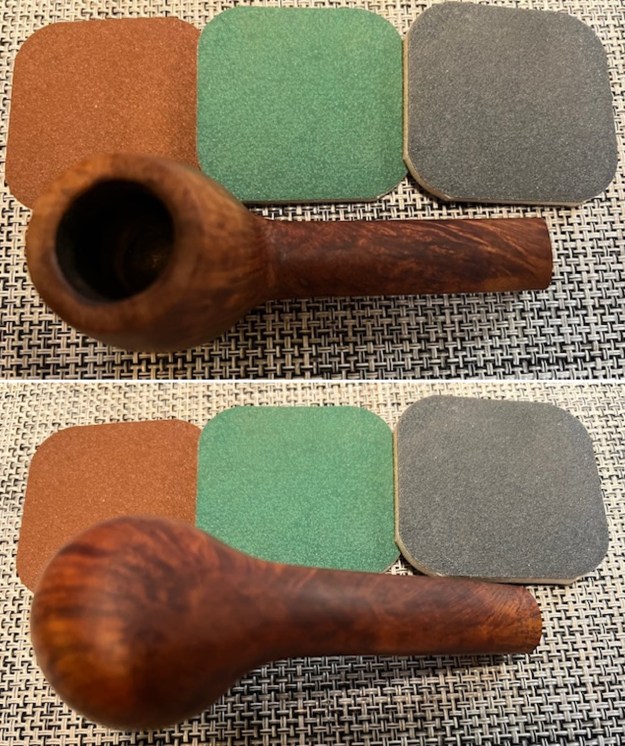

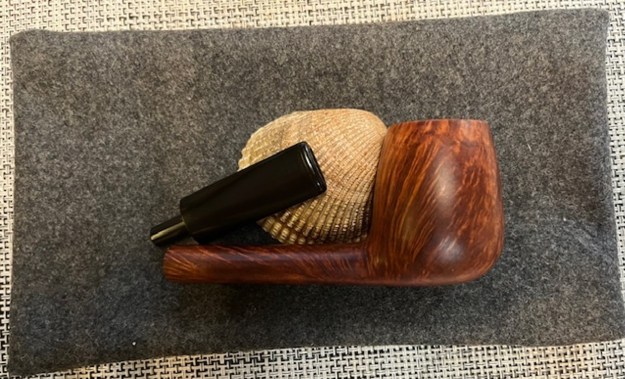

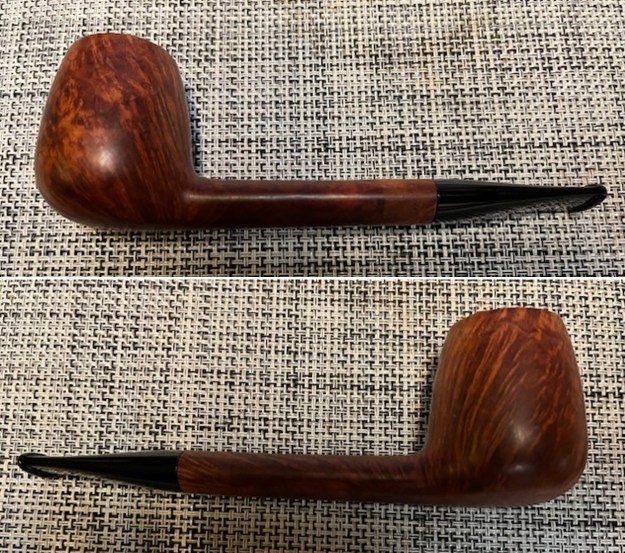

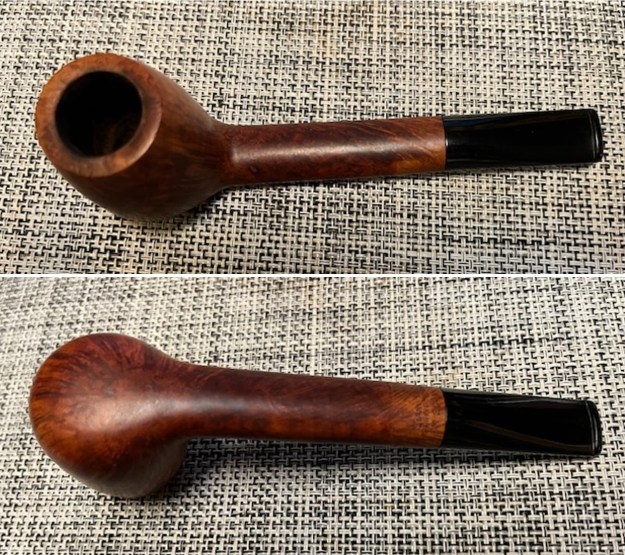

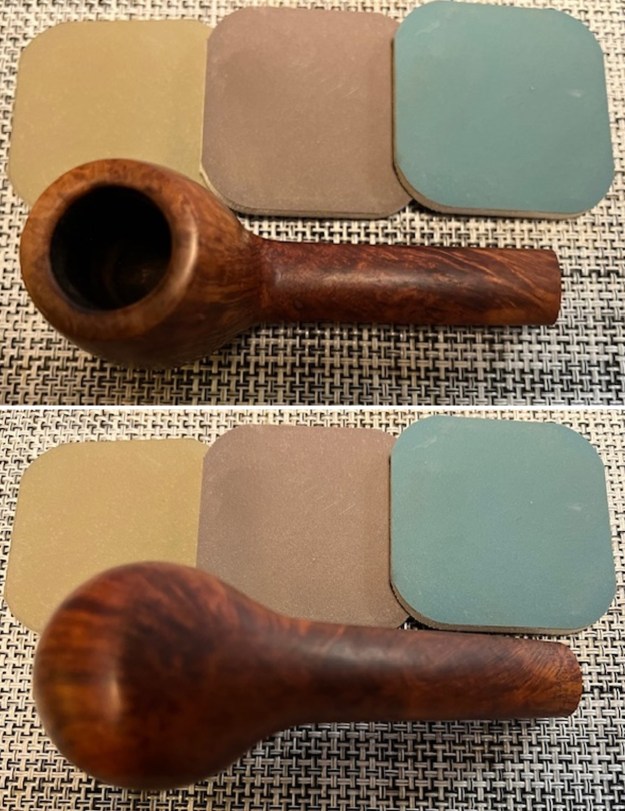

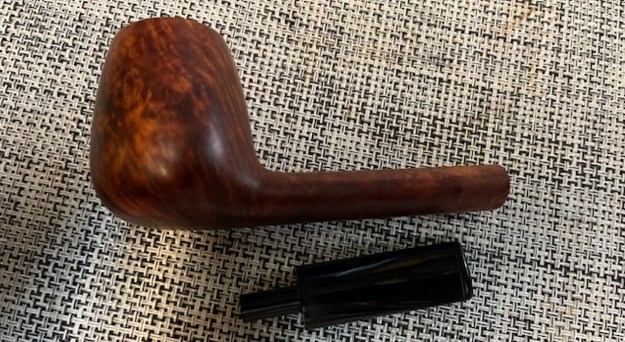

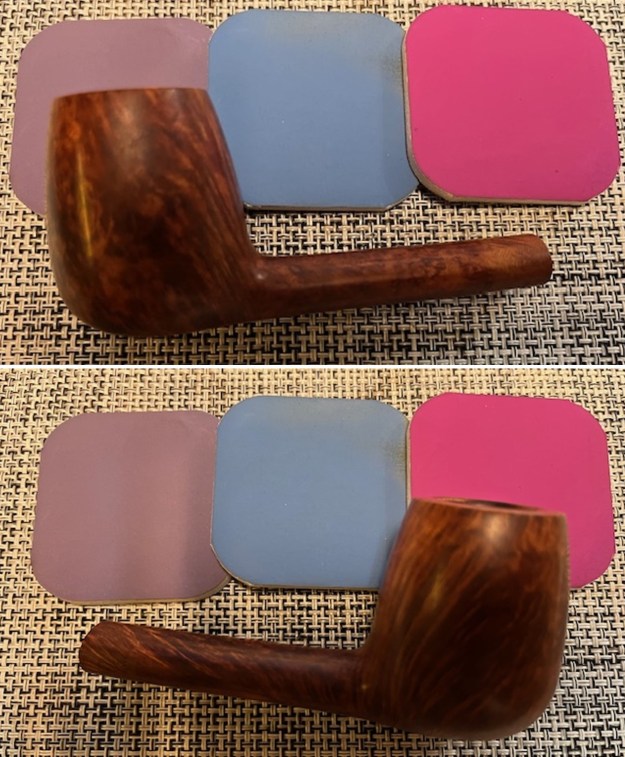

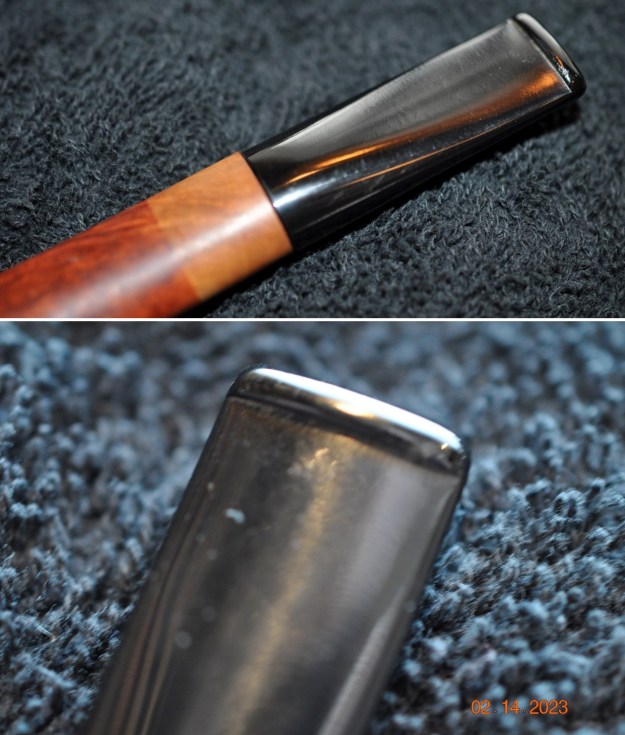

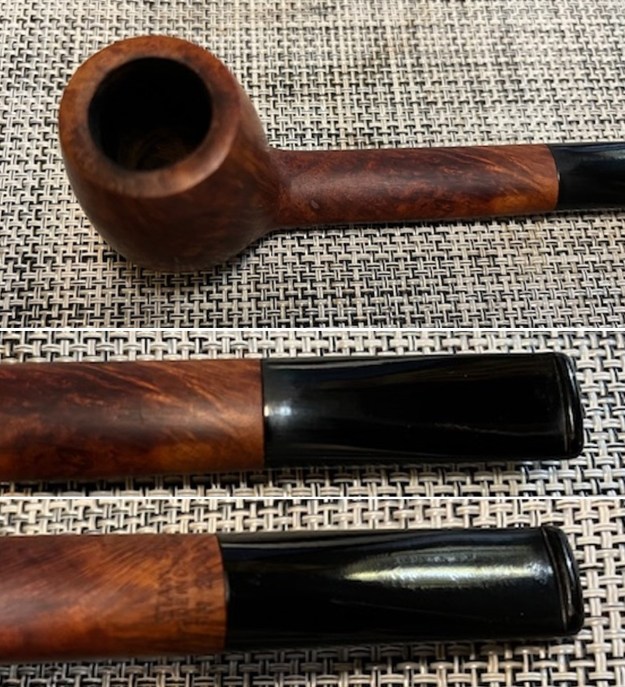

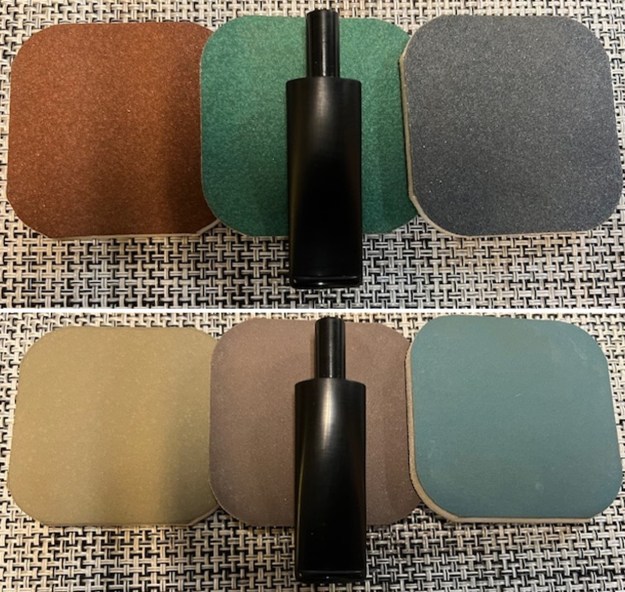

I was looking forward to looking over the lighter coloured shank end after Jeff cleaned up the pipe for me. I was curious to know what was happening there. He reamed the bowl with a PipNet pipe reamer and cleaned it up with a Savinelli Fitsall Pipe Knife. He scrubbed the exterior with Murphy’s Oil Soap and a tooth brush to clean off the grime off the finish and the overflow of lava on the rim top. The cleaning had removed the grime on the rim top. I examined the first half inch where the lightening had been and there were no cracks or marks left behind by a band so it was a bit of a mystery. Jeff’s scrubbing had evened up the stain a bit and I would do a bit more in my work on it. He cleaned up the internals of the shank, mortise and stem with pipe cleaners, cotton swabs and alcohol to remove all of the oils and tars in the pipe. He soaked the stem in Briarvilles Pipe Stem Deoxidizer and was able to remove any remaining grime on the surface and inside. The fit of the stem to the shank made it look like an original even though there was not a Stanwell logo on it. When it arrived here in Vancouver it was a clean pipe and I knew what I had to work with. I took photos of it before I started my part of the restoration. I took a photo of the rim top and the stem to show their condition. Jeff was able to clean up the cake and the lava overflow that was shown in the rim and bowl photos above. The rim top looked very good but there seemed to be light damage and darkening to the top and inner edge of the bowl. There is a small fill visible in the first photo on the top of the shank near the bowl. The stem looked better, though there were light tooth marks and chatter on both sides near the button. I took a photo of the stamping on the silver plate on the left side of the shank to show that it was readable and undamaged by the cleanup work. I removed the stem from the shank and took a photo of the parts to give a sense of what the pipe looks like. The pipe looked so good that I started my work by polishing the smooth rim top and bowl with micromesh sanding pads. I dry sanded it with 1500-12000 grit pads. I wiped the bowl down after each pad with a damp cloth. The pipe began to take on a rich shine and grain was beginning to stand out. I sanded with all of the pads and wiped the bowl down after each pad with a soft cloth. I rubbed the bowl and shank down with Before & After Restoration Balm to deep clean the finish on the bowl and shank. The product works to clean, enliven and protect the briar. I worked it in with my fingers to get it into the briar. I used a horsehair shoe brush to work it into the sand blast. I let it sit for 10 minutes then I wiped it off and buffed it with a soft cloth. The briar really began to have a rich shine. I took some photos of the bowl at this point to mark the progress in the restoration. It is a beautiful bowl. I set the bowl aside and worked on the stem at this point in the process. I polished light tooth marks and chatter out of the stem with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the stem down after each sanding pad with Obsidian Oil. I polished the stem with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a coat of Obsidian Pipe Stem Oil. It works to protect the stem from oxidizing. I set it aside to dry. I put the stem back on the Stanwell Frederikshavn in 2008 Danish Style 113 Canadian and took it to the buffer. I buffed the bowl and stem with Blue Diamond to polish the briar and the acrylic. Blue Diamond does a great job on the smaller scratches that remain in both. I gave the bowl and the stem several coats of carnauba wax and buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. I am amazed at how well it turned out. The finished pipe is shown in the photos below. This is a beautiful Stanwell Frederikshavn in 2008 Canadian – the acrylic taper stem and smooth finish combine to give the pipe a great look. The dimensions of the pipe are Length: 5 ½ inches, Height: 1 ¾ inch, Outside diameter of the bowl: 1 inch, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.41 ounces/41 grams. This is another pipe that I will be putting on the rebornpipes online store in the Danish Pipe Pipemaking Companies Section shortly, if you are interested in adding it to your collection. Thanks for walking through the restoration with me on this beauty!

As always, I encourage your questions and comments as you read the blog. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipe men and women who hold our pipes in trust until they pass on into the trust of those who follow us.

Cleaning up a Royal Guard 585 Bent Billiard

Leave a reply

Blog by Steve Laug

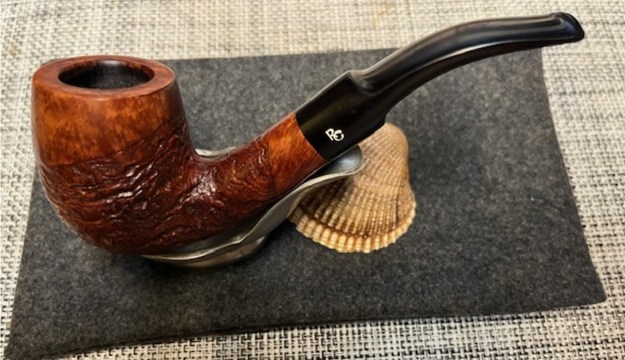

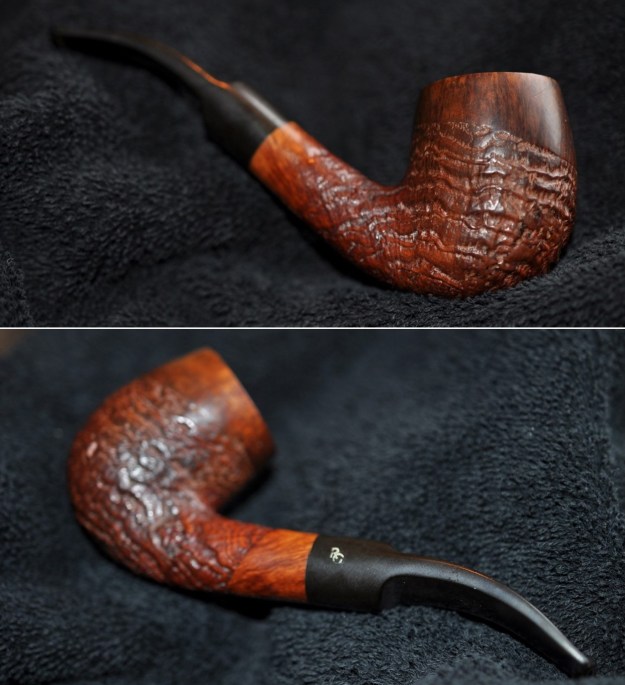

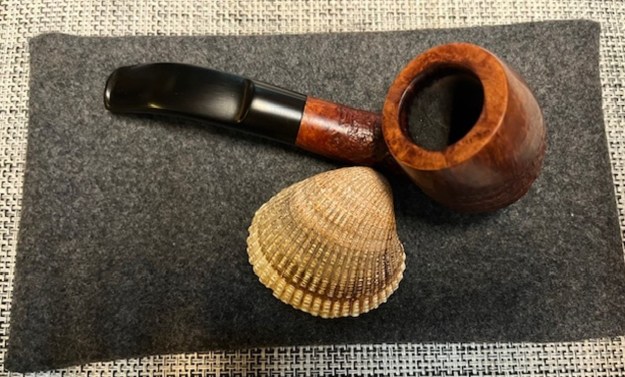

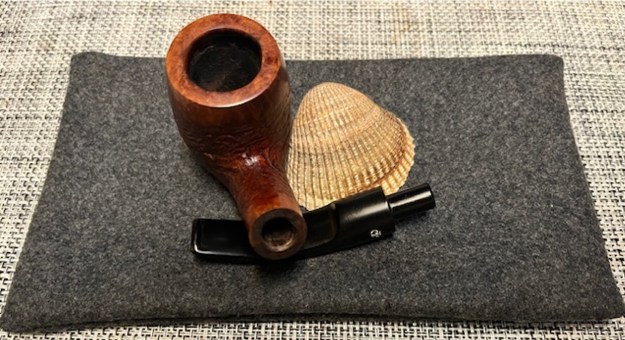

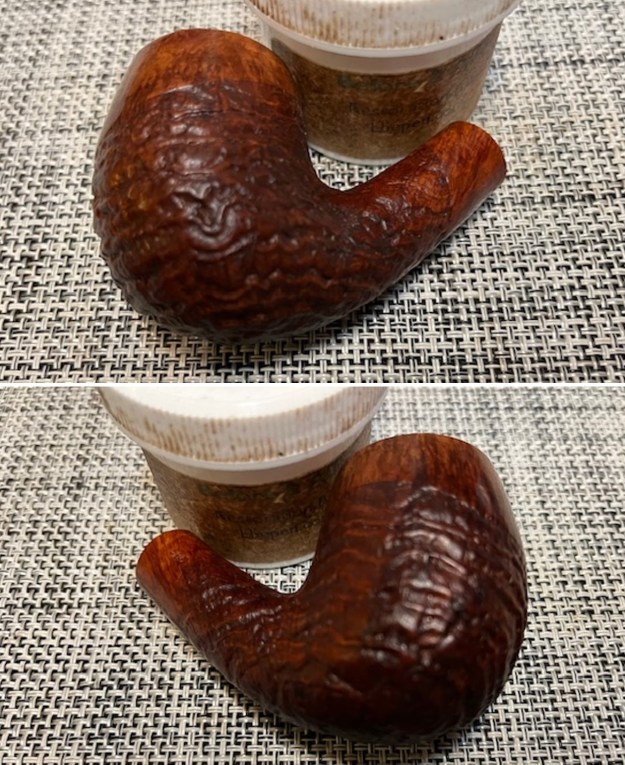

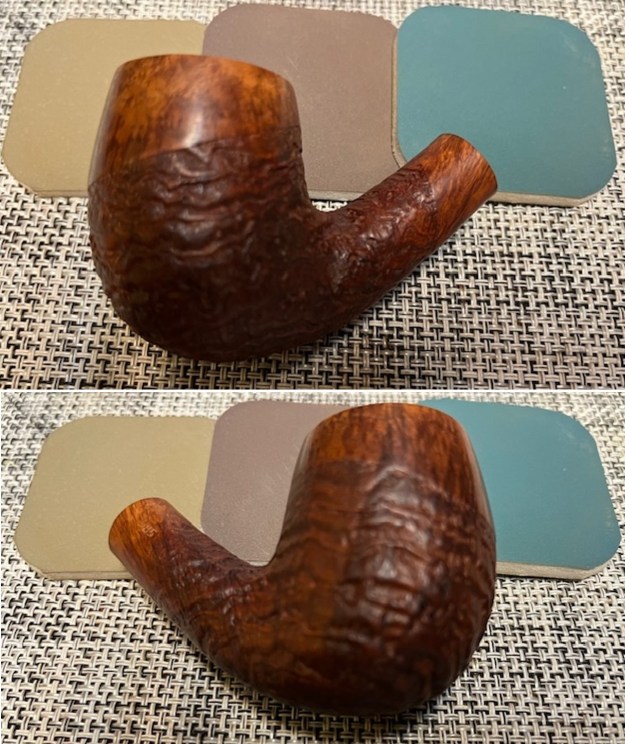

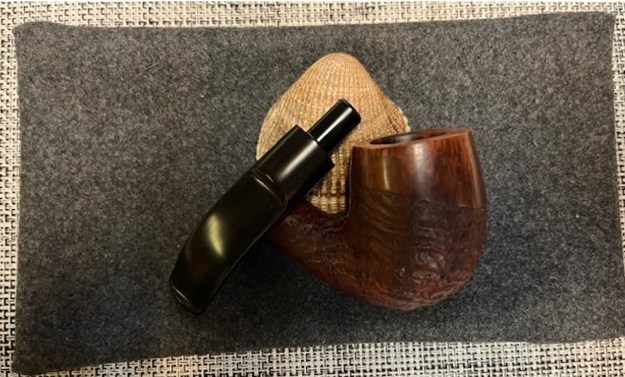

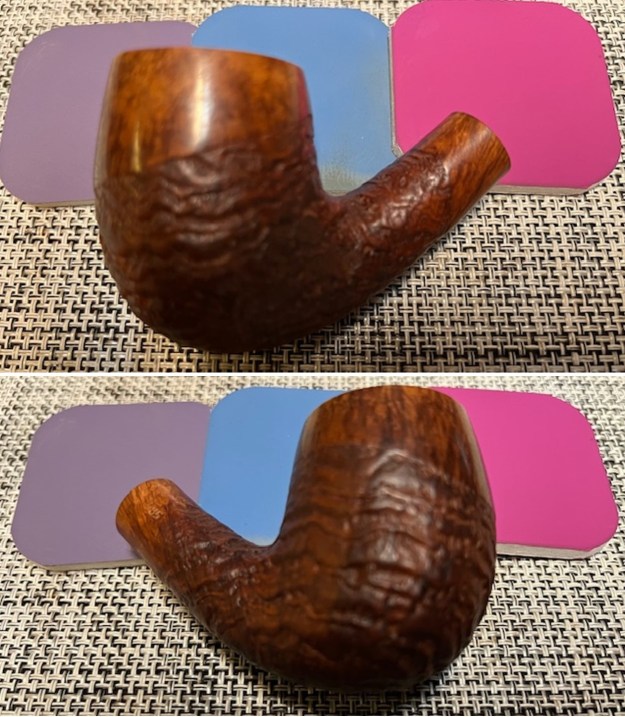

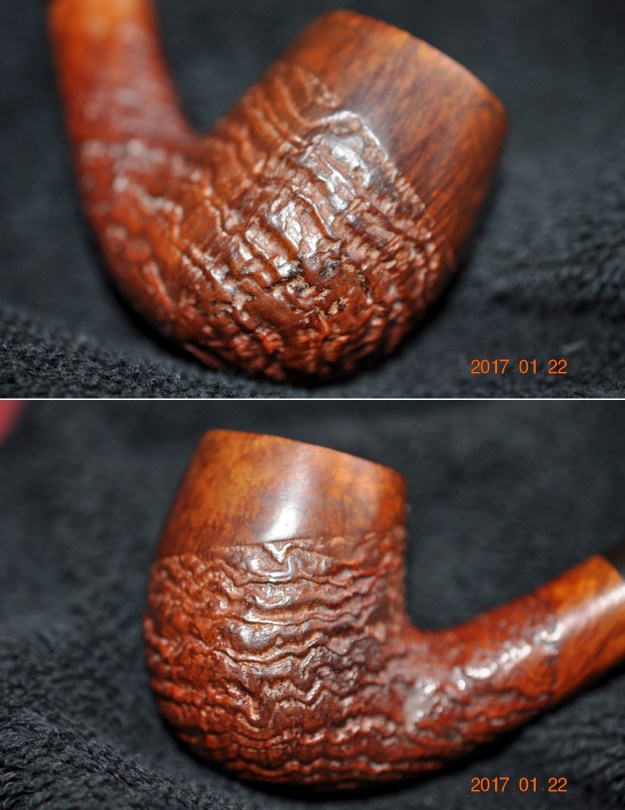

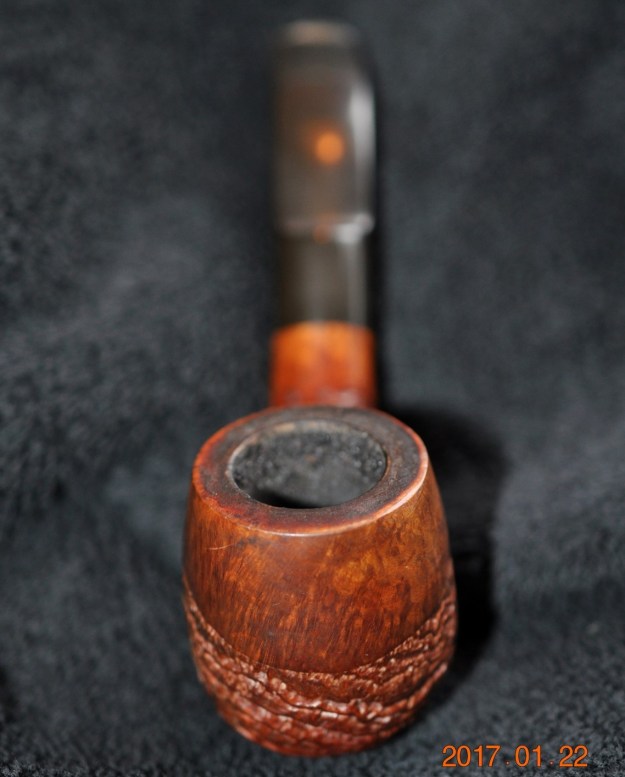

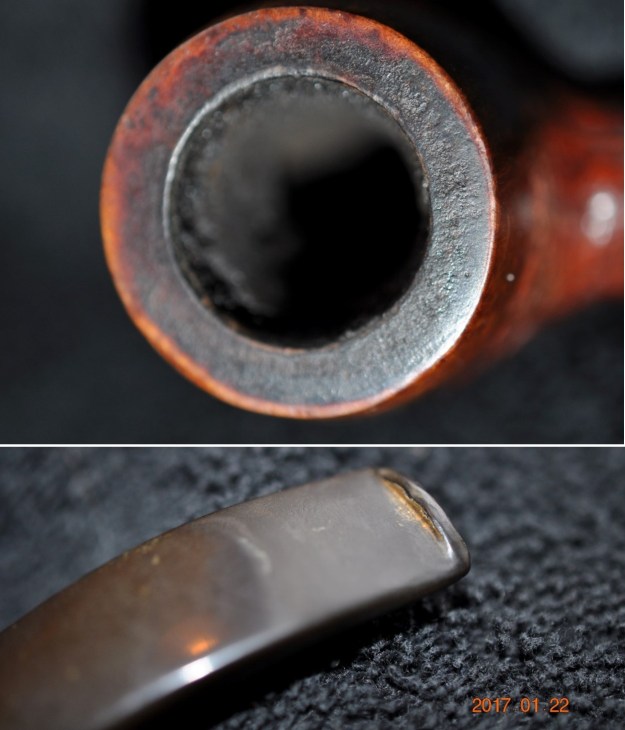

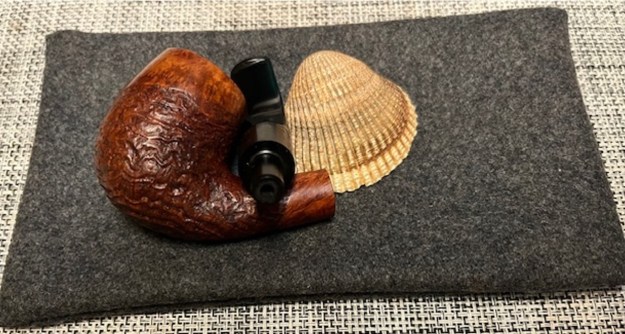

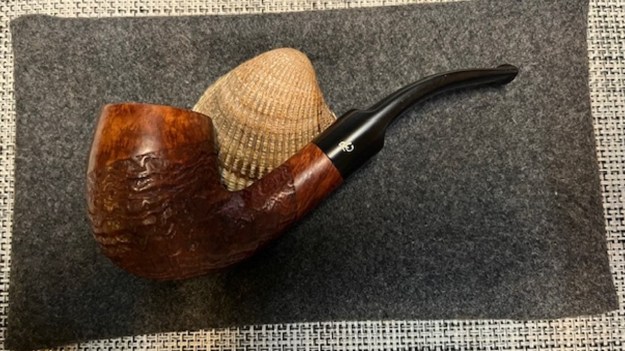

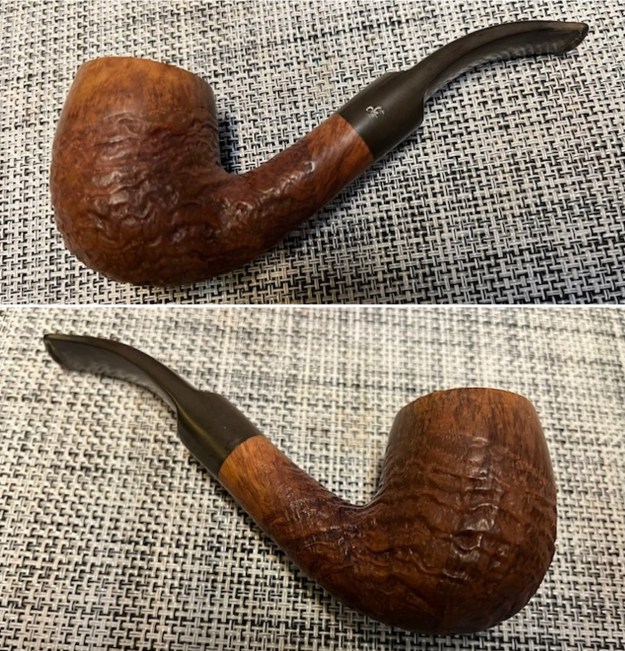

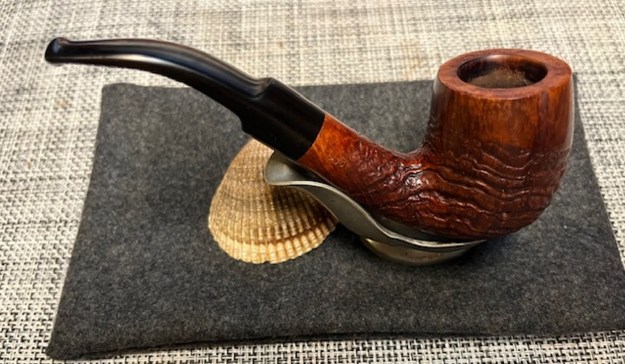

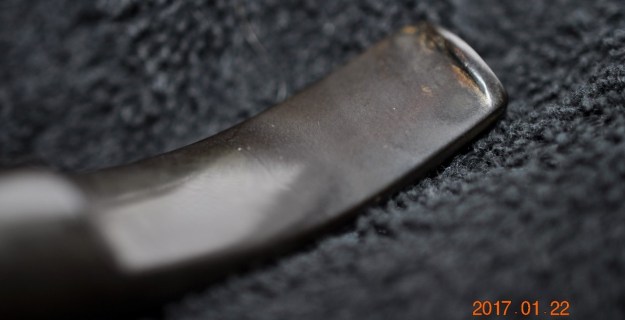

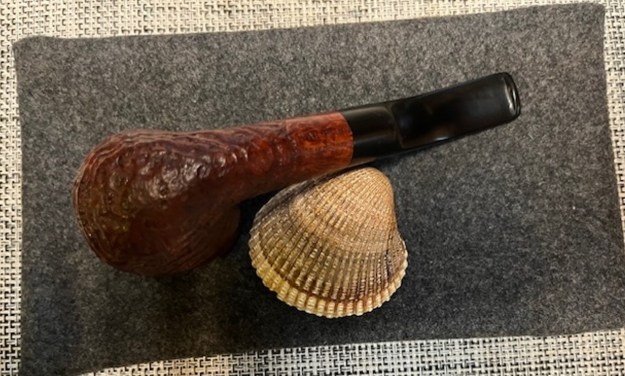

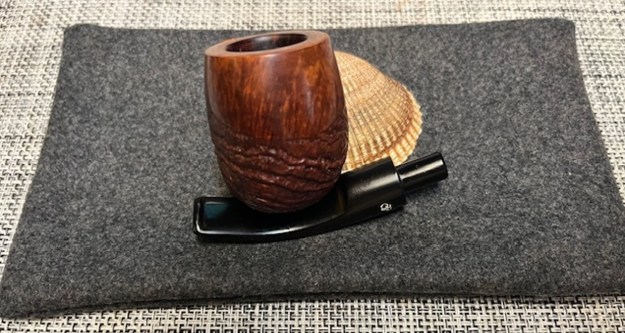

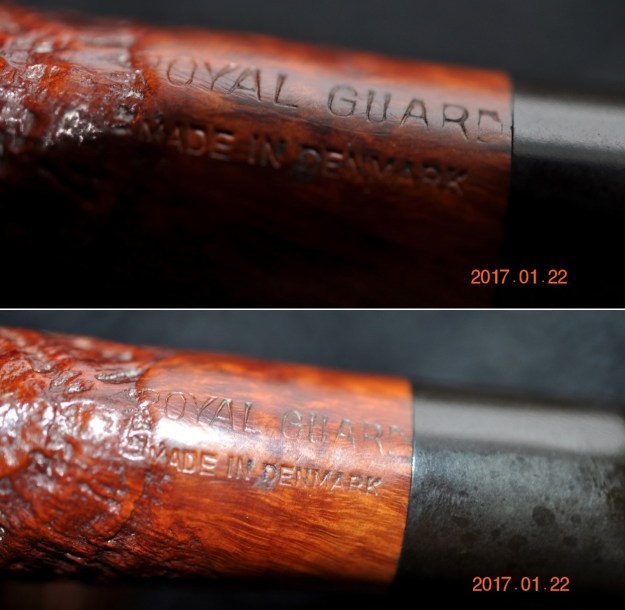

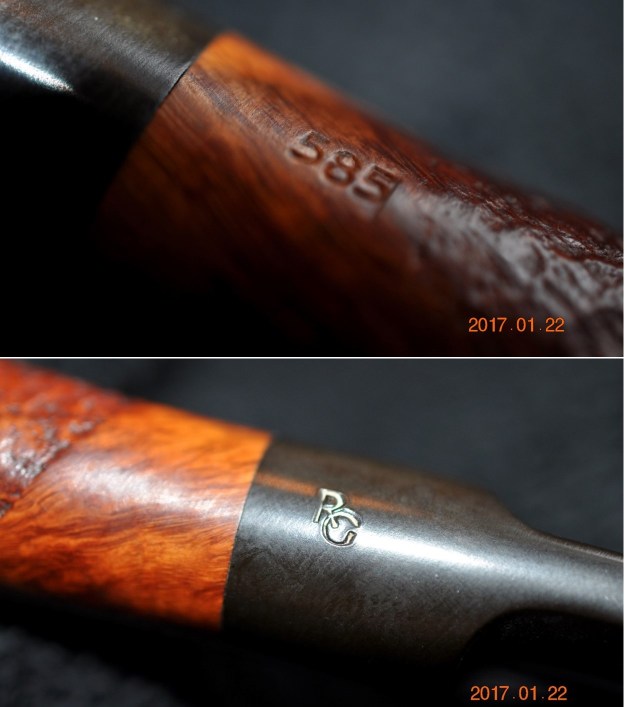

The next pipe I am working on was purchased quite a while ago on 01/16/2017 from an eBay auction in Covington, Ohio, USA. This was another dirty pipe but underneath it had a great mix of sandblast and smooth finishes. It was obviously someone’s favourite smoker. The pipe was stamped on the underside of the shank that reads Royal Guard [over] Made in Denmark. On the right of the shank next to the stem/shank junction it is stamped the shape number 373. The pipe was a bent billiard. The dirty finish was not able to hide the beauty in the grime. There were tars and oils ground into the surface of the briar. The bowl had a thick cake that flowed over the top of the rim in a heavy lava coat. The condition of the inner edge was hard to assess under the cake and the lava coat. The stem was a black vulcanite saddle stem with a stamped white RG logo on the left side. There were tooth marks and chatter on both sides ahead of the button. Jeff took photos of the pipes before he started his clean up work. Jeff took photos of the rim and bowl to show the heavy cake and heavy lava coat covering the rim top. The inner edge of the rim is caked and hard to assess in terms of its condition. It really was a dirty pipe but still a beauty. He also took photos of the stem surfaces to show its overall condition when it arrived. You can see the tooth marks and chatter on both sides of the stem. The photos of the sides and heel of the bowl show contrast between the sandblast portions and the smooth areas in the finish. It is a beautiful combination. The brown stain on the briar adds depth to the finish on the pipe and makes the grain really stand out. It shows a lot of promise. Jeff took photos of the stamping on the shank sides. You can see that they are clear and read as noted above. On Pipephil’s site(http://www.pipephil.eu/logos/en/logo-r6.html) there is a section on the royal Guard that says it is a Stanwell Second. There is also some interesting information on the section so I did a screen capture of it and have included it below.Stanwell seconds :Christian, Danish Natural, Danish Sovereign, Danske Club, Henley, Majestic, Royal Danish, Royal Guard, Scandia

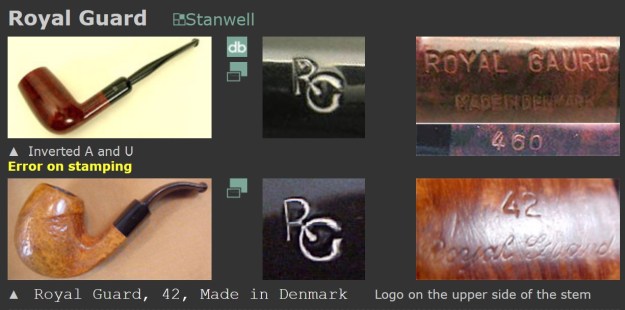

Royal Guard is listed on Pipedia’s site (https://pipedia.org/wiki/Stanwell) as a Stanwell second line. The site also has a great short review of Stanwell history and links to several articles on the site that interesting.

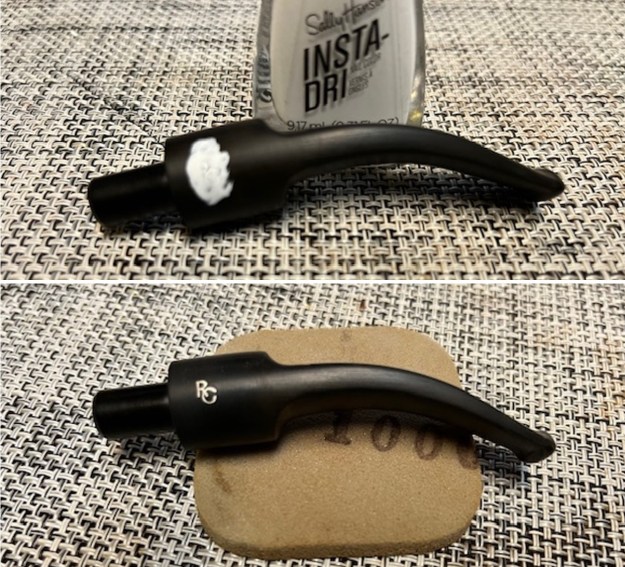

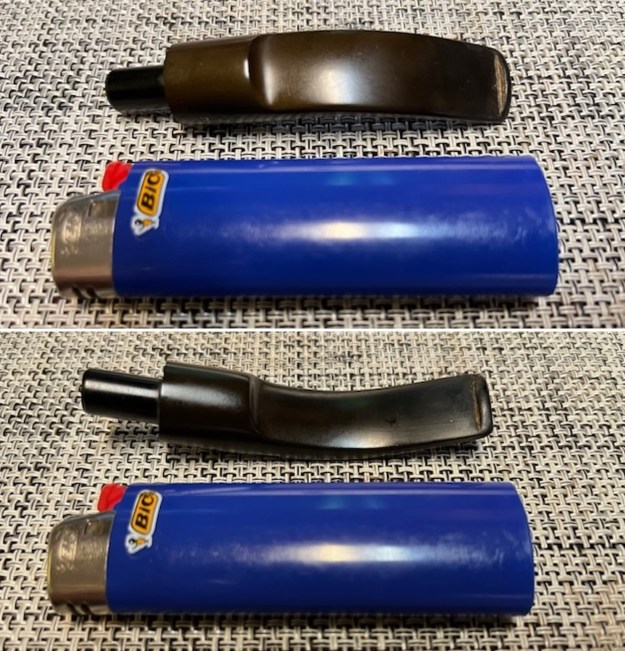

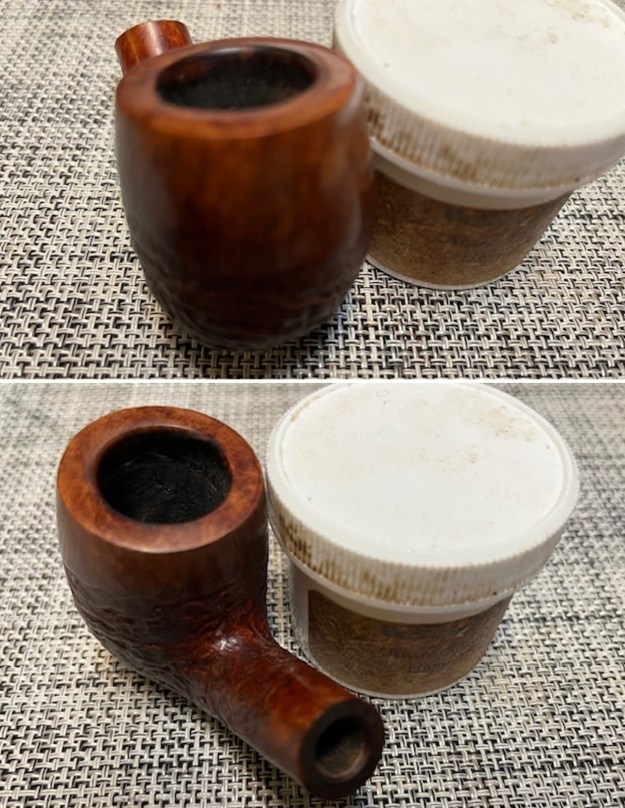

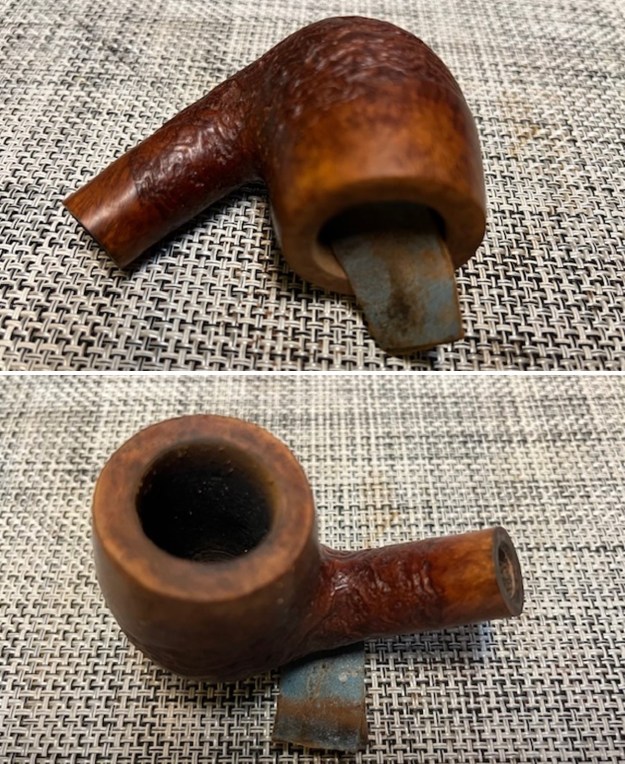

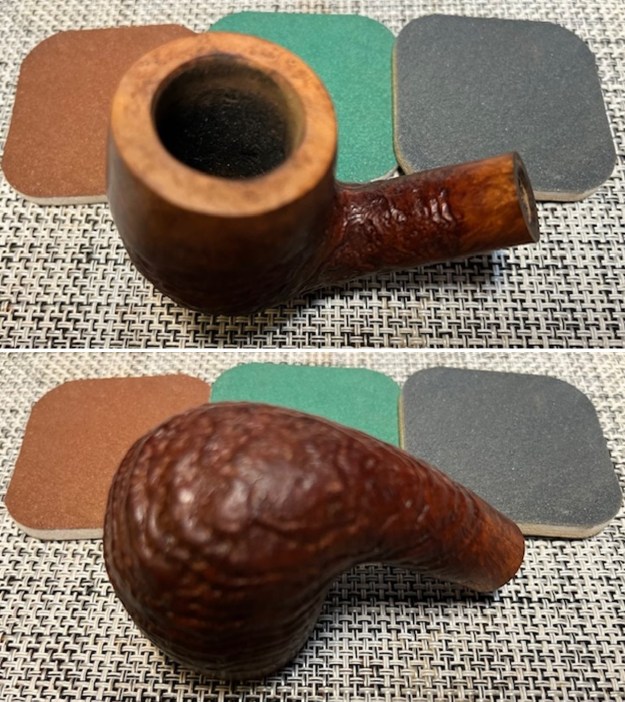

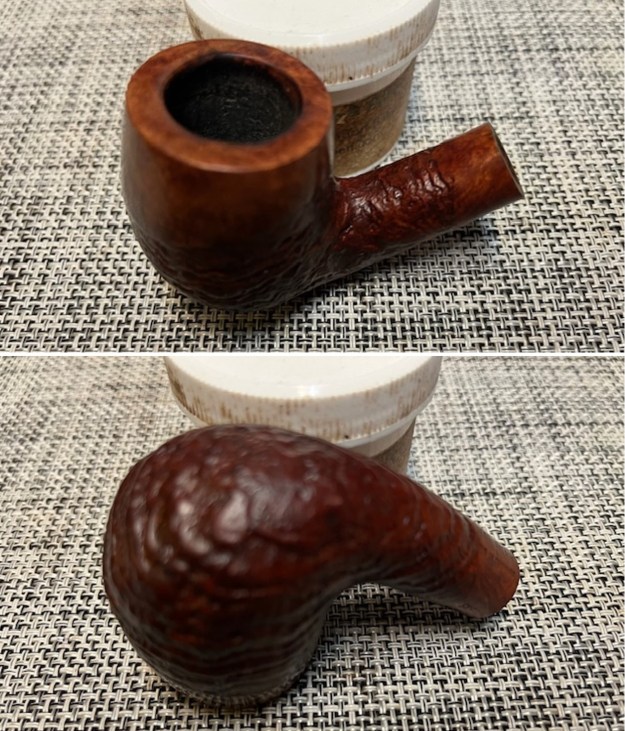

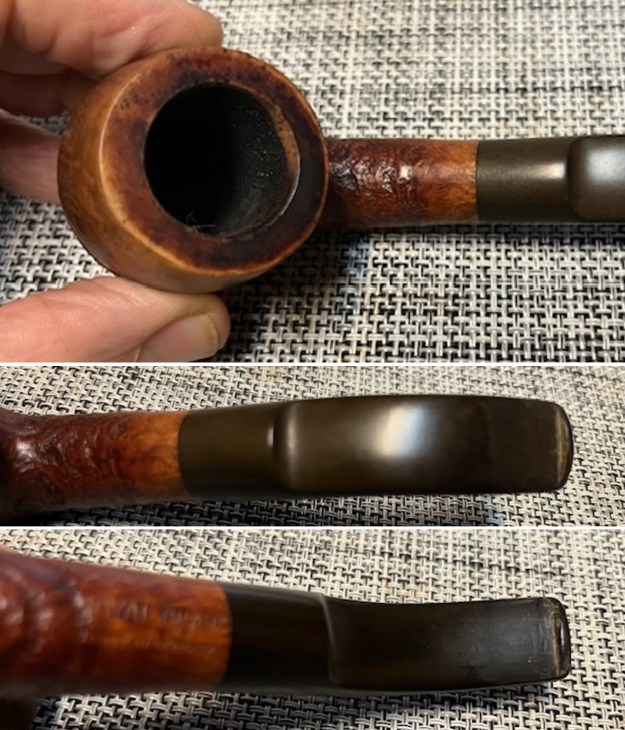

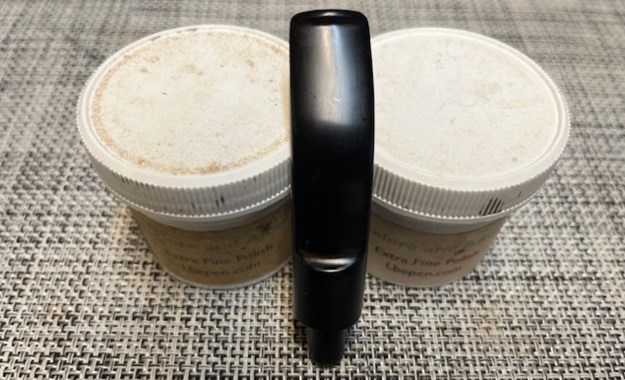

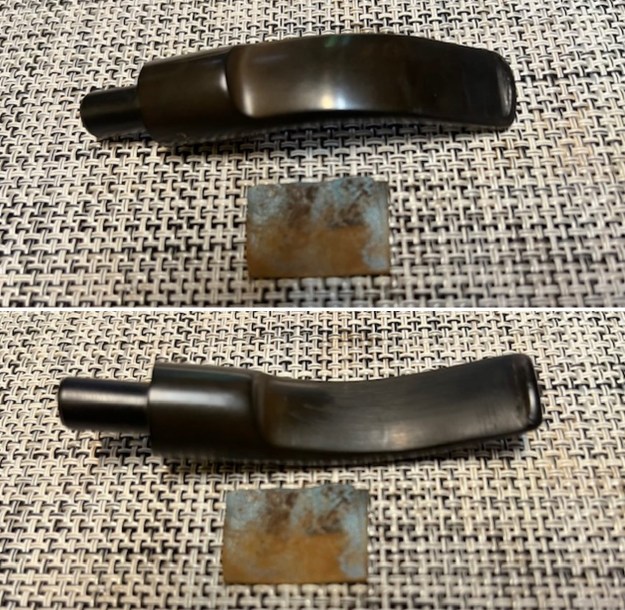

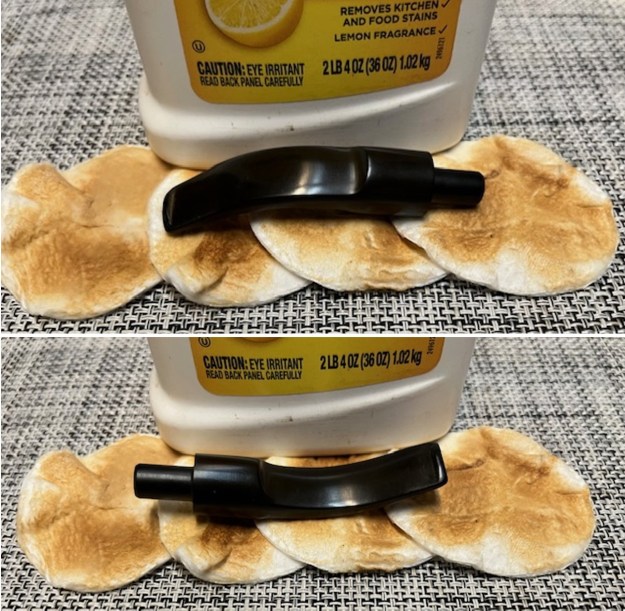

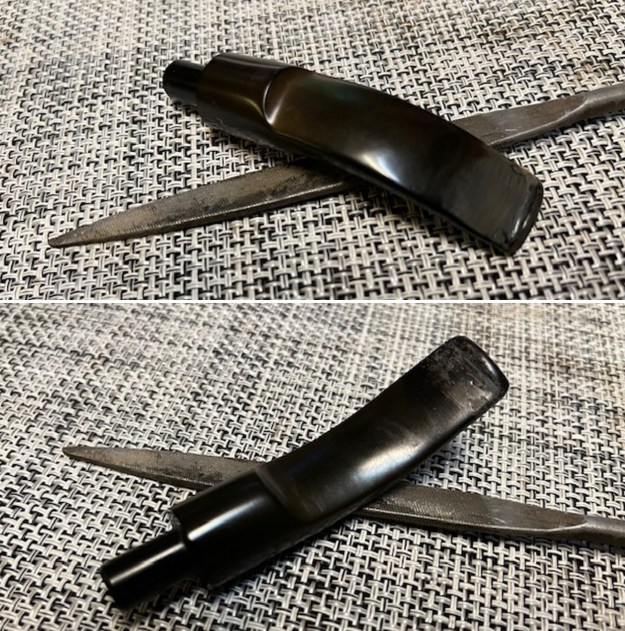

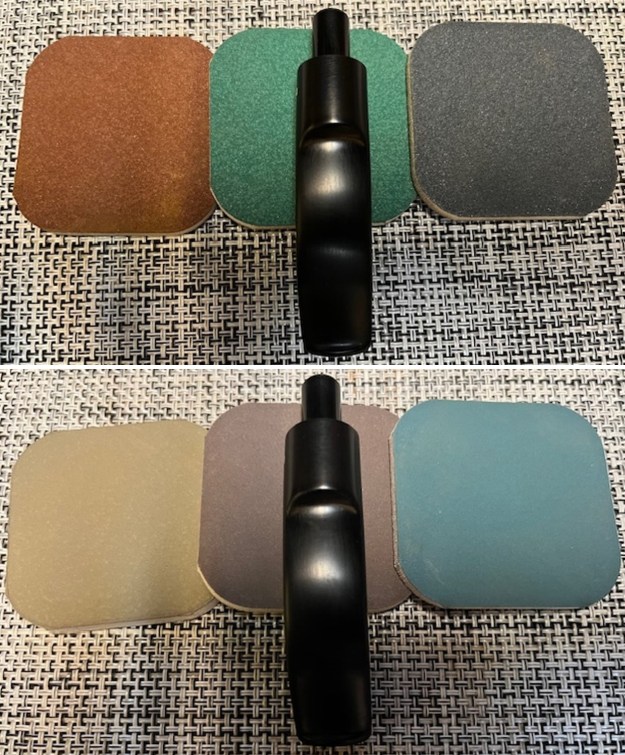

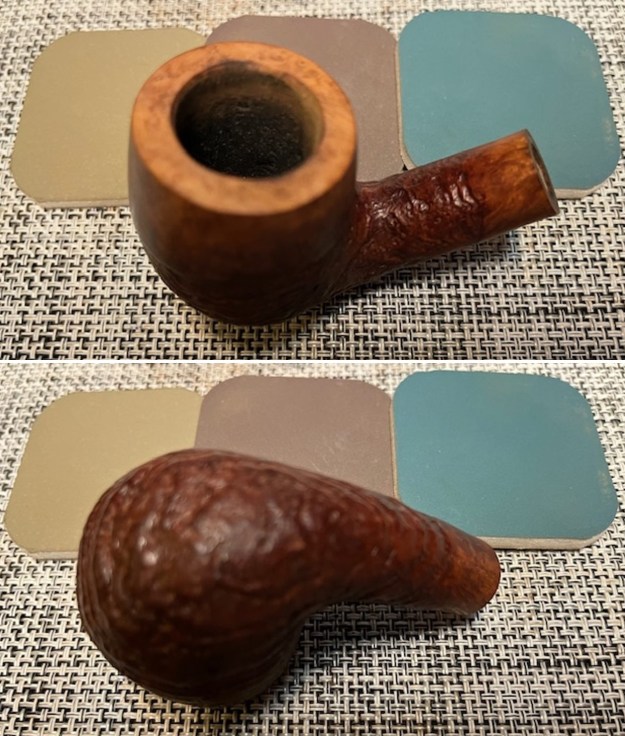

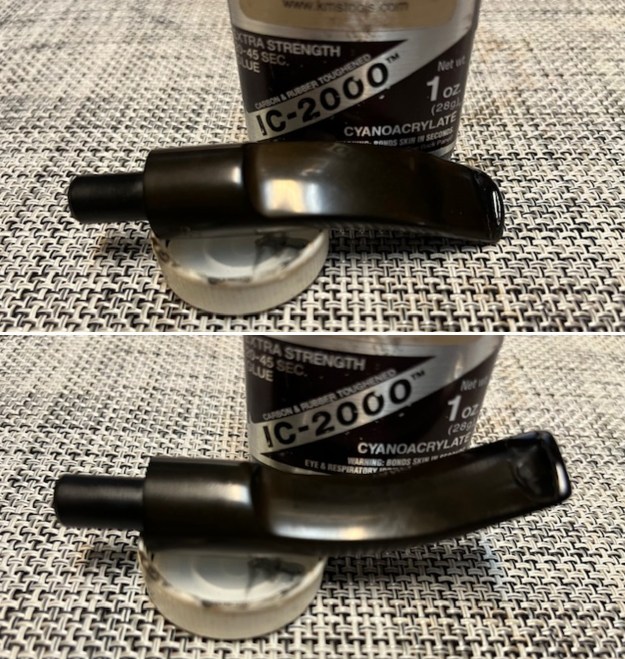

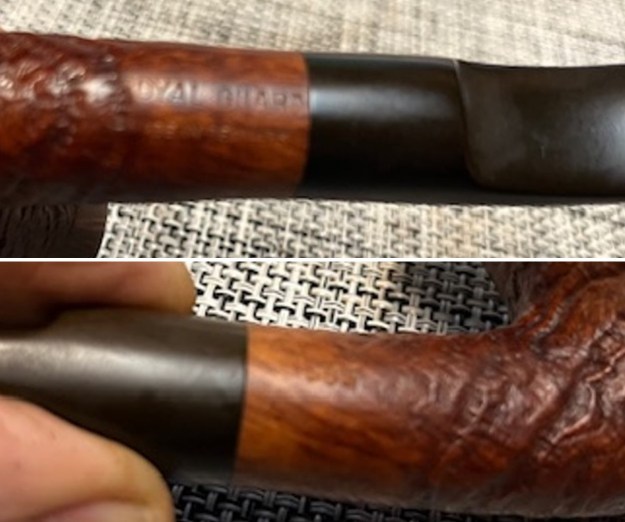

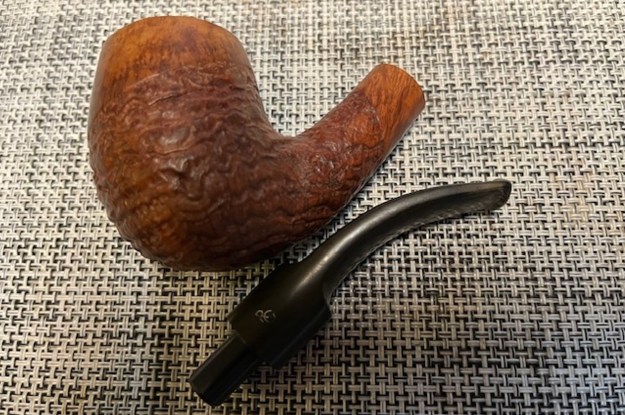

Jeff cleaned up the pipe for me. He reamed the bowl with a PipNet pipe reamer and cleaned it up with a Savinelli Fitsall Pipe Knife. He scrubbed the exterior with Murphy’s Oil Soap and a tooth brush to clean off the grime off the finish and the overflow of lava on the rim top. The cleaning had removed the grime on the rim top. He cleaned up the internals of the shank, mortise and stem with pipe cleaners, cotton swabs and alcohol to remove all of the oils and tars in the pipe. He soaked the stem in Briarvilles Pipe Stem Deoxidizer and was able to remove much of the oxidation, calcification. When it arrived here in Vancouver it was a clean pipe and I knew what I had to work with. I took photos of it before I started my part of the restoration. I took a photo of the rim top and the stem to show their condition once it arrived in Canada. Jeff was able to clean up the cake and the lava overflow that was shown in the rim and bowl photos above. The rim top and the inner edge of the bowl looked very good – just some darkening. The stem looked better and the tooth marks and chatter on both sides near the button. The stamping was clear and readable as noted above. I removed the stem from the shank and took a photo to give a sense of the proportions of this pipe. I started my work on the pipe by addressing the darkening on the rim top and inner edge of the bowl. I used a folded piece of 220 grit sandpaper to remove the darkening and prepare it for deeper polishing.I polished the rim top and the smooth portions of the briar with sanding pads. I dry sanded it with 1500-12000 grit micromesh sanding pads. I wiped the bowl down after each sanding pad with a damp cloth. I rubbed the briar down with Before & After Restoration Balm. I worked it into the briar with my fingertips. The product works to clean, enliven and preserve the briar. I let it sit for 10 minutes while I worked on the stem. After the time passed I buffed it with a cotton cloth to deepen the shine. The briar really comes alive with the balm. I set the bowl aside and turned my attention to the stem. I started by addressing the tooth marks on the surface of the stem on both sides. I “painted” the surface of the stem with the flame of a lighter to lift them. I was able to lift them significantly. I scrubbed the stem surface with Soft Scrub cleanser to remove the oxidation in the tooth marks. I used a rubberized black super glue to fill in the remaining marks. I set the stem aside to let the repairs cure. Once it cured I used a small file to flatten the repair and recut the button edge. I used a folded piece of 220 grit sandpaper to smooth out the repairs. I touched up the RG stamp on the left side of the stem with some white acrylic fingernail polish. I scraped off the excess and buffed it lightly with a 1000 grit sanding pad. It is clear and readable.I started working on polishing the stem with my 320-3500 grit sanding pads. I was able to remove the tooth marks and chatter on both sides ahead of the button. It looked much better at this point in the process. I polished the stem with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the stem down after each sanding pad with Obsidian Oil. I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a coat of Obsidian Pipe Stem Oil. It works to protect the stem from oxidizing. I set it aside to dry. This beautiful Stanwell Second Danish Made Royal Guard 585 Bent Billiard with a saddle vulcanite stem turned out very nice. The mix of brown stains on the smooth and sandblast portions highlights the great grain around the bowl sides and bottom. The finish on the pipe is in excellent condition. I put the stem back on the bowl and carefully buffed the pipe with Blue Diamond on the buffing wheel. I gave the bowl and stem multiple coats of carnauba wax on the buffing wheel and followed that by buffing the entire pipe with a clean buffing pad. I hand buffed the pipe with a microfiber cloth to deepen the shine. The finished Royal Guard Bent Billiard is very nice and feels great in the hand. Give the finished pipe a look in the photos below. It is a nice pipe whose dimensions are Length: 5 inches, Height: 2 inches, Outside diameter of the bowl: 1 ¼ inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 48 grams/1.69 ounces. Thanks for walking through the restoration with me as I worked over another beautiful pipe. This one will be going on the rebornpipes store, in the Danish Pipe Makers Section shortly. If you are interested in adding it to your collection let me know by message or by email to slaug@uniserve.com. Thanks for your time.
