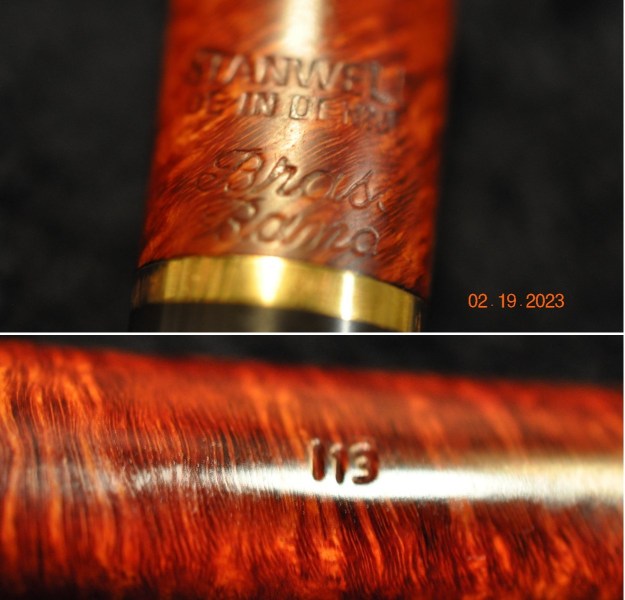

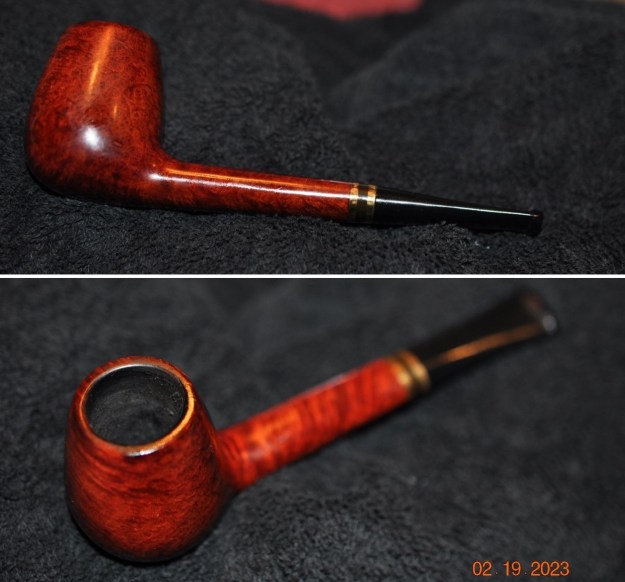

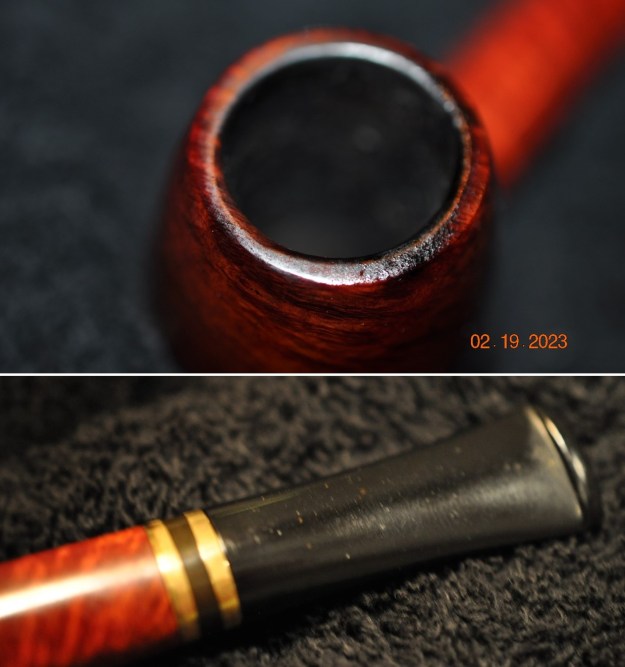

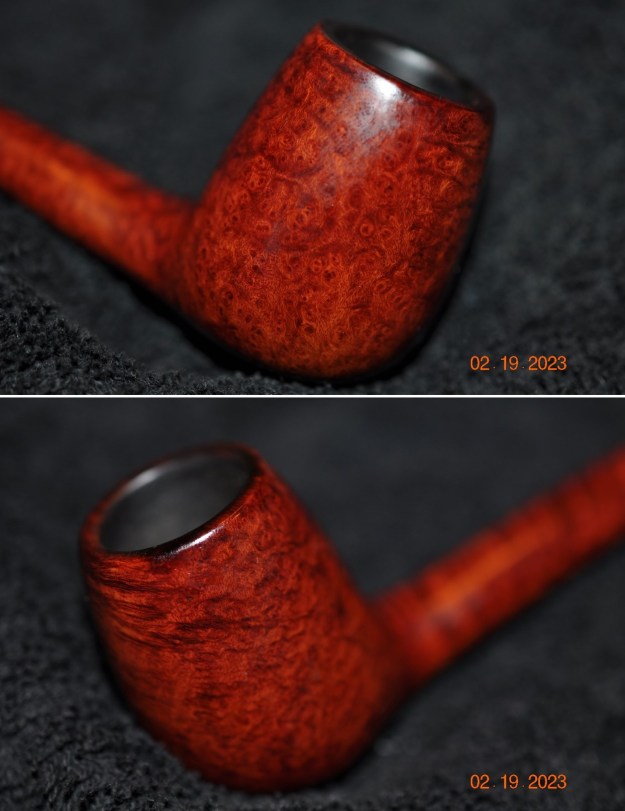

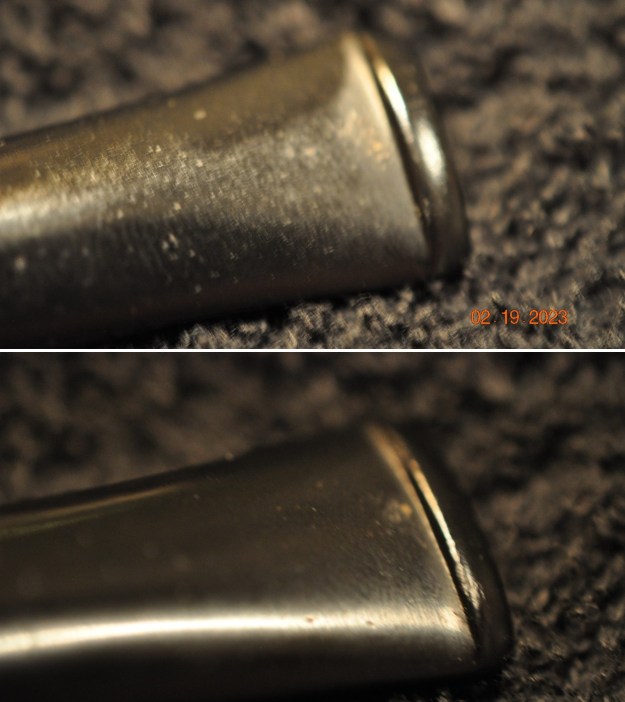

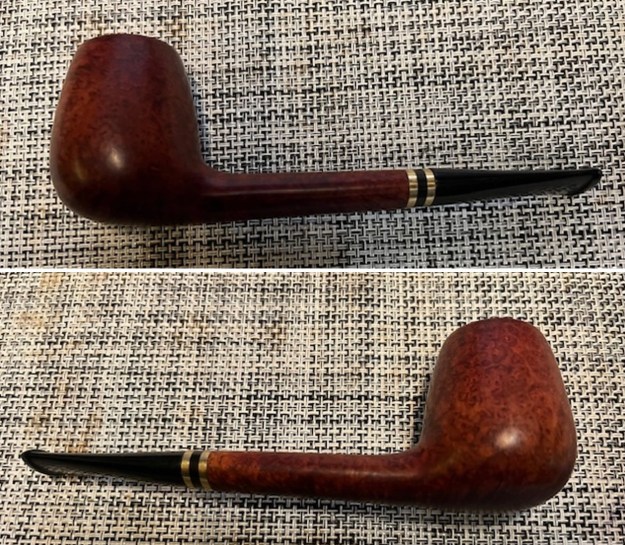

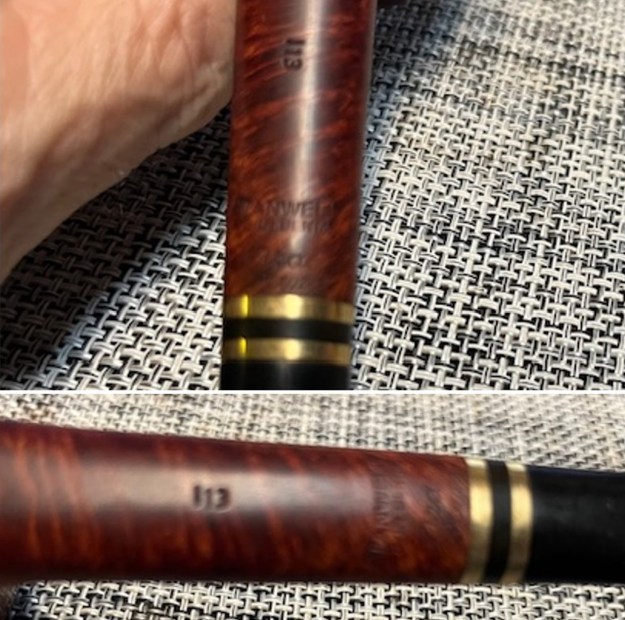

I moved on to work on another pipe. The next one I chose was another Stanwell that came to us from our connection in Copenhagen, Denmark 01/26/2023. The stamping on the pipe was very clear and readable. On the underside of the shank it is stamped with a shape number 113 mid-shank. Next to the shank/stem joint it reads Stanwell [over] Made in Denmark [over] Brass Band. The taper stem did not have the logo but looked to be original (odds are it is a replacement stem). The bowl had a moderate cake and there was some lava, dust and debris on the rim top and inner edges. The finish was in okay condition with oils and grime ground into the briar around the bowl sides. The taper stem was vulcanite. It had some light oxidation around the stem. There were light tooth marks on the top and underside next to the button. It showed a lot of promise through the grime. Jeff took photos of the pipe as he saw it at this stage of his clean up. The next photos of the rim and the shank show the condition of the pipe at its arrival in Idaho. You can see the cake in the bowl and the lava on the rim top and inner edge. The stem looked good with light marks on the top and underside at the button edge. Jeff took photos of the rich stain highlighting the grain on the sides and heel of the bowl. It really is a stunning piece of briar. The contrast stain really makes it stand out clearly. The next photos show the stamping on the underside of the shank. It is clear and readable as noted above.Before I started my work on the pipe I wanted to see if I could find any information that would help me get a sense of the line. I turned to Pipephil to see if there was any listing on the Brass Band Line (http://pipephil.eu/logos/en/logo-stanwell.html). There was nothing listed.

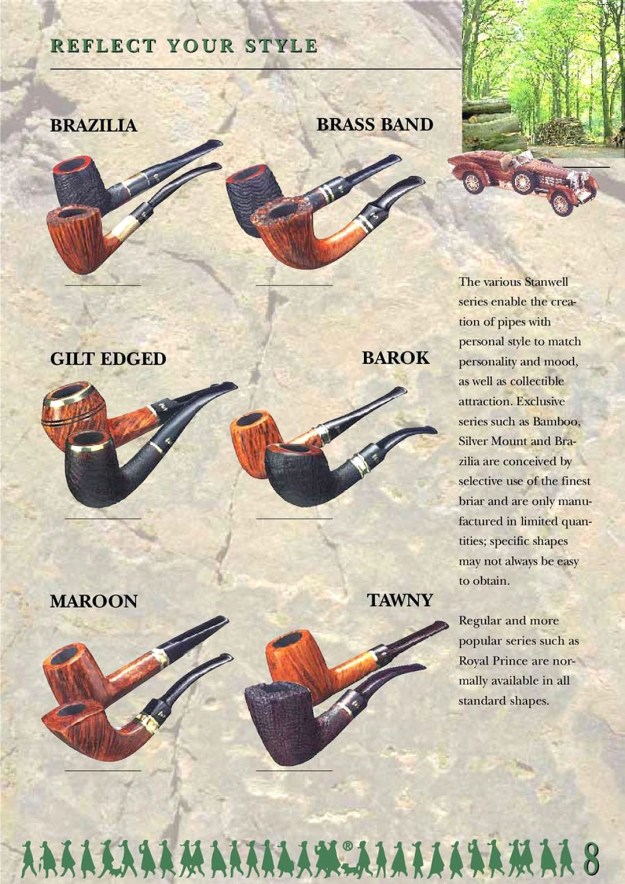

I then turned to Pipedia (https://pipedia.org/wiki/Stanwell) for more information. The article is great and gives a lot of history on the brand. There was also a catalogue page courtesy of Doug Valitchka that showed the line. I have included that below.I turned to Pipedia and looked at the Shape Numbers and Designers article to see if there were any specifics (https://pipedia.org/wiki/Stanwell_Shape_Numbers_and_Designers) that could help. This is what I found there. The shape number 113 is designated as a Canadian with conical bowl. Now it was time to work on the pipe.

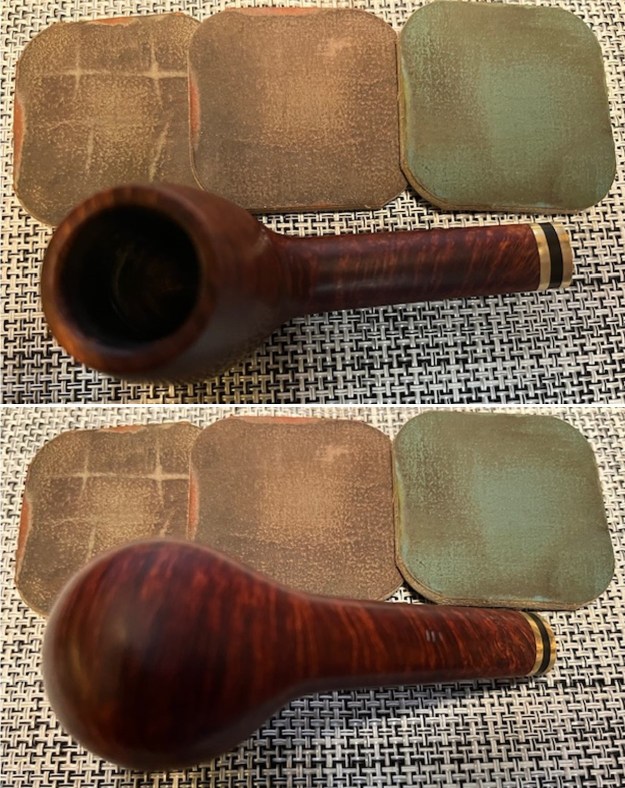

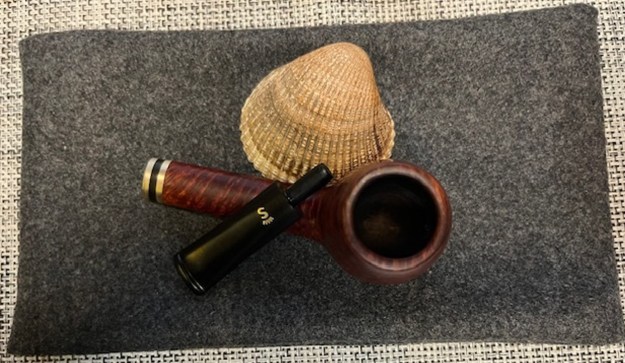

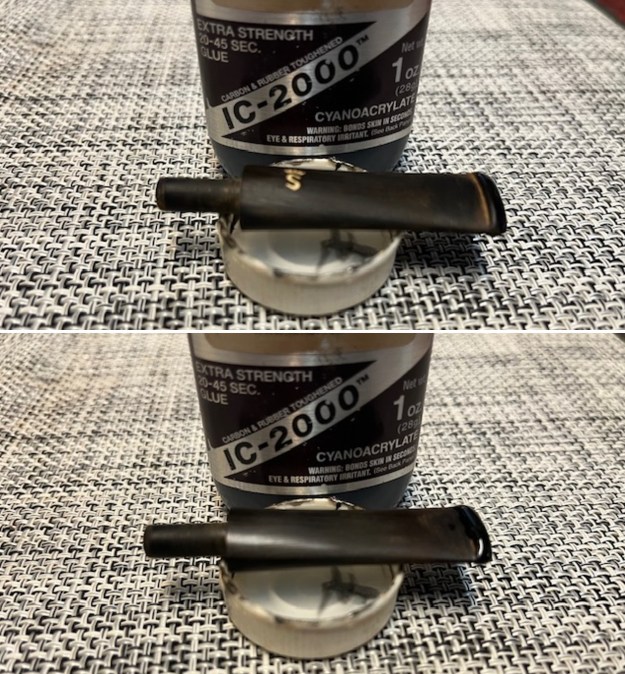

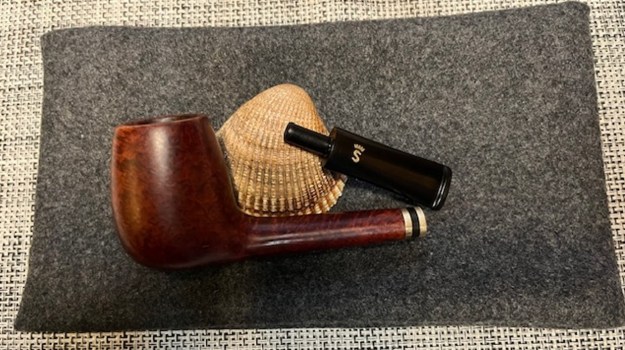

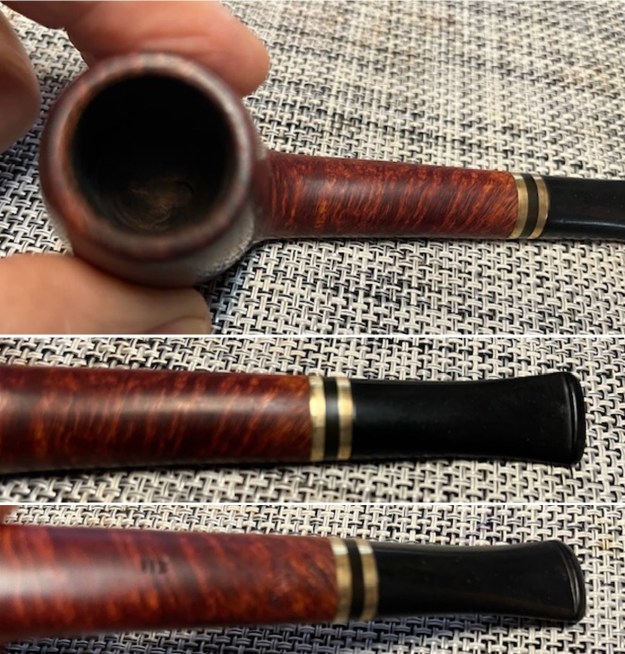

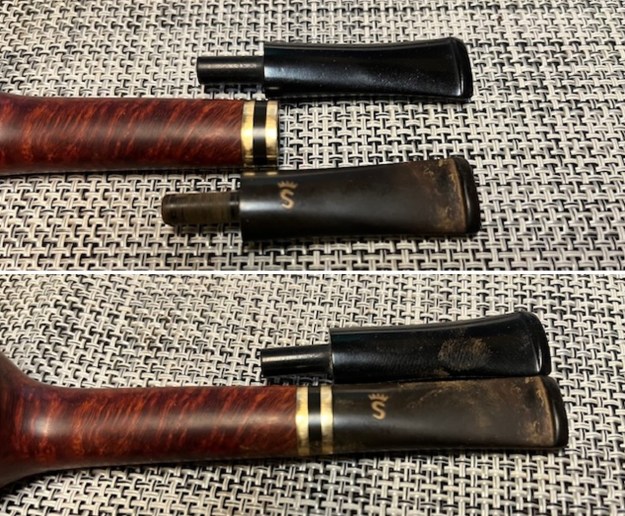

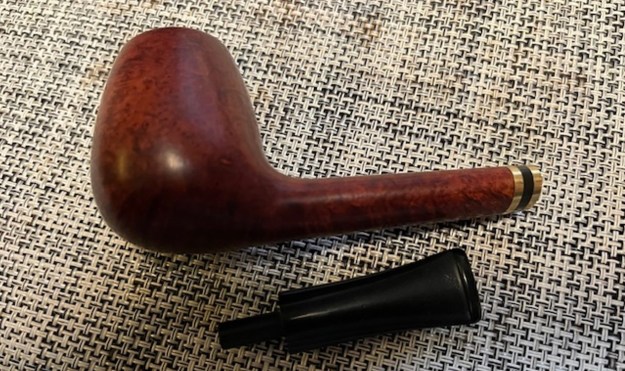

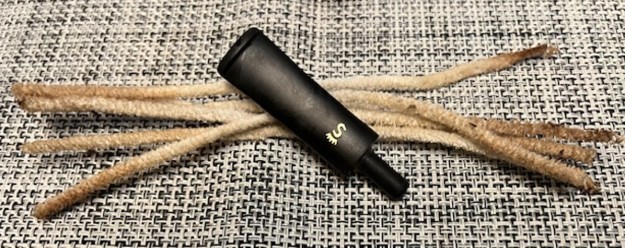

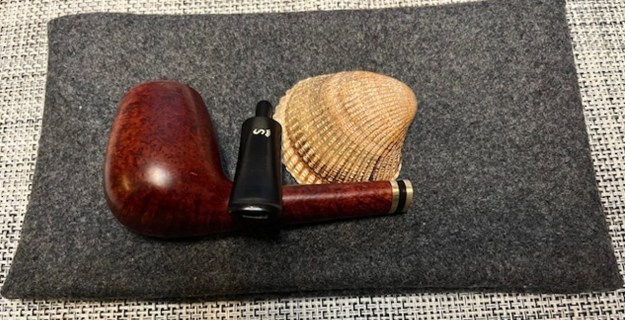

Jeff had done a great job cleaning up the pipe as usual. He reamed the pipe with a PipNet reamer and cut back the cake back to the bare briar. He cleaned up the walls with a Savinelli Fitsall Pipe Knife. He scrubbed the interior of the bowl and shank with pipe cleaners, cotton swabs and alcohol to remove the tars and oils. He scrubbed the exterior of the pipe with Murphy’s Oil Soap and a tooth brush to remove the grime from the finish. He worked on the rim top lava and darkening with the soap and tooth brush. He scrubbed the inside of the stem with alcohol and pipe cleaners. He scrubbed the exterior with Soft Scrub and then soaked it in Briarville’s Pipe Stem Deoxidizer. He washed it off with warm water to remove the Deoxidizer. The pipe looked far better when it arrived. I took photos of the bowl and rim top as well as the stem to show how clean they were. You can see that rim top and edges look very good. There is some slight darkening on the rim top that should come off with polishing. The stem is clean and the tooth and chatter on both sides ahead of the button is very light. I think I have a Stanwell Canadian stem with a brass Crown S so I will be replacing this one. I took photos of the stamping on the shank. The stamping is readable as noted above.I took the stem off the shank and took a photo to give a sense of the flow and proportion of the pipe. It is a beautiful looking pipe with a bowl Stanwell describe as Conical but that I would describe as a Brandy!I started my work on the pipe by polishing the briar with 1500-12000 grit micromesh sanding pads. I wiped the bowl down after each sanding pad with a damp cloth. I rubbed the briar down with Before & After Restoration Balm. I worked it into the briar with my fingertips. The product works to clean, enliven and preserve the briar. I let it sit for 10 minutes while I worked on the stem. After the time passed I buffed it with a cotton cloth to deepen the shine. The briar really comes alive with the balm. I set the bowl aside and turned my attention to the stem. I went through my stems and fount the brass Crown S stem that would work for the Canadian. I worked over the tenon a little bit to clean off the grime. It fit well. The stem was dirty but had light tooth marks.I cleaned off the surface of the stem and button with a cotton pad and some Soft Scrub. It removed the grime and the calcification. I wiped it down with a damp cloth to remove the dust. I filled in the tooth marks on the button surface and the button edge with black CA glue. I set it aside to let the repairs cure.Once the repair cured I sanded the surface of the stem and the button with sanding pas. I used 350-3500 grit sanding pads to smooth out the surface and adjust the fit on the shank. The pads work very well and the stem looked much better.I cleaned out the airway in the stem I was working on with pipe cleaners and isopropyl alcohol. It was quite dirty but I expected that when I took it from my can of stems.I polished the stem with micromesh sanding pads – dry sanding with 1500-12000 grit pads. I wiped the stem down after each sanding pad with Obsidian Oil.I polished it with Before & After Pipe Stem Polish – both Fine and Extra Fine. I gave it a coat of Obsidian Pipe Stem Oil. It works to protect the stem from oxidizing. I set it aside to dry. I am excited to put the finishing touches on this Stanwell Brass Band 113 Made in Denmark Canadian. I am so glad I happened to have a Stanwell Crown S Brass stem that was a perfect fit and actually was the correct stem. I put the pipe back together and buffed it with Blue Diamond on the buffing wheel. I gave the bowl and the stem multiple coats of carnauba wax. I buffed the pipe with a clean buffing pad to raise the shine and hand buffed it with microfiber cloth to deepen the shine. It is fun to see what the polished bowl looks like with the silver plaquette and the polished vulcanite stem was beautiful. This Made in Denmark Stanwell Brass Band 113 is nice looking and the pipe feels great in my hand. It is light and well balanced. Have a look at it with the photos below. The dimensions are Length: 5 ½ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 inch, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.31 ounces/37 grams. It is a beautiful pipe and one that I will be putting in the Danish Pipemaker Section on the rebornpipes store. Thanks for walking through the cleanup with me as I worked over this pipe.

As always, I encourage your questions and comments as you read the blog. Thanks to each of you who are reading this blog. Remember we are not pipe owners; we are pipe men and women who hold our pipes in trust until they pass on into the trust of those who follow us.
