Repairing a stem on a beautiful little Dunhill Bruyere 3206 Pot

Blog by Steve Laug

On the work table at the moment is a beautiful little Dunhill Bruyere pot. It had some serious gnaw marks on the stem. There were tooth dents that were deep on the top and the bottom sides of the stem. Fortunately they did not penetrate the airway. The pipe is in great shape. The finish was in excellent shape. The rim was clean but had been lightened quite a bit. It had hardly been smoked so I am wondering if somewhere along the way it had been used as a prop and the individual had just bitten down hard!

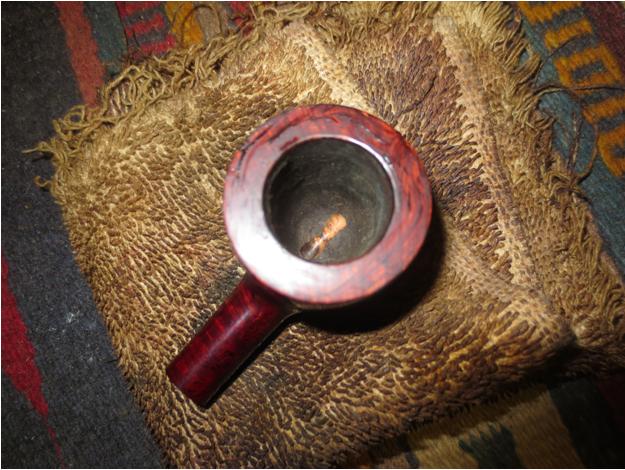

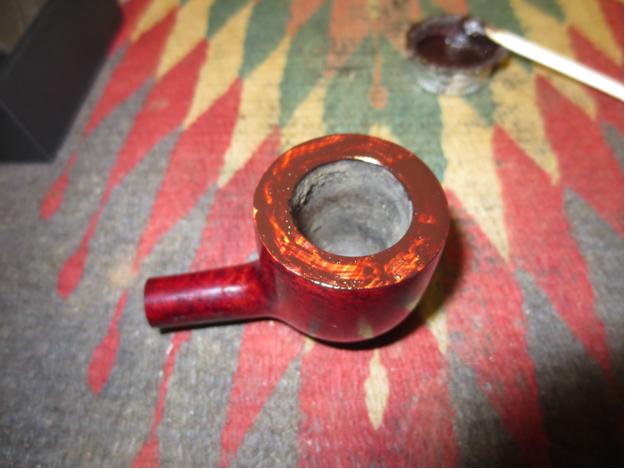

I removed the stem from the bowl and gave the rim a quick clean and then a coat of an opaque aniline based oxblood stain that matches the Bruyere finish. I flamed it and set it aside to dry while I turned my attention to the damaged stem (unfortunately I was in grand rush to work on the stem and the pipe and forgot to take photos of the pipe when I received it. Instead you will have to trust the descriptions and look through the repairs).Dun1

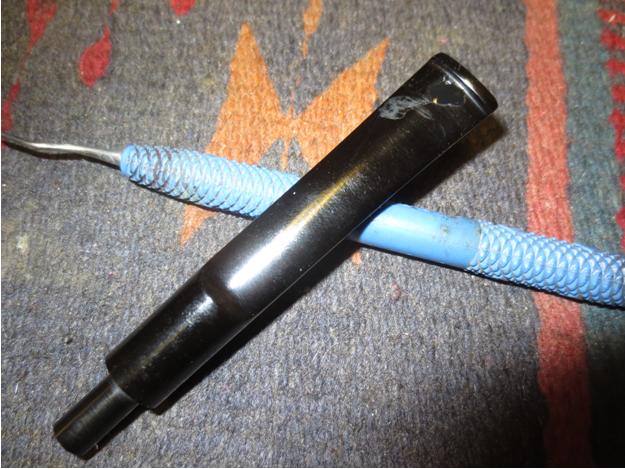

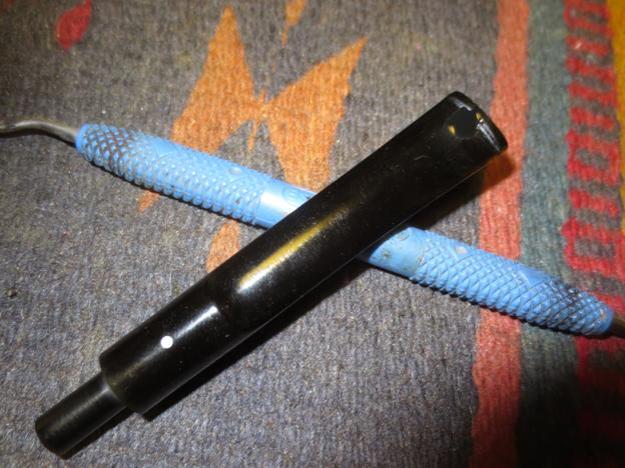

Dun2 I used a dental pick to clean out the debris in the deep dents and the crack along the edge of the button. I used the heat gun to raise the dents as much as possible but sadly they were of the nature that the heat did not do much to raise them. I then wiped down the dents and crack with alcohol to remove any debris in the area to be repaired. I filled in the dents on both sides of the stem with black super glue. You can see in the next two photos the bubble of super glue next to the edge of the button. I decided to let it cure rather than use an accelerator so I set it aside to do so.Dun3

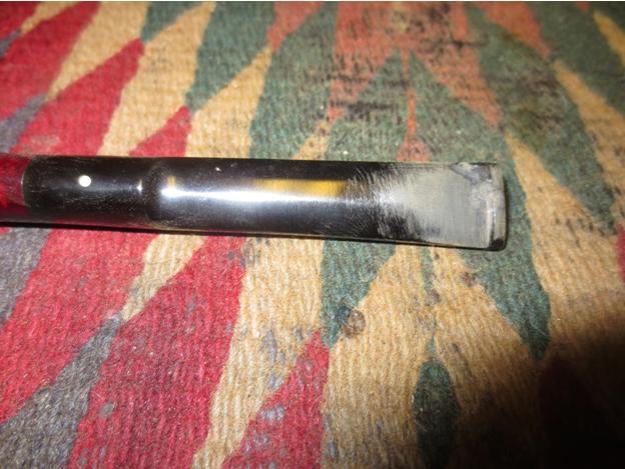

Dun4 Once the repair had cured (several hours later) I sanded the patches with 220 grit sand paper to blend them into the surface of the stem. I sanded the repair to the button as well to blend it in without changing the profile of the end of the stem.Dun5

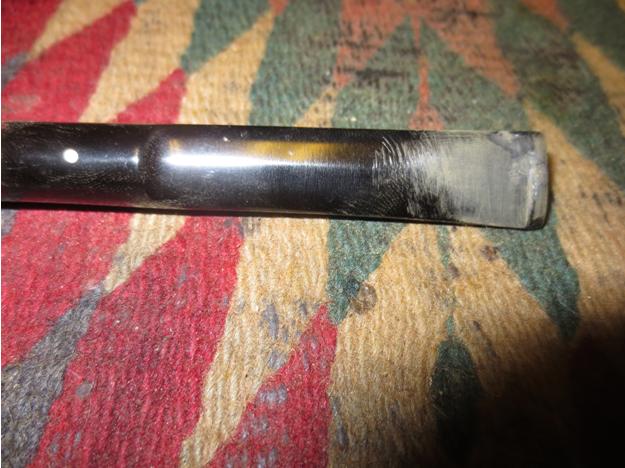

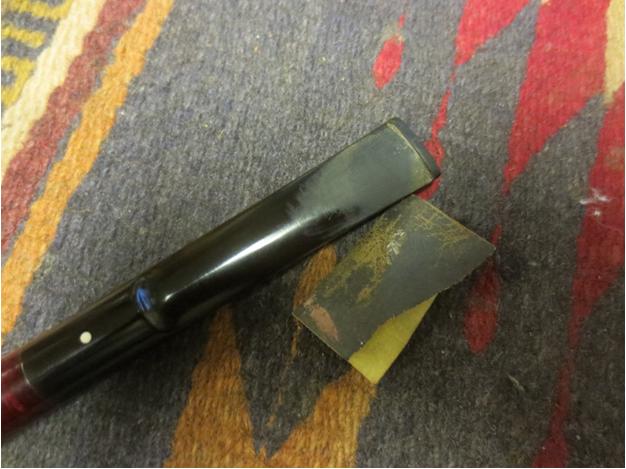

Dun6 I sanded it with a medium and a fine grit sanding sponge to minimize the scratches left behind by the sandpaper and to further blend in the repair. I used a needle file to sharpen the edge of the button and then sanded it with 400 grit wet dry sandpaper and a little bit of water. You can see from the next two photos that the patches are blending into the stem nicely.Dun8

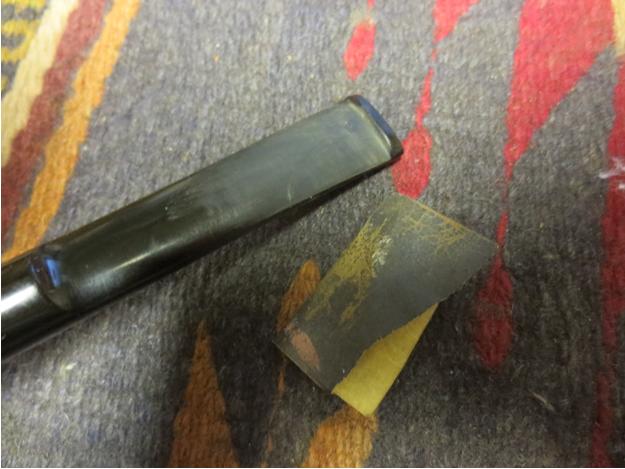

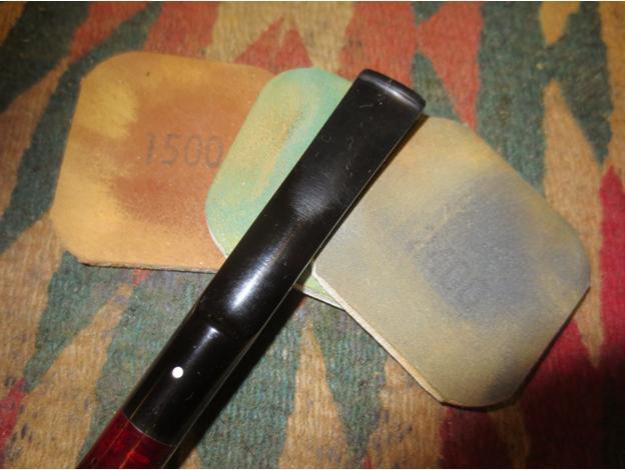

Dun9 I moved on to wet sanding the stem with 1500-2400 grit micromesh sanding pads. The scratches are disappearing and the patches are blending in to the point that if you did not know where they are you would not see them. I rubbed the stem down with Obsidian Oil before going further with the micromesh pads.Dun10

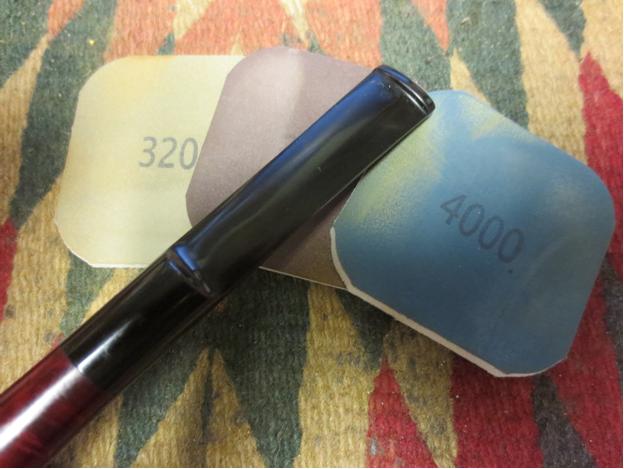

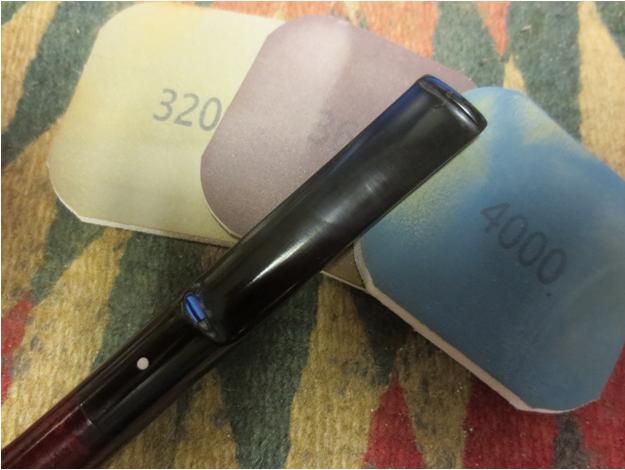

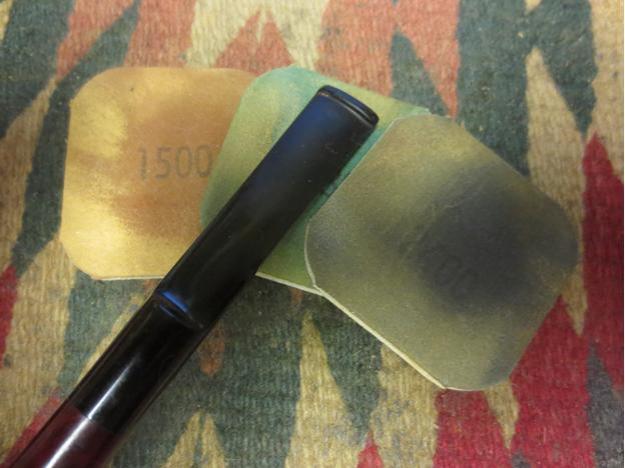

Dun11 I wet sanded the repairs with 3200-4000 grit micromesh pads to further blend in the repaired areas. I spent extra time working on the repair to the small crack on the top of the button. I wanted that spot to blend in well and be smooth to the touch.Dun12

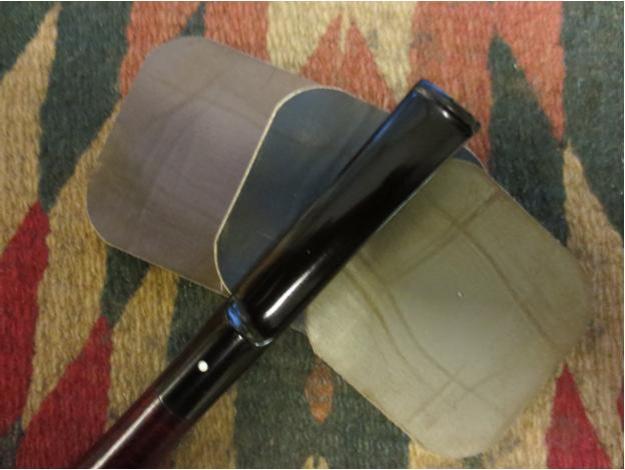

Dun13 The repair to the top of the button and along the top side of the button needed a little more work to get them to be less visible and more blended. The repair on the underside was really looking good. I cleaned up the repair on the button and then used some clear super glue applied with the tip of a dental pick. Once it cured I sanded it with 220 grit sandpaper and then the same set of wet dry sandpaper and micromesh pads that I commented on above. Finally the repair blended well.Dun14

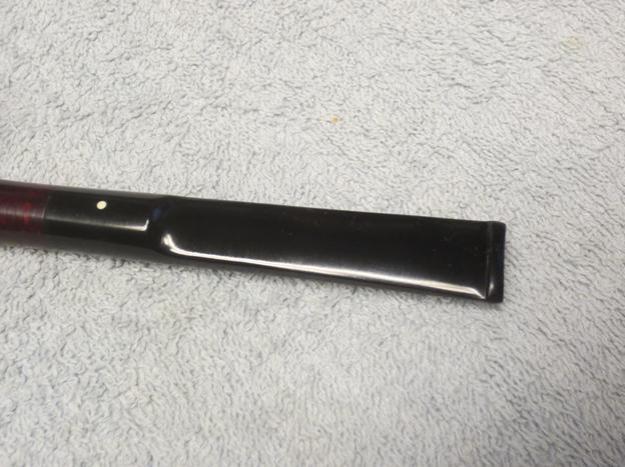

Dun15 I buffed it with Blue Diamond and gave it several coats of carnauba wax. I buffed it with a clean flannel buff and then hand buffed it with a microfibre cloth.Dun16

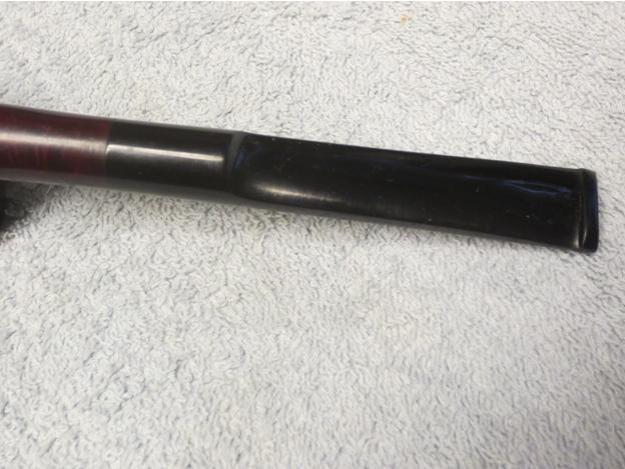

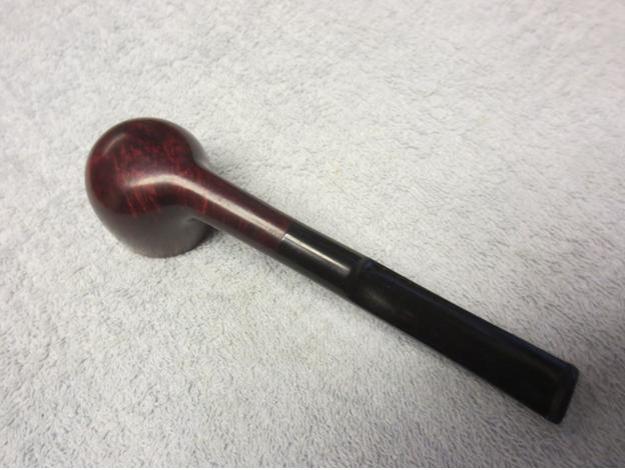

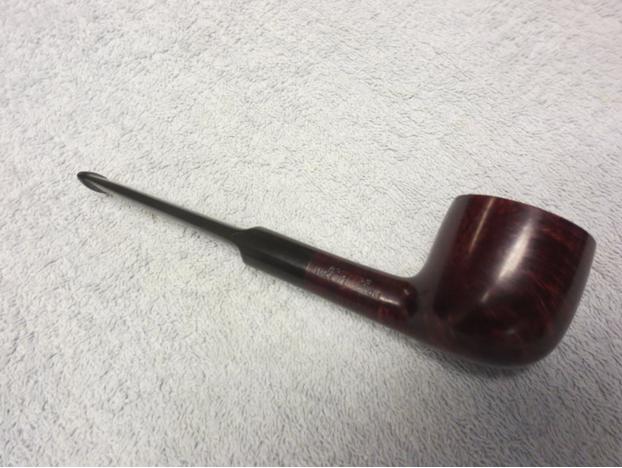

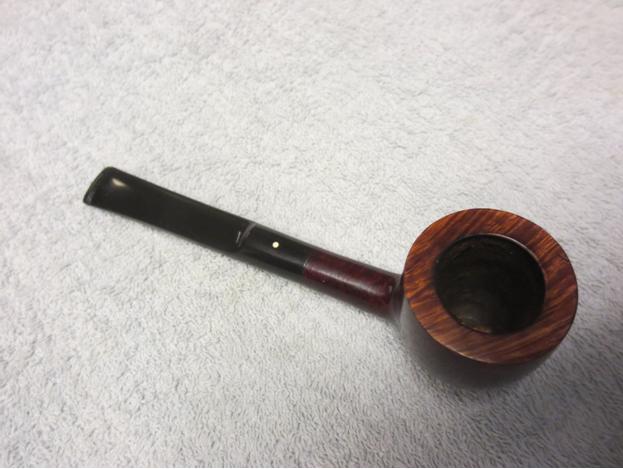

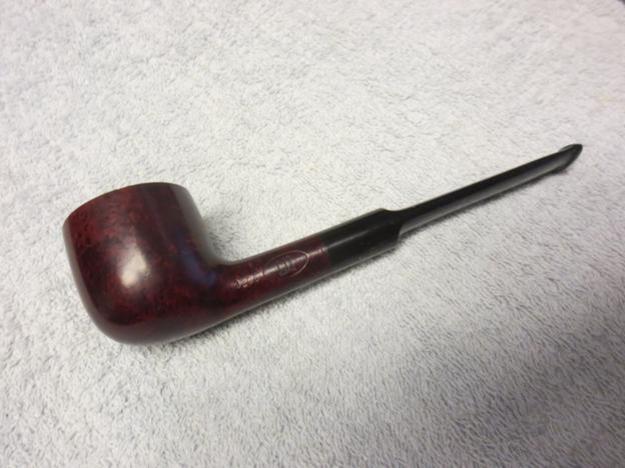

Dun17 The finished pipe is shown below. The darkening of the stain on the rim and the repaired stem are finished and the pipe is almost ready to send back to the owner.Dun18




Fitting a Bowl to an Old Bakelite Base and Stem

Blog by Steve Laug

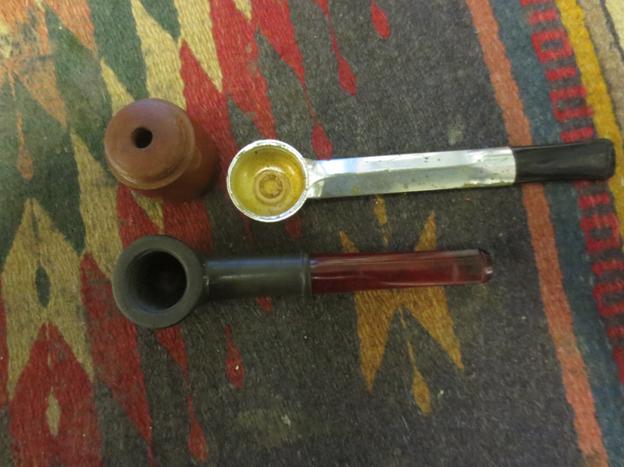

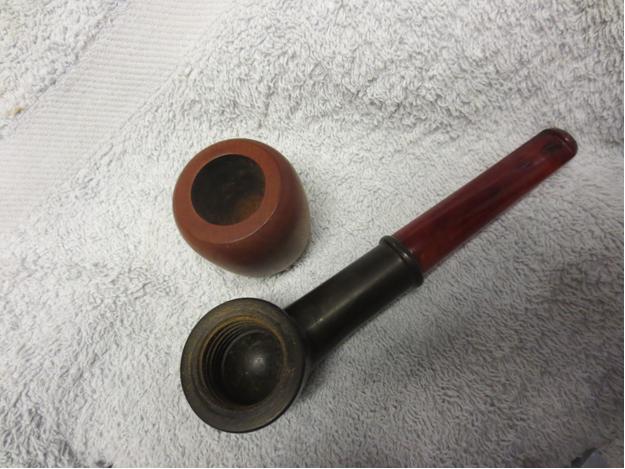

When I was in Idaho recently I ended up finding a lot of pipes and parts that I knew would come in handy in the months ahead. One of the parts I found was a no name Bakelite stem and base that was threaded for a bowl. There was no bowl to be found for it. The base is dark grey Bakelite and the stem is red Bakelite (maybe Redmanol). The threaded tenon was also Bakelite which surprised me. It was threaded to fit into the stem and into the shank which made adjusting the fit really simple. A turn of the tenon into the shank or into the stem is all it took to align the stem with the shank. I have always liked the looks of these old timers so whenever I find one I buy it. I figured somewhere along the way I would find a bowl for it. If not I could at least make a pressure fit bowl for it. I have a long weekend ahead of me with some time off so I decided to fiddle with it. I also had a plastic Falcon style stem that I decided would be scrap except for the bowl. The bowl is not briar but rather Maplewood I believe. It is hard and barely smoked so it would be a good candidate for a pressure fit bowl for the Bakelite pipe.Bakelite1 The bowl from the plastic Falcon style donor pipe had a threaded bowl bottom that was larger than the base of the Bakelite pipe. It would take some reworking to make it work. The bowl also had a thick varnish coat that was shiny and plastic looking like the base. That finish would have to go before it fit the look of the pipe I was working on.Bakelite2

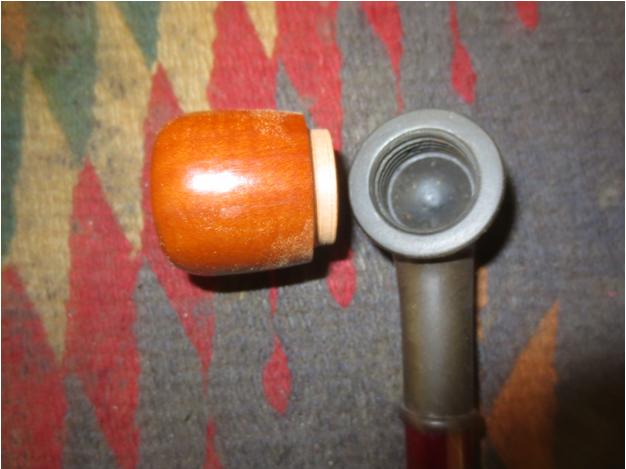

Bakelite3 I reduced the diameter of the bowl bottom and removed the threads with a Dremel and sanding drum. I held the Dremel against the base and let it go around the base of the bowl with even pressure so that I could keep the base round. It took quite a few turns of the drum before I was able to get close to a fit. I finished by sanding the base of the bowl with a wood rasp to make sure that it sat flat against the Bakelite base and would also press into the threaded base.Bakelite4

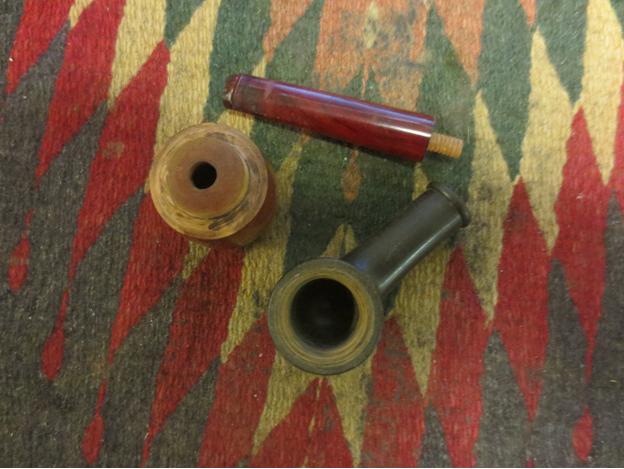

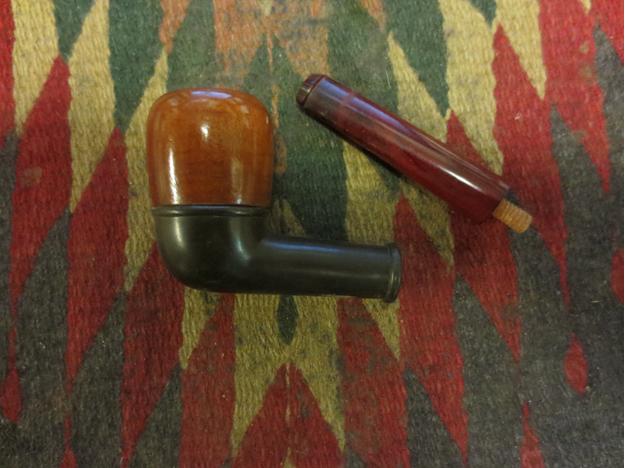

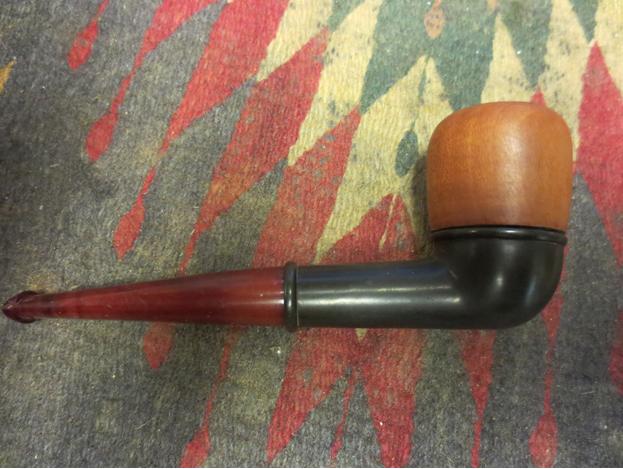

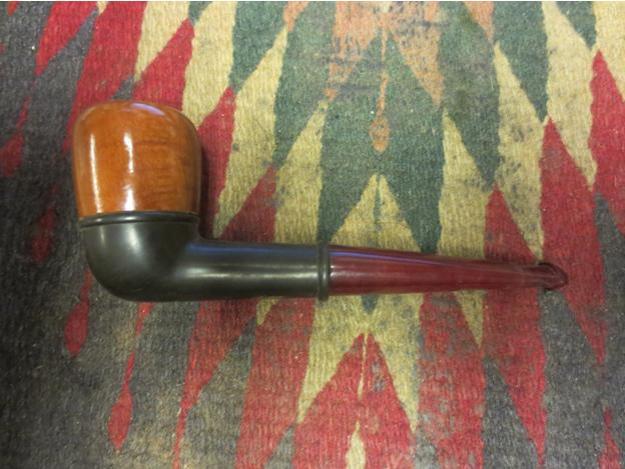

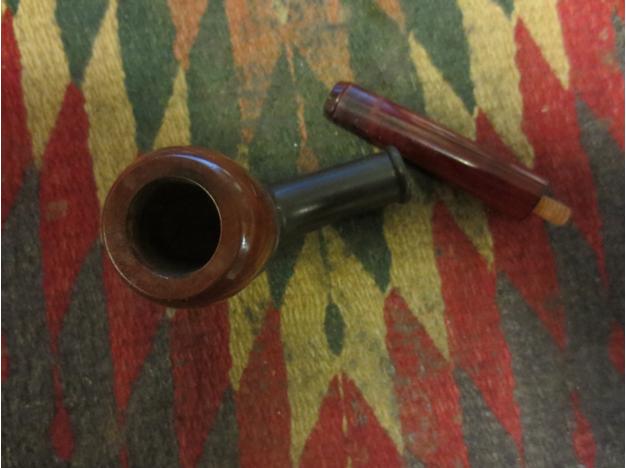

Bakelite5 I pressed the bowl into place in the base and took the next two photos below. I then threaded the stem on the base and took a few more photos to give me a good idea of what the pipe would look like once I finished with the fit.Bakelite6

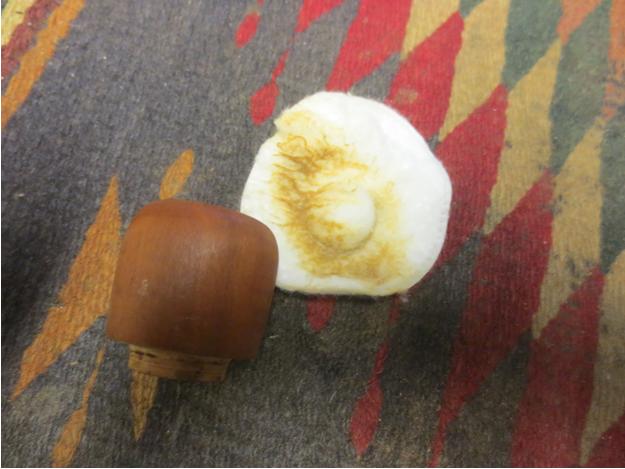

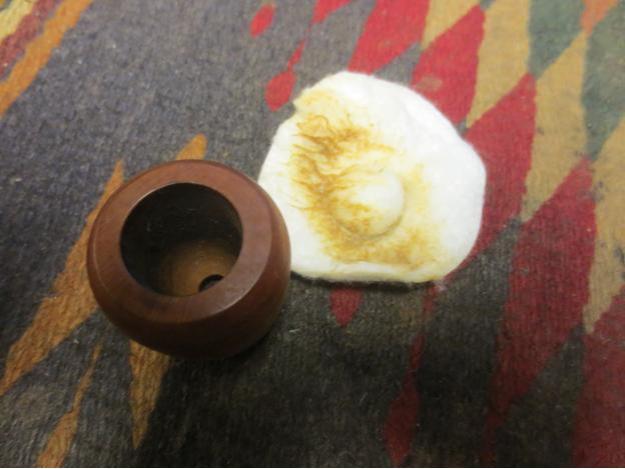

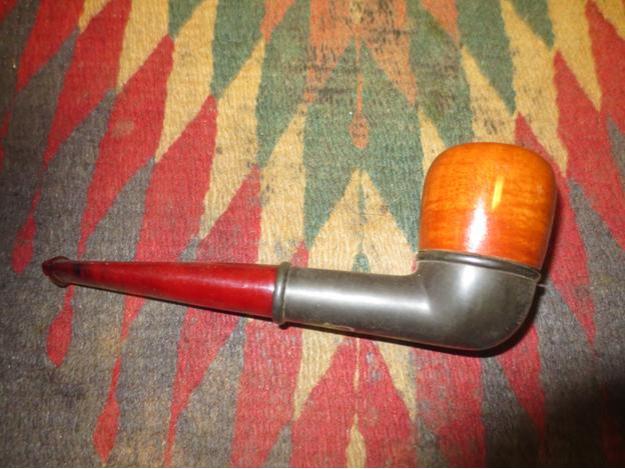

Bakelite10 I removed the bowl from the base and wiped it down with acetone on a cotton pad to remove the finish. I wanted a natural finish on the bowl so I removed the varnish coat and took of the plastic looking shine.Bakelite11

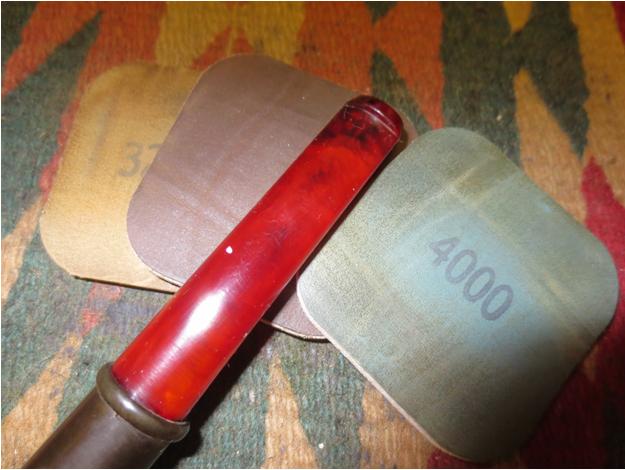

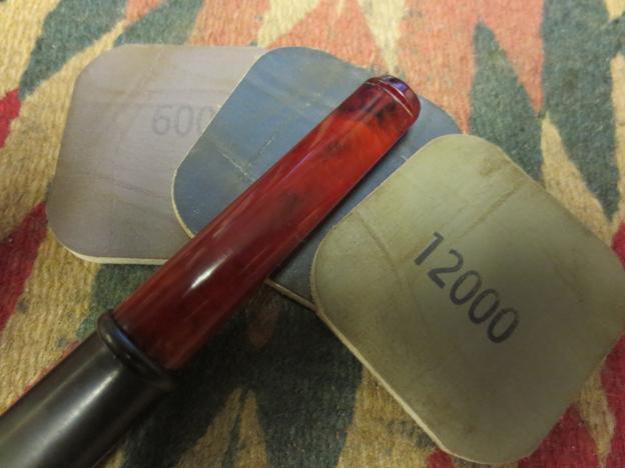

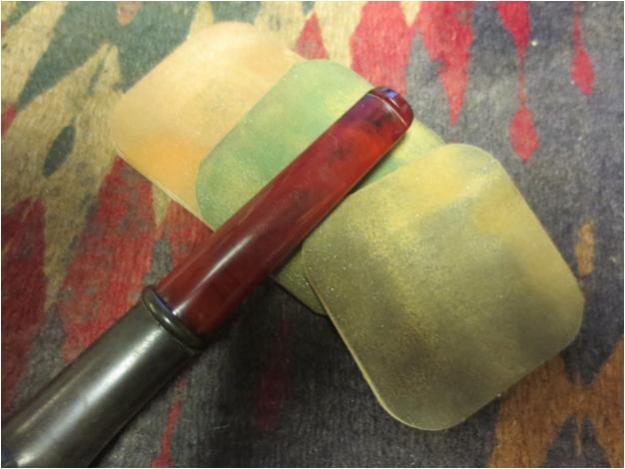

Bakelite12 I wet sanded the Bakelite stem with micromesh pads – wet sanding with 1500-2400 grit pads and dry sanding with 3200-4000 grit pads and finished sanding it with 6000-12000 grit pads. I rubbed it down with Obsidian Oil after sanding with each set of three pads. I also rubbed down the base with Obsidian Oil.Bakelite13

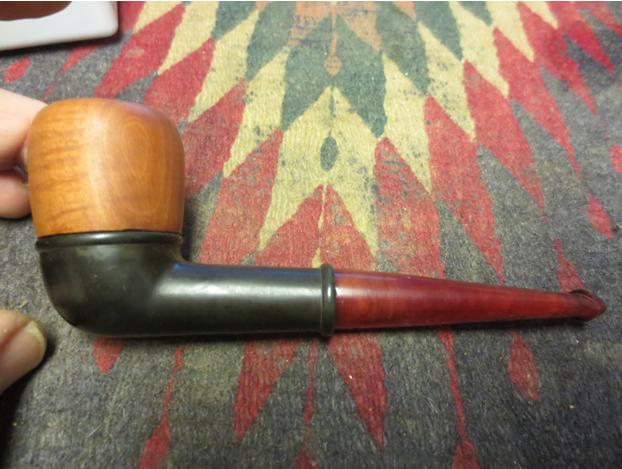

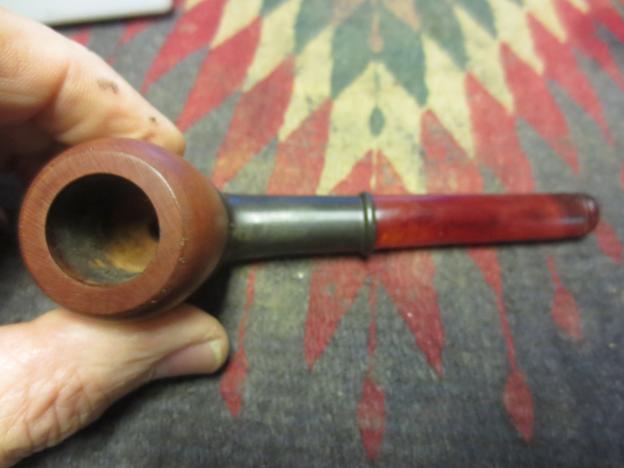

Bakelite15 I rubbed down the bowl with a light coat of Olive oil and let it dry into the wood. I gave the stem and the bowl a light had buff with a microfibre cloth and then took the following photos.Bakelite16

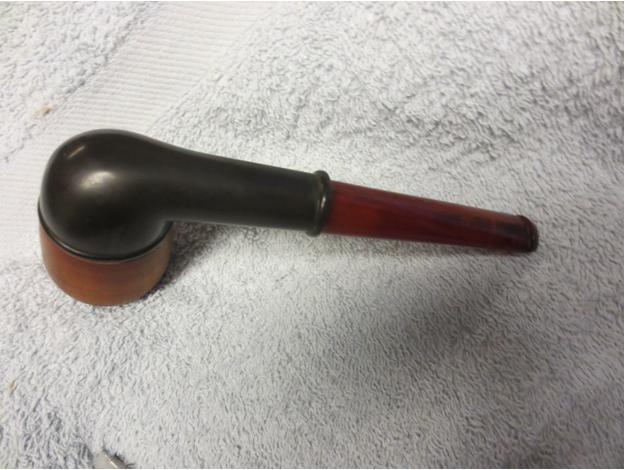

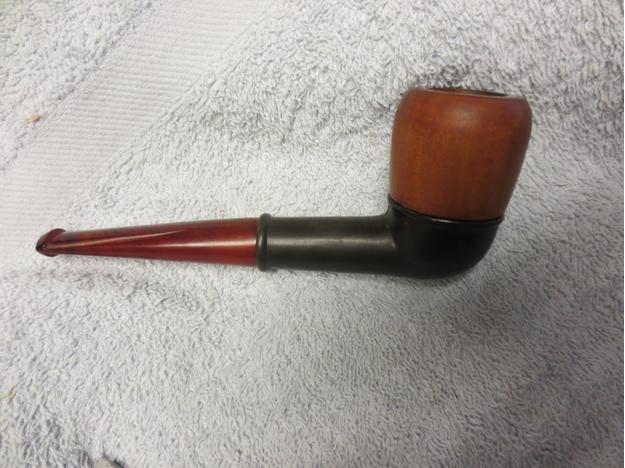

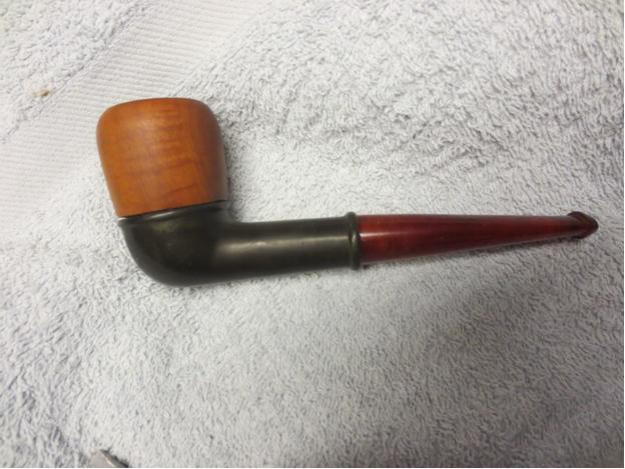

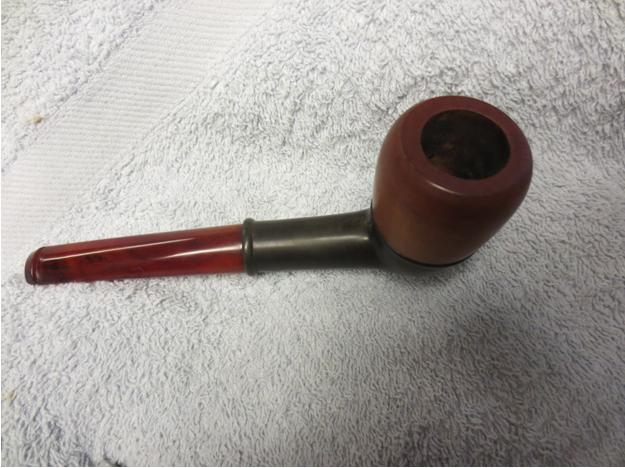

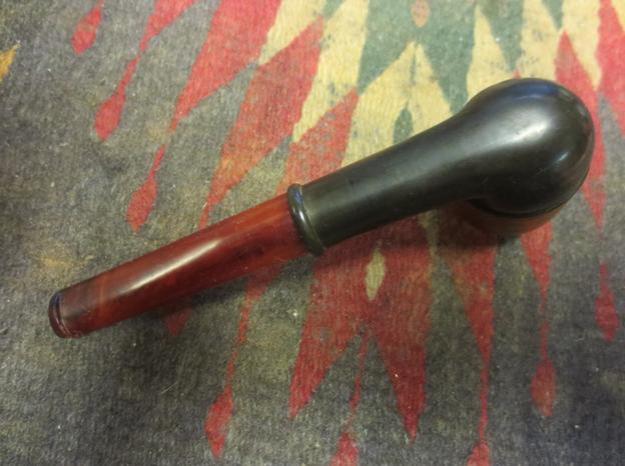

Bakelite19 I buffed the pipe and bowl with Blue Diamond on the wheel and then give it multiple coats of carnauba wax. I buffed it with a clean flannel buff to give it a matte finish shine. I then hand buffed it with the microfibre cloth to give depth to the wood. The finished pipe is shown below. It is ready for its inaugural smoke.Bakelite20





Showcasing A Linkman Deluxe 9732 Canadian

This old timer came out great. The new mouthpiece with the inset propeller looks original. This is a winner all the way around. Great partnership on this one Troy.

Baccy Pipes

About a year ago i was talking to Tim Pollock about pipes and mentioned i would like to start getting hold of some old KBB Yello Bole and Linkman Canadian’s. He told me that he had a old Linkman Canadian that did not have a stem but that he would happily  give me if i wanted it. He mentioned it used to have a propeller stem but the stem was so damaged the previous owner had threw it away and stated it was non repairable.

I told him that i would take it and see if i could find a stem for it . So he sent me this old Linkman Deluxe 9732 medium Canadian. Other than missing a stem, a slightly banged rim and being dirty the pipe was very nice. The stamping’s were in pretty nice shape as well.

I asked around on the Dr. Grabow Collector’s forum…

View original post 467 more words
