by Steve Laug

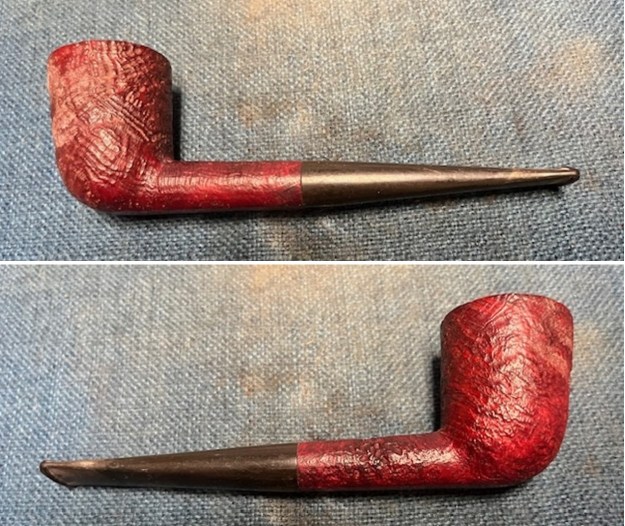

The next pipe on the table is another one that came to us from the seller in Caldwell, Idaho, USA on 07/12/2025. It is a Dunhill Red Bark Dublin with a vulcanite taper stem. It is in dirty but in good condition as can be seen in the photos below. It is stamped on the underside of the shank and reads 142 [over] F/T [followed by] Dunhill [over] Red Bark. That is followed by Made in [over] England13. That is followed by a stamping Circle 4R/B. The stamping is clear and readable. The pipe has rich Red Bark Sandblast Finish with a blend of red/oxblood stains on a richly grained sandblast finish that the shape follows well. The finish was dusty and dirty with grime ground into the finish. It was also spotty and possibly faded. The bowl had a moderate cake and there was tobacco debris in the bowl. The rim top had a thick lava coat on the top and edges. The original white spot taper stem is dirty and oxidized with light tooth marks and chatter on both sides. I took photos of the pipe to show what it looked like before I started working on it.

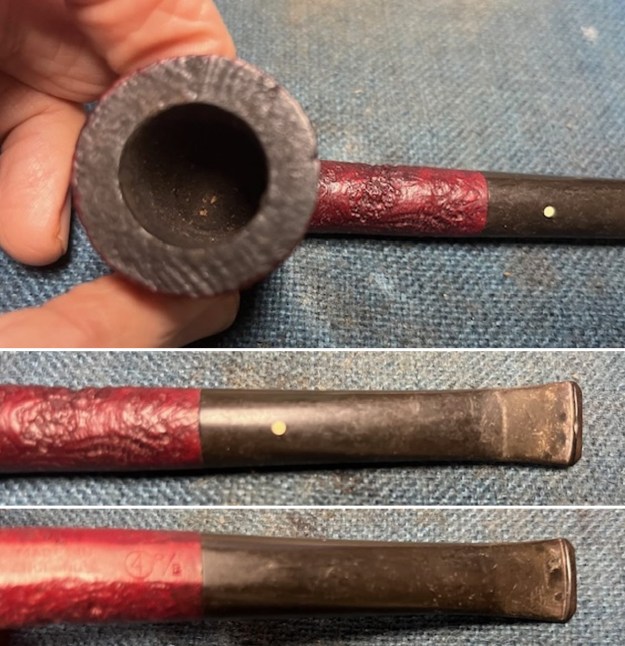

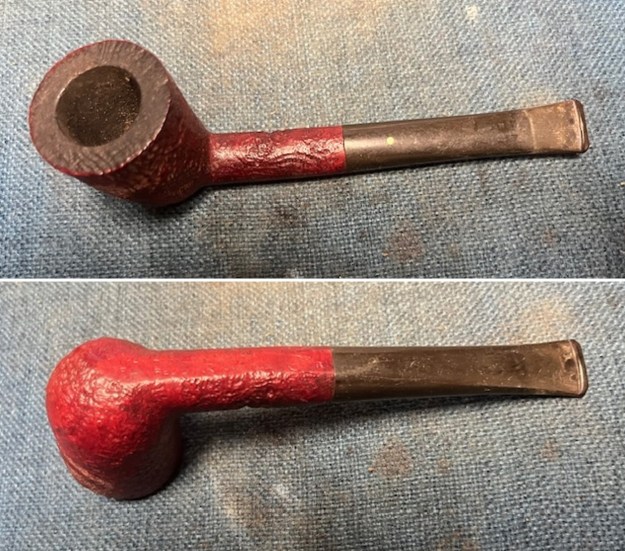

I took photos of the bowl and rim top to show the thickness of the cake and the lava coat on the rim top. There was some tobacco debris in the bottom of the bowl. The stem photos show the condition of the taper stem ahead of the button.

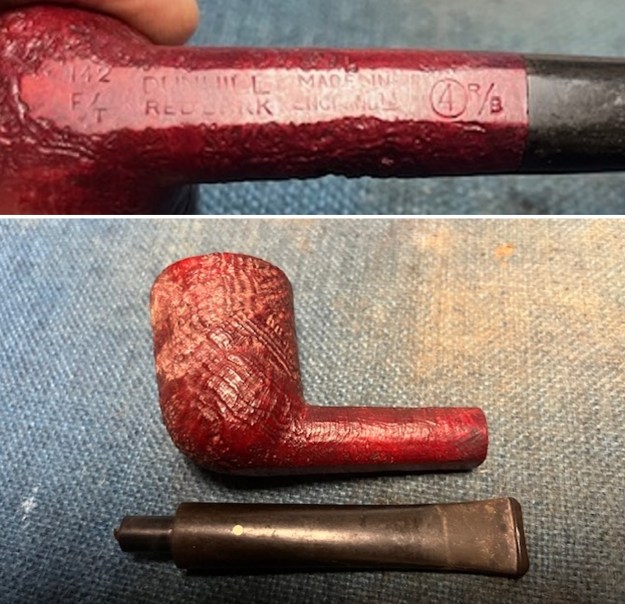

The stamping on the sides of the shank are faint but readable as noted above. I took a photo of the pipe with the stem removed to give a sense of the proportions of the pipe. It is a real beauty.
One of the first things I like to do is to unpack the stamping and understand each element in it. I turned to Pipephil’s helpful site (http://pipephil.eu/logos/en/dunhill/shell-briar1.html). The stamping is interpreted as follows: The 142 is the shape of the pipe which is a Dublin. The F/T designates a Fishtail stem. The Dunhill Red Bark is a red stained sandblast finish. Following the Made In England13 gives the year that the pipe was made. The circle 4R/B is the stamp for a Group 4 in a Red Bark finish.
From the above information I could see that I was working on a Red Bark Dublin shaped pipe.
From there I wanted to pin down the date stamp 1. I have included Page 2 of the Dunhill Dating Key (http://www.pipephil.eu/logos/en/dunhill/cledat-en1a.html). Following that it takes me to the box with 1960+suffix. That tells me that the pipe is a 1973 pipe.
I wanted to know more about the Red Bark finish and when it was introduced by Dunhill. I turned to a listing on Pipedia that gave me the information I was looking for (https://pipedia.org/wiki/Dunhill).
Red Bark:
Red Bark: Introduced in 1972, the Redbark was a sandblasted finish characterized by a reddish stain and is arguably the most famous of Dunhill’s discontinued lines. Initially, the stain was a medium red, but a few years after its introduction, it was changed to a significantly brighter, almost pinkish hue. This new colour proved unpopular, causing sales to plummet. In response, the company reverted to the original, darker red stain in 1976. The Redbark finish was officially discontinued in 1987.[122][123]
Now I knew that I was working on a Dunhill Red Bark 142 F/T Dublin with a Taper Stem that was made in 1973 and was only made until 1987 before it was discontinued.

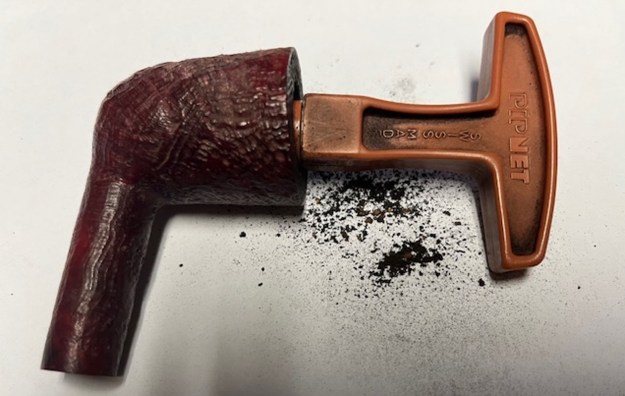

I turned to work on the pipe itself. I reamed the bowl with a PipNet pipe reamer using the cutting heads 2 and 3. I finished the reaming with a Savinelli Fitsall Pipe Knife. I sanded the walls of the bowl with 220 grit sandpaper wrapped around a piece of dowel.

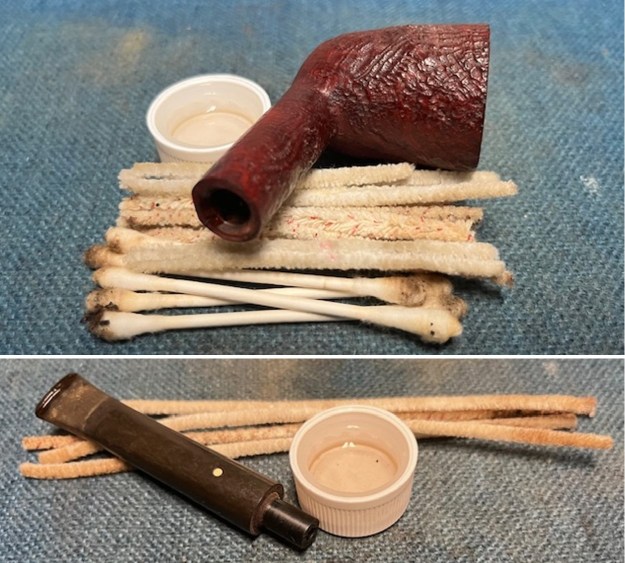

I cleaned out the inside of the shank and the airway in the stem with alcohol, cotton swabs and both bristle and regular pipe cleaners.

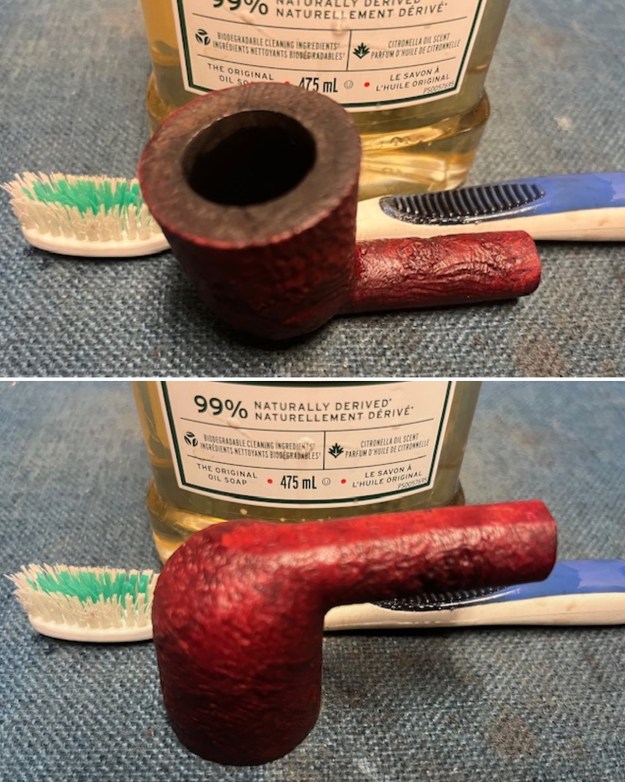

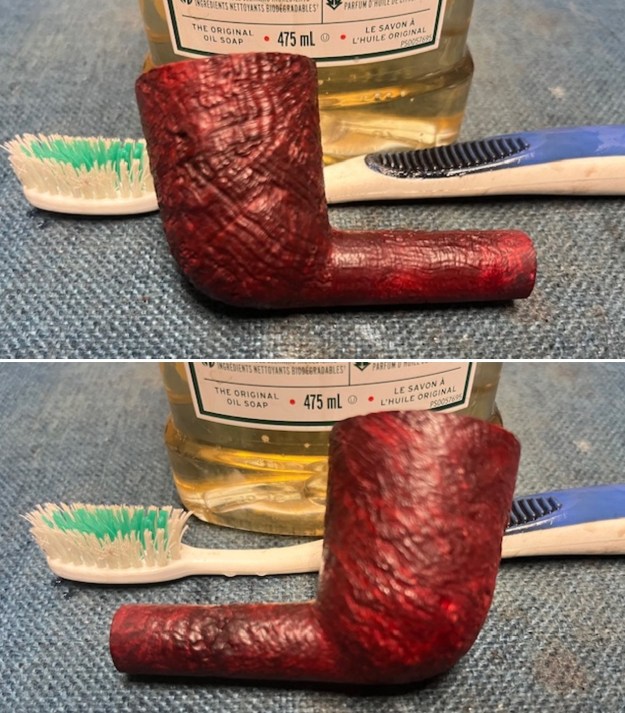

I scrubbed the bowl and shank with a tooth brush and some undiluted Murphy’s Oil Soap. I rinsed it off with warm water to remove the dust and soap from the finish. I dried it off with a soft cloth and it looked much better.

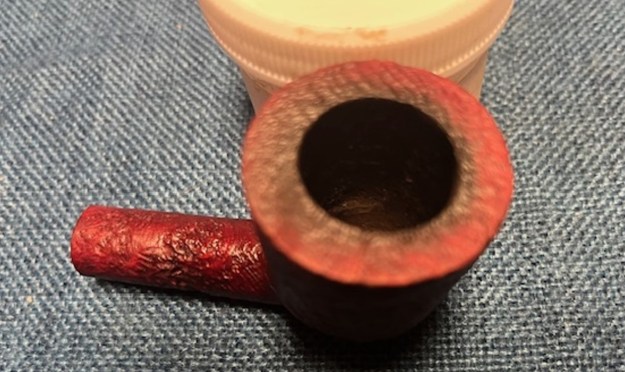

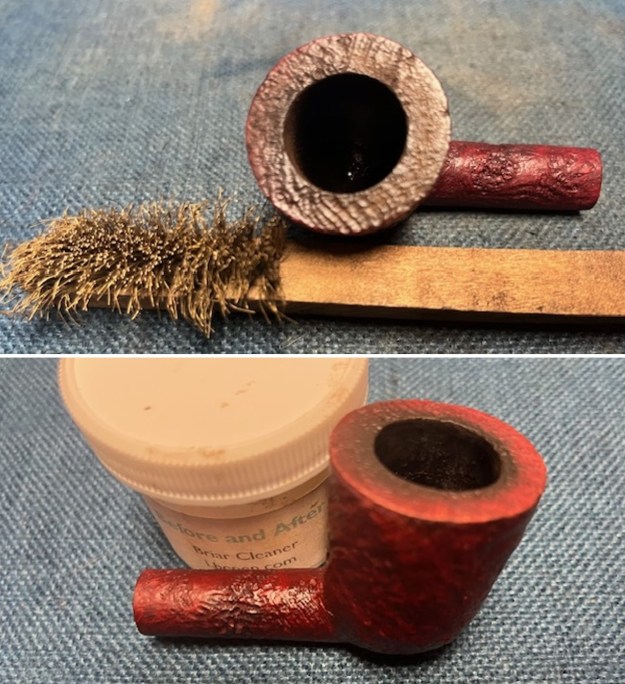

I worked on the darkening on the rim top with a brass bristle wire brush and some Before & After Briar Cleaner. I worked it into the grooves on rim top sandblast and let it sit for 5 minutes. I repeated the process four times and when finished I wiped it off. I was able to remove the majority of the darkening with this method.

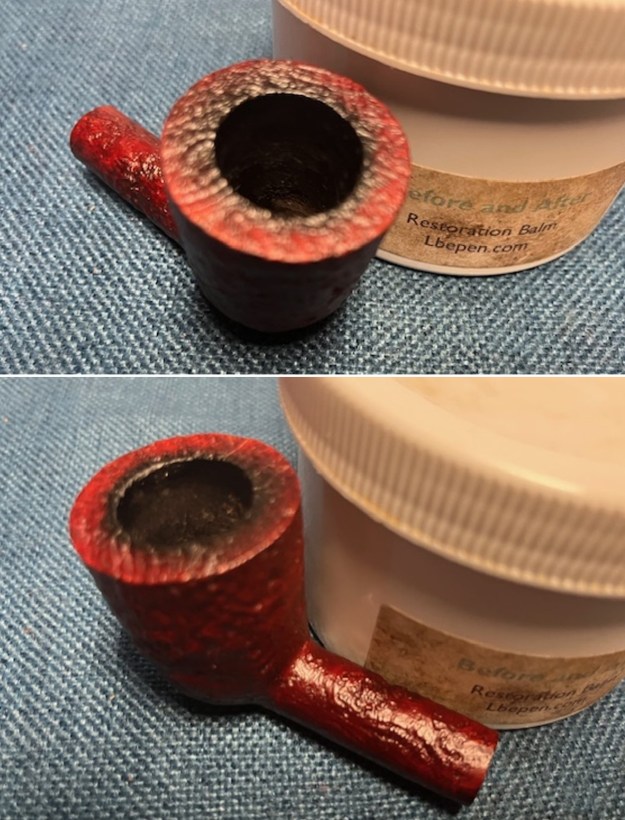

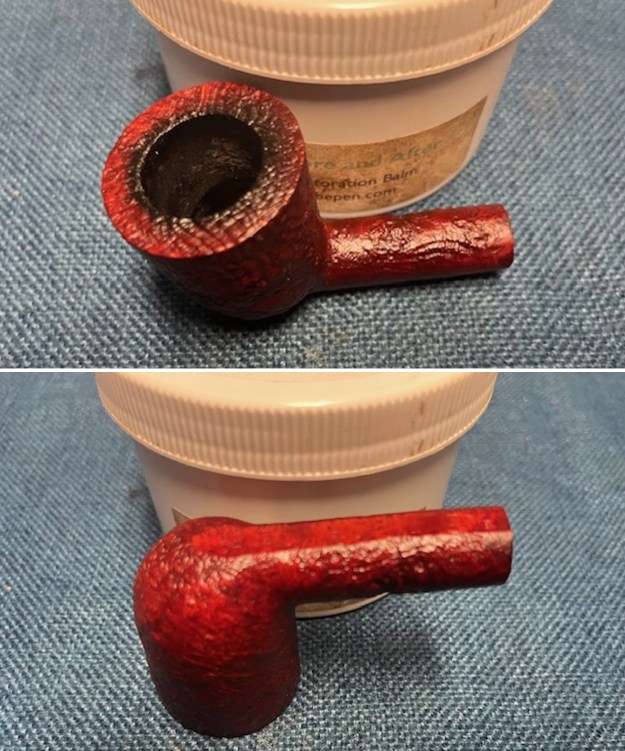

I rubbed the briar down with Before & After Restoration Balm. I worked it into the briar with my fingertips to work it into the finish. The product works to clean, enliven and preserve the briar. I let it sit for 10 minutes then I buffed it with a cotton cloth to deepen the shine. The briar really comes alive with the balm.

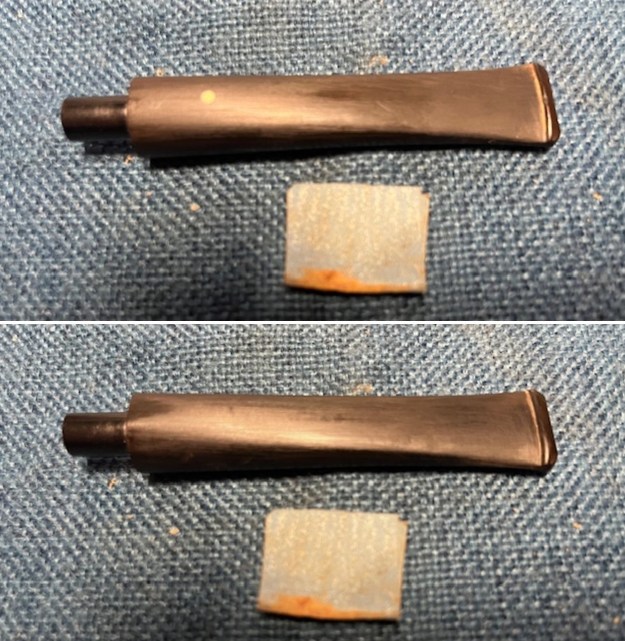

I set the bowl aside and worked on the stem. I sanded the surface of the stem with a folded piece of 220 grit sandpaper to remove the oxidation and clean up the tooth marks and chatter on both sides of the stem ahead of the button.

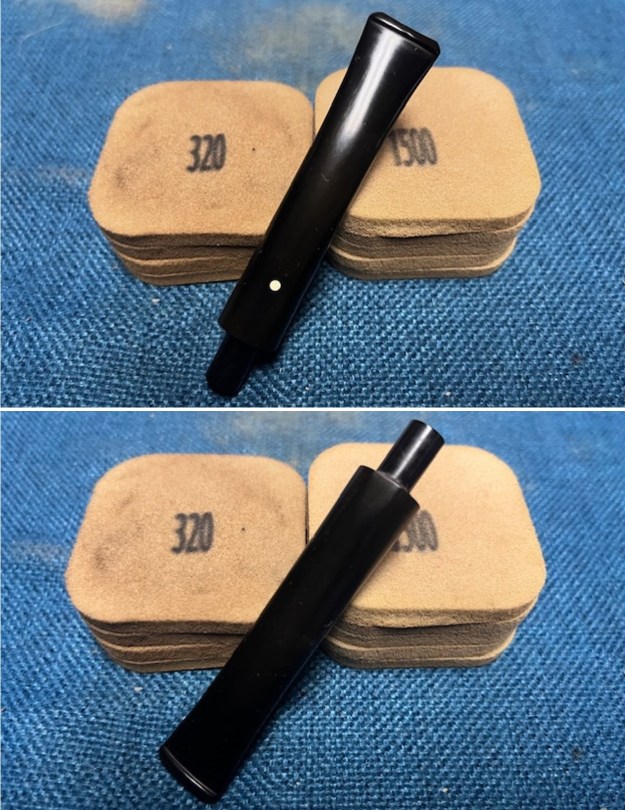

I sanded the stem with 320-3500 grit 2×2 inch pads. I wiped the stem down with an Obsidian Oil cloth after each sanding pad.

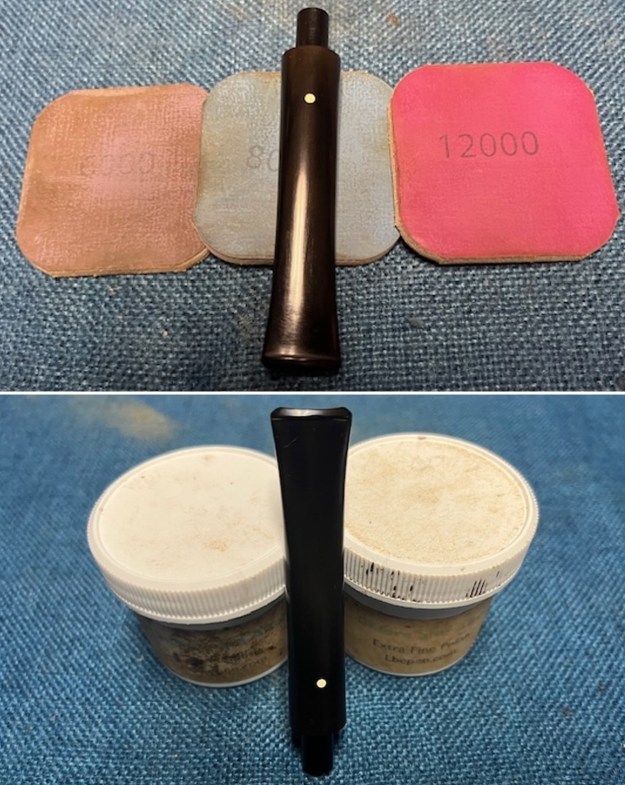

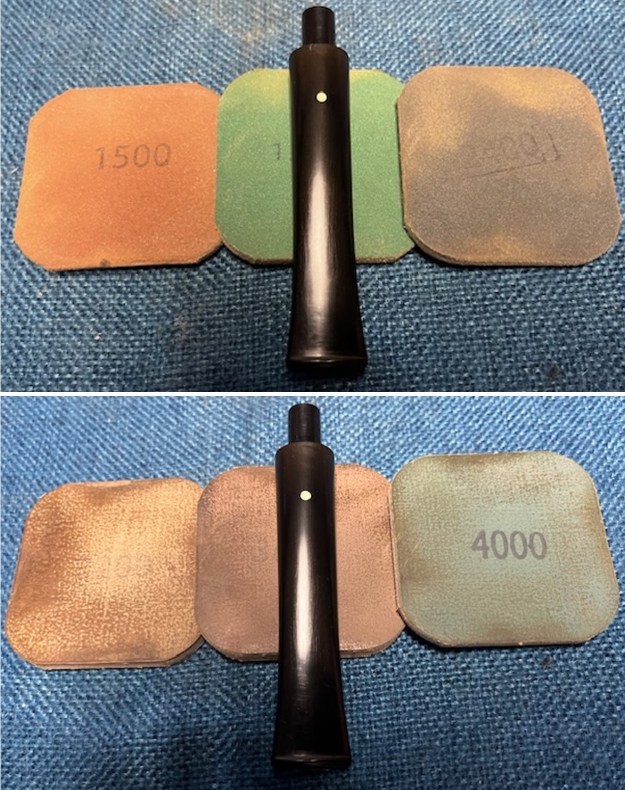

I polished the vulcanite with micromesh sanding pads – 1500-12000 grit pads. I wiped it down with Obsidian Oil after each sanding pad. I used Before & After Pipe Polish – both Fine and Extra Fine to further polish the stem.

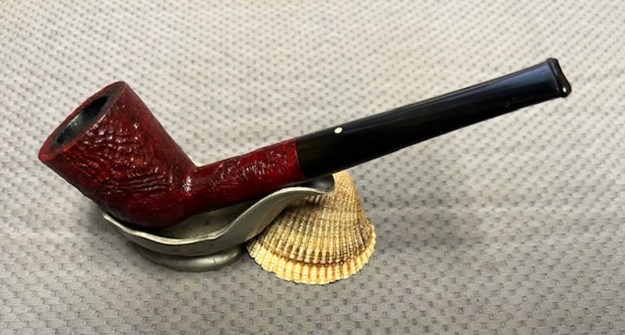

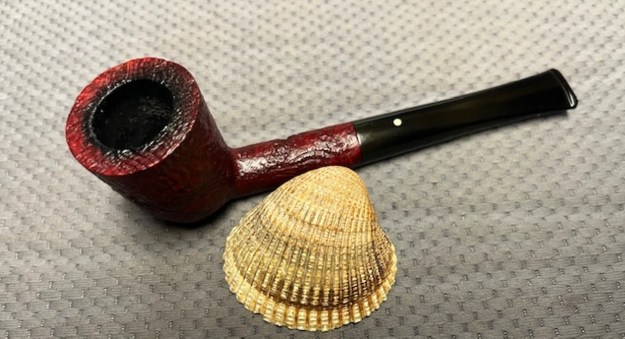

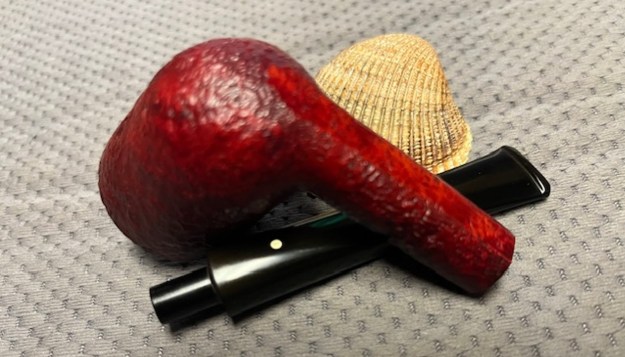

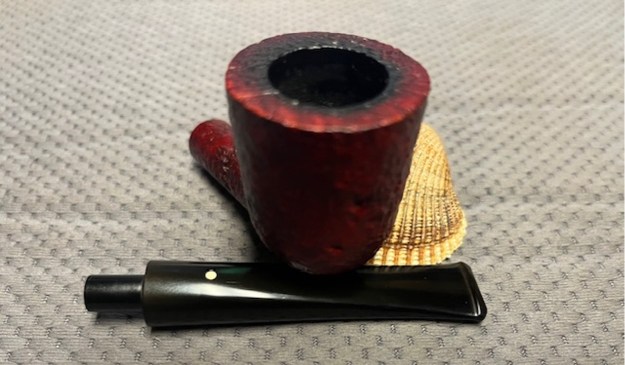

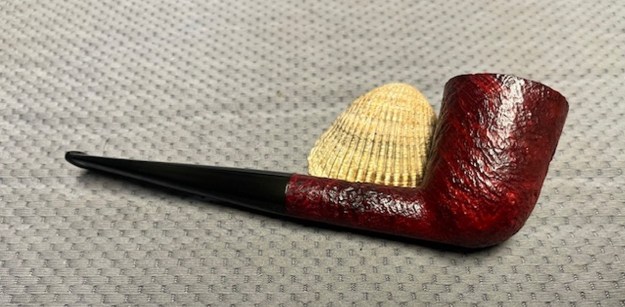

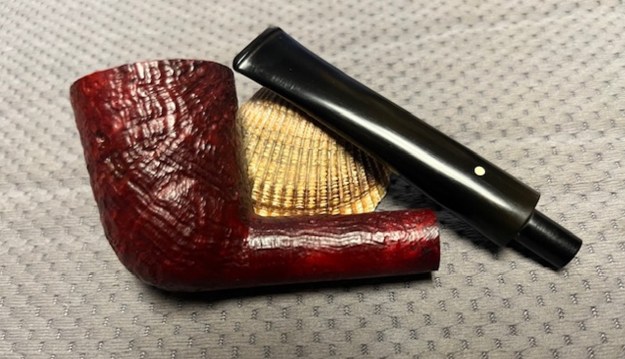

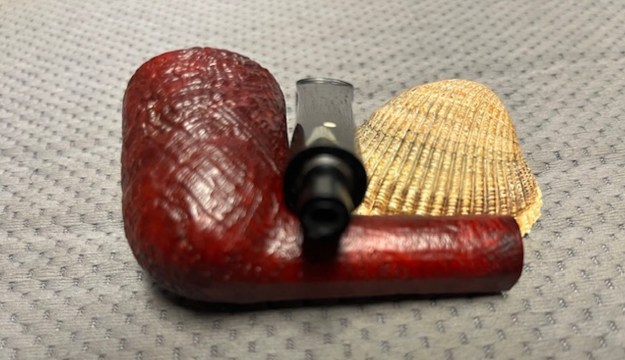

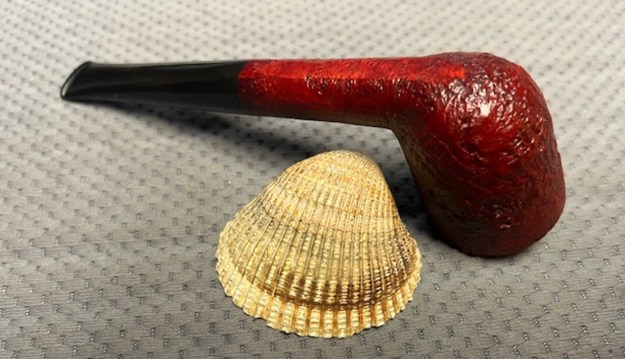

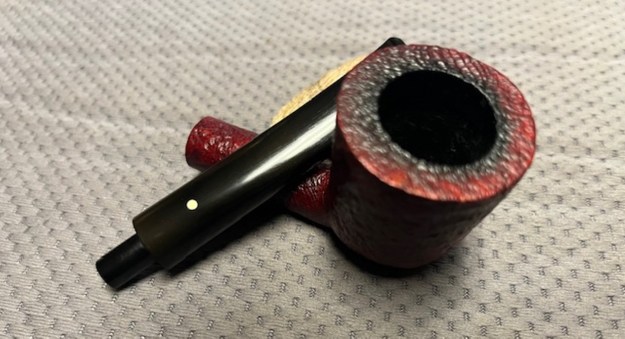

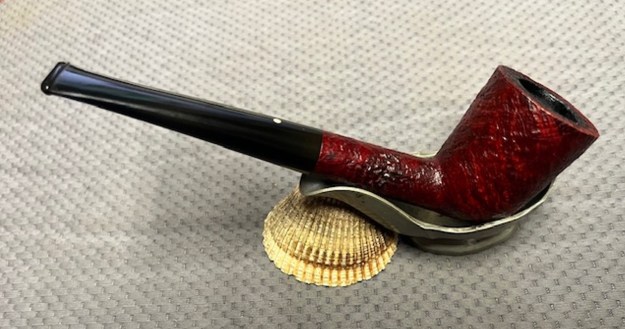

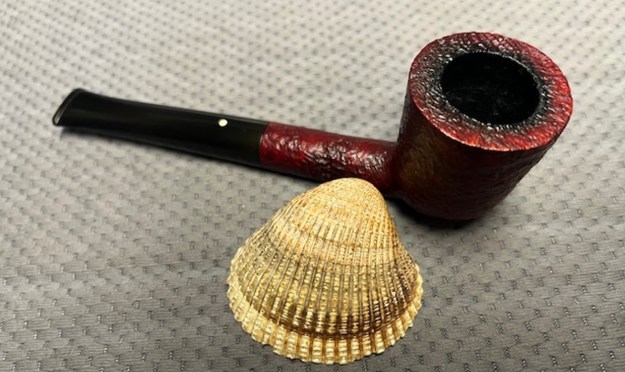

I the polished vulcanite taper stem and the 1973 Dunhill Red Bark 142 F/T Dublin bowl with Blue Diamond to polish out the remaining small scratches and raise the shine. I gave the bowl and the stem several coats of carnauba wax then buffed the pipe with a clean buffing pad to raise the shine. I hand buffed it with a microfiber cloth to deepen the shine. The pipe polished up pretty nicely. This turned out to be a beautiful Dunhill Red Bark 142 F/T Dublin with a Taper Stem. The finished pipe is shown in the photos below. The dimensions are Length: 5 ¾ inches, Height: 1 ¾ inches, Outside diameter of the bowl: 1 3/8 inches, Chamber diameter: ¾ of an inch. The weight of the pipe is 1.20 ounces/34 grams. Thanks for walking through the restoration with me as I worked this beautiful little Dunhill Red Bark. I will be adding it to the rebornpipes store in the British Pipe Makers Section if you would like to add it to your collection. Thanks for looking.
