Comoy’s Shape 43 Tradition Restoration


Blog entry by Al Jones

I can’t resist pre-Cadogan, Comoys Tradition grade pipes. They are readily available and decent examples needing restoration don’t sell for exorbitant prices. This Shape 43, Large Bent Billiard was well loved, but showed promise. I’ve worked on a few Shape 42 Medium Bent Billiards, but this is the first Shape 43 that I’ve encountered. Curiously, this shape is not on any of the on-line Comoy’s shape charts (pipepages, etc.). It is on the shape number list on the Pipepedia site.

The stem was heavily oxidized, but the drilled, 3 piece “C” logo was readily identifiable. The stem had some teeth marks on both sides of the stem and some small sections of button were worn. Tars in the shank kept the stem from being inserted all the way. The bowl had a heavy layer of tar on top.

“Before” Pictures

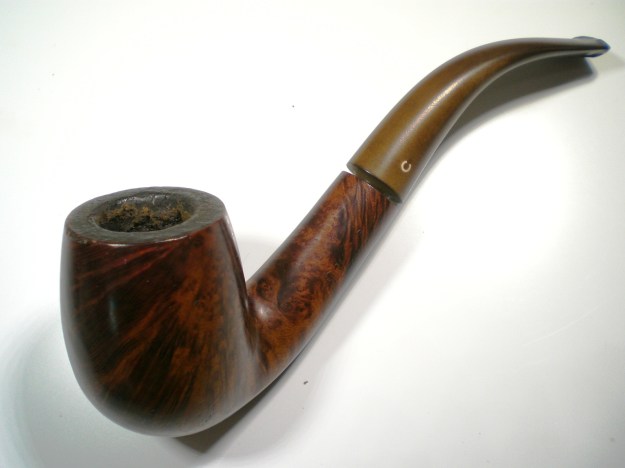

Comoys_43_Tradition_Before (1)

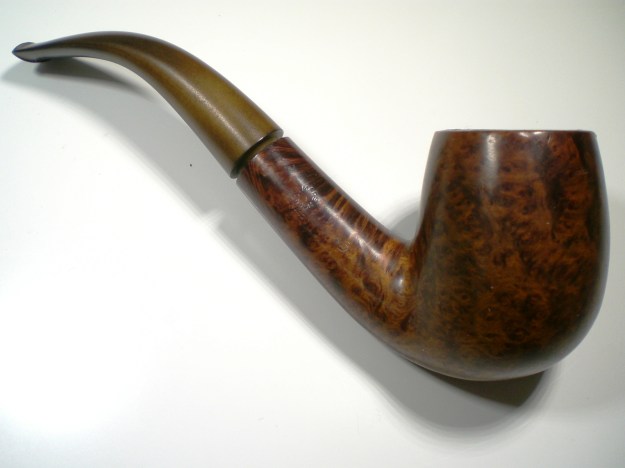

Comoys_43_Tradition_Before (3)

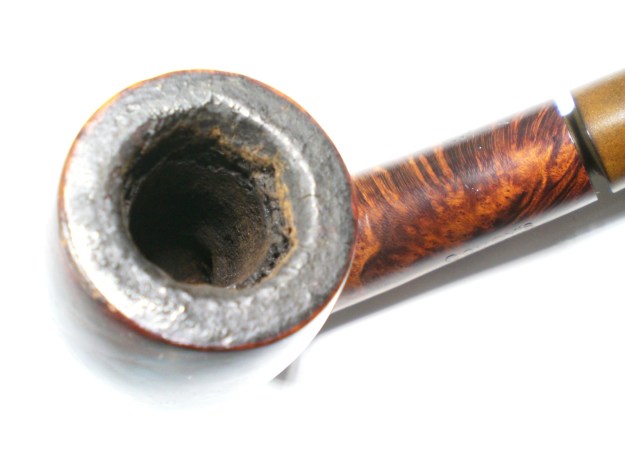

Comoys_43_Tradition_Before (5)

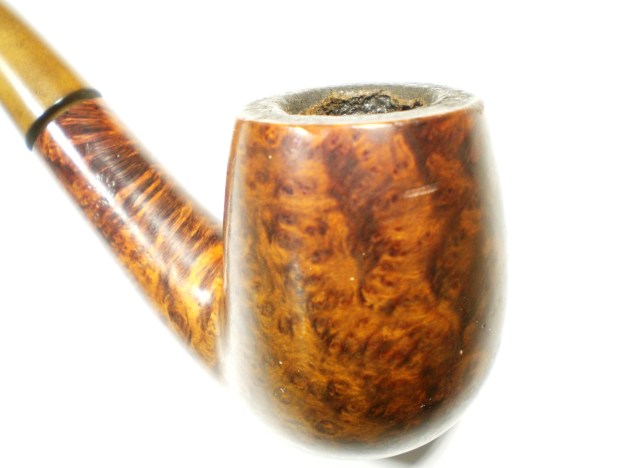

Comoys_43_Tradition_Before (4)

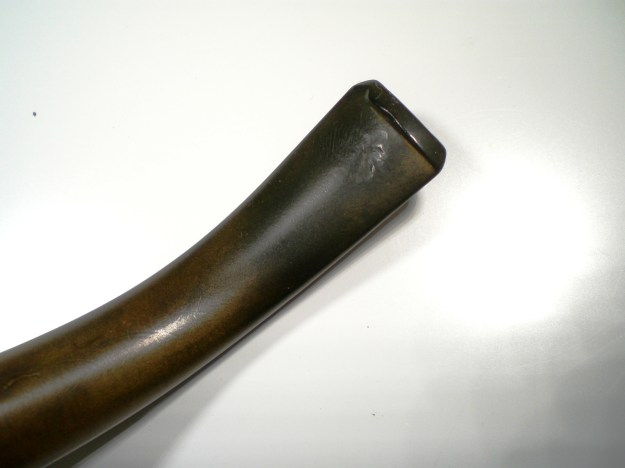

Comoys_43_Tradition_Before (6)

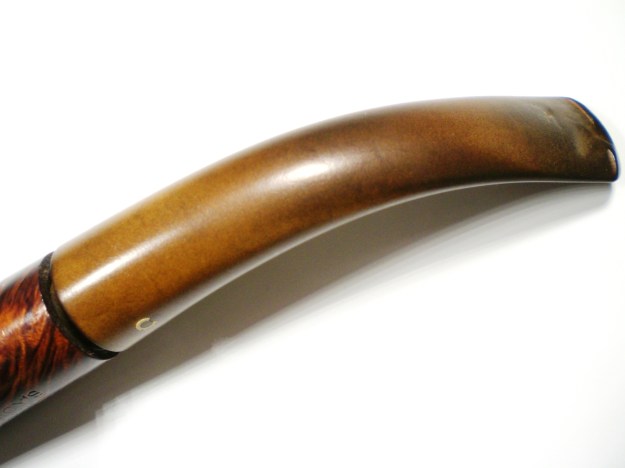

Comoys_43_Tradition_Before (2)

I used some 800 grit wet paper to carefuly remove the thickest coating of tars from the bowl top. Then, 1000 grit and finally a wet cloth with oxy-clean water. The tars came off completely and showed no scorched briar. The Comoys trade-mark beveled bowl top was worn but intact. There was one dent in the bowl top and one small crease on the front of the bowl. Using an iron set on “High” and a wet cloth, I was able to steam most of the bowl top dent out and raise the crease as well.

The bowl was soaked with isopropyl alcohol and sea salt. After the soak, I used a series of bristle brushes and alcohol to clean the interior of the shank.

The stem was soaked for several hours in a mild Oxy-Clean solution. I use a lighter to lift out the dents on the top and bottom of the stem. There was one tooth prick that was repaired with Black Superglue. I used the Black Superglue to rebuild the worn sections of the button. I blended the button in using 800 grit paper. The oxidation was removed starting with 800 grit paper, then 1500 and 1000 grades. This was followed with 8000 and 12000 grade micromesh. The stem was then buffed with White Diamond rouge and auto plastic polish. I’m very pleased with the condition of the stem.

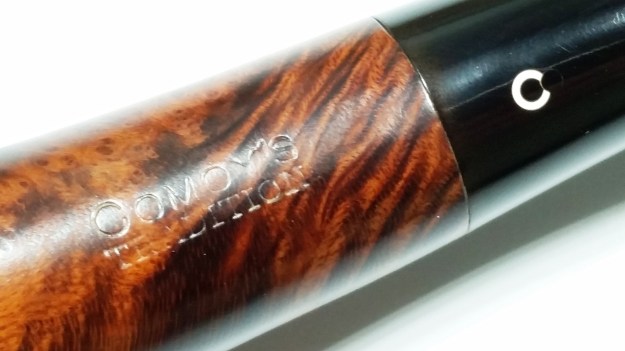

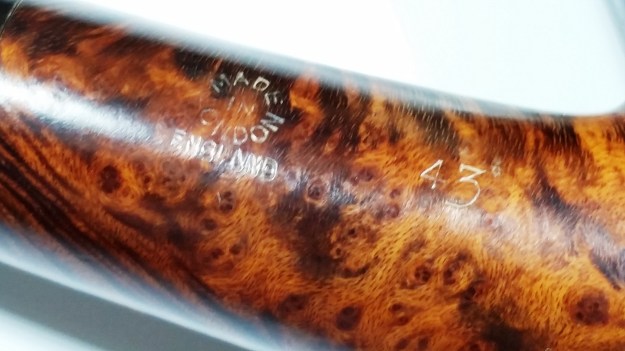

The bowl was buffed lightly with White Diamond and several coats of Carnuba Wax. The excellent nomenclature was buffed by hand.

Below is the finished pipe.

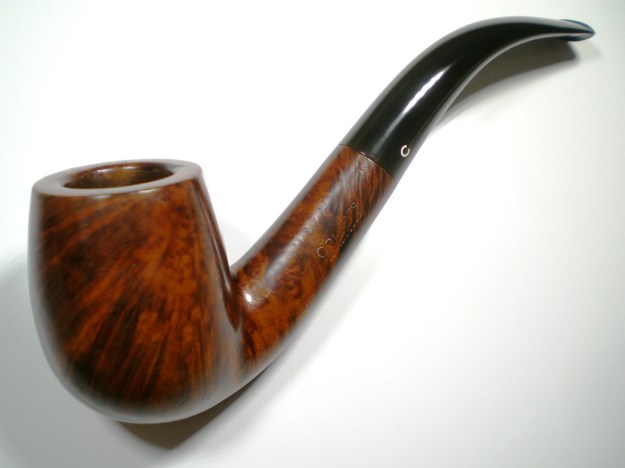

Comoys_43_Tradition_Finish (1)

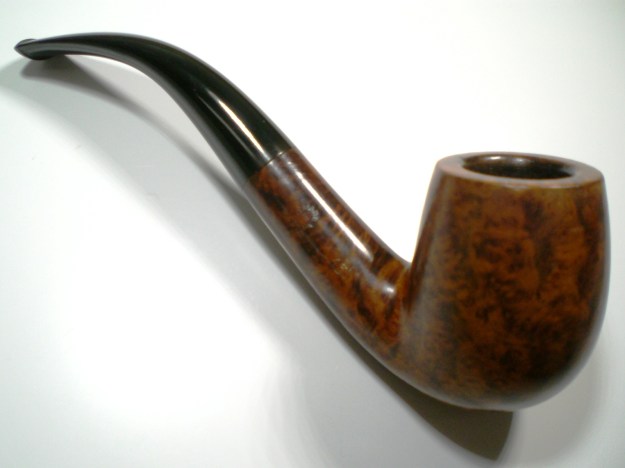

Comoys_43_Tradition_Finish (4)

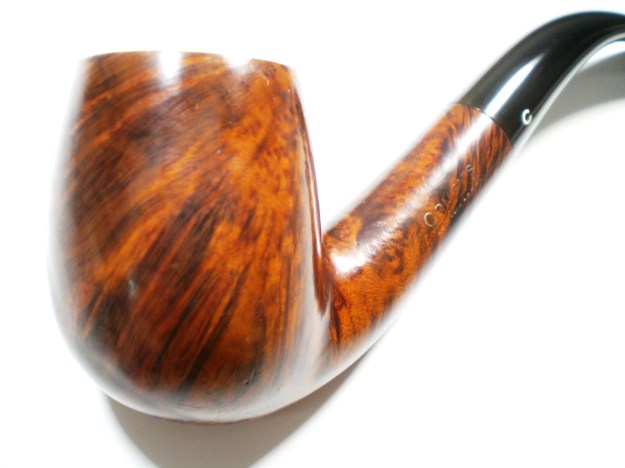

Comoys_43_Tradition_Finish (2)

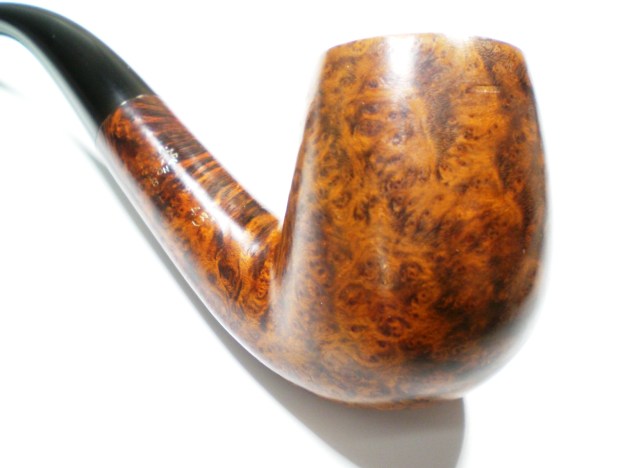

Comoys_43_Tradition_Finish (5)

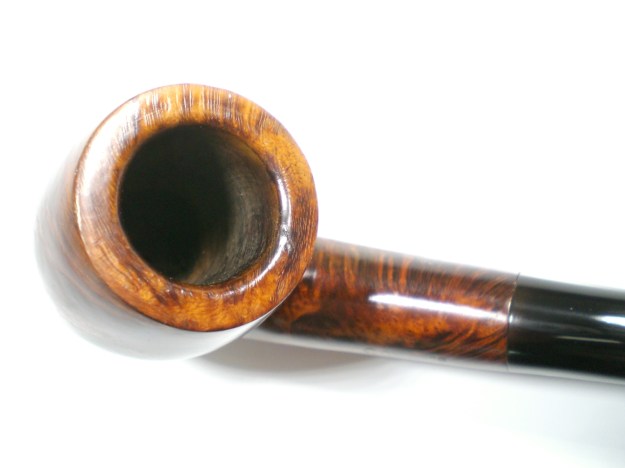

Comoys_43_Tradition_Finish (6)

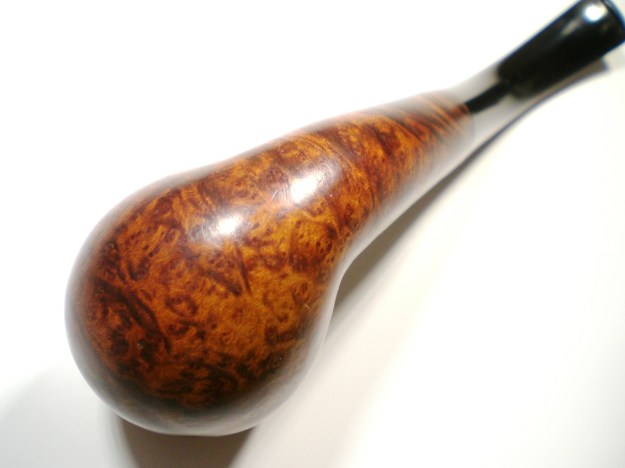

Comoys_43_Tradition_Finish (8)

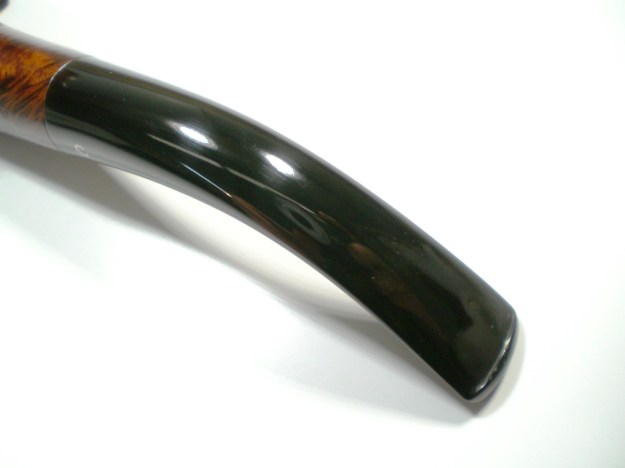

Comoys_43_Tradition_Finish (3)

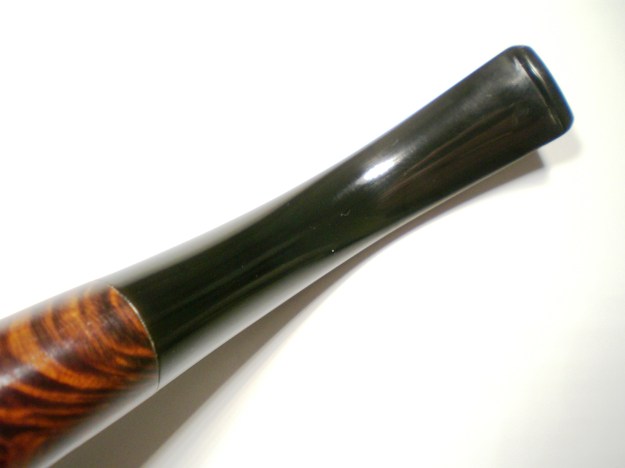

Comoys_43_Tradition_Finish (7)

?

?

?

?

Comoys_43_Tradition_Finish (1)
