Kaywoodie Supergrain Churchwarden (Shape 95)

Blog by Al Jones

I’ve never owned or smoked a Churchwarden style pipe. Last year I added finding the right one to my pipe wish list. When I started investigating vintage Kaywoodie options, I learned they are somewhat rare and that I would face some fierce competition. I had just about given up hope on finding one and I did a generic search on Ebay for a Churchwarden pipe. I thought that it would be necessary to settle for Savinelli or Peterson. To my surprise, in the middle of my 100+ pipe search list, was this Kaywoodie Churchwarden, complete with box and bag. I had somehow missed this pipe on my daily Ebay search results.

The pictures show some promise, but the bowl top had seen some abuse. I didn’t know at the time if the pipe had the stinger intact. I won the auction and waited in anticipation for the pipe. When it was delivered, I was pleasantly surprised as the stem and briar looked to be in terrific condition. And the icing on the cake was an intact 4-hole “Drinkless” stamped sting with a small ball. The pipe is just under 12 inches long and weighs a svelte 32 grams. Cleaning the briar and stem was a little nerve wracking as I didn’t want to damage the fragile looking pieces.

After the pipe was delivered, I exchanged some communication with the seller. I learned that original owner was the Great uncle of the sellers wife. His name was Harvey Shue and he was from Spring Grove Pennsylvania. Harvey worked for the PH Gladfelter Paper Mill. He passed in 1971 at the age of 64. His wife Florence held on to the pipes. Florence passed away in 1996 and the family found 50 pipes in a dresser drawer from their home. It’s pretty rare to find out the history of a pipe. Now I know a little bit about this one. Harvey lived pretty close to where my brother currently lives in Pennsylvania.

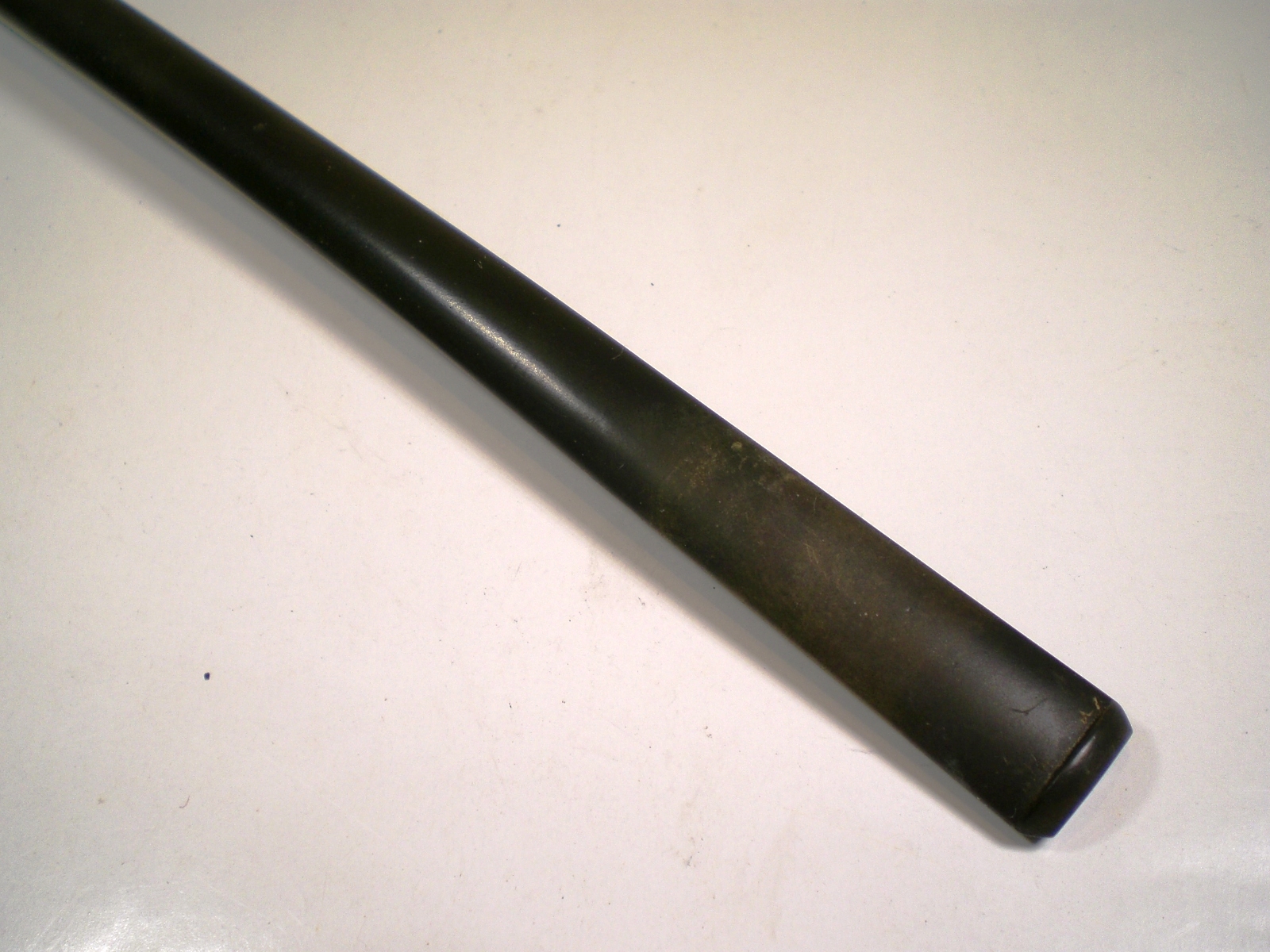

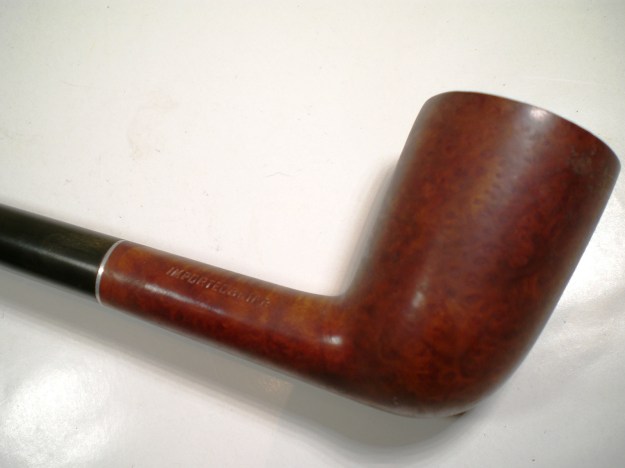

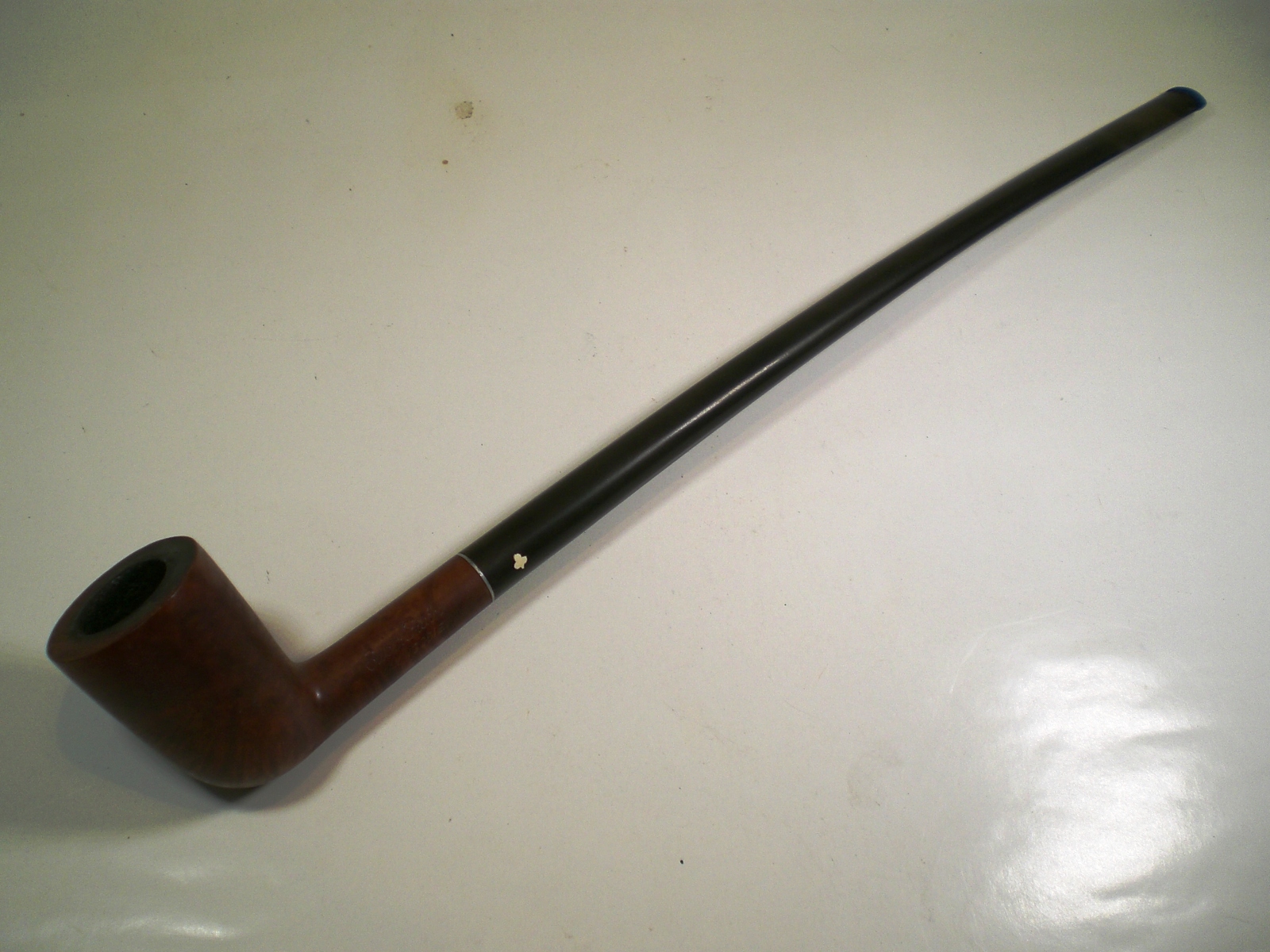

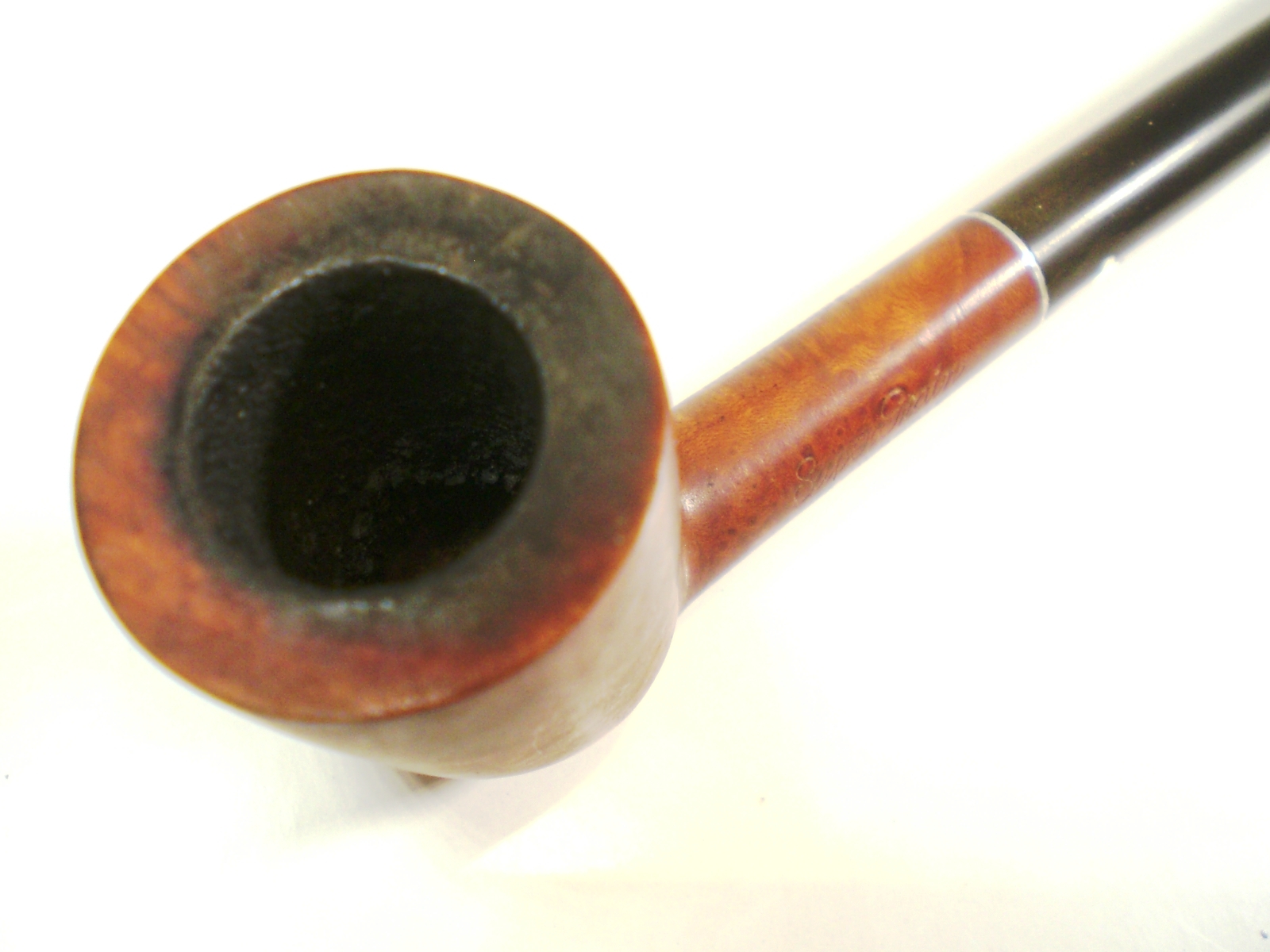

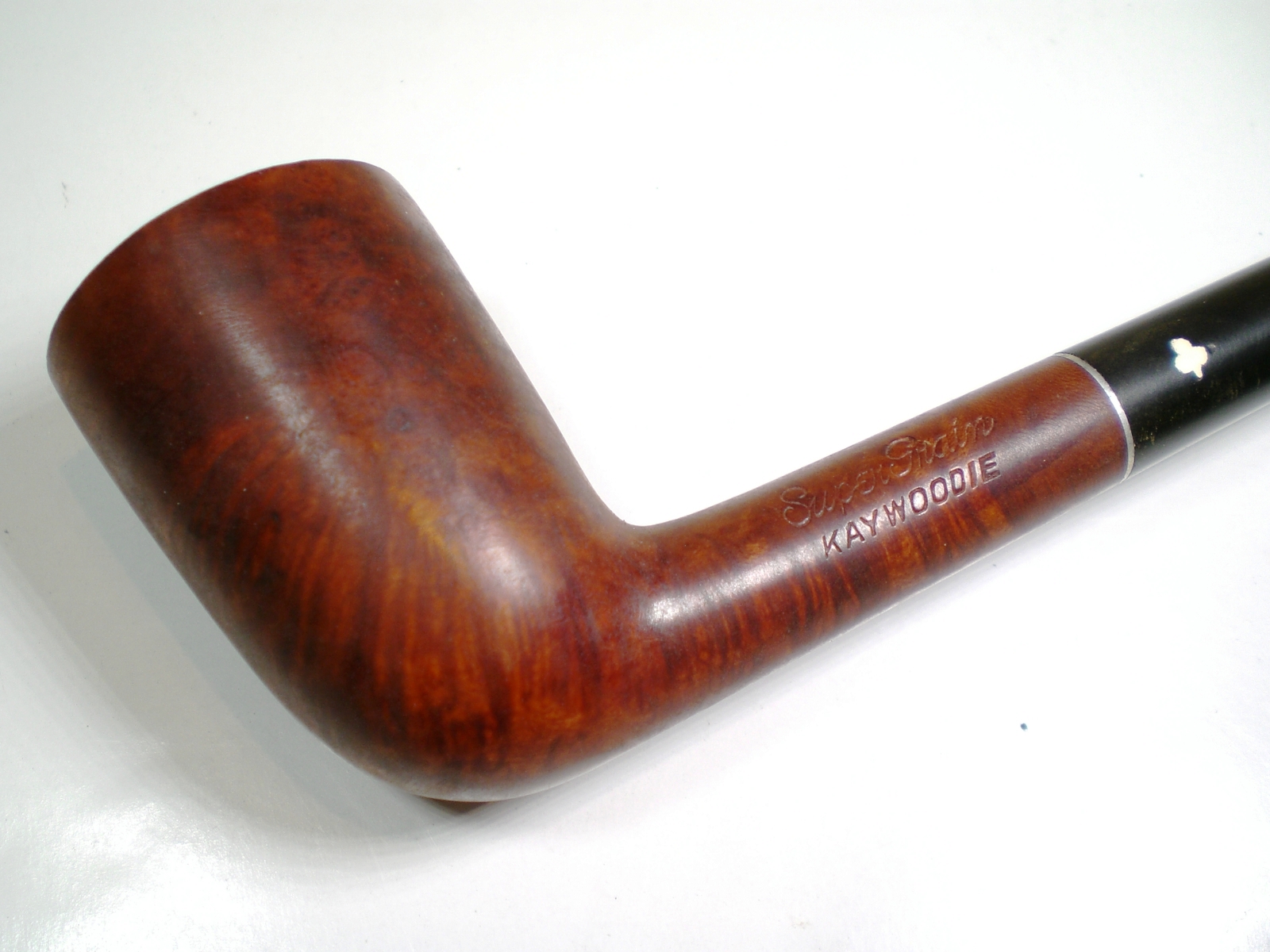

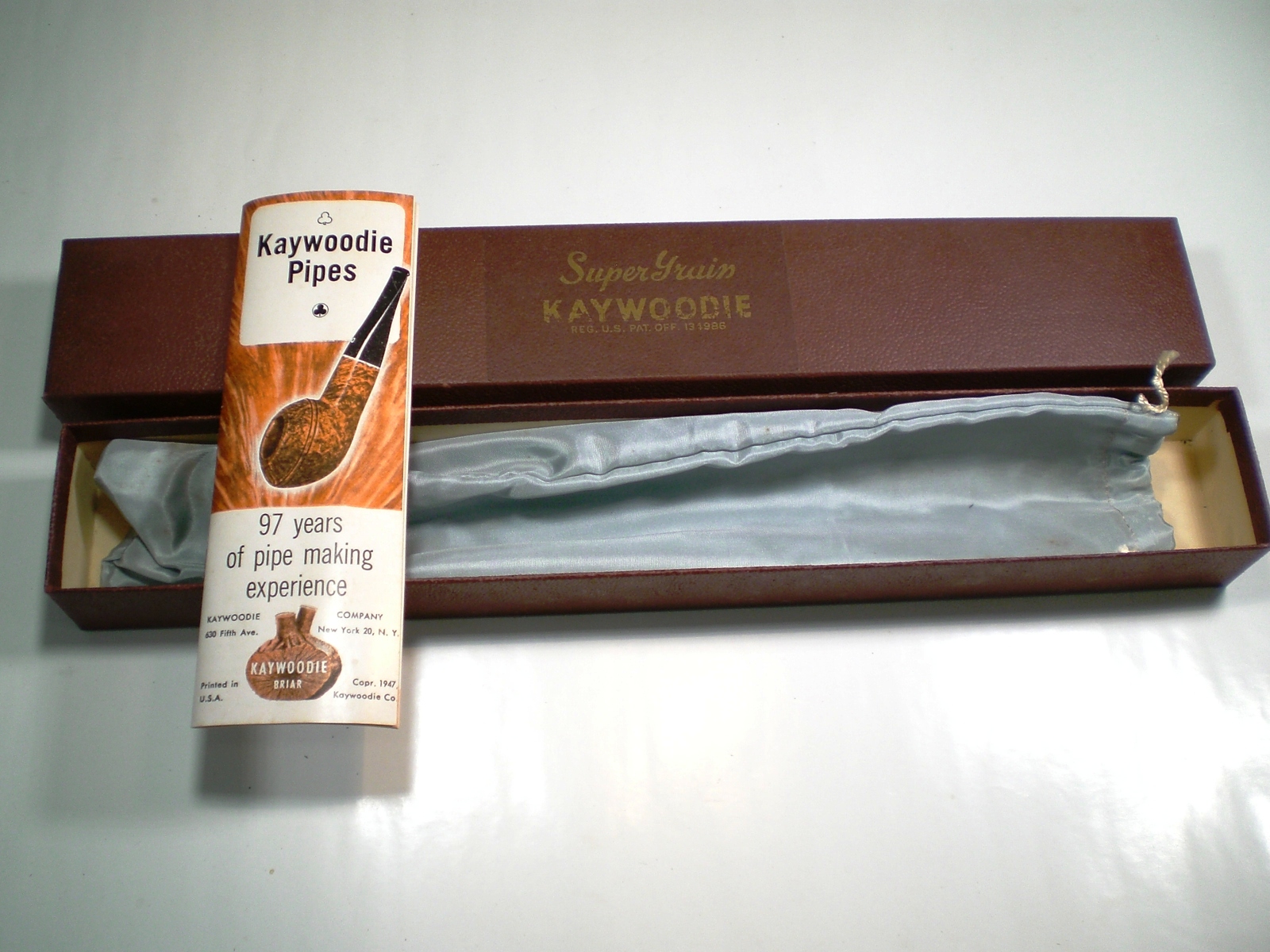

This is the pipe as it was delivered. The box is in great shape and a literature piece was also included. The stem only had light oxidation and the nomenclature was like new.

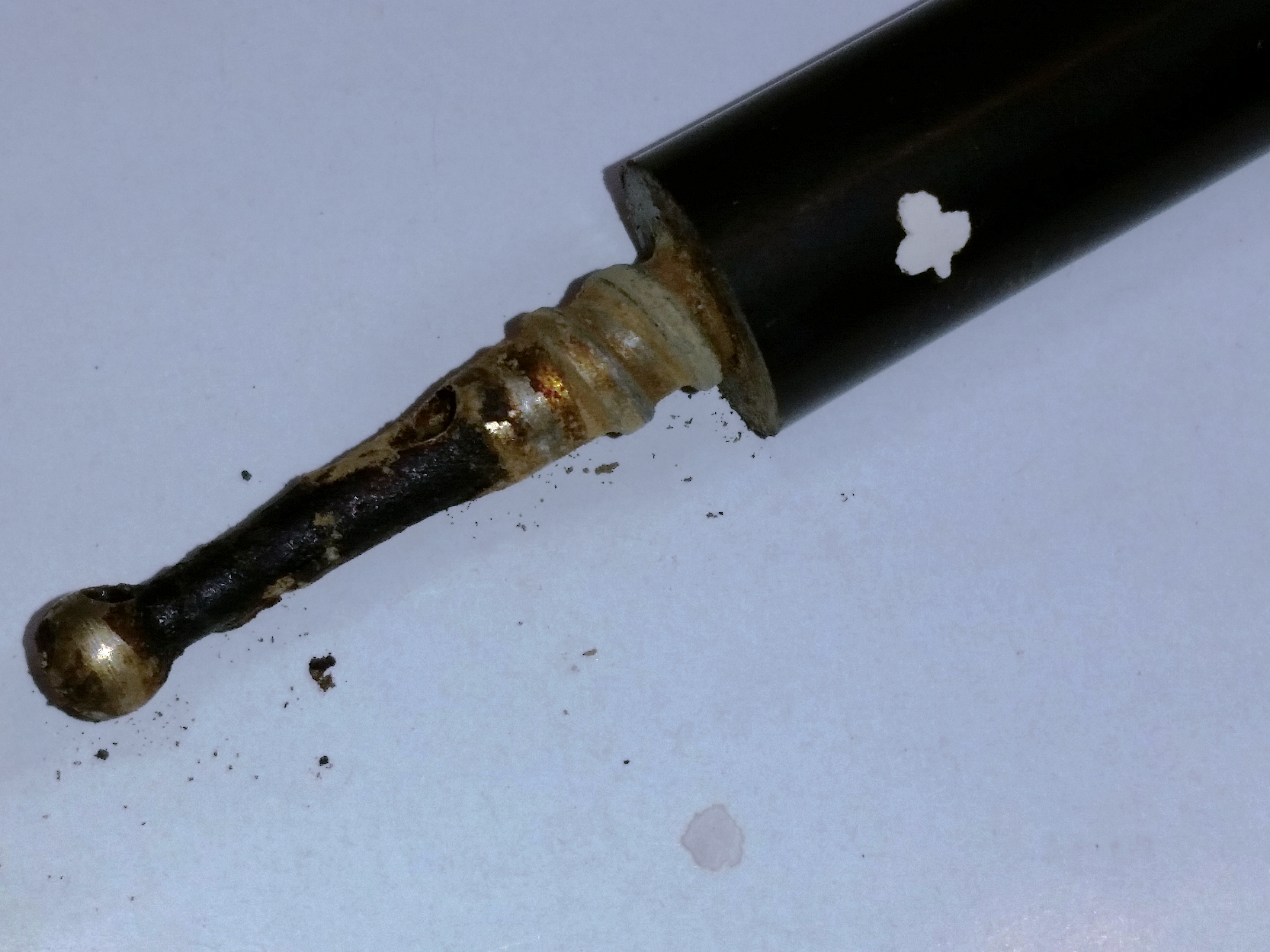

I used some alcohol to remove the build up from the threads on the stem fitment. This allowed the stem to fully seat in the correct position. I reamed the bowl, which still had some remnants of tobacco inside. The bowl was then soaked with some alcohol and sea salt. A little Mag & Aluminum auto metal polish took the rest of the oxidation off the stinger. This one has the smaller ball and no Registration number, a style used by Kaywoodie after WWII.

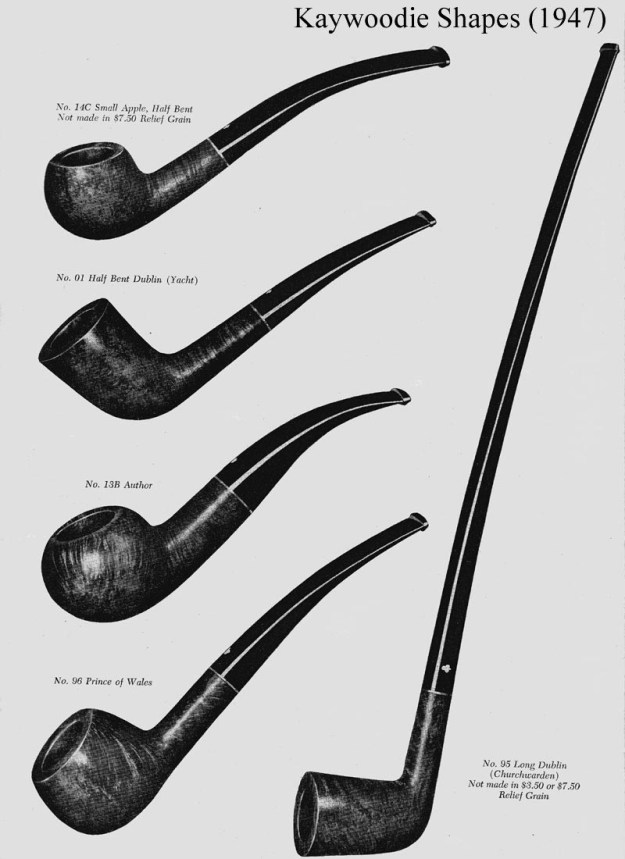

I learned thru the Kaywoodie Forums that the side placement of the stem logo was used in the late 1940’s. The brochure included with the pipe advertises “97 Years of Pipemaking” Kaywoodie was founded in 1851, which would place the brochure as being used in 1948. Kaywoodie also placed the grade of the pipe (Supergrain) above Kaywoodie until 1955. Thanks to the forum feedback, an educated guess is that the pipe was made sometime in the late 1940’s to early 1950’s. I haven’t yet learned why this one does not have the Shape number stamped on the pipe. Below is a page from the 1947 Kaywoodie catalog, showing the Shape 95.

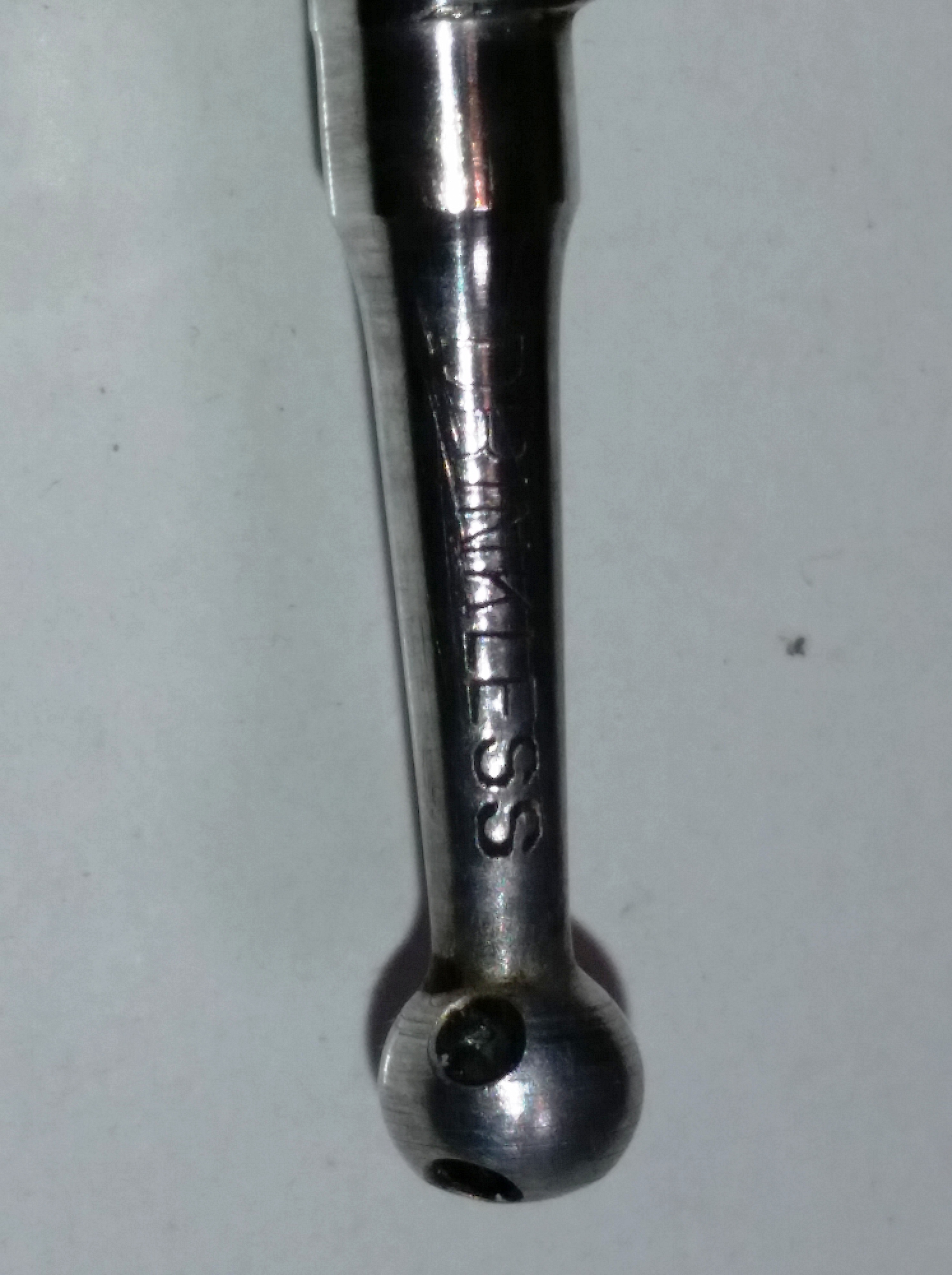

This picture shows the detail of the “Drinkless” 4-hole stinger. Earlier 4-hole stingers used a larger ball.

After the bowl soak was complete, I scrubbed the inside of the slender shank with some bristle cleaners soaked in alcohol. I also ran some cleaners with alcohol thru the long stem and stinger.

The scorched material on the bowl top was removed with a mild solution of Oxyclean and distilled water. The lighter used had damaged the inner portion of the bowl but a worn sheet of 8000 grit Micromesh removed most of the scorch marks without removing the stain. The rest of the bowl only required a light buff with White Diamond (staying away from the nomenclature) and some Carnuba wax.

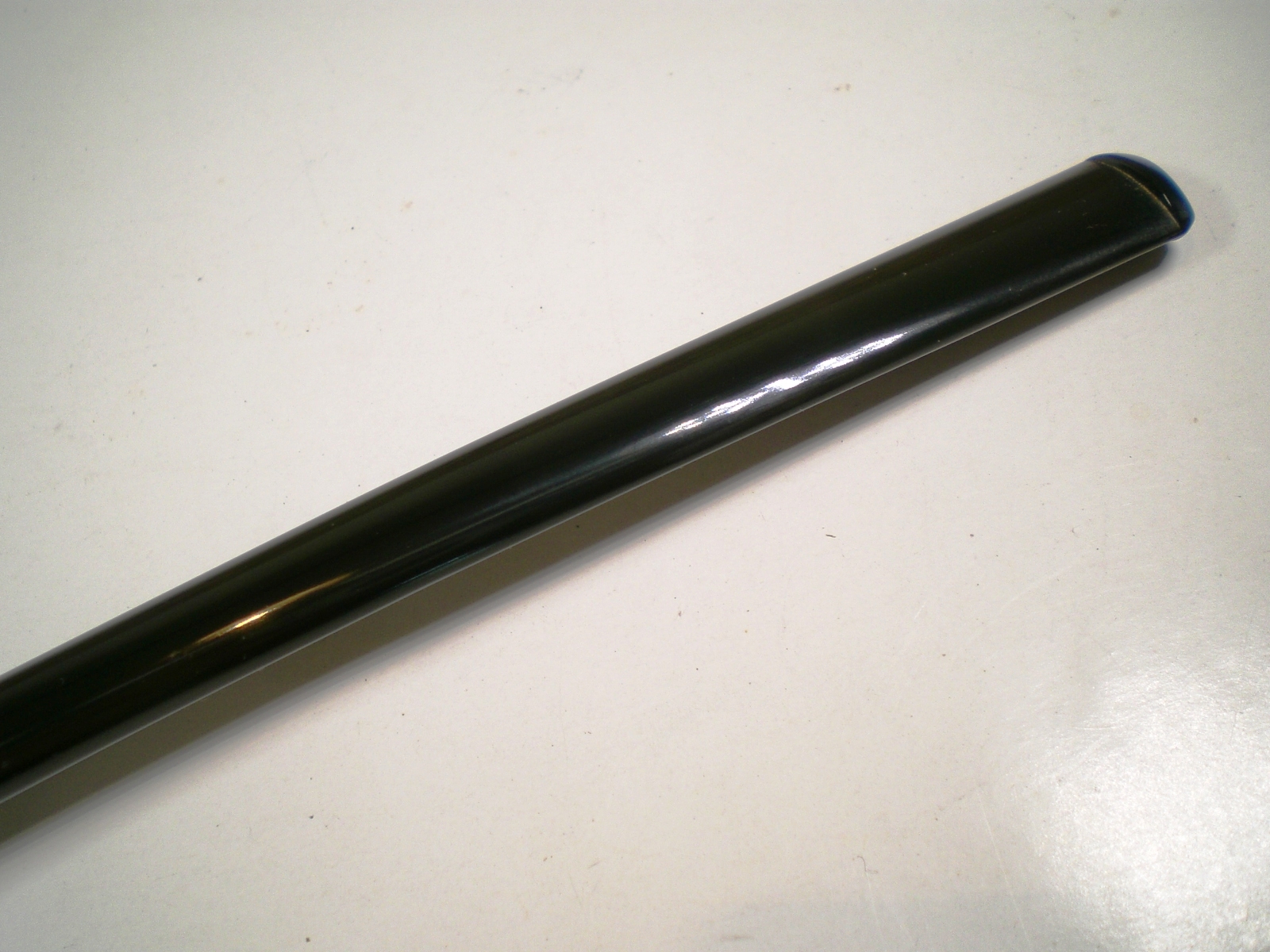

I mounted the stem onto the shank and stared with a sheet of 800 grit wet paper to remove the oxidation. I proceeded thru 1000, 1500 and then 2000 grit paper to bring back the shine. The button was amazing like new. Finally, I used 8000 and 12000 grit sheets of Micromesh. The stem was then buffed lightly with White Diamond rouge.

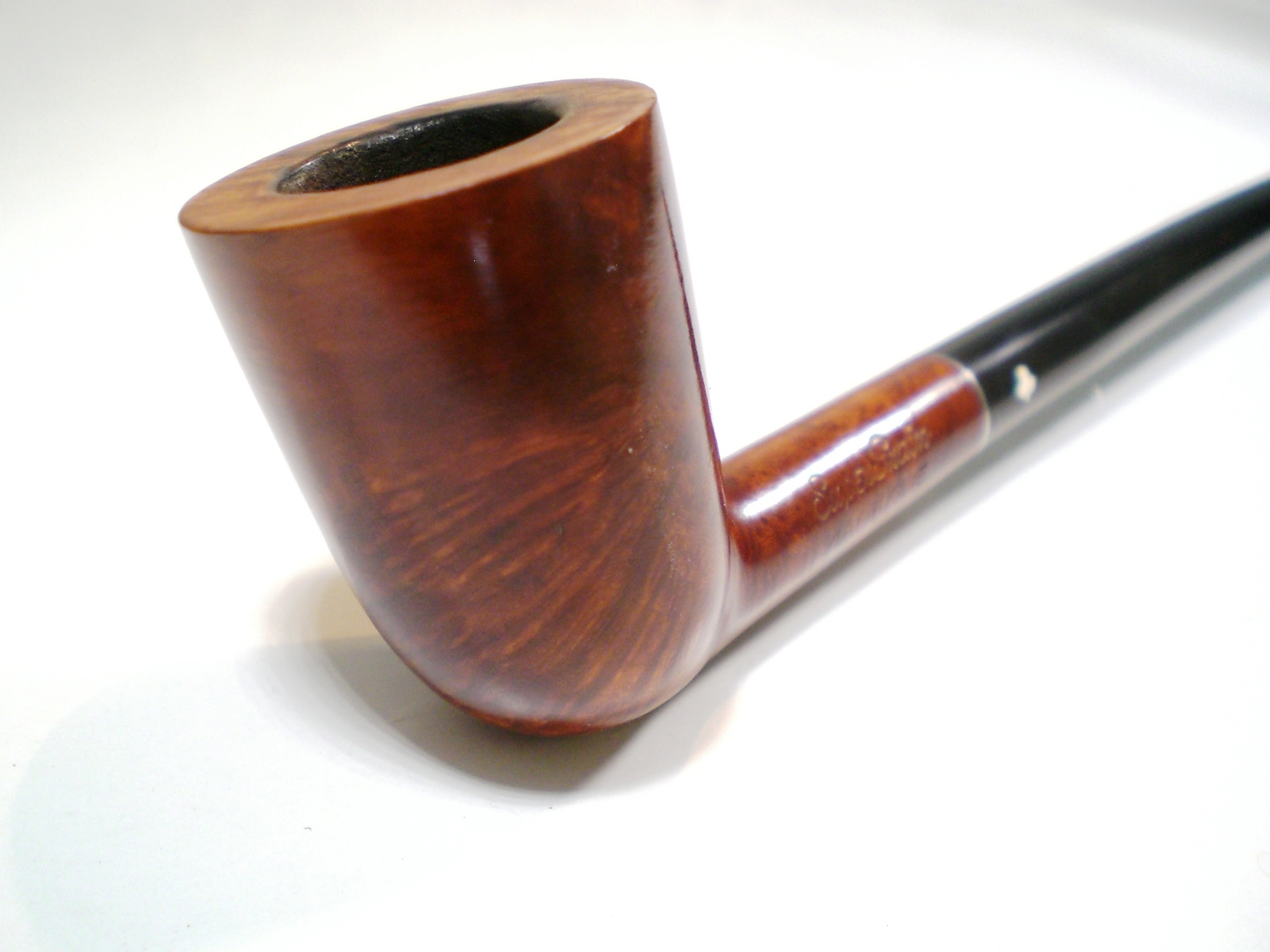

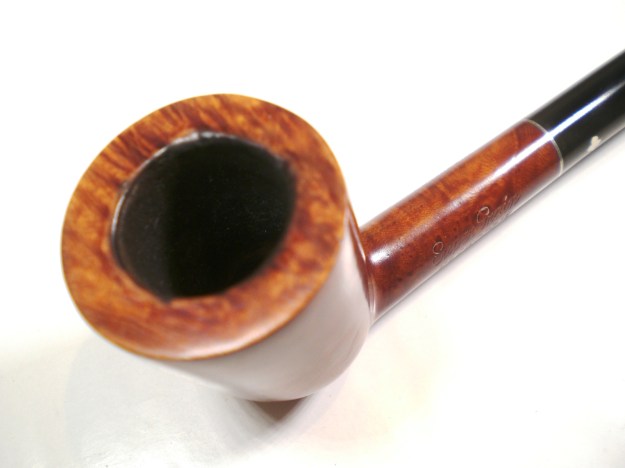

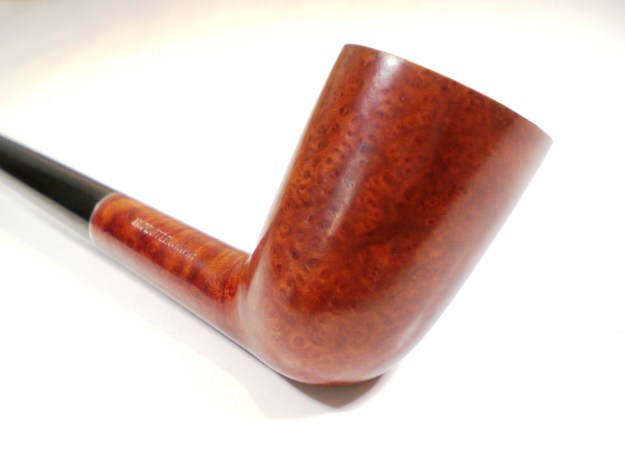

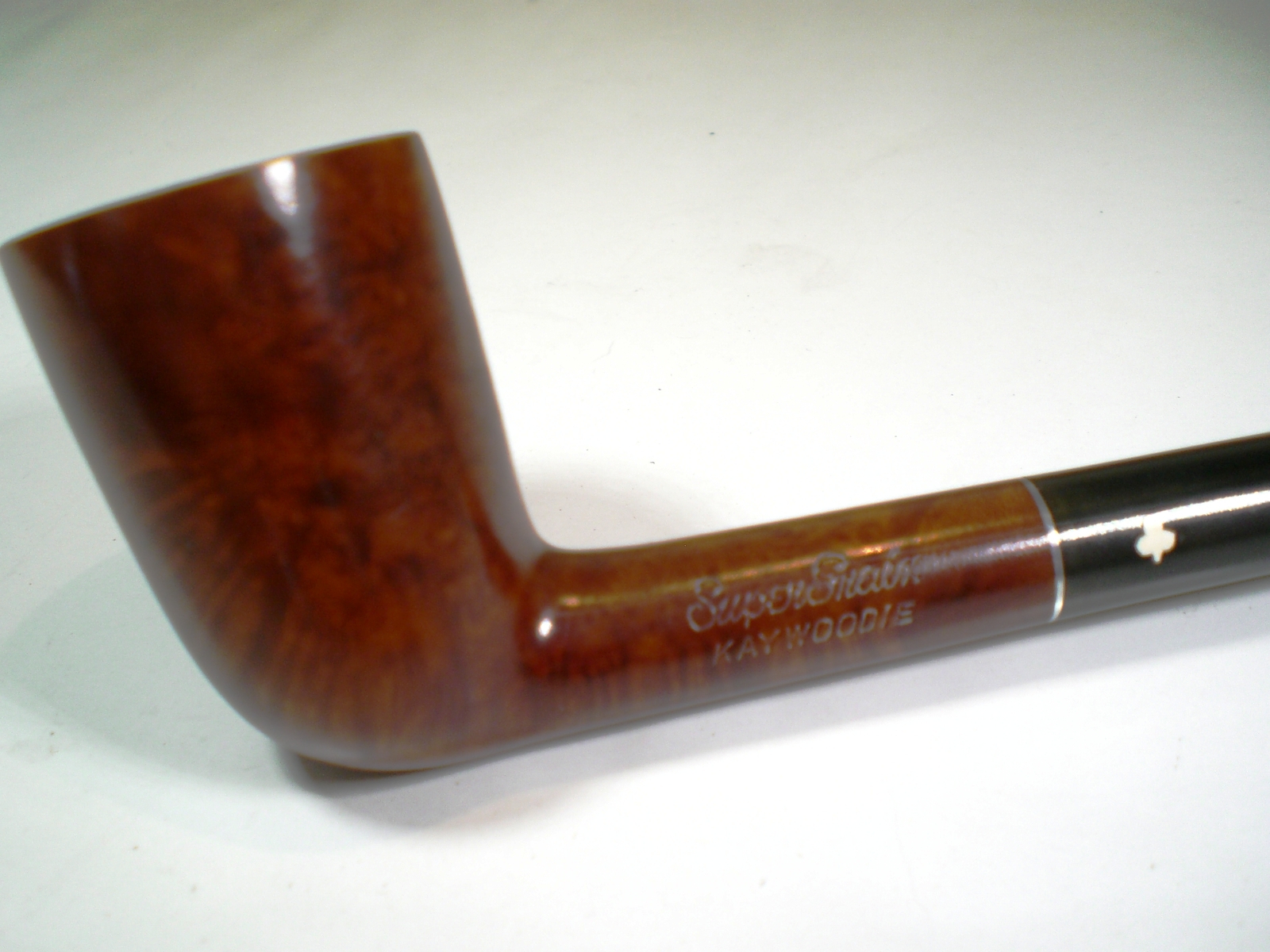

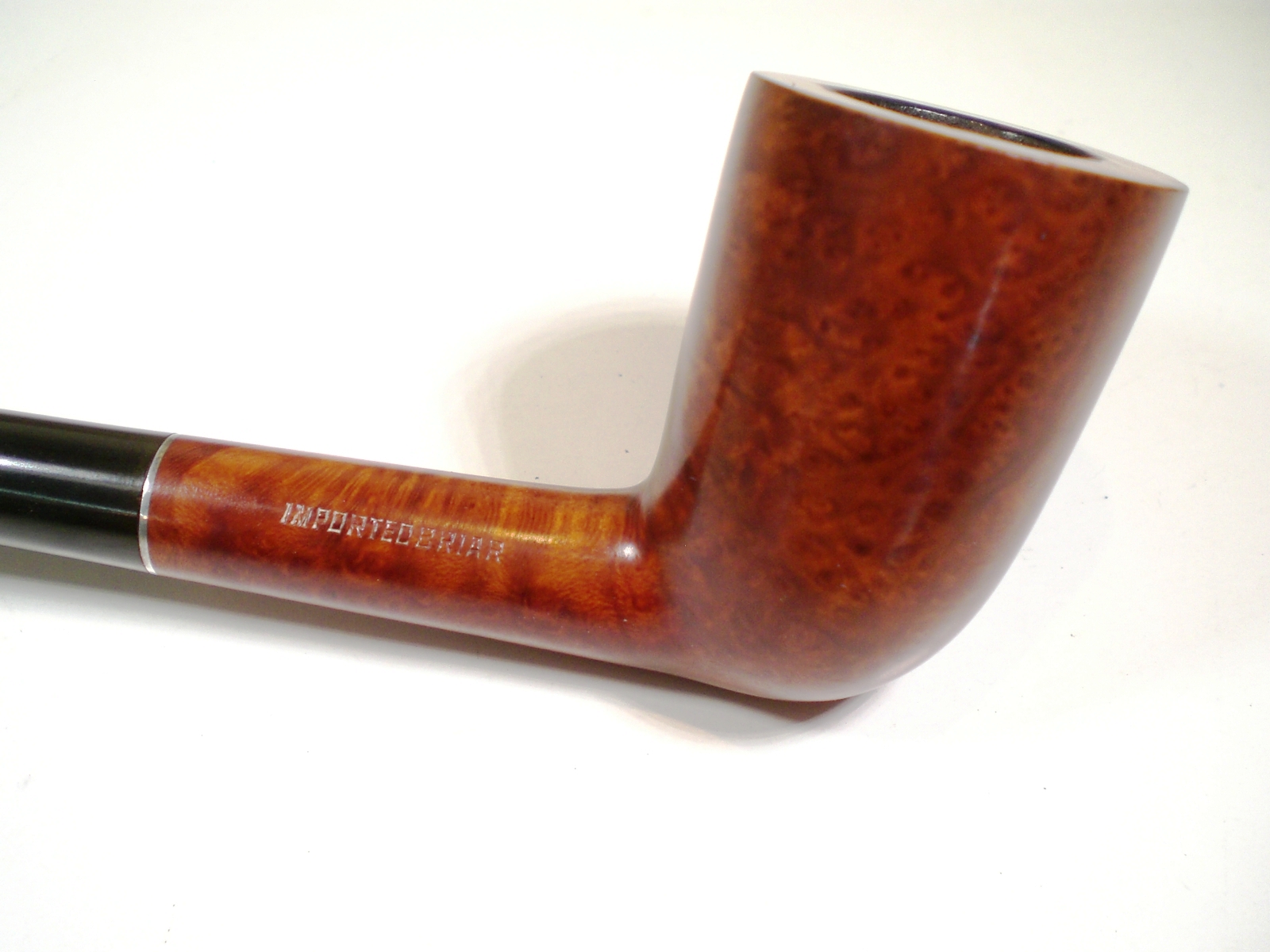

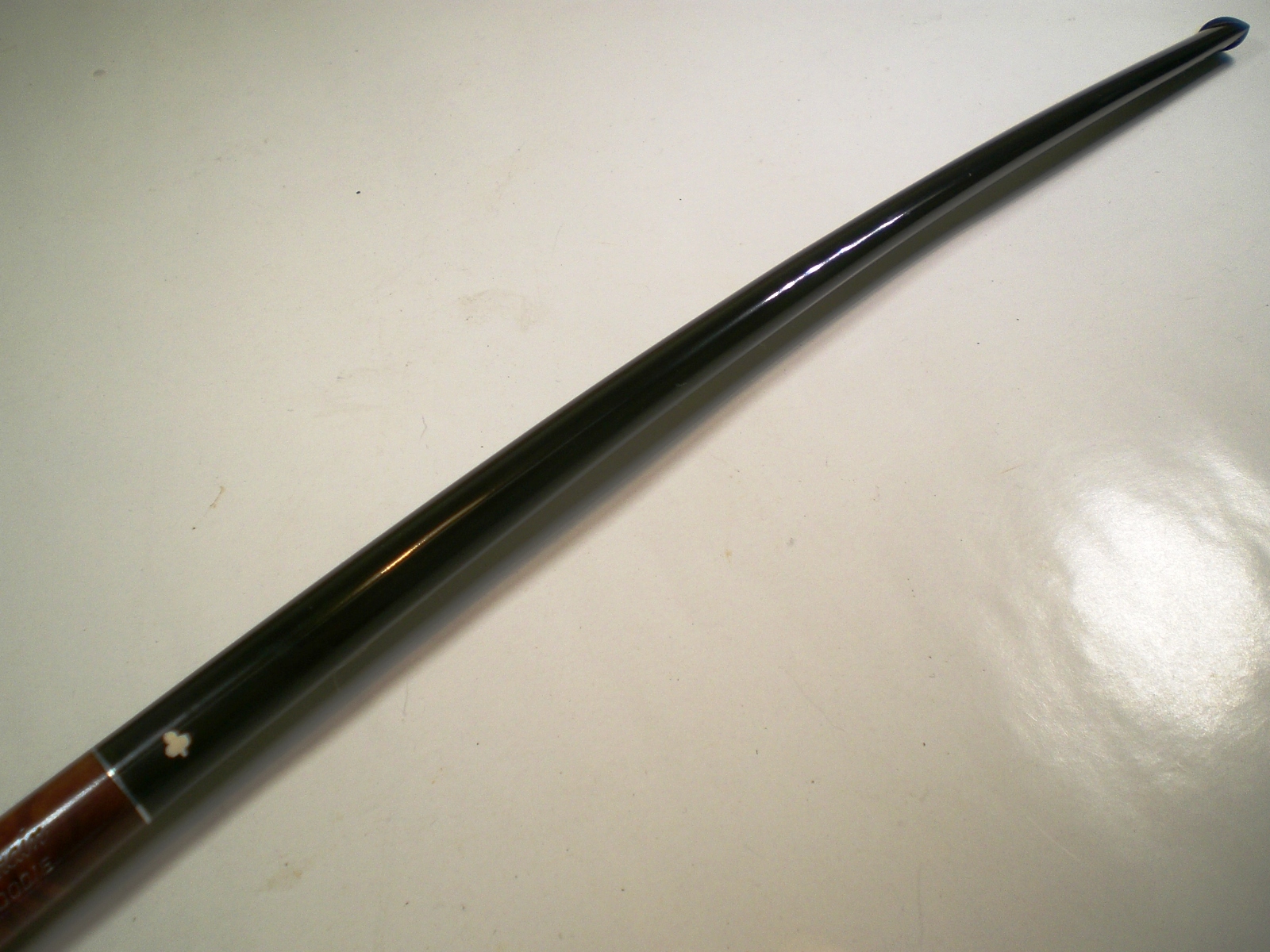

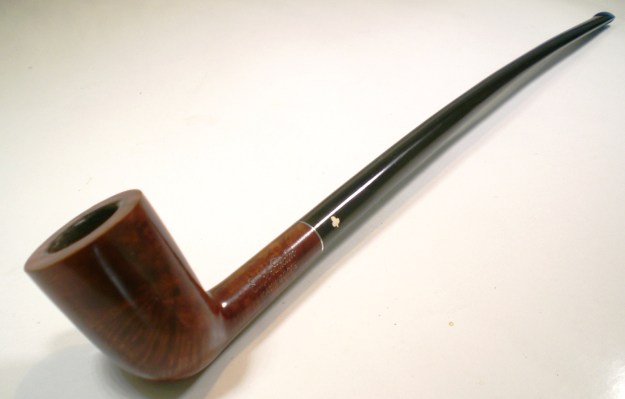

I always chose a unique pipe to smoke on Christmas Eve and I’ll save this one until that special night. Here’s the finished pipe.
